Version 5 Tree Atlas


Quercus texana

Nutall oak

noelev

Quercus texana Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus texana

USDA Plants Database entry for Quercus texana
Silvics Manual entry for Quercus texana


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Quercus nuttallii27010280TBD

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_texana_final Occurrences

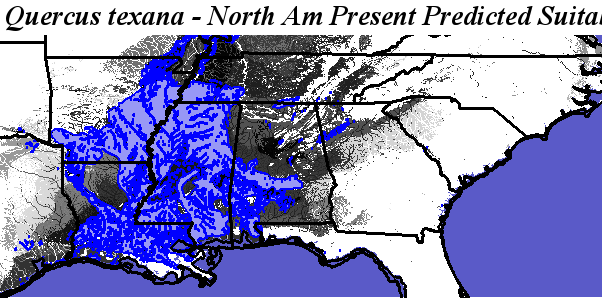

Hargroves Present Suitable Range Outline for Quercus_texana_final
Quercus texana - Occurrence Locations Quercus texana - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_texana_final.3.conus
Quercus_texana_final.3.global
Quercus texana - CONUS
Compare with Current Range from the Silvics Manual for Quercus texana
Compare with Current Range from Biota of North America Program (BONAP) for Quercus texana

Quercus texana not modeled by Iverson and Prasad
Quercus texana not modeled by Crookston and Rehfeldt
Quercus texana not modeled by Coops and Waring

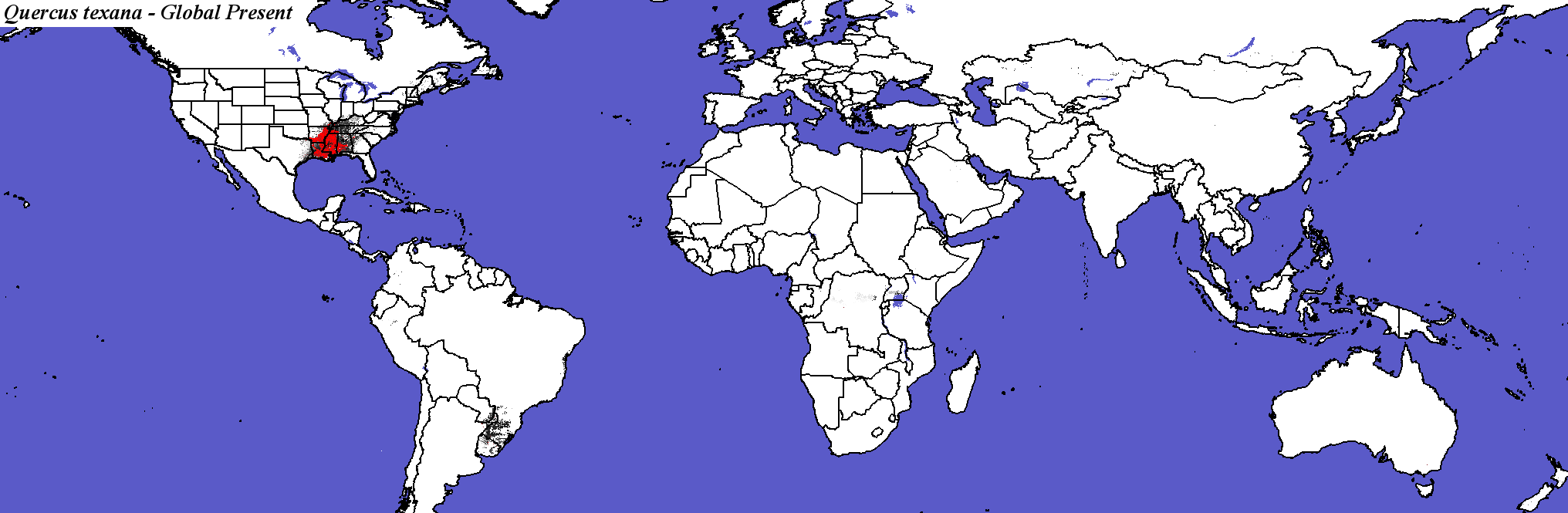

Quercus texana - Global

PCM - Parallel Climate Model
Quercus_texana_final.3.conus
Quercus_texana_final.3.global

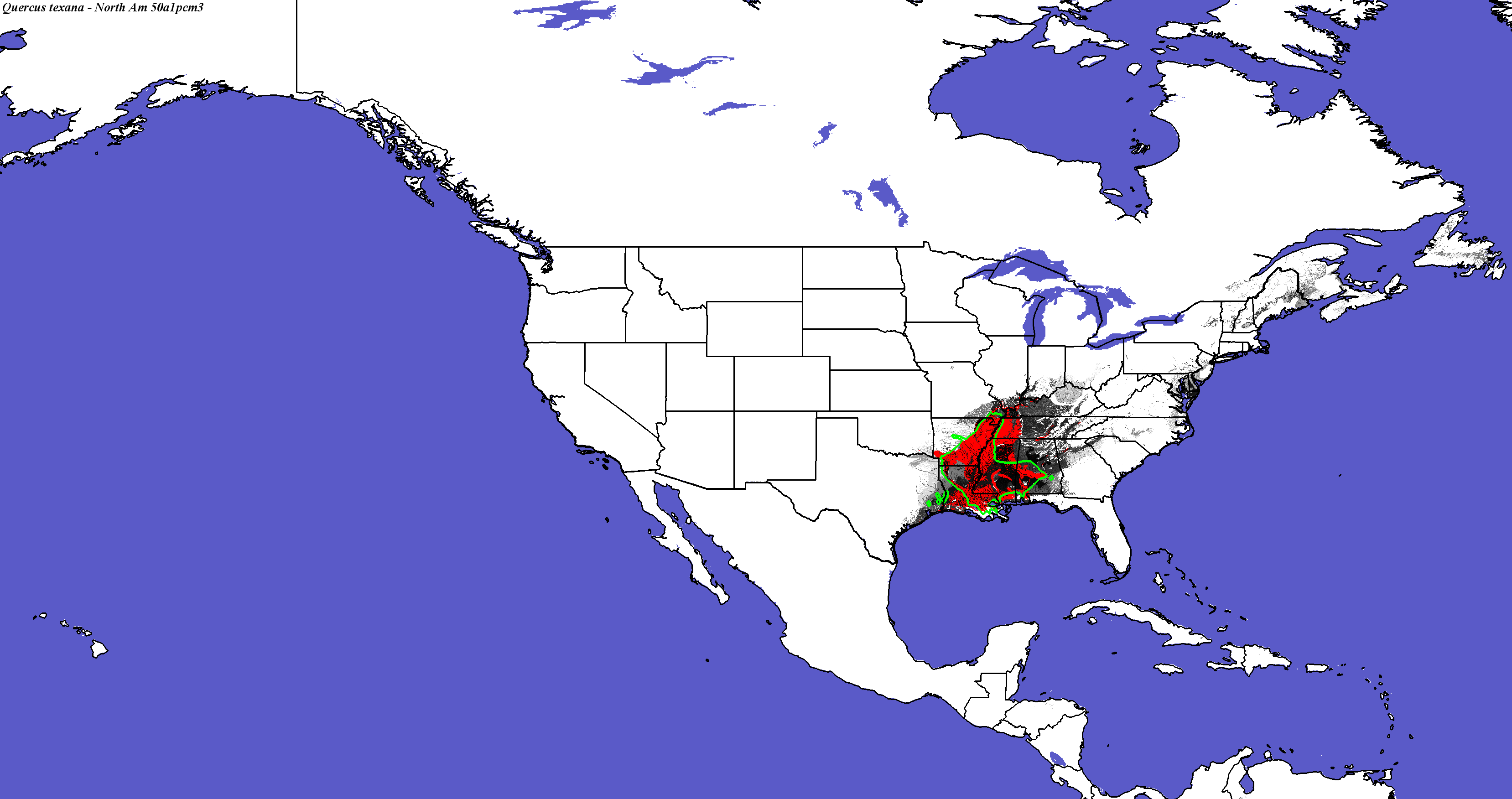

PCM, Scenario A1FI, 2050 - Quercus texana - CONUS

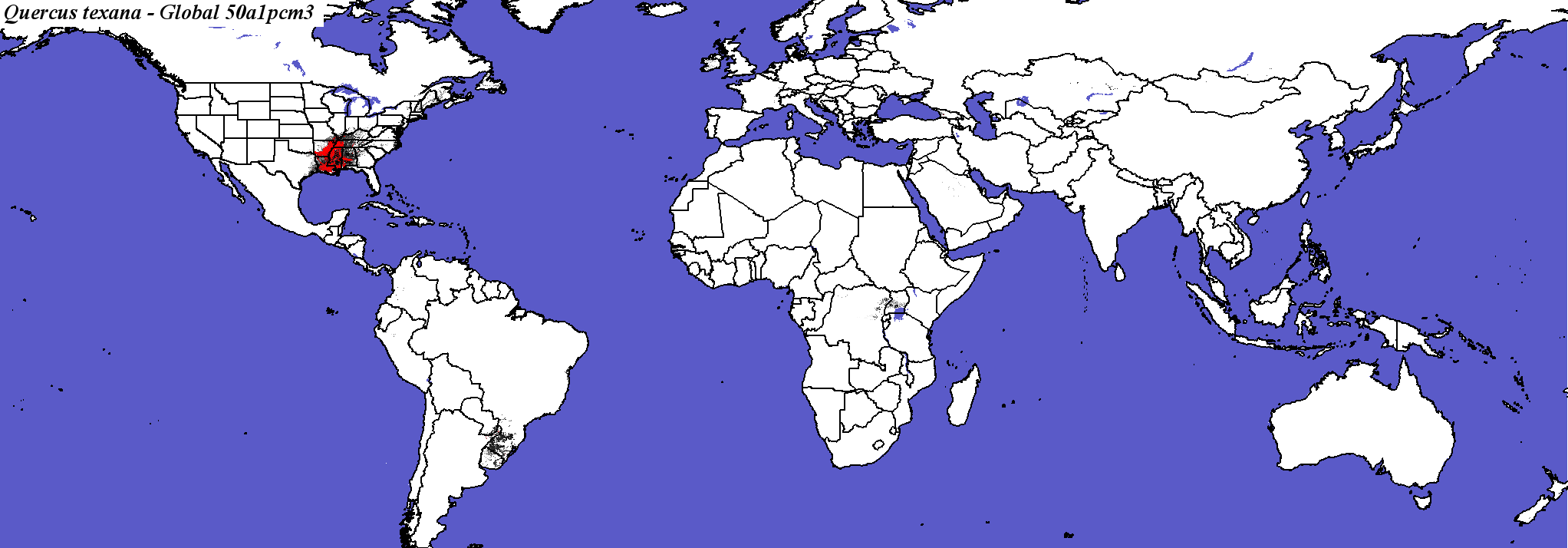

PCM, Scenario A1FI, 2050 - Quercus texana - Global
Quercus_texana_final.3.conus
Quercus_texana_final.3.global
PCM, Scenario A1FI, 2100 - Quercus texana - CONUS
Quercus texana species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Quercus texana - Global

Quercus_texana_final.3.conus
Quercus_texana_final.3.global

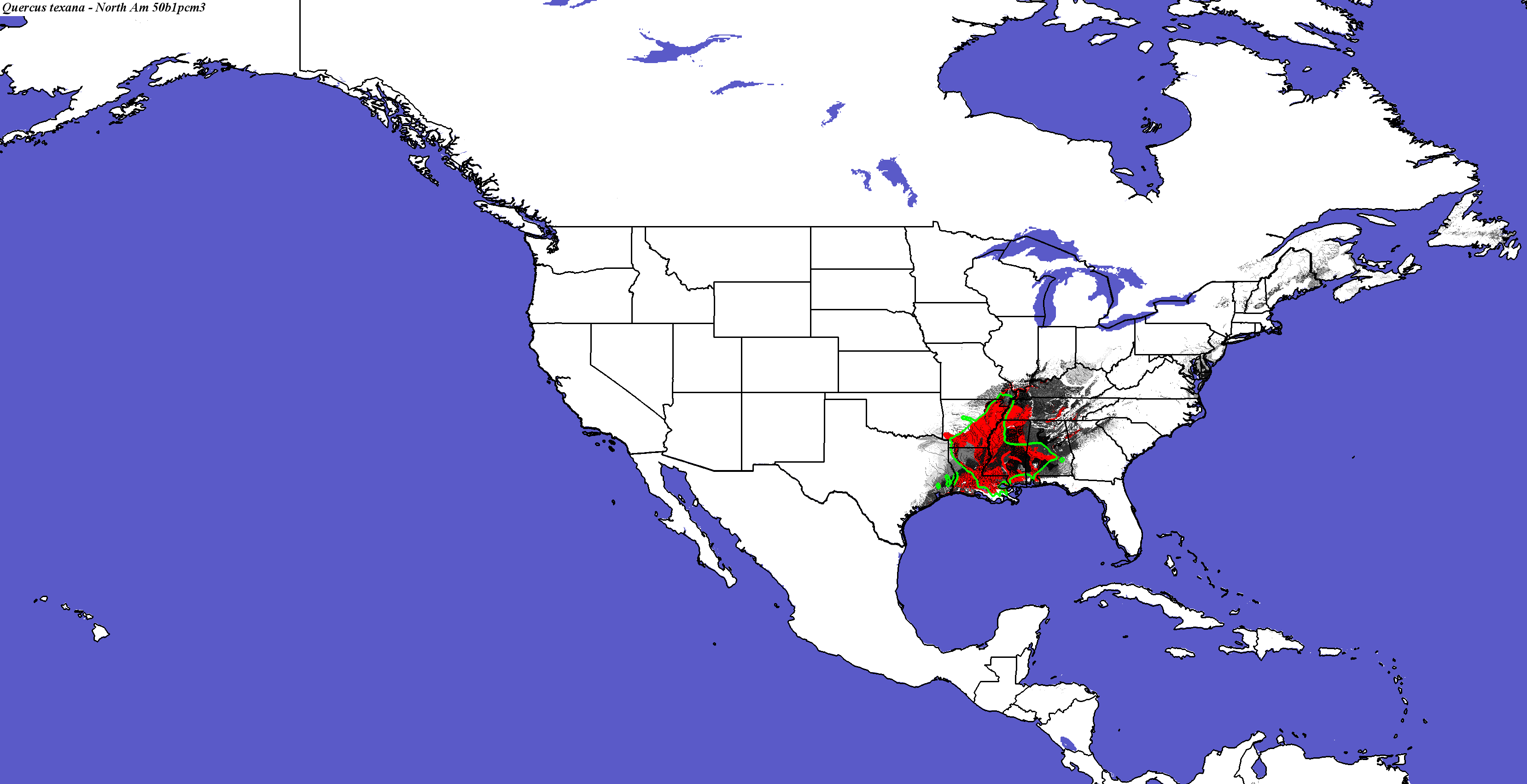

PCM, Scenario B1, 2050 - Quercus texana - CONUS

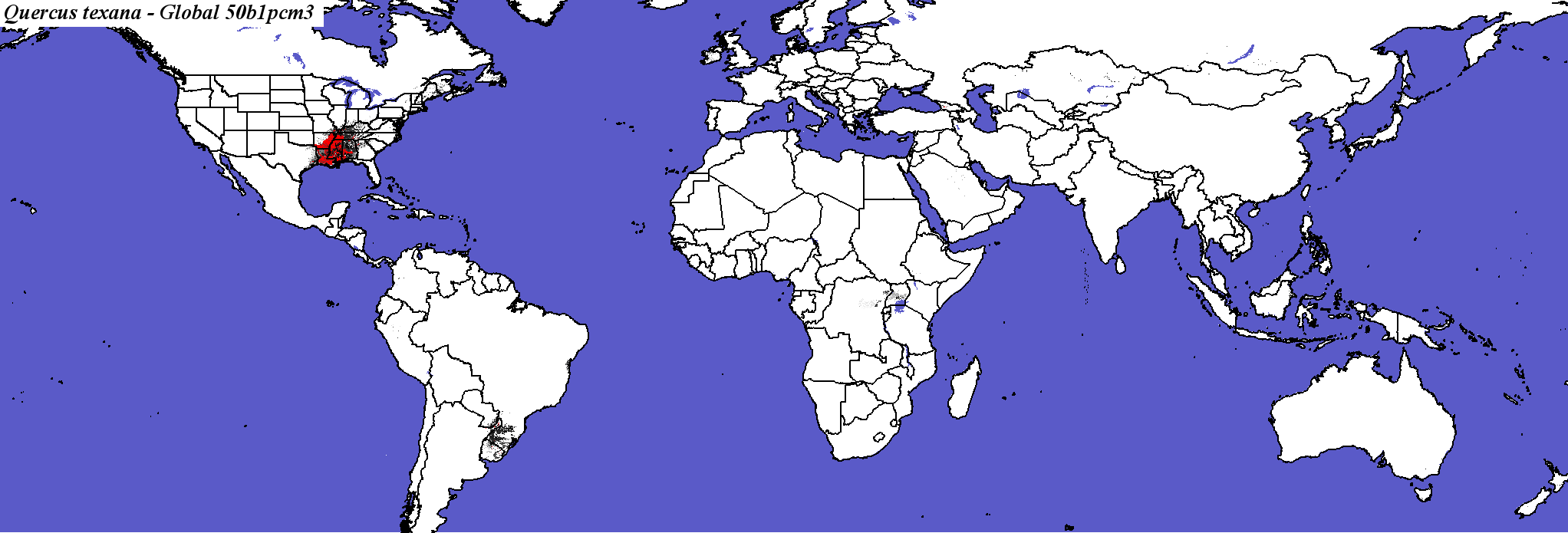

PCM, Scenario B1, 2050 - Quercus texana - Global
Quercus_texana_final.3.conus
Quercus_texana_final.3.global
PCM, Scenario B1, 2100 - Quercus texana - CONUS
Quercus texana not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus texana - Global

Hadley Climate Model
Quercus_texana_final.3.conus
Quercus_texana_final.3.global
Hadley, Scenario A1FI, 2050 - Quercus texana - CONUS
Quercus texana not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Quercus texana - Global
Quercus_texana_final.3.conus
Quercus_texana_final.3.global.
Hadley, Scenario A1FI, 2100 - Quercus texana - CONUS
Quercus texana not modeled by Iverson and Prasad
Quercus texana not modeled by Crookston and Rehfeldt
Quercus texana not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Quercus texana - Global

Quercus_texana_final.3.conus
Quercus_texana_final.3.global.
Hadley, Scenario B1, 2050 - Quercus texana - CONUS
Quercus texana not modeled by Crookston and Rehfeldt
Quercus texana not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Quercus texana - Global
Quercus_texana_final.3.conus
Quercus_texana_final.3.global

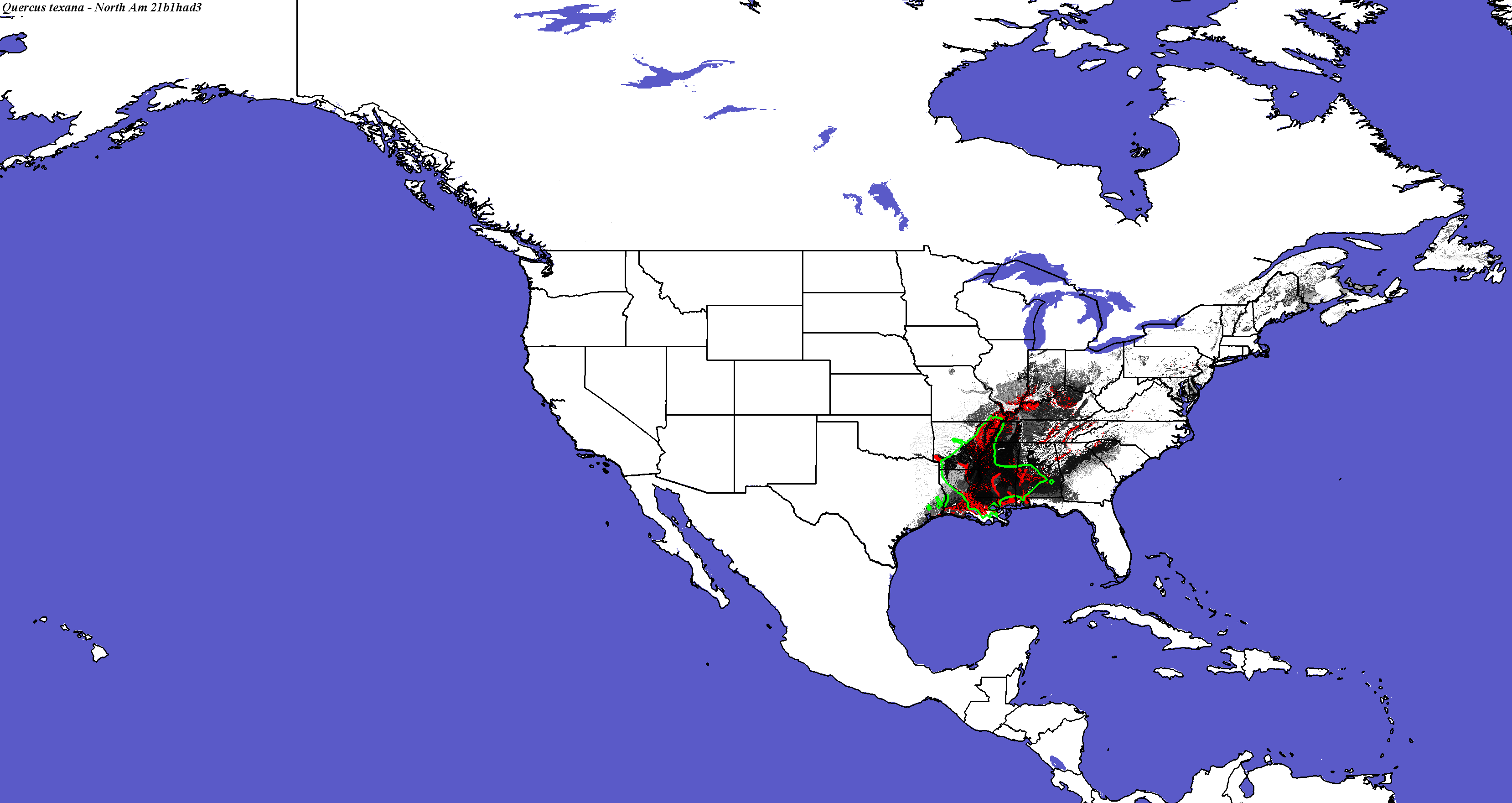

Hadley, Scenario B1, 2100 - Quercus texana - CONUS
Quercus texana not modeled by Iverson and Prasad
Quercus texana not modeled by Crookston and Rehfeldt

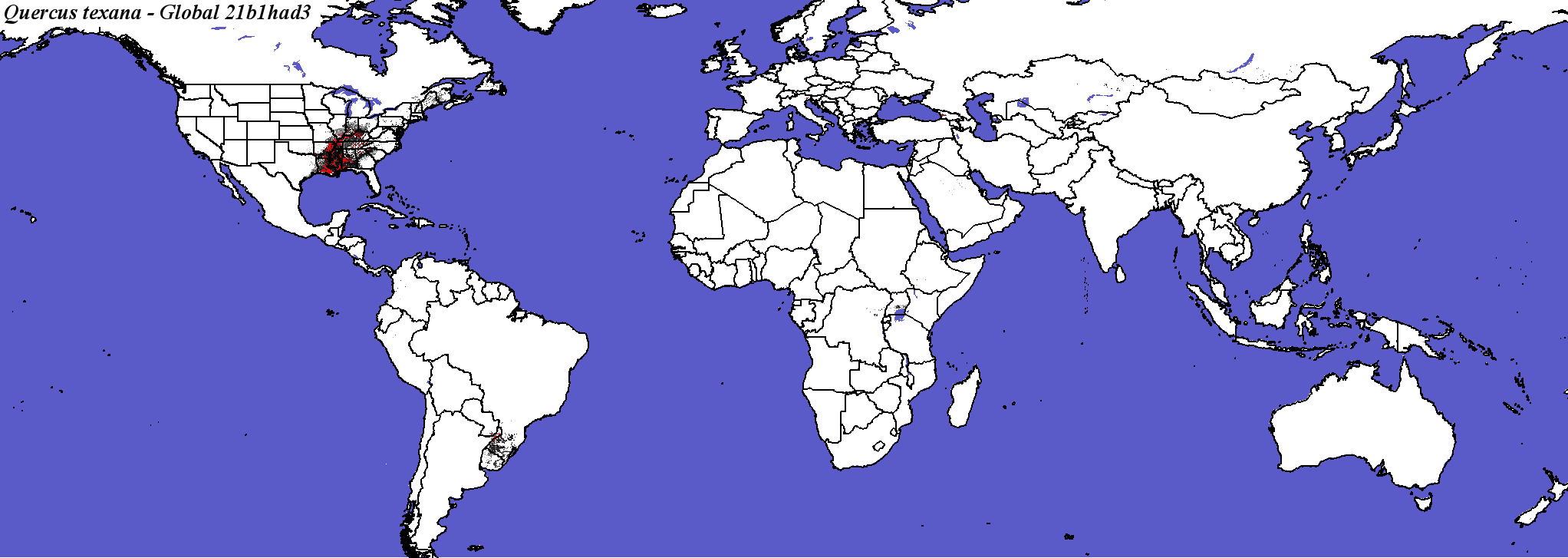

Hadley, Scenario B1, 2100 - Quercus texana - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_texana_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

25

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

53.4247

Area in Present Suitable Range (in km2)

217142

Area in Future Suitable Range (Had B1 2050, in km2)

128655

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

85561

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

39.4000

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

71.7808

Percent Change in Area of Suitable Range (Had B1 2050)

-40.7500

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

69.863

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

14639.8 +/- 17397.3

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

50.137

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

6.67843 +/- 13.14

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

53.1507

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

246.408 +/- 772.152

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

20.411

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

16111

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

7.4100

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

14.6575

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

65324

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

30.0800

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

44.3836

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus texana Quercus texana - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Quercus_texana_final.noelev Fine MRM Distance
Quercus_texana_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus texana Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus texana
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Quercus_texana_final.noelev Coarse MRM Distance
Quercus_texana_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus texana Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus texana
