Version 5 Tree Atlas


Quercus velutina

black oak

noelev

Quercus velutina Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus velutina

USDA Plants Database entry for Quercus velutina
Silvics Manual entry for Quercus velutina


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
88072399046good representation throughout most of range

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_velutina_final Occurrences

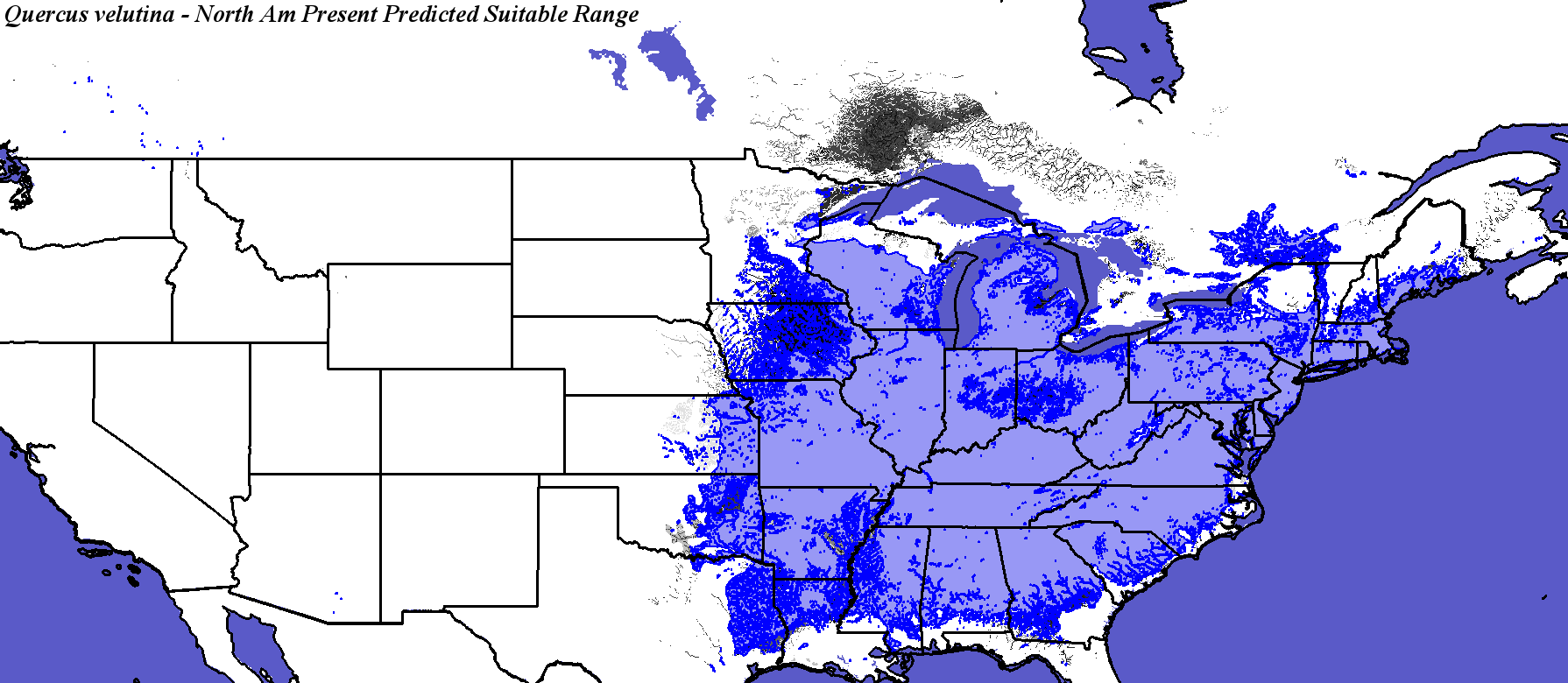

Hargroves Present Suitable Range Outline for Quercus_velutina_final
Quercus velutina - Occurrence Locations Quercus velutina - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_velutina_final.4.conus
Quercus_velutina_final.4.global

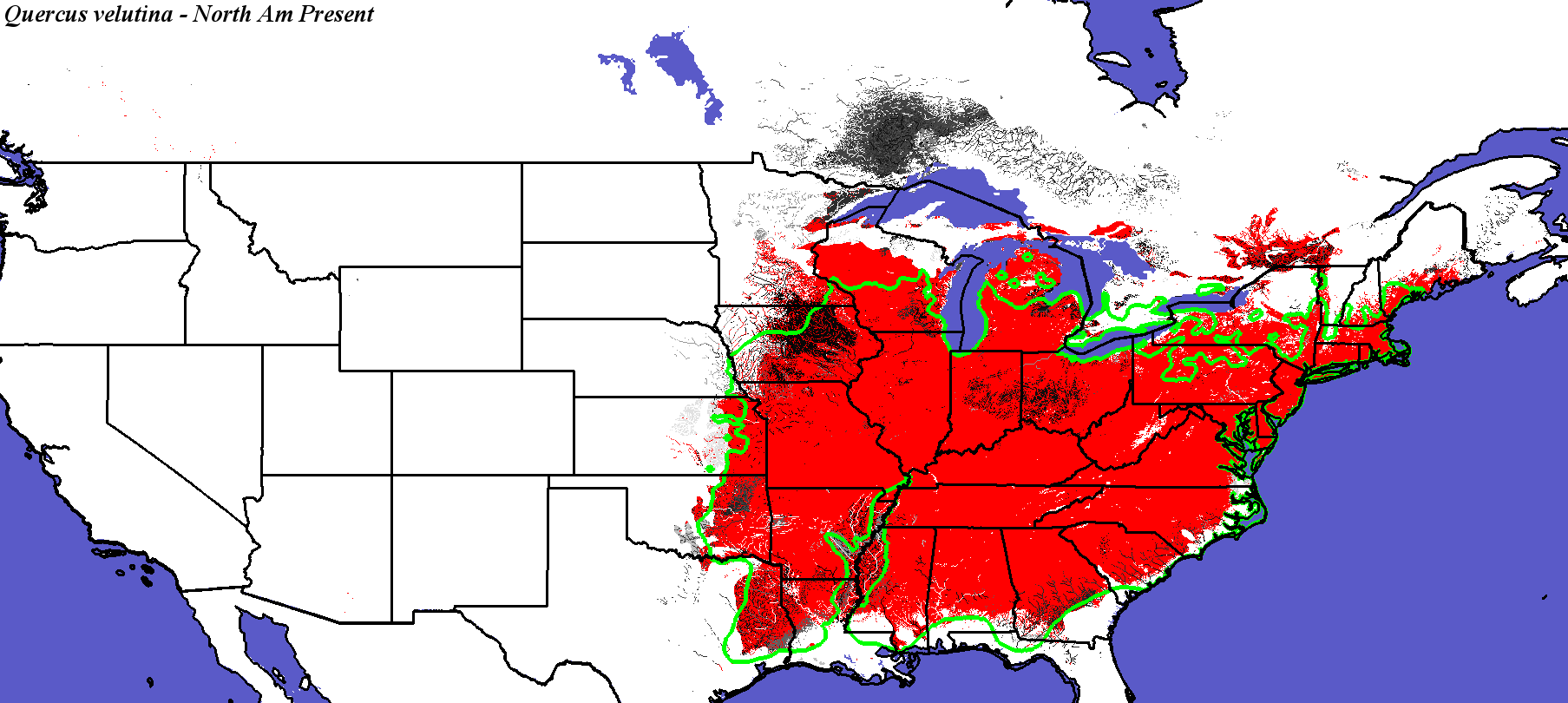

Quercus velutina - CONUS
Compare with Current Range from the Silvics Manual for Quercus velutina
Compare with Current Range from Biota of North America Program (BONAP) for Quercus velutina

Compare with Quercus velutina modeled for Current conditions by Iverson and Prasad
Quercus velutina not modeled by Crookston and Rehfeldt
Quercus velutina not modeled by Coops and Waring

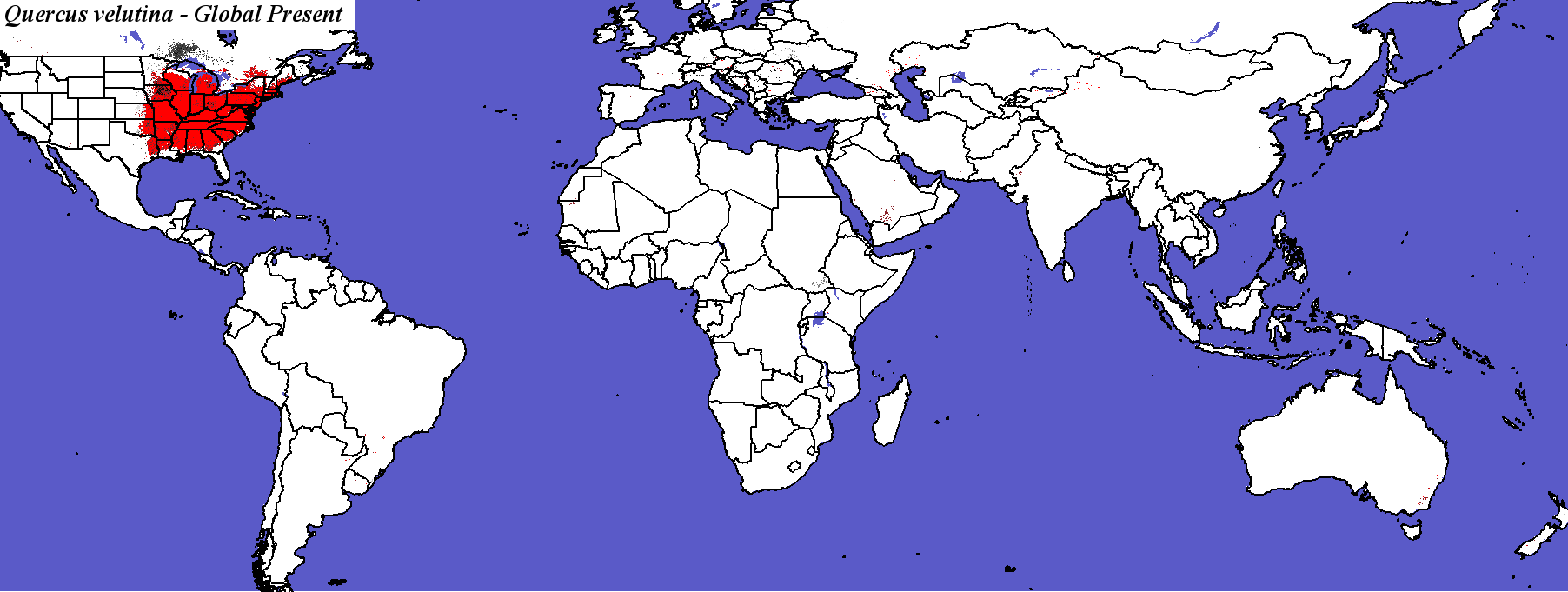

Quercus velutina - Global

PCM - Parallel Climate Model
Quercus_velutina_final.4.conus
Quercus_velutina_final.4.global

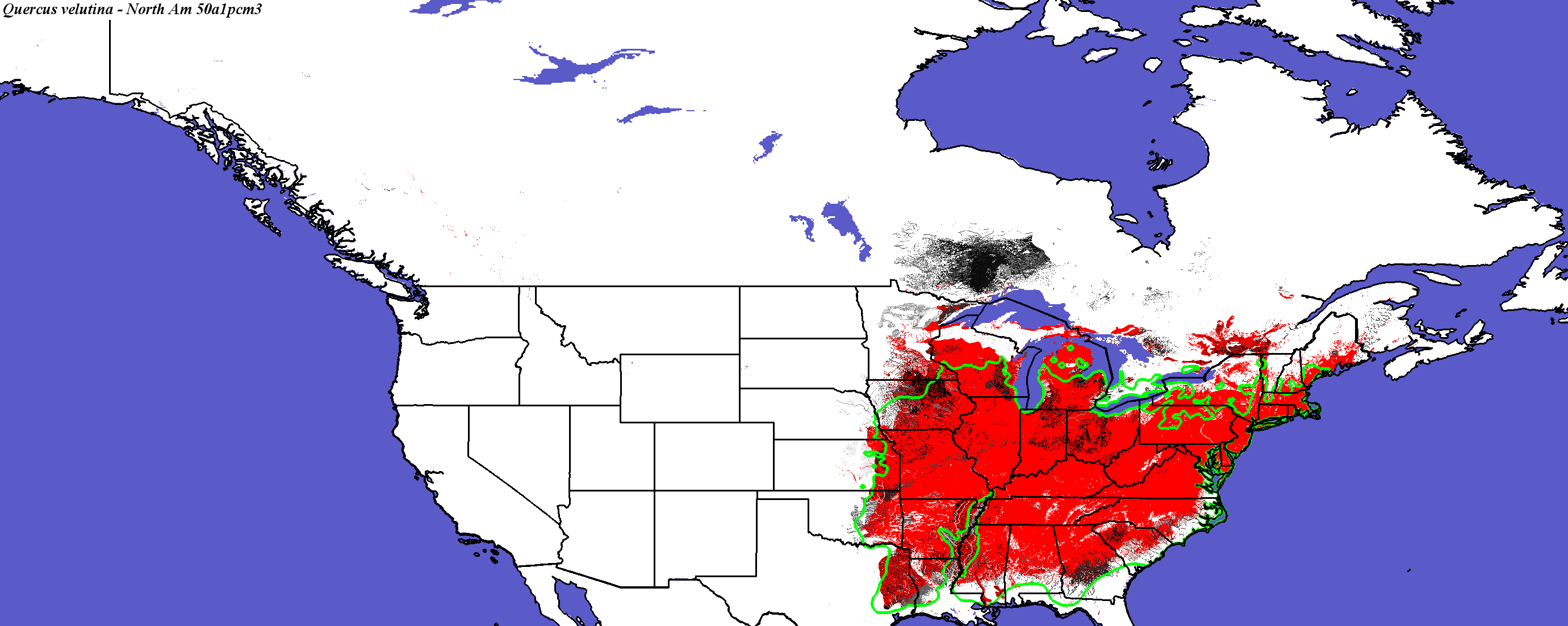

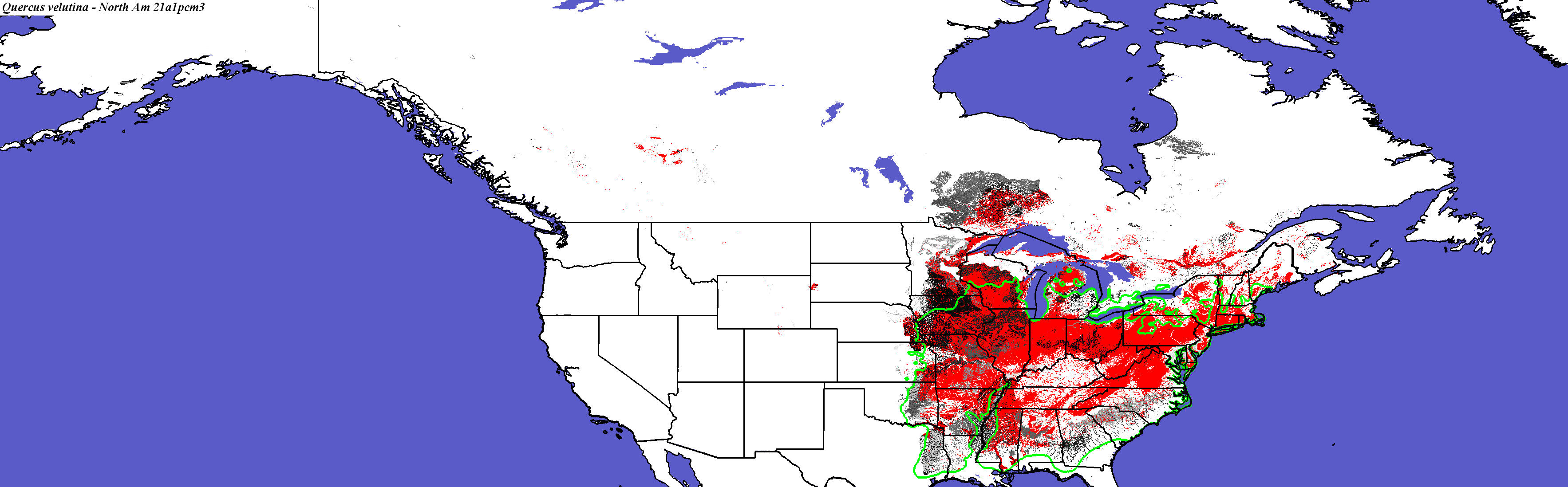

PCM, Scenario A1FI, 2050 - Quercus velutina - CONUS

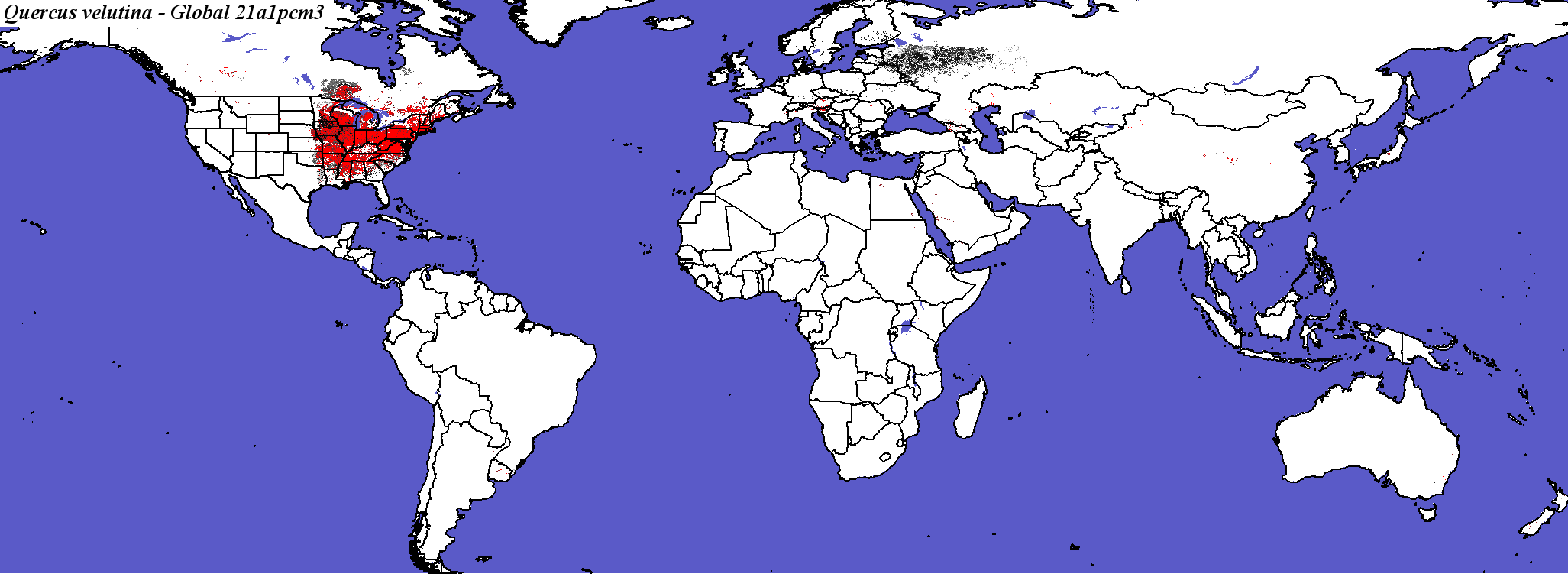

PCM, Scenario A1FI, 2050 - Quercus velutina - Global
Quercus_velutina_final.4.conus
Quercus_velutina_final.4.global
PCM, Scenario A1FI, 2100 - Quercus velutina - CONUS
Compare with Quercus velutina modeled for PCM A1FI in 2100 by Iverson and Prasad

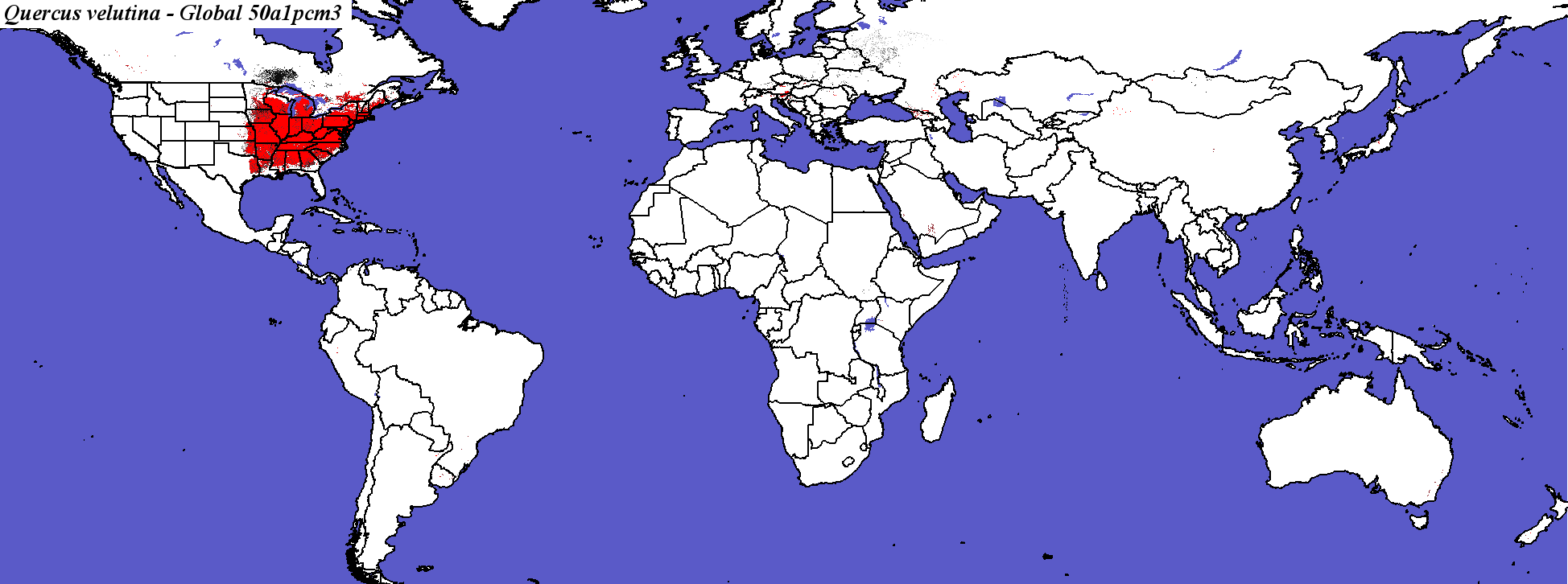

PCM, Scenario A1FI, 2100 - Quercus velutina - Global

Quercus_velutina_final.4.conus
Quercus_velutina_final.4.global

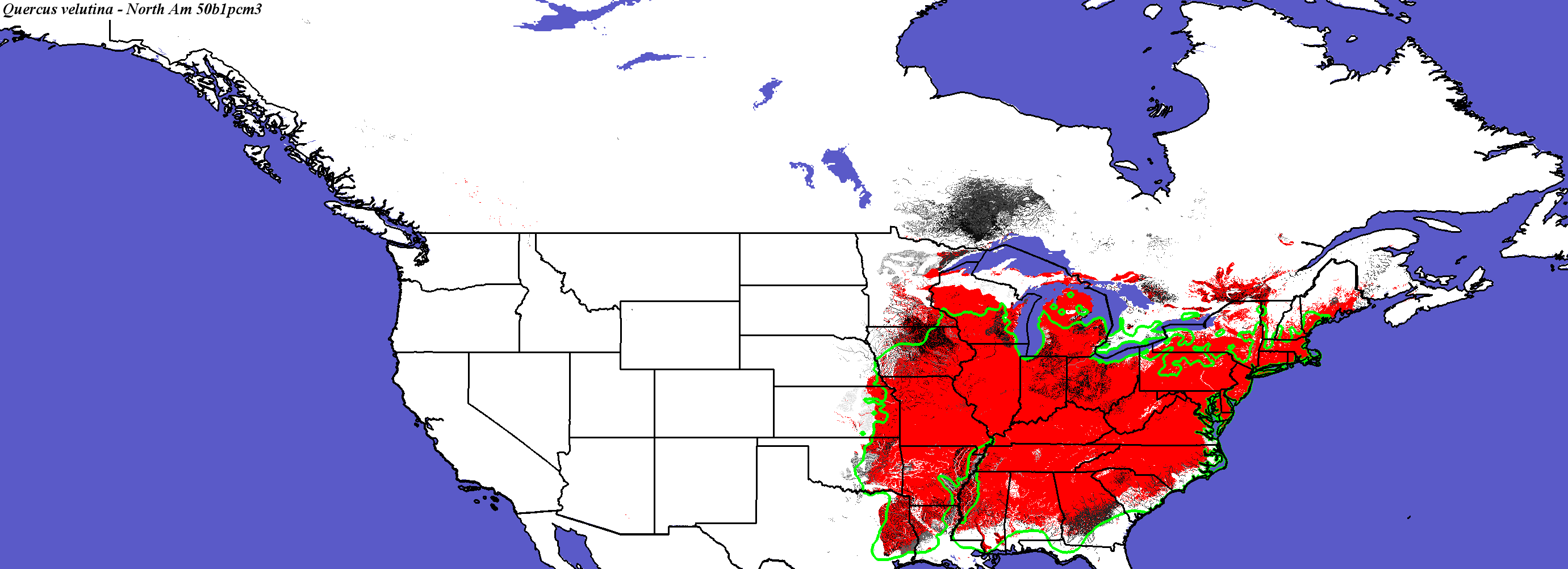

PCM, Scenario B1, 2050 - Quercus velutina - CONUS

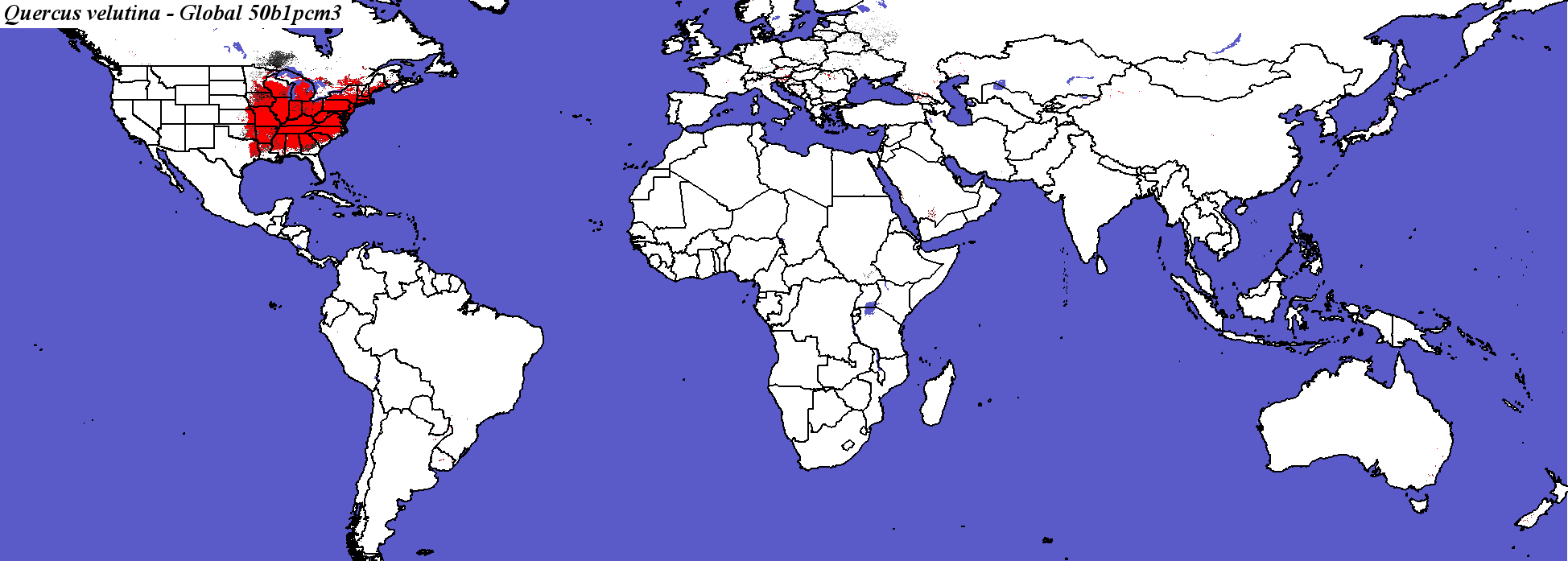

PCM, Scenario B1, 2050 - Quercus velutina - Global
Quercus_velutina_final.4.conus
Quercus_velutina_final.4.global
PCM, Scenario B1, 2100 - Quercus velutina - CONUS
Compare with Quercus velutina modeled for PCM B1 in 2100 by Iverson and Prasad

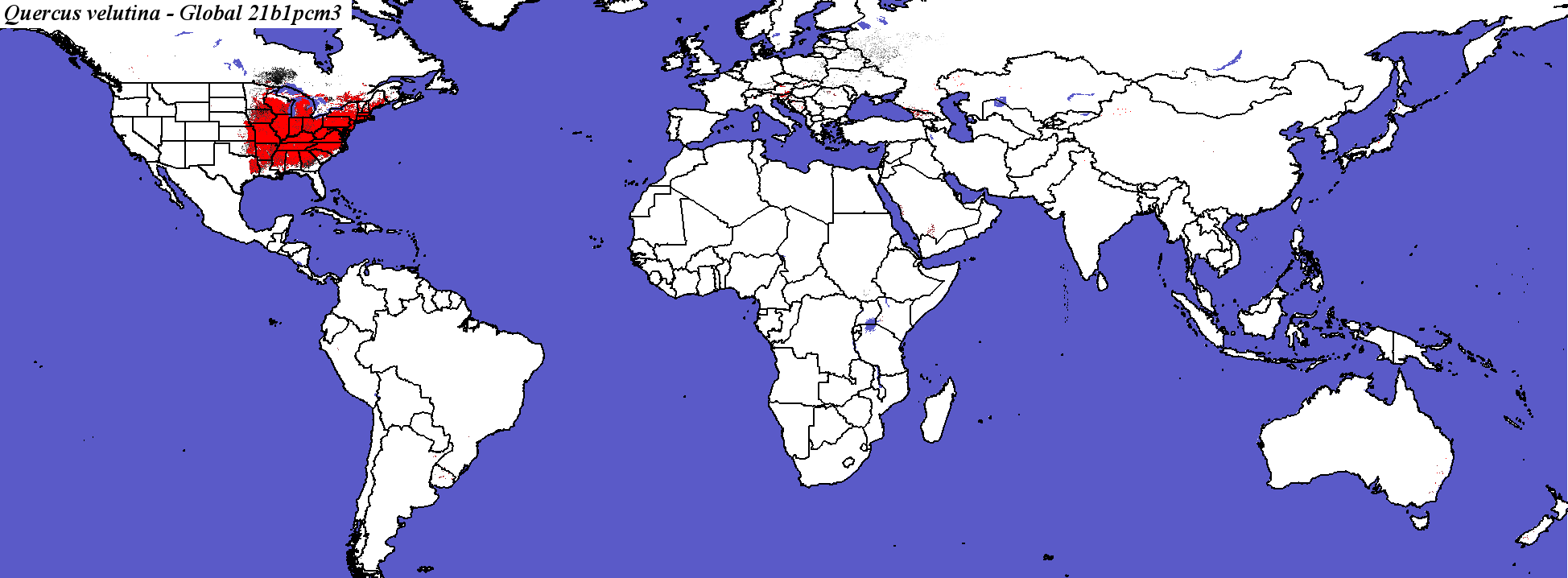

PCM, Scenario B1, 2100 - Quercus velutina - Global

Hadley Climate Model
Quercus_velutina_final.4.conus
Quercus_velutina_final.4.global

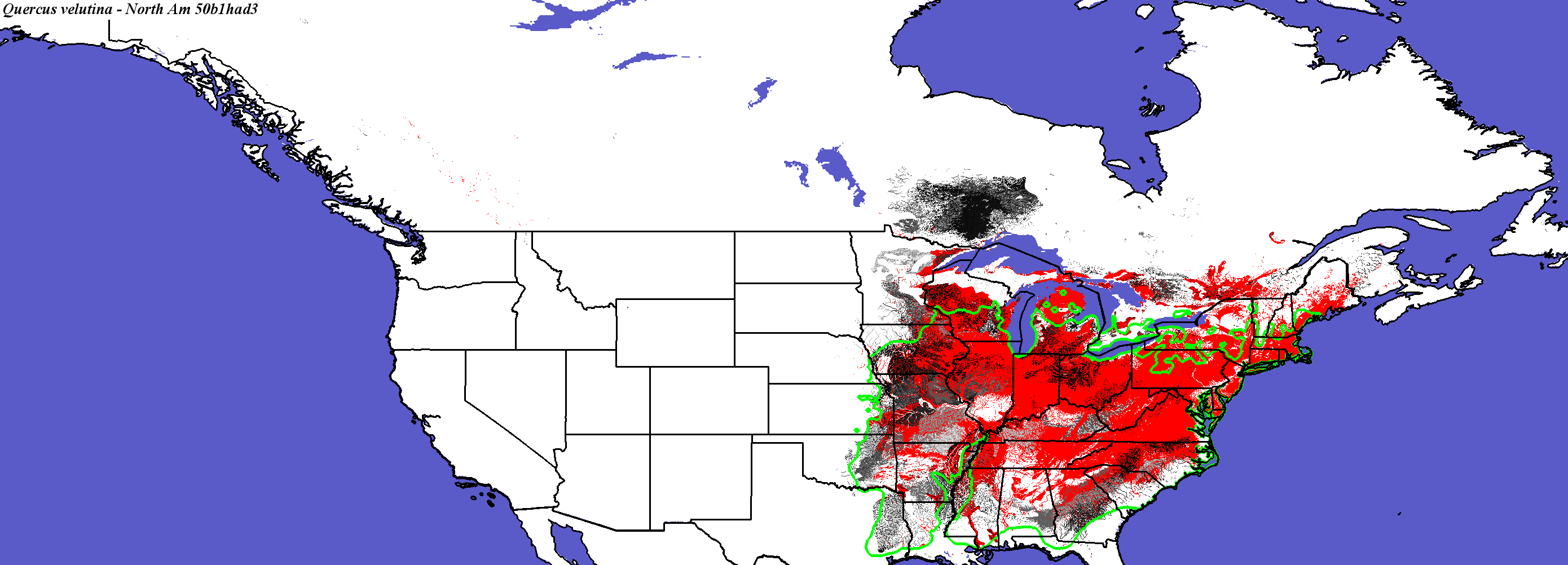

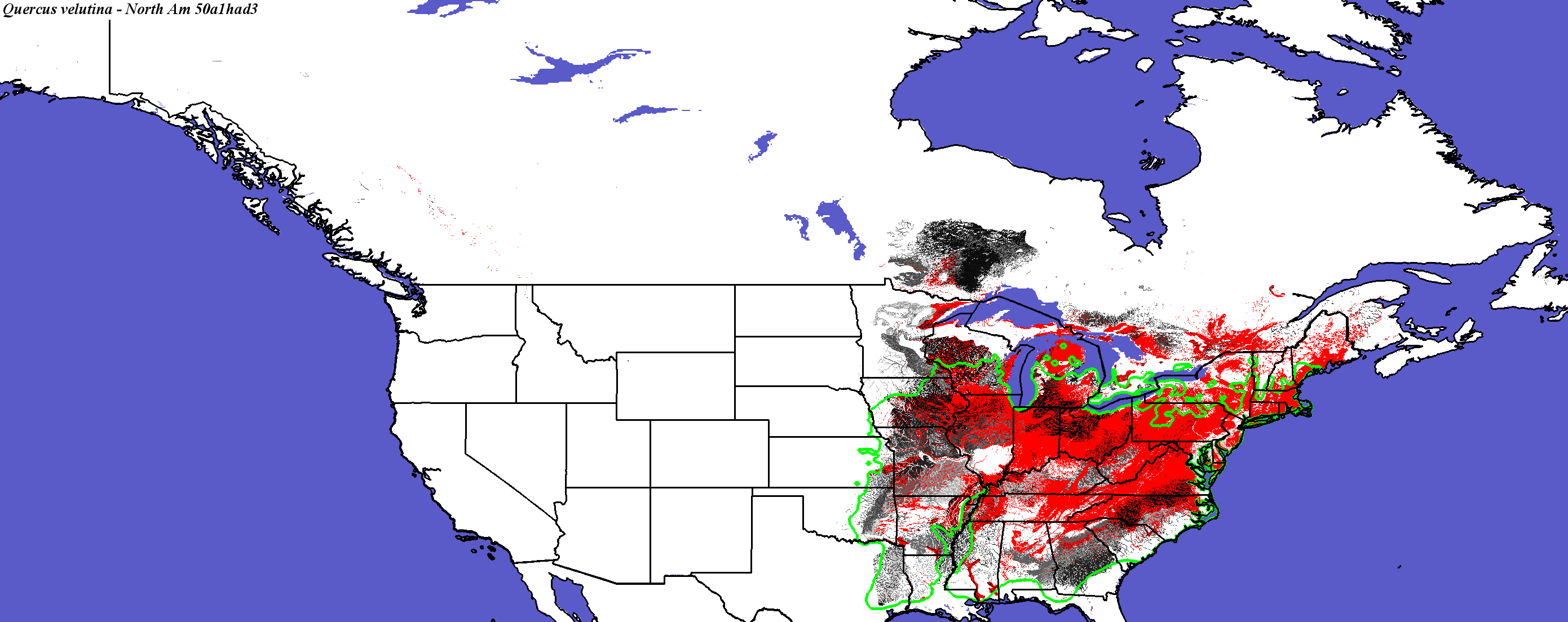

Hadley, Scenario A1FI, 2050 - Quercus velutina - CONUS
Quercus velutina not modeled by Crookston and Rehfeldt

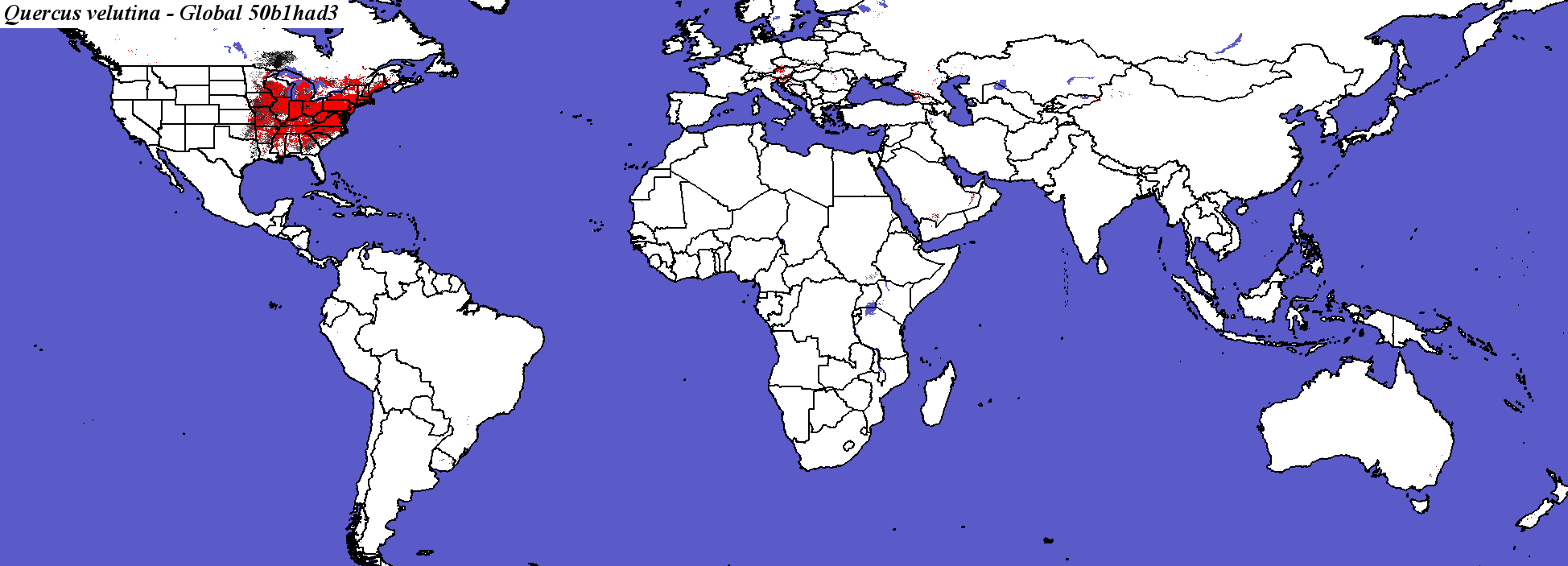

Hadley, Scenario A1FI, 2050 - Quercus velutina - Global
Quercus_velutina_final.4.conus
Quercus_velutina_final.4.global.

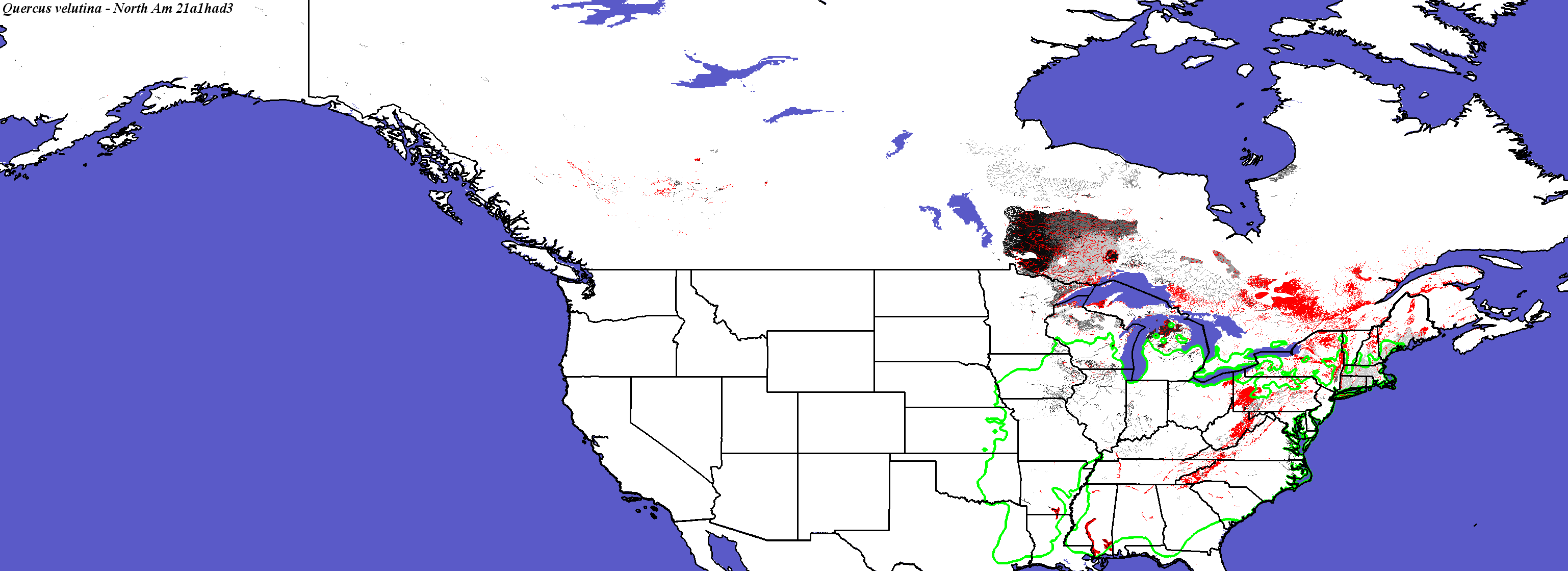

Hadley, Scenario A1FI, 2100 - Quercus velutina - CONUS
Compare with Quercus velutina modeled for Hadley A1FI in 2100 by Iverson and Prasad
Quercus velutina not modeled by Crookston and Rehfeldt
Quercus velutina not modeled by Coops and Waring

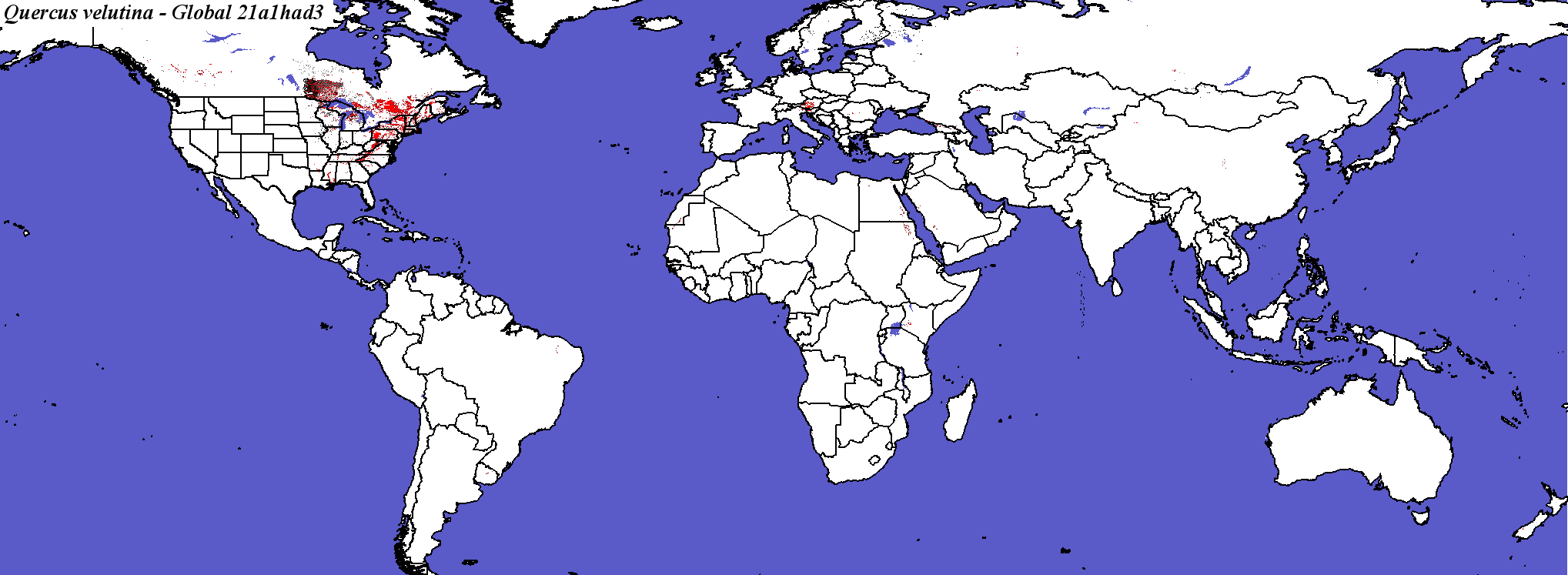

Hadley, Scenario A1FI, 2100 - Quercus velutina - Global

Quercus_velutina_final.4.conus
Quercus_velutina_final.4.global.

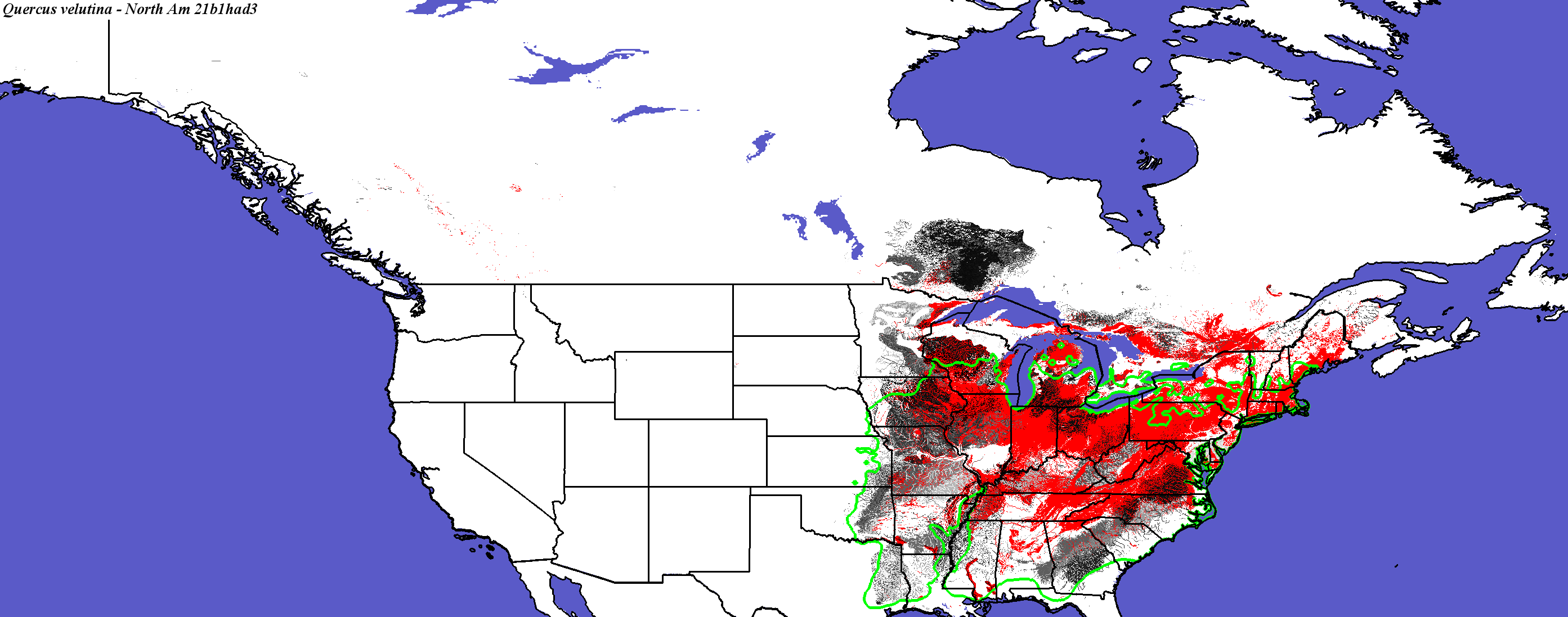

Hadley, Scenario B1, 2050 - Quercus velutina - CONUS
Quercus velutina not modeled by Crookston and Rehfeldt
Quercus velutina not modeled by Coops and Waring

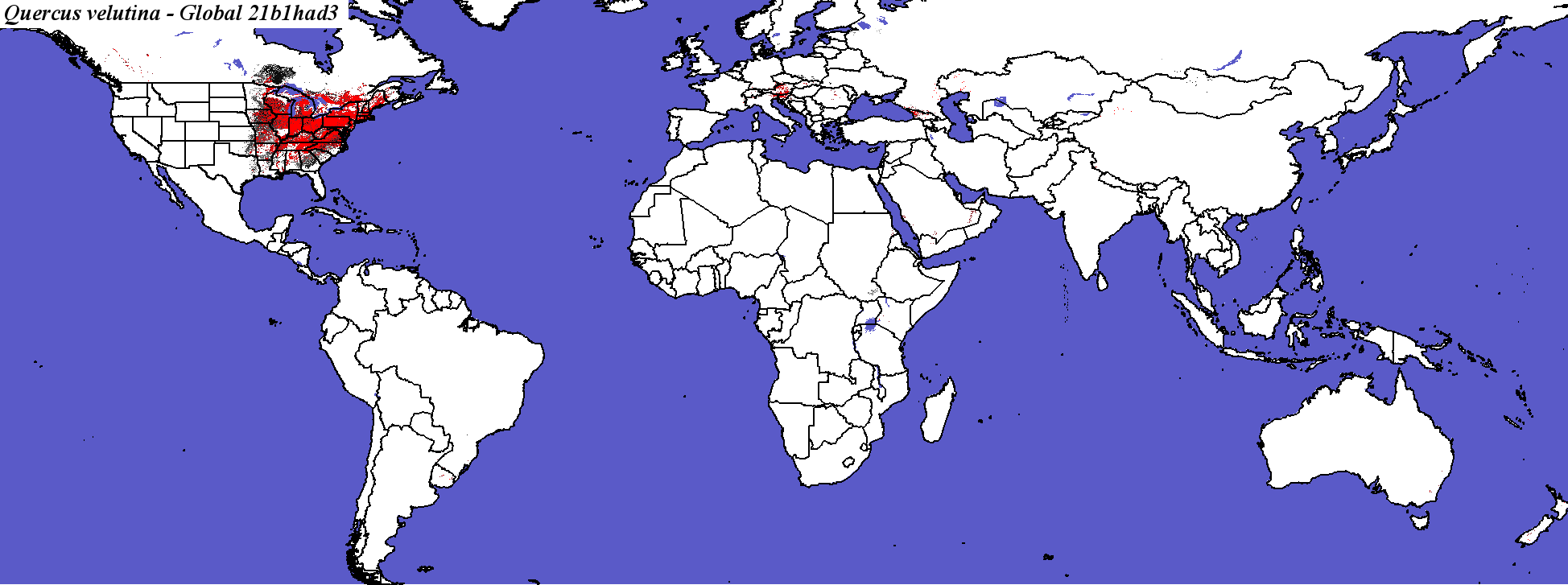

Hadley, Scenario B1, 2050 - Quercus velutina - Global
Quercus_velutina_final.4.conus
Quercus_velutina_final.4.global
Hadley, Scenario B1, 2100 - Quercus velutina - CONUS
Compare with Quercus velutina modeled for Hadley B1 in 2100 by Iverson and Prasad
Quercus velutina not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Quercus velutina - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_velutina_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

291

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

3.42466

Area in Present Suitable Range (in km2)

2221825

Area in Future Suitable Range (Had B1 2050, in km2)

1429568

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

1253452

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

56.4100

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

34.1096

Percent Change in Area of Suitable Range (Had B1 2050)

-35.6500

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

60.8219

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

8830.67 +/- 16888.1

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

73.0137

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

4.51922 +/- 10.3199

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

69.4521

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

180.342 +/- 619.902

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

30.6849

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

100930

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

4.5400

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

27.6712

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

460869

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

20.7400

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

67.1233

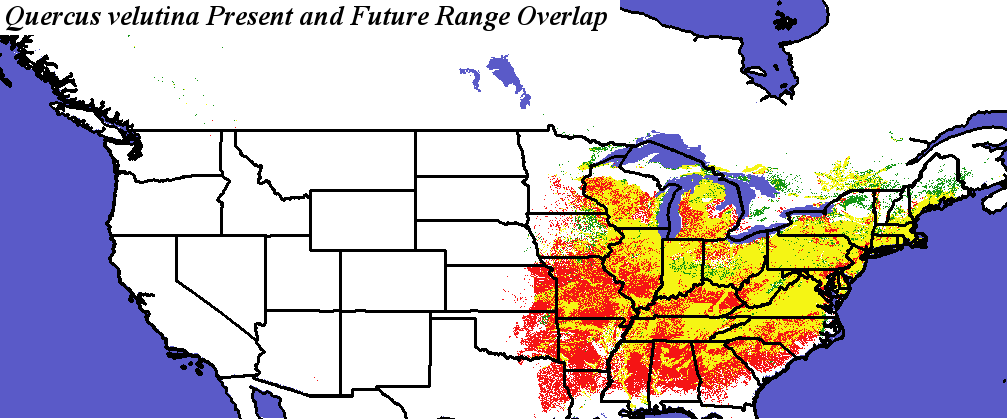

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus velutina Quercus velutina - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

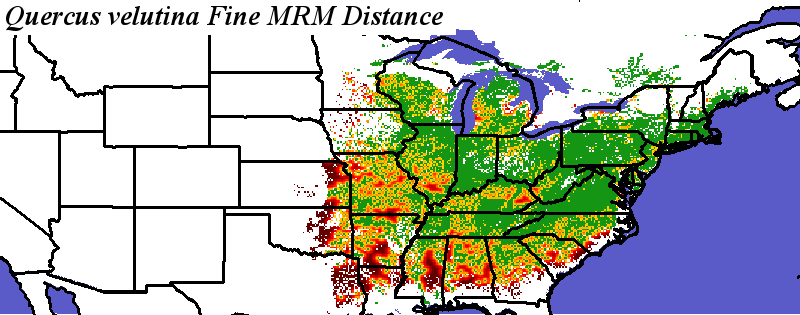

Quercus_velutina_final.noelev Fine MRM Distance

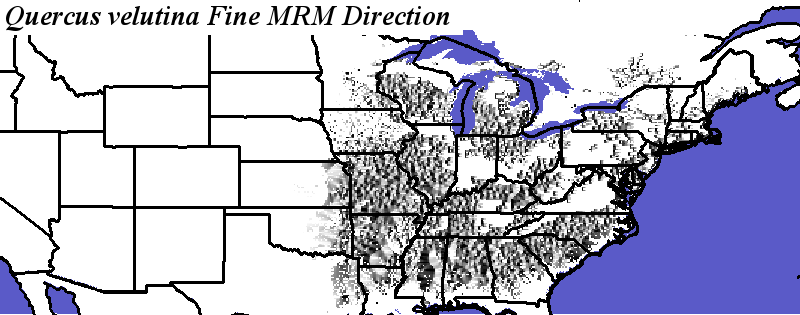

Quercus_velutina_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus velutina Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus velutina
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

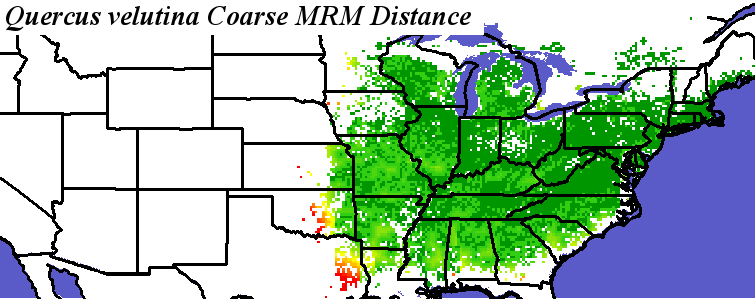

Quercus_velutina_final.noelev Coarse MRM Distance

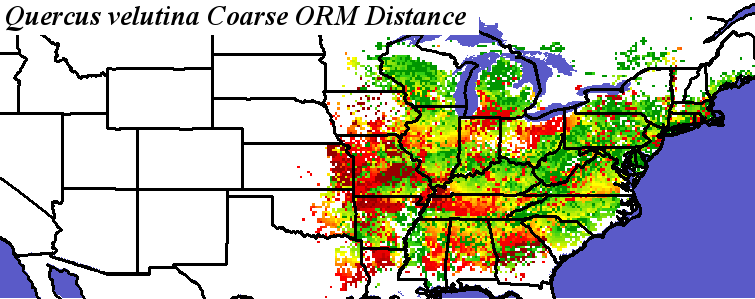

Quercus_velutina_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus velutina Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus velutina
