Version 5 Tree Atlas


Thuja plicata

western redcedar

noelev

Thuja plicata Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Thuja plicata

USDA Plants Database entry for Thuja plicata
Silvics Manual entry for Thuja plicata


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
10991301229TBD

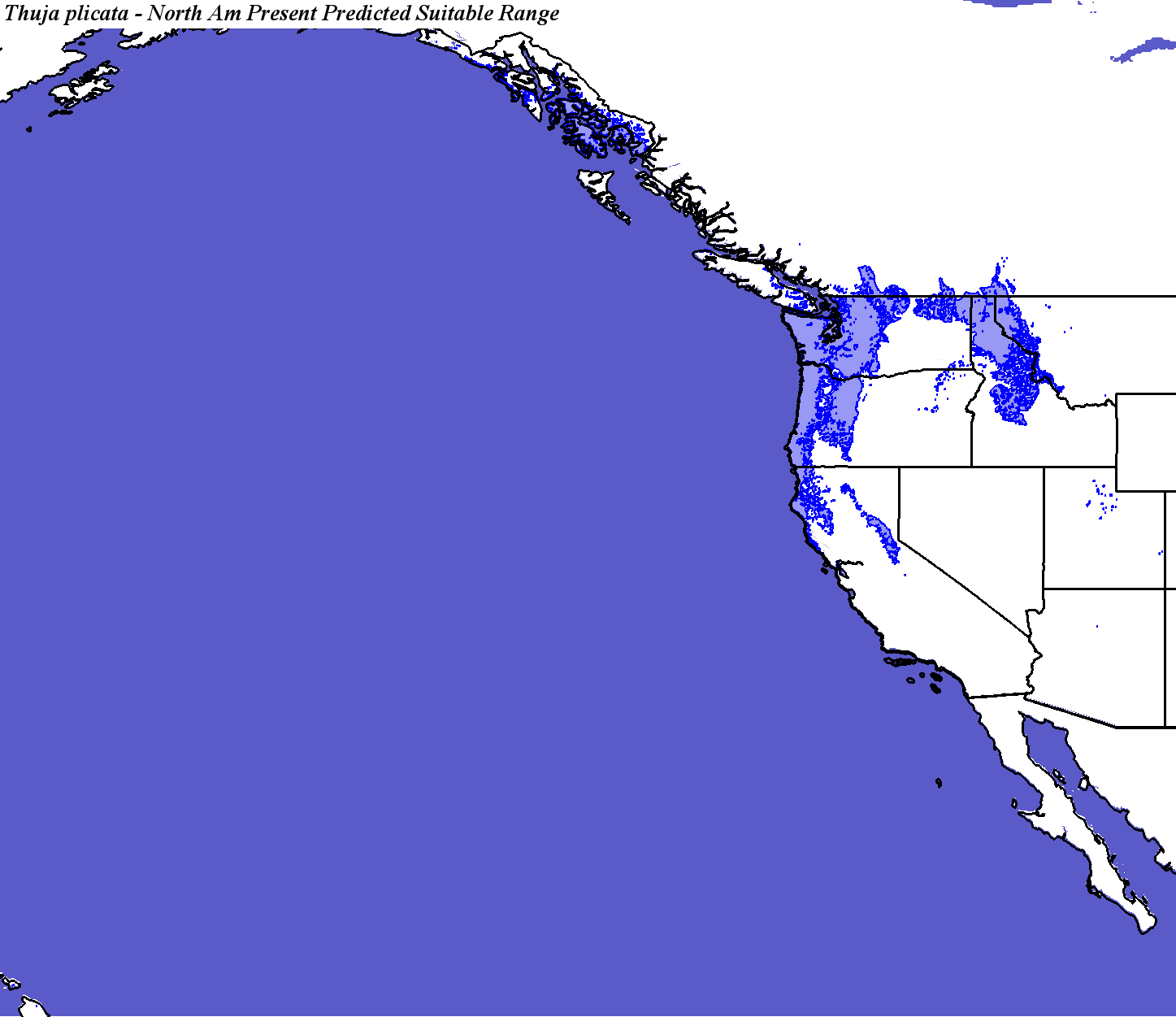

Occurrence Locations and Hargrove's Present Suitable Range Outline
Thuja_plicata_final Occurrences
Hargroves Present Suitable Range Outline for Thuja_plicata_final
Thuja plicata - Occurrence Locations Thuja plicata - Hargrove's Present Suitable Range Outline
Present Conditions
Thuja_plicata_final.3.conus
Thuja_plicata_final.3.global

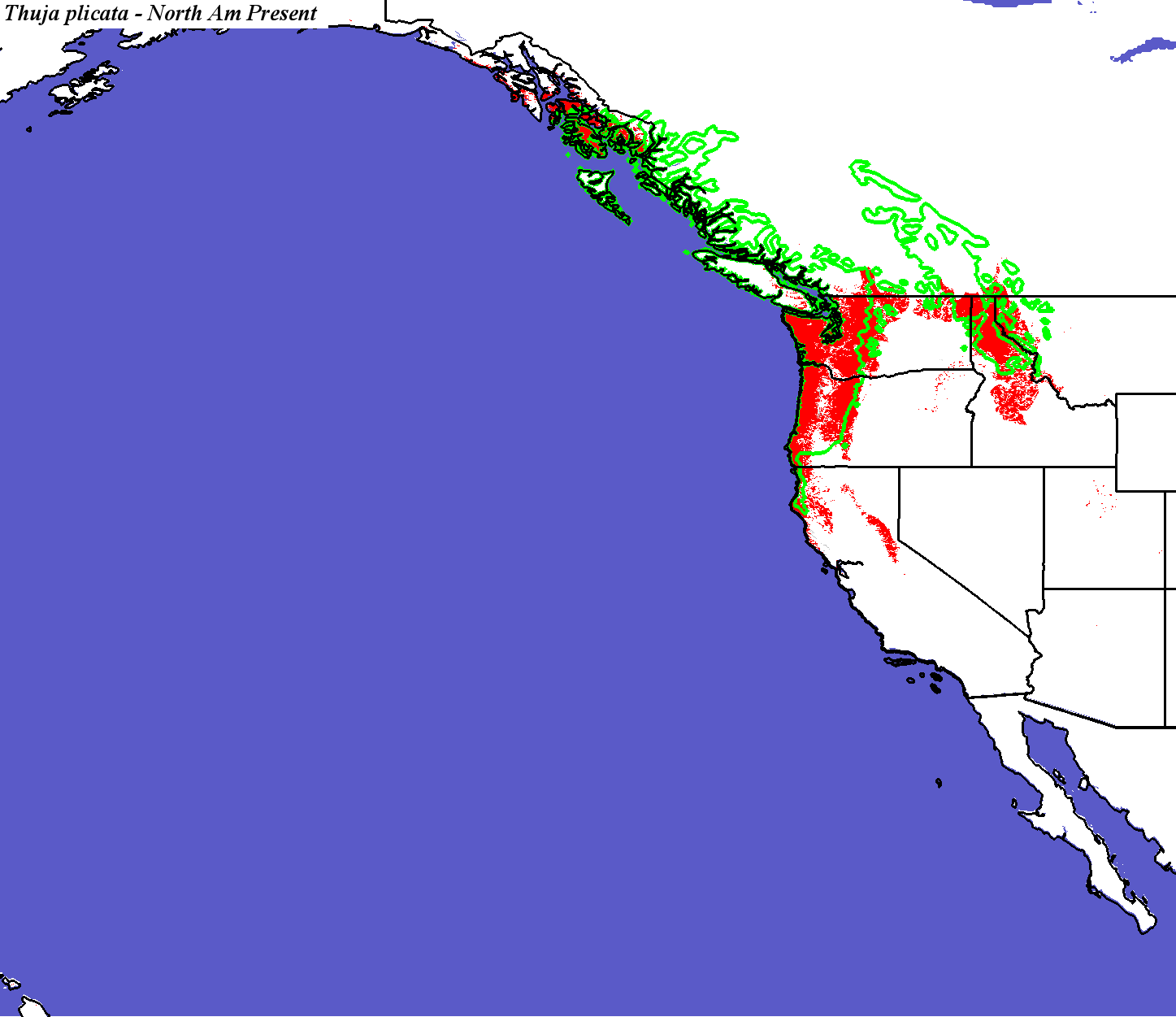

Thuja plicata - CONUS
Compare with Current Range from the Silvics Manual for Thuja plicata
Compare with Current Range from Biota of North America Program (BONAP) for Thuja plicata

Thuja plicata not modeled by Iverson and Prasad
Compare with Thuja plicata modeled for Current conditions by Crookston and Rehfeldt
Compare with Thuja plicata modeled for Current conditions by Coops and Waring

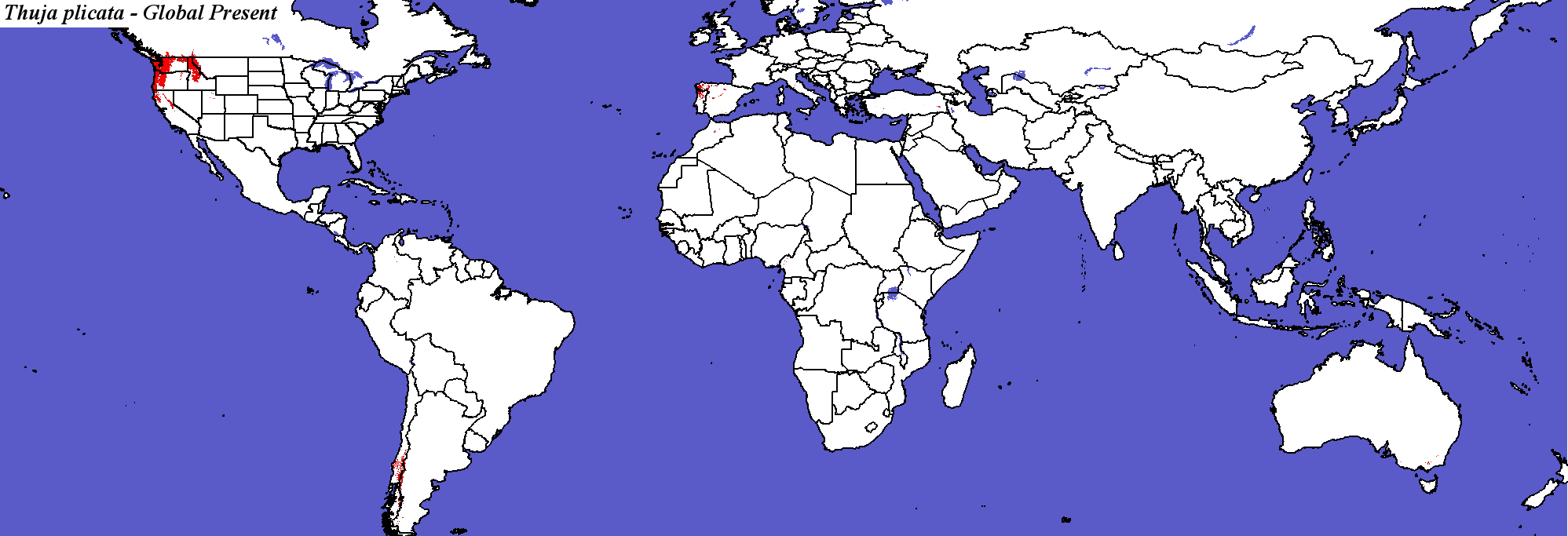

Thuja plicata - Global
PCM - Parallel Climate Model
Thuja_plicata_final.3.conus
Thuja_plicata_final.3.global
PCM, Scenario A1FI, 2050 - Thuja plicata - CONUS
PCM, Scenario A1FI, 2050 - Thuja plicata - Global
Thuja_plicata_final.3.conus
Thuja_plicata_final.3.global

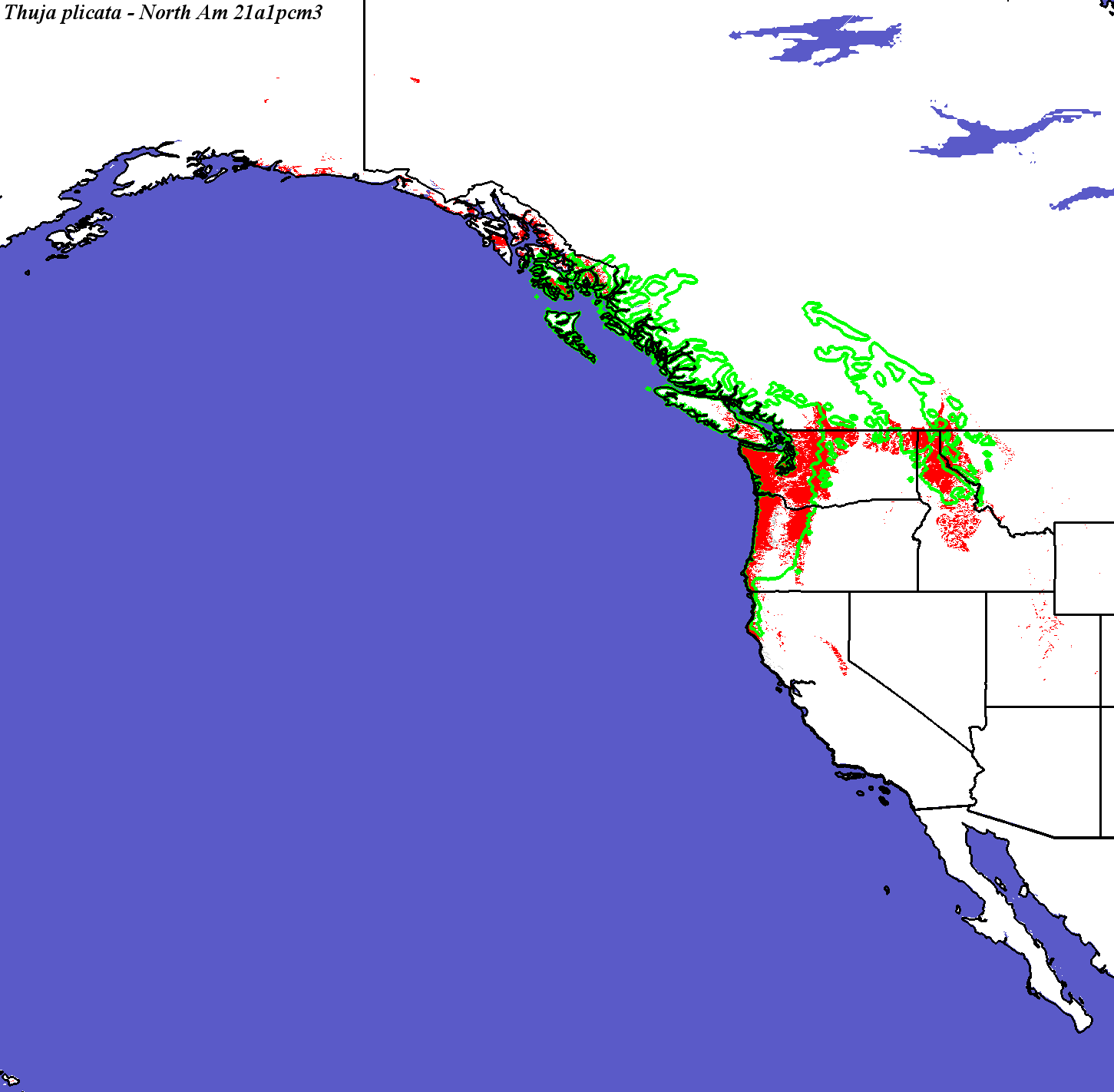

PCM, Scenario A1FI, 2100 - Thuja plicata - CONUS
Thuja plicata species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Thuja plicata - Global

Thuja_plicata_final.3.conus
Thuja_plicata_final.3.global
PCM, Scenario B1, 2050 - Thuja plicata - CONUS
PCM, Scenario B1, 2050 - Thuja plicata - Global
Thuja_plicata_final.3.conus
Thuja_plicata_final.3.global
PCM, Scenario B1, 2100 - Thuja plicata - CONUS
Thuja plicata not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Thuja plicata - Global

Hadley Climate Model
Thuja_plicata_final.3.conus
Thuja_plicata_final.3.global

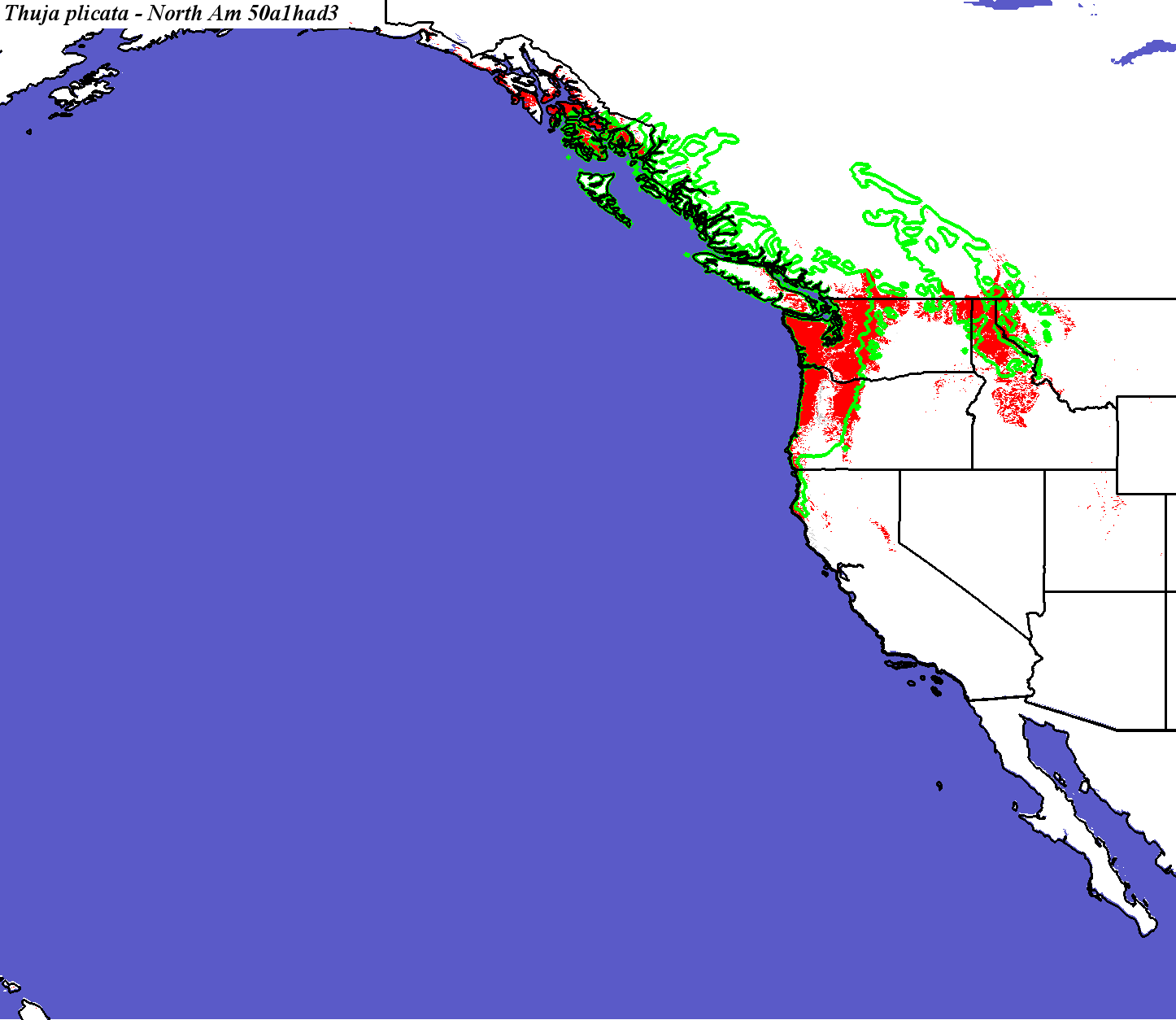

Hadley, Scenario A1FI, 2050 - Thuja plicata - CONUS
Compare with Thuja plicata modeled for Hadley A2 in 2060 by Crookston and Rehfeldt

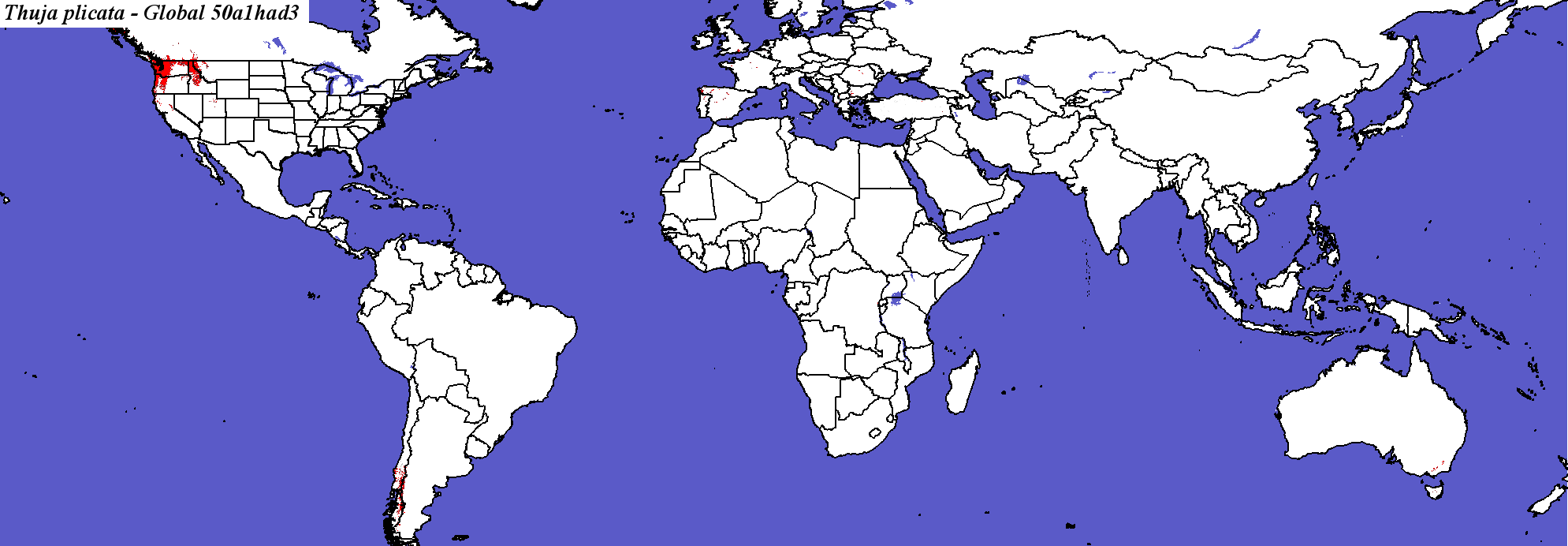

Hadley, Scenario A1FI, 2050 - Thuja plicata - Global
Thuja_plicata_final.3.conus
Thuja_plicata_final.3.global.
Hadley, Scenario A1FI, 2100 - Thuja plicata - CONUS
Thuja plicata not modeled by Iverson and Prasad
Compare with Thuja plicata modeled for Hadley A2 in 2090 by Crookston and Rehfeldt
Compare with Thuja plicata modeled for Hadley A2 in 2050 by Coops and Waring
Hadley, Scenario A1FI, 2100 - Thuja plicata - Global

Thuja_plicata_final.3.conus
Thuja_plicata_final.3.global.
Hadley, Scenario B1, 2050 - Thuja plicata - CONUS
Compare with Thuja plicata modeled for Hadley B2 in 2060 by Crookston and Rehfeldt
Compare with Thuja plicata modeled for Hadley B1 in 2050 by Coops and Waring
Hadley, Scenario B1, 2050 - Thuja plicata - Global
Thuja_plicata_final.3.conus
Thuja_plicata_final.3.global
Hadley, Scenario B1, 2100 - Thuja plicata - CONUS
Thuja plicata not modeled by Iverson and Prasad
Compare with Thuja plicata modeled for Hadley B2 in 2090 by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Thuja plicata - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Thuja_plicata_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

85

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

24.5205

Area in Present Suitable Range (in km2)

328340

Area in Future Suitable Range (Had B1 2050, in km2)

292361

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

254358

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

77.4600

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

3.42466

Percent Change in Area of Suitable Range (Had B1 2050)

-10.9500

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

16.9863

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

2739.76 +/- 8868.79

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

97.9452

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

1.49339 +/- 4.41672

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

96.1644

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

23.0351 +/- 200.172

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

79.863

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

1164

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

.3500

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

60.9589

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

155083

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

47.2300

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

10.9589

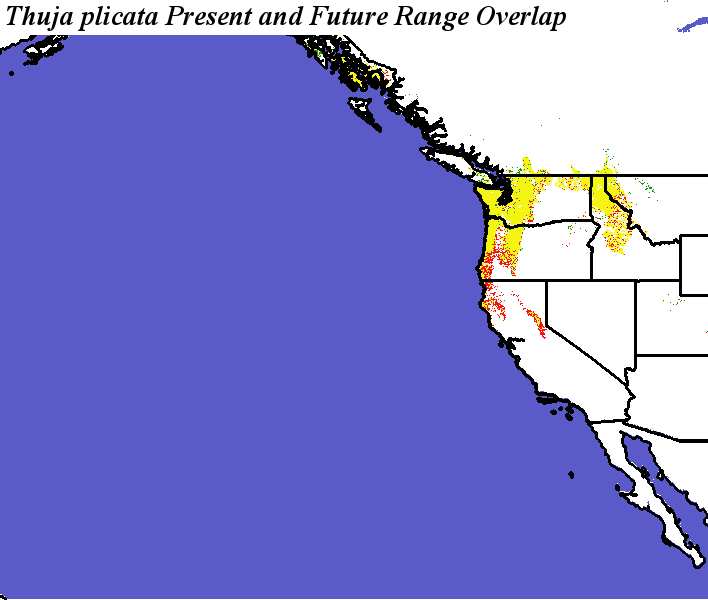

Present and Future Ranges - Hadley, Scenario B1, 2050 - Thuja plicata Thuja plicata - Range Change Statistics

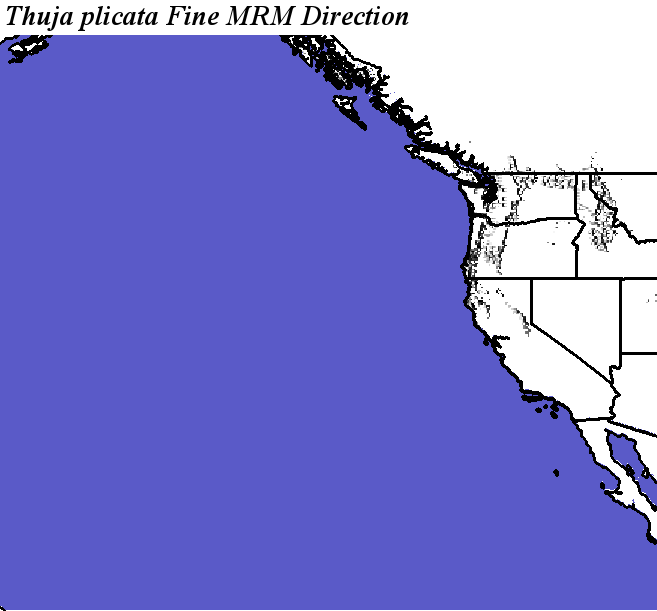

Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Thuja_plicata_final.noelev Fine MRM Distance
Thuja_plicata_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Thuja plicata Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Thuja plicata
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Thuja_plicata_final.noelev Coarse MRM Distance
Thuja_plicata_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Thuja plicata Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Thuja plicata
