Version 5 Tree Atlas


Ulmus alata

winged elm

noelev

Ulmus alata Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Ulmus alata

USDA Plants Database entry for Ulmus alata
Silvics Manual entry for Ulmus alata


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
5413735486some parts of range not well sampled

Occurrence Locations and Hargrove's Present Suitable Range Outline
Ulmus_alata_final Occurrences
Hargroves Present Suitable Range Outline for Ulmus_alata_final
Ulmus alata - Occurrence Locations Ulmus alata - Hargrove's Present Suitable Range Outline
Present Conditions
Ulmus_alata_final.4.conus
Ulmus_alata_final.4.global
Ulmus alata - CONUS
Compare with Current Range from the Silvics Manual for Ulmus alata
Compare with Current Range from Biota of North America Program (BONAP) for Ulmus alata

Compare with Ulmus alata modeled for Current conditions by Iverson and Prasad
Ulmus alata not modeled by Crookston and Rehfeldt
Ulmus alata not modeled by Coops and Waring

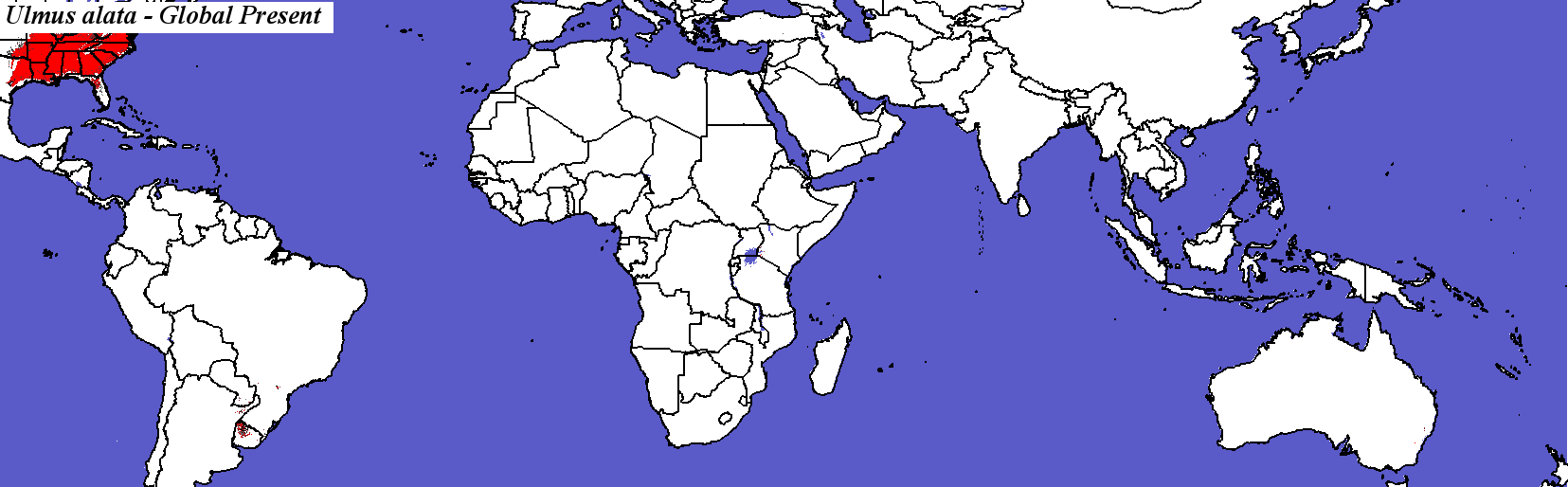

Ulmus alata - Global

PCM - Parallel Climate Model
Ulmus_alata_final.4.conus
Ulmus_alata_final.4.global
PCM, Scenario A1FI, 2050 - Ulmus alata - CONUS
PCM, Scenario A1FI, 2050 - Ulmus alata - Global
Ulmus_alata_final.4.conus
Ulmus_alata_final.4.global
PCM, Scenario A1FI, 2100 - Ulmus alata - CONUS
Compare with Ulmus alata modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Ulmus alata - Global

Ulmus_alata_final.4.conus
Ulmus_alata_final.4.global

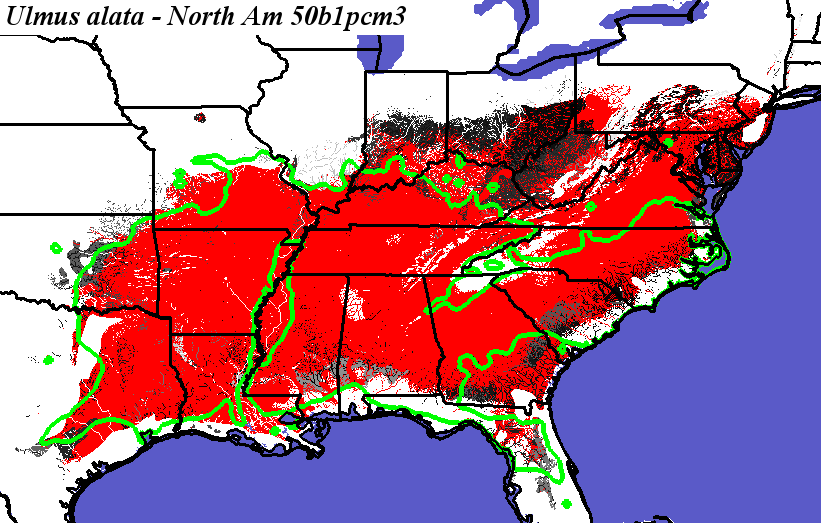

PCM, Scenario B1, 2050 - Ulmus alata - CONUS

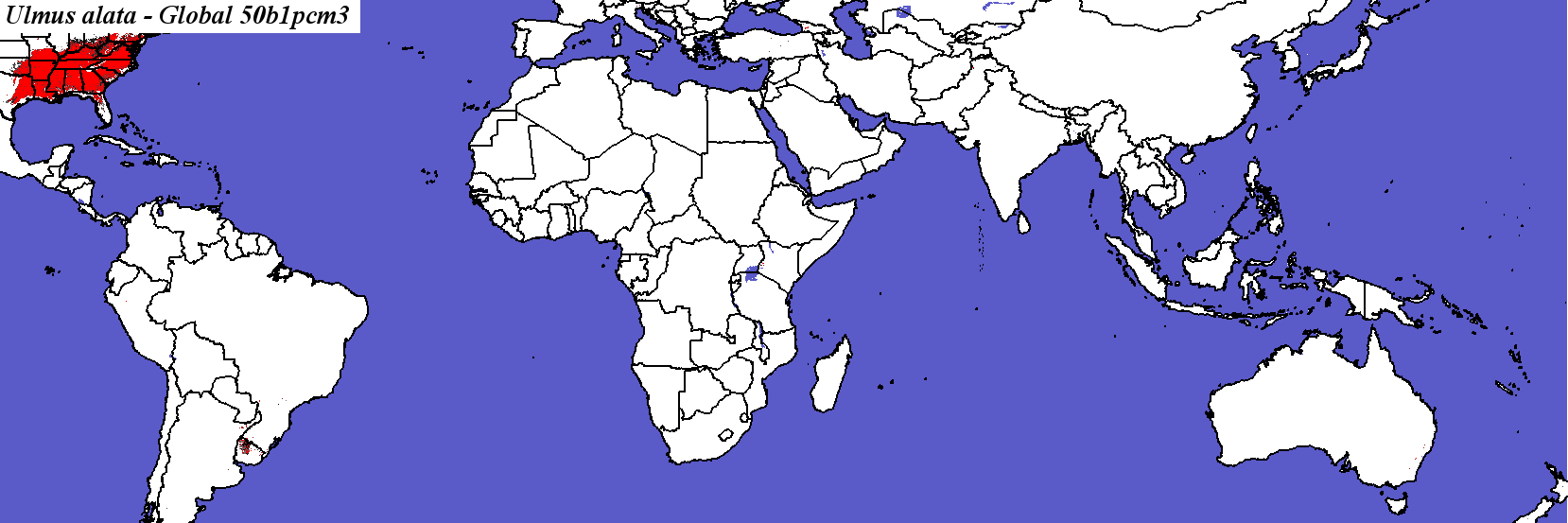

PCM, Scenario B1, 2050 - Ulmus alata - Global
Ulmus_alata_final.4.conus
Ulmus_alata_final.4.global

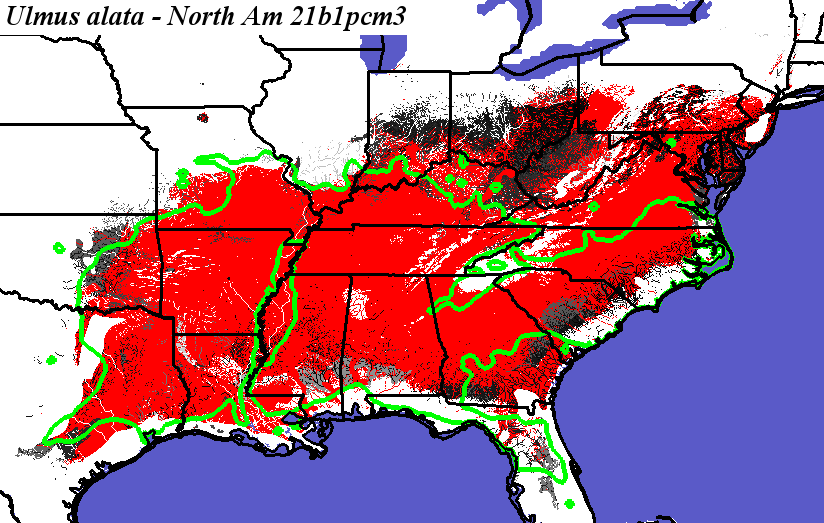

PCM, Scenario B1, 2100 - Ulmus alata - CONUS
Compare with Ulmus alata modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Ulmus alata - Global

Hadley Climate Model
Ulmus_alata_final.4.conus
Ulmus_alata_final.4.global

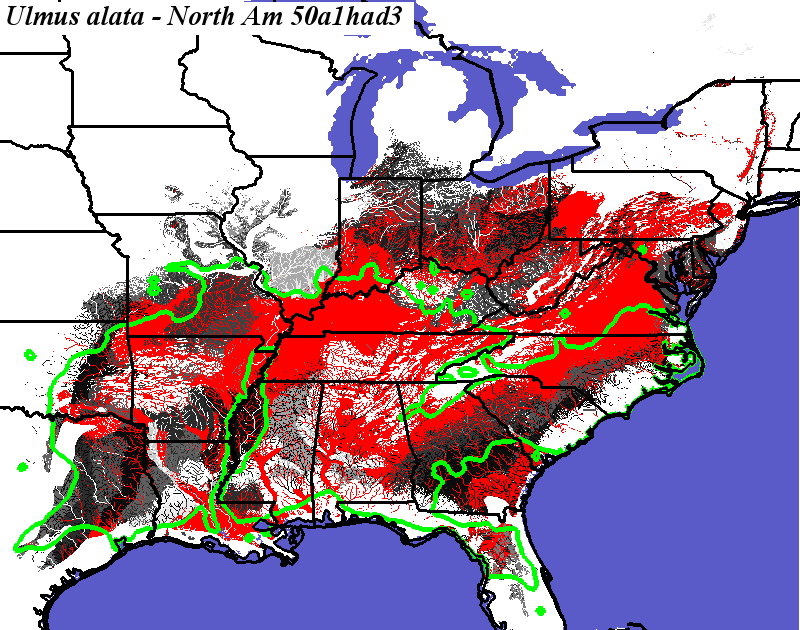

Hadley, Scenario A1FI, 2050 - Ulmus alata - CONUS
Ulmus alata not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Ulmus alata - Global
Ulmus_alata_final.4.conus
Ulmus_alata_final.4.global.
Hadley, Scenario A1FI, 2100 - Ulmus alata - CONUS
Compare with Ulmus alata modeled for Hadley A1FI in 2100 by Iverson and Prasad
Ulmus alata not modeled by Crookston and Rehfeldt
Ulmus alata not modeled by Coops and Waring

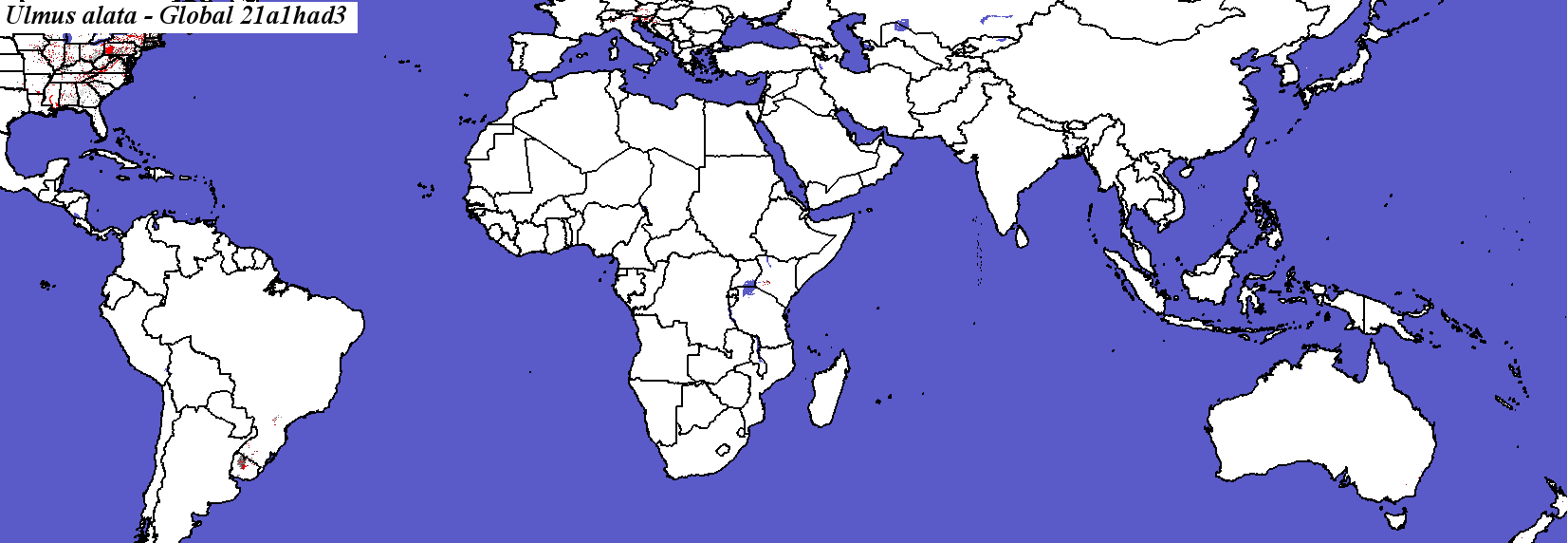

Hadley, Scenario A1FI, 2100 - Ulmus alata - Global

Ulmus_alata_final.4.conus
Ulmus_alata_final.4.global.
Hadley, Scenario B1, 2050 - Ulmus alata - CONUS
Ulmus alata not modeled by Crookston and Rehfeldt
Ulmus alata not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Ulmus alata - Global
Ulmus_alata_final.4.conus
Ulmus_alata_final.4.global

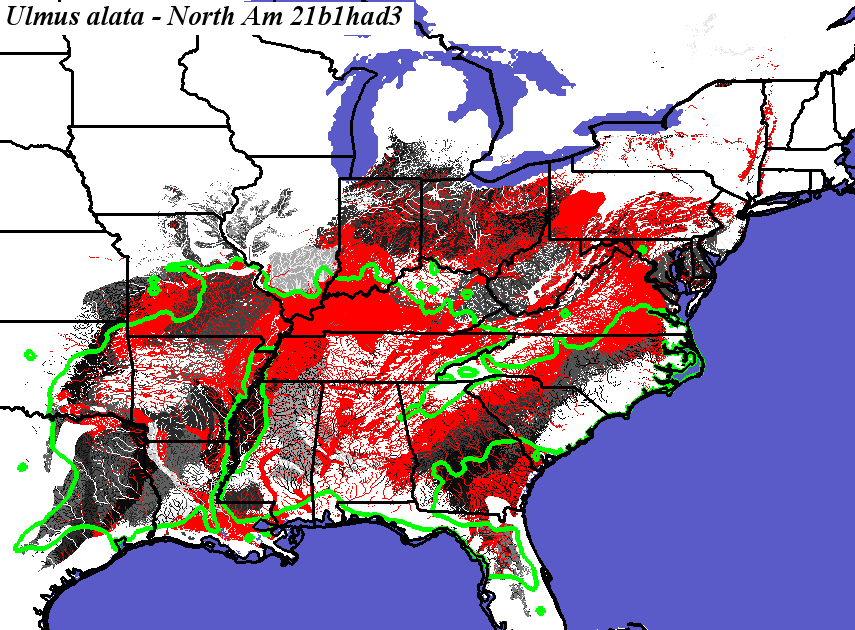

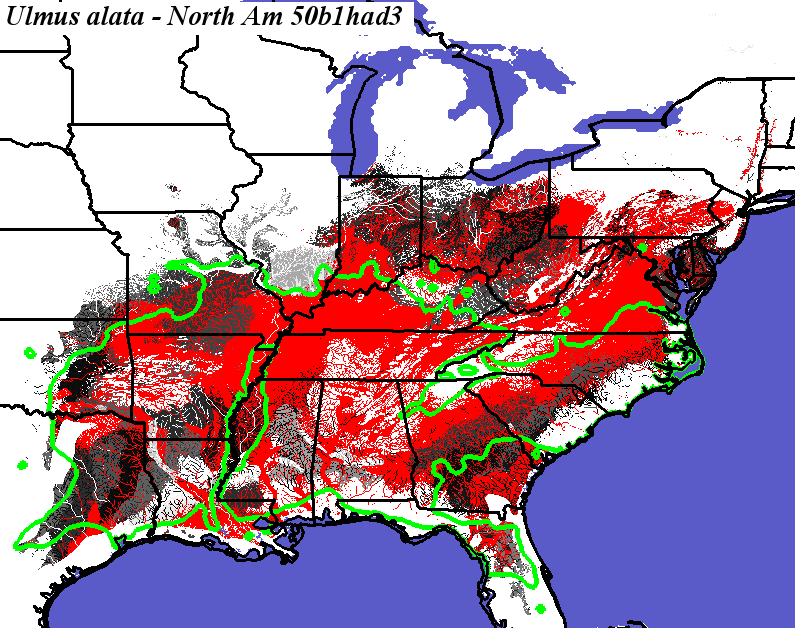

Hadley, Scenario B1, 2100 - Ulmus alata - CONUS
Compare with Ulmus alata modeled for Hadley B1 in 2100 by Iverson and Prasad
Ulmus alata not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Ulmus alata - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Ulmus_alata_final.noelev

Number of Suitable Ecoregions (Niche Breadth)

164

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

11.7808

Area in Present Suitable Range (in km2)

1341704

Area in Future Suitable Range (Had B1 2050, in km2)

907725

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

763444

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

56.9000

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

32.6027

Percent Change in Area of Suitable Range (Had B1 2050)

-32.3400

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

55.6164

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

6284.58 +/- 9569

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

84.6575

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

3.20181 +/- 7.18916

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

81.9178

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

202.685 +/- 664.859

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

26.7123

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

70075

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

5.2200

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

24.1096

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

278210

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

20.7300

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

67.2603

Present and Future Ranges - Hadley, Scenario B1, 2050 - Ulmus alata Ulmus alata - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

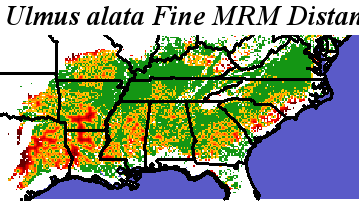

Ulmus_alata_final.noelev Fine MRM Distance

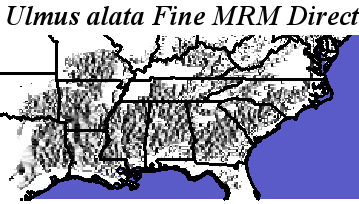

Ulmus_alata_final.noelev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Ulmus alata Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Ulmus alata
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Ulmus_alata_final.noelev Coarse MRM Distance
Ulmus_alata_final.noelev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Ulmus alata Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Ulmus alata
