Version 5 Tree Atlas


Abies grandis

grand fir

elev

Abies grandis Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Abies grandis

USDA Plants Database entry for Abies grandis
Silvics Manual entry for Abies grandis


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
12199312NTSC 1324TBD

Occurrence Locations and Hargrove's Present Suitable Range Outline
Abies_grandis_final Occurrences

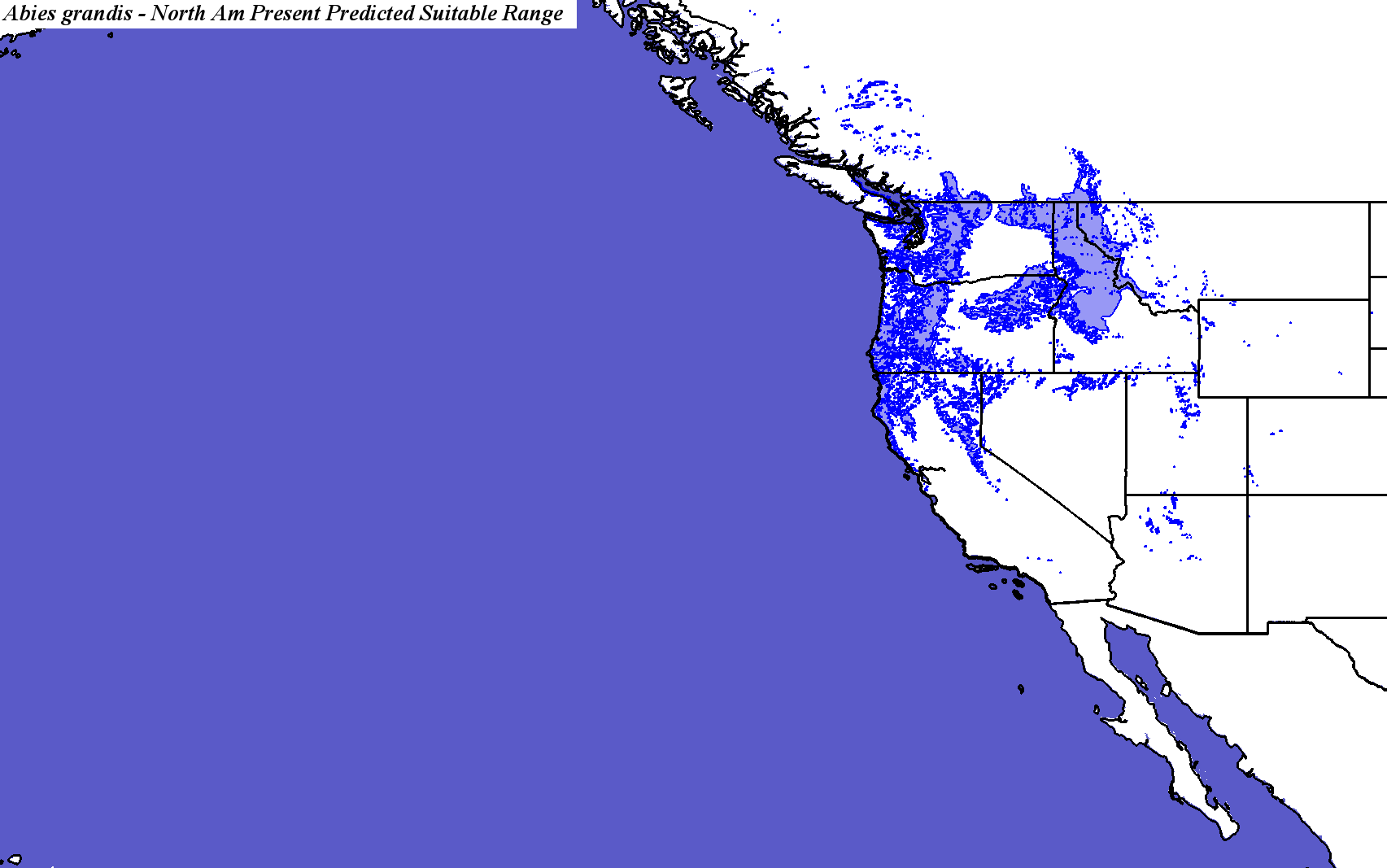

Hargroves Present Suitable Range Outline for Abies_grandis_final
Abies grandis - Occurrence Locations Abies grandis - Hargrove's Present Suitable Range Outline
Present Conditions
Abies_grandis_final.4.conus
Abies_grandis_final.4.global

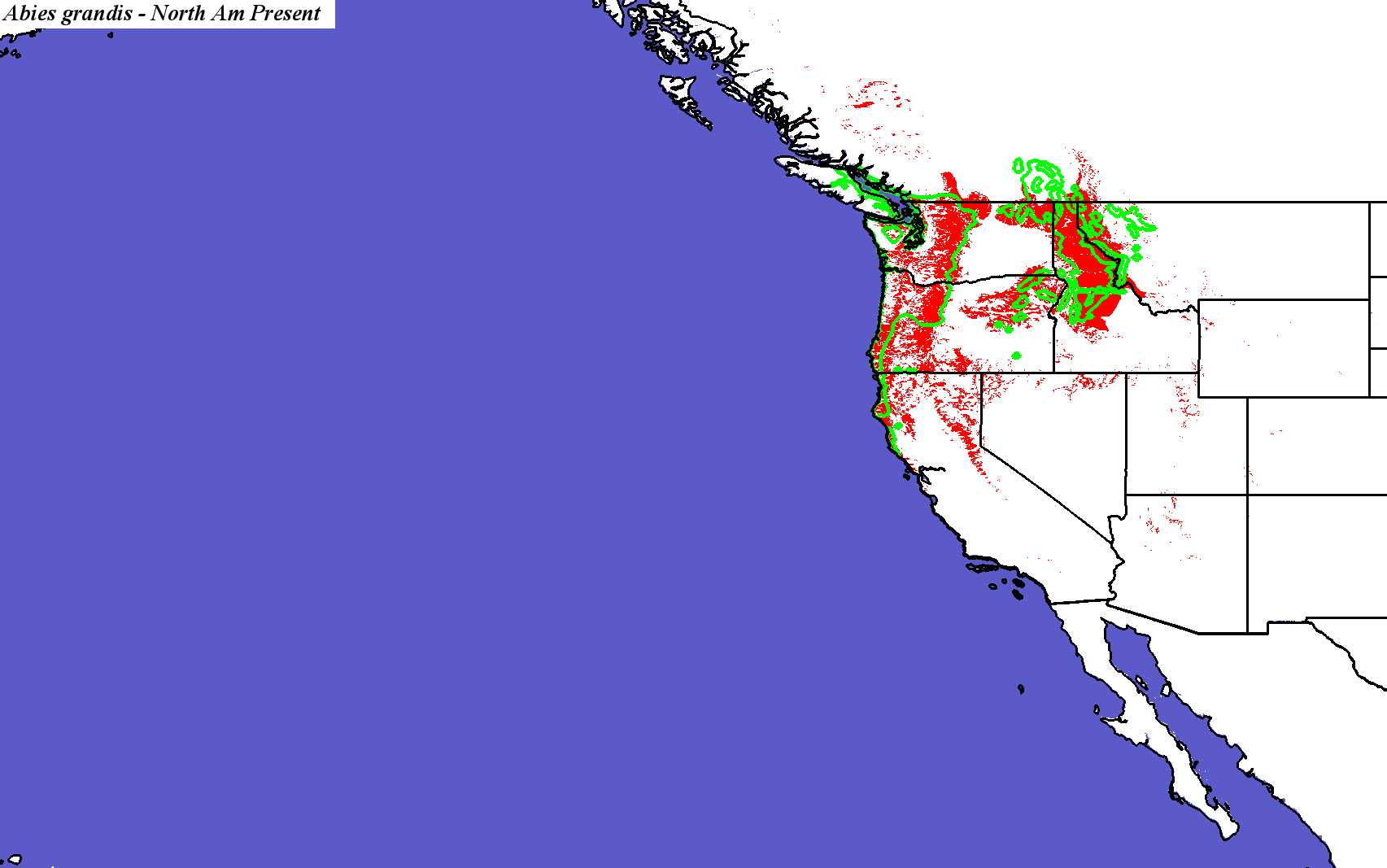

Abies grandis - CONUS
Compare with Current Range from the Silvics Manual for Abies grandis
Compare with Current Range from Biota of North America Program (BONAP) for Abies grandis

Abies grandis not modeled by Iverson and Prasad
Compare with Abies grandis modeled for Current conditions by Crookston and Rehfeldt
Compare with Abies grandis modeled for Current conditions by Coops and Waring

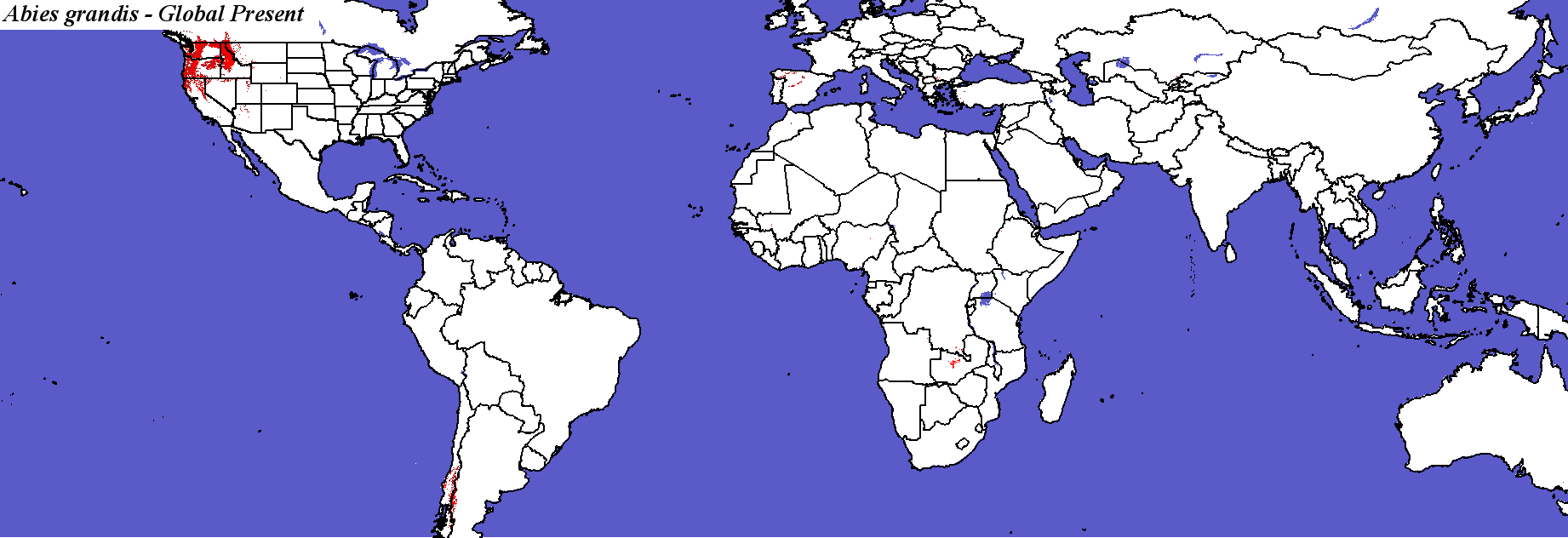

Abies grandis - Global
PCM - Parallel Climate Model
Abies_grandis_final.4.conus
Abies_grandis_final.4.global
PCM, Scenario A1FI, 2050 - Abies grandis - CONUS
PCM, Scenario A1FI, 2050 - Abies grandis - Global
Abies_grandis_final.4.conus
Abies_grandis_final.4.global
PCM, Scenario A1FI, 2100 - Abies grandis - CONUS
Abies grandis species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Abies grandis - Global

Abies_grandis_final.4.conus
Abies_grandis_final.4.global

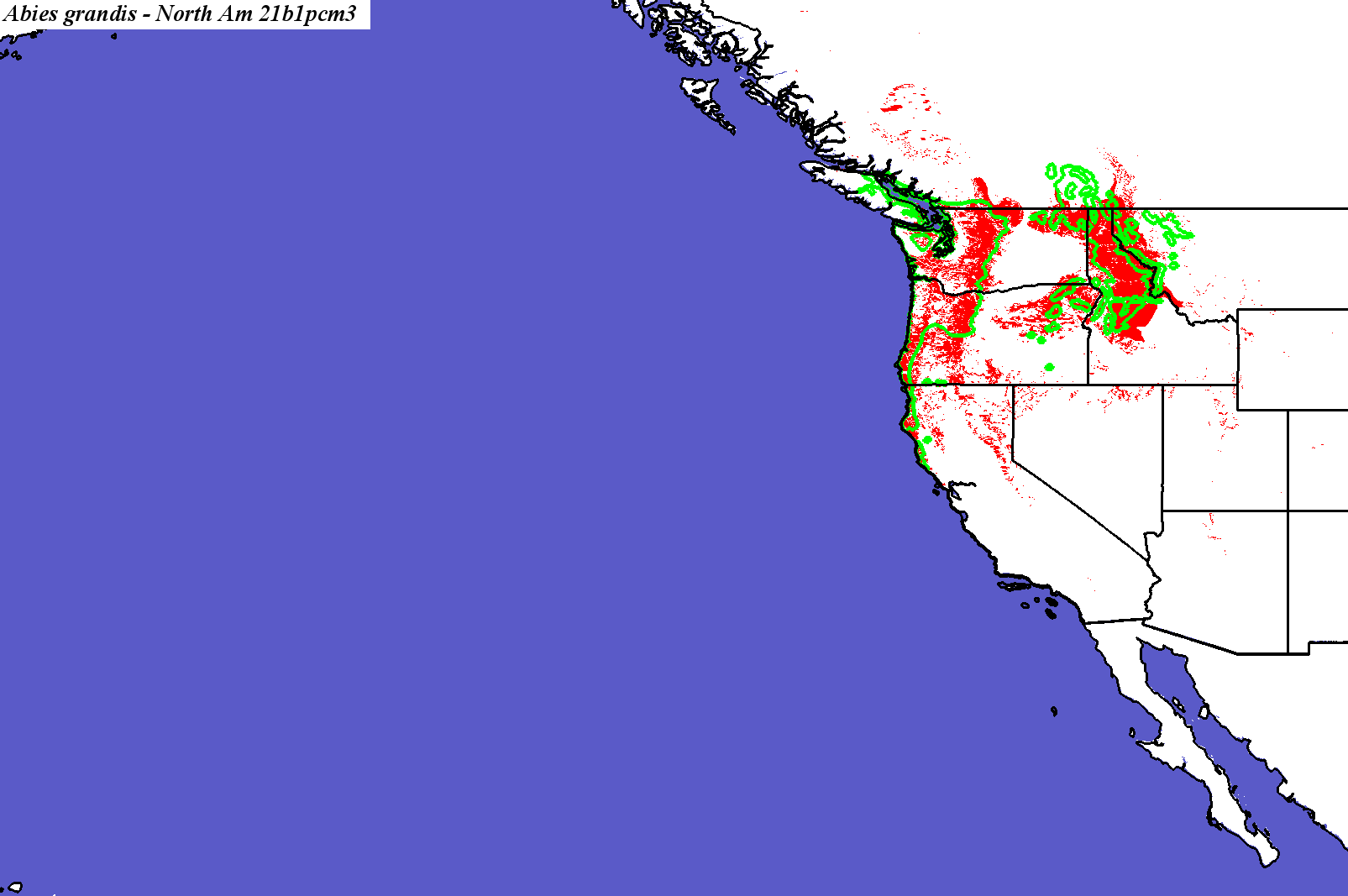

PCM, Scenario B1, 2050 - Abies grandis - CONUS
PCM, Scenario B1, 2050 - Abies grandis - Global
Abies_grandis_final.4.conus
Abies_grandis_final.4.global
PCM, Scenario B1, 2100 - Abies grandis - CONUS
Abies grandis not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Abies grandis - Global

Hadley Climate Model
Abies_grandis_final.4.conus
Abies_grandis_final.4.global

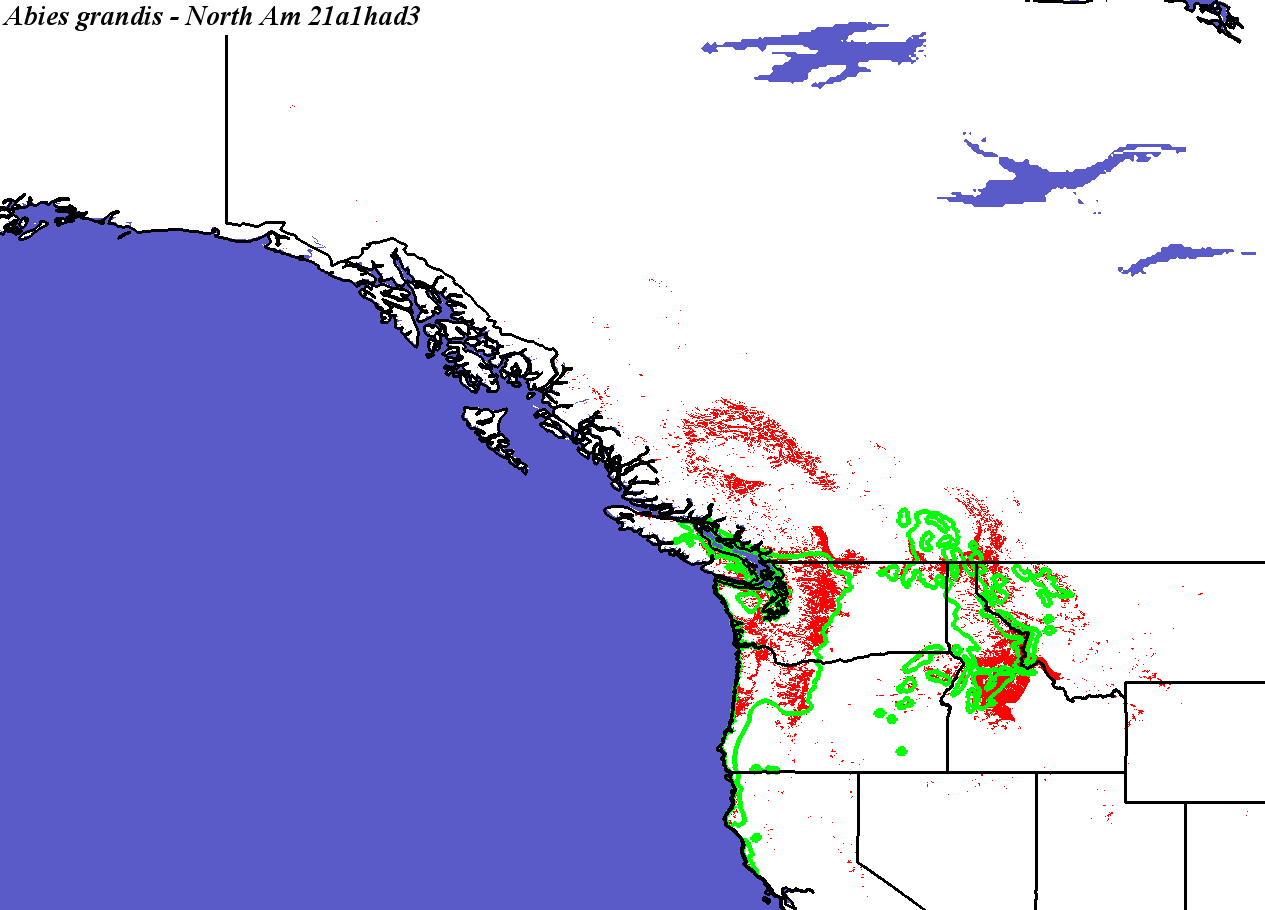

Hadley, Scenario A1FI, 2050 - Abies grandis - CONUS
Compare with Abies grandis modeled for Hadley A2 in 2060 by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Abies grandis - Global
Abies_grandis_final.4.conus
Abies_grandis_final.4.global.
Hadley, Scenario A1FI, 2100 - Abies grandis - CONUS
Abies grandis not modeled by Iverson and Prasad
Compare with Abies grandis modeled for Hadley A2 in 2090 by Crookston and Rehfeldt
Compare with Abies grandis modeled for Hadley A2 in 2050 by Coops and Waring
Hadley, Scenario A1FI, 2100 - Abies grandis - Global

Abies_grandis_final.4.conus
Abies_grandis_final.4.global.

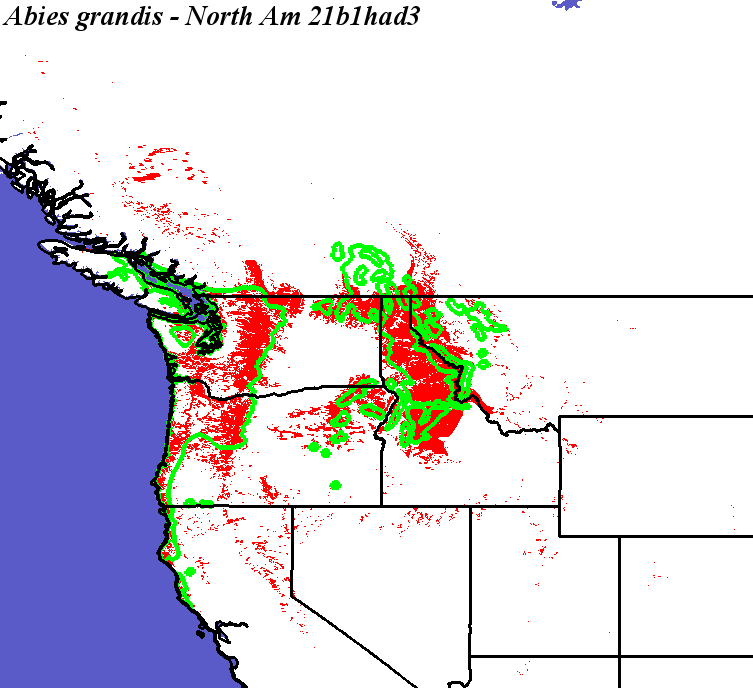

Hadley, Scenario B1, 2050 - Abies grandis - CONUS
Compare with Abies grandis modeled for Hadley B2 in 2060 by Crookston and Rehfeldt
Compare with Abies grandis modeled for Hadley B1 in 2050 by Coops and Waring

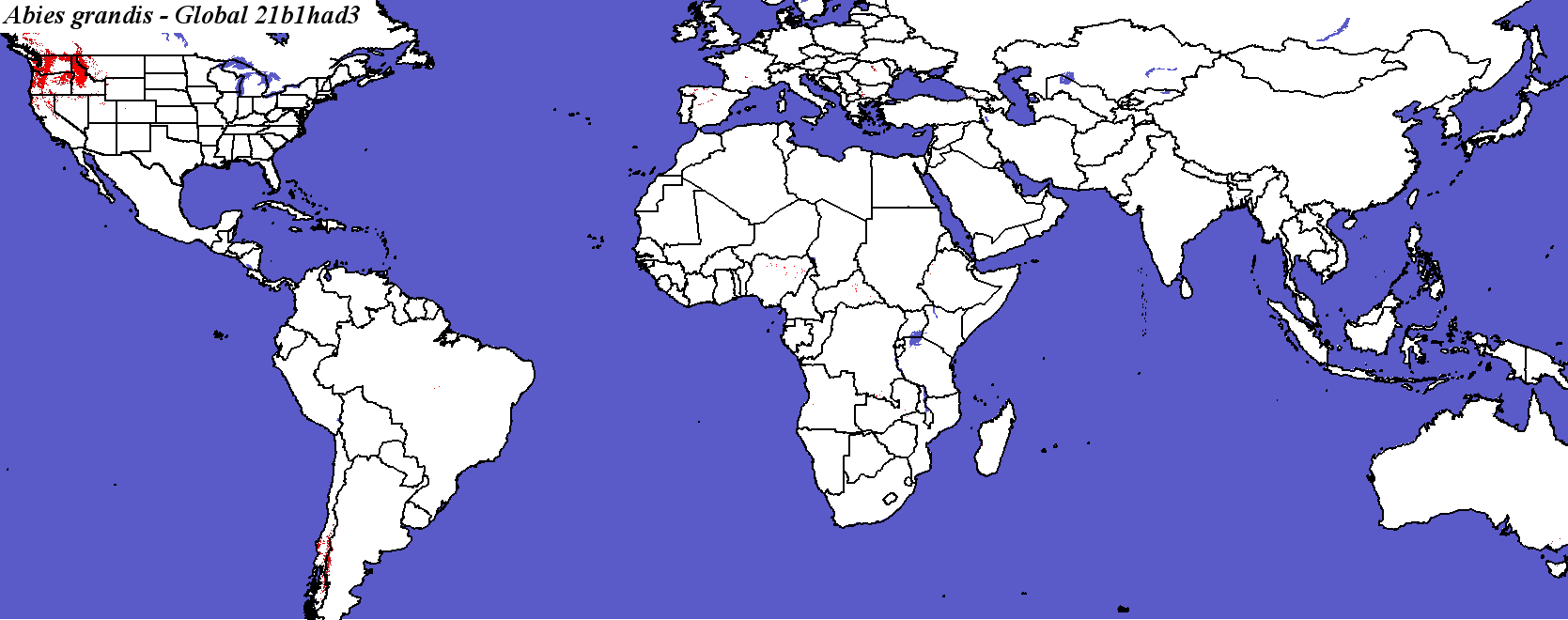

Hadley, Scenario B1, 2050 - Abies grandis - Global
Abies_grandis_final.4.conus
Abies_grandis_final.4.global
Hadley, Scenario B1, 2100 - Abies grandis - CONUS
Abies grandis not modeled by Iverson and Prasad
Compare with Abies grandis modeled for Hadley B2 in 2090 by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Abies grandis - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Abies_grandis_final.elev

Number of Suitable Ecoregions (Niche Breadth)

87

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

24.2466

Area in Present Suitable Range (in km2)

358701

Area in Future Suitable Range (Had B1 2050, in km2)

319805

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

272342

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

75.9200

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

4.24658

Percent Change in Area of Suitable Range (Had B1 2050)

-10.8400

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

16.5753

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

3207.29 +/- 10700.2

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

96.7123

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

2.04107 +/- 10.6352

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

93.2877

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

9.90114 +/- 26.9859

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

96.7123

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

99.589

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

194793

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

54.3000

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

4.79452

Present and Future Ranges - Hadley, Scenario B1, 2050 - Abies grandis Abies grandis - Range Change Statistics

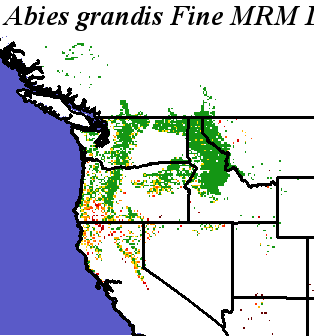

Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Abies_grandis_final.elev Fine MRM Distance
Abies_grandis_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Abies grandis Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Abies grandis
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Abies_grandis_final.elev Coarse MRM Distance
Abies_grandis_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Abies grandis Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Abies grandis
