Version 5 Tree Atlas


Acer negundo

boxelder

elev

Acer negundo Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Acer negundo

USDA Plants Database entry for Acer negundo
Silvics Manual entry for Acer negundo


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Acer negundo var. interius; Acer negundo ssp. interius; Acer negundo var. violaceum; Acer negundo var. arizonicum; Acer negundo var. californicum; Acer negundo var. texanum; Acer negundo var. violaceum; Acer negundo ssp. mexicanum; Acer negundo var. mexicanum; Acer negundo var. orizabense24556933148range is well-represented

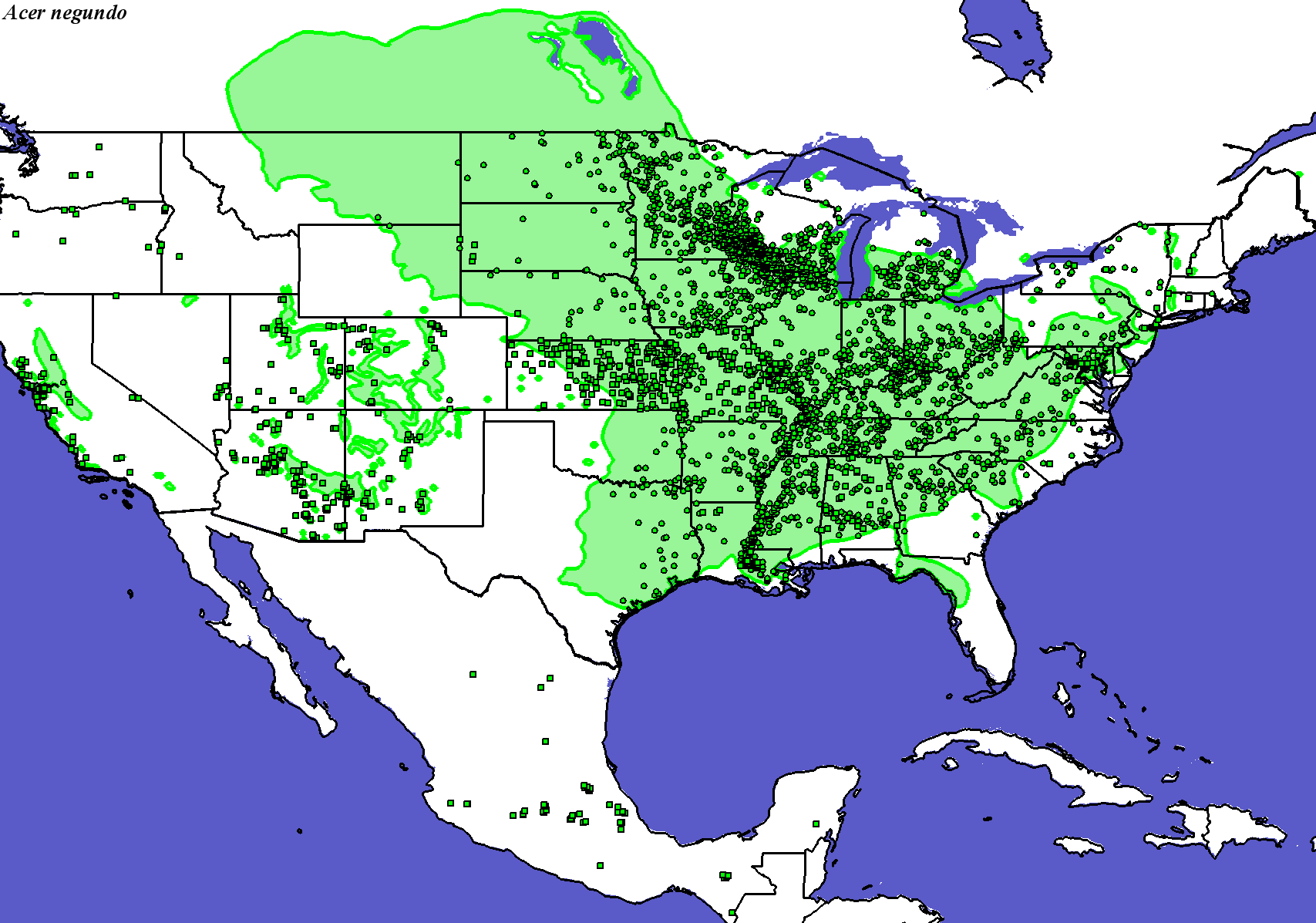

Occurrence Locations and Hargrove's Present Suitable Range Outline
Acer_negundo_final Occurrences
Hargroves Present Suitable Range Outline for Acer_negundo_final
Acer negundo - Occurrence Locations Acer negundo - Hargrove's Present Suitable Range Outline

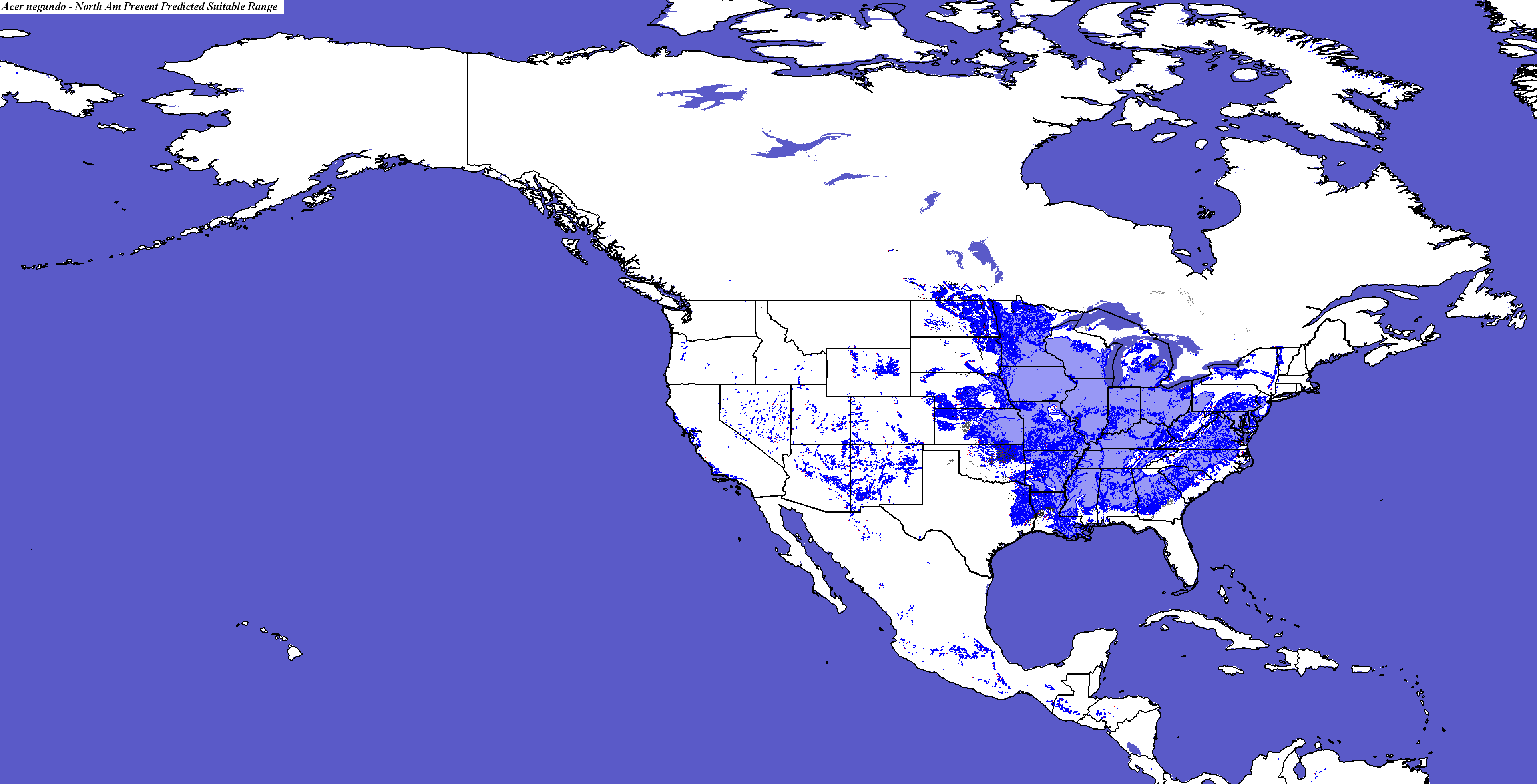

Present Conditions
Acer_negundo_final.4.conus
Acer_negundo_final.4.global
Acer negundo - CONUS
Compare with Current Range from the Silvics Manual for Acer negundo
Compare with Current Range from Biota of North America Program (BONAP) for Acer negundo

Compare with Acer negundo modeled for Current conditions by Iverson and Prasad
Acer negundo not modeled by Crookston and Rehfeldt
Acer negundo not modeled by Coops and Waring
Acer negundo - Global

PCM - Parallel Climate Model
Acer_negundo_final.4.conus
Acer_negundo_final.4.global
PCM, Scenario A1FI, 2050 - Acer negundo - CONUS

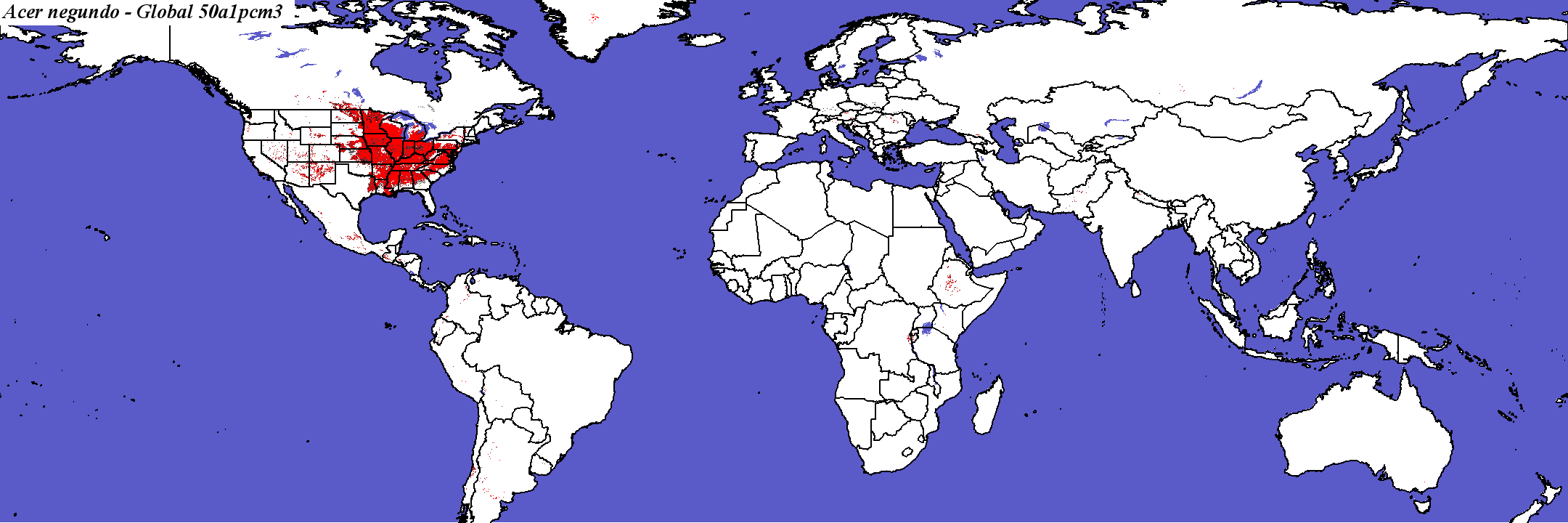

PCM, Scenario A1FI, 2050 - Acer negundo - Global
Acer_negundo_final.4.conus
Acer_negundo_final.4.global

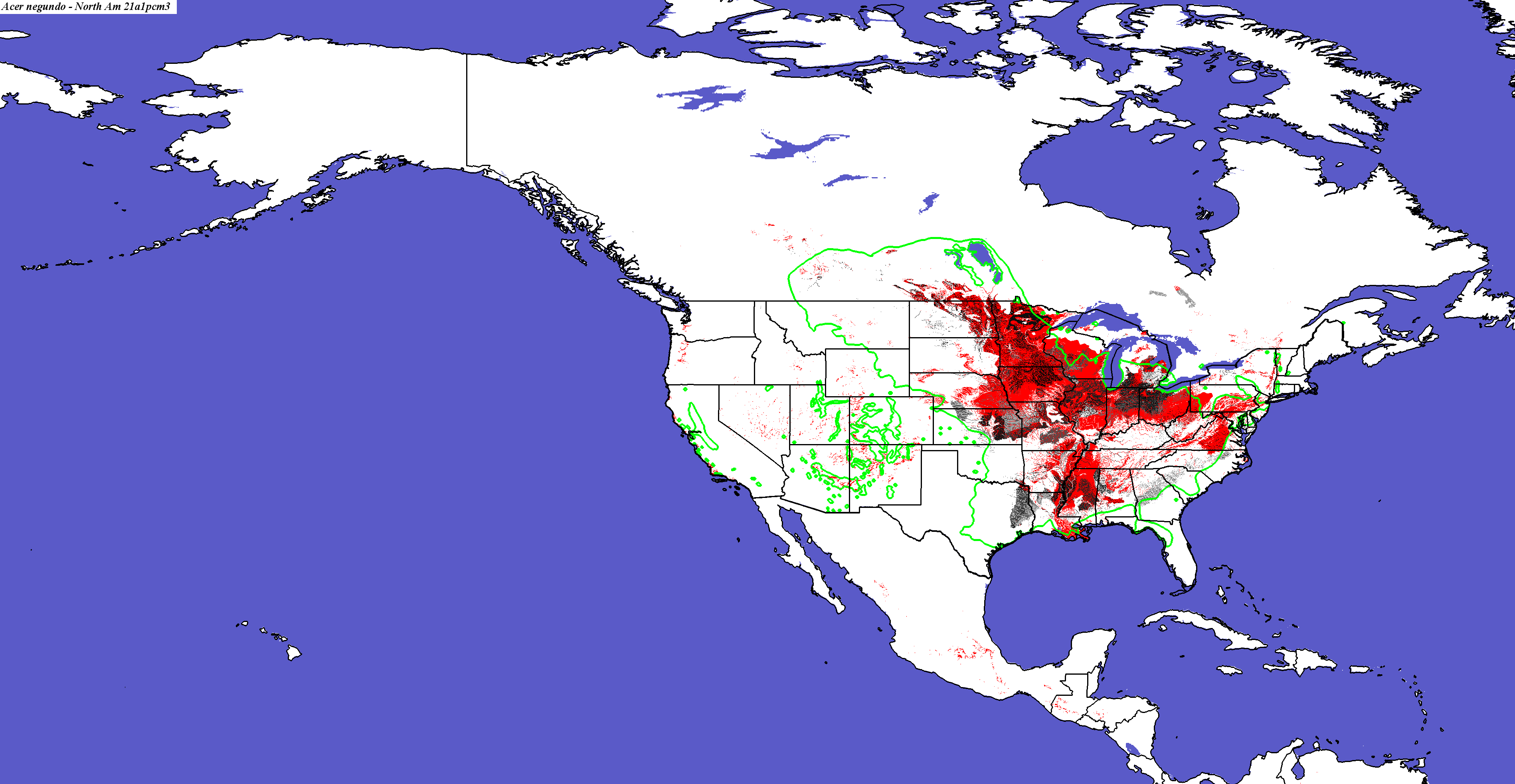

PCM, Scenario A1FI, 2100 - Acer negundo - CONUS
Compare with Acer negundo modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Acer negundo - Global

Acer_negundo_final.4.conus
Acer_negundo_final.4.global

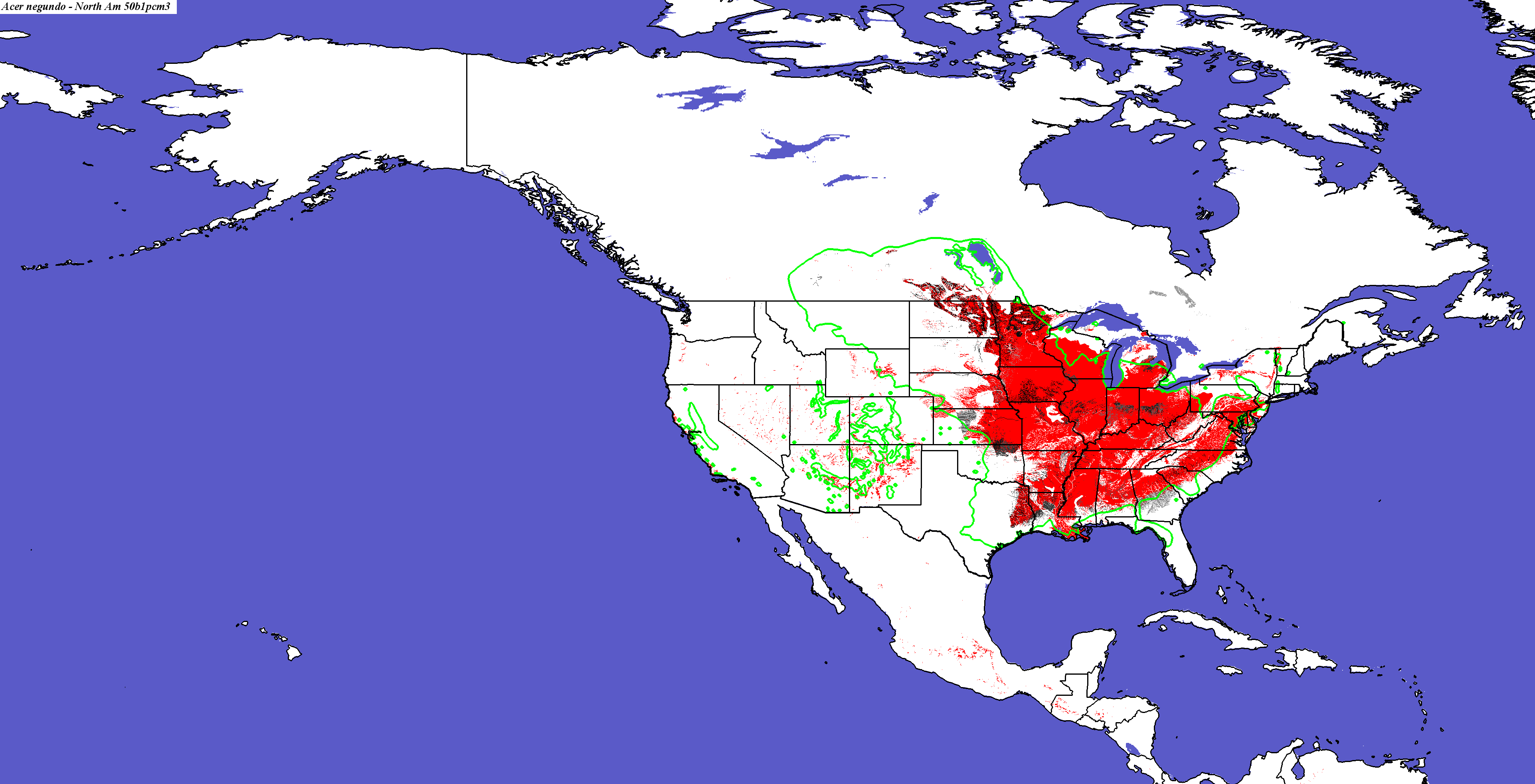

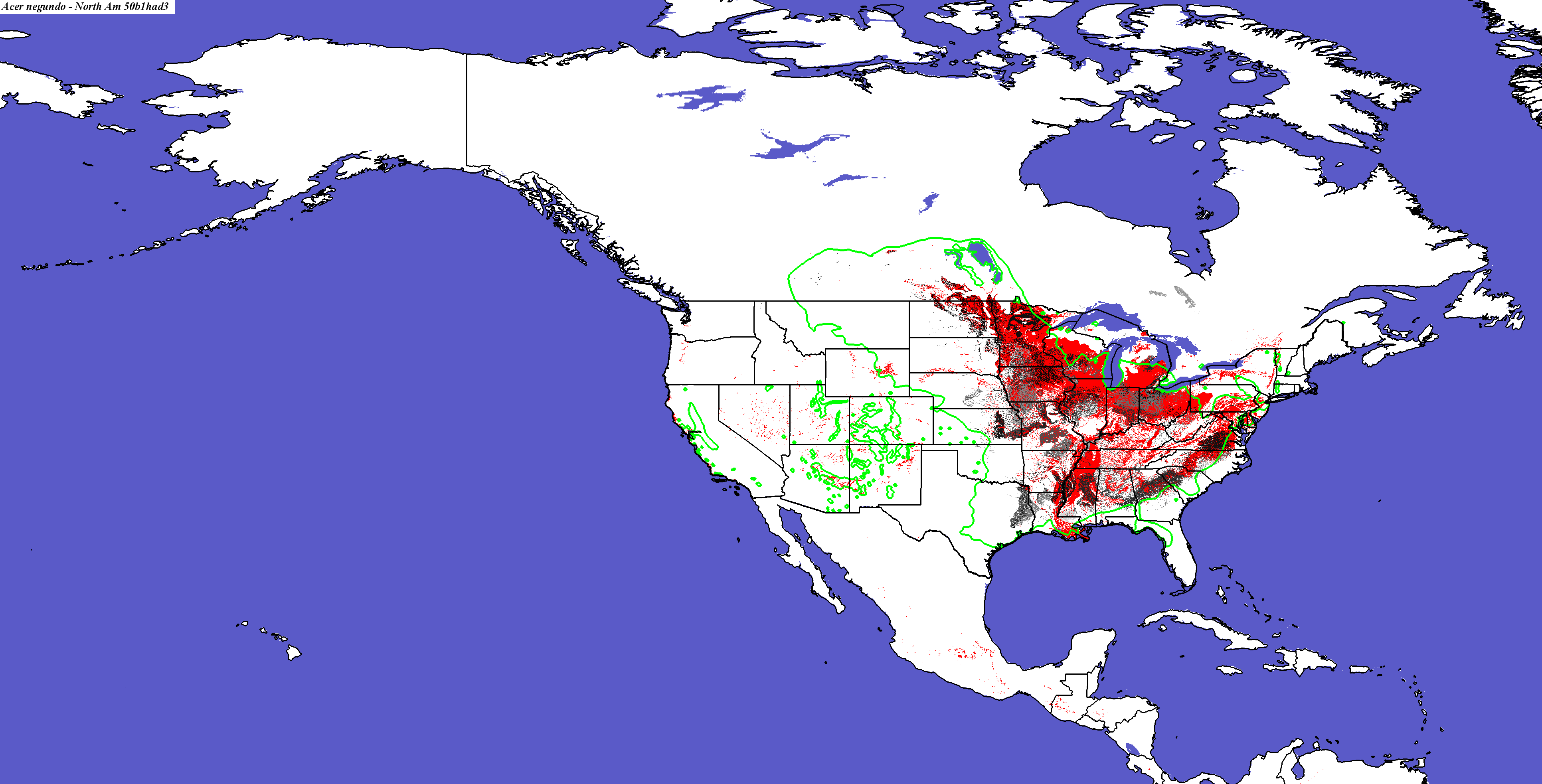

PCM, Scenario B1, 2050 - Acer negundo - CONUS
PCM, Scenario B1, 2050 - Acer negundo - Global
Acer_negundo_final.4.conus
Acer_negundo_final.4.global
PCM, Scenario B1, 2100 - Acer negundo - CONUS
Compare with Acer negundo modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Acer negundo - Global

Hadley Climate Model
Acer_negundo_final.4.conus
Acer_negundo_final.4.global
Hadley, Scenario A1FI, 2050 - Acer negundo - CONUS
Acer negundo not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Acer negundo - Global
Acer_negundo_final.4.conus
Acer_negundo_final.4.global.

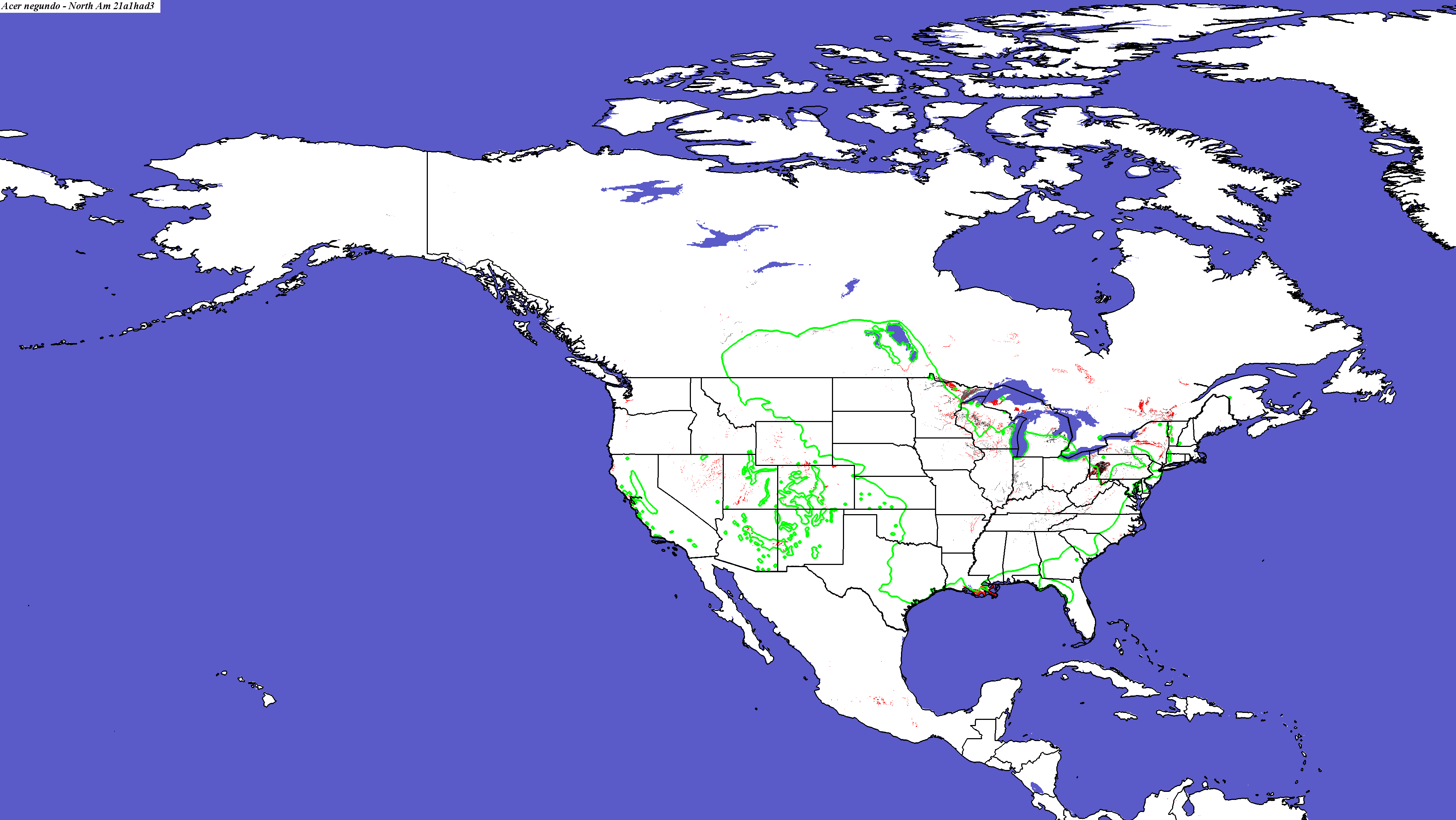

Hadley, Scenario A1FI, 2100 - Acer negundo - CONUS
Compare with Acer negundo modeled for Hadley A1FI in 2100 by Iverson and Prasad
Acer negundo not modeled by Crookston and Rehfeldt
Acer negundo not modeled by Coops and Waring

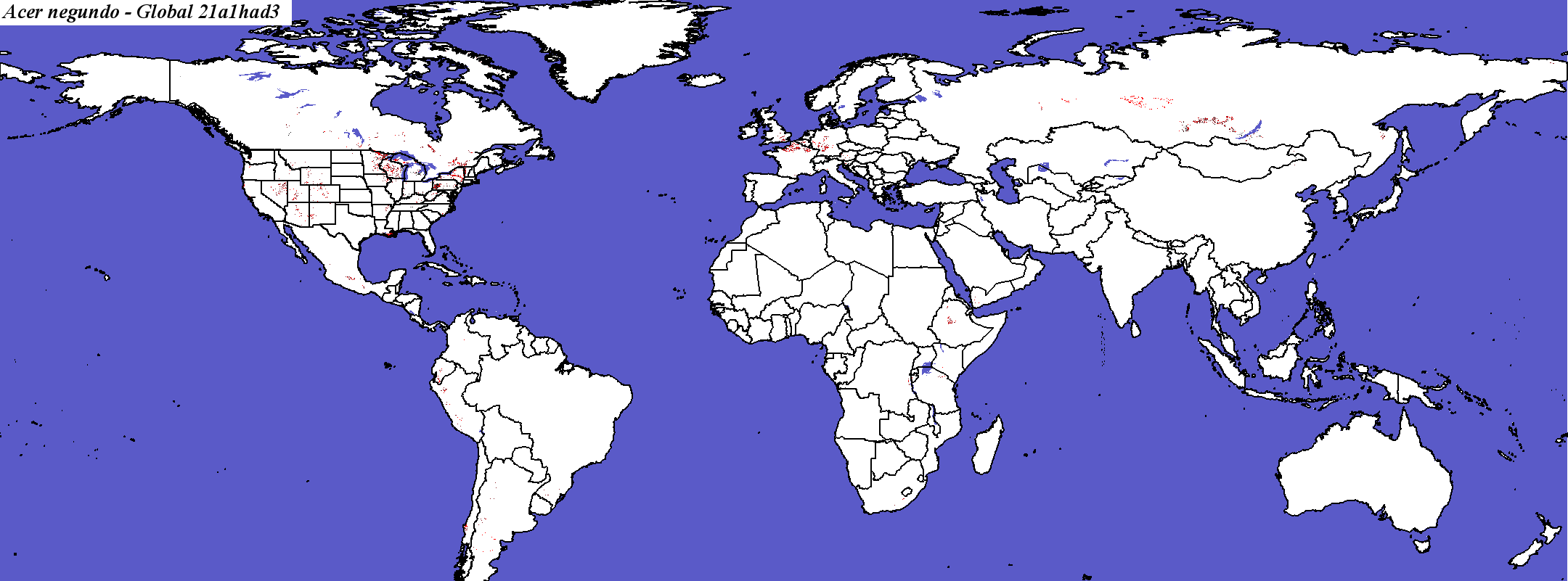

Hadley, Scenario A1FI, 2100 - Acer negundo - Global

Acer_negundo_final.4.conus
Acer_negundo_final.4.global.
Hadley, Scenario B1, 2050 - Acer negundo - CONUS
Acer negundo not modeled by Crookston and Rehfeldt
Acer negundo not modeled by Coops and Waring

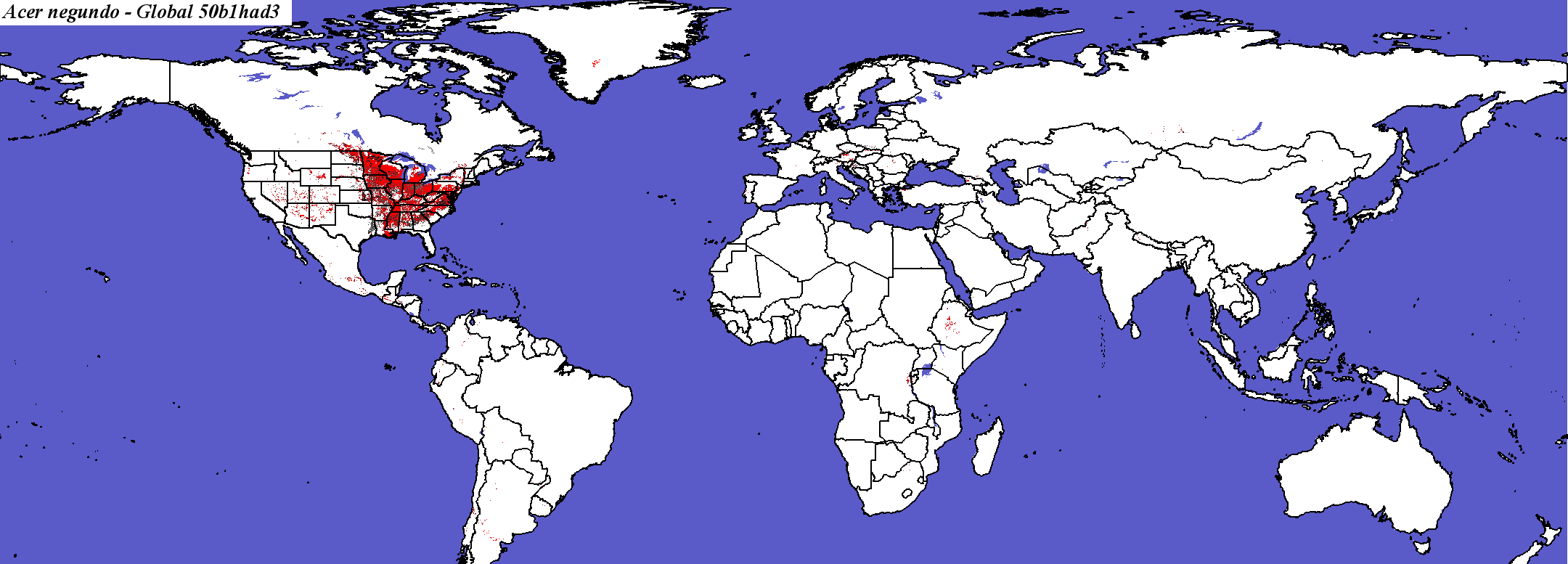

Hadley, Scenario B1, 2050 - Acer negundo - Global
Acer_negundo_final.4.conus
Acer_negundo_final.4.global

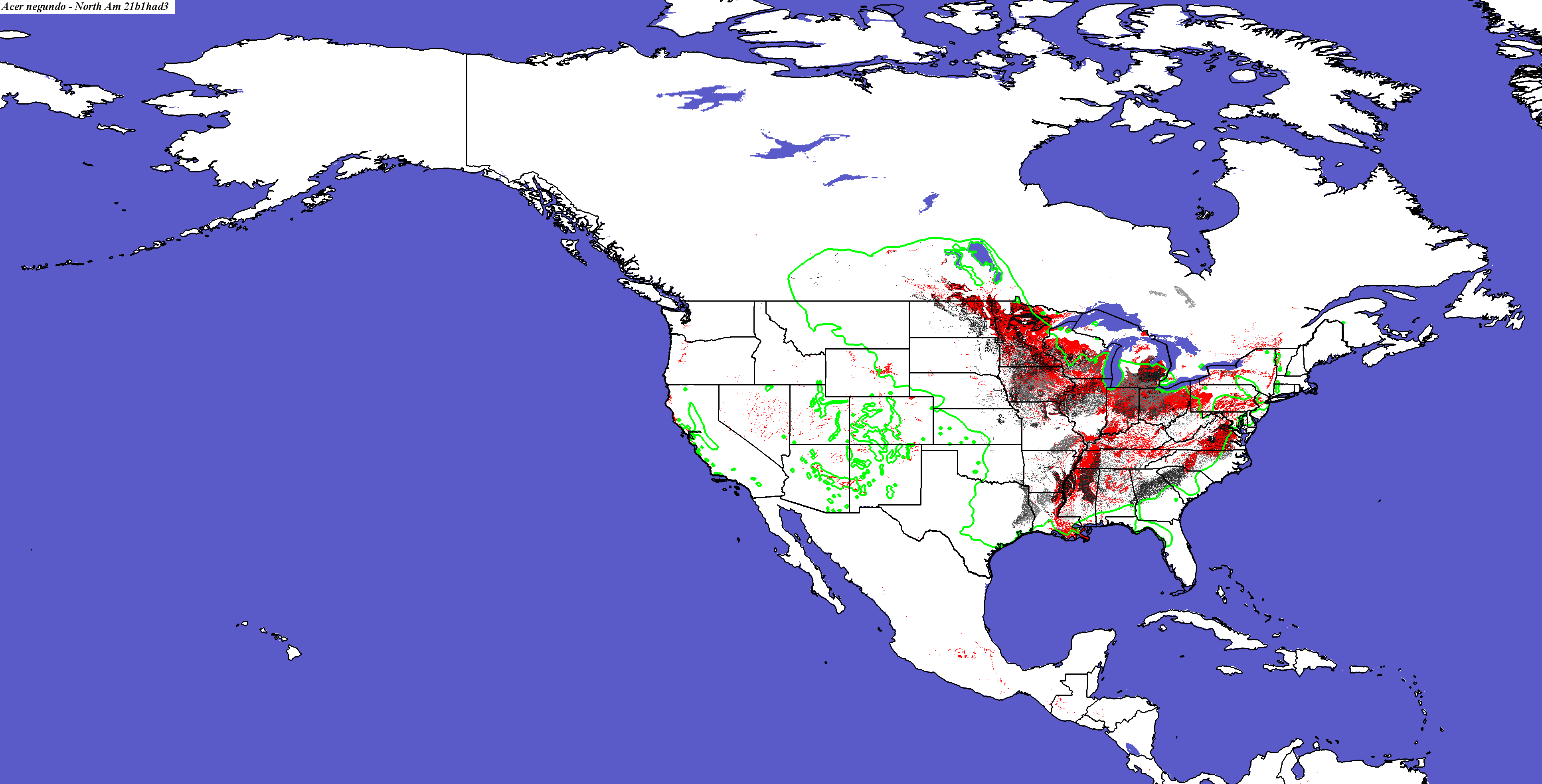

Hadley, Scenario B1, 2100 - Acer negundo - CONUS
Compare with Acer negundo modeled for Hadley B1 in 2100 by Iverson and Prasad
Acer negundo not modeled by Crookston and Rehfeldt

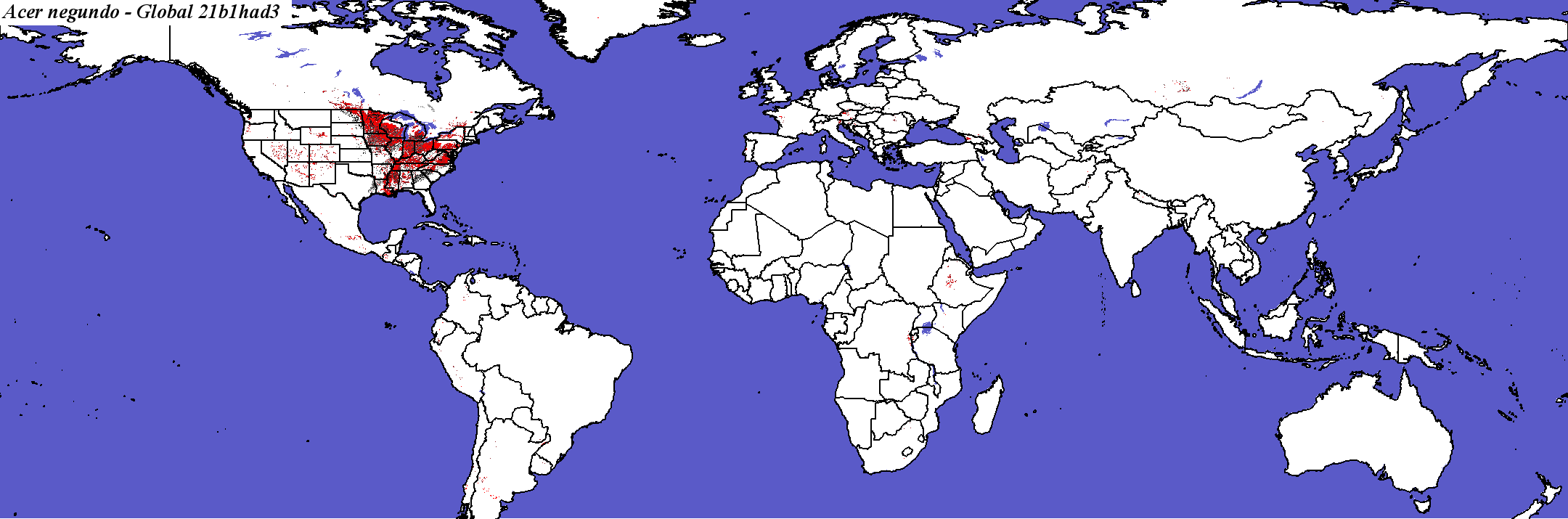

Hadley, Scenario B1, 2100 - Acer negundo - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Acer_negundo_final.elev

Number of Suitable Ecoregions (Niche Breadth)

212

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

6.71233

Area in Present Suitable Range (in km2)

2212908

Area in Future Suitable Range (Had B1 2050, in km2)

1055156

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

904857

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

40.8800

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

68.0822

Percent Change in Area of Suitable Range (Had B1 2050)

-52.3100

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

82.7397

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

15288.1 +/- 31125.7

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

47.6712

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

7.04072 +/- 14.0132

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

50.6849

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

175.321 +/- 613.988

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

31.9178

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

100041

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

4.5200

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

27.9452

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

425802

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

19.2400

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

73.6986

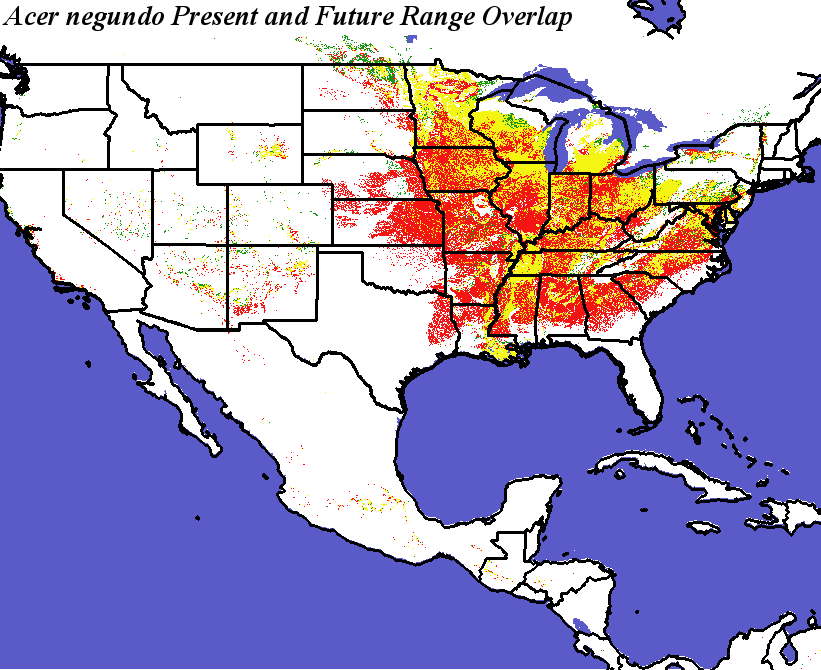

Present and Future Ranges - Hadley, Scenario B1, 2050 - Acer negundo Acer negundo - Range Change Statistics

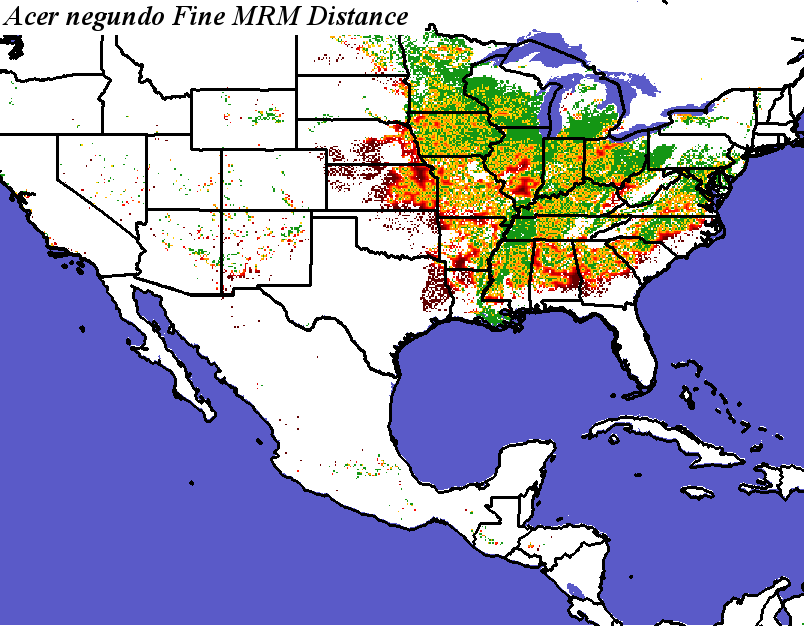

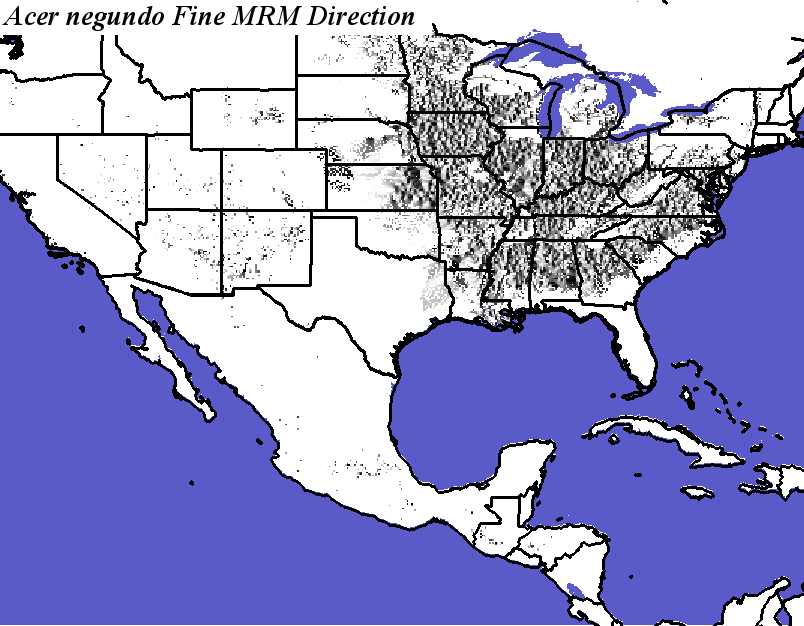

Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Acer_negundo_final.elev Fine MRM Distance
Acer_negundo_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Acer negundo Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Acer negundo

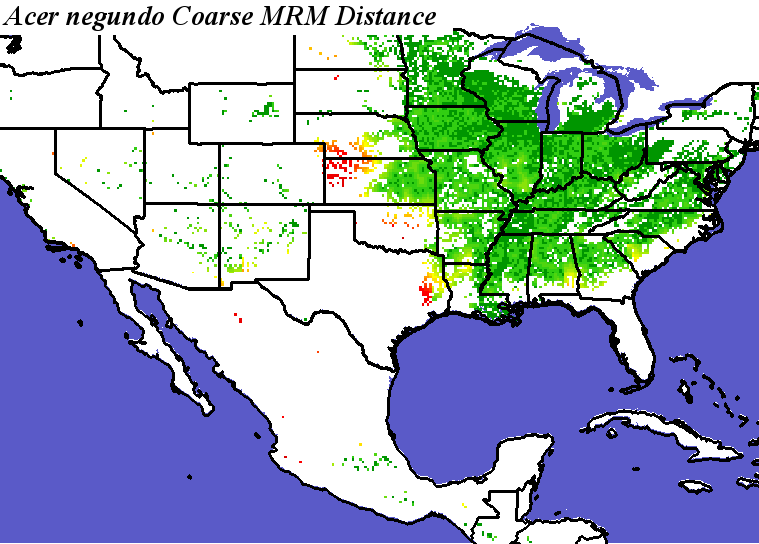

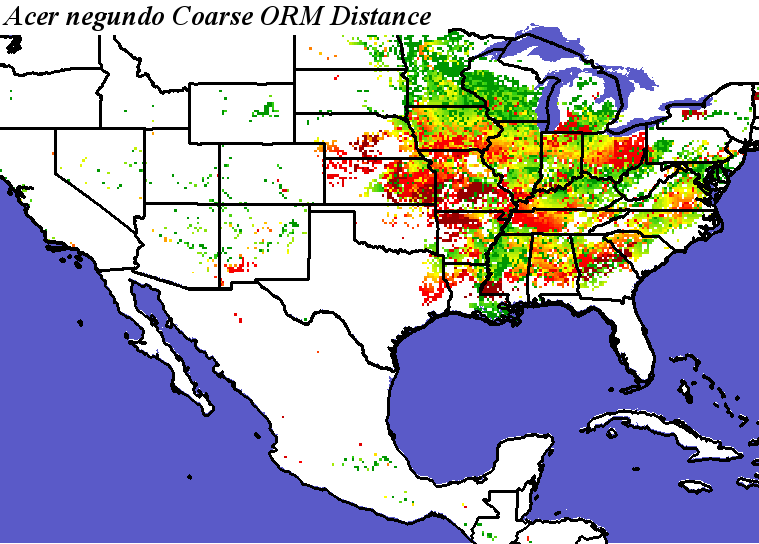

Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Acer_negundo_final.elev Coarse MRM Distance
Acer_negundo_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Acer negundo Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Acer negundo
