Version 5 Tree Atlas


Acer pensylvanicum

striped maple

elev

Acer pensylvanicum Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Acer pensylvanicum

USDA Plants Database entry for Acer pensylvanicum
Silvics Manual entry for Acer pensylvanicum


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
562126688Parts of range not well sampled

Occurrence Locations and Hargrove's Present Suitable Range Outline
Acer_pensylvanicum_final Occurrences

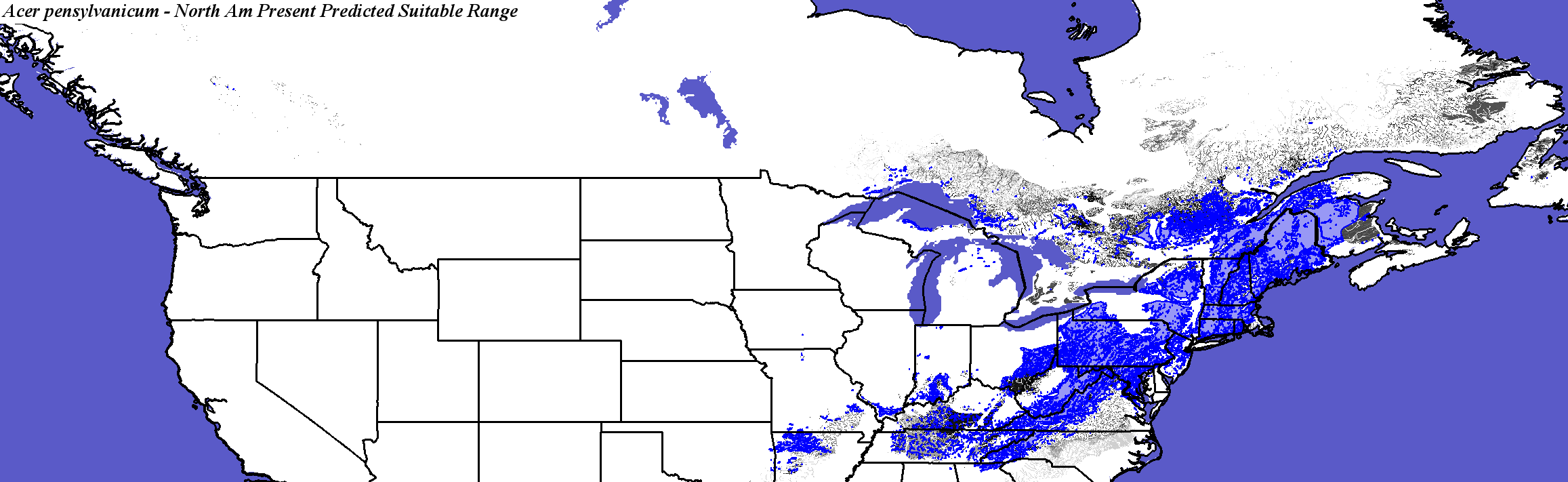

Hargroves Present Suitable Range Outline for Acer_pensylvanicum_final
Acer pensylvanicum - Occurrence Locations Acer pensylvanicum - Hargrove's Present Suitable Range Outline
Present Conditions
Acer_pensylvanicum_final.3.conus
Acer_pensylvanicum_final.3.global

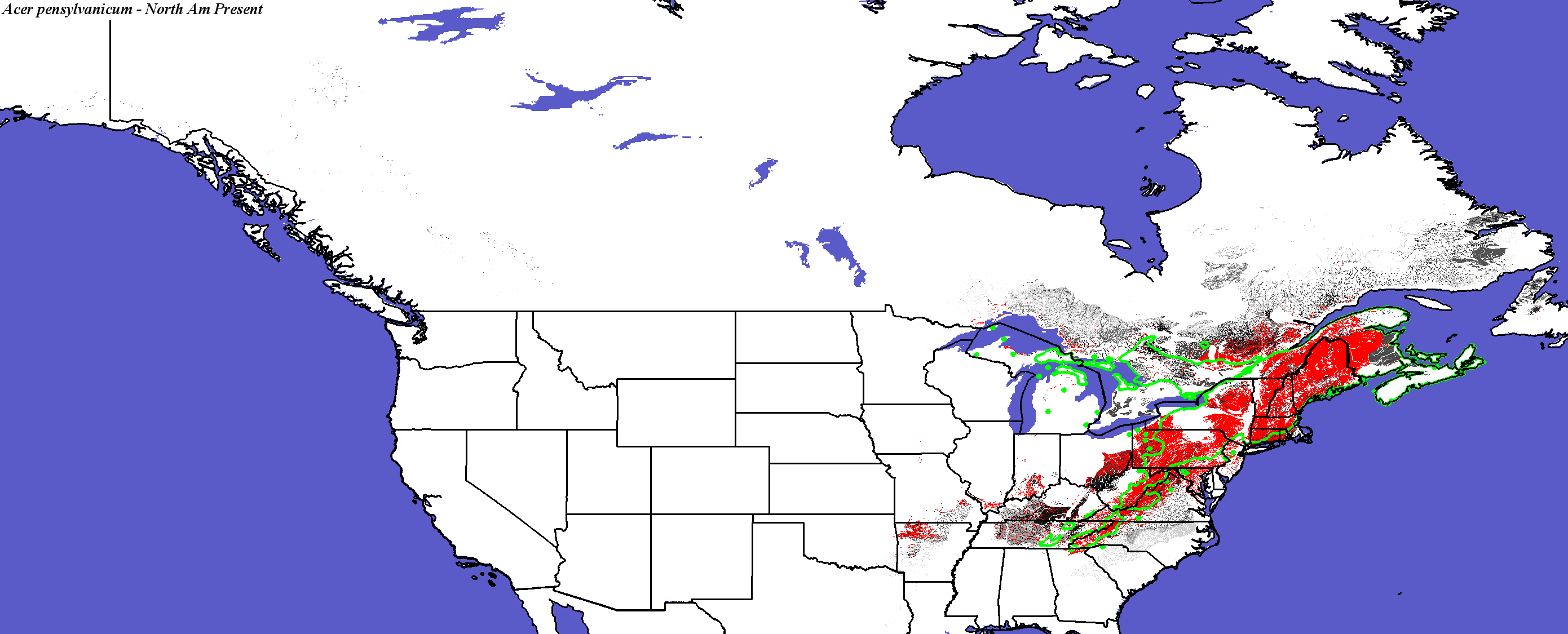

Acer pensylvanicum - CONUS
Compare with Current Range from the Silvics Manual for Acer pensylvanicum
Compare with Current Range from Biota of North America Program (BONAP) for Acer pensylvanicum

Compare with Acer pensylvanicum modeled for Current conditions by Iverson and Prasad
Acer pensylvanicum not modeled by Crookston and Rehfeldt
Acer pensylvanicum not modeled by Coops and Waring

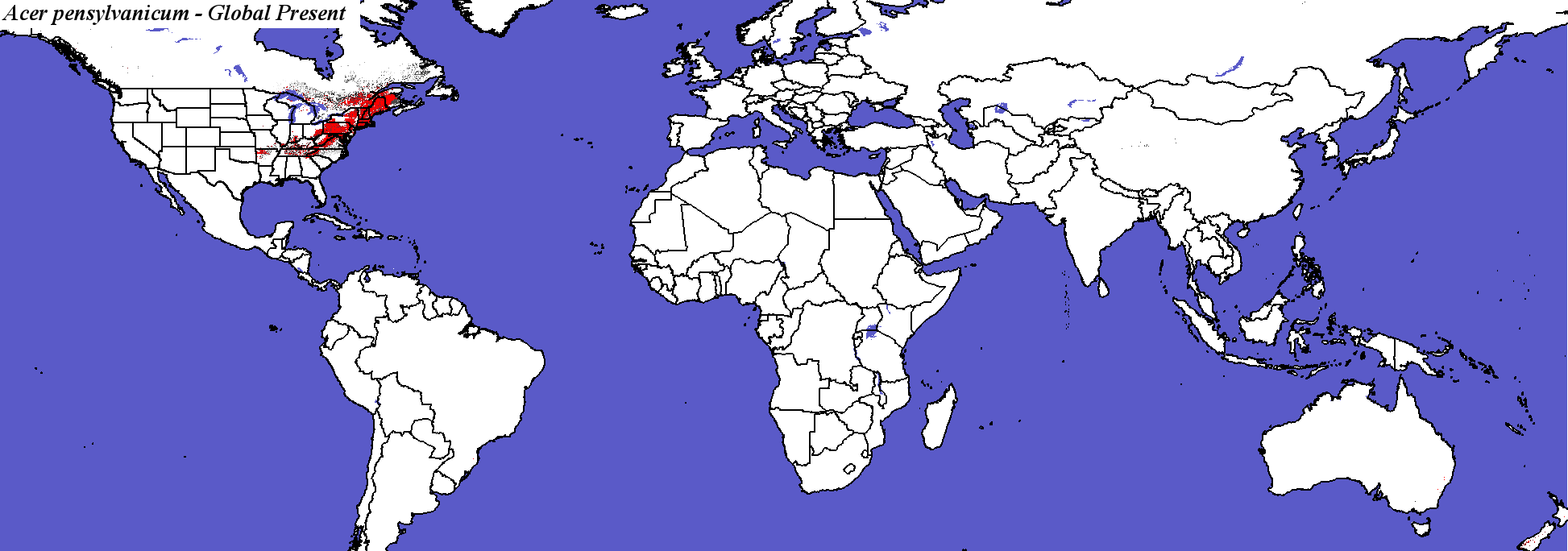

Acer pensylvanicum - Global

PCM - Parallel Climate Model
Acer_pensylvanicum_final.3.conus
Acer_pensylvanicum_final.3.global

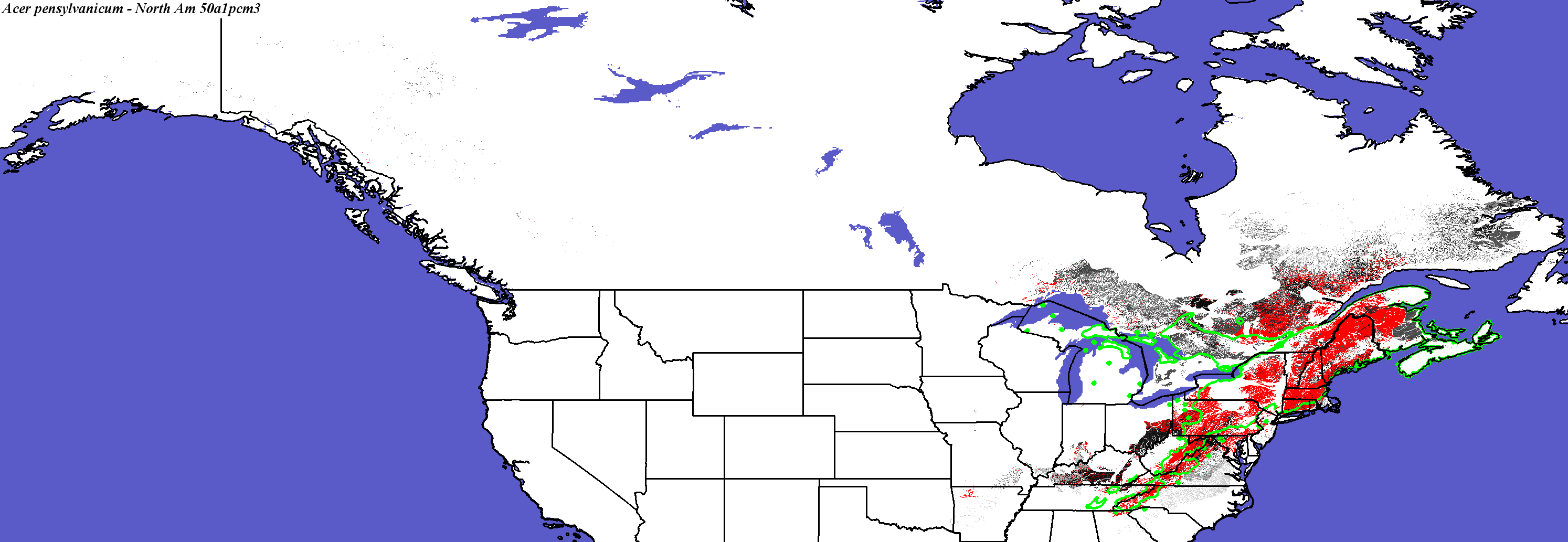

PCM, Scenario A1FI, 2050 - Acer pensylvanicum - CONUS
PCM, Scenario A1FI, 2050 - Acer pensylvanicum - Global
Acer_pensylvanicum_final.3.conus
Acer_pensylvanicum_final.3.global

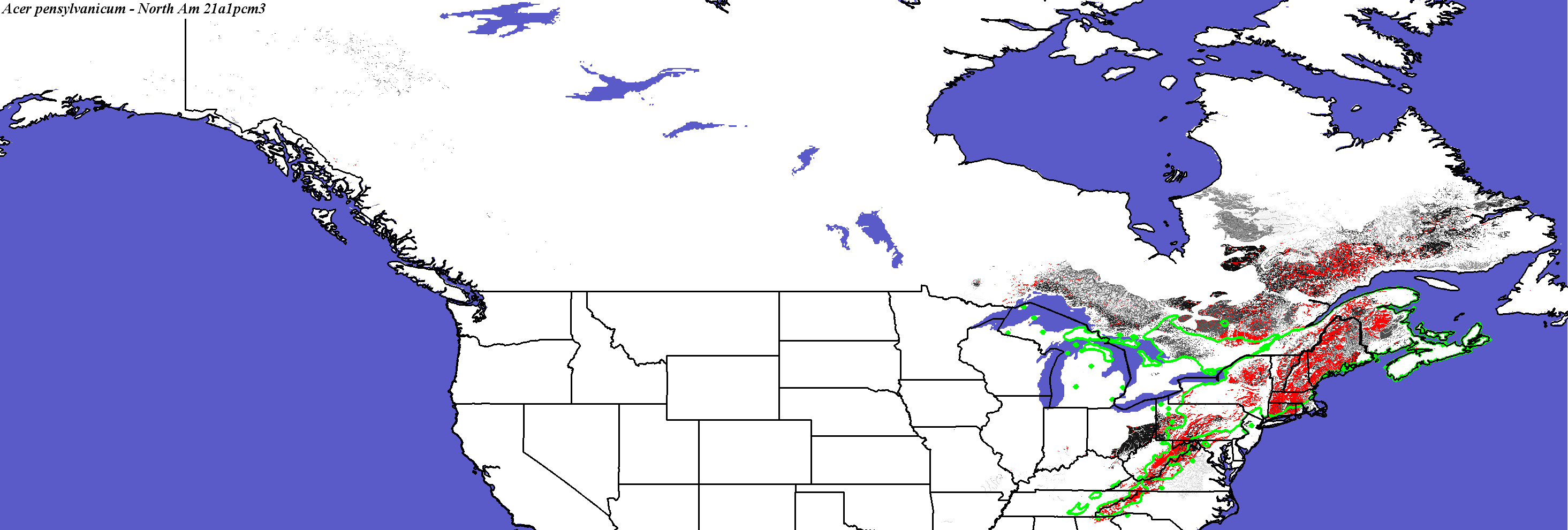

PCM, Scenario A1FI, 2100 - Acer pensylvanicum - CONUS
Compare with Acer pensylvanicum modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Acer pensylvanicum - Global

Acer_pensylvanicum_final.3.conus
Acer_pensylvanicum_final.3.global

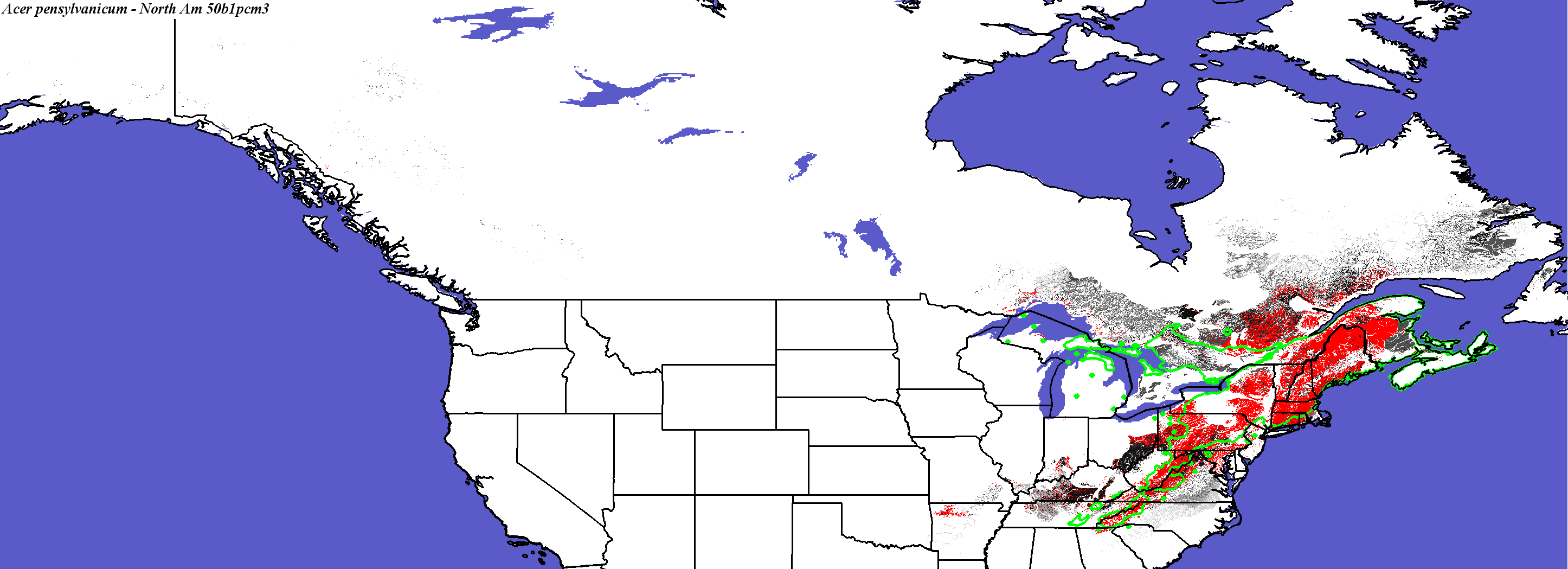

PCM, Scenario B1, 2050 - Acer pensylvanicum - CONUS

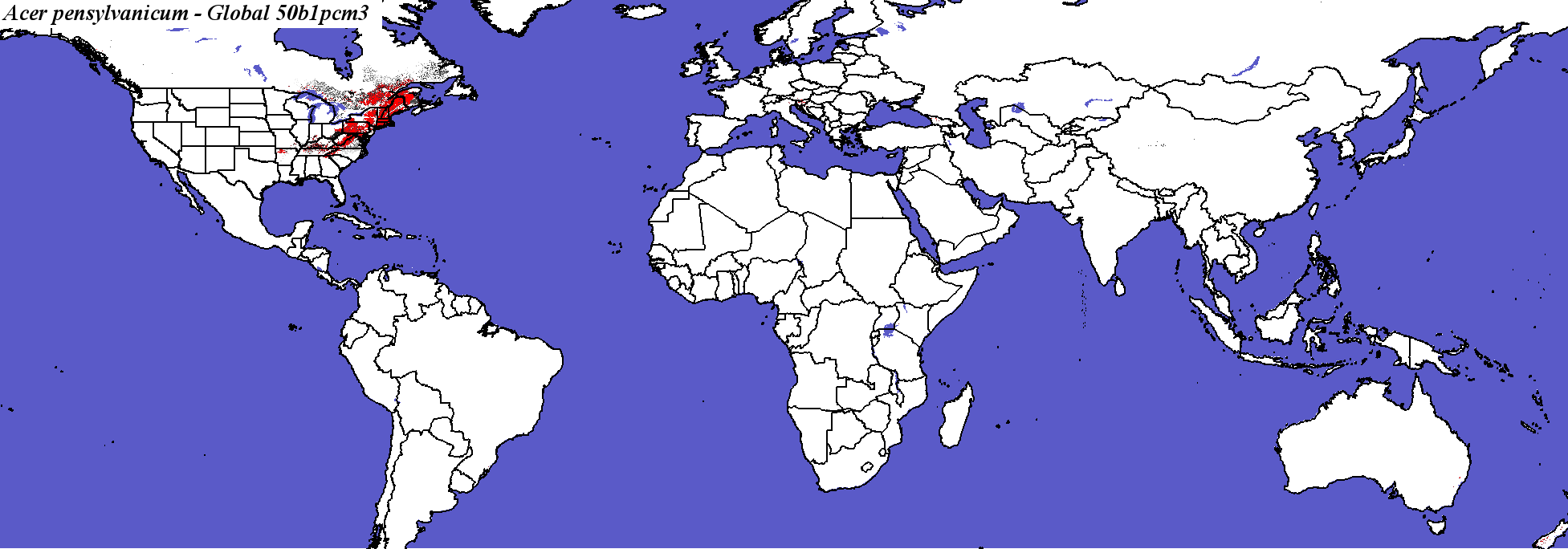

PCM, Scenario B1, 2050 - Acer pensylvanicum - Global
Acer_pensylvanicum_final.3.conus
Acer_pensylvanicum_final.3.global

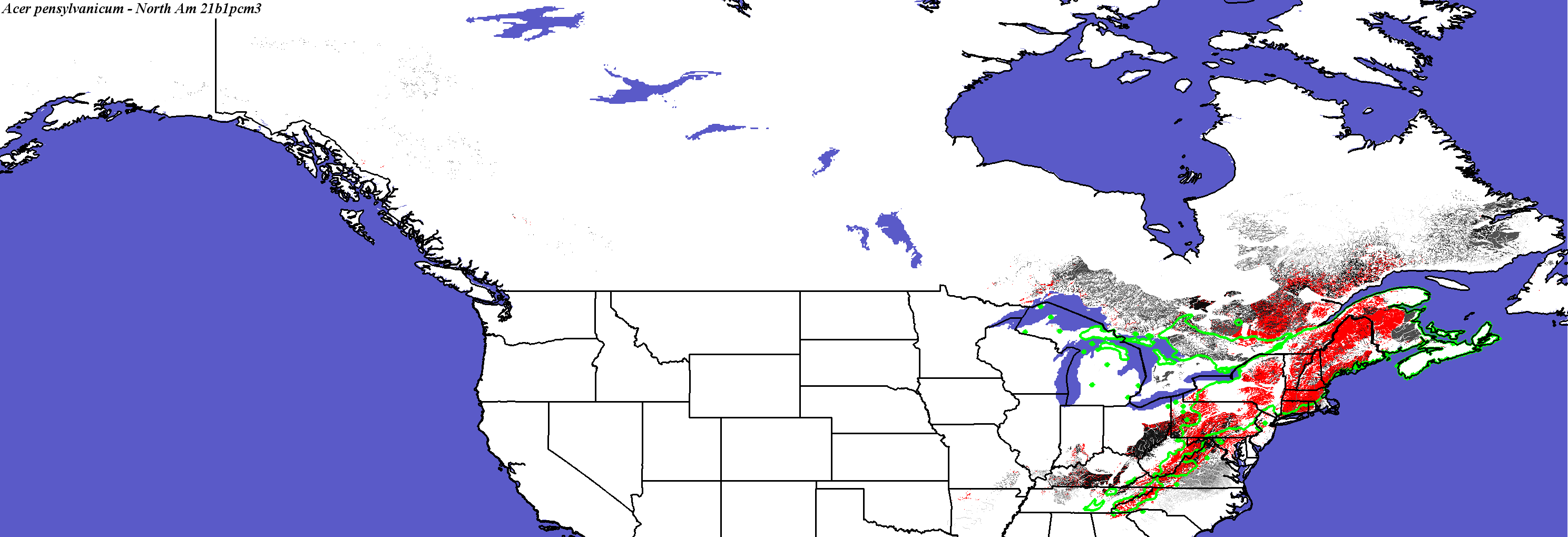

PCM, Scenario B1, 2100 - Acer pensylvanicum - CONUS
Compare with Acer pensylvanicum modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Acer pensylvanicum - Global

Hadley Climate Model
Acer_pensylvanicum_final.3.conus
Acer_pensylvanicum_final.3.global

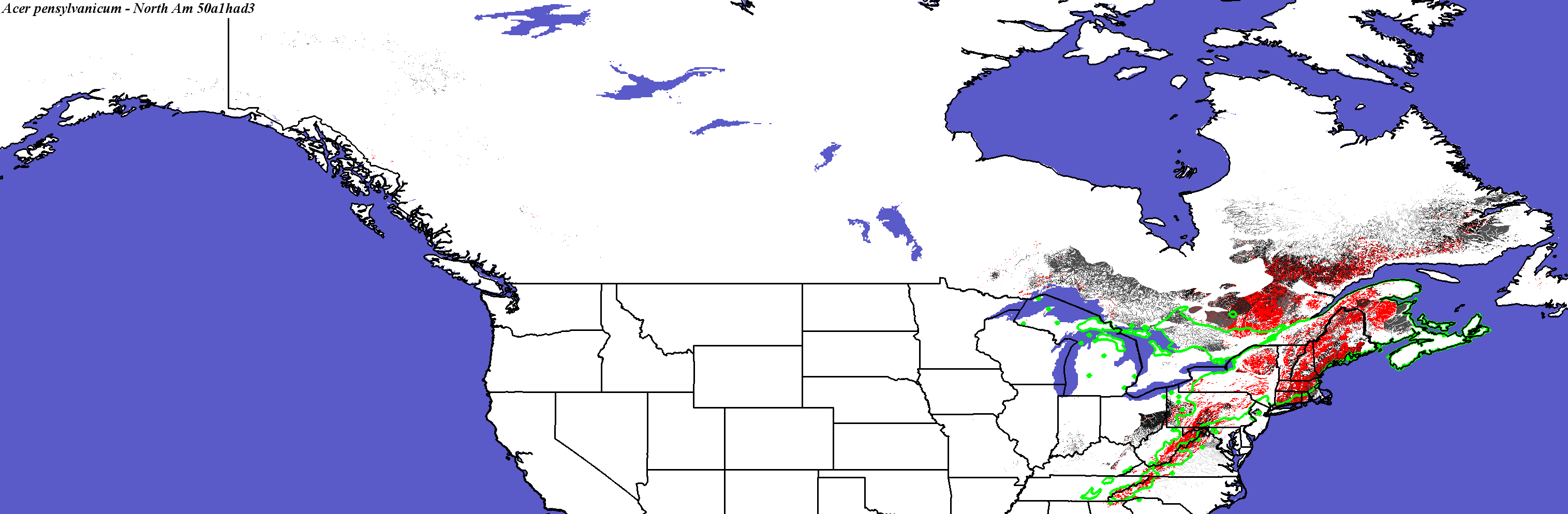

Hadley, Scenario A1FI, 2050 - Acer pensylvanicum - CONUS
Acer pensylvanicum not modeled by Crookston and Rehfeldt

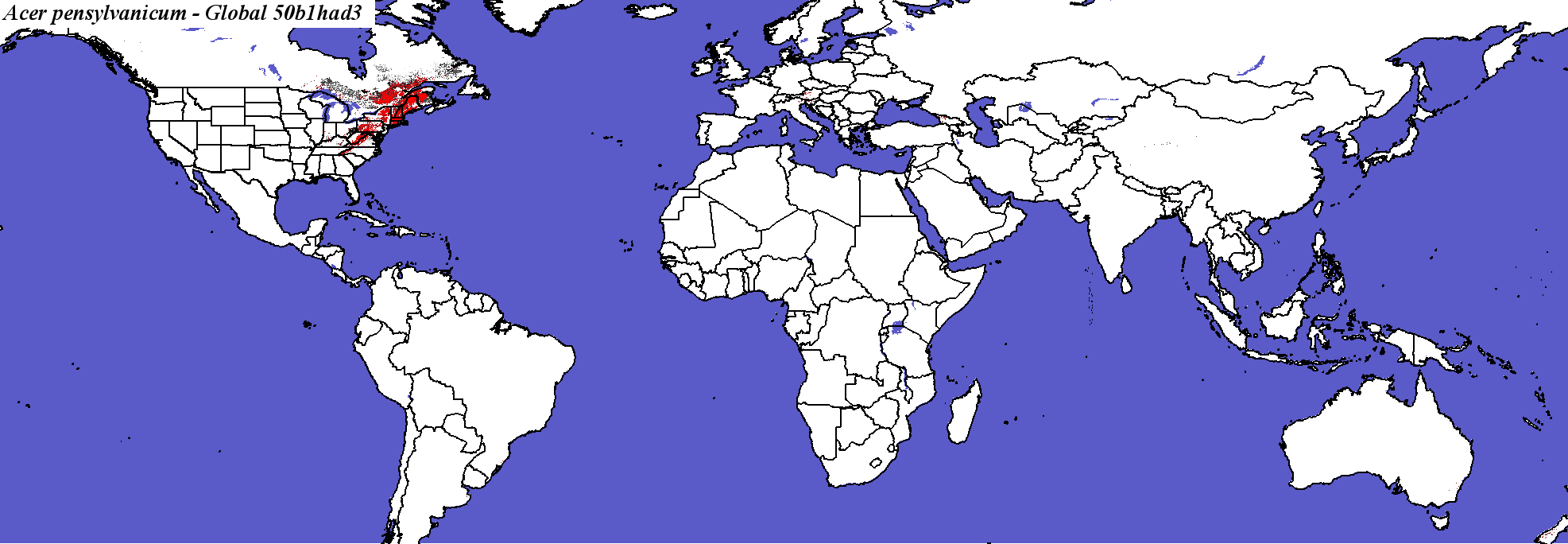

Hadley, Scenario A1FI, 2050 - Acer pensylvanicum - Global
Acer_pensylvanicum_final.3.conus
Acer_pensylvanicum_final.3.global.

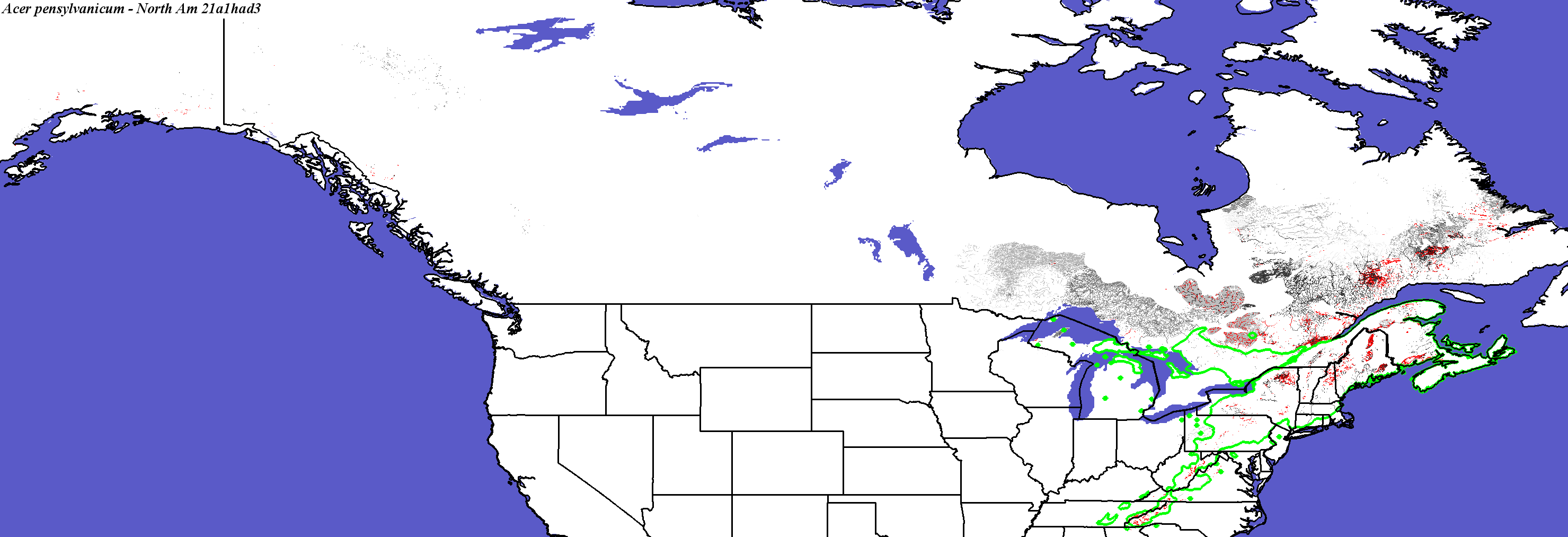

Hadley, Scenario A1FI, 2100 - Acer pensylvanicum - CONUS
Compare with Acer pensylvanicum modeled for Hadley A1FI in 2100 by Iverson and Prasad
Acer pensylvanicum not modeled by Crookston and Rehfeldt
Acer pensylvanicum not modeled by Coops and Waring

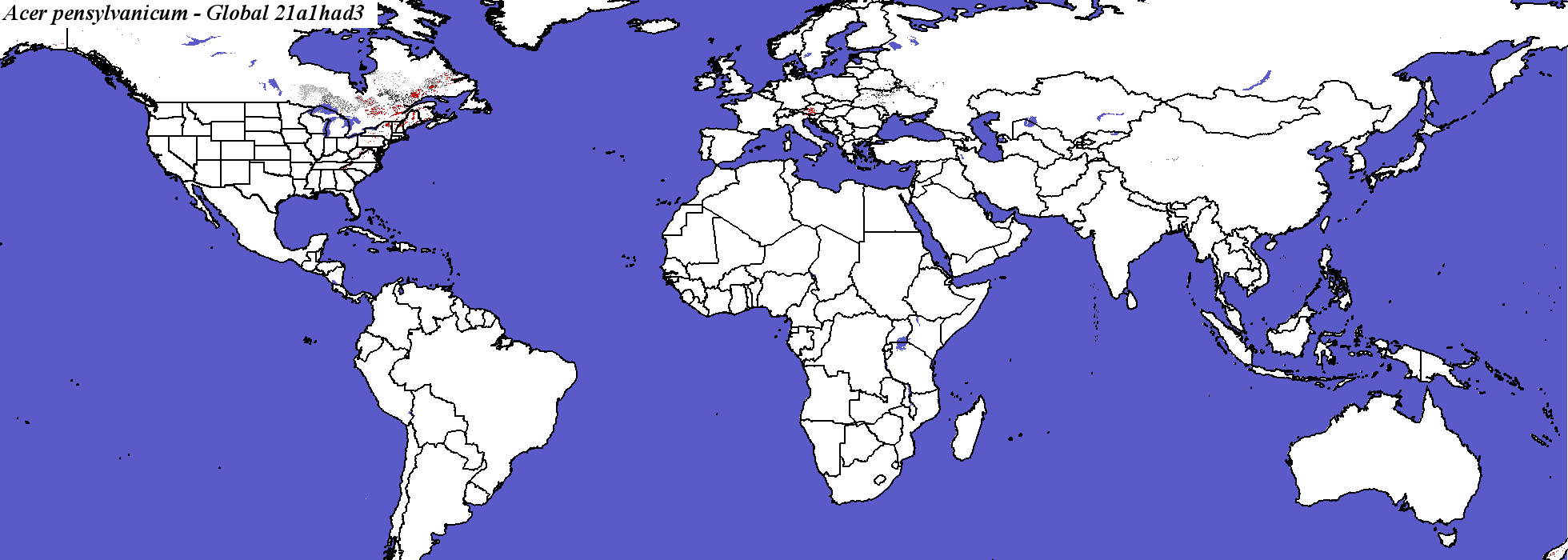

Hadley, Scenario A1FI, 2100 - Acer pensylvanicum - Global

Acer_pensylvanicum_final.3.conus
Acer_pensylvanicum_final.3.global.

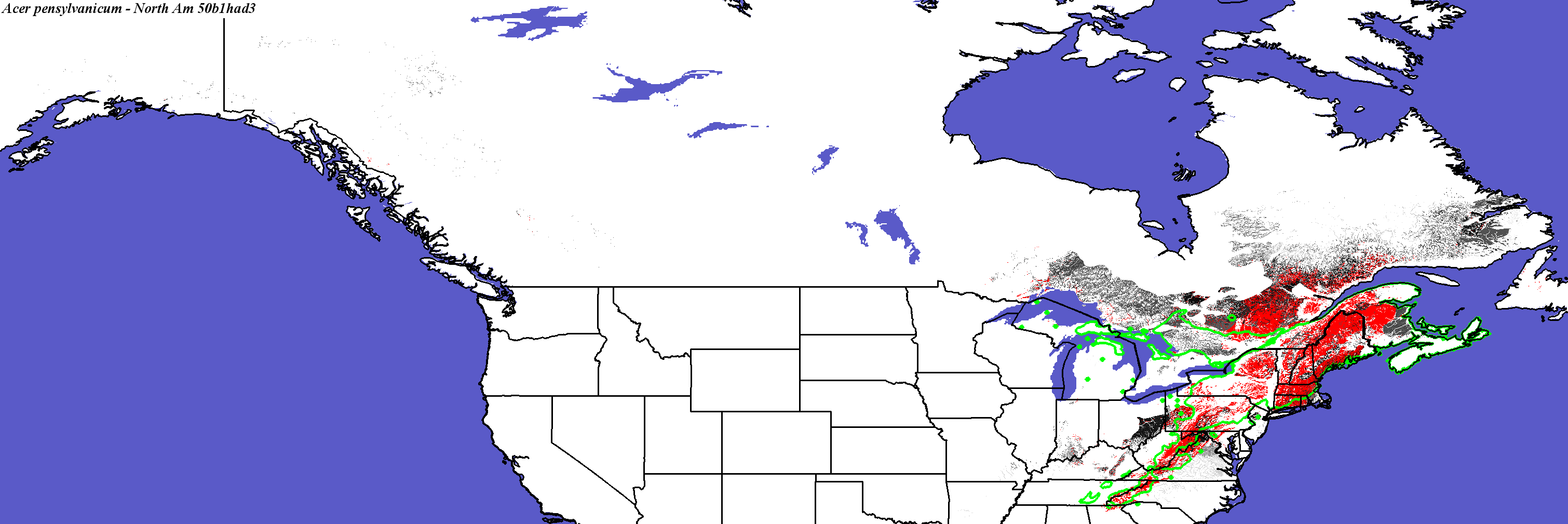

Hadley, Scenario B1, 2050 - Acer pensylvanicum - CONUS
Acer pensylvanicum not modeled by Crookston and Rehfeldt
Acer pensylvanicum not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Acer pensylvanicum - Global
Acer_pensylvanicum_final.3.conus
Acer_pensylvanicum_final.3.global
Hadley, Scenario B1, 2100 - Acer pensylvanicum - CONUS
Compare with Acer pensylvanicum modeled for Hadley B1 in 2100 by Iverson and Prasad
Acer pensylvanicum not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Acer pensylvanicum - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Acer_pensylvanicum_final.elev

Number of Suitable Ecoregions (Niche Breadth)

76

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

27.2603

Area in Present Suitable Range (in km2)

481254

Area in Future Suitable Range (Had B1 2050, in km2)

347091

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

249959

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

51.9300

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

47.8082

Percent Change in Area of Suitable Range (Had B1 2050)

-27.8700

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

48.0822

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

24872.6 +/- 92346.3

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

28.0822

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

12.4773 +/- 48.955

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

23.0137

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

40.9716 +/- 67.0513

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

63.2877

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

98.3562

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

160308

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

33.3100

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

36.4384

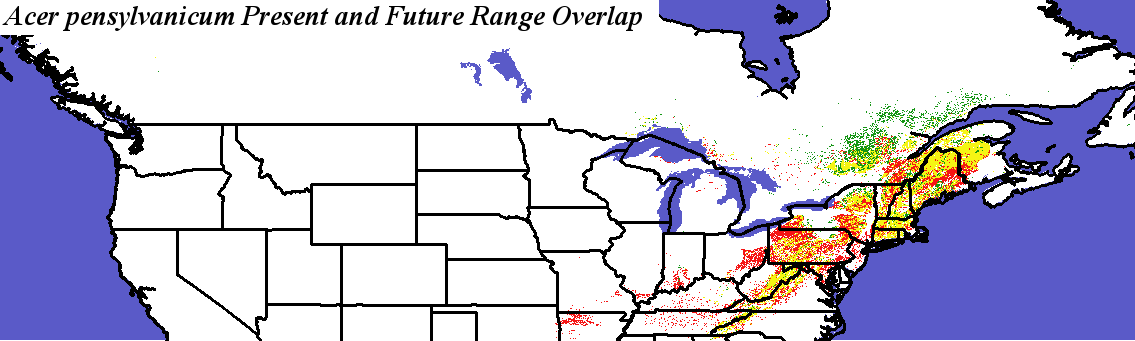

Present and Future Ranges - Hadley, Scenario B1, 2050 - Acer pensylvanicum Acer pensylvanicum - Range Change Statistics

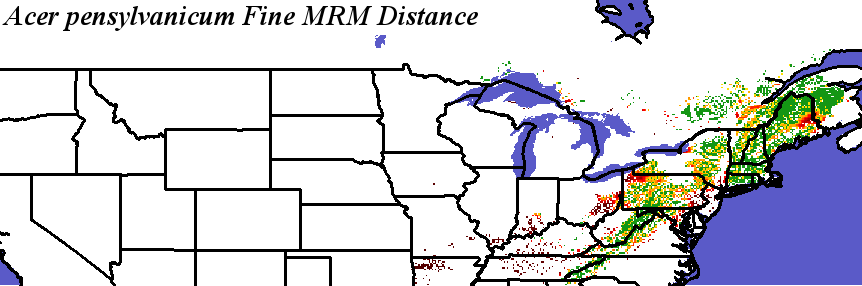

Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Acer_pensylvanicum_final.elev Fine MRM Distance

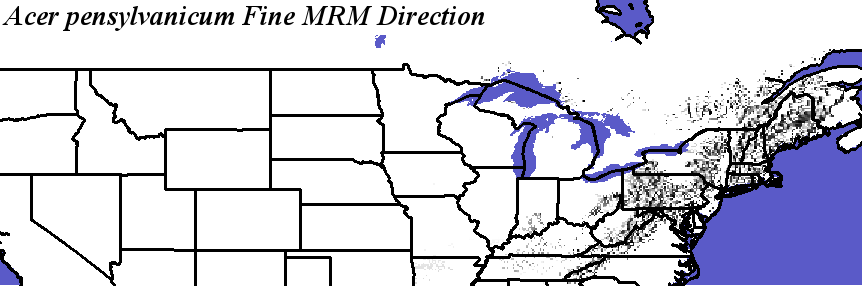

Acer_pensylvanicum_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Acer pensylvanicum Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Acer pensylvanicum
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

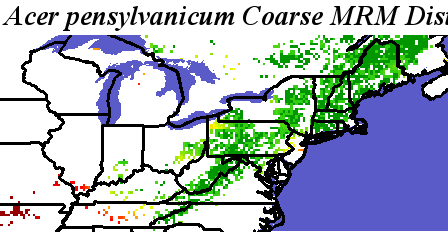

Acer_pensylvanicum_final.elev Coarse MRM Distance

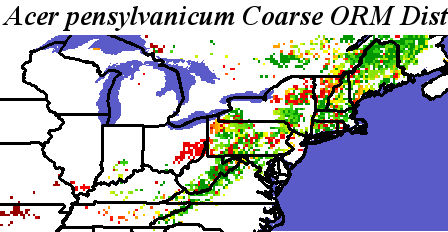

Acer_pensylvanicum_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Acer pensylvanicum Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Acer pensylvanicum
