Version 5 Tree Atlas


Acer rubrum

red maple

elev

Acer rubrum Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Acer rubrum

USDA Plants Database entry for Acer rubrum
Silvics Manual entry for Acer rubrum


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
2953516829703Parts of range not well sampled

Occurrence Locations and Hargrove's Present Suitable Range Outline
Acer_rubrum_final Occurrences
Hargroves Present Suitable Range Outline for Acer_rubrum_final

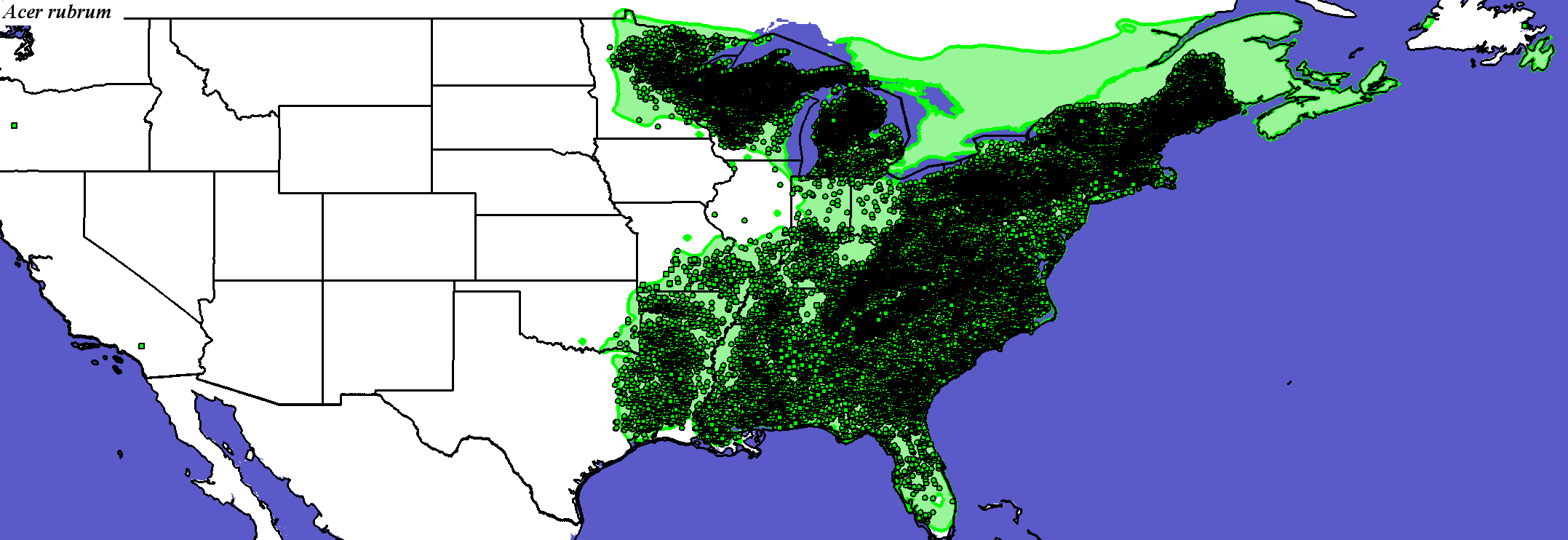

Acer rubrum - Occurrence Locations Acer rubrum - Hargrove's Present Suitable Range Outline
Present Conditions
Acer_rubrum_final.4.conus
Acer_rubrum_final.4.global

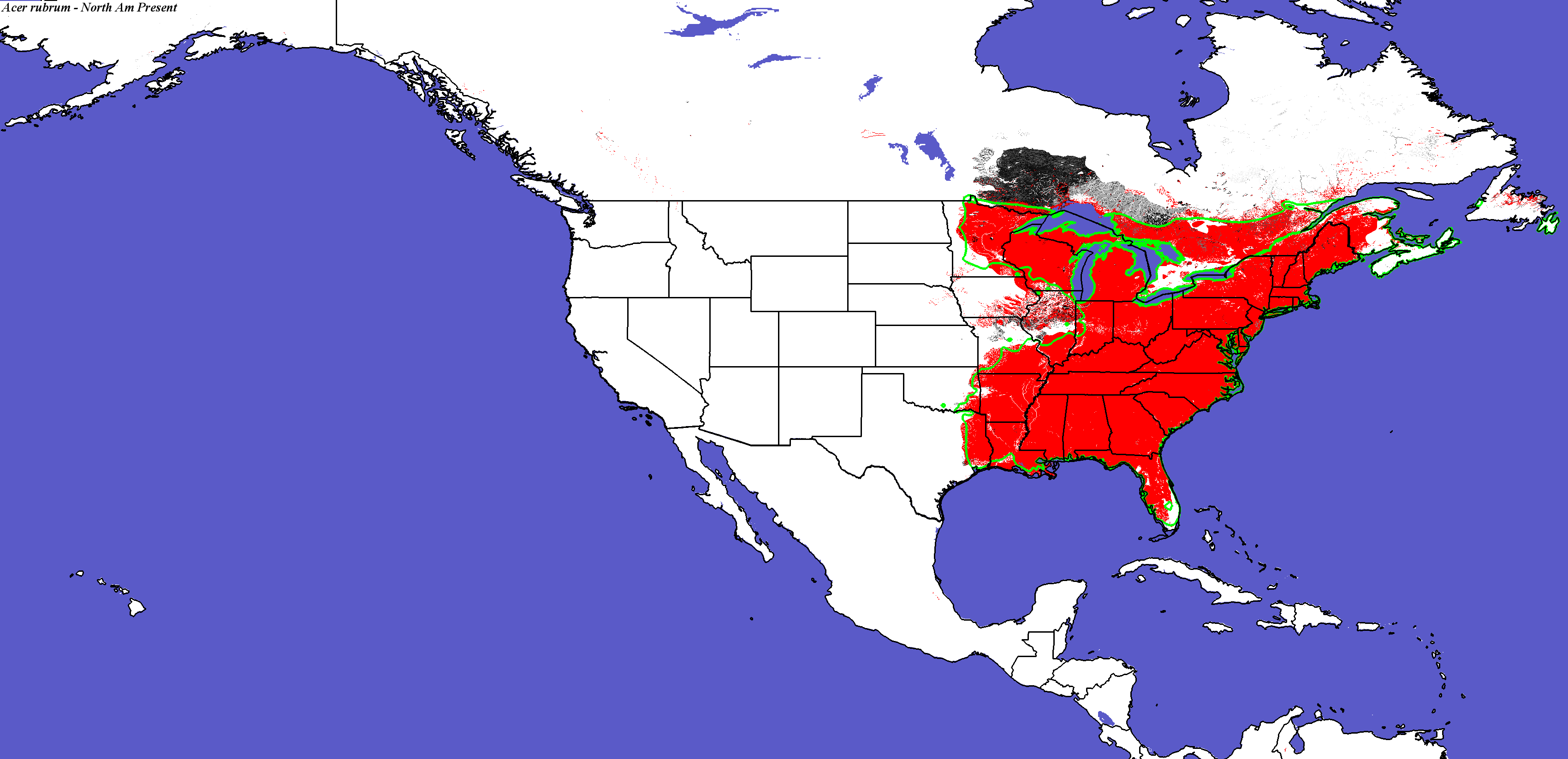

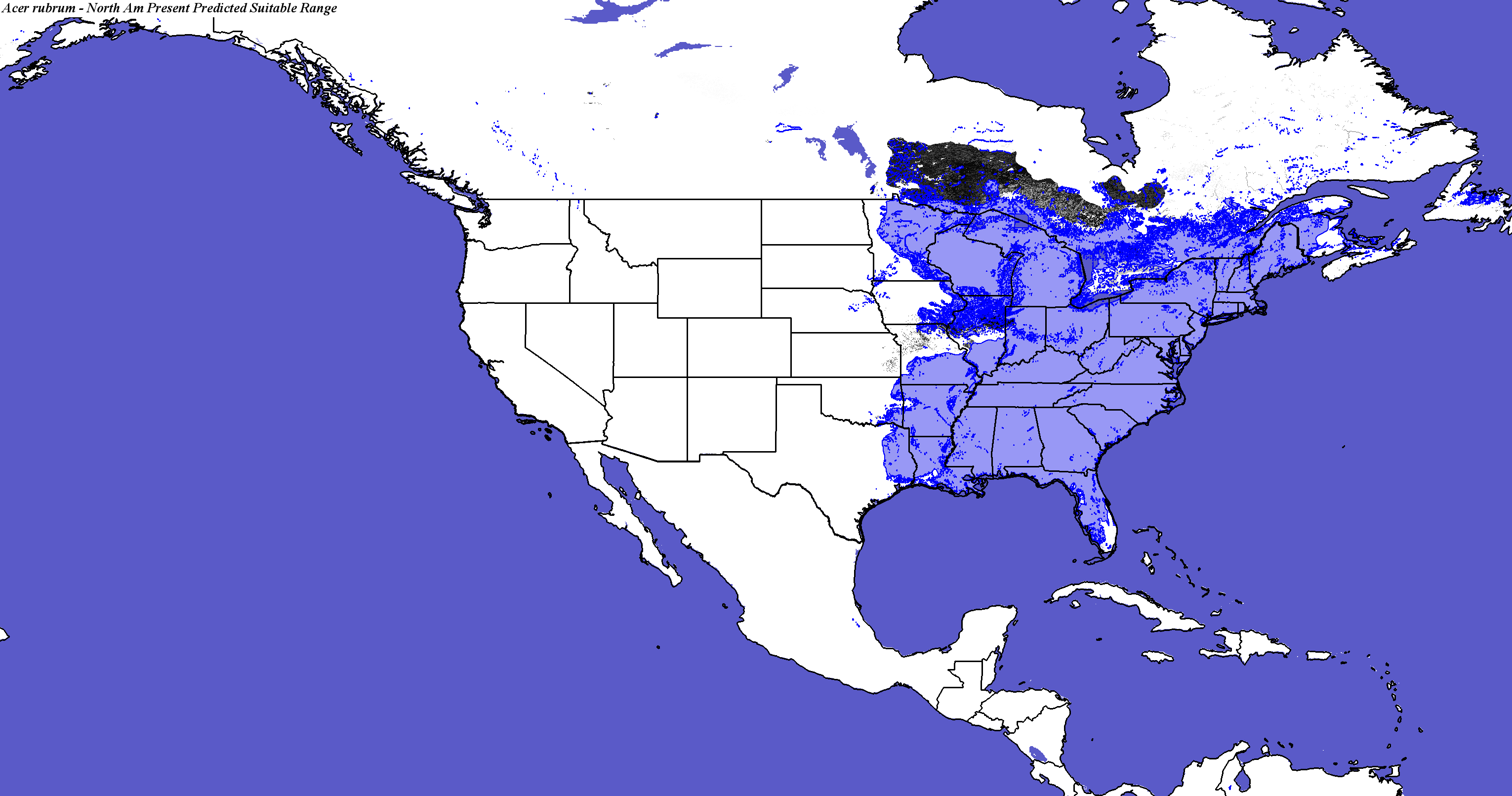

Acer rubrum - CONUS
Compare with Current Range from the Silvics Manual for Acer rubrum
Compare with Current Range from Biota of North America Program (BONAP) for Acer rubrum

Compare with Acer rubrum modeled for Current conditions by Iverson and Prasad
Acer rubrum not modeled by Crookston and Rehfeldt
Acer rubrum not modeled by Coops and Waring
Acer rubrum - Global

PCM - Parallel Climate Model
Acer_rubrum_final.4.conus
Acer_rubrum_final.4.global

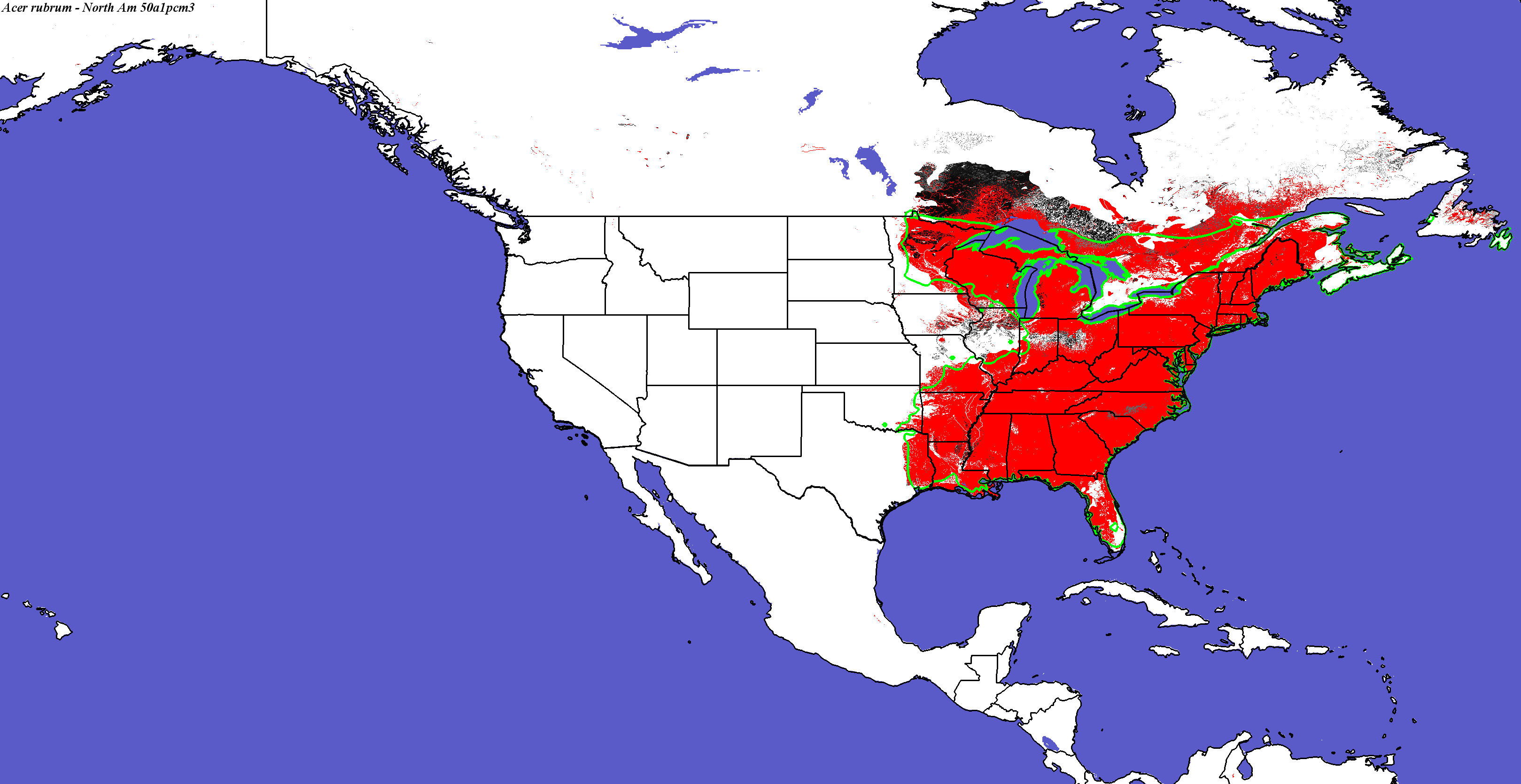

PCM, Scenario A1FI, 2050 - Acer rubrum - CONUS

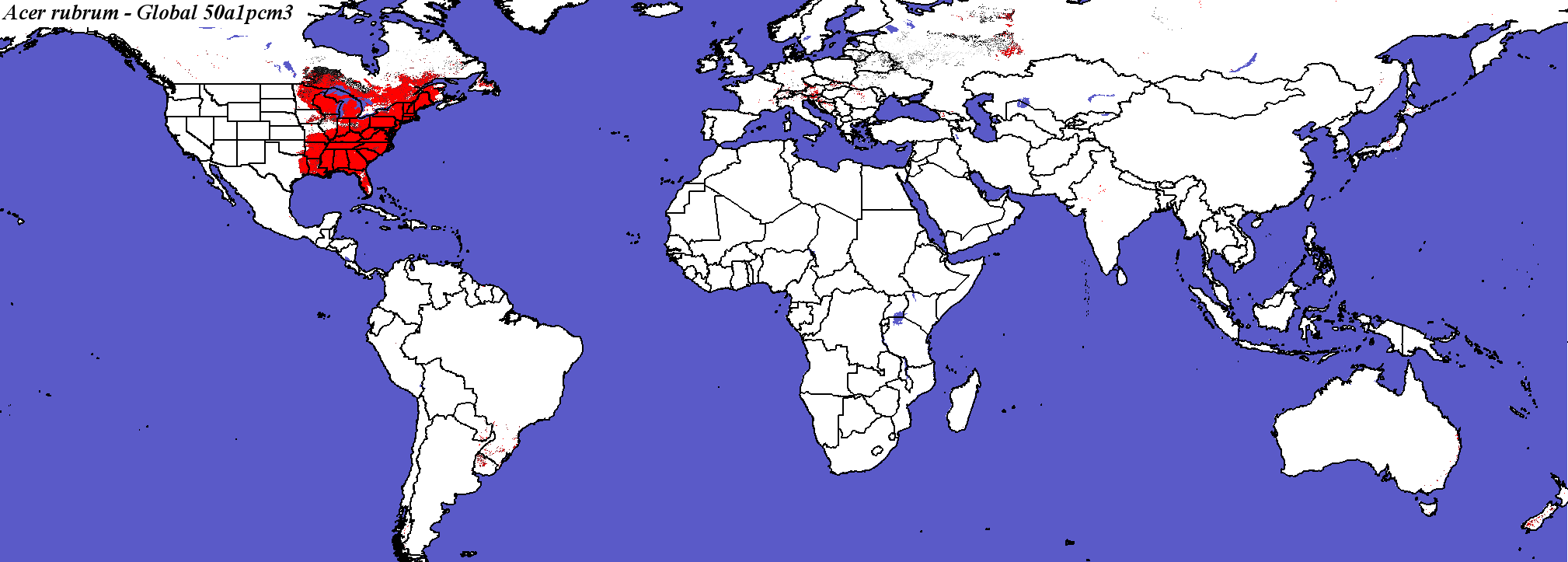

PCM, Scenario A1FI, 2050 - Acer rubrum - Global
Acer_rubrum_final.4.conus
Acer_rubrum_final.4.global
PCM, Scenario A1FI, 2100 - Acer rubrum - CONUS
Compare with Acer rubrum modeled for PCM A1FI in 2100 by Iverson and Prasad

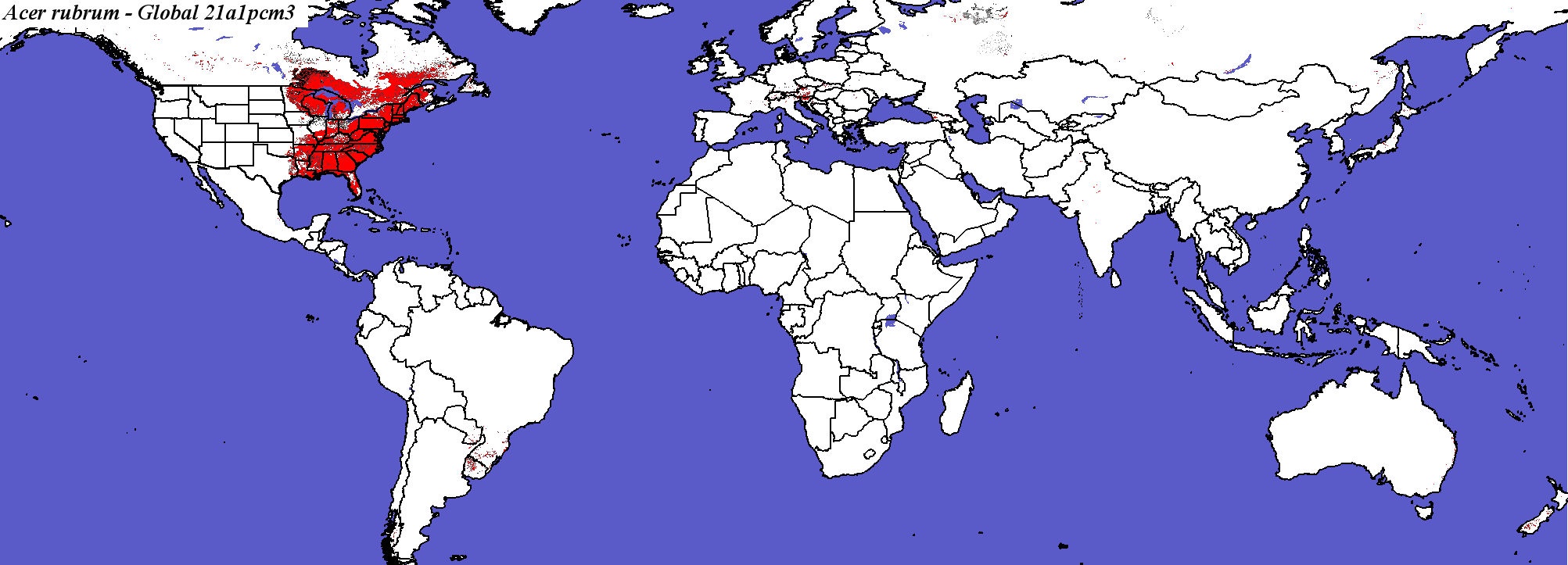

PCM, Scenario A1FI, 2100 - Acer rubrum - Global

Acer_rubrum_final.4.conus
Acer_rubrum_final.4.global

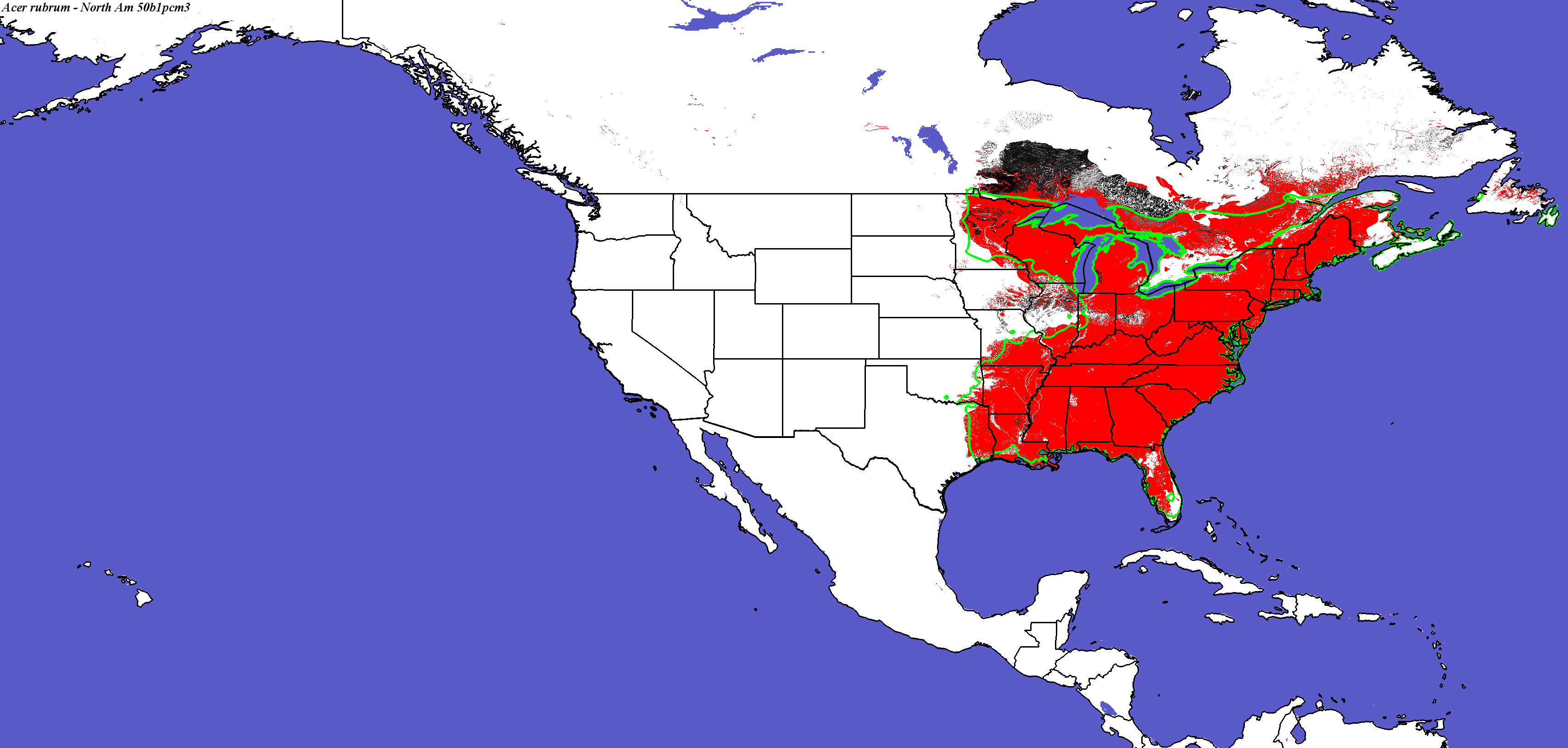

PCM, Scenario B1, 2050 - Acer rubrum - CONUS
PCM, Scenario B1, 2050 - Acer rubrum - Global
Acer_rubrum_final.4.conus
Acer_rubrum_final.4.global

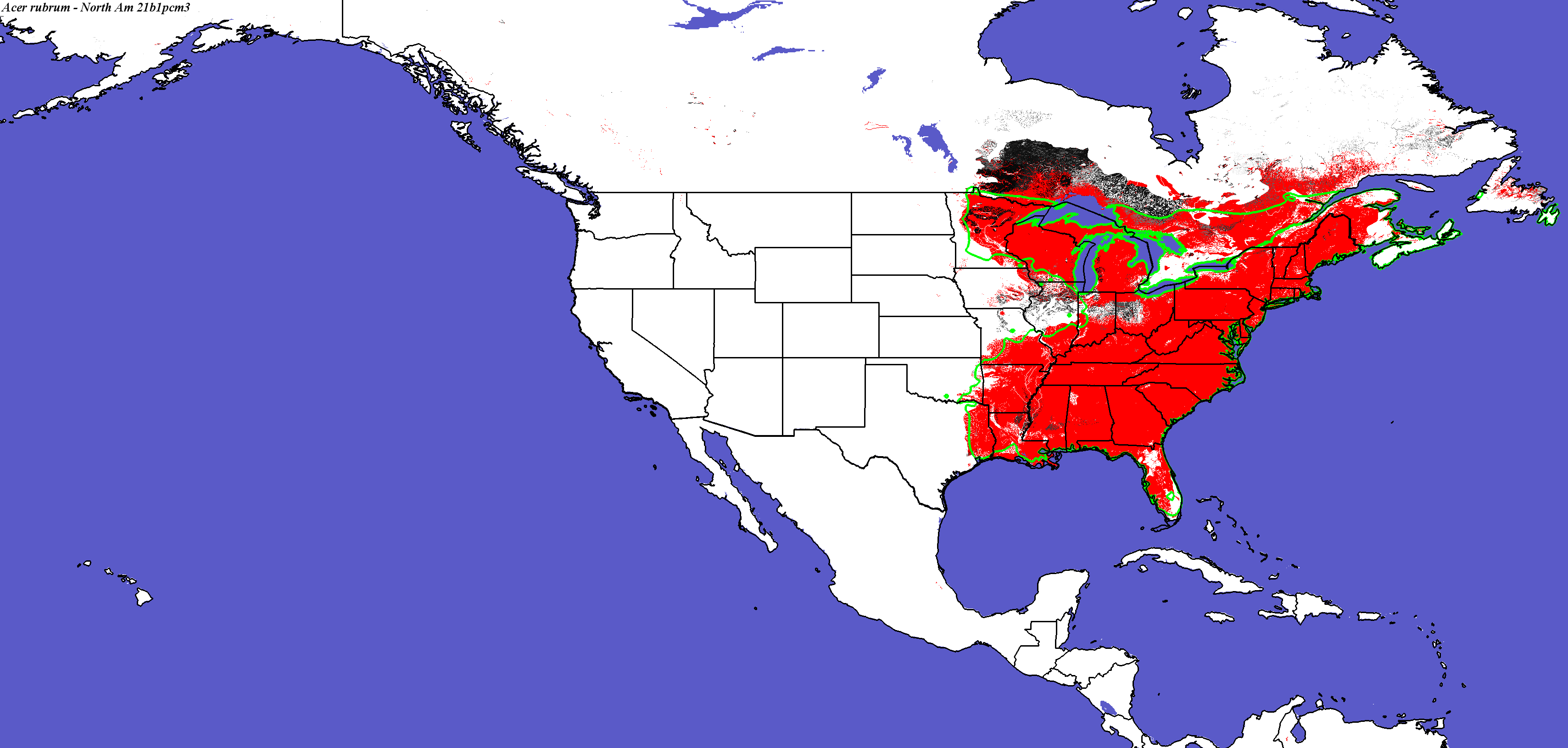

PCM, Scenario B1, 2100 - Acer rubrum - CONUS
Compare with Acer rubrum modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Acer rubrum - Global

Hadley Climate Model
Acer_rubrum_final.4.conus
Acer_rubrum_final.4.global
Hadley, Scenario A1FI, 2050 - Acer rubrum - CONUS
Acer rubrum not modeled by Crookston and Rehfeldt

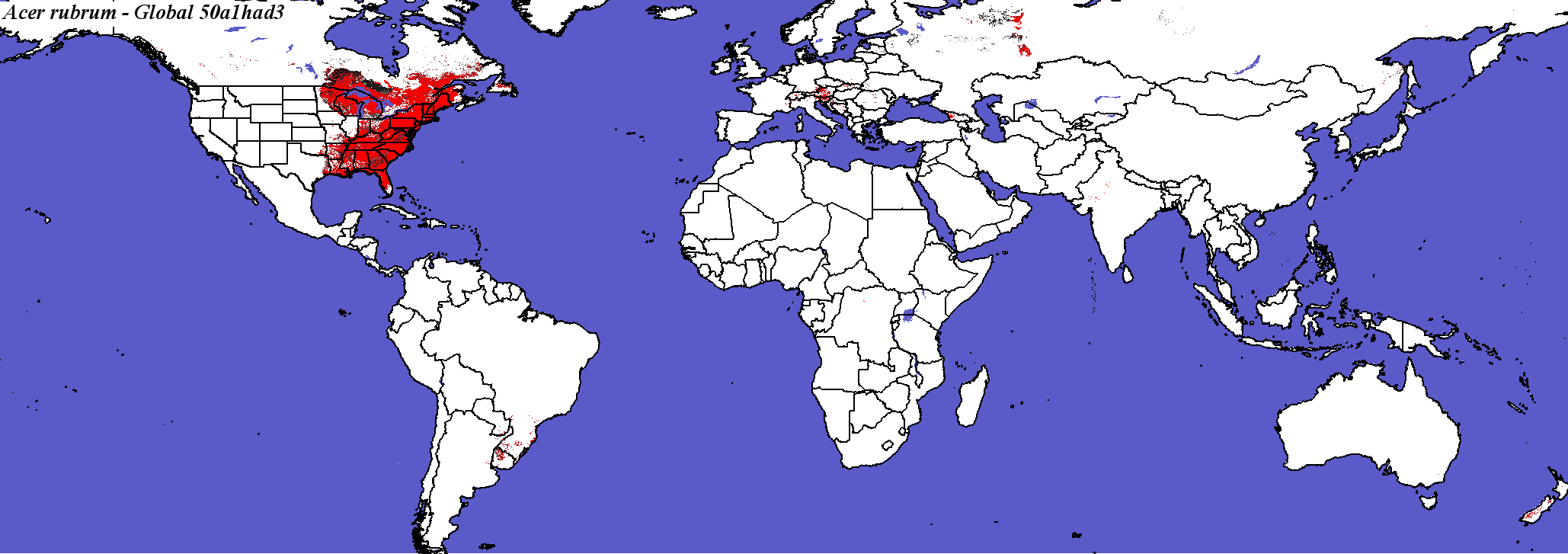

Hadley, Scenario A1FI, 2050 - Acer rubrum - Global
Acer_rubrum_final.4.conus
Acer_rubrum_final.4.global.

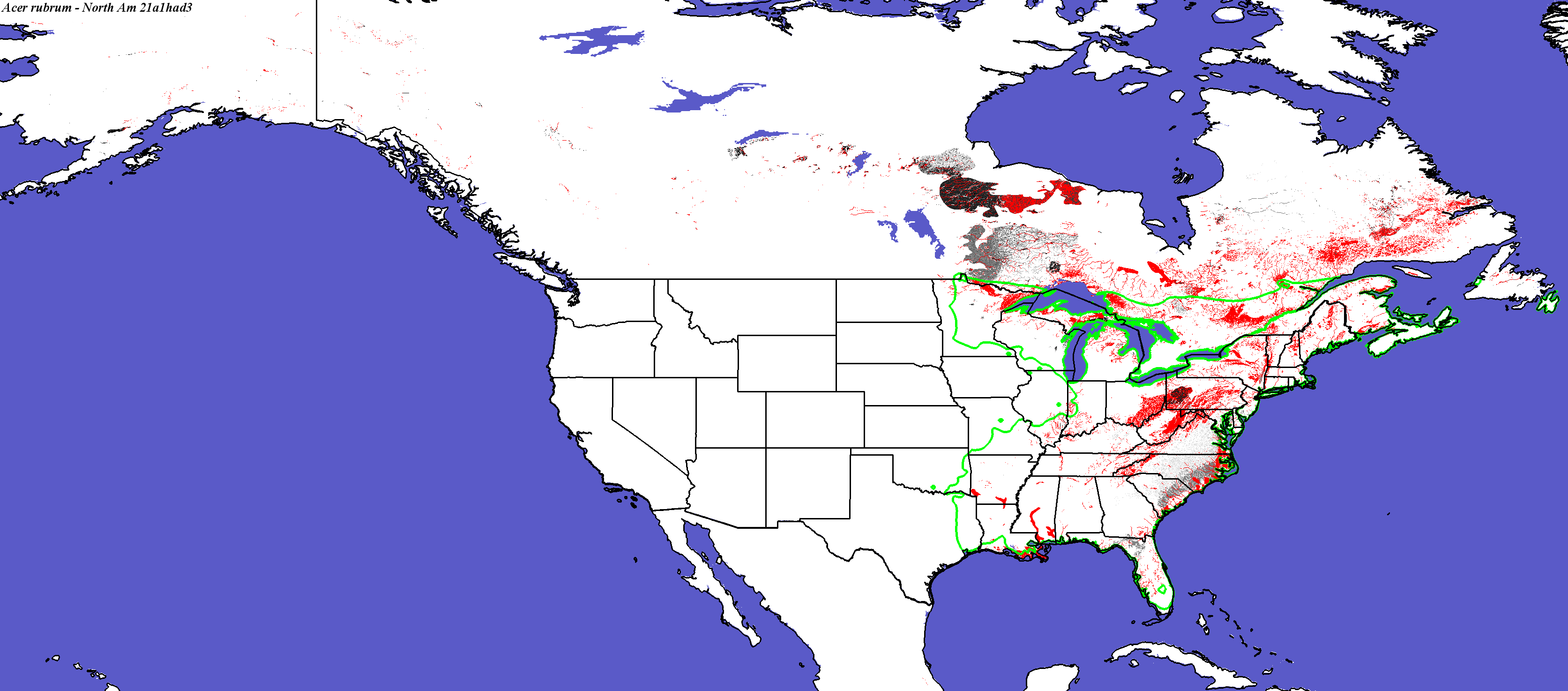

Hadley, Scenario A1FI, 2100 - Acer rubrum - CONUS
Compare with Acer rubrum modeled for Hadley A1FI in 2100 by Iverson and Prasad
Acer rubrum not modeled by Crookston and Rehfeldt
Acer rubrum not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Acer rubrum - Global

Acer_rubrum_final.4.conus
Acer_rubrum_final.4.global.

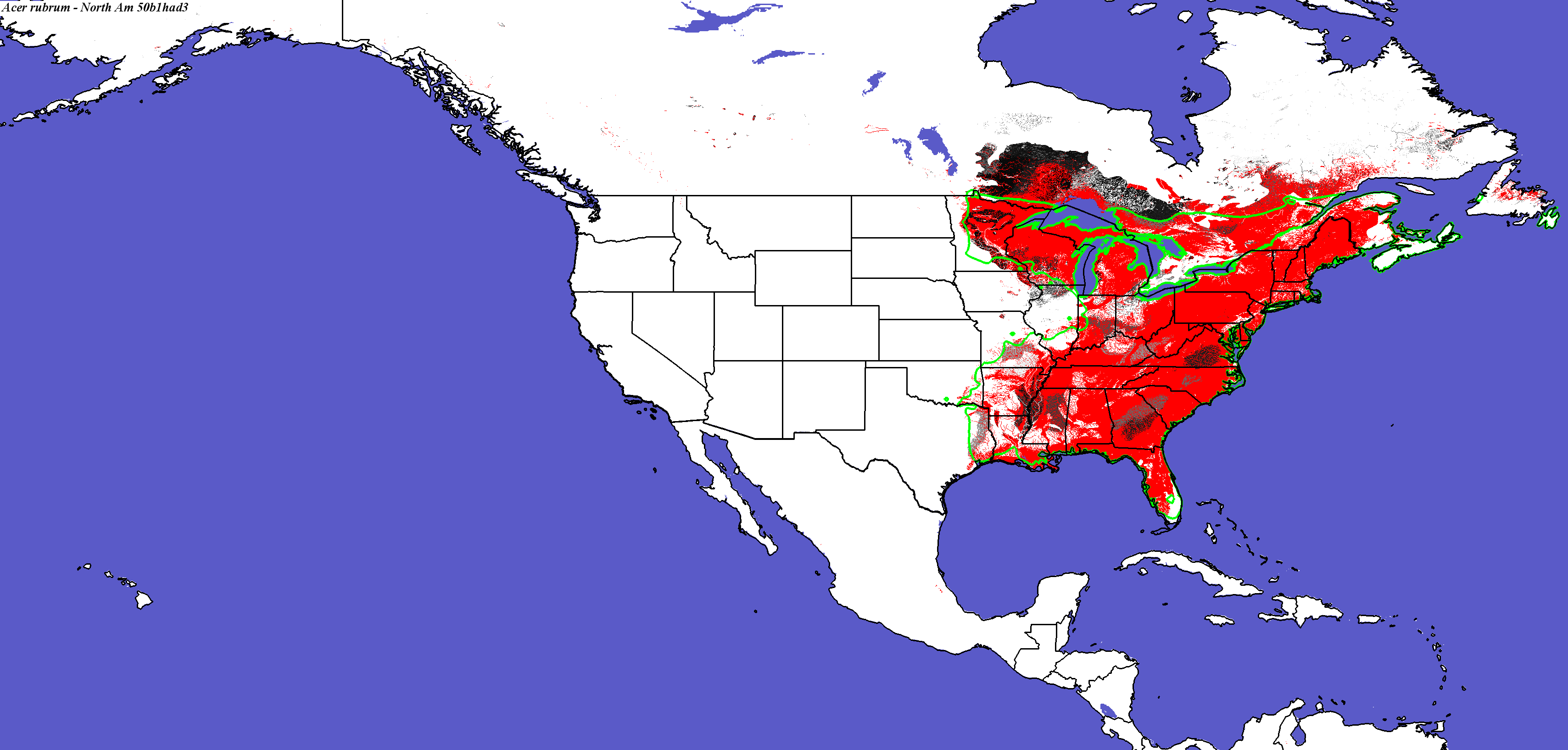

Hadley, Scenario B1, 2050 - Acer rubrum - CONUS
Acer rubrum not modeled by Crookston and Rehfeldt
Acer rubrum not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Acer rubrum - Global
Acer_rubrum_final.4.conus
Acer_rubrum_final.4.global

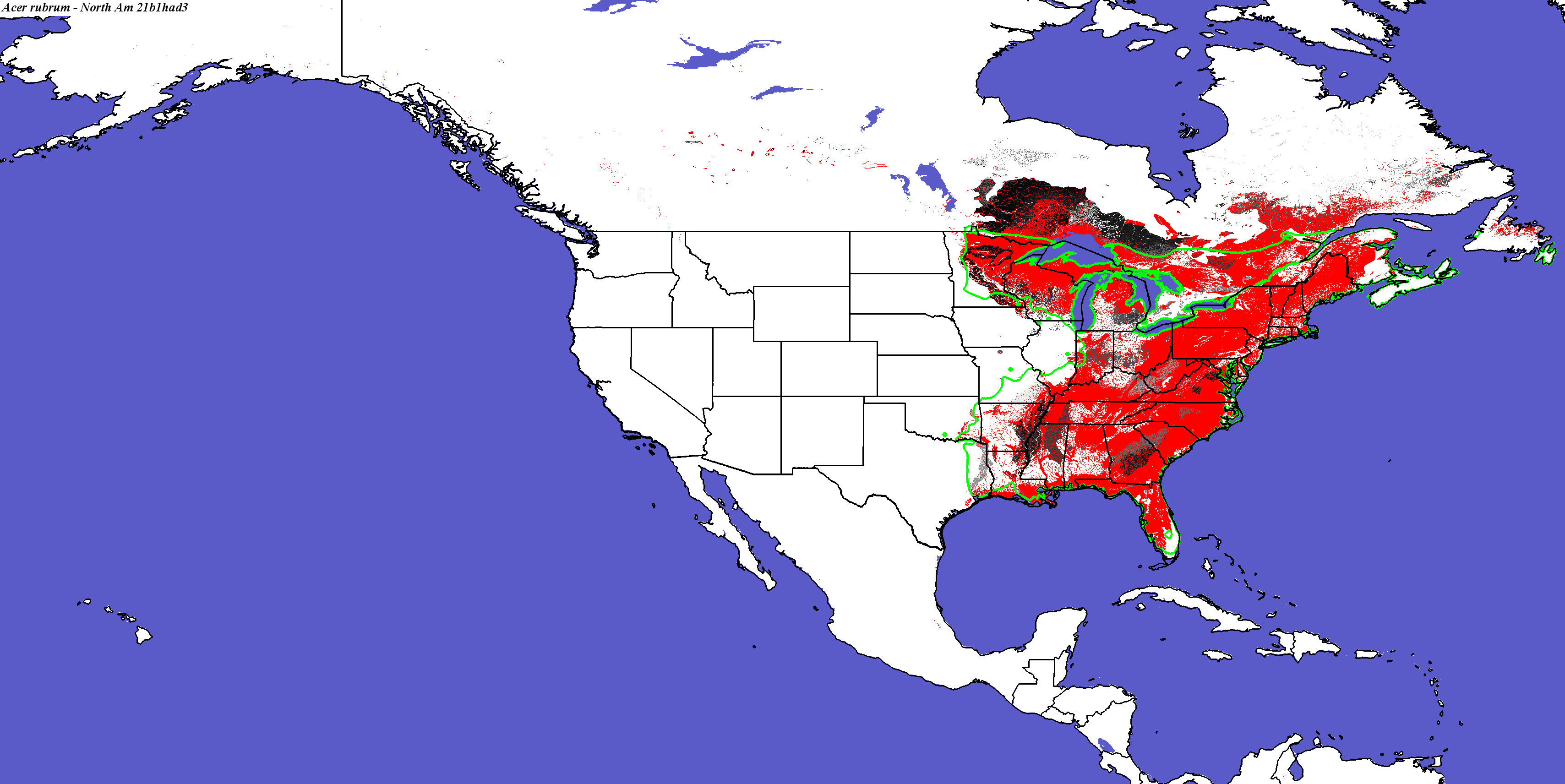

Hadley, Scenario B1, 2100 - Acer rubrum - CONUS
Compare with Acer rubrum modeled for Hadley B1 in 2100 by Iverson and Prasad
Acer rubrum not modeled by Crookston and Rehfeldt

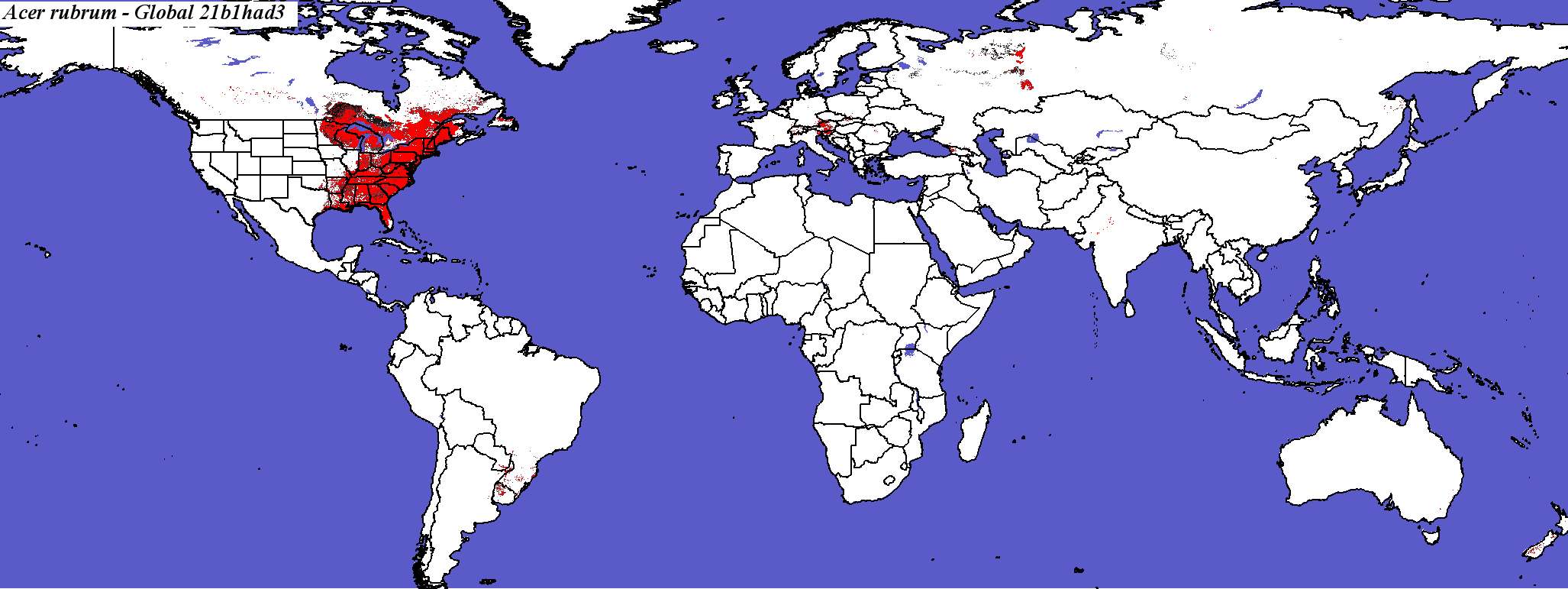

Hadley, Scenario B1, 2100 - Acer rubrum - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Acer_rubrum_final.elev

Number of Suitable Ecoregions (Niche Breadth)

527

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

0.273973

Area in Present Suitable Range (in km2)

3134142

Area in Future Suitable Range (Had B1 2050, in km2)

2622135

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

2325994

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

74.2100

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

5.34247

Percent Change in Area of Suitable Range (Had B1 2050)

-16.3300

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

25.7534

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

4485.16 +/- 14229.2

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

91.6438

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

1.98617 +/- 5.70588

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

93.8356

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

95.523 +/- 414.604

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

46.1644

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

62740

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

2.0000

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

44.7945

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

982357

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

31.3400

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

41.2329

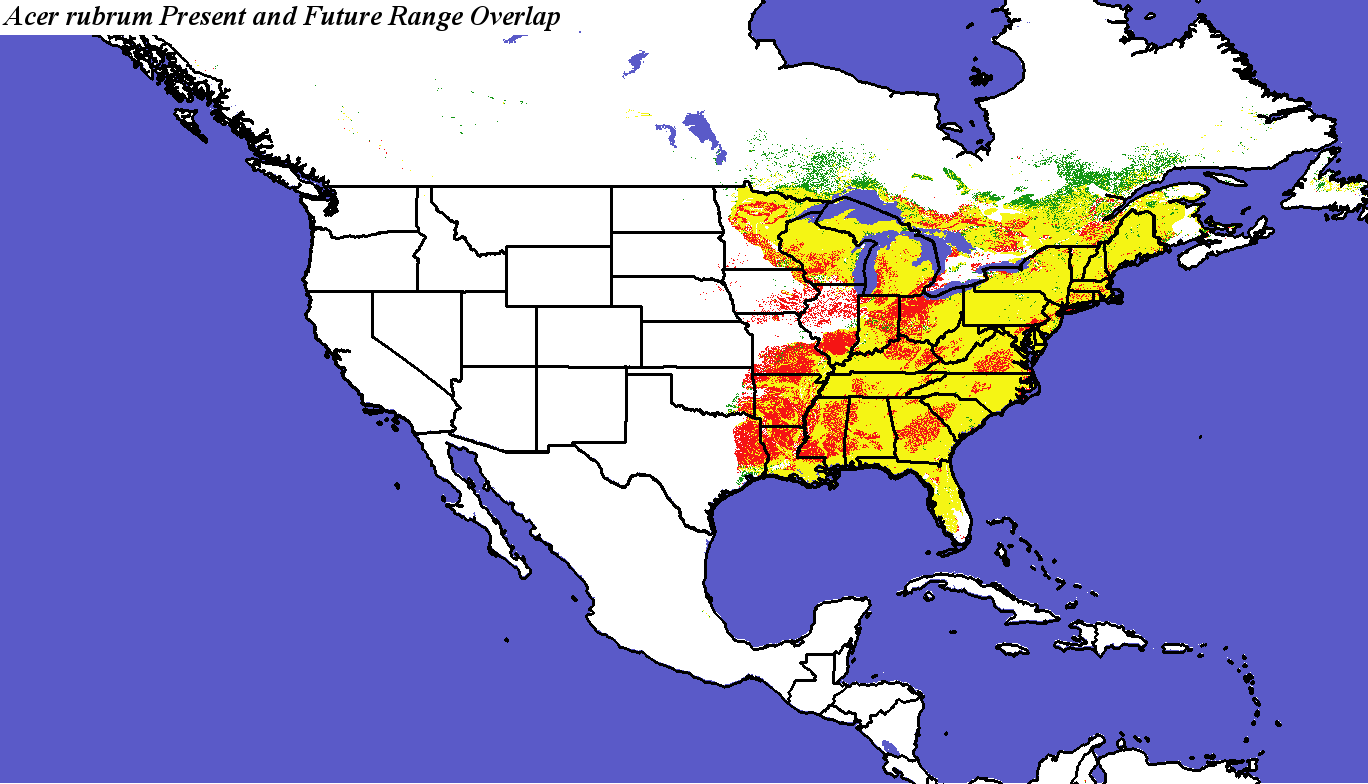

Present and Future Ranges - Hadley, Scenario B1, 2050 - Acer rubrum Acer rubrum - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

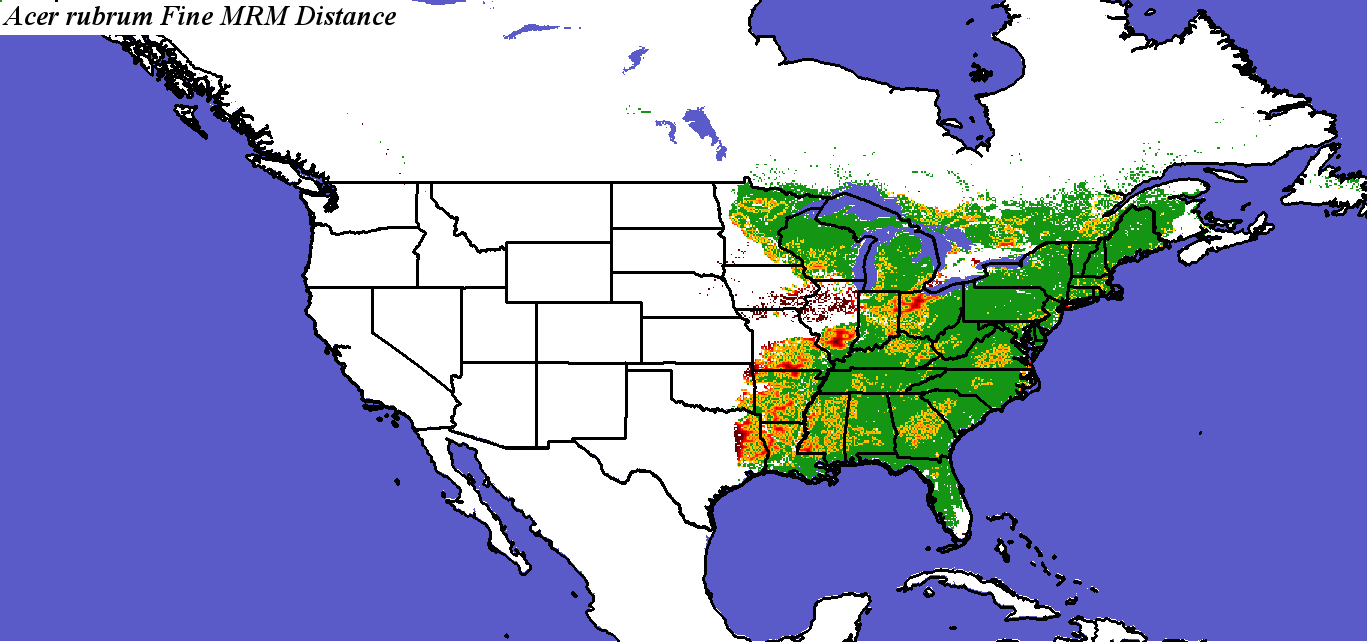

Acer_rubrum_final.elev Fine MRM Distance
Acer_rubrum_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Acer rubrum Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Acer rubrum
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Acer_rubrum_final.elev Coarse MRM Distance

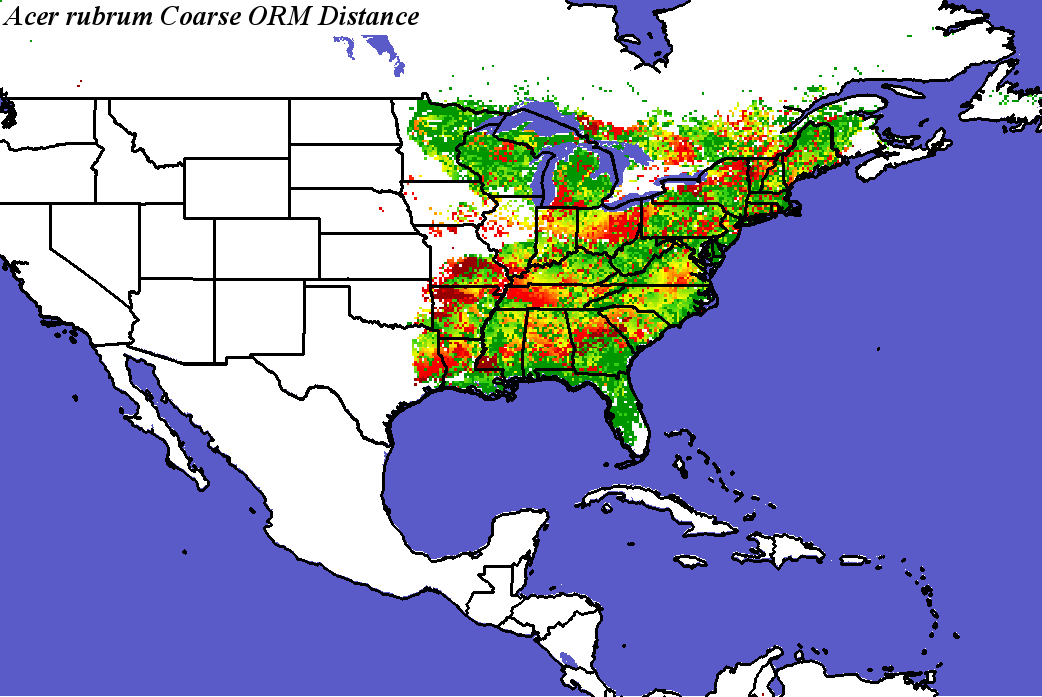

Acer_rubrum_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Acer rubrum Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Acer rubrum
