Version 5 Tree Atlas


Avicennia germinans

black-mangrove

elev

Avicennia germinans Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Avicennia germinans

USDA Plants Database entry for Avicennia germinans
Silvics Manual entry for Avicennia germinans


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Avicennia nitida4518522Main range well-sampled, but disjuncts not well-sampled

Occurrence Locations and Hargrove's Present Suitable Range Outline
Avicennia_germinans_final Occurrences

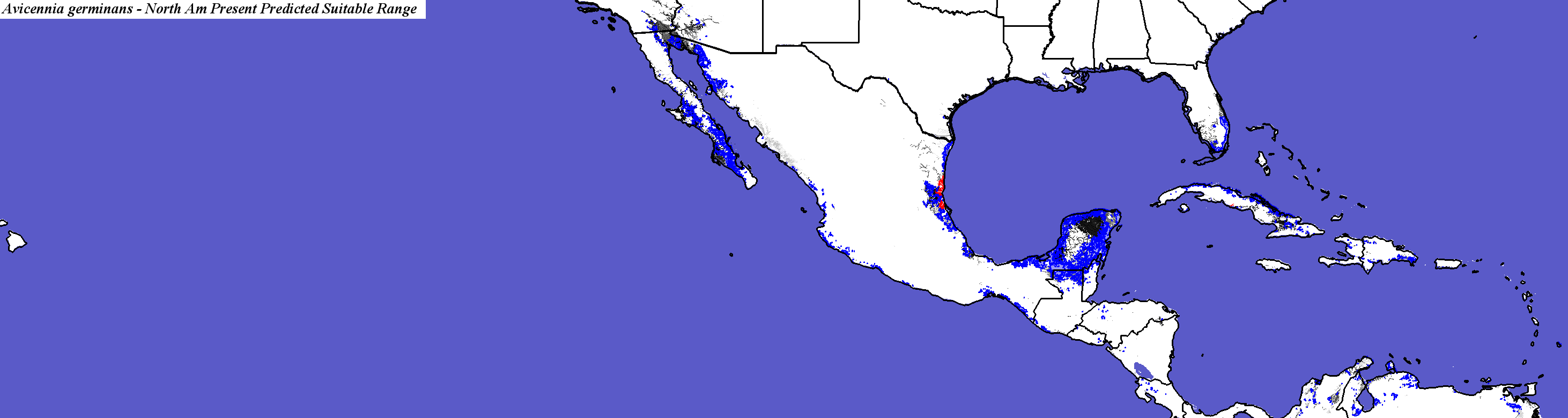

Hargroves Present Suitable Range Outline for Avicennia_germinans_final
Avicennia germinans - Occurrence Locations Avicennia germinans - Hargrove's Present Suitable Range Outline
Present Conditions
Avicennia_germinans_final.3.conus
Avicennia_germinans_final.3.global
Avicennia germinans - CONUS
Compare with Current Range from the Silvics Manual for Avicennia germinans
Compare with Current Range from Biota of North America Program (BONAP) for Avicennia germinans

Avicennia germinans not modeled by Iverson and Prasad
Avicennia germinans not modeled by Crookston and Rehfeldt
Avicennia germinans not modeled by Coops and Waring

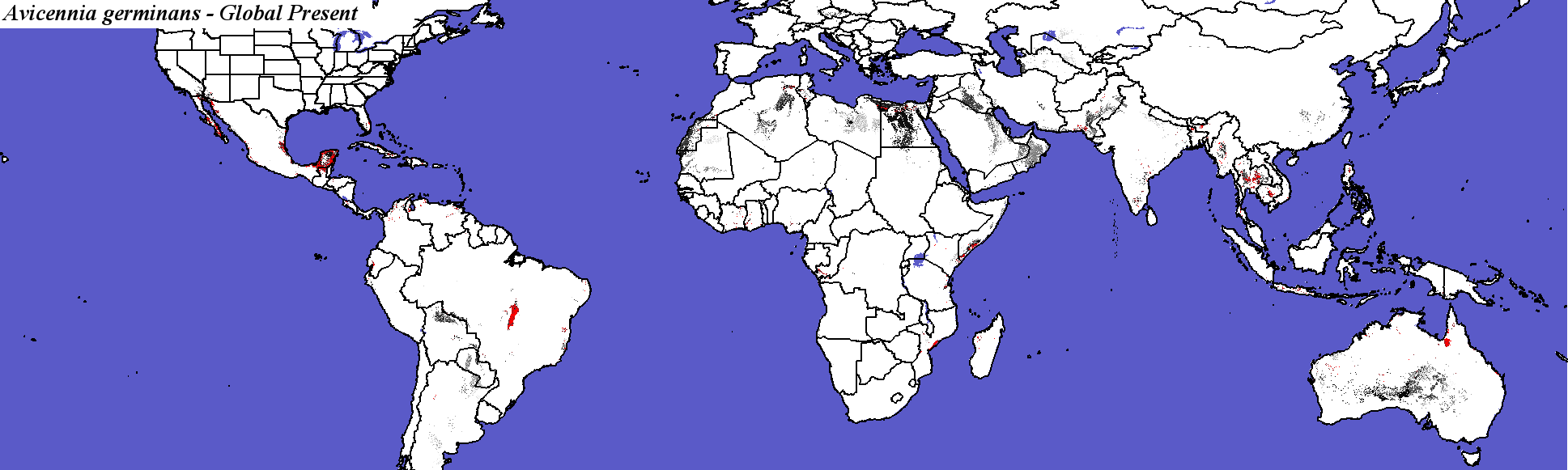

Avicennia germinans - Global

PCM - Parallel Climate Model
Avicennia_germinans_final.3.conus
Avicennia_germinans_final.3.global
PCM, Scenario A1FI, 2050 - Avicennia germinans - CONUS

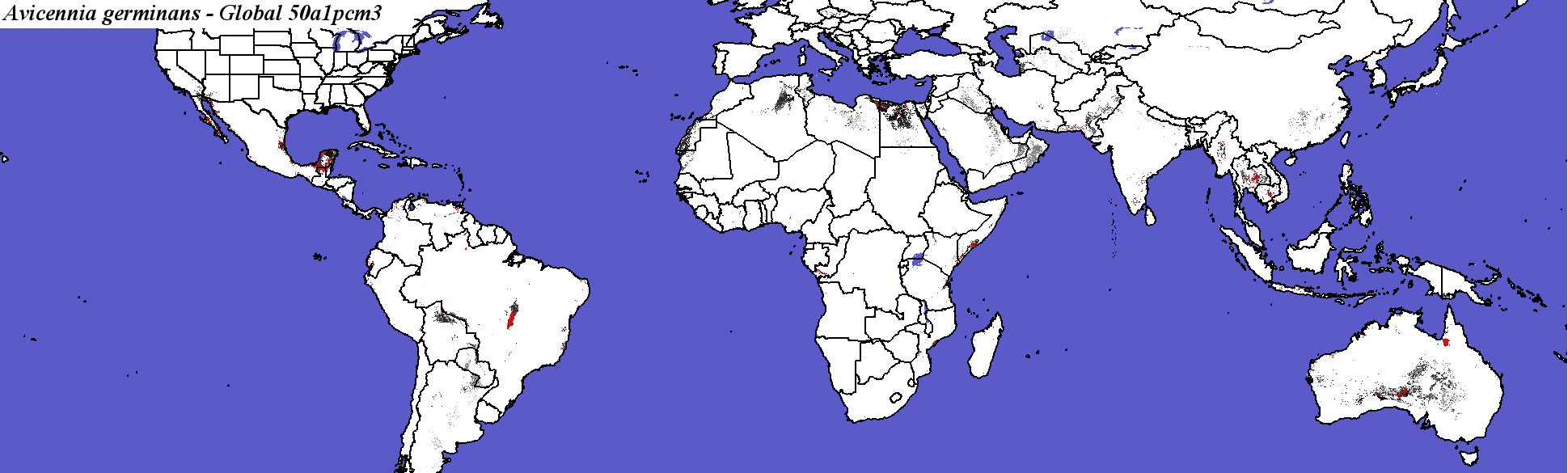

PCM, Scenario A1FI, 2050 - Avicennia germinans - Global
Avicennia_germinans_final.3.conus
Avicennia_germinans_final.3.global
PCM, Scenario A1FI, 2100 - Avicennia germinans - CONUS
Avicennia germinans species not modeled by Iverson and Prasad

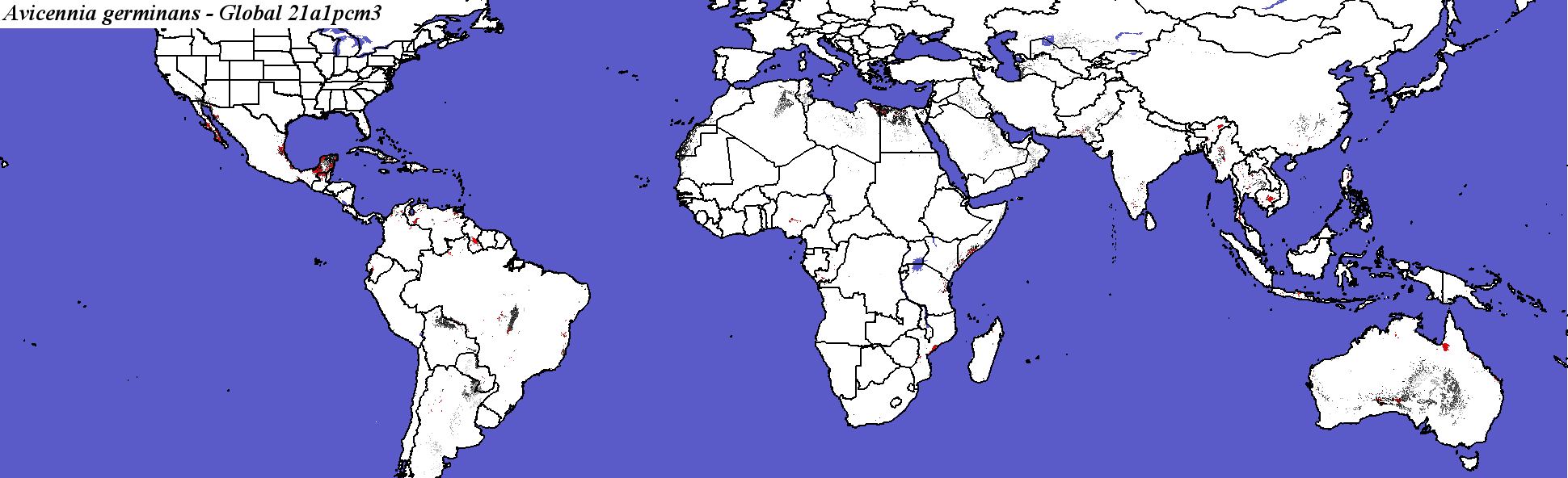

PCM, Scenario A1FI, 2100 - Avicennia germinans - Global

Avicennia_germinans_final.3.conus
Avicennia_germinans_final.3.global
PCM, Scenario B1, 2050 - Avicennia germinans - CONUS

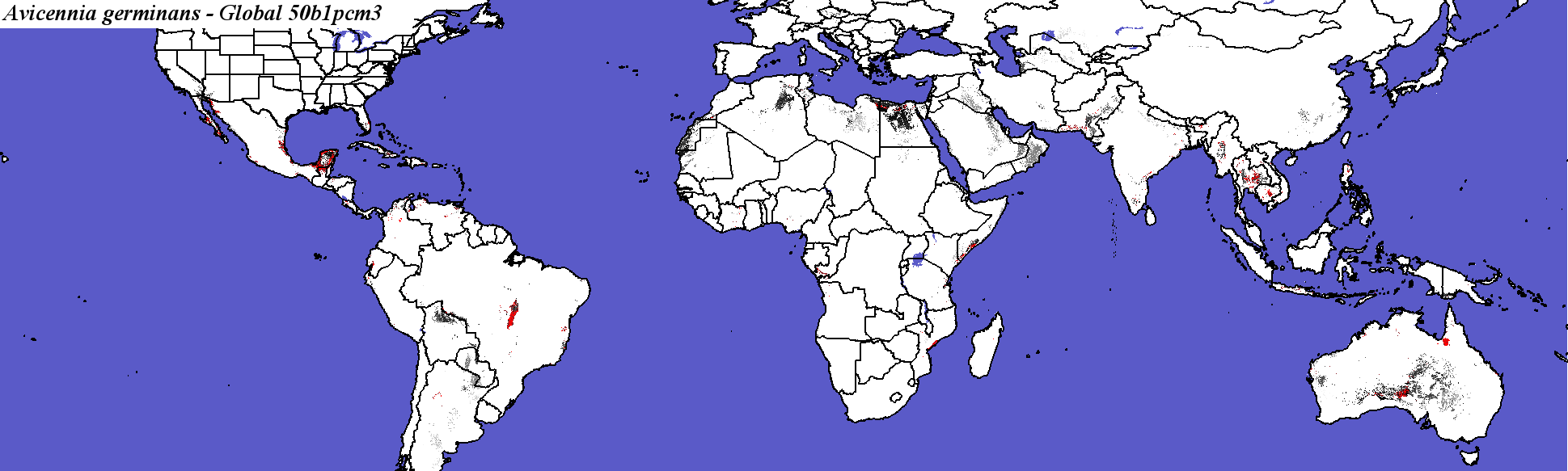

PCM, Scenario B1, 2050 - Avicennia germinans - Global
Avicennia_germinans_final.3.conus
Avicennia_germinans_final.3.global
PCM, Scenario B1, 2100 - Avicennia germinans - CONUS
Avicennia germinans not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Avicennia germinans - Global

Hadley Climate Model
Avicennia_germinans_final.3.conus
Avicennia_germinans_final.3.global

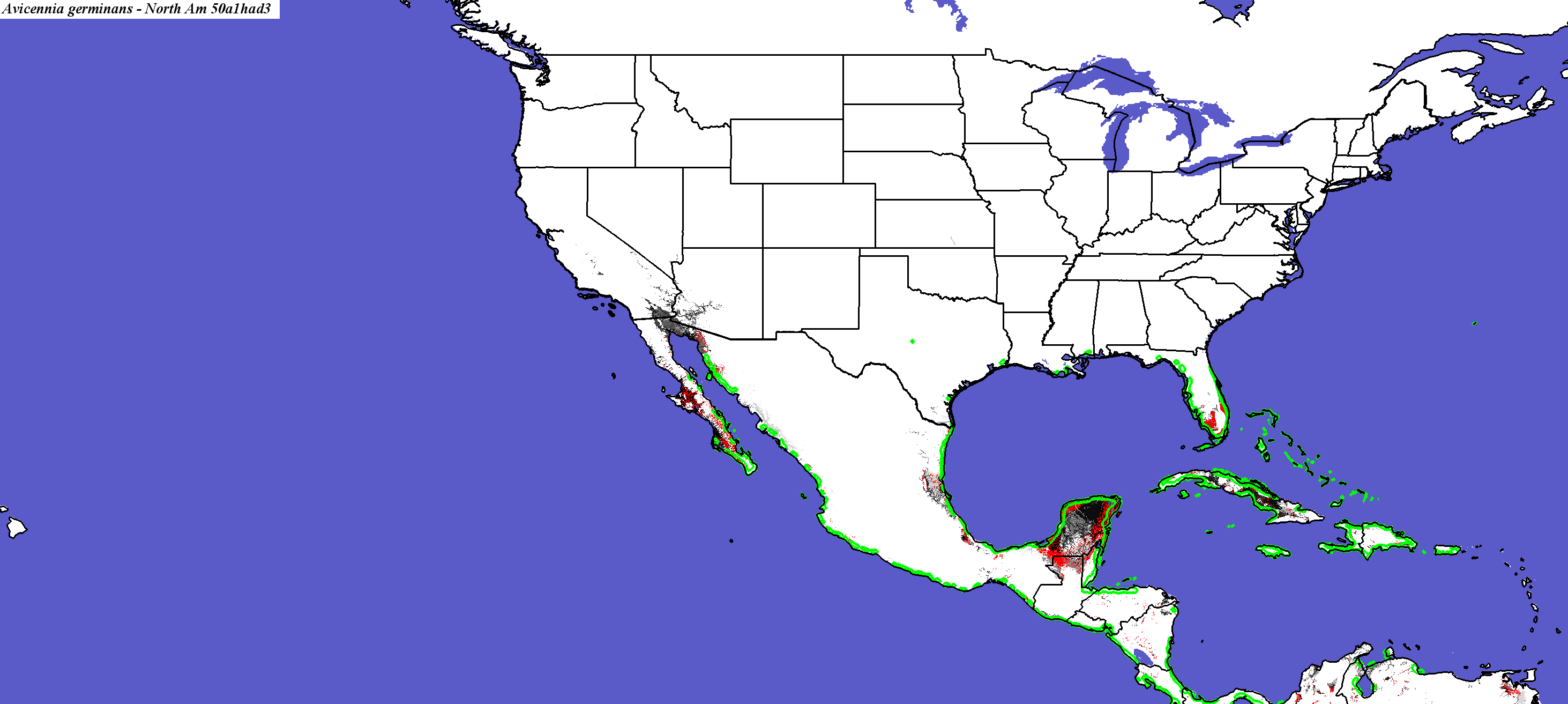

Hadley, Scenario A1FI, 2050 - Avicennia germinans - CONUS
Avicennia germinans not modeled by Crookston and Rehfeldt

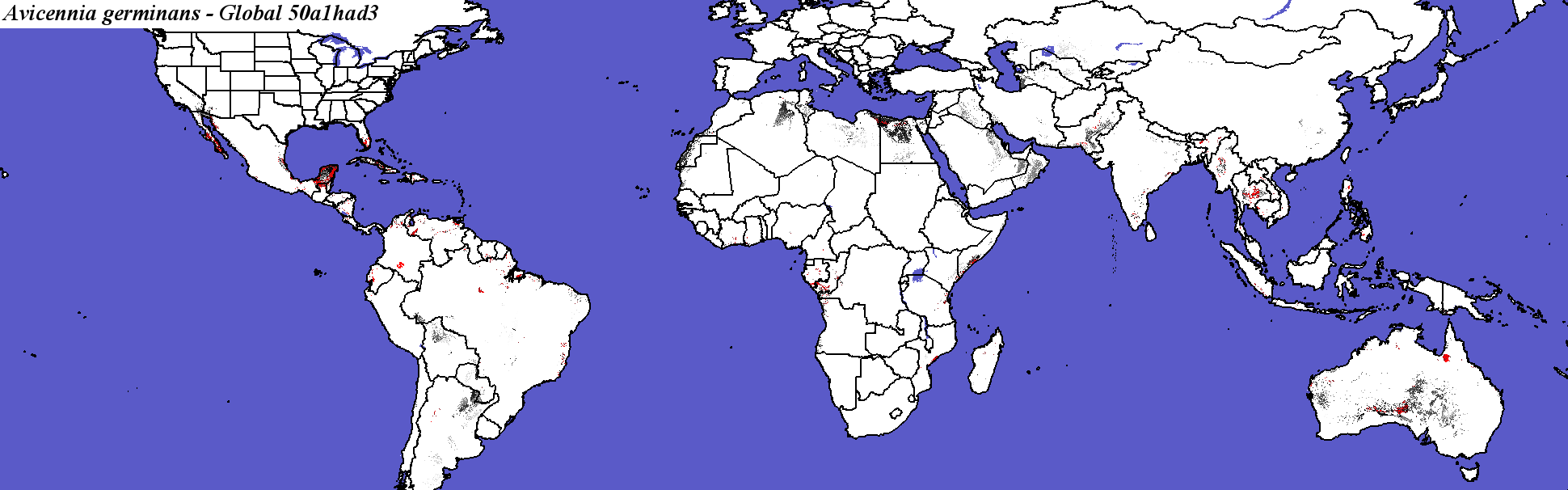

Hadley, Scenario A1FI, 2050 - Avicennia germinans - Global
Avicennia_germinans_final.3.conus
Avicennia_germinans_final.3.global.

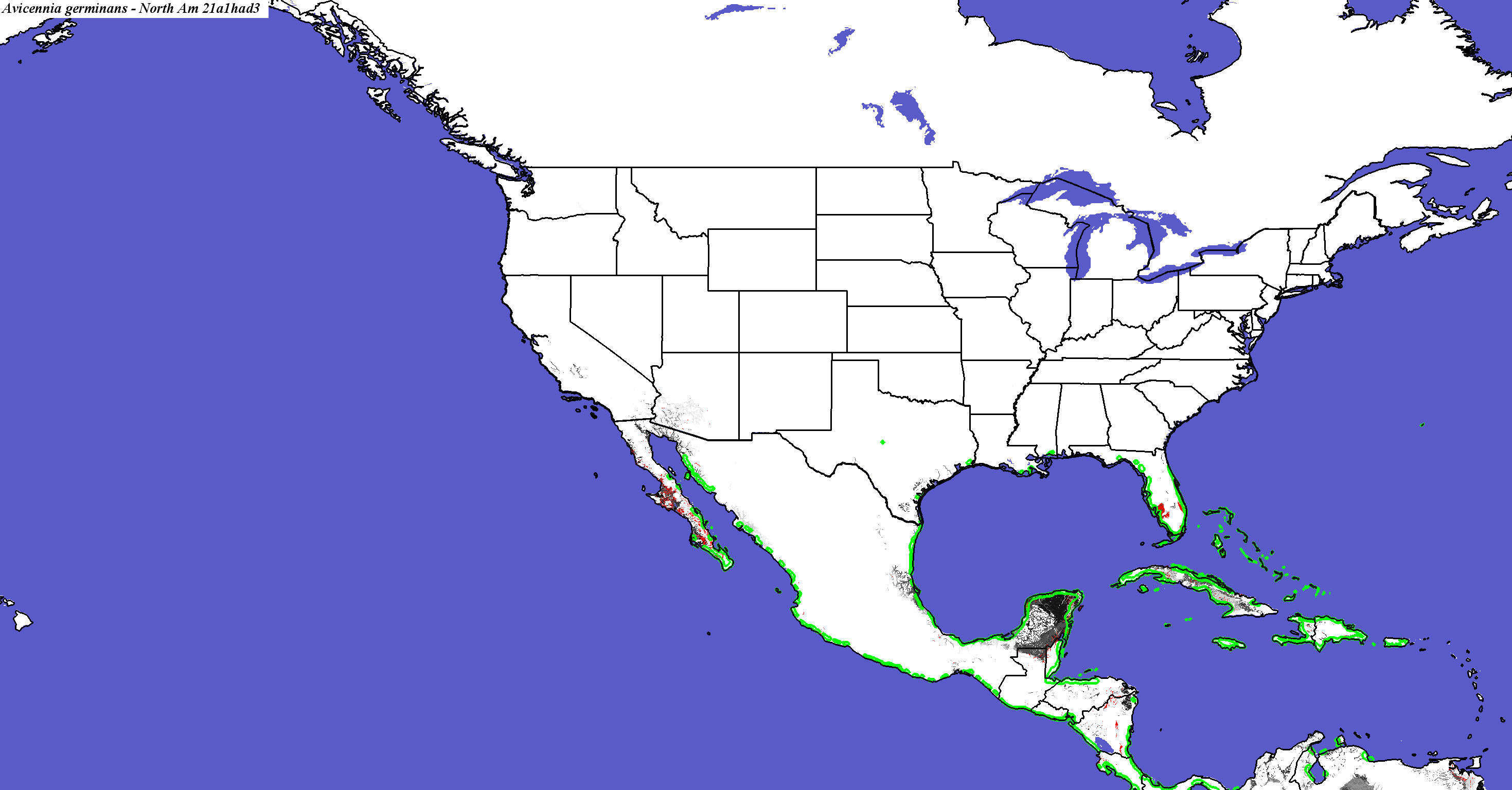

Hadley, Scenario A1FI, 2100 - Avicennia germinans - CONUS
Avicennia germinans not modeled by Iverson and Prasad
Avicennia germinans not modeled by Crookston and Rehfeldt
Avicennia germinans not modeled by Coops and Waring

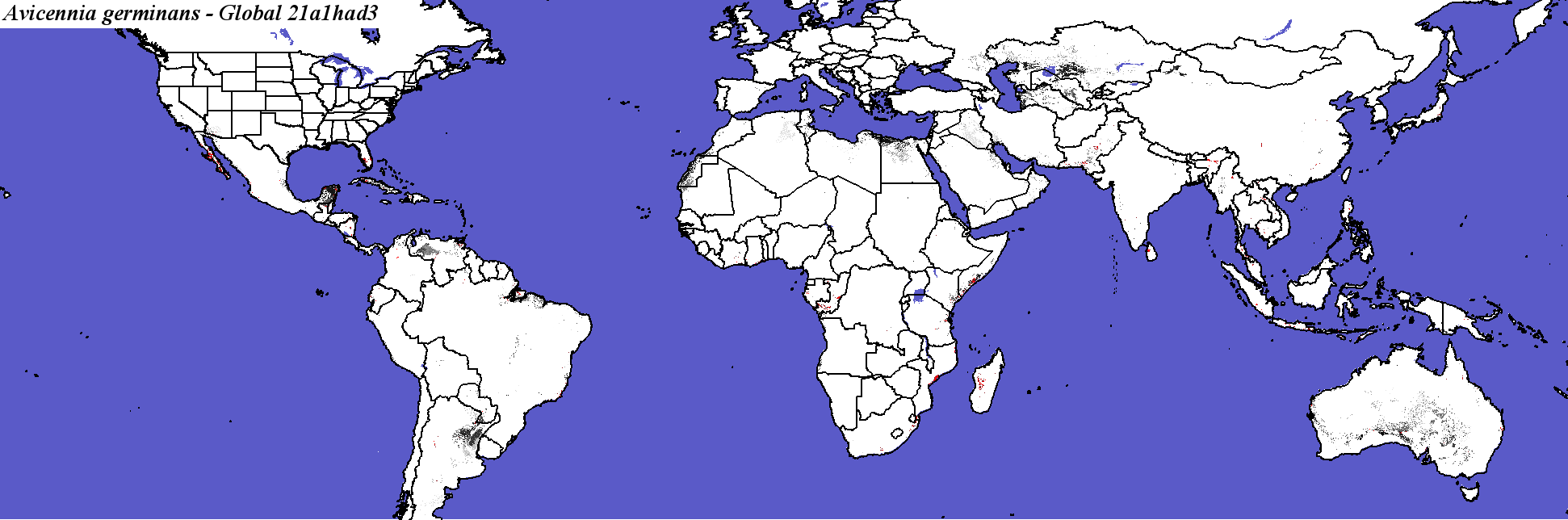

Hadley, Scenario A1FI, 2100 - Avicennia germinans - Global

Avicennia_germinans_final.3.conus
Avicennia_germinans_final.3.global.
Hadley, Scenario B1, 2050 - Avicennia germinans - CONUS
Avicennia germinans not modeled by Crookston and Rehfeldt
Avicennia germinans not modeled by Coops and Waring

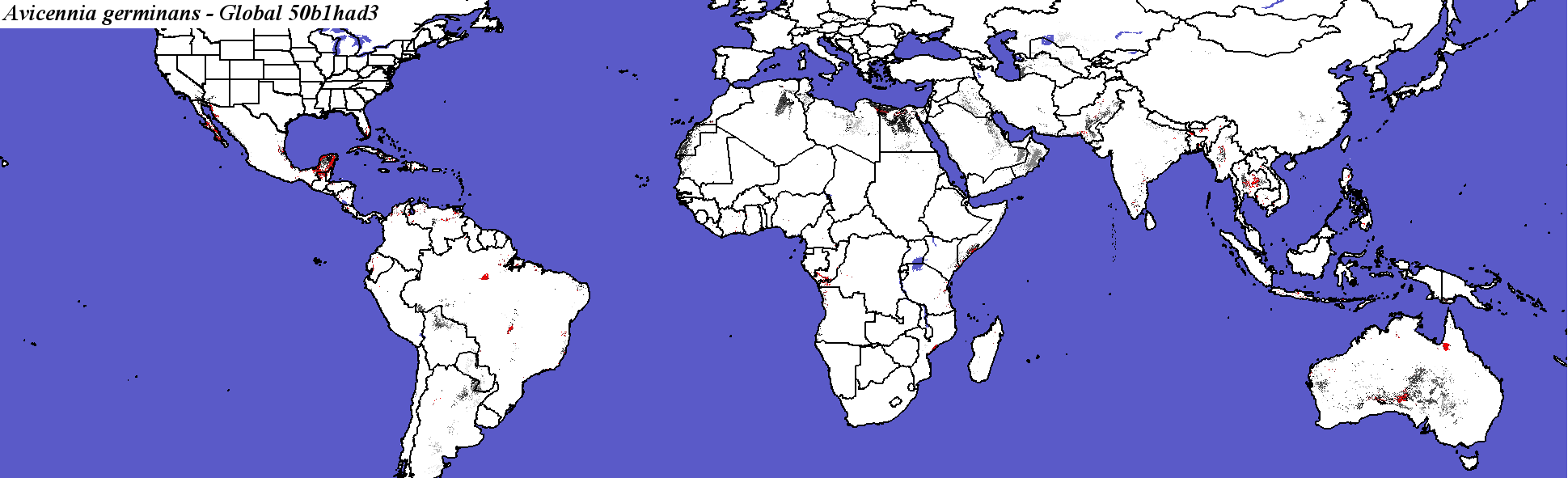

Hadley, Scenario B1, 2050 - Avicennia germinans - Global
Avicennia_germinans_final.3.conus
Avicennia_germinans_final.3.global
Hadley, Scenario B1, 2100 - Avicennia germinans - CONUS
Avicennia germinans not modeled by Iverson and Prasad
Avicennia germinans not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Avicennia germinans - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Avicennia_germinans_final.elev

Number of Suitable Ecoregions (Niche Breadth)

43

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

44.2466

Area in Present Suitable Range (in km2)

128374

Area in Future Suitable Range (Had B1 2050, in km2)

135232

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

68950

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

53.7100

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

41.7808

Percent Change in Area of Suitable Range (Had B1 2050)

5.3400

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

3.83562

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

9280.13 +/- 16441.8

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

70.137

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

5.37806 +/- 11.6846

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

61.6438

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

134.852 +/- 592.139

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

39.1781

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

3641

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

2.8300

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

38.2192

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

43645

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

33.9900

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

34.6575

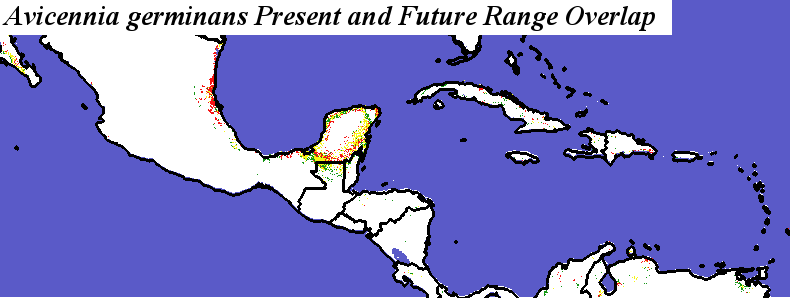

Present and Future Ranges - Hadley, Scenario B1, 2050 - Avicennia germinans Avicennia germinans - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Avicennia_germinans_final.elev Fine MRM Distance

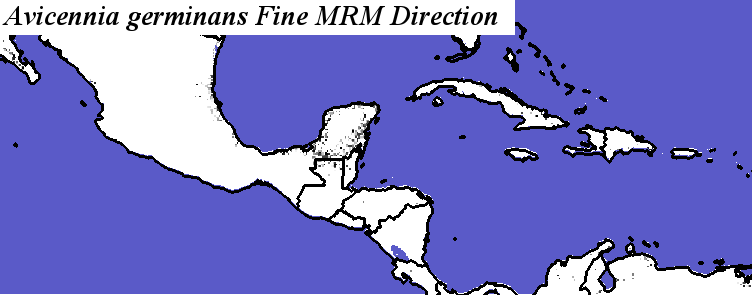

Avicennia_germinans_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Avicennia germinans Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Avicennia germinans
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

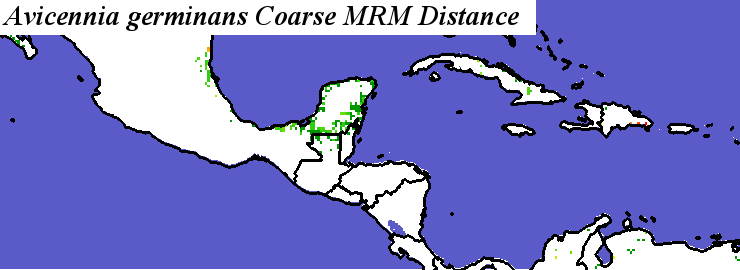

Avicennia_germinans_final.elev Coarse MRM Distance

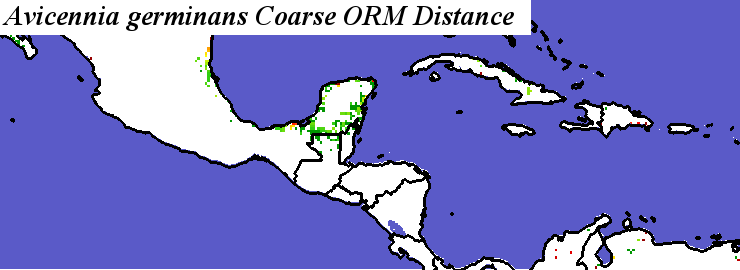

Avicennia_germinans_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Avicennia germinans Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Avicennia germinans
