Version 5 Tree Atlas


Betula occidentalis

water birch

elev

Betula occidentalis Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Betula occidentalis

USDA Plants Database entry for Betula occidentalis
Silvics Manual entry for Betula occidentalis


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Betula fontinalis; Betula occidentalis var. fecunda; Betula occidentalis var. inopina9231240Sparse sampling across range in Canada

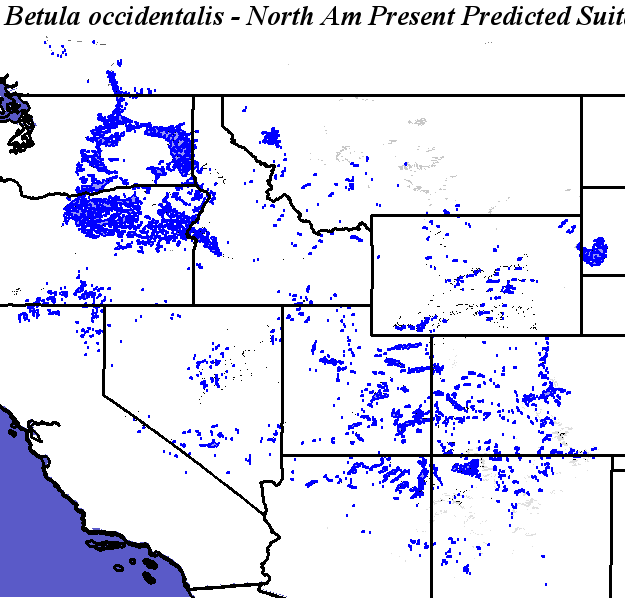

Occurrence Locations and Hargrove's Present Suitable Range Outline
Betula_occidentalis_final Occurrences
Hargroves Present Suitable Range Outline for Betula_occidentalis_final

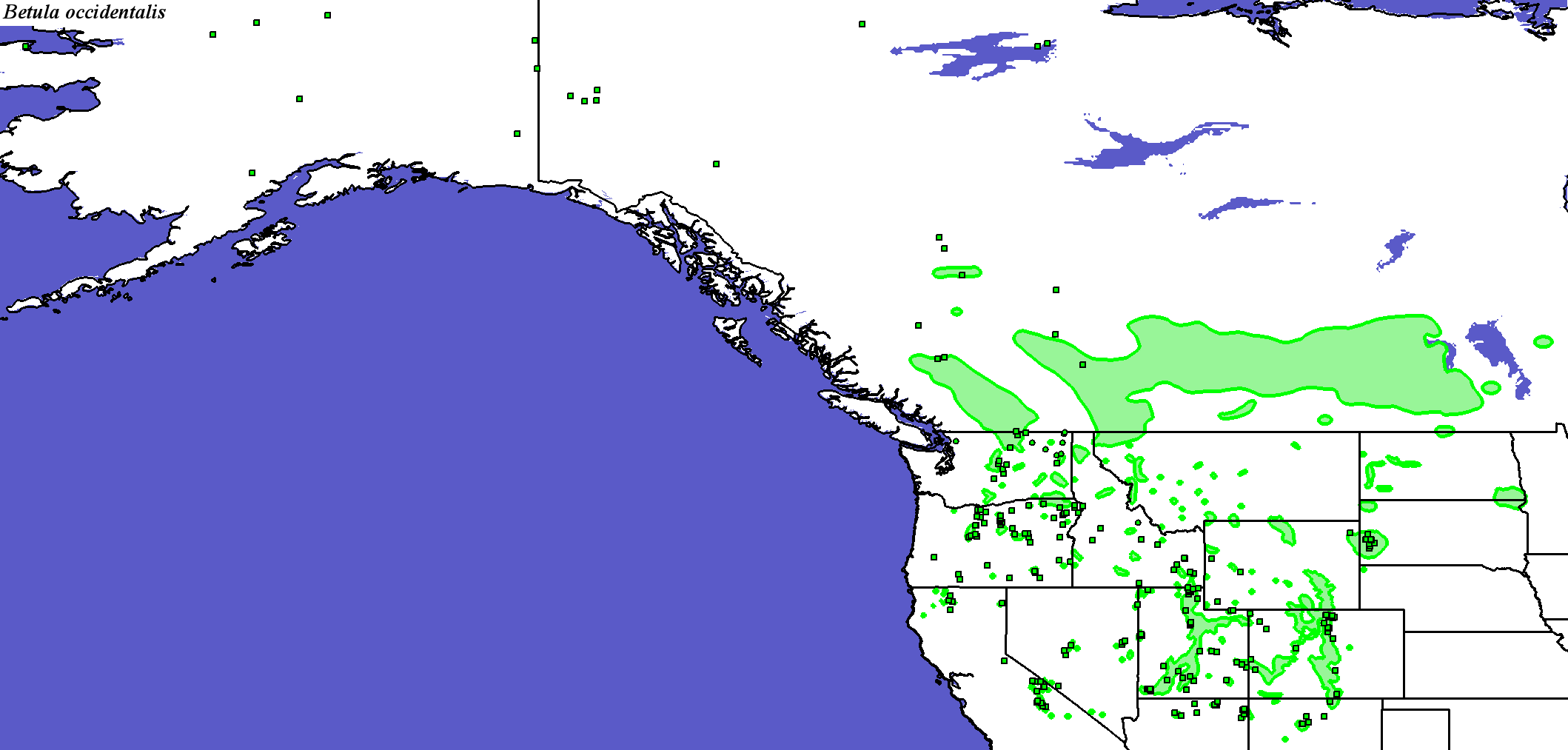

Betula occidentalis - Occurrence Locations Betula occidentalis - Hargrove's Present Suitable Range Outline
Present Conditions
Betula_occidentalis_final.3.conus
Betula_occidentalis_final.3.global

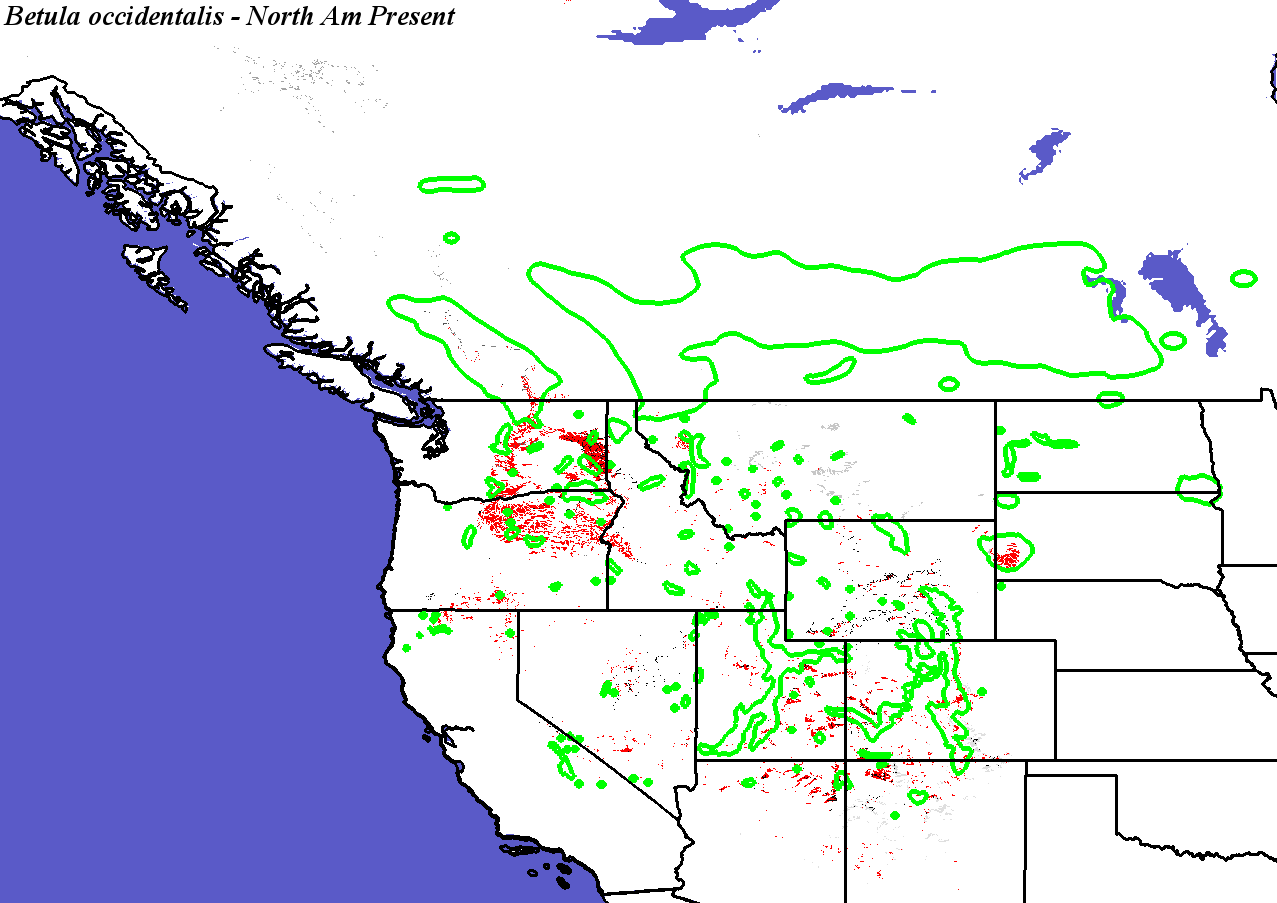

Betula occidentalis - CONUS
Compare with Current Range from the Silvics Manual for Betula occidentalis
Compare with Current Range from Biota of North America Program (BONAP) for Betula occidentalis

Betula occidentalis not modeled by Iverson and Prasad
Betula occidentalis not modeled by Crookston and Rehfeldt
Betula occidentalis not modeled by Coops and Waring

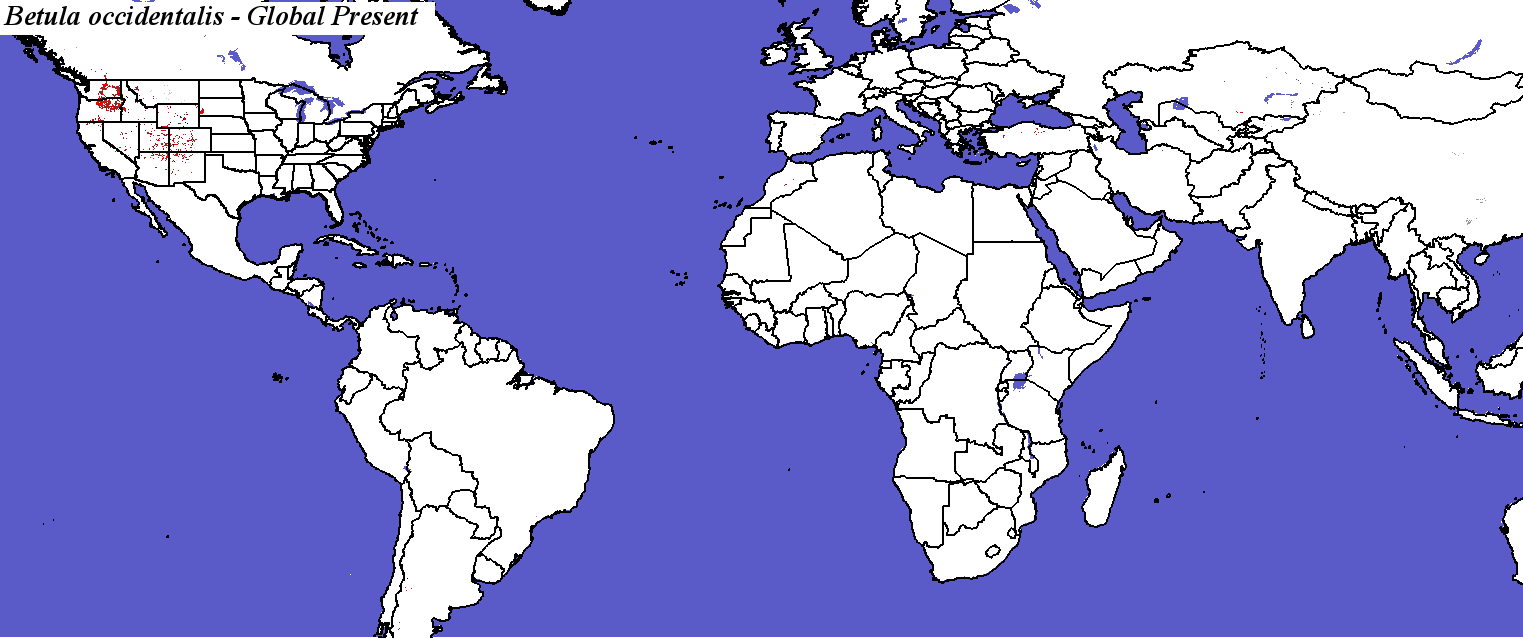

Betula occidentalis - Global

PCM - Parallel Climate Model
Betula_occidentalis_final.3.conus
Betula_occidentalis_final.3.global

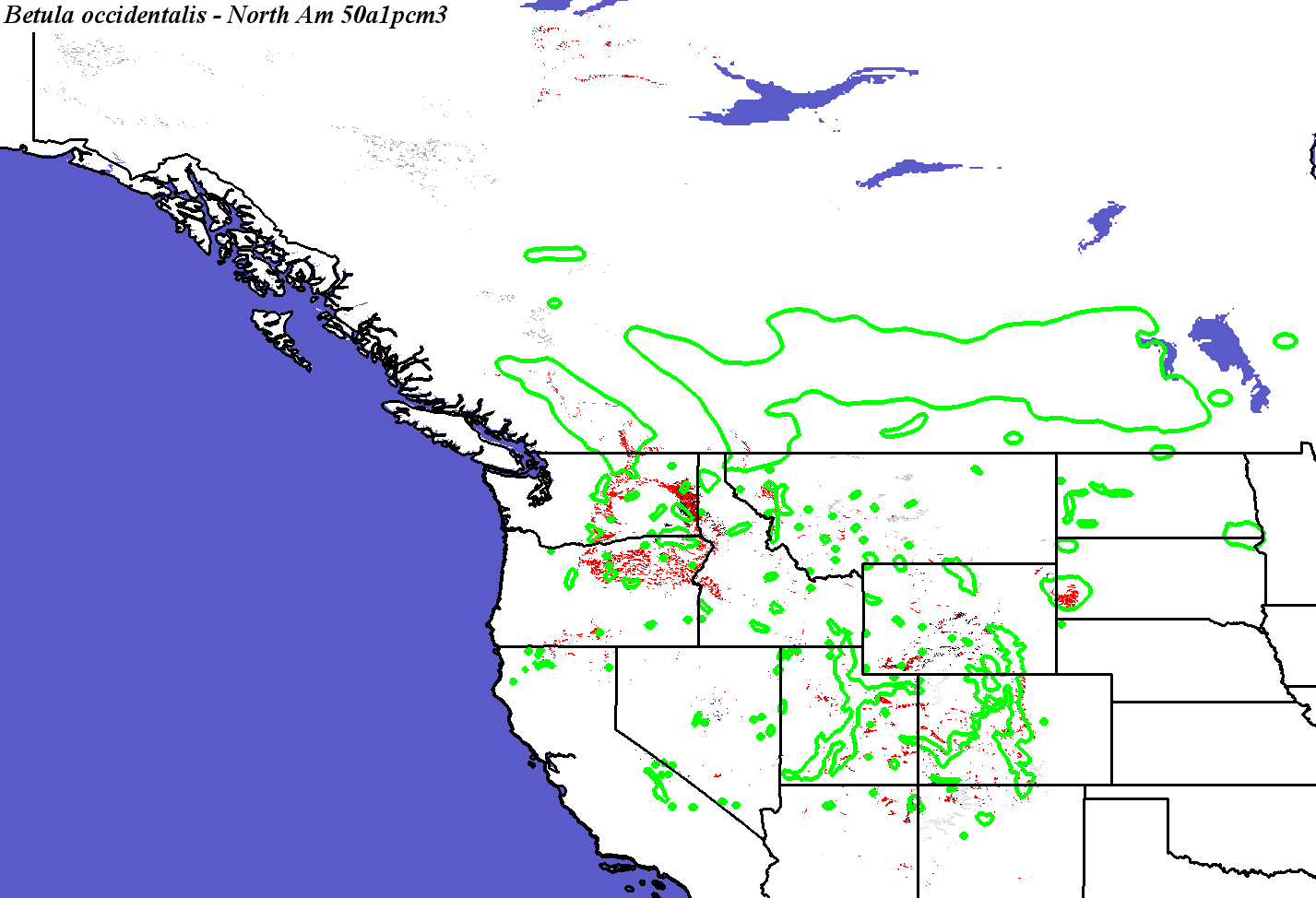

PCM, Scenario A1FI, 2050 - Betula occidentalis - CONUS

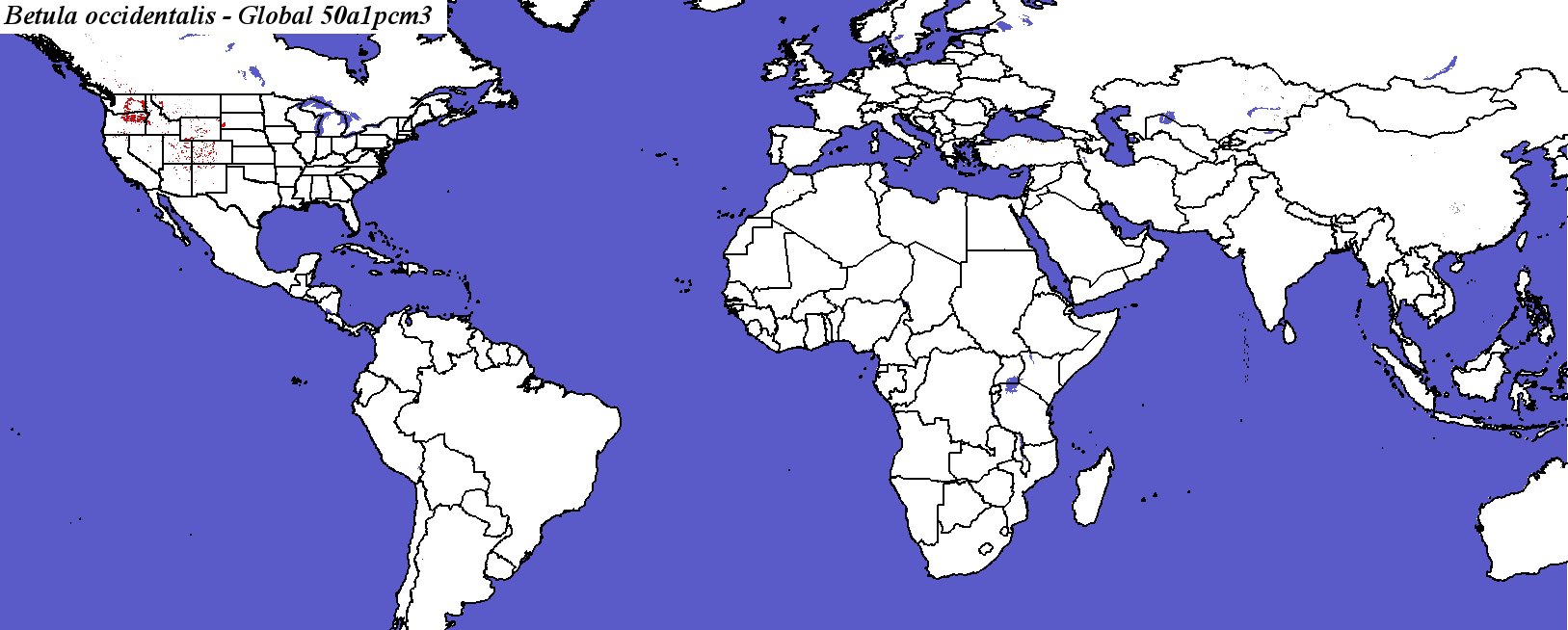

PCM, Scenario A1FI, 2050 - Betula occidentalis - Global
Betula_occidentalis_final.3.conus
Betula_occidentalis_final.3.global

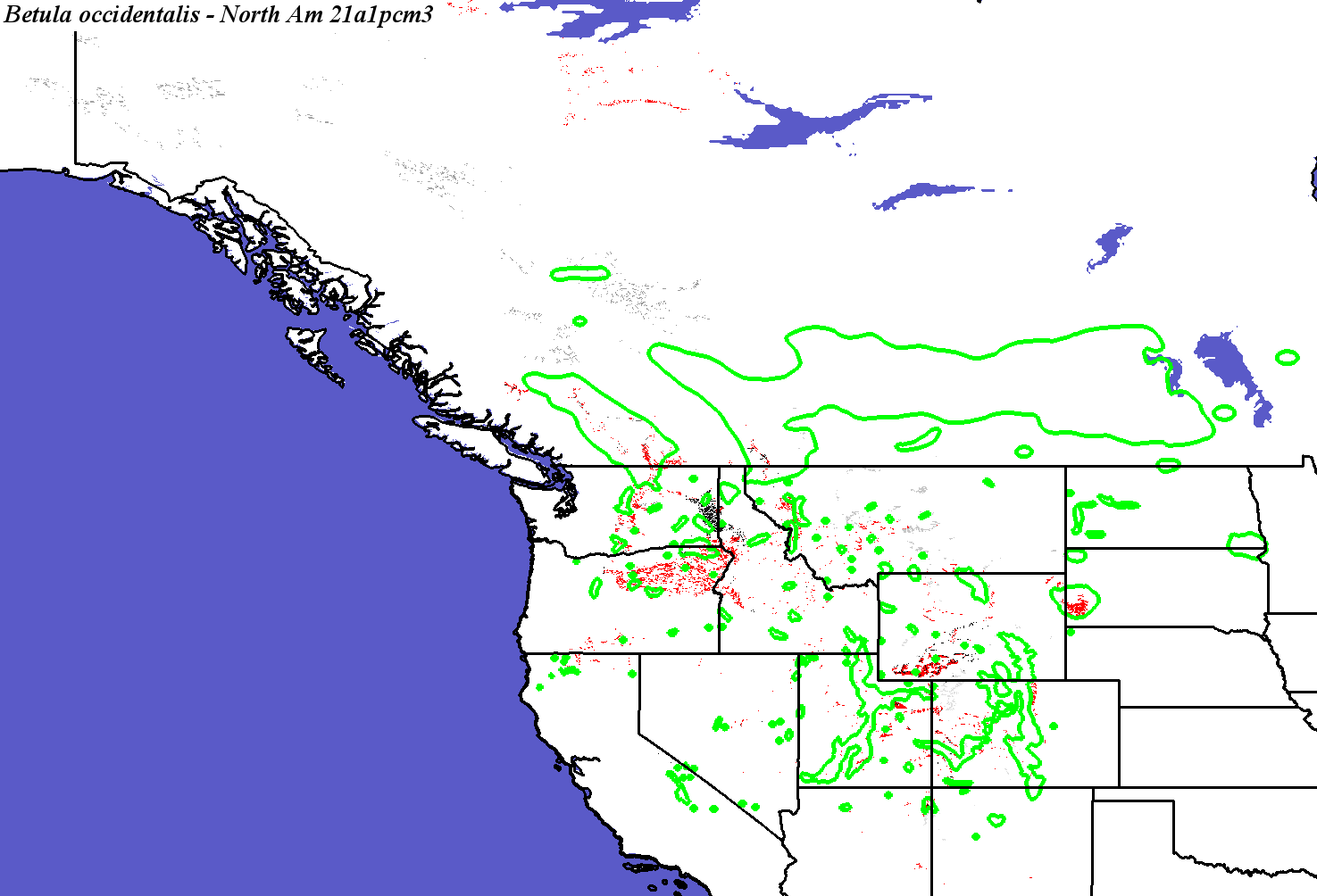

PCM, Scenario A1FI, 2100 - Betula occidentalis - CONUS
Betula occidentalis species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Betula occidentalis - Global

Betula_occidentalis_final.3.conus
Betula_occidentalis_final.3.global

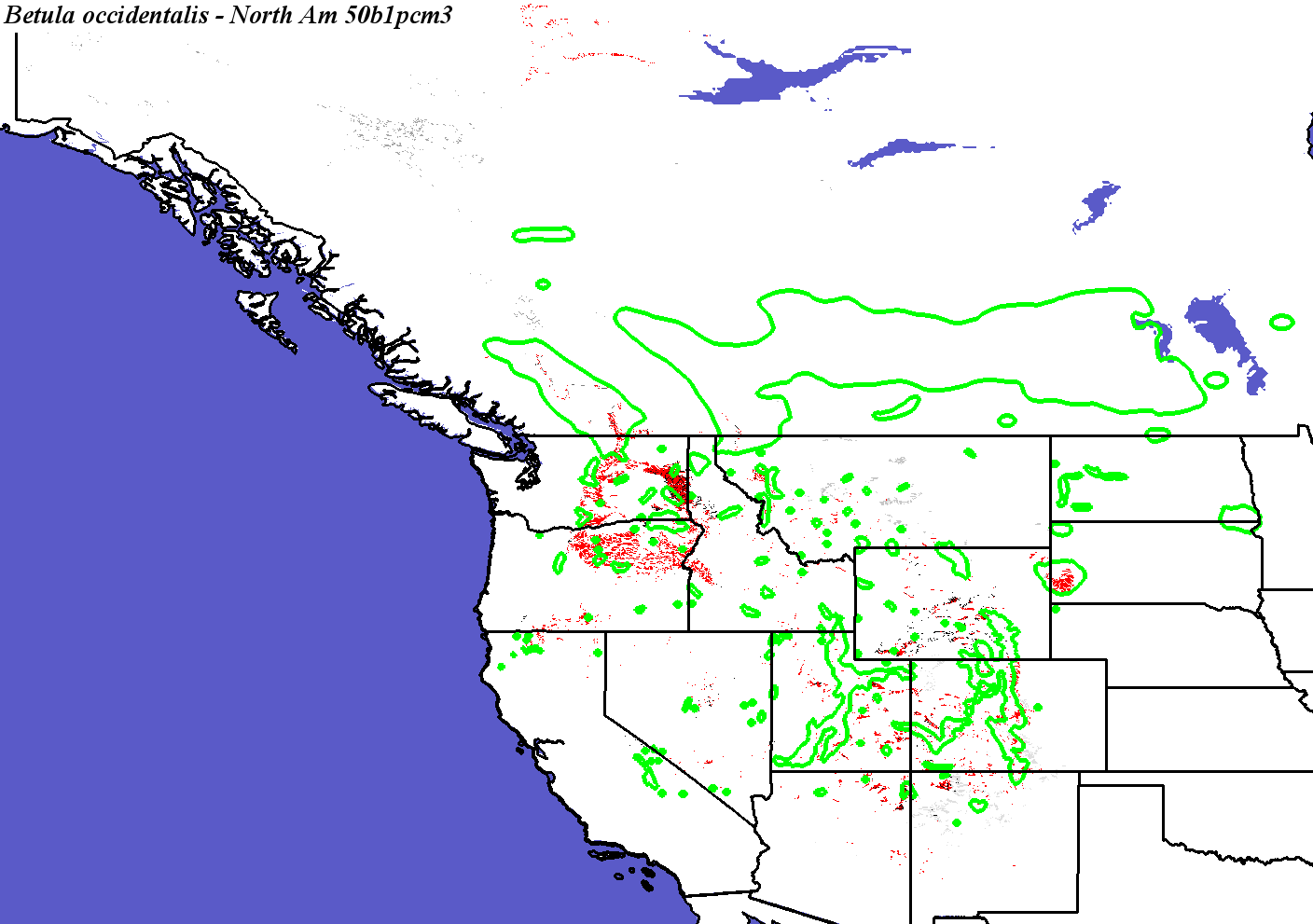

PCM, Scenario B1, 2050 - Betula occidentalis - CONUS

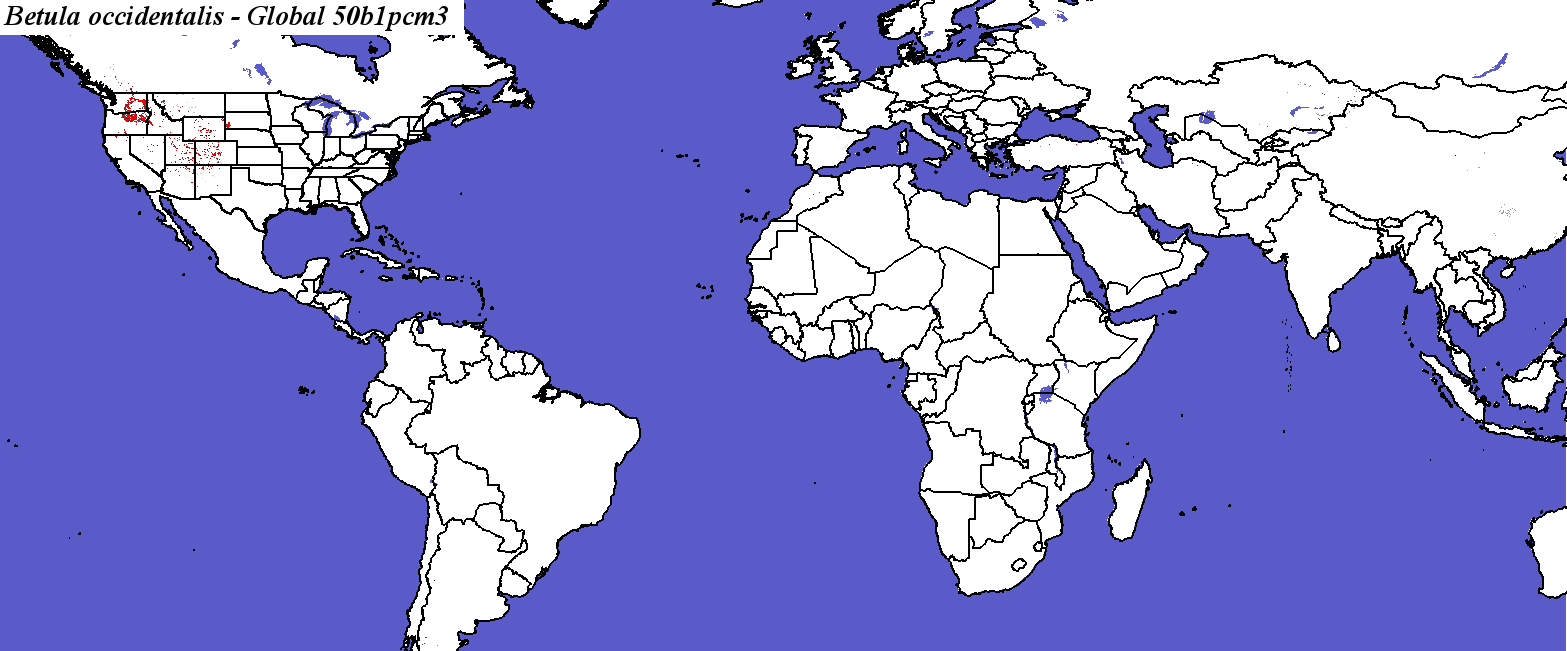

PCM, Scenario B1, 2050 - Betula occidentalis - Global
Betula_occidentalis_final.3.conus
Betula_occidentalis_final.3.global

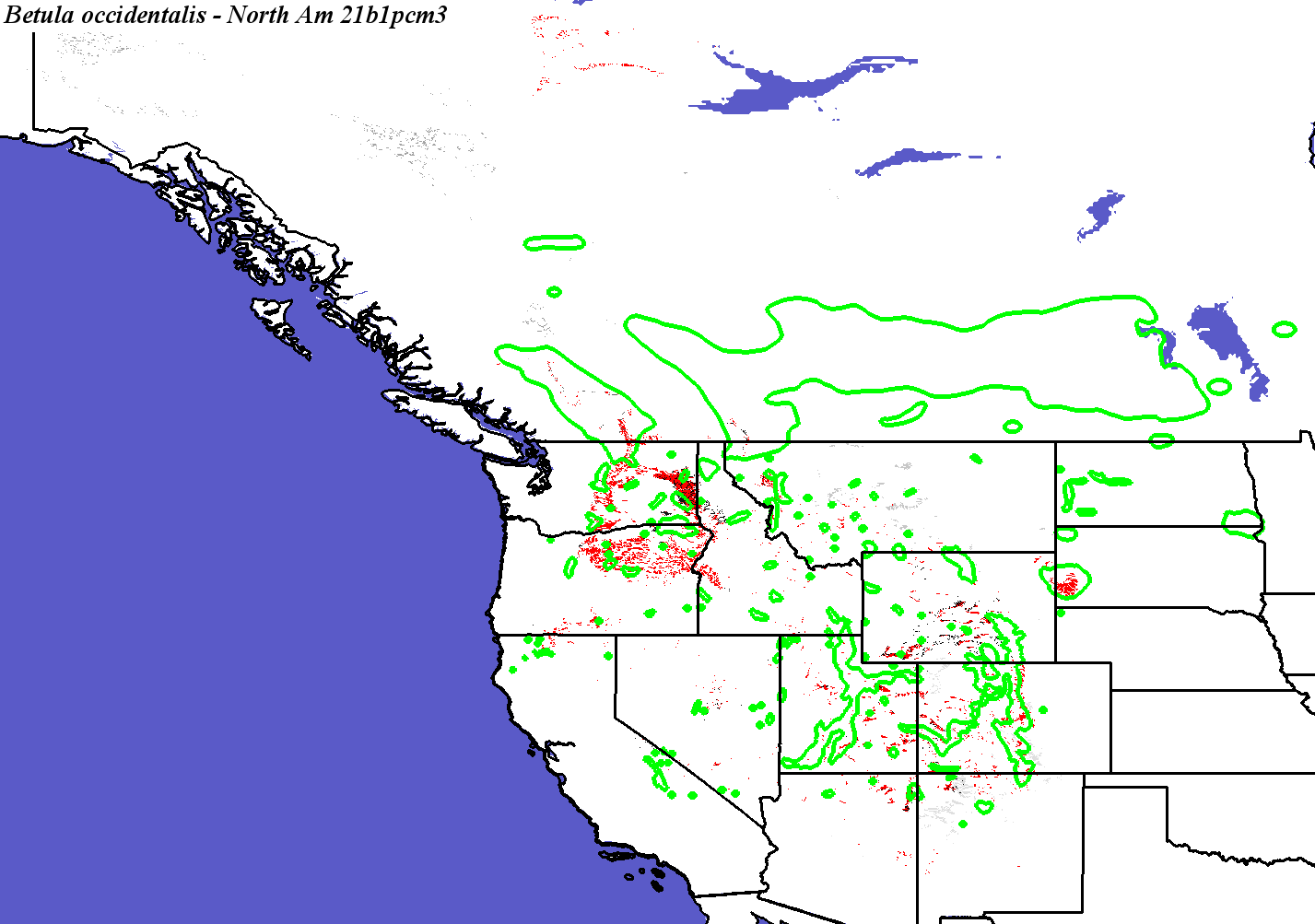

PCM, Scenario B1, 2100 - Betula occidentalis - CONUS
Betula occidentalis not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Betula occidentalis - Global

Hadley Climate Model
Betula_occidentalis_final.3.conus
Betula_occidentalis_final.3.global

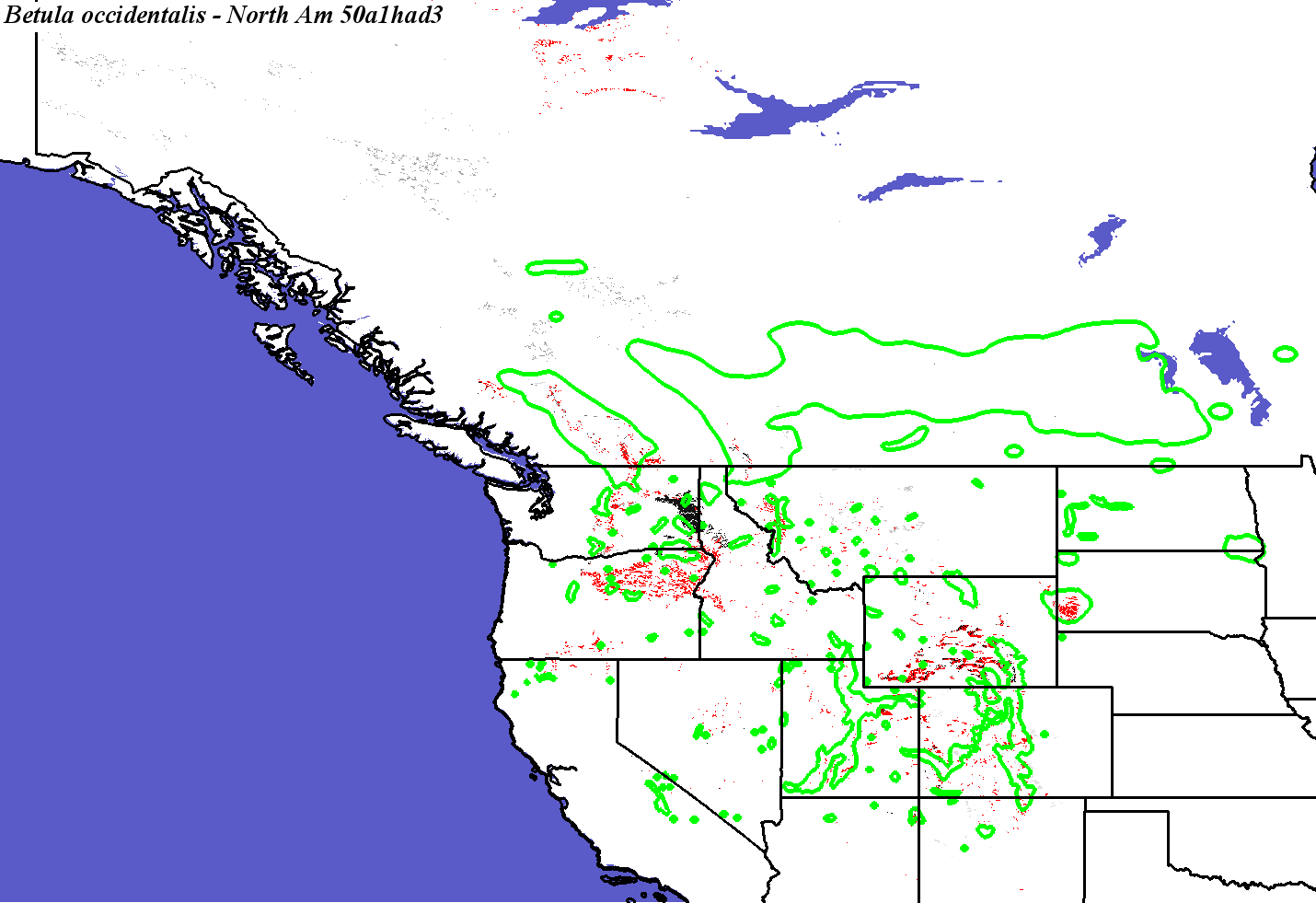

Hadley, Scenario A1FI, 2050 - Betula occidentalis - CONUS
Betula occidentalis not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Betula occidentalis - Global
Betula_occidentalis_final.3.conus
Betula_occidentalis_final.3.global.

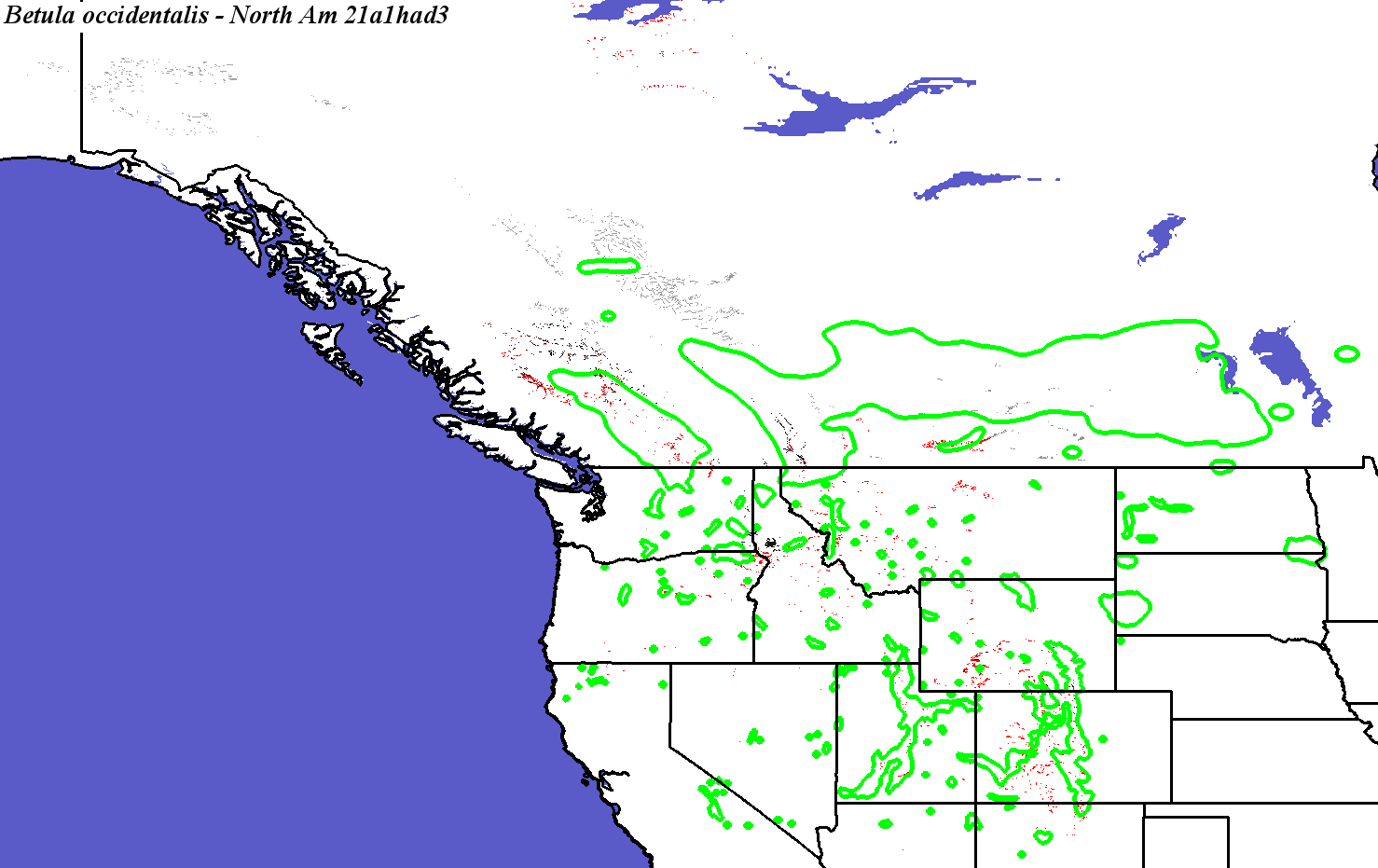

Hadley, Scenario A1FI, 2100 - Betula occidentalis - CONUS
Betula occidentalis not modeled by Iverson and Prasad
Betula occidentalis not modeled by Crookston and Rehfeldt
Betula occidentalis not modeled by Coops and Waring

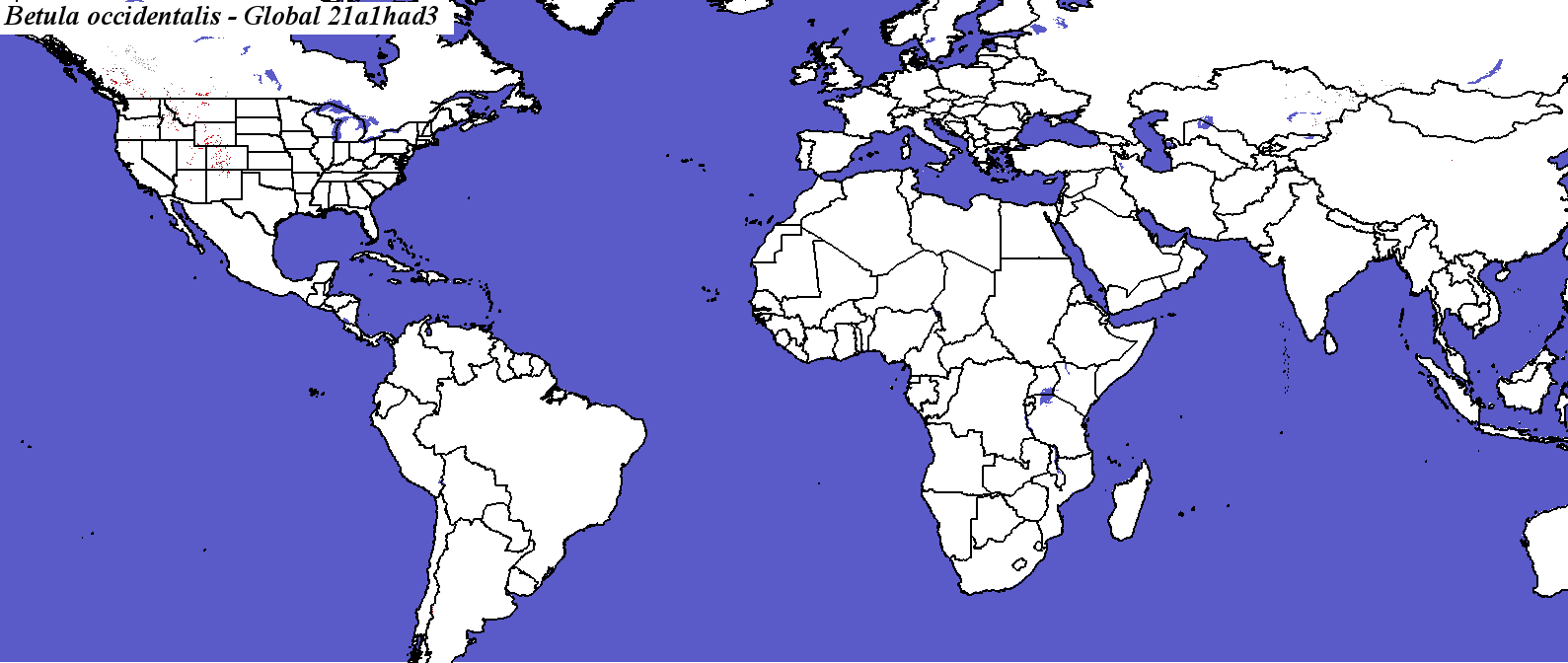

Hadley, Scenario A1FI, 2100 - Betula occidentalis - Global

Betula_occidentalis_final.3.conus
Betula_occidentalis_final.3.global.

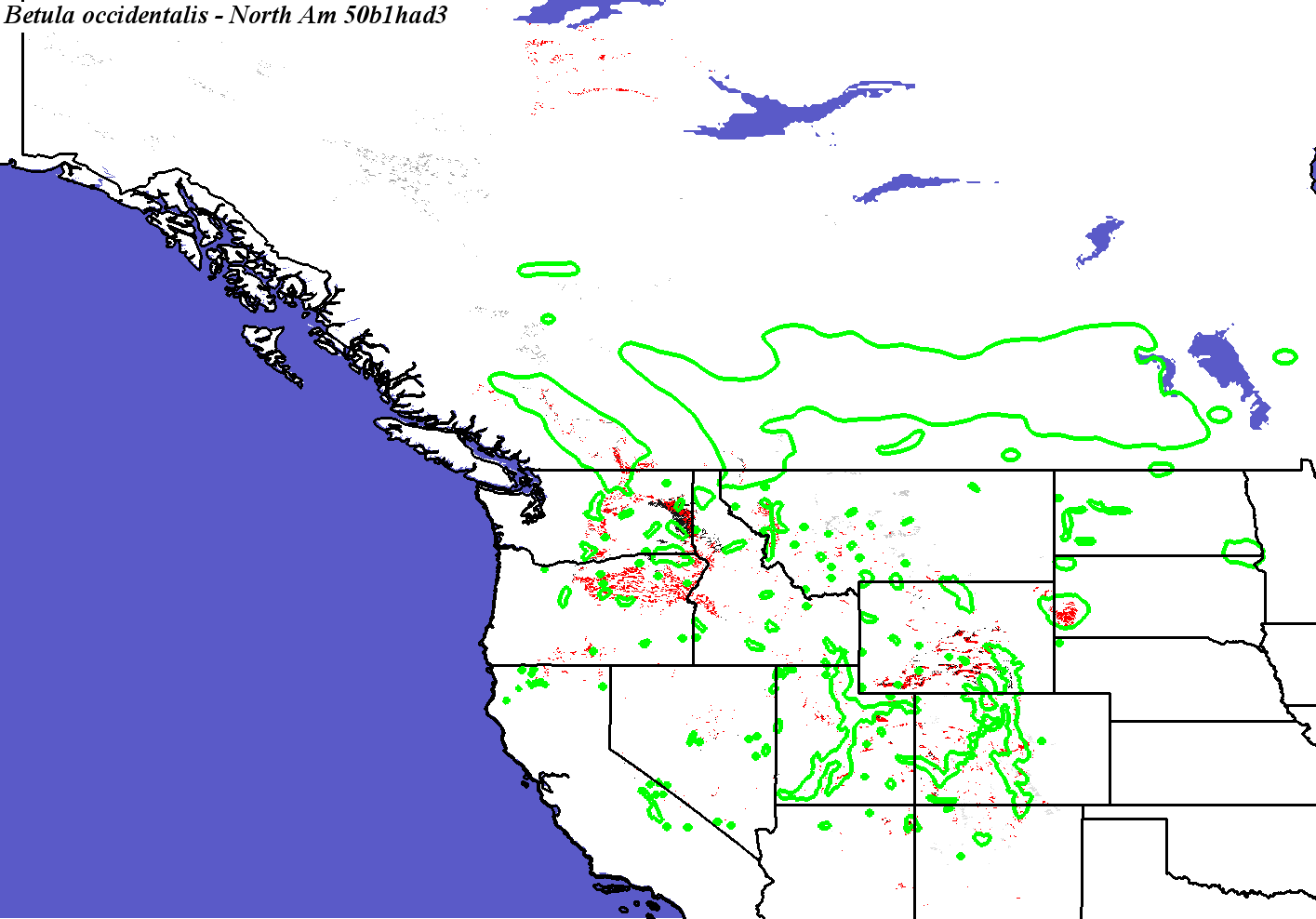

Hadley, Scenario B1, 2050 - Betula occidentalis - CONUS
Betula occidentalis not modeled by Crookston and Rehfeldt
Betula occidentalis not modeled by Coops and Waring

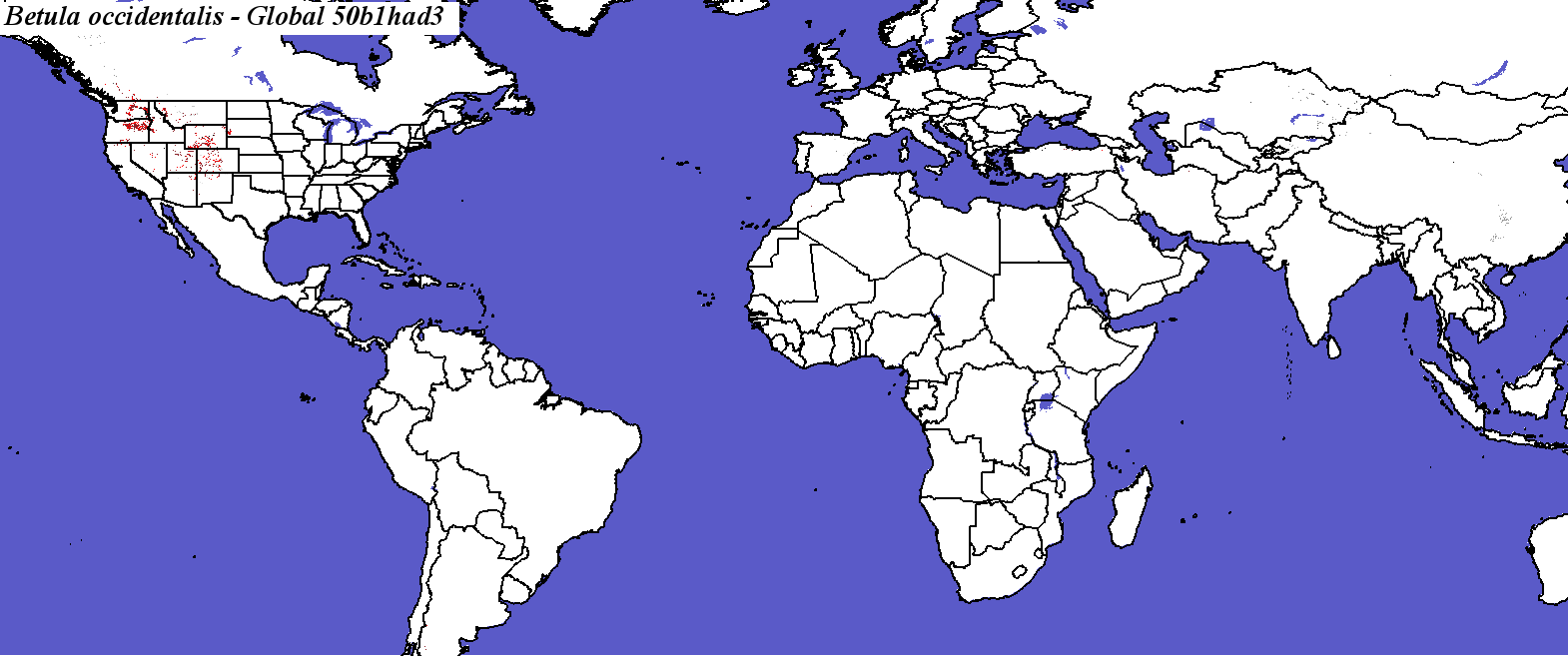

Hadley, Scenario B1, 2050 - Betula occidentalis - Global
Betula_occidentalis_final.3.conus
Betula_occidentalis_final.3.global

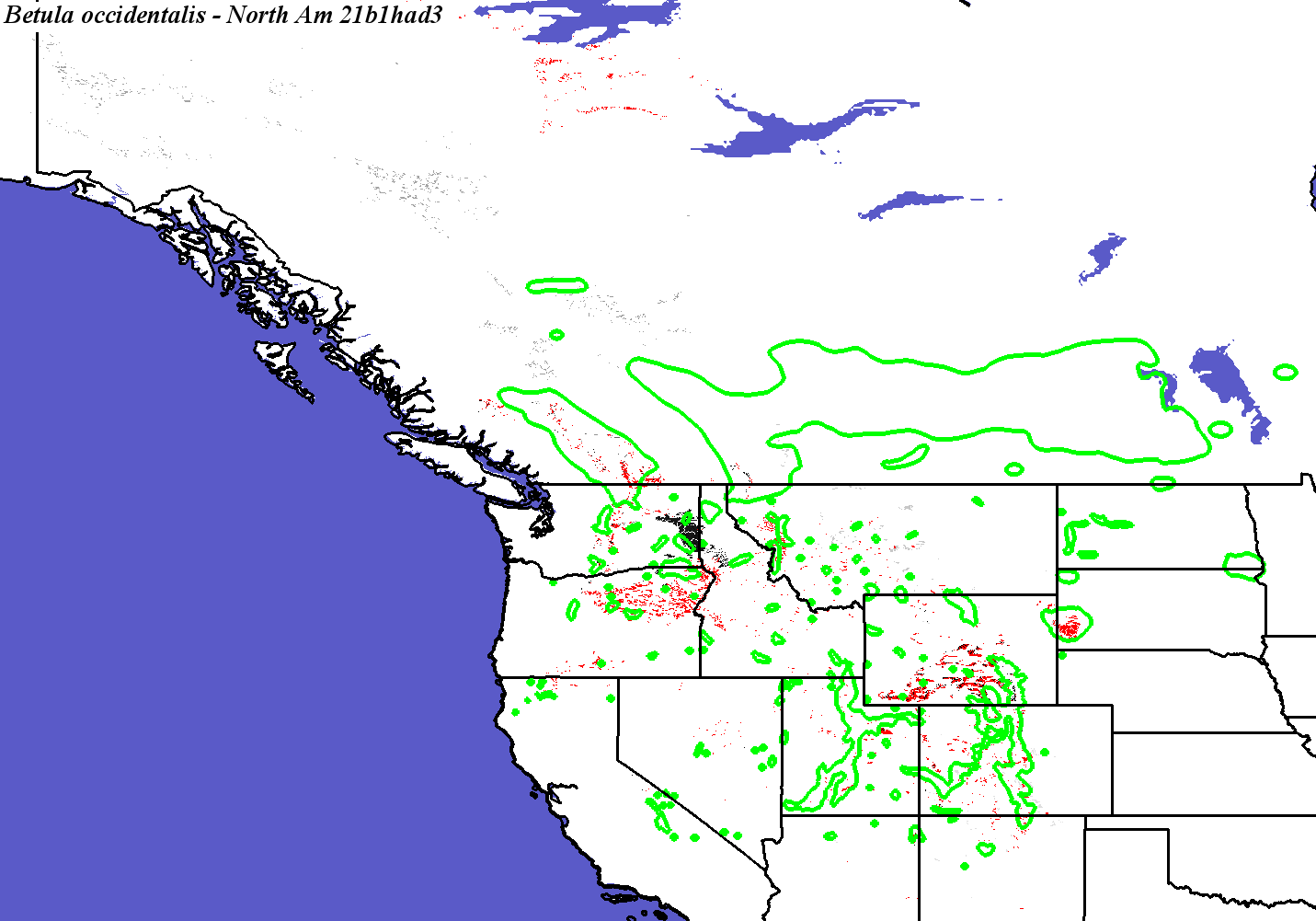

Hadley, Scenario B1, 2100 - Betula occidentalis - CONUS
Betula occidentalis not modeled by Iverson and Prasad
Betula occidentalis not modeled by Crookston and Rehfeldt

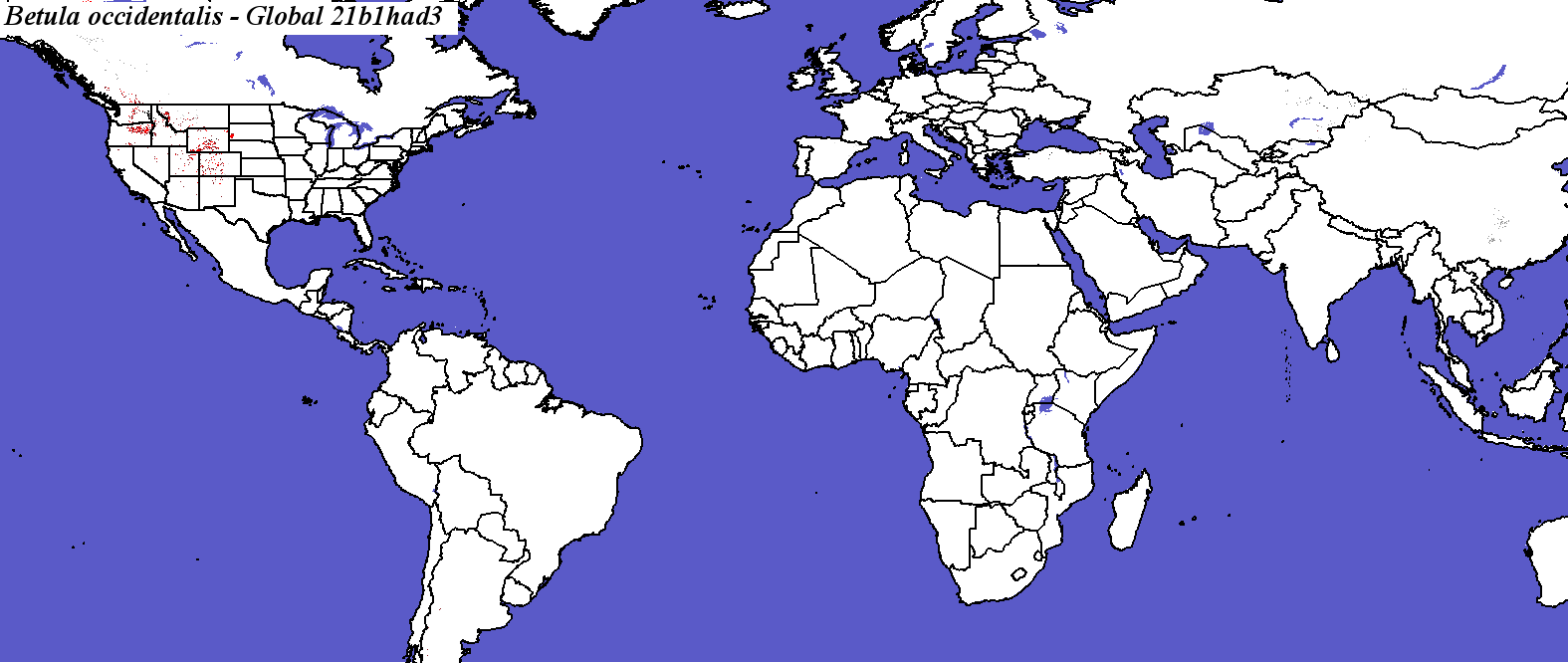

Hadley, Scenario B1, 2100 - Betula occidentalis - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Betula_occidentalis_final.elev

Number of Suitable Ecoregions (Niche Breadth)

14

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

76.8493

Area in Present Suitable Range (in km2)

82861

Area in Future Suitable Range (Had B1 2050, in km2)

61278

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

39381

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

47.5200

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

56.8493

Percent Change in Area of Suitable Range (Had B1 2050)

-26.0400

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

45.3425

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

18343.1 +/- 38305.7

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

38.9041

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

8.11897 +/- 16.101

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

41.5068

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

15.3215 +/- 26.0236

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

91.2329

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

96.8493

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

39458

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

47.6100

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

9.72603

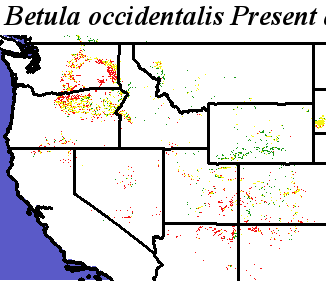

Present and Future Ranges - Hadley, Scenario B1, 2050 - Betula occidentalis Betula occidentalis - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Betula_occidentalis_final.elev Fine MRM Distance
Betula_occidentalis_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Betula occidentalis Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Betula occidentalis
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Betula_occidentalis_final.elev Coarse MRM Distance
Betula_occidentalis_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Betula occidentalis Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Betula occidentalis
