Version 5 Tree Atlas


Carya alba

mockernut hickory

elev

Carya alba Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Carya alba

USDA Plants Database entry for Carya alba
Silvics Manual entry for Carya alba


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Carya tomentosa65911666757TBD

Occurrence Locations and Hargrove's Present Suitable Range Outline
Carya_alba_final Occurrences

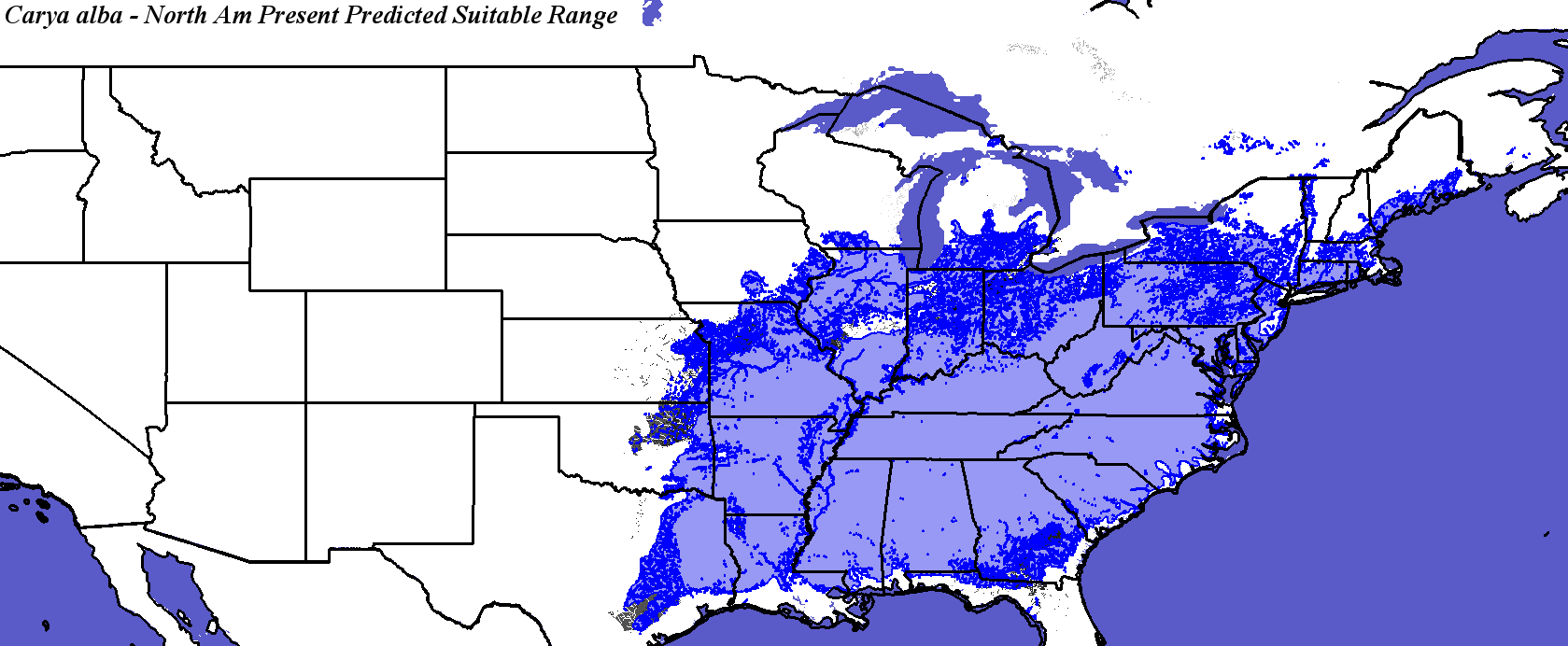

Hargroves Present Suitable Range Outline for Carya_alba_final
Carya alba - Occurrence Locations Carya alba - Hargrove's Present Suitable Range Outline
Present Conditions
Carya_alba_final.4.conus
Carya_alba_final.4.global
Carya alba - CONUS
Compare with Current Range from the Silvics Manual for Carya alba
Compare with Current Range from Biota of North America Program (BONAP) for Carya alba

Carya alba not modeled by Iverson and Prasad
Carya alba not modeled by Crookston and Rehfeldt
Carya alba not modeled by Coops and Waring
Carya alba - Global

PCM - Parallel Climate Model
Carya_alba_final.4.conus
Carya_alba_final.4.global
PCM, Scenario A1FI, 2050 - Carya alba - CONUS
PCM, Scenario A1FI, 2050 - Carya alba - Global
Carya_alba_final.4.conus
Carya_alba_final.4.global
PCM, Scenario A1FI, 2100 - Carya alba - CONUS
Carya alba species not modeled by Iverson and Prasad

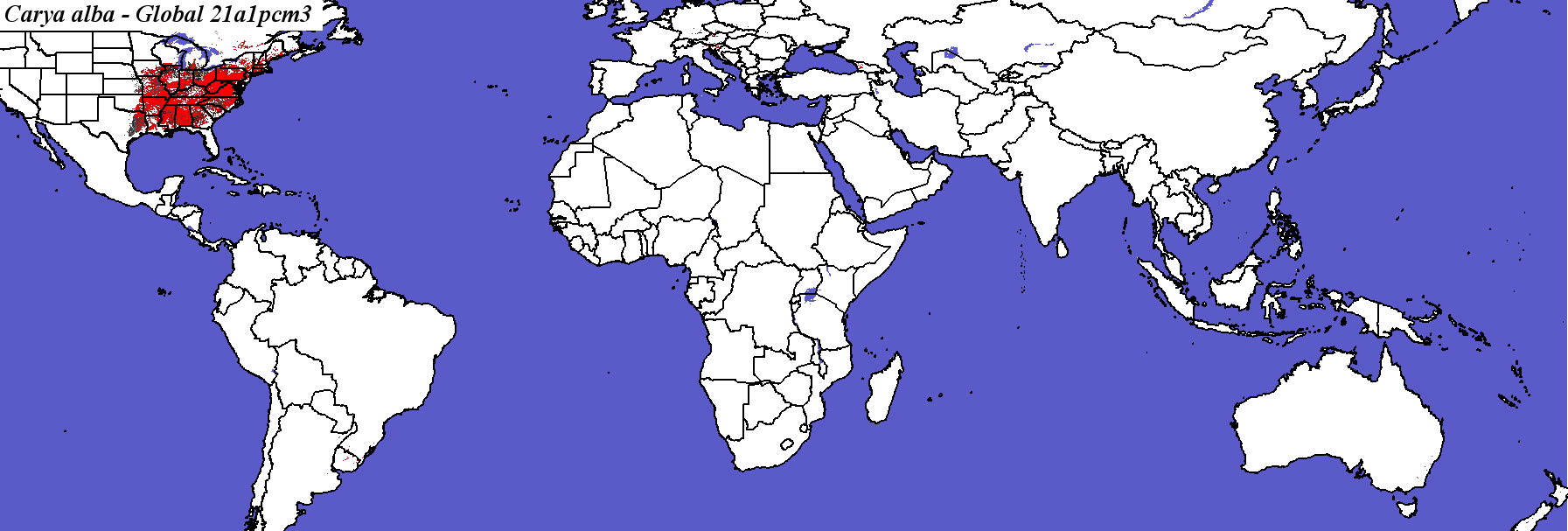

PCM, Scenario A1FI, 2100 - Carya alba - Global

Carya_alba_final.4.conus
Carya_alba_final.4.global

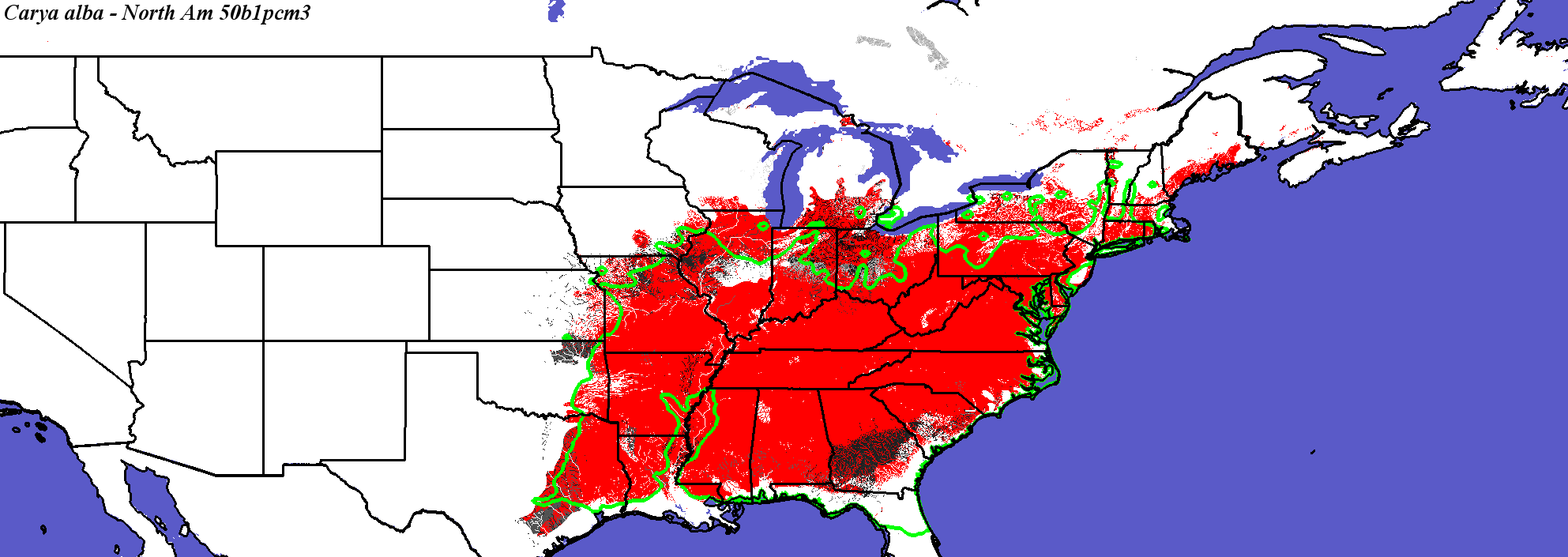

PCM, Scenario B1, 2050 - Carya alba - CONUS
PCM, Scenario B1, 2050 - Carya alba - Global
Carya_alba_final.4.conus
Carya_alba_final.4.global
PCM, Scenario B1, 2100 - Carya alba - CONUS
Carya alba not modeled by Iverson and Prasad

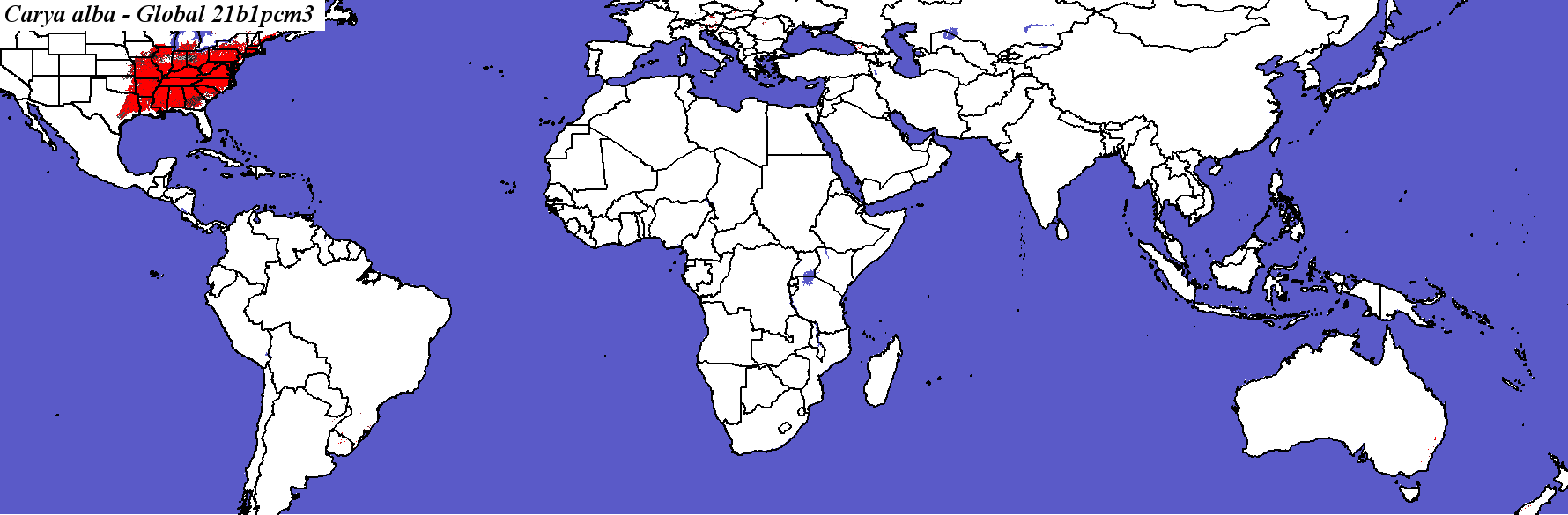

PCM, Scenario B1, 2100 - Carya alba - Global

Hadley Climate Model
Carya_alba_final.4.conus
Carya_alba_final.4.global

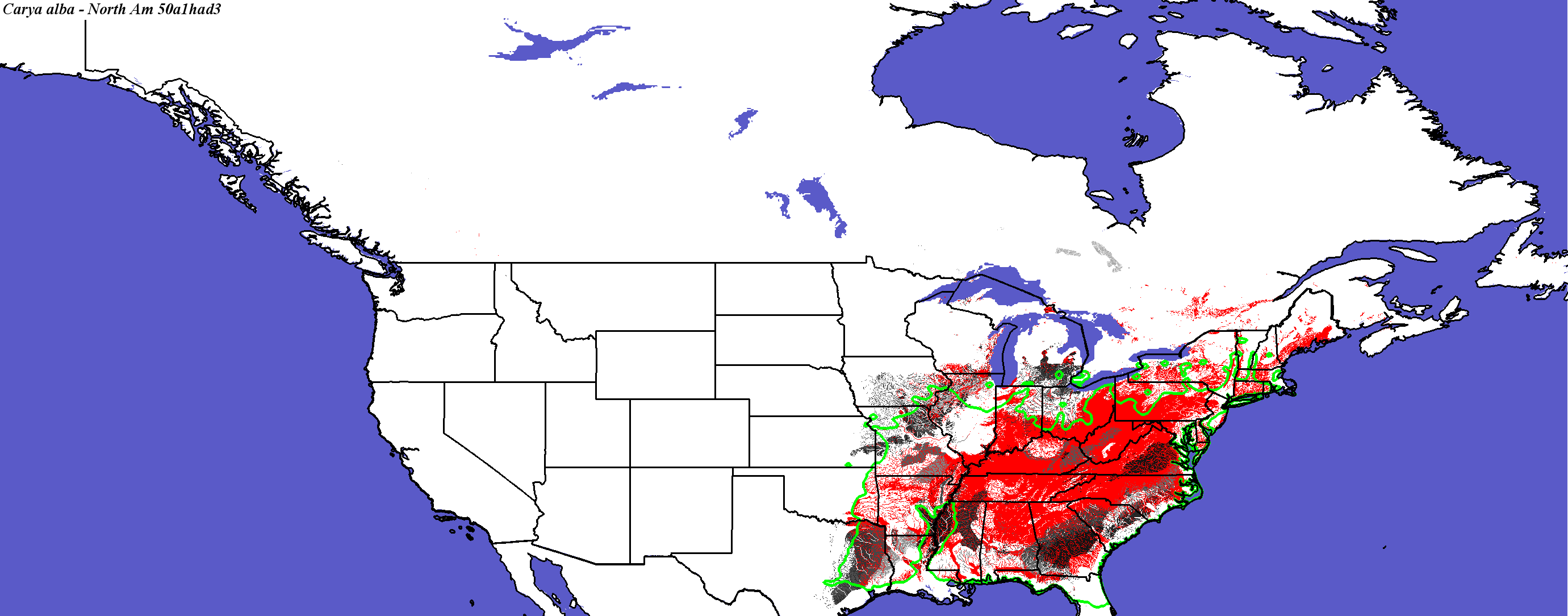

Hadley, Scenario A1FI, 2050 - Carya alba - CONUS
Carya alba not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Carya alba - Global
Carya_alba_final.4.conus
Carya_alba_final.4.global.

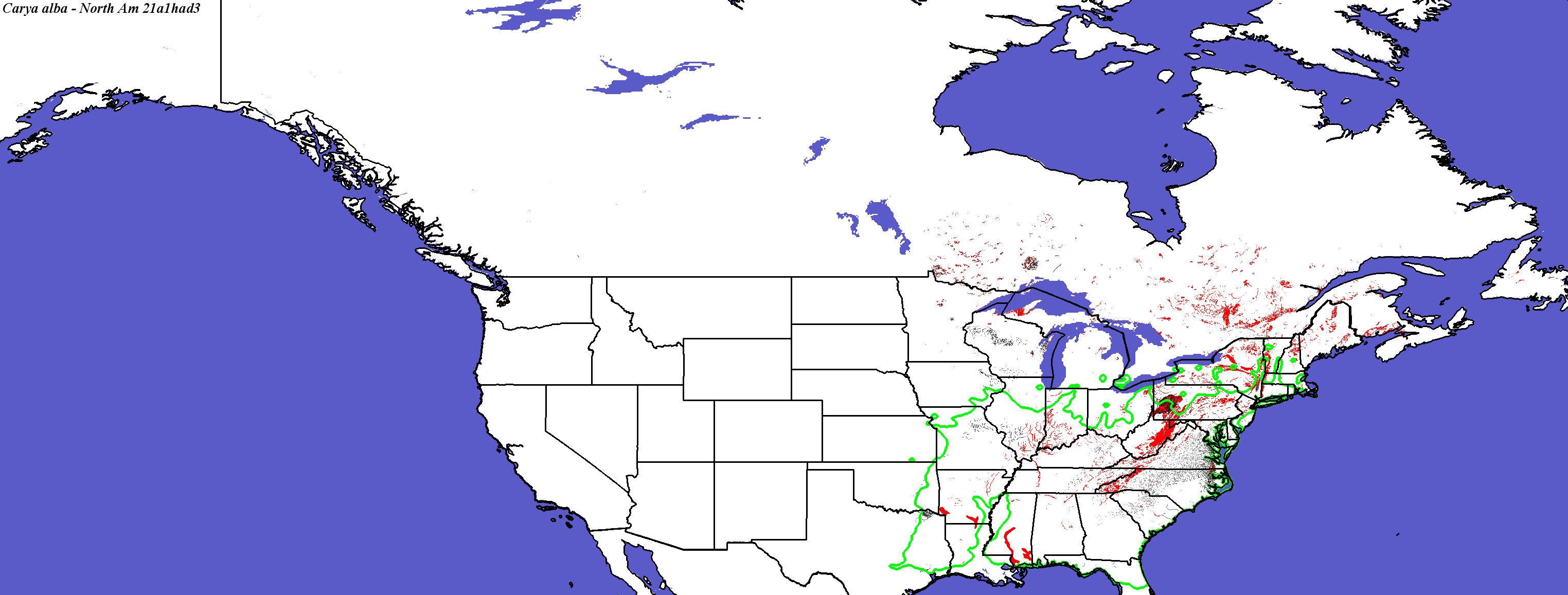

Hadley, Scenario A1FI, 2100 - Carya alba - CONUS
Carya alba not modeled by Iverson and Prasad
Carya alba not modeled by Crookston and Rehfeldt
Carya alba not modeled by Coops and Waring

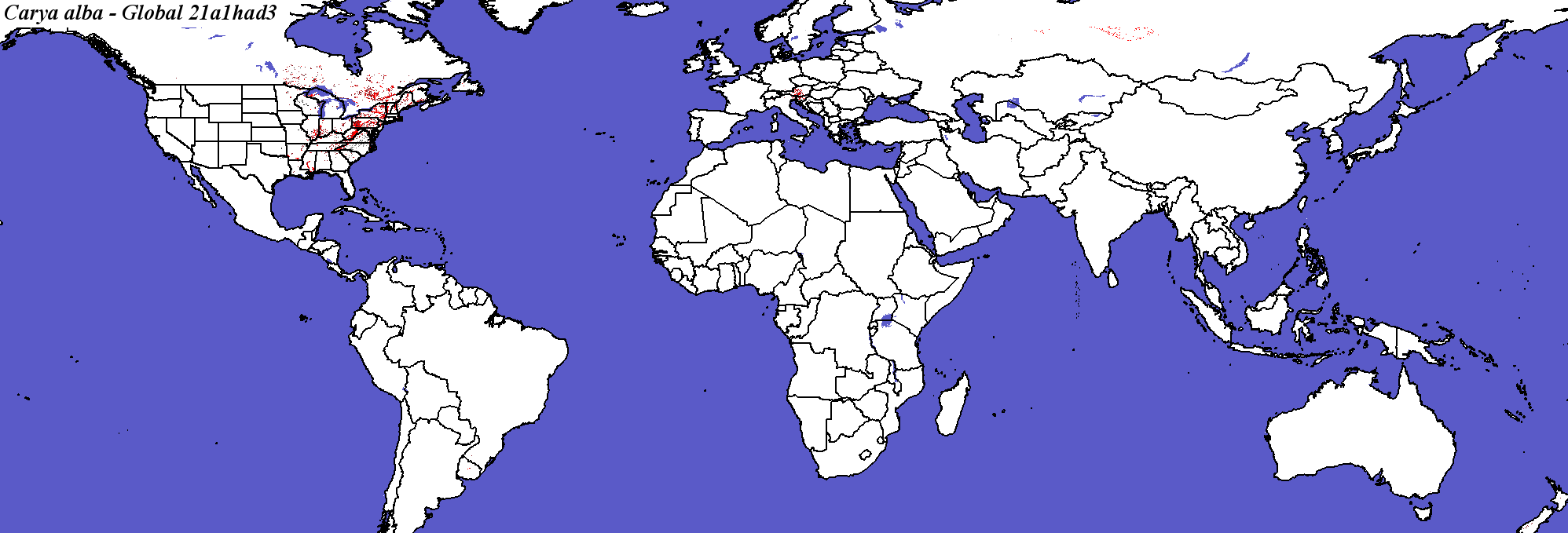

Hadley, Scenario A1FI, 2100 - Carya alba - Global

Carya_alba_final.4.conus
Carya_alba_final.4.global.
Hadley, Scenario B1, 2050 - Carya alba - CONUS
Carya alba not modeled by Crookston and Rehfeldt
Carya alba not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Carya alba - Global
Carya_alba_final.4.conus
Carya_alba_final.4.global

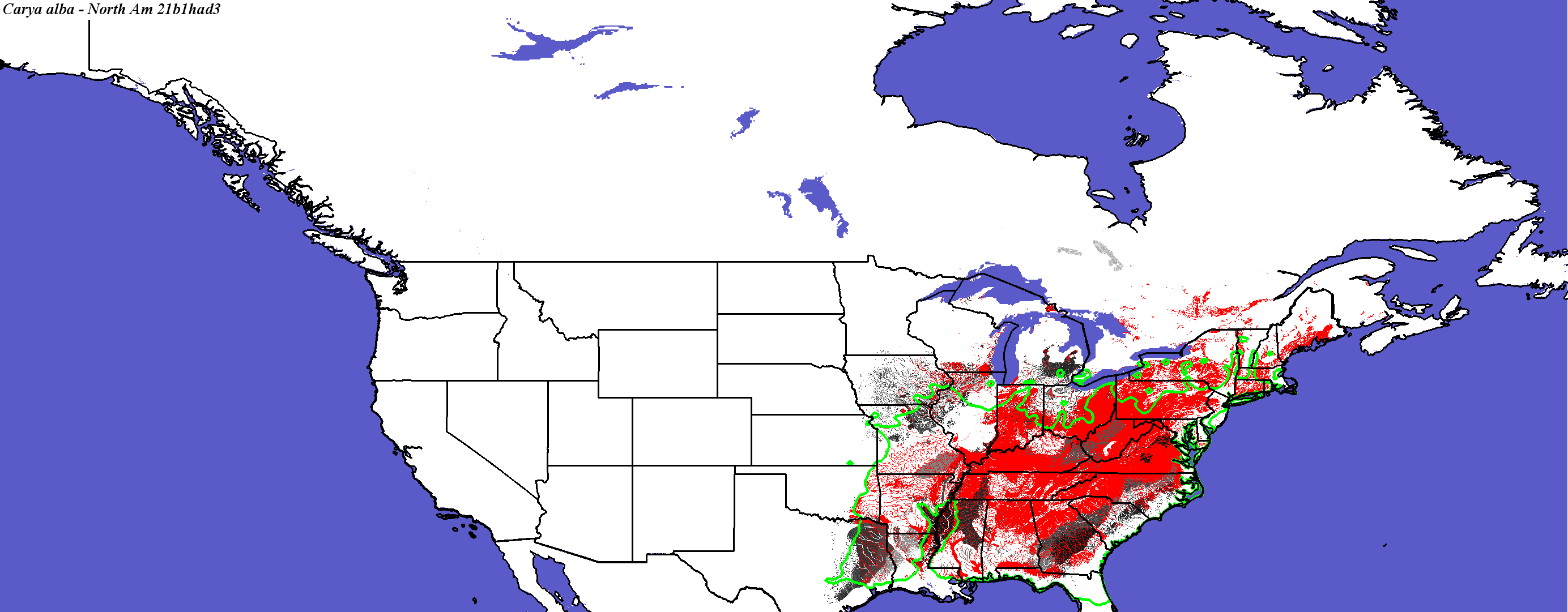

Hadley, Scenario B1, 2100 - Carya alba - CONUS
Carya alba not modeled by Iverson and Prasad
Carya alba not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Carya alba - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Carya_alba_final.elev

Number of Suitable Ecoregions (Niche Breadth)

232

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

5.06849

Area in Present Suitable Range (in km2)

1936680

Area in Future Suitable Range (Had B1 2050, in km2)

1282033

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

1159500

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

59.8700

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

25.4795

Percent Change in Area of Suitable Range (Had B1 2050)

-33.8000

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

58.2192

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

6587.53 +/- 14260.7

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

83.6986

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

3.16976 +/- 7.06105

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

82.7397

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

147.838 +/- 546.071

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

37.1233

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

68637

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

3.5400

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

34.1096

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

391300

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

20.2000

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

69.1781

Present and Future Ranges - Hadley, Scenario B1, 2050 - Carya alba Carya alba - Range Change Statistics

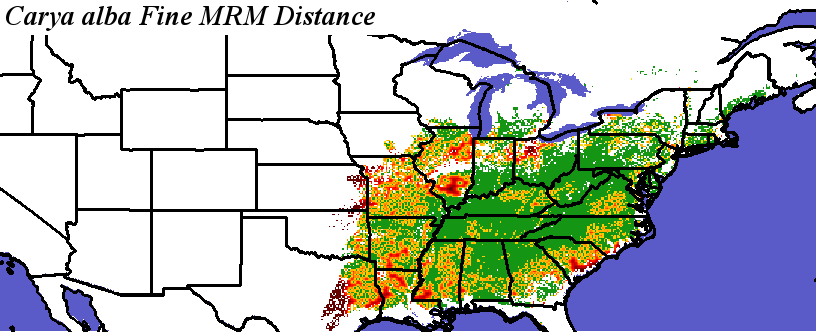

Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Carya_alba_final.elev Fine MRM Distance
Carya_alba_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Carya alba Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Carya alba
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Carya_alba_final.elev Coarse MRM Distance
Carya_alba_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Carya alba Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Carya alba
