Version 5 Tree Atlas


Carya laciniosa

shellbark hickory

elev

Carya laciniosa Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Carya laciniosa

USDA Plants Database entry for Carya laciniosa
Silvics Manual entry for Carya laciniosa


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
34739386some parts of range not well represented

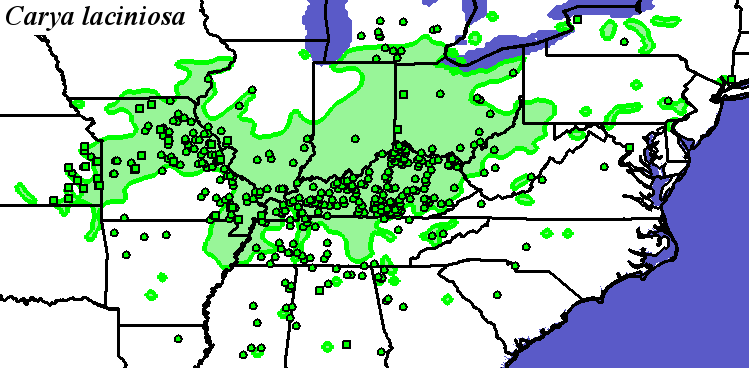

Occurrence Locations and Hargrove's Present Suitable Range Outline
Carya_laciniosa_final Occurrences

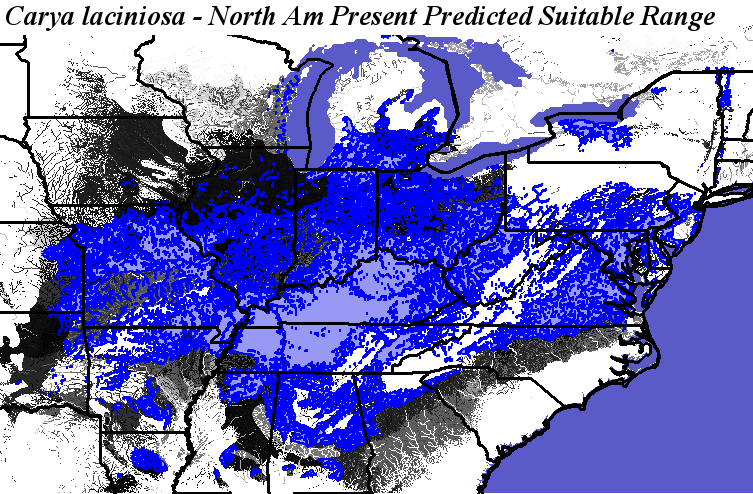

Hargroves Present Suitable Range Outline for Carya_laciniosa_final
Carya laciniosa - Occurrence Locations Carya laciniosa - Hargrove's Present Suitable Range Outline
Present Conditions
Carya_laciniosa_final.3.conus
Carya_laciniosa_final.3.global
Carya laciniosa - CONUS
Compare with Current Range from the Silvics Manual for Carya laciniosa
Compare with Current Range from Biota of North America Program (BONAP) for Carya laciniosa

Compare with Carya laciniosa modeled for Current conditions by Iverson and Prasad
Carya laciniosa not modeled by Crookston and Rehfeldt
Carya laciniosa not modeled by Coops and Waring
Carya laciniosa - Global

PCM - Parallel Climate Model
Carya_laciniosa_final.3.conus
Carya_laciniosa_final.3.global

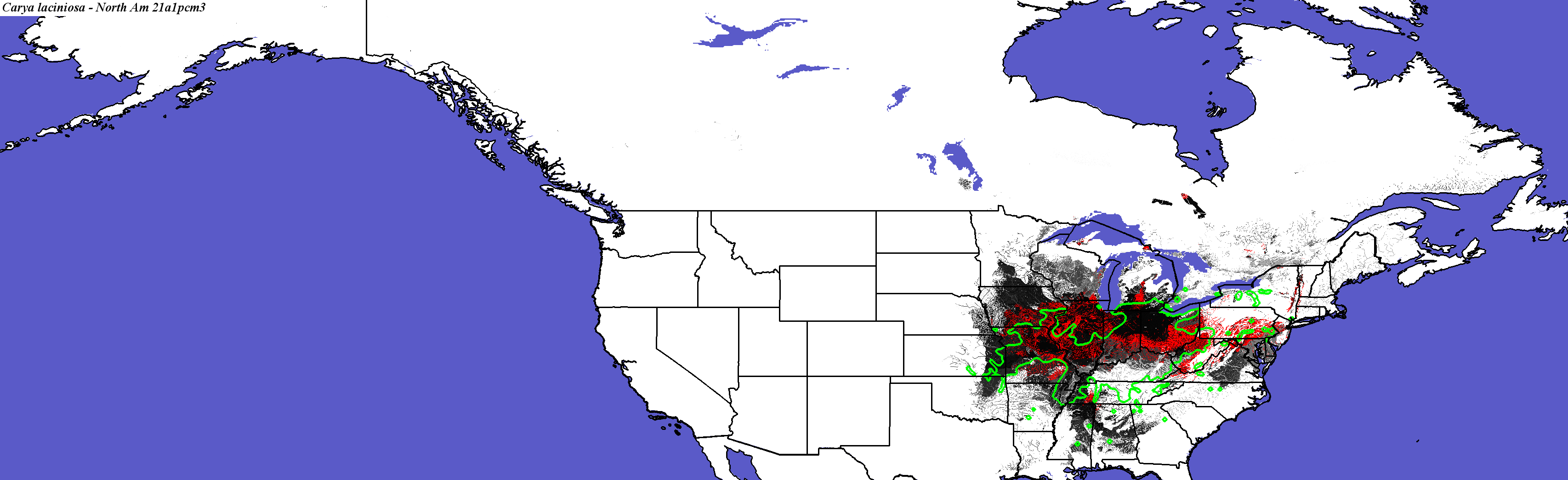

PCM, Scenario A1FI, 2050 - Carya laciniosa - CONUS

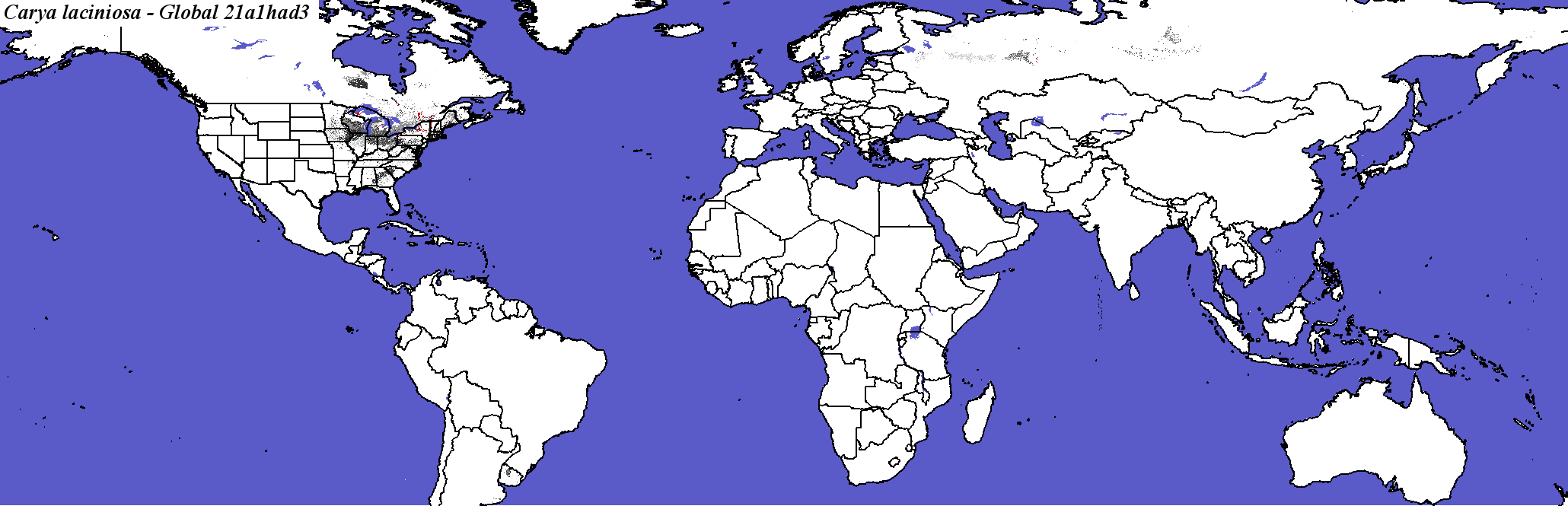

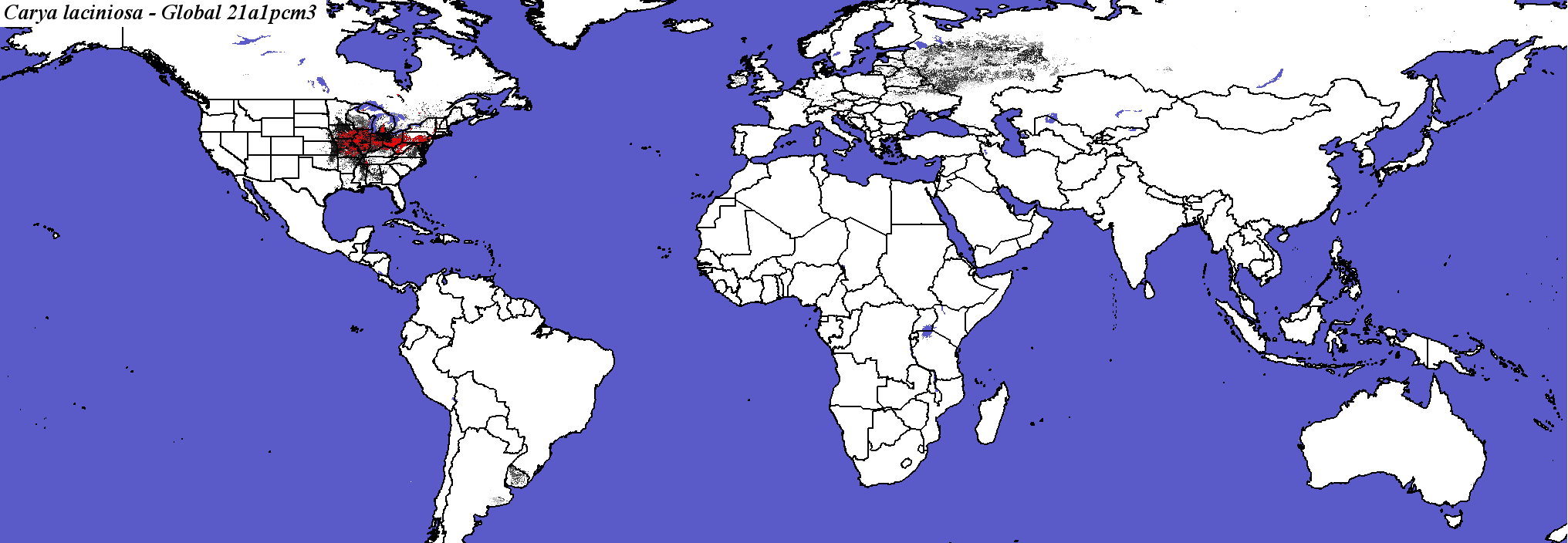

PCM, Scenario A1FI, 2050 - Carya laciniosa - Global
Carya_laciniosa_final.3.conus
Carya_laciniosa_final.3.global
PCM, Scenario A1FI, 2100 - Carya laciniosa - CONUS
Compare with Carya laciniosa modeled for PCM A1FI in 2100 by Iverson and Prasad

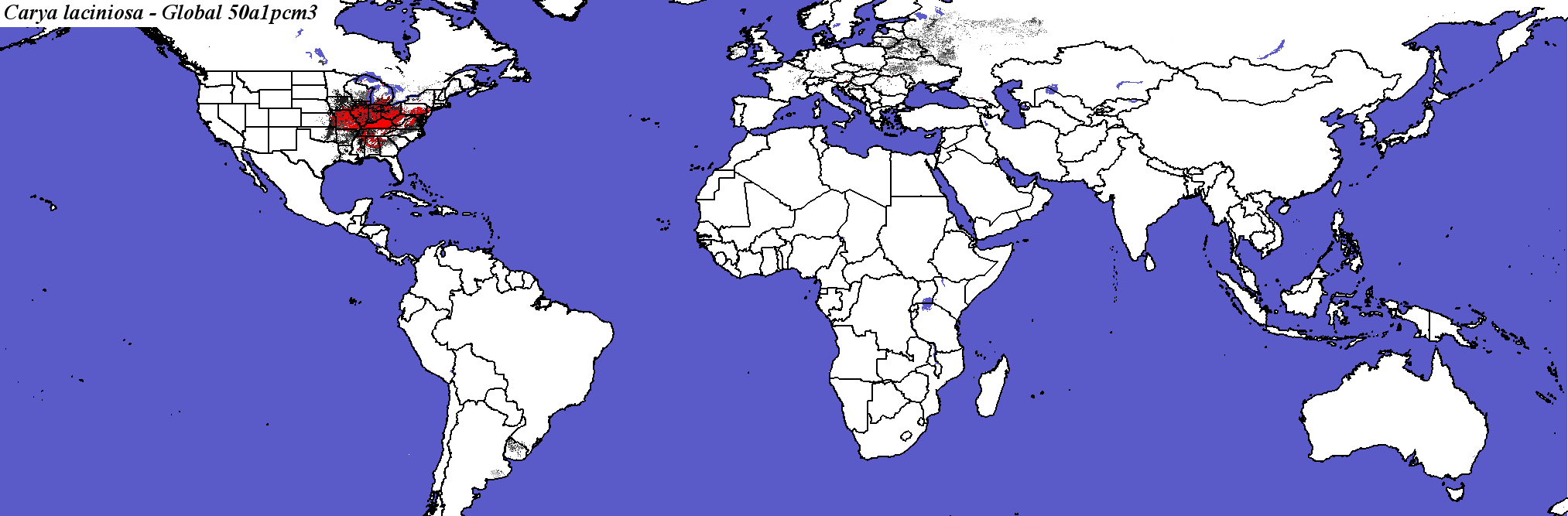

PCM, Scenario A1FI, 2100 - Carya laciniosa - Global

Carya_laciniosa_final.3.conus
Carya_laciniosa_final.3.global
PCM, Scenario B1, 2050 - Carya laciniosa - CONUS
PCM, Scenario B1, 2050 - Carya laciniosa - Global
Carya_laciniosa_final.3.conus
Carya_laciniosa_final.3.global

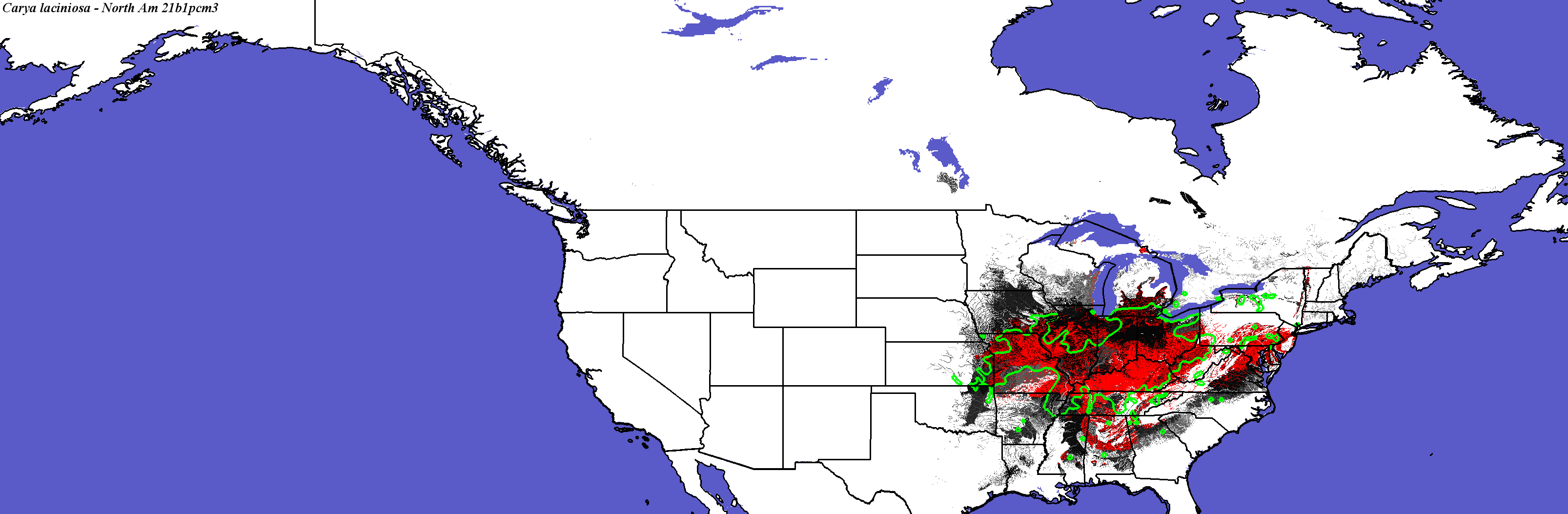

PCM, Scenario B1, 2100 - Carya laciniosa - CONUS
Compare with Carya laciniosa modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Carya laciniosa - Global

Hadley Climate Model
Carya_laciniosa_final.3.conus
Carya_laciniosa_final.3.global
Hadley, Scenario A1FI, 2050 - Carya laciniosa - CONUS
Carya laciniosa not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Carya laciniosa - Global
Carya_laciniosa_final.3.conus
Carya_laciniosa_final.3.global.

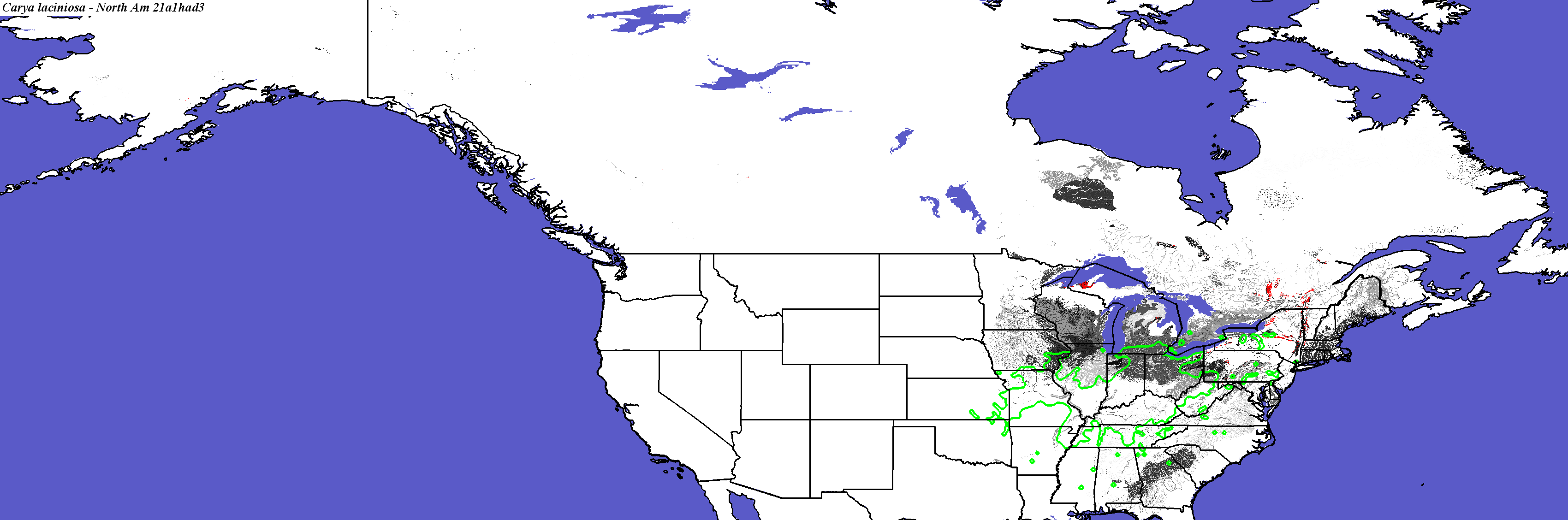

Hadley, Scenario A1FI, 2100 - Carya laciniosa - CONUS
Compare with Carya laciniosa modeled for Hadley A1FI in 2100 by Iverson and Prasad
Carya laciniosa not modeled by Crookston and Rehfeldt
Carya laciniosa not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Carya laciniosa - Global

Carya_laciniosa_final.3.conus
Carya_laciniosa_final.3.global.
Hadley, Scenario B1, 2050 - Carya laciniosa - CONUS
Carya laciniosa not modeled by Crookston and Rehfeldt
Carya laciniosa not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Carya laciniosa - Global
Carya_laciniosa_final.3.conus
Carya_laciniosa_final.3.global

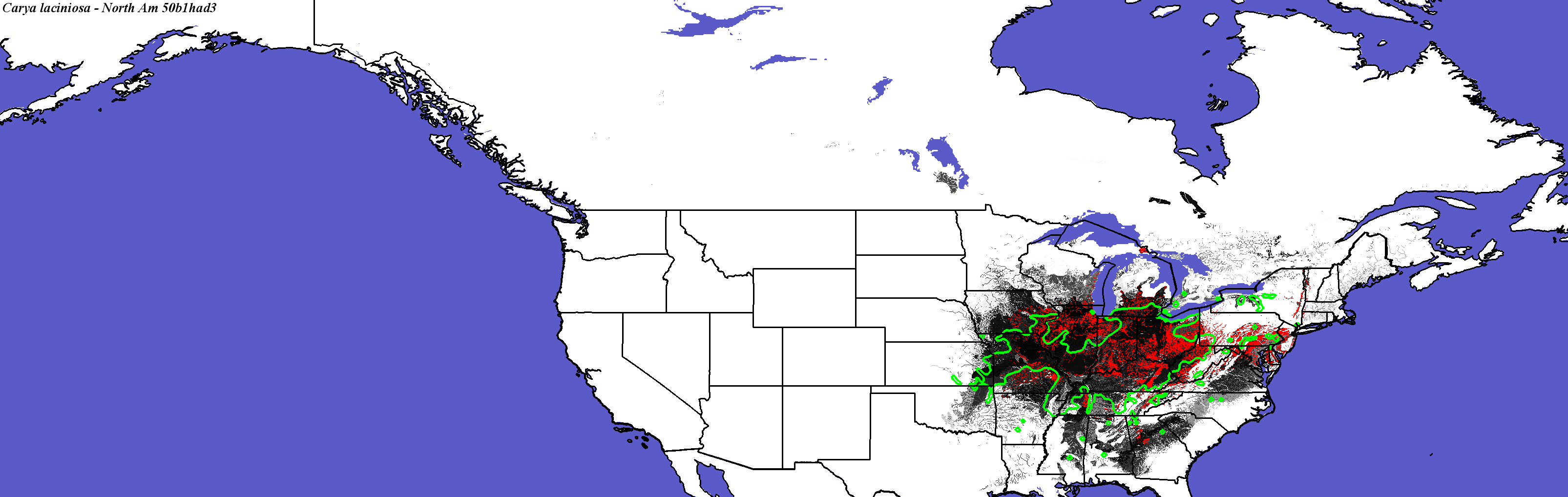

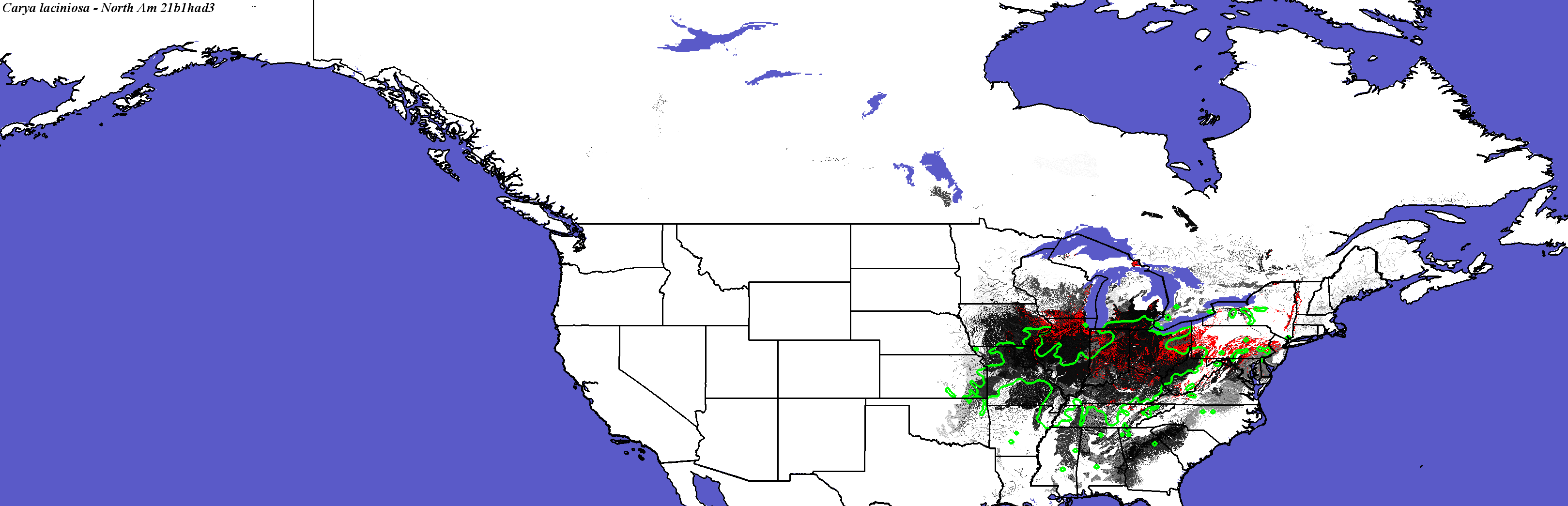

Hadley, Scenario B1, 2100 - Carya laciniosa - CONUS
Compare with Carya laciniosa modeled for Hadley B1 in 2100 by Iverson and Prasad
Carya laciniosa not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Carya laciniosa - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Carya_laciniosa_final.elev

Number of Suitable Ecoregions (Niche Breadth)

47

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

41.7808

Area in Present Suitable Range (in km2)

613472

Area in Future Suitable Range (Had B1 2050, in km2)

223232

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

116657

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

19.0100

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

94.2466

Percent Change in Area of Suitable Range (Had B1 2050)

-63.6100

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

94.6575

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

42455.1 +/- 60317.3

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

13.6986

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

17.2641 +/- 28.2643

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

13.1507

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

116.229 +/- 425.816

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

43.1507

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

12779

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

2.0800

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

43.8356

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

59593

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

9.7100

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

94.2466

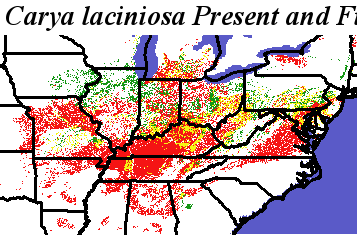

Present and Future Ranges - Hadley, Scenario B1, 2050 - Carya laciniosa Carya laciniosa - Range Change Statistics

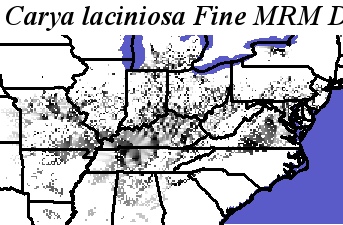

Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Carya_laciniosa_final.elev Fine MRM Distance
Carya_laciniosa_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Carya laciniosa Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Carya laciniosa

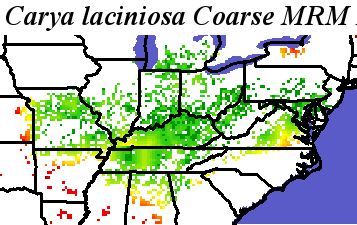

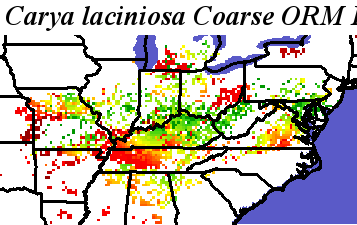

Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Carya_laciniosa_final.elev Coarse MRM Distance
Carya_laciniosa_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Carya laciniosa Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Carya laciniosa
