Version 5 Tree Atlas


Carya texana

black hickory

elev

Carya texana Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Carya texana

USDA Plants Database entry for Carya texana
Silvics Manual entry for Carya texana


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
2275552330range well represented

Occurrence Locations and Hargrove's Present Suitable Range Outline
Carya_texana_final Occurrences

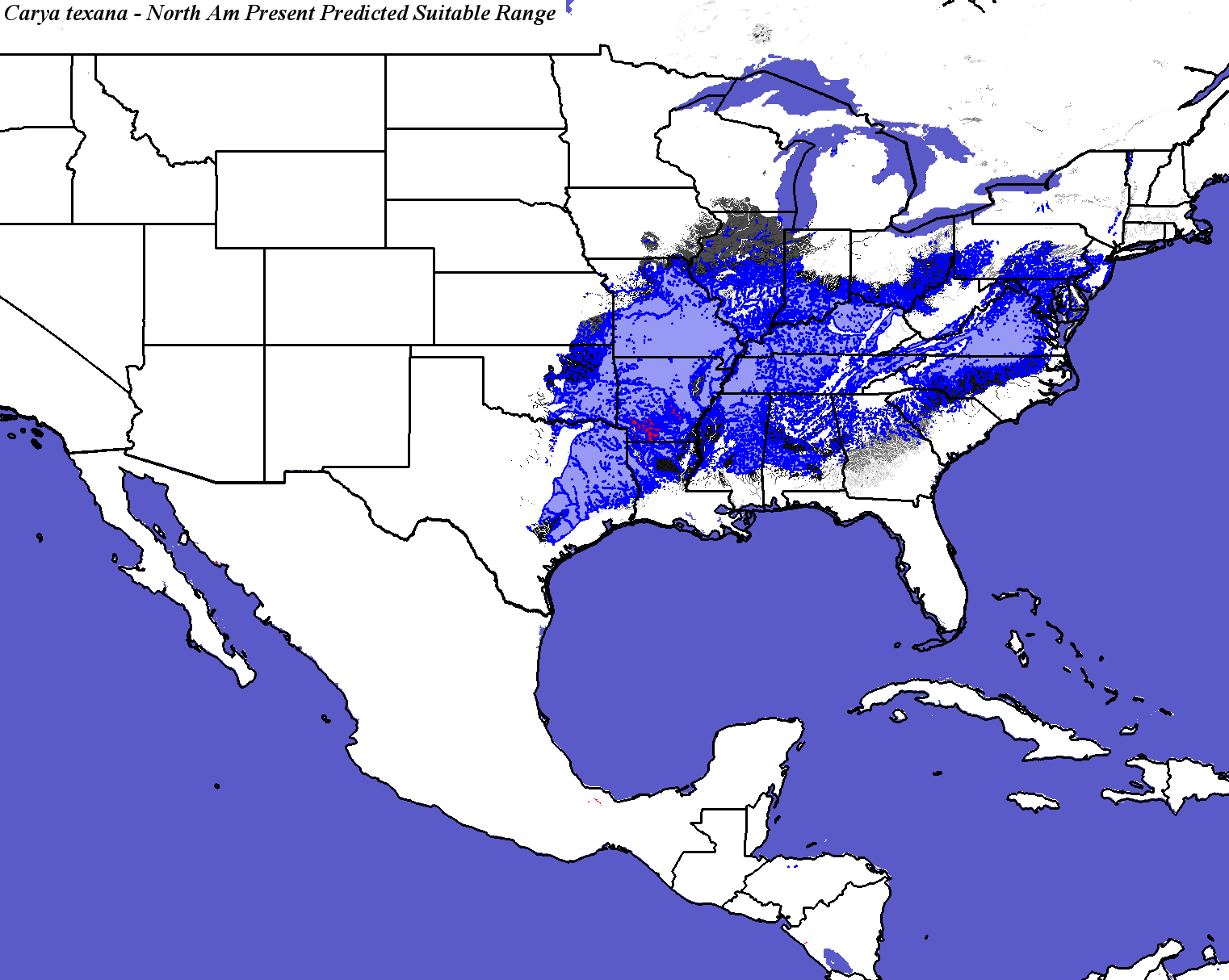

Hargroves Present Suitable Range Outline for Carya_texana_final
Carya texana - Occurrence Locations Carya texana - Hargrove's Present Suitable Range Outline
Present Conditions
Carya_texana_final.3.conus
Carya_texana_final.3.global

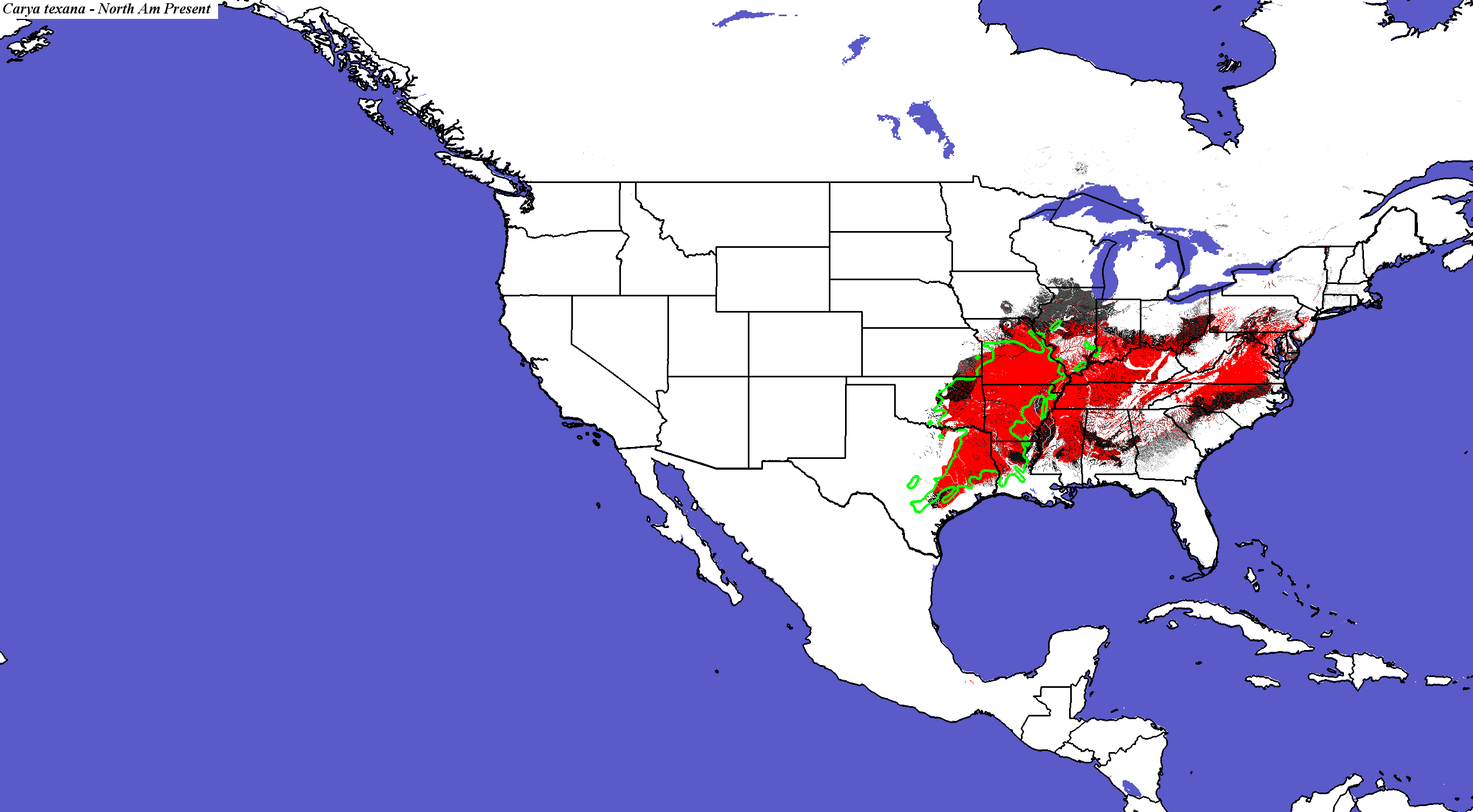

Carya texana - CONUS
Compare with Current Range from the Silvics Manual for Carya texana
Compare with Current Range from Biota of North America Program (BONAP) for Carya texana

Compare with Carya texana modeled for Current conditions by Iverson and Prasad
Carya texana not modeled by Crookston and Rehfeldt
Carya texana not modeled by Coops and Waring

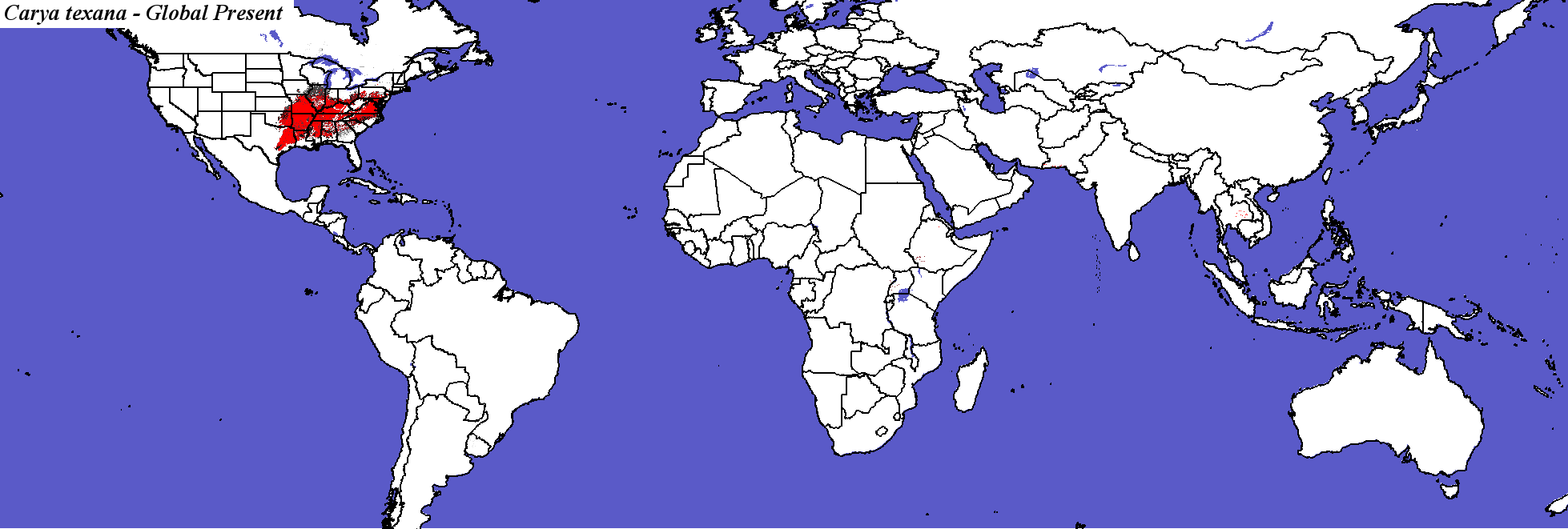

Carya texana - Global

PCM - Parallel Climate Model
Carya_texana_final.3.conus
Carya_texana_final.3.global

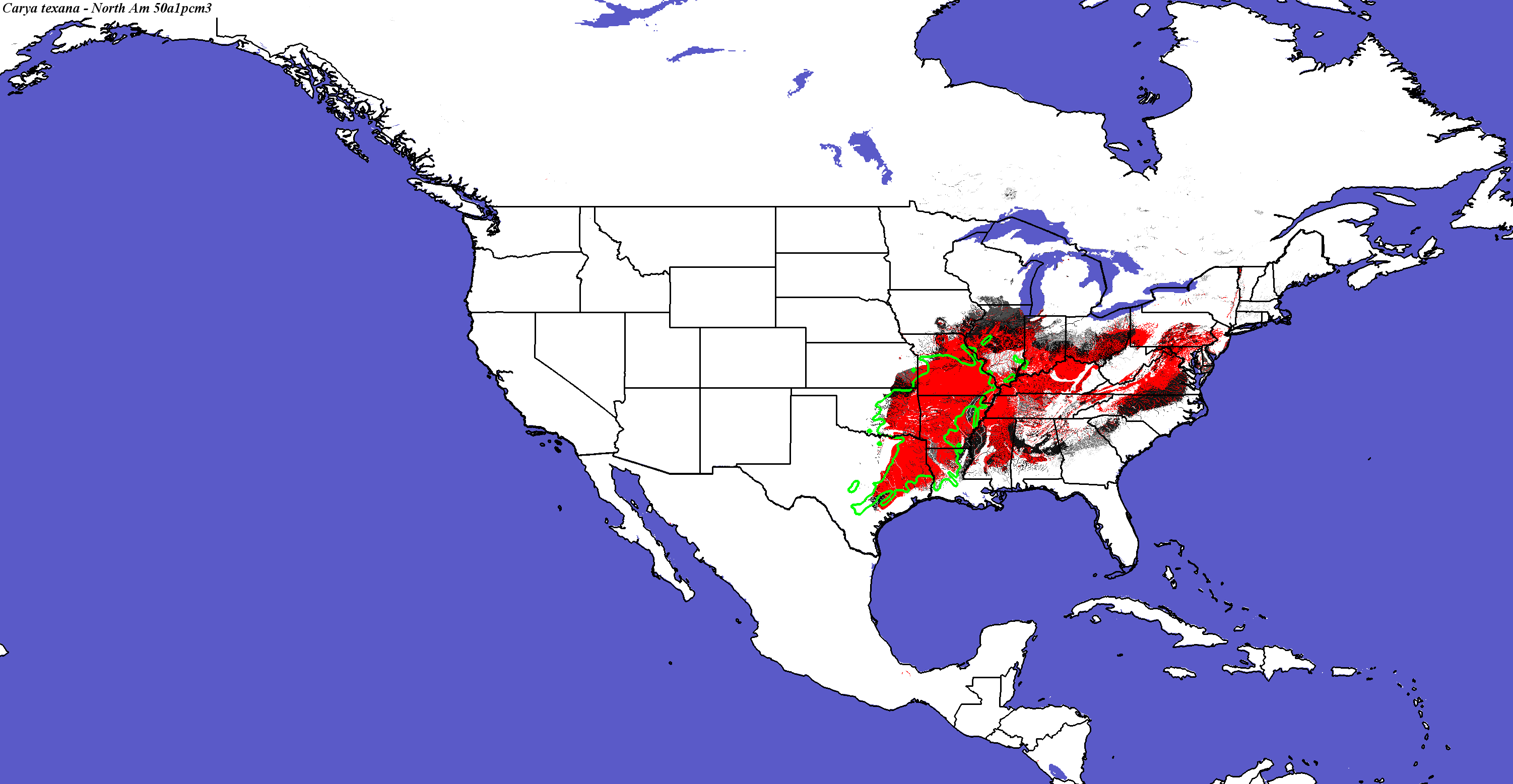

PCM, Scenario A1FI, 2050 - Carya texana - CONUS

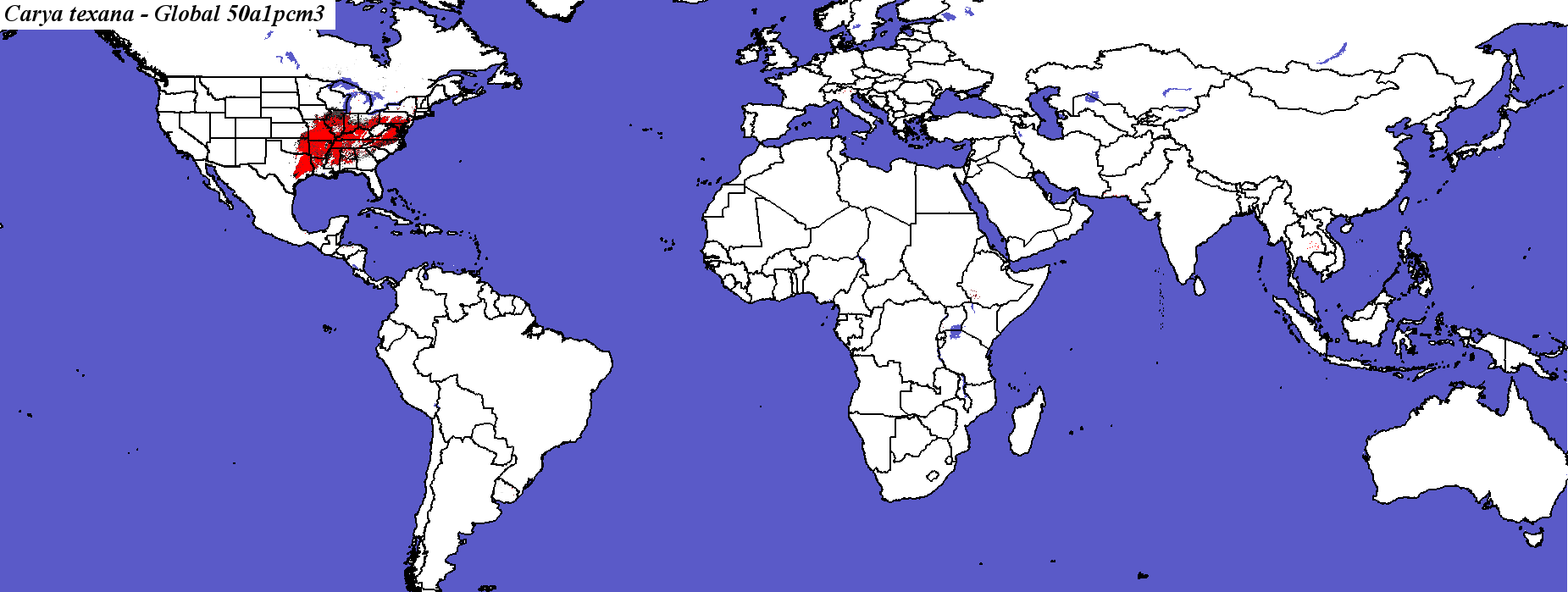

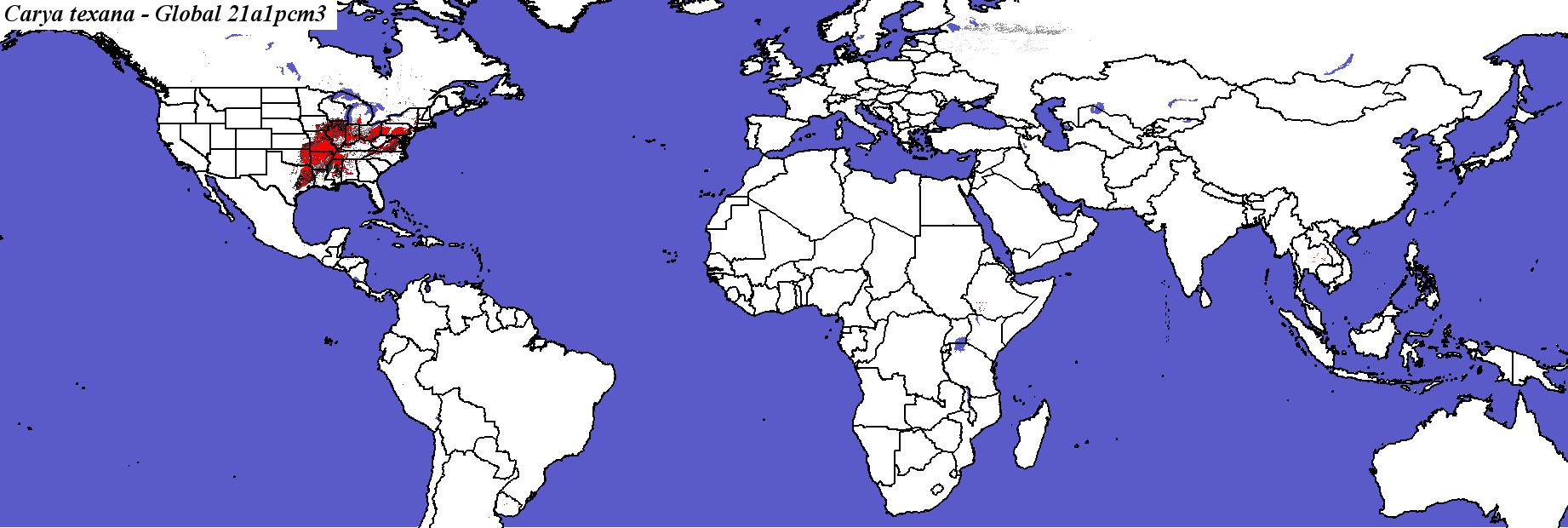

PCM, Scenario A1FI, 2050 - Carya texana - Global
Carya_texana_final.3.conus
Carya_texana_final.3.global

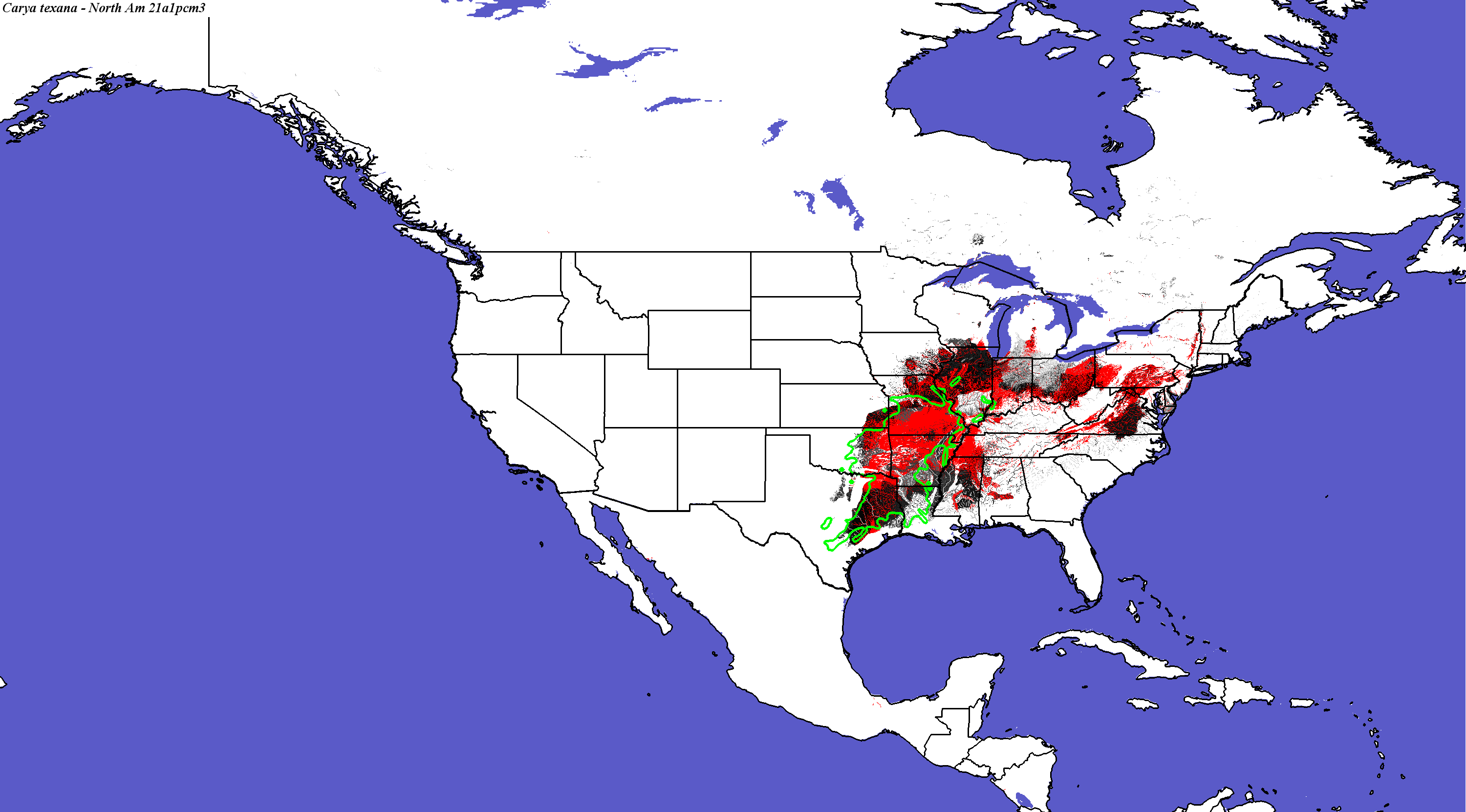

PCM, Scenario A1FI, 2100 - Carya texana - CONUS
Compare with Carya texana modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Carya texana - Global

Carya_texana_final.3.conus
Carya_texana_final.3.global

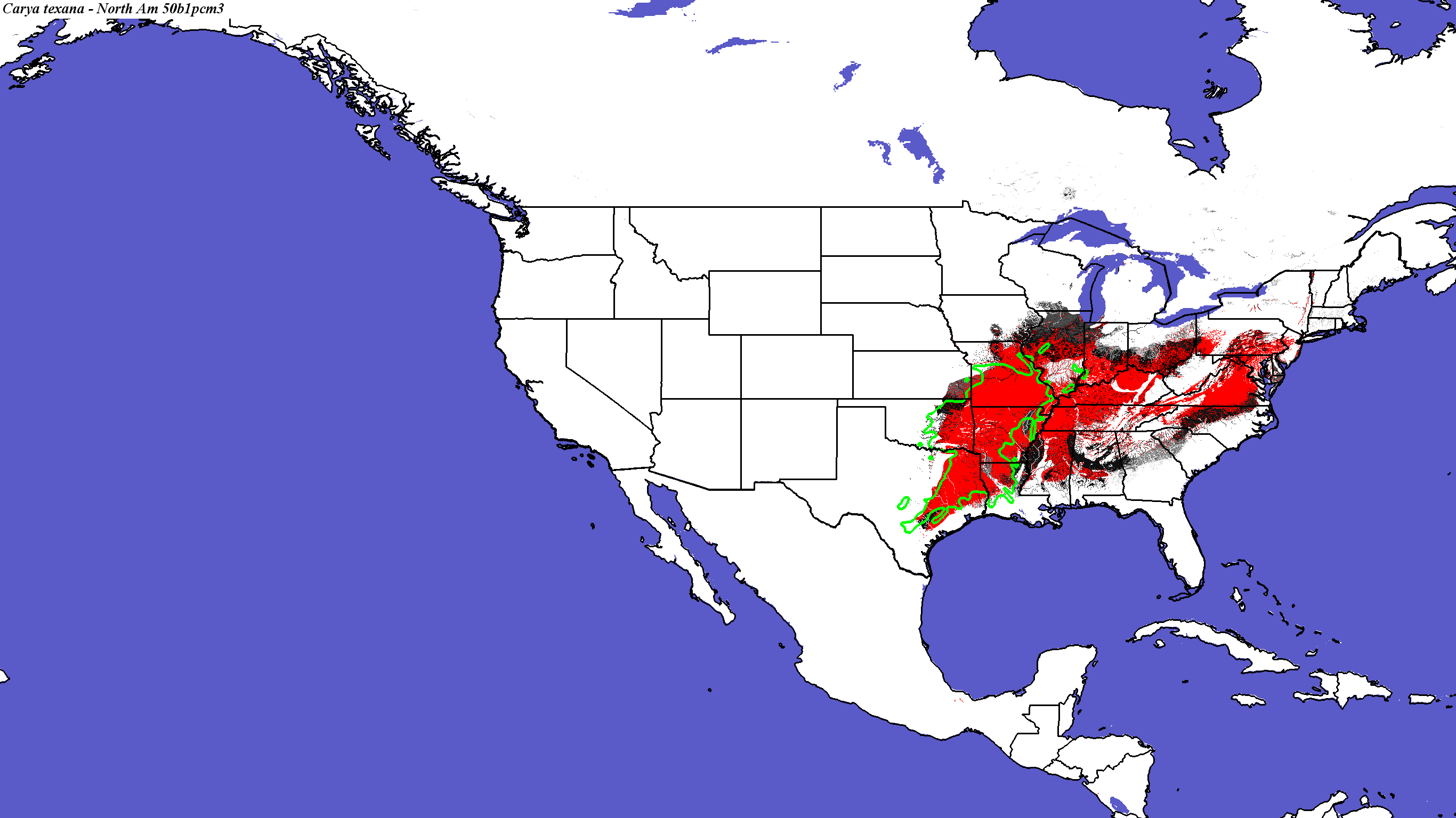

PCM, Scenario B1, 2050 - Carya texana - CONUS
PCM, Scenario B1, 2050 - Carya texana - Global
Carya_texana_final.3.conus
Carya_texana_final.3.global

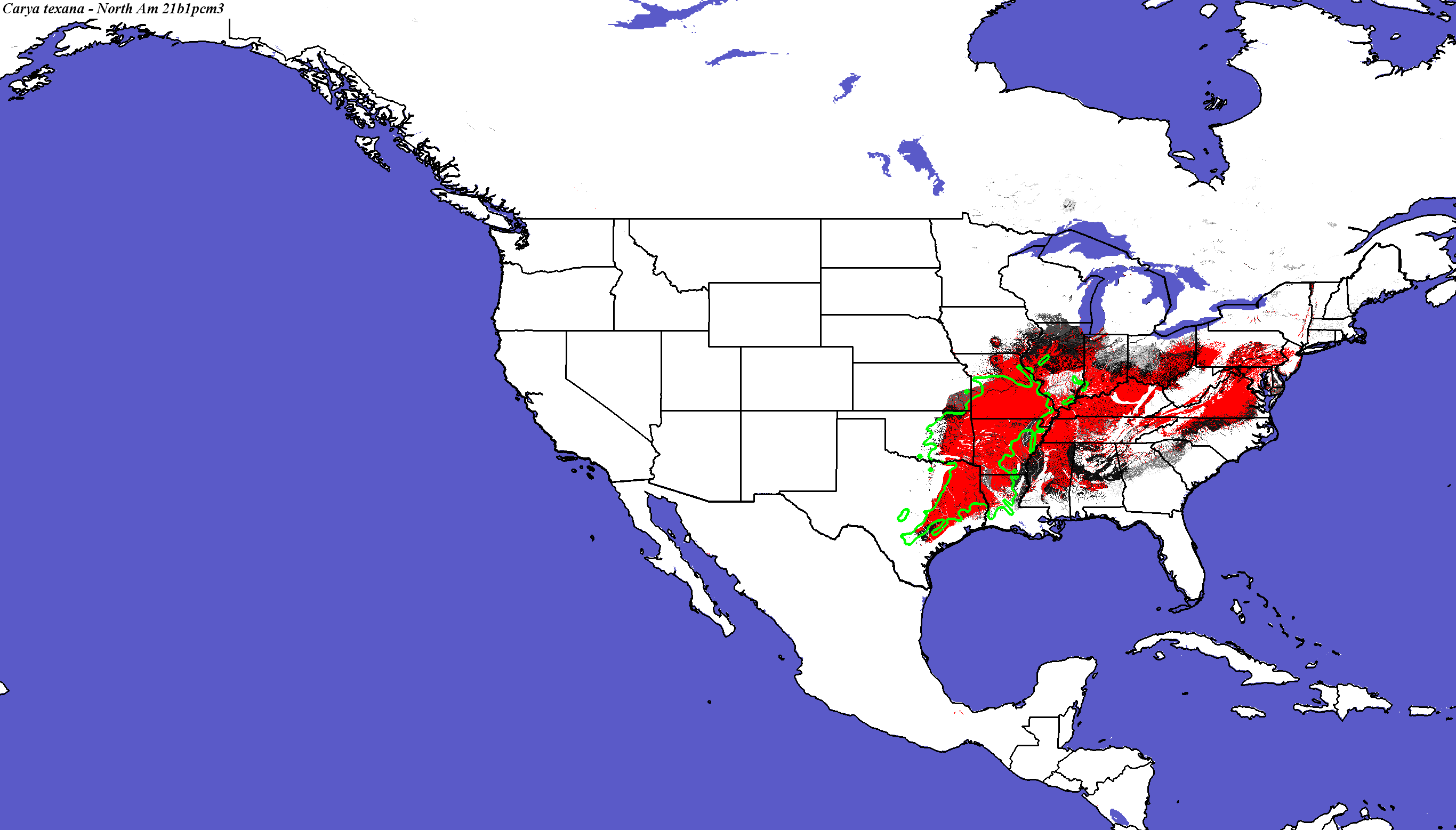

PCM, Scenario B1, 2100 - Carya texana - CONUS
Compare with Carya texana modeled for PCM B1 in 2100 by Iverson and Prasad

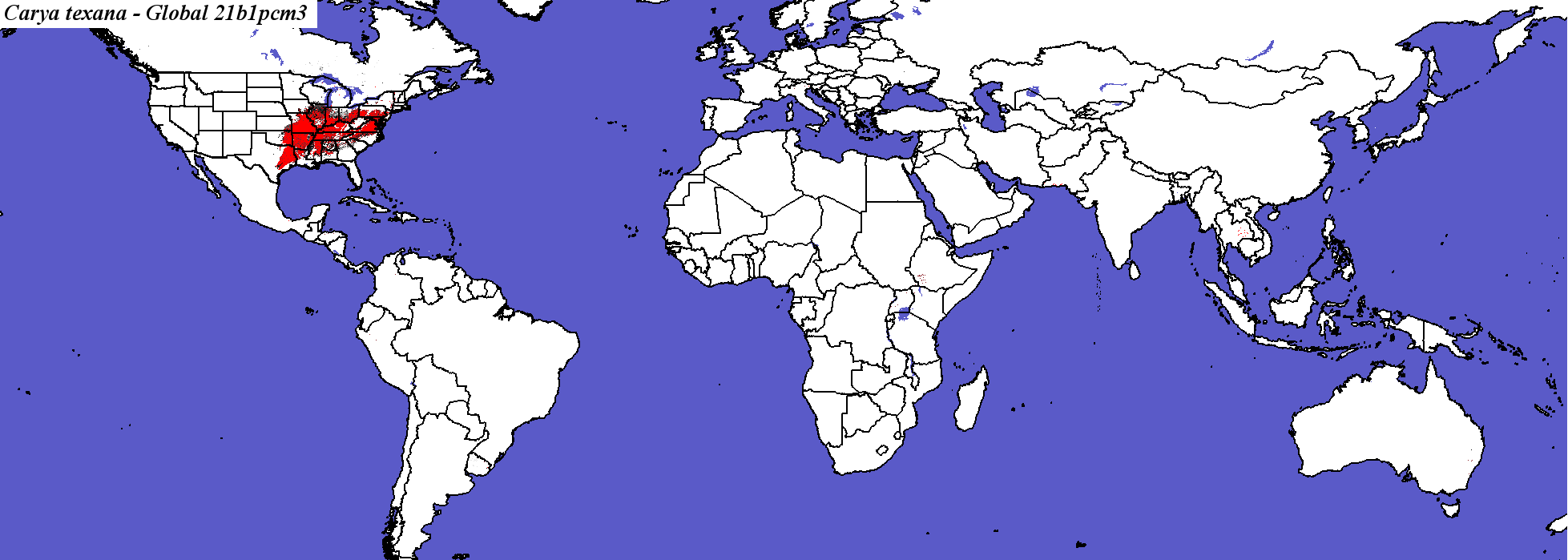

PCM, Scenario B1, 2100 - Carya texana - Global

Hadley Climate Model
Carya_texana_final.3.conus
Carya_texana_final.3.global

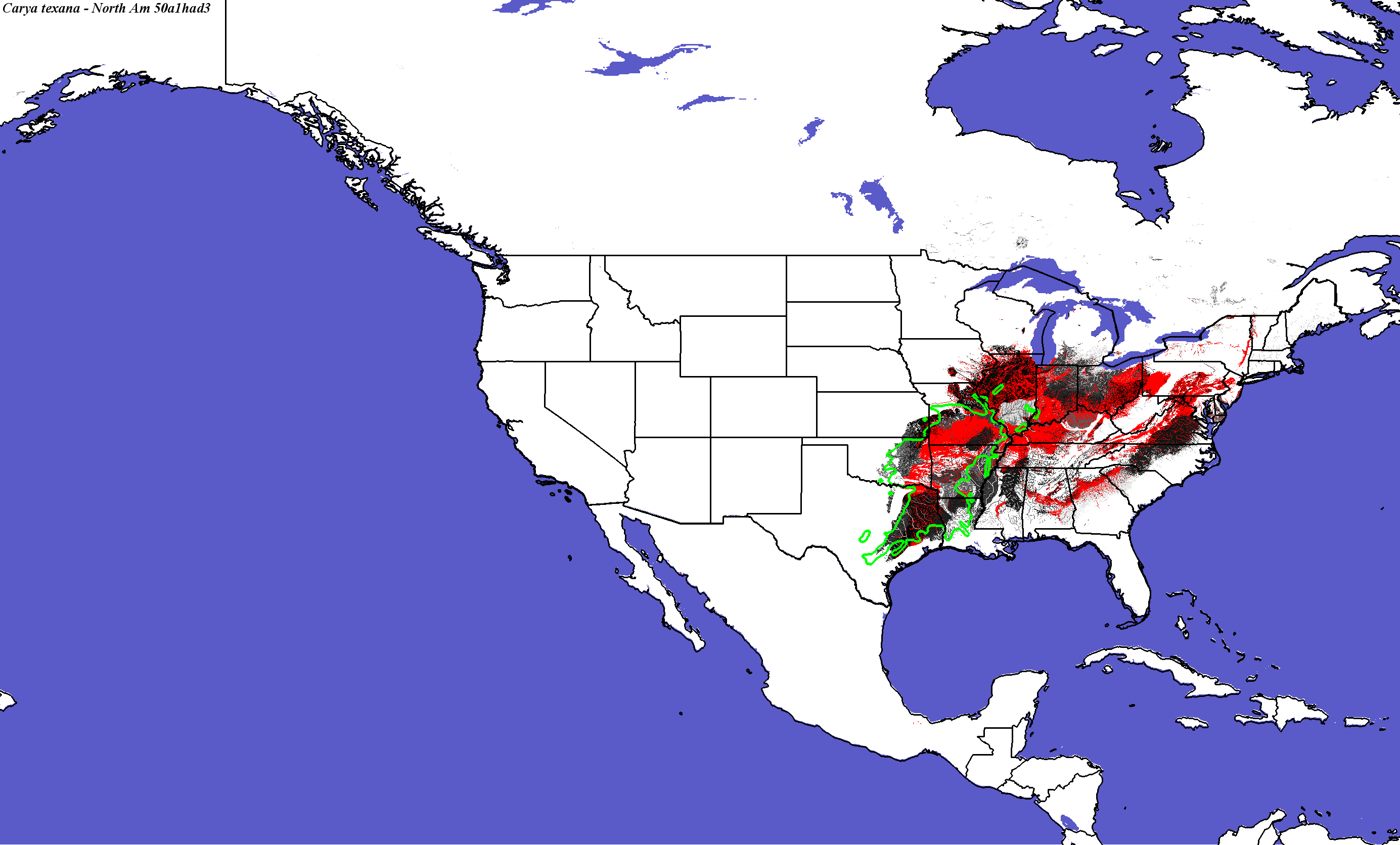

Hadley, Scenario A1FI, 2050 - Carya texana - CONUS
Carya texana not modeled by Crookston and Rehfeldt

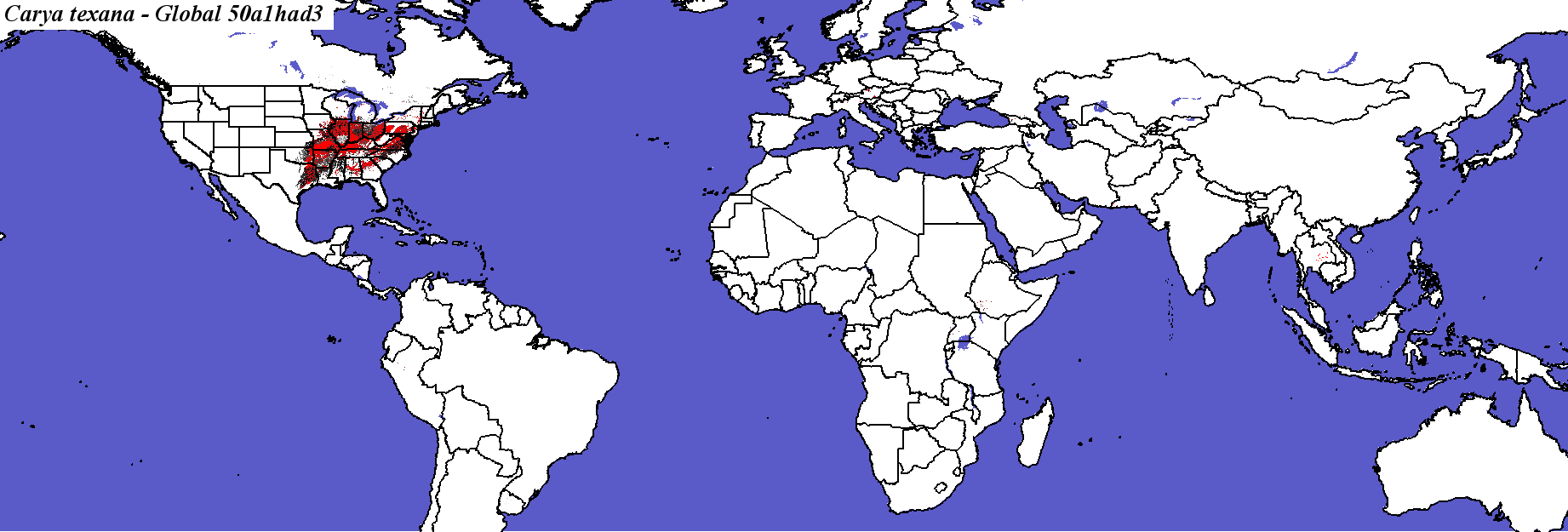

Hadley, Scenario A1FI, 2050 - Carya texana - Global
Carya_texana_final.3.conus
Carya_texana_final.3.global.

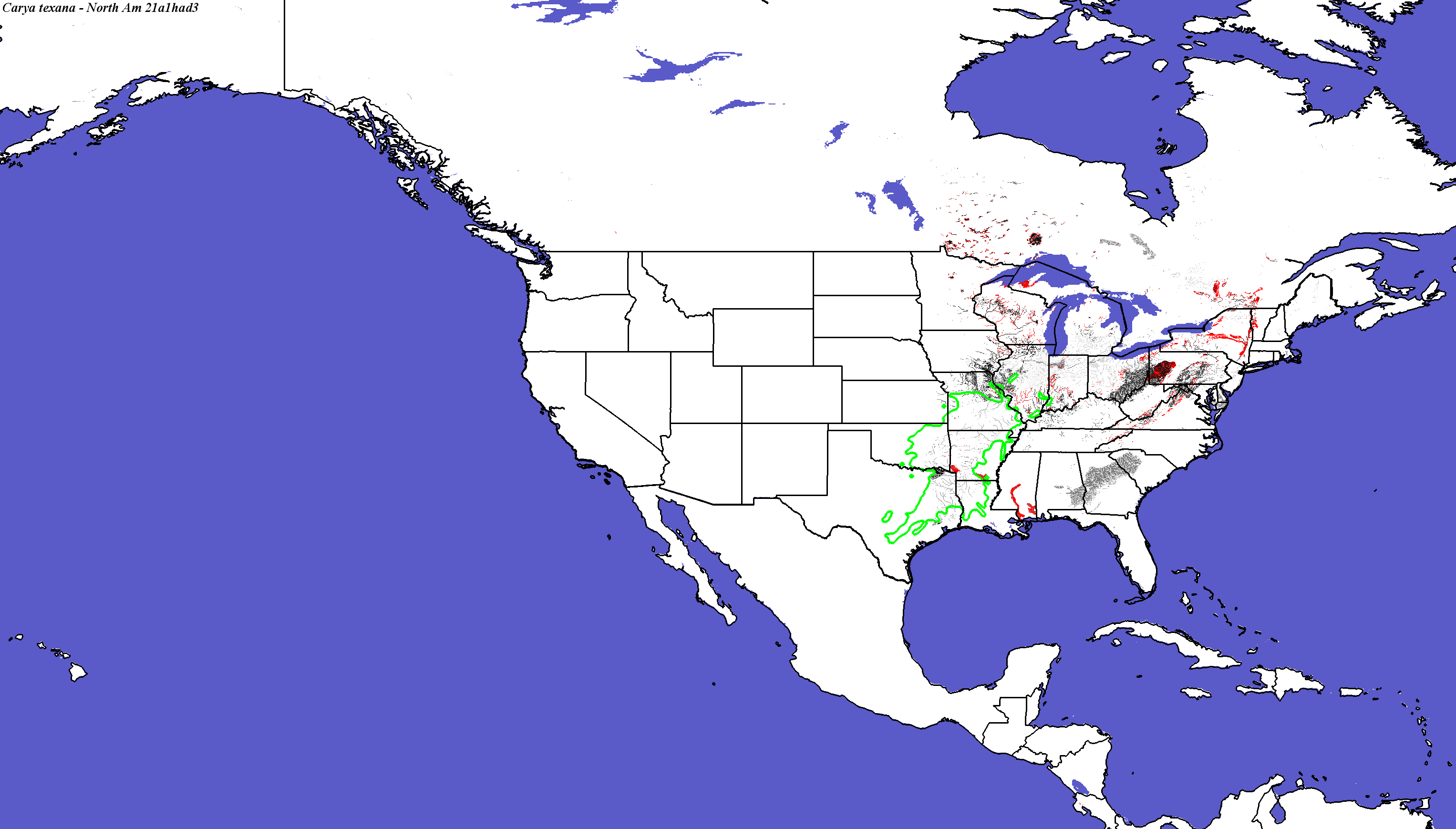

Hadley, Scenario A1FI, 2100 - Carya texana - CONUS
Compare with Carya texana modeled for Hadley A1FI in 2100 by Iverson and Prasad
Carya texana not modeled by Crookston and Rehfeldt
Carya texana not modeled by Coops and Waring

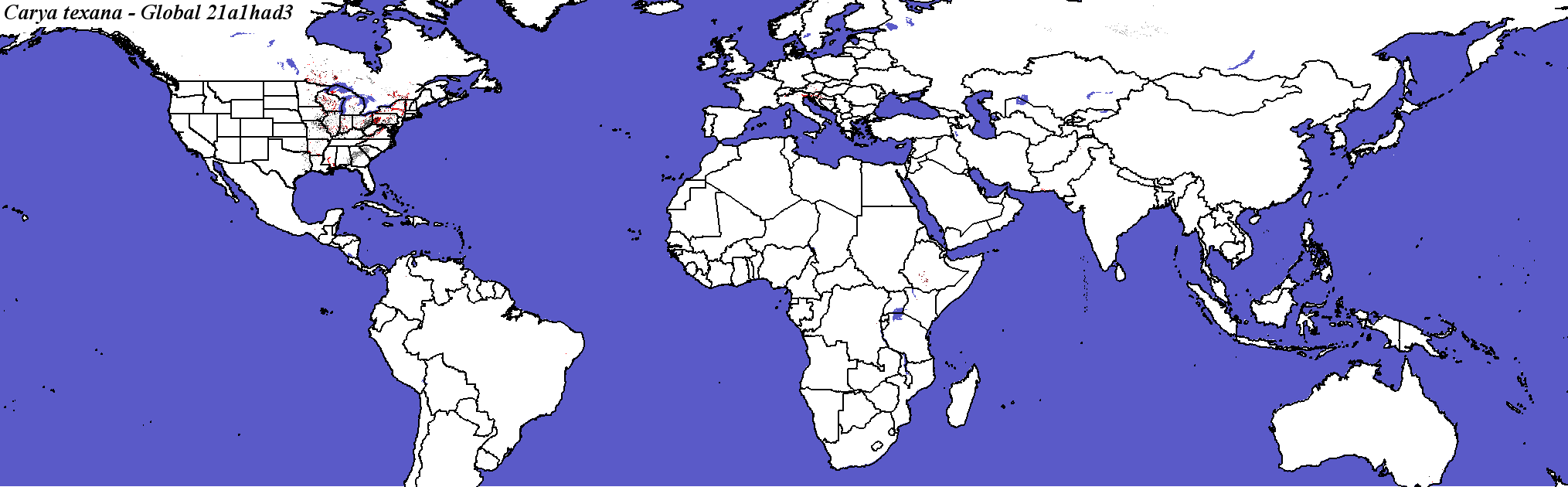

Hadley, Scenario A1FI, 2100 - Carya texana - Global

Carya_texana_final.3.conus
Carya_texana_final.3.global.

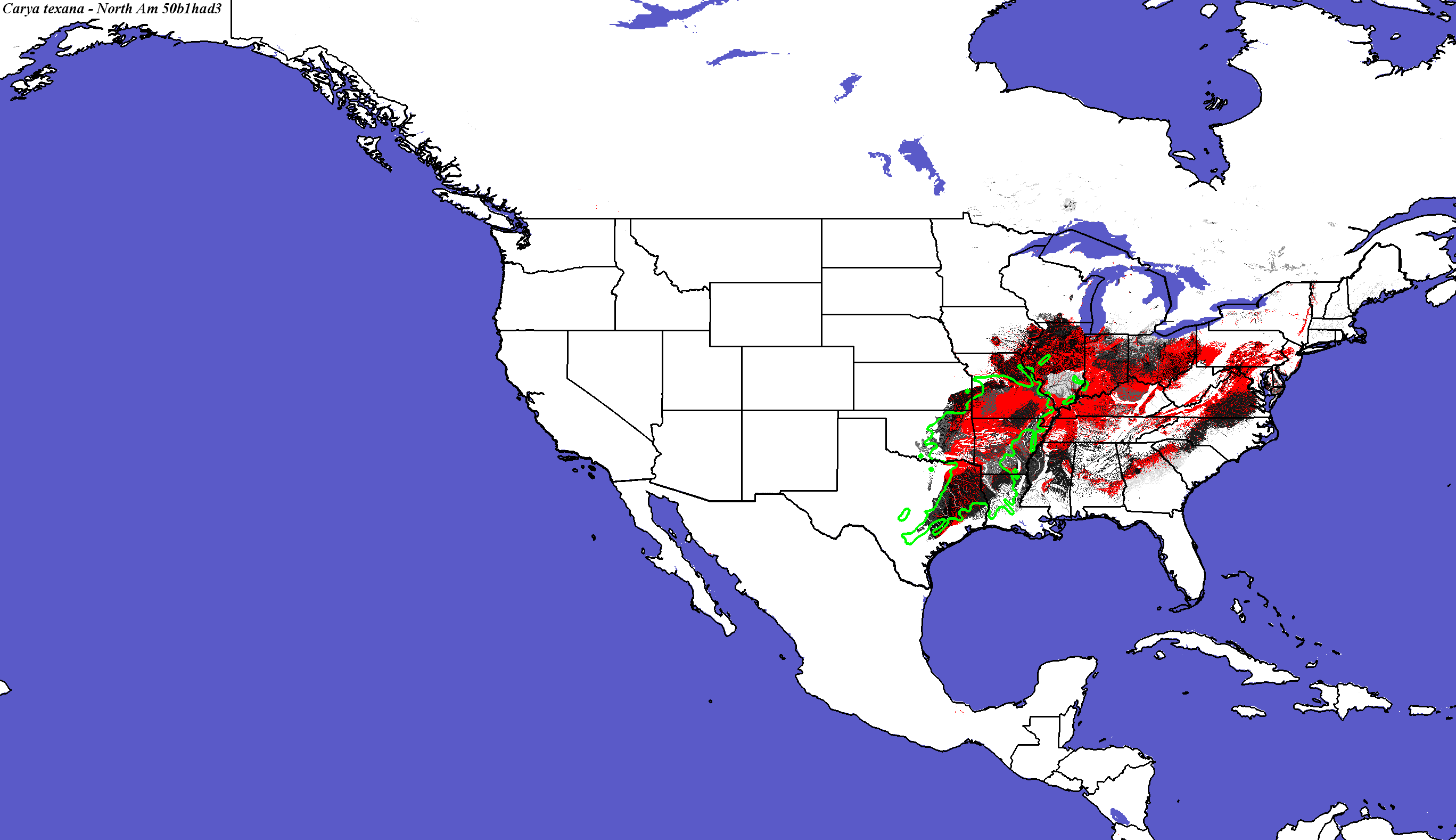

Hadley, Scenario B1, 2050 - Carya texana - CONUS
Carya texana not modeled by Crookston and Rehfeldt
Carya texana not modeled by Coops and Waring

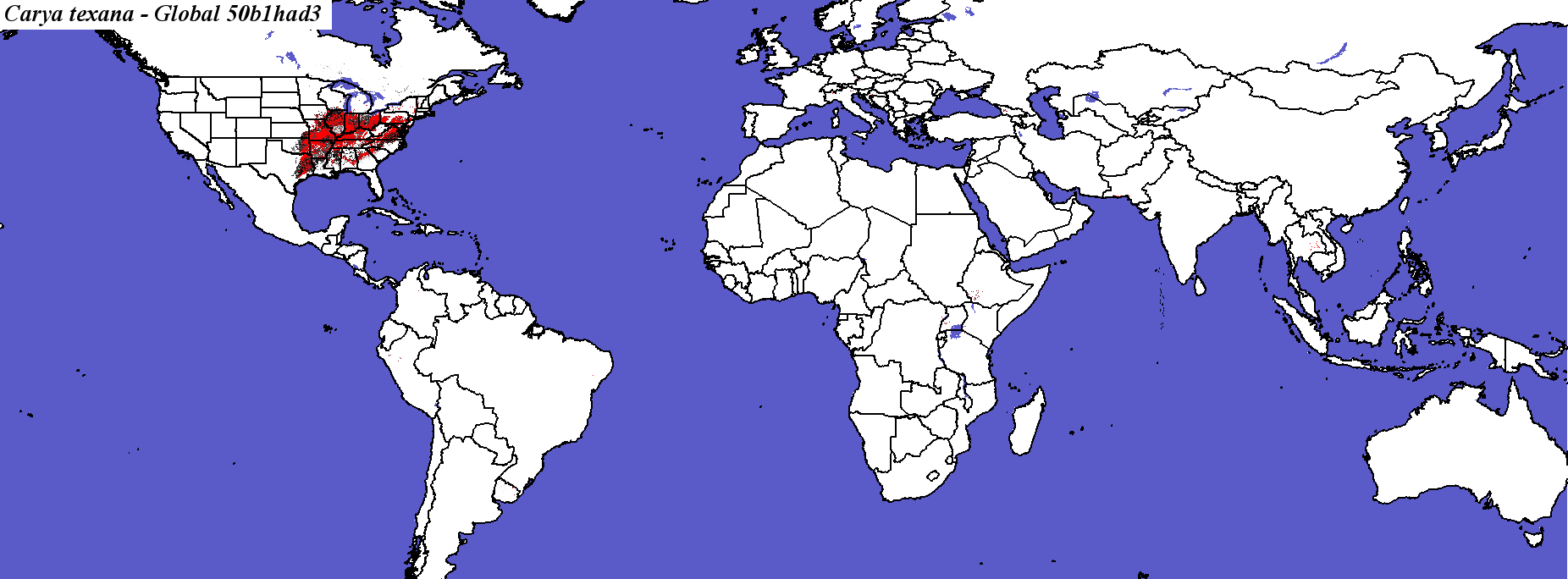

Hadley, Scenario B1, 2050 - Carya texana - Global
Carya_texana_final.3.conus
Carya_texana_final.3.global
Hadley, Scenario B1, 2100 - Carya texana - CONUS
Compare with Carya texana modeled for Hadley B1 in 2100 by Iverson and Prasad
Carya texana not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Carya texana - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Carya_texana_final.elev

Number of Suitable Ecoregions (Niche Breadth)

105

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

20

Area in Present Suitable Range (in km2)

867752

Area in Future Suitable Range (Had B1 2050, in km2)

562783

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

378392

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

43.6000

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

62.3288

Percent Change in Area of Suitable Range (Had B1 2050)

-35.1400

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

60.274

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

11418 +/- 16545.2

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

61.0959

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

4.80935 +/- 7.01953

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

67.2603

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

160.299 +/- 560.964

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

34.9315

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

31817

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

3.6600

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

33.2877

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

110497

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

12.7300

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

87.1233

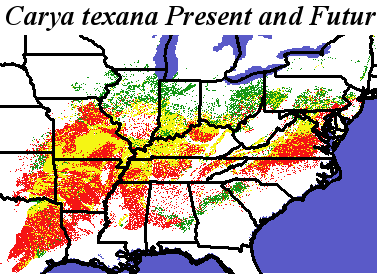

Present and Future Ranges - Hadley, Scenario B1, 2050 - Carya texana Carya texana - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

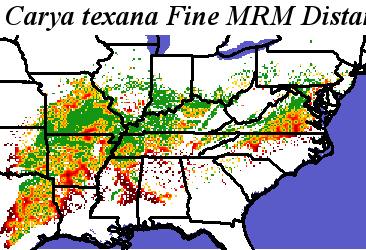

Carya_texana_final.elev Fine MRM Distance

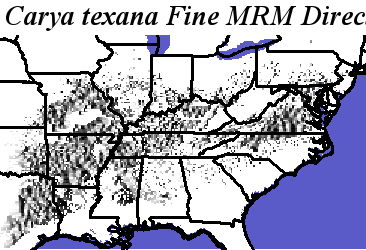

Carya_texana_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Carya texana Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Carya texana
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

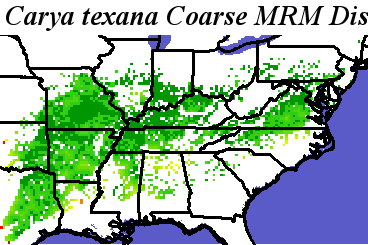

Carya_texana_final.elev Coarse MRM Distance

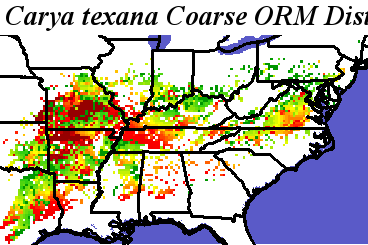

Carya_texana_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Carya texana Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Carya texana

Thu Jul 21 10:05:26 EDT 2016
