Version 5 Tree Atlas


Catalpa bignonioides

southern catalpa

elev

Catalpa bignonioides Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Catalpa bignonioides

USDA Plants Database entry for Catalpa bignonioides
Silvics Manual entry for Catalpa bignonioides


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
295988Range somewhat well sampled

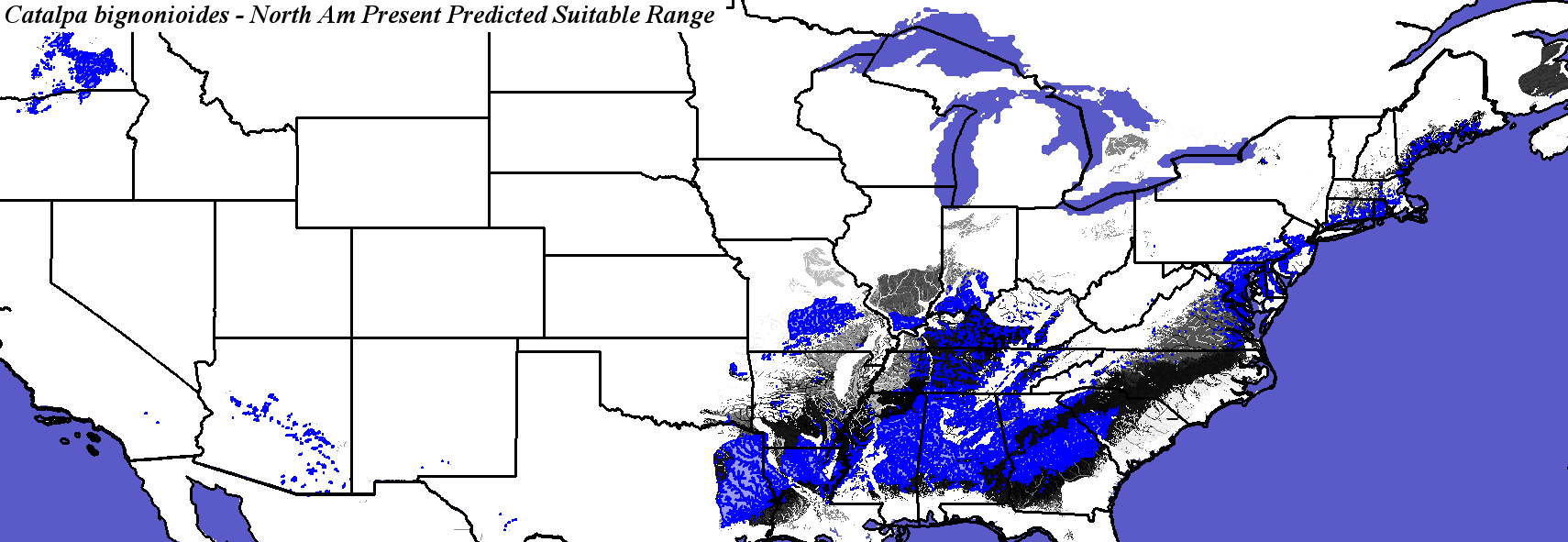

Occurrence Locations and Hargrove's Present Suitable Range Outline
Catalpa_bignonioides_final Occurrences
Hargroves Present Suitable Range Outline for Catalpa_bignonioides_final
Catalpa bignonioides - Occurrence Locations Catalpa bignonioides - Hargrove's Present Suitable Range Outline

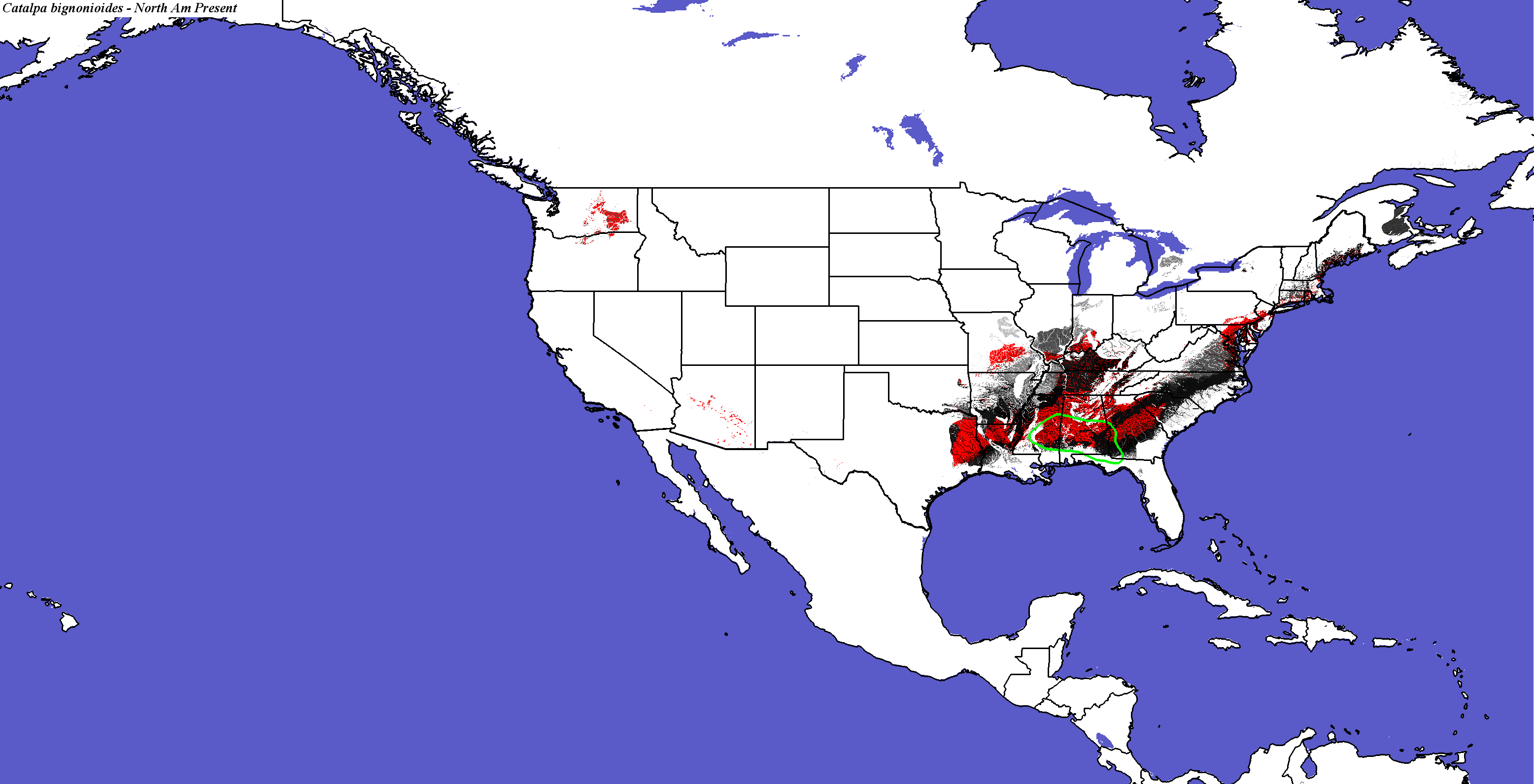

Present Conditions
Catalpa_bignonioides_final.2.conus
Catalpa_bignonioides_final.2.global
Catalpa bignonioides - CONUS
Compare with Current Range from the Silvics Manual for Catalpa bignonioides
Compare with Current Range from Biota of North America Program (BONAP) for Catalpa bignonioides

Catalpa bignonioides not modeled by Iverson and Prasad
Catalpa bignonioides not modeled by Crookston and Rehfeldt
Catalpa bignonioides not modeled by Coops and Waring

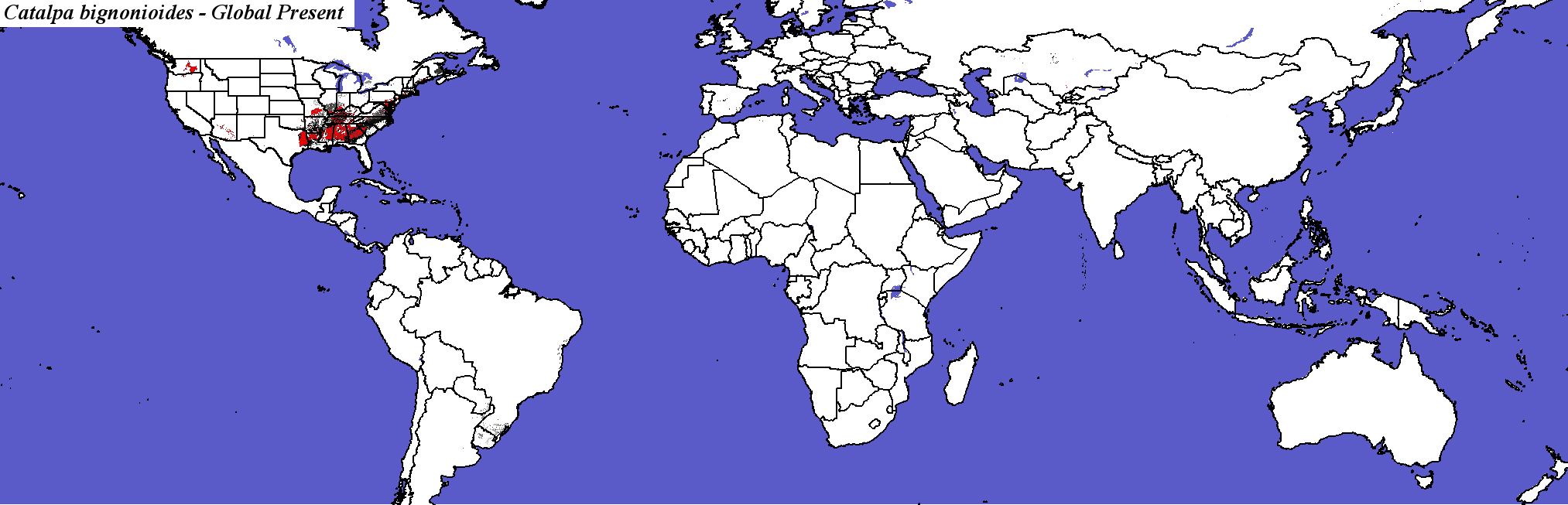

Catalpa bignonioides - Global

PCM - Parallel Climate Model
Catalpa_bignonioides_final.2.conus
Catalpa_bignonioides_final.2.global

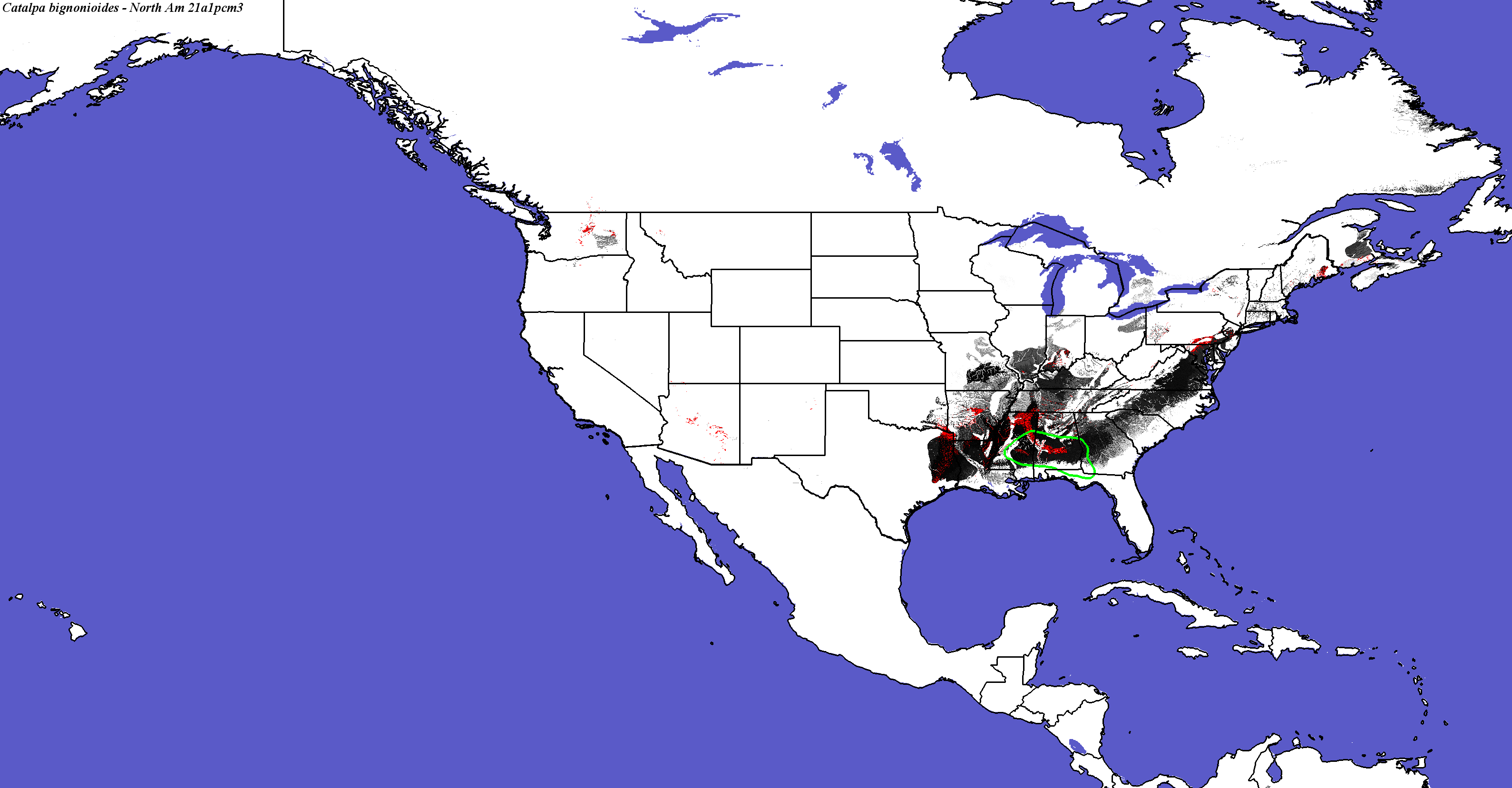

PCM, Scenario A1FI, 2050 - Catalpa bignonioides - CONUS
PCM, Scenario A1FI, 2050 - Catalpa bignonioides - Global
Catalpa_bignonioides_final.2.conus
Catalpa_bignonioides_final.2.global
PCM, Scenario A1FI, 2100 - Catalpa bignonioides - CONUS
Catalpa bignonioides species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Catalpa bignonioides - Global

Catalpa_bignonioides_final.2.conus
Catalpa_bignonioides_final.2.global

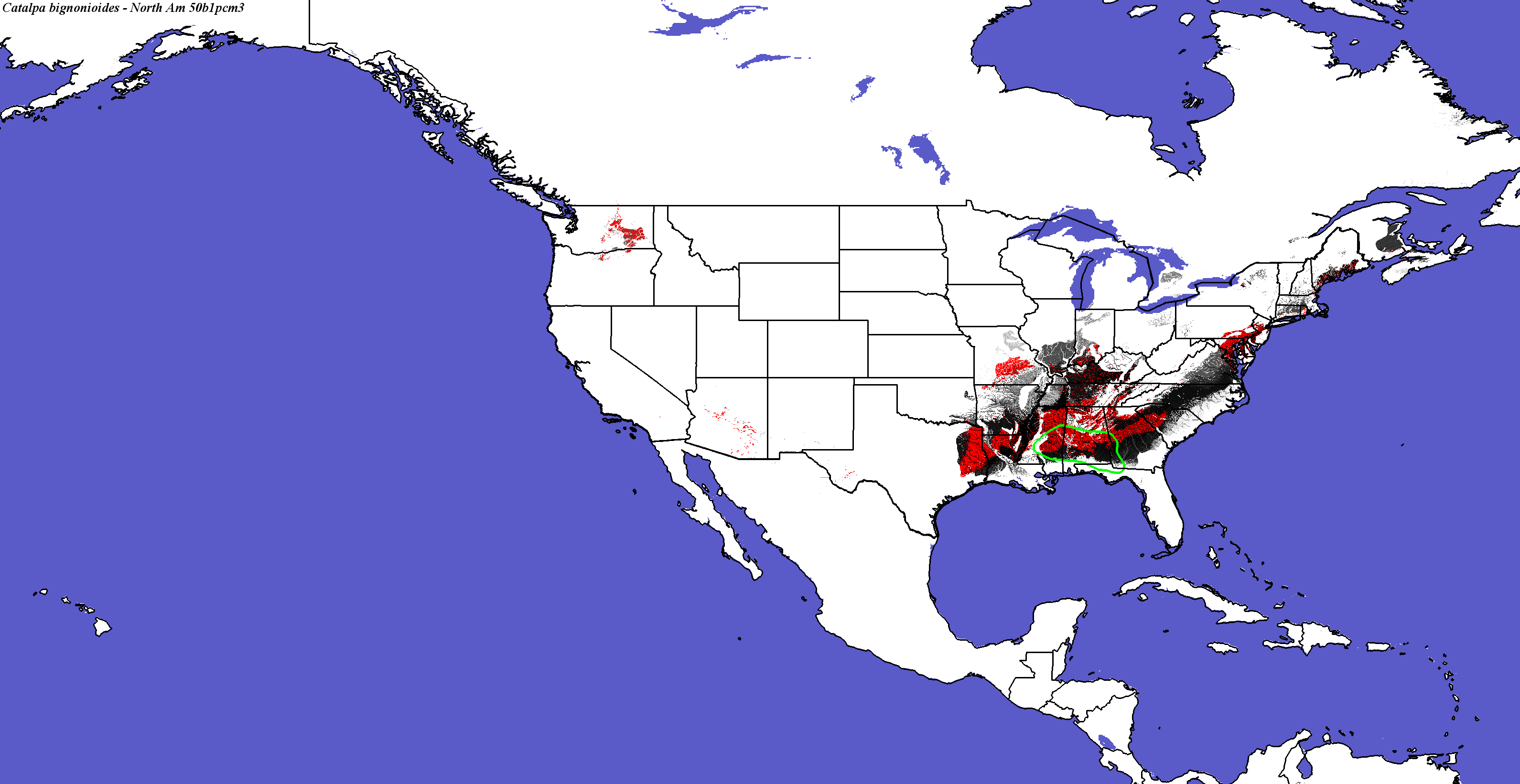

PCM, Scenario B1, 2050 - Catalpa bignonioides - CONUS
PCM, Scenario B1, 2050 - Catalpa bignonioides - Global
Catalpa_bignonioides_final.2.conus
Catalpa_bignonioides_final.2.global
PCM, Scenario B1, 2100 - Catalpa bignonioides - CONUS
Catalpa bignonioides not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Catalpa bignonioides - Global

Hadley Climate Model
Catalpa_bignonioides_final.2.conus
Catalpa_bignonioides_final.2.global

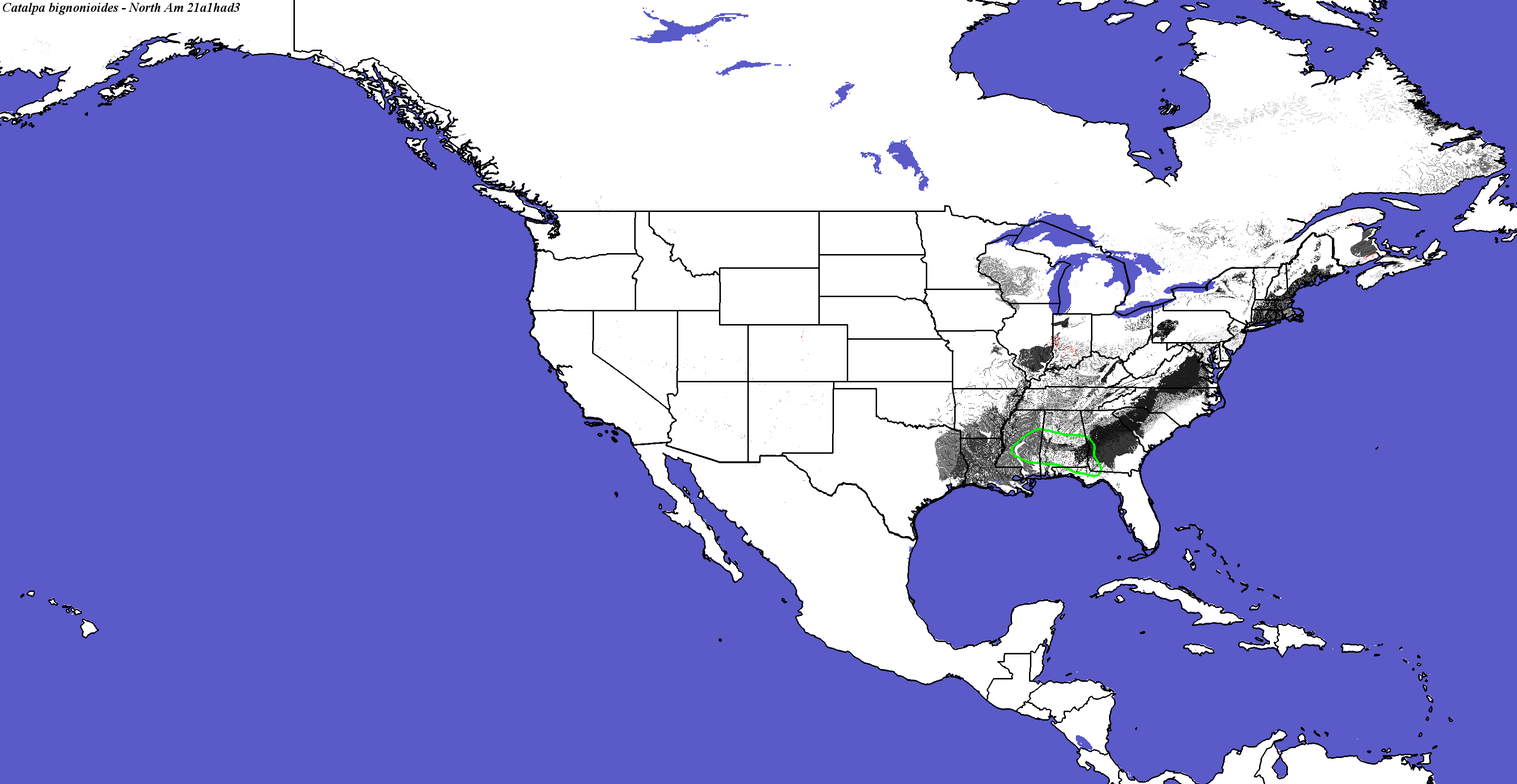

Hadley, Scenario A1FI, 2050 - Catalpa bignonioides - CONUS
Catalpa bignonioides not modeled by Crookston and Rehfeldt

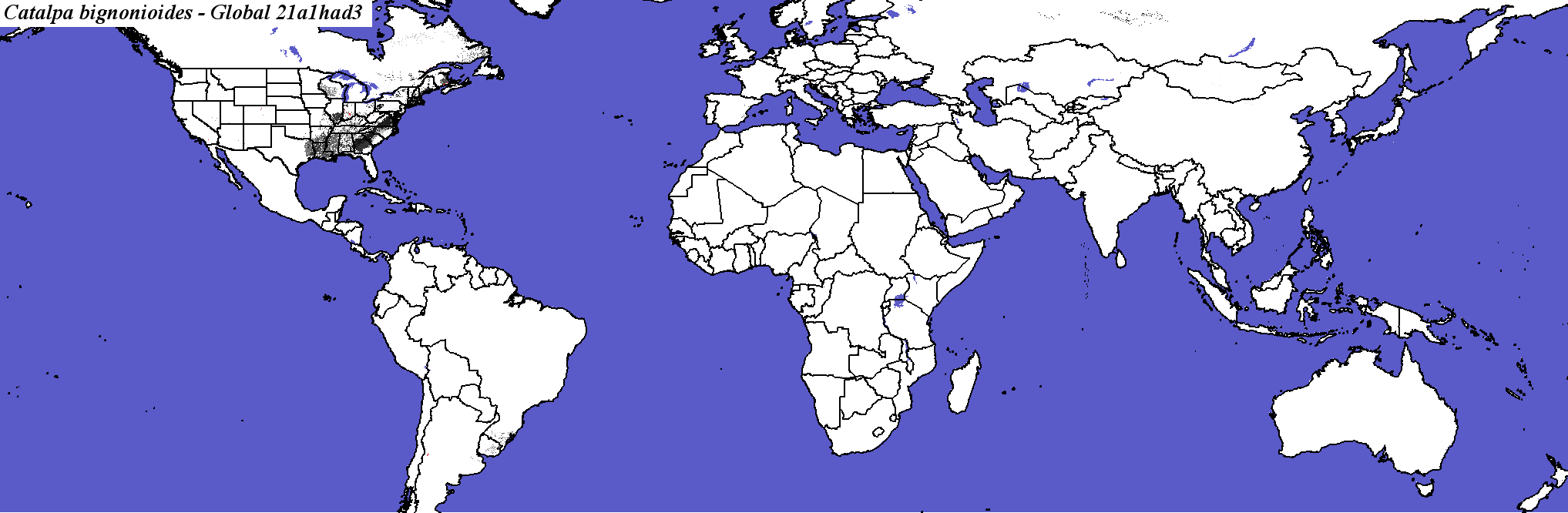

Hadley, Scenario A1FI, 2050 - Catalpa bignonioides - Global
Catalpa_bignonioides_final.2.conus
Catalpa_bignonioides_final.2.global.
Hadley, Scenario A1FI, 2100 - Catalpa bignonioides - CONUS
Catalpa bignonioides not modeled by Iverson and Prasad
Catalpa bignonioides not modeled by Crookston and Rehfeldt
Catalpa bignonioides not modeled by Coops and Waring

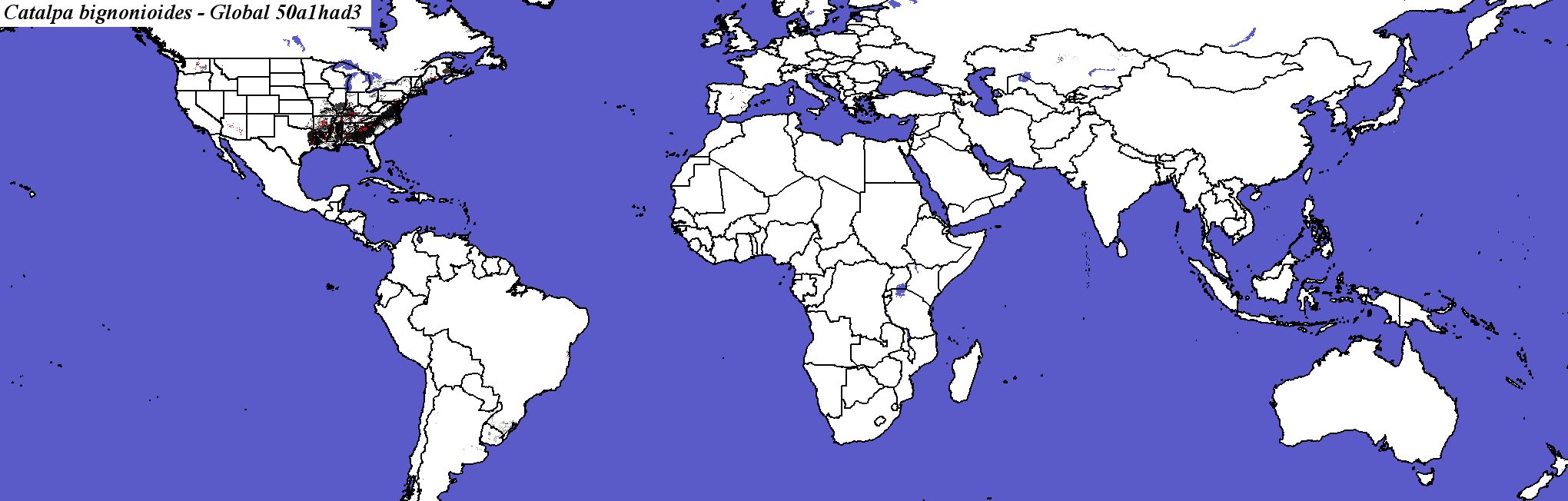

Hadley, Scenario A1FI, 2100 - Catalpa bignonioides - Global

Catalpa_bignonioides_final.2.conus
Catalpa_bignonioides_final.2.global.

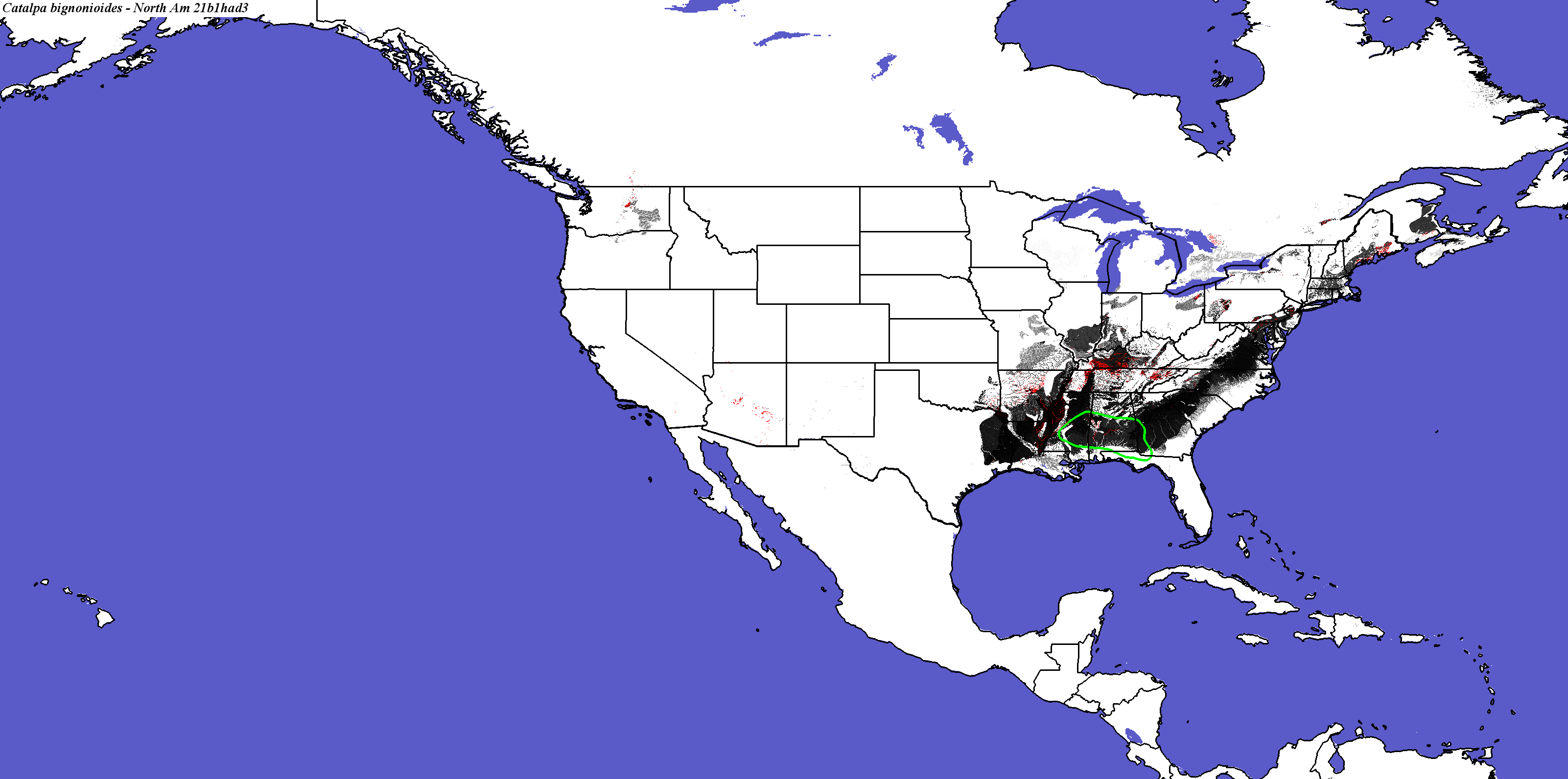

Hadley, Scenario B1, 2050 - Catalpa bignonioides - CONUS
Catalpa bignonioides not modeled by Crookston and Rehfeldt
Catalpa bignonioides not modeled by Coops and Waring

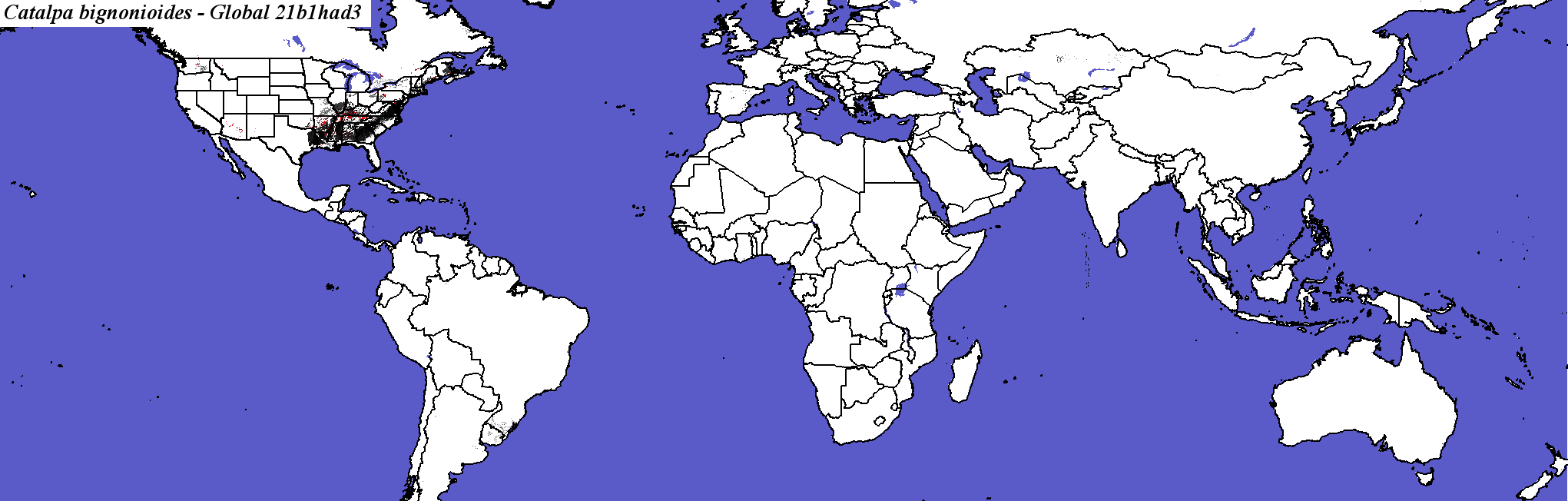

Hadley, Scenario B1, 2050 - Catalpa bignonioides - Global
Catalpa_bignonioides_final.2.conus
Catalpa_bignonioides_final.2.global
Hadley, Scenario B1, 2100 - Catalpa bignonioides - CONUS
Catalpa bignonioides not modeled by Iverson and Prasad
Catalpa bignonioides not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Catalpa bignonioides - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Catalpa_bignonioides_final.elev

Number of Suitable Ecoregions (Niche Breadth)

16

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

71.3699

Area in Present Suitable Range (in km2)

250109

Area in Future Suitable Range (Had B1 2050, in km2)

61760

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

28395

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

11.3500

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

98.3562

Percent Change in Area of Suitable Range (Had B1 2050)

-75.3000

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

98.6301

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

68848.1 +/- 78106.2

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

3.9726

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

30.7934 +/- 35.8232

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

3.0137

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

542.313 +/- 1106.98

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

3.56164

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

40631

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

16.2400

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

2.87671

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

20983

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

8.3800

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

96.5753

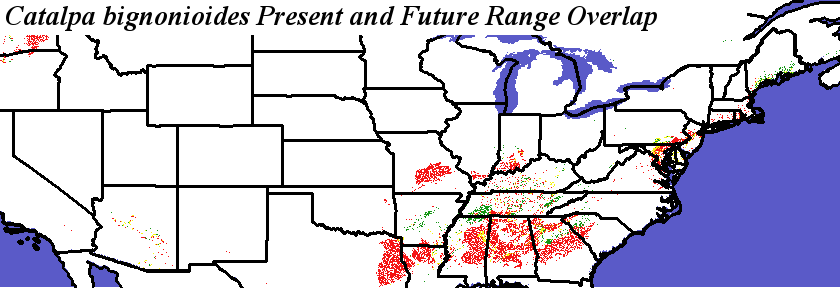

Present and Future Ranges - Hadley, Scenario B1, 2050 - Catalpa bignonioides Catalpa bignonioides - Range Change Statistics

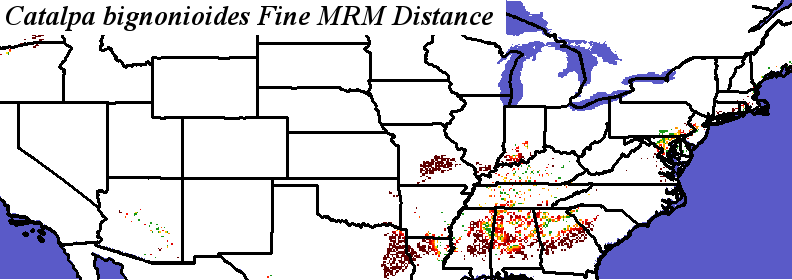

Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Catalpa_bignonioides_final.elev Fine MRM Distance

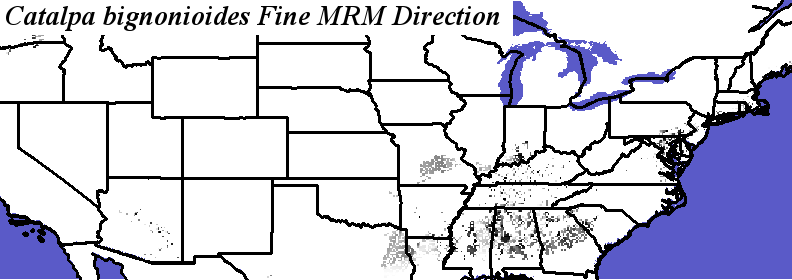

Catalpa_bignonioides_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Catalpa bignonioides Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Catalpa bignonioides

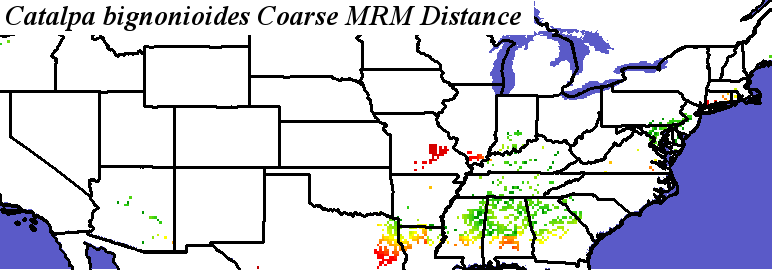

Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Catalpa_bignonioides_final.elev Coarse MRM Distance

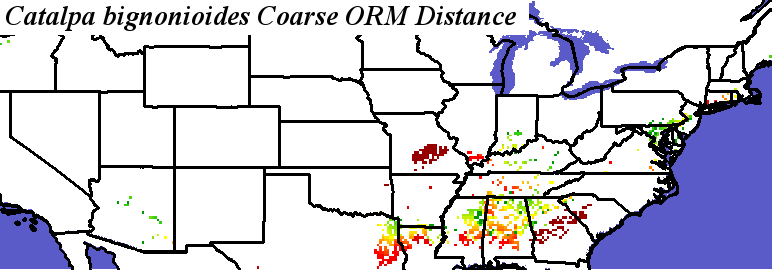

Catalpa_bignonioides_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Catalpa bignonioides Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Catalpa bignonioides
