Version 5 Tree Atlas


Catalpa speciosa

northern catalpa

elev

Catalpa speciosa Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Catalpa speciosa

USDA Plants Database entry for Catalpa speciosa
Silvics Manual entry for Catalpa speciosa


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
36110146TBD

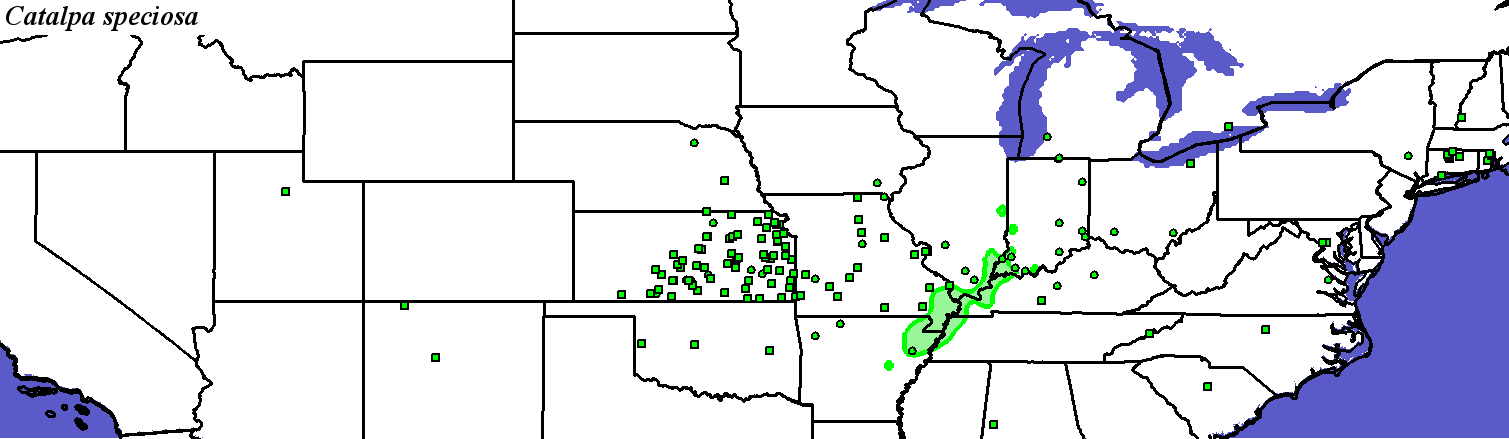

Occurrence Locations and Hargrove's Present Suitable Range Outline
Catalpa_speciosa_final Occurrences
Hargroves Present Suitable Range Outline for Catalpa_speciosa_final

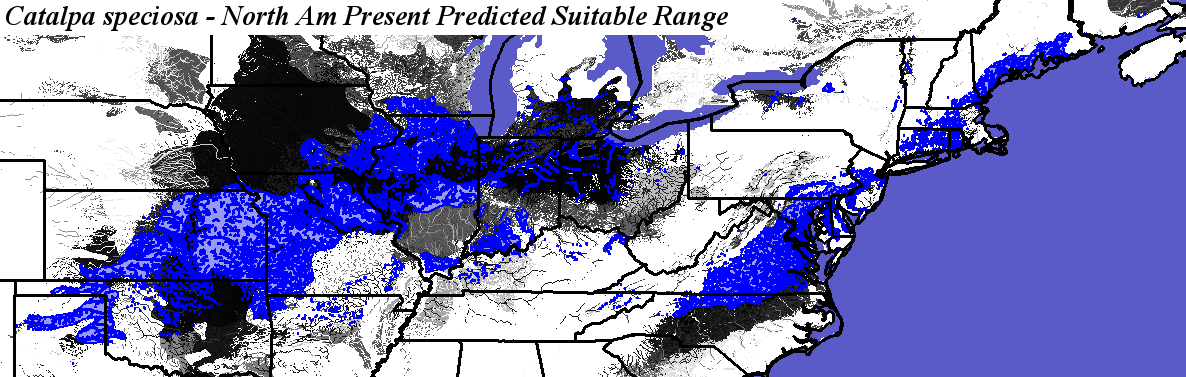

Catalpa speciosa - Occurrence Locations Catalpa speciosa - Hargrove's Present Suitable Range Outline
Present Conditions
Catalpa_speciosa_final.2.conus
Catalpa_speciosa_final.2.global

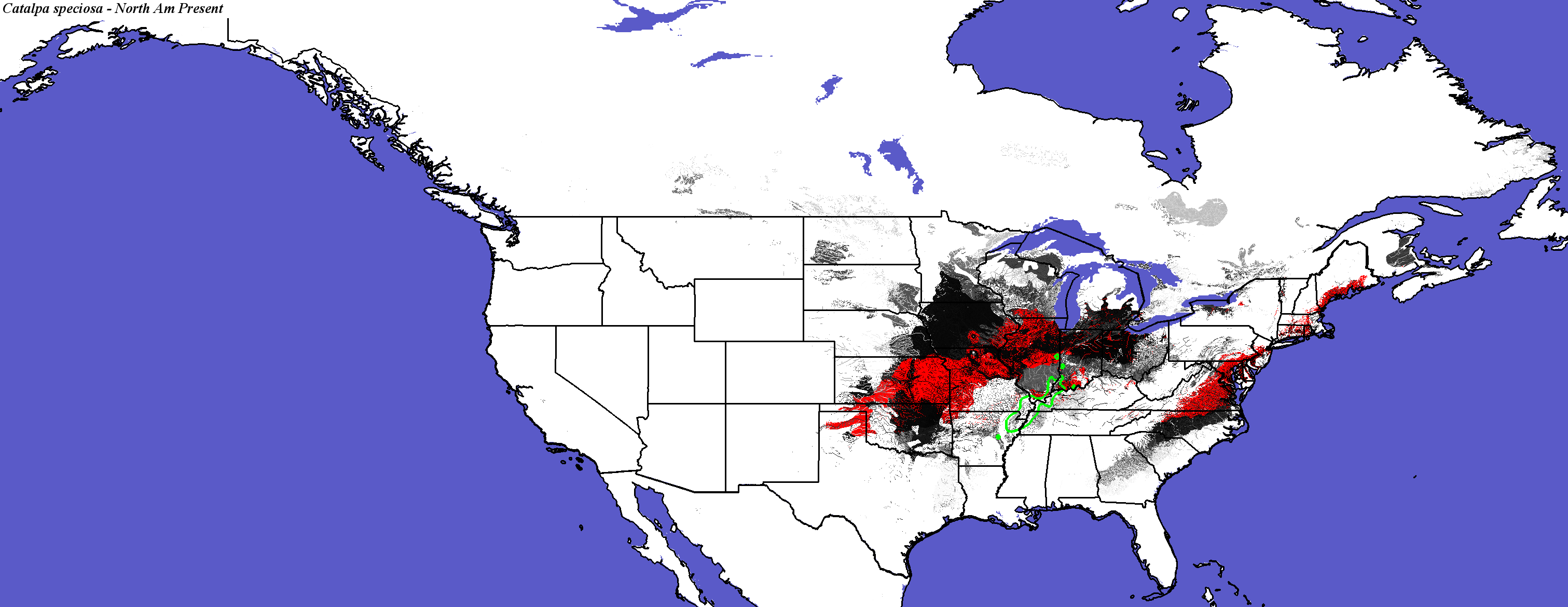

Catalpa speciosa - CONUS
Compare with Current Range from the Silvics Manual for Catalpa speciosa
Compare with Current Range from Biota of North America Program (BONAP) for Catalpa speciosa

Compare with Catalpa speciosa modeled for Current conditions by Iverson and Prasad
Catalpa speciosa not modeled by Crookston and Rehfeldt
Catalpa speciosa not modeled by Coops and Waring
Catalpa speciosa - Global

PCM - Parallel Climate Model
Catalpa_speciosa_final.2.conus
Catalpa_speciosa_final.2.global
PCM, Scenario A1FI, 2050 - Catalpa speciosa - CONUS
PCM, Scenario A1FI, 2050 - Catalpa speciosa - Global
Catalpa_speciosa_final.2.conus
Catalpa_speciosa_final.2.global
PCM, Scenario A1FI, 2100 - Catalpa speciosa - CONUS
Compare with Catalpa speciosa modeled for PCM A1FI in 2100 by Iverson and Prasad

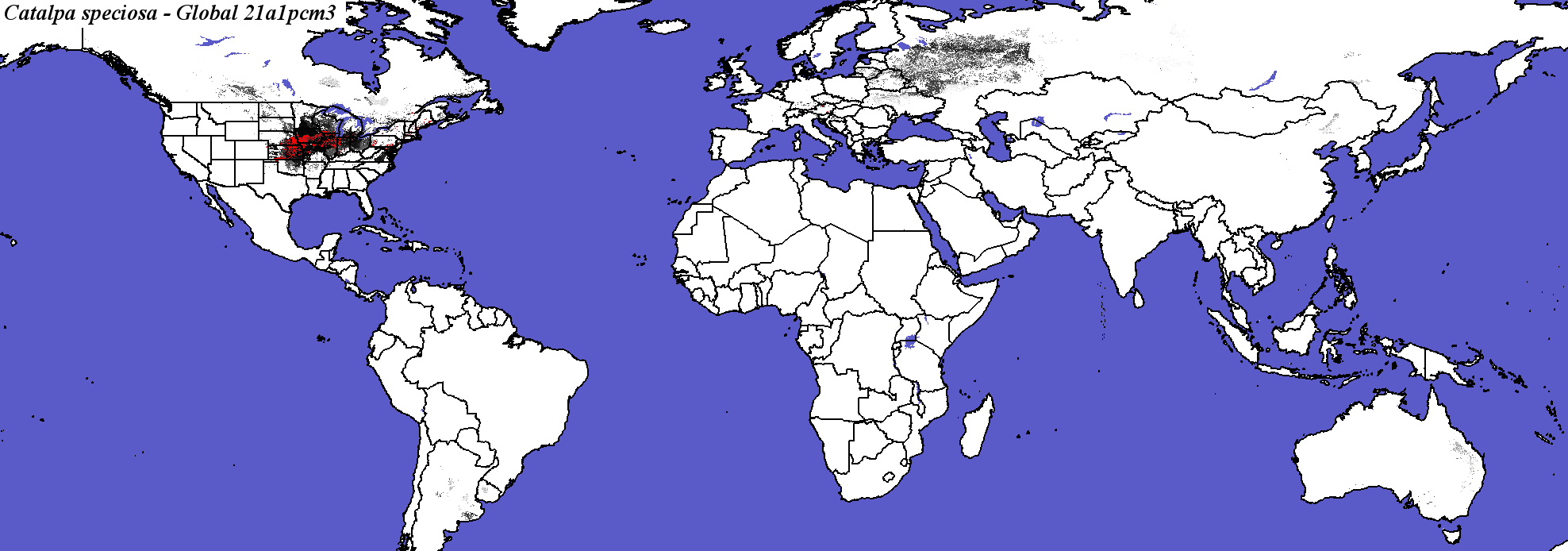

PCM, Scenario A1FI, 2100 - Catalpa speciosa - Global

Catalpa_speciosa_final.2.conus
Catalpa_speciosa_final.2.global

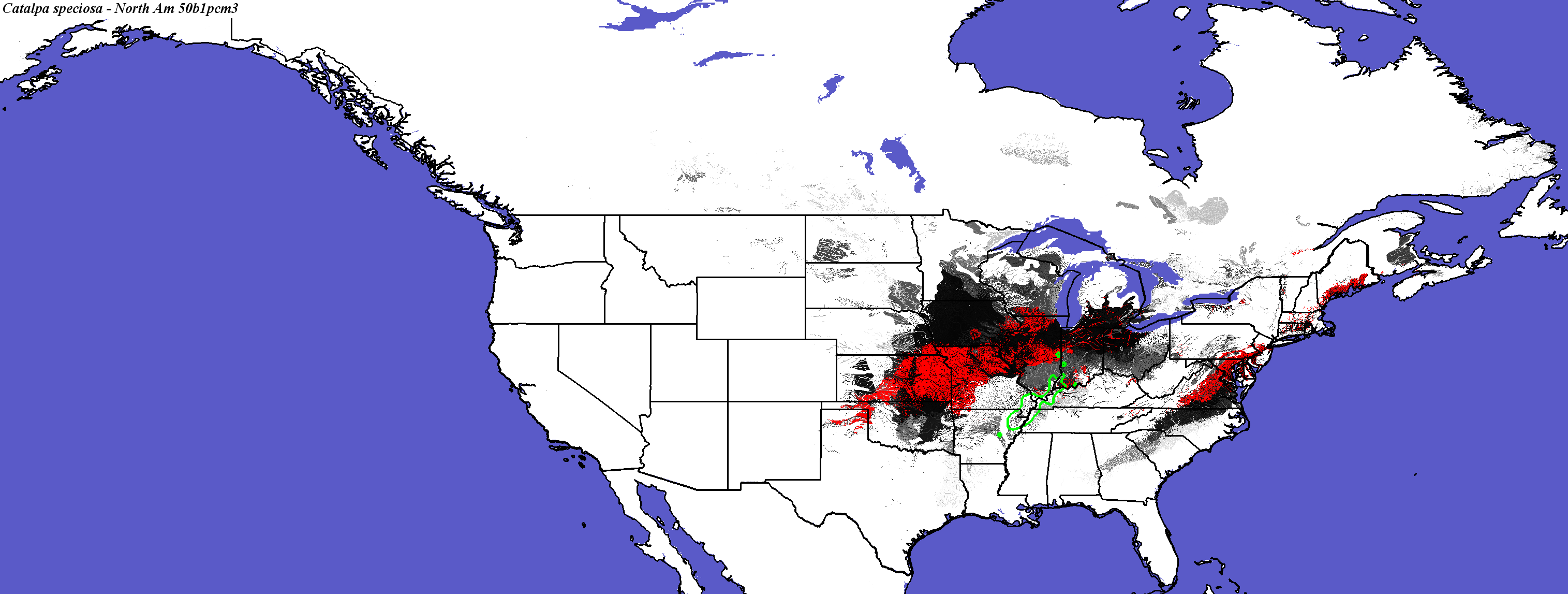

PCM, Scenario B1, 2050 - Catalpa speciosa - CONUS
PCM, Scenario B1, 2050 - Catalpa speciosa - Global
Catalpa_speciosa_final.2.conus
Catalpa_speciosa_final.2.global
PCM, Scenario B1, 2100 - Catalpa speciosa - CONUS
Compare with Catalpa speciosa modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Catalpa speciosa - Global

Hadley Climate Model
Catalpa_speciosa_final.2.conus
Catalpa_speciosa_final.2.global

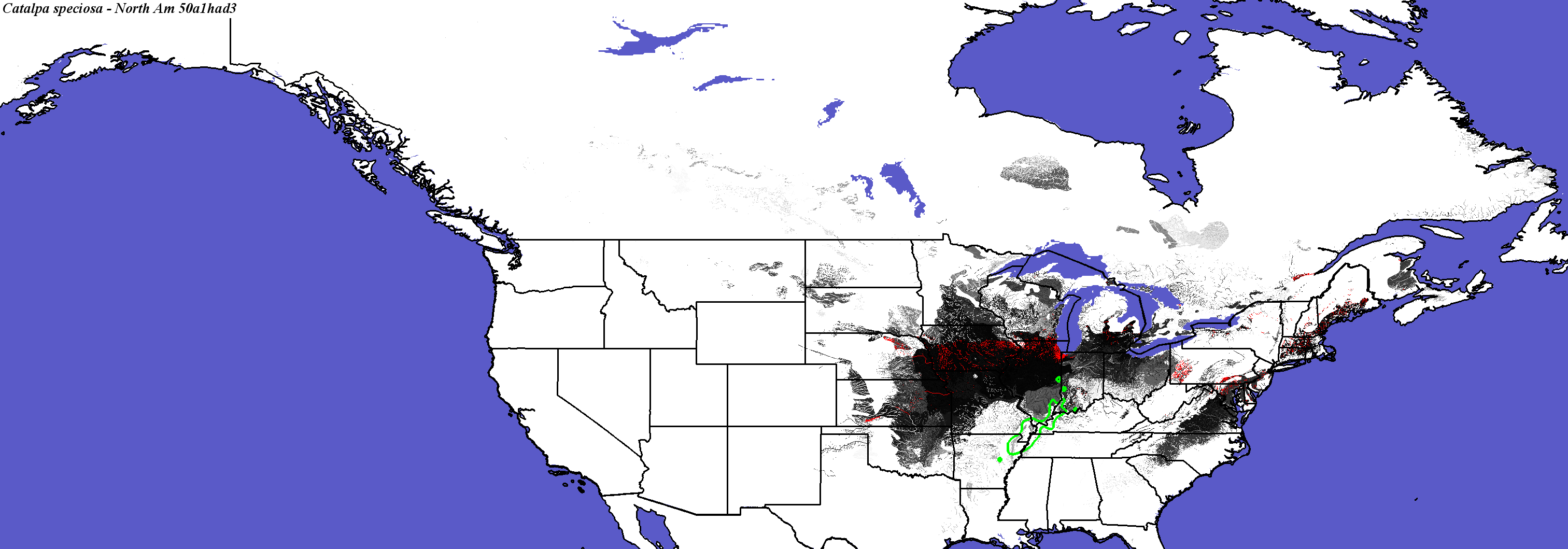

Hadley, Scenario A1FI, 2050 - Catalpa speciosa - CONUS
Catalpa speciosa not modeled by Crookston and Rehfeldt

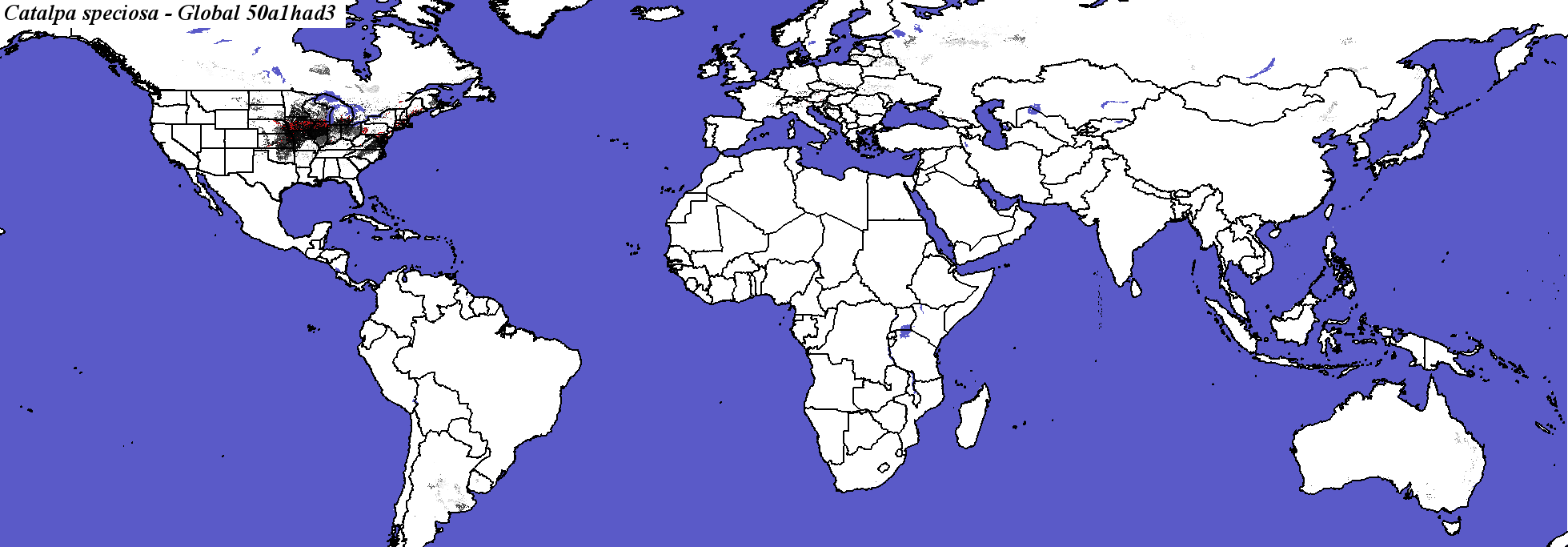

Hadley, Scenario A1FI, 2050 - Catalpa speciosa - Global
Catalpa_speciosa_final.2.conus
Catalpa_speciosa_final.2.global.

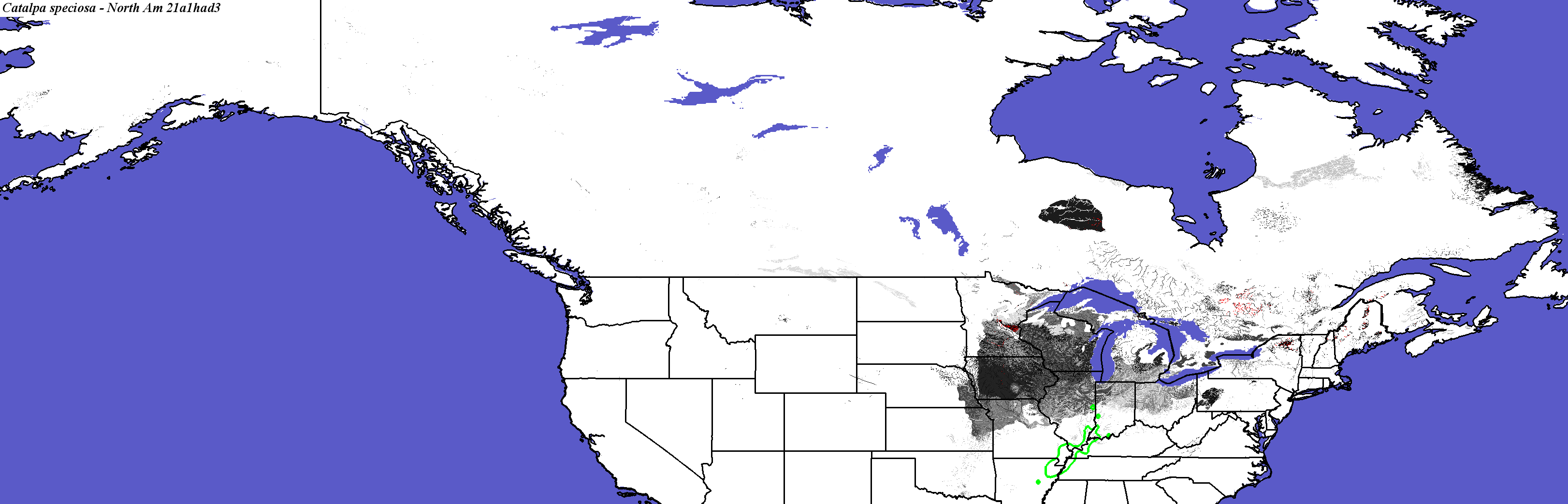

Hadley, Scenario A1FI, 2100 - Catalpa speciosa - CONUS
Compare with Catalpa speciosa modeled for Hadley A1FI in 2100 by Iverson and Prasad
Catalpa speciosa not modeled by Crookston and Rehfeldt
Catalpa speciosa not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Catalpa speciosa - Global

Catalpa_speciosa_final.2.conus
Catalpa_speciosa_final.2.global.

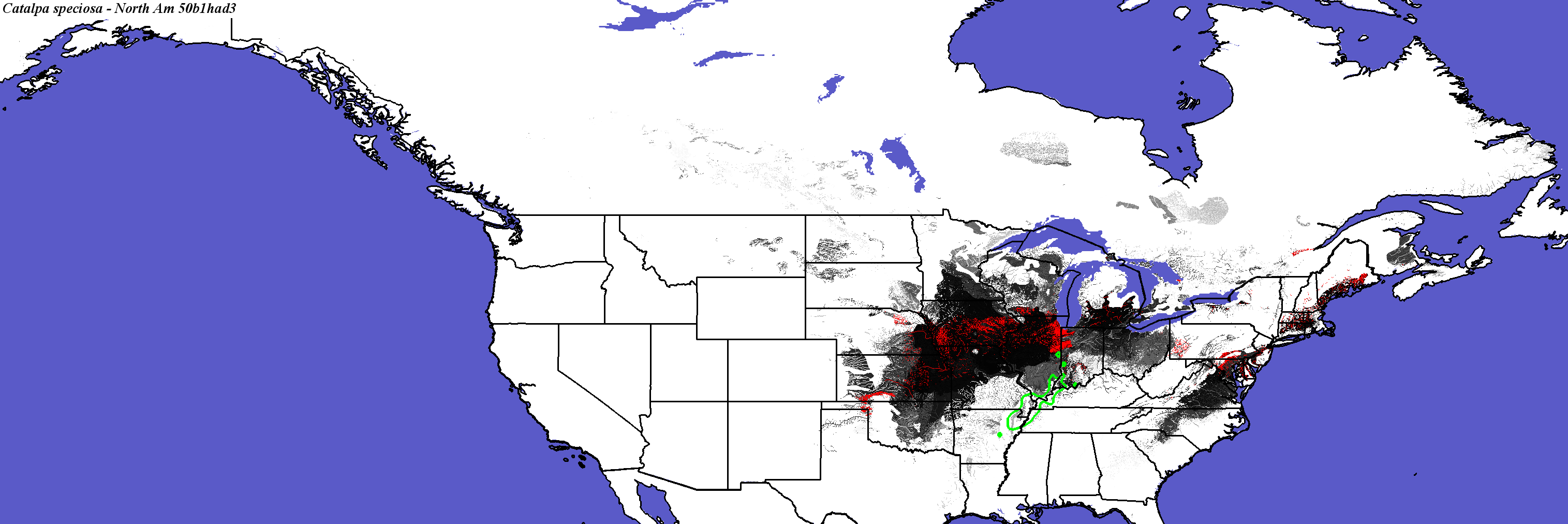

Hadley, Scenario B1, 2050 - Catalpa speciosa - CONUS
Catalpa speciosa not modeled by Crookston and Rehfeldt
Catalpa speciosa not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Catalpa speciosa - Global
Catalpa_speciosa_final.2.conus
Catalpa_speciosa_final.2.global

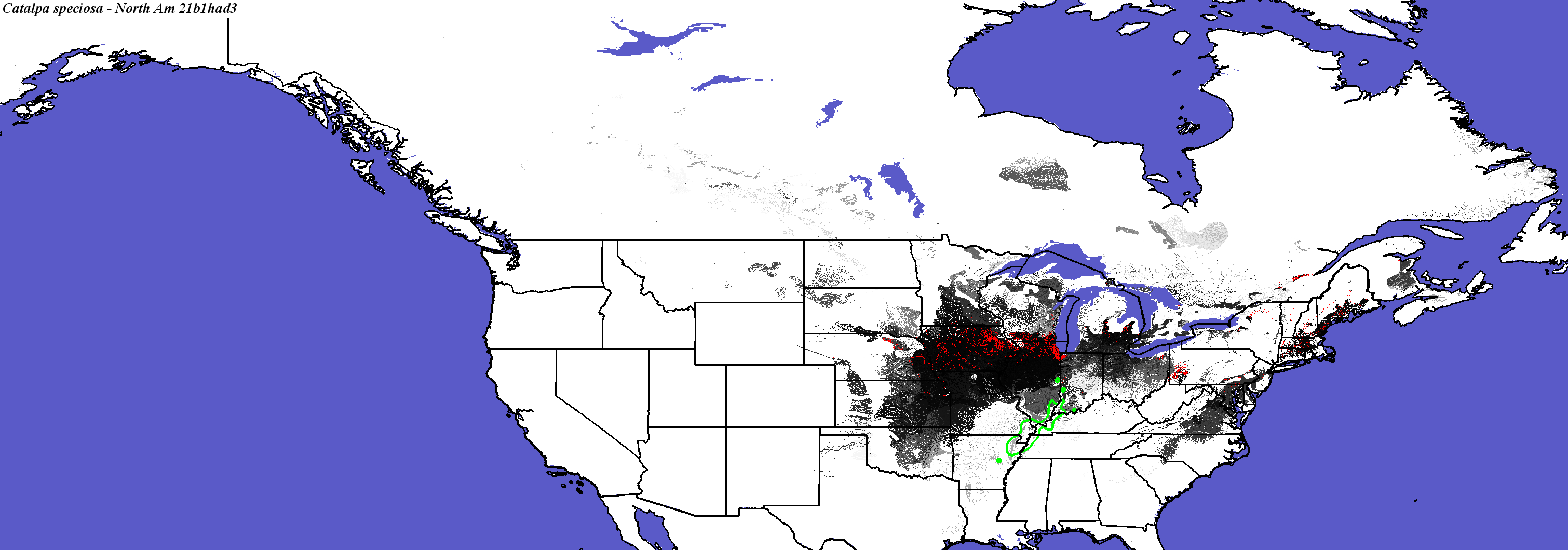

Hadley, Scenario B1, 2100 - Catalpa speciosa - CONUS
Compare with Catalpa speciosa modeled for Hadley B1 in 2100 by Iverson and Prasad
Catalpa speciosa not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Catalpa speciosa - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Catalpa_speciosa_final.elev

Number of Suitable Ecoregions (Niche Breadth)

24

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

56.4384

Area in Present Suitable Range (in km2)

303153

Area in Future Suitable Range (Had B1 2050, in km2)

70114

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

29454

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

9.7100

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

99.589

Percent Change in Area of Suitable Range (Had B1 2050)

-76.8700

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

99.3151

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

60648 +/- 64031.8

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

6.0274

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

25.7841 +/- 30.8092

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

5.47945

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

247.331 +/- 738.333

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

20.274

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

20396

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

6.7200

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

17.1233

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

24235

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

7.9900

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

97.3973

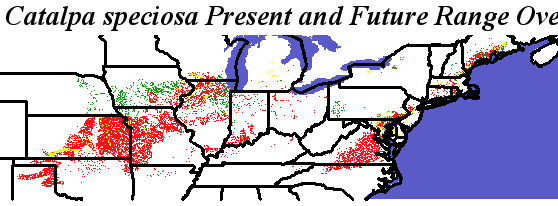

Present and Future Ranges - Hadley, Scenario B1, 2050 - Catalpa speciosa Catalpa speciosa - Range Change Statistics

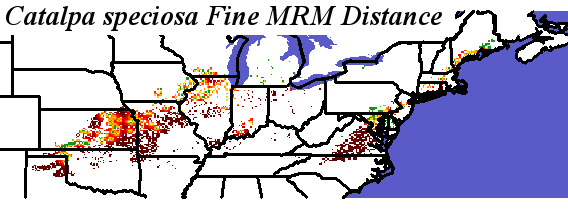

Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Catalpa_speciosa_final.elev Fine MRM Distance
Catalpa_speciosa_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Catalpa speciosa Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Catalpa speciosa
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

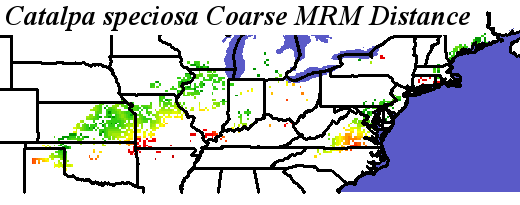

Catalpa_speciosa_final.elev Coarse MRM Distance
Catalpa_speciosa_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Catalpa speciosa Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Catalpa speciosa
