Version 5 Tree Atlas


Fraxinus latifolia

Oregon ash

elev

Fraxinus latifolia Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Fraxinus latifolia

USDA Plants Database entry for Fraxinus latifolia
Silvics Manual entry for Fraxinus latifolia


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
48121169range is well-represented

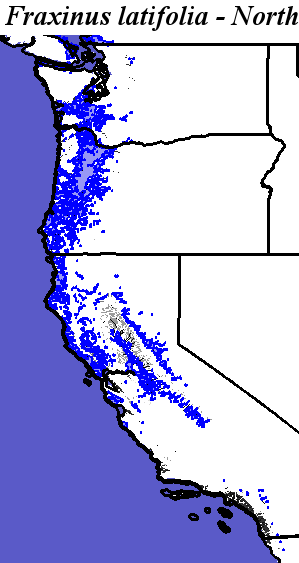

Occurrence Locations and Hargrove's Present Suitable Range Outline
Fraxinus_latifolia_final Occurrences
Hargroves Present Suitable Range Outline for Fraxinus_latifolia_final

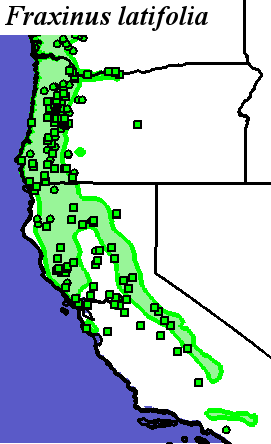

Fraxinus latifolia - Occurrence Locations Fraxinus latifolia - Hargrove's Present Suitable Range Outline
Present Conditions
Fraxinus_latifolia_final.3.conus
Fraxinus_latifolia_final.3.global

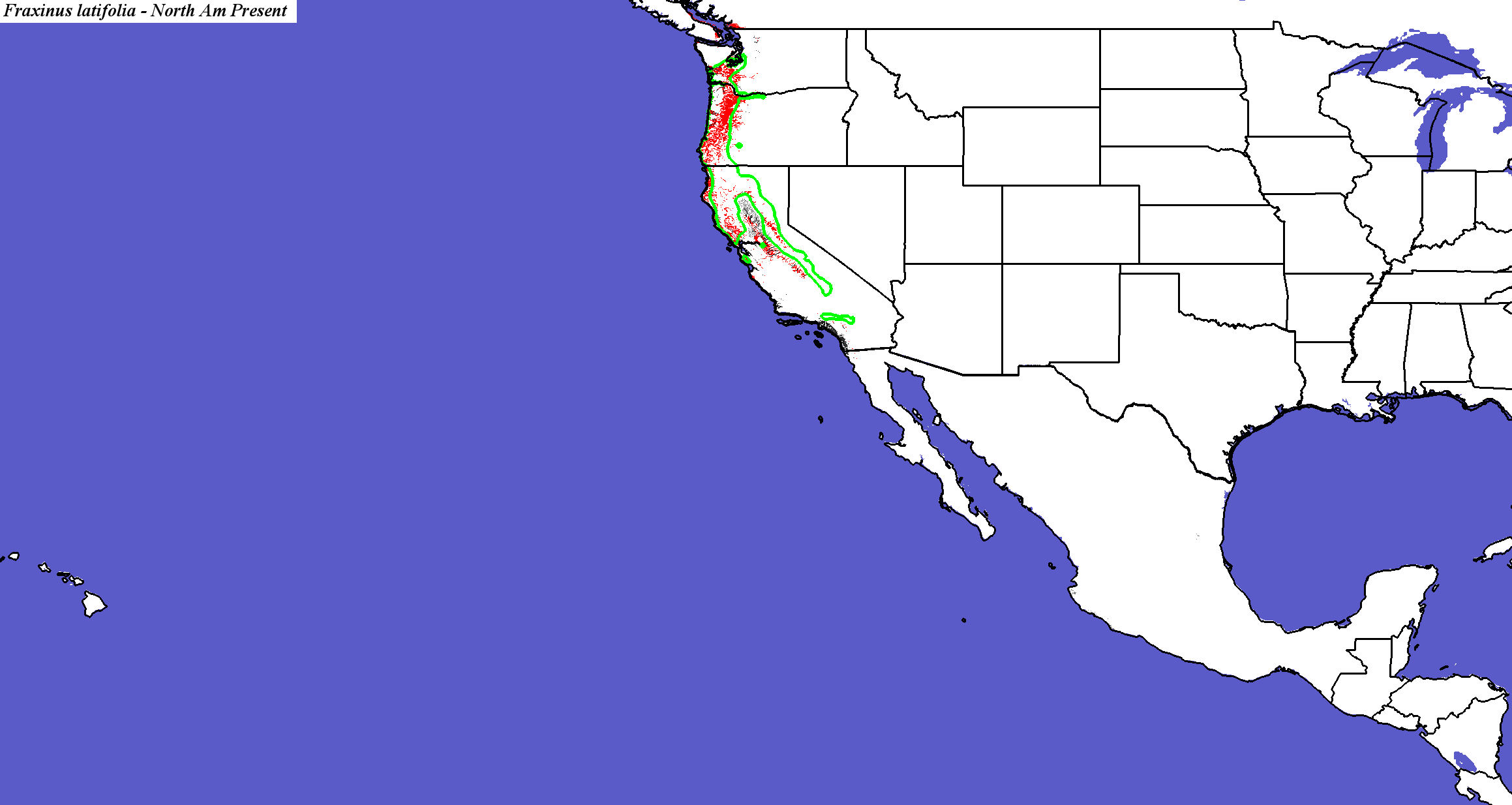

Fraxinus latifolia - CONUS
Compare with Current Range from the Silvics Manual for Fraxinus latifolia
Compare with Current Range from Biota of North America Program (BONAP) for Fraxinus latifolia

Fraxinus latifolia not modeled by Iverson and Prasad
Compare with Fraxinus latifolia modeled for Current conditions by Crookston and Rehfeldt
Fraxinus latifolia not modeled by Coops and Waring

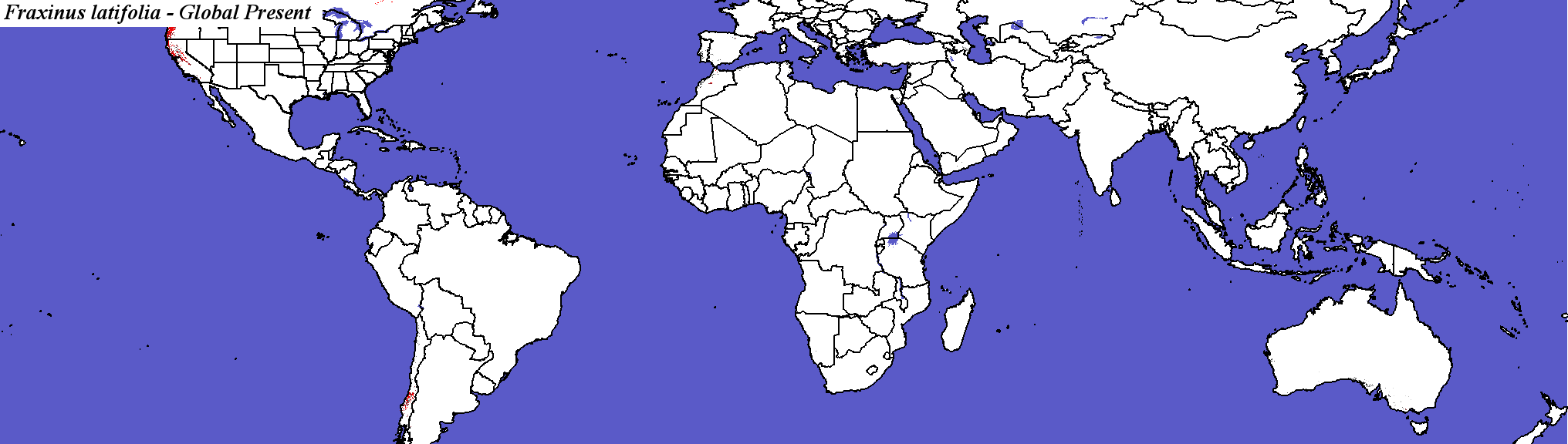

Fraxinus latifolia - Global

PCM - Parallel Climate Model
Fraxinus_latifolia_final.3.conus
Fraxinus_latifolia_final.3.global
PCM, Scenario A1FI, 2050 - Fraxinus latifolia - CONUS
PCM, Scenario A1FI, 2050 - Fraxinus latifolia - Global
Fraxinus_latifolia_final.3.conus
Fraxinus_latifolia_final.3.global
PCM, Scenario A1FI, 2100 - Fraxinus latifolia - CONUS
Fraxinus latifolia species not modeled by Iverson and Prasad

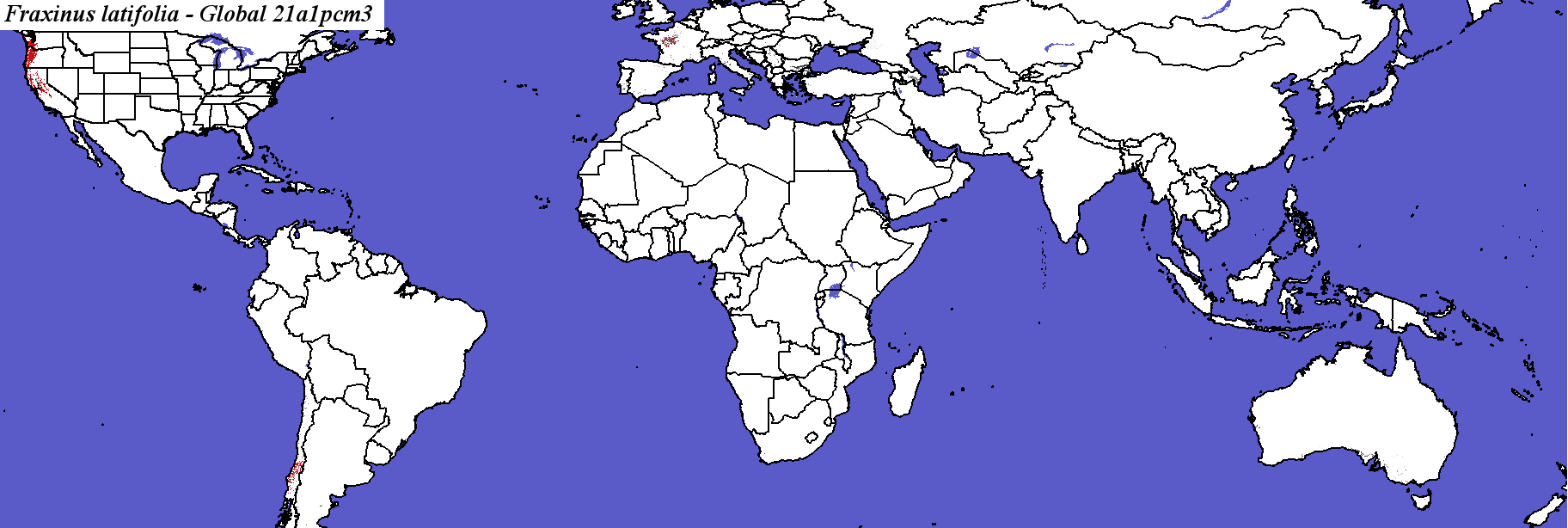

PCM, Scenario A1FI, 2100 - Fraxinus latifolia - Global

Fraxinus_latifolia_final.3.conus
Fraxinus_latifolia_final.3.global

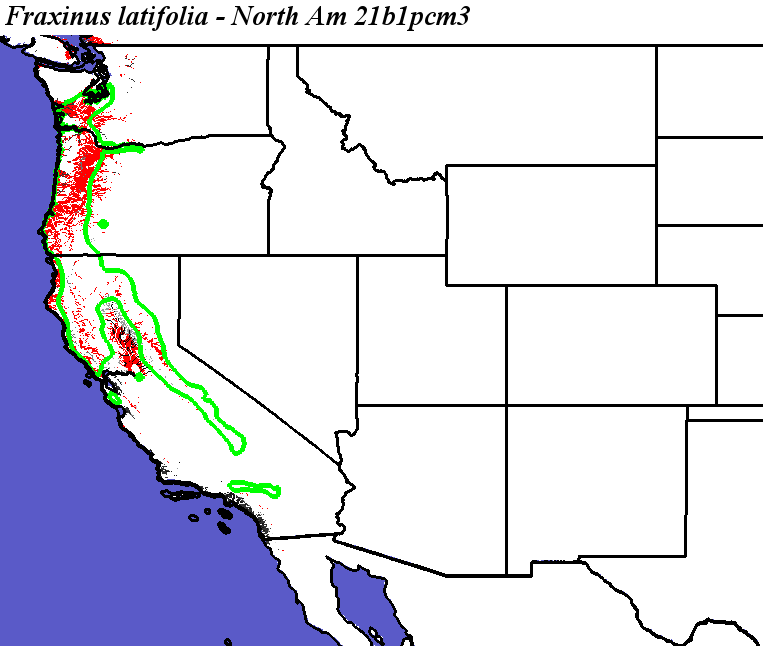

PCM, Scenario B1, 2050 - Fraxinus latifolia - CONUS

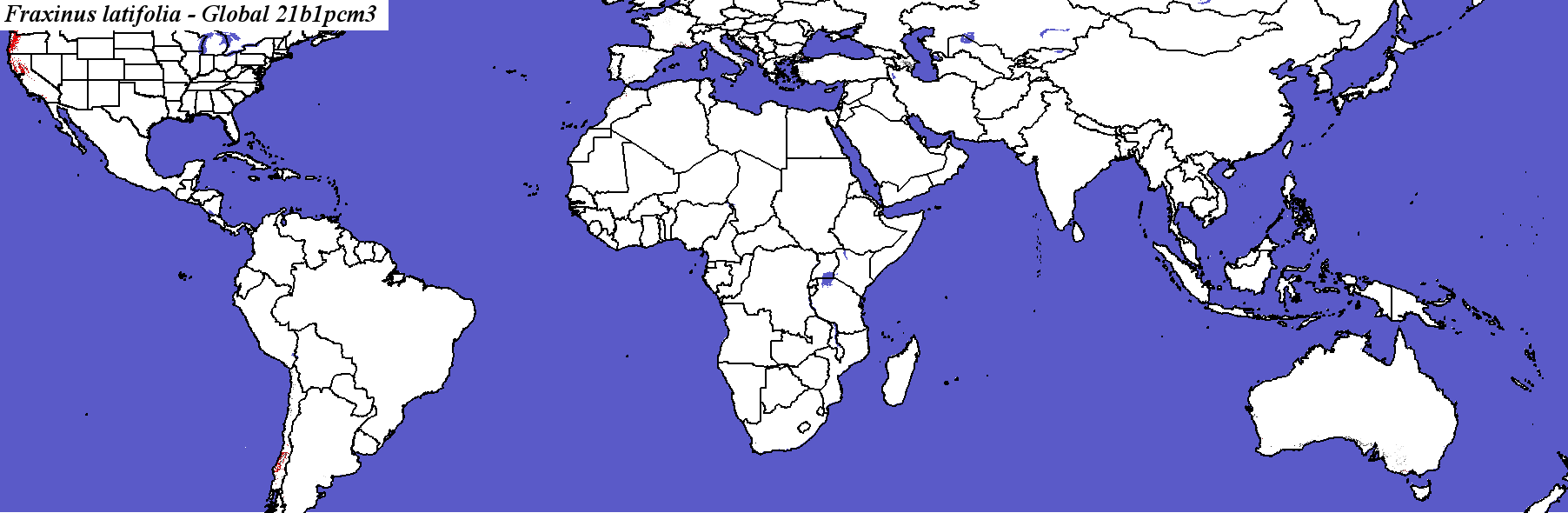

PCM, Scenario B1, 2050 - Fraxinus latifolia - Global
Fraxinus_latifolia_final.3.conus
Fraxinus_latifolia_final.3.global
PCM, Scenario B1, 2100 - Fraxinus latifolia - CONUS
Fraxinus latifolia not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Fraxinus latifolia - Global

Hadley Climate Model
Fraxinus_latifolia_final.3.conus
Fraxinus_latifolia_final.3.global
Hadley, Scenario A1FI, 2050 - Fraxinus latifolia - CONUS
Compare with Fraxinus latifolia modeled for Hadley A2 in 2060 by Crookston and Rehfeldt

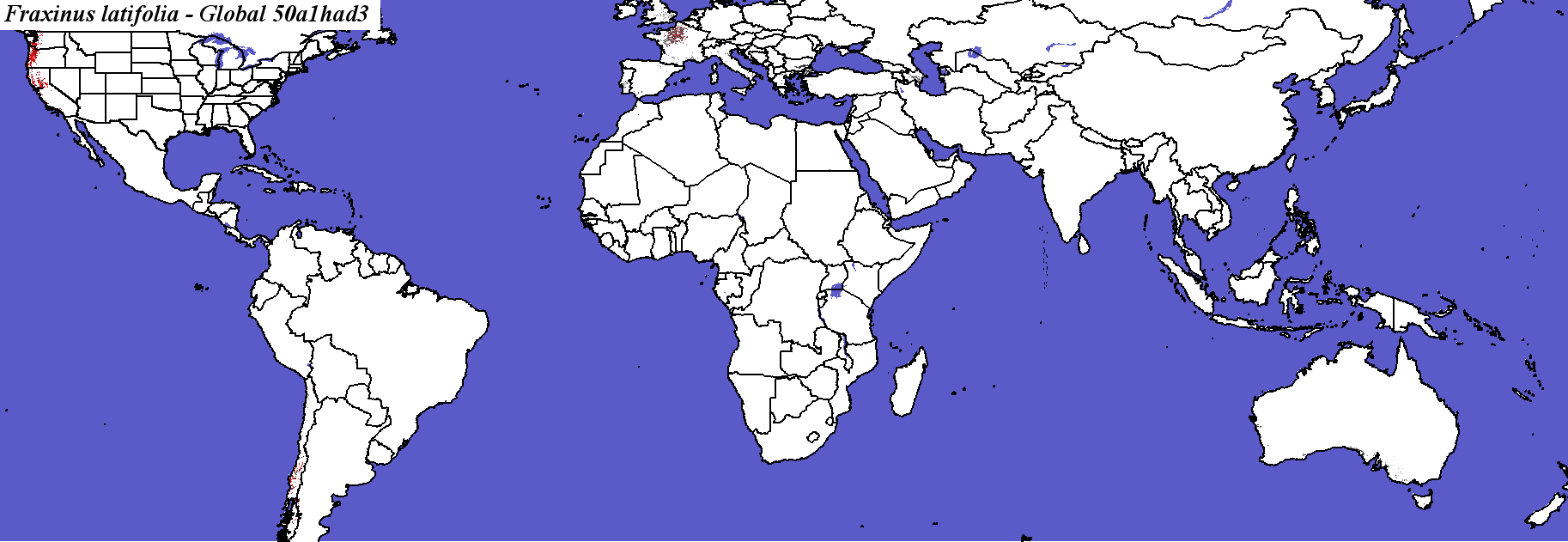

Hadley, Scenario A1FI, 2050 - Fraxinus latifolia - Global
Fraxinus_latifolia_final.3.conus
Fraxinus_latifolia_final.3.global.
Hadley, Scenario A1FI, 2100 - Fraxinus latifolia - CONUS
Fraxinus latifolia not modeled by Iverson and Prasad
Compare with Fraxinus latifolia modeled for Hadley A2 in 2090 by Crookston and Rehfeldt
Fraxinus latifolia not modeled by Coops and Waring

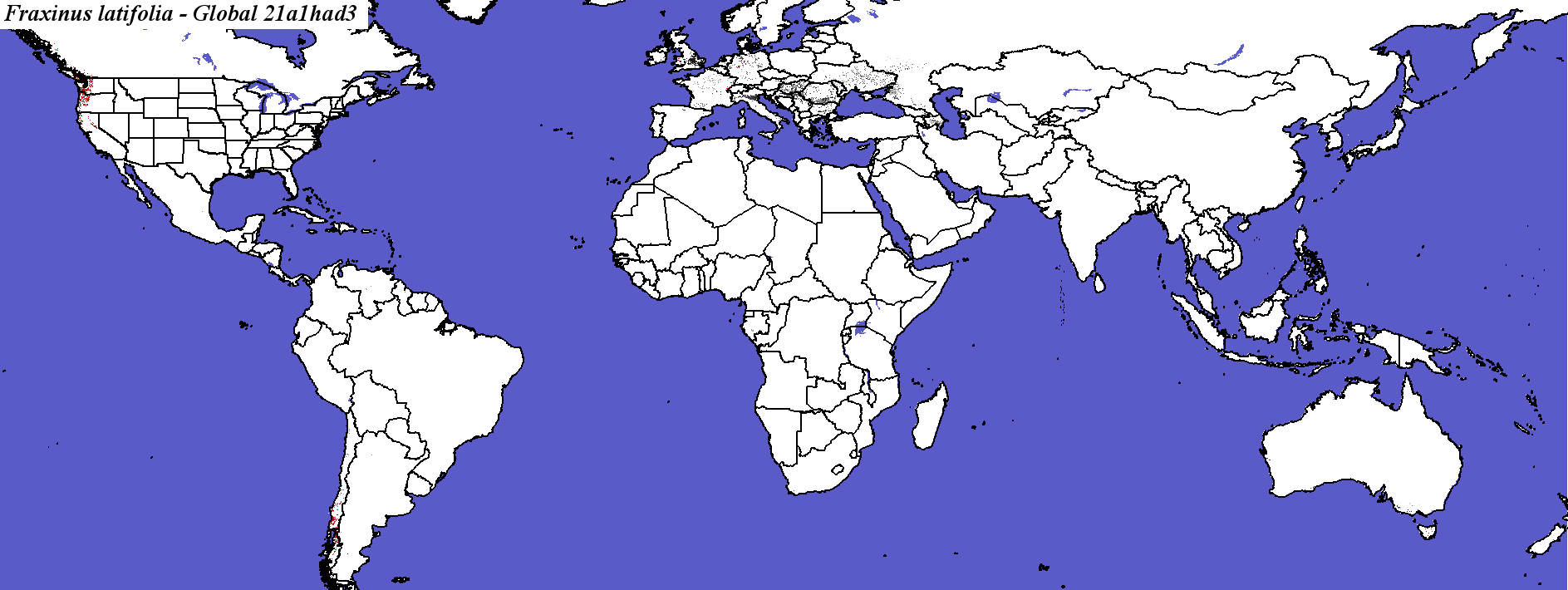

Hadley, Scenario A1FI, 2100 - Fraxinus latifolia - Global

Fraxinus_latifolia_final.3.conus
Fraxinus_latifolia_final.3.global.
Hadley, Scenario B1, 2050 - Fraxinus latifolia - CONUS
Compare with Fraxinus latifolia modeled for Hadley B2 in 2060 by Crookston and Rehfeldt
Fraxinus latifolia not modeled by Coops and Waring

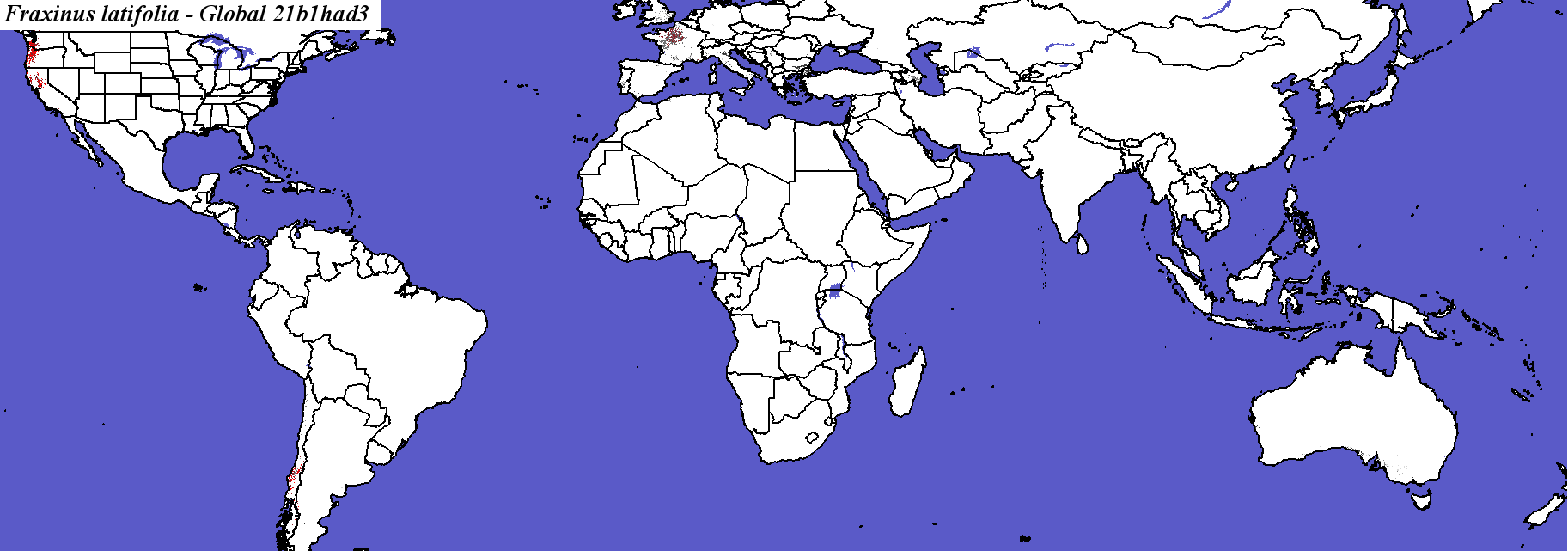

Hadley, Scenario B1, 2050 - Fraxinus latifolia - Global
Fraxinus_latifolia_final.3.conus
Fraxinus_latifolia_final.3.global

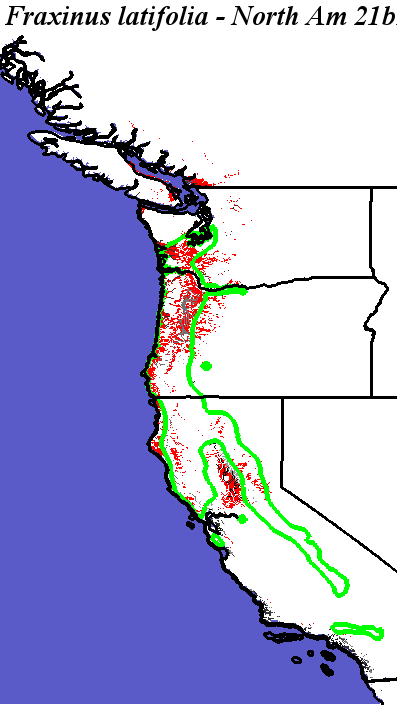

Hadley, Scenario B1, 2100 - Fraxinus latifolia - CONUS
Fraxinus latifolia not modeled by Iverson and Prasad
Compare with Fraxinus latifolia modeled for Hadley B2 in 2090 by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Fraxinus latifolia - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Fraxinus_latifolia_final.elev

Number of Suitable Ecoregions (Niche Breadth)

15

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

73.2877

Area in Present Suitable Range (in km2)

64738

Area in Future Suitable Range (Had B1 2050, in km2)

56387

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

36089

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

55.7400

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

35.3425

Percent Change in Area of Suitable Range (Had B1 2050)

-12.8900

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

20.8219

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

13371.5 +/- 30745.8

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

54.3836

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

5.56888 +/- 11.4345

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

60.5479

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

12.6125 +/- 23.849

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

94.6575

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

92.0548

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

24828

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

38.3500

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

25.0685

Present and Future Ranges - Hadley, Scenario B1, 2050 - Fraxinus latifolia Fraxinus latifolia - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Fraxinus_latifolia_final.elev Fine MRM Distance
Fraxinus_latifolia_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Fraxinus latifolia Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Fraxinus latifolia
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Fraxinus_latifolia_final.elev Coarse MRM Distance
Fraxinus_latifolia_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Fraxinus latifolia Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Fraxinus latifolia
