Version 5 Tree Atlas


Fraxinus texensis

Texas ash

elev

Fraxinus texensis Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Fraxinus texensis

USDA Plants Database entry for Fraxinus texensis
Silvics Manual entry for Fraxinus texensis


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
26329some disjuncts not represented

Occurrence Locations and Hargrove's Present Suitable Range Outline
Fraxinus_texensis_final Occurrences
Hargroves Present Suitable Range Outline for Fraxinus_texensis_final
Fraxinus texensis - Occurrence Locations Fraxinus texensis - Hargrove's Present Suitable Range Outline
Present Conditions
Fraxinus_texensis_final.2.conus
Fraxinus_texensis_final.2.global

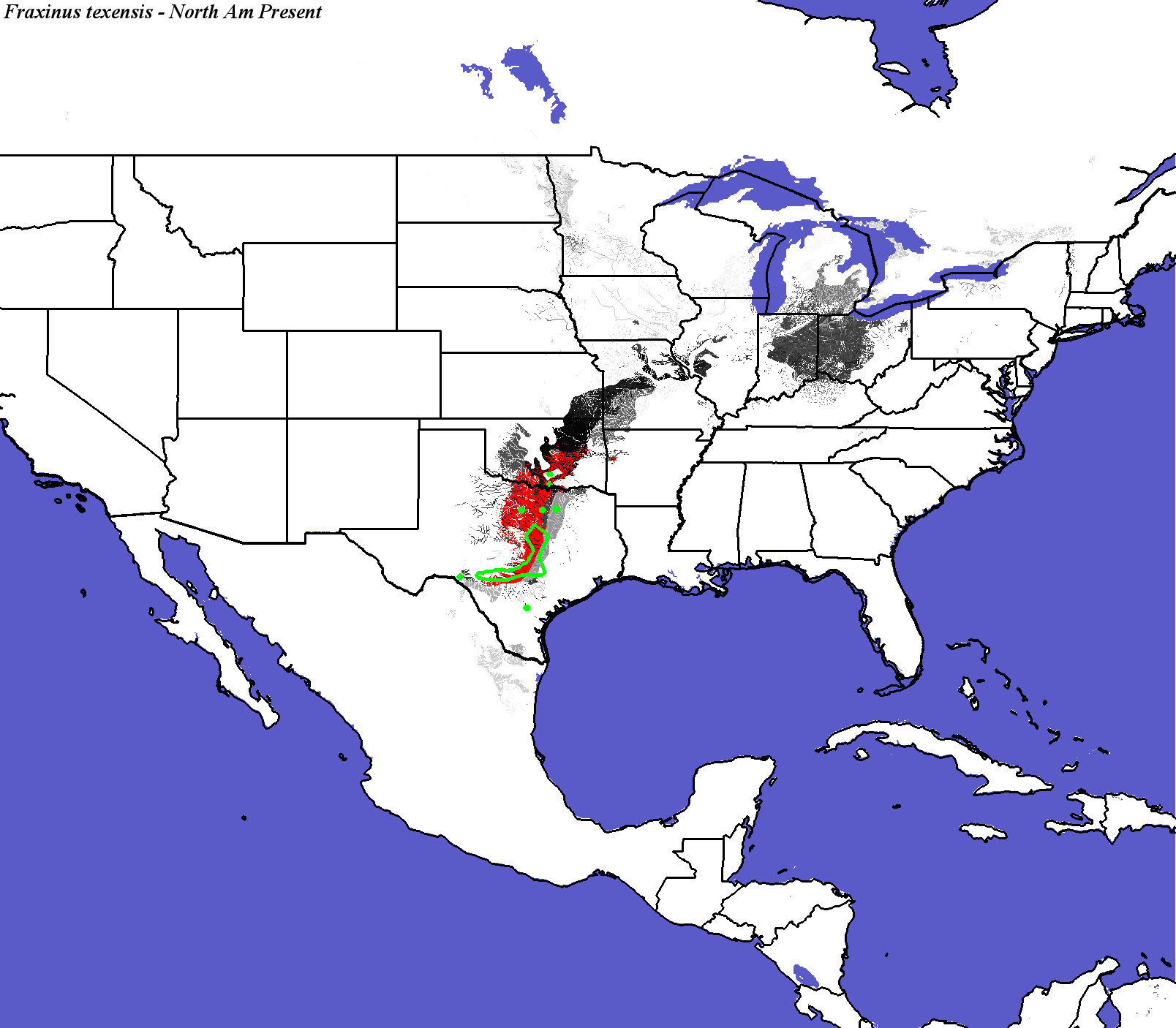

Fraxinus texensis - CONUS
Compare with Current Range from the Silvics Manual for Fraxinus texensis
Compare with Current Range from Biota of North America Program (BONAP) for Fraxinus texensis

Fraxinus texensis not modeled by Iverson and Prasad
Fraxinus texensis not modeled by Crookston and Rehfeldt
Fraxinus texensis not modeled by Coops and Waring

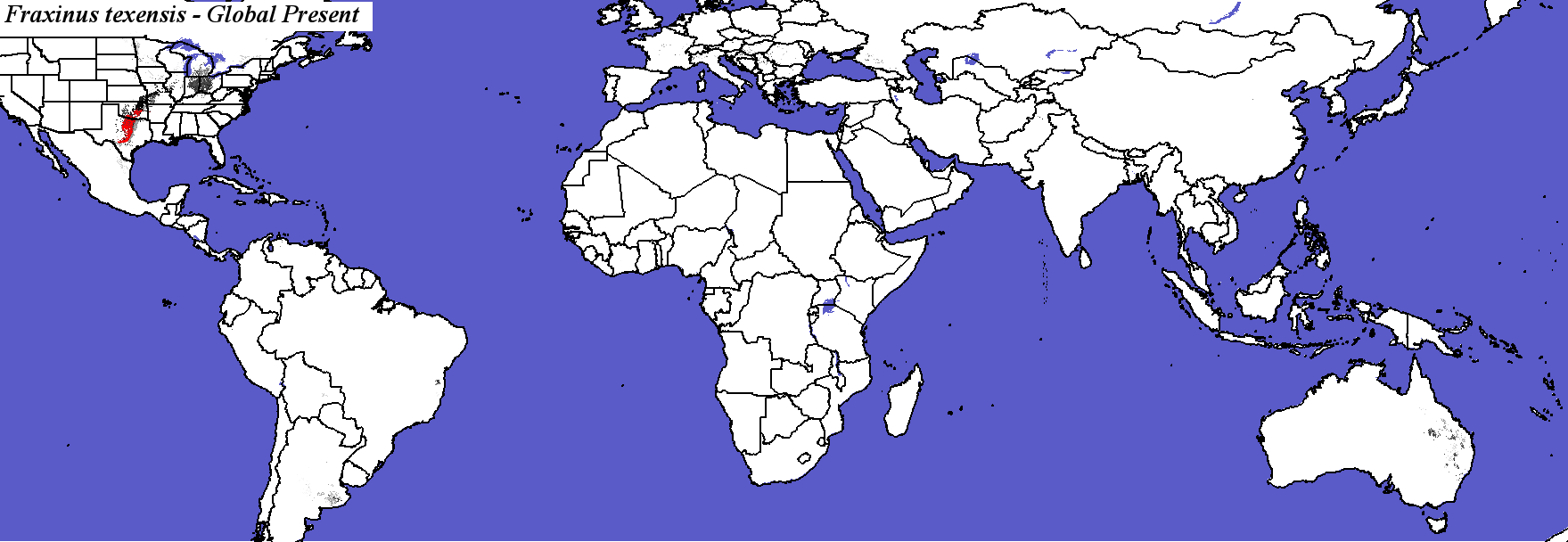

Fraxinus texensis - Global

PCM - Parallel Climate Model
Fraxinus_texensis_final.2.conus
Fraxinus_texensis_final.2.global

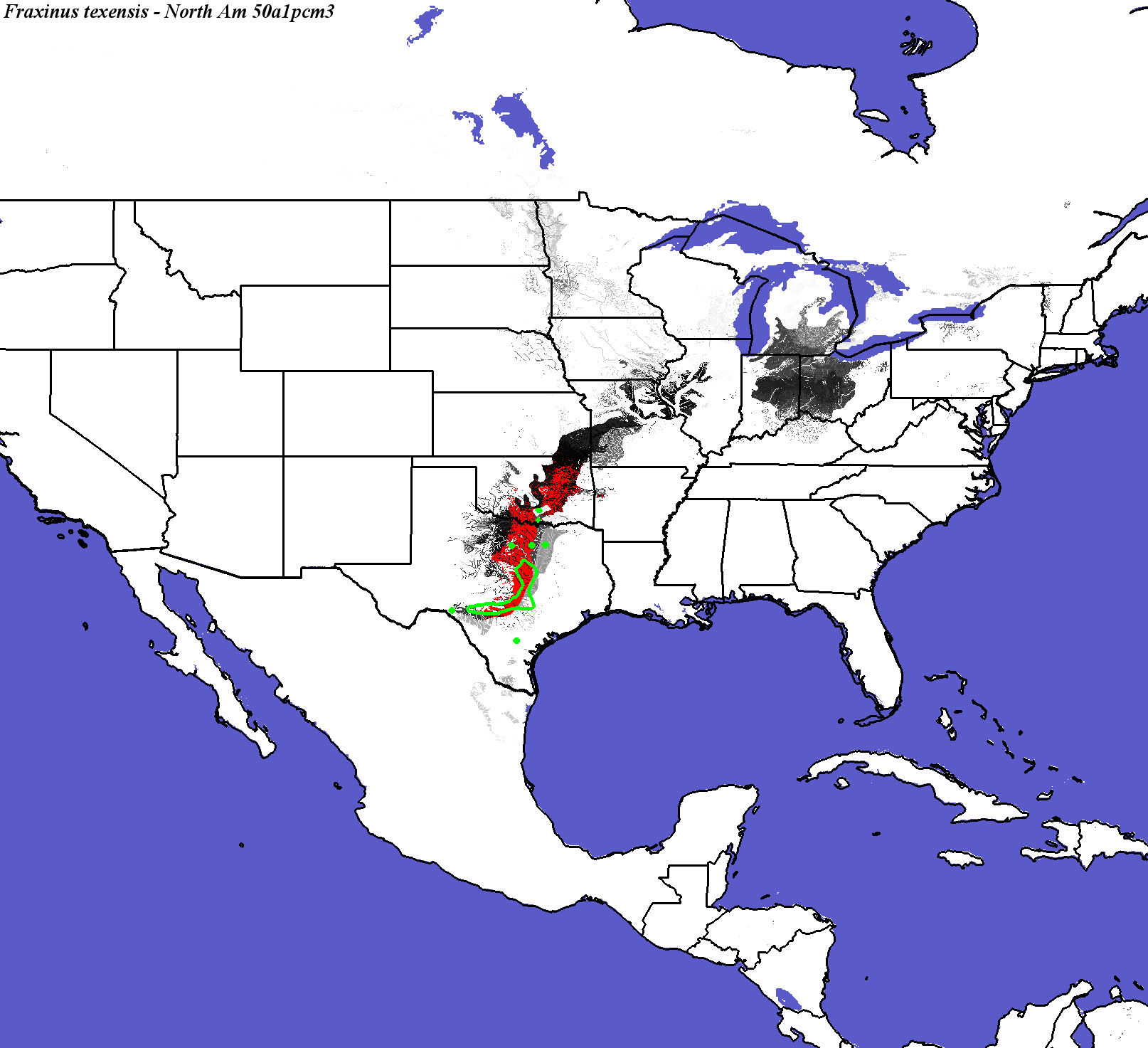

PCM, Scenario A1FI, 2050 - Fraxinus texensis - CONUS

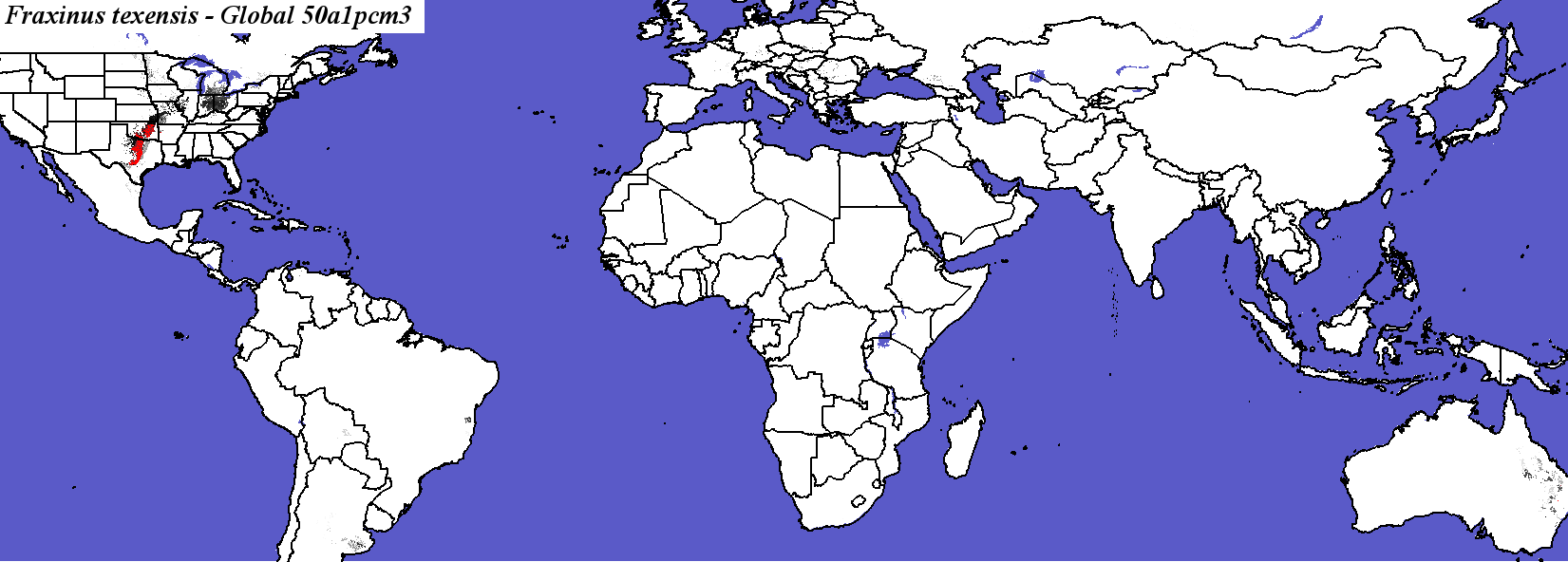

PCM, Scenario A1FI, 2050 - Fraxinus texensis - Global
Fraxinus_texensis_final.2.conus
Fraxinus_texensis_final.2.global

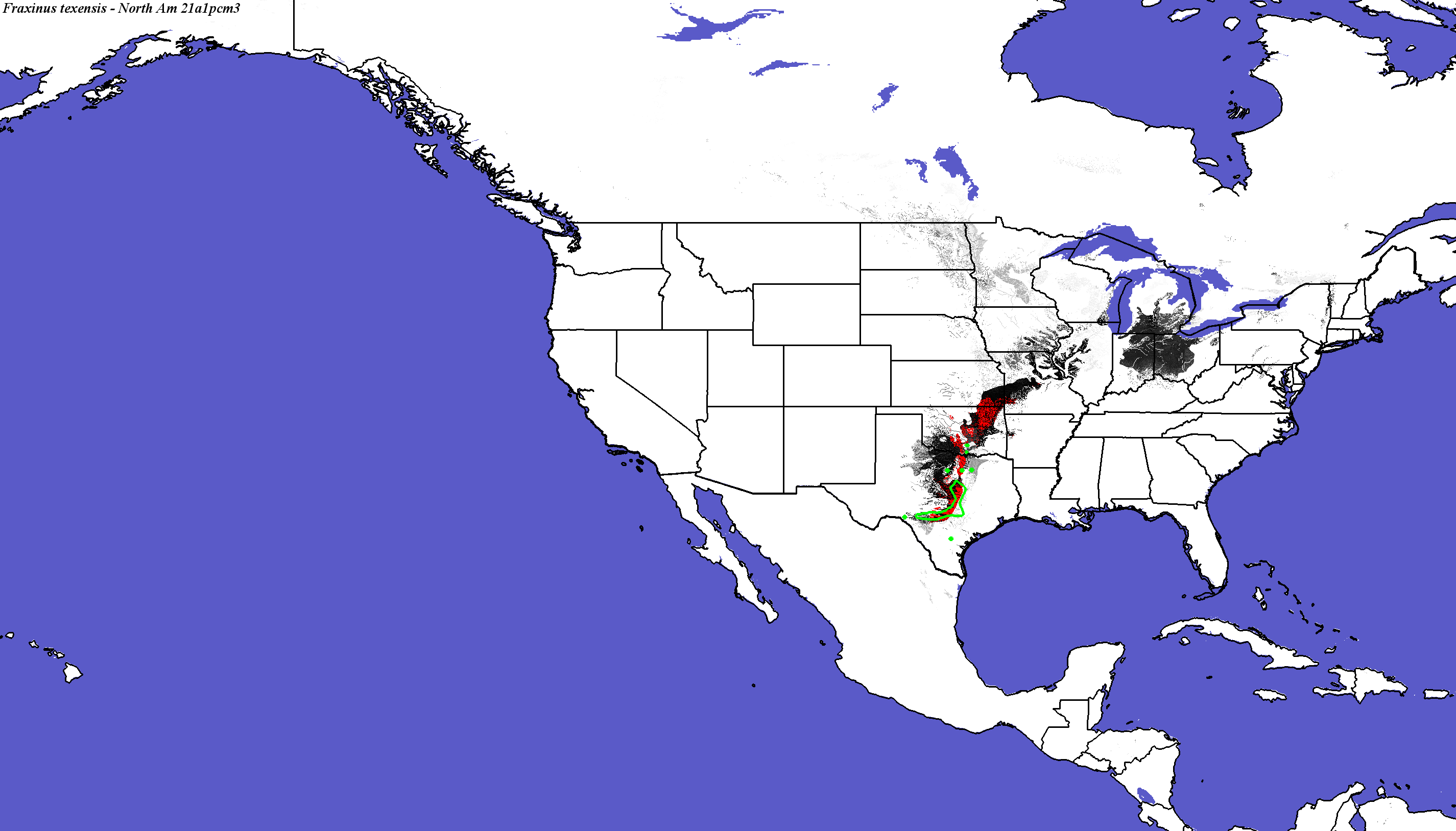

PCM, Scenario A1FI, 2100 - Fraxinus texensis - CONUS
Fraxinus texensis species not modeled by Iverson and Prasad

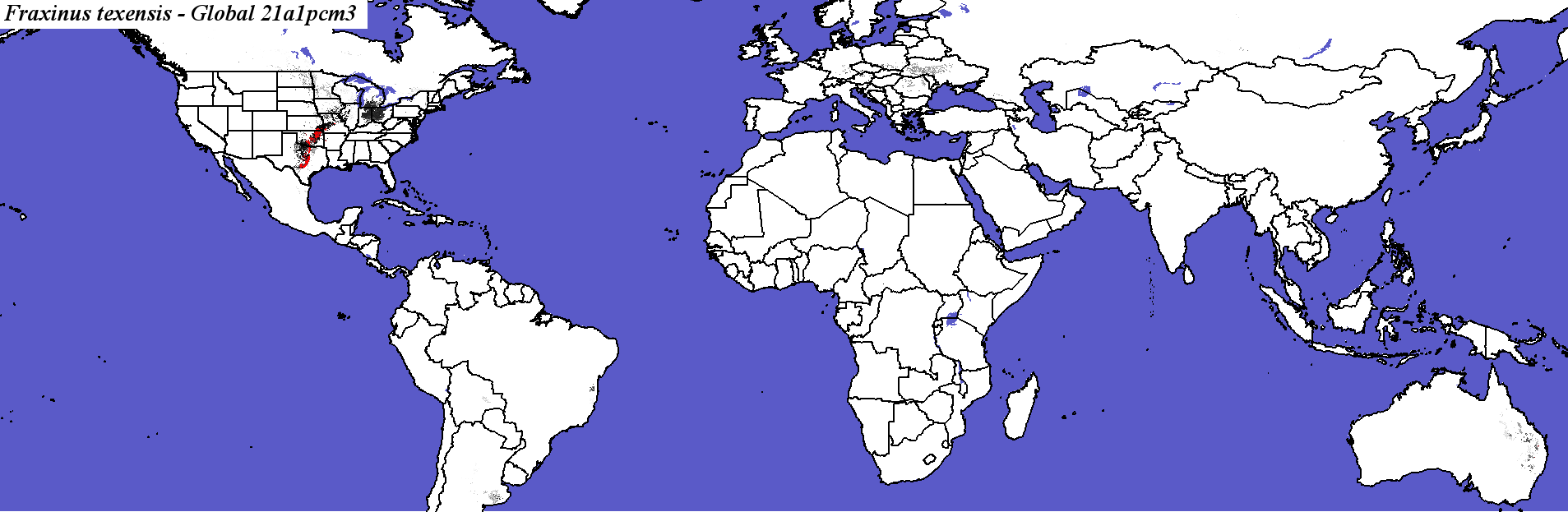

PCM, Scenario A1FI, 2100 - Fraxinus texensis - Global

Fraxinus_texensis_final.2.conus
Fraxinus_texensis_final.2.global

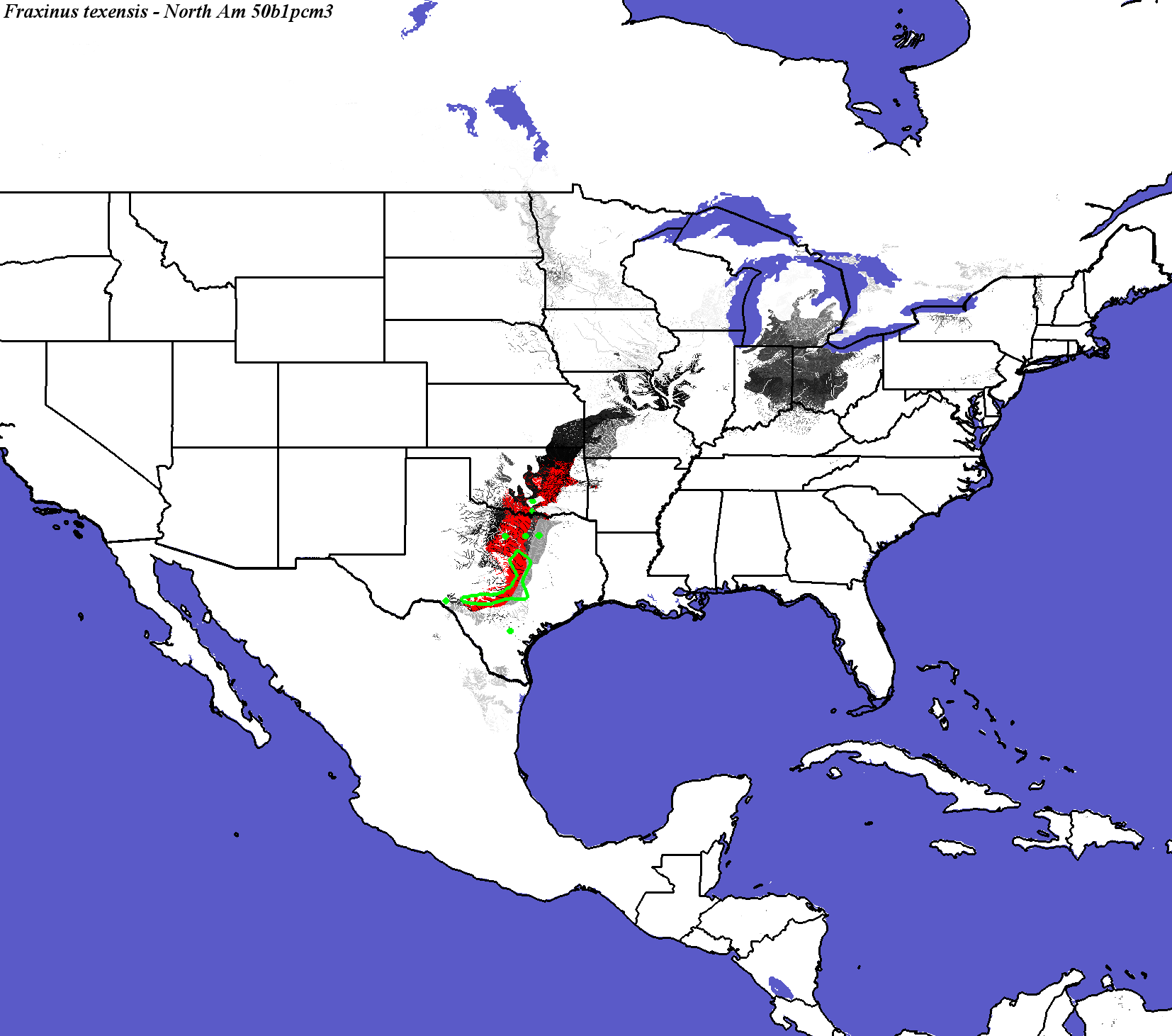

PCM, Scenario B1, 2050 - Fraxinus texensis - CONUS

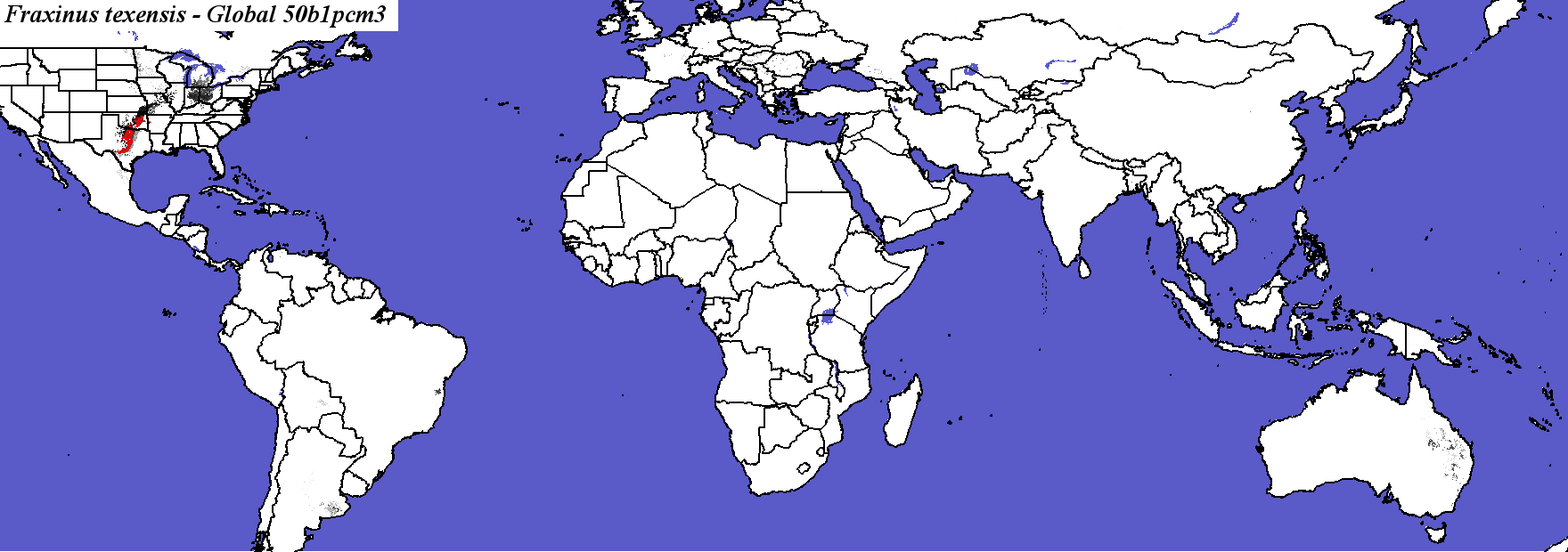

PCM, Scenario B1, 2050 - Fraxinus texensis - Global
Fraxinus_texensis_final.2.conus
Fraxinus_texensis_final.2.global

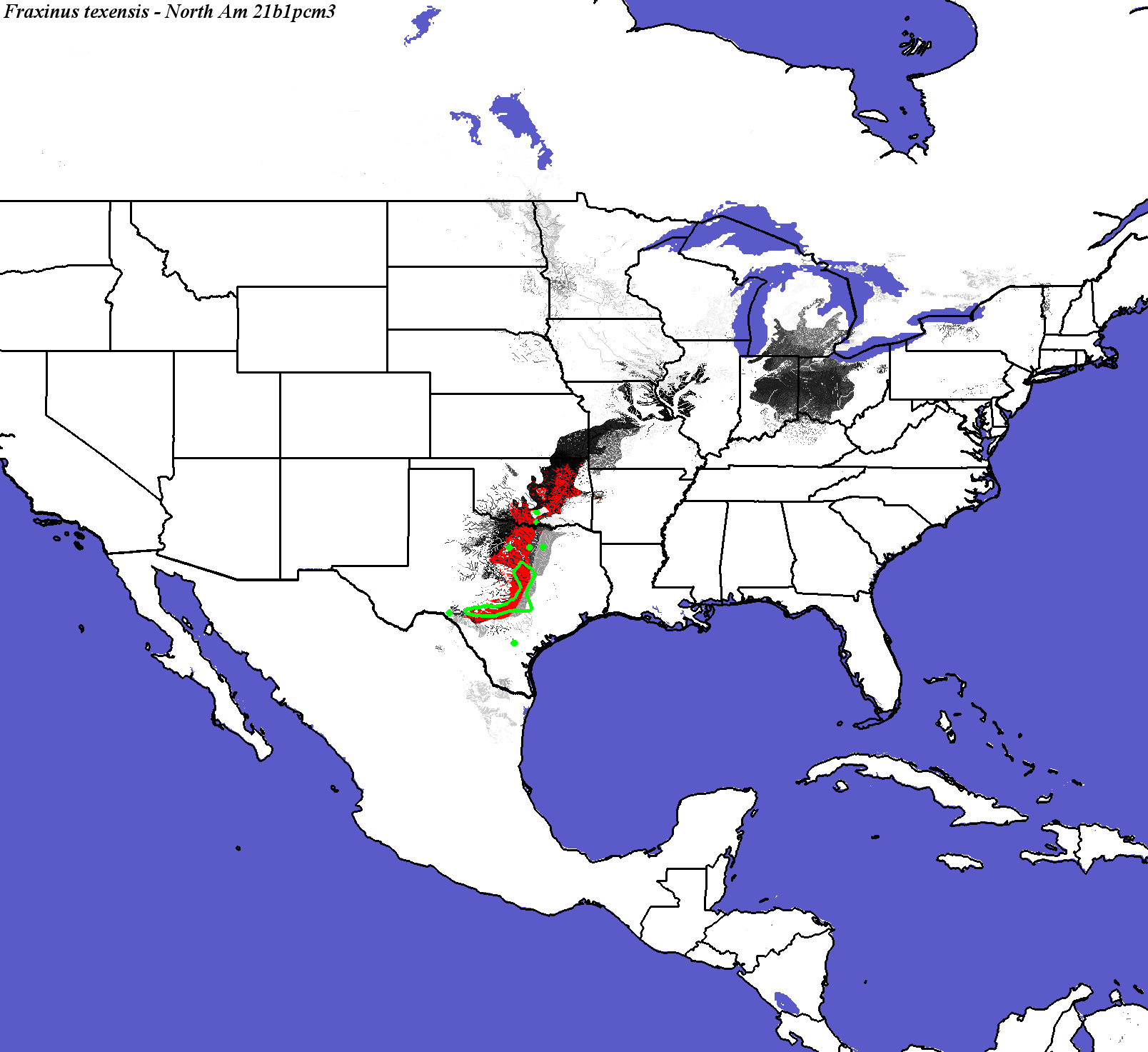

PCM, Scenario B1, 2100 - Fraxinus texensis - CONUS
Fraxinus texensis not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Fraxinus texensis - Global

Hadley Climate Model
Fraxinus_texensis_final.2.conus
Fraxinus_texensis_final.2.global

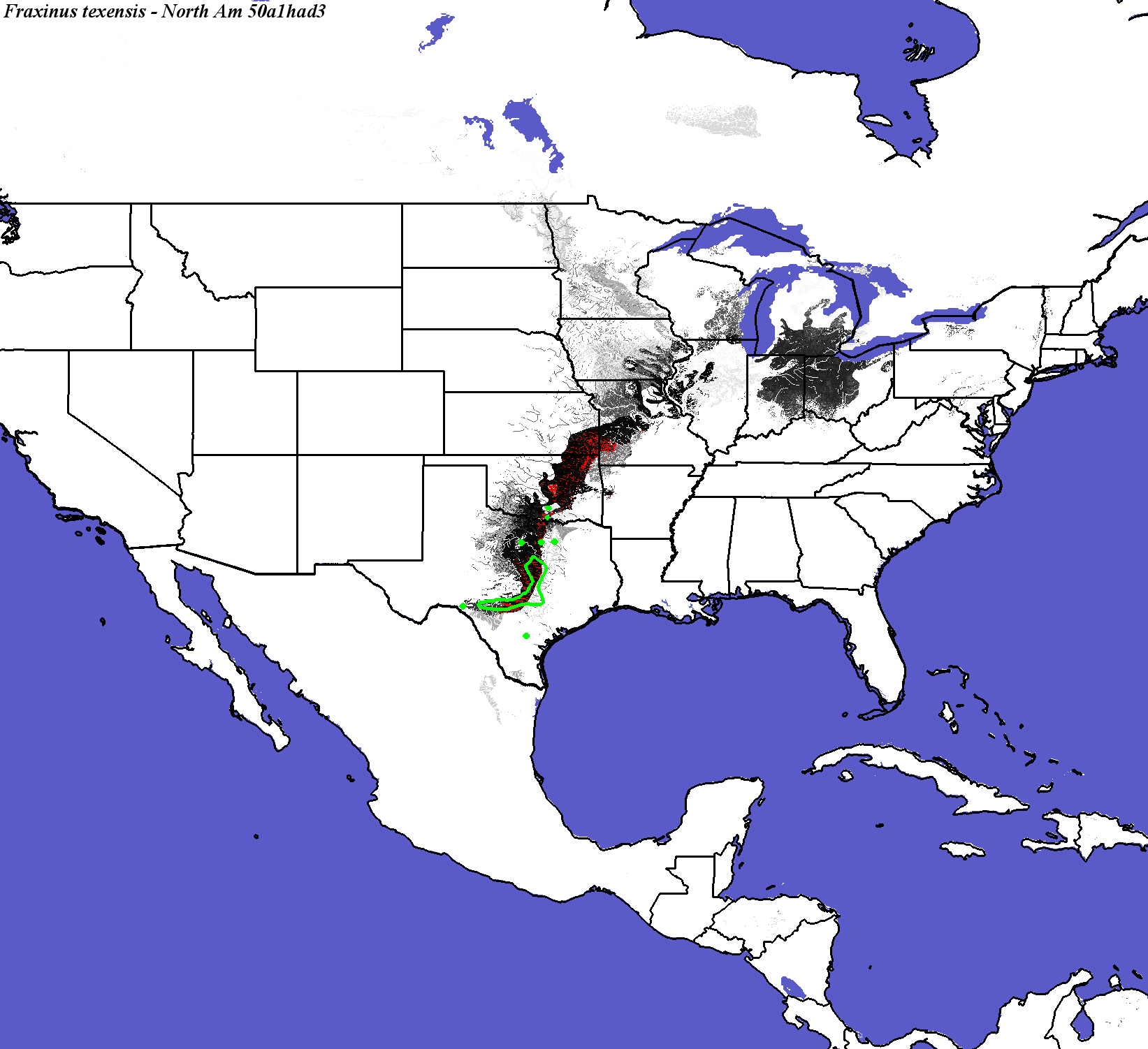

Hadley, Scenario A1FI, 2050 - Fraxinus texensis - CONUS
Fraxinus texensis not modeled by Crookston and Rehfeldt

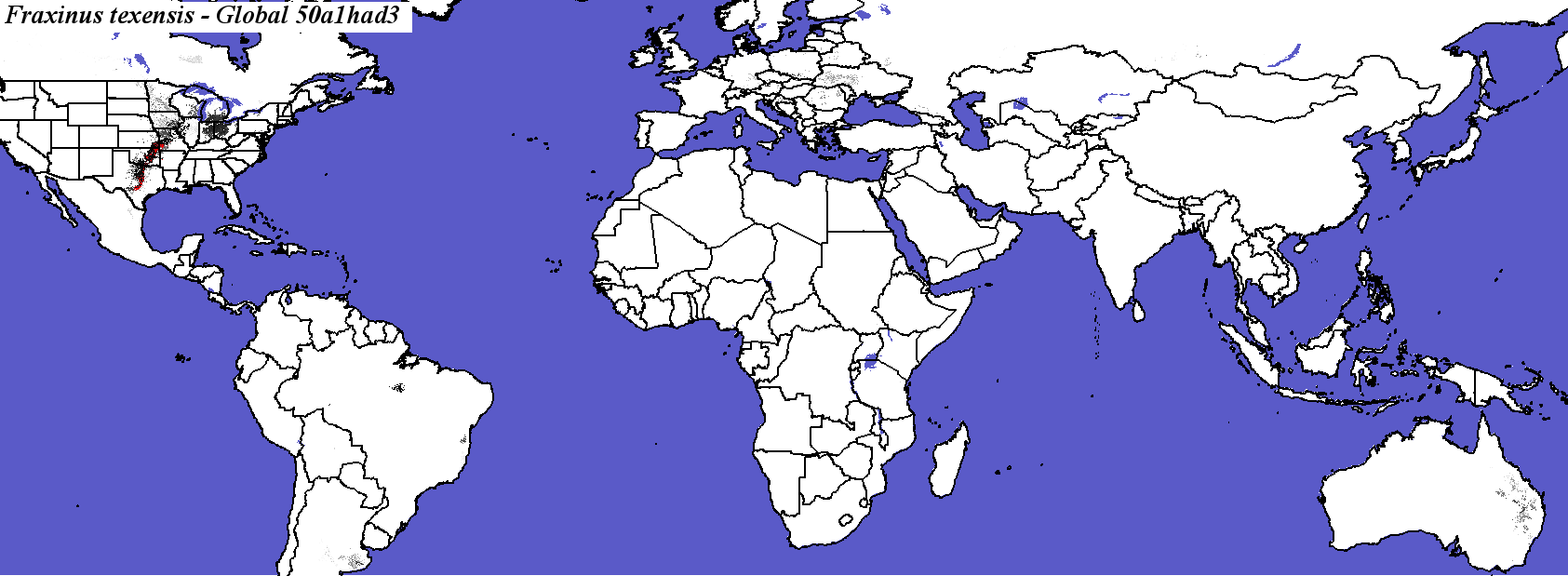

Hadley, Scenario A1FI, 2050 - Fraxinus texensis - Global
Fraxinus_texensis_final.2.conus
Fraxinus_texensis_final.2.global.

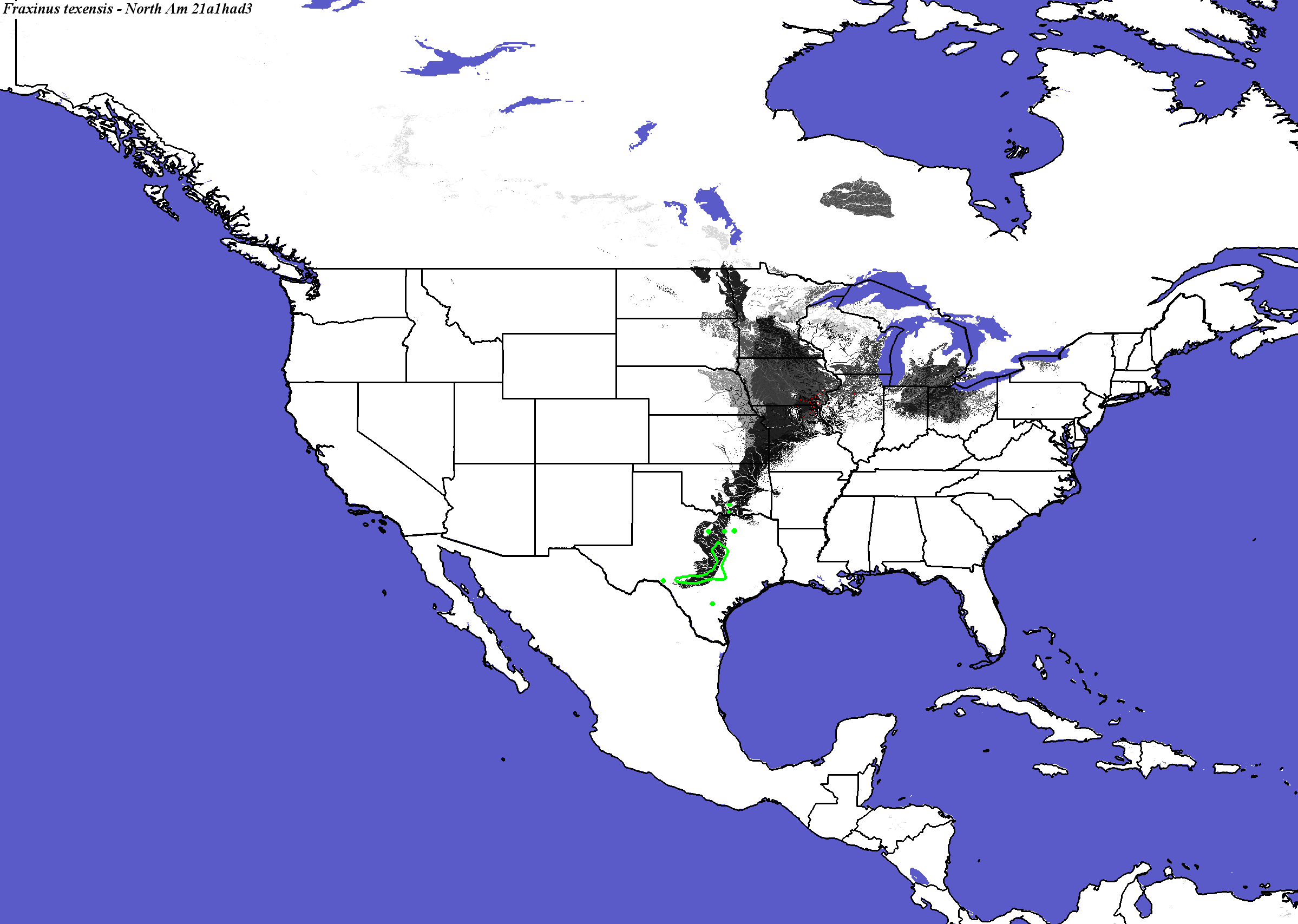

Hadley, Scenario A1FI, 2100 - Fraxinus texensis - CONUS
Fraxinus texensis not modeled by Iverson and Prasad
Fraxinus texensis not modeled by Crookston and Rehfeldt
Fraxinus texensis not modeled by Coops and Waring

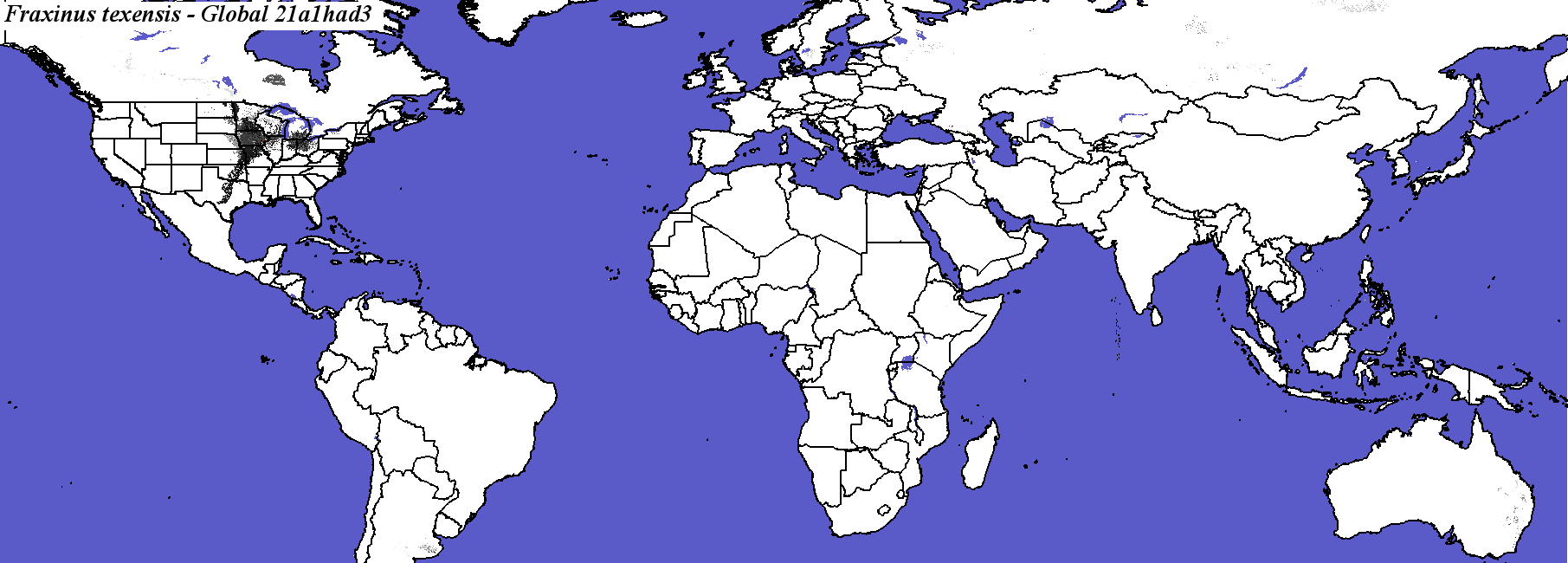

Hadley, Scenario A1FI, 2100 - Fraxinus texensis - Global

Fraxinus_texensis_final.2.conus
Fraxinus_texensis_final.2.global.

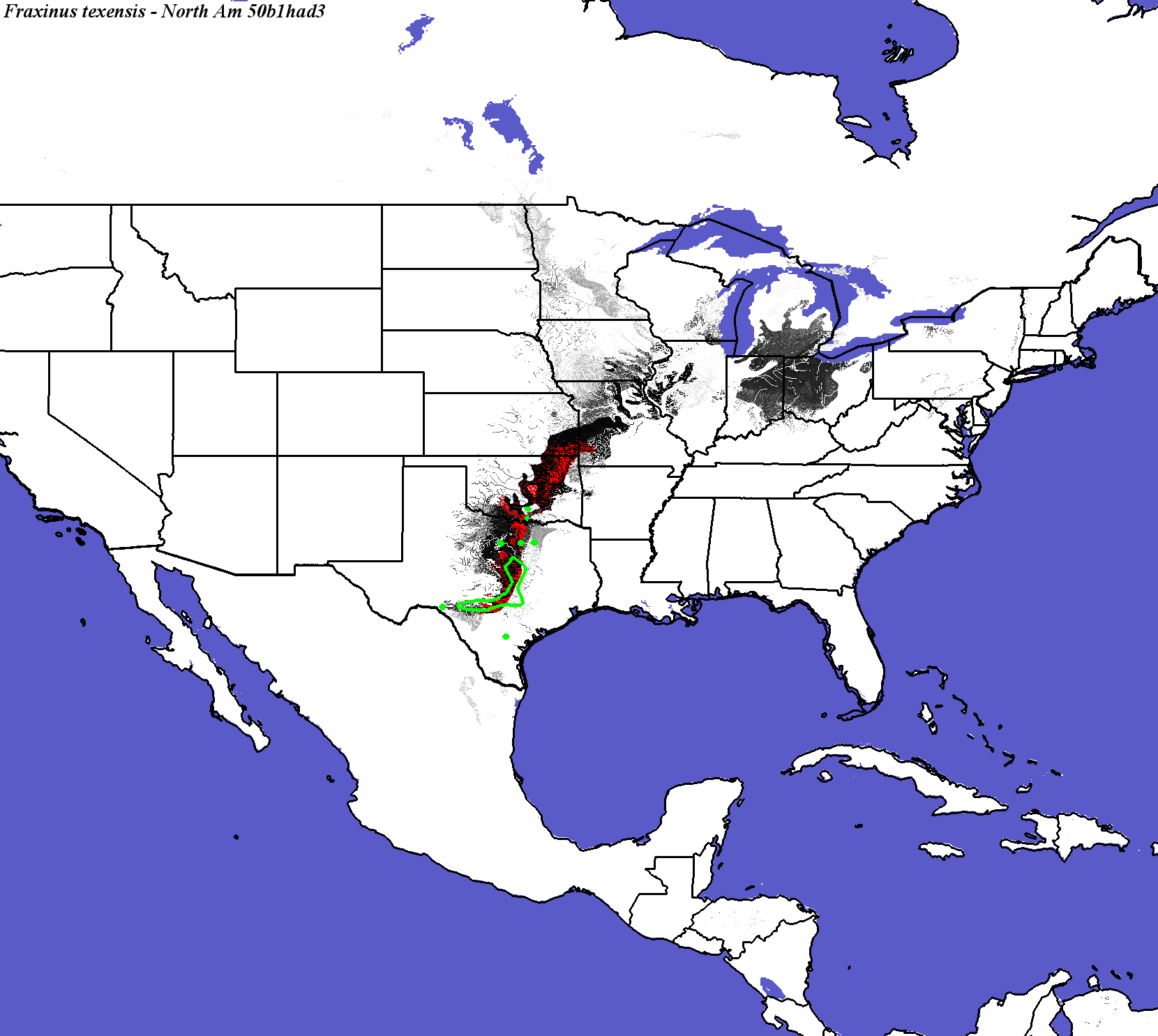

Hadley, Scenario B1, 2050 - Fraxinus texensis - CONUS
Fraxinus texensis not modeled by Crookston and Rehfeldt
Fraxinus texensis not modeled by Coops and Waring

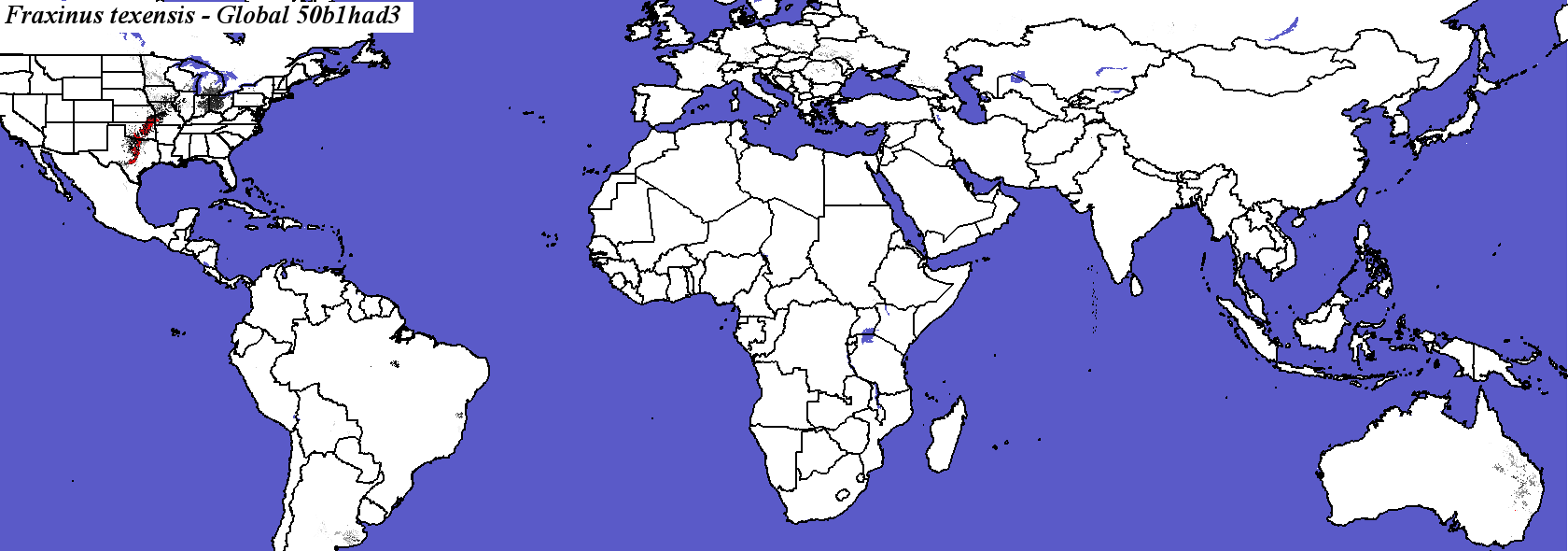

Hadley, Scenario B1, 2050 - Fraxinus texensis - Global
Fraxinus_texensis_final.2.conus
Fraxinus_texensis_final.2.global

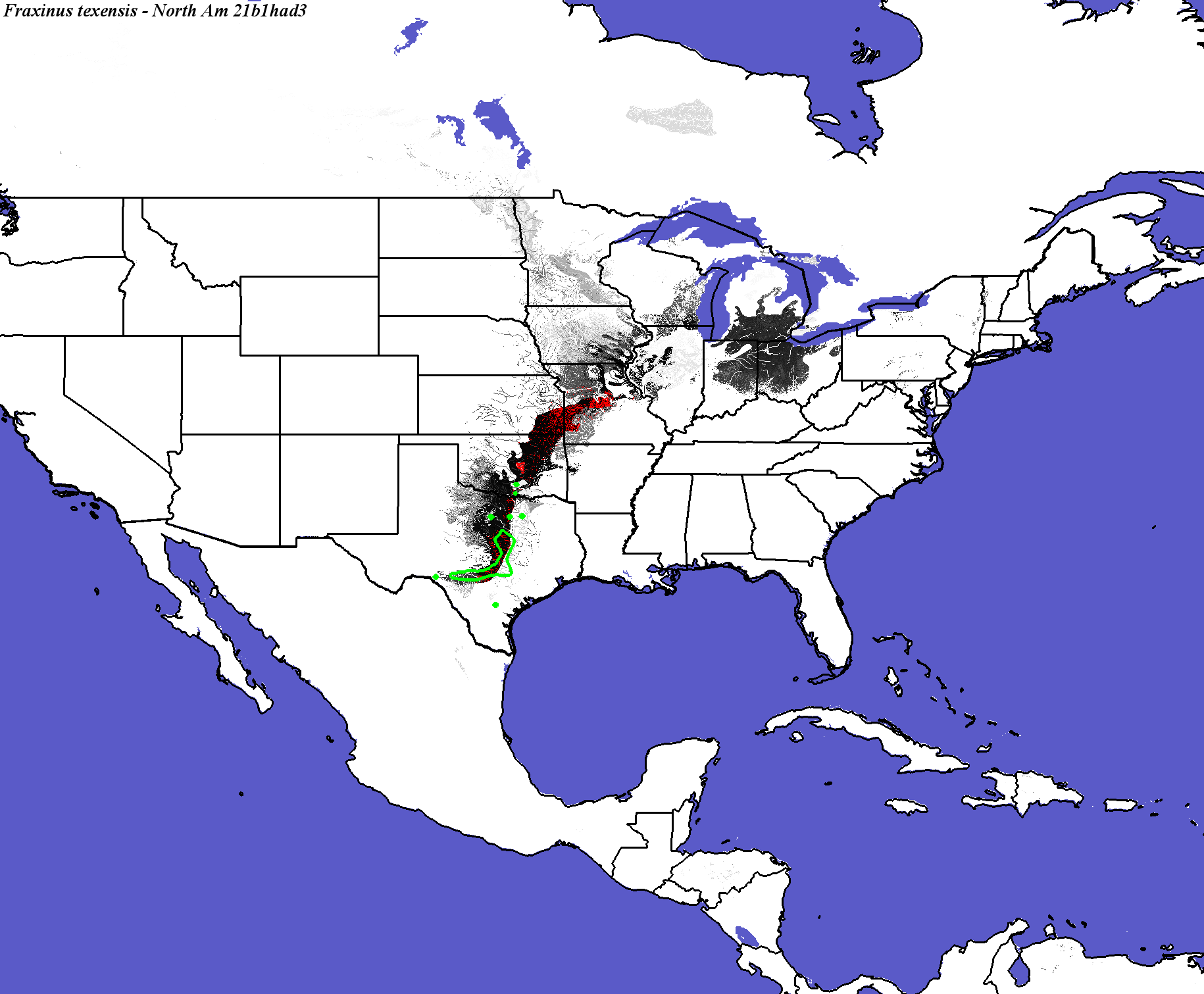

Hadley, Scenario B1, 2100 - Fraxinus texensis - CONUS
Fraxinus texensis not modeled by Iverson and Prasad
Fraxinus texensis not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Fraxinus texensis - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Fraxinus_texensis_final.elev

Number of Suitable Ecoregions (Niche Breadth)

6

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

95.0685

Area in Present Suitable Range (in km2)

64406

Area in Future Suitable Range (Had B1 2050, in km2)

26290

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

17166

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

26.6500

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

88.3562

Percent Change in Area of Suitable Range (Had B1 2050)

-59.1800

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

90.8219

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

22907.5 +/- 25101.8

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

31.7808

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

8.84956 +/- 9.40742

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

37.6712

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

15.6195 +/- 18.1212

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

90.137

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

91.5068

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

16289

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

25.2900

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

55.2055

Present and Future Ranges - Hadley, Scenario B1, 2050 - Fraxinus texensis Fraxinus texensis - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Fraxinus_texensis_final.elev Fine MRM Distance
Fraxinus_texensis_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Fraxinus texensis Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Fraxinus texensis
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Fraxinus_texensis_final.elev Coarse MRM Distance
Fraxinus_texensis_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Fraxinus texensis Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Fraxinus texensis
