Version 5 Tree Atlas


Fraxinus velutina

velvet ash

elev

Fraxinus velutina Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Fraxinus velutina

USDA Plants Database entry for Fraxinus velutina
Silvics Manual entry for Fraxinus velutina


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Fraxinus velutina var. coriacea; Fraxinus velutina var. glabra; Fraxinus velutina var. toumeyi2326328range seems mostly well represented

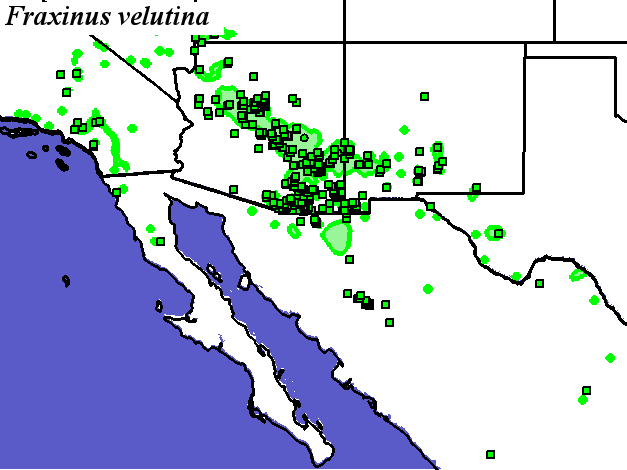

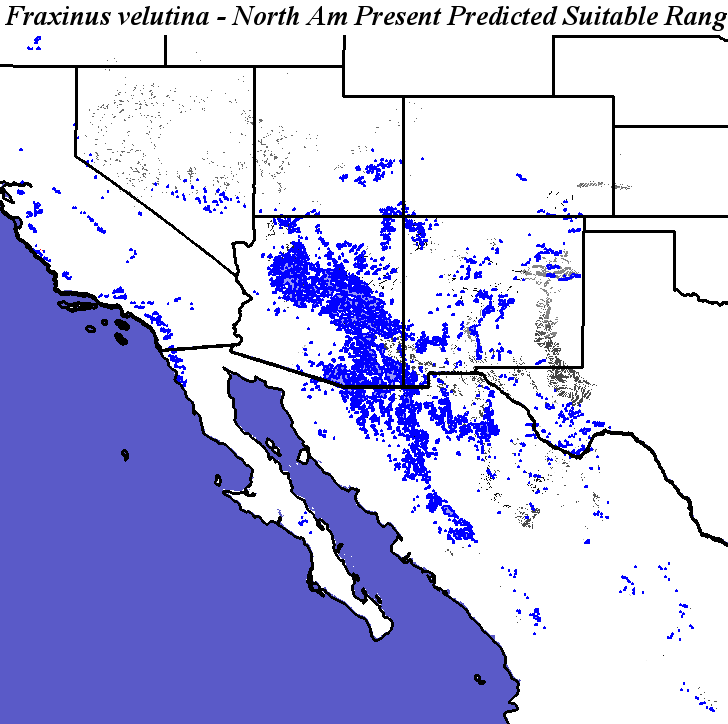

Occurrence Locations and Hargrove's Present Suitable Range Outline
Fraxinus_velutina_final Occurrences
Hargroves Present Suitable Range Outline for Fraxinus_velutina_final
Fraxinus velutina - Occurrence Locations Fraxinus velutina - Hargrove's Present Suitable Range Outline
Present Conditions
Fraxinus_velutina_final.3.conus
Fraxinus_velutina_final.3.global

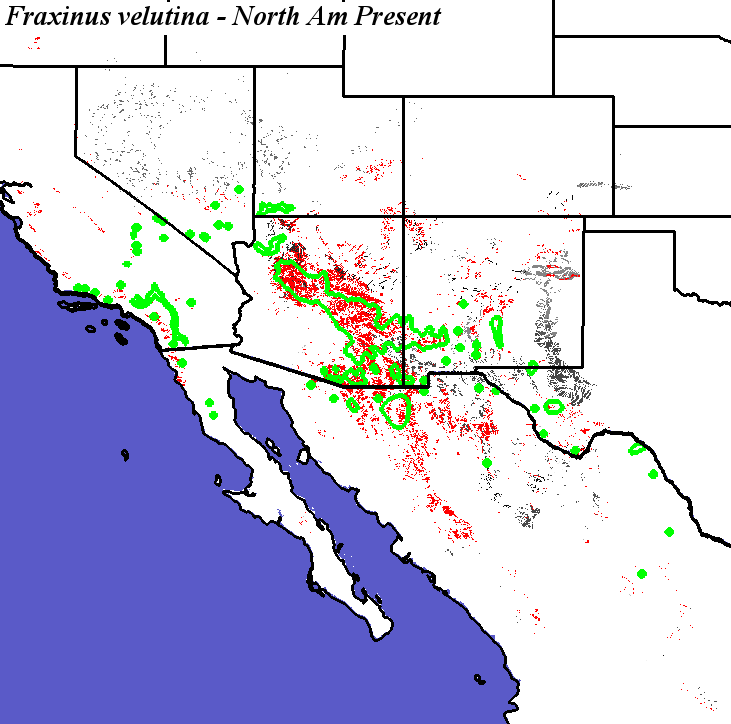

Fraxinus velutina - CONUS
Compare with Current Range from the Silvics Manual for Fraxinus velutina
Compare with Current Range from Biota of North America Program (BONAP) for Fraxinus velutina

Fraxinus velutina not modeled by Iverson and Prasad
Fraxinus velutina not modeled by Crookston and Rehfeldt
Fraxinus velutina not modeled by Coops and Waring

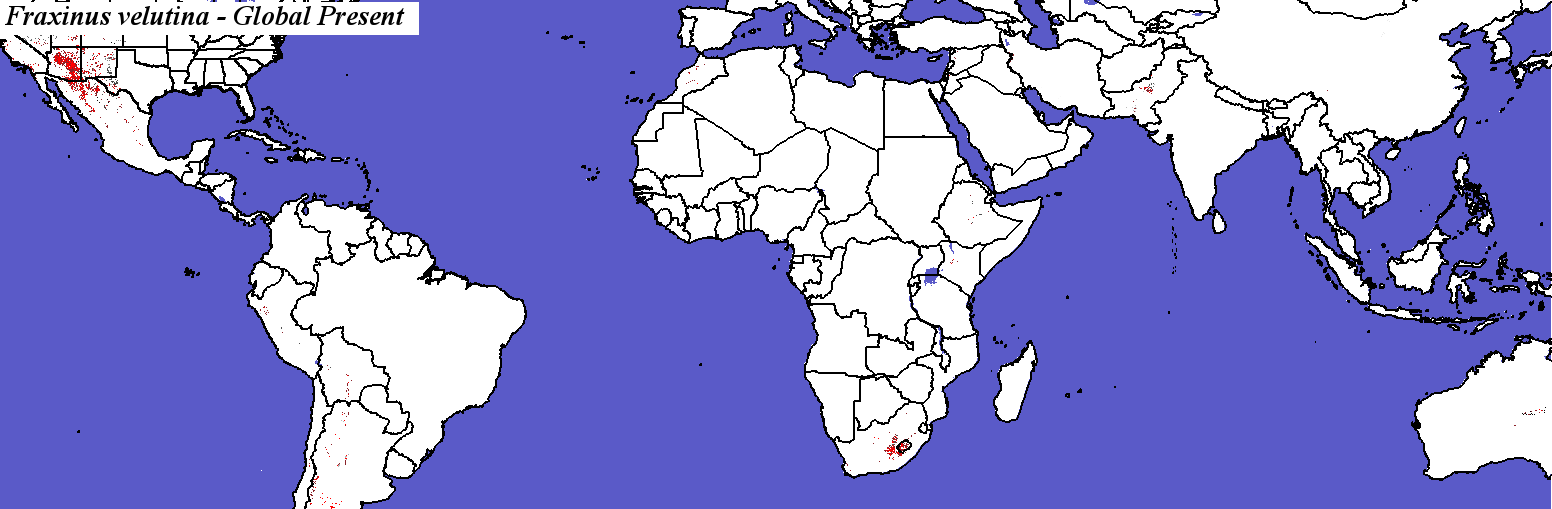

Fraxinus velutina - Global

PCM - Parallel Climate Model
Fraxinus_velutina_final.3.conus
Fraxinus_velutina_final.3.global

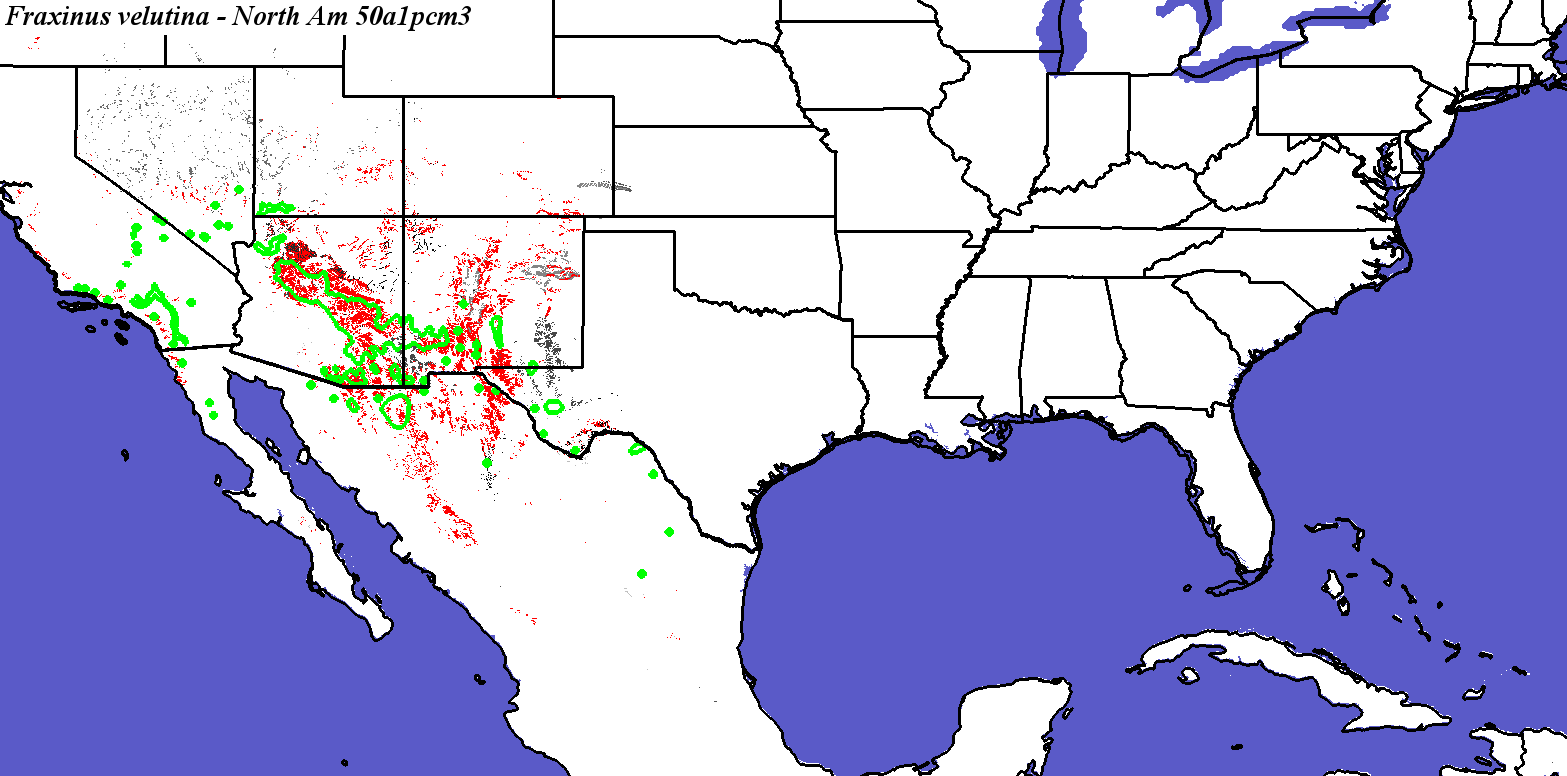

PCM, Scenario A1FI, 2050 - Fraxinus velutina - CONUS

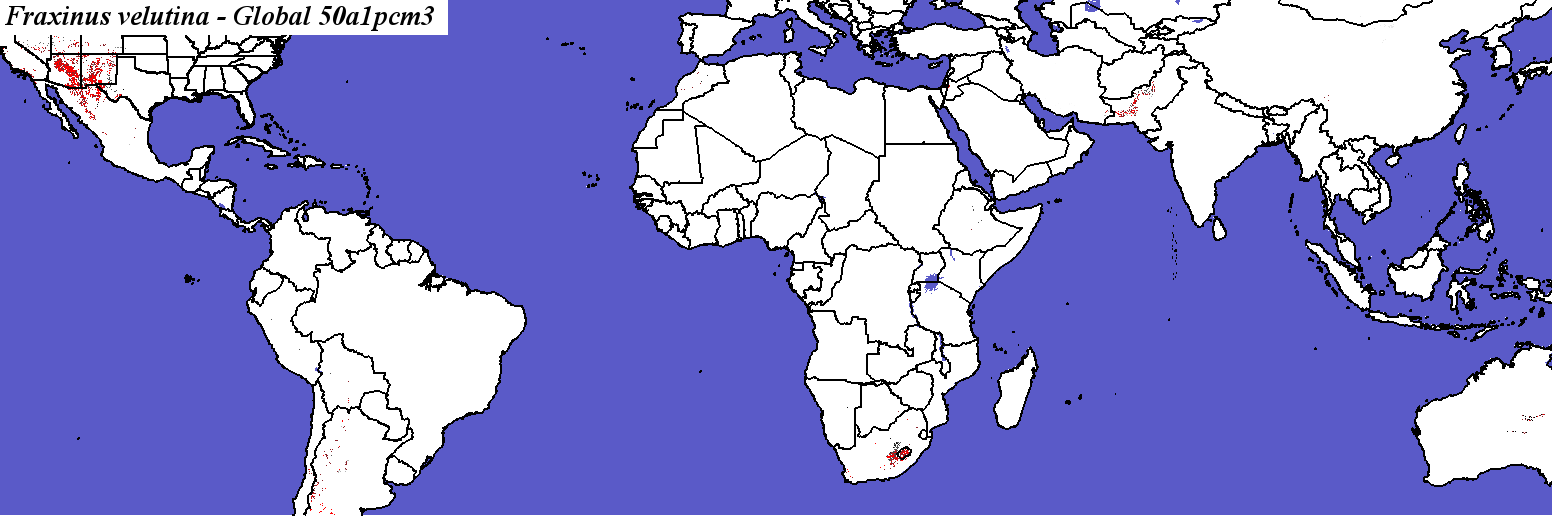

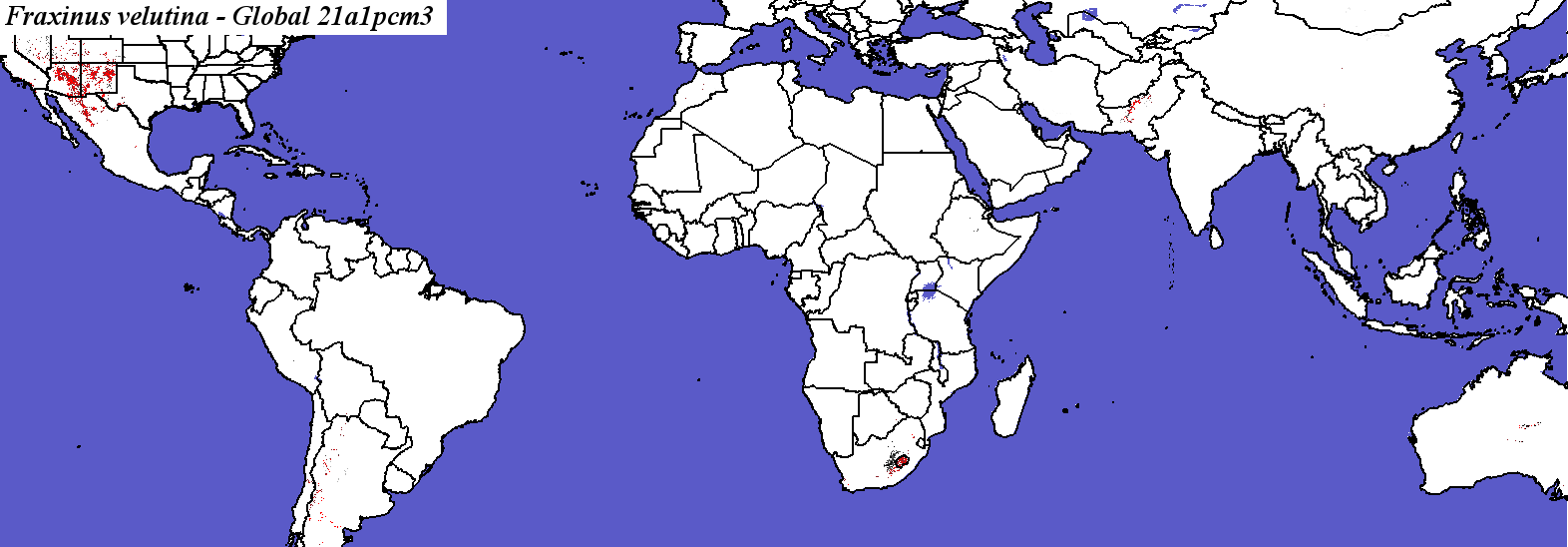

PCM, Scenario A1FI, 2050 - Fraxinus velutina - Global
Fraxinus_velutina_final.3.conus
Fraxinus_velutina_final.3.global

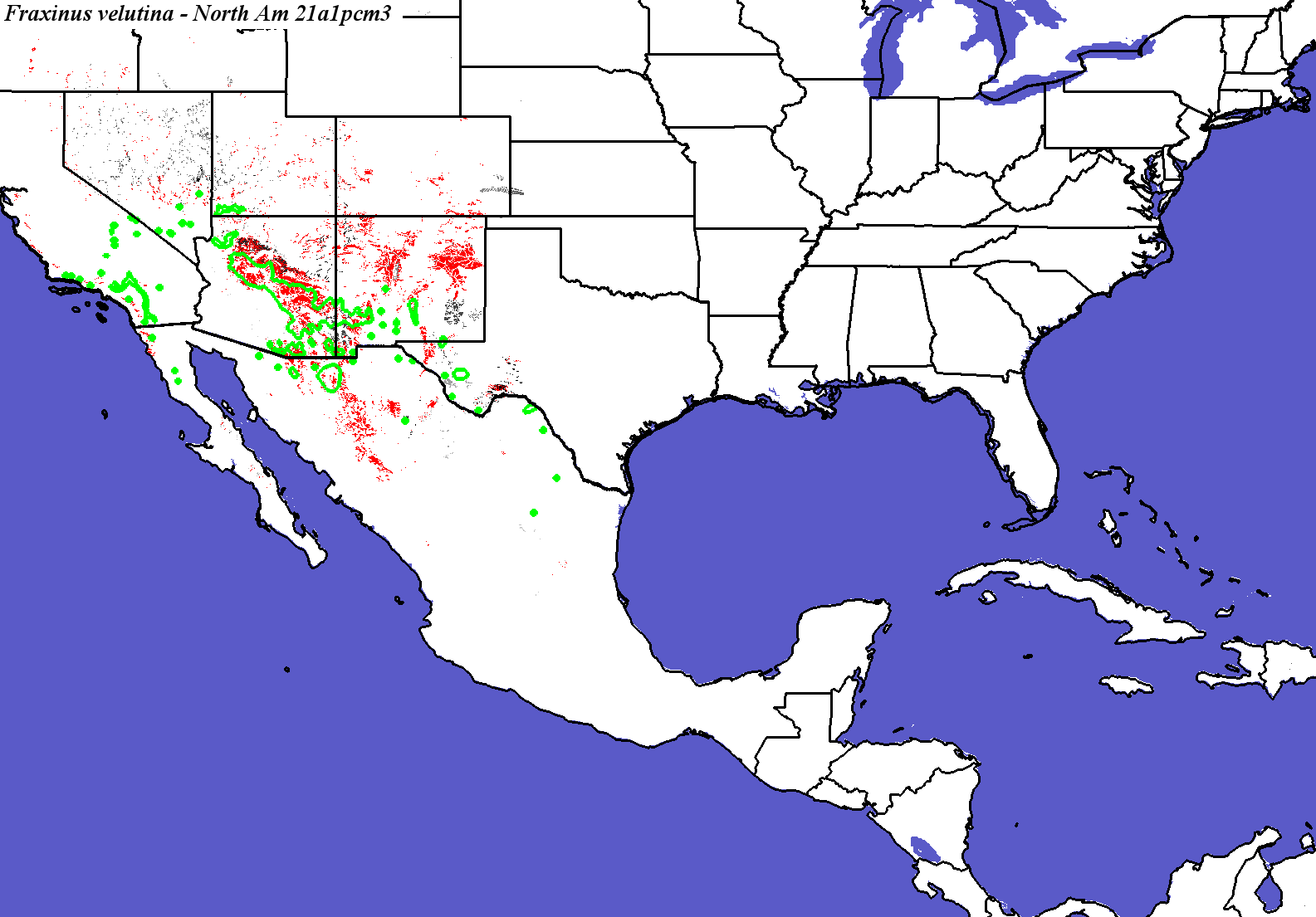

PCM, Scenario A1FI, 2100 - Fraxinus velutina - CONUS
Fraxinus velutina species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Fraxinus velutina - Global

Fraxinus_velutina_final.3.conus
Fraxinus_velutina_final.3.global

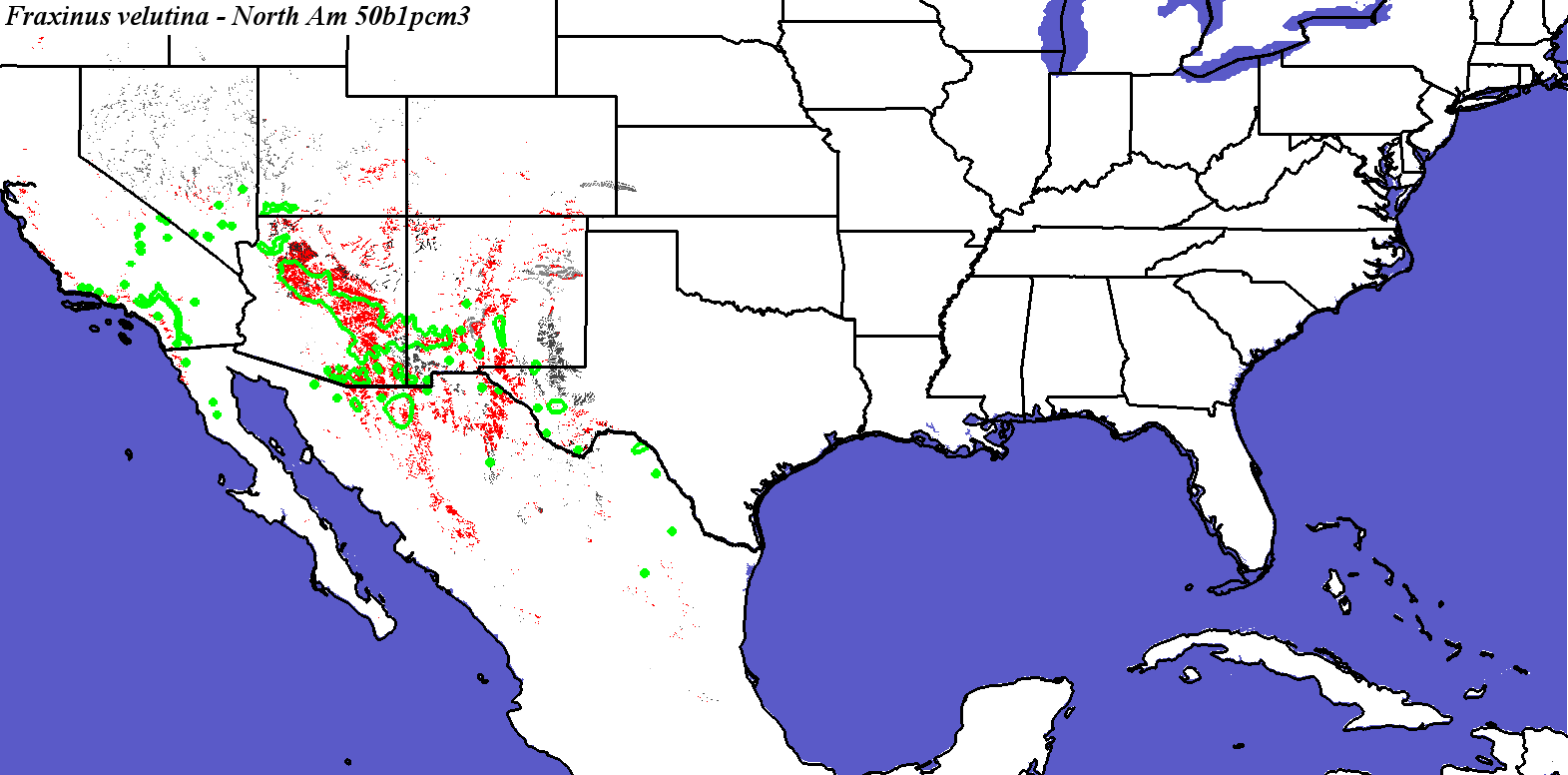

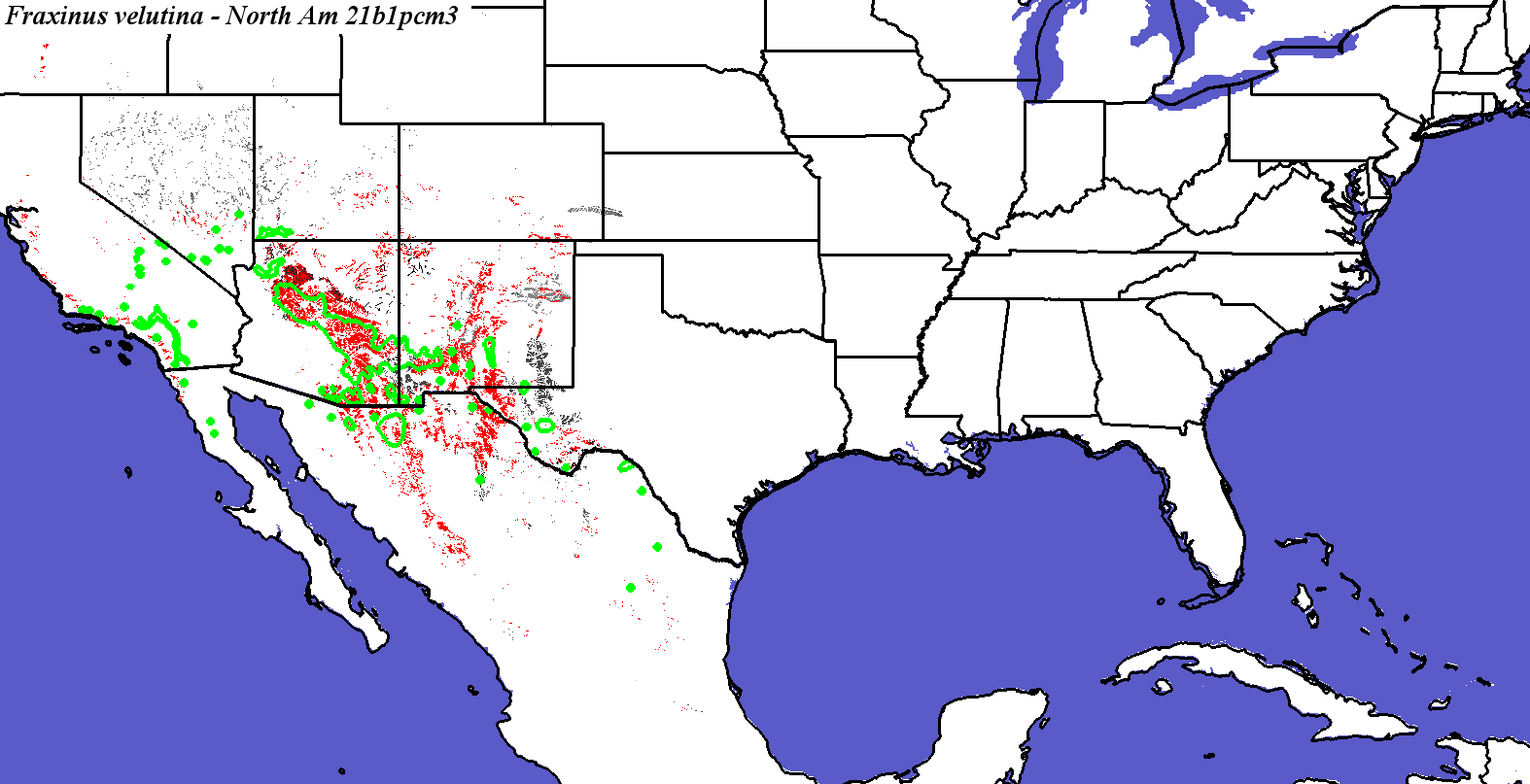

PCM, Scenario B1, 2050 - Fraxinus velutina - CONUS

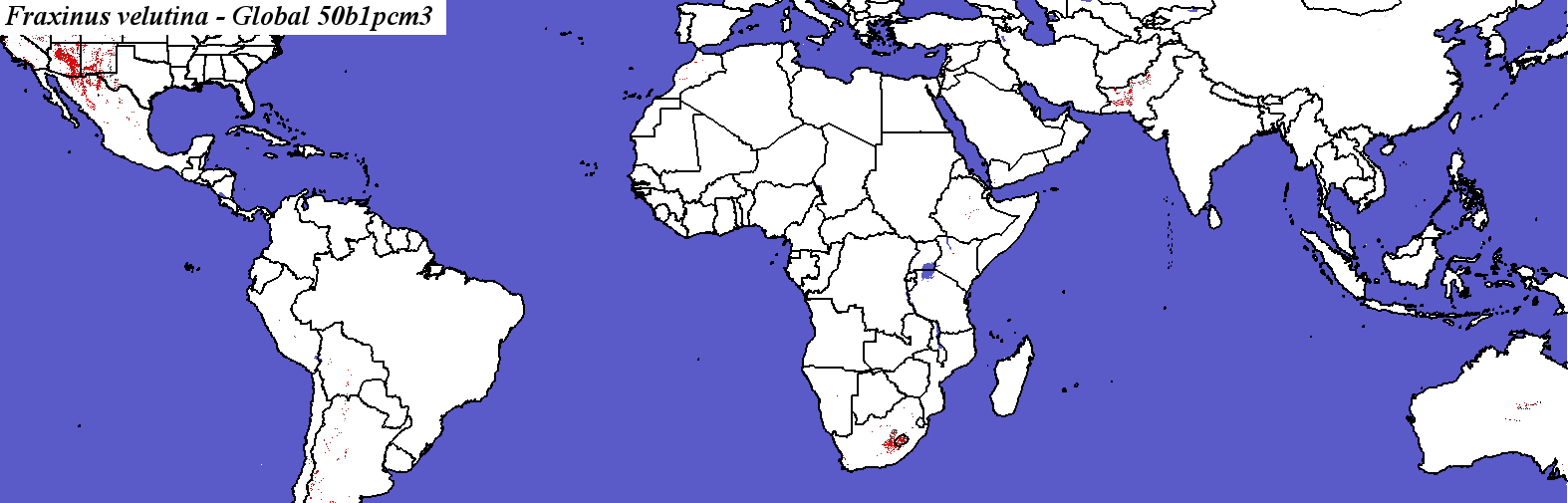

PCM, Scenario B1, 2050 - Fraxinus velutina - Global
Fraxinus_velutina_final.3.conus
Fraxinus_velutina_final.3.global
PCM, Scenario B1, 2100 - Fraxinus velutina - CONUS
Fraxinus velutina not modeled by Iverson and Prasad

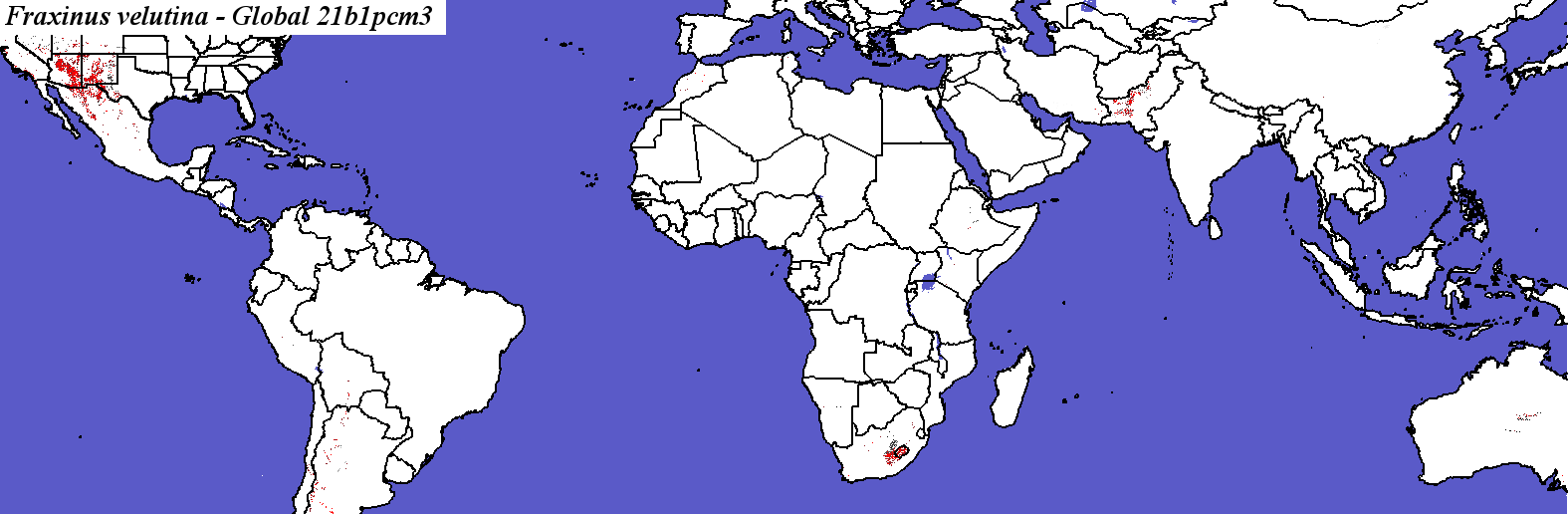

PCM, Scenario B1, 2100 - Fraxinus velutina - Global

Hadley Climate Model
Fraxinus_velutina_final.3.conus
Fraxinus_velutina_final.3.global
Hadley, Scenario A1FI, 2050 - Fraxinus velutina - CONUS
Fraxinus velutina not modeled by Crookston and Rehfeldt

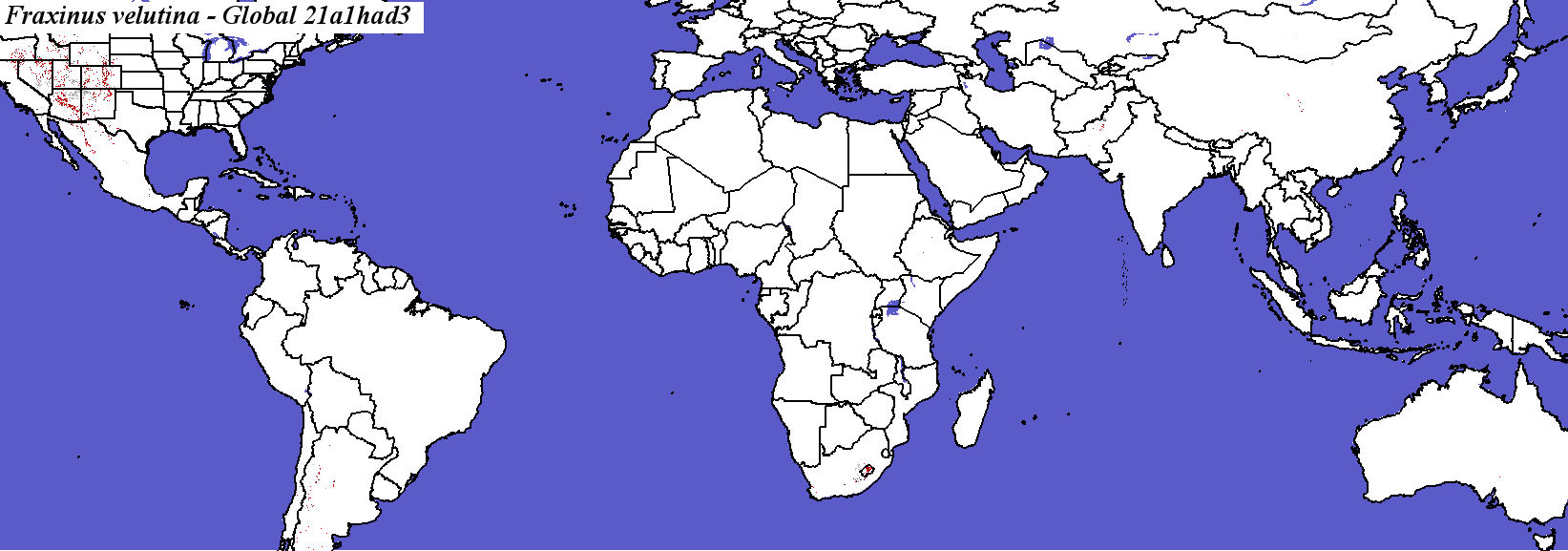

Hadley, Scenario A1FI, 2050 - Fraxinus velutina - Global
Fraxinus_velutina_final.3.conus
Fraxinus_velutina_final.3.global.

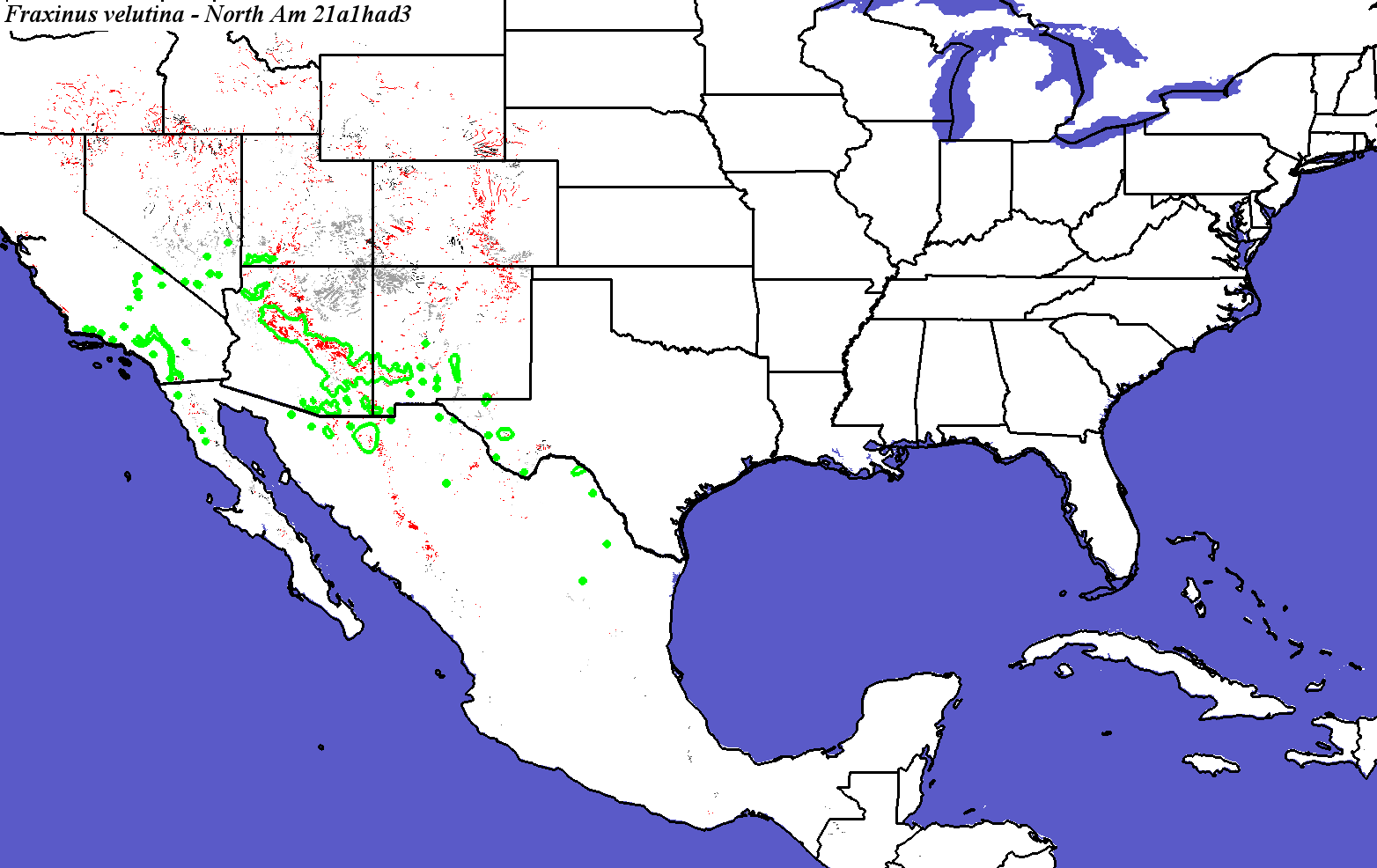

Hadley, Scenario A1FI, 2100 - Fraxinus velutina - CONUS
Fraxinus velutina not modeled by Iverson and Prasad
Fraxinus velutina not modeled by Crookston and Rehfeldt
Fraxinus velutina not modeled by Coops and Waring

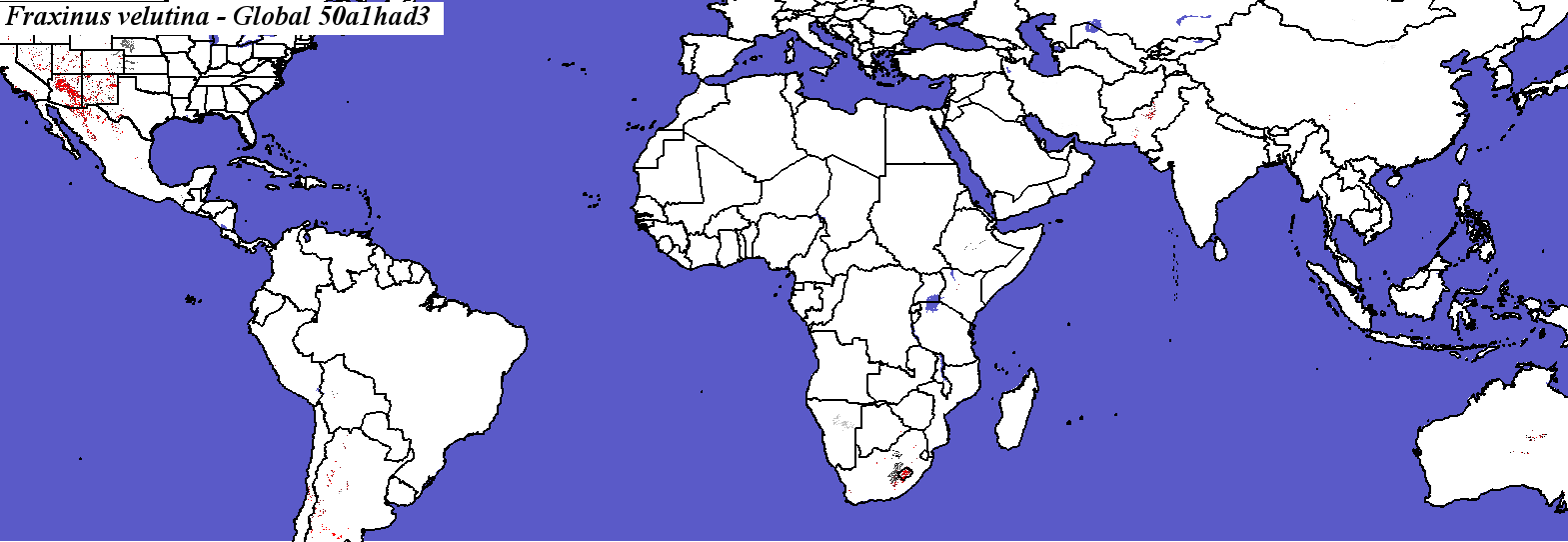

Hadley, Scenario A1FI, 2100 - Fraxinus velutina - Global

Fraxinus_velutina_final.3.conus
Fraxinus_velutina_final.3.global.

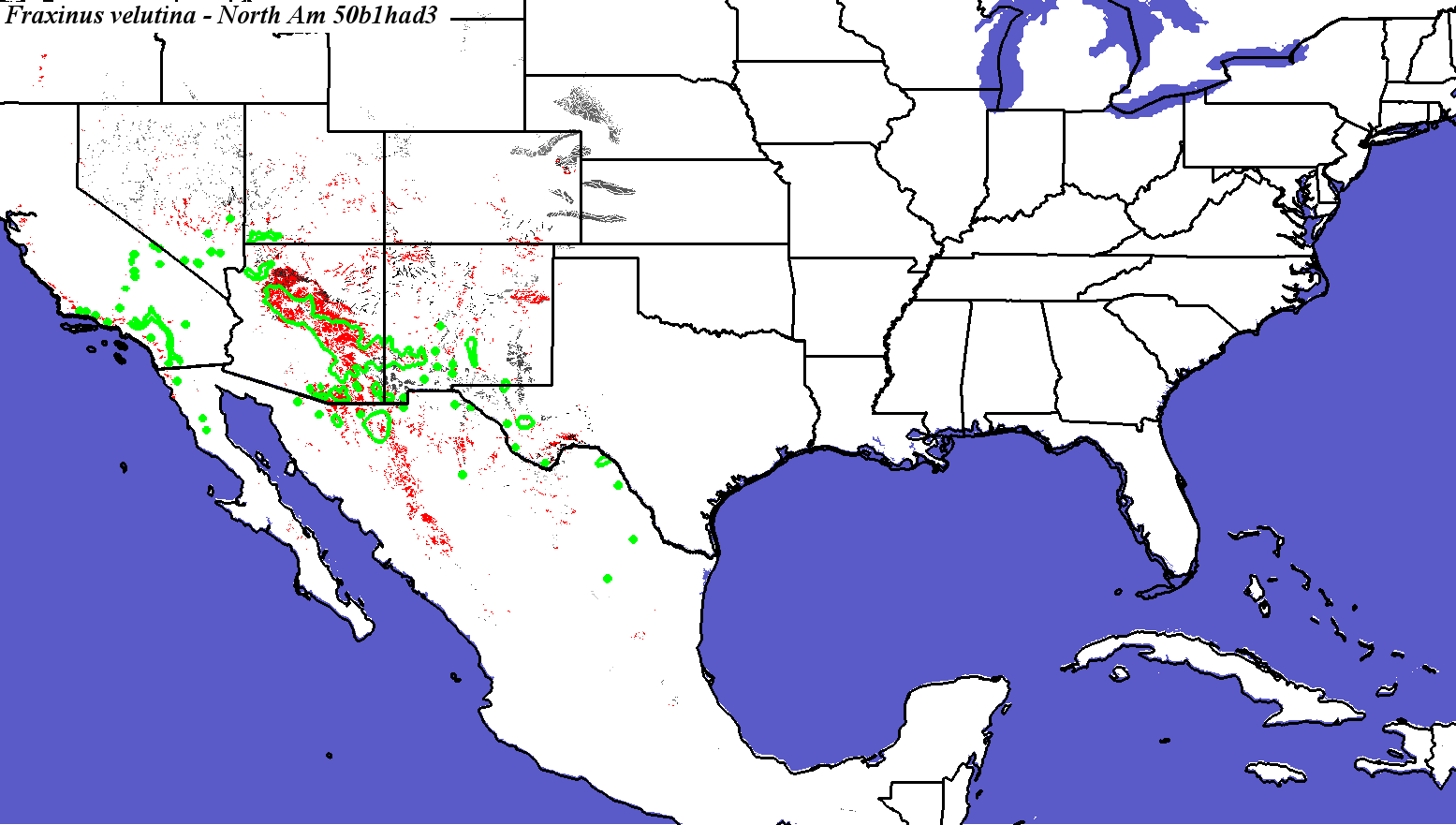

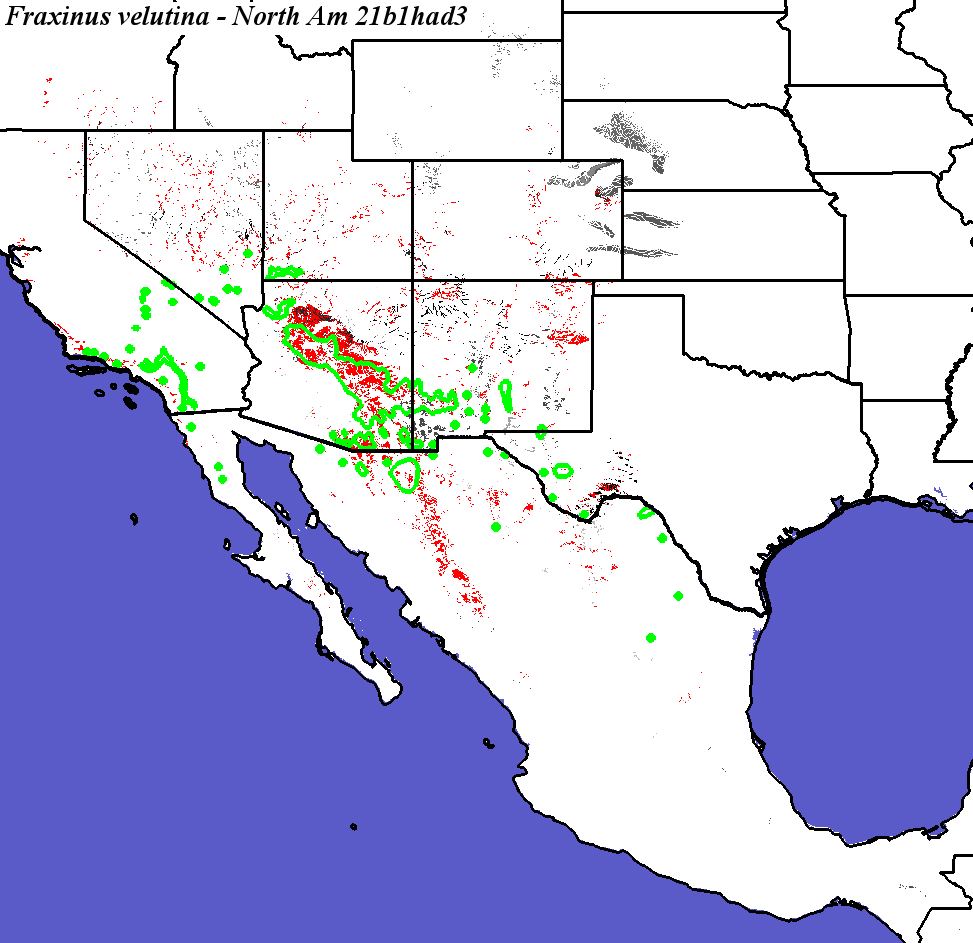

Hadley, Scenario B1, 2050 - Fraxinus velutina - CONUS
Fraxinus velutina not modeled by Crookston and Rehfeldt
Fraxinus velutina not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Fraxinus velutina - Global
Fraxinus_velutina_final.3.conus
Fraxinus_velutina_final.3.global
Hadley, Scenario B1, 2100 - Fraxinus velutina - CONUS
Fraxinus velutina not modeled by Iverson and Prasad
Fraxinus velutina not modeled by Crookston and Rehfeldt

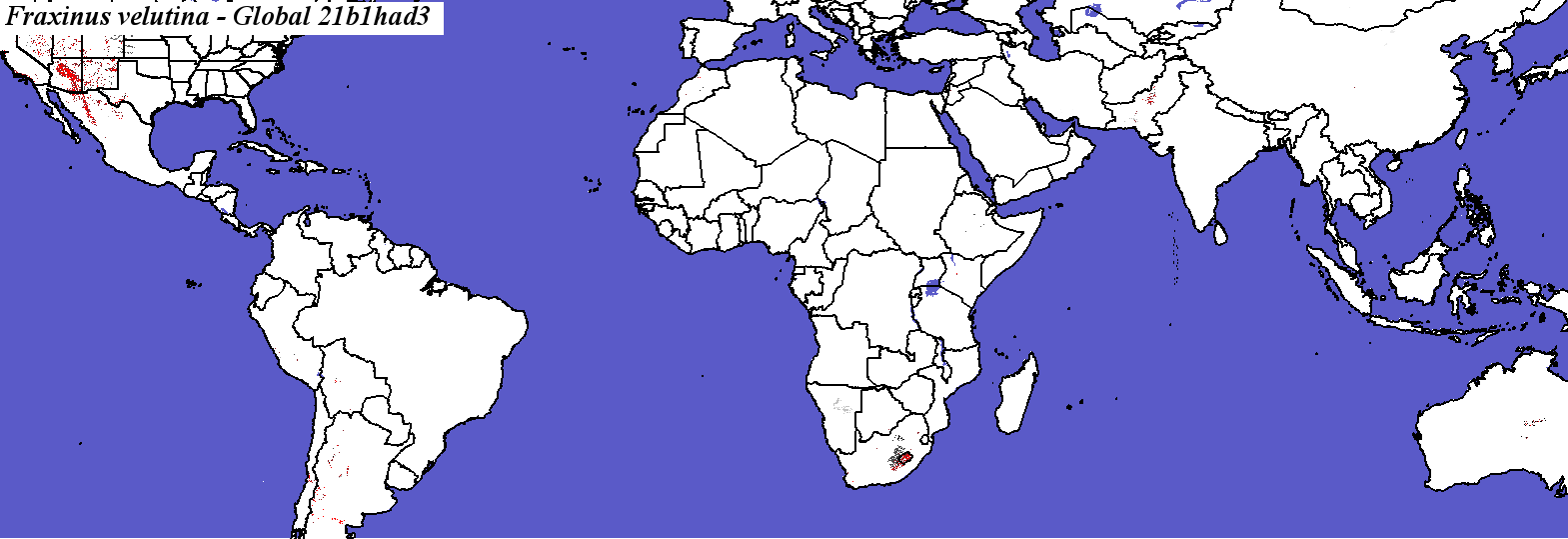

Hadley, Scenario B1, 2100 - Fraxinus velutina - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Fraxinus_velutina_final.elev

Number of Suitable Ecoregions (Niche Breadth)

33

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

48.4932

Area in Present Suitable Range (in km2)

150278

Area in Future Suitable Range (Had B1 2050, in km2)

131333

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

81041

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

53.9200

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

40.8219

Percent Change in Area of Suitable Range (Had B1 2050)

-12.6000

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

20.411

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

10139.1 +/- 23991.3

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

66.3014

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

4.48334 +/- 8.43887

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

69.589

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

120.791 +/- 548.551

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

41.9178

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

4182

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

2.7800

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

38.6301

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

51684

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

34.3900

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

33.6986

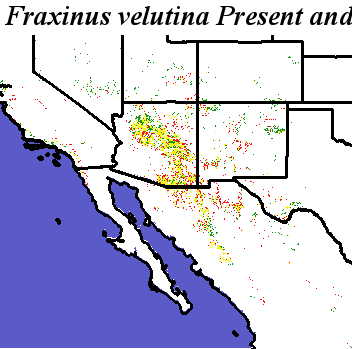

Present and Future Ranges - Hadley, Scenario B1, 2050 - Fraxinus velutina Fraxinus velutina - Range Change Statistics

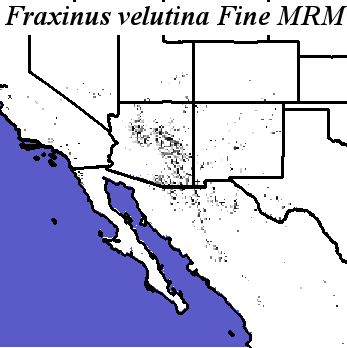

Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Fraxinus_velutina_final.elev Fine MRM Distance
Fraxinus_velutina_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Fraxinus velutina Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Fraxinus velutina

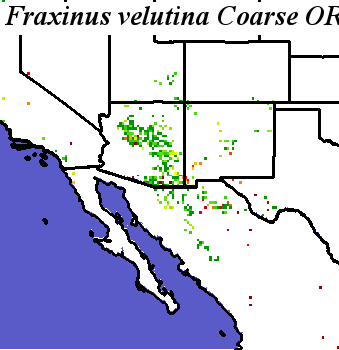

Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Fraxinus_velutina_final.elev Coarse MRM Distance
Fraxinus_velutina_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Fraxinus velutina Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Fraxinus velutina

Thu Jul 21 10:06:21 EDT 2016
