Version 5 Tree Atlas


Juglans cinerea

butternut

elev

Juglans cinerea Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Juglans cinerea

USDA Plants Database entry for Juglans cinerea
Silvics Manual entry for Juglans cinerea


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
28982371Parts of range not well sampled

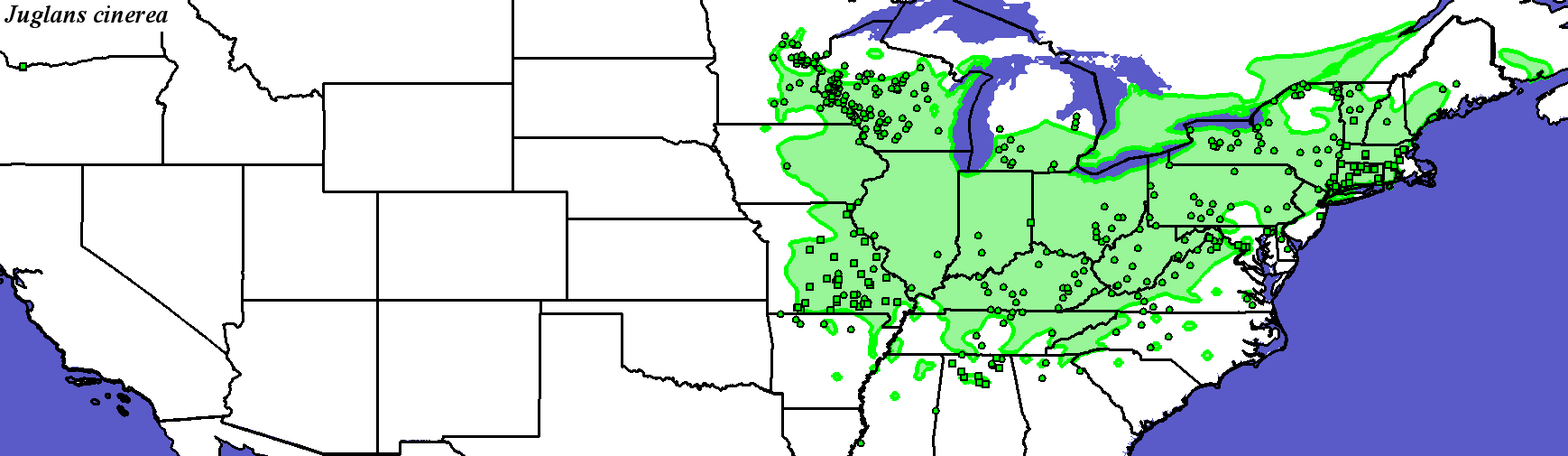

Occurrence Locations and Hargrove's Present Suitable Range Outline
Juglans_cinerea_final Occurrences

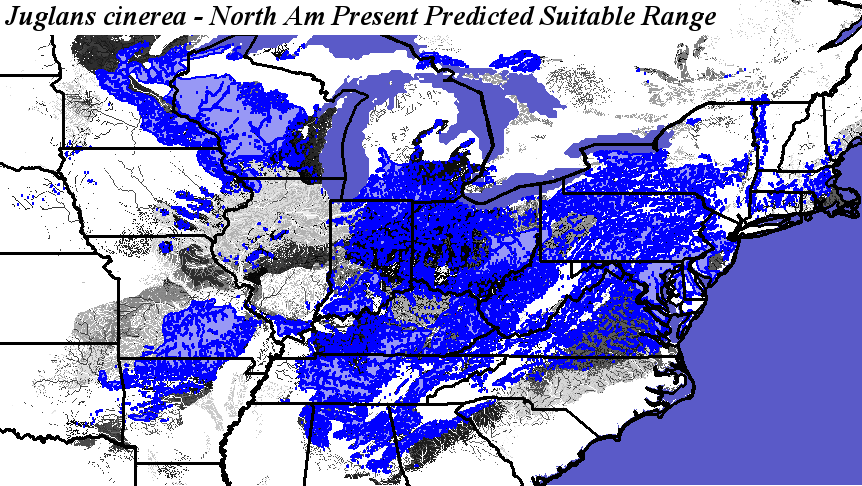

Hargroves Present Suitable Range Outline for Juglans_cinerea_final
Juglans cinerea - Occurrence Locations Juglans cinerea - Hargrove's Present Suitable Range Outline
Present Conditions
Juglans_cinerea_final.3.conus
Juglans_cinerea_final.3.global

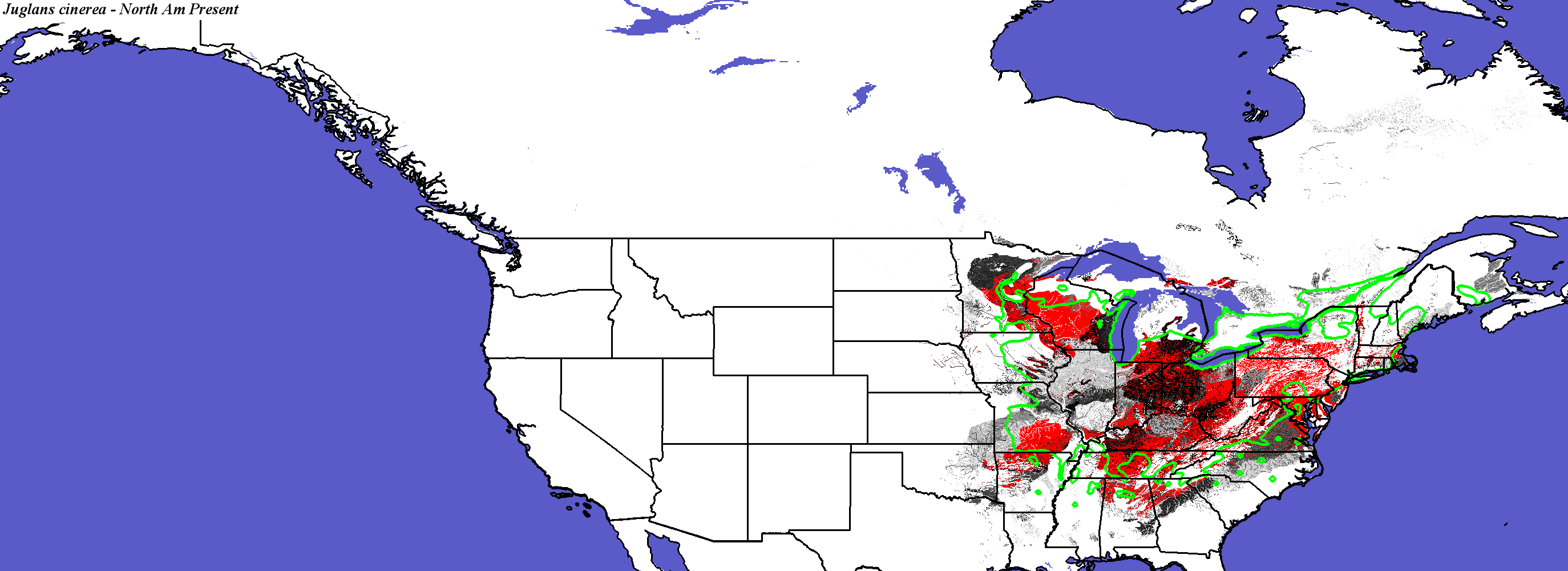

Juglans cinerea - CONUS
Compare with Current Range from the Silvics Manual for Juglans cinerea
Compare with Current Range from Biota of North America Program (BONAP) for Juglans cinerea

Compare with Juglans cinerea modeled for Current conditions by Iverson and Prasad
Juglans cinerea not modeled by Crookston and Rehfeldt
Juglans cinerea not modeled by Coops and Waring

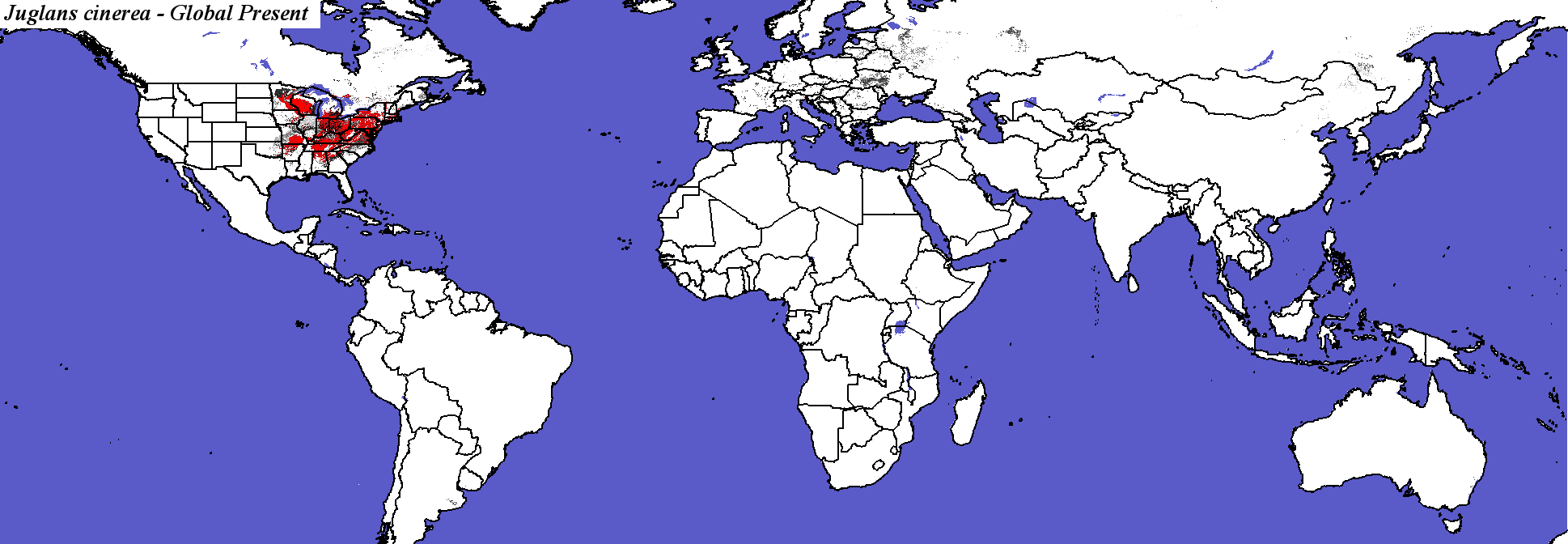

Juglans cinerea - Global

PCM - Parallel Climate Model
Juglans_cinerea_final.3.conus
Juglans_cinerea_final.3.global

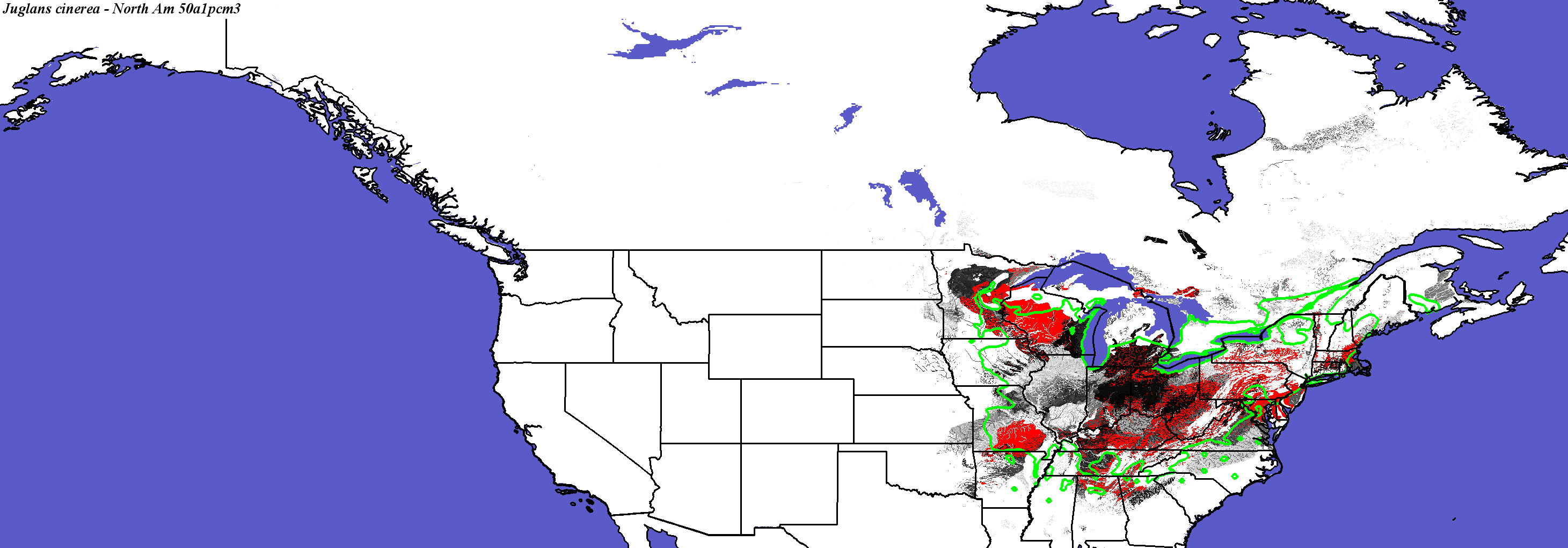

PCM, Scenario A1FI, 2050 - Juglans cinerea - CONUS
PCM, Scenario A1FI, 2050 - Juglans cinerea - Global
Juglans_cinerea_final.3.conus
Juglans_cinerea_final.3.global

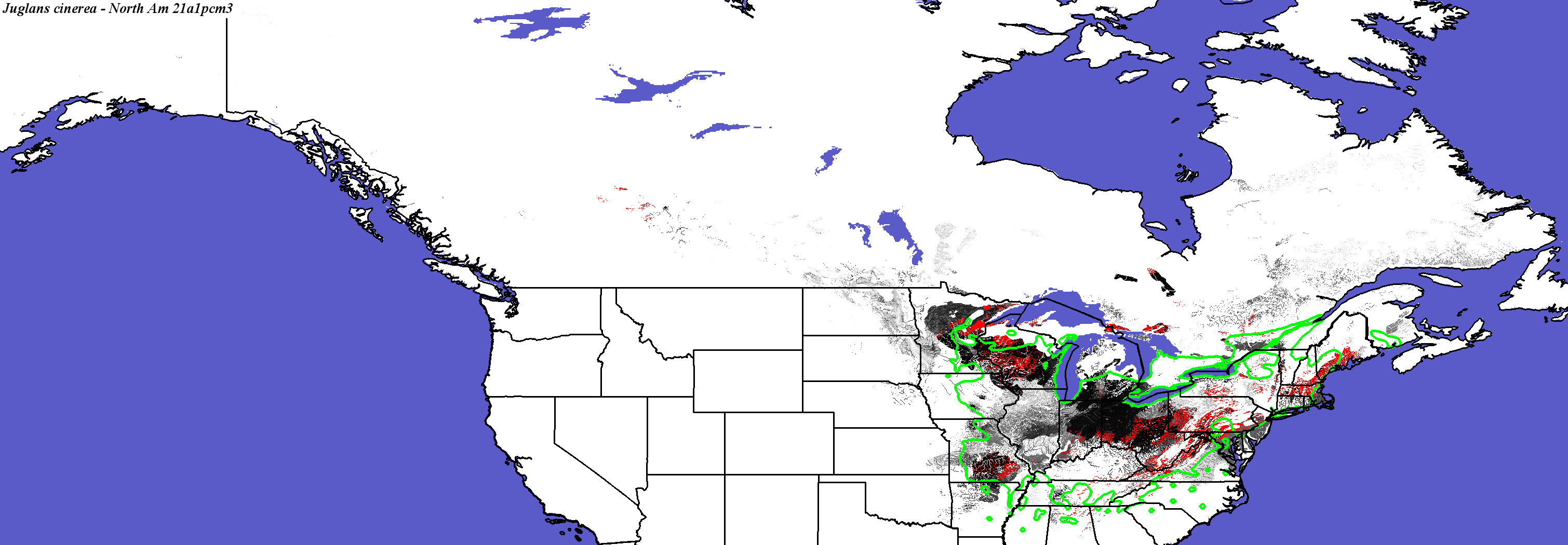

PCM, Scenario A1FI, 2100 - Juglans cinerea - CONUS
Compare with Juglans cinerea modeled for PCM A1FI in 2100 by Iverson and Prasad

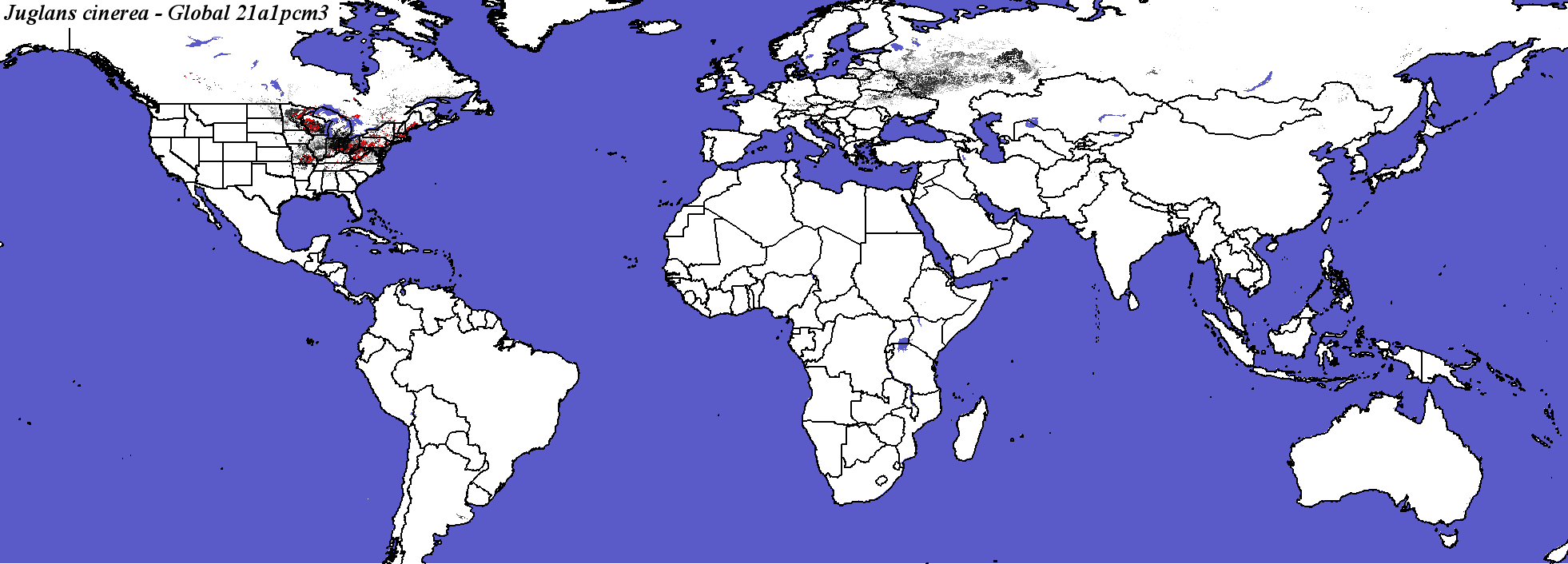

PCM, Scenario A1FI, 2100 - Juglans cinerea - Global

Juglans_cinerea_final.3.conus
Juglans_cinerea_final.3.global
PCM, Scenario B1, 2050 - Juglans cinerea - CONUS

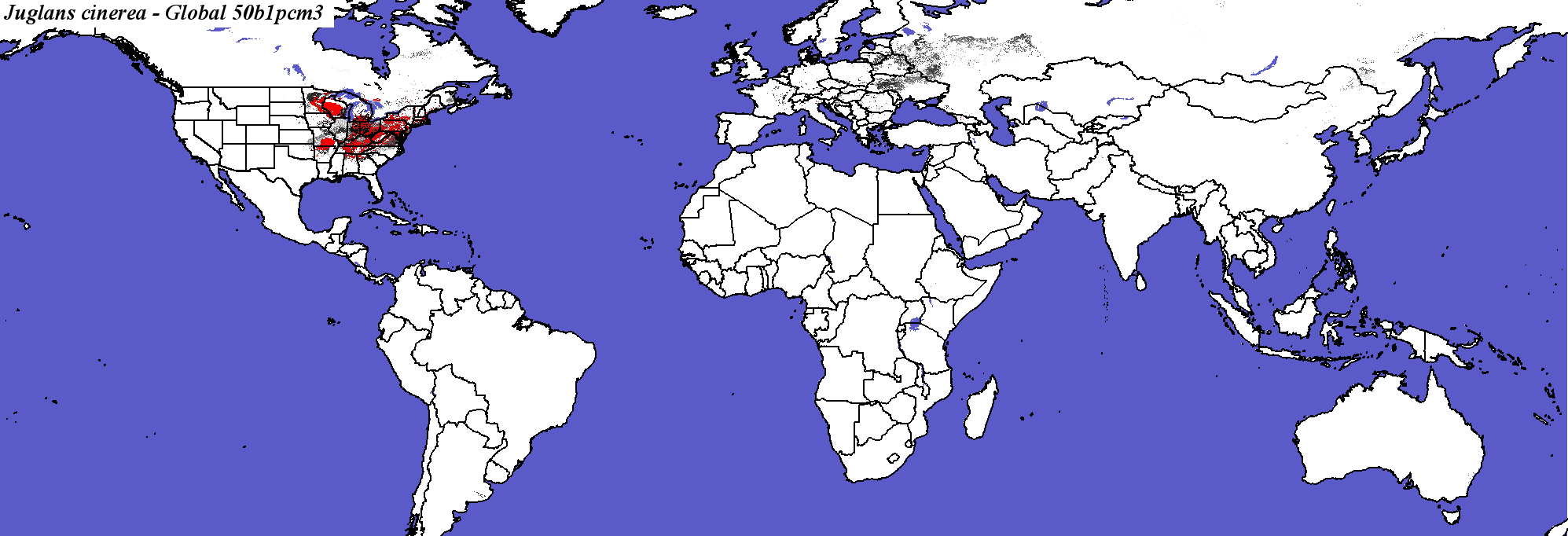

PCM, Scenario B1, 2050 - Juglans cinerea - Global
Juglans_cinerea_final.3.conus
Juglans_cinerea_final.3.global
PCM, Scenario B1, 2100 - Juglans cinerea - CONUS
Compare with Juglans cinerea modeled for PCM B1 in 2100 by Iverson and Prasad

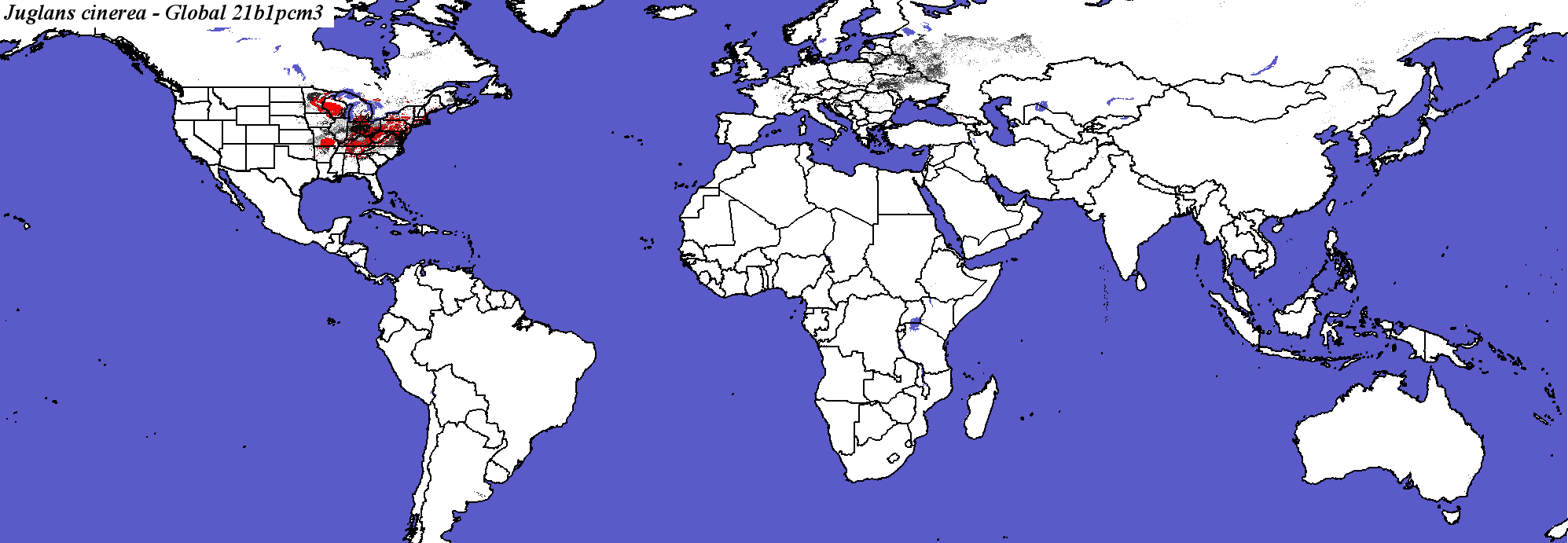

PCM, Scenario B1, 2100 - Juglans cinerea - Global

Hadley Climate Model
Juglans_cinerea_final.3.conus
Juglans_cinerea_final.3.global
Hadley, Scenario A1FI, 2050 - Juglans cinerea - CONUS
Juglans cinerea not modeled by Crookston and Rehfeldt

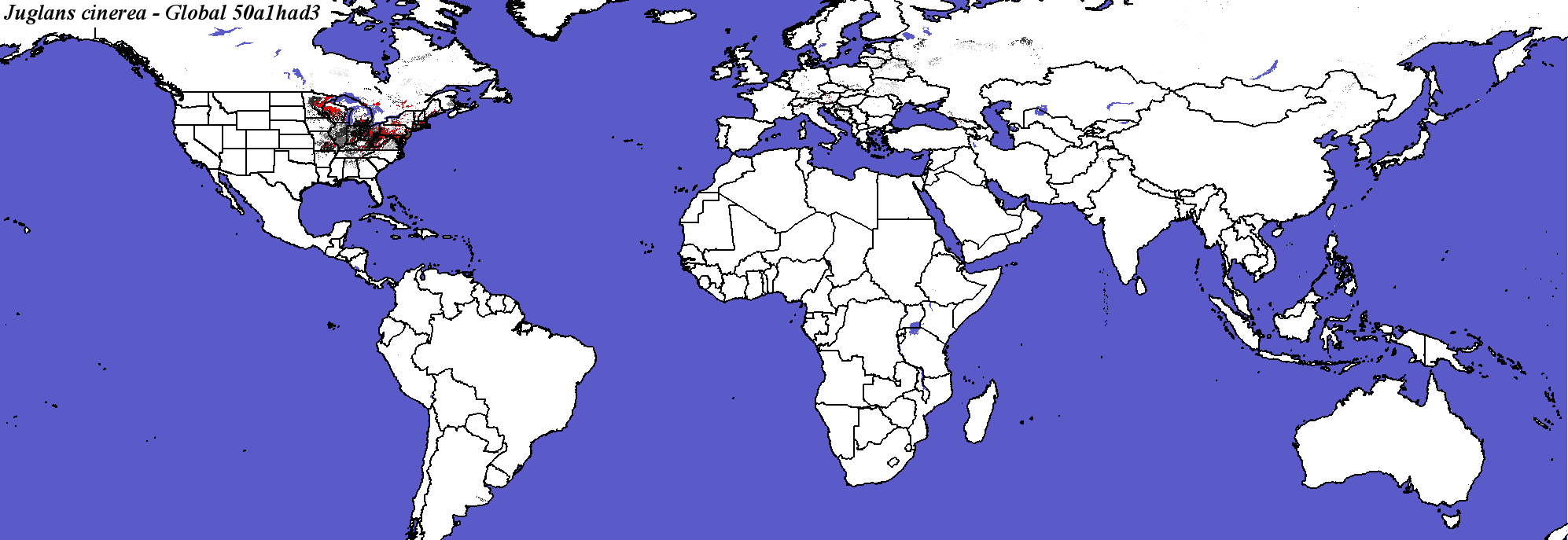

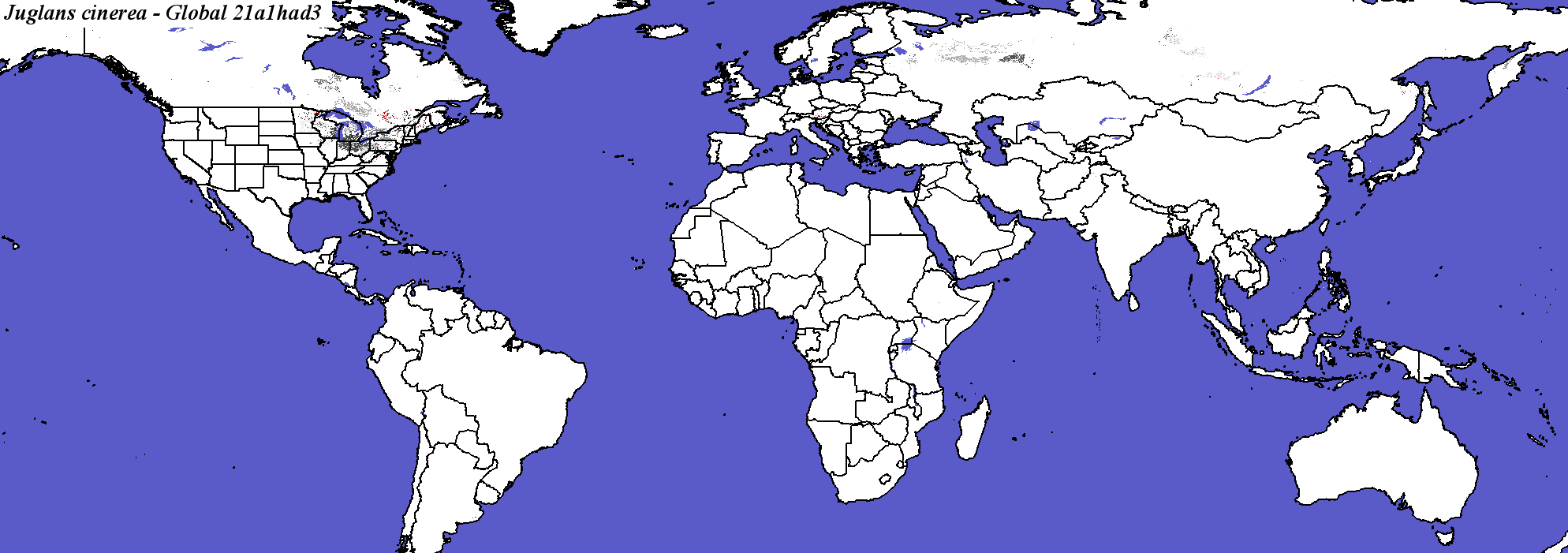

Hadley, Scenario A1FI, 2050 - Juglans cinerea - Global
Juglans_cinerea_final.3.conus
Juglans_cinerea_final.3.global.

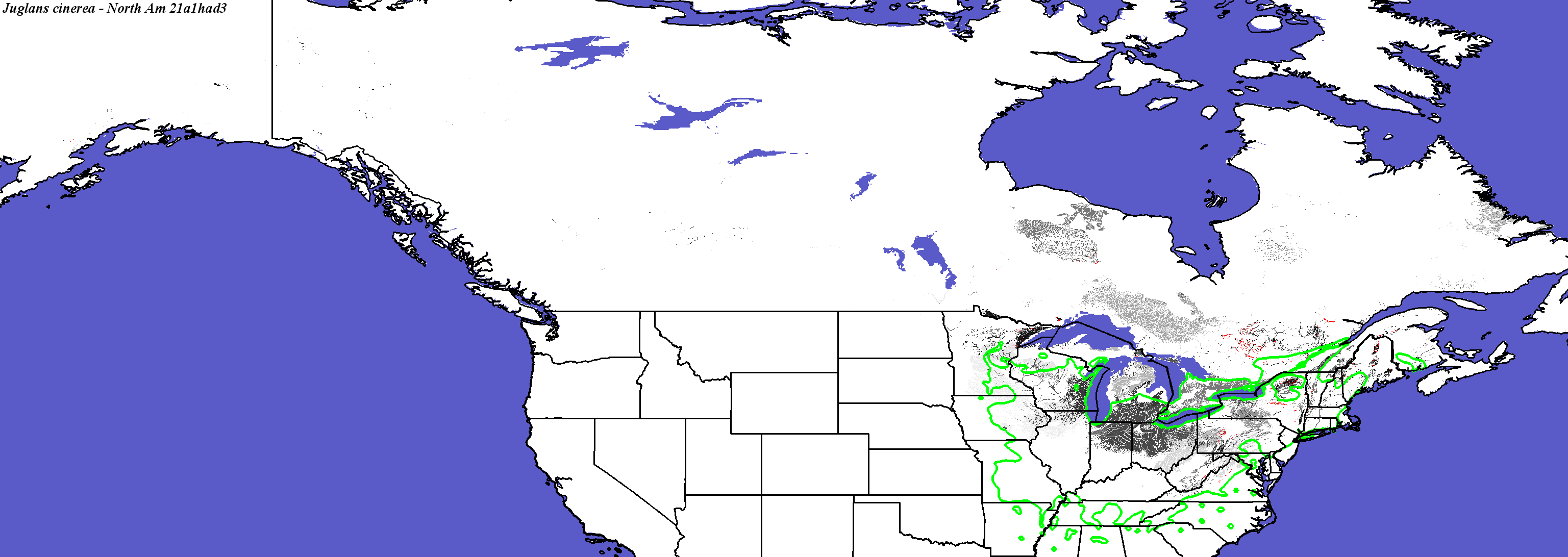

Hadley, Scenario A1FI, 2100 - Juglans cinerea - CONUS
Compare with Juglans cinerea modeled for Hadley A1FI in 2100 by Iverson and Prasad
Juglans cinerea not modeled by Crookston and Rehfeldt
Juglans cinerea not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Juglans cinerea - Global

Juglans_cinerea_final.3.conus
Juglans_cinerea_final.3.global.

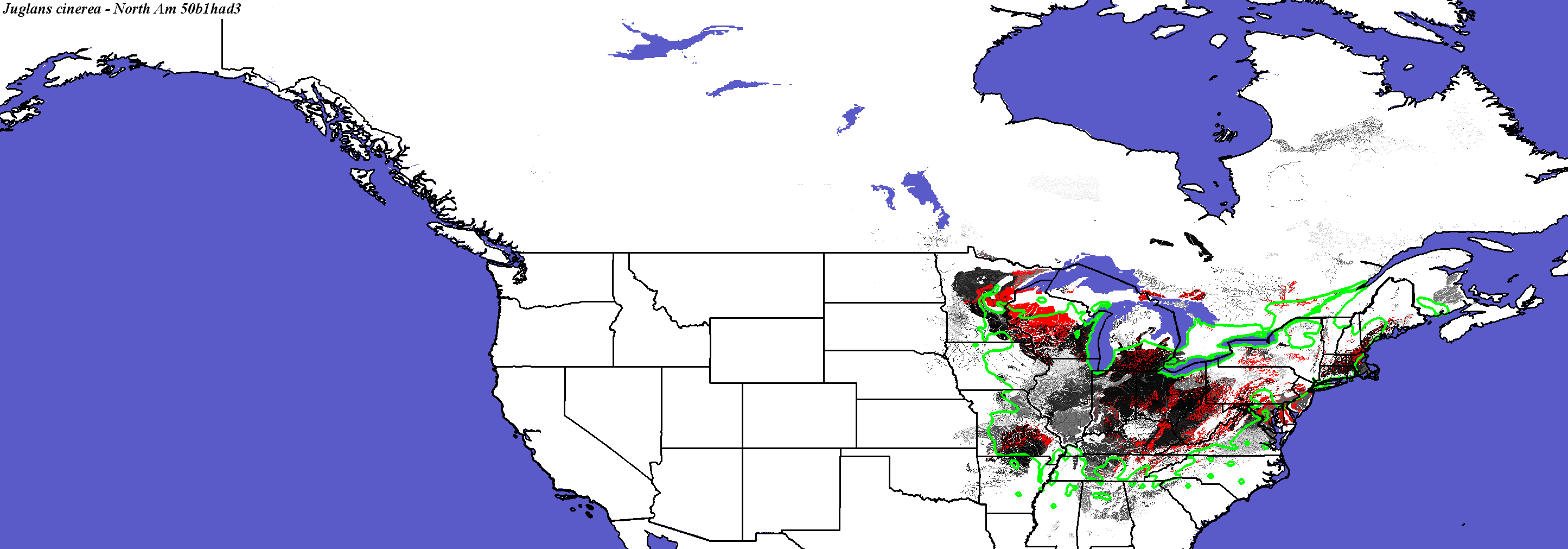

Hadley, Scenario B1, 2050 - Juglans cinerea - CONUS
Juglans cinerea not modeled by Crookston and Rehfeldt
Juglans cinerea not modeled by Coops and Waring

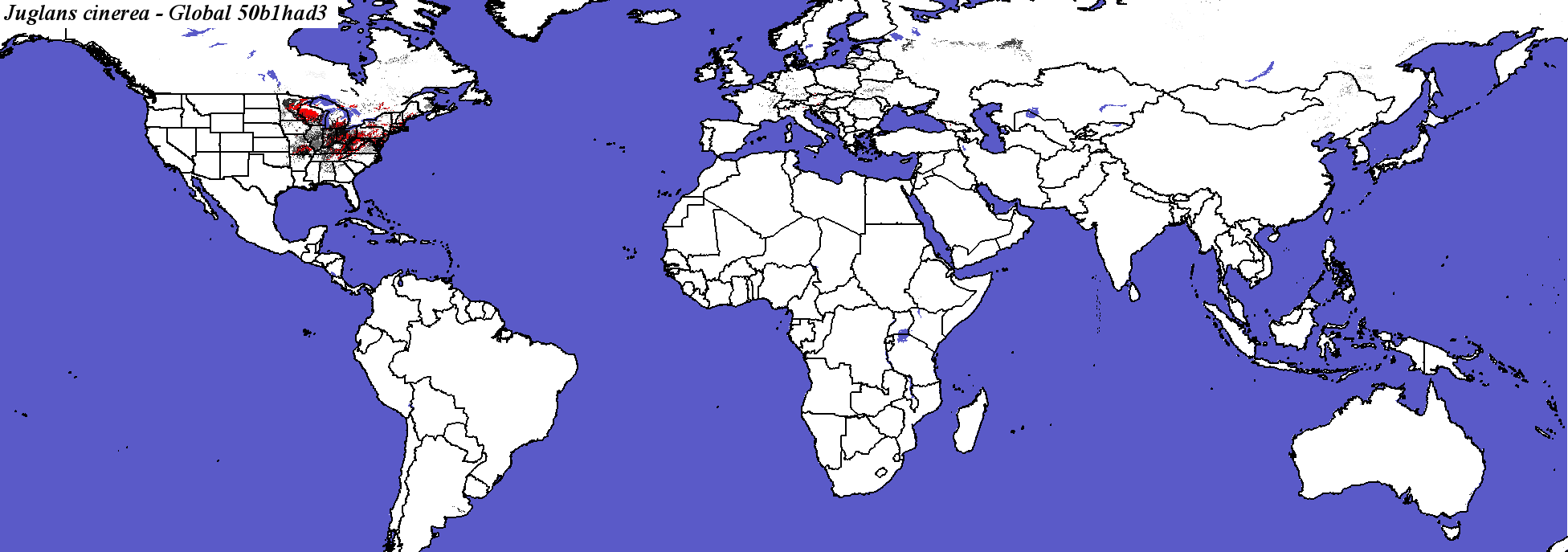

Hadley, Scenario B1, 2050 - Juglans cinerea - Global
Juglans_cinerea_final.3.conus
Juglans_cinerea_final.3.global

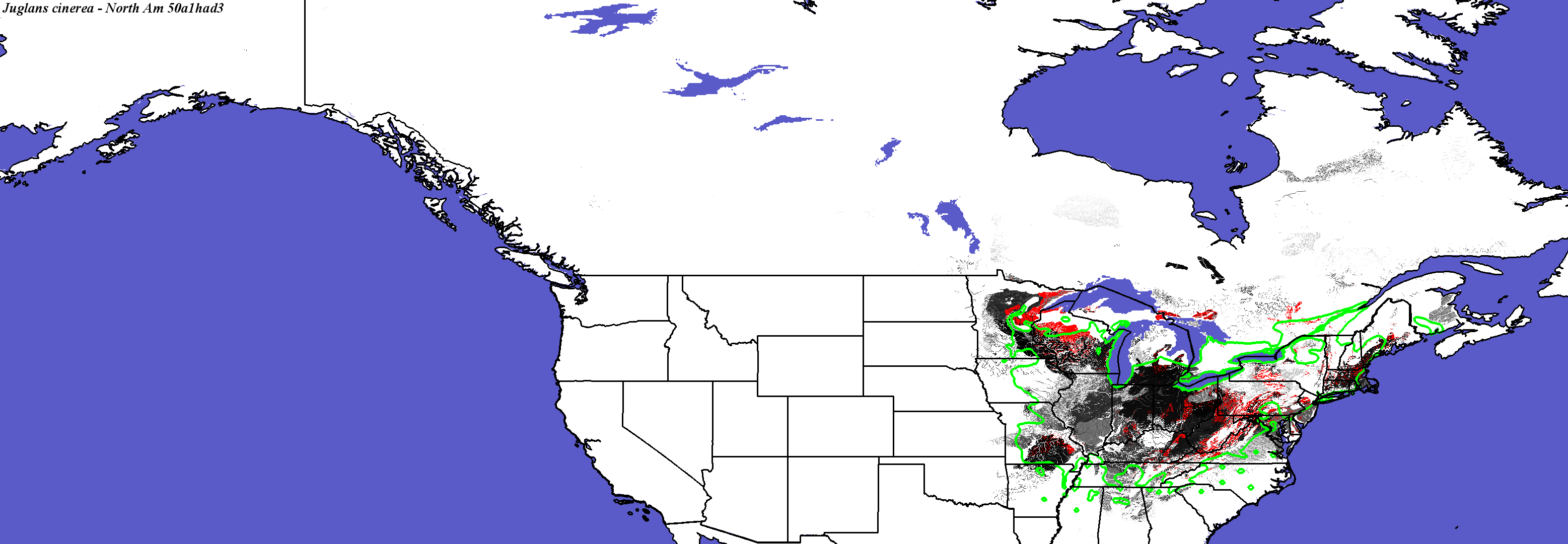

Hadley, Scenario B1, 2100 - Juglans cinerea - CONUS
Compare with Juglans cinerea modeled for Hadley B1 in 2100 by Iverson and Prasad
Juglans cinerea not modeled by Crookston and Rehfeldt

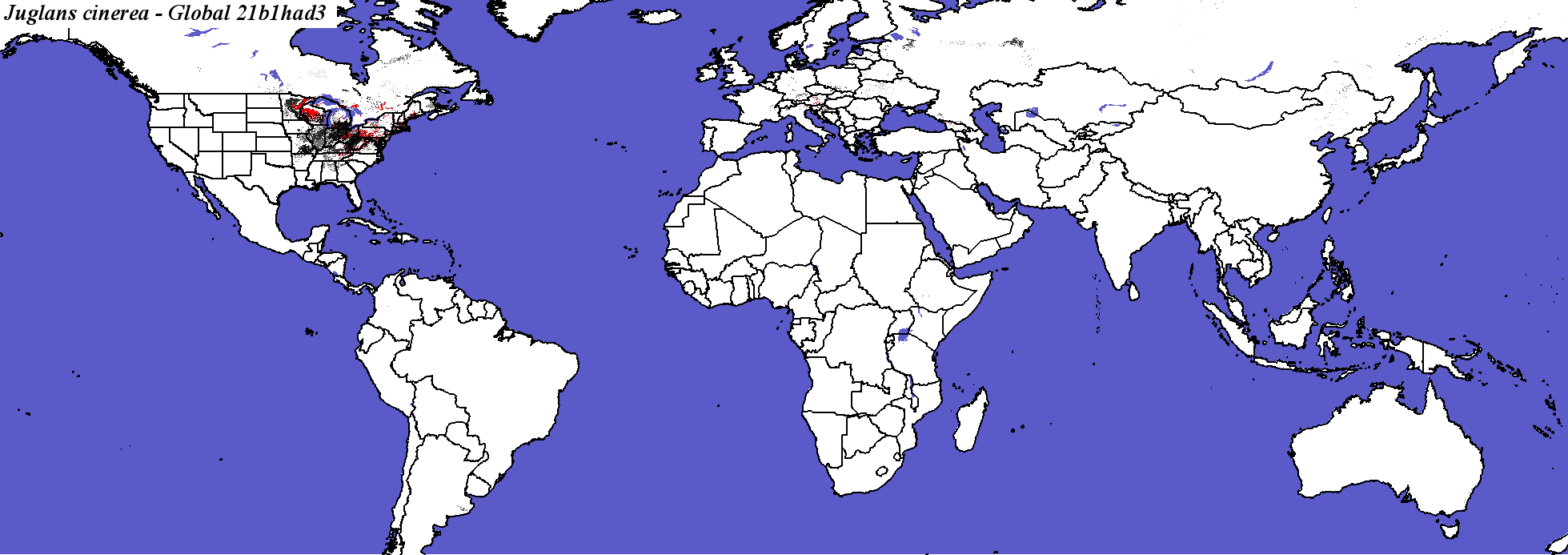

Hadley, Scenario B1, 2100 - Juglans cinerea - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Juglans_cinerea_final.elev

Number of Suitable Ecoregions (Niche Breadth)

43

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

44.1096

Area in Present Suitable Range (in km2)

542758

Area in Future Suitable Range (Had B1 2050, in km2)

208134

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

144817

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

26.6800

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

88.2192

Percent Change in Area of Suitable Range (Had B1 2050)

-61.6500

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

93.5616

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

29697.1 +/- 42251.4

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

22.4658

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

12.8315 +/- 18.7741

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

21.6438

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

149.959 +/- 542.165

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

36.8493

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

19037

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

3.5000

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

34.2466

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

111713

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

20.5800

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

67.6712

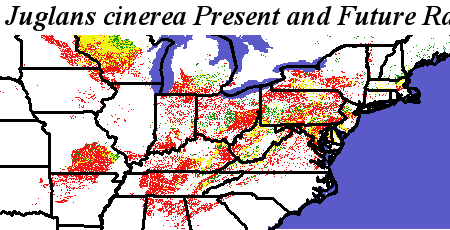

Present and Future Ranges - Hadley, Scenario B1, 2050 - Juglans cinerea Juglans cinerea - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

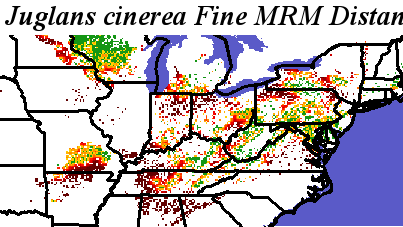

Juglans_cinerea_final.elev Fine MRM Distance

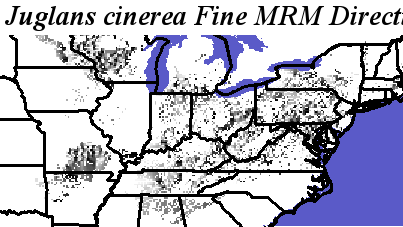

Juglans_cinerea_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Juglans cinerea Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Juglans cinerea

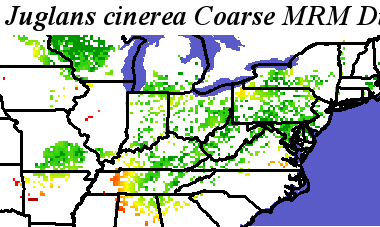

Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Juglans_cinerea_final.elev Coarse MRM Distance

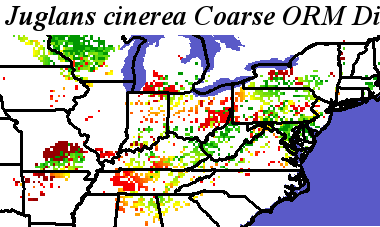

Juglans_cinerea_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Juglans cinerea Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Juglans cinerea

Thu Jul 21 10:06:13 EDT 2016
