Version 5 Tree Atlas


Juglans microcarpa

Texas walnut

elev

Juglans microcarpa Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Juglans microcarpa

USDA Plants Database entry for Juglans microcarpa
Silvics Manual entry for Juglans microcarpa


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Juglans rupestris; Juglans rupestris var. major104353TBD

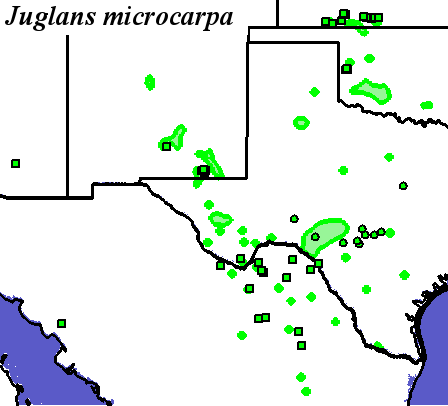

Occurrence Locations and Hargrove's Present Suitable Range Outline
Juglans_microcarpa_final Occurrences
Hargroves Present Suitable Range Outline for Juglans_microcarpa_final
Juglans microcarpa - Occurrence Locations Juglans microcarpa - Hargrove's Present Suitable Range Outline
Present Conditions
Juglans_microcarpa_final.2.conus
Juglans_microcarpa_final.2.global
Juglans microcarpa - CONUS
Compare with Current Range from the Silvics Manual for Juglans microcarpa
Compare with Current Range from Biota of North America Program (BONAP) for Juglans microcarpa

Juglans microcarpa not modeled by Iverson and Prasad
Juglans microcarpa not modeled by Crookston and Rehfeldt
Juglans microcarpa not modeled by Coops and Waring
Juglans microcarpa - Global

PCM - Parallel Climate Model
Juglans_microcarpa_final.2.conus
Juglans_microcarpa_final.2.global

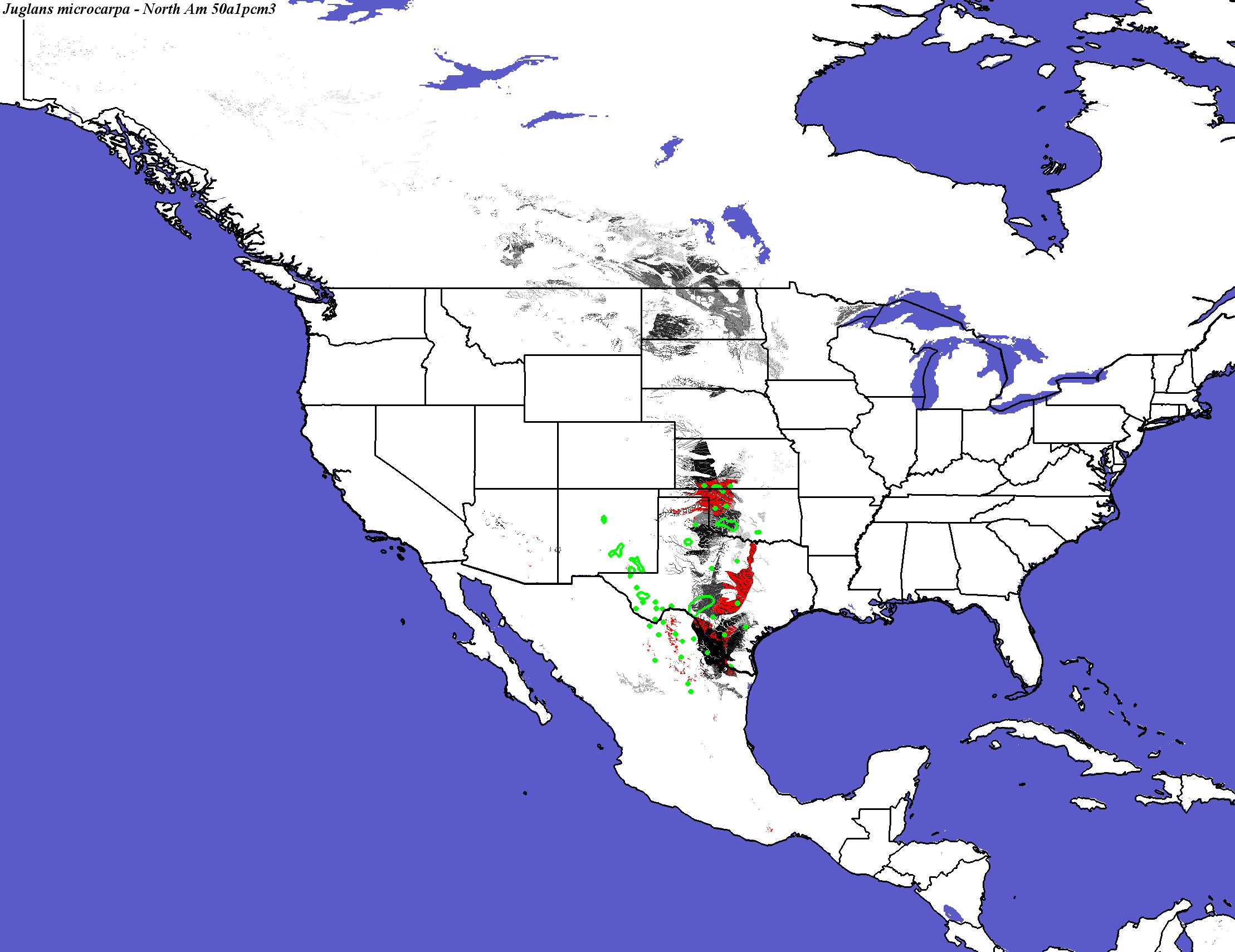

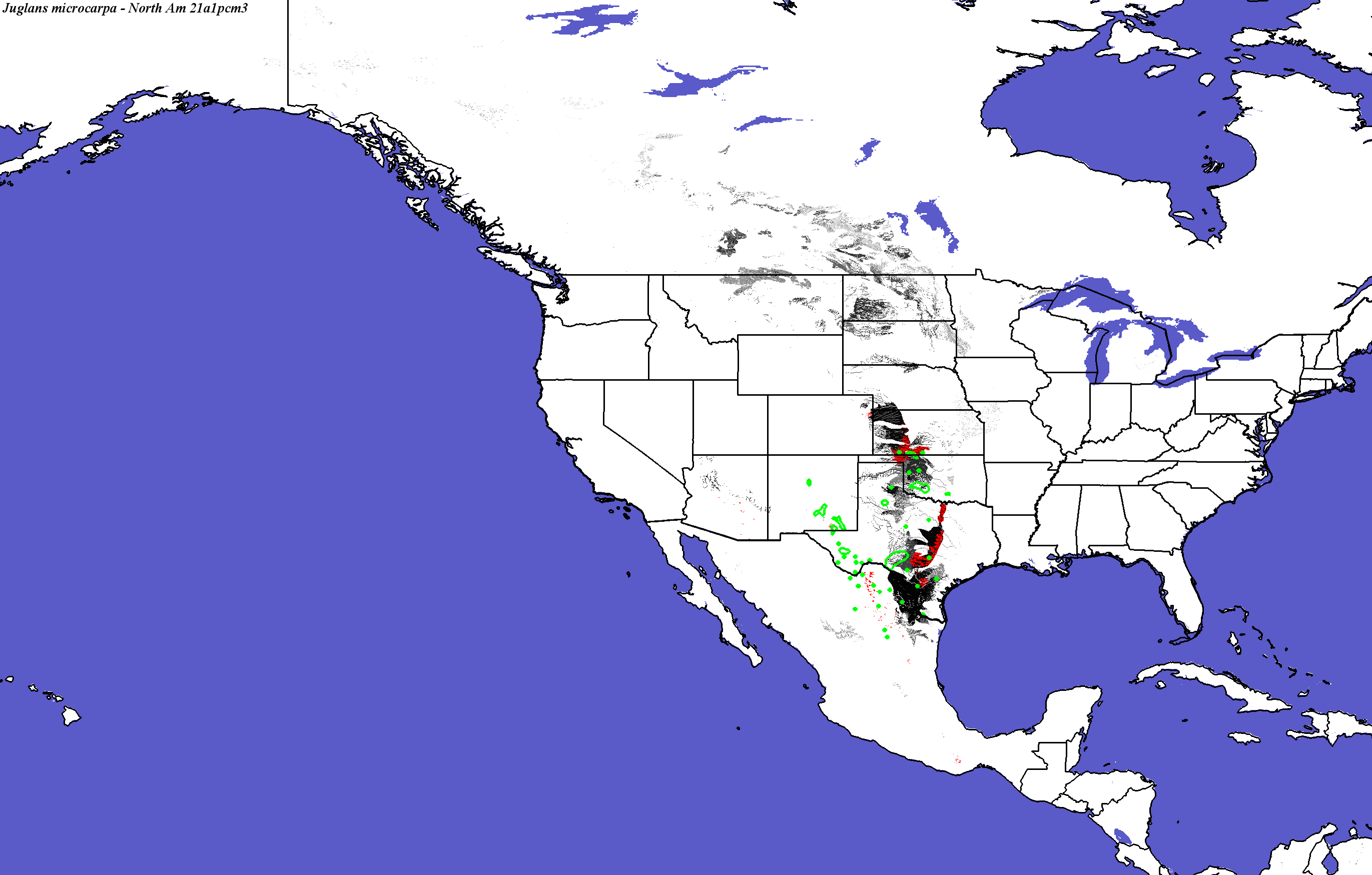

PCM, Scenario A1FI, 2050 - Juglans microcarpa - CONUS

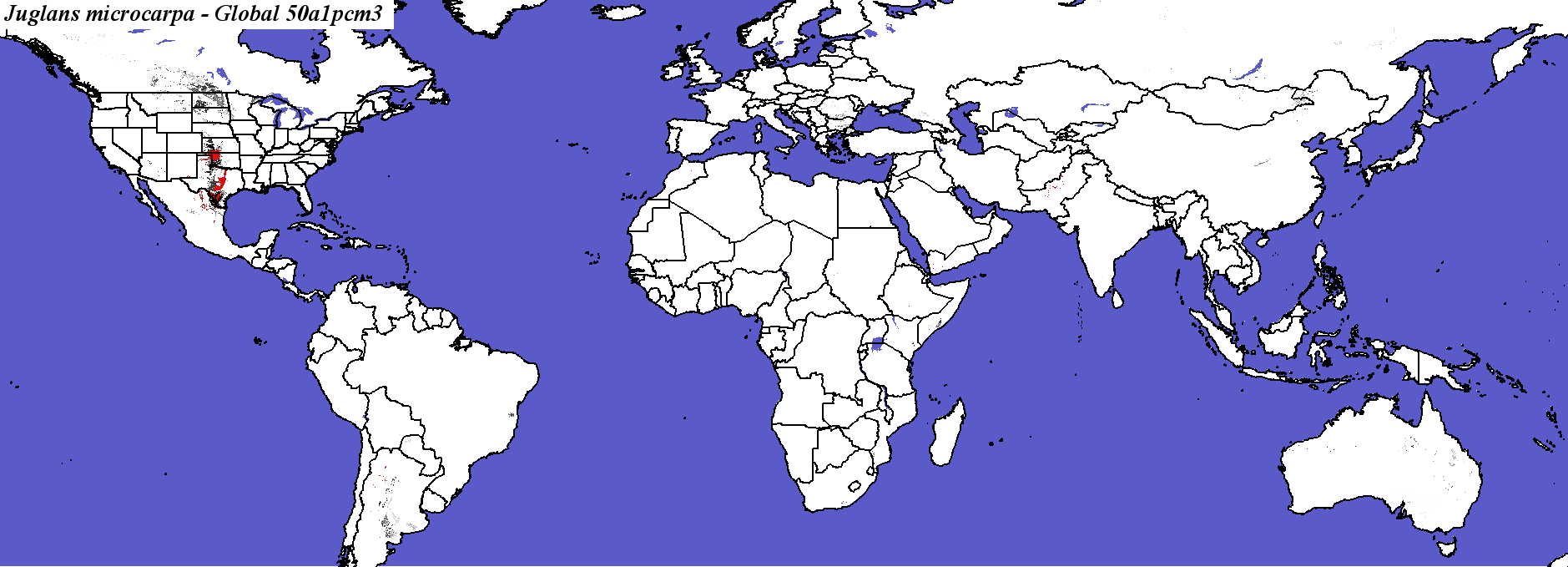

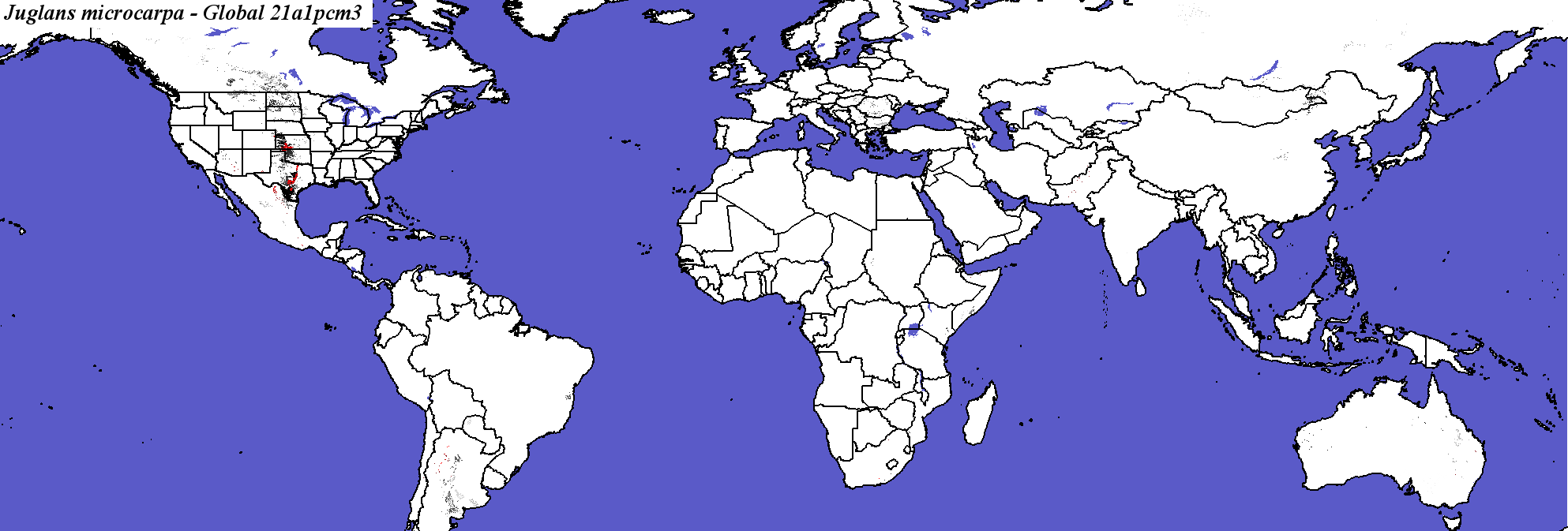

PCM, Scenario A1FI, 2050 - Juglans microcarpa - Global
Juglans_microcarpa_final.2.conus
Juglans_microcarpa_final.2.global
PCM, Scenario A1FI, 2100 - Juglans microcarpa - CONUS
Juglans microcarpa species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Juglans microcarpa - Global

Juglans_microcarpa_final.2.conus
Juglans_microcarpa_final.2.global

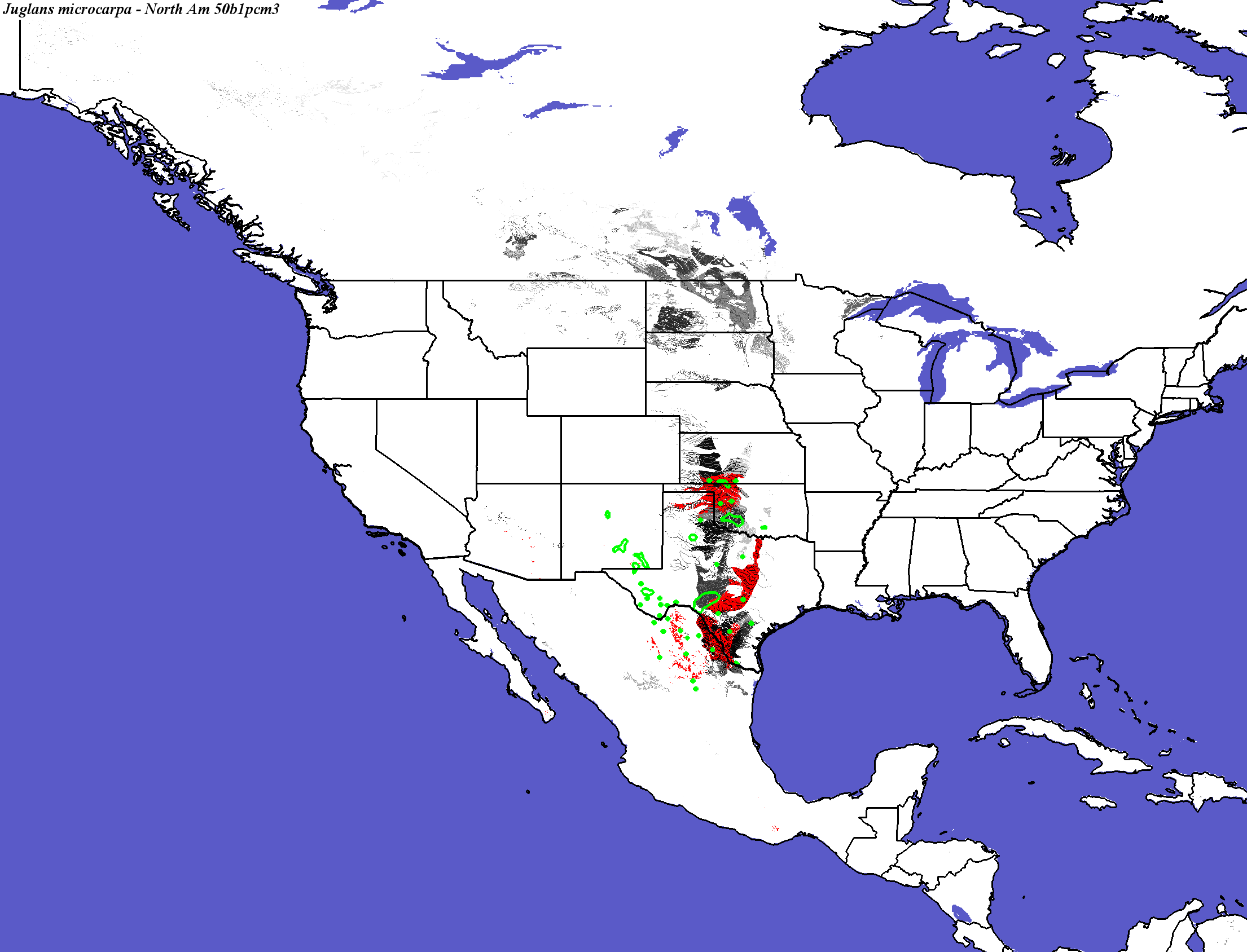

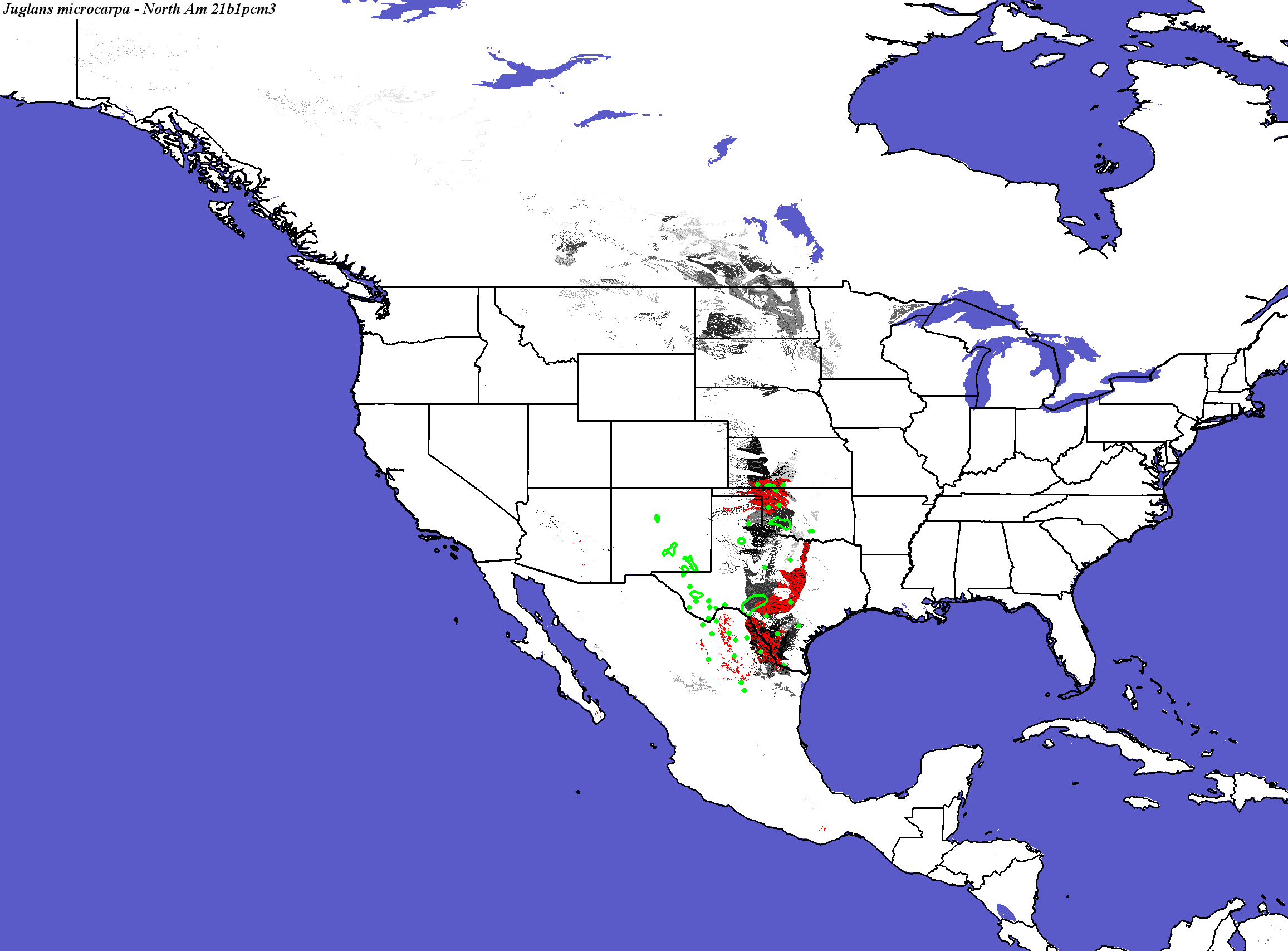

PCM, Scenario B1, 2050 - Juglans microcarpa - CONUS
PCM, Scenario B1, 2050 - Juglans microcarpa - Global
Juglans_microcarpa_final.2.conus
Juglans_microcarpa_final.2.global
PCM, Scenario B1, 2100 - Juglans microcarpa - CONUS
Juglans microcarpa not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Juglans microcarpa - Global

Hadley Climate Model
Juglans_microcarpa_final.2.conus
Juglans_microcarpa_final.2.global

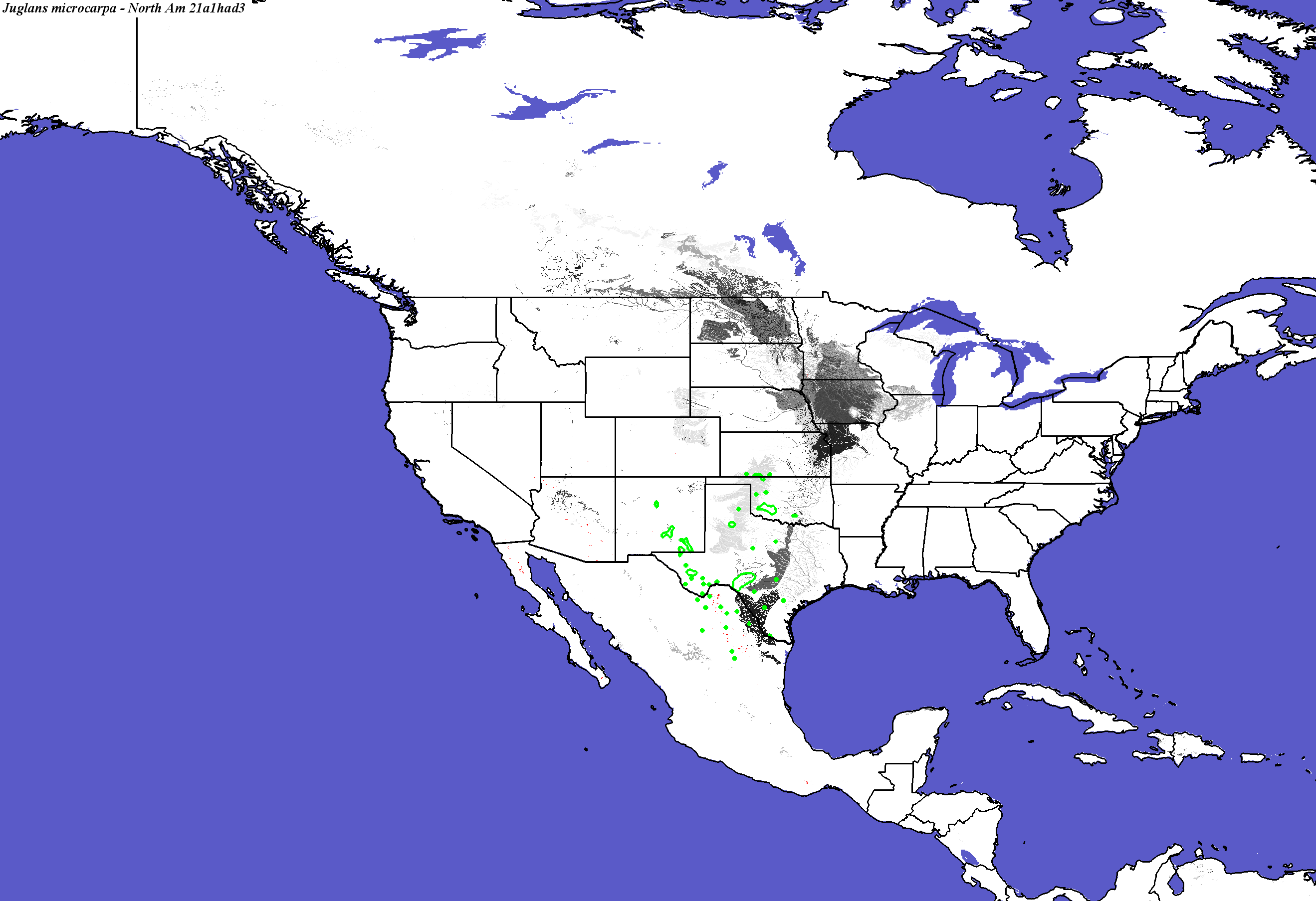

Hadley, Scenario A1FI, 2050 - Juglans microcarpa - CONUS
Juglans microcarpa not modeled by Crookston and Rehfeldt

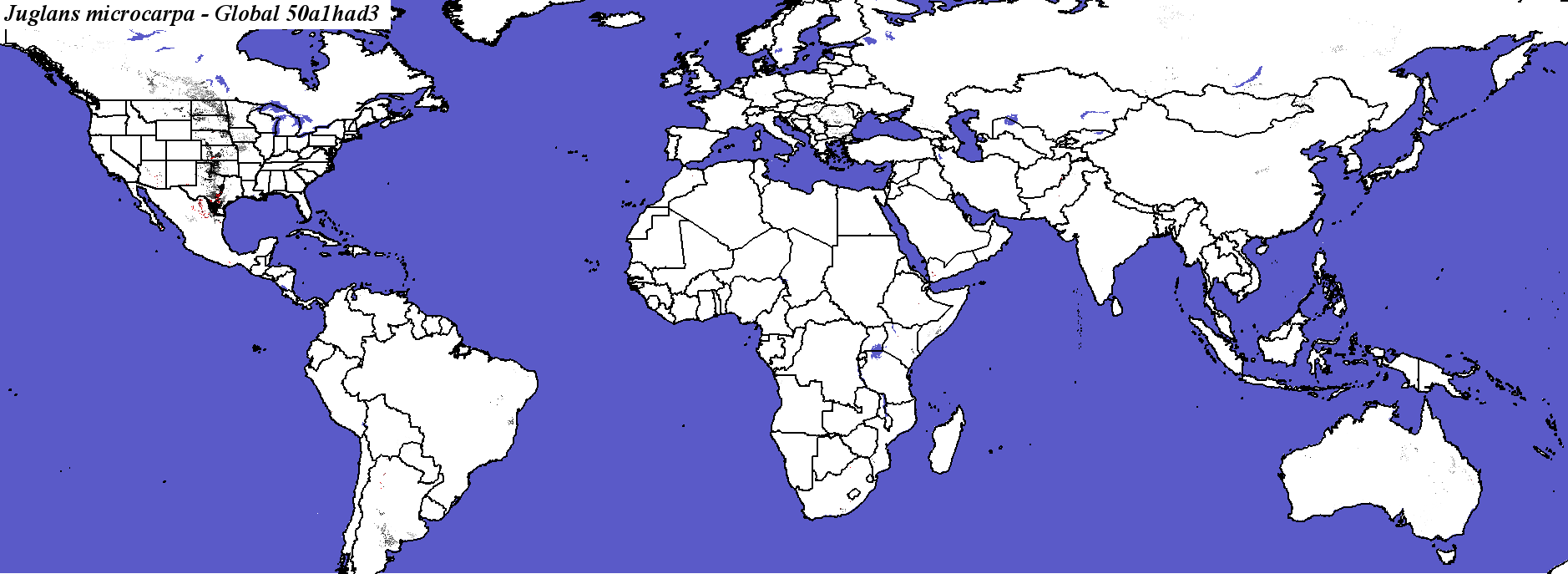

Hadley, Scenario A1FI, 2050 - Juglans microcarpa - Global
Juglans_microcarpa_final.2.conus
Juglans_microcarpa_final.2.global.
Hadley, Scenario A1FI, 2100 - Juglans microcarpa - CONUS
Juglans microcarpa not modeled by Iverson and Prasad
Juglans microcarpa not modeled by Crookston and Rehfeldt
Juglans microcarpa not modeled by Coops and Waring

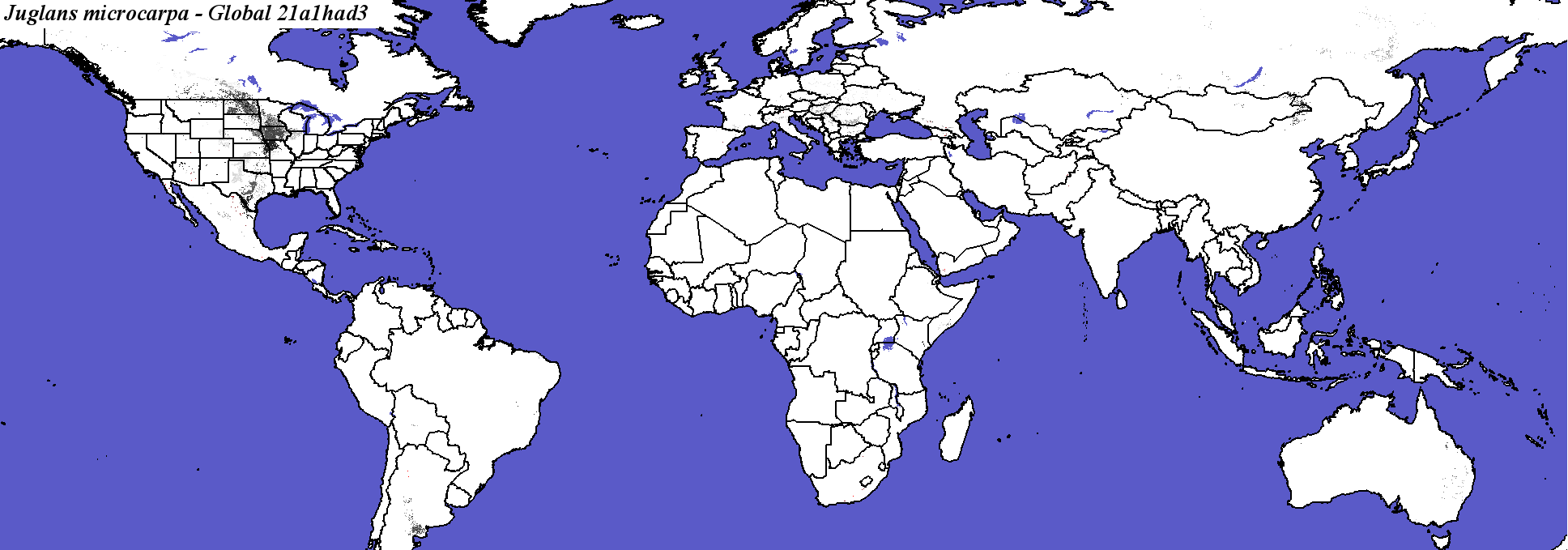

Hadley, Scenario A1FI, 2100 - Juglans microcarpa - Global

Juglans_microcarpa_final.2.conus
Juglans_microcarpa_final.2.global.

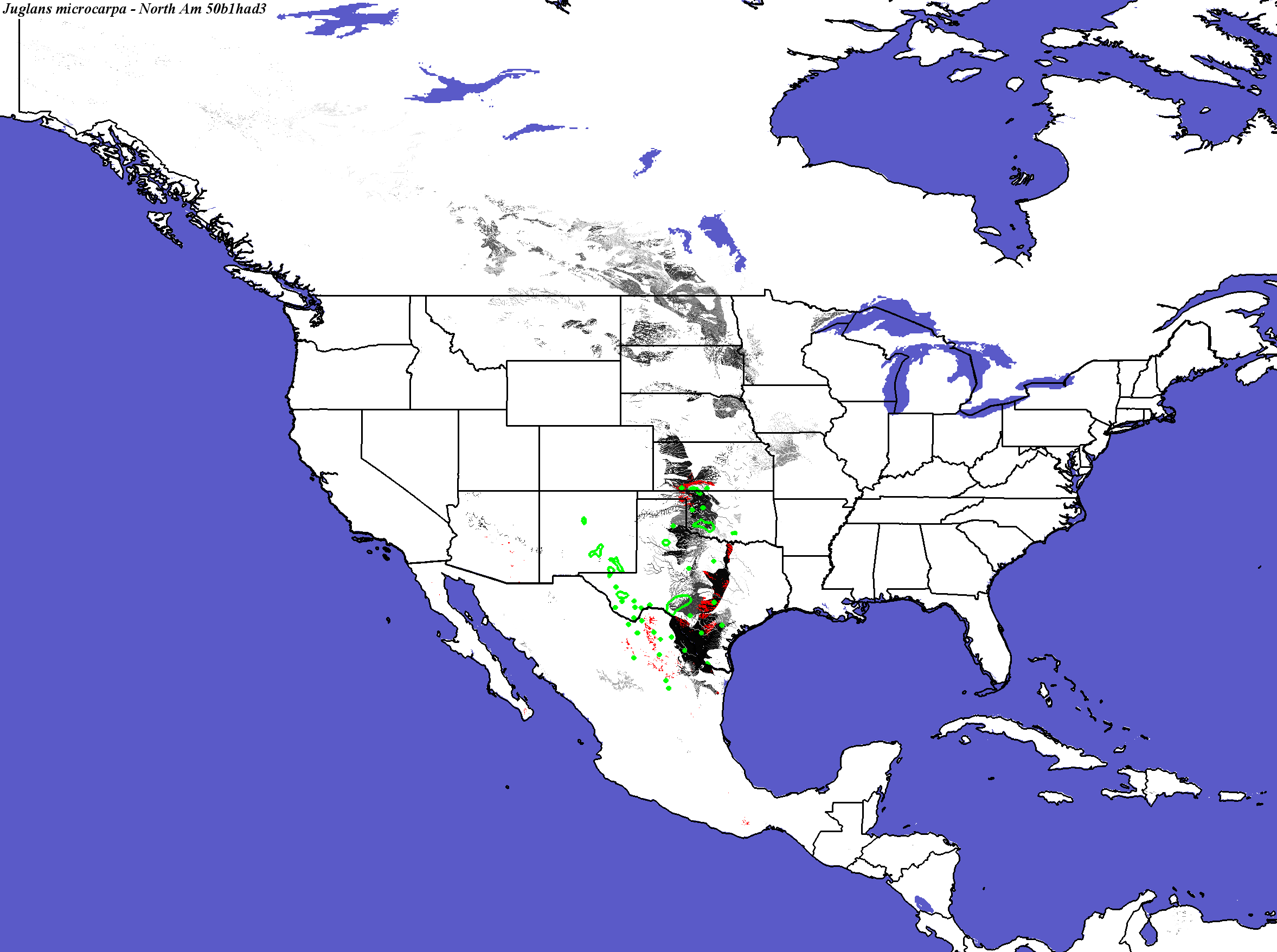

Hadley, Scenario B1, 2050 - Juglans microcarpa - CONUS
Juglans microcarpa not modeled by Crookston and Rehfeldt
Juglans microcarpa not modeled by Coops and Waring

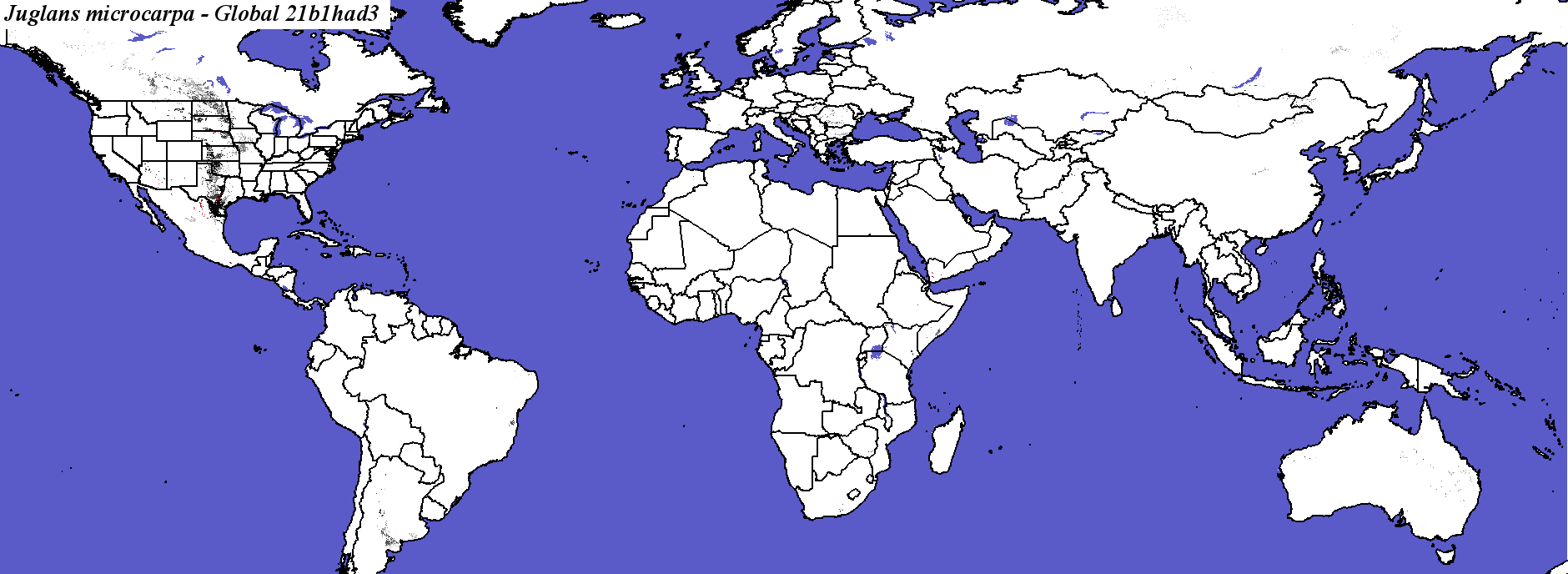

Hadley, Scenario B1, 2050 - Juglans microcarpa - Global
Juglans_microcarpa_final.2.conus
Juglans_microcarpa_final.2.global

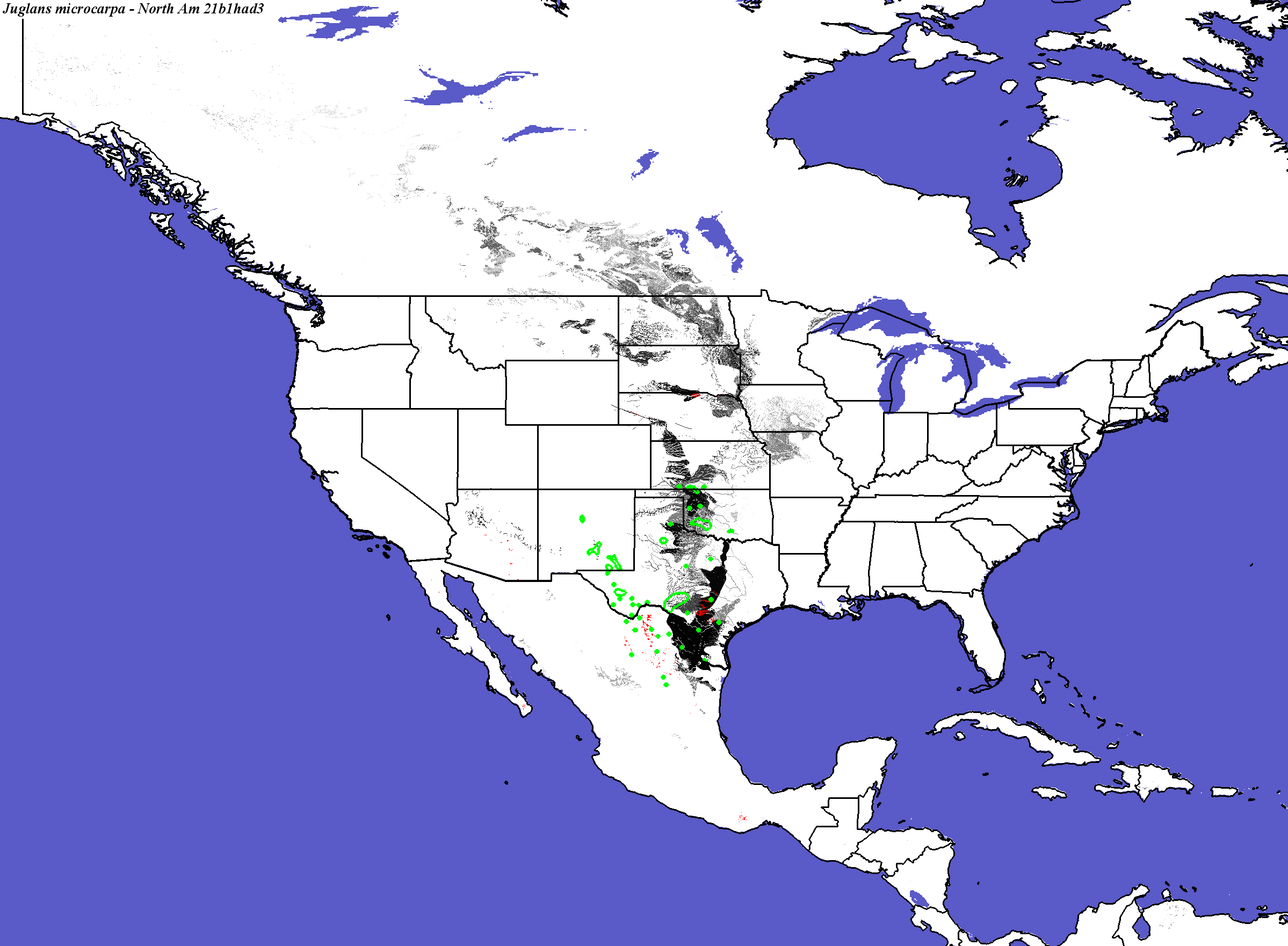

Hadley, Scenario B1, 2100 - Juglans microcarpa - CONUS
Juglans microcarpa not modeled by Iverson and Prasad
Juglans microcarpa not modeled by Crookston and Rehfeldt

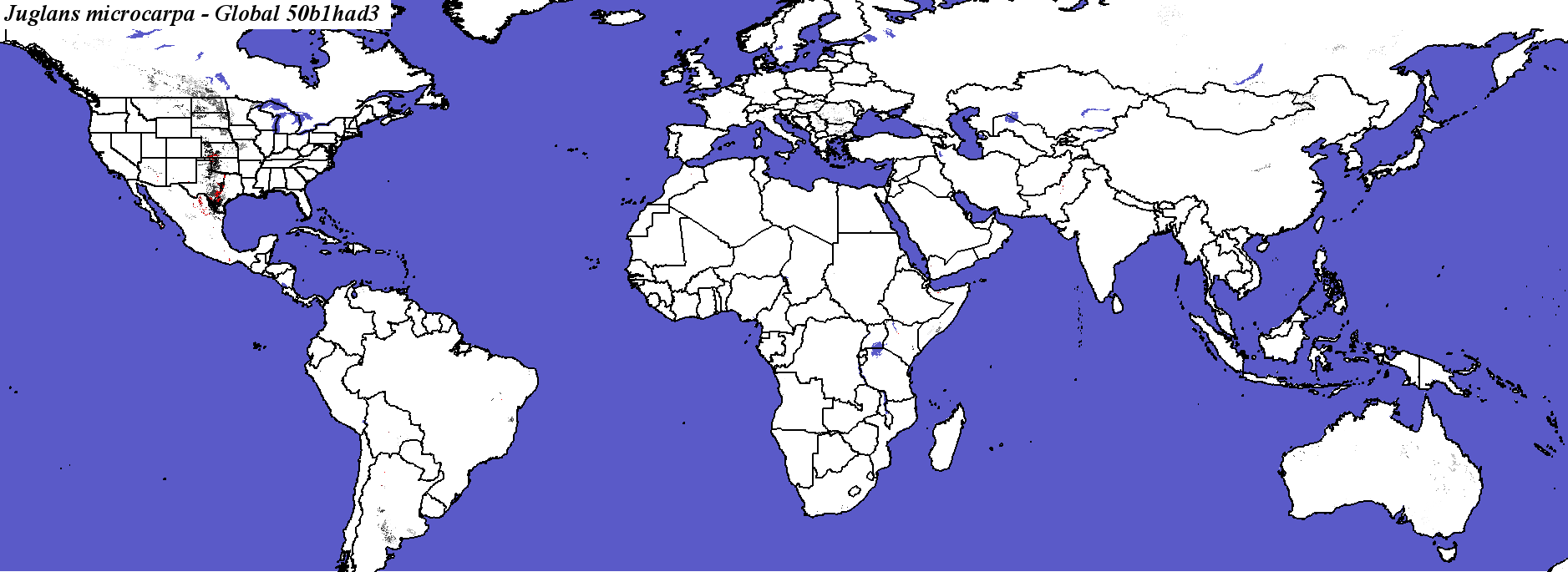

Hadley, Scenario B1, 2100 - Juglans microcarpa - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Juglans_microcarpa_final.elev

Number of Suitable Ecoregions (Niche Breadth)

10

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

86.4384

Area in Present Suitable Range (in km2)

127689

Area in Future Suitable Range (Had B1 2050, in km2)

30410

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

25704

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

20.1300

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

93.4247

Percent Change in Area of Suitable Range (Had B1 2050)

-76.1800

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

98.9041

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

51415.6 +/- 55147.7

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

8.90411

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

18.2395 +/- 18.1325

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

11.9178

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

21.9065 +/- 24.7652

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

81.9178

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

90.6849

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

21105

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

16.5200

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

79.0411

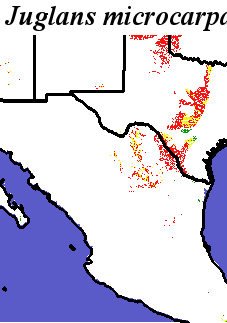

Present and Future Ranges - Hadley, Scenario B1, 2050 - Juglans microcarpa Juglans microcarpa - Range Change Statistics

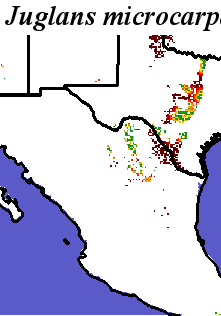

Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Juglans_microcarpa_final.elev Fine MRM Distance
Juglans_microcarpa_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Juglans microcarpa Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Juglans microcarpa
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Juglans_microcarpa_final.elev Coarse MRM Distance
Juglans_microcarpa_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Juglans microcarpa Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Juglans microcarpa
