Version 5 Tree Atlas


Juniperus deppeana

alligator juniper

elev

Juniperus deppeana Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Juniperus deppeana

USDA Plants Database entry for Juniperus deppeana
Silvics Manual entry for Juniperus deppeana


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Juniperus pachyphlaea; Juniperus deppeana var. pachyphlaea; Juniperus deppeana var. robusta; Juniperus deppeana var. zacatecensis; Juniperus deppeana var. patoniana8964201316range is well-represented

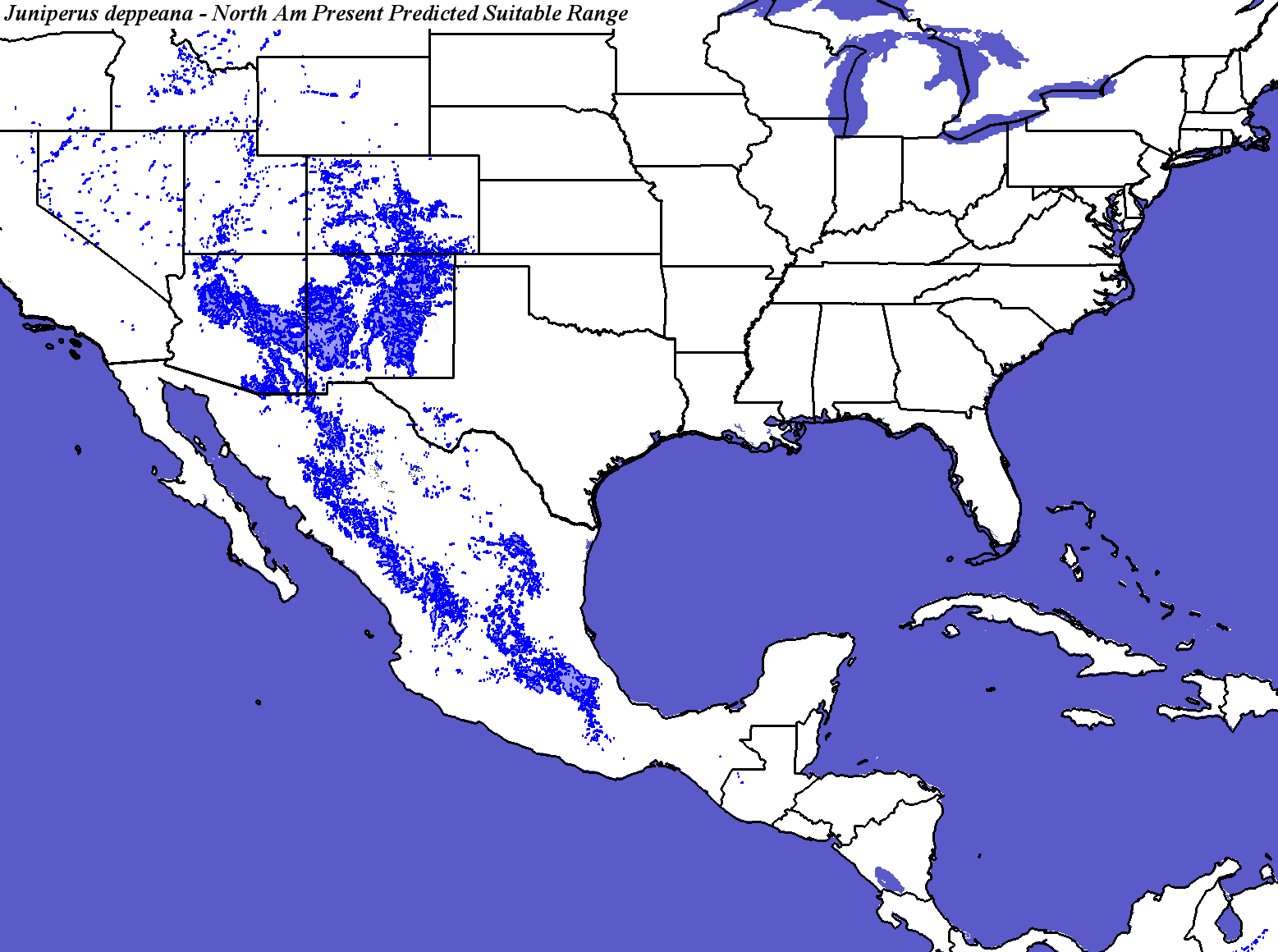

Occurrence Locations and Hargrove's Present Suitable Range Outline
Juniperus_deppeana_final Occurrences
Hargroves Present Suitable Range Outline for Juniperus_deppeana_final
Juniperus deppeana - Occurrence Locations Juniperus deppeana - Hargrove's Present Suitable Range Outline
Present Conditions
Juniperus_deppeana_final.4.conus
Juniperus_deppeana_final.4.global
Juniperus deppeana - CONUS
Compare with Current Range from the Silvics Manual for Juniperus deppeana
Compare with Current Range from Biota of North America Program (BONAP) for Juniperus deppeana

Juniperus deppeana not modeled by Iverson and Prasad
Compare with Juniperus deppeana modeled for Current conditions by Crookston and Rehfeldt
Juniperus deppeana not modeled by Coops and Waring

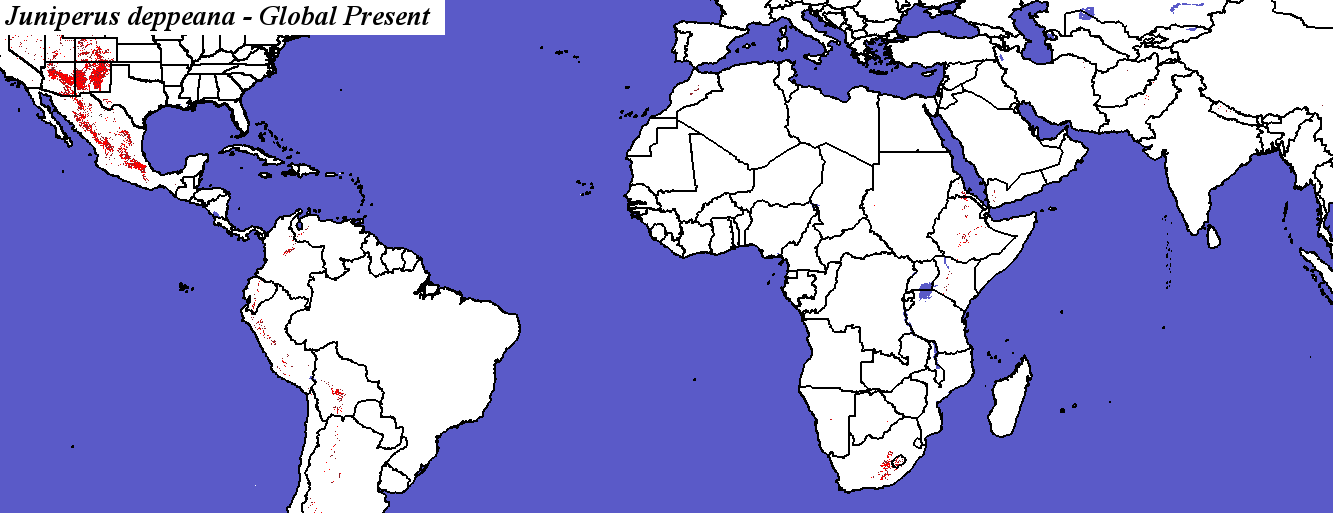

Juniperus deppeana - Global

PCM - Parallel Climate Model
Juniperus_deppeana_final.4.conus
Juniperus_deppeana_final.4.global

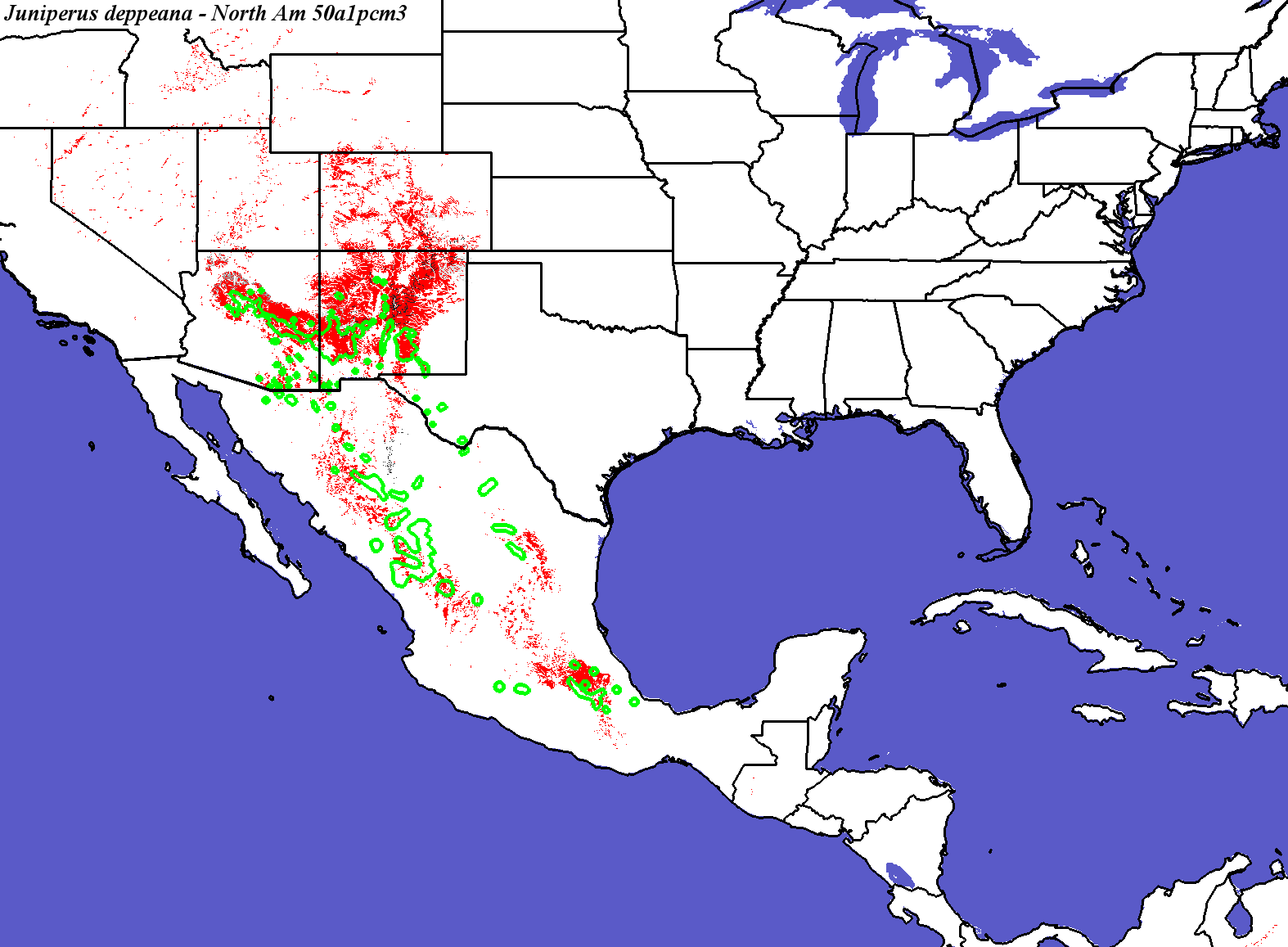

PCM, Scenario A1FI, 2050 - Juniperus deppeana - CONUS
PCM, Scenario A1FI, 2050 - Juniperus deppeana - Global
Juniperus_deppeana_final.4.conus
Juniperus_deppeana_final.4.global

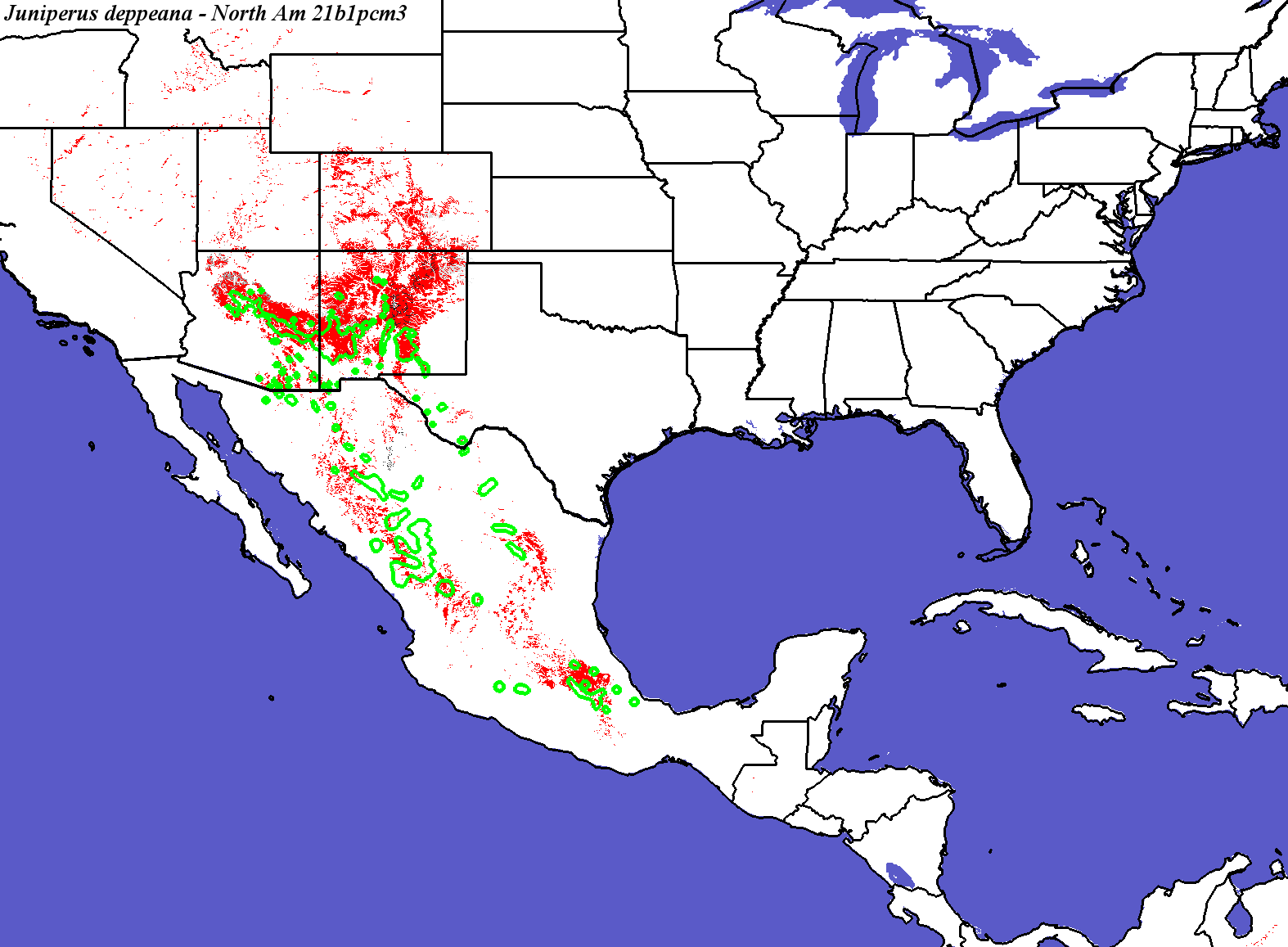

PCM, Scenario A1FI, 2100 - Juniperus deppeana - CONUS
Juniperus deppeana species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Juniperus deppeana - Global

Juniperus_deppeana_final.4.conus
Juniperus_deppeana_final.4.global

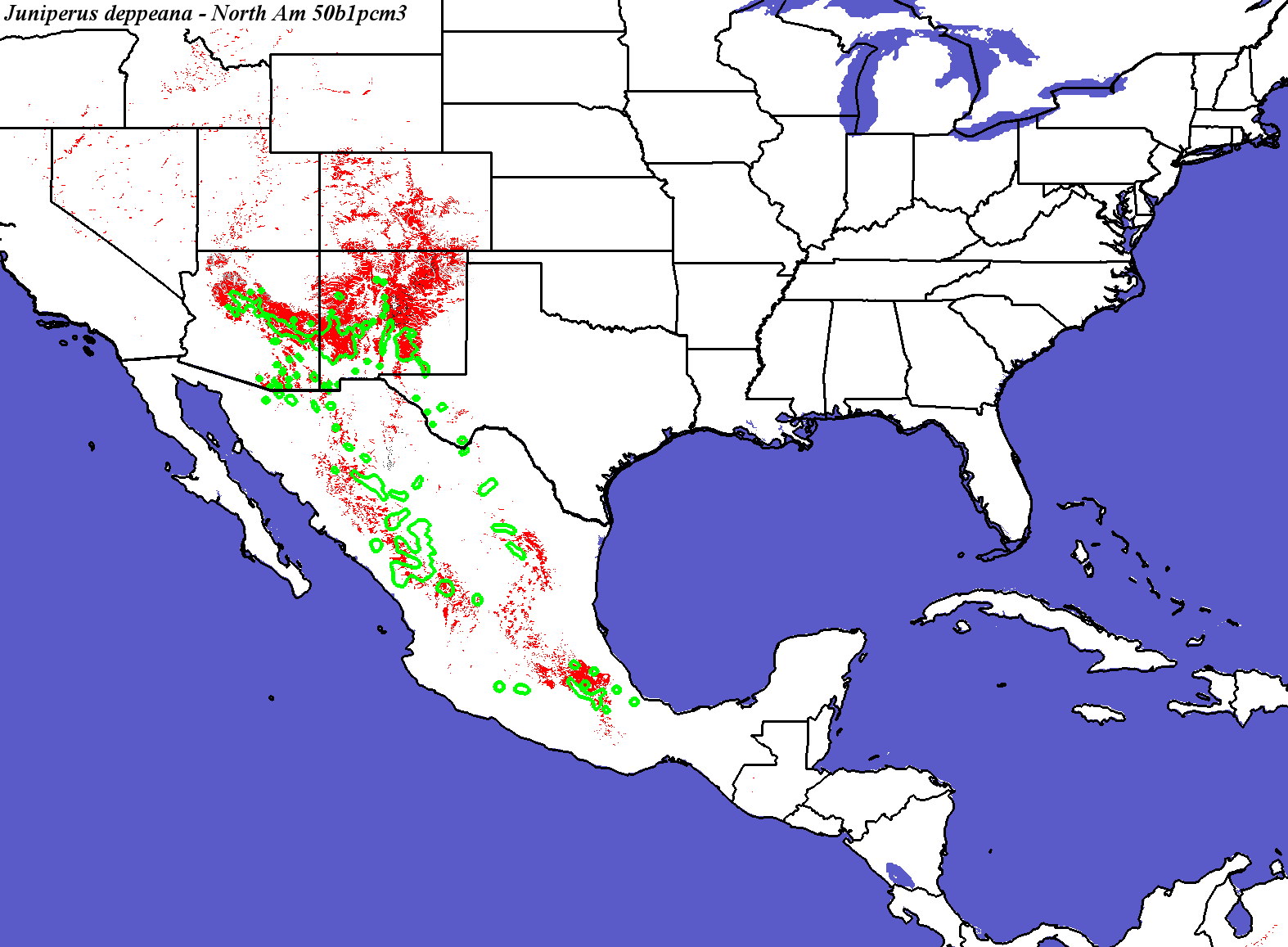

PCM, Scenario B1, 2050 - Juniperus deppeana - CONUS
PCM, Scenario B1, 2050 - Juniperus deppeana - Global
Juniperus_deppeana_final.4.conus
Juniperus_deppeana_final.4.global
PCM, Scenario B1, 2100 - Juniperus deppeana - CONUS
Juniperus deppeana not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Juniperus deppeana - Global

Hadley Climate Model
Juniperus_deppeana_final.4.conus
Juniperus_deppeana_final.4.global

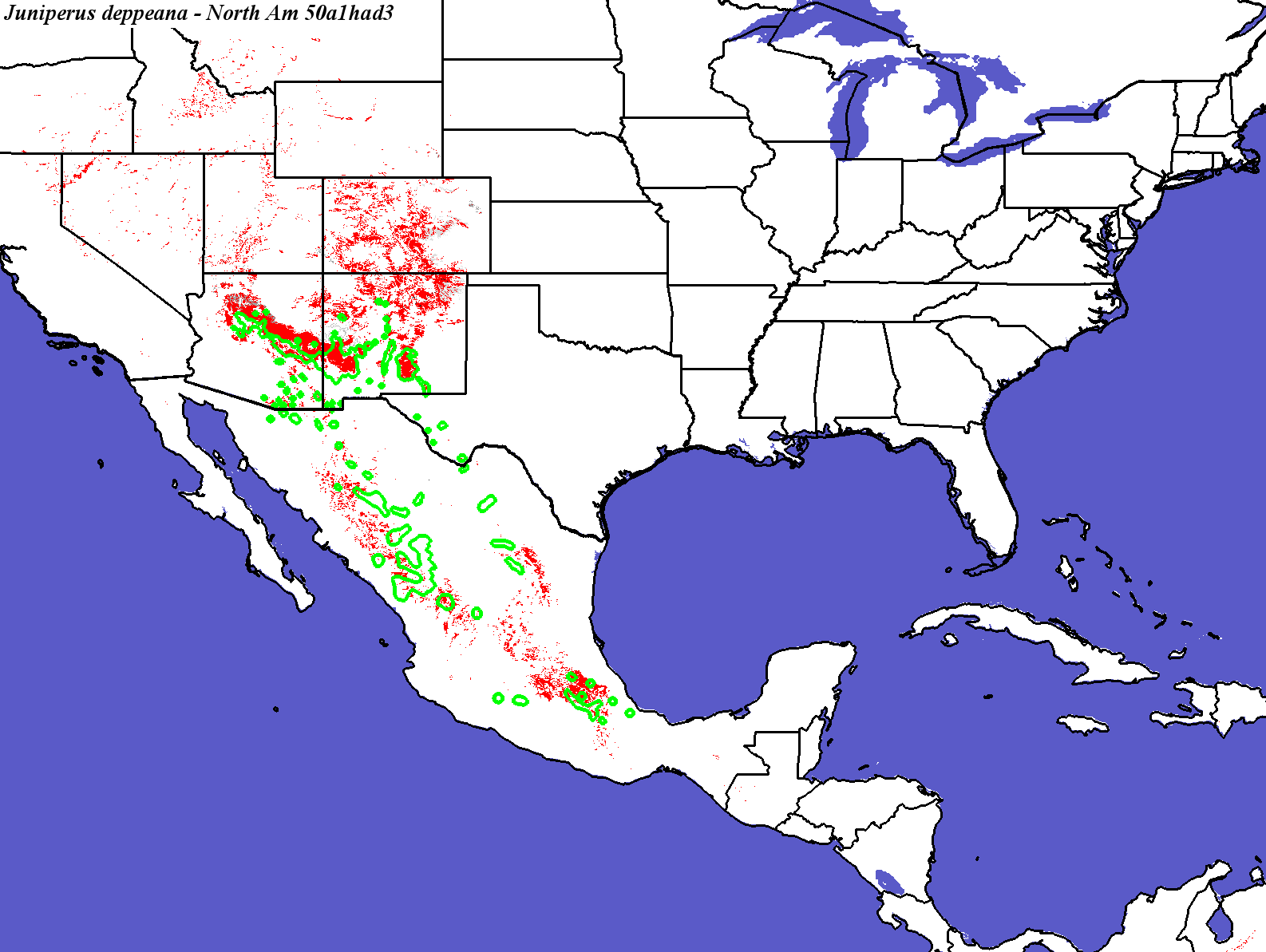

Hadley, Scenario A1FI, 2050 - Juniperus deppeana - CONUS
Compare with Juniperus deppeana modeled for Hadley A2 in 2060 by Crookston and Rehfeldt

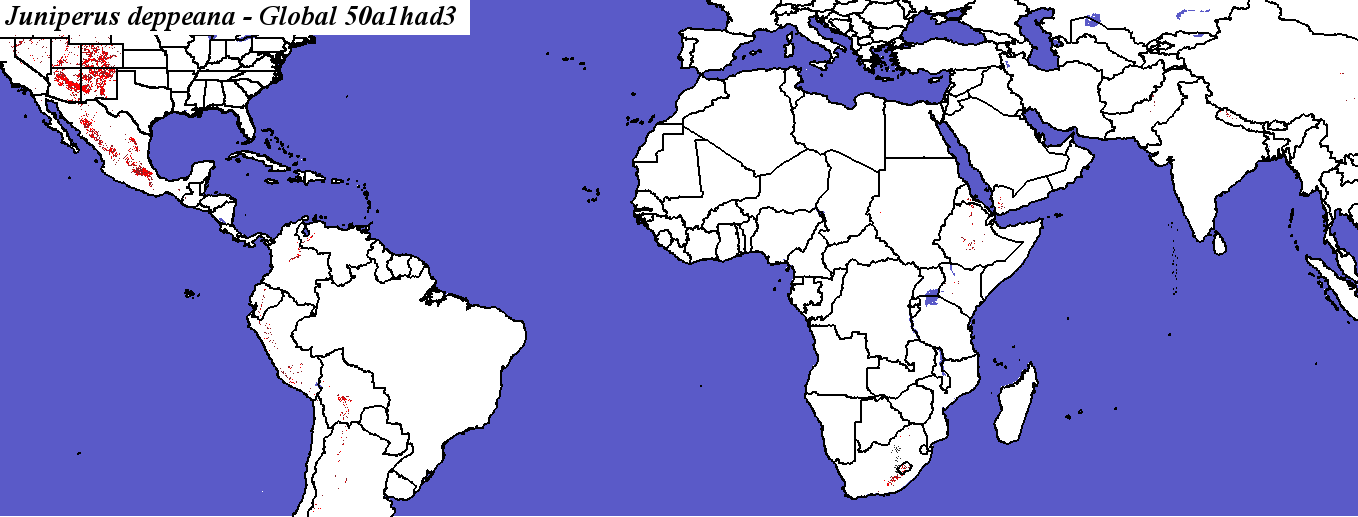

Hadley, Scenario A1FI, 2050 - Juniperus deppeana - Global
Juniperus_deppeana_final.4.conus
Juniperus_deppeana_final.4.global.

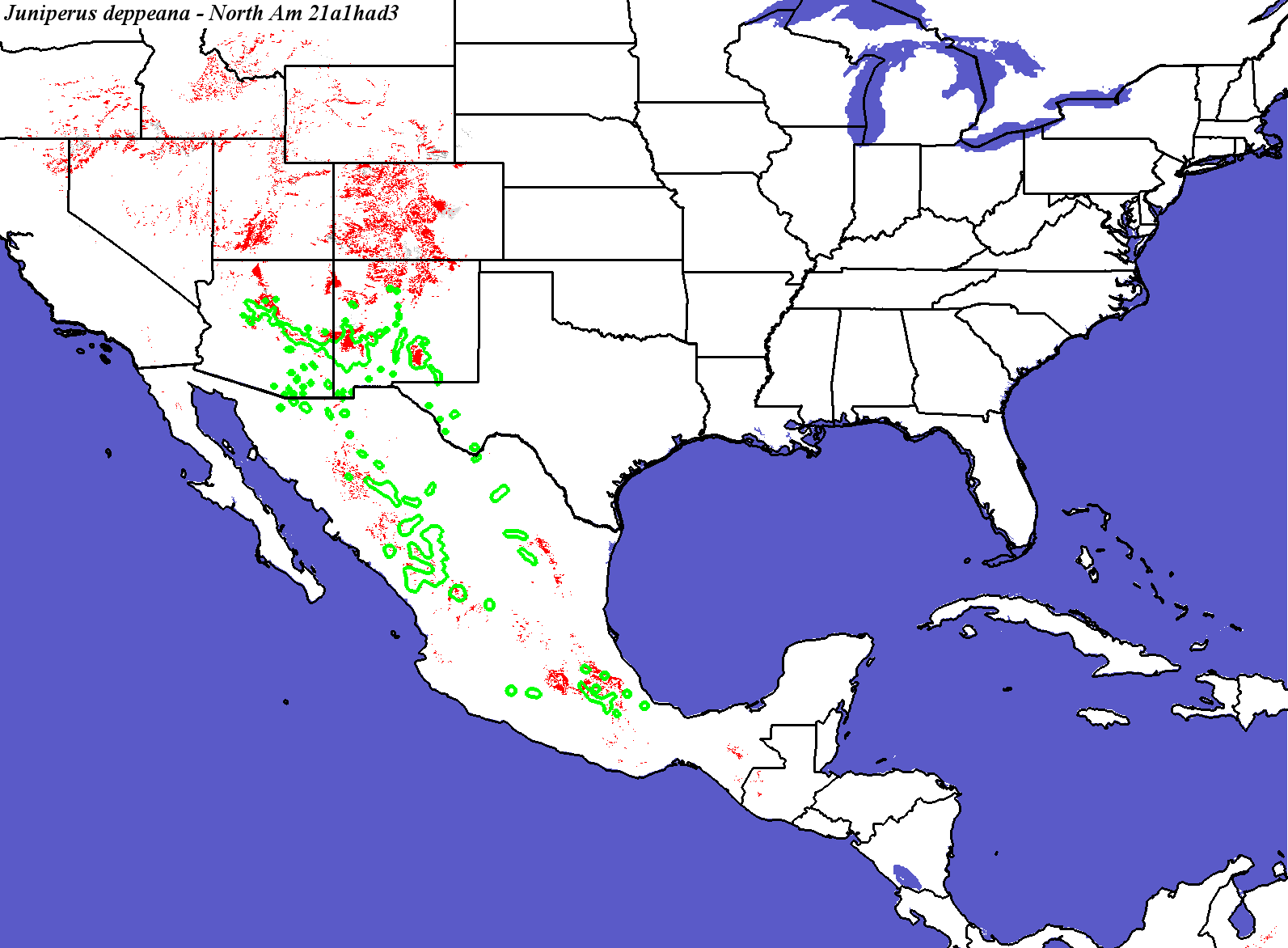

Hadley, Scenario A1FI, 2100 - Juniperus deppeana - CONUS
Juniperus deppeana not modeled by Iverson and Prasad
Compare with Juniperus deppeana modeled for Hadley A2 in 2090 by Crookston and Rehfeldt
Juniperus deppeana not modeled by Coops and Waring

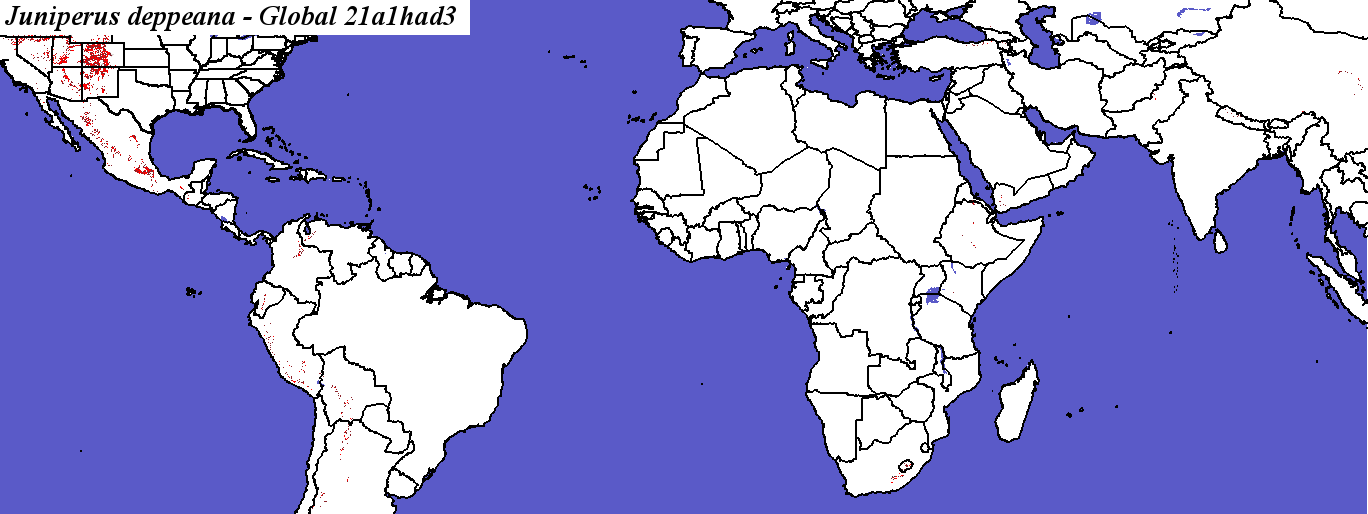

Hadley, Scenario A1FI, 2100 - Juniperus deppeana - Global

Juniperus_deppeana_final.4.conus
Juniperus_deppeana_final.4.global.

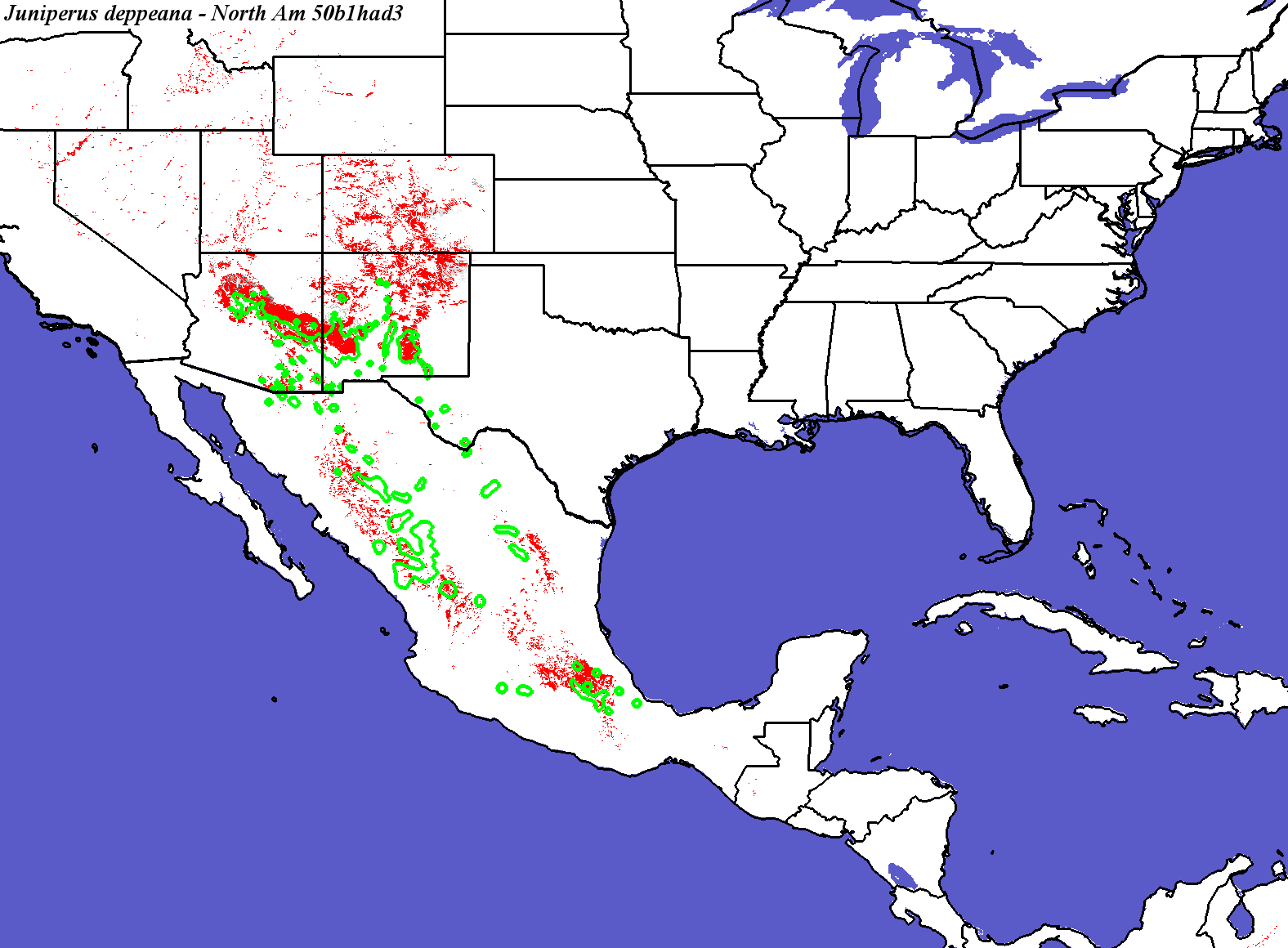

Hadley, Scenario B1, 2050 - Juniperus deppeana - CONUS
Compare with Juniperus deppeana modeled for Hadley B2 in 2060 by Crookston and Rehfeldt
Juniperus deppeana not modeled by Coops and Waring

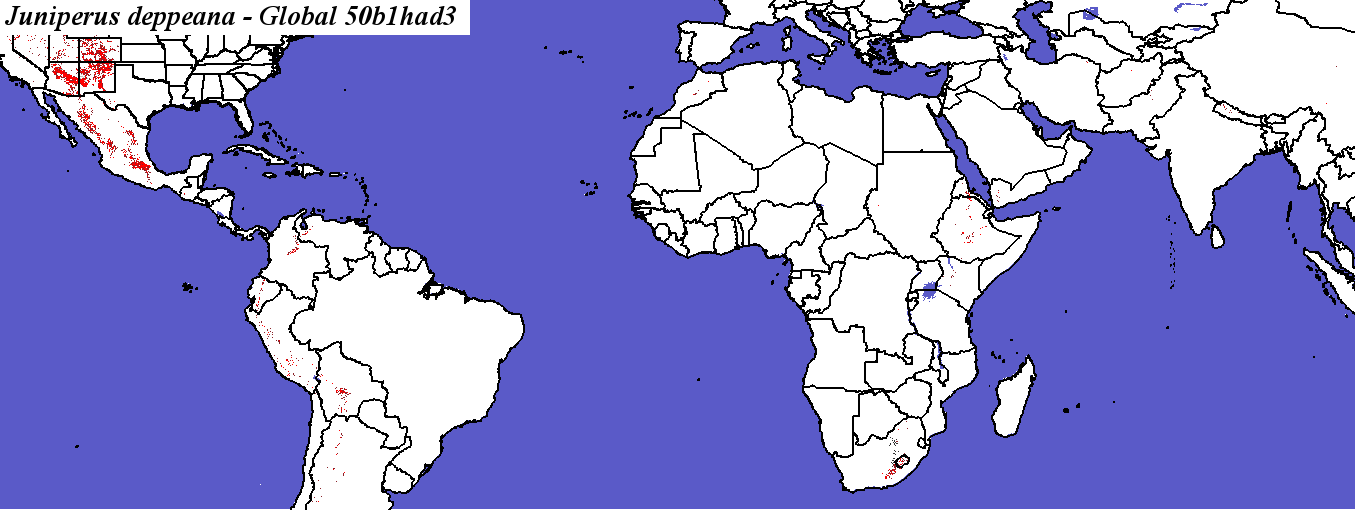

Hadley, Scenario B1, 2050 - Juniperus deppeana - Global
Juniperus_deppeana_final.4.conus
Juniperus_deppeana_final.4.global
Hadley, Scenario B1, 2100 - Juniperus deppeana - CONUS
Juniperus deppeana not modeled by Iverson and Prasad
Compare with Juniperus deppeana modeled for Hadley B2 in 2090 by Crookston and Rehfeldt

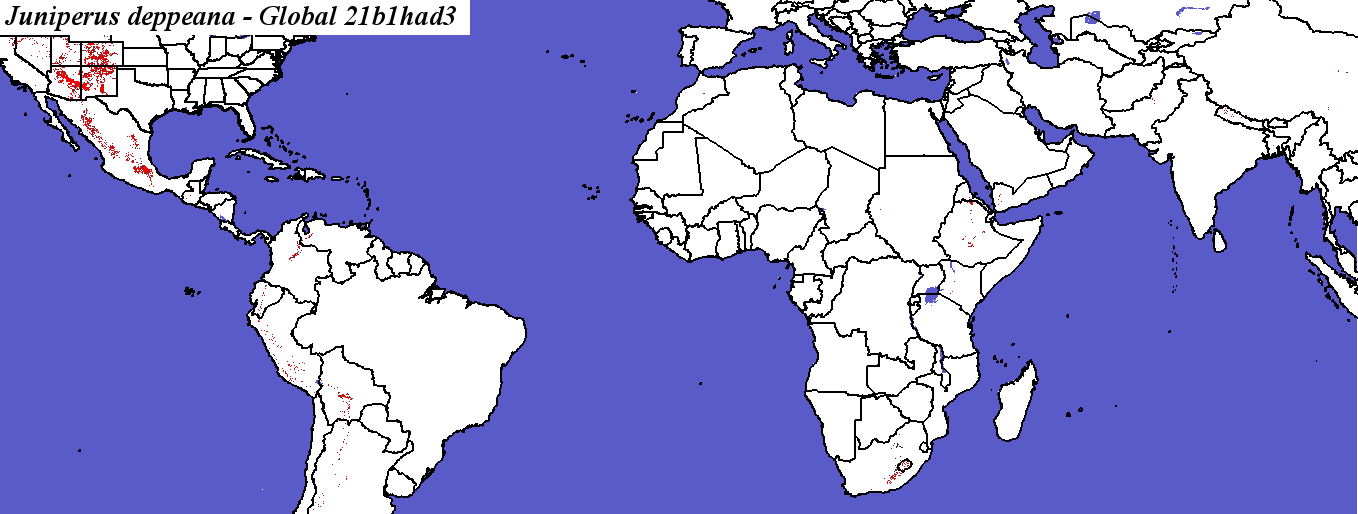

Hadley, Scenario B1, 2100 - Juniperus deppeana - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Juniperus_deppeana_final.elev

Number of Suitable Ecoregions (Niche Breadth)

73

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

29.1781

Area in Present Suitable Range (in km2)

395006

Area in Future Suitable Range (Had B1 2050, in km2)

301653

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

226950

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

57.4500

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

31.5068

Percent Change in Area of Suitable Range (Had B1 2050)

-23.6300

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

39.726

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

7794.79 +/- 14702.4

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

77.5342

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

3.85112 +/- 7.22033

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

75.8904

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

56.3282 +/- 346.049

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

54.3836

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

4755

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

1.2000

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

49.726

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

162815

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

41.2100

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

19.4521

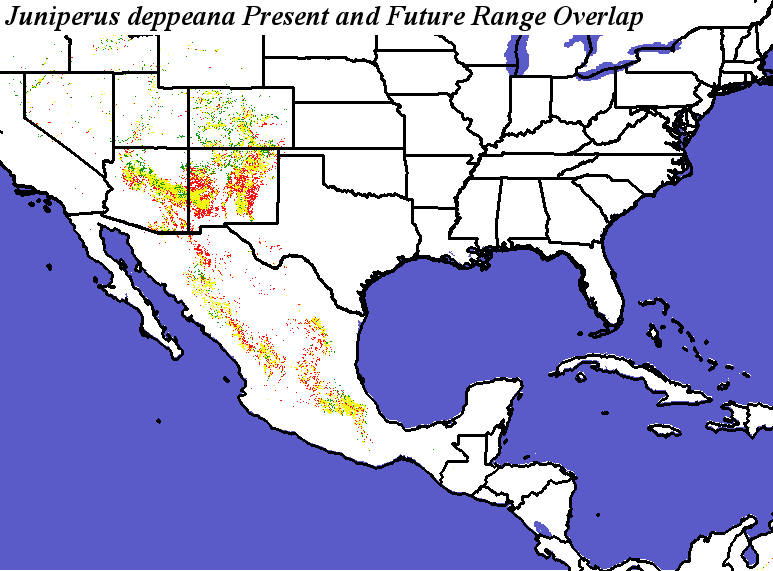

Present and Future Ranges - Hadley, Scenario B1, 2050 - Juniperus deppeana Juniperus deppeana - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Juniperus_deppeana_final.elev Fine MRM Distance
Juniperus_deppeana_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Juniperus deppeana Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Juniperus deppeana
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

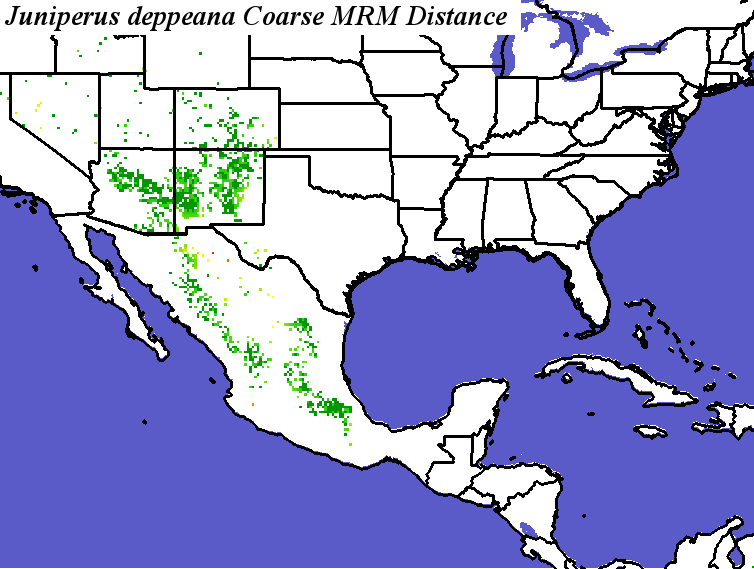

Juniperus_deppeana_final.elev Coarse MRM Distance
Juniperus_deppeana_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Juniperus deppeana Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Juniperus deppeana

Thu Jul 21 10:05:45 EDT 2016
