Version 5 Tree Atlas


Magnolia tripetala

umbrella magnolia

elev

Magnolia tripetala Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Magnolia tripetala

USDA Plants Database entry for Magnolia tripetala
Silvics Manual entry for Magnolia tripetala


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Magnolia virginiana var. tripetala452570much of range not well represented

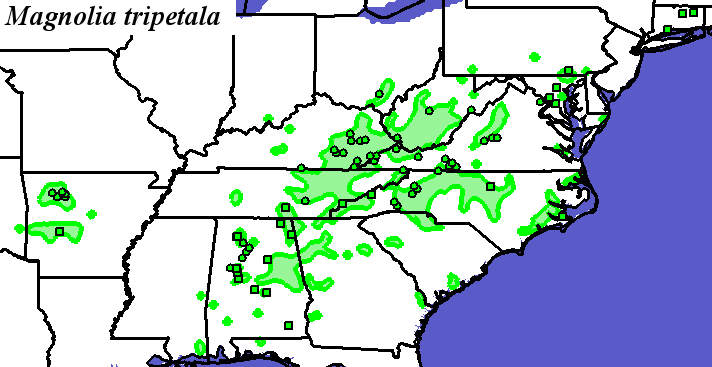

Occurrence Locations and Hargrove's Present Suitable Range Outline
Magnolia_tripetala_final Occurrences
Hargroves Present Suitable Range Outline for Magnolia_tripetala_final
Magnolia tripetala - Occurrence Locations Magnolia tripetala - Hargrove's Present Suitable Range Outline
Present Conditions
Magnolia_tripetala_final.2.conus
Magnolia_tripetala_final.2.global

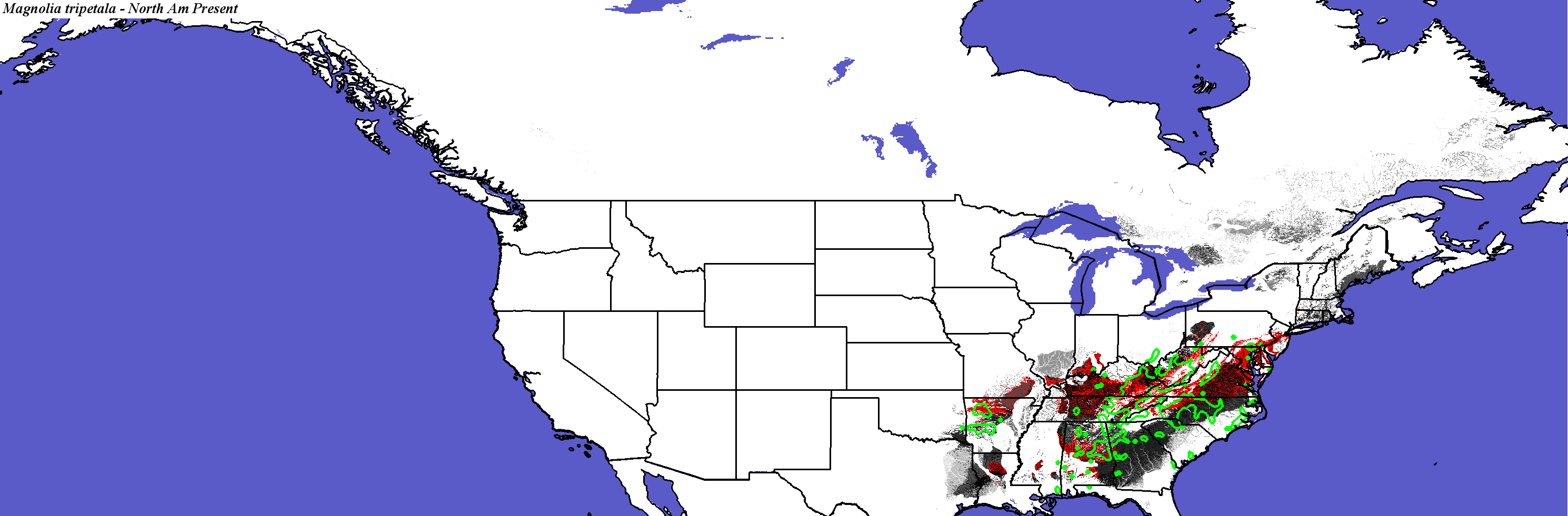

Magnolia tripetala - CONUS
Compare with Current Range from the Silvics Manual for Magnolia tripetala
Compare with Current Range from Biota of North America Program (BONAP) for Magnolia tripetala

Magnolia tripetala not modeled by Iverson and Prasad
Magnolia tripetala not modeled by Crookston and Rehfeldt
Magnolia tripetala not modeled by Coops and Waring

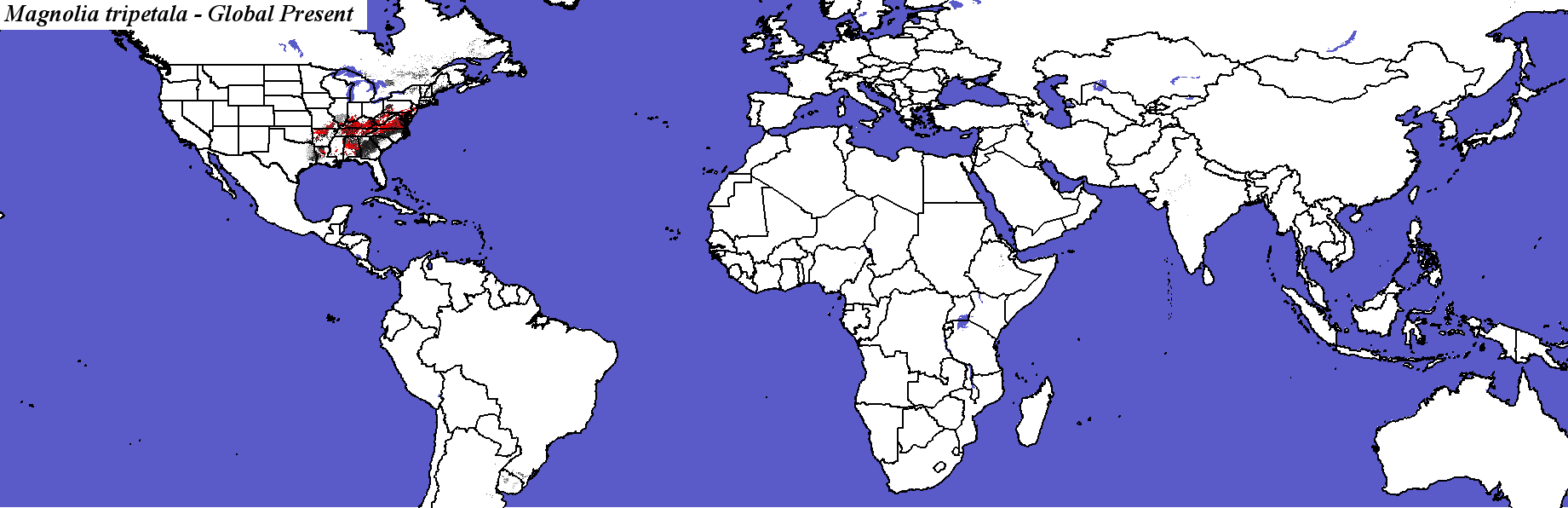

Magnolia tripetala - Global

PCM - Parallel Climate Model
Magnolia_tripetala_final.2.conus
Magnolia_tripetala_final.2.global

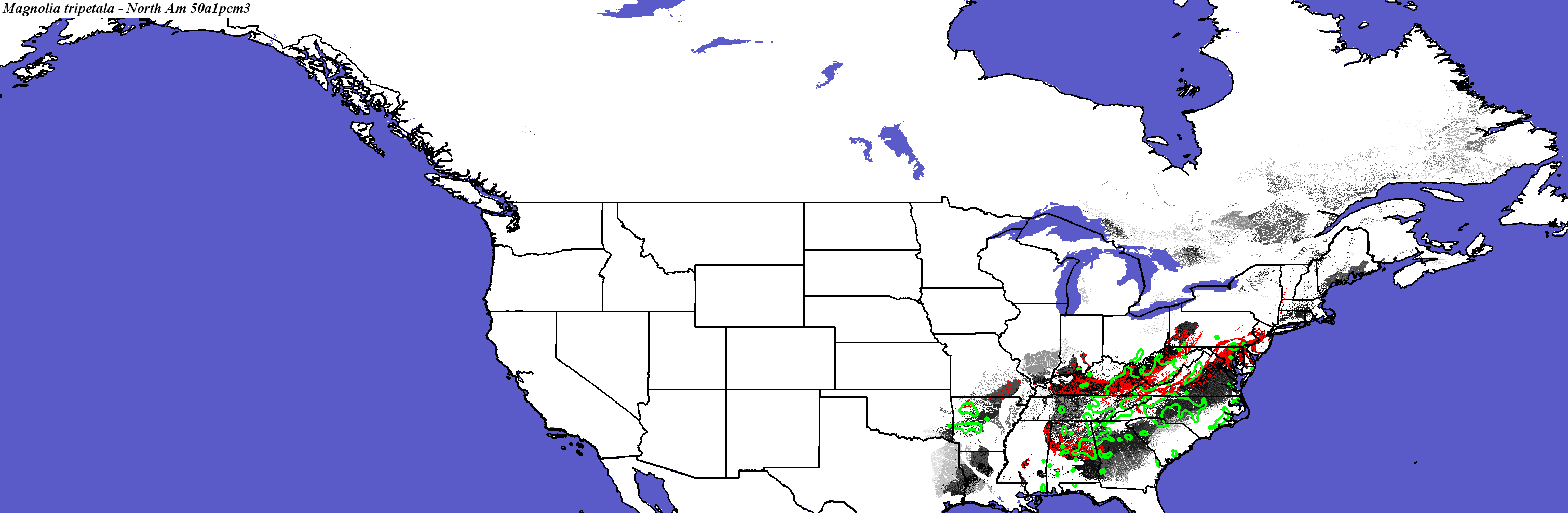

PCM, Scenario A1FI, 2050 - Magnolia tripetala - CONUS
PCM, Scenario A1FI, 2050 - Magnolia tripetala - Global
Magnolia_tripetala_final.2.conus
Magnolia_tripetala_final.2.global

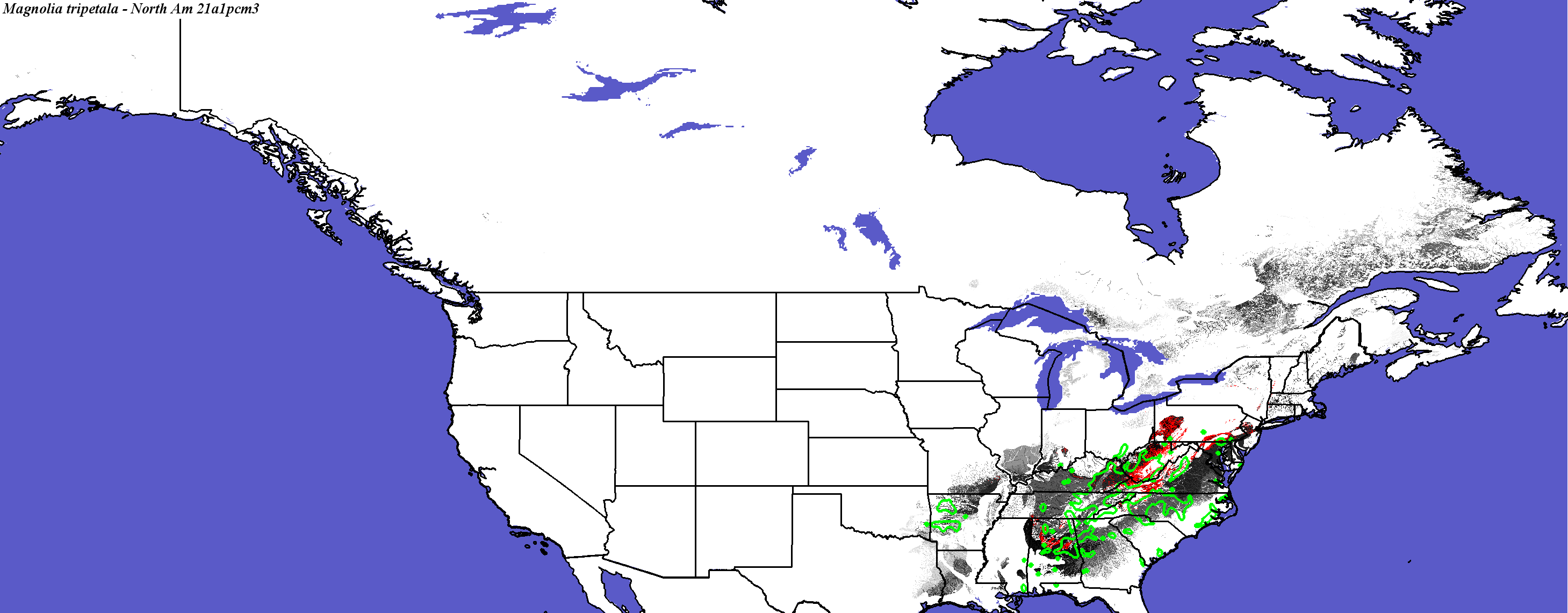

PCM, Scenario A1FI, 2100 - Magnolia tripetala - CONUS
Magnolia tripetala species not modeled by Iverson and Prasad

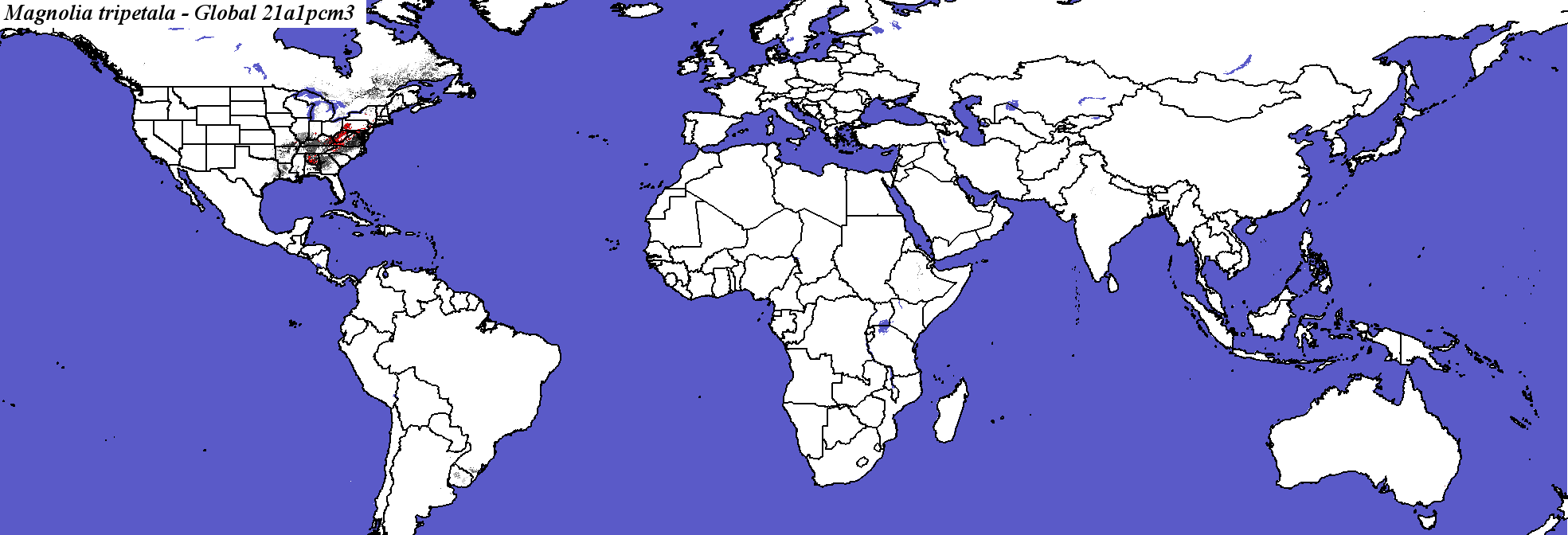

PCM, Scenario A1FI, 2100 - Magnolia tripetala - Global

Magnolia_tripetala_final.2.conus
Magnolia_tripetala_final.2.global
PCM, Scenario B1, 2050 - Magnolia tripetala - CONUS
PCM, Scenario B1, 2050 - Magnolia tripetala - Global
Magnolia_tripetala_final.2.conus
Magnolia_tripetala_final.2.global

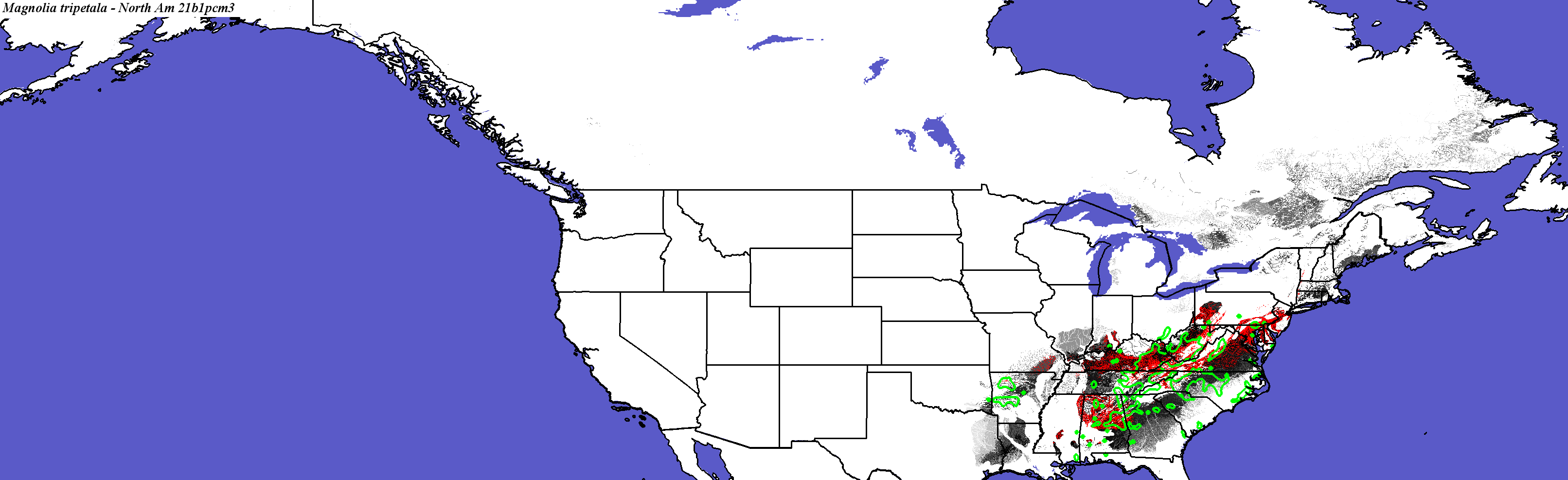

PCM, Scenario B1, 2100 - Magnolia tripetala - CONUS
Magnolia tripetala not modeled by Iverson and Prasad

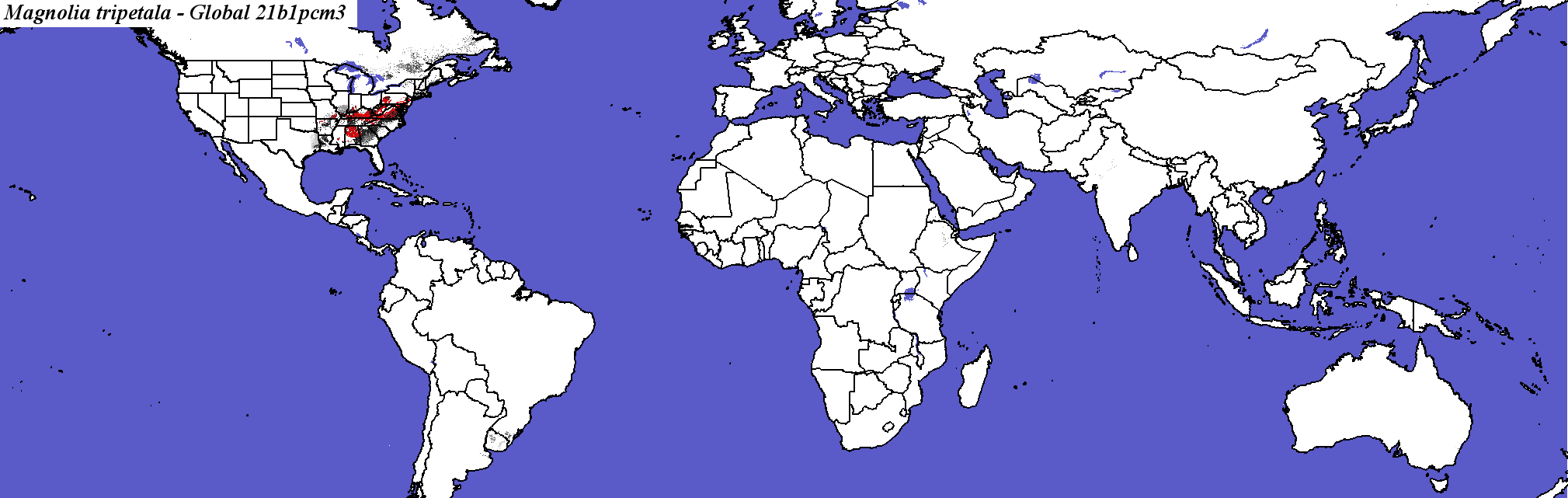

PCM, Scenario B1, 2100 - Magnolia tripetala - Global

Hadley Climate Model
Magnolia_tripetala_final.2.conus
Magnolia_tripetala_final.2.global

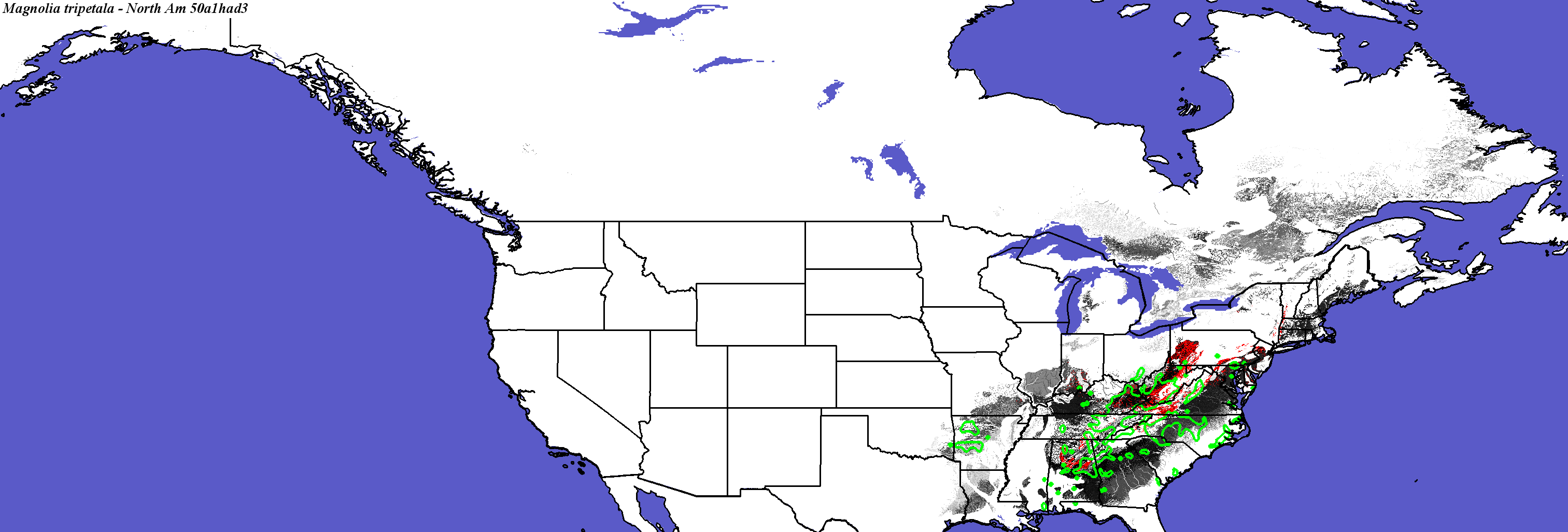

Hadley, Scenario A1FI, 2050 - Magnolia tripetala - CONUS
Magnolia tripetala not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Magnolia tripetala - Global
Magnolia_tripetala_final.2.conus
Magnolia_tripetala_final.2.global.

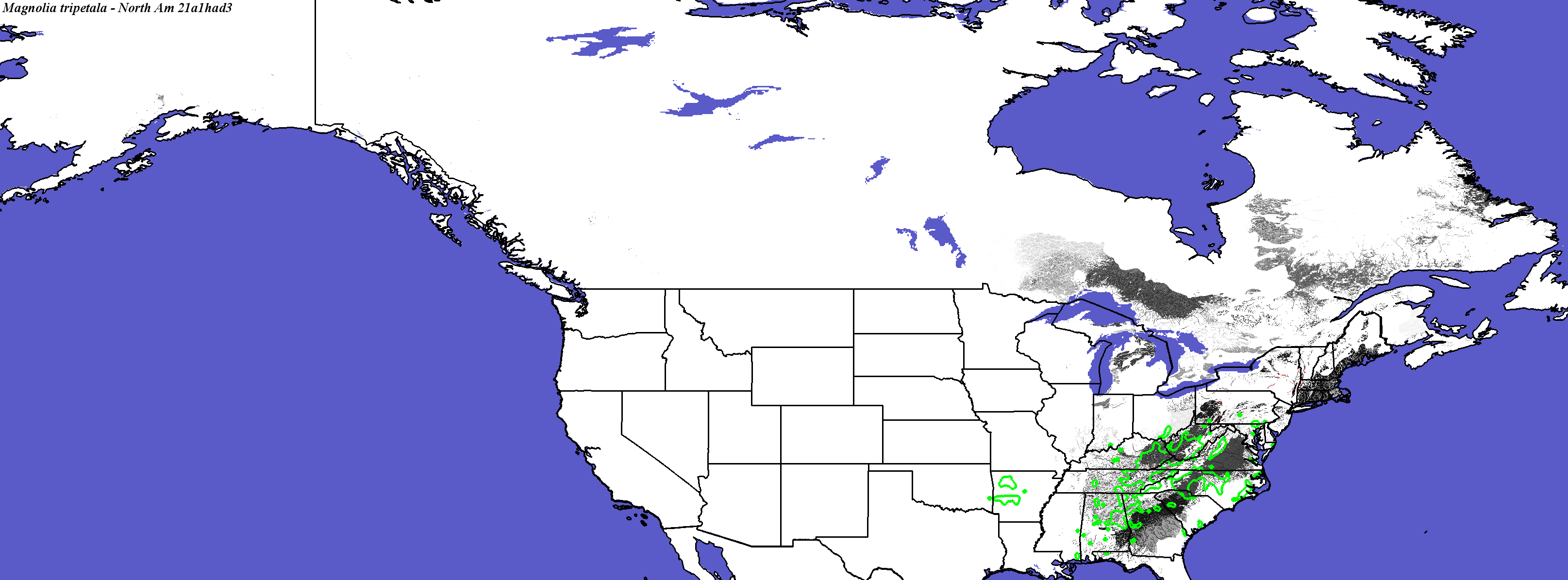

Hadley, Scenario A1FI, 2100 - Magnolia tripetala - CONUS
Magnolia tripetala not modeled by Iverson and Prasad
Magnolia tripetala not modeled by Crookston and Rehfeldt
Magnolia tripetala not modeled by Coops and Waring

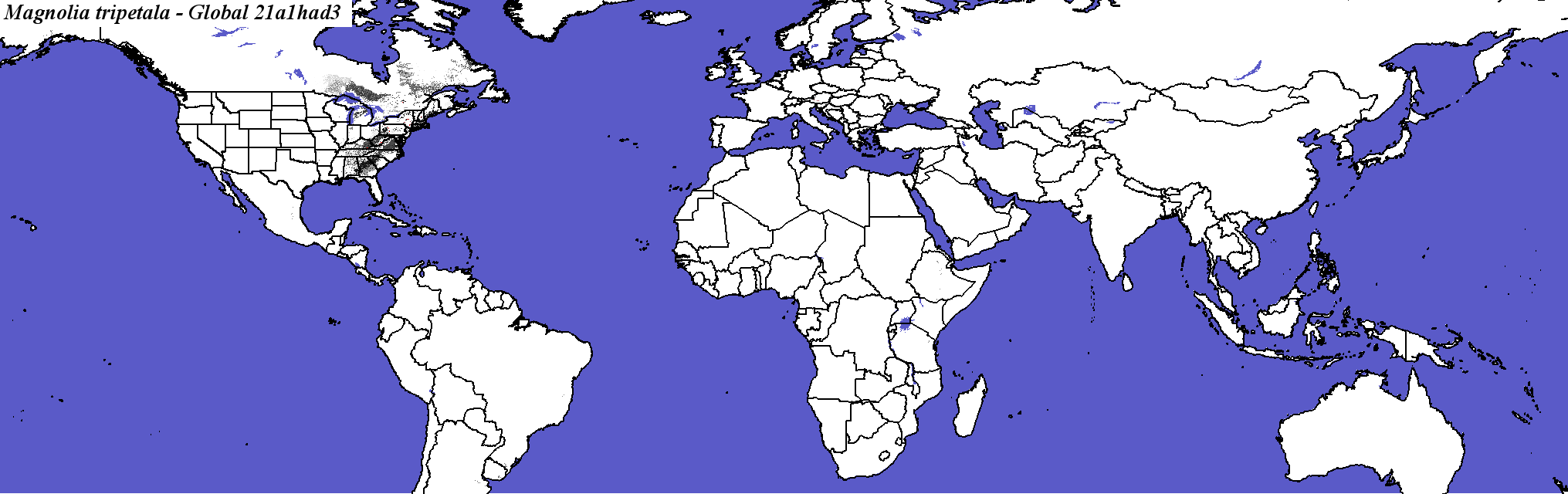

Hadley, Scenario A1FI, 2100 - Magnolia tripetala - Global

Magnolia_tripetala_final.2.conus
Magnolia_tripetala_final.2.global.
Hadley, Scenario B1, 2050 - Magnolia tripetala - CONUS
Magnolia tripetala not modeled by Crookston and Rehfeldt
Magnolia tripetala not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Magnolia tripetala - Global
Magnolia_tripetala_final.2.conus
Magnolia_tripetala_final.2.global
Hadley, Scenario B1, 2100 - Magnolia tripetala - CONUS
Magnolia tripetala not modeled by Iverson and Prasad
Magnolia tripetala not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Magnolia tripetala - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Magnolia_tripetala_final.elev

Number of Suitable Ecoregions (Niche Breadth)

17

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

68.4932

Area in Present Suitable Range (in km2)

192810

Area in Future Suitable Range (Had B1 2050, in km2)

79572

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

50172

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

26.0200

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

88.4932

Percent Change in Area of Suitable Range (Had B1 2050)

-58.7300

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

90.137

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

63689.3 +/- 103063

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

5.06849

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

26.9287 +/- 51.6461

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

4.38356

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

61.817 +/- 94.0743

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

52.6027

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

89.1781

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

37824

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

19.6100

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

72.3288

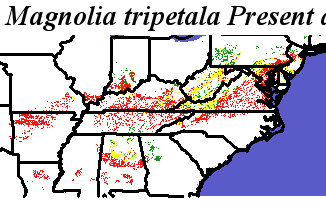

Present and Future Ranges - Hadley, Scenario B1, 2050 - Magnolia tripetala Magnolia tripetala - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

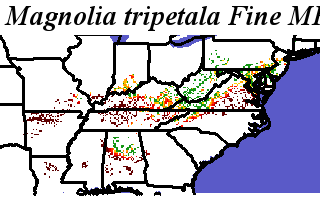

Magnolia_tripetala_final.elev Fine MRM Distance

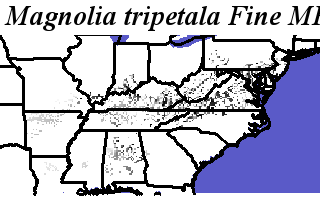

Magnolia_tripetala_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Magnolia tripetala Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Magnolia tripetala
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

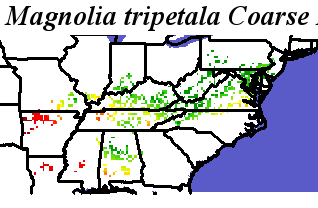

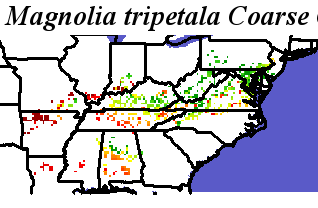

Magnolia_tripetala_final.elev Coarse MRM Distance
Magnolia_tripetala_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Magnolia tripetala Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Magnolia tripetala
