Version 5 Tree Atlas


Malus angustifolia

southern crabapple

elev

Malus angustifolia Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Malus angustifolia

USDA Plants Database entry for Malus angustifolia
Silvics Manual entry for Malus angustifolia


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
482775Main range well-sampled, but disjuncts not well-sampled

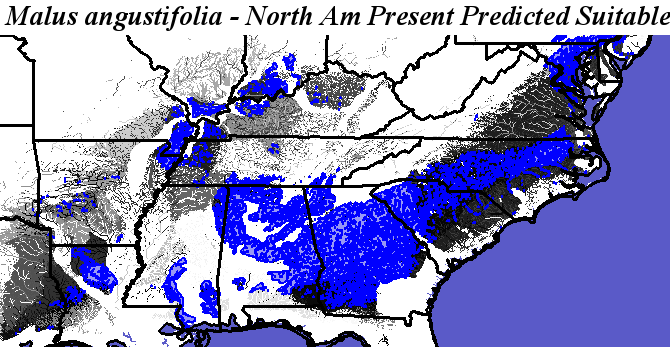

Occurrence Locations and Hargrove's Present Suitable Range Outline
Malus_angustifolia_final Occurrences
Hargroves Present Suitable Range Outline for Malus_angustifolia_final
Malus angustifolia - Occurrence Locations Malus angustifolia - Hargrove's Present Suitable Range Outline

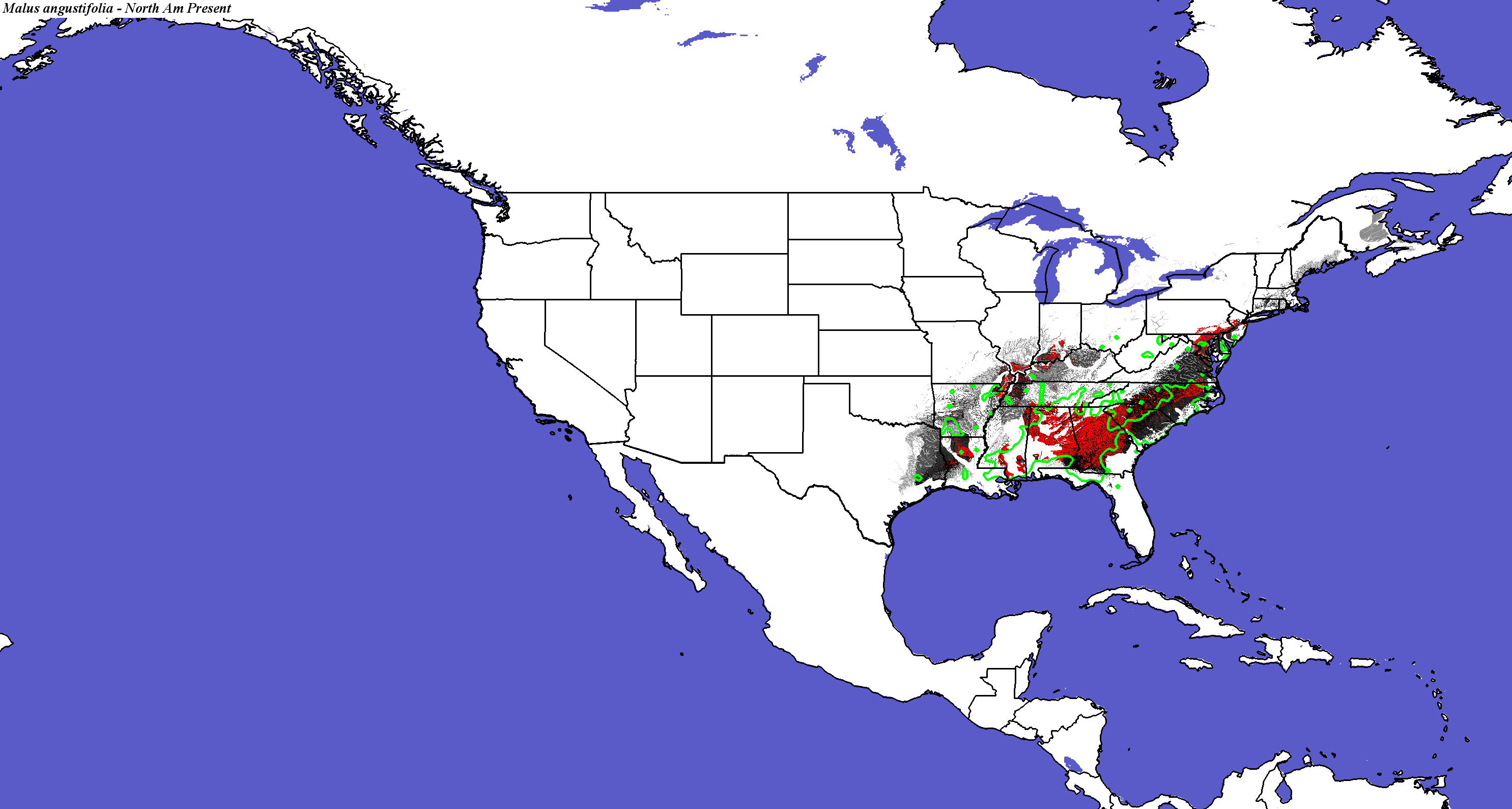

Present Conditions
Malus_angustifolia_final.2.conus
Malus_angustifolia_final.2.global
Malus angustifolia - CONUS
Compare with Current Range from the Silvics Manual for Malus angustifolia
Compare with Current Range from Biota of North America Program (BONAP) for Malus angustifolia

Malus angustifolia not modeled by Iverson and Prasad
Malus angustifolia not modeled by Crookston and Rehfeldt
Malus angustifolia not modeled by Coops and Waring
Malus angustifolia - Global

PCM - Parallel Climate Model
Malus_angustifolia_final.2.conus
Malus_angustifolia_final.2.global

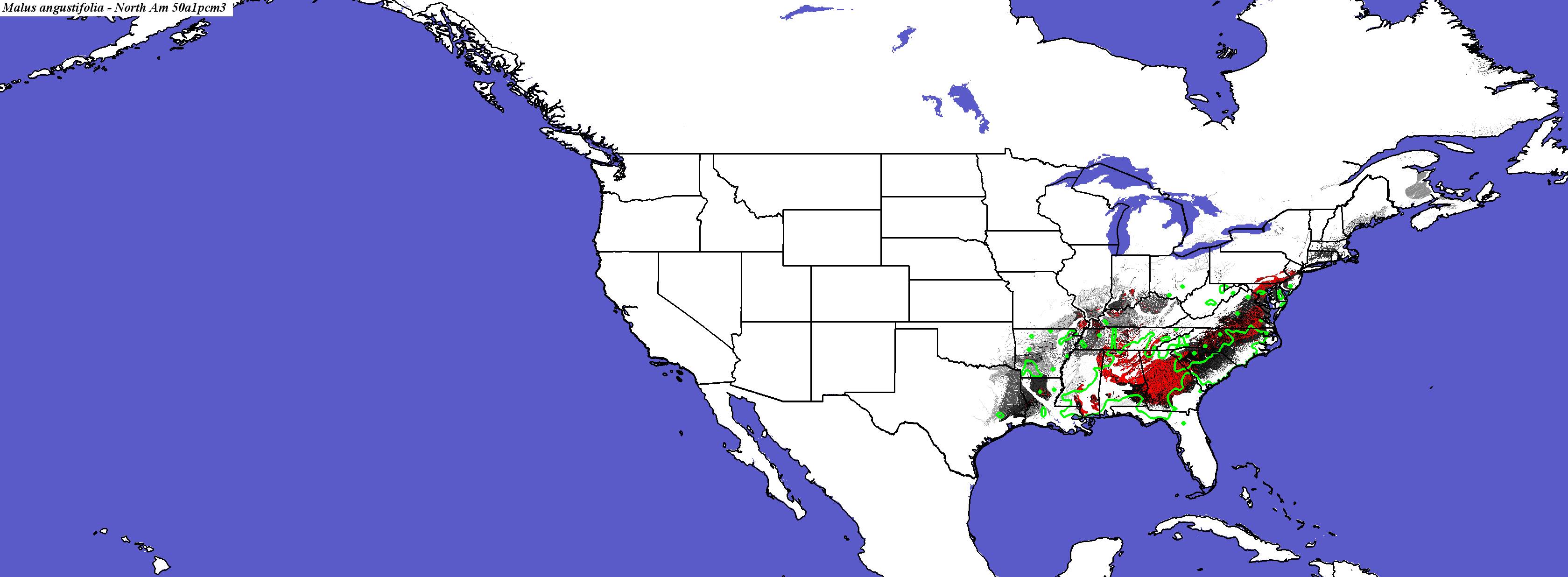

PCM, Scenario A1FI, 2050 - Malus angustifolia - CONUS

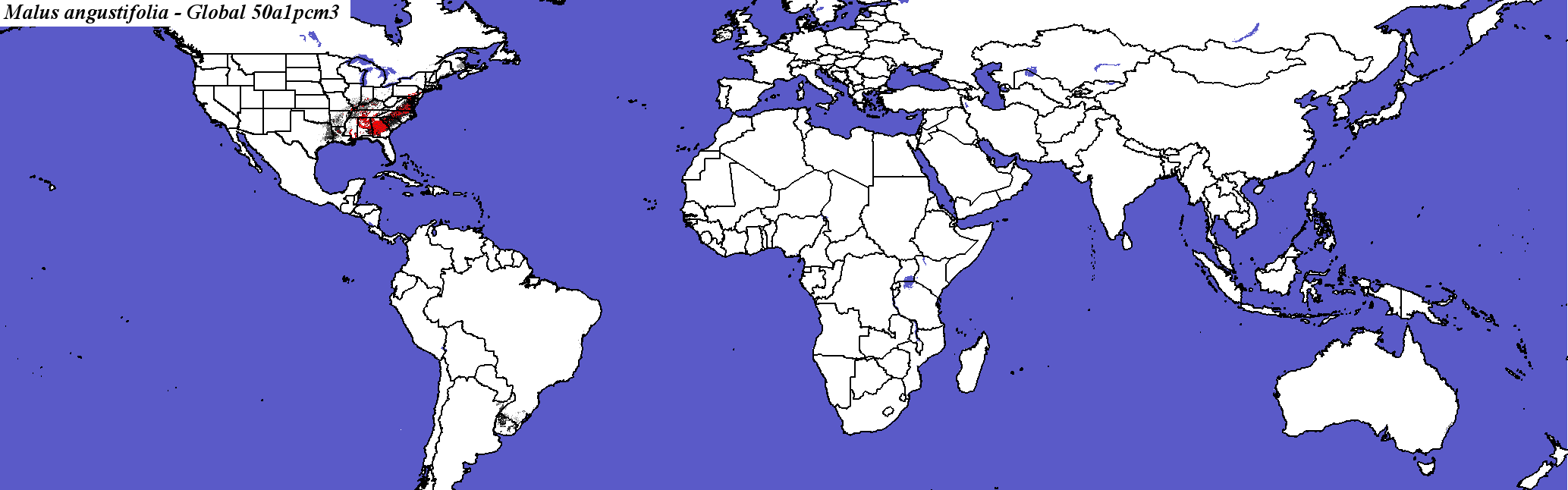

PCM, Scenario A1FI, 2050 - Malus angustifolia - Global
Malus_angustifolia_final.2.conus
Malus_angustifolia_final.2.global

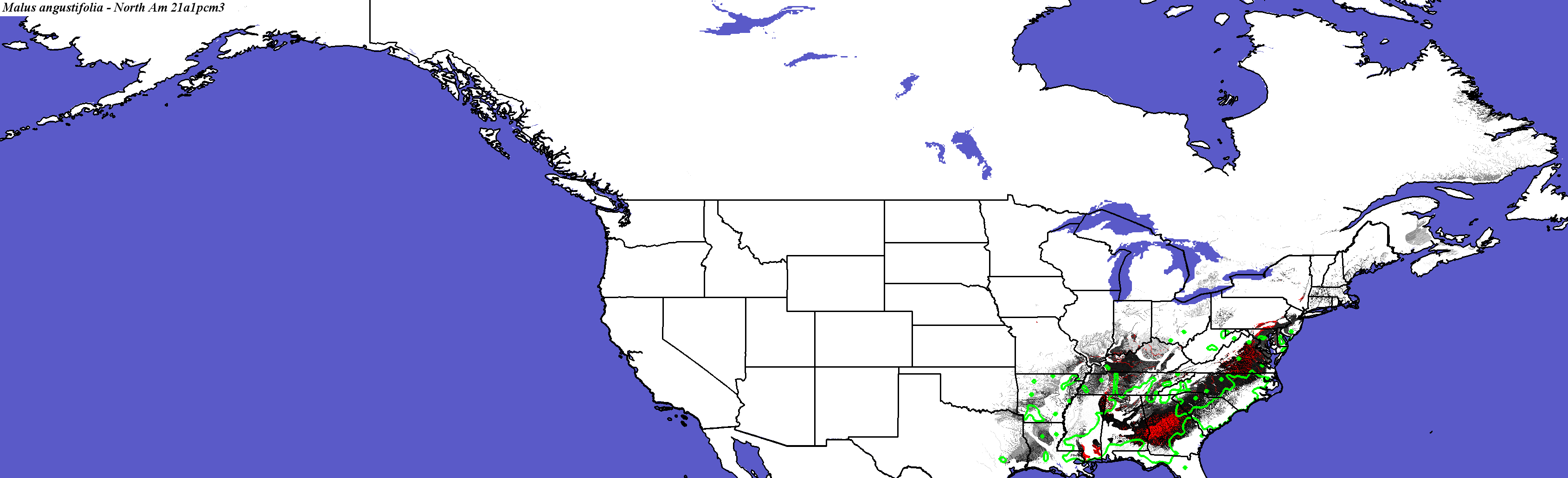

PCM, Scenario A1FI, 2100 - Malus angustifolia - CONUS
Malus angustifolia species not modeled by Iverson and Prasad

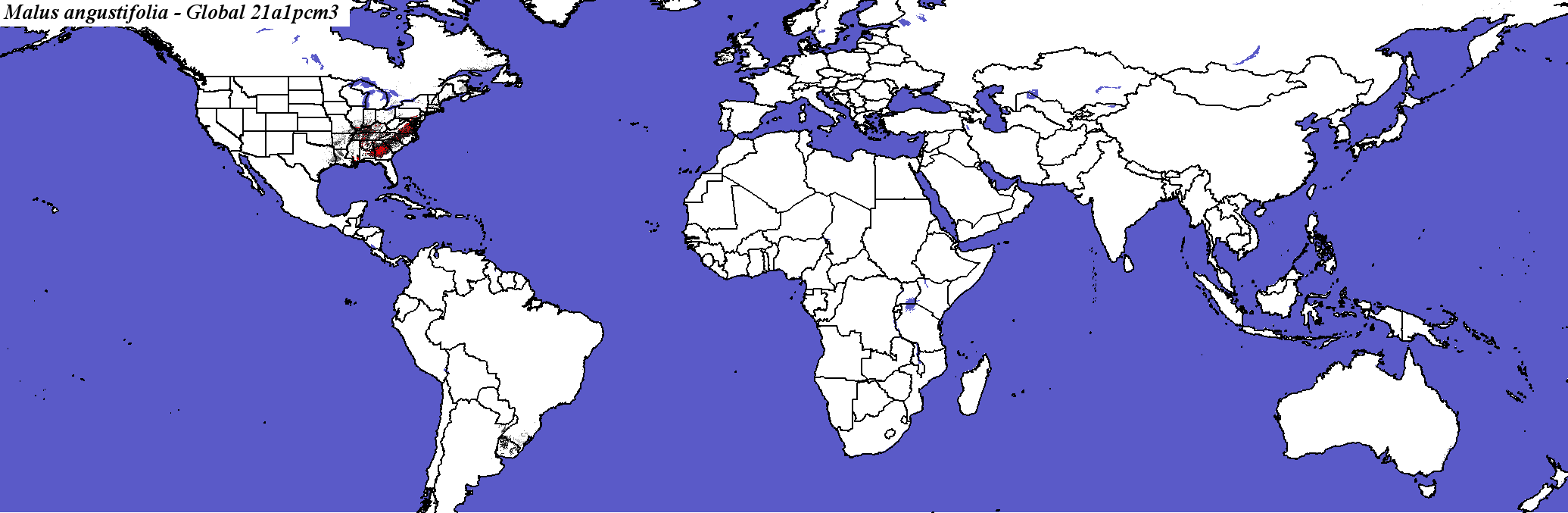

PCM, Scenario A1FI, 2100 - Malus angustifolia - Global

Malus_angustifolia_final.2.conus
Malus_angustifolia_final.2.global
PCM, Scenario B1, 2050 - Malus angustifolia - CONUS

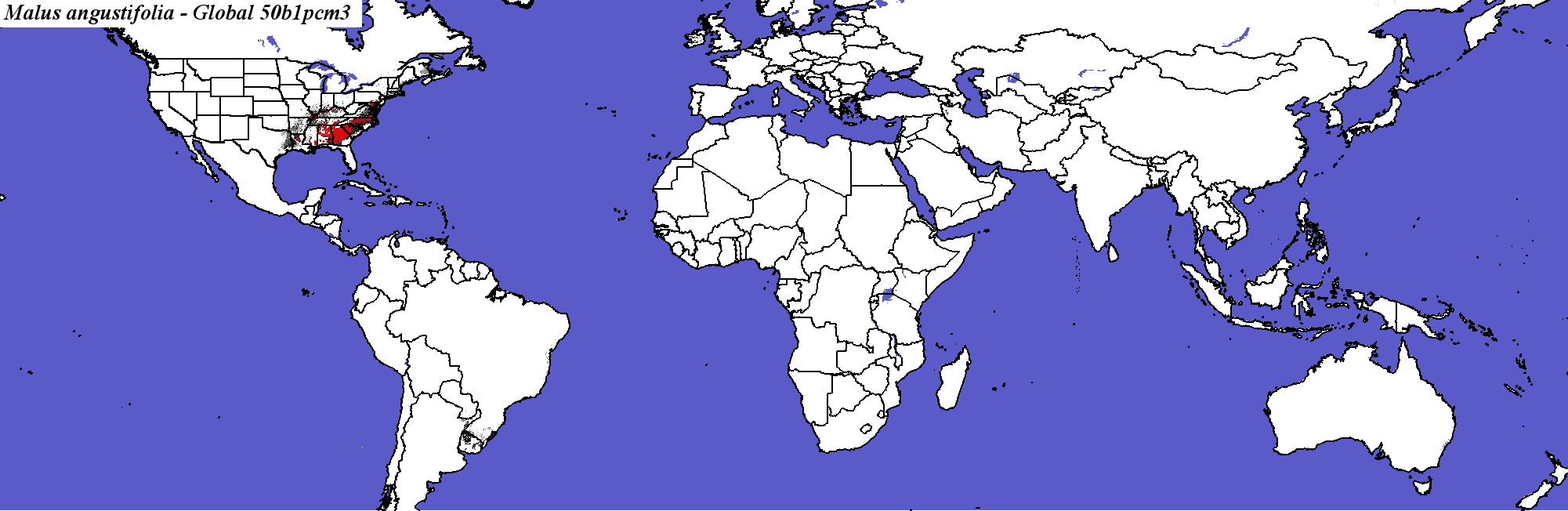

PCM, Scenario B1, 2050 - Malus angustifolia - Global
Malus_angustifolia_final.2.conus
Malus_angustifolia_final.2.global

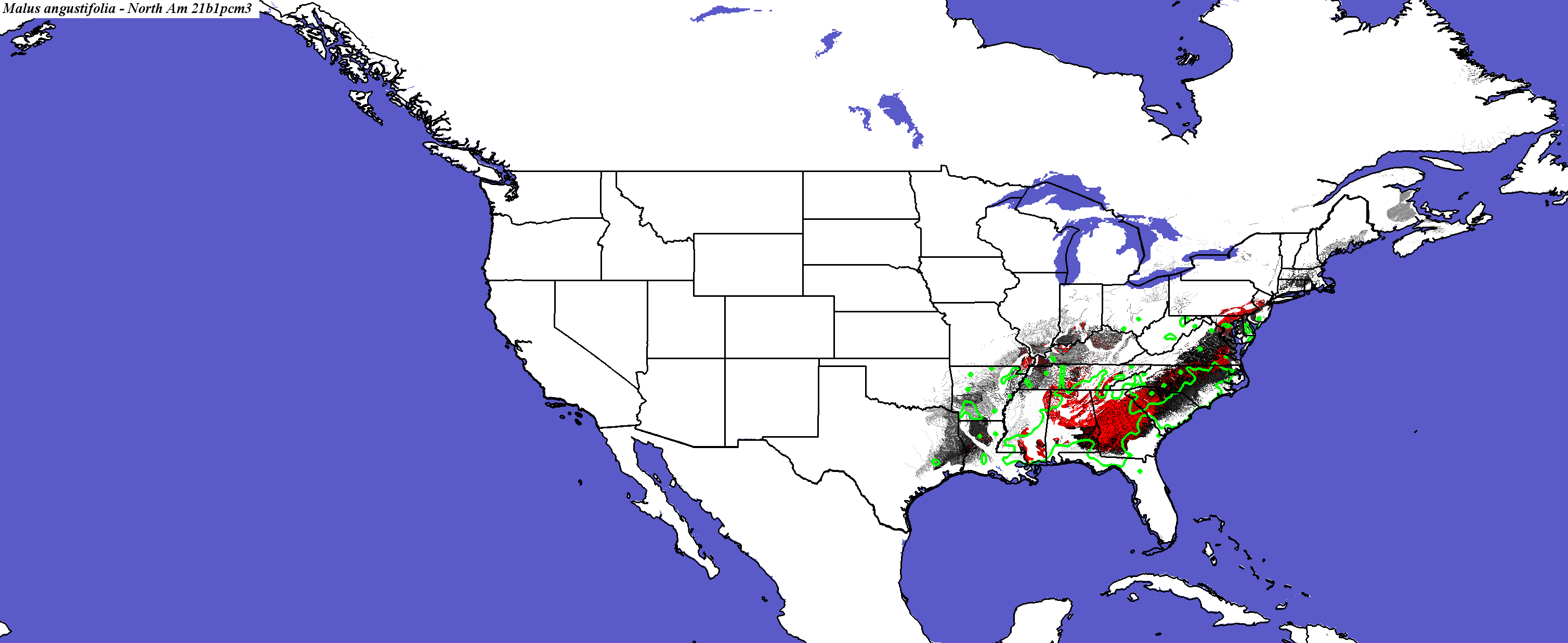

PCM, Scenario B1, 2100 - Malus angustifolia - CONUS
Malus angustifolia not modeled by Iverson and Prasad

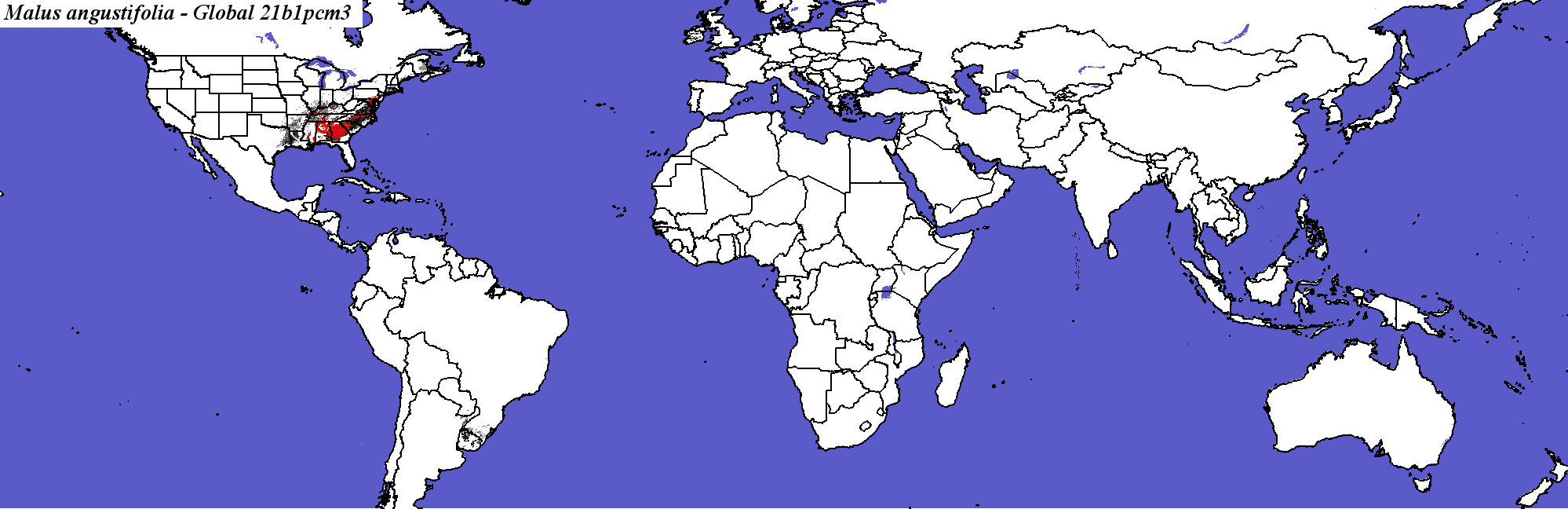

PCM, Scenario B1, 2100 - Malus angustifolia - Global

Hadley Climate Model
Malus_angustifolia_final.2.conus
Malus_angustifolia_final.2.global
Hadley, Scenario A1FI, 2050 - Malus angustifolia - CONUS
Malus angustifolia not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Malus angustifolia - Global
Malus_angustifolia_final.2.conus
Malus_angustifolia_final.2.global.

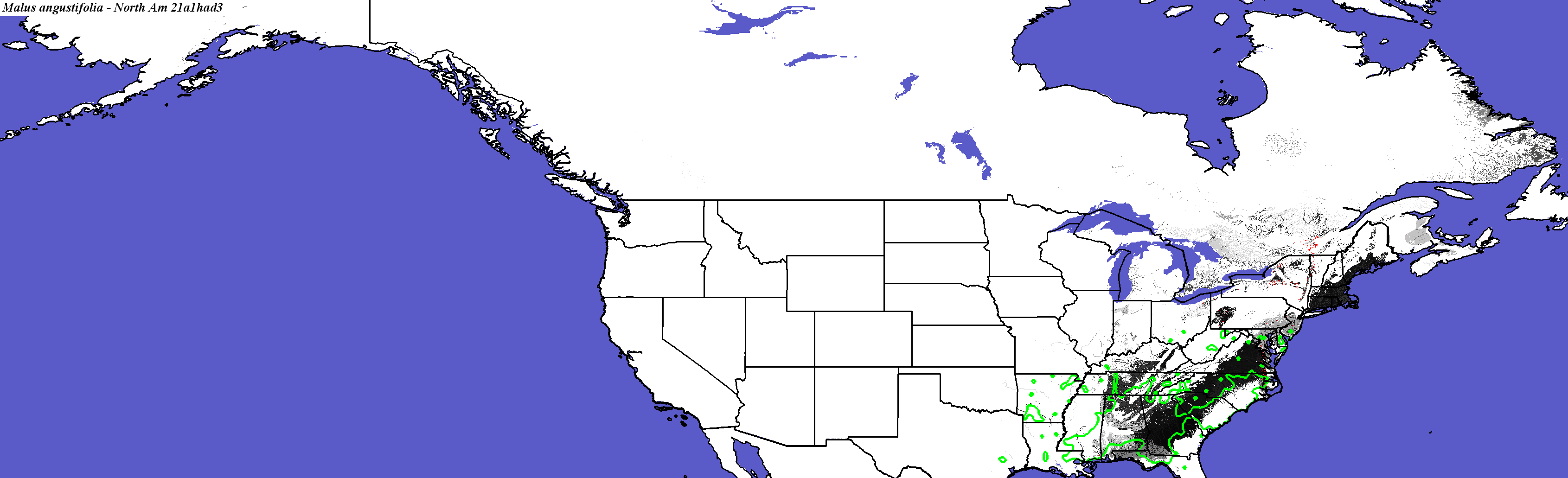

Hadley, Scenario A1FI, 2100 - Malus angustifolia - CONUS
Malus angustifolia not modeled by Iverson and Prasad
Malus angustifolia not modeled by Crookston and Rehfeldt
Malus angustifolia not modeled by Coops and Waring

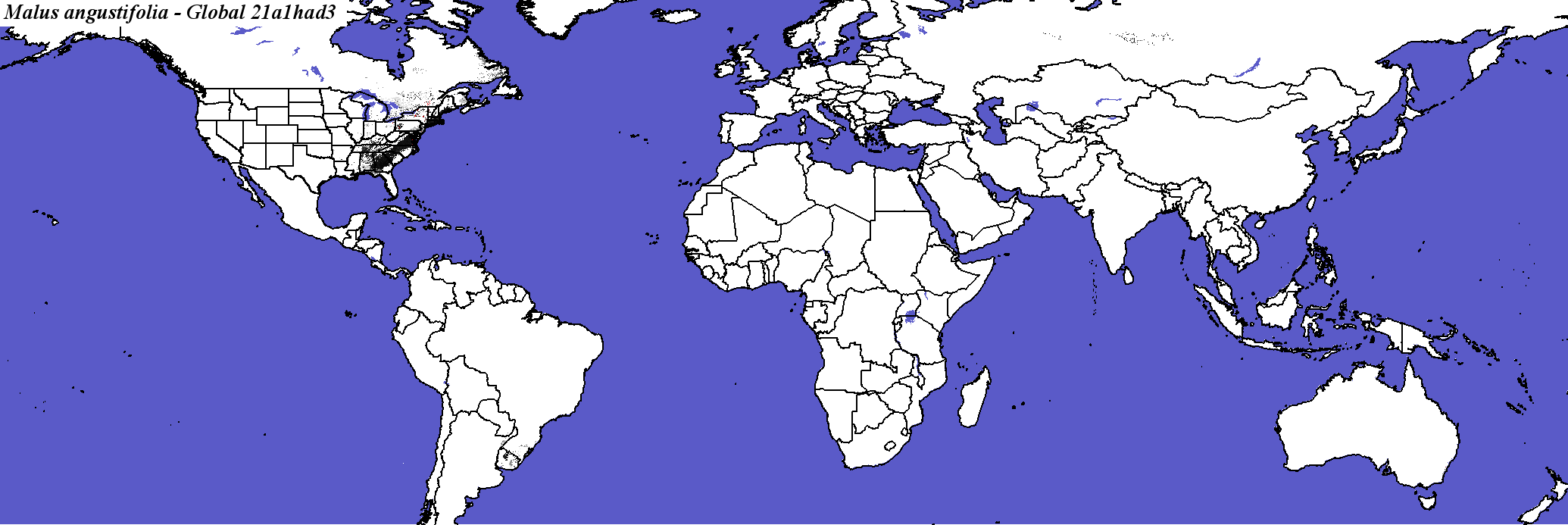

Hadley, Scenario A1FI, 2100 - Malus angustifolia - Global

Malus_angustifolia_final.2.conus
Malus_angustifolia_final.2.global.

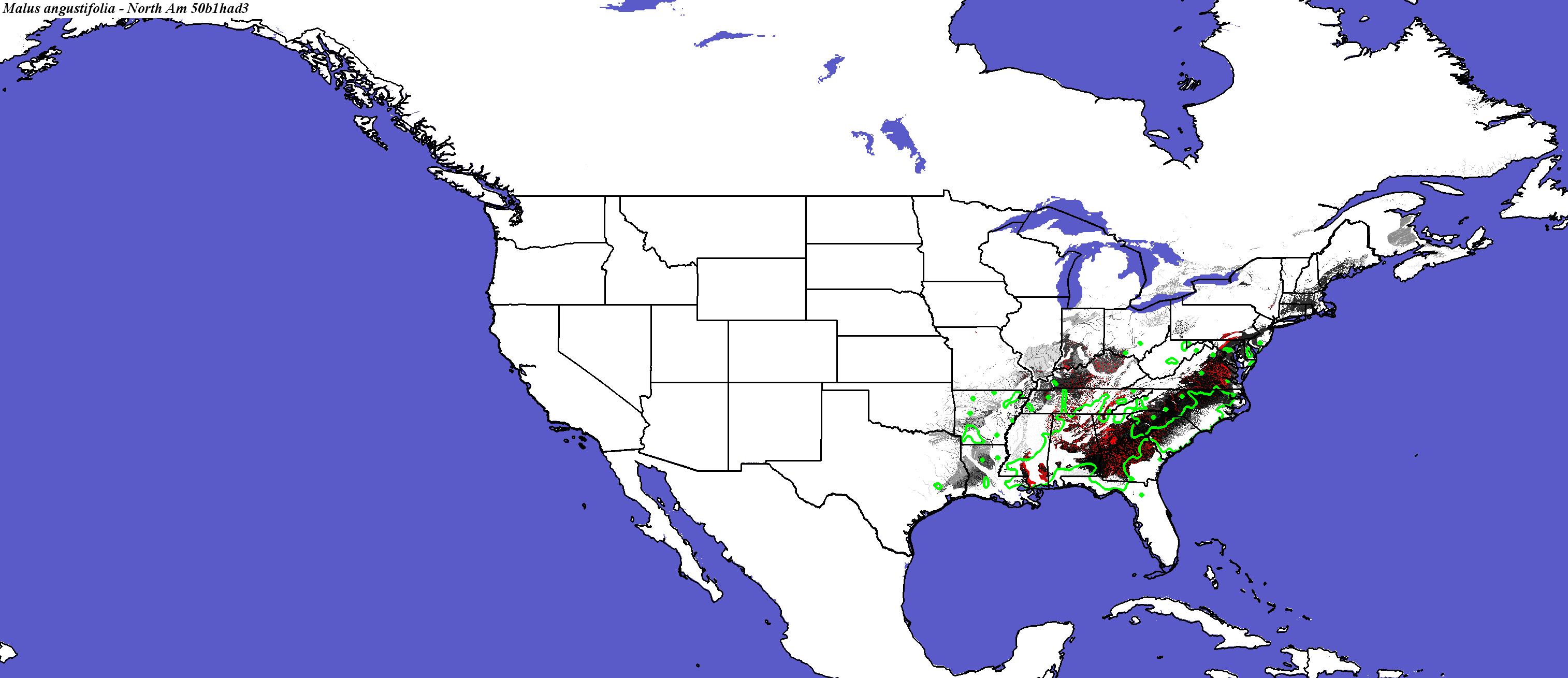

Hadley, Scenario B1, 2050 - Malus angustifolia - CONUS
Malus angustifolia not modeled by Crookston and Rehfeldt
Malus angustifolia not modeled by Coops and Waring

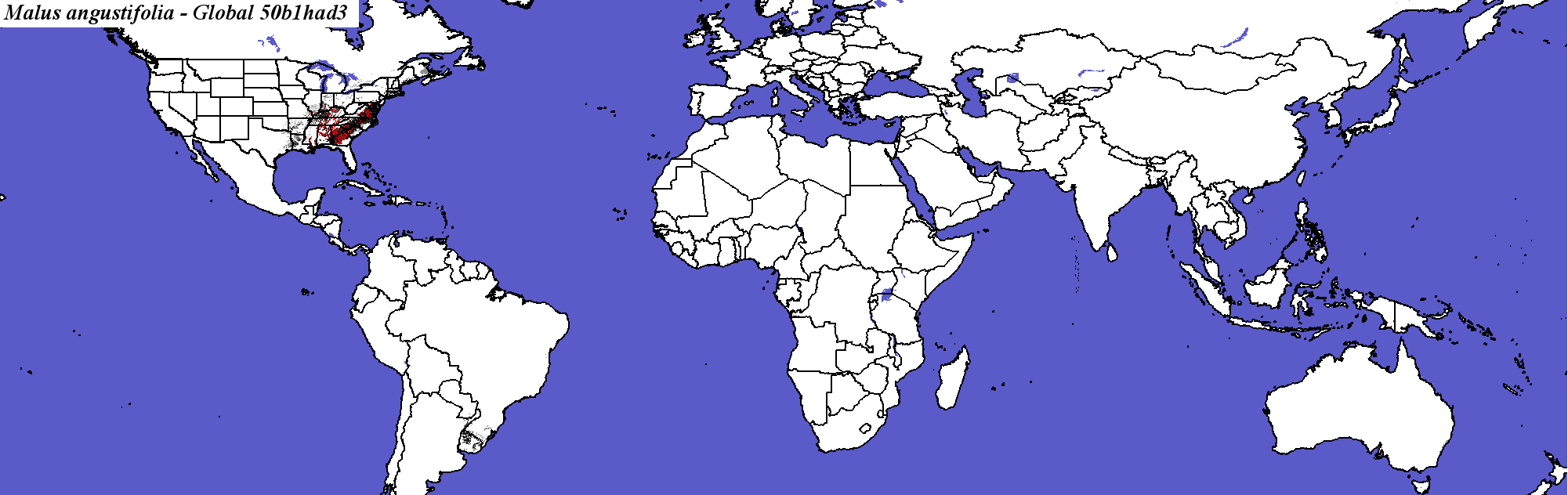

Hadley, Scenario B1, 2050 - Malus angustifolia - Global
Malus_angustifolia_final.2.conus
Malus_angustifolia_final.2.global

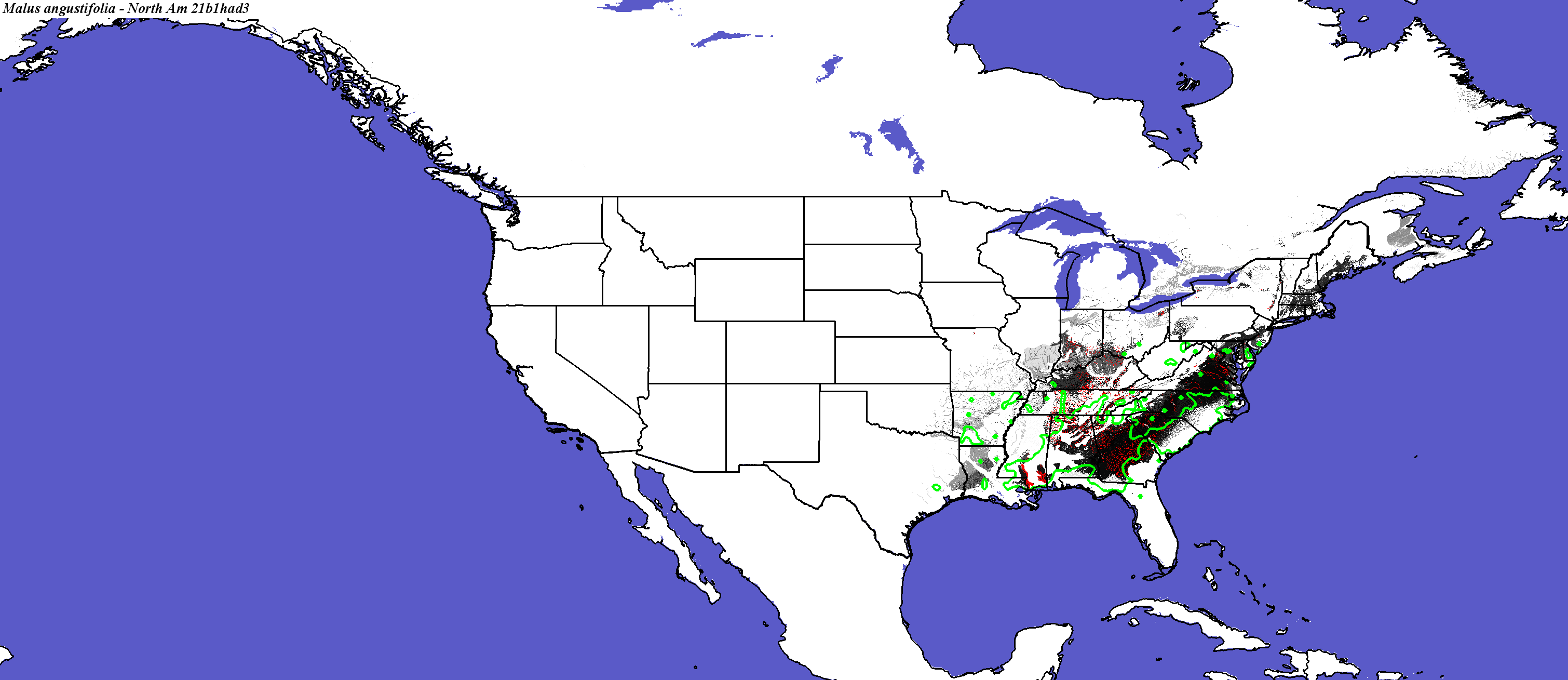

Hadley, Scenario B1, 2100 - Malus angustifolia - CONUS
Malus angustifolia not modeled by Iverson and Prasad
Malus angustifolia not modeled by Crookston and Rehfeldt

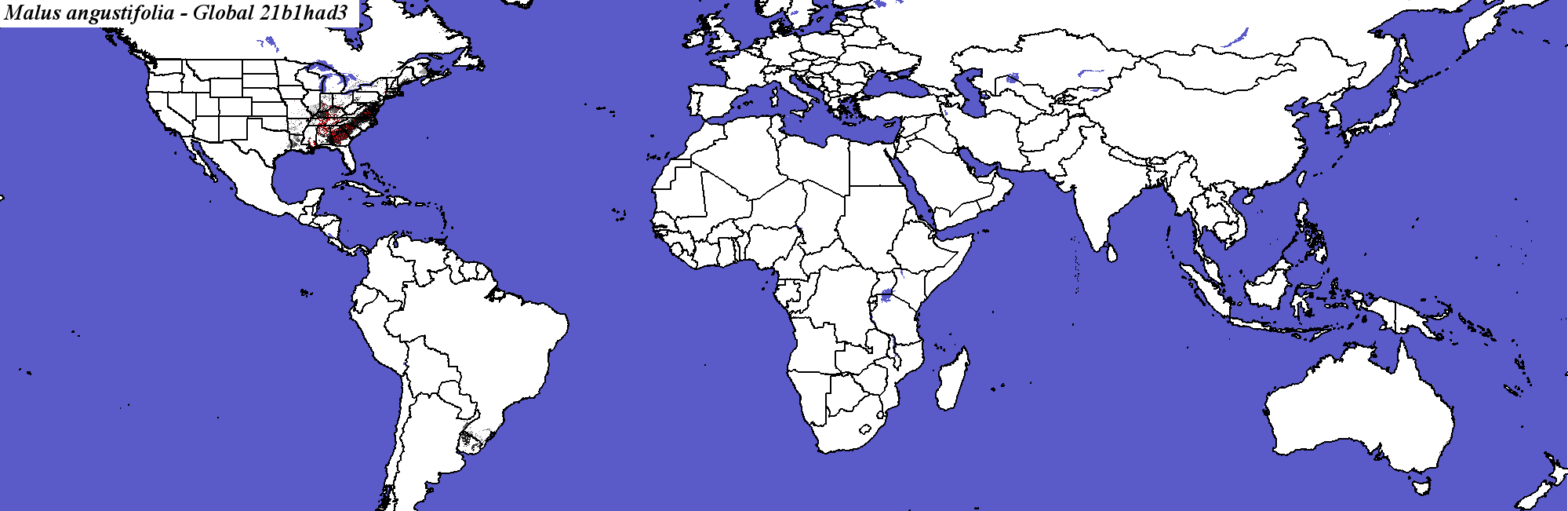

Hadley, Scenario B1, 2100 - Malus angustifolia - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Malus_angustifolia_final.elev

Number of Suitable Ecoregions (Niche Breadth)

13

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

78.7671

Area in Present Suitable Range (in km2)

186487

Area in Future Suitable Range (Had B1 2050, in km2)

67504

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

27960

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

14.9900

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

96.7123

Percent Change in Area of Suitable Range (Had B1 2050)

-63.8000

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

94.9315

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

33977.5 +/- 56392.9

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

18.0822

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

15.1357 +/- 30.0664

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

17.5342

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

392.26 +/- 948.918

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

8.08219

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

21594

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

11.5700

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

5.47945

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

20349

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

10.9100

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

91.5068

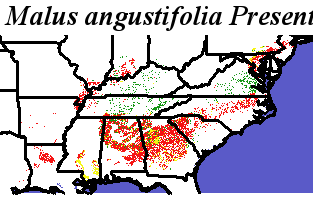

Present and Future Ranges - Hadley, Scenario B1, 2050 - Malus angustifolia Malus angustifolia - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

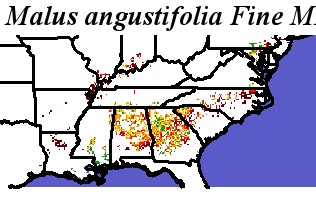

Malus_angustifolia_final.elev Fine MRM Distance

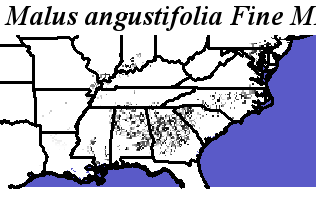

Malus_angustifolia_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Malus angustifolia Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Malus angustifolia

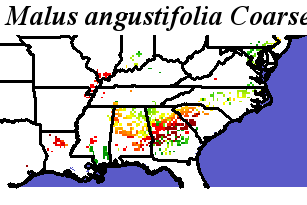

Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

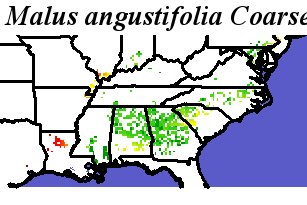

Malus_angustifolia_final.elev Coarse MRM Distance
Malus_angustifolia_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Malus angustifolia Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Malus angustifolia

Thu Jul 21 10:07:19 EDT 2016
