Version 5 Tree Atlas


Malus ioensis

prairie crabapple

elev

Malus ioensis Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Malus ioensis

USDA Plants Database entry for Malus ioensis
Silvics Manual entry for Malus ioensis


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
27678Main range well-sampled, but disjuncts not well-sampled

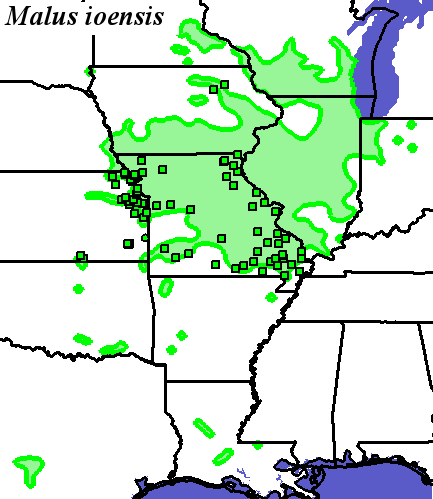

Occurrence Locations and Hargrove's Present Suitable Range Outline
Malus_ioensis_final Occurrences

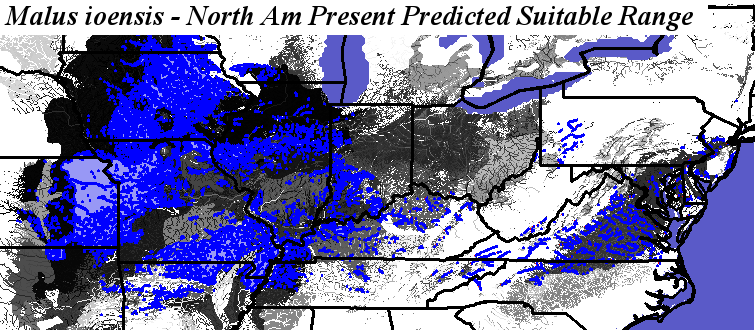

Hargroves Present Suitable Range Outline for Malus_ioensis_final
Malus ioensis - Occurrence Locations Malus ioensis - Hargrove's Present Suitable Range Outline
Present Conditions
Malus_ioensis_final.2.conus
Malus_ioensis_final.2.global

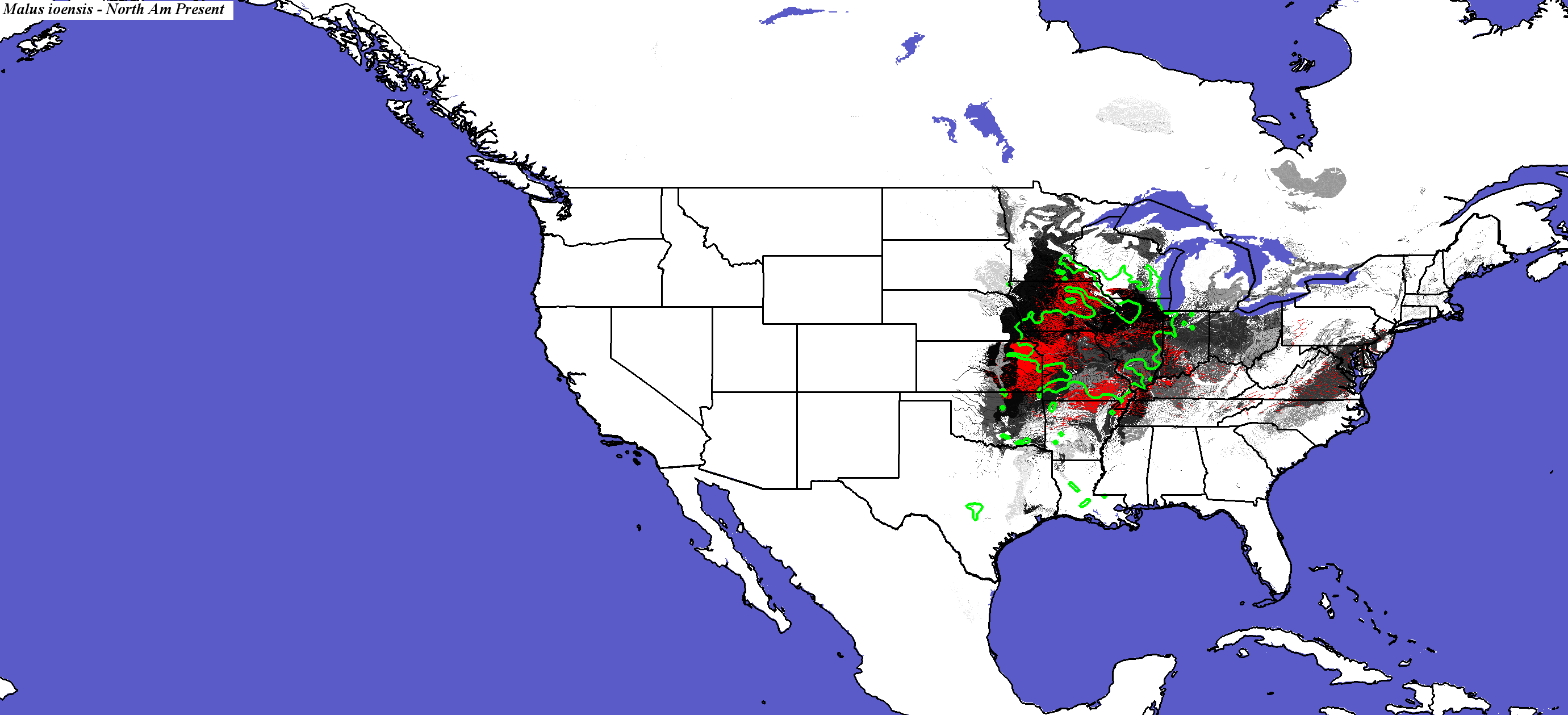

Malus ioensis - CONUS
Compare with Current Range from the Silvics Manual for Malus ioensis
Compare with Current Range from Biota of North America Program (BONAP) for Malus ioensis

Malus ioensis not modeled by Iverson and Prasad
Malus ioensis not modeled by Crookston and Rehfeldt
Malus ioensis not modeled by Coops and Waring

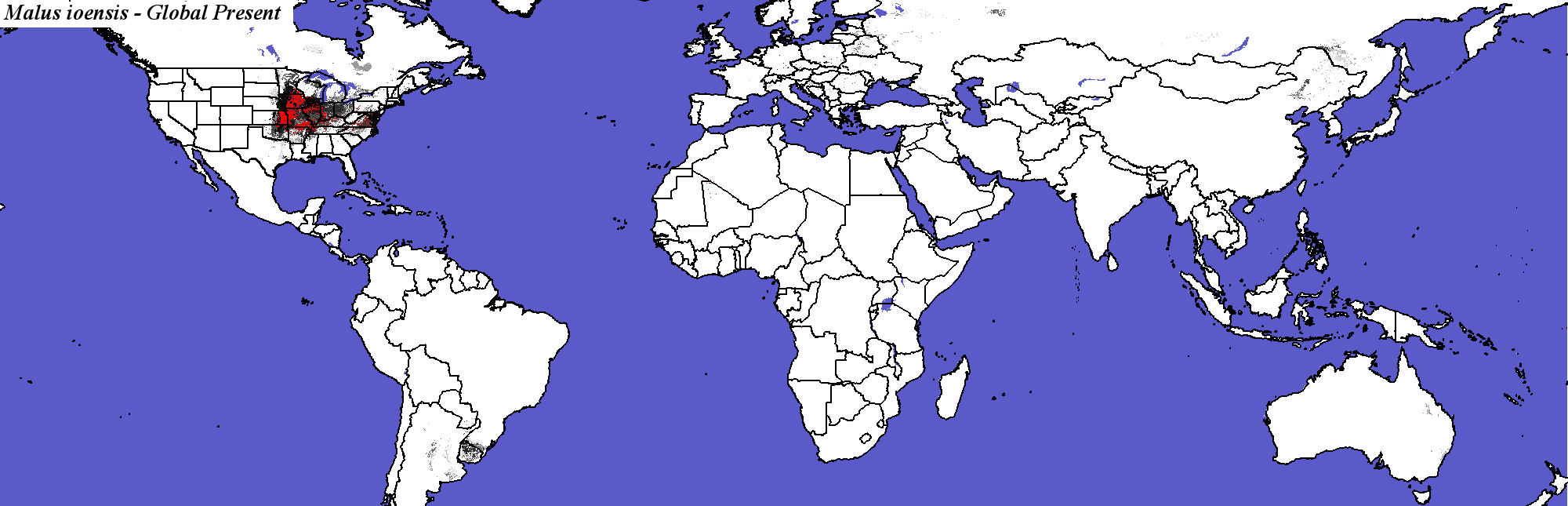

Malus ioensis - Global

PCM - Parallel Climate Model
Malus_ioensis_final.2.conus
Malus_ioensis_final.2.global

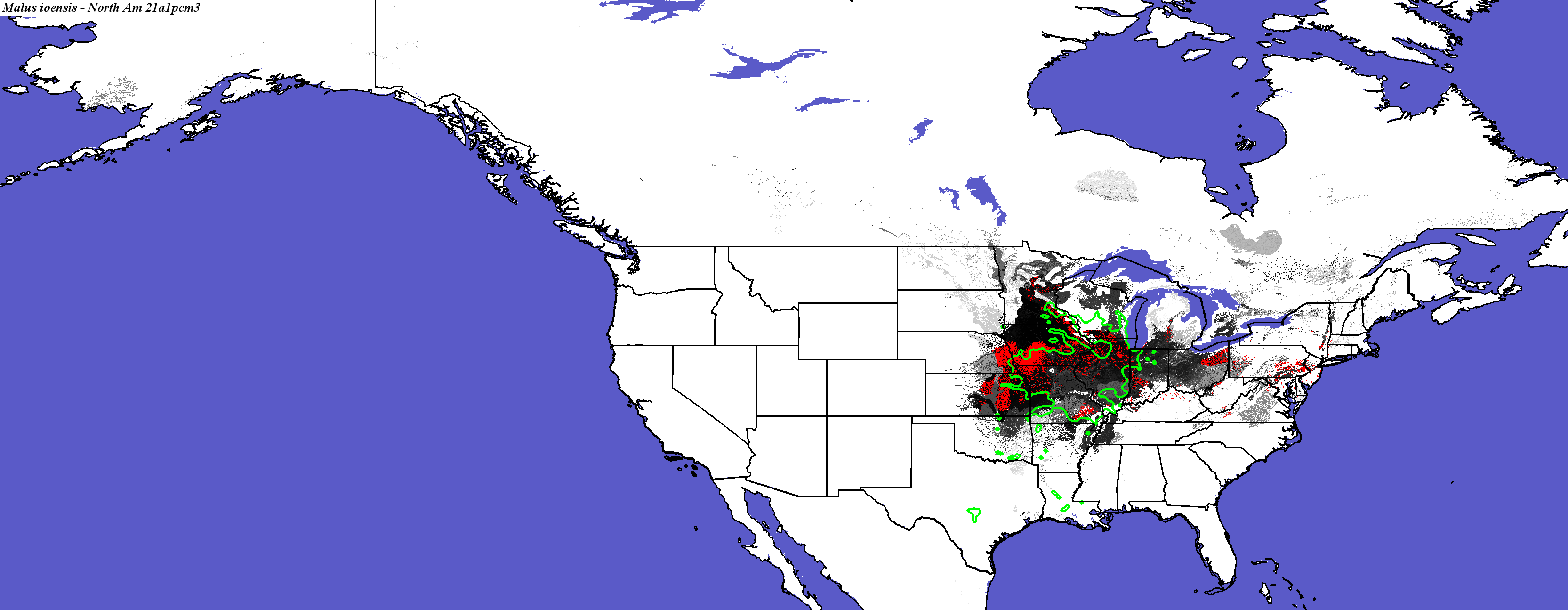

PCM, Scenario A1FI, 2050 - Malus ioensis - CONUS
PCM, Scenario A1FI, 2050 - Malus ioensis - Global
Malus_ioensis_final.2.conus
Malus_ioensis_final.2.global
PCM, Scenario A1FI, 2100 - Malus ioensis - CONUS
Malus ioensis species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Malus ioensis - Global

Malus_ioensis_final.2.conus
Malus_ioensis_final.2.global

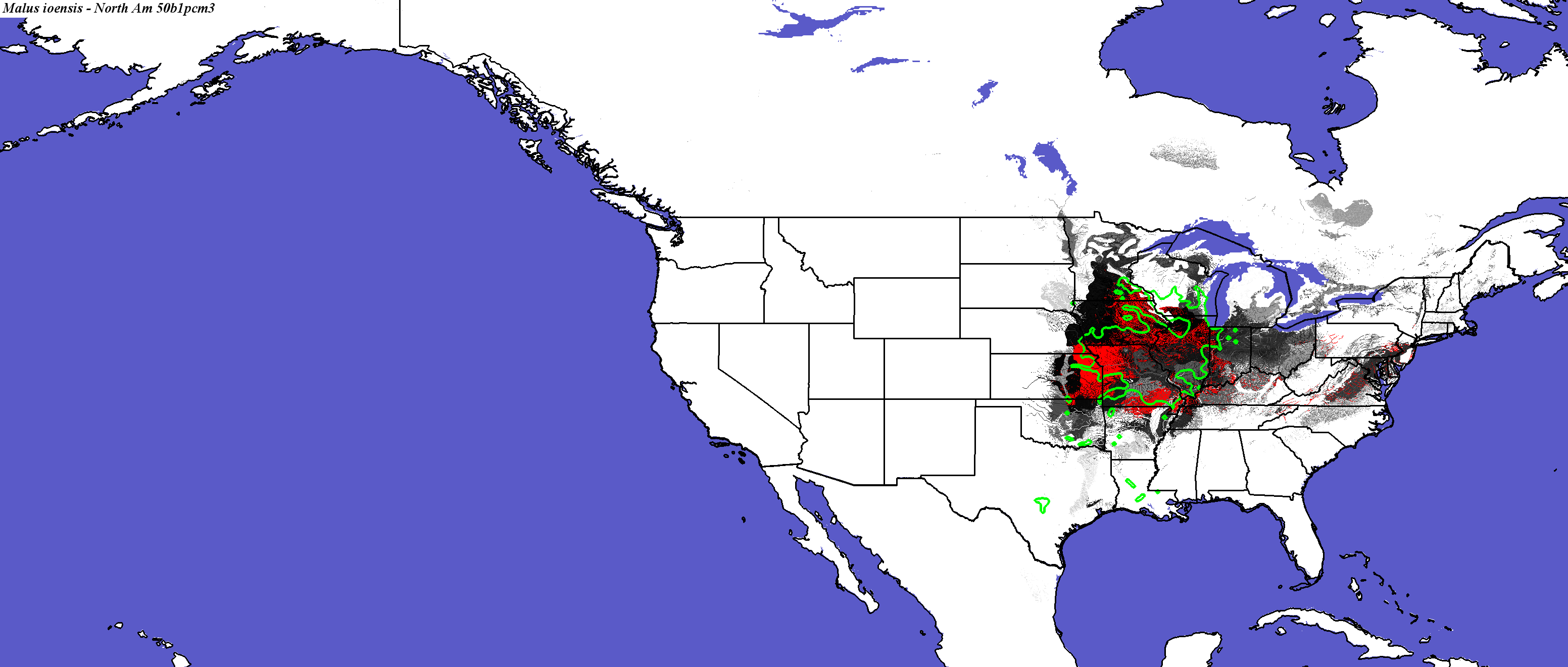

PCM, Scenario B1, 2050 - Malus ioensis - CONUS

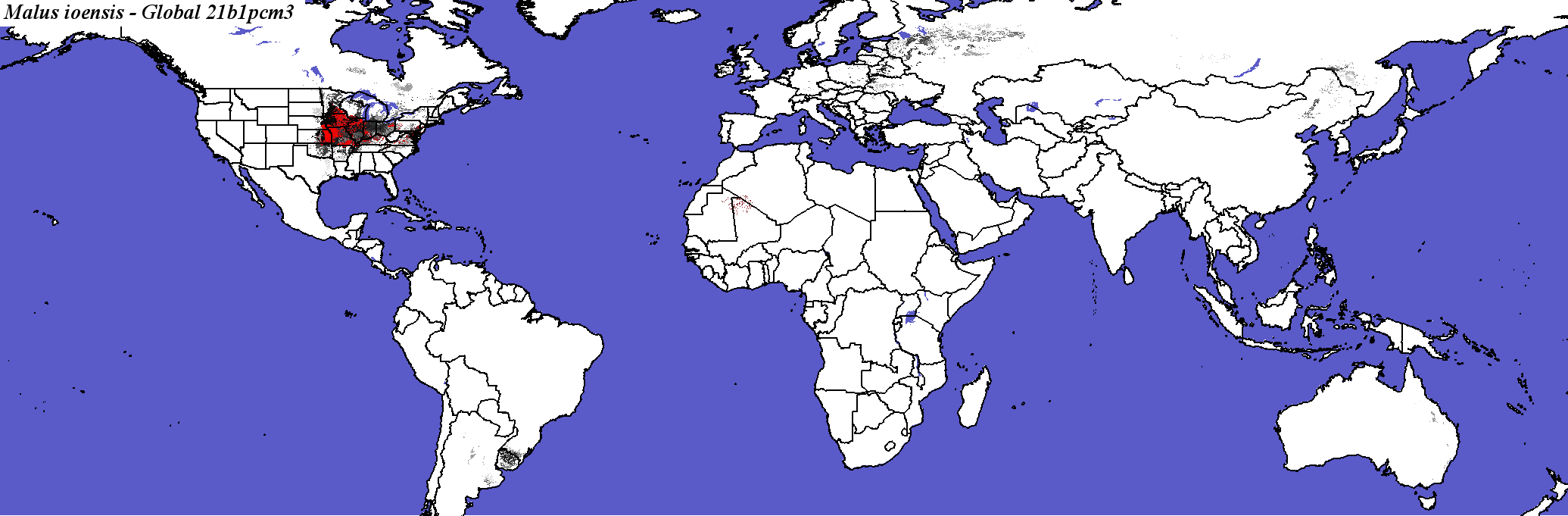

PCM, Scenario B1, 2050 - Malus ioensis - Global
Malus_ioensis_final.2.conus
Malus_ioensis_final.2.global
PCM, Scenario B1, 2100 - Malus ioensis - CONUS
Malus ioensis not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Malus ioensis - Global

Hadley Climate Model
Malus_ioensis_final.2.conus
Malus_ioensis_final.2.global

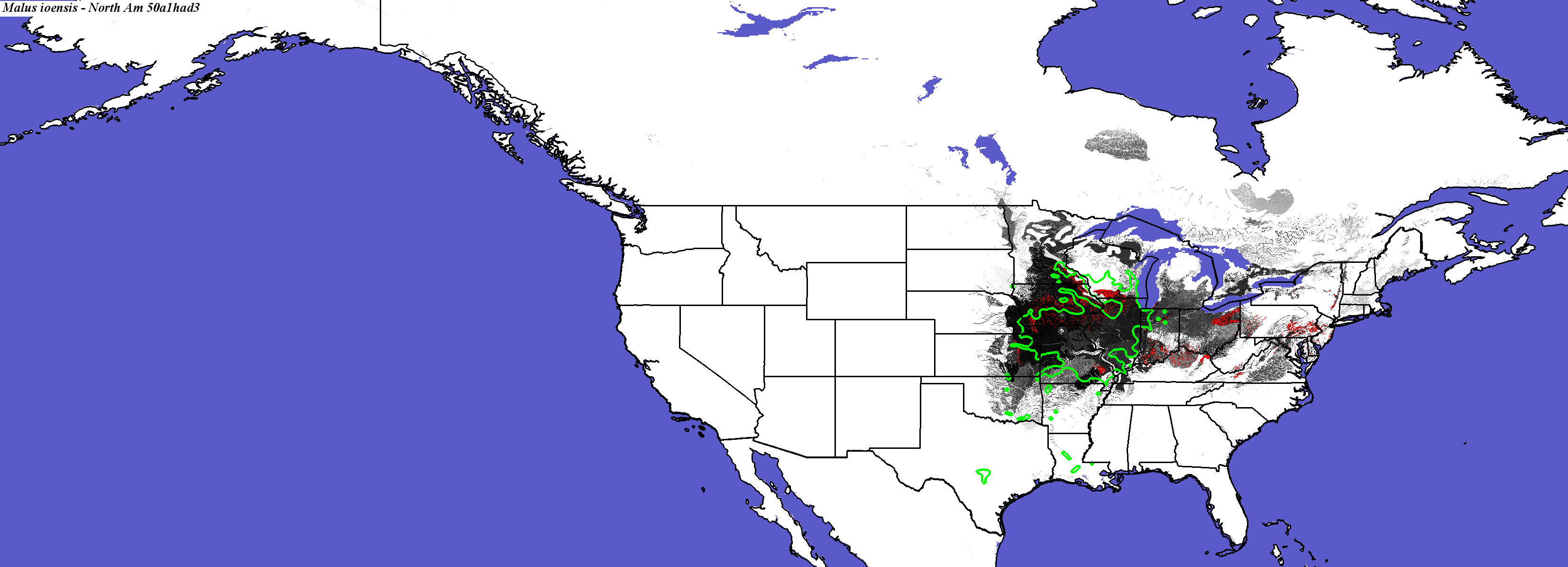

Hadley, Scenario A1FI, 2050 - Malus ioensis - CONUS
Malus ioensis not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Malus ioensis - Global
Malus_ioensis_final.2.conus
Malus_ioensis_final.2.global.

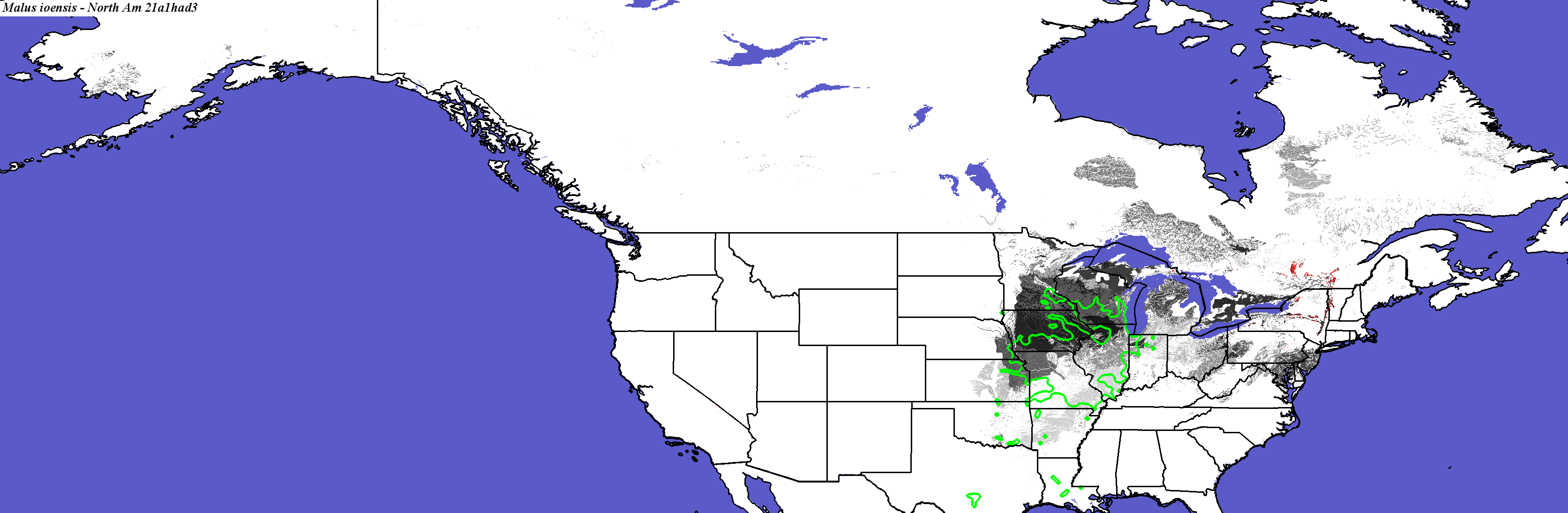

Hadley, Scenario A1FI, 2100 - Malus ioensis - CONUS
Malus ioensis not modeled by Iverson and Prasad
Malus ioensis not modeled by Crookston and Rehfeldt
Malus ioensis not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Malus ioensis - Global

Malus_ioensis_final.2.conus
Malus_ioensis_final.2.global.

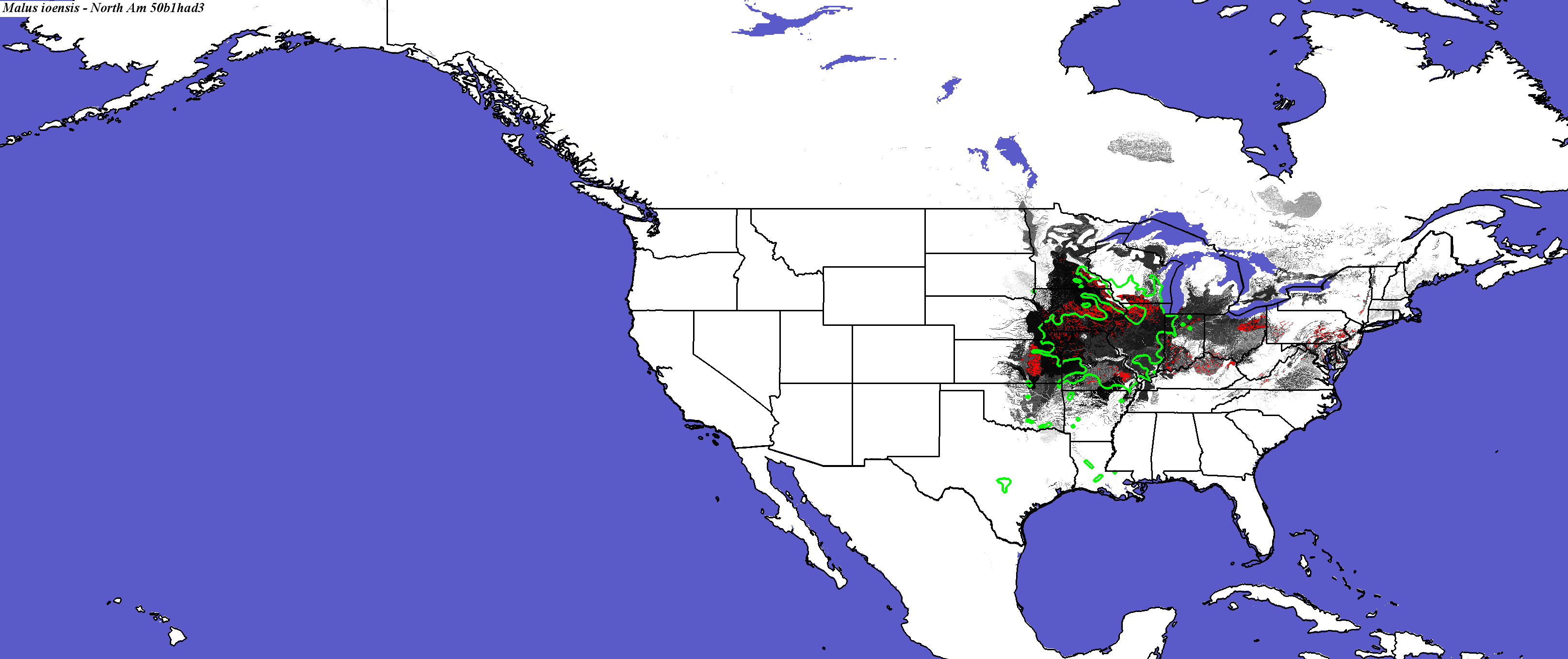

Hadley, Scenario B1, 2050 - Malus ioensis - CONUS
Malus ioensis not modeled by Crookston and Rehfeldt
Malus ioensis not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Malus ioensis - Global
Malus_ioensis_final.2.conus
Malus_ioensis_final.2.global

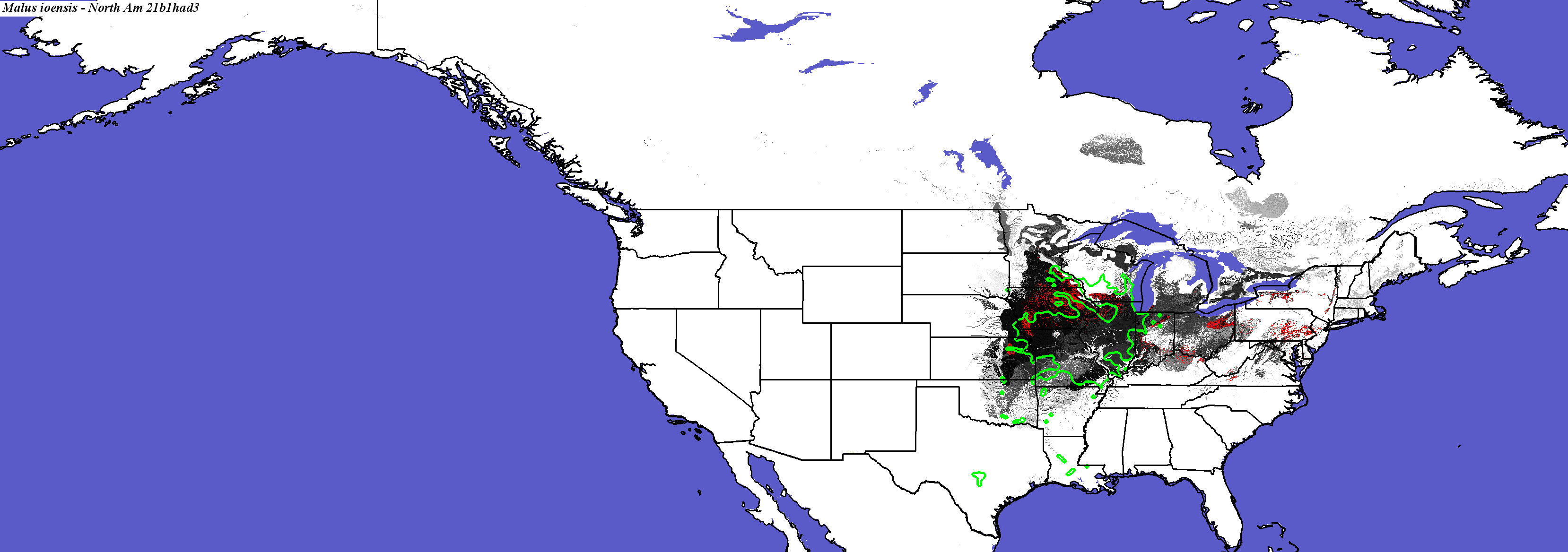

Hadley, Scenario B1, 2100 - Malus ioensis - CONUS
Malus ioensis not modeled by Iverson and Prasad
Malus ioensis not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Malus ioensis - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Malus_ioensis_final.elev

Number of Suitable Ecoregions (Niche Breadth)

19

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

64.5205

Area in Present Suitable Range (in km2)

201750

Area in Future Suitable Range (Had B1 2050, in km2)

90146

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

24174

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

11.9800

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

98.2192

Percent Change in Area of Suitable Range (Had B1 2050)

-55.3100

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

86.9863

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

42526.9 +/- 43224.9

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

13.5616

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

17.9254 +/- 17.8068

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

12.1918

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

344.439 +/- 881.526

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

10.137

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

20396

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

10.1000

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

7.94521

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

13497

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

6.6800

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

98.6301

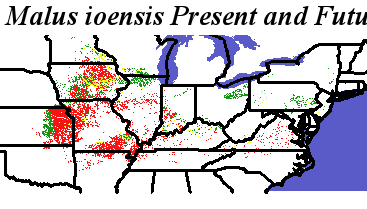

Present and Future Ranges - Hadley, Scenario B1, 2050 - Malus ioensis Malus ioensis - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

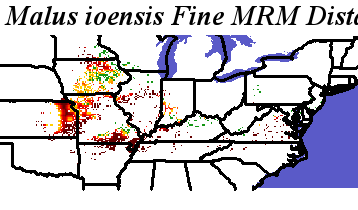

Malus_ioensis_final.elev Fine MRM Distance
Malus_ioensis_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Malus ioensis Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Malus ioensis
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

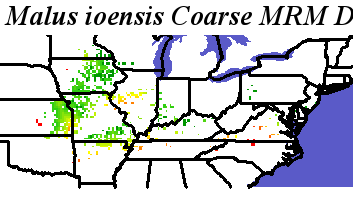

Malus_ioensis_final.elev Coarse MRM Distance
Malus_ioensis_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Malus ioensis Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Malus ioensis
