Version 5 Tree Atlas


Nyssa biflora

swamp tupelo

elev

Nyssa biflora Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Nyssa biflora

USDA Plants Database entry for Nyssa biflora
Silvics Manual entry for Nyssa biflora


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Nyssa sylvatica var. biflora2142452187TBD

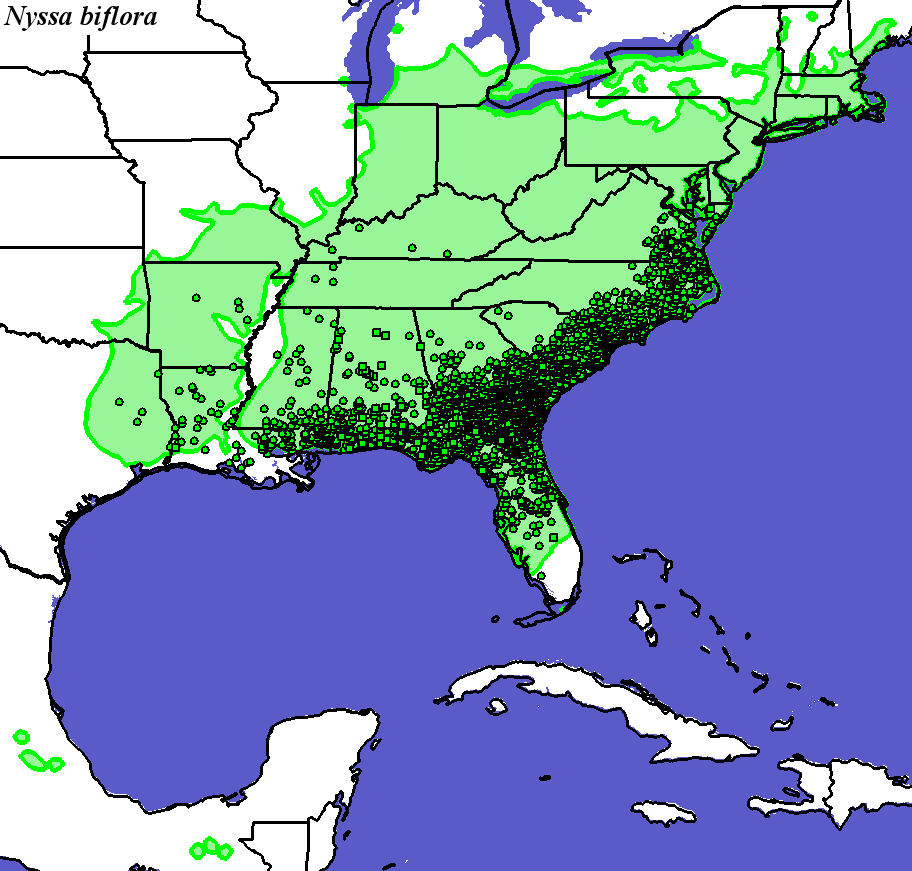

Occurrence Locations and Hargrove's Present Suitable Range Outline
Nyssa_biflora_final Occurrences
Hargroves Present Suitable Range Outline for Nyssa_biflora_final
Nyssa biflora - Occurrence Locations Nyssa biflora - Hargrove's Present Suitable Range Outline
Present Conditions
Nyssa_biflora_final.3.conus
Nyssa_biflora_final.3.global

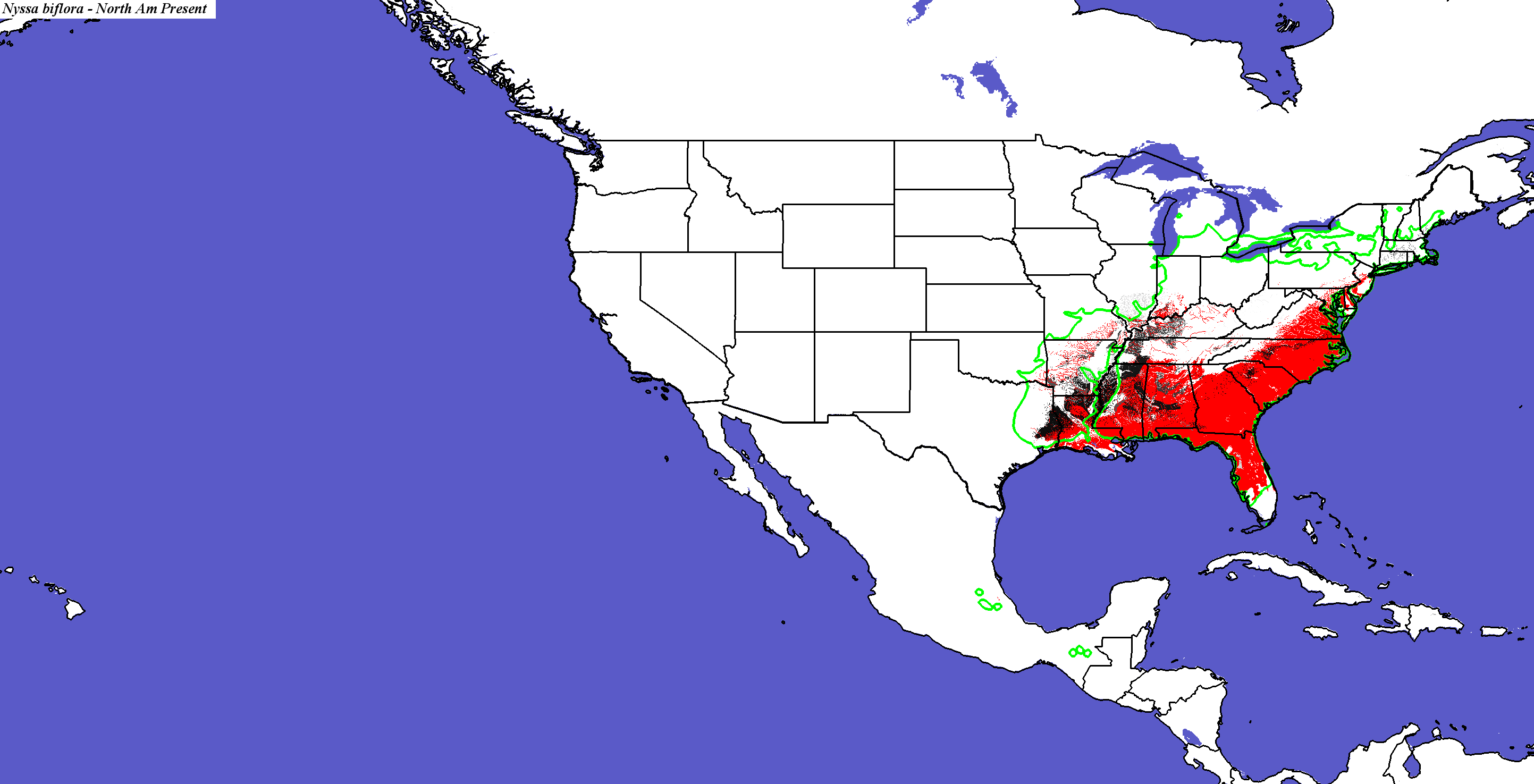

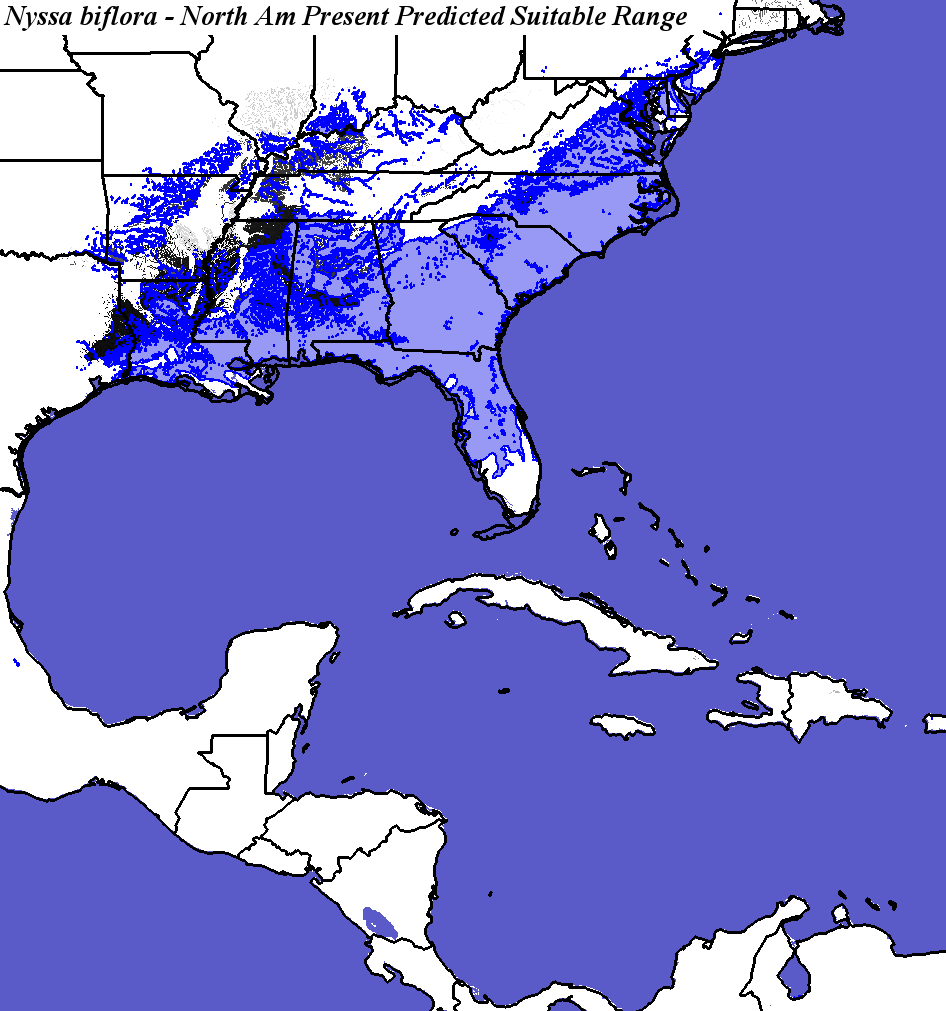

Nyssa biflora - CONUS
Compare with Current Range from the Silvics Manual for Nyssa biflora
Compare with Current Range from Biota of North America Program (BONAP) for Nyssa biflora

Compare with Nyssa biflora modeled for Current conditions by Iverson and Prasad
Nyssa biflora not modeled by Crookston and Rehfeldt
Nyssa biflora not modeled by Coops and Waring

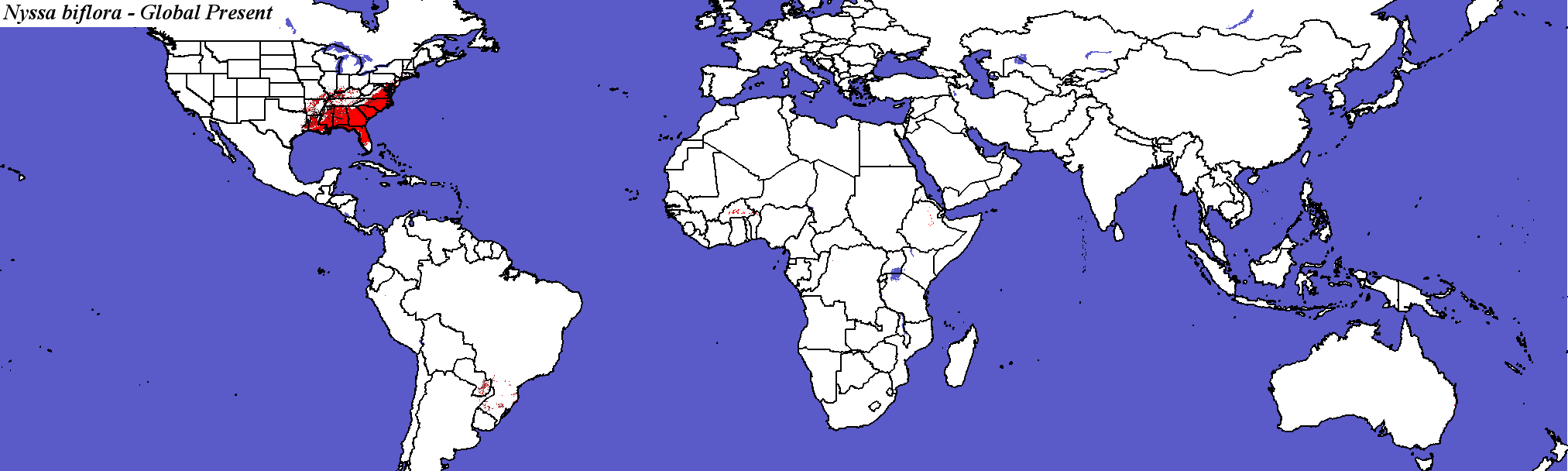

Nyssa biflora - Global

PCM - Parallel Climate Model
Nyssa_biflora_final.3.conus
Nyssa_biflora_final.3.global

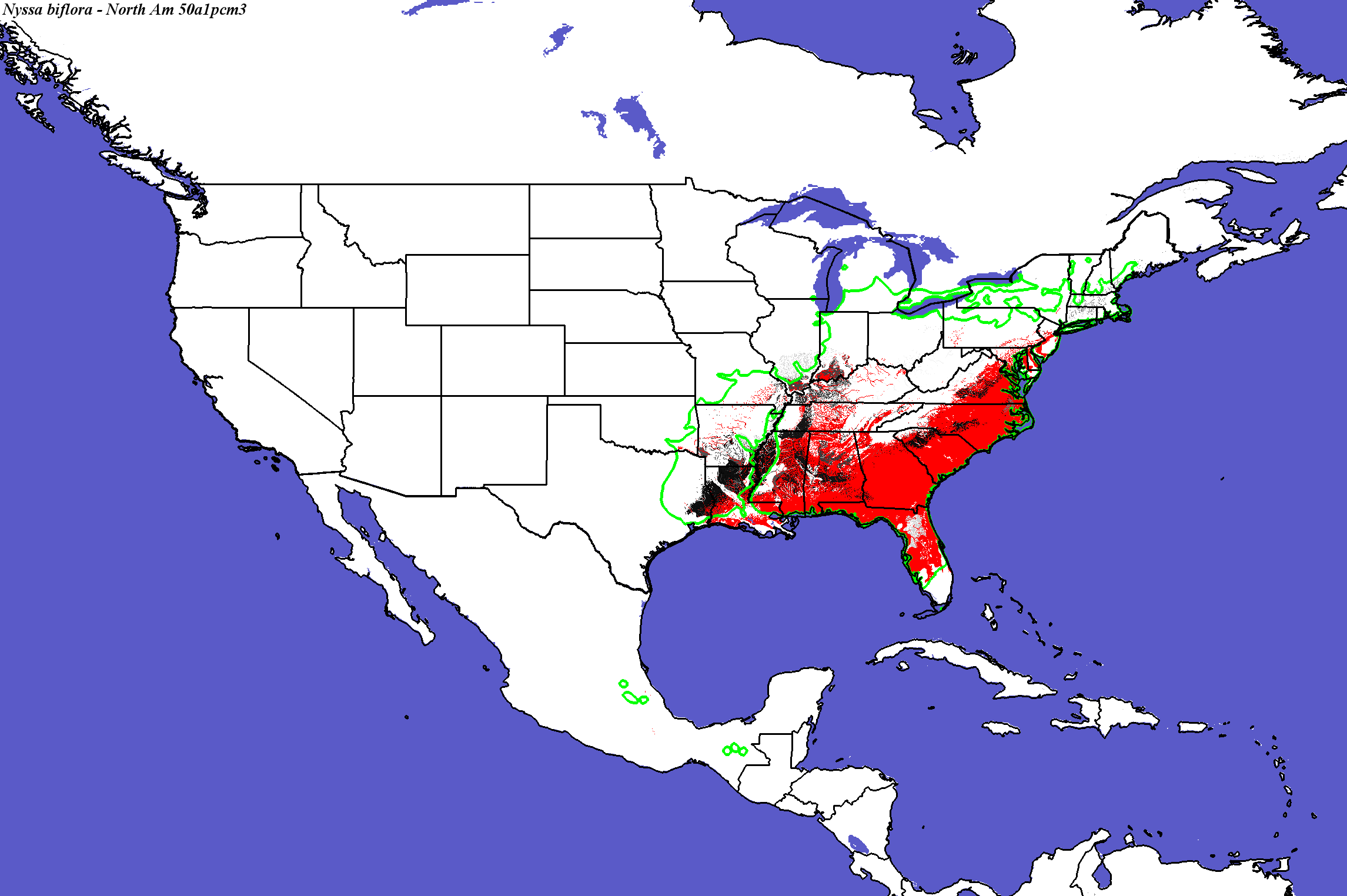

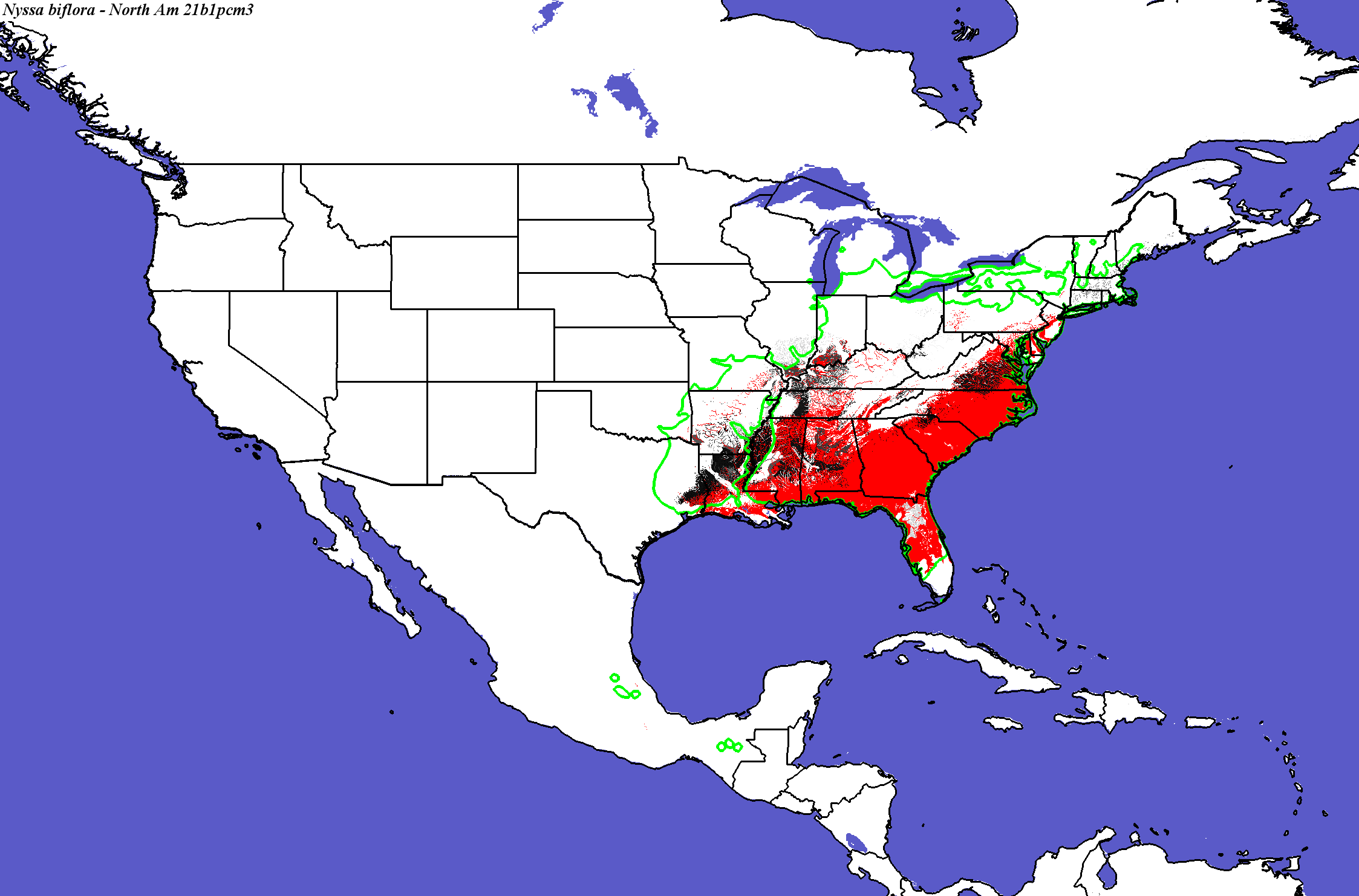

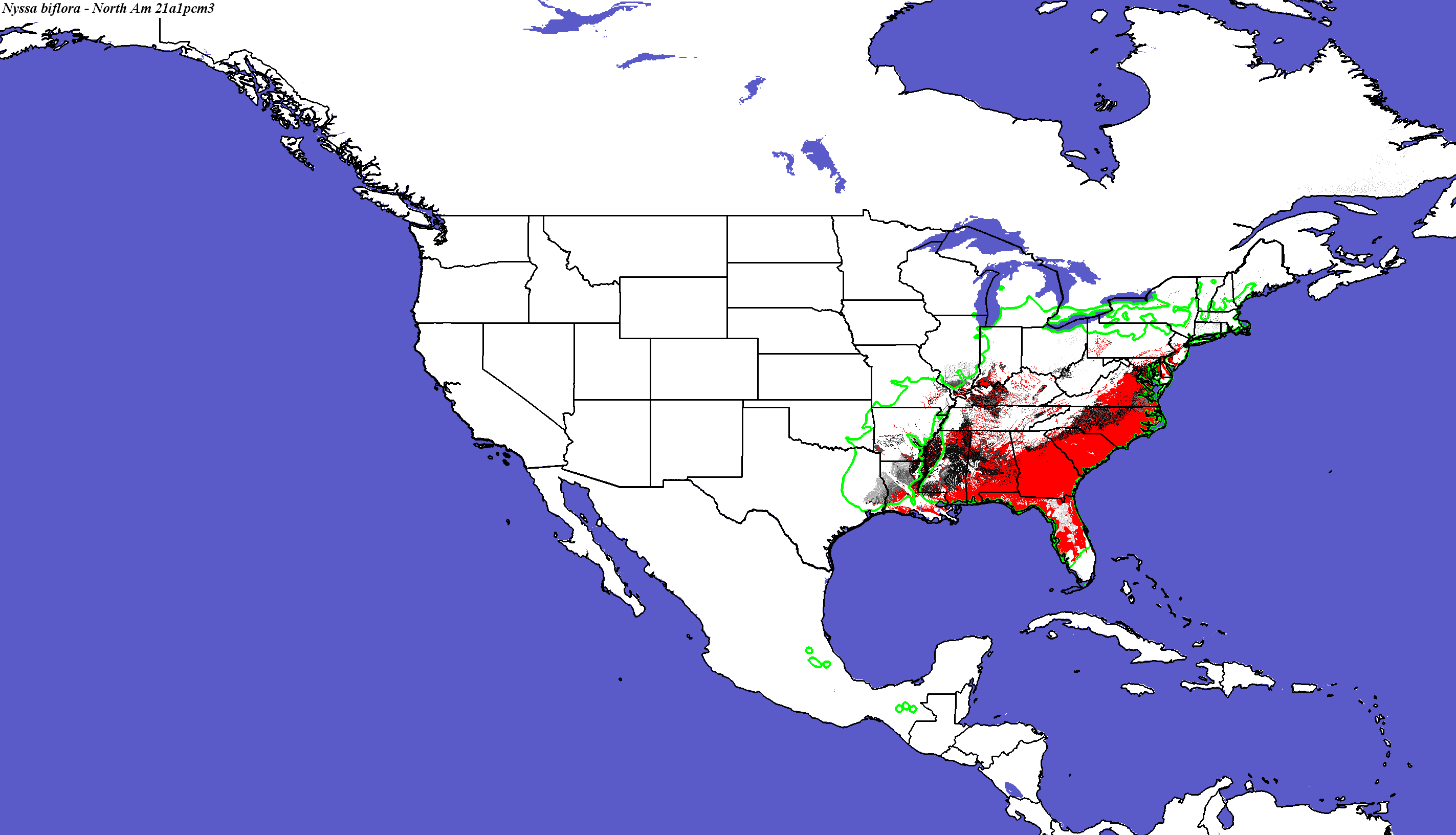

PCM, Scenario A1FI, 2050 - Nyssa biflora - CONUS

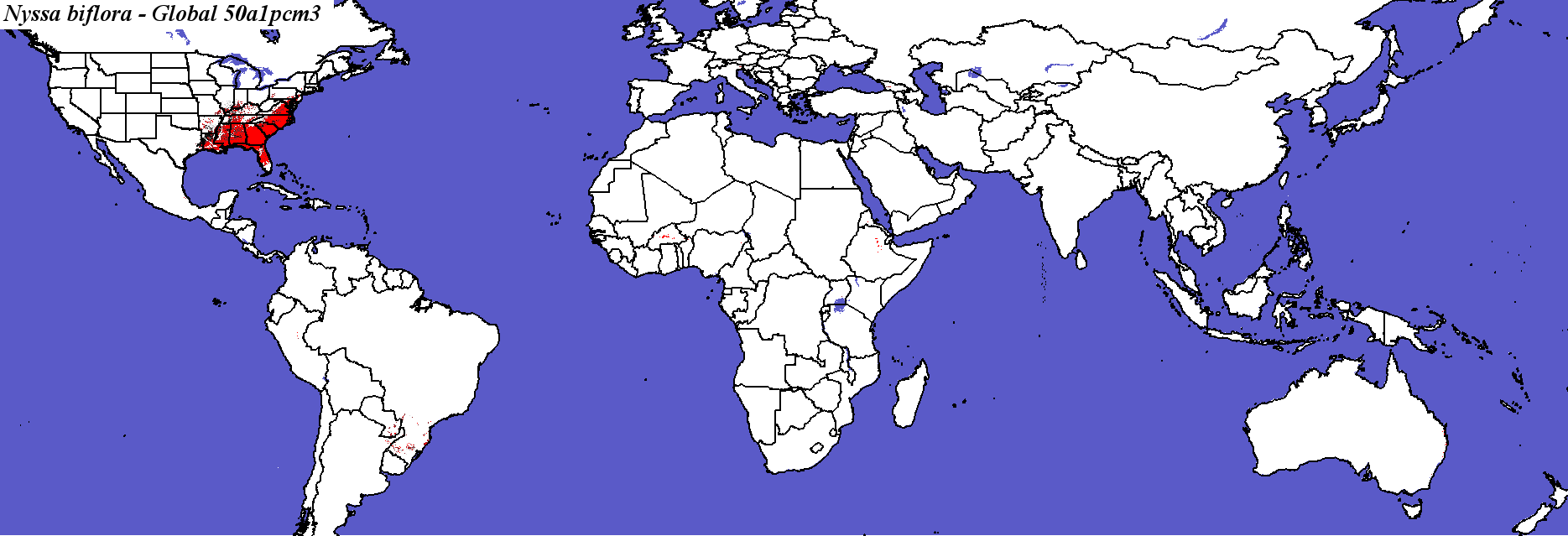

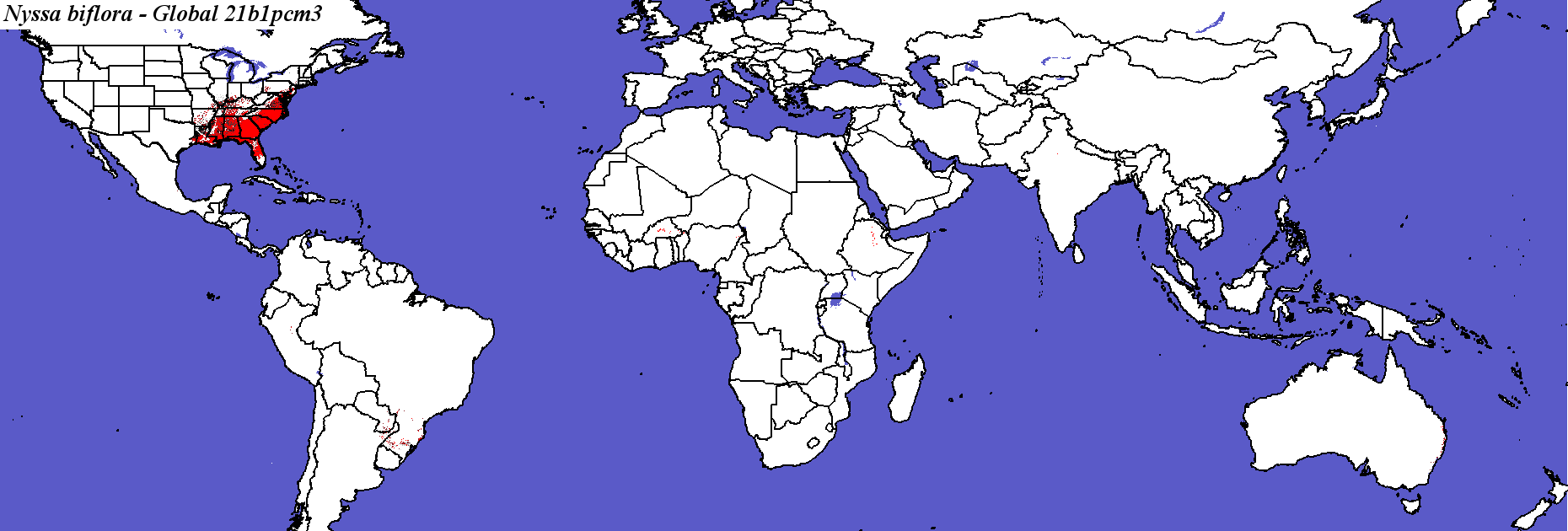

PCM, Scenario A1FI, 2050 - Nyssa biflora - Global
Nyssa_biflora_final.3.conus
Nyssa_biflora_final.3.global
PCM, Scenario A1FI, 2100 - Nyssa biflora - CONUS
Compare with Nyssa biflora modeled for PCM A1FI in 2100 by Iverson and Prasad

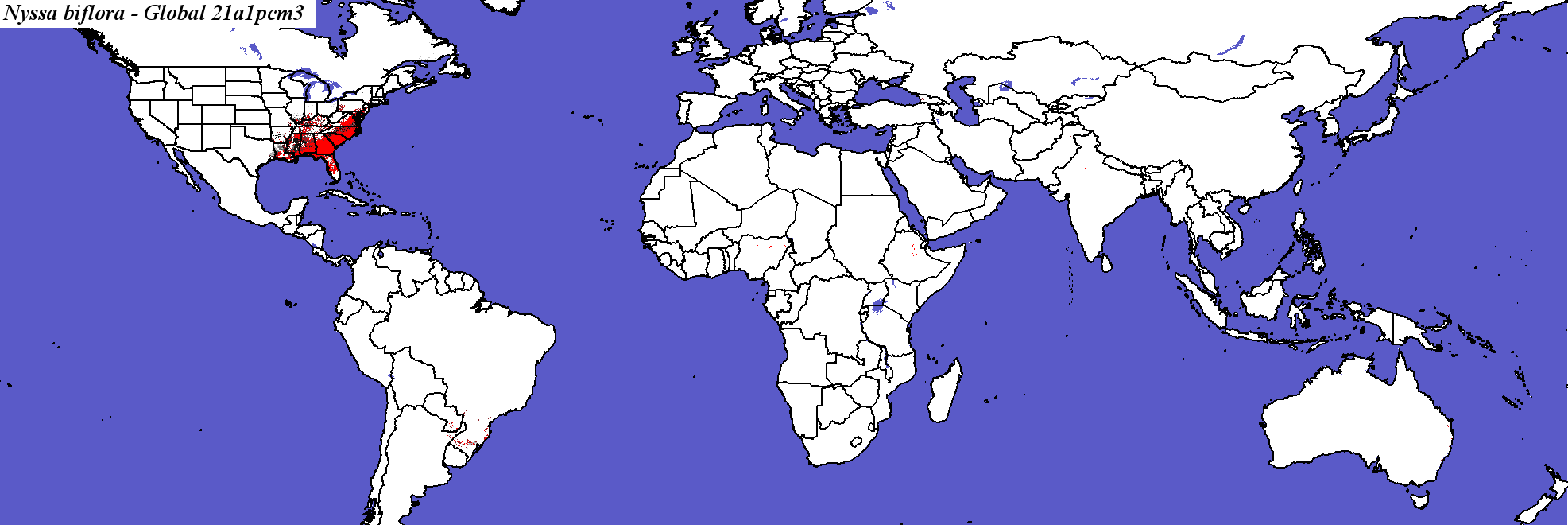

PCM, Scenario A1FI, 2100 - Nyssa biflora - Global

Nyssa_biflora_final.3.conus
Nyssa_biflora_final.3.global

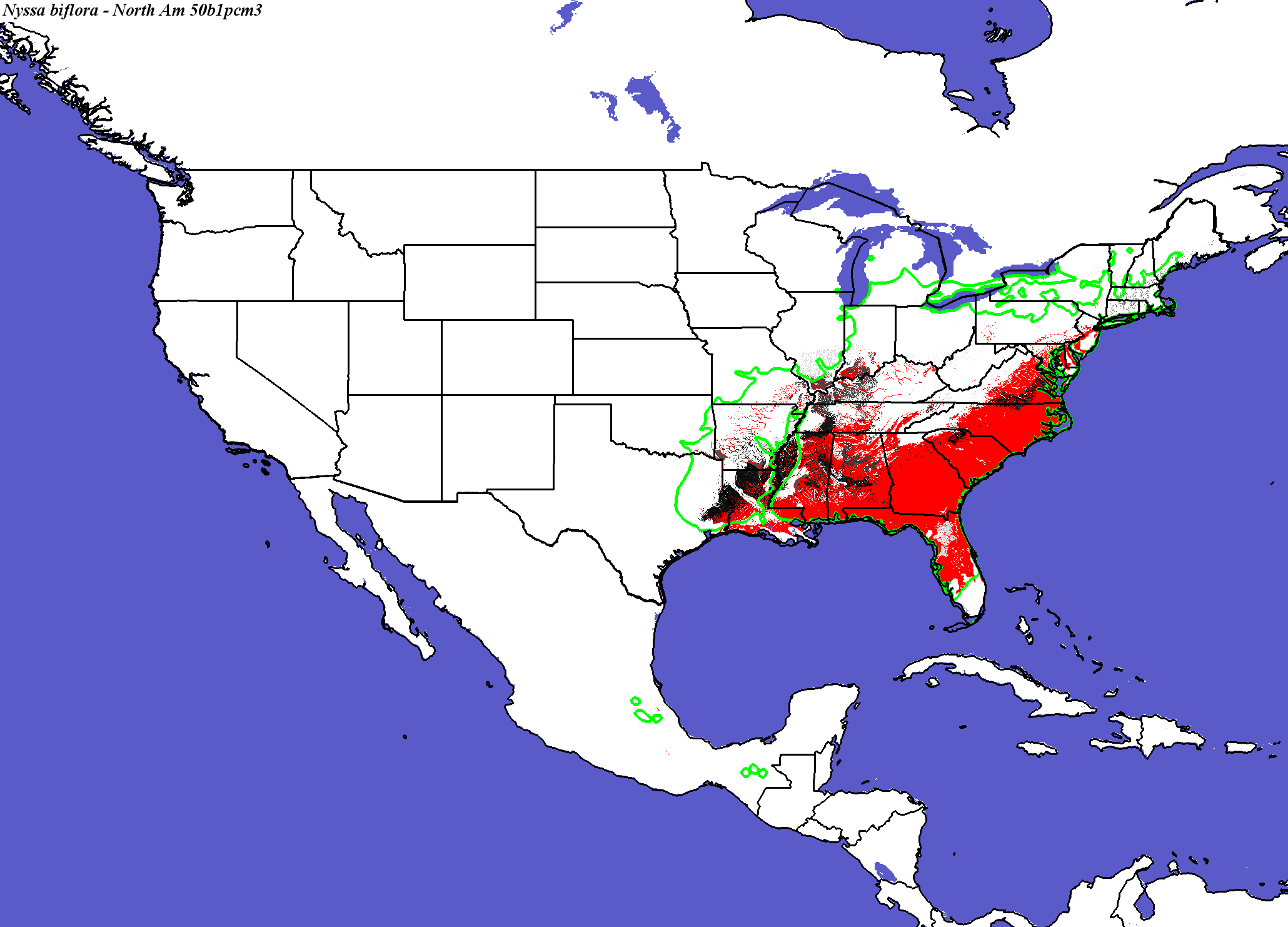

PCM, Scenario B1, 2050 - Nyssa biflora - CONUS

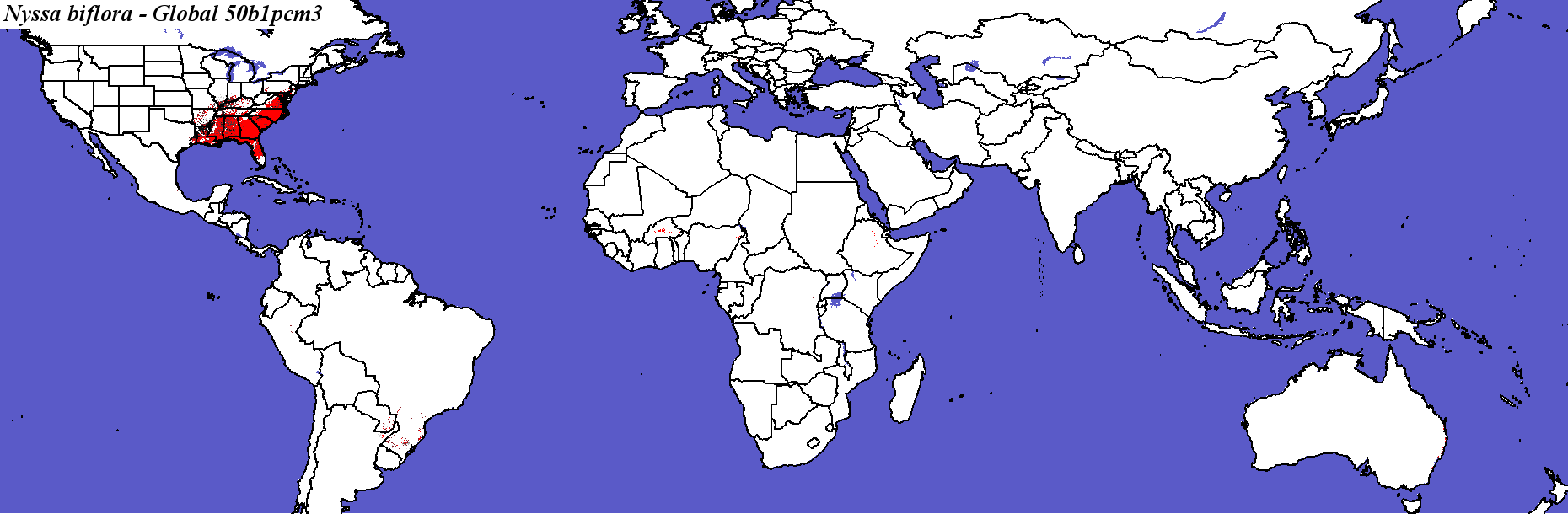

PCM, Scenario B1, 2050 - Nyssa biflora - Global
Nyssa_biflora_final.3.conus
Nyssa_biflora_final.3.global
PCM, Scenario B1, 2100 - Nyssa biflora - CONUS
Compare with Nyssa biflora modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Nyssa biflora - Global

Hadley Climate Model
Nyssa_biflora_final.3.conus
Nyssa_biflora_final.3.global
Hadley, Scenario A1FI, 2050 - Nyssa biflora - CONUS
Nyssa biflora not modeled by Crookston and Rehfeldt

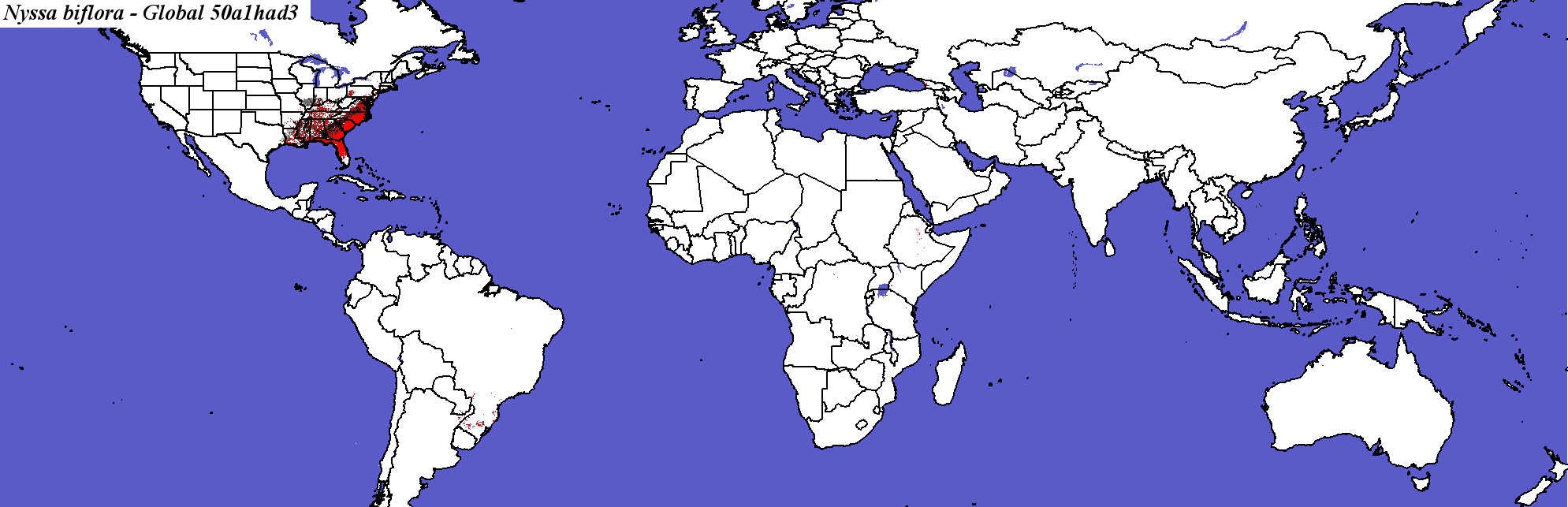

Hadley, Scenario A1FI, 2050 - Nyssa biflora - Global
Nyssa_biflora_final.3.conus
Nyssa_biflora_final.3.global.

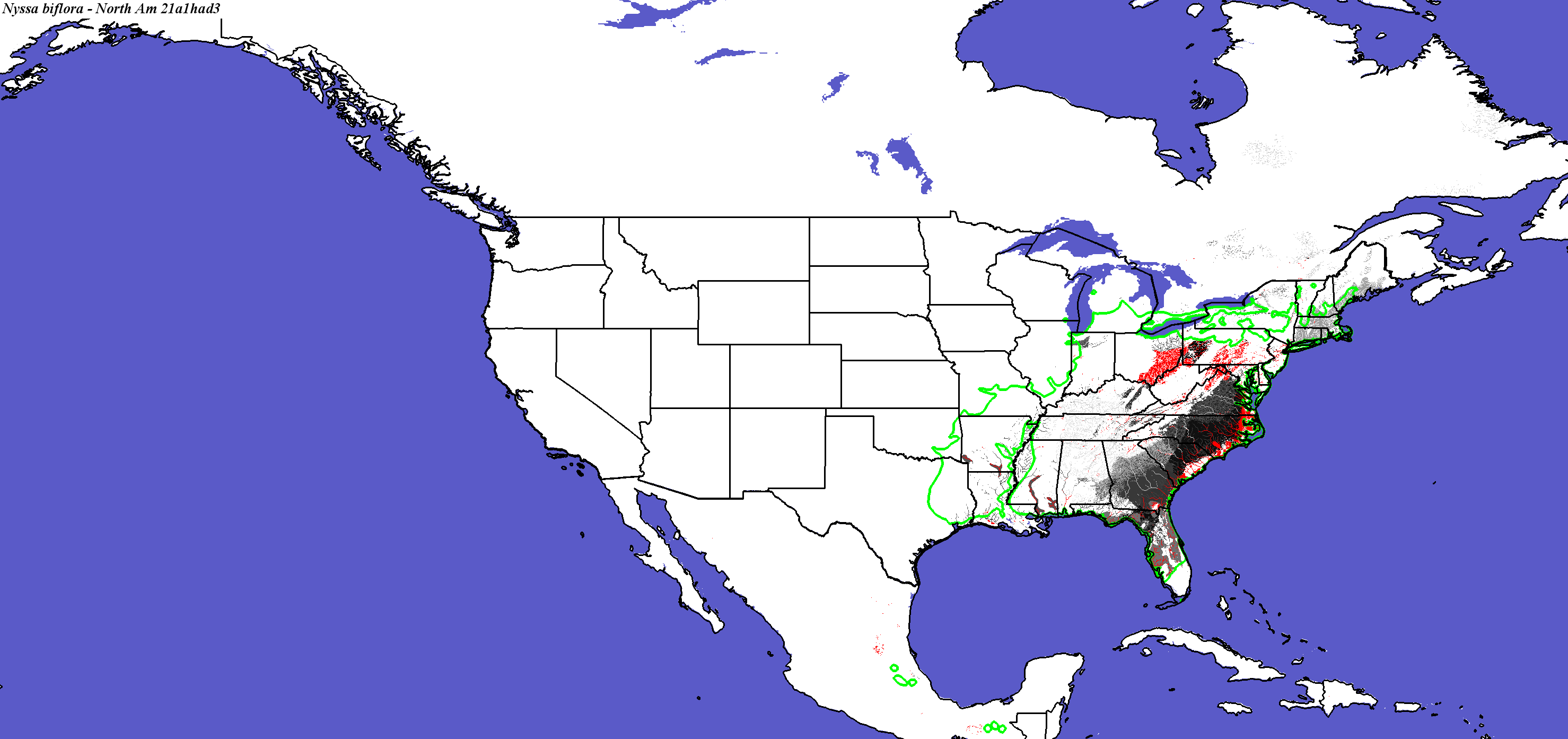

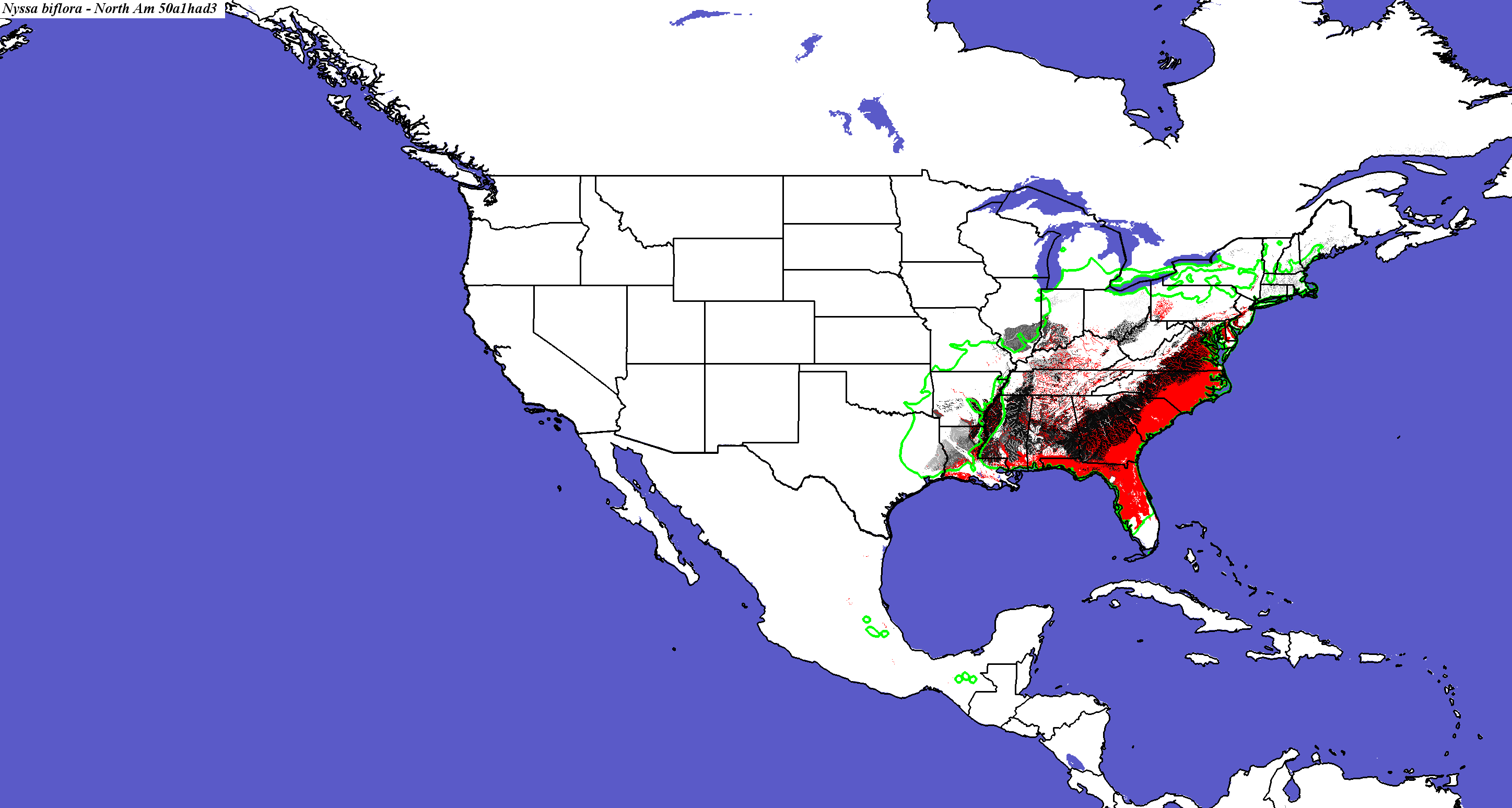

Hadley, Scenario A1FI, 2100 - Nyssa biflora - CONUS
Compare with Nyssa biflora modeled for Hadley A1FI in 2100 by Iverson and Prasad
Nyssa biflora not modeled by Crookston and Rehfeldt
Nyssa biflora not modeled by Coops and Waring

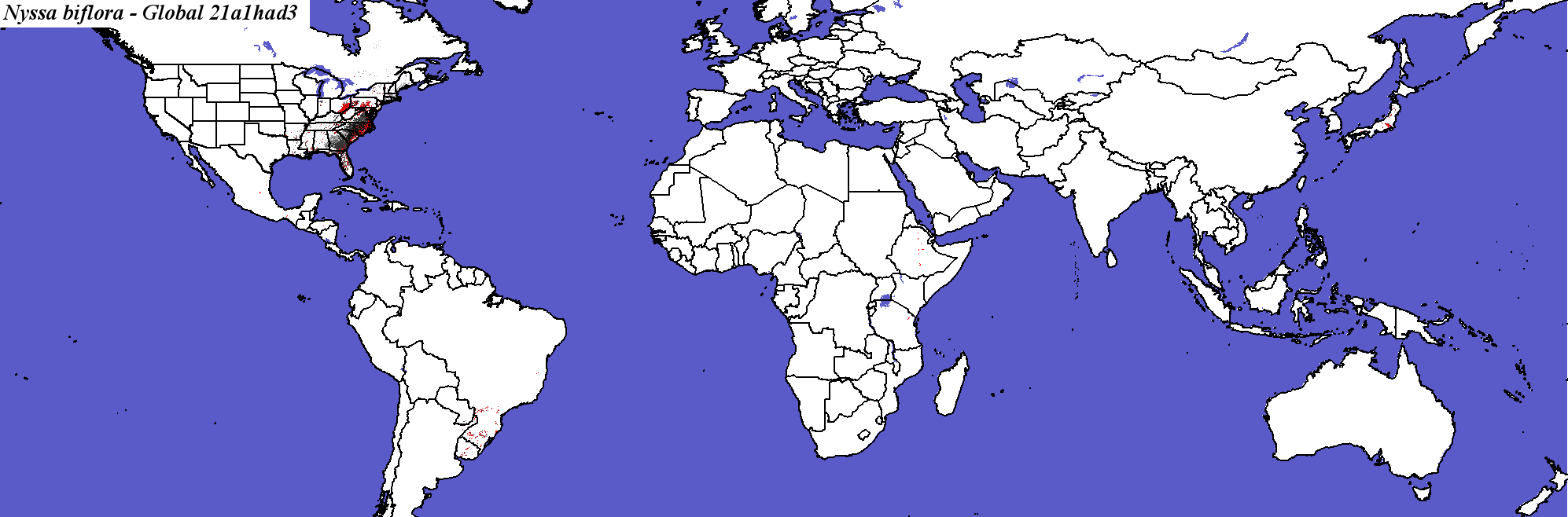

Hadley, Scenario A1FI, 2100 - Nyssa biflora - Global

Nyssa_biflora_final.3.conus
Nyssa_biflora_final.3.global.

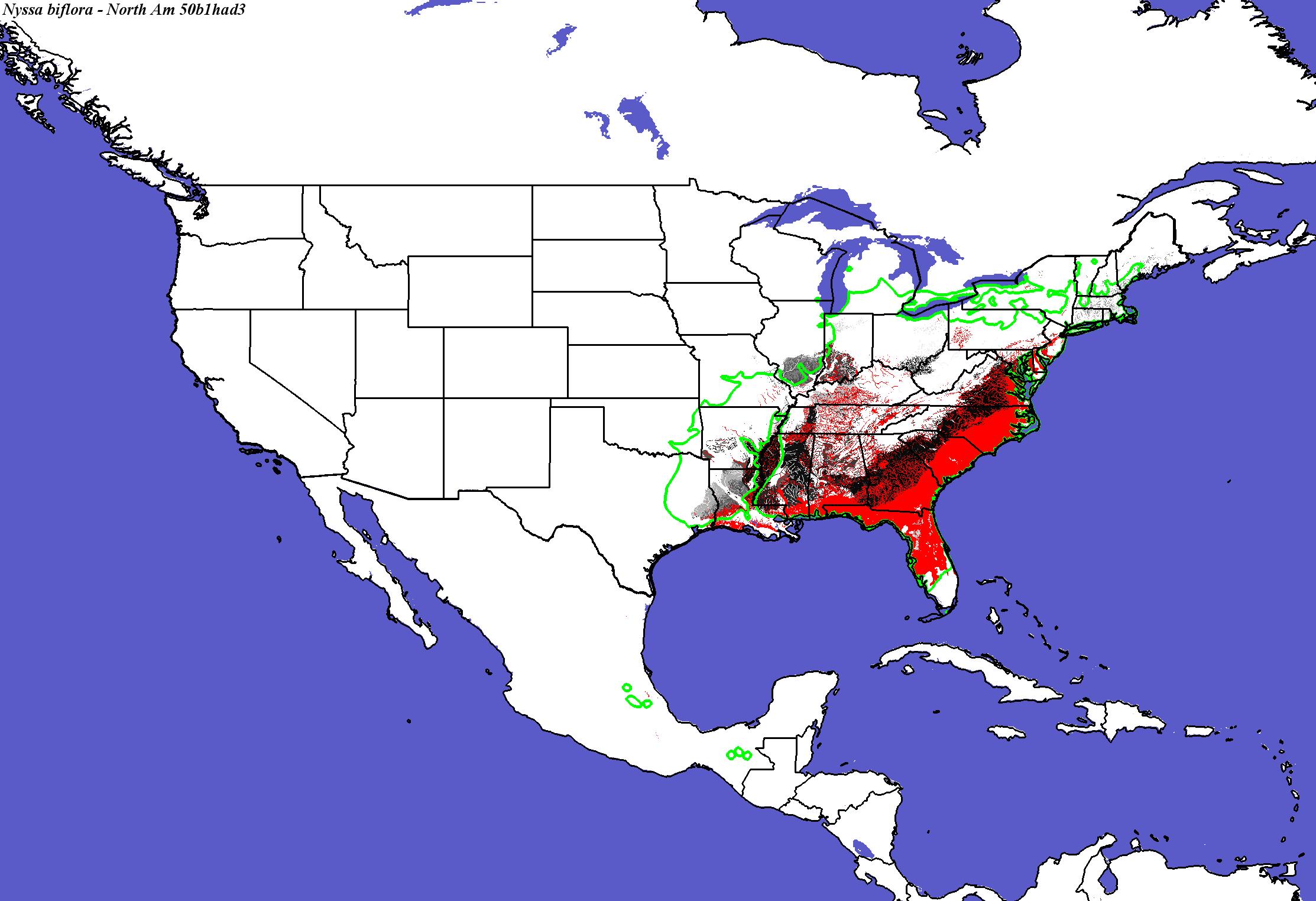

Hadley, Scenario B1, 2050 - Nyssa biflora - CONUS
Nyssa biflora not modeled by Crookston and Rehfeldt
Nyssa biflora not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Nyssa biflora - Global
Nyssa_biflora_final.3.conus
Nyssa_biflora_final.3.global
Hadley, Scenario B1, 2100 - Nyssa biflora - CONUS
Compare with Nyssa biflora modeled for Hadley B1 in 2100 by Iverson and Prasad
Nyssa biflora not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Nyssa biflora - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Nyssa_biflora_final.elev

Number of Suitable Ecoregions (Niche Breadth)

86

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

24.3836

Area in Present Suitable Range (in km2)

732599

Area in Future Suitable Range (Had B1 2050, in km2)

497479

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

423335

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

57.7800

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

29.863

Percent Change in Area of Suitable Range (Had B1 2050)

-32.0900

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

55.0685

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

7645.61 +/- 13356.9

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

78.3562

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

3.77073 +/- 12.9227

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

76.8493

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

188.217 +/- 662.953

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

28.6301

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

37352

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

5.0900

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

25.3425

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

233144

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

31.8200

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

40.411

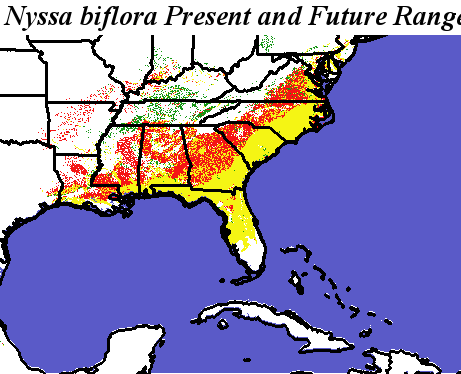

Present and Future Ranges - Hadley, Scenario B1, 2050 - Nyssa biflora Nyssa biflora - Range Change Statistics

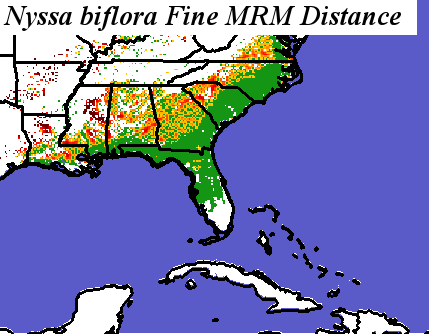

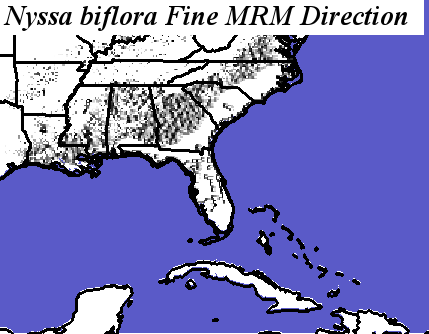

Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Nyssa_biflora_final.elev Fine MRM Distance
Nyssa_biflora_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Nyssa biflora Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Nyssa biflora

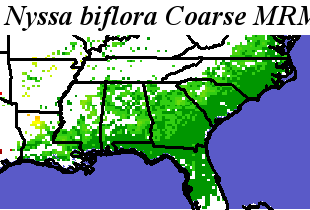

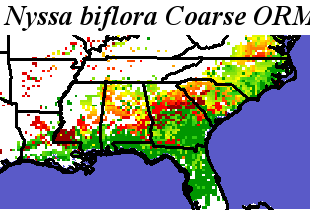

Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Nyssa_biflora_final.elev Coarse MRM Distance
Nyssa_biflora_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Nyssa biflora Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Nyssa biflora
