Version 5 Tree Atlas


Pinus albicaulis

whitebark pine

elev

Pinus albicaulis Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Pinus albicaulis

USDA Plants Database entry for Pinus albicaulis
Silvics Manual entry for Pinus albicaulis


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
602138740TBD

Occurrence Locations and Hargrove's Present Suitable Range Outline
Pinus_albicaulis_final Occurrences
Hargroves Present Suitable Range Outline for Pinus_albicaulis_final
Pinus albicaulis - Occurrence Locations Pinus albicaulis - Hargrove's Present Suitable Range Outline
Present Conditions
Pinus_albicaulis_final.3.conus
Pinus_albicaulis_final.3.global
Pinus albicaulis - CONUS
Compare with Current Range from the Silvics Manual for Pinus albicaulis
Compare with Current Range from Biota of North America Program (BONAP) for Pinus albicaulis

Pinus albicaulis not modeled by Iverson and Prasad
Compare with Pinus albicaulis modeled for Current conditions by Crookston and Rehfeldt
Compare with Pinus albicaulis modeled for Current conditions by Coops and Waring
Pinus albicaulis - Global
PCM - Parallel Climate Model
Pinus_albicaulis_final.3.conus
Pinus_albicaulis_final.3.global
PCM, Scenario A1FI, 2050 - Pinus albicaulis - CONUS
PCM, Scenario A1FI, 2050 - Pinus albicaulis - Global
Pinus_albicaulis_final.3.conus
Pinus_albicaulis_final.3.global
PCM, Scenario A1FI, 2100 - Pinus albicaulis - CONUS
Pinus albicaulis species not modeled by Iverson and Prasad

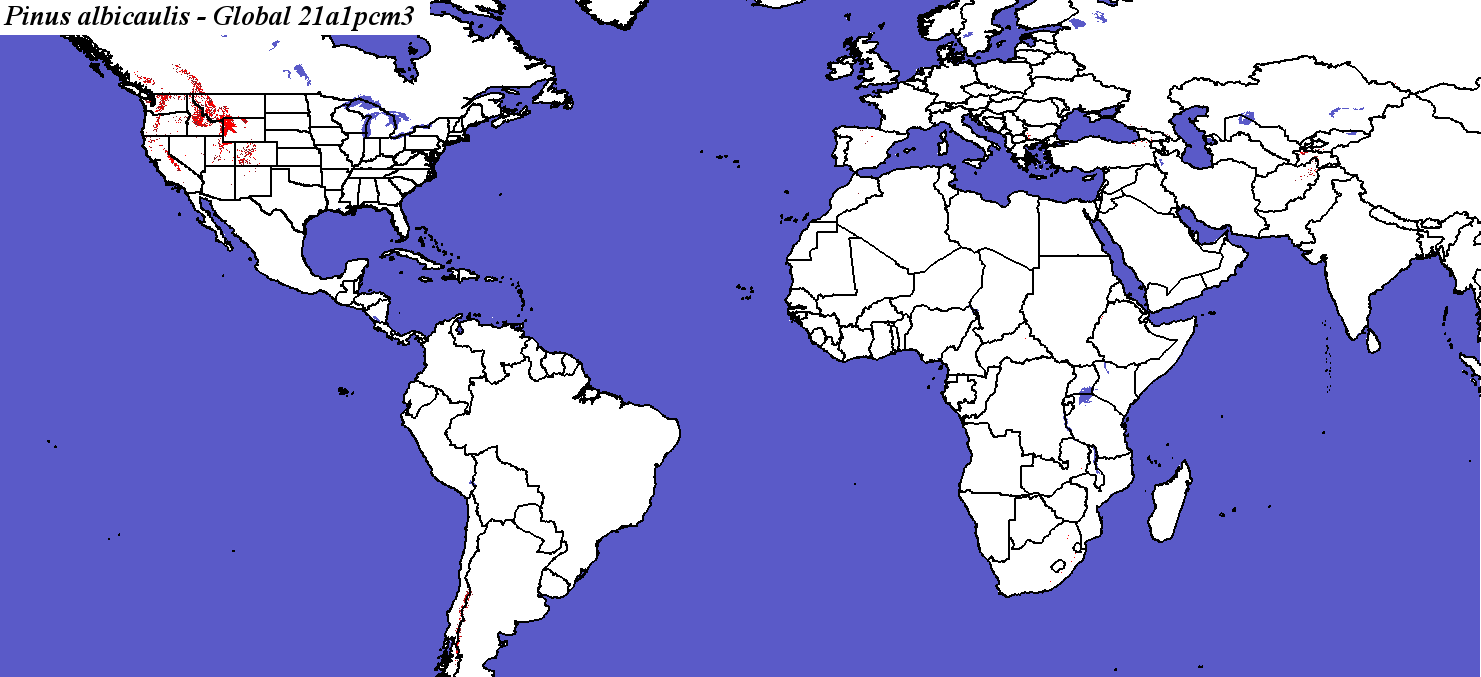

PCM, Scenario A1FI, 2100 - Pinus albicaulis - Global

Pinus_albicaulis_final.3.conus
Pinus_albicaulis_final.3.global
PCM, Scenario B1, 2050 - Pinus albicaulis - CONUS
PCM, Scenario B1, 2050 - Pinus albicaulis - Global
Pinus_albicaulis_final.3.conus
Pinus_albicaulis_final.3.global
PCM, Scenario B1, 2100 - Pinus albicaulis - CONUS
Pinus albicaulis not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Pinus albicaulis - Global

Hadley Climate Model
Pinus_albicaulis_final.3.conus
Pinus_albicaulis_final.3.global
Hadley, Scenario A1FI, 2050 - Pinus albicaulis - CONUS
Compare with Pinus albicaulis modeled for Hadley A2 in 2060 by Crookston and Rehfeldt

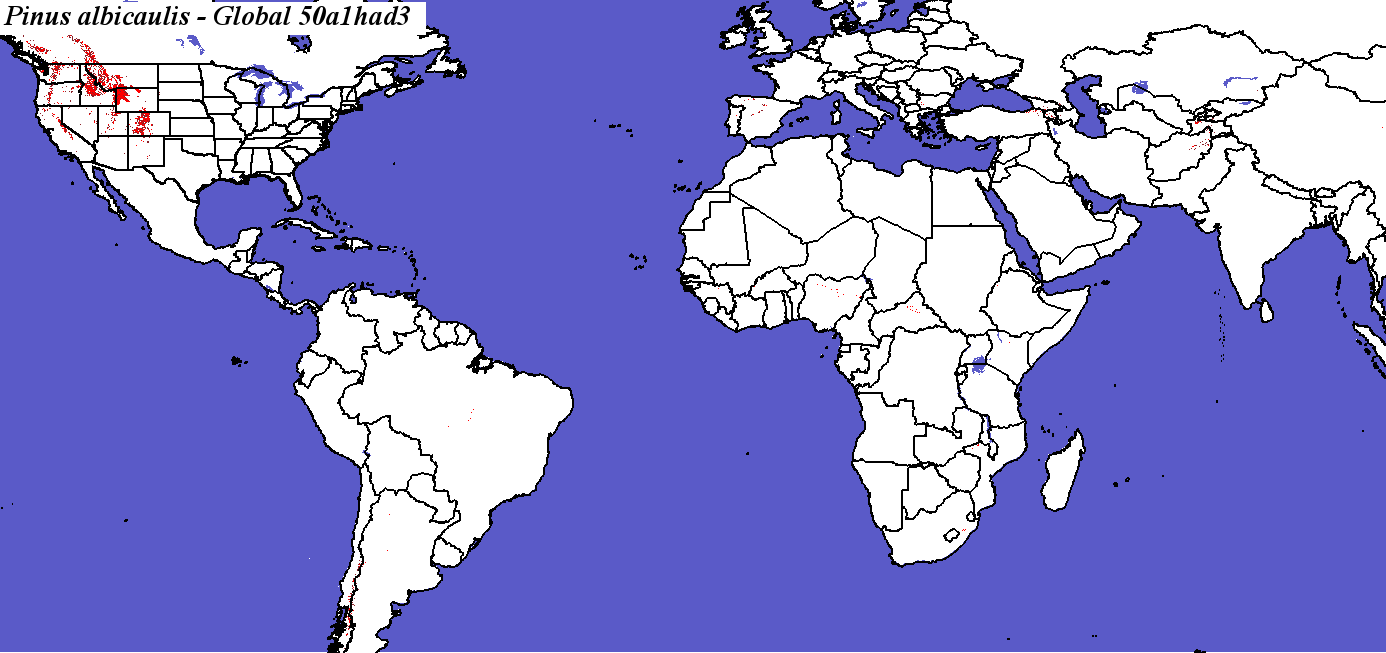

Hadley, Scenario A1FI, 2050 - Pinus albicaulis - Global
Pinus_albicaulis_final.3.conus
Pinus_albicaulis_final.3.global.
Hadley, Scenario A1FI, 2100 - Pinus albicaulis - CONUS
Pinus albicaulis not modeled by Iverson and Prasad
Compare with Pinus albicaulis modeled for Hadley A2 in 2090 by Crookston and Rehfeldt
Compare with Pinus albicaulis modeled for Hadley A2 in 2050 by Coops and Waring

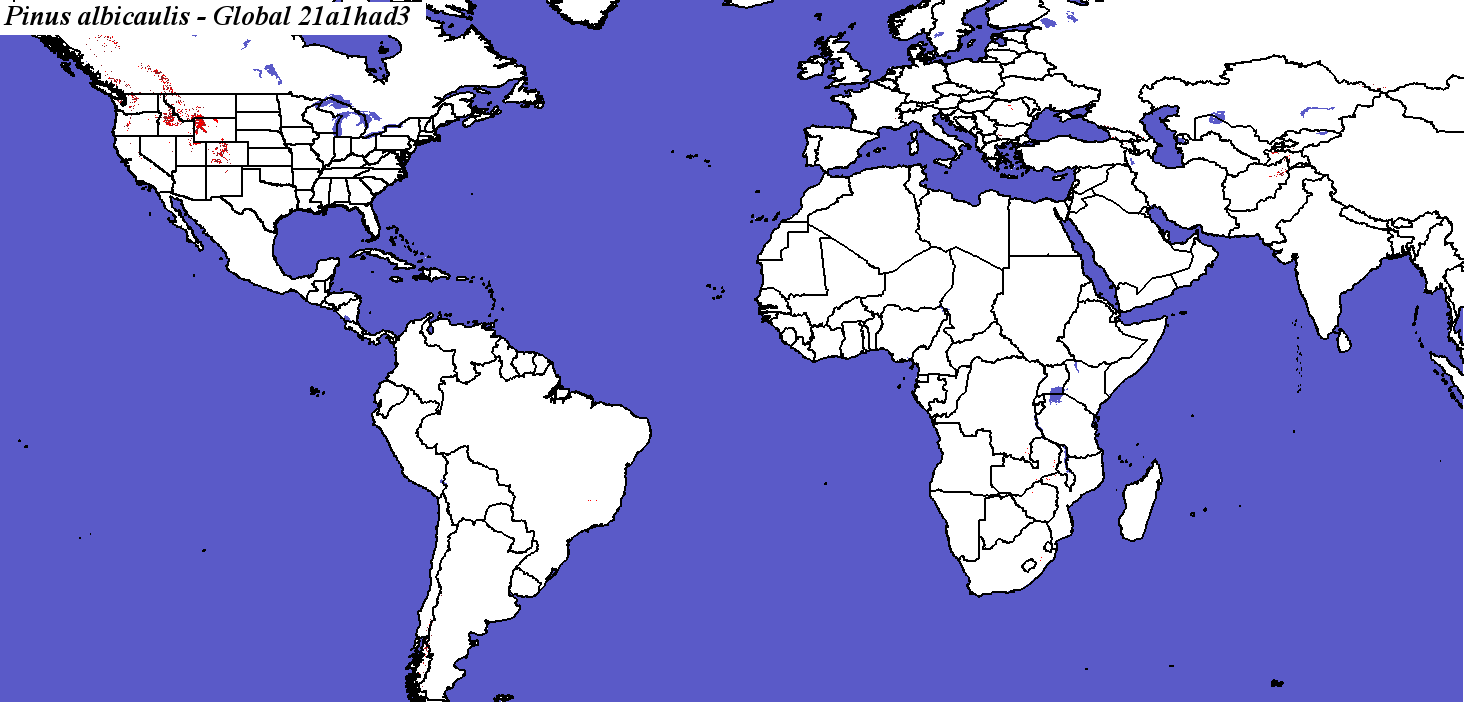

Hadley, Scenario A1FI, 2100 - Pinus albicaulis - Global

Pinus_albicaulis_final.3.conus
Pinus_albicaulis_final.3.global.

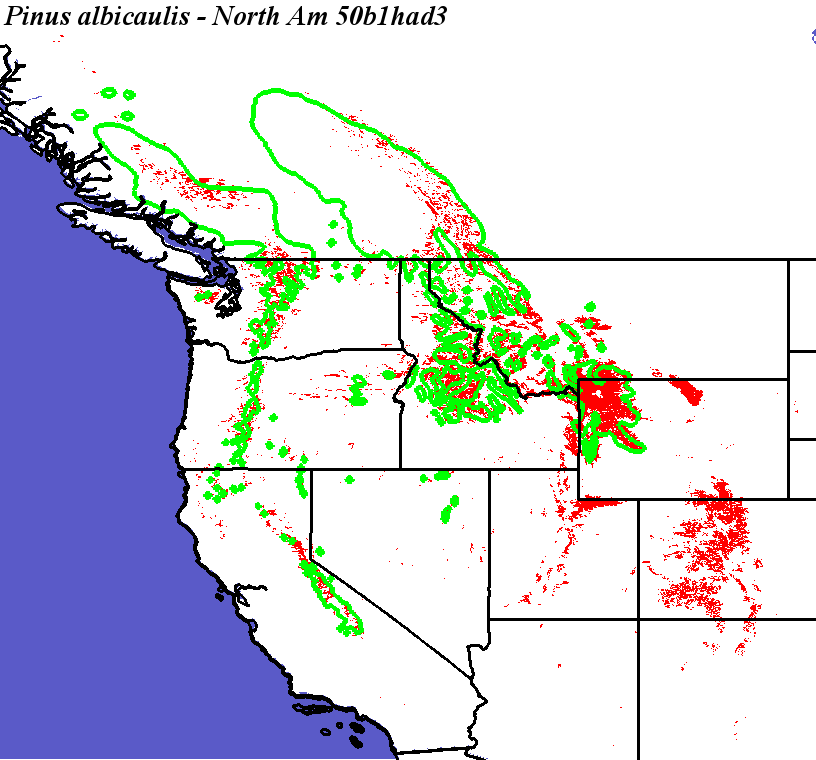

Hadley, Scenario B1, 2050 - Pinus albicaulis - CONUS
Compare with Pinus albicaulis modeled for Hadley B2 in 2060 by Crookston and Rehfeldt
Compare with Pinus albicaulis modeled for Hadley B1 in 2050 by Coops and Waring

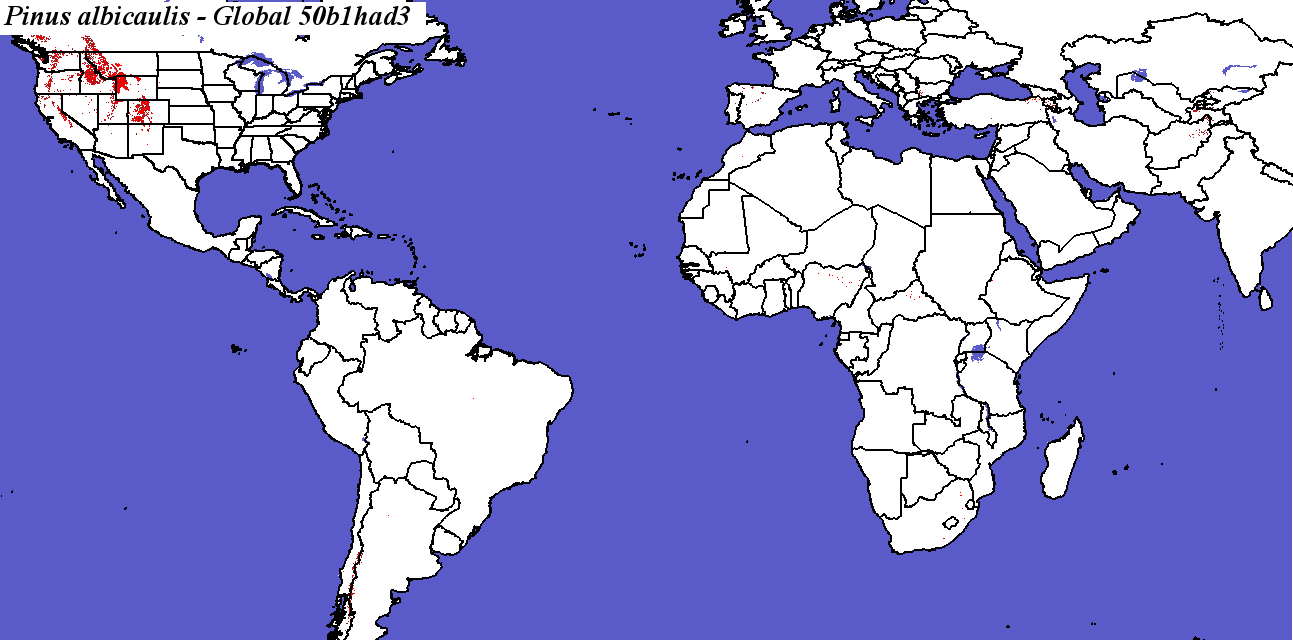

Hadley, Scenario B1, 2050 - Pinus albicaulis - Global
Pinus_albicaulis_final.3.conus
Pinus_albicaulis_final.3.global

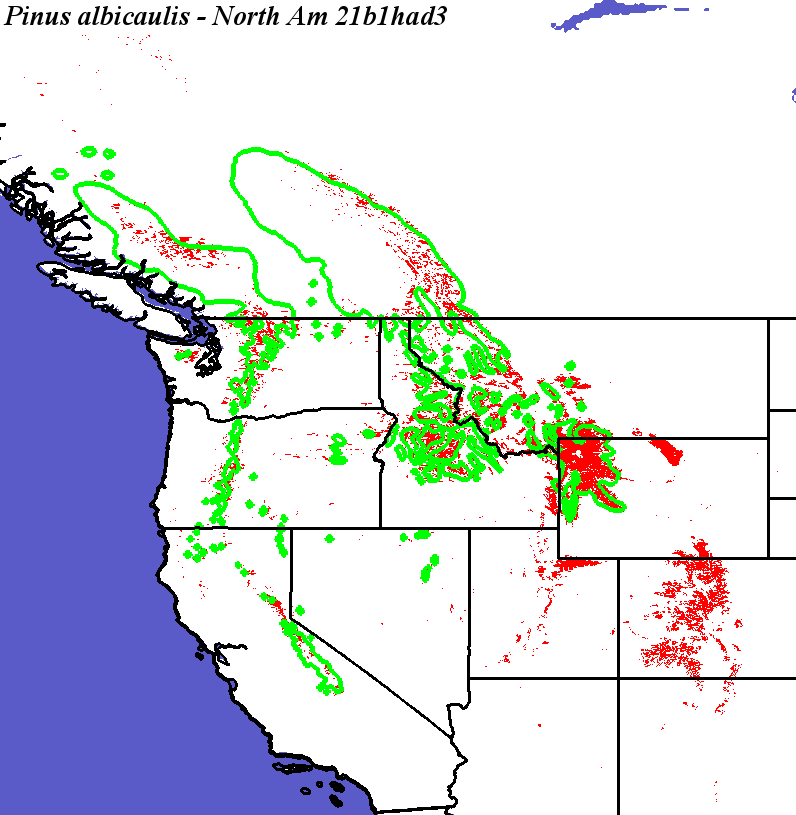

Hadley, Scenario B1, 2100 - Pinus albicaulis - CONUS
Pinus albicaulis not modeled by Iverson and Prasad
Compare with Pinus albicaulis modeled for Hadley B2 in 2090 by Crookston and Rehfeldt

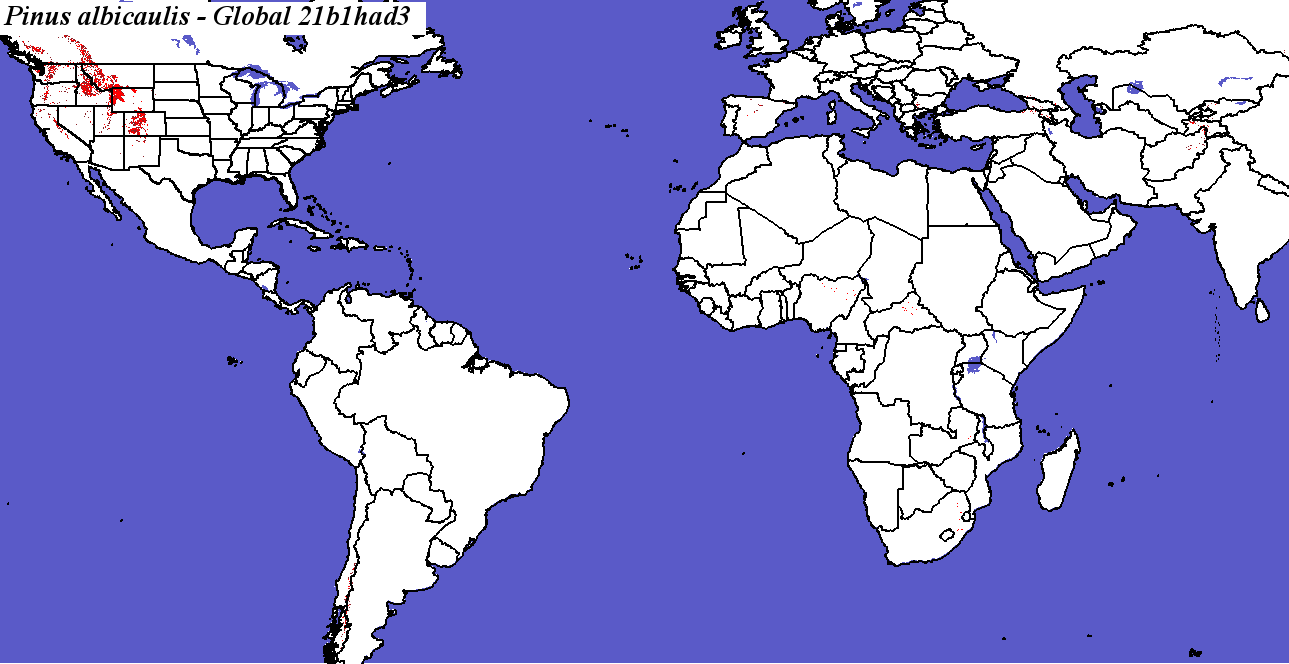

Hadley, Scenario B1, 2100 - Pinus albicaulis - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Pinus_albicaulis_final.elev

Number of Suitable Ecoregions (Niche Breadth)

71

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

29.863

Area in Present Suitable Range (in km2)

366528

Area in Future Suitable Range (Had B1 2050, in km2)

275648

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

248583

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

67.8200

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

11.6438

Percent Change in Area of Suitable Range (Had B1 2050)

-24.7900

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

42.4658

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

4657.57 +/- 14335.4

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

91.0959

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

2.61912 +/- 10.4803

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

88.6301

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

16.6848 +/- 91.195

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

88.0822

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

273

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

.0700

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

70

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

199218

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

54.3500

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

4.65753

Present and Future Ranges - Hadley, Scenario B1, 2050 - Pinus albicaulis Pinus albicaulis - Range Change Statistics

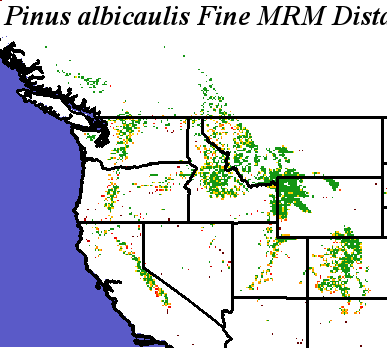

Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Pinus_albicaulis_final.elev Fine MRM Distance
Pinus_albicaulis_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus albicaulis Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Pinus albicaulis
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Pinus_albicaulis_final.elev Coarse MRM Distance
Pinus_albicaulis_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus albicaulis Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Pinus albicaulis

Sat Mar 29 16:43:16 EDT 2014
