Version 5 Tree Atlas


Pinus contorta

lodgepole pine

elev

Pinus contorta Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Pinus contorta

USDA Plants Database entry for Pinus contorta
Silvics Manual entry for Pinus contorta


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Pinus contorta ssp. bolanderi; Pinus contorta var. latifolia; Pinus contorta var. murrayana; Pinus contorta ssp. latifolia; Pinus contorta ssp. Murrayana; Pinus murrayana35063733879TBD

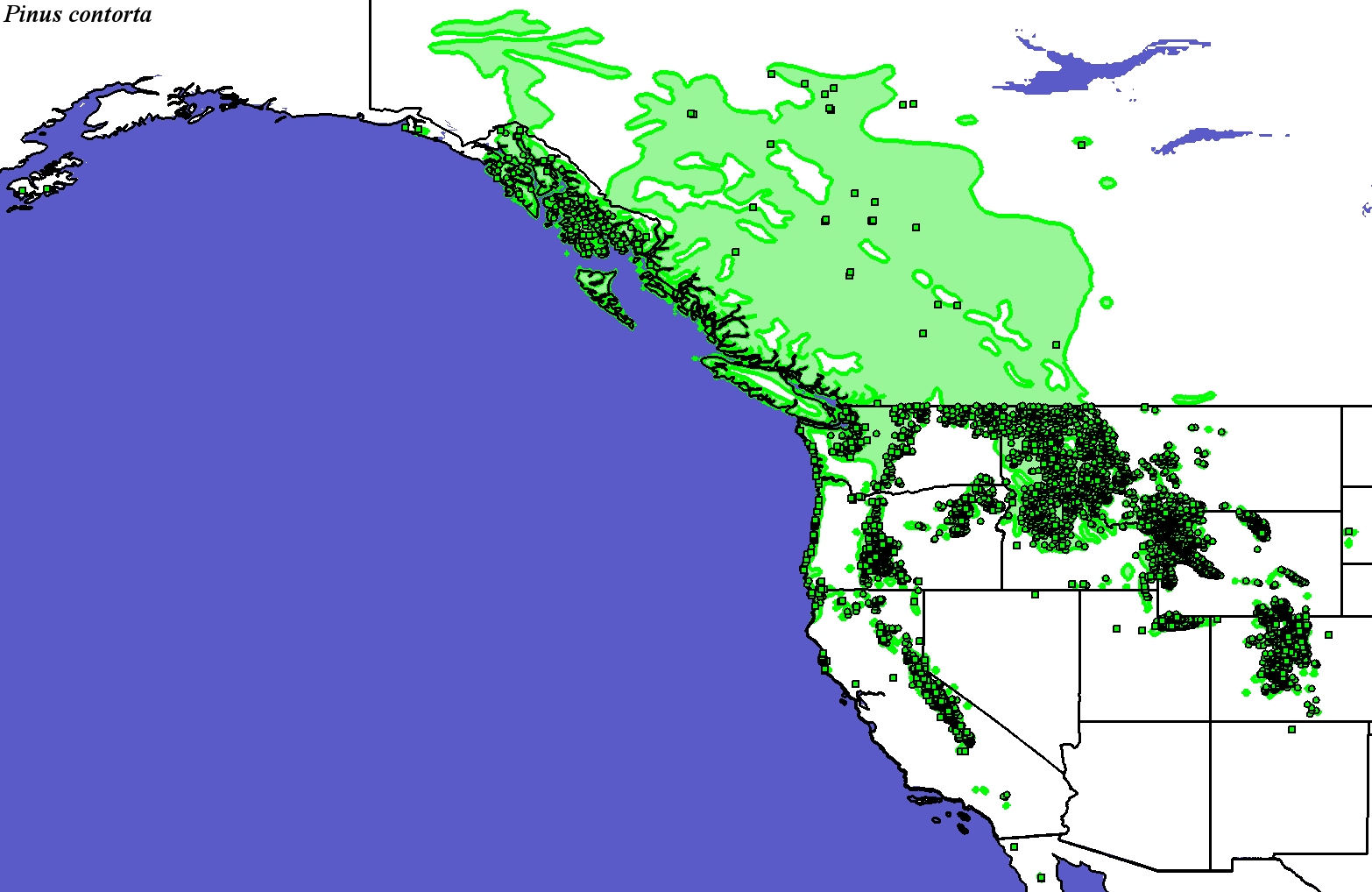

Occurrence Locations and Hargrove's Present Suitable Range Outline
Pinus_contorta_final Occurrences
Hargroves Present Suitable Range Outline for Pinus_contorta_final
Pinus contorta - Occurrence Locations Pinus contorta - Hargrove's Present Suitable Range Outline
Present Conditions
Pinus_contorta_final.4.conus
Pinus_contorta_final.4.global

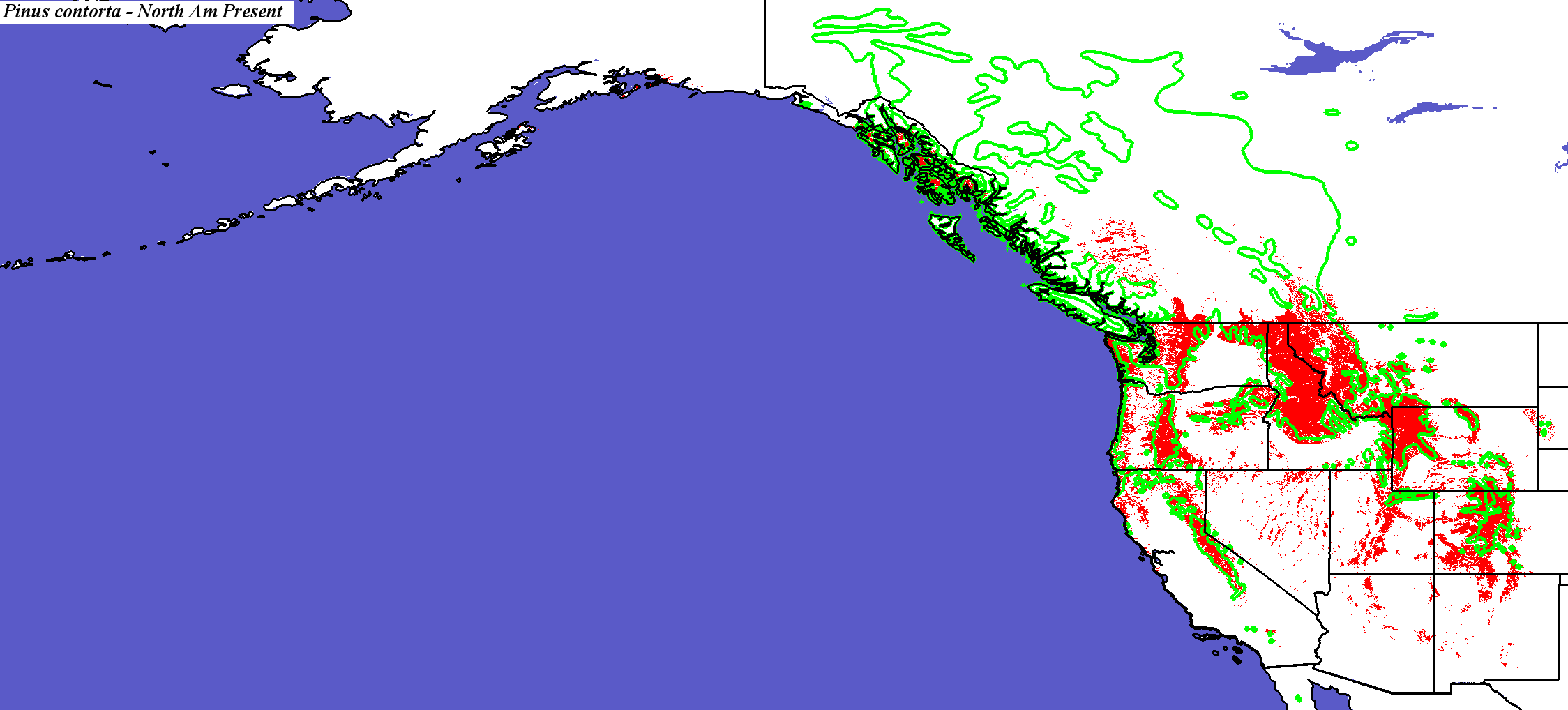

Pinus contorta - CONUS
Compare with Current Range from the Silvics Manual for Pinus contorta
Compare with Current Range from Biota of North America Program (BONAP) for Pinus contorta

Pinus contorta not modeled by Iverson and Prasad
Compare with Pinus contorta modeled for Current conditions by Crookston and Rehfeldt
Compare with Pinus contorta modeled for Current conditions by Coops and Waring
Pinus contorta - Global
PCM - Parallel Climate Model
Pinus_contorta_final.4.conus
Pinus_contorta_final.4.global

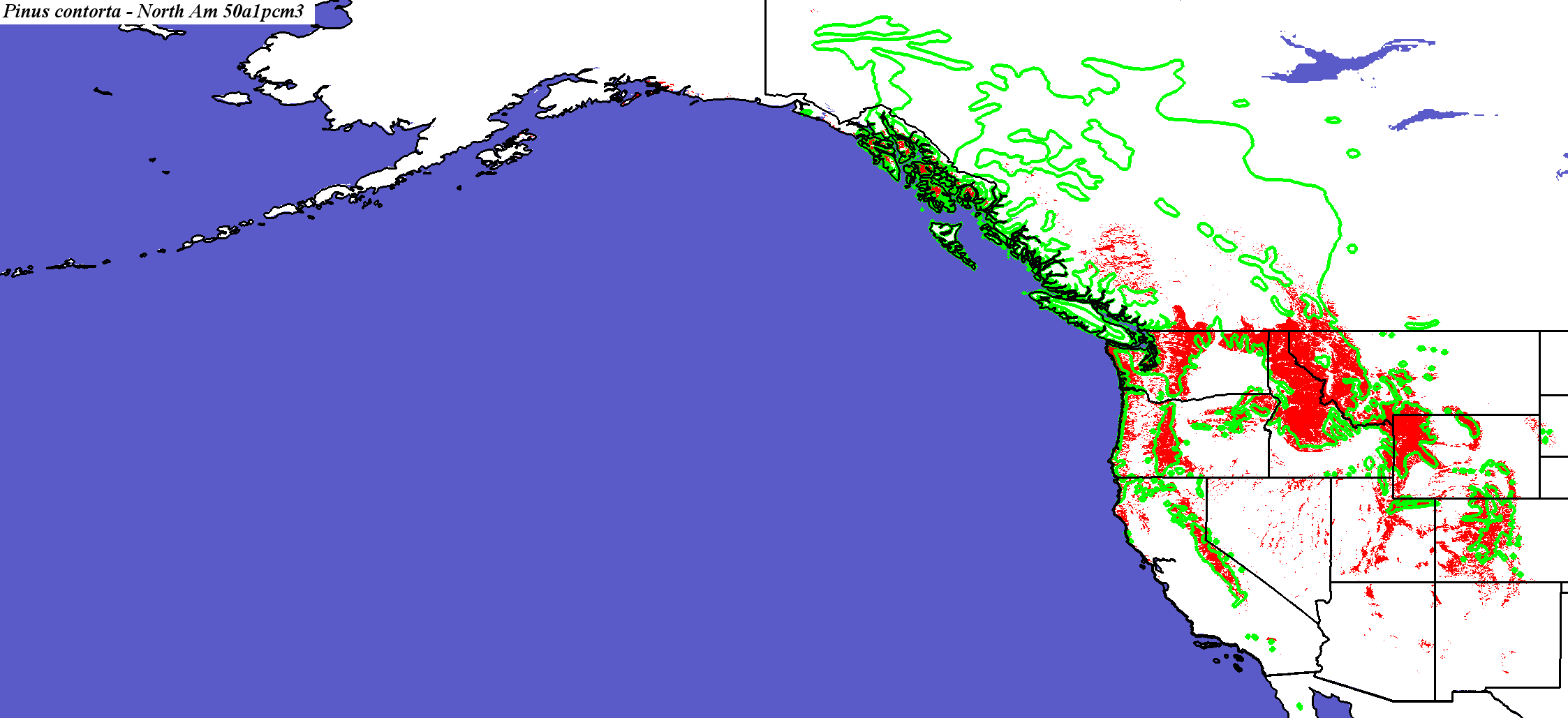

PCM, Scenario A1FI, 2050 - Pinus contorta - CONUS
PCM, Scenario A1FI, 2050 - Pinus contorta - Global
Pinus_contorta_final.4.conus
Pinus_contorta_final.4.global
PCM, Scenario A1FI, 2100 - Pinus contorta - CONUS
Pinus contorta species not modeled by Iverson and Prasad

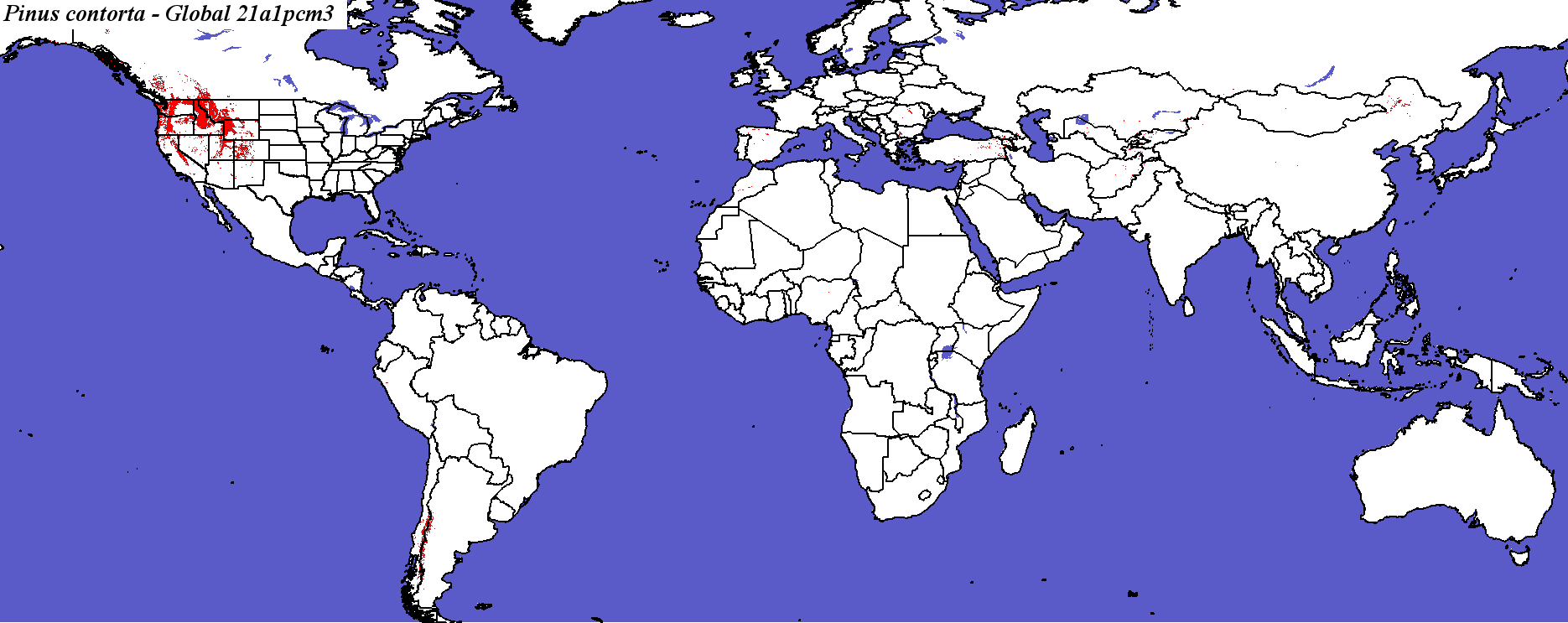

PCM, Scenario A1FI, 2100 - Pinus contorta - Global

Pinus_contorta_final.4.conus
Pinus_contorta_final.4.global
PCM, Scenario B1, 2050 - Pinus contorta - CONUS
PCM, Scenario B1, 2050 - Pinus contorta - Global
Pinus_contorta_final.4.conus
Pinus_contorta_final.4.global
PCM, Scenario B1, 2100 - Pinus contorta - CONUS
Pinus contorta not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Pinus contorta - Global

Hadley Climate Model
Pinus_contorta_final.4.conus
Pinus_contorta_final.4.global
Hadley, Scenario A1FI, 2050 - Pinus contorta - CONUS
Compare with Pinus contorta modeled for Hadley A2 in 2060 by Crookston and Rehfeldt

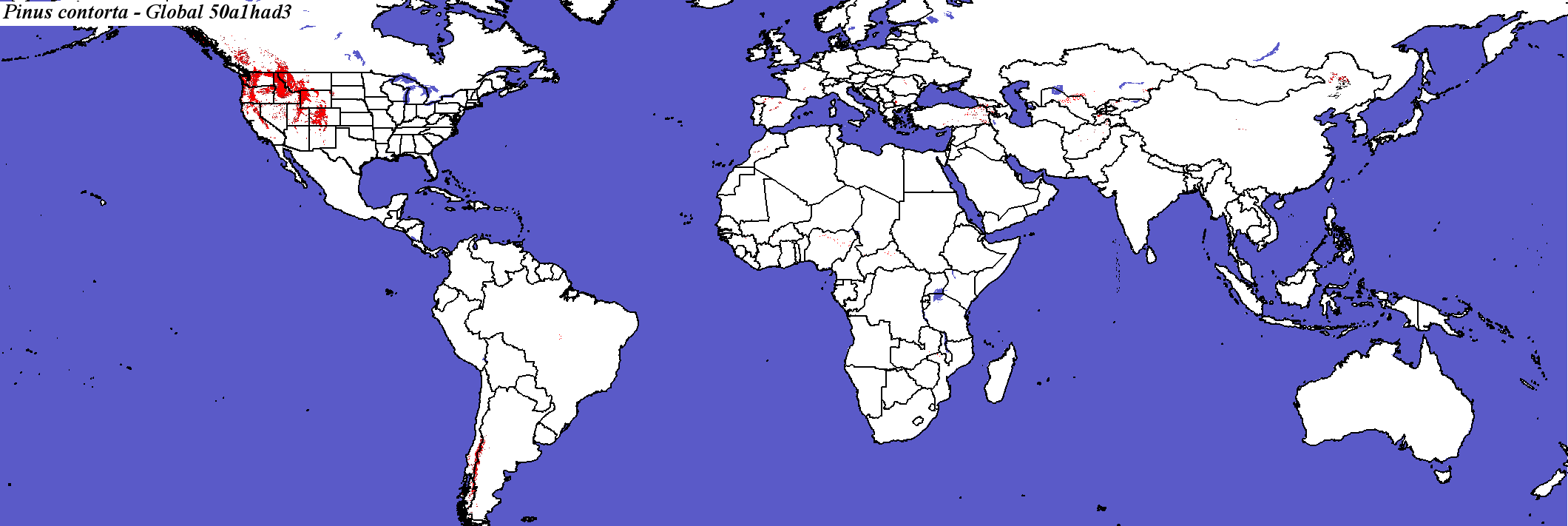

Hadley, Scenario A1FI, 2050 - Pinus contorta - Global
Pinus_contorta_final.4.conus
Pinus_contorta_final.4.global.
Hadley, Scenario A1FI, 2100 - Pinus contorta - CONUS
Pinus contorta not modeled by Iverson and Prasad
Compare with Pinus contorta modeled for Hadley A2 in 2090 by Crookston and Rehfeldt
Compare with Pinus contorta modeled for Hadley A2 in 2050 by Coops and Waring

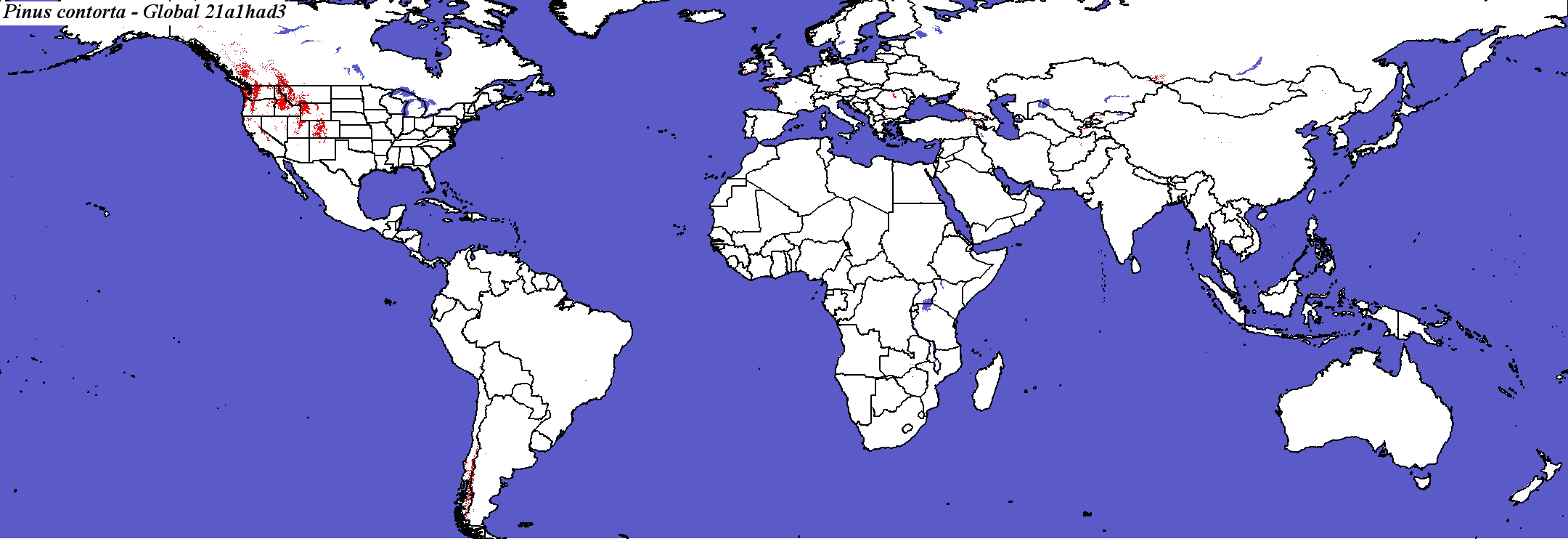

Hadley, Scenario A1FI, 2100 - Pinus contorta - Global

Pinus_contorta_final.4.conus
Pinus_contorta_final.4.global.

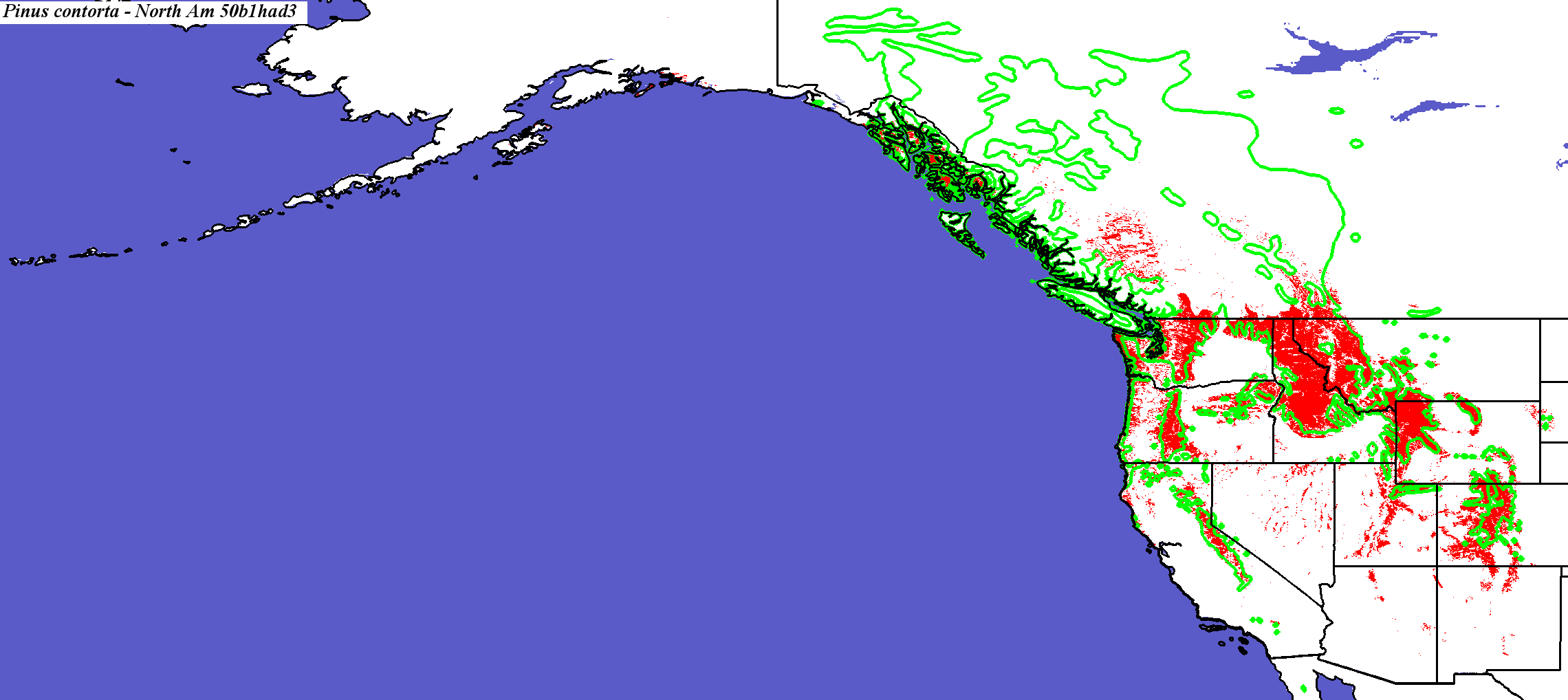

Hadley, Scenario B1, 2050 - Pinus contorta - CONUS
Compare with Pinus contorta modeled for Hadley B2 in 2060 by Crookston and Rehfeldt
Compare with Pinus contorta modeled for Hadley B1 in 2050 by Coops and Waring
Hadley, Scenario B1, 2050 - Pinus contorta - Global
Pinus_contorta_final.4.conus
Pinus_contorta_final.4.global
Hadley, Scenario B1, 2100 - Pinus contorta - CONUS
Pinus contorta not modeled by Iverson and Prasad
Compare with Pinus contorta modeled for Hadley B2 in 2090 by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Pinus contorta - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Pinus_contorta_final.elev

Number of Suitable Ecoregions (Niche Breadth)

196

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

8.76712

Area in Present Suitable Range (in km2)

880289

Area in Future Suitable Range (Had B1 2050, in km2)

727089

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

665978

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

75.6500

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

4.38356

Percent Change in Area of Suitable Range (Had B1 2050)

-17.4000

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

28.0822

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

3058.72 +/- 9486.94

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

97.2603

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

1.40799 +/- 4.02522

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

96.7123

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

17.2333 +/- 115.016

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

87.3973

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

1020

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

.1100

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

68.2192

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

471768

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

53.5900

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

5.06849

Present and Future Ranges - Hadley, Scenario B1, 2050 - Pinus contorta Pinus contorta - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Pinus_contorta_final.elev Fine MRM Distance
Pinus_contorta_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus contorta Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Pinus contorta
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

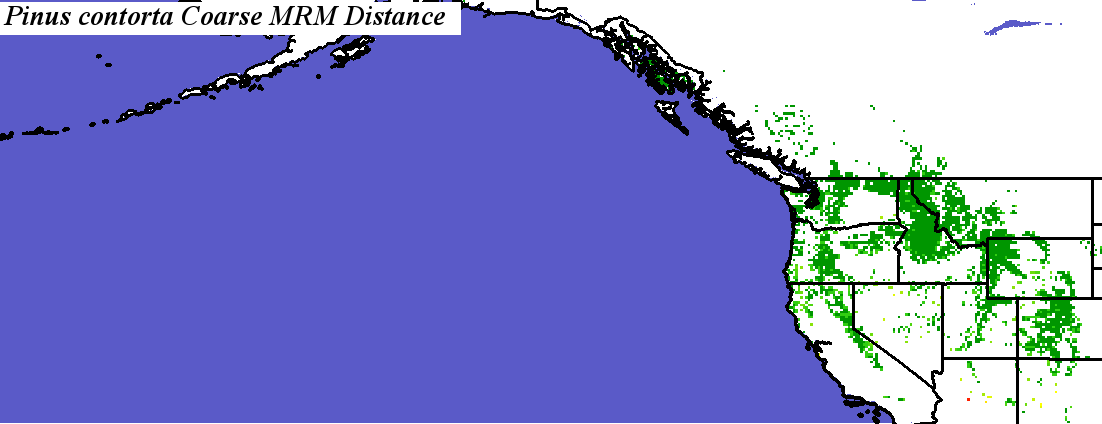

Pinus_contorta_final.elev Coarse MRM Distance

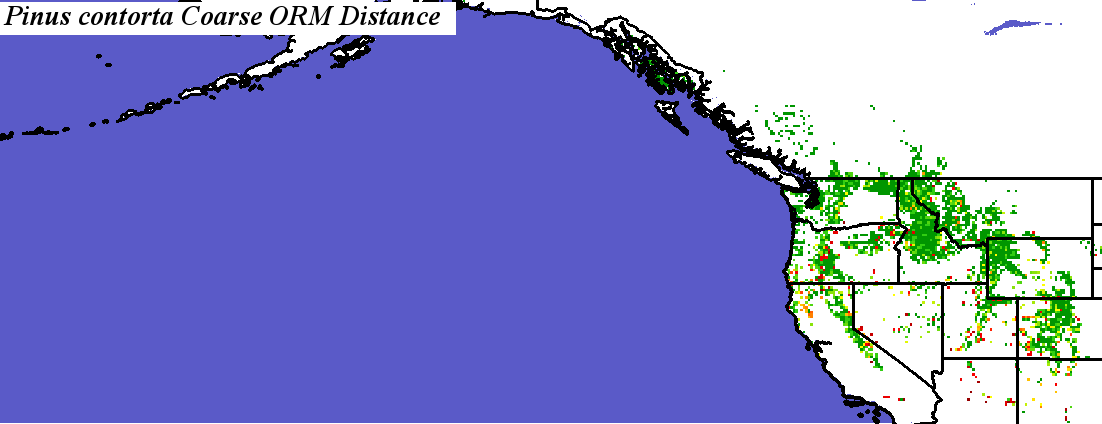

Pinus_contorta_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus contorta Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Pinus contorta
