Version 5 Tree Atlas


Pinus echinata

shortleaf pine

elev

Pinus echinata Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Pinus echinata

USDA Plants Database entry for Pinus echinata
Silvics Manual entry for Pinus echinata


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
5224685292TBD

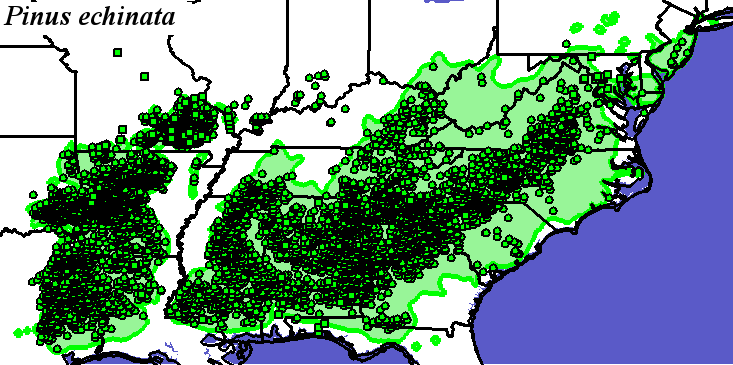

Occurrence Locations and Hargrove's Present Suitable Range Outline
Pinus_echinata_final Occurrences
Hargroves Present Suitable Range Outline for Pinus_echinata_final
Pinus echinata - Occurrence Locations Pinus echinata - Hargrove's Present Suitable Range Outline

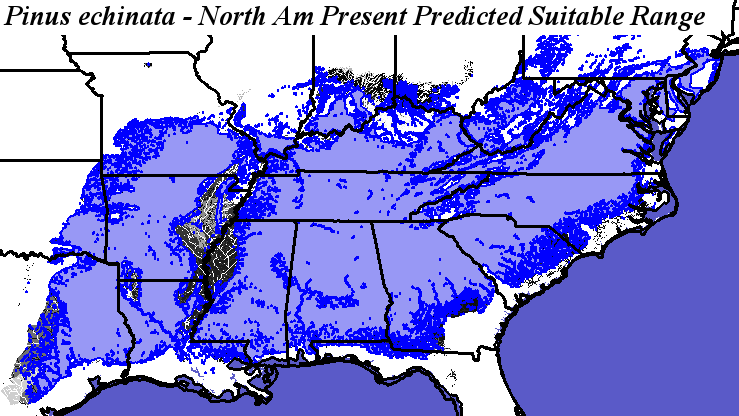

Present Conditions
Pinus_echinata_final.4.conus
Pinus_echinata_final.4.global

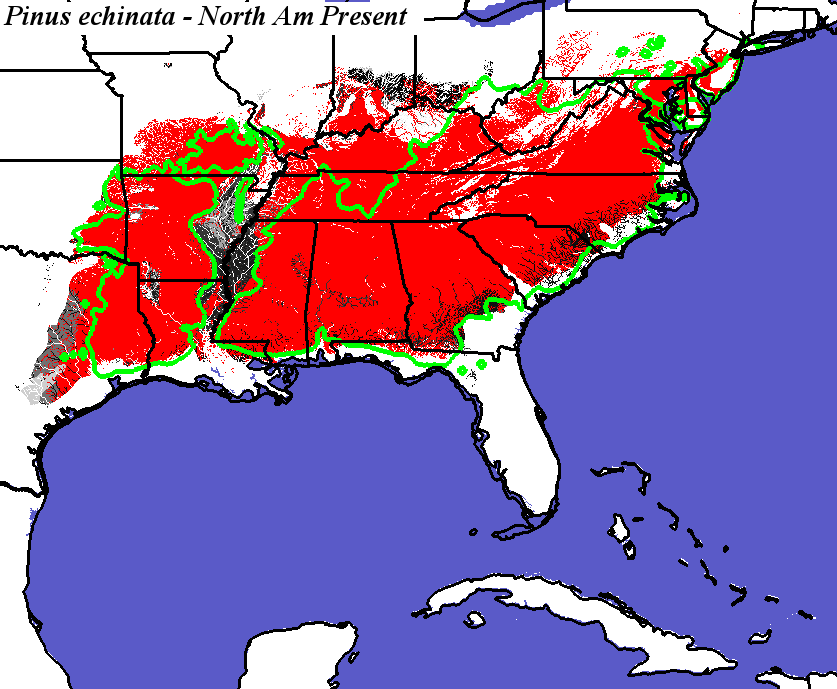

Pinus echinata - CONUS
Compare with Current Range from the Silvics Manual for Pinus echinata
Compare with Current Range from Biota of North America Program (BONAP) for Pinus echinata

Compare with Pinus echinata modeled for Current conditions by Iverson and Prasad
Pinus echinata not modeled by Crookston and Rehfeldt
Pinus echinata not modeled by Coops and Waring

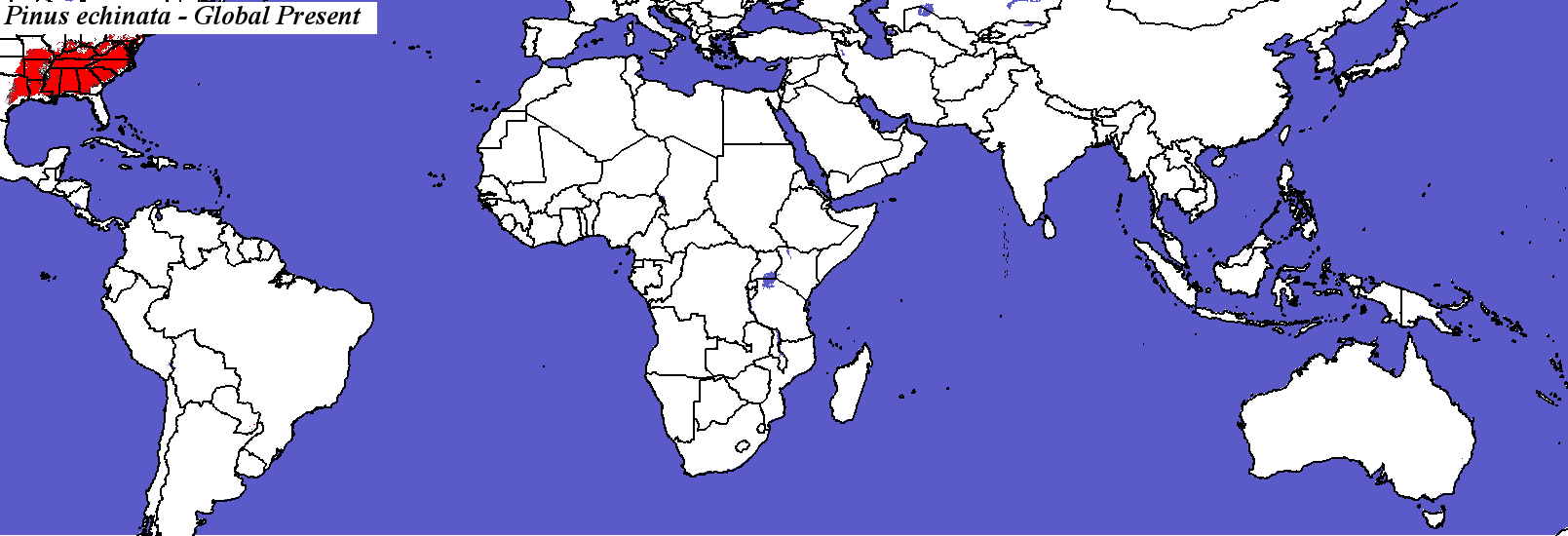

Pinus echinata - Global

PCM - Parallel Climate Model
Pinus_echinata_final.4.conus
Pinus_echinata_final.4.global

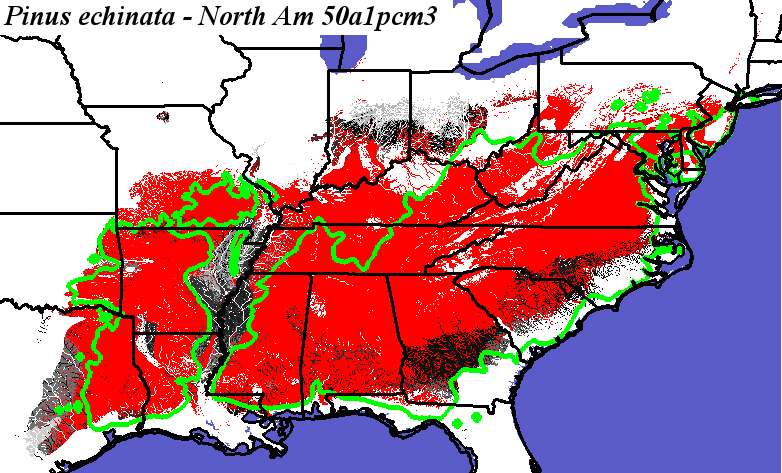

PCM, Scenario A1FI, 2050 - Pinus echinata - CONUS
PCM, Scenario A1FI, 2050 - Pinus echinata - Global
Pinus_echinata_final.4.conus
Pinus_echinata_final.4.global

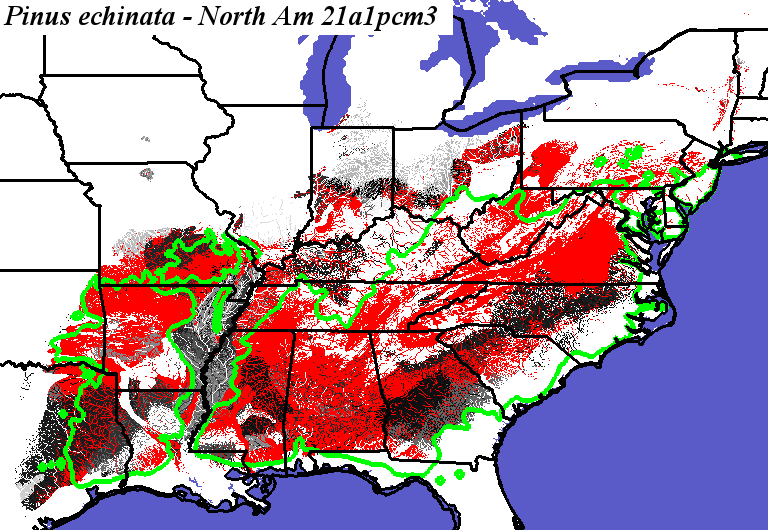

PCM, Scenario A1FI, 2100 - Pinus echinata - CONUS
Compare with Pinus echinata modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Pinus echinata - Global

Pinus_echinata_final.4.conus
Pinus_echinata_final.4.global

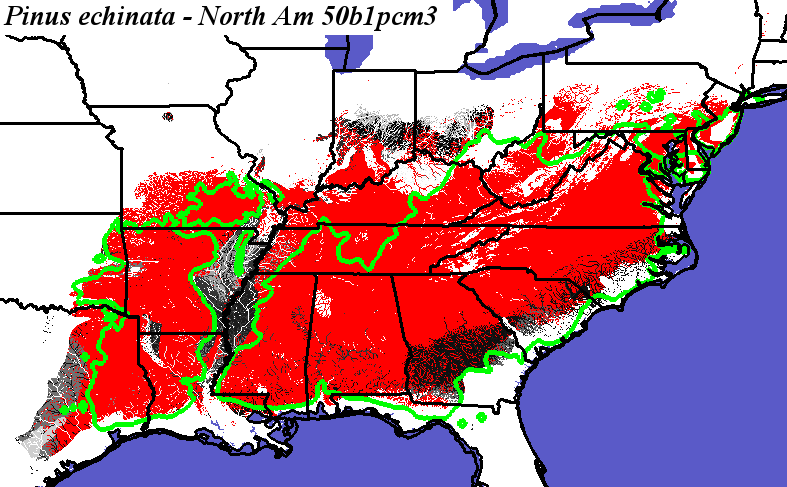

PCM, Scenario B1, 2050 - Pinus echinata - CONUS

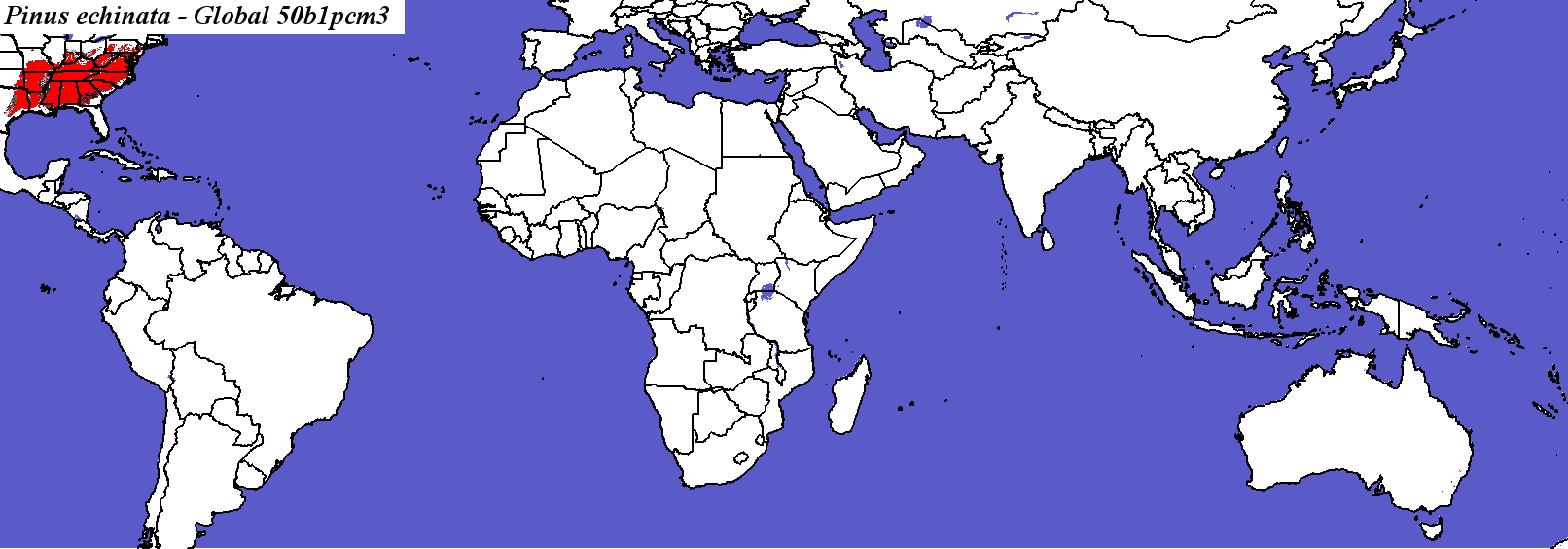

PCM, Scenario B1, 2050 - Pinus echinata - Global
Pinus_echinata_final.4.conus
Pinus_echinata_final.4.global
PCM, Scenario B1, 2100 - Pinus echinata - CONUS
Compare with Pinus echinata modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Pinus echinata - Global

Hadley Climate Model
Pinus_echinata_final.4.conus
Pinus_echinata_final.4.global

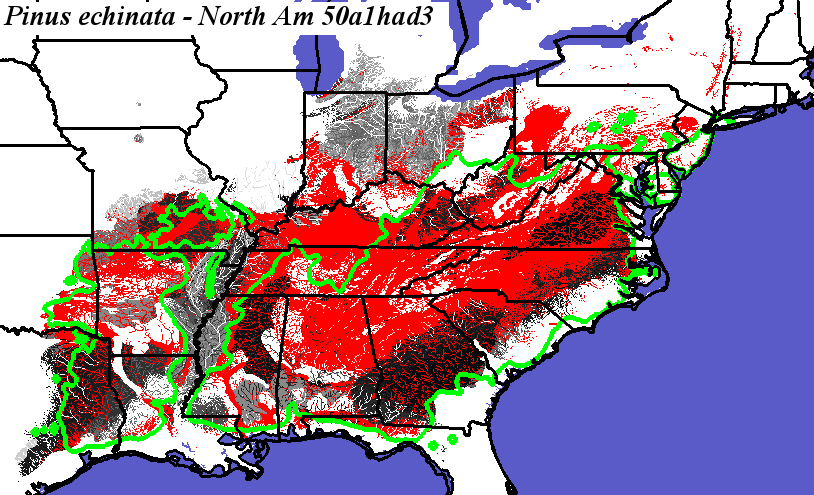

Hadley, Scenario A1FI, 2050 - Pinus echinata - CONUS
Pinus echinata not modeled by Crookston and Rehfeldt

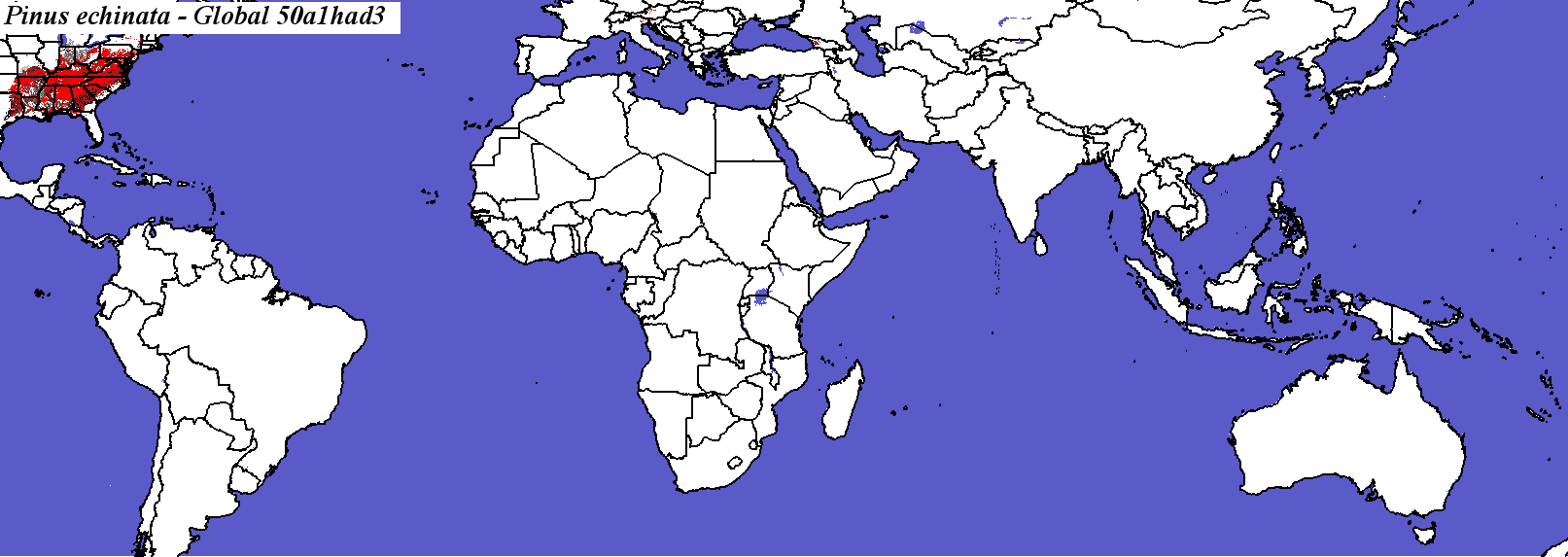

Hadley, Scenario A1FI, 2050 - Pinus echinata - Global
Pinus_echinata_final.4.conus
Pinus_echinata_final.4.global.

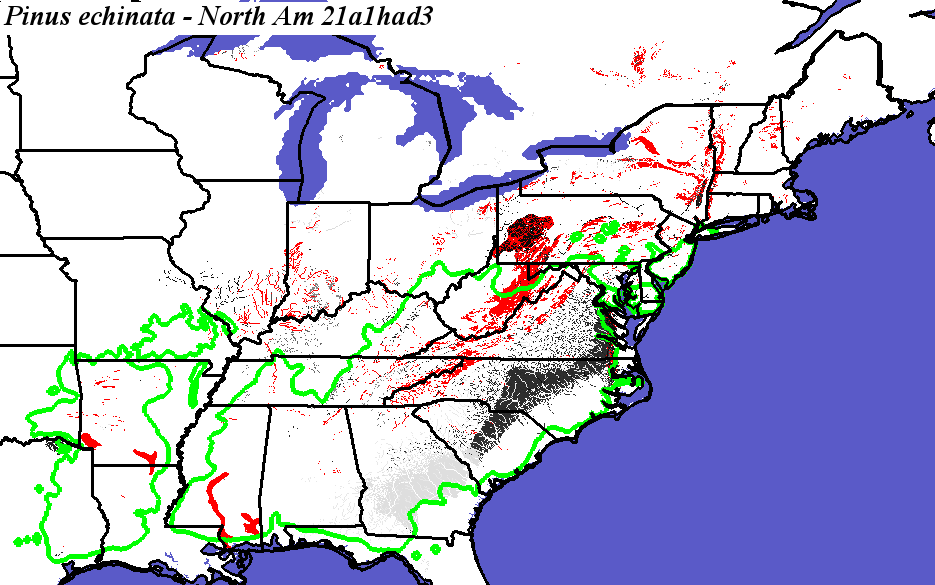

Hadley, Scenario A1FI, 2100 - Pinus echinata - CONUS
Compare with Pinus echinata modeled for Hadley A1FI in 2100 by Iverson and Prasad
Pinus echinata not modeled by Crookston and Rehfeldt
Pinus echinata not modeled by Coops and Waring

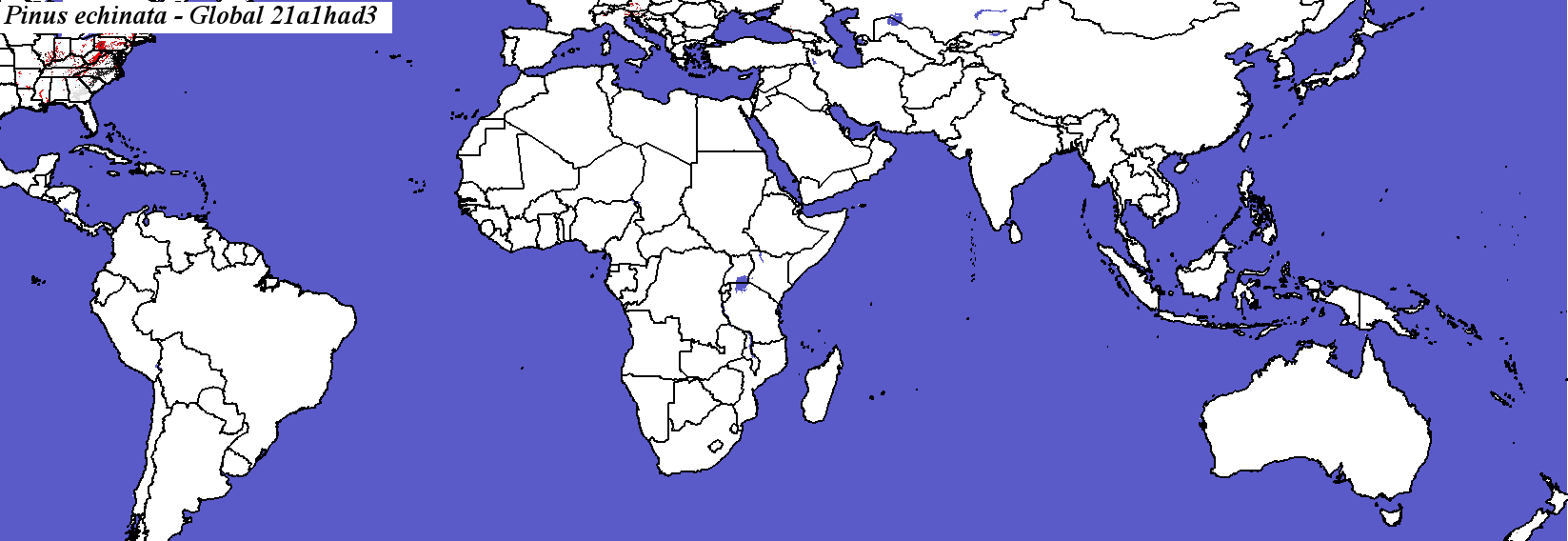

Hadley, Scenario A1FI, 2100 - Pinus echinata - Global

Pinus_echinata_final.4.conus
Pinus_echinata_final.4.global.

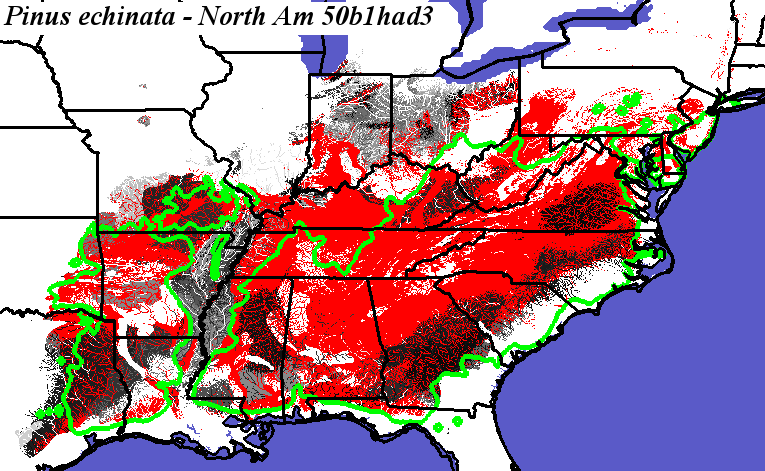

Hadley, Scenario B1, 2050 - Pinus echinata - CONUS
Pinus echinata not modeled by Crookston and Rehfeldt
Pinus echinata not modeled by Coops and Waring

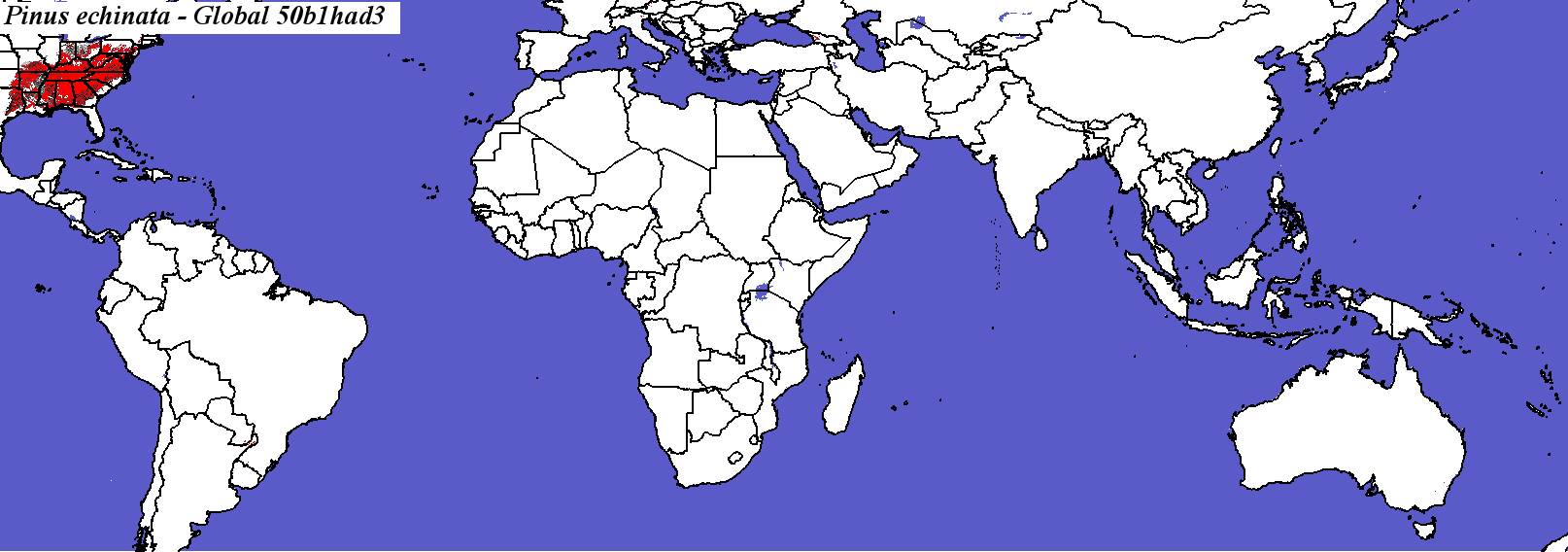

Hadley, Scenario B1, 2050 - Pinus echinata - Global
Pinus_echinata_final.4.conus
Pinus_echinata_final.4.global
Hadley, Scenario B1, 2100 - Pinus echinata - CONUS
Compare with Pinus echinata modeled for Hadley B1 in 2100 by Iverson and Prasad
Pinus echinata not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Pinus echinata - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Pinus_echinata_final.elev

Number of Suitable Ecoregions (Niche Breadth)

144

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

13.5616

Area in Present Suitable Range (in km2)

1163313

Area in Future Suitable Range (Had B1 2050, in km2)

813705

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

703043

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

60.4300

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

24.2466

Percent Change in Area of Suitable Range (Had B1 2050)

-30.0500

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

51.0959

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

5479.07 +/- 8880.15

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

88.0822

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

2.68555 +/- 4.46412

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

87.9452

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

186.955 +/- 633.645

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

29.1781

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

55858

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

4.8000

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

26.5753

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

235486

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

20.2400

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

68.4932

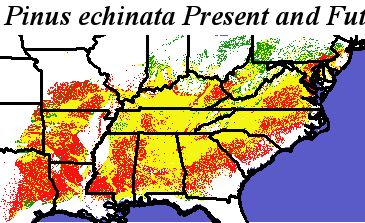

Present and Future Ranges - Hadley, Scenario B1, 2050 - Pinus echinata Pinus echinata - Range Change Statistics

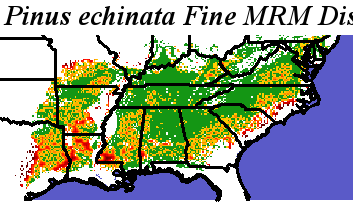

Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Pinus_echinata_final.elev Fine MRM Distance

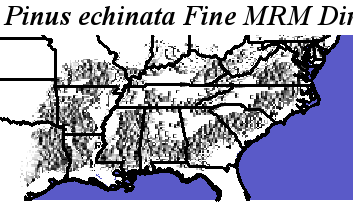

Pinus_echinata_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus echinata Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Pinus echinata
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

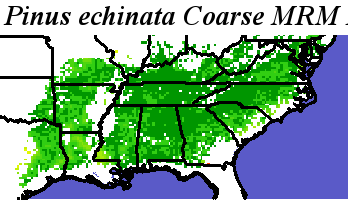

Pinus_echinata_final.elev Coarse MRM Distance

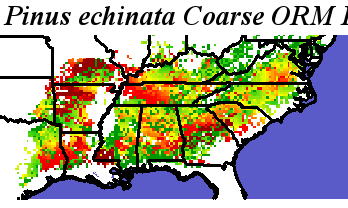

Pinus_echinata_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus echinata Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Pinus echinata
