Version 5 Tree Atlas


Pinus edulis

common pinyon

elev

Pinus edulis Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Pinus edulis

USDA Plants Database entry for Pinus edulis
Silvics Manual entry for Pinus edulis


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
37372133950range well represented

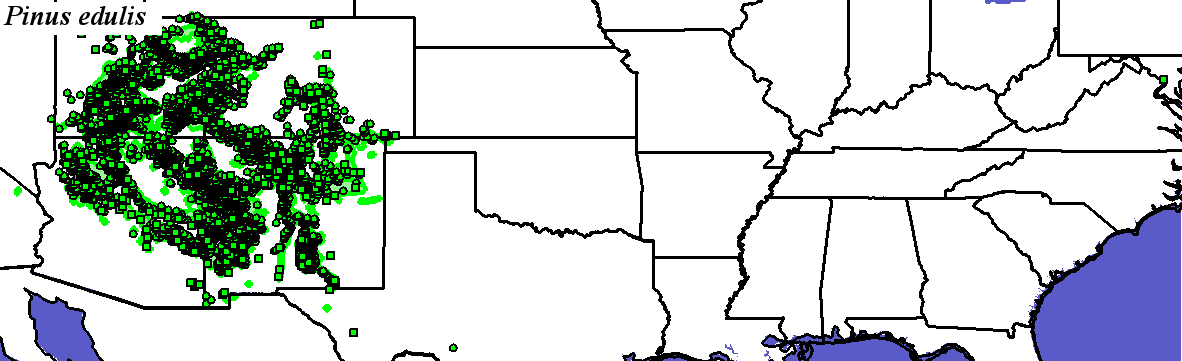

Occurrence Locations and Hargrove's Present Suitable Range Outline
Pinus_edulis_final Occurrences

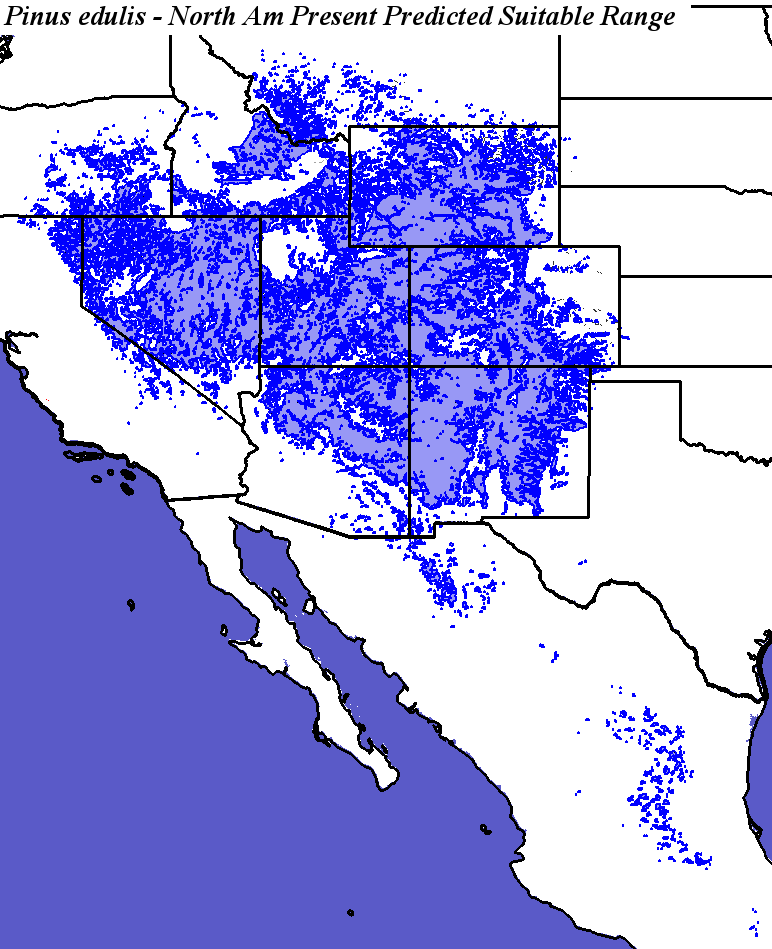

Hargroves Present Suitable Range Outline for Pinus_edulis_final
Pinus edulis - Occurrence Locations Pinus edulis - Hargrove's Present Suitable Range Outline
Present Conditions
Pinus_edulis_final.4.conus
Pinus_edulis_final.4.global

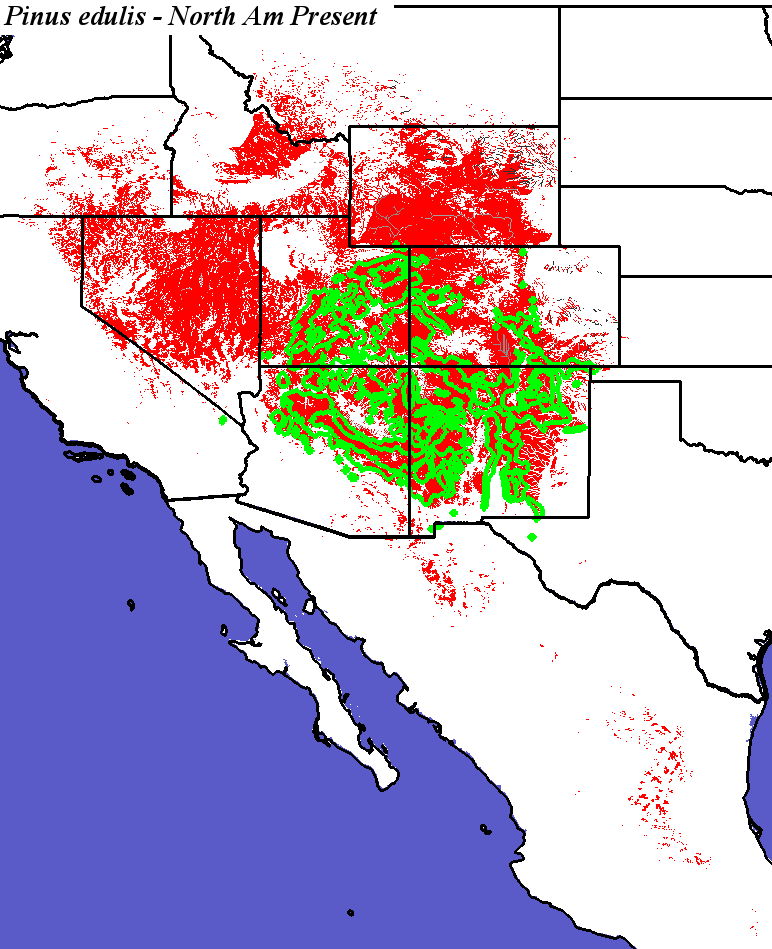

Pinus edulis - CONUS
Compare with Current Range from the Silvics Manual for Pinus edulis
Compare with Current Range from Biota of North America Program (BONAP) for Pinus edulis

Pinus edulis not modeled by Iverson and Prasad
Compare with Pinus edulis modeled for Current conditions by Crookston and Rehfeldt
Pinus edulis not modeled by Coops and Waring

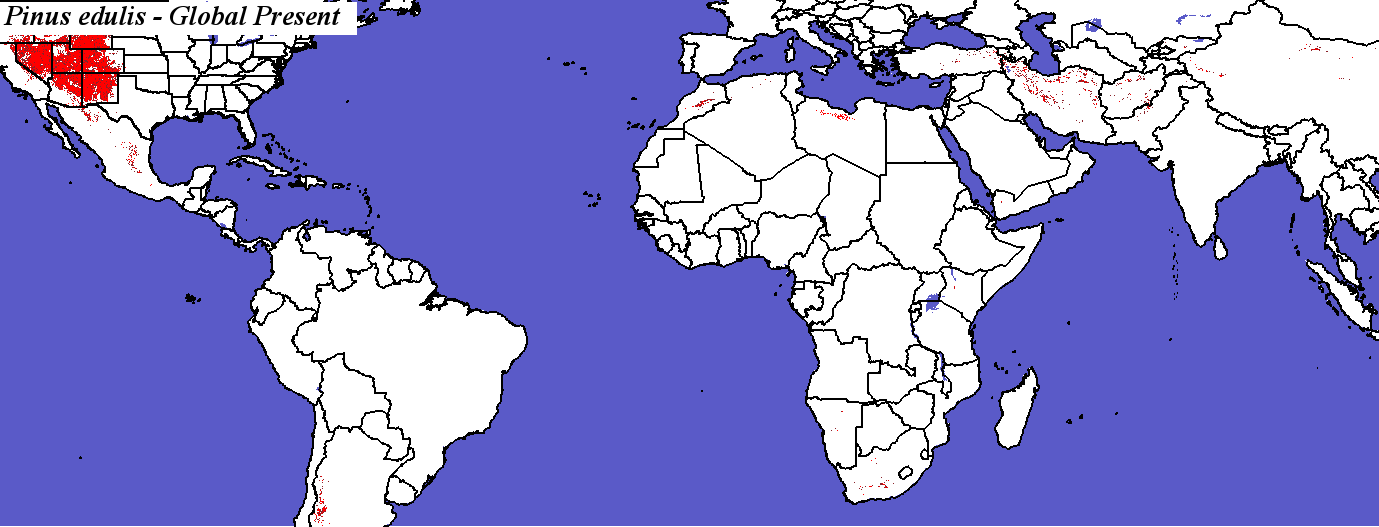

Pinus edulis - Global

PCM - Parallel Climate Model
Pinus_edulis_final.4.conus
Pinus_edulis_final.4.global
PCM, Scenario A1FI, 2050 - Pinus edulis - CONUS

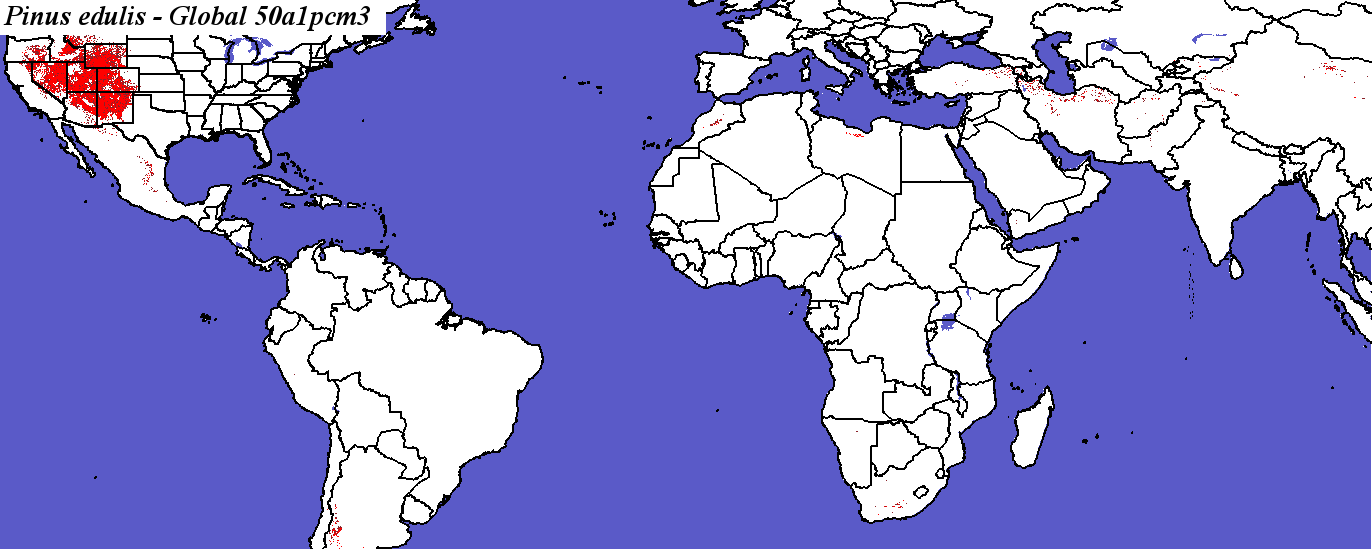

PCM, Scenario A1FI, 2050 - Pinus edulis - Global
Pinus_edulis_final.4.conus
Pinus_edulis_final.4.global

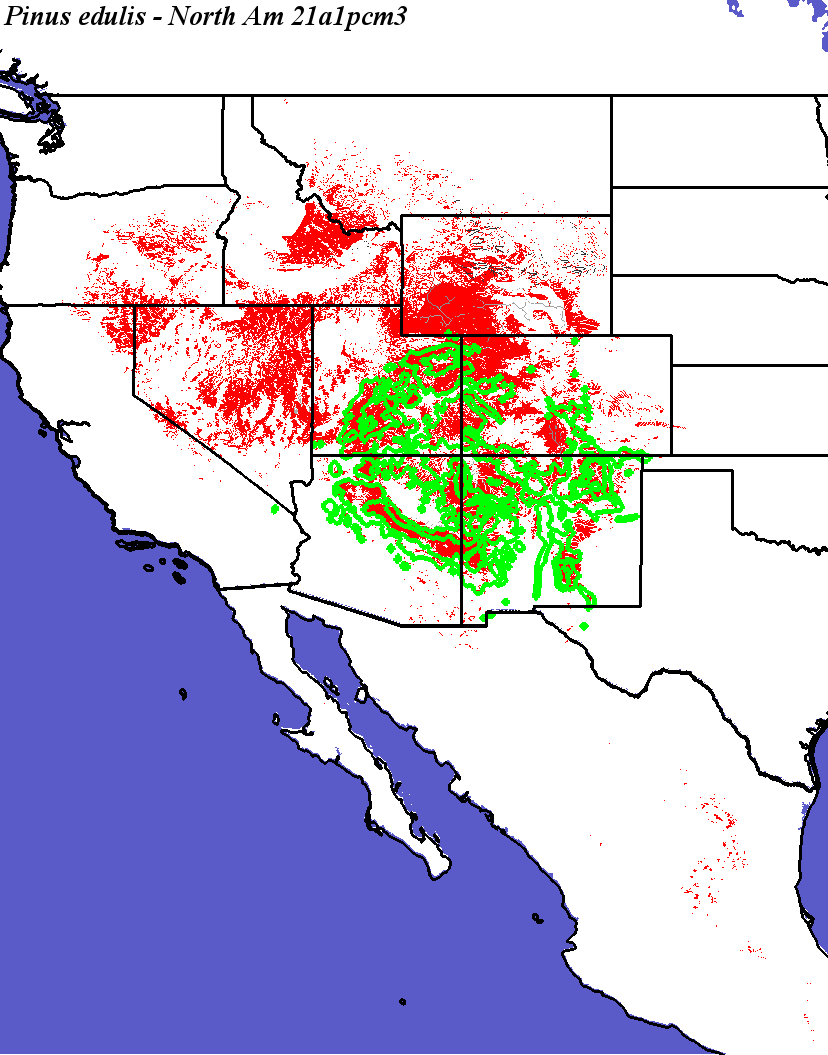

PCM, Scenario A1FI, 2100 - Pinus edulis - CONUS
Pinus edulis species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Pinus edulis - Global

Pinus_edulis_final.4.conus
Pinus_edulis_final.4.global

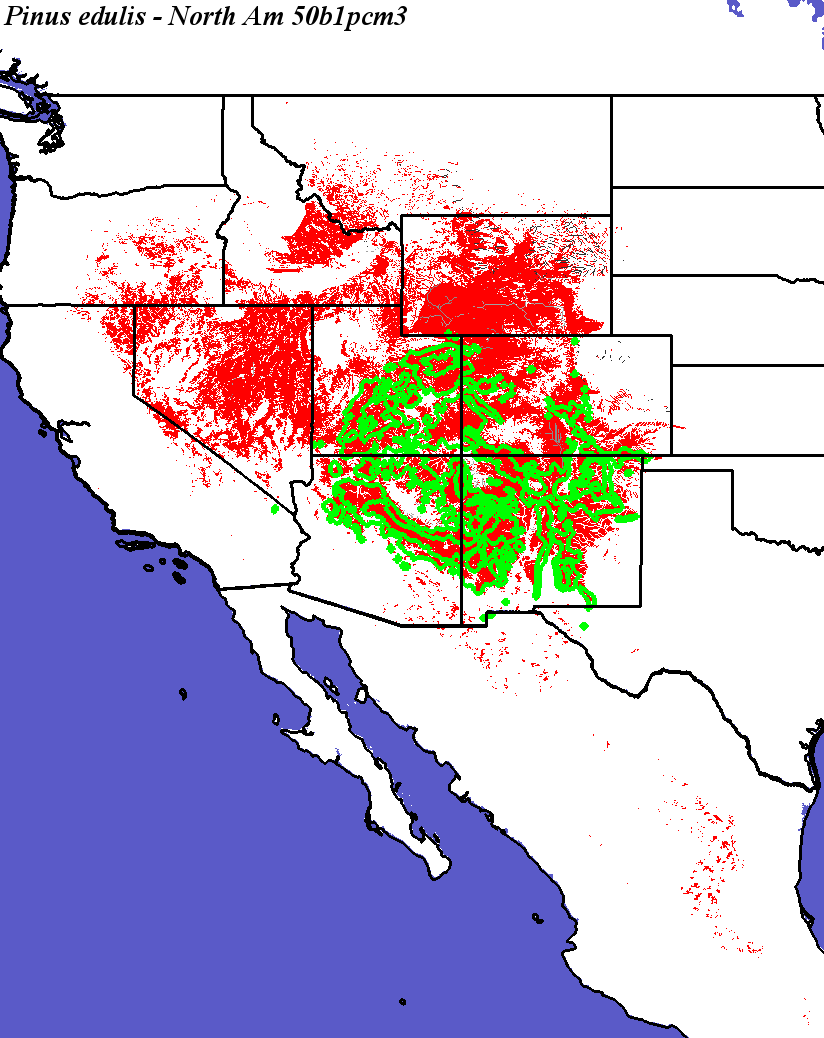

PCM, Scenario B1, 2050 - Pinus edulis - CONUS

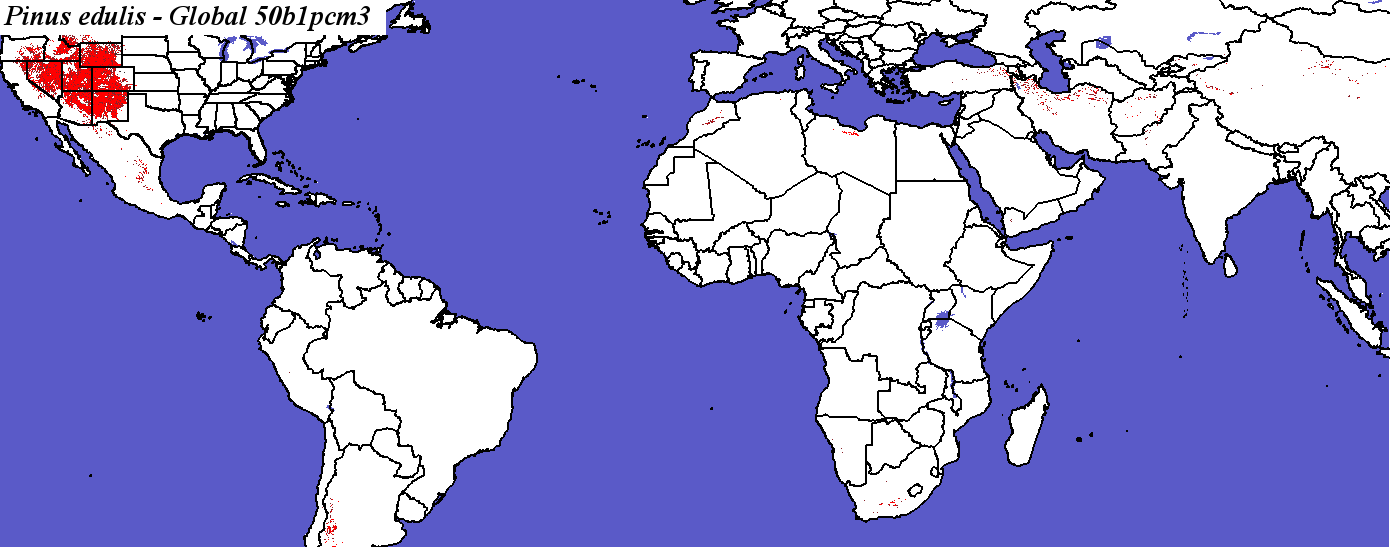

PCM, Scenario B1, 2050 - Pinus edulis - Global
Pinus_edulis_final.4.conus
Pinus_edulis_final.4.global

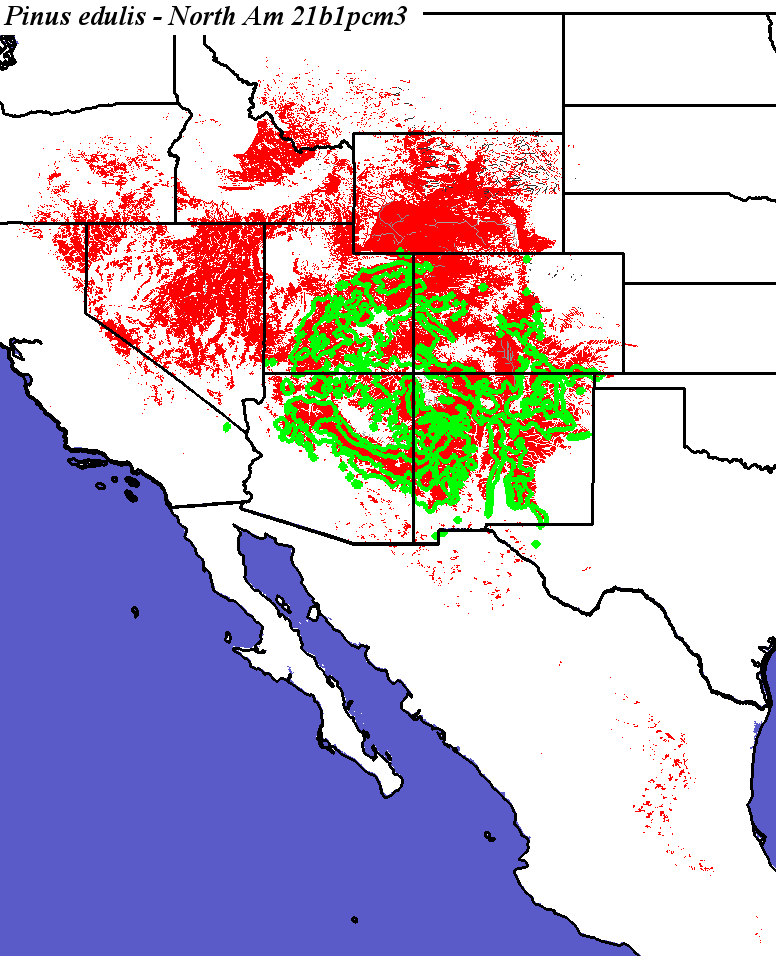

PCM, Scenario B1, 2100 - Pinus edulis - CONUS
Pinus edulis not modeled by Iverson and Prasad

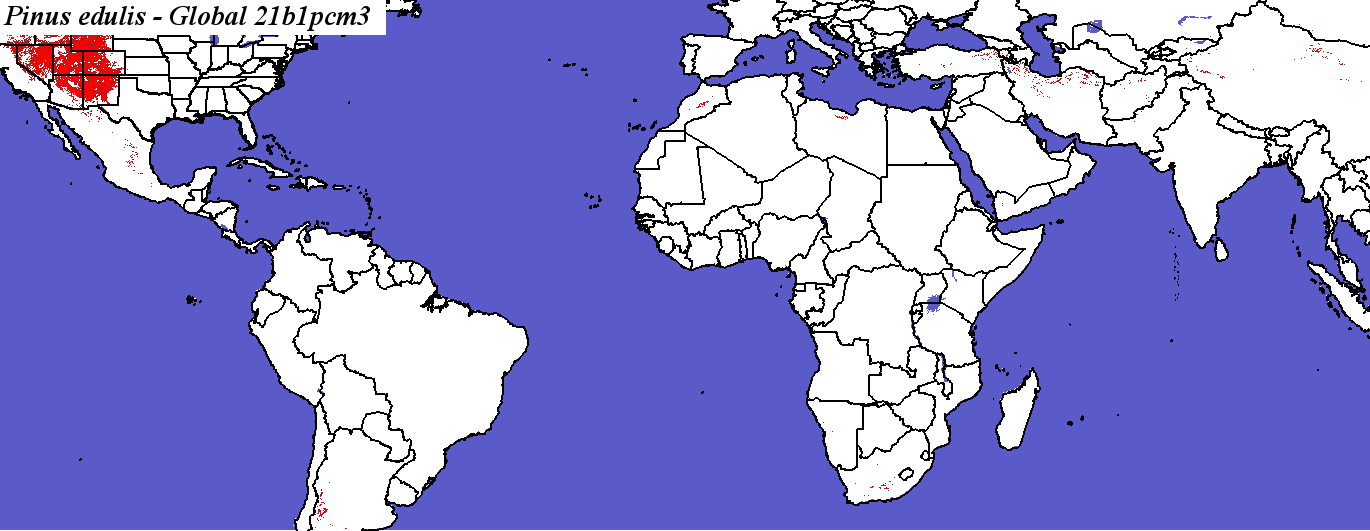

PCM, Scenario B1, 2100 - Pinus edulis - Global

Hadley Climate Model
Pinus_edulis_final.4.conus
Pinus_edulis_final.4.global

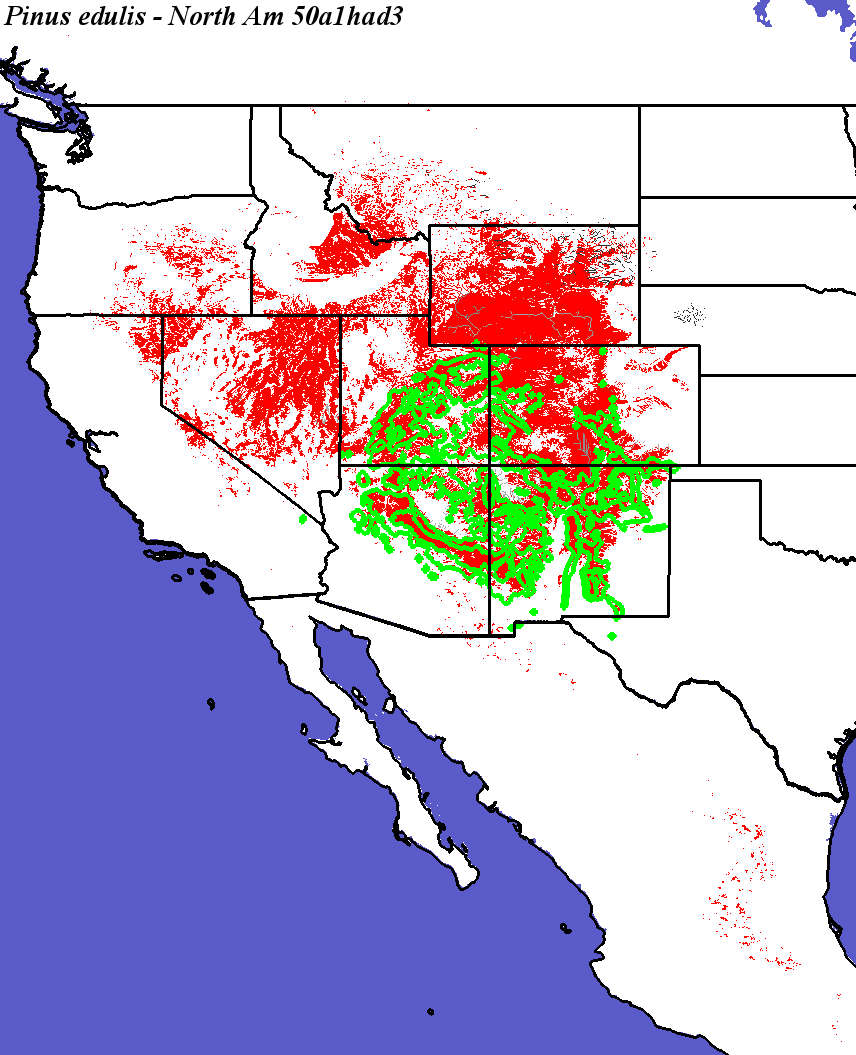

Hadley, Scenario A1FI, 2050 - Pinus edulis - CONUS
Compare with Pinus edulis modeled for Hadley A2 in 2060 by Crookston and Rehfeldt

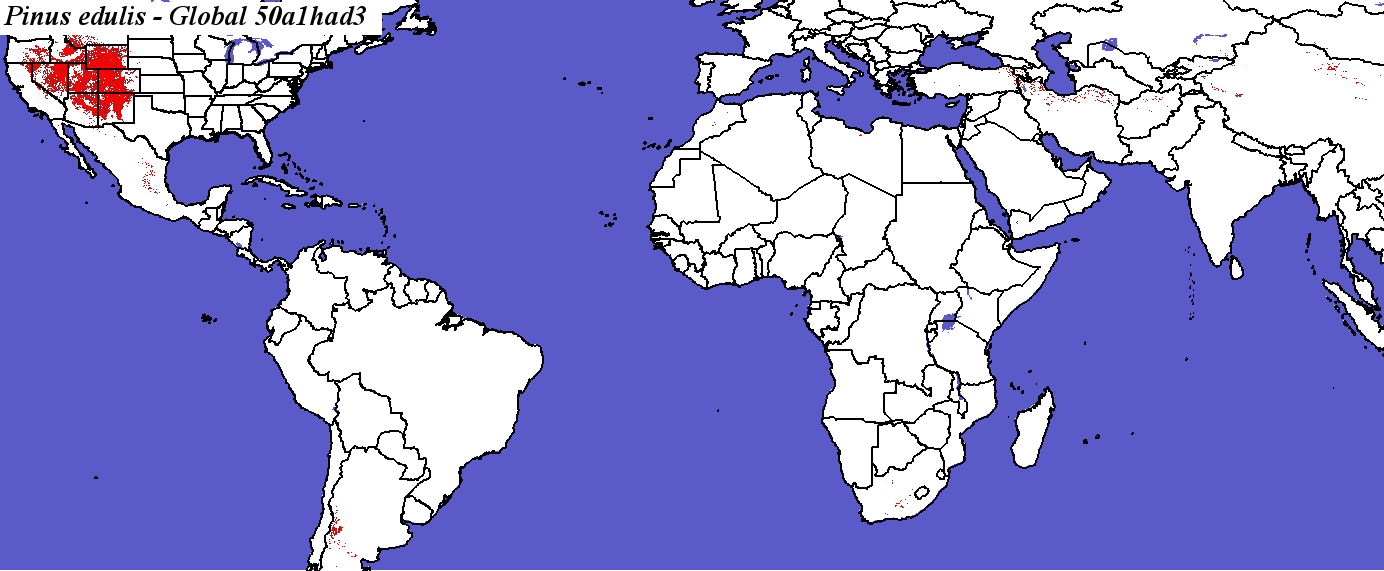

Hadley, Scenario A1FI, 2050 - Pinus edulis - Global
Pinus_edulis_final.4.conus
Pinus_edulis_final.4.global.

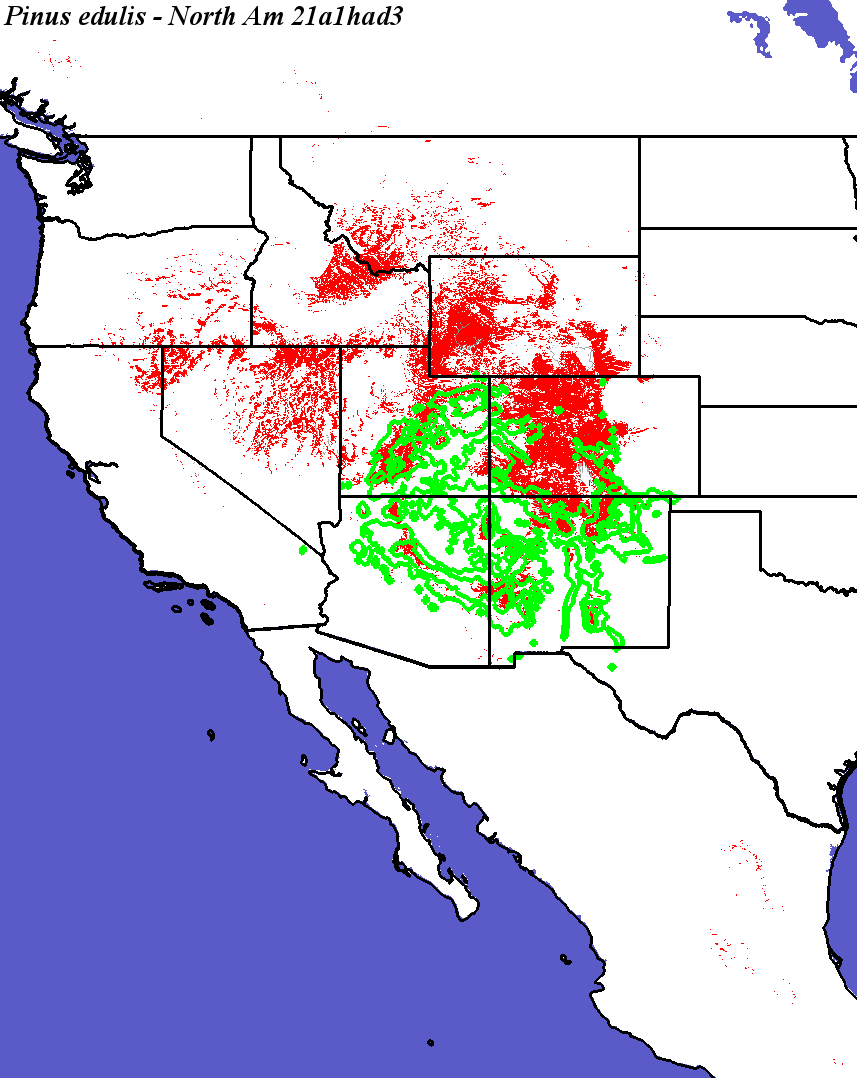

Hadley, Scenario A1FI, 2100 - Pinus edulis - CONUS
Pinus edulis not modeled by Iverson and Prasad
Compare with Pinus edulis modeled for Hadley A2 in 2090 by Crookston and Rehfeldt
Pinus edulis not modeled by Coops and Waring

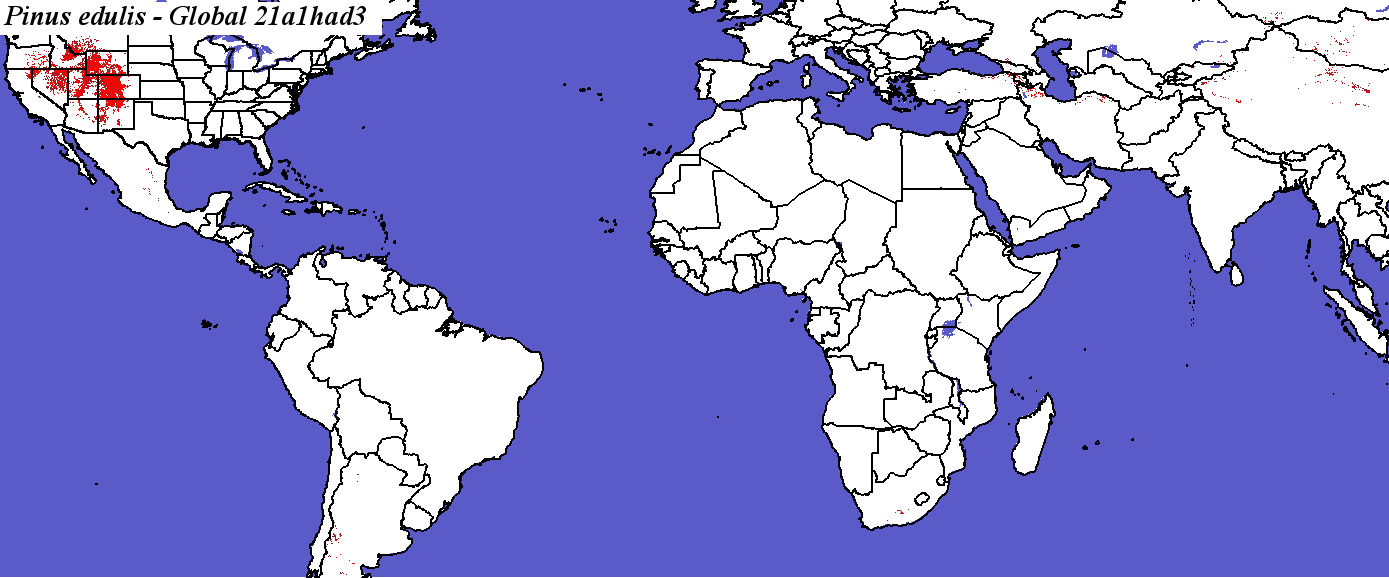

Hadley, Scenario A1FI, 2100 - Pinus edulis - Global

Pinus_edulis_final.4.conus
Pinus_edulis_final.4.global.

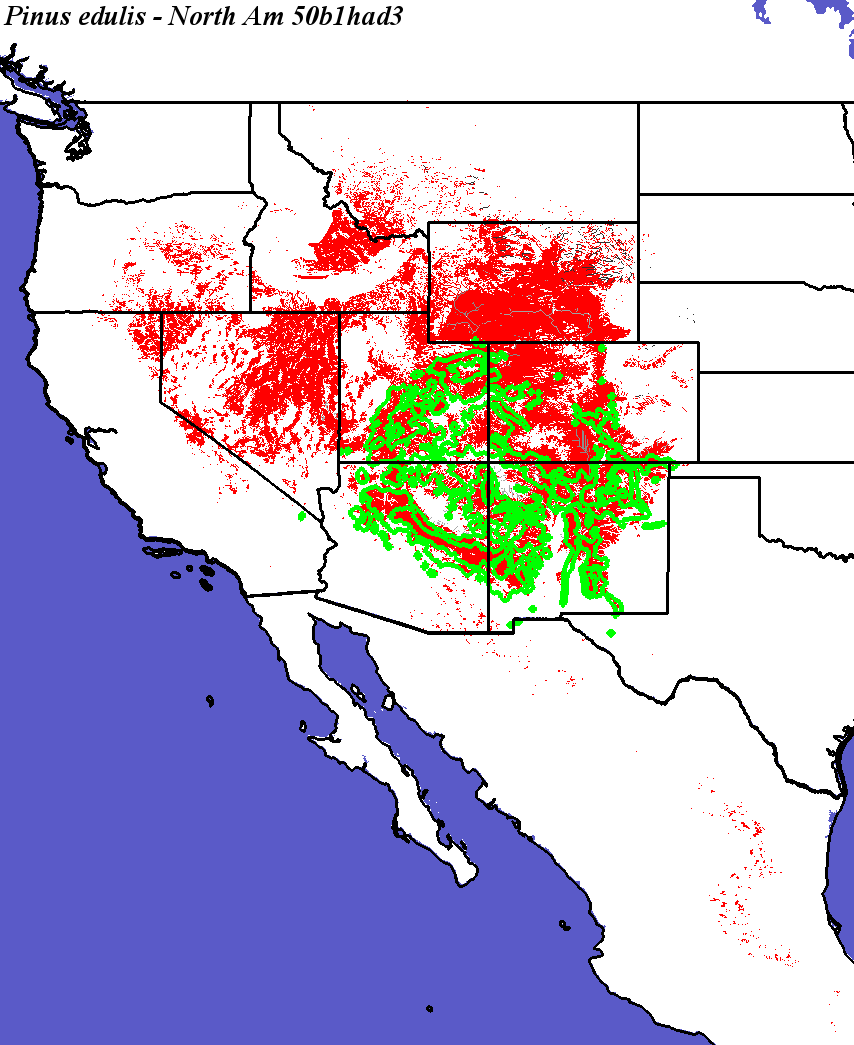

Hadley, Scenario B1, 2050 - Pinus edulis - CONUS
Compare with Pinus edulis modeled for Hadley B2 in 2060 by Crookston and Rehfeldt
Pinus edulis not modeled by Coops and Waring

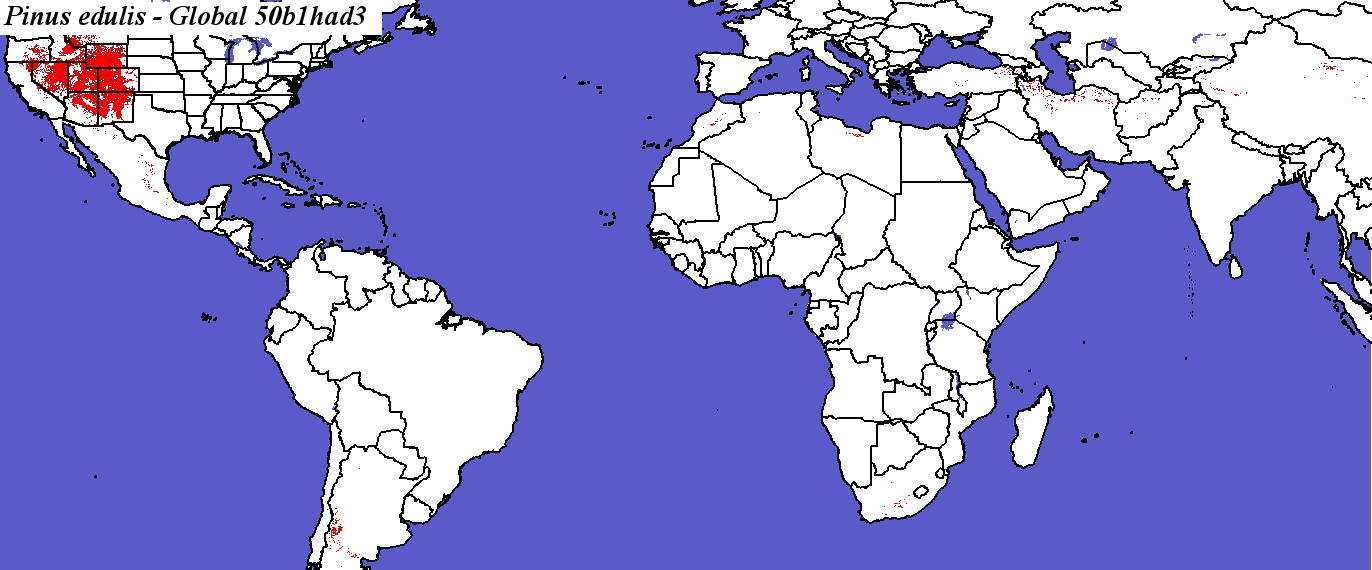

Hadley, Scenario B1, 2050 - Pinus edulis - Global
Pinus_edulis_final.4.conus
Pinus_edulis_final.4.global

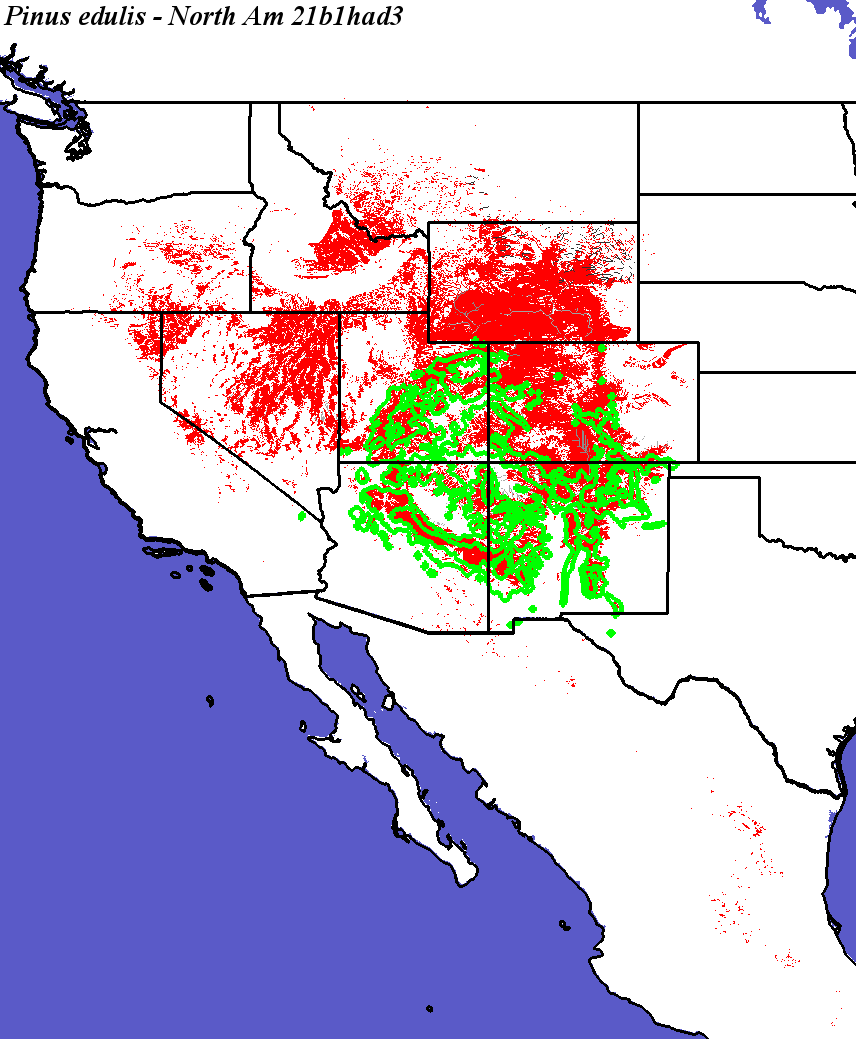

Hadley, Scenario B1, 2100 - Pinus edulis - CONUS
Pinus edulis not modeled by Iverson and Prasad
Compare with Pinus edulis modeled for Hadley B2 in 2090 by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Pinus edulis - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Pinus_edulis_final.elev

Number of Suitable Ecoregions (Niche Breadth)

172

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

10.8219

Area in Present Suitable Range (in km2)

1094052

Area in Future Suitable Range (Had B1 2050, in km2)

916500

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

814872

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

74.4800

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

5.06849

Percent Change in Area of Suitable Range (Had B1 2050)

-16.2200

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

25.6164

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

3643.66 +/- 10485.6

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

95.0685

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

1.76494 +/- 5.73452

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

95.2055

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

29.1339 +/- 164.328

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

73.5616

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

2936

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

.2600

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

62.8767

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

499103

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

45.6100

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

12.1918

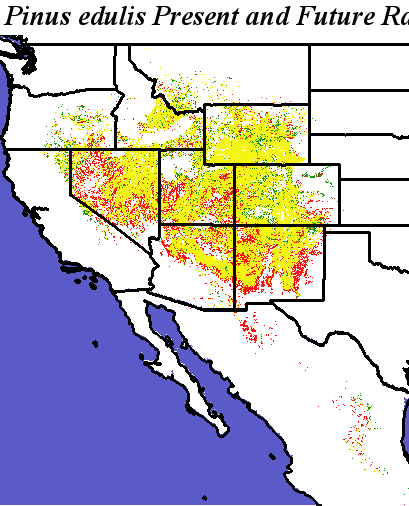

Present and Future Ranges - Hadley, Scenario B1, 2050 - Pinus edulis Pinus edulis - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

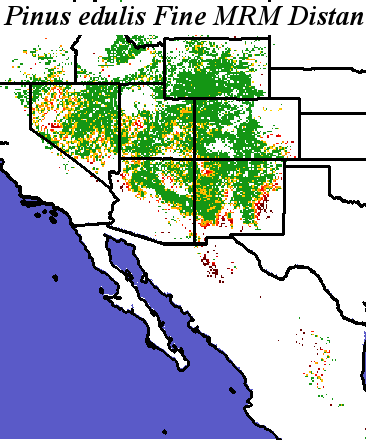

Pinus_edulis_final.elev Fine MRM Distance

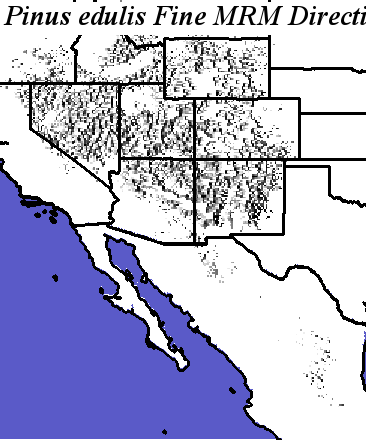

Pinus_edulis_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus edulis Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Pinus edulis
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

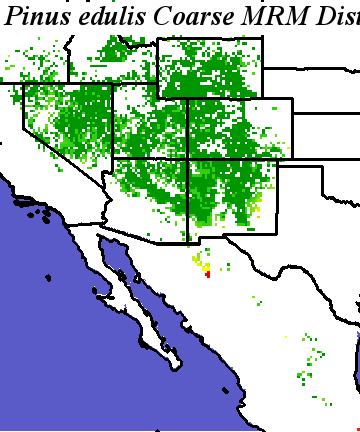

Pinus_edulis_final.elev Coarse MRM Distance

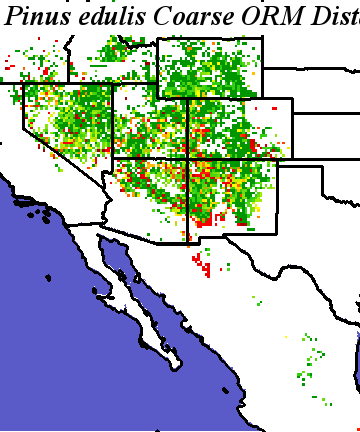

Pinus_edulis_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus edulis Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Pinus edulis
