Version 5 Tree Atlas


Pinus elliottii

slash pine

elev

Pinus elliottii Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Pinus elliottii

USDA Plants Database entry for Pinus elliottii
Silvics Manual entry for Pinus elliottii


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Pinus elliottii var. densa2868152883range well sampled, except southern tip of Florida

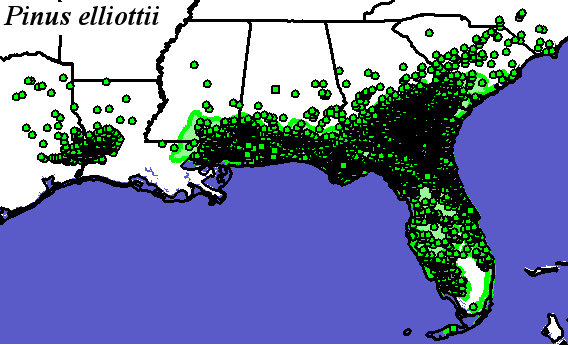

Occurrence Locations and Hargrove's Present Suitable Range Outline
Pinus_elliottii_final Occurrences
Hargroves Present Suitable Range Outline for Pinus_elliottii_final
Pinus elliottii - Occurrence Locations Pinus elliottii - Hargrove's Present Suitable Range Outline
Present Conditions
Pinus_elliottii_final.3.conus
Pinus_elliottii_final.3.global

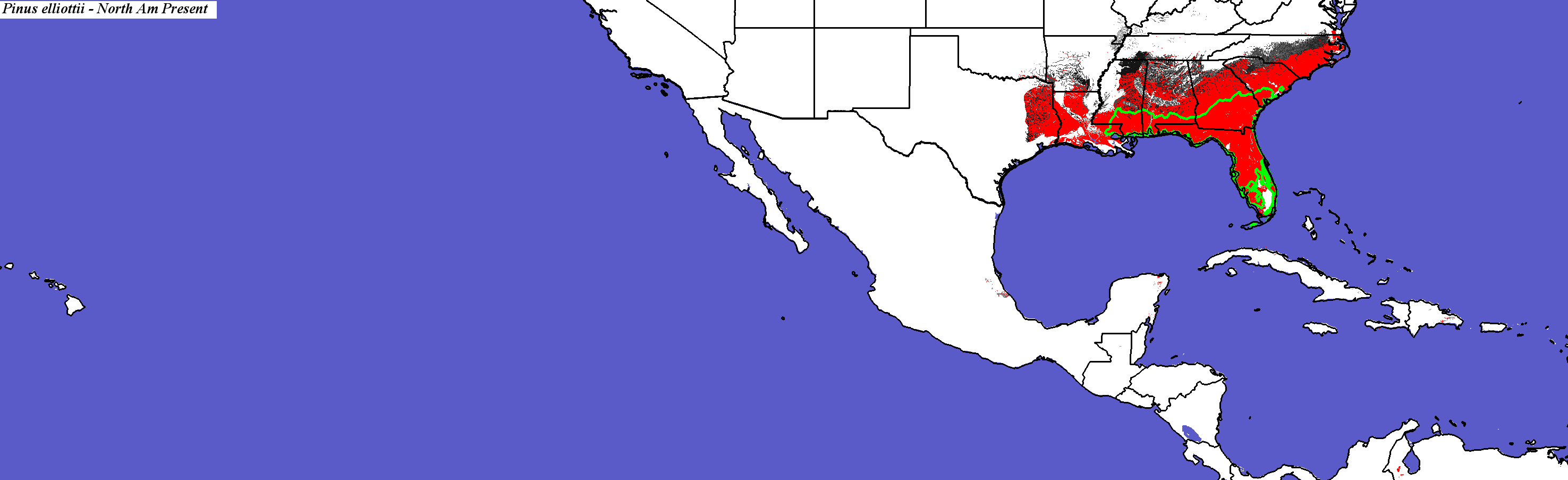

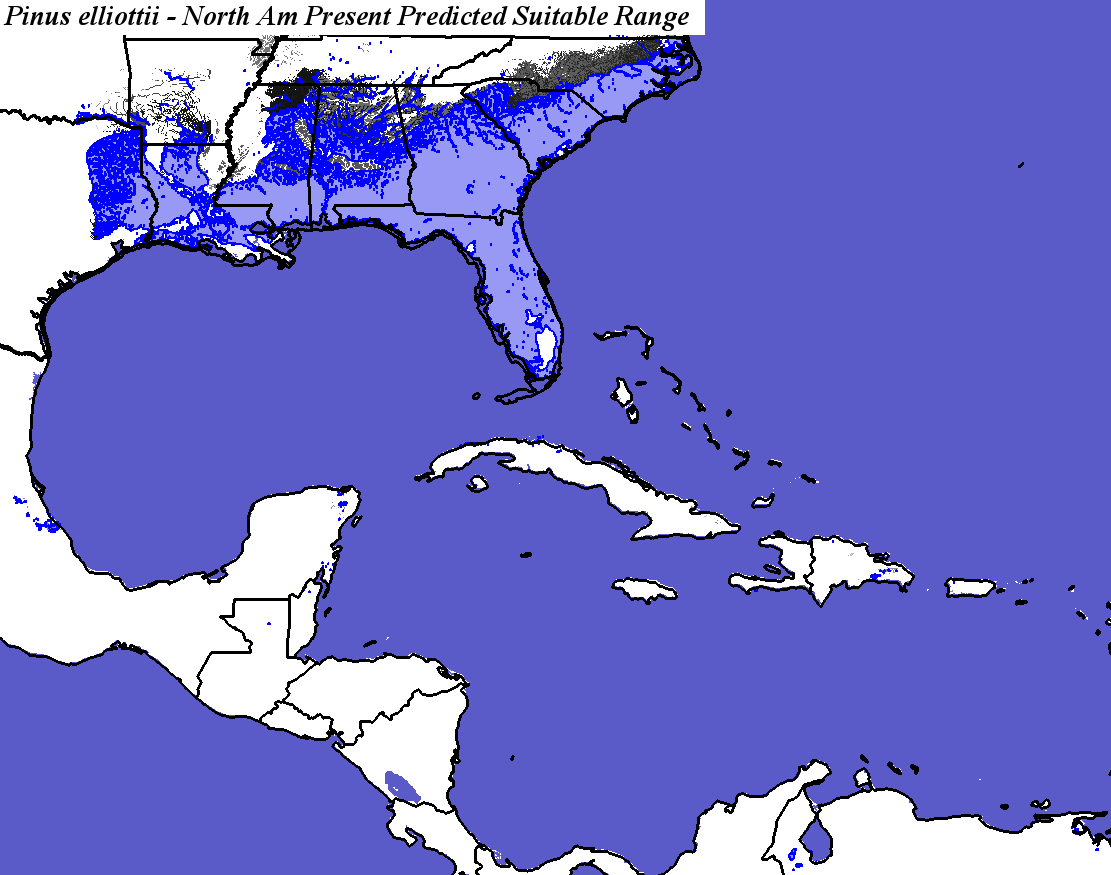

Pinus elliottii - CONUS
Compare with Current Range from the Silvics Manual for Pinus elliottii
Compare with Current Range from Biota of North America Program (BONAP) for Pinus elliottii

Compare with Pinus elliottii modeled for Current conditions by Iverson and Prasad
Pinus elliottii not modeled by Crookston and Rehfeldt
Pinus elliottii not modeled by Coops and Waring

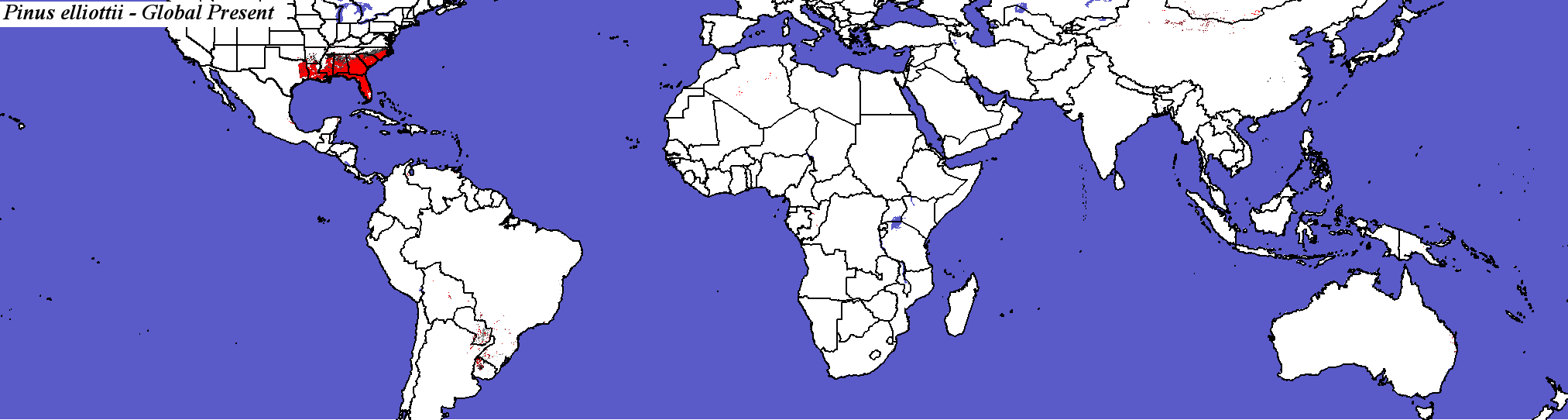

Pinus elliottii - Global

PCM - Parallel Climate Model
Pinus_elliottii_final.3.conus
Pinus_elliottii_final.3.global

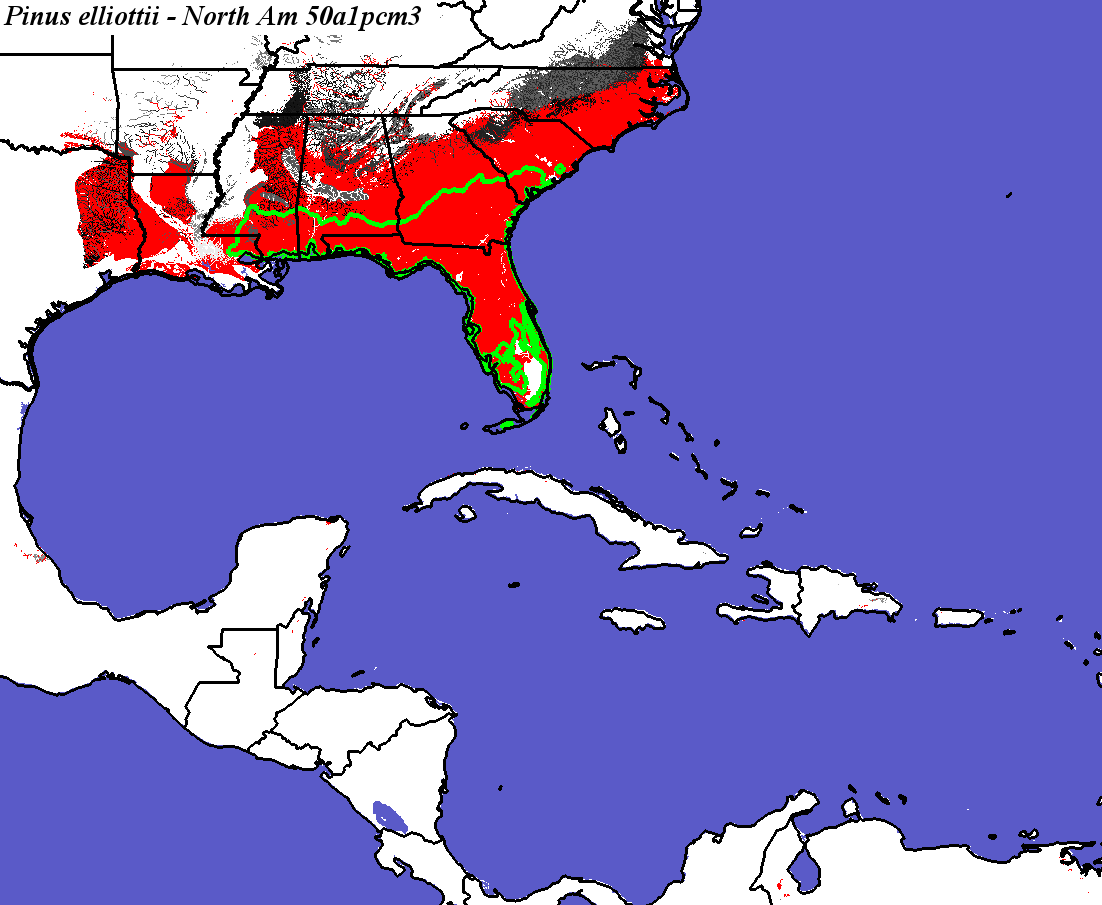

PCM, Scenario A1FI, 2050 - Pinus elliottii - CONUS
PCM, Scenario A1FI, 2050 - Pinus elliottii - Global
Pinus_elliottii_final.3.conus
Pinus_elliottii_final.3.global

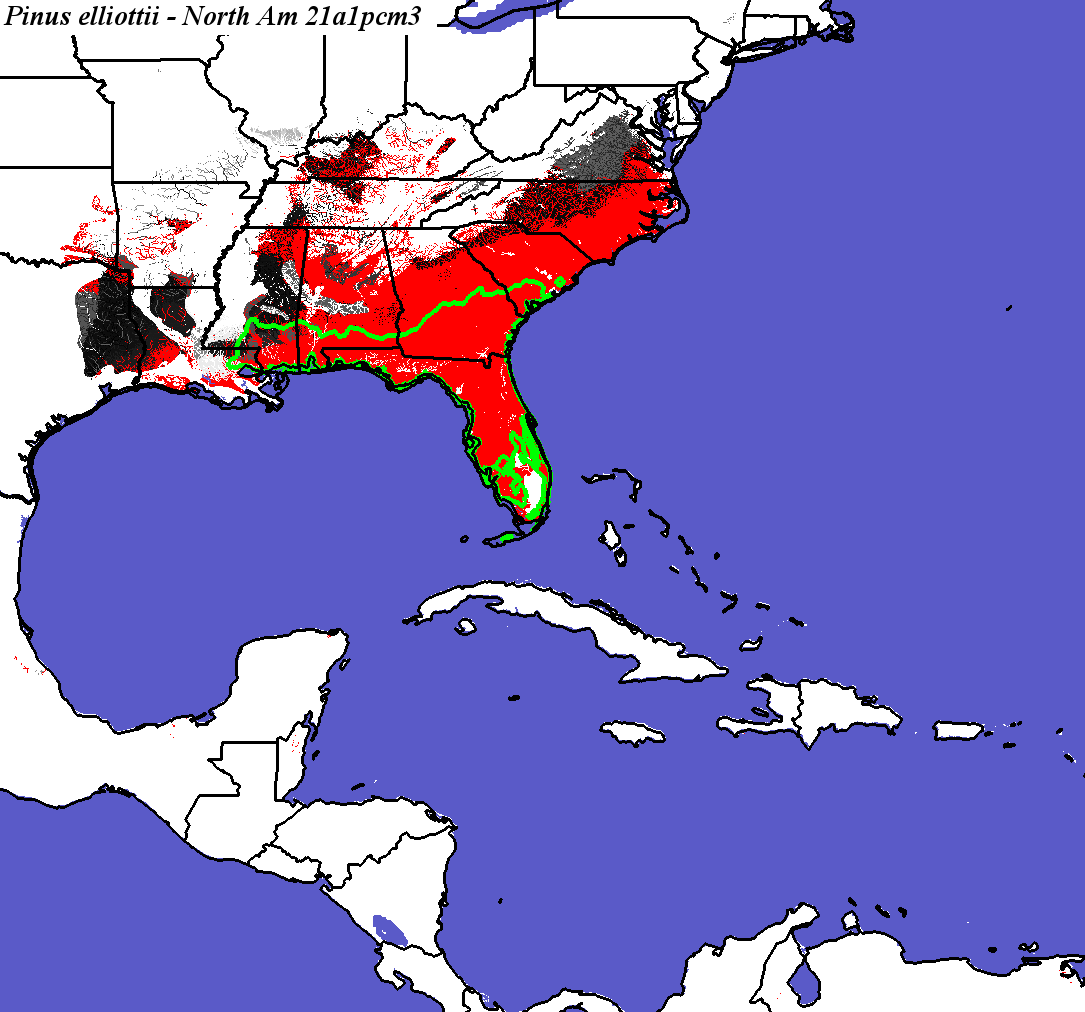

PCM, Scenario A1FI, 2100 - Pinus elliottii - CONUS
Compare with Pinus elliottii modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Pinus elliottii - Global

Pinus_elliottii_final.3.conus
Pinus_elliottii_final.3.global
PCM, Scenario B1, 2050 - Pinus elliottii - CONUS

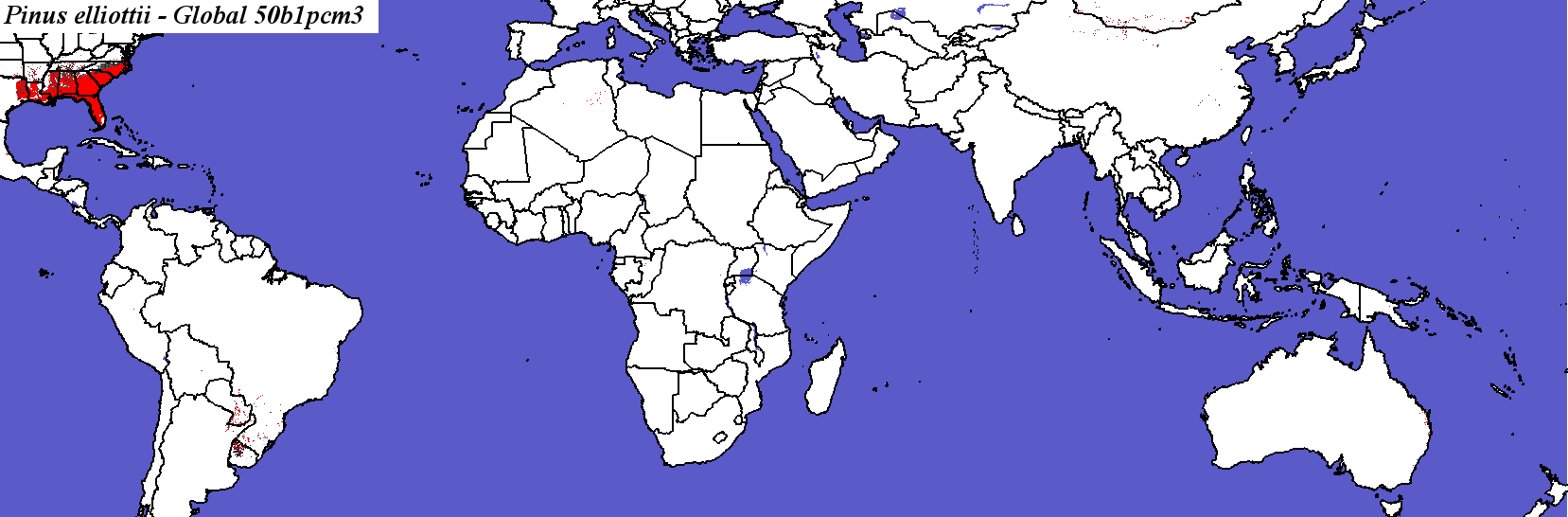

PCM, Scenario B1, 2050 - Pinus elliottii - Global
Pinus_elliottii_final.3.conus
Pinus_elliottii_final.3.global

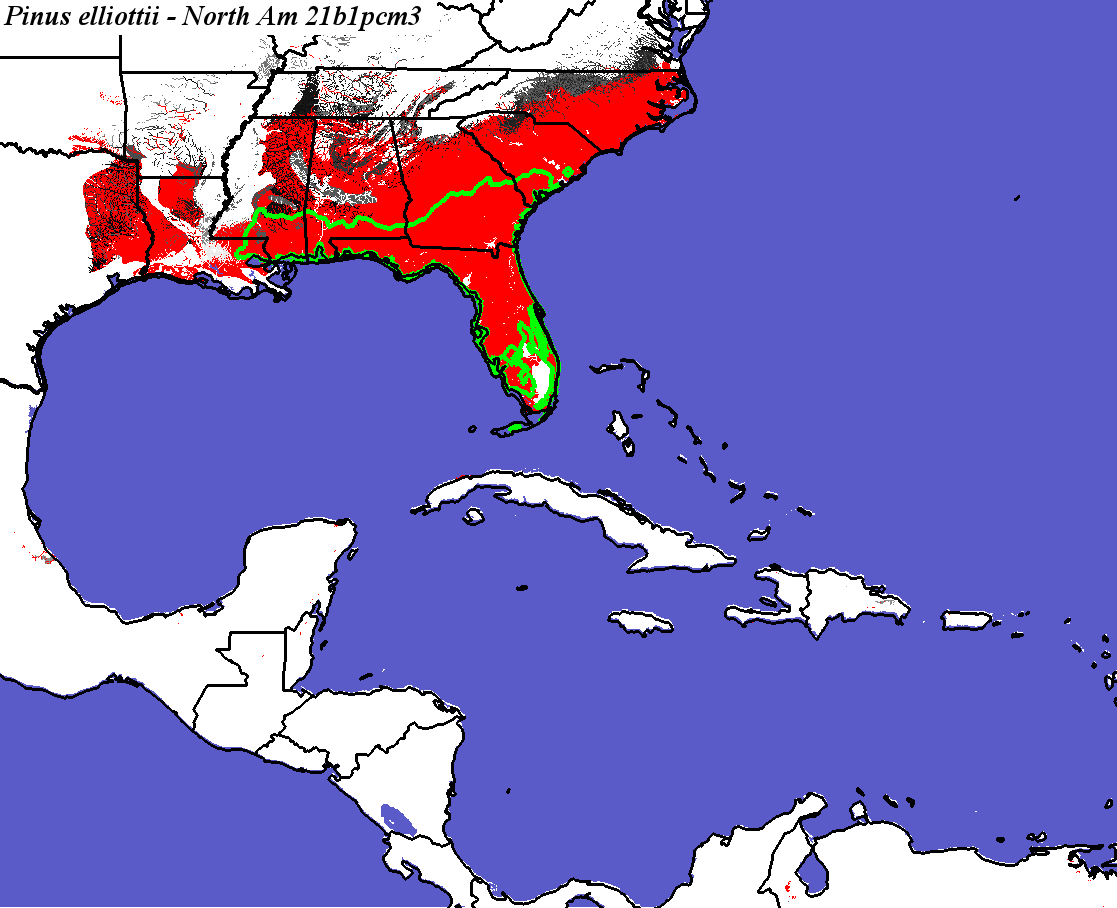

PCM, Scenario B1, 2100 - Pinus elliottii - CONUS
Compare with Pinus elliottii modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Pinus elliottii - Global

Hadley Climate Model
Pinus_elliottii_final.3.conus
Pinus_elliottii_final.3.global

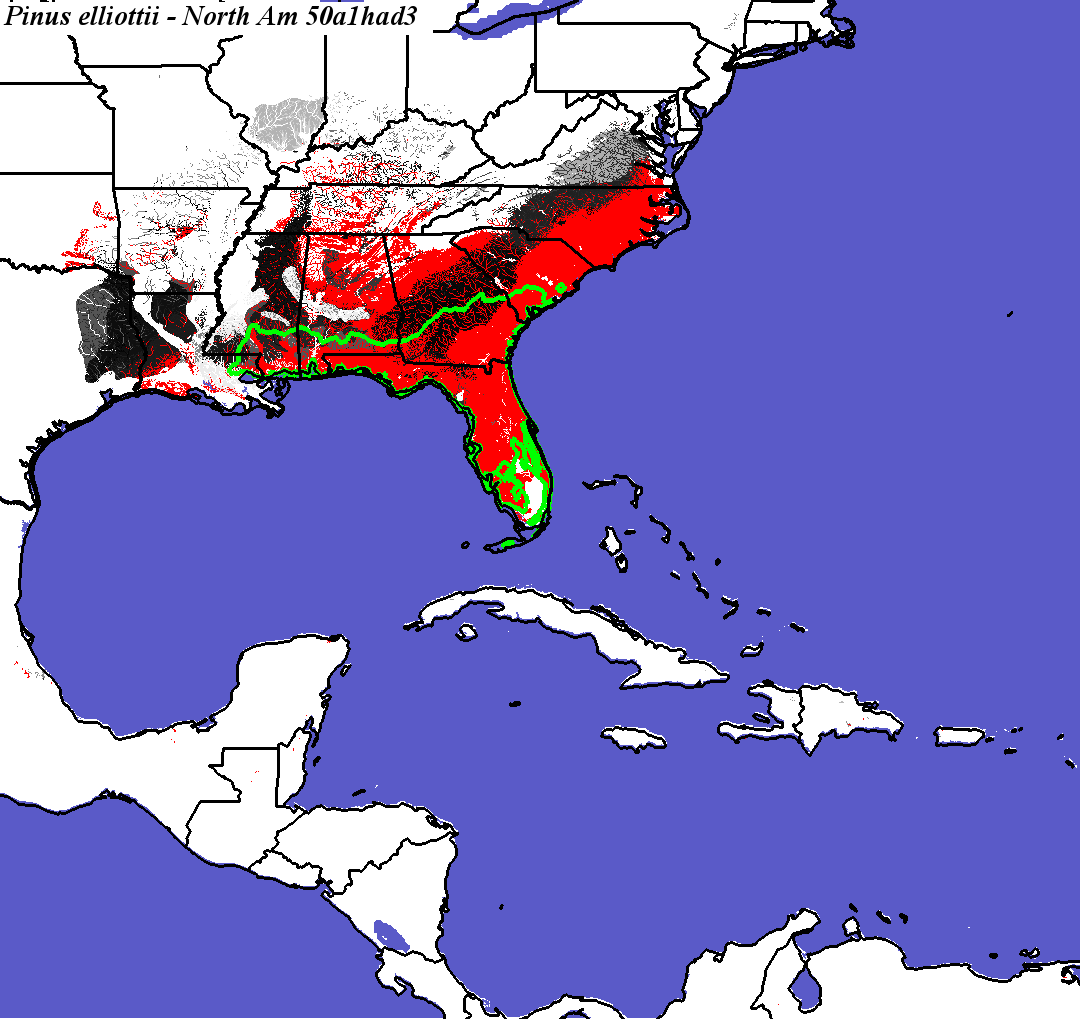

Hadley, Scenario A1FI, 2050 - Pinus elliottii - CONUS
Pinus elliottii not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Pinus elliottii - Global
Pinus_elliottii_final.3.conus
Pinus_elliottii_final.3.global.

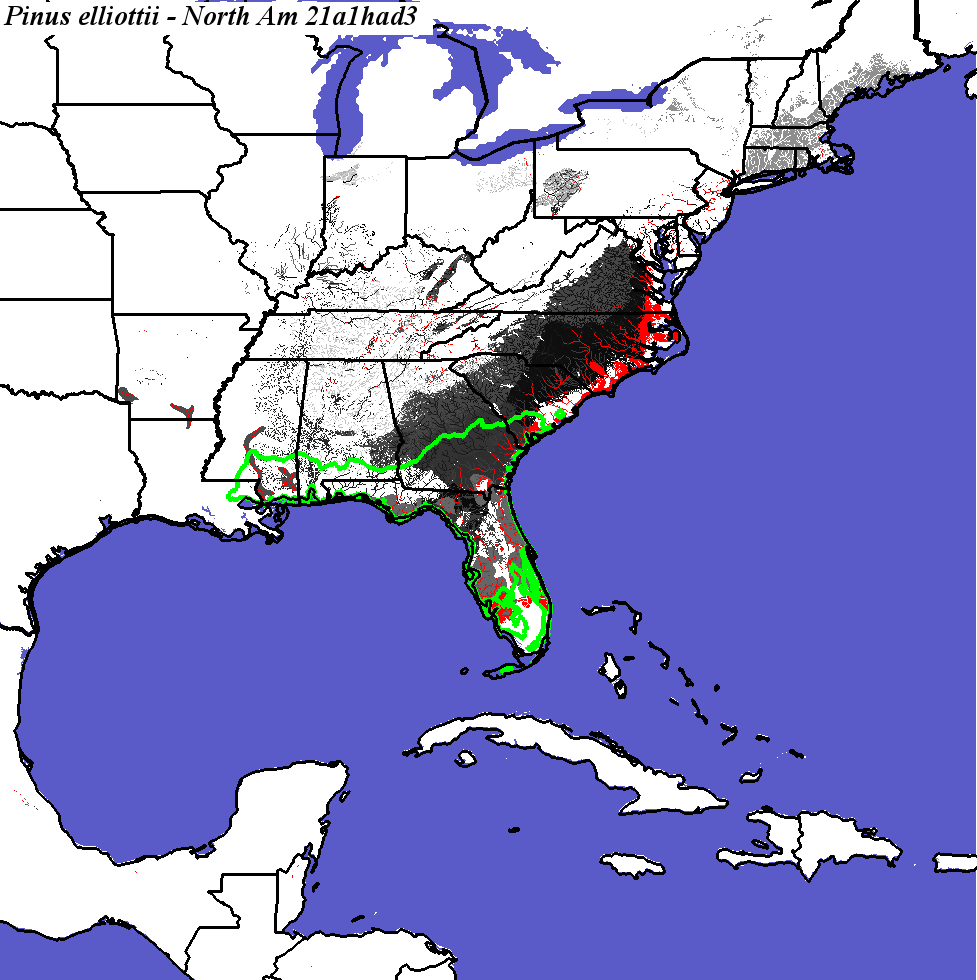

Hadley, Scenario A1FI, 2100 - Pinus elliottii - CONUS
Compare with Pinus elliottii modeled for Hadley A1FI in 2100 by Iverson and Prasad
Pinus elliottii not modeled by Crookston and Rehfeldt
Pinus elliottii not modeled by Coops and Waring

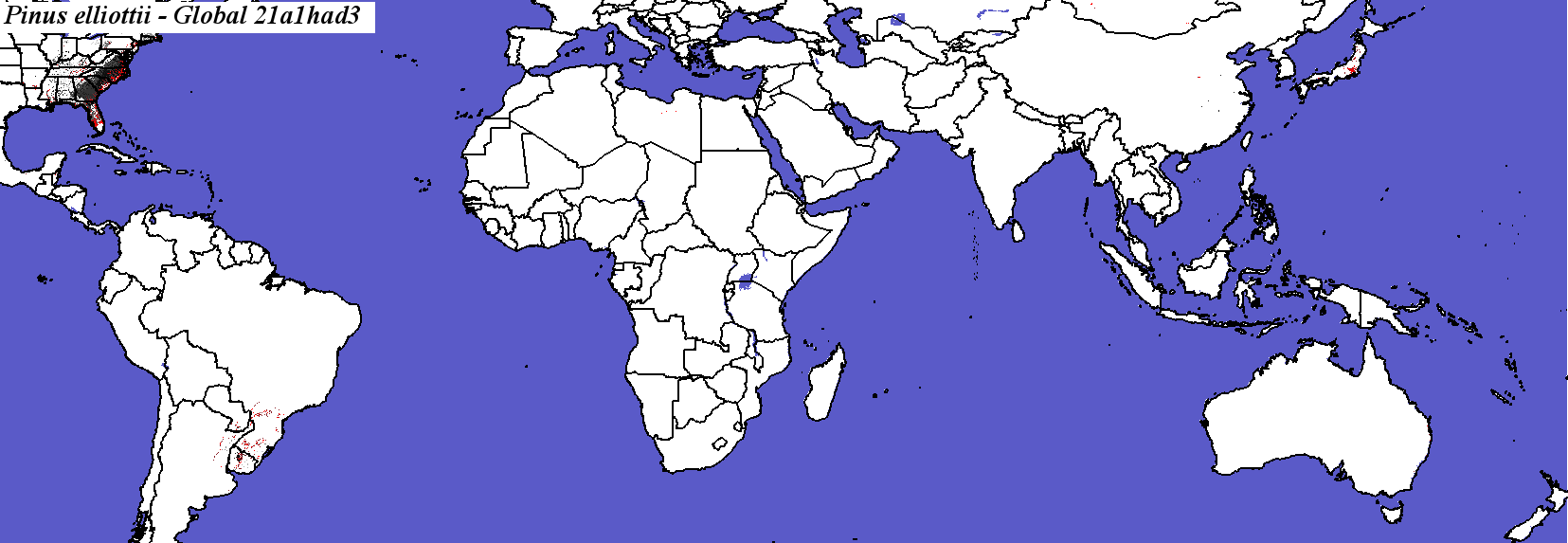

Hadley, Scenario A1FI, 2100 - Pinus elliottii - Global

Pinus_elliottii_final.3.conus
Pinus_elliottii_final.3.global.
Hadley, Scenario B1, 2050 - Pinus elliottii - CONUS
Pinus elliottii not modeled by Crookston and Rehfeldt
Pinus elliottii not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Pinus elliottii - Global
Pinus_elliottii_final.3.conus
Pinus_elliottii_final.3.global

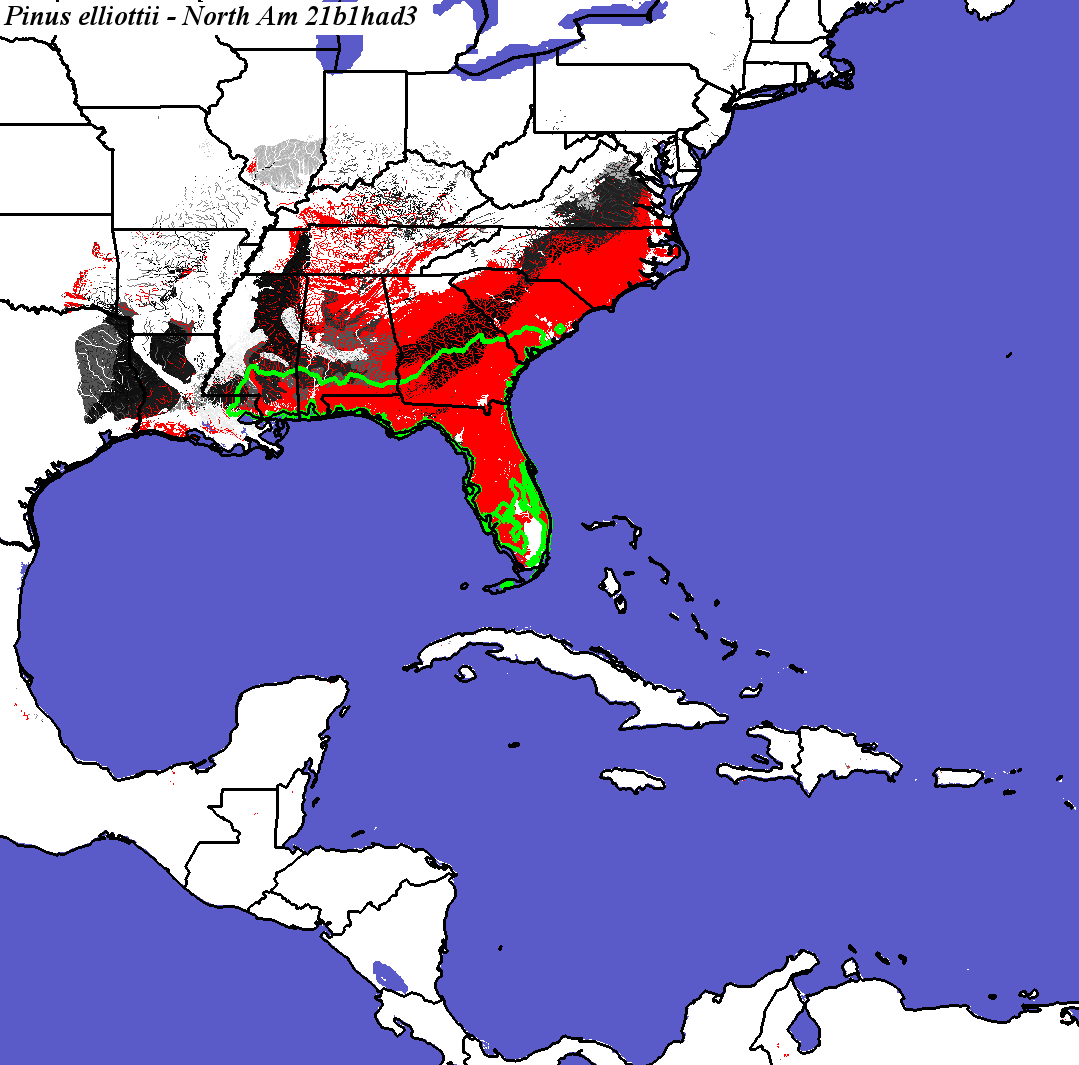

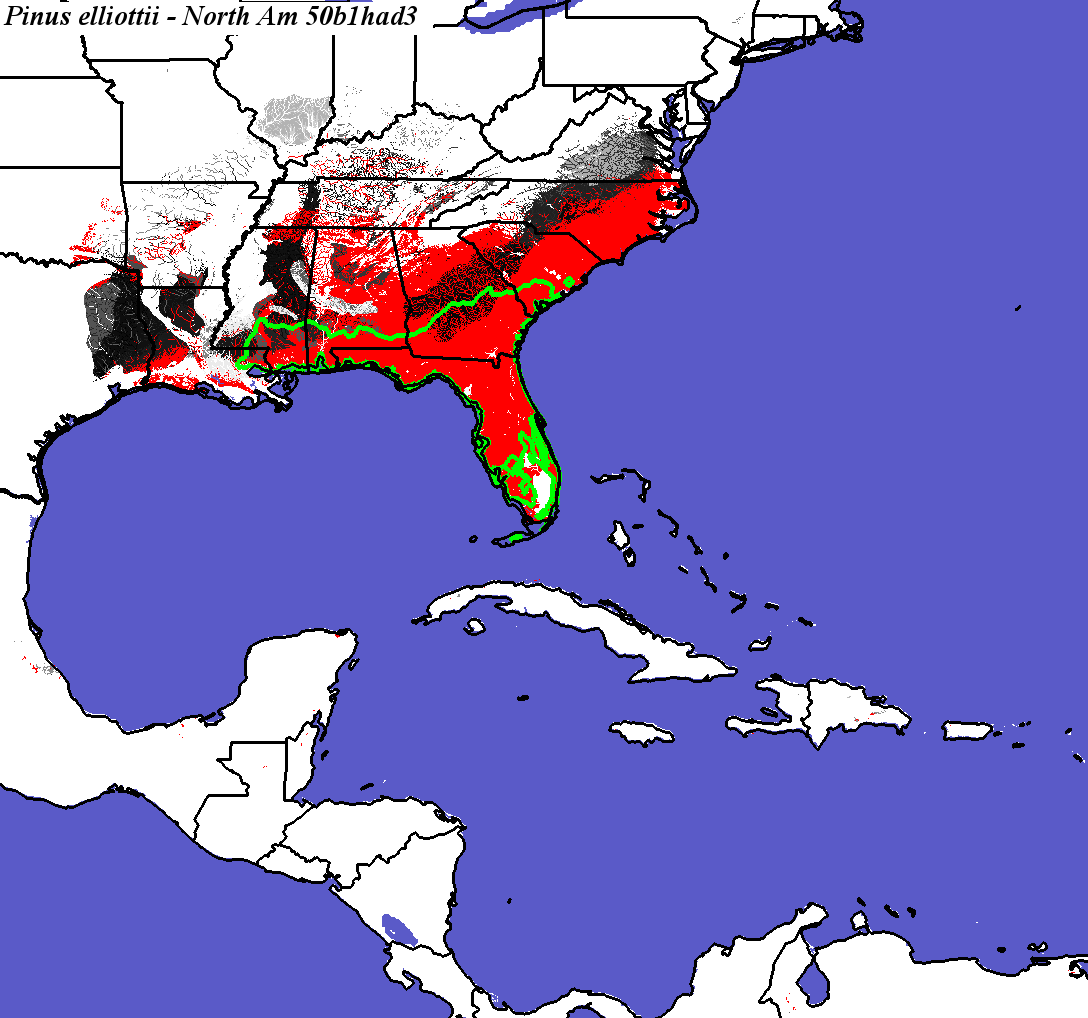

Hadley, Scenario B1, 2100 - Pinus elliottii - CONUS
Compare with Pinus elliottii modeled for Hadley B1 in 2100 by Iverson and Prasad
Pinus elliottii not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Pinus elliottii - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Pinus_elliottii_final.elev

Number of Suitable Ecoregions (Niche Breadth)

84

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

25.0685

Area in Present Suitable Range (in km2)

607981

Area in Future Suitable Range (Had B1 2050, in km2)

532242

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

408002

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

67.1000

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

12.6027

Percent Change in Area of Suitable Range (Had B1 2050)

-12.4500

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

19.726

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

9166.12 +/- 25593.2

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

71.2329

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

4.67397 +/- 12.5388

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

68.3562

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

243.928 +/- 773.328

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

20.9589

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

41382

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

6.8000

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

16.5753

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

233708

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

38.4400

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

24.7945

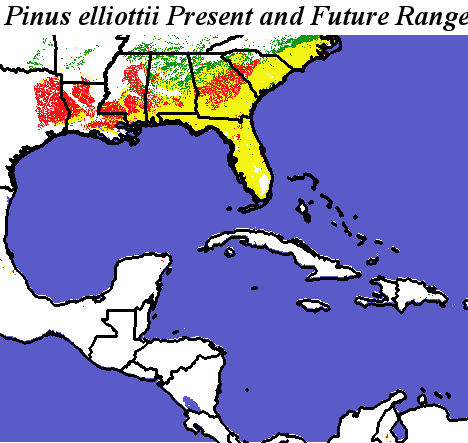

Present and Future Ranges - Hadley, Scenario B1, 2050 - Pinus elliottii Pinus elliottii - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

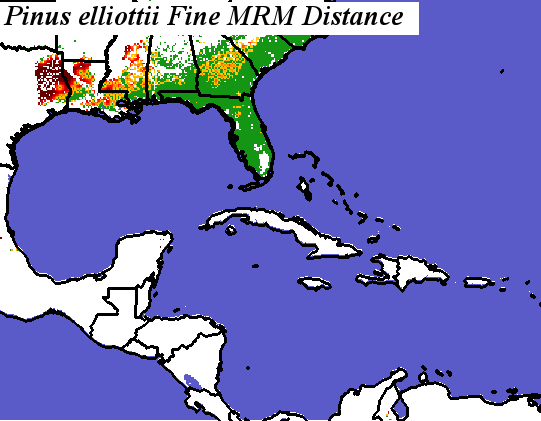

Pinus_elliottii_final.elev Fine MRM Distance

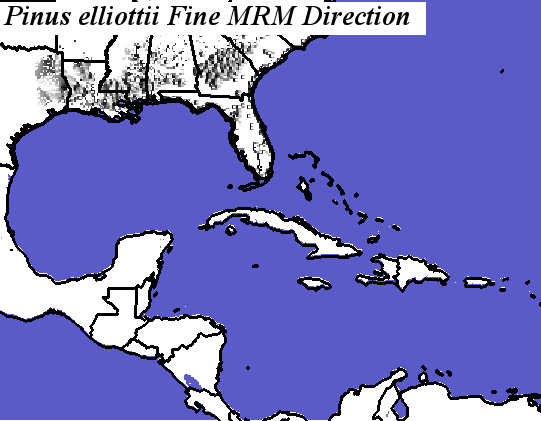

Pinus_elliottii_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus elliottii Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Pinus elliottii
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

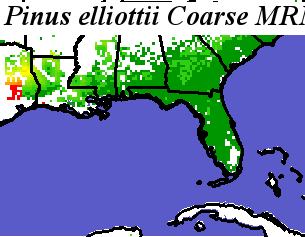

Pinus_elliottii_final.elev Coarse MRM Distance

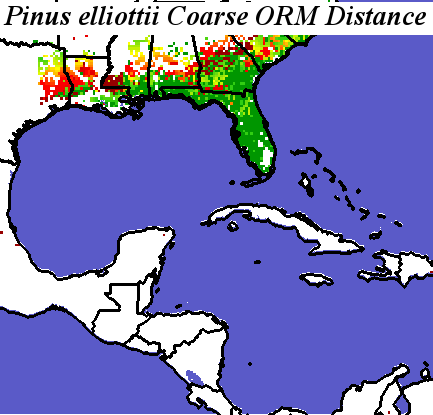

Pinus_elliottii_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus elliottii Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Pinus elliottii
