Version 5 Tree Atlas


Pinus engelmannii

Apache pine

elev

Pinus engelmannii Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Pinus engelmannii

USDA Plants Database entry for Pinus engelmannii
Silvics Manual entry for Pinus engelmannii


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
64854much of range not well represented

Occurrence Locations and Hargrove's Present Suitable Range Outline
Pinus_engelmannii_final Occurrences

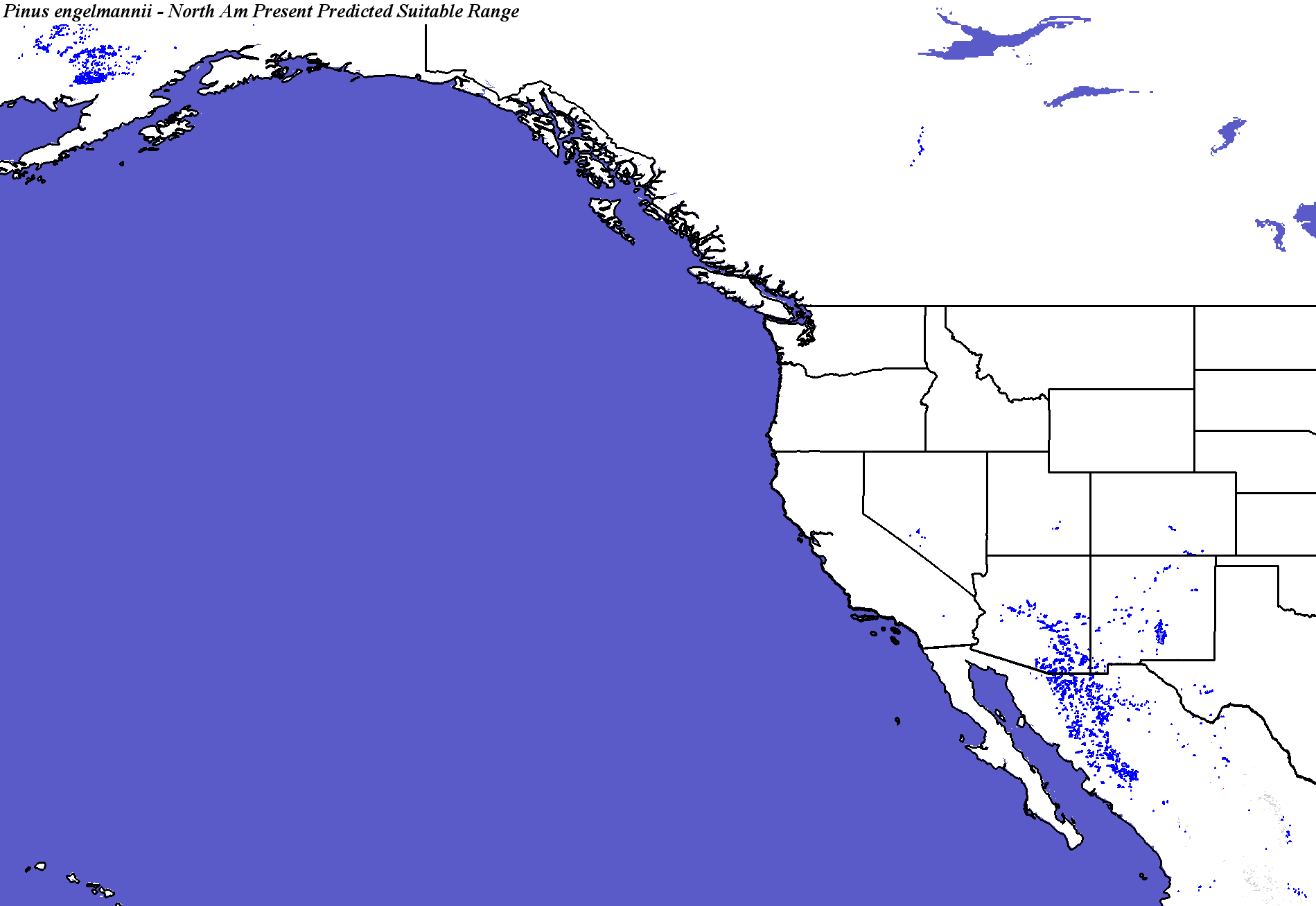

Hargroves Present Suitable Range Outline for Pinus_engelmannii_final
Pinus engelmannii - Occurrence Locations Pinus engelmannii - Hargrove's Present Suitable Range Outline
Present Conditions
Pinus_engelmannii_final.2.conus
Pinus_engelmannii_final.2.global

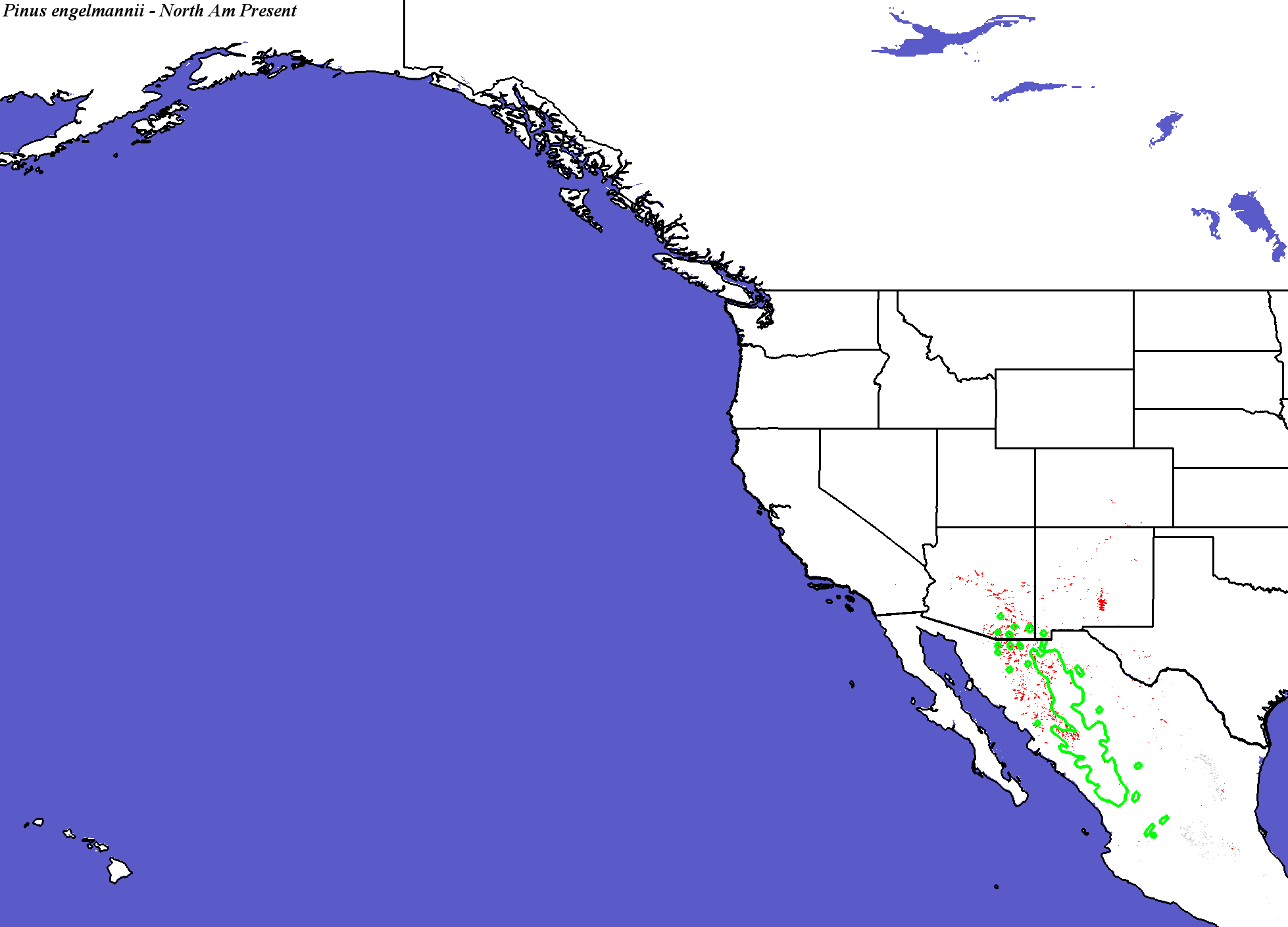

Pinus engelmannii - CONUS
Compare with Current Range from the Silvics Manual for Pinus engelmannii
Compare with Current Range from Biota of North America Program (BONAP) for Pinus engelmannii

Pinus engelmannii not modeled by Iverson and Prasad
Pinus engelmannii not modeled by Crookston and Rehfeldt
Pinus engelmannii not modeled by Coops and Waring

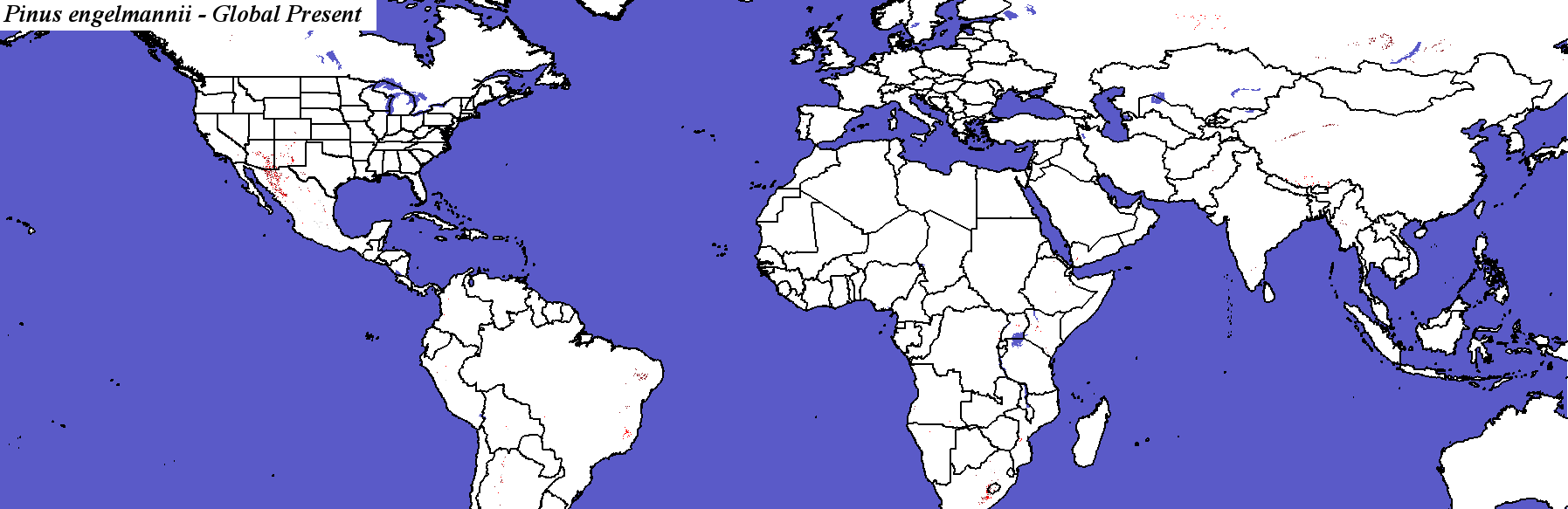

Pinus engelmannii - Global

PCM - Parallel Climate Model
Pinus_engelmannii_final.2.conus
Pinus_engelmannii_final.2.global

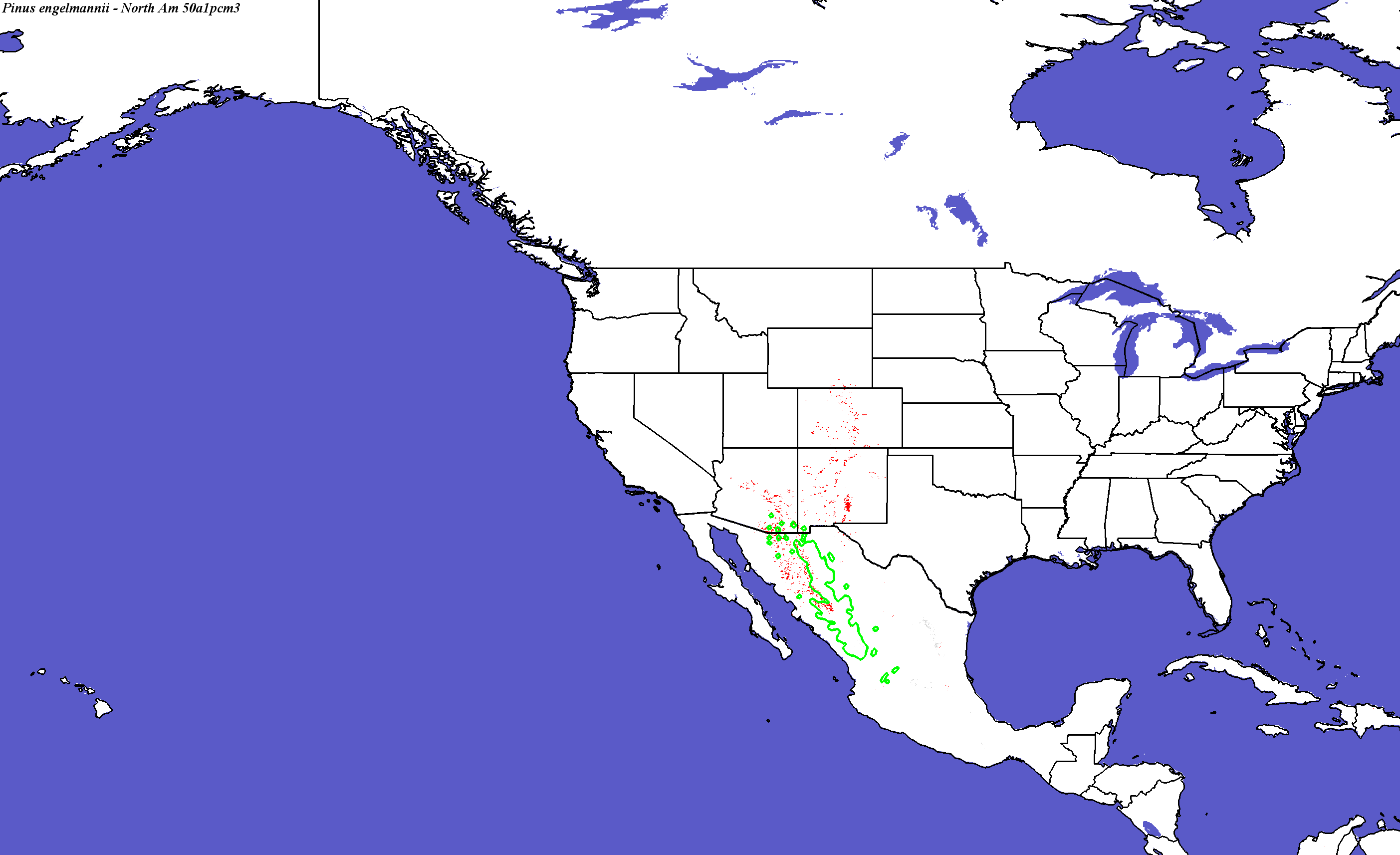

PCM, Scenario A1FI, 2050 - Pinus engelmannii - CONUS

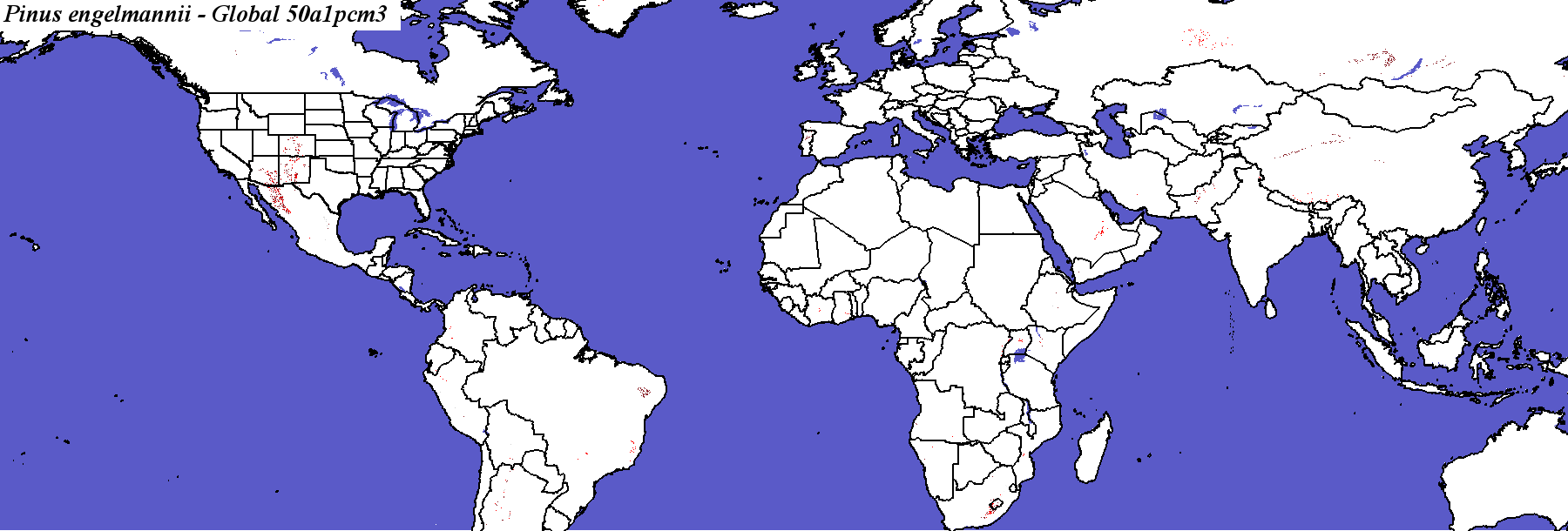

PCM, Scenario A1FI, 2050 - Pinus engelmannii - Global
Pinus_engelmannii_final.2.conus
Pinus_engelmannii_final.2.global

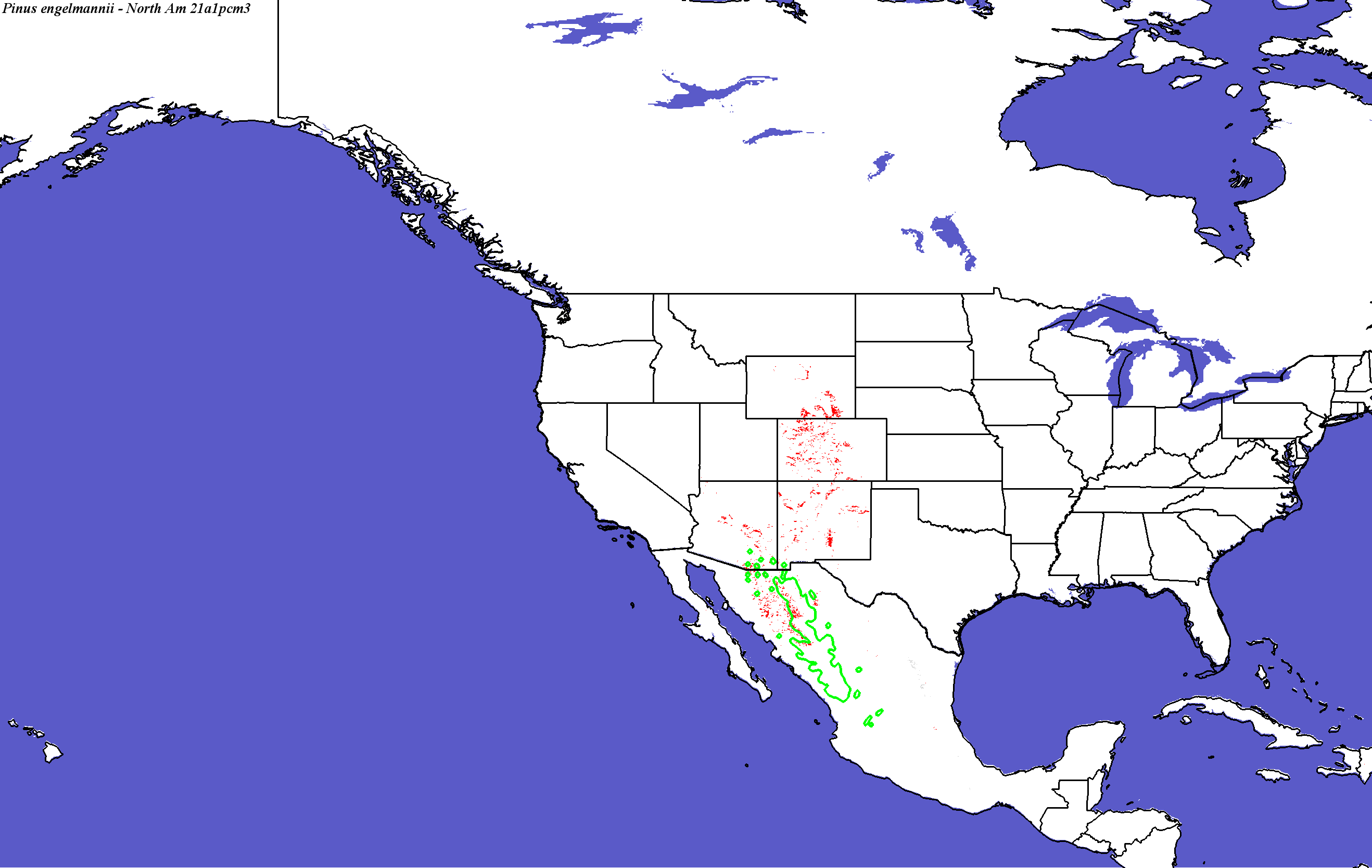

PCM, Scenario A1FI, 2100 - Pinus engelmannii - CONUS
Pinus engelmannii species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Pinus engelmannii - Global

Pinus_engelmannii_final.2.conus
Pinus_engelmannii_final.2.global
PCM, Scenario B1, 2050 - Pinus engelmannii - CONUS
PCM, Scenario B1, 2050 - Pinus engelmannii - Global
Pinus_engelmannii_final.2.conus
Pinus_engelmannii_final.2.global

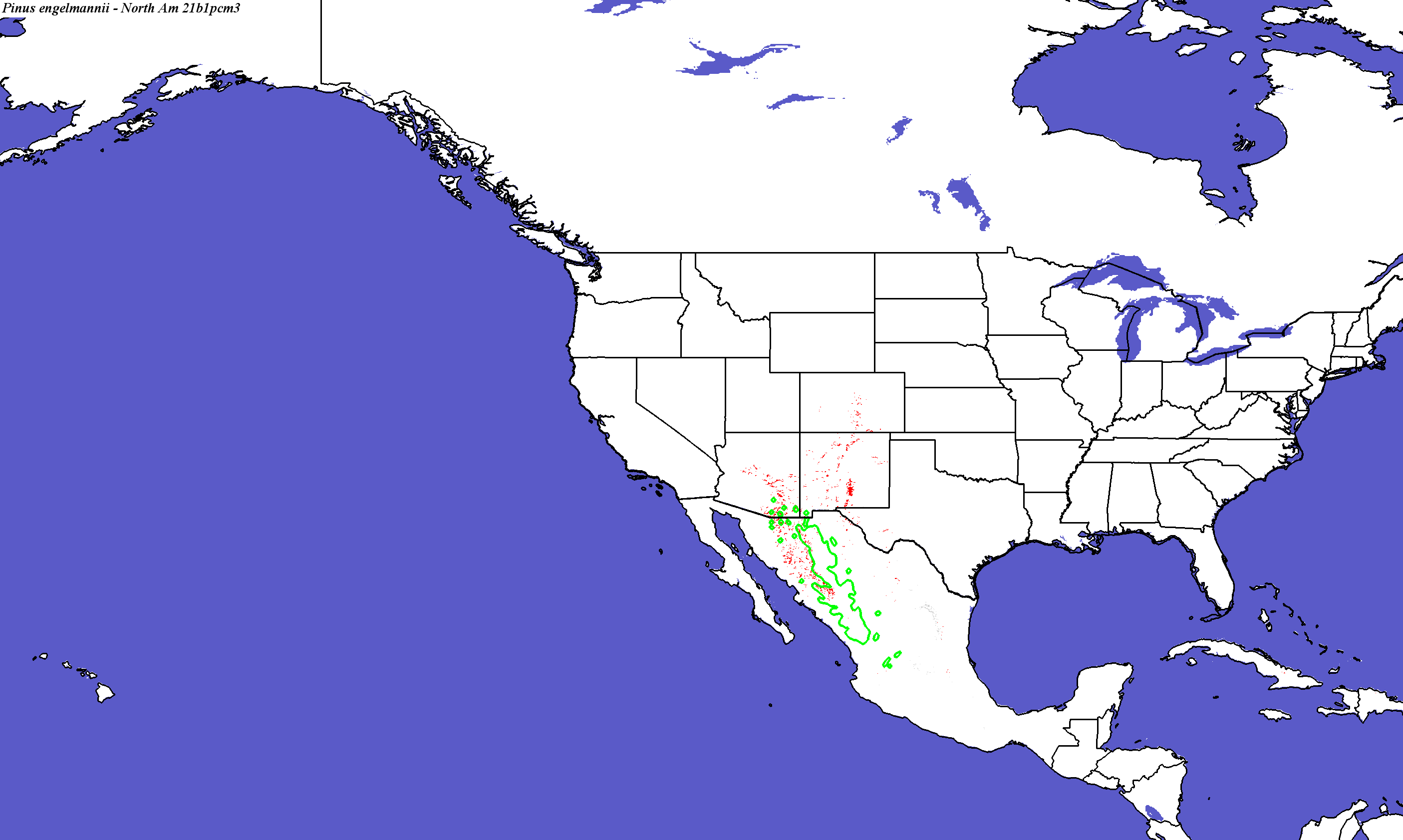

PCM, Scenario B1, 2100 - Pinus engelmannii - CONUS
Pinus engelmannii not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Pinus engelmannii - Global

Hadley Climate Model
Pinus_engelmannii_final.2.conus
Pinus_engelmannii_final.2.global

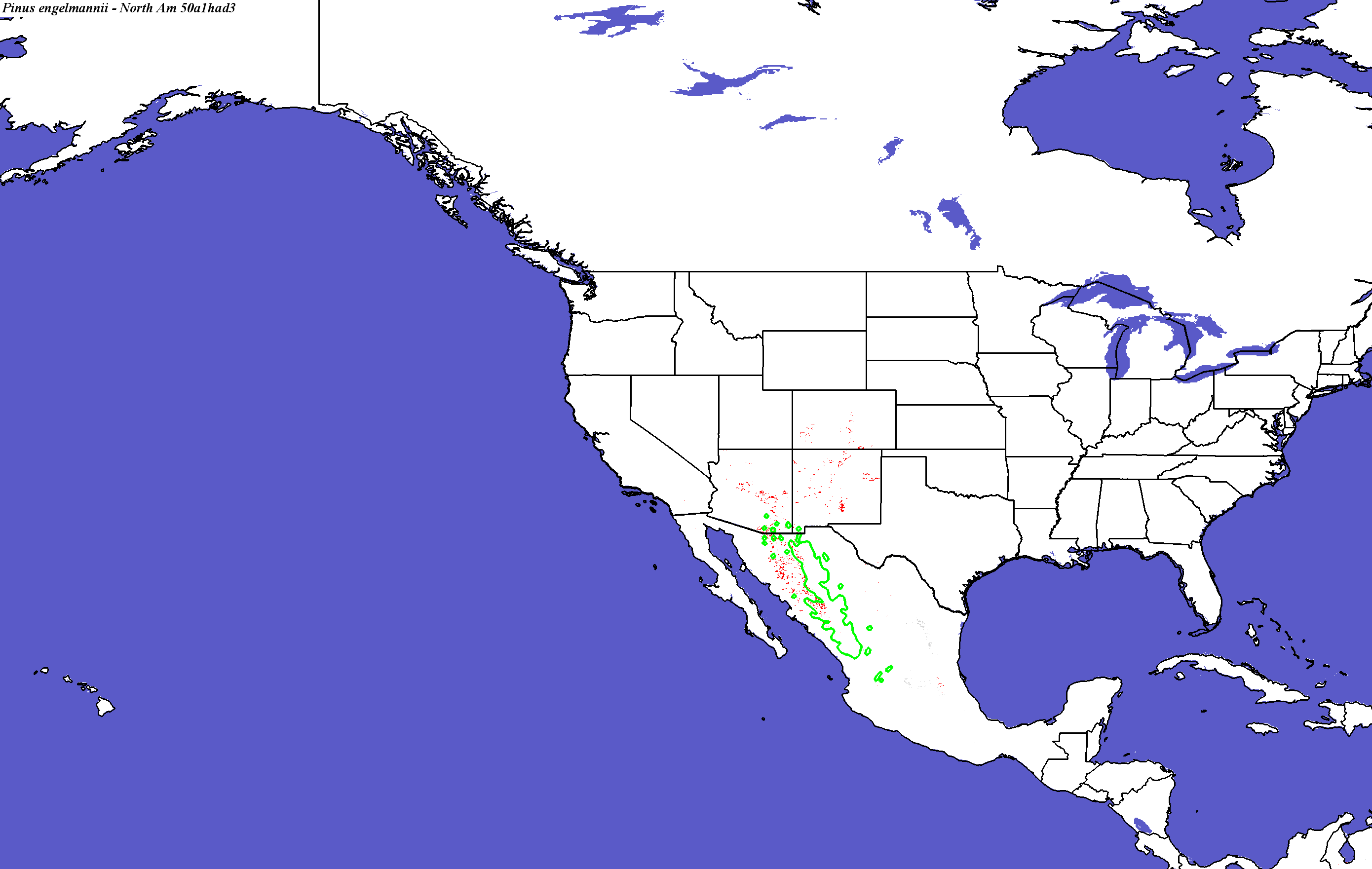

Hadley, Scenario A1FI, 2050 - Pinus engelmannii - CONUS
Pinus engelmannii not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Pinus engelmannii - Global
Pinus_engelmannii_final.2.conus
Pinus_engelmannii_final.2.global.
Hadley, Scenario A1FI, 2100 - Pinus engelmannii - CONUS
Pinus engelmannii not modeled by Iverson and Prasad
Pinus engelmannii not modeled by Crookston and Rehfeldt
Pinus engelmannii not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Pinus engelmannii - Global

Pinus_engelmannii_final.2.conus
Pinus_engelmannii_final.2.global.
Hadley, Scenario B1, 2050 - Pinus engelmannii - CONUS
Pinus engelmannii not modeled by Crookston and Rehfeldt
Pinus engelmannii not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Pinus engelmannii - Global
Pinus_engelmannii_final.2.conus
Pinus_engelmannii_final.2.global
Hadley, Scenario B1, 2100 - Pinus engelmannii - CONUS
Pinus engelmannii not modeled by Iverson and Prasad
Pinus engelmannii not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Pinus engelmannii - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Pinus_engelmannii_final.elev

Number of Suitable Ecoregions (Niche Breadth)

11

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

83.1507

Area in Present Suitable Range (in km2)

39579

Area in Future Suitable Range (Had B1 2050, in km2)

33419

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

21164

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

53.4700

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

43.0137

Percent Change in Area of Suitable Range (Had B1 2050)

-15.5600

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

24.7945

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

20820.5 +/- 58122.2

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

34.5205

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

8.92857 +/- 17.1763

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

36.8493

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

106.327 +/- 515.33

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

44.7945

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

921

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

2.3200

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

42.1918

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

16638

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

42.0300

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

18.3562

Present and Future Ranges - Hadley, Scenario B1, 2050 - Pinus engelmannii Pinus engelmannii - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Pinus_engelmannii_final.elev Fine MRM Distance
Pinus_engelmannii_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus engelmannii Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Pinus engelmannii
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Pinus_engelmannii_final.elev Coarse MRM Distance
Pinus_engelmannii_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus engelmannii Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Pinus engelmannii
