Version 5 Tree Atlas


Pinus glabra

spruce pine

elev

Pinus glabra Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Pinus glabra

USDA Plants Database entry for Pinus glabra
Silvics Manual entry for Pinus glabra


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
25226278range fairly well represented

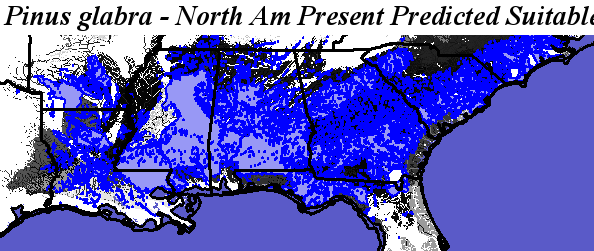

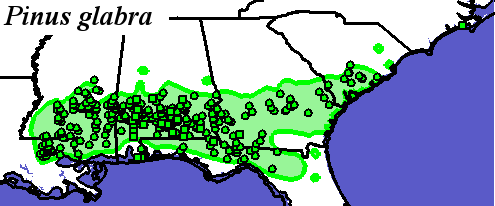

Occurrence Locations and Hargrove's Present Suitable Range Outline
Pinus_glabra_final Occurrences
Hargroves Present Suitable Range Outline for Pinus_glabra_final
Pinus glabra - Occurrence Locations Pinus glabra - Hargrove's Present Suitable Range Outline
Present Conditions
Pinus_glabra_final.3.conus
Pinus_glabra_final.3.global

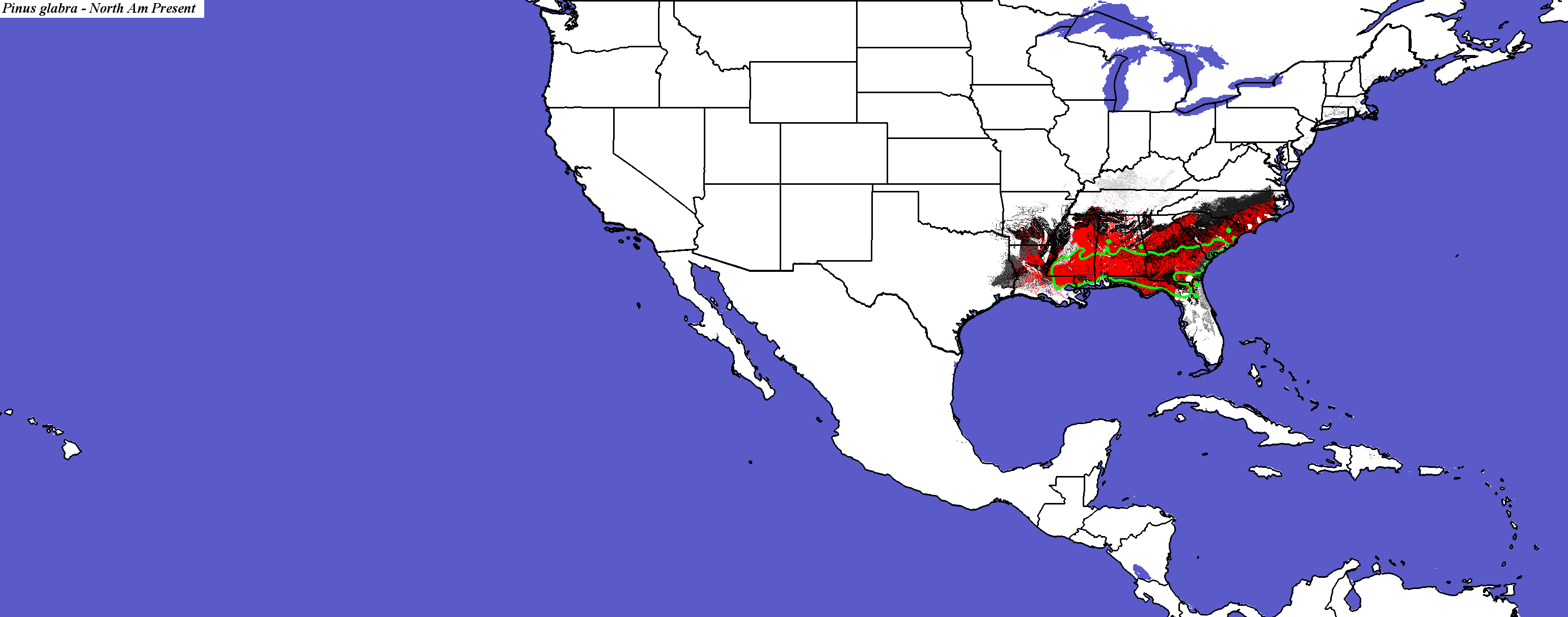

Pinus glabra - CONUS
Compare with Current Range from the Silvics Manual for Pinus glabra
Compare with Current Range from Biota of North America Program (BONAP) for Pinus glabra

Compare with Pinus glabra modeled for Current conditions by Iverson and Prasad
Pinus glabra not modeled by Crookston and Rehfeldt
Pinus glabra not modeled by Coops and Waring

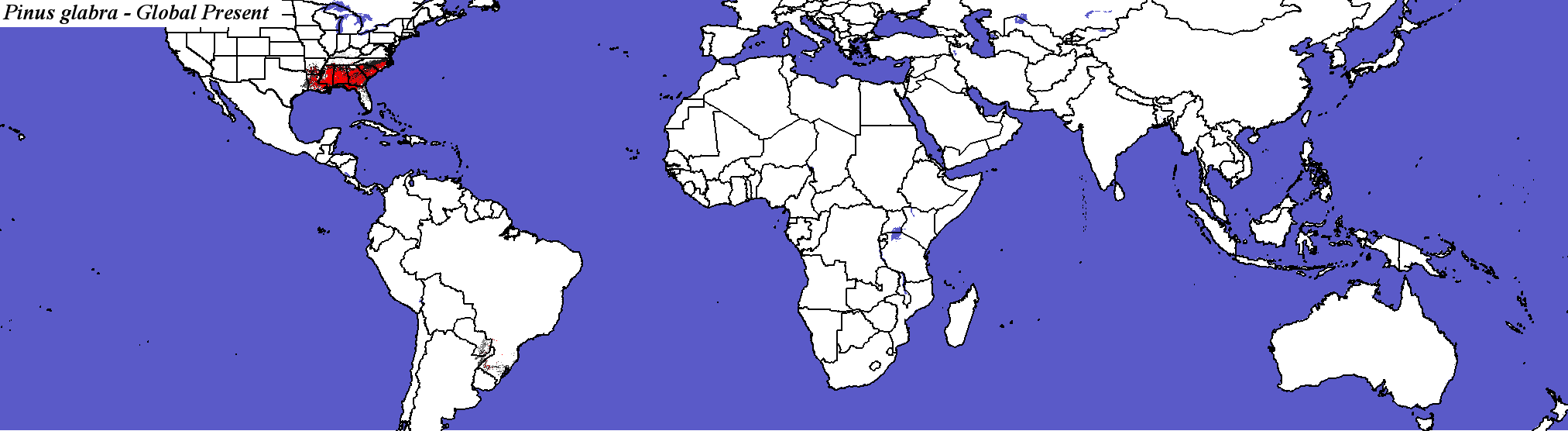

Pinus glabra - Global

PCM - Parallel Climate Model
Pinus_glabra_final.3.conus
Pinus_glabra_final.3.global

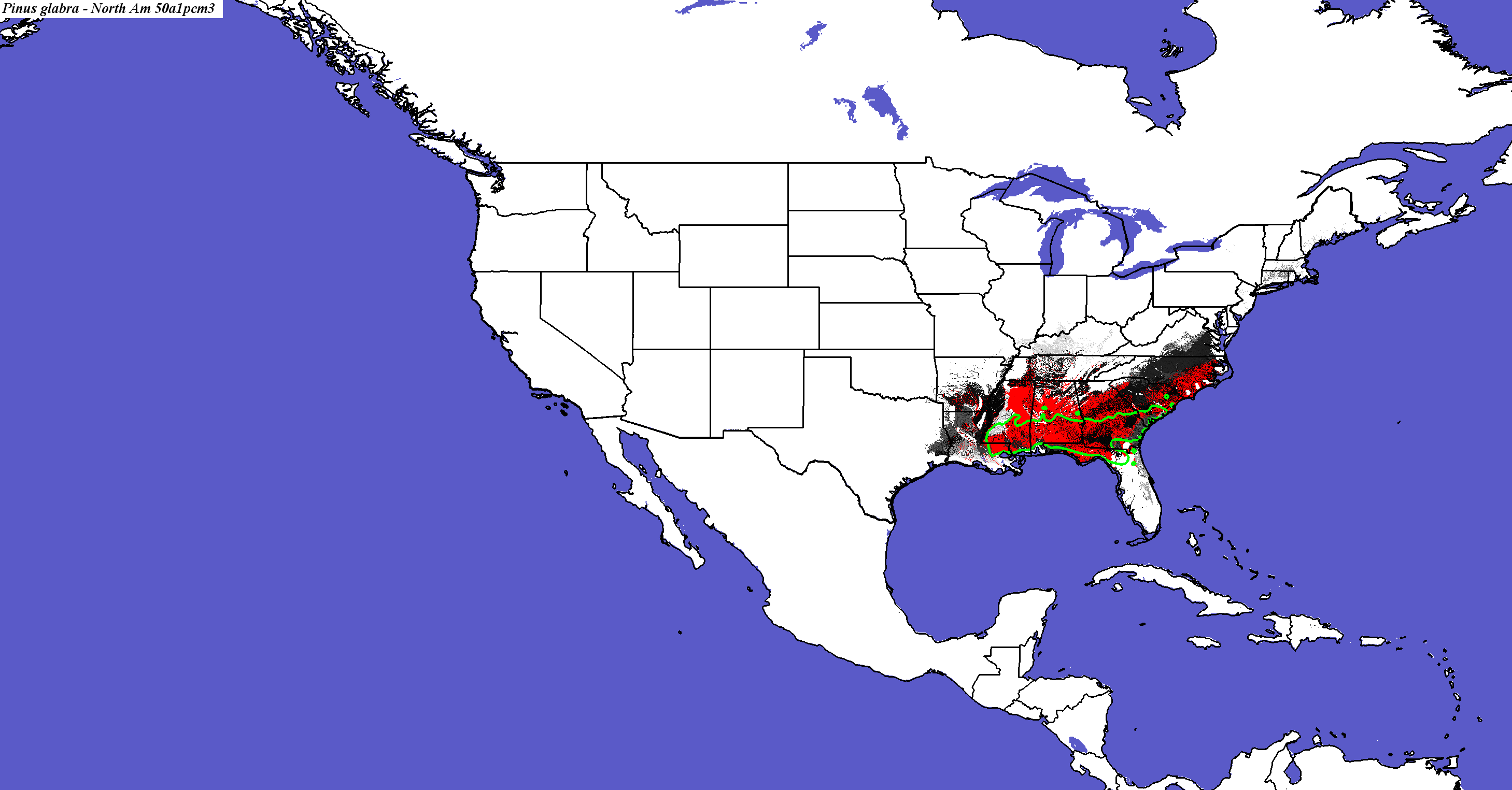

PCM, Scenario A1FI, 2050 - Pinus glabra - CONUS

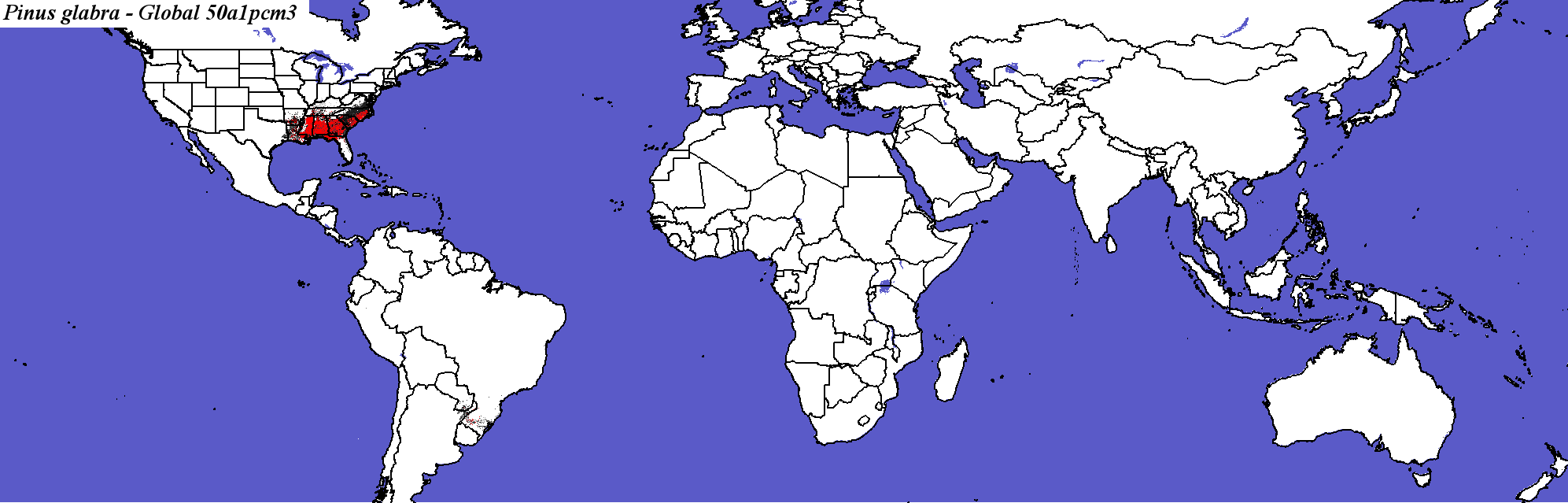

PCM, Scenario A1FI, 2050 - Pinus glabra - Global
Pinus_glabra_final.3.conus
Pinus_glabra_final.3.global

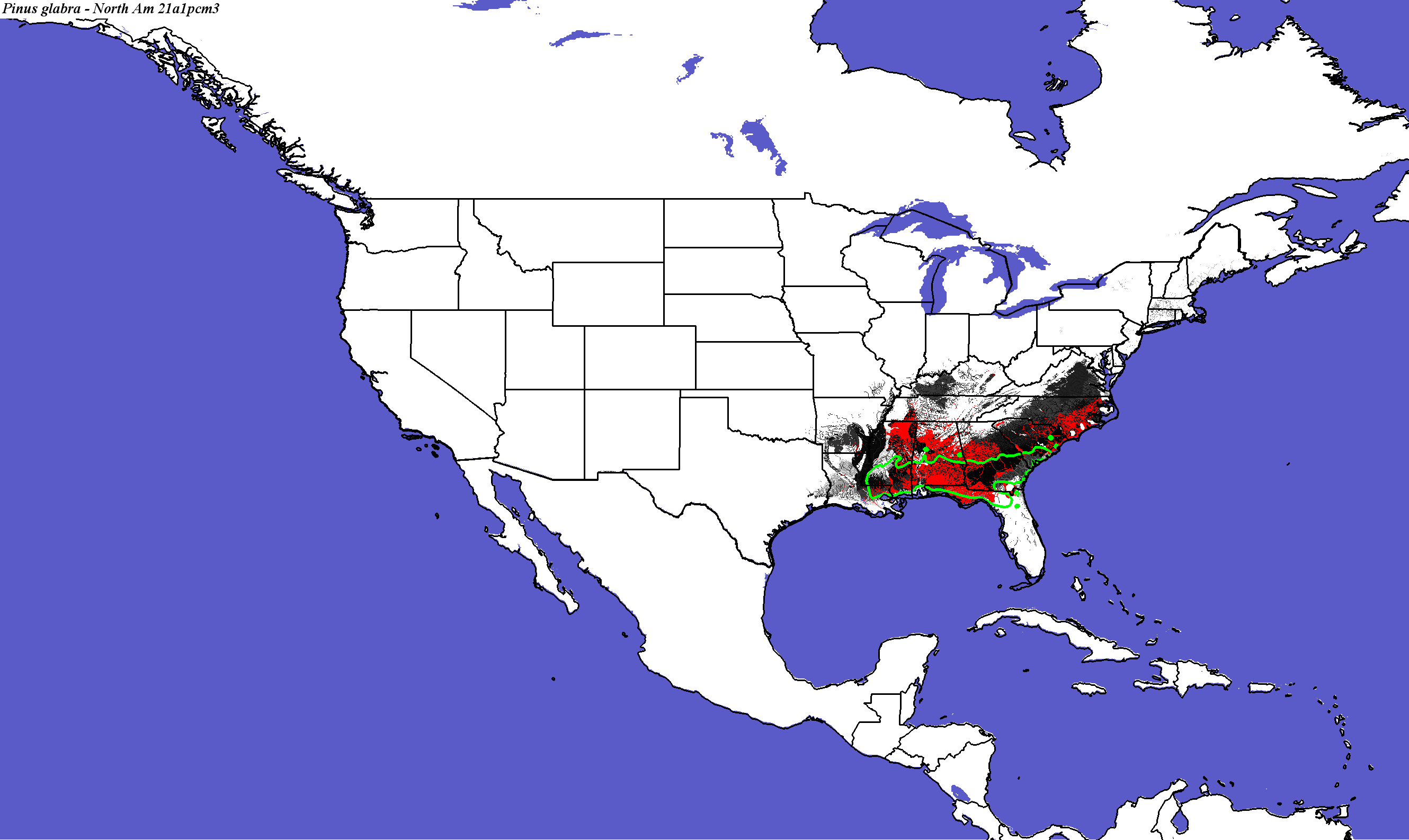

PCM, Scenario A1FI, 2100 - Pinus glabra - CONUS
Compare with Pinus glabra modeled for PCM A1FI in 2100 by Iverson and Prasad

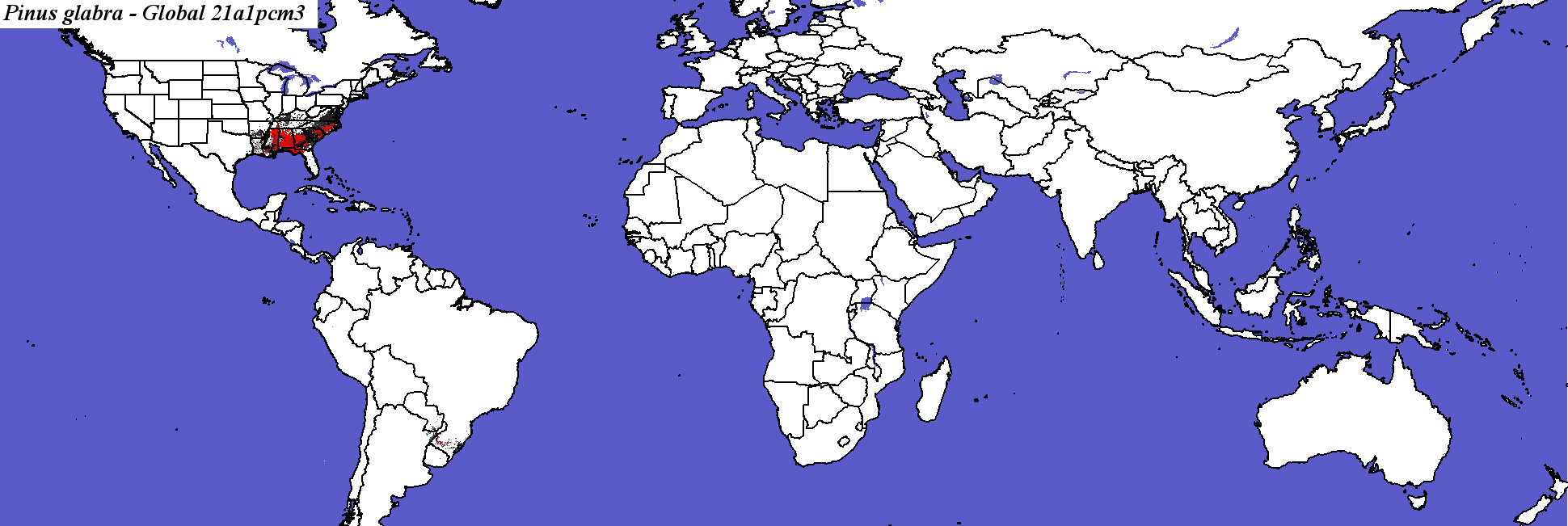

PCM, Scenario A1FI, 2100 - Pinus glabra - Global

Pinus_glabra_final.3.conus
Pinus_glabra_final.3.global

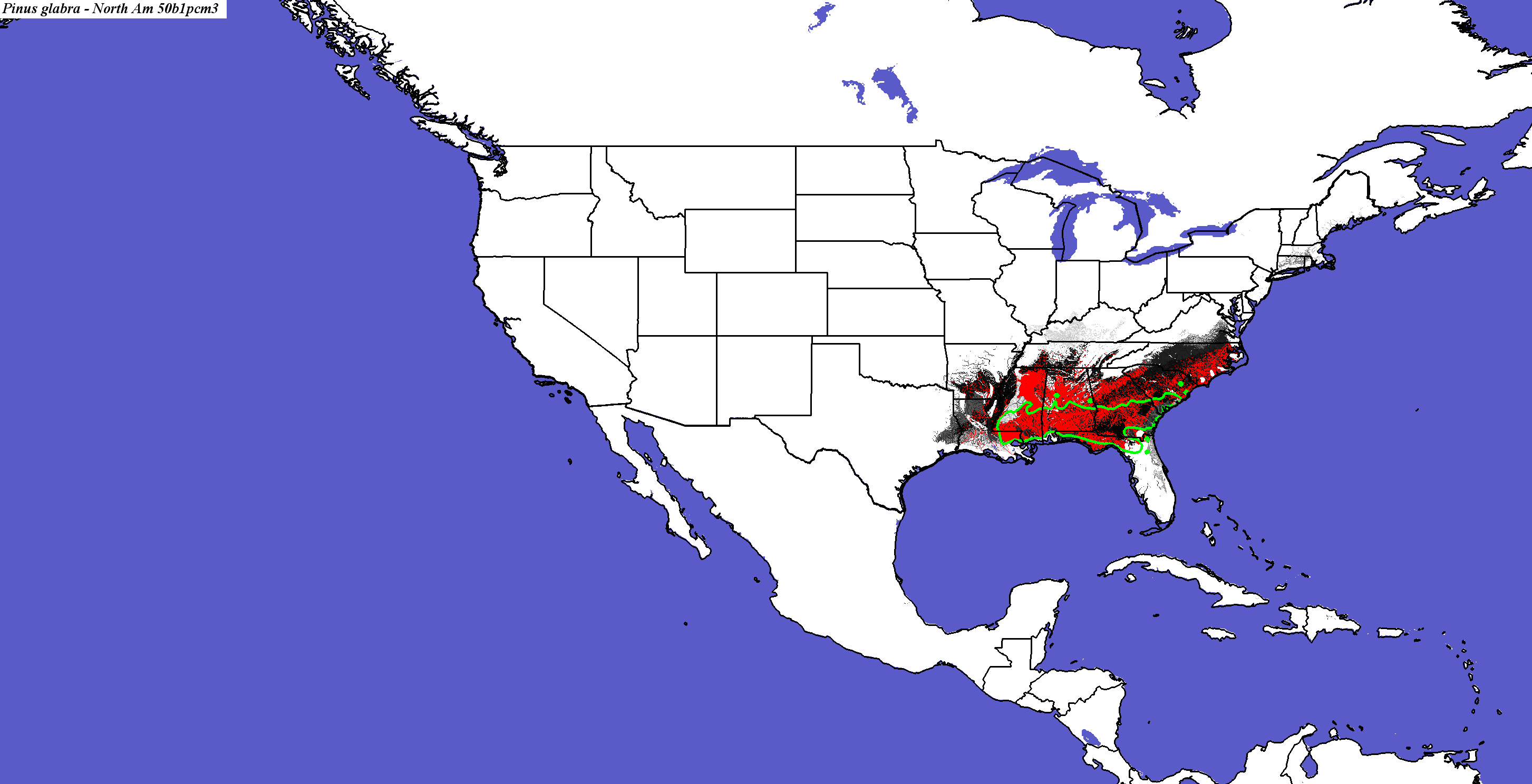

PCM, Scenario B1, 2050 - Pinus glabra - CONUS

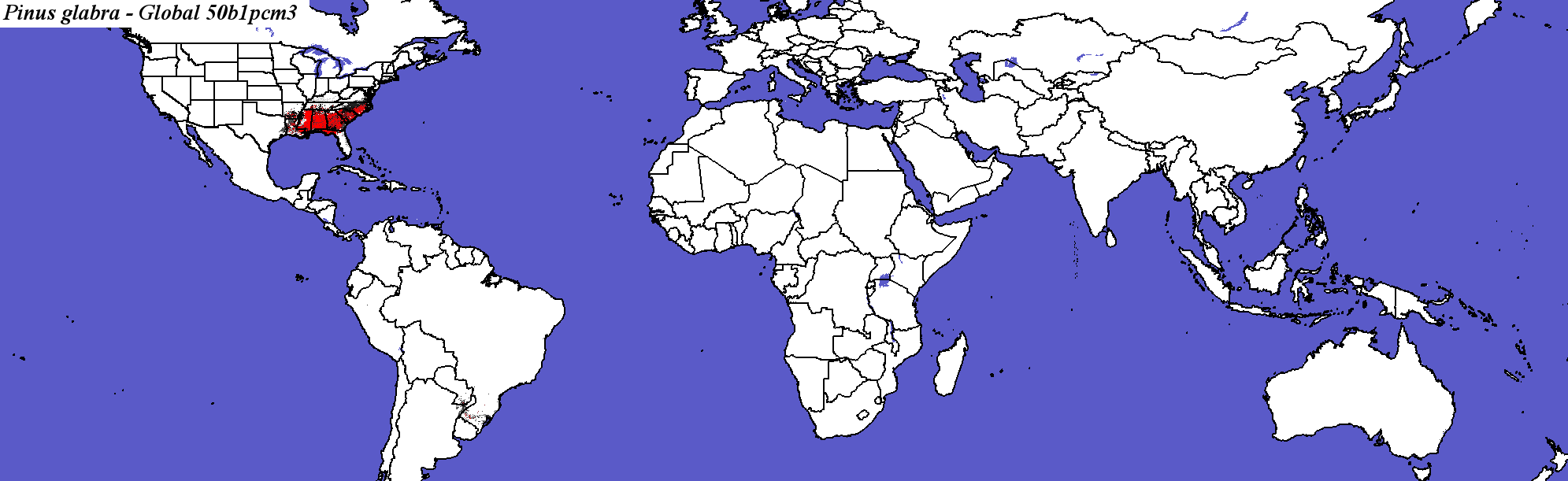

PCM, Scenario B1, 2050 - Pinus glabra - Global
Pinus_glabra_final.3.conus
Pinus_glabra_final.3.global

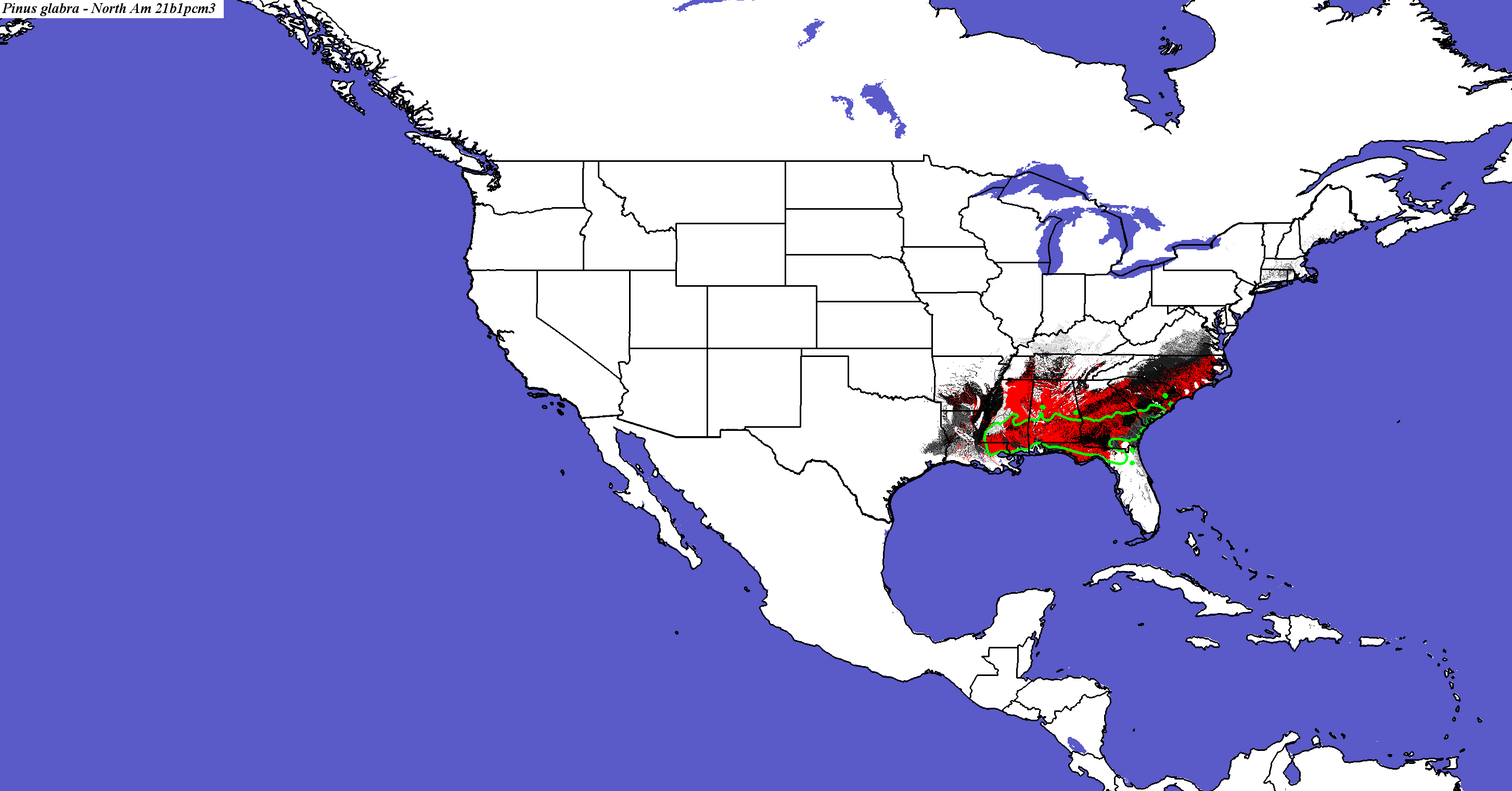

PCM, Scenario B1, 2100 - Pinus glabra - CONUS
Compare with Pinus glabra modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Pinus glabra - Global

Hadley Climate Model
Pinus_glabra_final.3.conus
Pinus_glabra_final.3.global
Hadley, Scenario A1FI, 2050 - Pinus glabra - CONUS
Pinus glabra not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Pinus glabra - Global
Pinus_glabra_final.3.conus
Pinus_glabra_final.3.global.

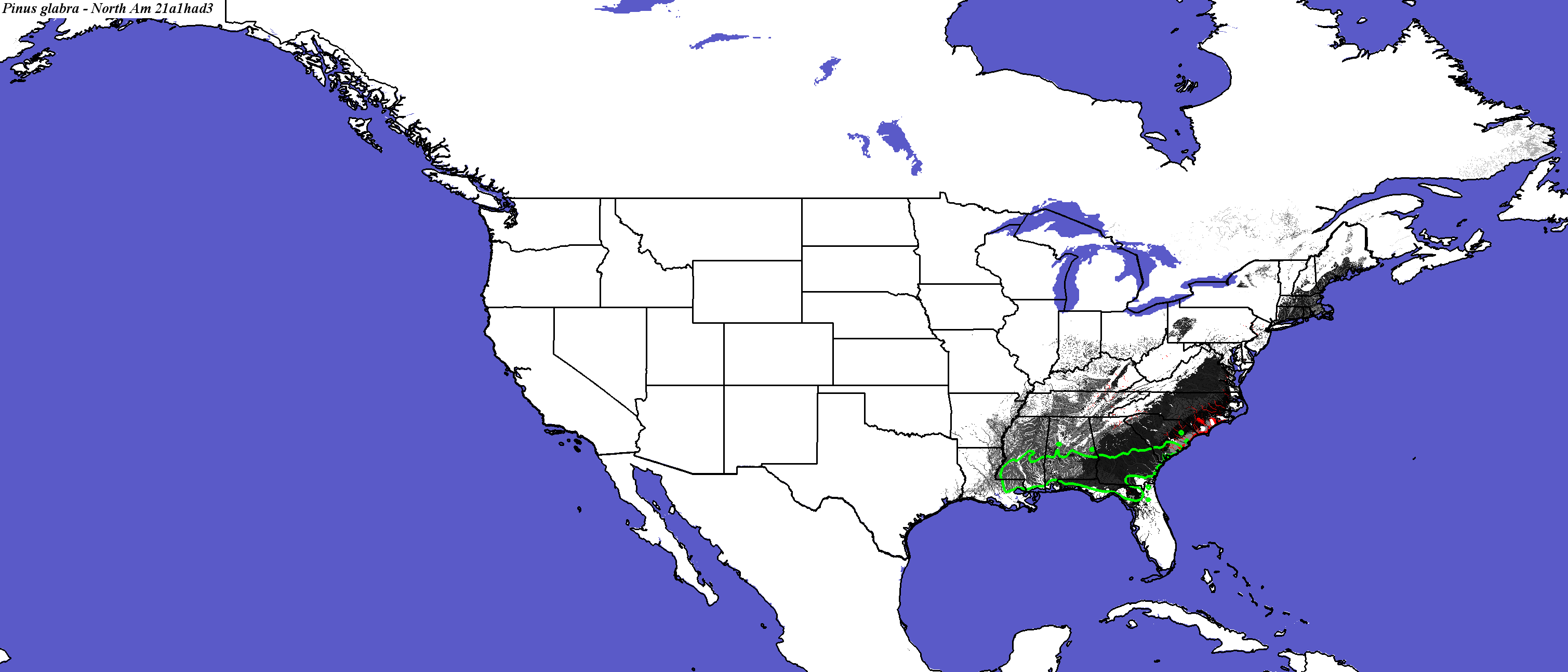

Hadley, Scenario A1FI, 2100 - Pinus glabra - CONUS
Compare with Pinus glabra modeled for Hadley A1FI in 2100 by Iverson and Prasad
Pinus glabra not modeled by Crookston and Rehfeldt
Pinus glabra not modeled by Coops and Waring

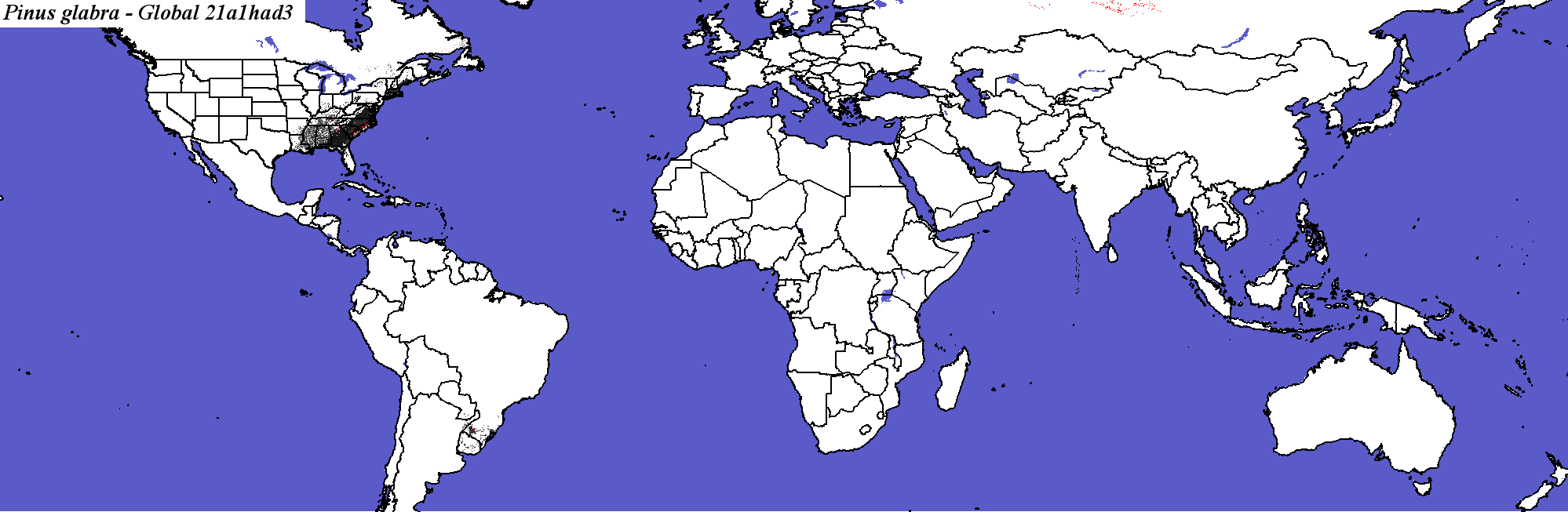

Hadley, Scenario A1FI, 2100 - Pinus glabra - Global

Pinus_glabra_final.3.conus
Pinus_glabra_final.3.global.

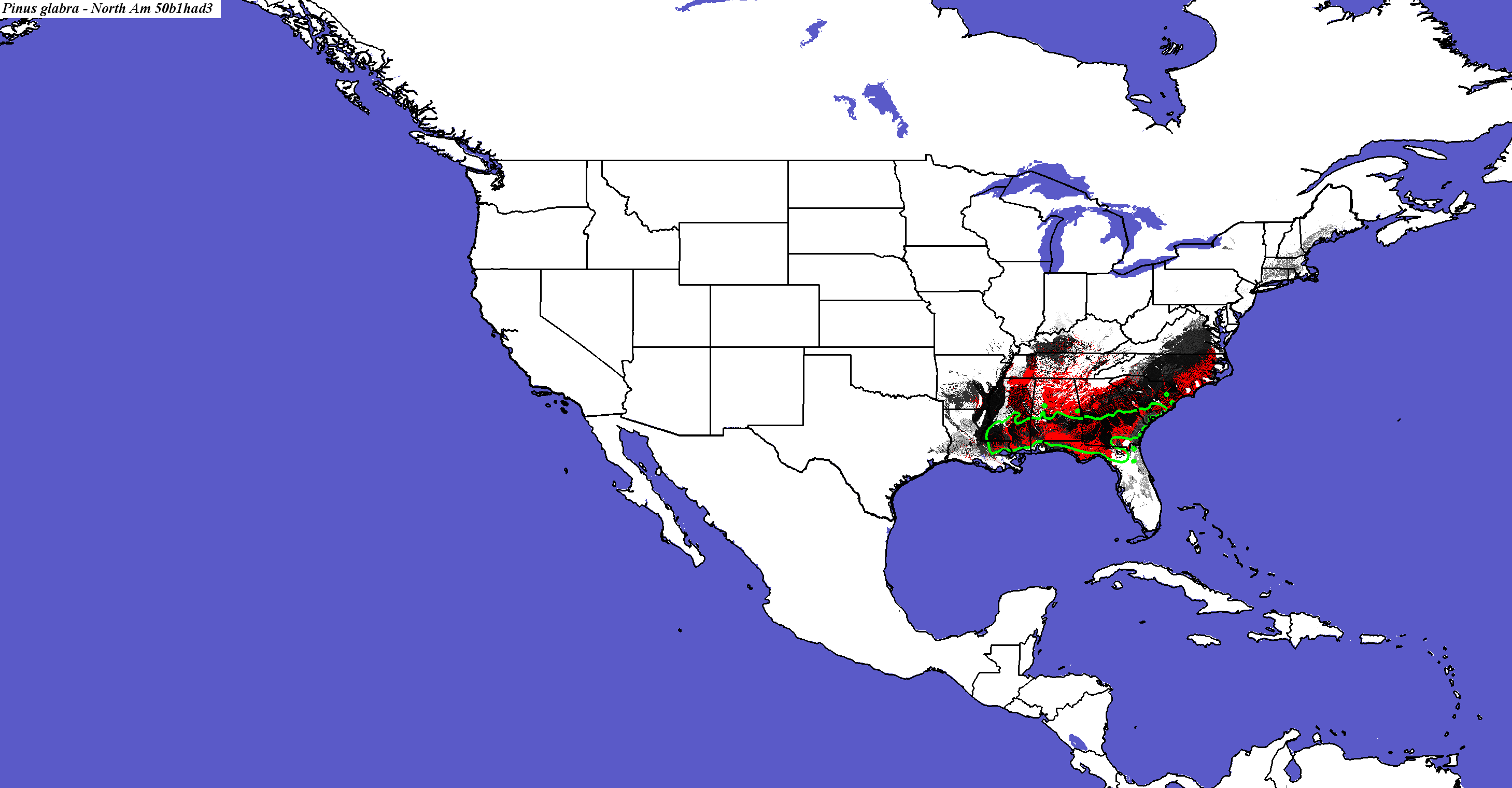

Hadley, Scenario B1, 2050 - Pinus glabra - CONUS
Pinus glabra not modeled by Crookston and Rehfeldt
Pinus glabra not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Pinus glabra - Global
Pinus_glabra_final.3.conus
Pinus_glabra_final.3.global

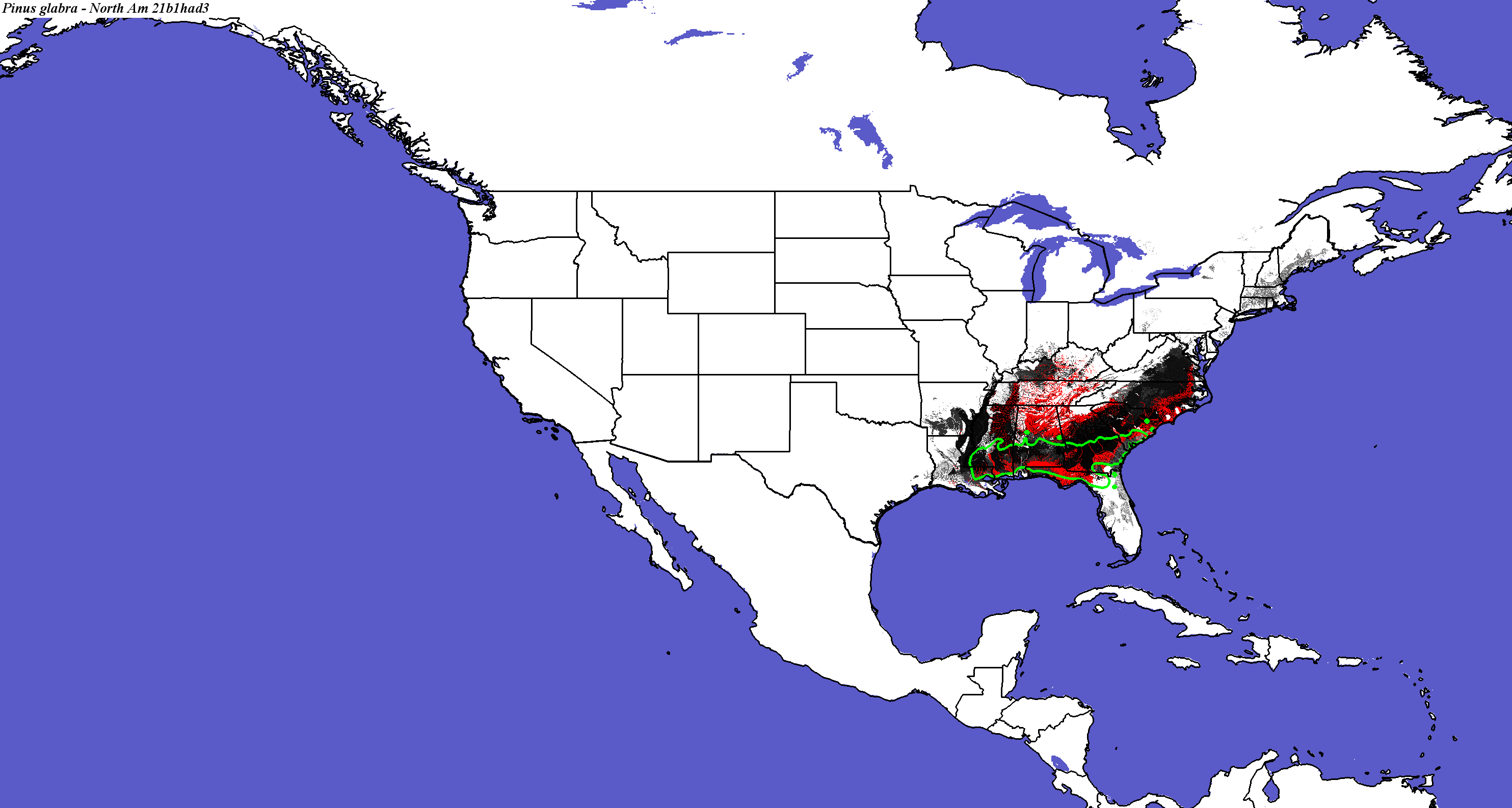

Hadley, Scenario B1, 2100 - Pinus glabra - CONUS
Compare with Pinus glabra modeled for Hadley B1 in 2100 by Iverson and Prasad
Pinus glabra not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Pinus glabra - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Pinus_glabra_final.elev

Number of Suitable Ecoregions (Niche Breadth)

30

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

49.1781

Area in Present Suitable Range (in km2)

287076

Area in Future Suitable Range (Had B1 2050, in km2)

200654

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

122848

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

42.7900

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

64.5205

Percent Change in Area of Suitable Range (Had B1 2050)

-30.1000

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

51.3699

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

13641 +/- 20696.9

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

53.2877

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

8.31685 +/- 18.2617

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

40.274

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

194.904 +/- 671.806

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

27.5342

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

15227

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

5.3000

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

23.8356

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

80797

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

28.1400

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

47.3973

Present and Future Ranges - Hadley, Scenario B1, 2050 - Pinus glabra Pinus glabra - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Pinus_glabra_final.elev Fine MRM Distance
Pinus_glabra_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus glabra Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Pinus glabra
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Pinus_glabra_final.elev Coarse MRM Distance
Pinus_glabra_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus glabra Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Pinus glabra
