Version 5 Tree Atlas


Pinus oocarpa

ocote pine

elev

Pinus oocarpa Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Pinus oocarpa

USDA Plants Database entry for Pinus oocarpa
Silvics Manual entry for Pinus oocarpa


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Pinus luzmariae; Pinus oocarpa var. microphylla010351154range in Mexico and Central America mostly well sampled

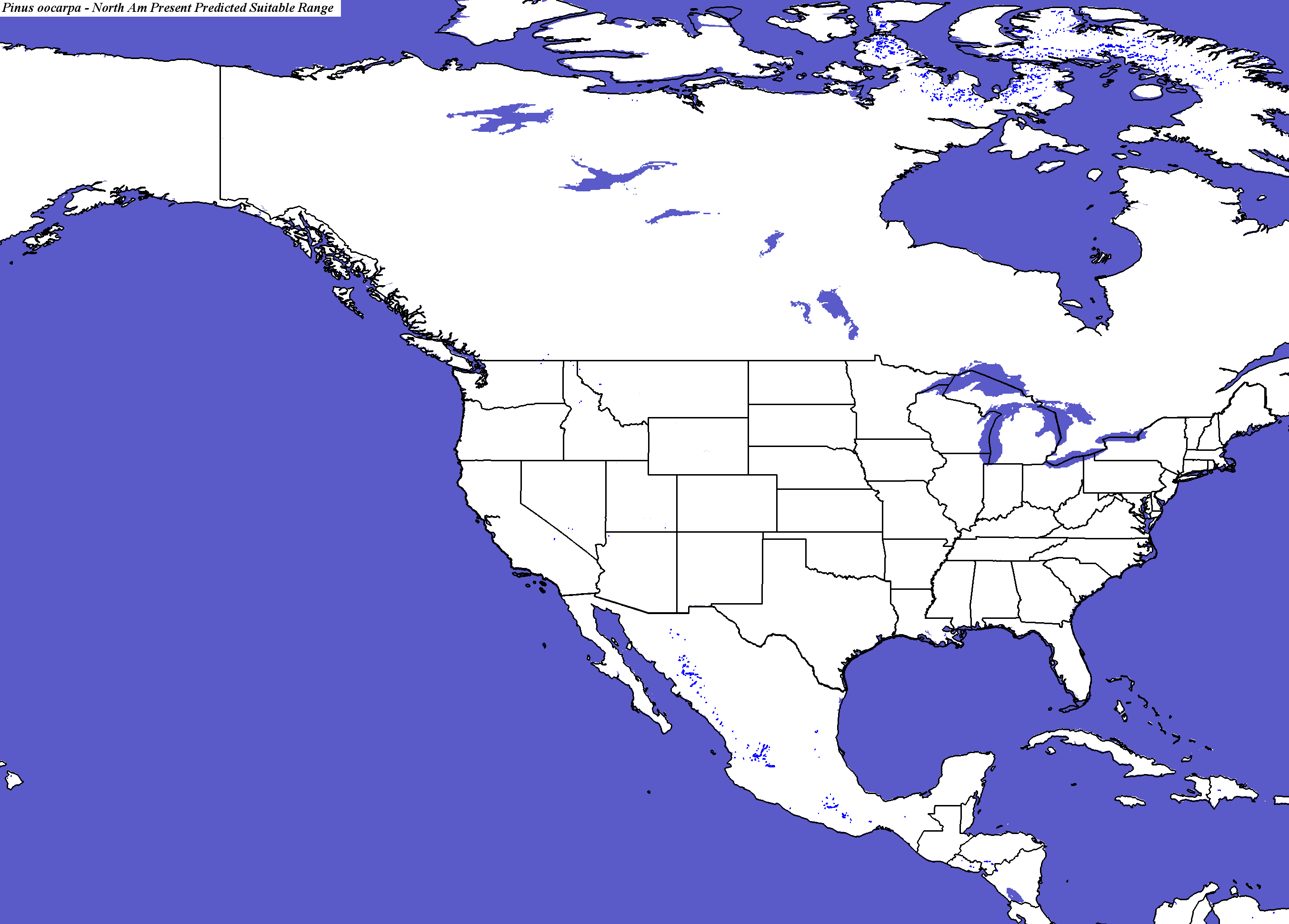

Occurrence Locations and Hargrove's Present Suitable Range Outline
Pinus_oocarpa_SMO Occurrences
Hargroves Present Suitable Range Outline for Pinus_oocarpa_SMO
Pinus oocarpa - Occurrence Locations Pinus oocarpa - Hargrove's Present Suitable Range Outline
Present Conditions
Pinus_oocarpa_SMO.1.conus
Pinus_oocarpa_SMO.1.global
Pinus oocarpa - CONUS
Compare with Current Range from the Silvics Manual for Pinus oocarpa
Compare with Current Range from Biota of North America Program (BONAP) for Pinus oocarpa

Pinus oocarpa not modeled by Iverson and Prasad
Pinus oocarpa not modeled by Crookston and Rehfeldt
Pinus oocarpa not modeled by Coops and Waring
Pinus oocarpa - Global

PCM - Parallel Climate Model
Pinus_oocarpa_SMO.1.conus
Pinus_oocarpa_SMO.1.global
PCM, Scenario A1FI, 2050 - Pinus oocarpa - CONUS
PCM, Scenario A1FI, 2050 - Pinus oocarpa - Global
Pinus_oocarpa_SMO.1.conus
Pinus_oocarpa_SMO.1.global
PCM, Scenario A1FI, 2100 - Pinus oocarpa - CONUS
Pinus oocarpa species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Pinus oocarpa - Global

Pinus_oocarpa_SMO.1.conus
Pinus_oocarpa_SMO.1.global
PCM, Scenario B1, 2050 - Pinus oocarpa - CONUS
PCM, Scenario B1, 2050 - Pinus oocarpa - Global
Pinus_oocarpa_SMO.1.conus
Pinus_oocarpa_SMO.1.global
PCM, Scenario B1, 2100 - Pinus oocarpa - CONUS
Pinus oocarpa not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Pinus oocarpa - Global

Hadley Climate Model
Pinus_oocarpa_SMO.1.conus
Pinus_oocarpa_SMO.1.global
Hadley, Scenario A1FI, 2050 - Pinus oocarpa - CONUS
Pinus oocarpa not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Pinus oocarpa - Global
Pinus_oocarpa_SMO.1.conus
Pinus_oocarpa_SMO.1.global.
Hadley, Scenario A1FI, 2100 - Pinus oocarpa - CONUS
Pinus oocarpa not modeled by Iverson and Prasad
Pinus oocarpa not modeled by Crookston and Rehfeldt
Pinus oocarpa not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Pinus oocarpa - Global

Pinus_oocarpa_SMO.1.conus
Pinus_oocarpa_SMO.1.global.
Hadley, Scenario B1, 2050 - Pinus oocarpa - CONUS
Pinus oocarpa not modeled by Crookston and Rehfeldt
Pinus oocarpa not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Pinus oocarpa - Global
Pinus_oocarpa_SMO.1.conus
Pinus_oocarpa_SMO.1.global
Hadley, Scenario B1, 2100 - Pinus oocarpa - CONUS
Pinus oocarpa not modeled by Iverson and Prasad
Pinus oocarpa not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Pinus oocarpa - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Pinus_oocarpa_SMO.elev

Number of Suitable Ecoregions (Niche Breadth)

4

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

98.0822

Area in Present Suitable Range (in km2)

36350

Area in Future Suitable Range (Had B1 2050, in km2)

16145

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

10610

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

29.1800

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

84.5205

Percent Change in Area of Suitable Range (Had B1 2050)

-55.5800

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

87.8082

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

3333.79 +/- 12768.1

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

96.3014

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

2.5 +/- 10.3078

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

89.726

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

34.7222 +/- 143.163

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

68.9041

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

85.7534

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

5364

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

14.7500

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

83.1507

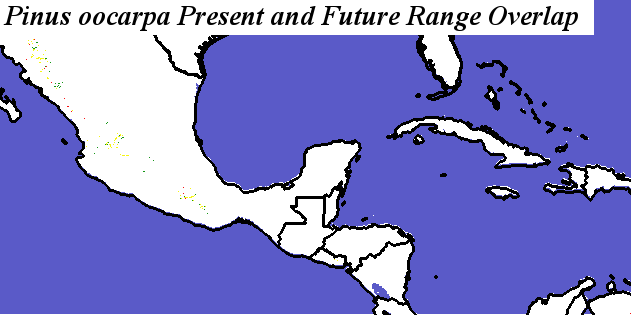

Present and Future Ranges - Hadley, Scenario B1, 2050 - Pinus oocarpa Pinus oocarpa - Range Change Statistics

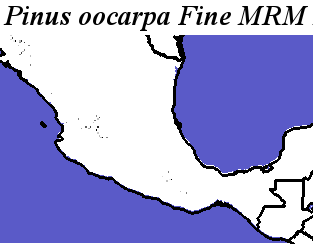

Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Pinus_oocarpa_SMO.elev Fine MRM Distance
Pinus_oocarpa_SMO.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus oocarpa Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Pinus oocarpa

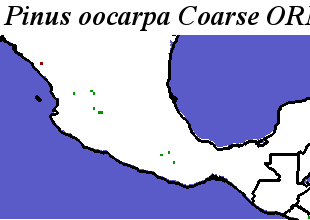

Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Pinus_oocarpa_SMO.elev Coarse MRM Distance
Pinus_oocarpa_SMO.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus oocarpa Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Pinus oocarpa
