Version 5 Tree Atlas


Pinus oocarpa

ocote pine

elev

Pinus oocarpa Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Pinus oocarpa

USDA Plants Database entry for Pinus oocarpa
Silvics Manual entry for Pinus oocarpa


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Pinus luzmariae; Pinus oocarpa var. microphylla010351154range in Mexico and Central America mostly well sampled

Occurrence Locations and Hargrove's Present Suitable Range Outline
Pinus_oocarpa_SMS Occurrences
Hargroves Present Suitable Range Outline for Pinus_oocarpa_SMS
Pinus oocarpa - Occurrence Locations Pinus oocarpa - Hargrove's Present Suitable Range Outline

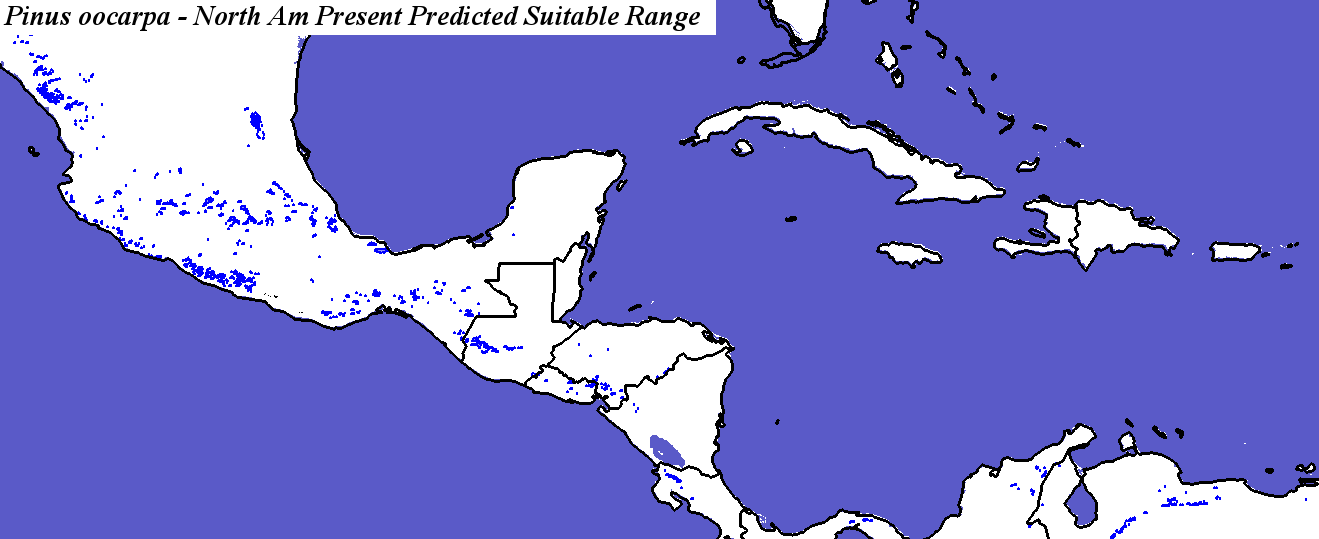

Present Conditions
Pinus_oocarpa_SMS.1.conus
Pinus_oocarpa_SMS.1.global
Pinus oocarpa - CONUS
Compare with Current Range from the Silvics Manual for Pinus oocarpa
Compare with Current Range from Biota of North America Program (BONAP) for Pinus oocarpa

Pinus oocarpa not modeled by Iverson and Prasad
Pinus oocarpa not modeled by Crookston and Rehfeldt
Pinus oocarpa not modeled by Coops and Waring
Pinus oocarpa - Global

PCM - Parallel Climate Model
Pinus_oocarpa_SMS.1.conus
Pinus_oocarpa_SMS.1.global
PCM, Scenario A1FI, 2050 - Pinus oocarpa - CONUS
PCM, Scenario A1FI, 2050 - Pinus oocarpa - Global
Pinus_oocarpa_SMS.1.conus
Pinus_oocarpa_SMS.1.global
PCM, Scenario A1FI, 2100 - Pinus oocarpa - CONUS
Pinus oocarpa species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Pinus oocarpa - Global

Pinus_oocarpa_SMS.1.conus
Pinus_oocarpa_SMS.1.global
PCM, Scenario B1, 2050 - Pinus oocarpa - CONUS
PCM, Scenario B1, 2050 - Pinus oocarpa - Global
Pinus_oocarpa_SMS.1.conus
Pinus_oocarpa_SMS.1.global
PCM, Scenario B1, 2100 - Pinus oocarpa - CONUS
Pinus oocarpa not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Pinus oocarpa - Global

Hadley Climate Model
Pinus_oocarpa_SMS.1.conus
Pinus_oocarpa_SMS.1.global
Hadley, Scenario A1FI, 2050 - Pinus oocarpa - CONUS
Pinus oocarpa not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Pinus oocarpa - Global
Pinus_oocarpa_SMS.1.conus
Pinus_oocarpa_SMS.1.global.
Hadley, Scenario A1FI, 2100 - Pinus oocarpa - CONUS
Pinus oocarpa not modeled by Iverson and Prasad
Pinus oocarpa not modeled by Crookston and Rehfeldt
Pinus oocarpa not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Pinus oocarpa - Global

Pinus_oocarpa_SMS.1.conus
Pinus_oocarpa_SMS.1.global.
Hadley, Scenario B1, 2050 - Pinus oocarpa - CONUS
Pinus oocarpa not modeled by Crookston and Rehfeldt
Pinus oocarpa not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Pinus oocarpa - Global
Pinus_oocarpa_SMS.1.conus
Pinus_oocarpa_SMS.1.global
Hadley, Scenario B1, 2100 - Pinus oocarpa - CONUS
Pinus oocarpa not modeled by Iverson and Prasad
Pinus oocarpa not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Pinus oocarpa - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Pinus_oocarpa_SMS.elev

Number of Suitable Ecoregions (Niche Breadth)

11

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

83.0137

Area in Present Suitable Range (in km2)

52430

Area in Future Suitable Range (Had B1 2050, in km2)

48269

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

30223

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

57.6400

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

30.6849

Percent Change in Area of Suitable Range (Had B1 2050)

-7.9300

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

11.7808

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

26031.6 +/- 43377.8

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

25.7534

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

13.1607 +/- 21.8826

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

20.6849

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

351.667 +/- 934.669

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

9.86301

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

2311

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

4.4000

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

29.0411

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

10602

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

20.2200

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

68.7671

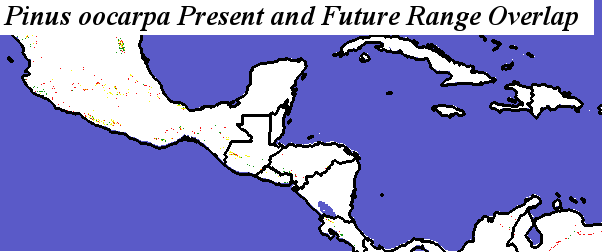

Present and Future Ranges - Hadley, Scenario B1, 2050 - Pinus oocarpa Pinus oocarpa - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

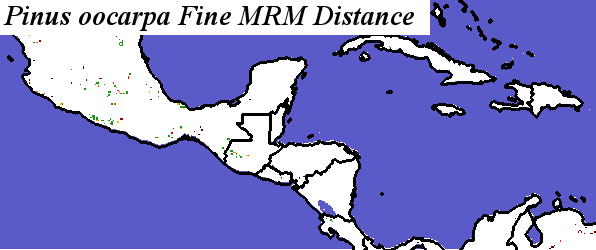

Pinus_oocarpa_SMS.elev Fine MRM Distance
Pinus_oocarpa_SMS.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus oocarpa Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Pinus oocarpa
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

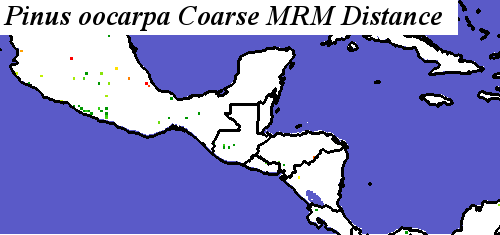

Pinus_oocarpa_SMS.elev Coarse MRM Distance

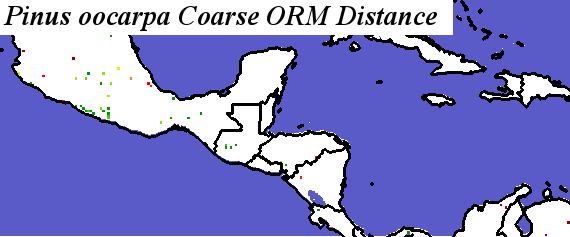

Pinus_oocarpa_SMS.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus oocarpa Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Pinus oocarpa
