Version 5 Tree Atlas


Pinus pungens

Table Mountain pine

elev

Pinus pungens Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Pinus pungens

USDA Plants Database entry for Pinus pungens
Silvics Manual entry for Pinus pungens


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
821597TBD

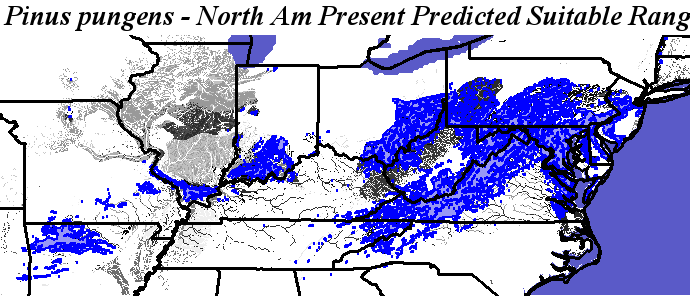

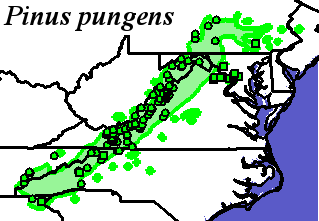

Occurrence Locations and Hargrove's Present Suitable Range Outline
Pinus_pungens_final Occurrences
Hargroves Present Suitable Range Outline for Pinus_pungens_final
Pinus pungens - Occurrence Locations Pinus pungens - Hargrove's Present Suitable Range Outline
Present Conditions
Pinus_pungens_final.2.conus
Pinus_pungens_final.2.global

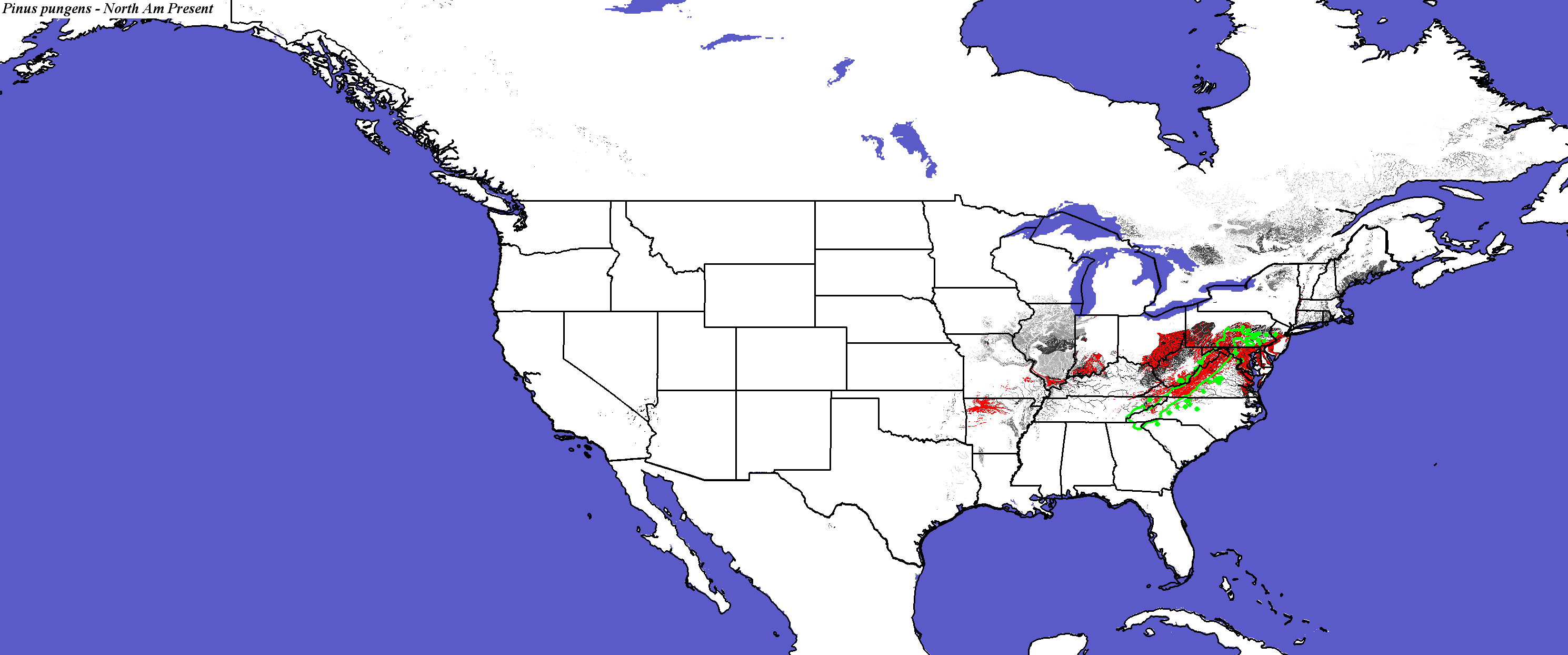

Pinus pungens - CONUS
Compare with Current Range from the Silvics Manual for Pinus pungens
Compare with Current Range from Biota of North America Program (BONAP) for Pinus pungens

Compare with Pinus pungens modeled for Current conditions by Iverson and Prasad
Pinus pungens not modeled by Crookston and Rehfeldt
Pinus pungens not modeled by Coops and Waring

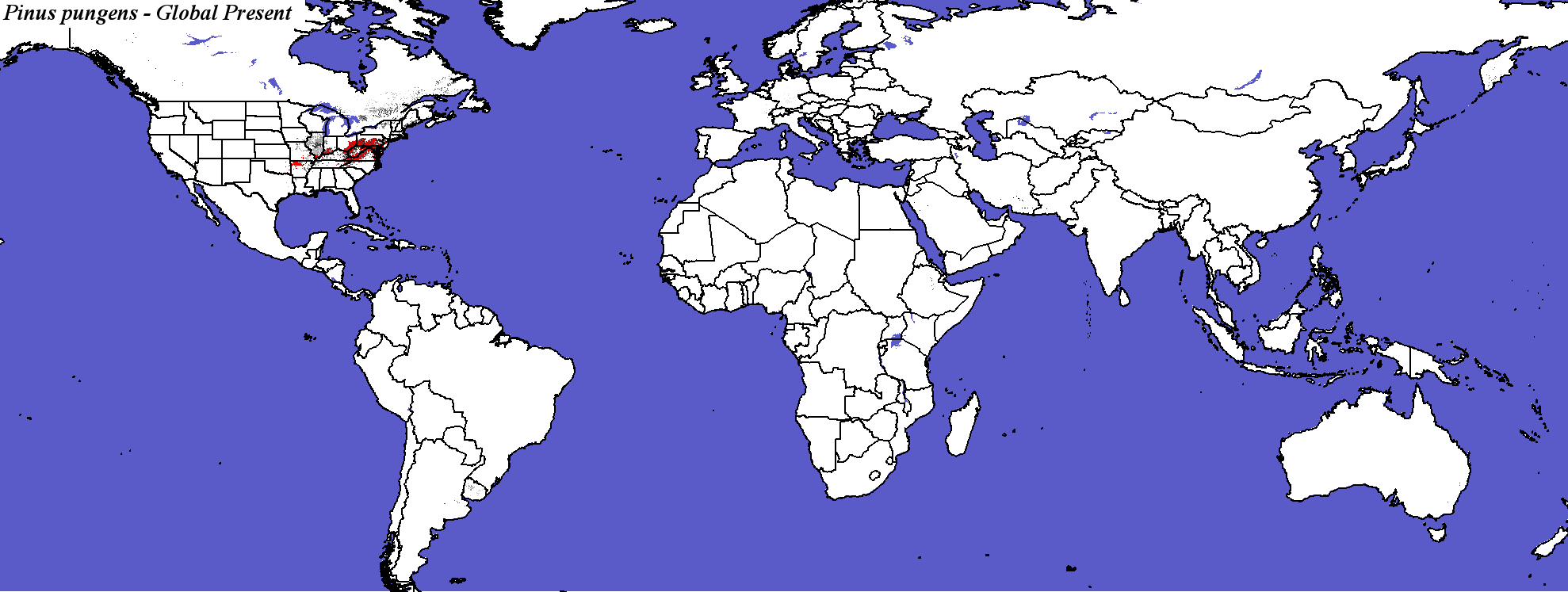

Pinus pungens - Global

PCM - Parallel Climate Model
Pinus_pungens_final.2.conus
Pinus_pungens_final.2.global
PCM, Scenario A1FI, 2050 - Pinus pungens - CONUS

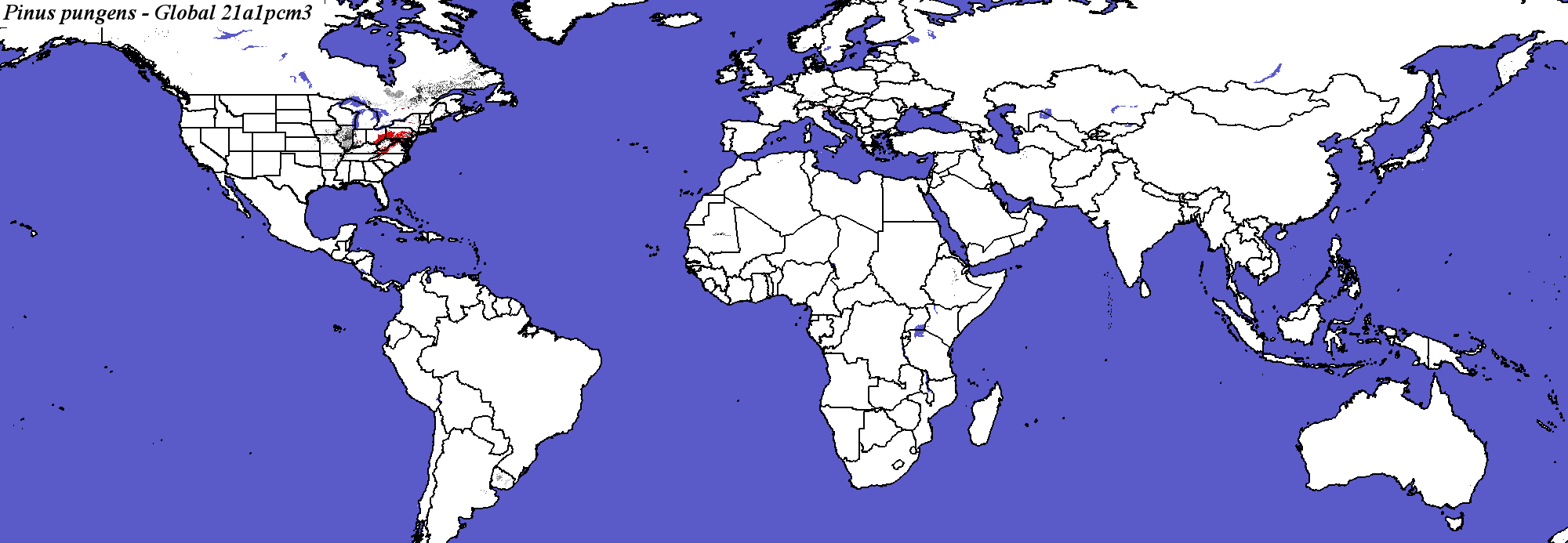

PCM, Scenario A1FI, 2050 - Pinus pungens - Global
Pinus_pungens_final.2.conus
Pinus_pungens_final.2.global
PCM, Scenario A1FI, 2100 - Pinus pungens - CONUS
Compare with Pinus pungens modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Pinus pungens - Global

Pinus_pungens_final.2.conus
Pinus_pungens_final.2.global
PCM, Scenario B1, 2050 - Pinus pungens - CONUS

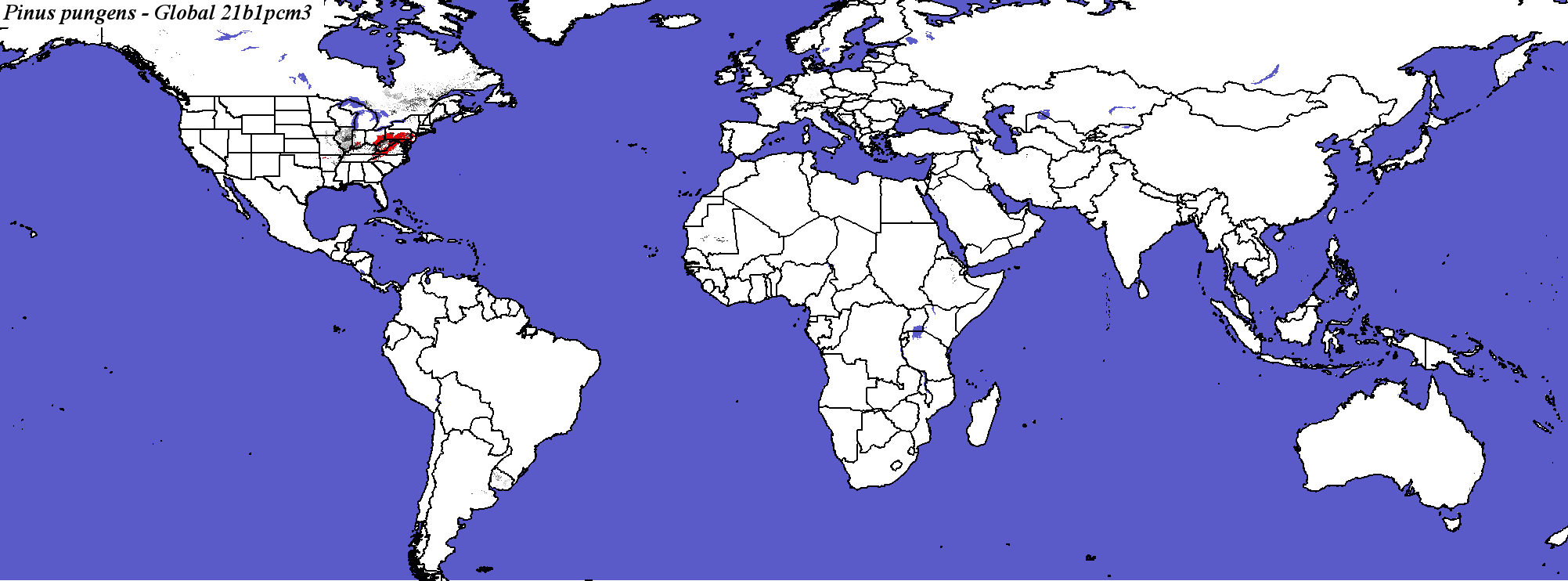

PCM, Scenario B1, 2050 - Pinus pungens - Global
Pinus_pungens_final.2.conus
Pinus_pungens_final.2.global
PCM, Scenario B1, 2100 - Pinus pungens - CONUS
Compare with Pinus pungens modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Pinus pungens - Global

Hadley Climate Model
Pinus_pungens_final.2.conus
Pinus_pungens_final.2.global

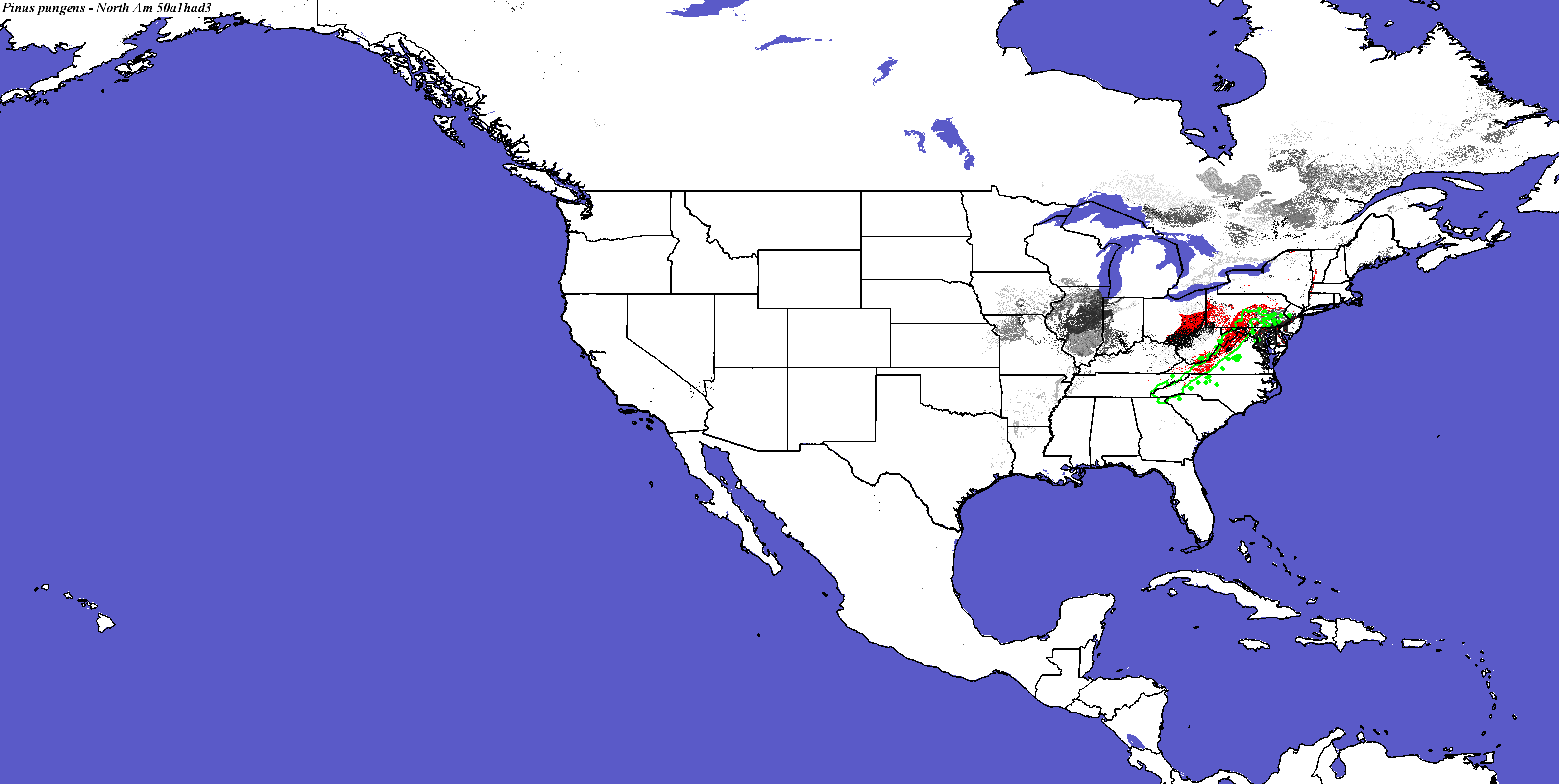

Hadley, Scenario A1FI, 2050 - Pinus pungens - CONUS
Pinus pungens not modeled by Crookston and Rehfeldt

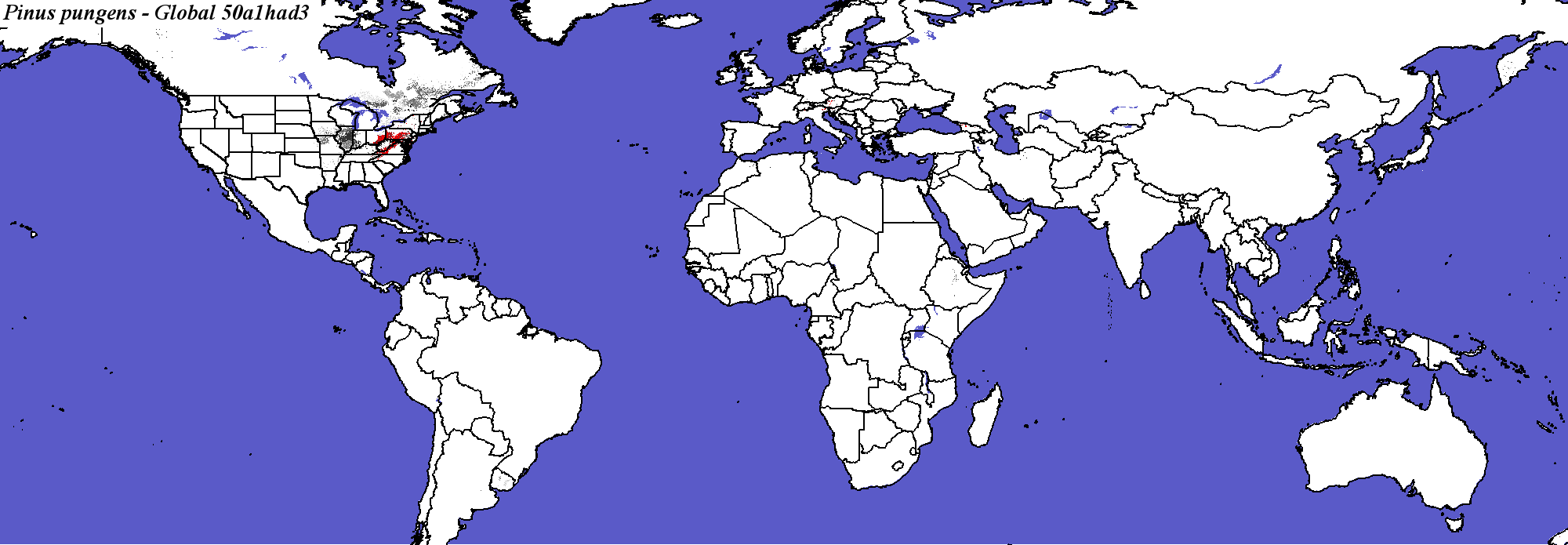

Hadley, Scenario A1FI, 2050 - Pinus pungens - Global
Pinus_pungens_final.2.conus
Pinus_pungens_final.2.global.

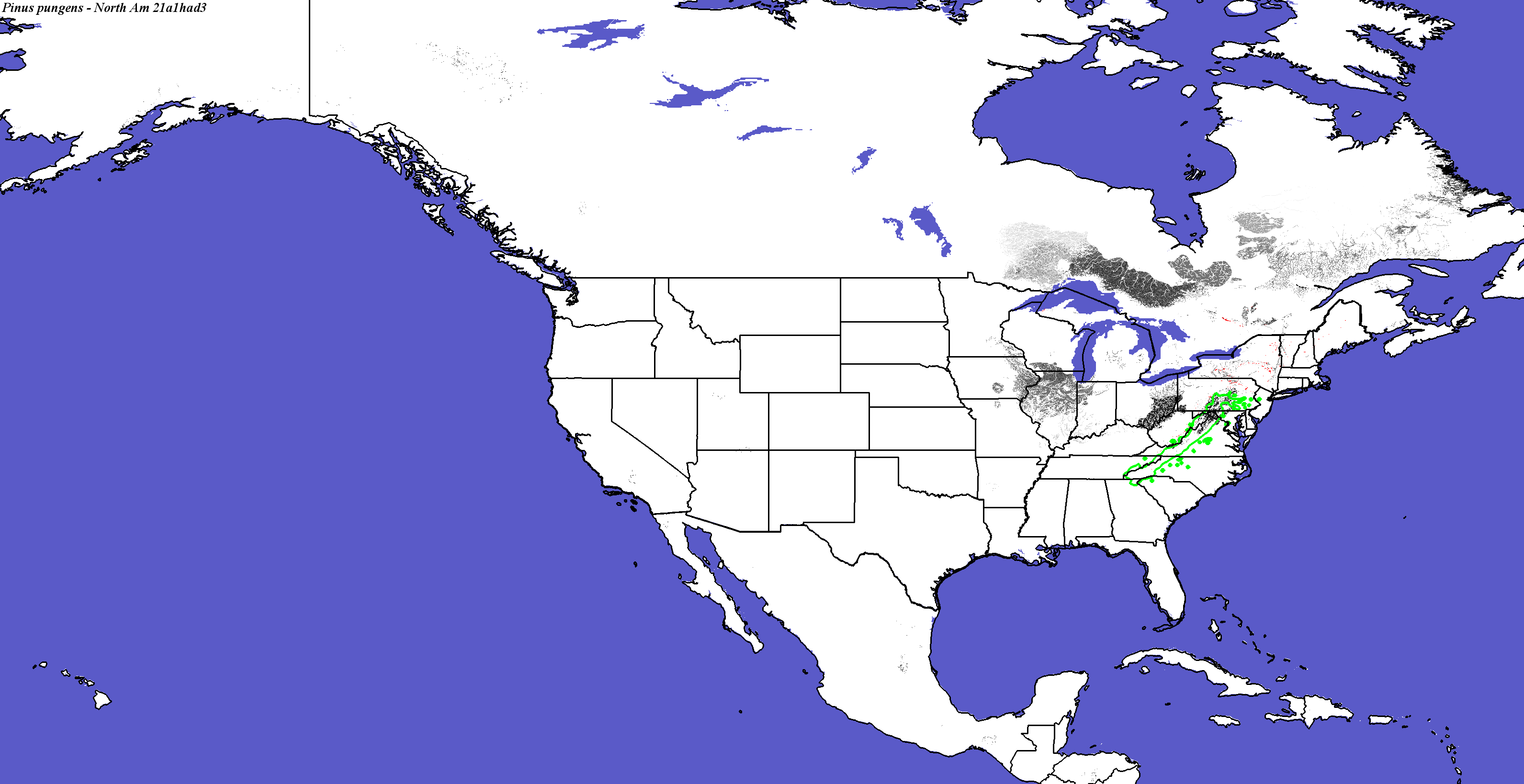

Hadley, Scenario A1FI, 2100 - Pinus pungens - CONUS
Compare with Pinus pungens modeled for Hadley A1FI in 2100 by Iverson and Prasad
Pinus pungens not modeled by Crookston and Rehfeldt
Pinus pungens not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Pinus pungens - Global

Pinus_pungens_final.2.conus
Pinus_pungens_final.2.global.
Hadley, Scenario B1, 2050 - Pinus pungens - CONUS
Pinus pungens not modeled by Crookston and Rehfeldt
Pinus pungens not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Pinus pungens - Global
Pinus_pungens_final.2.conus
Pinus_pungens_final.2.global

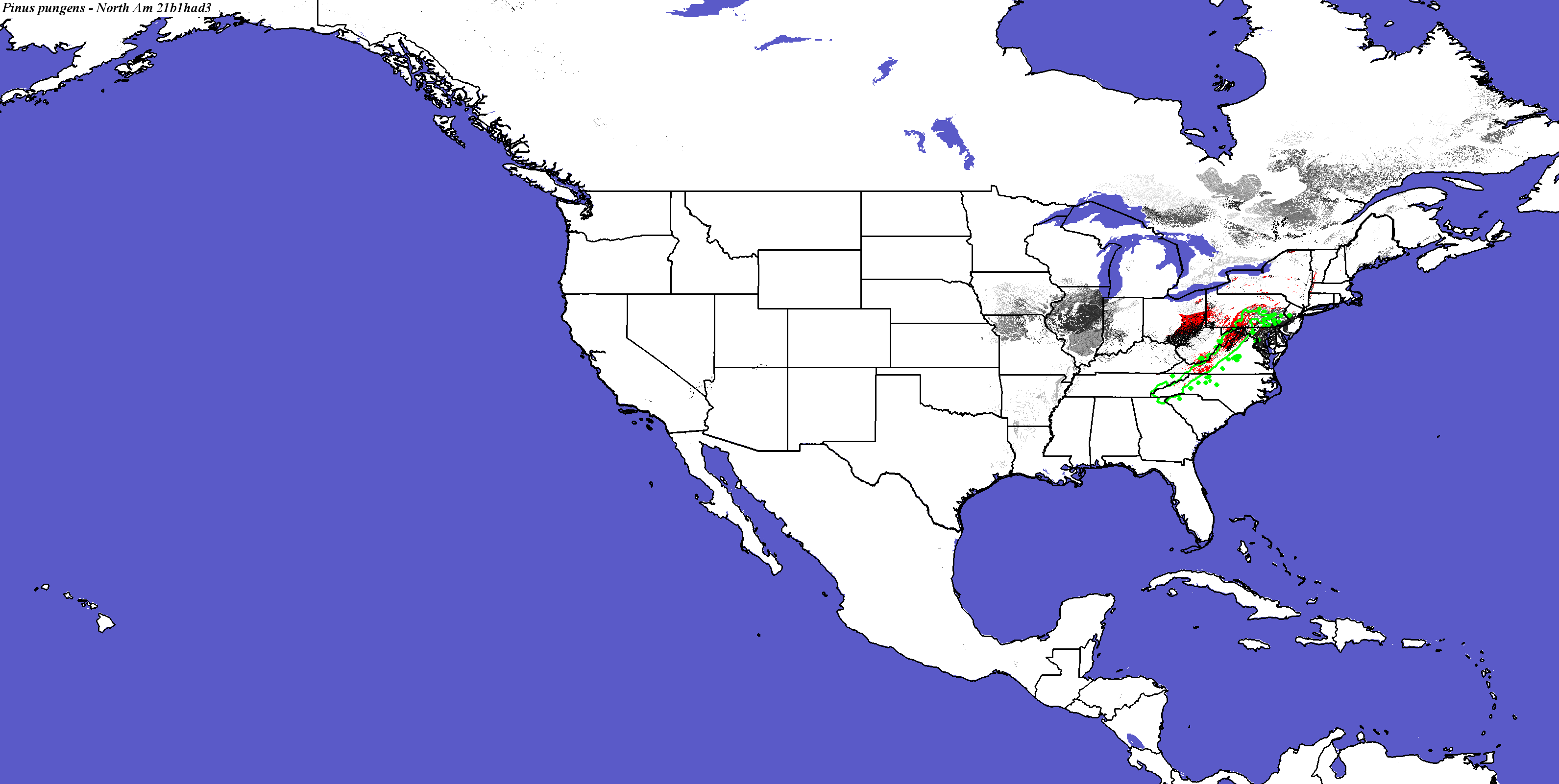

Hadley, Scenario B1, 2100 - Pinus pungens - CONUS
Compare with Pinus pungens modeled for Hadley B1 in 2100 by Iverson and Prasad
Pinus pungens not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Pinus pungens - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Pinus_pungens_final.elev

Number of Suitable Ecoregions (Niche Breadth)

18

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

66.4384

Area in Present Suitable Range (in km2)

159958

Area in Future Suitable Range (Had B1 2050, in km2)

78327

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

60767

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

37.9800

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

73.9726

Percent Change in Area of Suitable Range (Had B1 2050)

-51.0300

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

81.0959

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

75274.3 +/- 188087

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

2.73973

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

28.7558 +/- 66.9713

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

3.42466

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

65.2 +/- 108.351

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

51.6438

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

82.3288

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

51060

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

31.9200

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

40.137

Present and Future Ranges - Hadley, Scenario B1, 2050 - Pinus pungens Pinus pungens - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Pinus_pungens_final.elev Fine MRM Distance

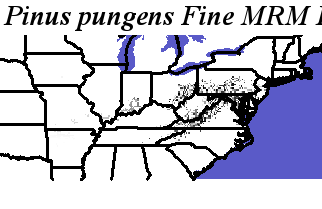

Pinus_pungens_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus pungens Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Pinus pungens

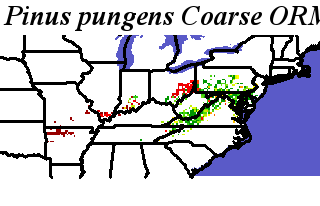

Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Pinus_pungens_final.elev Coarse MRM Distance
Pinus_pungens_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus pungens Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Pinus pungens
