Version 5 Tree Atlas


Pinus resinosa

red pine

elev

Pinus resinosa Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Pinus resinosa

USDA Plants Database entry for Pinus resinosa
Silvics Manual entry for Pinus resinosa


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
2398252423Parts of range not well sampled

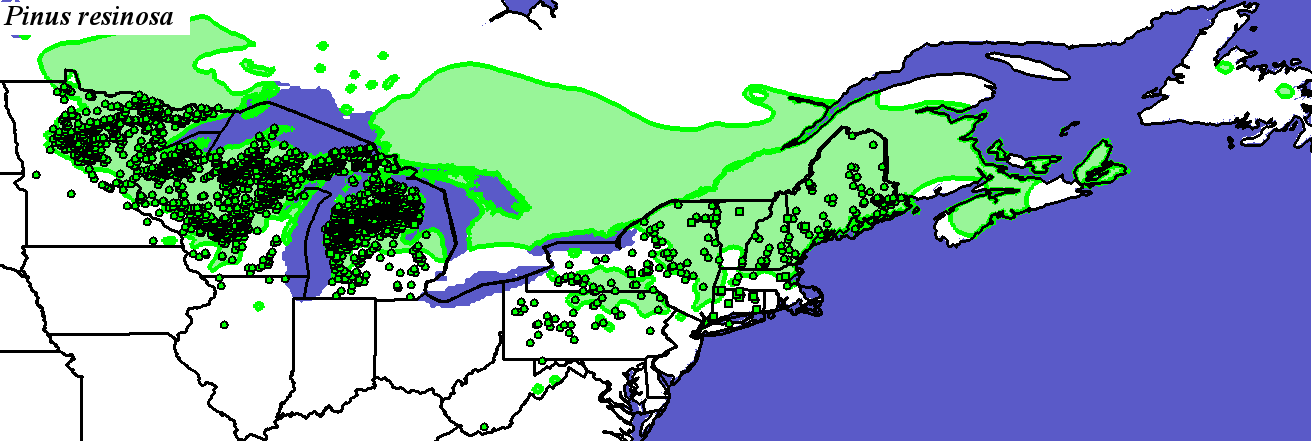

Occurrence Locations and Hargrove's Present Suitable Range Outline
Pinus_resinosa_final Occurrences

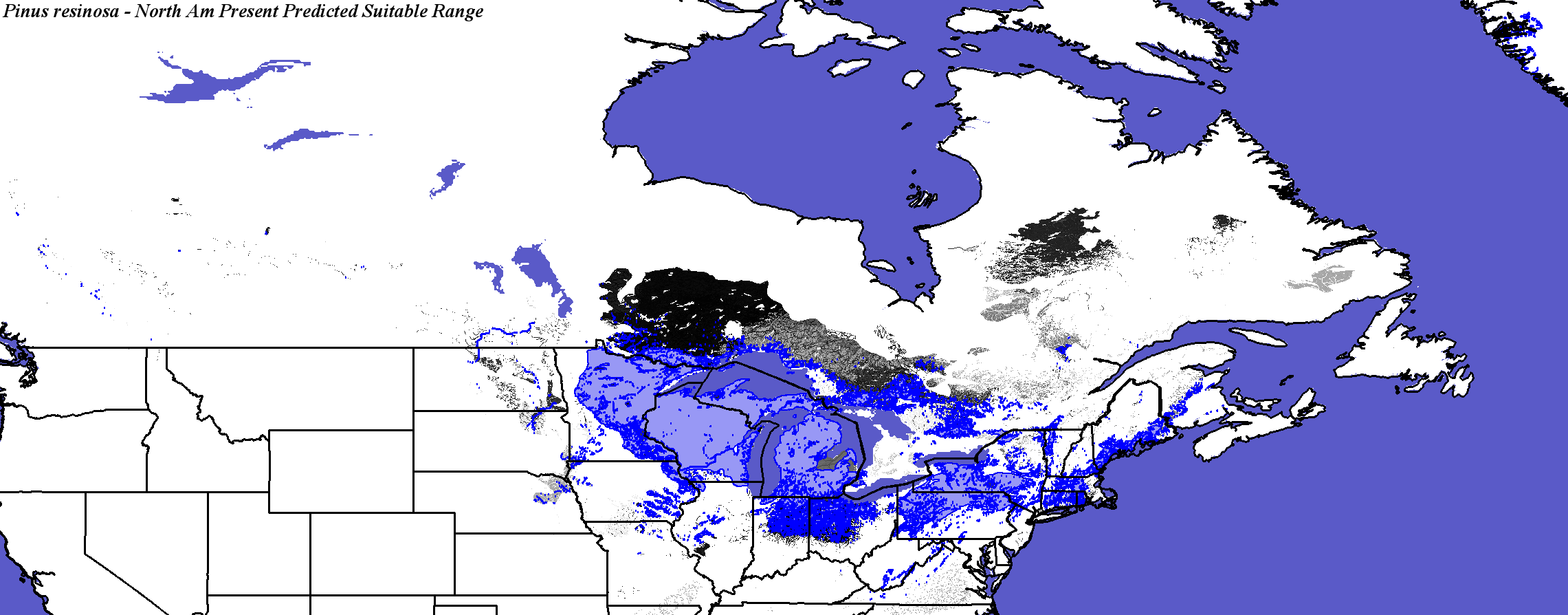

Hargroves Present Suitable Range Outline for Pinus_resinosa_final
Pinus resinosa - Occurrence Locations Pinus resinosa - Hargrove's Present Suitable Range Outline
Present Conditions
Pinus_resinosa_final.4.conus
Pinus_resinosa_final.4.global

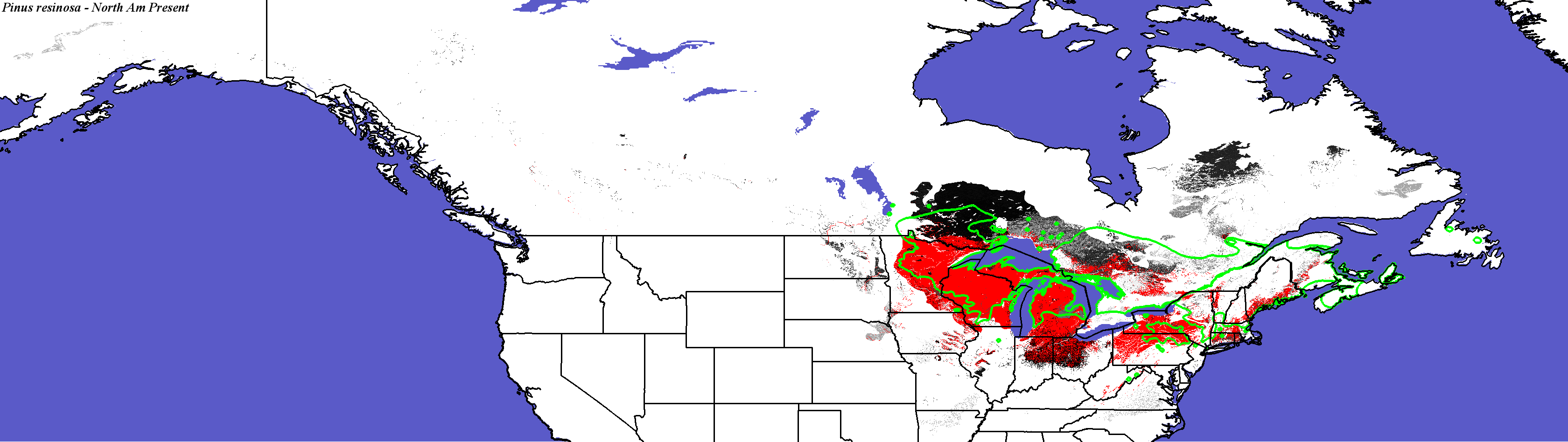

Pinus resinosa - CONUS
Compare with Current Range from the Silvics Manual for Pinus resinosa
Compare with Current Range from Biota of North America Program (BONAP) for Pinus resinosa

Compare with Pinus resinosa modeled for Current conditions by Iverson and Prasad
Pinus resinosa not modeled by Crookston and Rehfeldt
Pinus resinosa not modeled by Coops and Waring

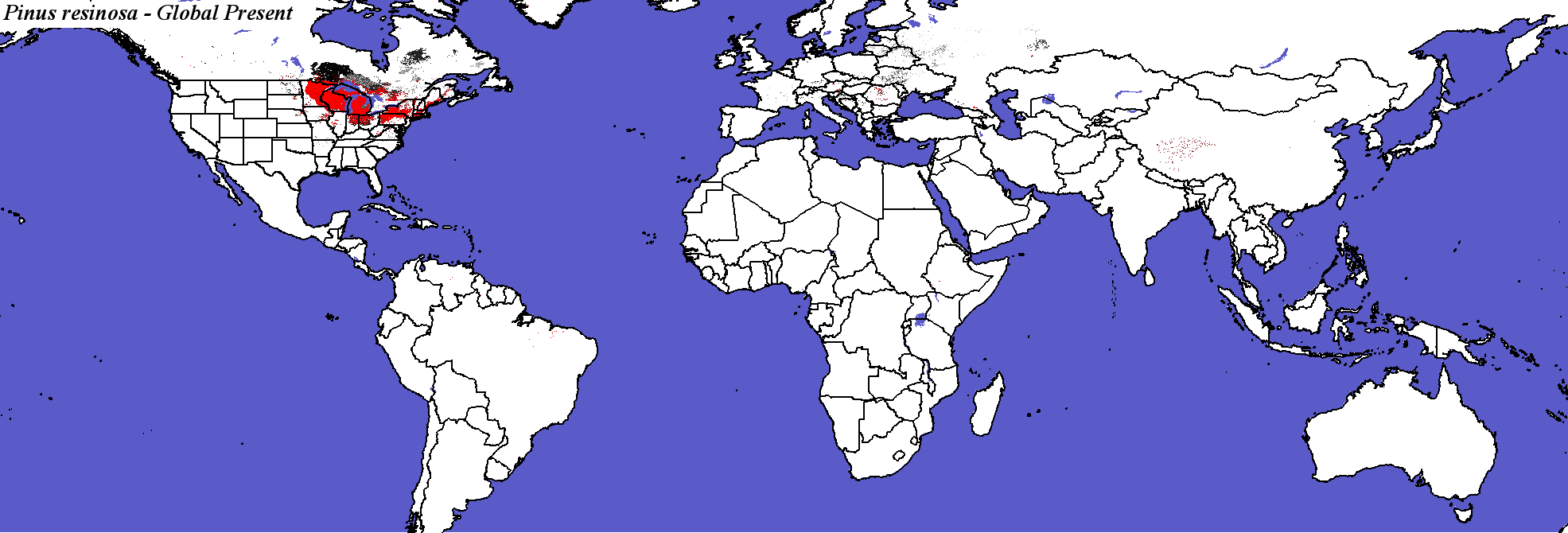

Pinus resinosa - Global

PCM - Parallel Climate Model
Pinus_resinosa_final.4.conus
Pinus_resinosa_final.4.global

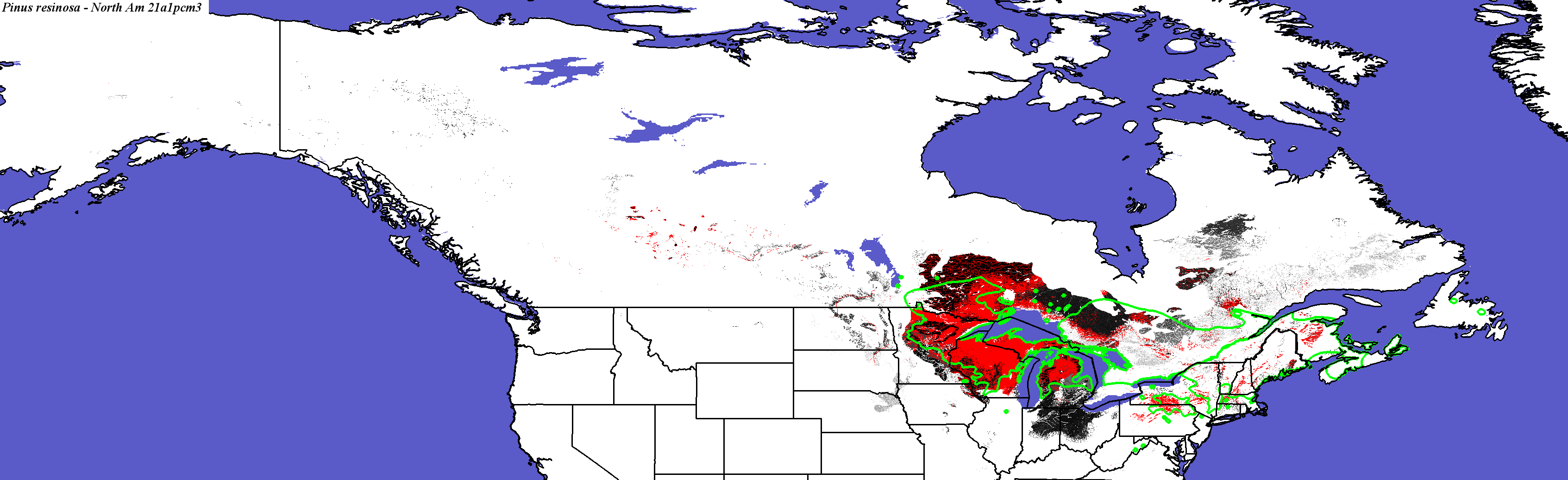

PCM, Scenario A1FI, 2050 - Pinus resinosa - CONUS

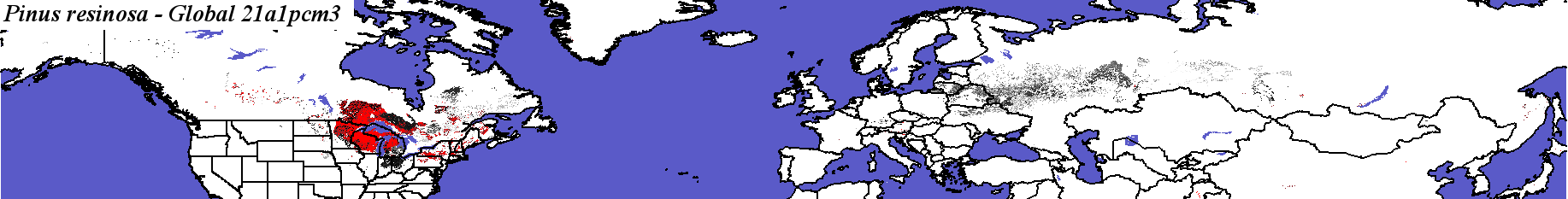

PCM, Scenario A1FI, 2050 - Pinus resinosa - Global
Pinus_resinosa_final.4.conus
Pinus_resinosa_final.4.global
PCM, Scenario A1FI, 2100 - Pinus resinosa - CONUS
Compare with Pinus resinosa modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Pinus resinosa - Global

Pinus_resinosa_final.4.conus
Pinus_resinosa_final.4.global

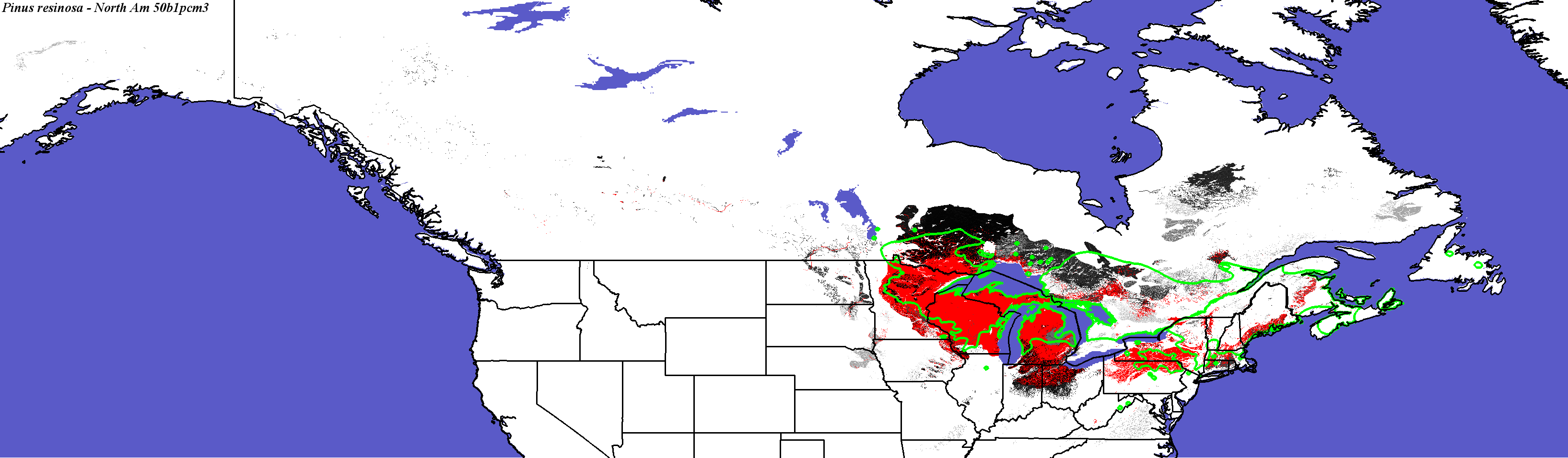

PCM, Scenario B1, 2050 - Pinus resinosa - CONUS
PCM, Scenario B1, 2050 - Pinus resinosa - Global
Pinus_resinosa_final.4.conus
Pinus_resinosa_final.4.global

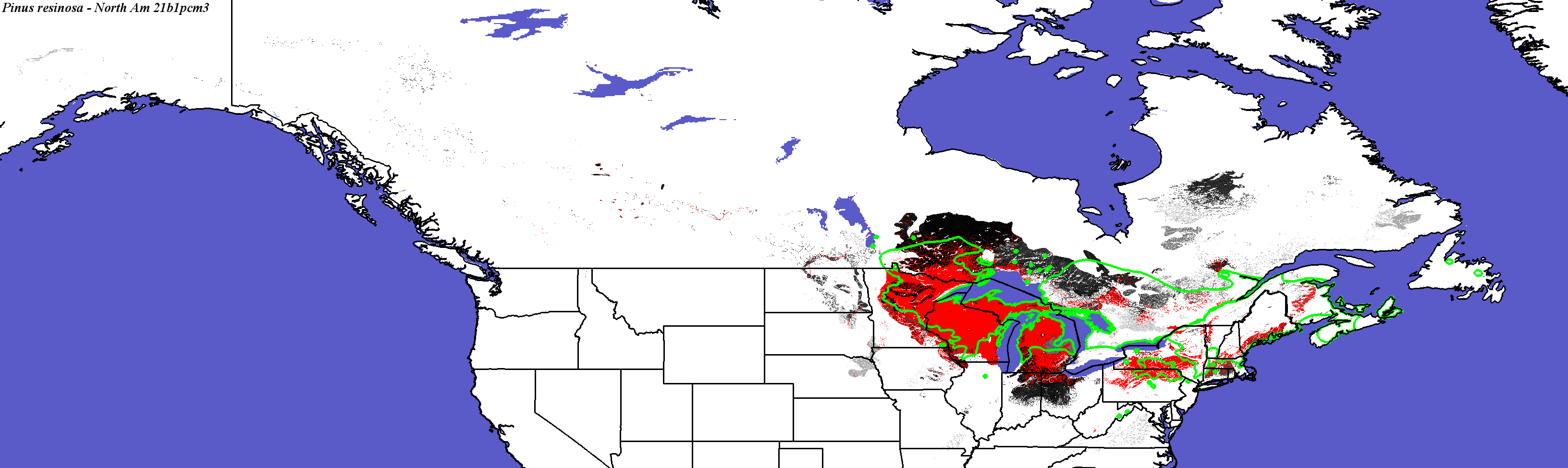

PCM, Scenario B1, 2100 - Pinus resinosa - CONUS
Compare with Pinus resinosa modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Pinus resinosa - Global

Hadley Climate Model
Pinus_resinosa_final.4.conus
Pinus_resinosa_final.4.global
Hadley, Scenario A1FI, 2050 - Pinus resinosa - CONUS
Pinus resinosa not modeled by Crookston and Rehfeldt

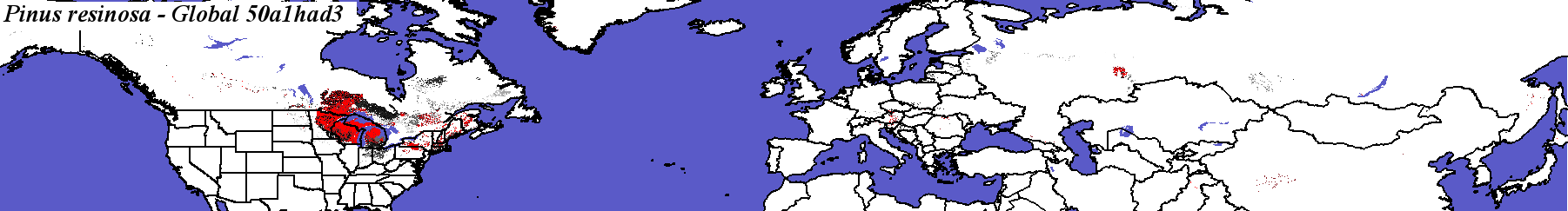

Hadley, Scenario A1FI, 2050 - Pinus resinosa - Global
Pinus_resinosa_final.4.conus
Pinus_resinosa_final.4.global.

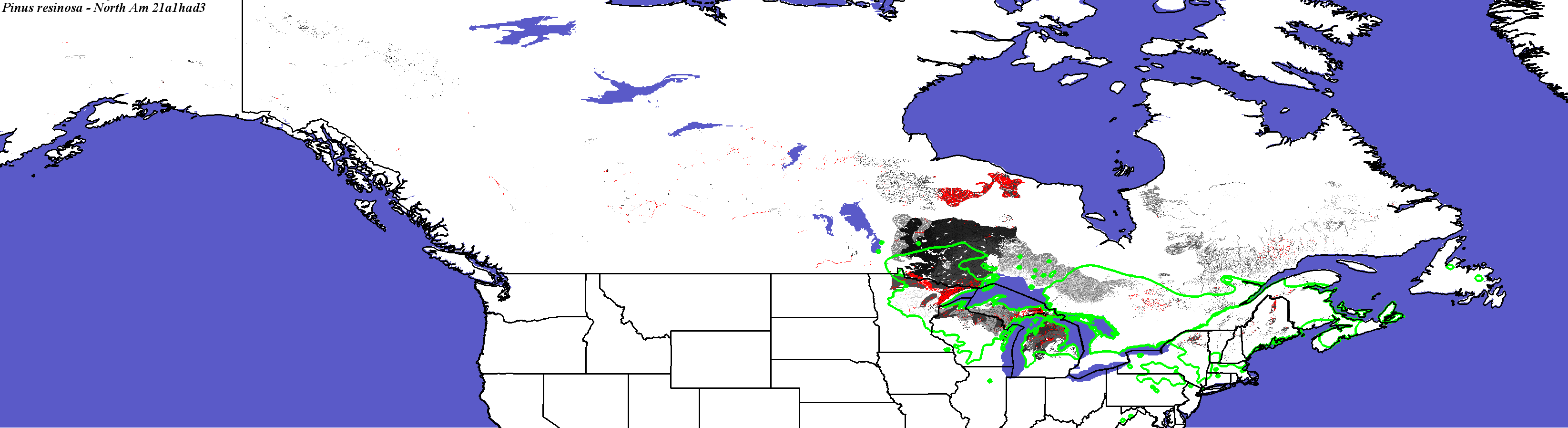

Hadley, Scenario A1FI, 2100 - Pinus resinosa - CONUS
Compare with Pinus resinosa modeled for Hadley A1FI in 2100 by Iverson and Prasad
Pinus resinosa not modeled by Crookston and Rehfeldt
Pinus resinosa not modeled by Coops and Waring

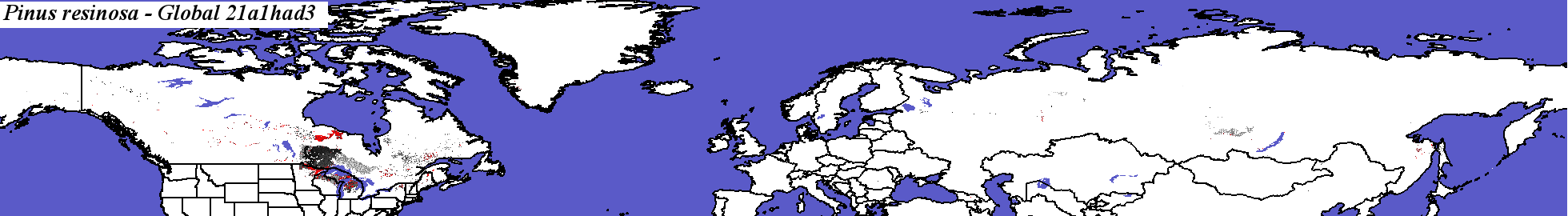

Hadley, Scenario A1FI, 2100 - Pinus resinosa - Global

Pinus_resinosa_final.4.conus
Pinus_resinosa_final.4.global.

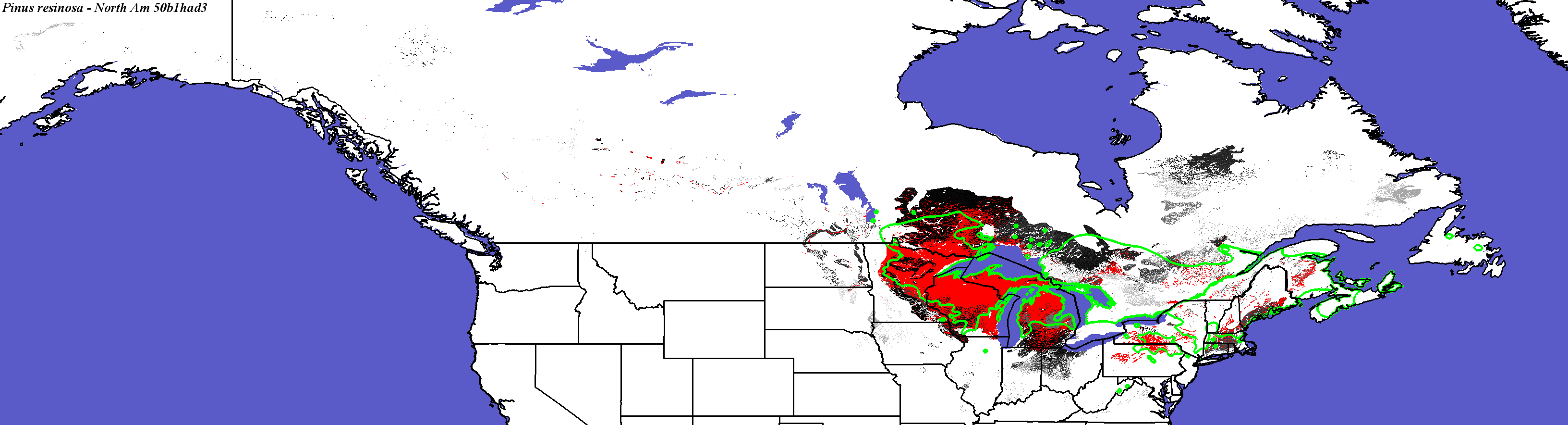

Hadley, Scenario B1, 2050 - Pinus resinosa - CONUS
Pinus resinosa not modeled by Crookston and Rehfeldt
Pinus resinosa not modeled by Coops and Waring

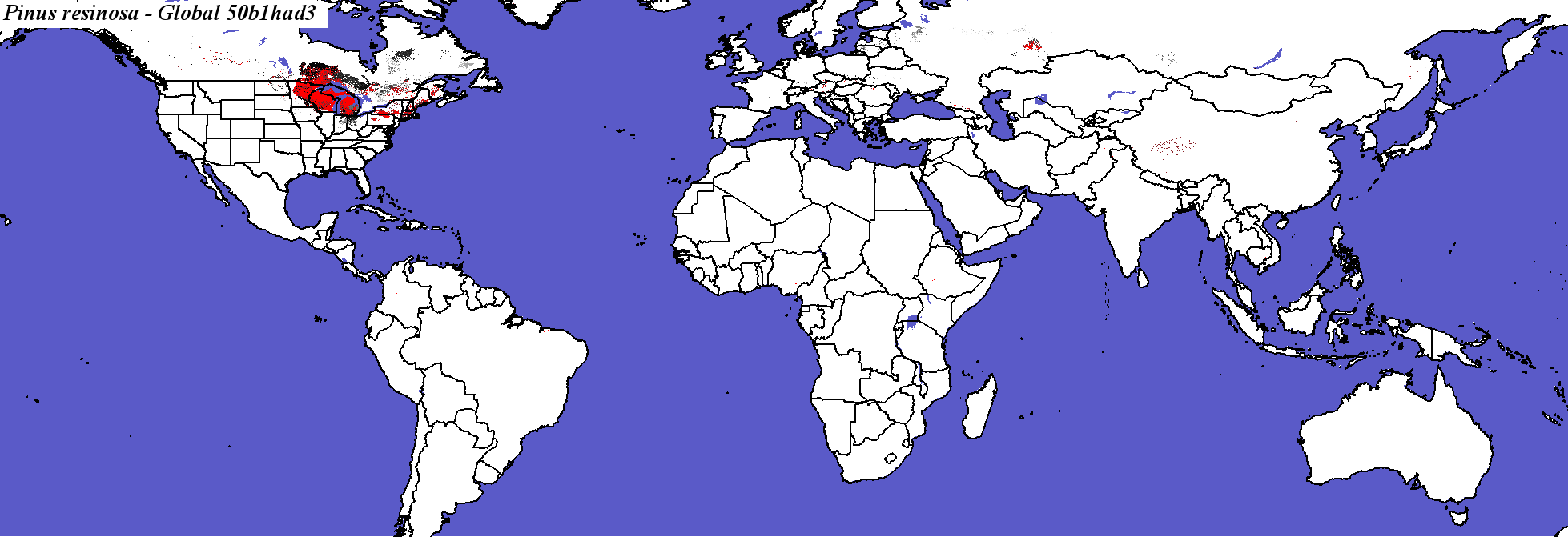

Hadley, Scenario B1, 2050 - Pinus resinosa - Global
Pinus_resinosa_final.4.conus
Pinus_resinosa_final.4.global

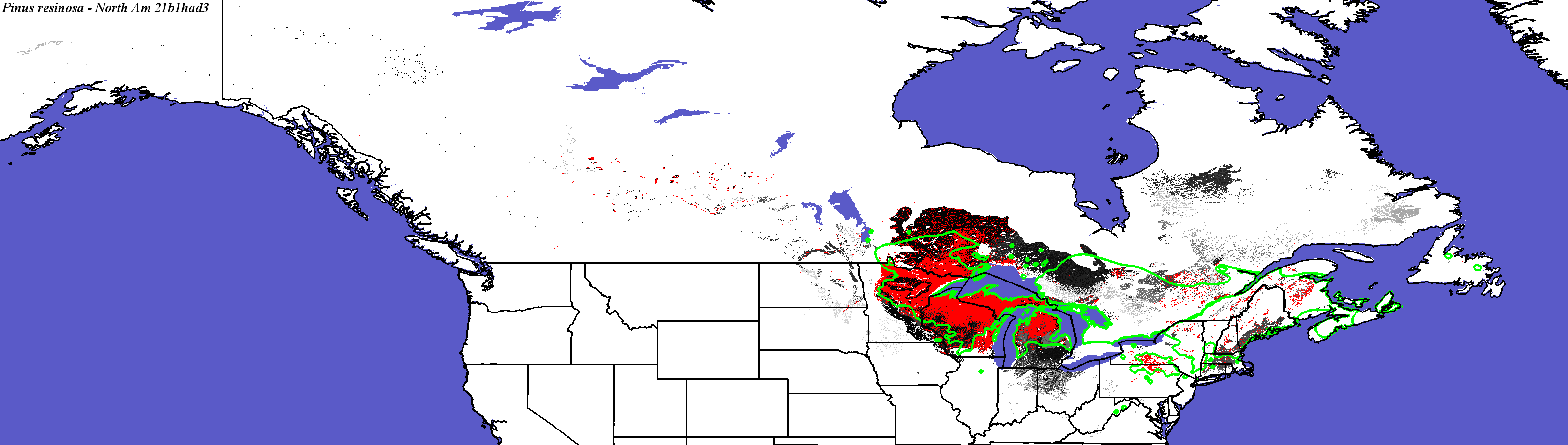

Hadley, Scenario B1, 2100 - Pinus resinosa - CONUS
Compare with Pinus resinosa modeled for Hadley B1 in 2100 by Iverson and Prasad
Pinus resinosa not modeled by Crookston and Rehfeldt

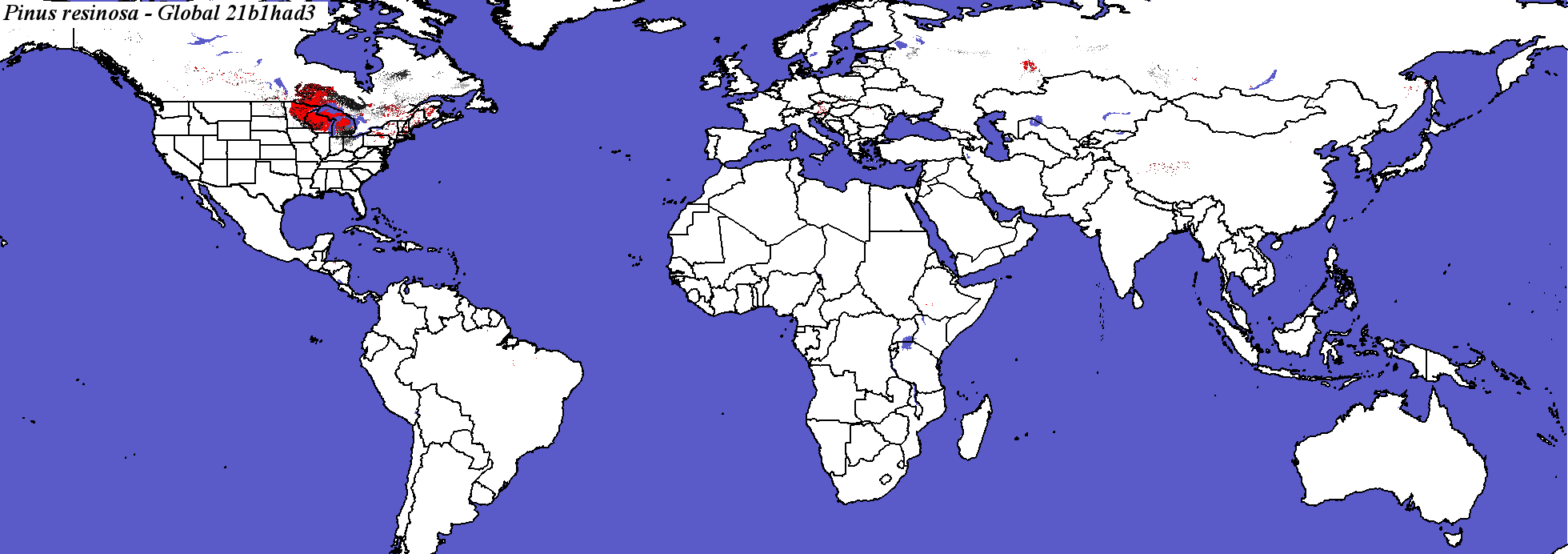

Hadley, Scenario B1, 2100 - Pinus resinosa - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Pinus_resinosa_final.elev

Number of Suitable Ecoregions (Niche Breadth)

99

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

20.8219

Area in Present Suitable Range (in km2)

640258

Area in Future Suitable Range (Had B1 2050, in km2)

447646

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

353252

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

55.1700

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

37.1233

Percent Change in Area of Suitable Range (Had B1 2050)

-30.0800

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

51.2329

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

19033.4 +/- 44156.7

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

37.3973

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

7.84791 +/- 17.4171

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

43.0137

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

34.5627 +/- 113.348

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

69.1781

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

676

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

.1000

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

68.4932

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

254171

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

39.6900

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

21.6438

Present and Future Ranges - Hadley, Scenario B1, 2050 - Pinus resinosa Pinus resinosa - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Pinus_resinosa_final.elev Fine MRM Distance
Pinus_resinosa_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus resinosa Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Pinus resinosa
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Pinus_resinosa_final.elev Coarse MRM Distance

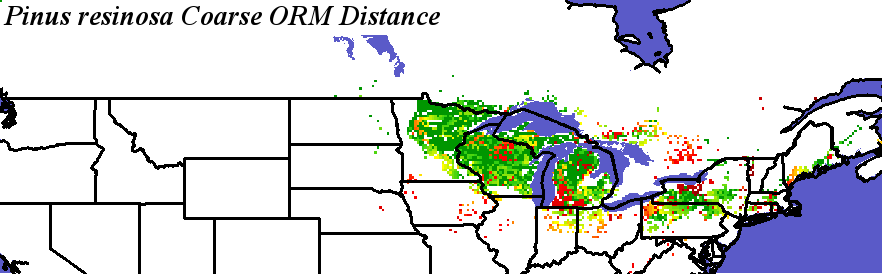

Pinus_resinosa_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus resinosa Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Pinus resinosa
