Version 5 Tree Atlas


Pinus virginiana

Virginia pine

elev

Pinus virginiana Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Pinus virginiana

USDA Plants Database entry for Pinus virginiana
Silvics Manual entry for Pinus virginiana


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
2558812639TBD

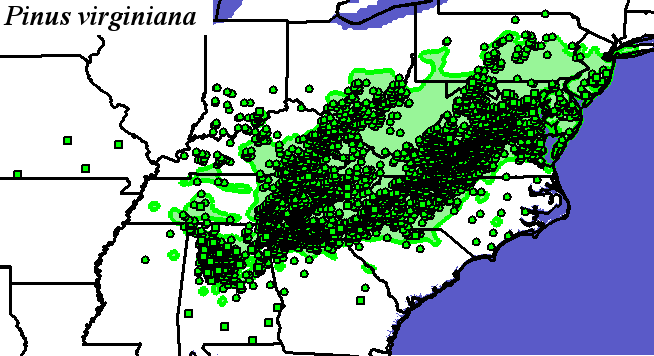

Occurrence Locations and Hargrove's Present Suitable Range Outline
Pinus_virginiana_final Occurrences

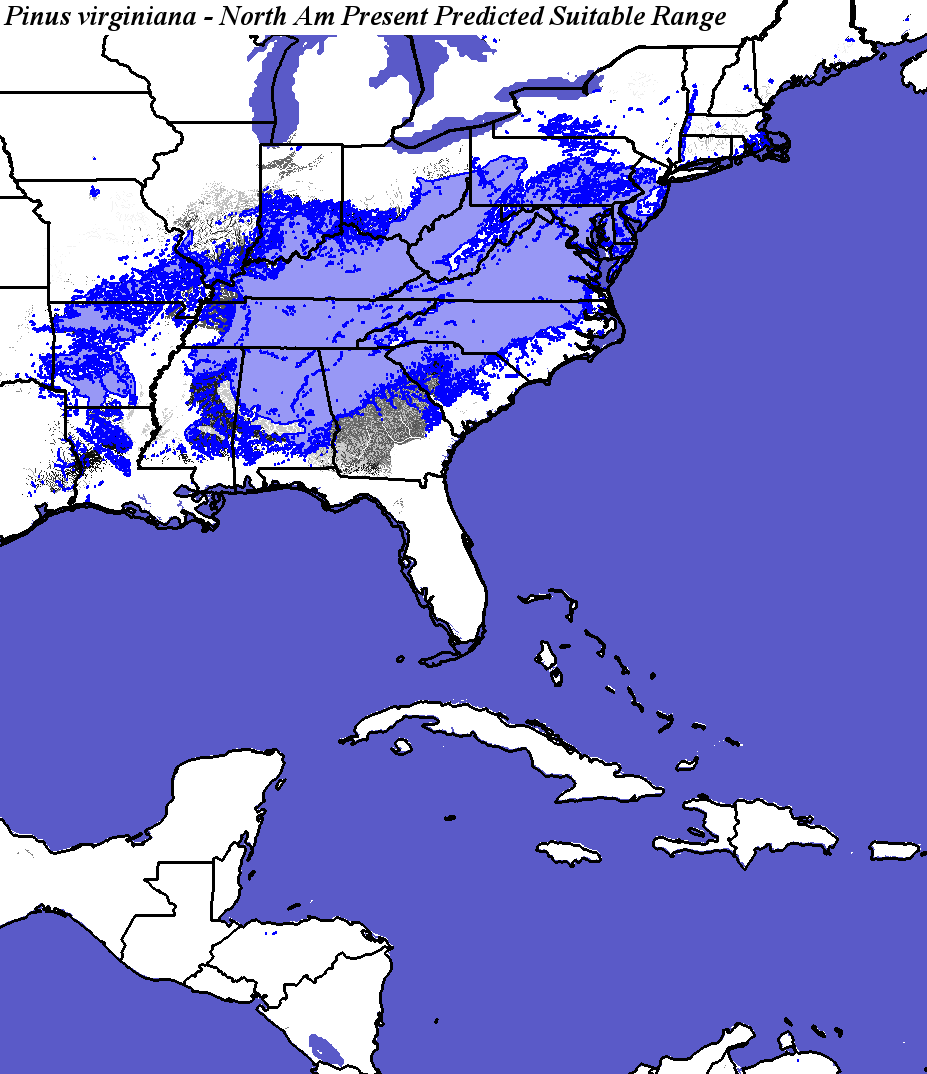

Hargroves Present Suitable Range Outline for Pinus_virginiana_final
Pinus virginiana - Occurrence Locations Pinus virginiana - Hargrove's Present Suitable Range Outline
Present Conditions
Pinus_virginiana_final.3.conus
Pinus_virginiana_final.3.global

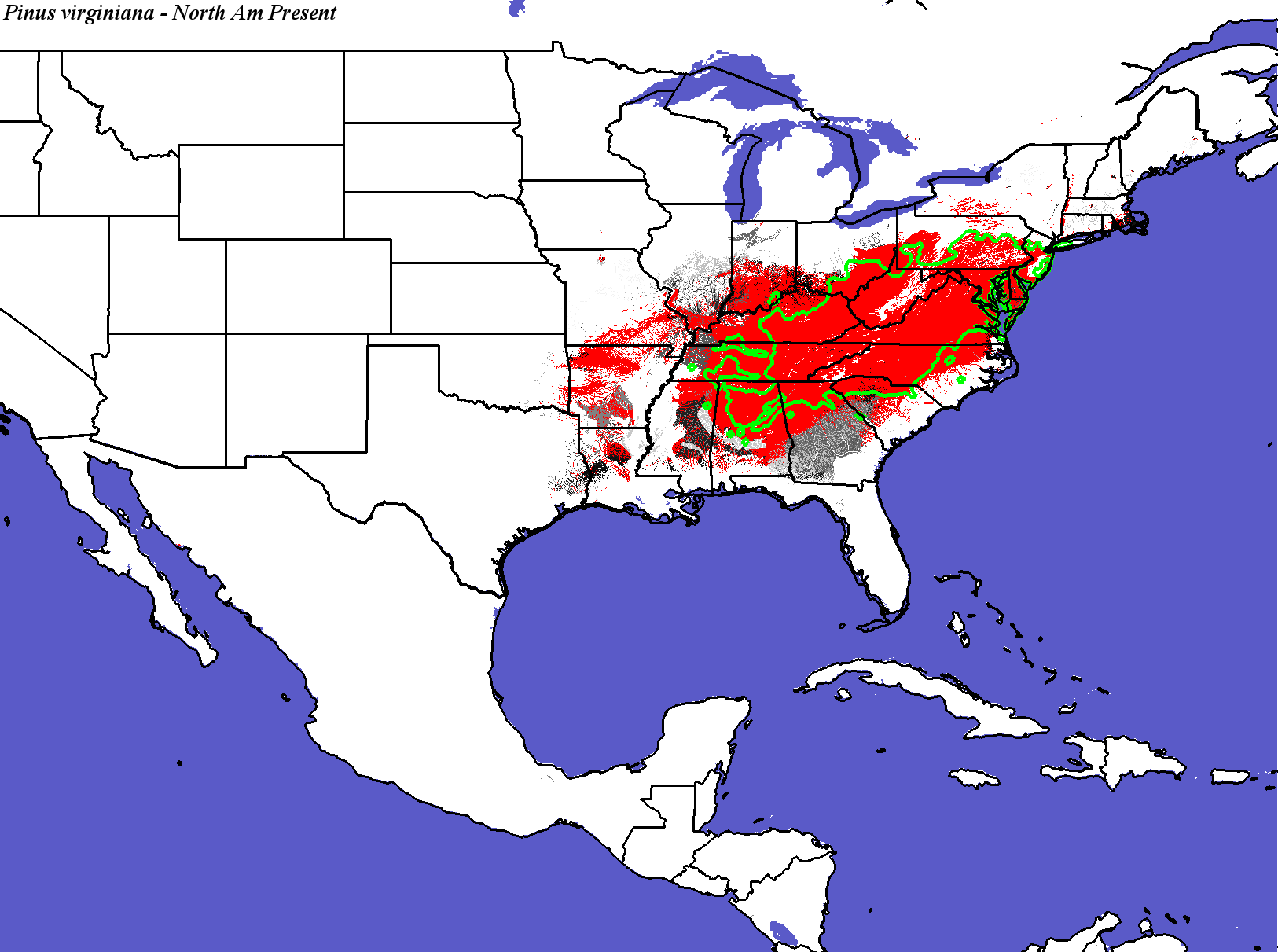

Pinus virginiana - CONUS
Compare with Current Range from the Silvics Manual for Pinus virginiana
Compare with Current Range from Biota of North America Program (BONAP) for Pinus virginiana

Compare with Pinus virginiana modeled for Current conditions by Iverson and Prasad
Pinus virginiana not modeled by Crookston and Rehfeldt
Pinus virginiana not modeled by Coops and Waring
Pinus virginiana - Global

PCM - Parallel Climate Model
Pinus_virginiana_final.3.conus
Pinus_virginiana_final.3.global

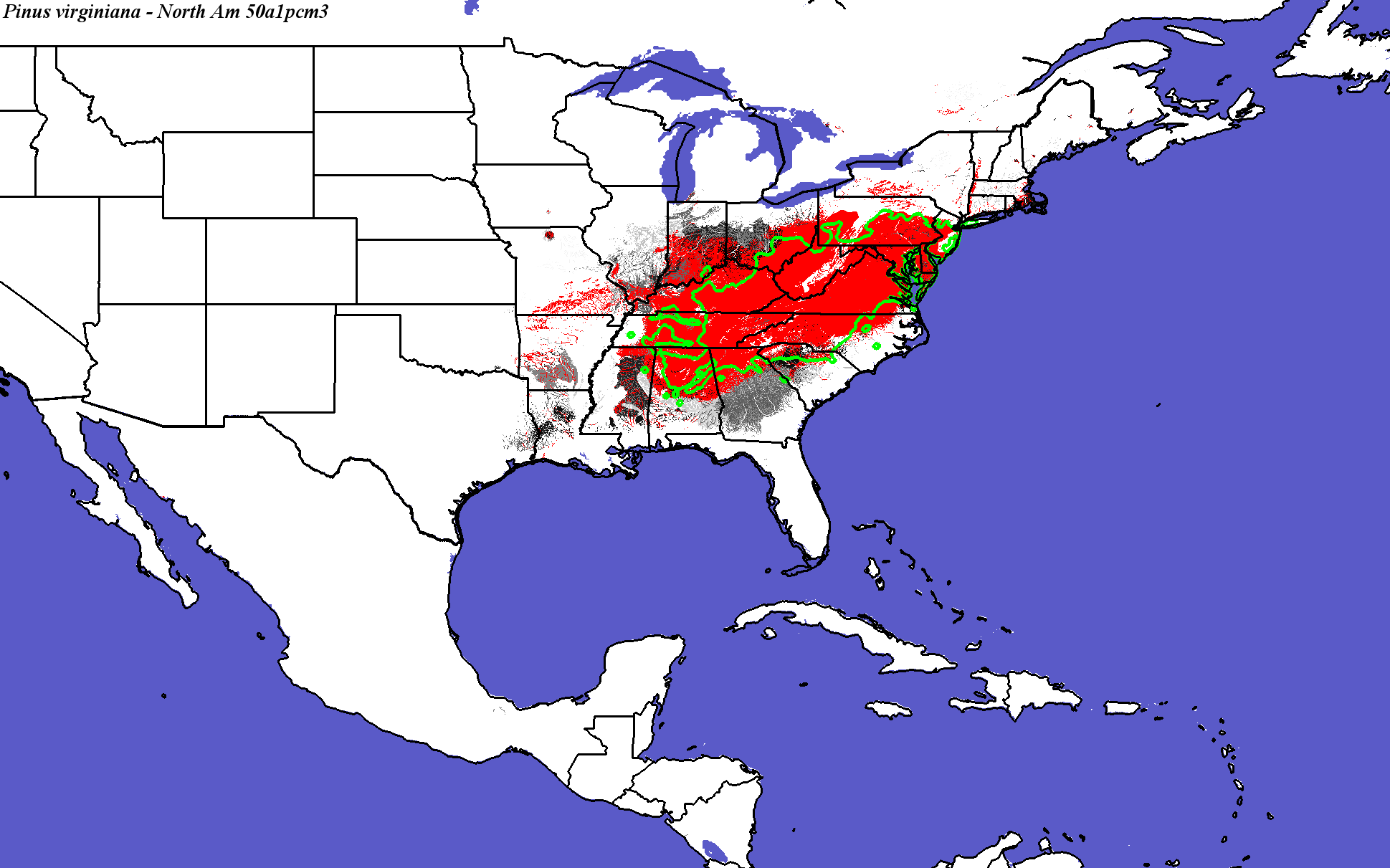

PCM, Scenario A1FI, 2050 - Pinus virginiana - CONUS

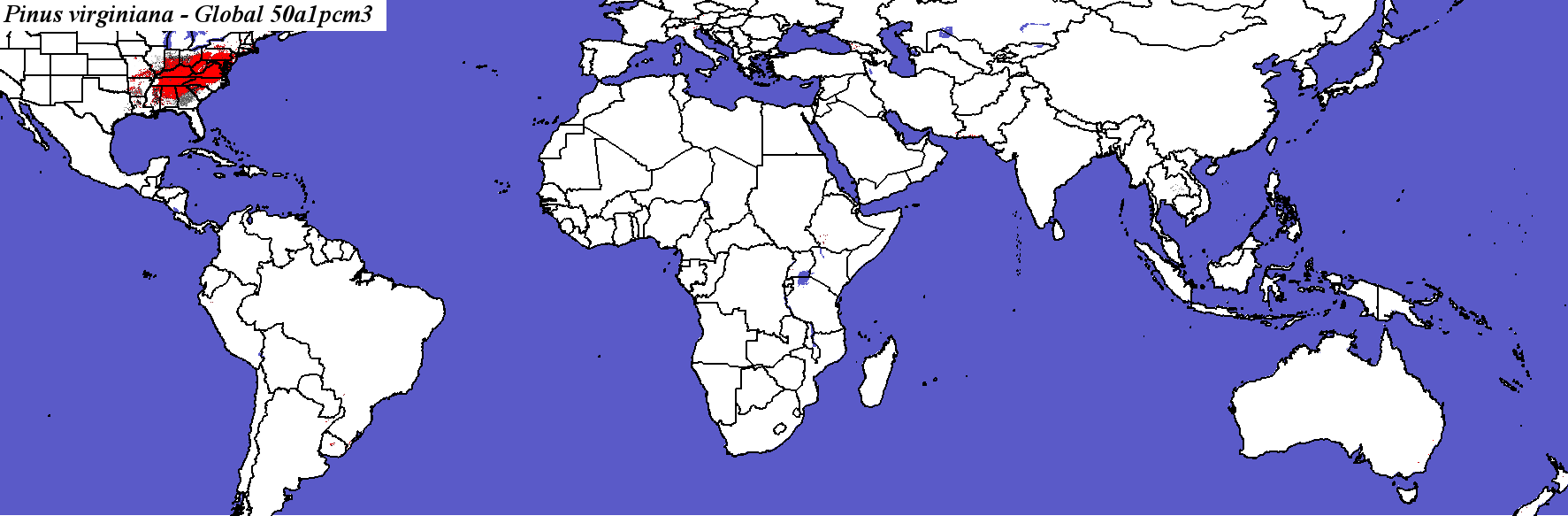

PCM, Scenario A1FI, 2050 - Pinus virginiana - Global
Pinus_virginiana_final.3.conus
Pinus_virginiana_final.3.global
PCM, Scenario A1FI, 2100 - Pinus virginiana - CONUS
Compare with Pinus virginiana modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Pinus virginiana - Global

Pinus_virginiana_final.3.conus
Pinus_virginiana_final.3.global

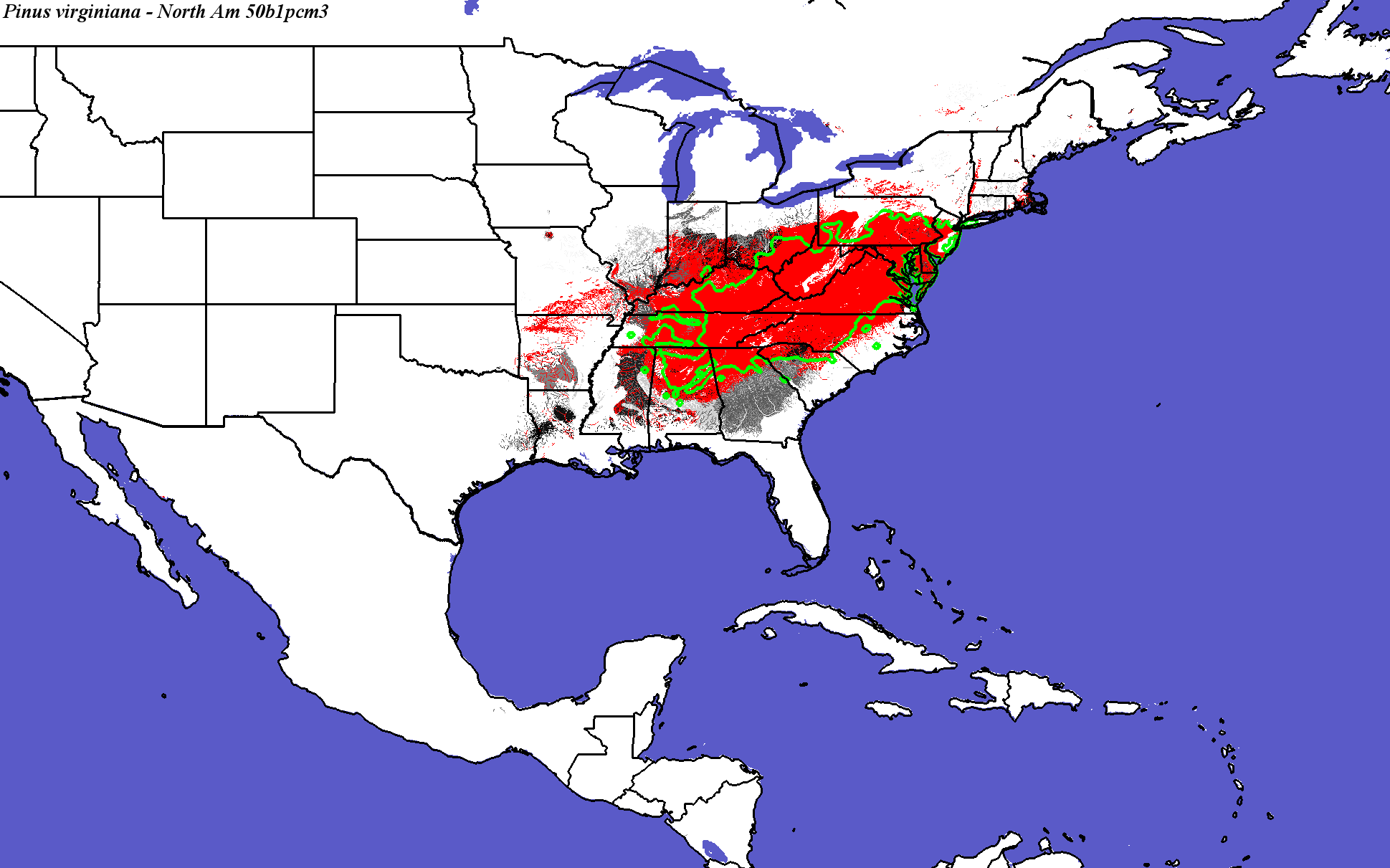

PCM, Scenario B1, 2050 - Pinus virginiana - CONUS
PCM, Scenario B1, 2050 - Pinus virginiana - Global
Pinus_virginiana_final.3.conus
Pinus_virginiana_final.3.global

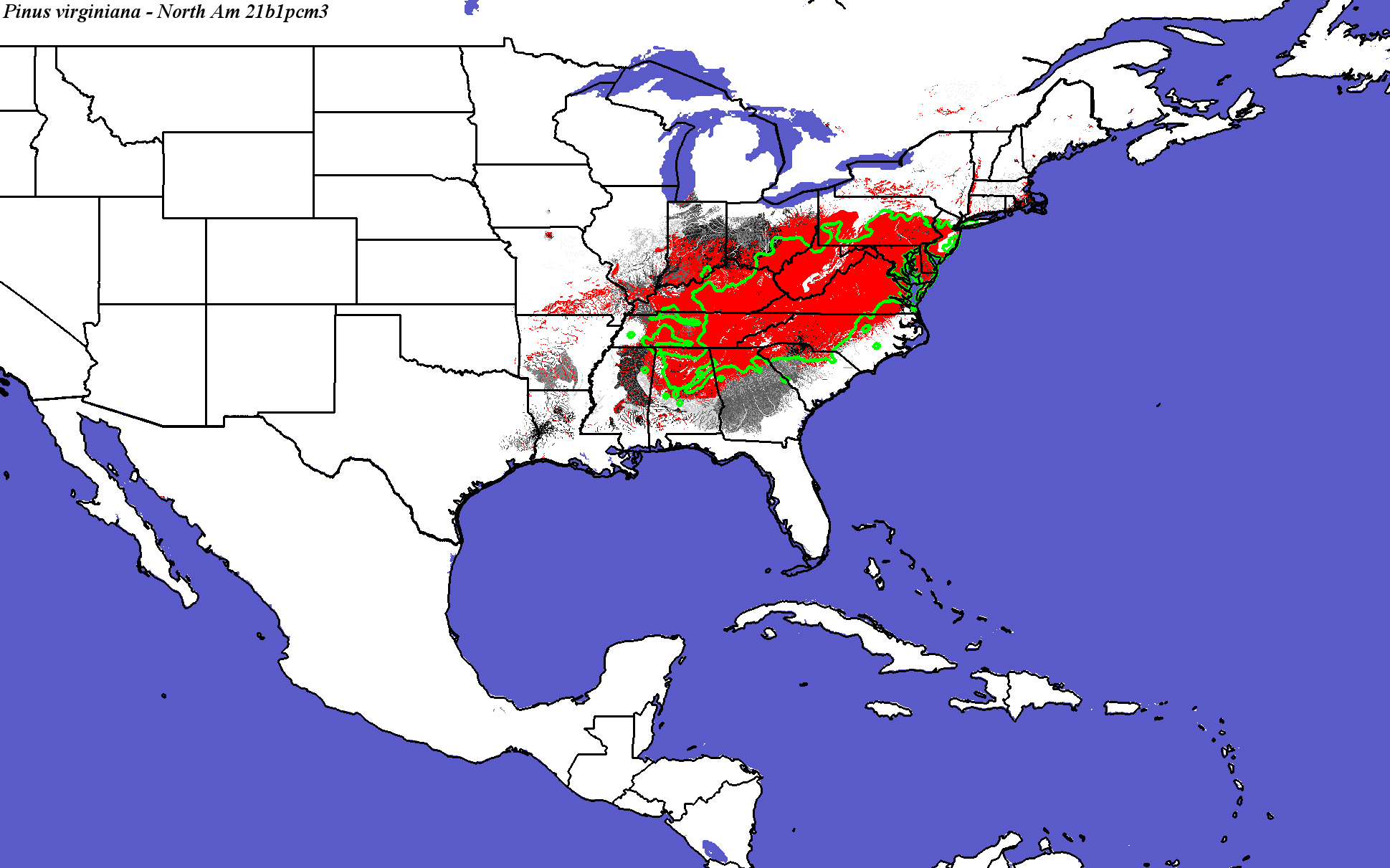

PCM, Scenario B1, 2100 - Pinus virginiana - CONUS
Compare with Pinus virginiana modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Pinus virginiana - Global

Hadley Climate Model
Pinus_virginiana_final.3.conus
Pinus_virginiana_final.3.global

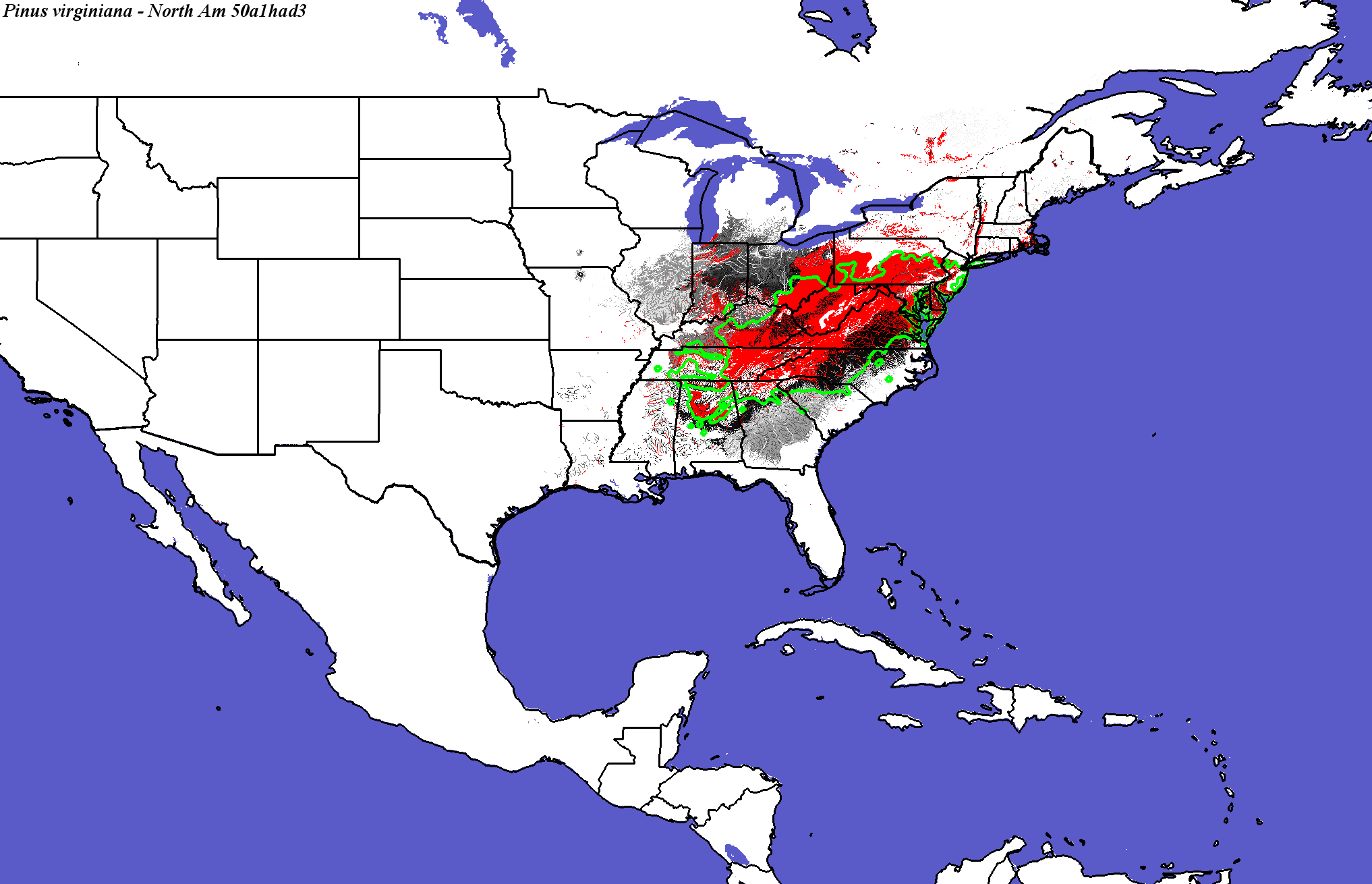

Hadley, Scenario A1FI, 2050 - Pinus virginiana - CONUS
Pinus virginiana not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Pinus virginiana - Global
Pinus_virginiana_final.3.conus
Pinus_virginiana_final.3.global.

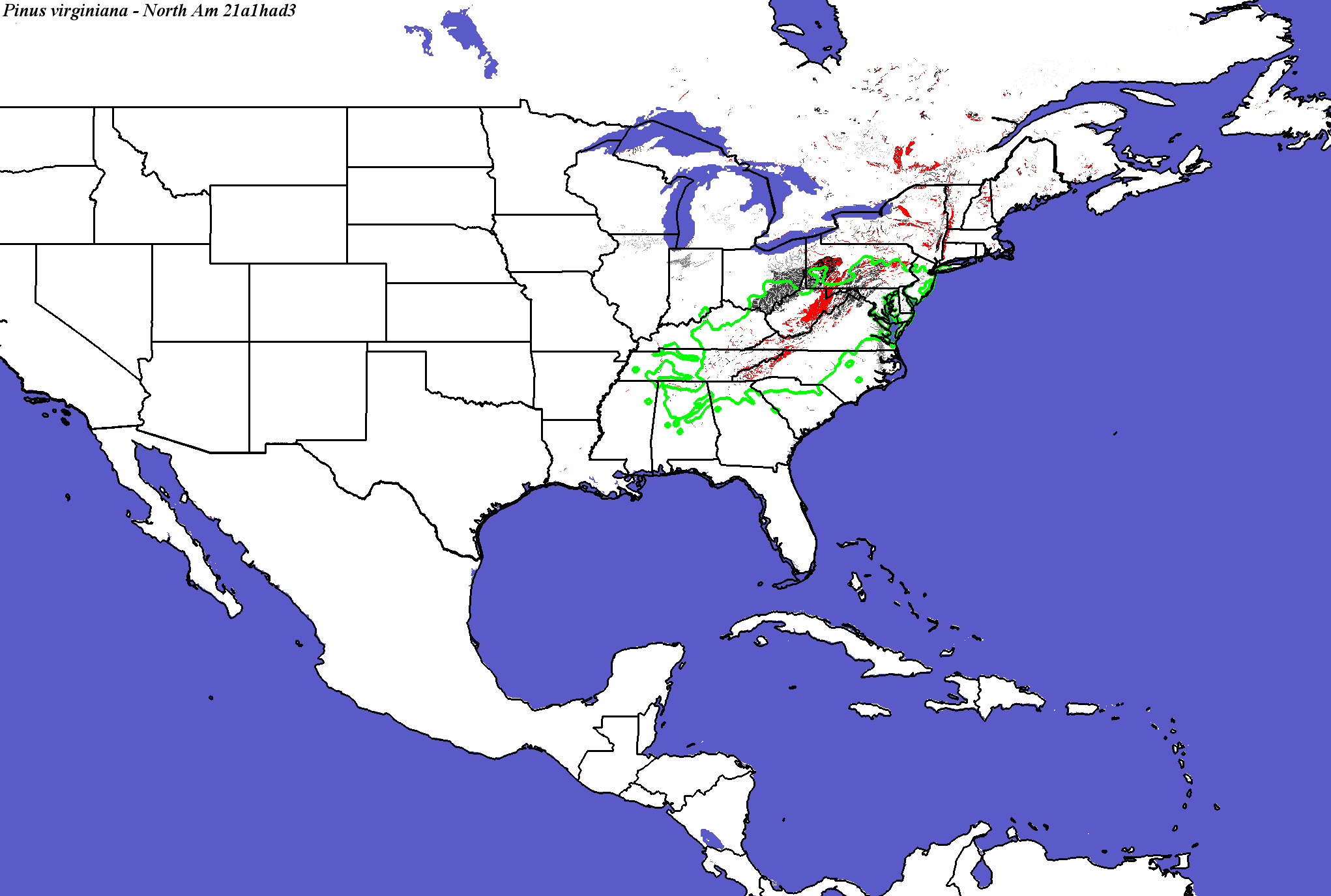

Hadley, Scenario A1FI, 2100 - Pinus virginiana - CONUS
Compare with Pinus virginiana modeled for Hadley A1FI in 2100 by Iverson and Prasad
Pinus virginiana not modeled by Crookston and Rehfeldt
Pinus virginiana not modeled by Coops and Waring

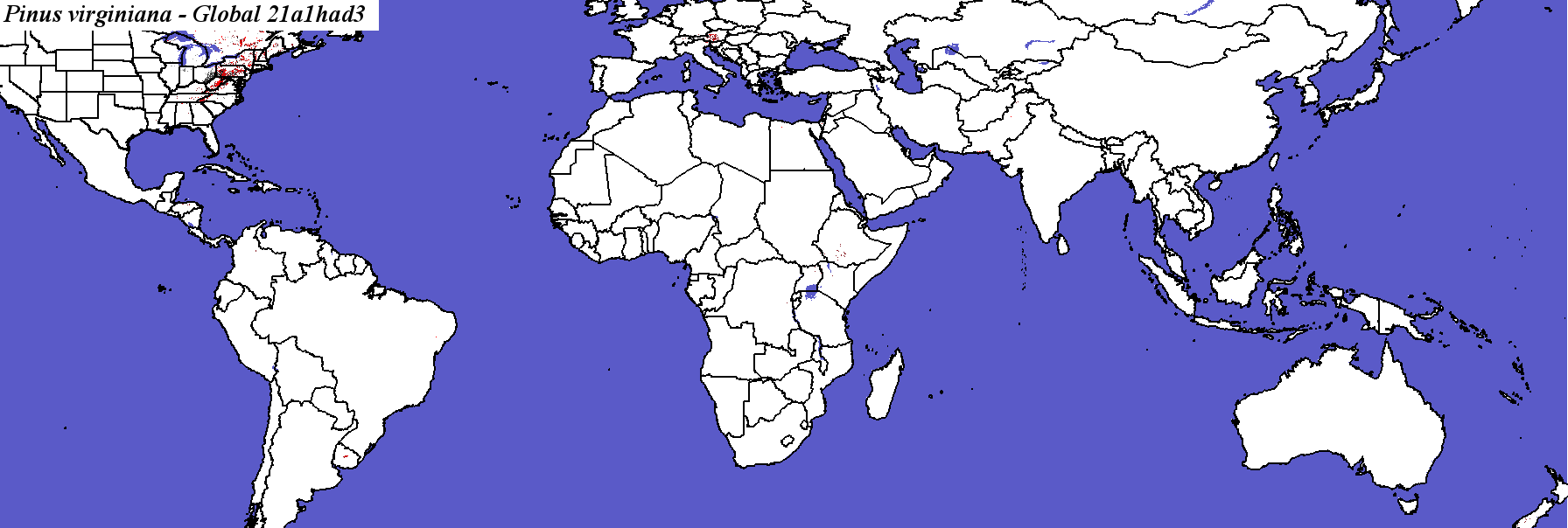

Hadley, Scenario A1FI, 2100 - Pinus virginiana - Global

Pinus_virginiana_final.3.conus
Pinus_virginiana_final.3.global.

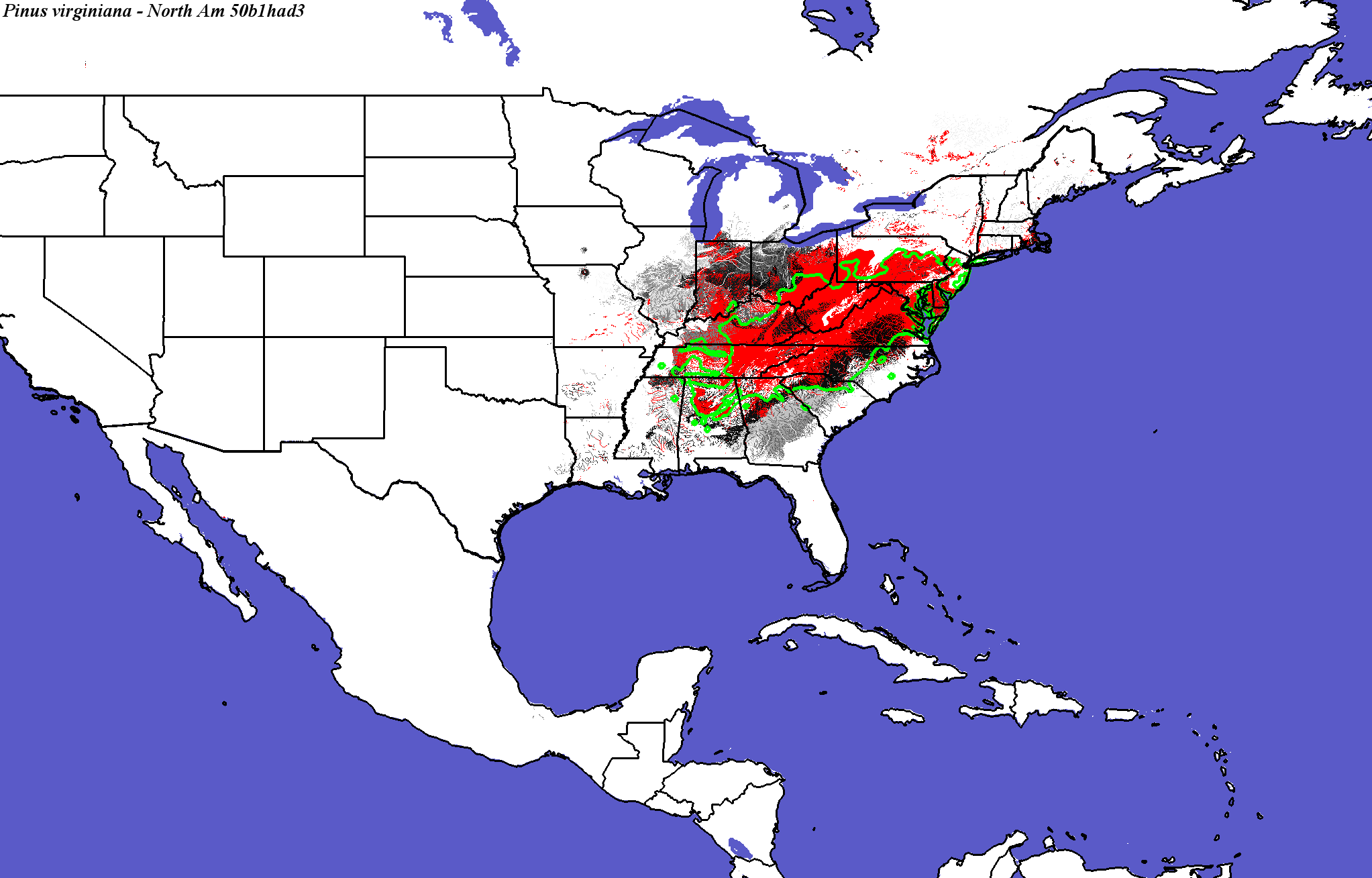

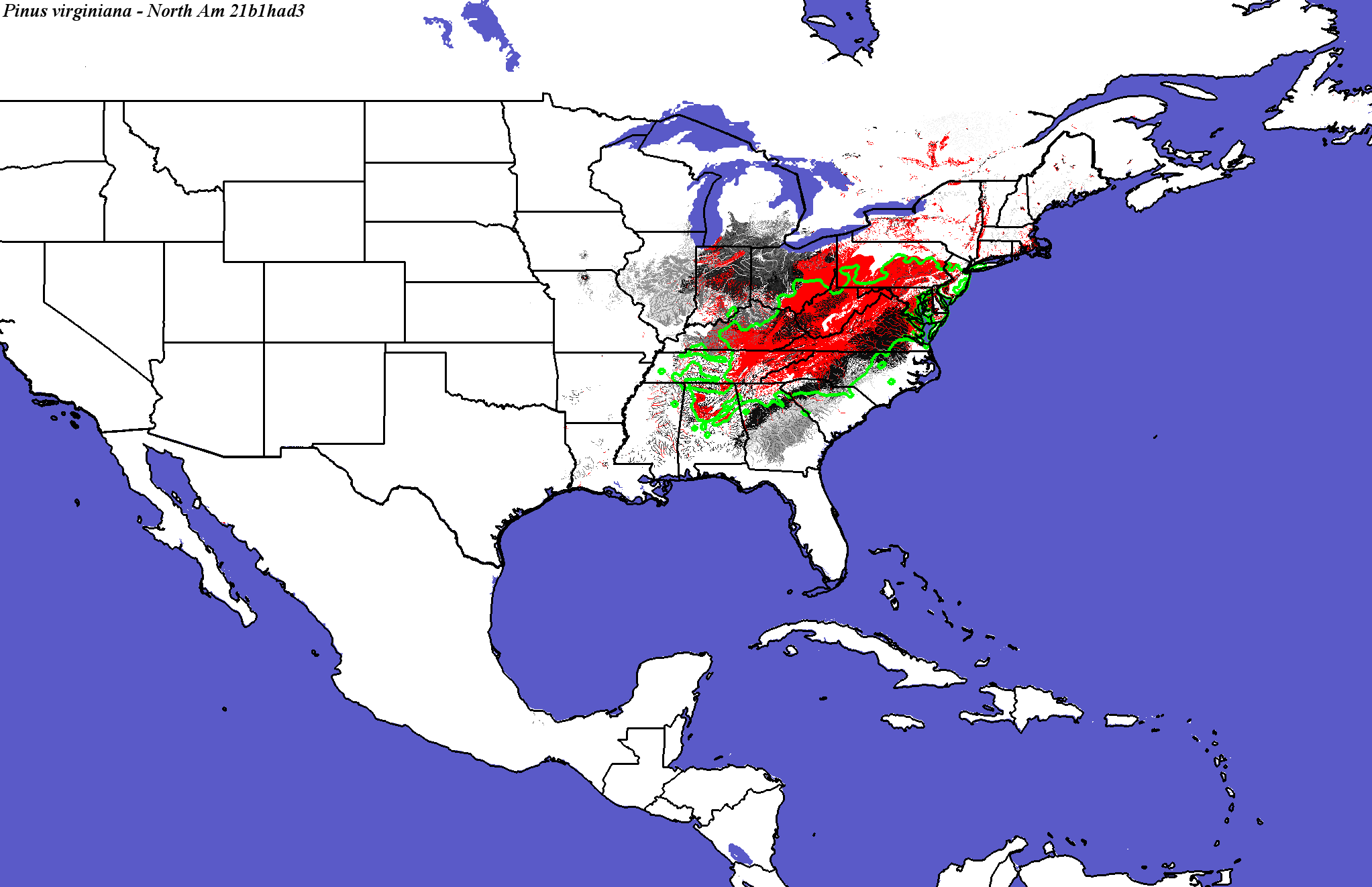

Hadley, Scenario B1, 2050 - Pinus virginiana - CONUS
Pinus virginiana not modeled by Crookston and Rehfeldt
Pinus virginiana not modeled by Coops and Waring

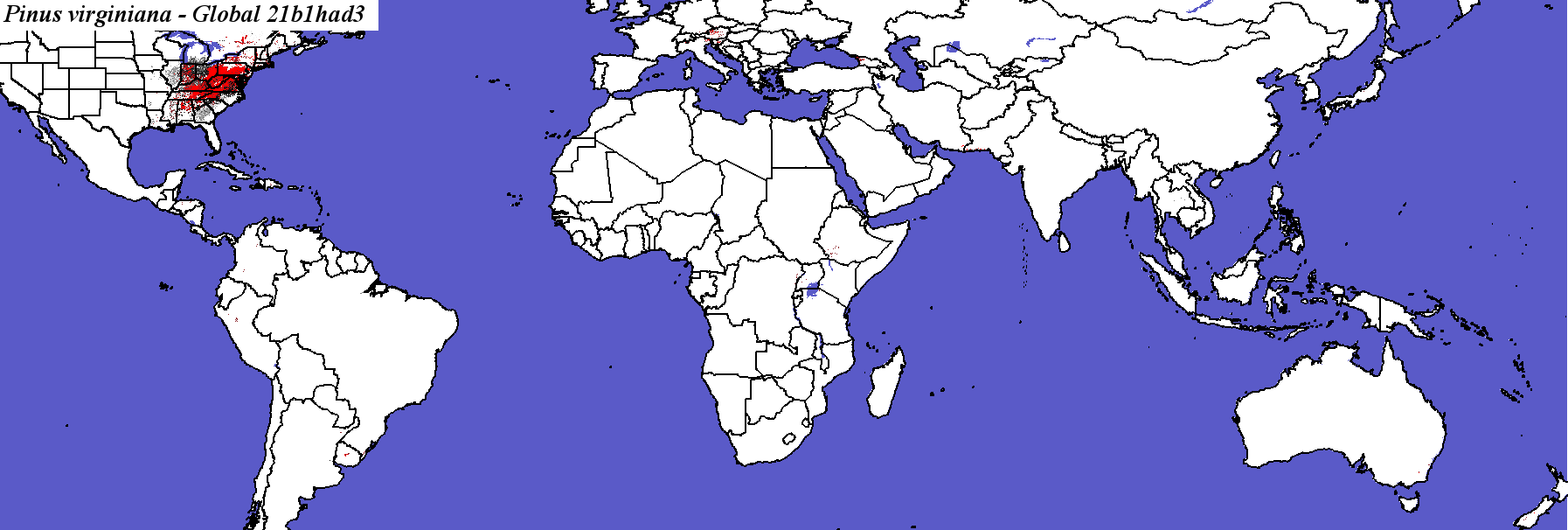

Hadley, Scenario B1, 2050 - Pinus virginiana - Global
Pinus_virginiana_final.3.conus
Pinus_virginiana_final.3.global
Hadley, Scenario B1, 2100 - Pinus virginiana - CONUS
Compare with Pinus virginiana modeled for Hadley B1 in 2100 by Iverson and Prasad
Pinus virginiana not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Pinus virginiana - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Pinus_virginiana_final.elev

Number of Suitable Ecoregions (Niche Breadth)

106

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

19.726

Area in Present Suitable Range (in km2)

868231

Area in Future Suitable Range (Had B1 2050, in km2)

514731

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

441275

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

50.8200

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

49.1781

Percent Change in Area of Suitable Range (Had B1 2050)

-40.7100

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

69.589

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

13093.4 +/- 25026.3

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

55.3425

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

7.30289 +/- 19.2914

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

48.2192

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

50.5349 +/- 68.4895

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

56.7123

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

80.9589

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

174283

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

20.0700

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

70.137

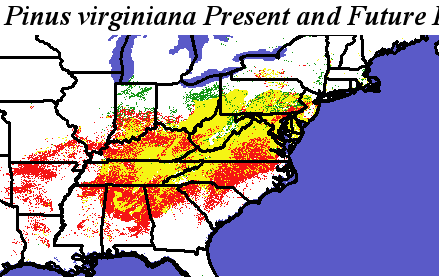

Present and Future Ranges - Hadley, Scenario B1, 2050 - Pinus virginiana Pinus virginiana - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

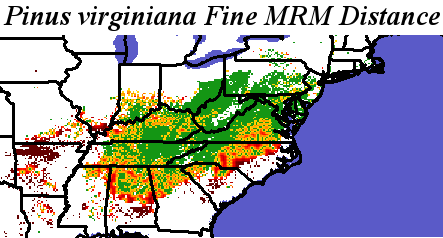

Pinus_virginiana_final.elev Fine MRM Distance

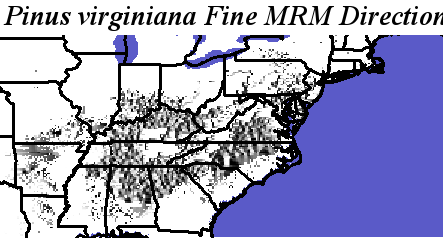

Pinus_virginiana_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus virginiana Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Pinus virginiana
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

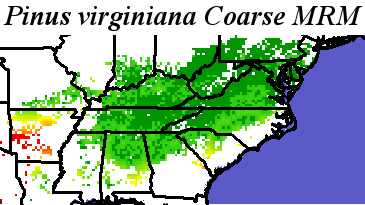

Pinus_virginiana_final.elev Coarse MRM Distance

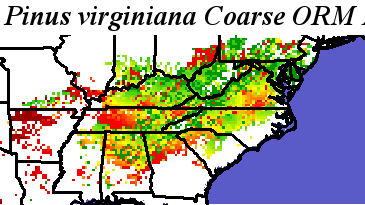

Pinus_virginiana_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Pinus virginiana Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Pinus virginiana
