Version 5 Tree Atlas


Platanus racemosa

California sycamore

elev

Platanus racemosa Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Platanus racemosa

USDA Plants Database entry for Platanus racemosa
Silvics Manual entry for Platanus racemosa


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
154560range mostly well-represented; some disjuncts missing

Occurrence Locations and Hargrove's Present Suitable Range Outline
Platanus_racemosa_final Occurrences
Hargroves Present Suitable Range Outline for Platanus_racemosa_final
Platanus racemosa - Occurrence Locations Platanus racemosa - Hargrove's Present Suitable Range Outline
Present Conditions
Platanus_racemosa_final.2.conus
Platanus_racemosa_final.2.global

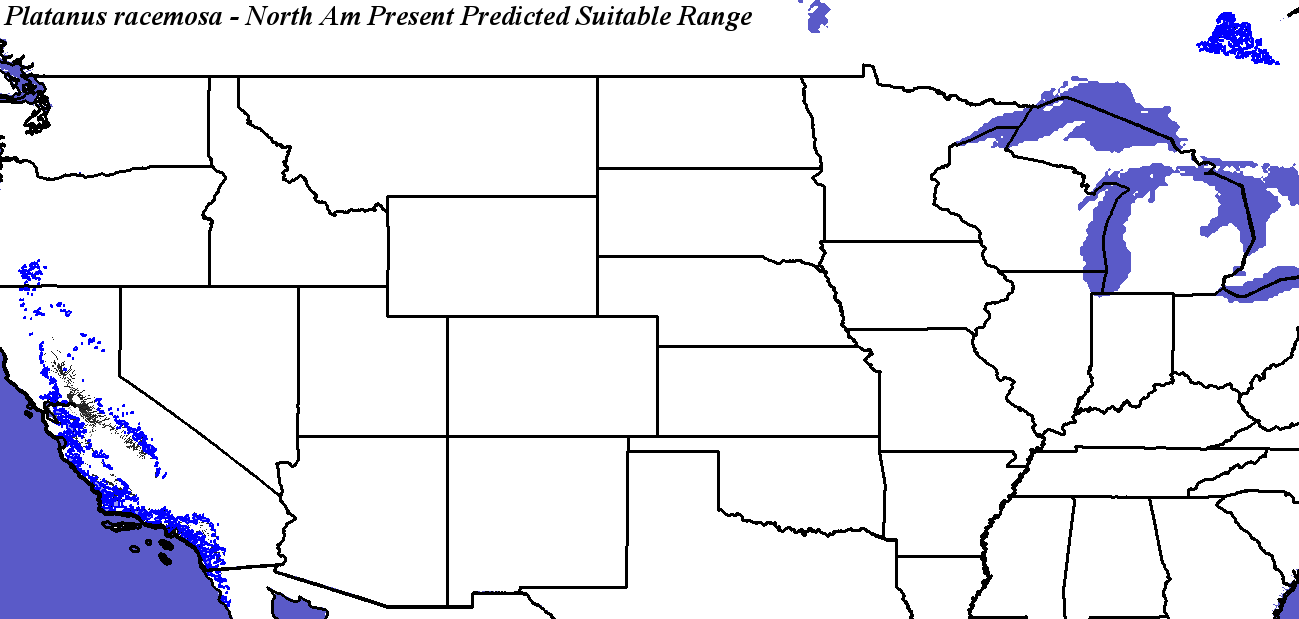

Platanus racemosa - CONUS
Compare with Current Range from the Silvics Manual for Platanus racemosa
Compare with Current Range from Biota of North America Program (BONAP) for Platanus racemosa

Platanus racemosa not modeled by Iverson and Prasad
Platanus racemosa not modeled by Crookston and Rehfeldt
Platanus racemosa not modeled by Coops and Waring
Platanus racemosa - Global

PCM - Parallel Climate Model
Platanus_racemosa_final.2.conus
Platanus_racemosa_final.2.global

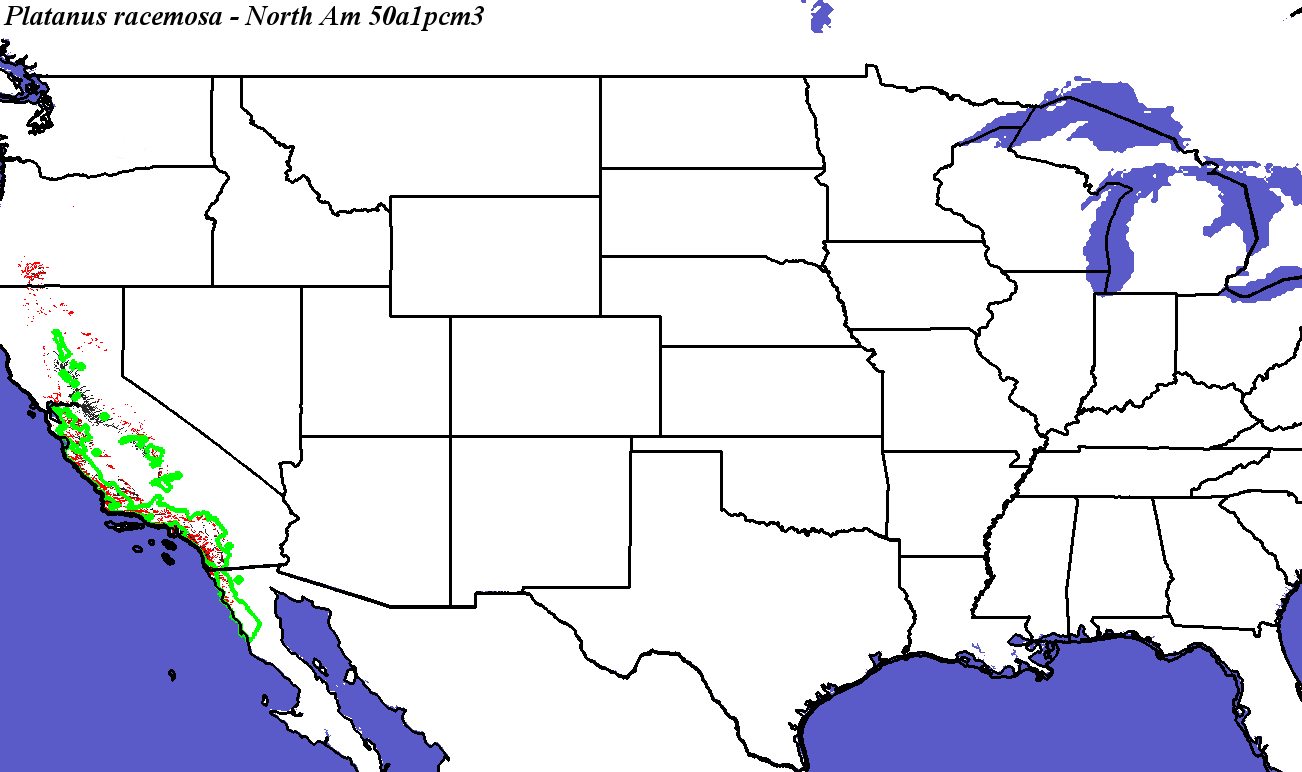

PCM, Scenario A1FI, 2050 - Platanus racemosa - CONUS
PCM, Scenario A1FI, 2050 - Platanus racemosa - Global
Platanus_racemosa_final.2.conus
Platanus_racemosa_final.2.global
PCM, Scenario A1FI, 2100 - Platanus racemosa - CONUS
Platanus racemosa species not modeled by Iverson and Prasad

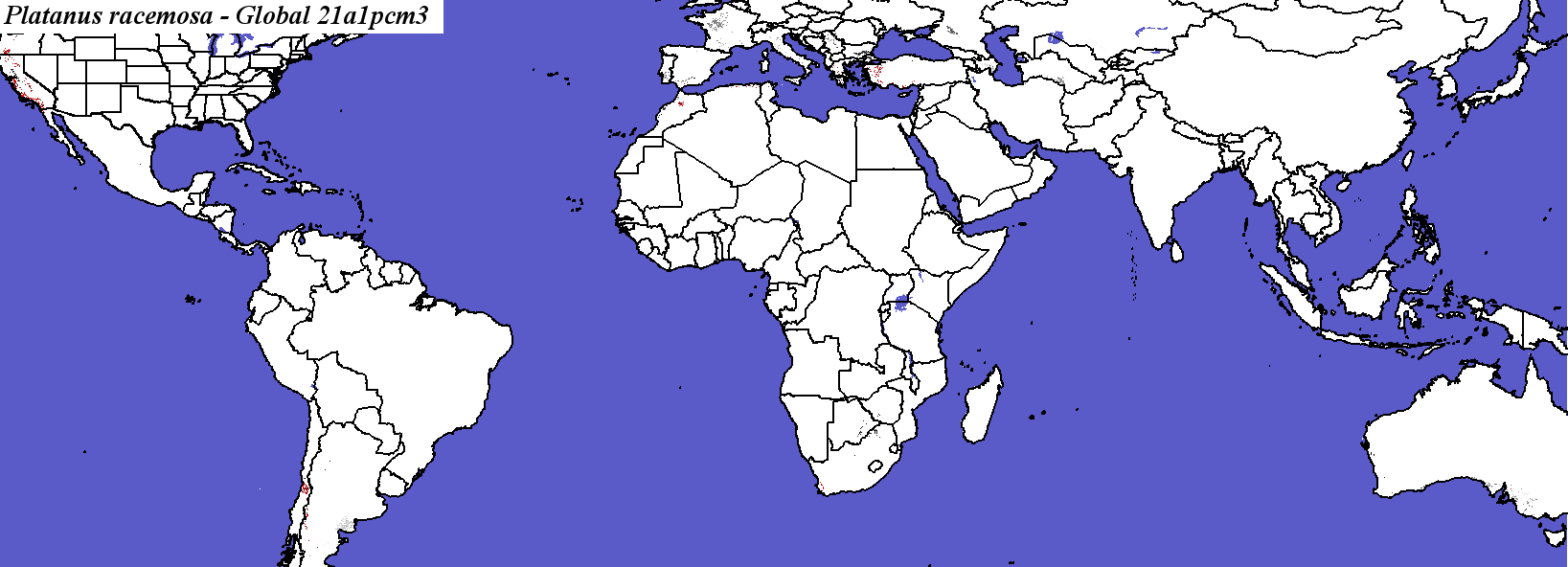

PCM, Scenario A1FI, 2100 - Platanus racemosa - Global

Platanus_racemosa_final.2.conus
Platanus_racemosa_final.2.global

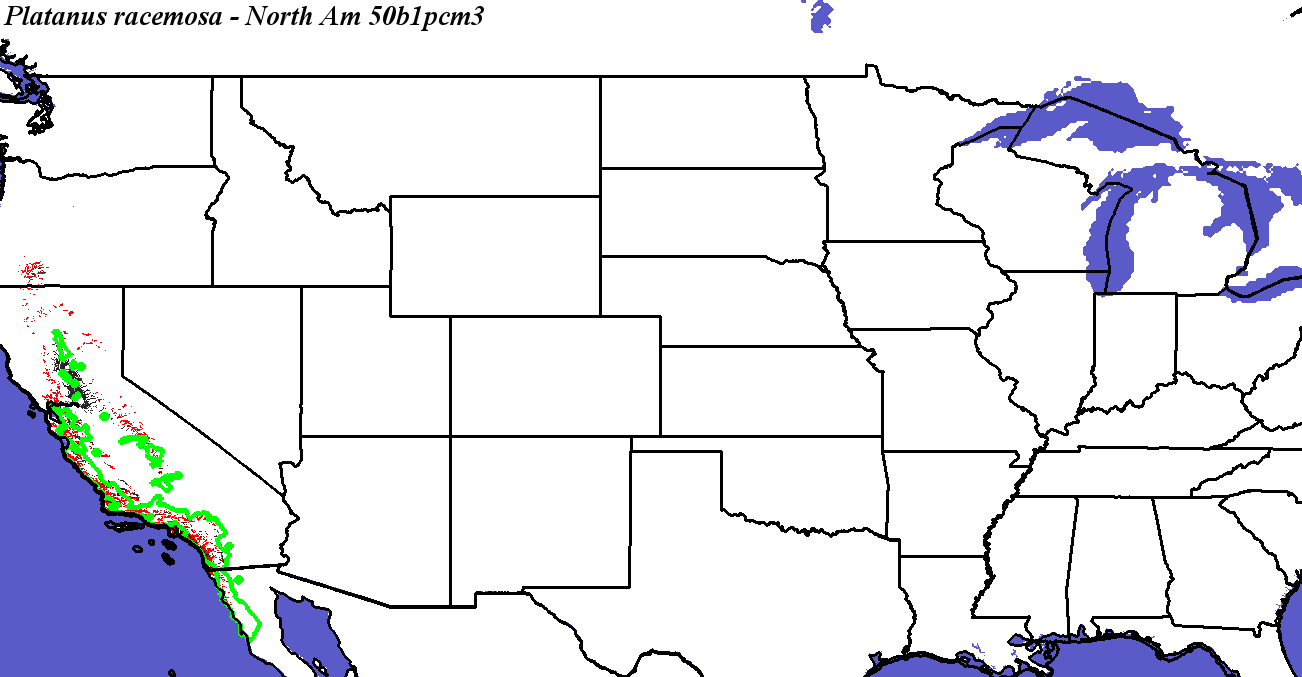

PCM, Scenario B1, 2050 - Platanus racemosa - CONUS
PCM, Scenario B1, 2050 - Platanus racemosa - Global
Platanus_racemosa_final.2.conus
Platanus_racemosa_final.2.global
PCM, Scenario B1, 2100 - Platanus racemosa - CONUS
Platanus racemosa not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Platanus racemosa - Global

Hadley Climate Model
Platanus_racemosa_final.2.conus
Platanus_racemosa_final.2.global

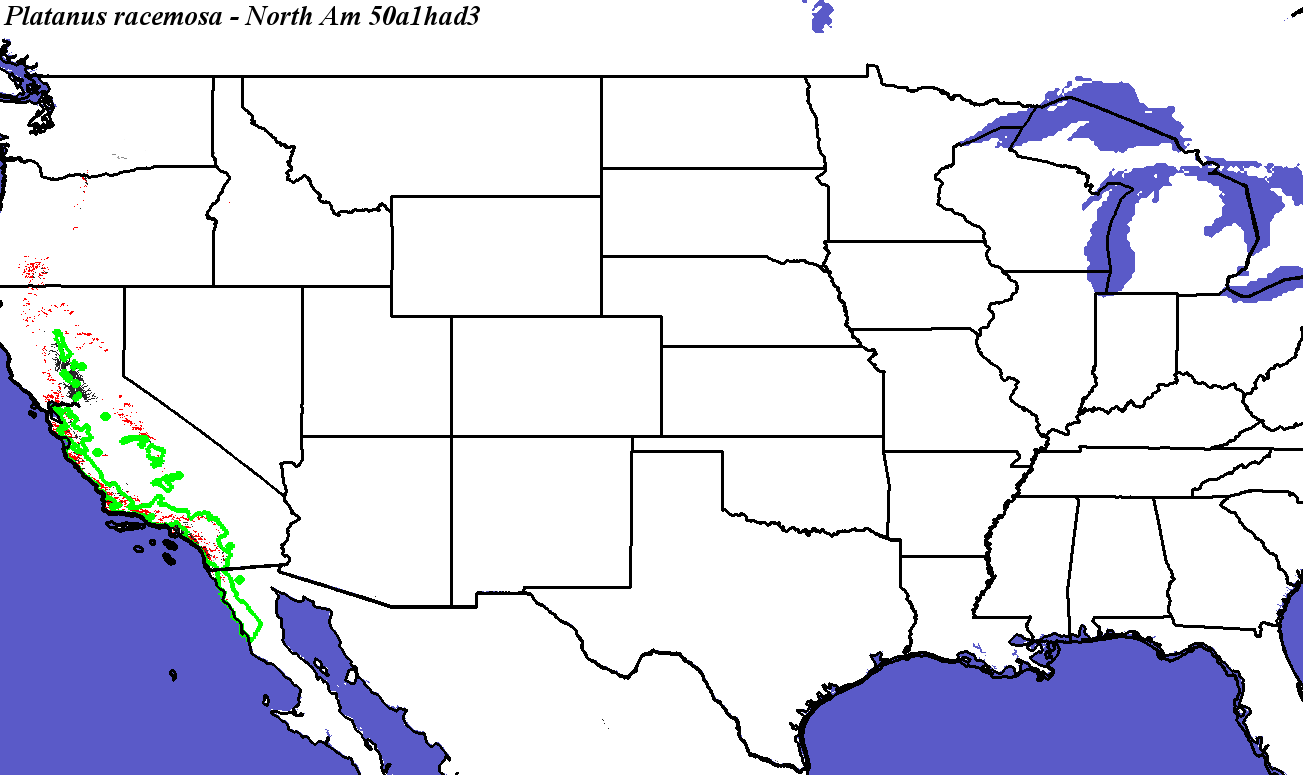

Hadley, Scenario A1FI, 2050 - Platanus racemosa - CONUS
Platanus racemosa not modeled by Crookston and Rehfeldt

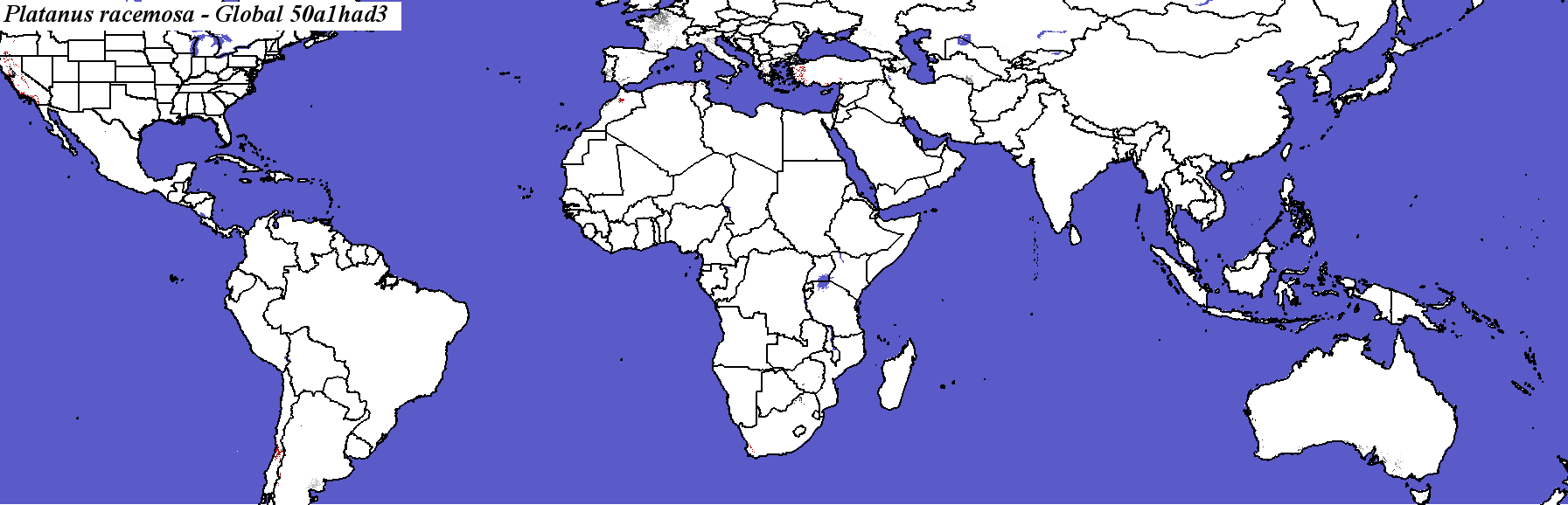

Hadley, Scenario A1FI, 2050 - Platanus racemosa - Global
Platanus_racemosa_final.2.conus
Platanus_racemosa_final.2.global.
Hadley, Scenario A1FI, 2100 - Platanus racemosa - CONUS
Platanus racemosa not modeled by Iverson and Prasad
Platanus racemosa not modeled by Crookston and Rehfeldt
Platanus racemosa not modeled by Coops and Waring

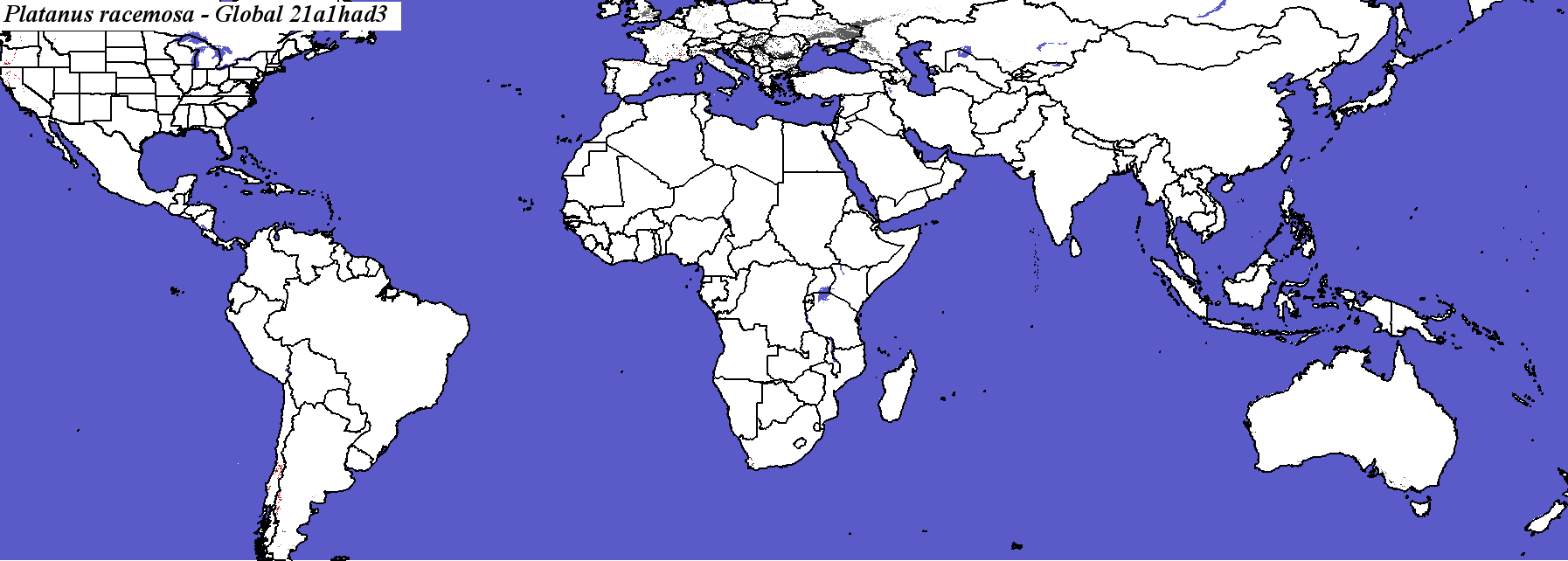

Hadley, Scenario A1FI, 2100 - Platanus racemosa - Global

Platanus_racemosa_final.2.conus
Platanus_racemosa_final.2.global.
Hadley, Scenario B1, 2050 - Platanus racemosa - CONUS
Platanus racemosa not modeled by Crookston and Rehfeldt
Platanus racemosa not modeled by Coops and Waring

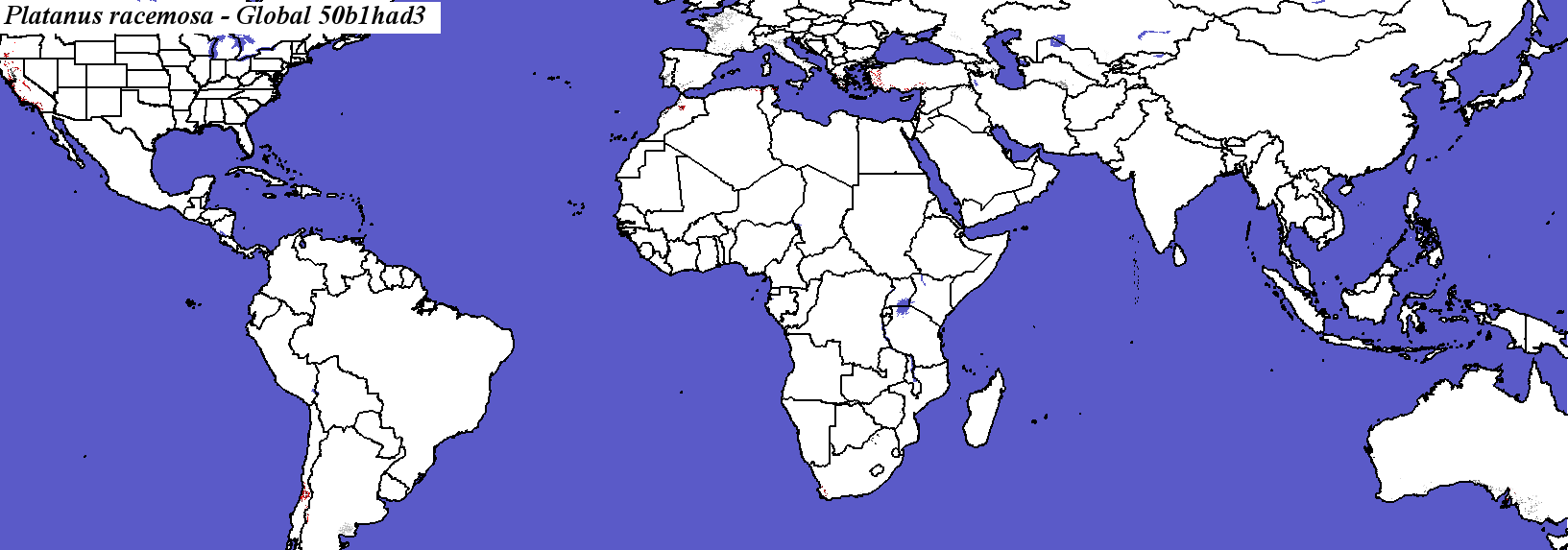

Hadley, Scenario B1, 2050 - Platanus racemosa - Global
Platanus_racemosa_final.2.conus
Platanus_racemosa_final.2.global

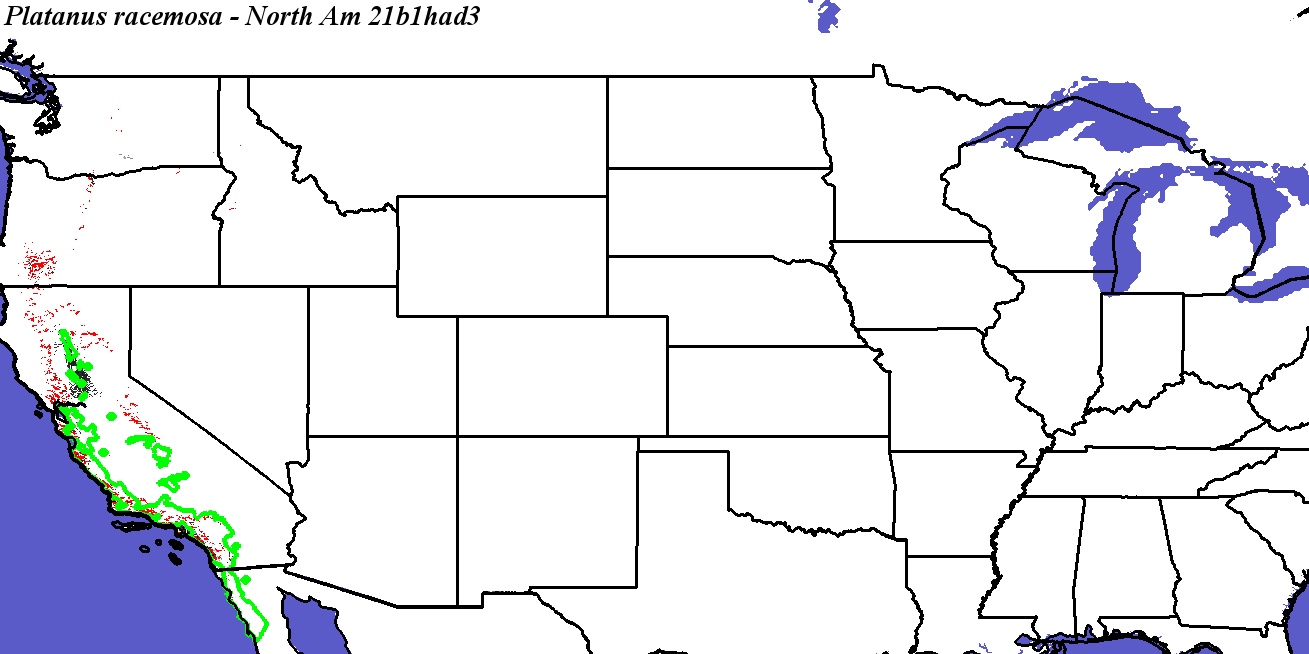

Hadley, Scenario B1, 2100 - Platanus racemosa - CONUS
Platanus racemosa not modeled by Iverson and Prasad
Platanus racemosa not modeled by Crookston and Rehfeldt

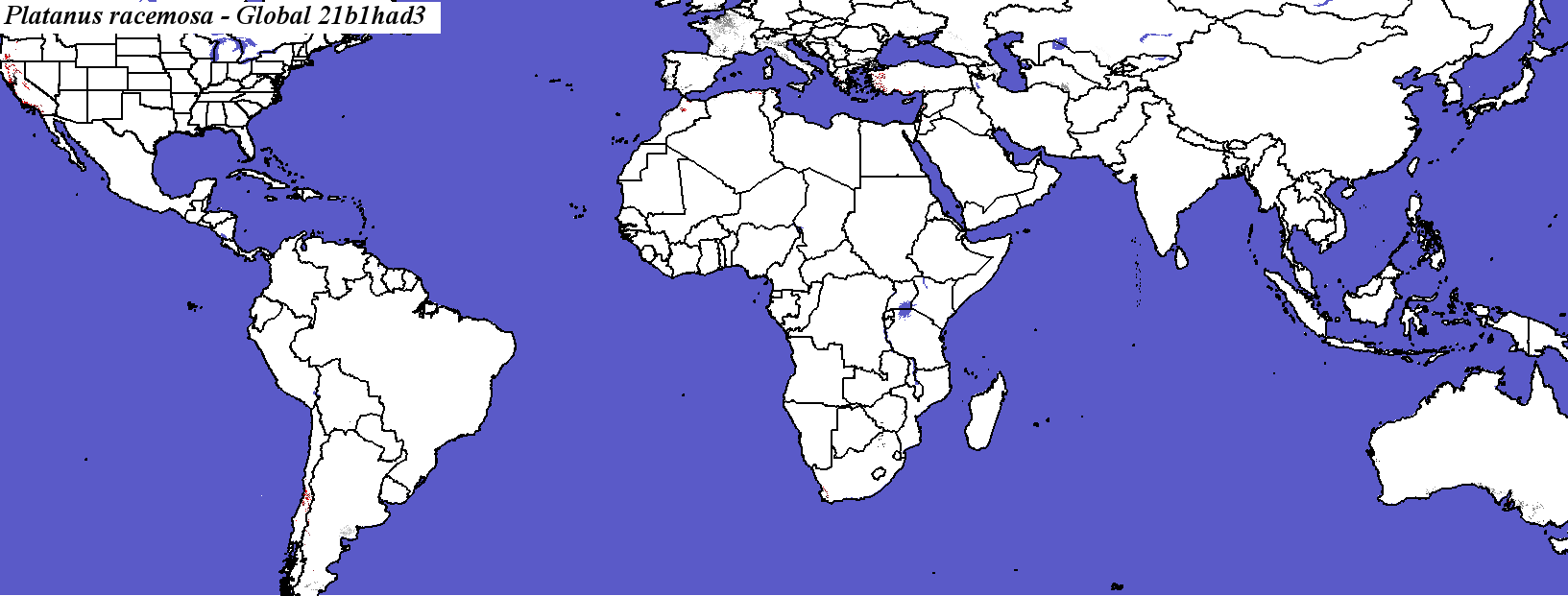

Hadley, Scenario B1, 2100 - Platanus racemosa - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Platanus_racemosa_final.elev

Number of Suitable Ecoregions (Niche Breadth)

11

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

82.3288

Area in Present Suitable Range (in km2)

49120

Area in Future Suitable Range (Had B1 2050, in km2)

44448

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

25688

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

52.2900

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

46.3014

Percent Change in Area of Suitable Range (Had B1 2050)

-9.5100

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

14.5205

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

9340.32 +/- 14868.9

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

69.589

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

4.92684 +/- 8.00525

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

66.0274

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

15.8678 +/- 25.275

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

89.4521

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

80.5479

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

8197

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

16.6800

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

78.4932

Present and Future Ranges - Hadley, Scenario B1, 2050 - Platanus racemosa Platanus racemosa - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Platanus_racemosa_final.elev Fine MRM Distance
Platanus_racemosa_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Platanus racemosa Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Platanus racemosa
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Platanus_racemosa_final.elev Coarse MRM Distance
Platanus_racemosa_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Platanus racemosa Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Platanus racemosa

Thu Jul 21 10:07:26 EDT 2016
