Version 5 Tree Atlas


Platanus wrightii

Arizona sycamore

elev

Platanus wrightii Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Platanus wrightii

USDA Plants Database entry for Platanus wrightii
Silvics Manual entry for Platanus wrightii


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Platanus racemosa var. wrightii49195range is well-represented

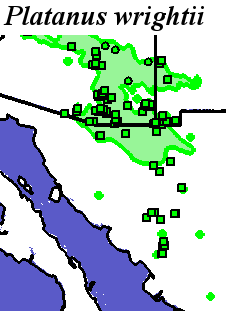

Occurrence Locations and Hargrove's Present Suitable Range Outline
Platanus_wrightii_final Occurrences
Hargroves Present Suitable Range Outline for Platanus_wrightii_final
Platanus wrightii - Occurrence Locations Platanus wrightii - Hargrove's Present Suitable Range Outline
Present Conditions
Platanus_wrightii_final.2.conus
Platanus_wrightii_final.2.global

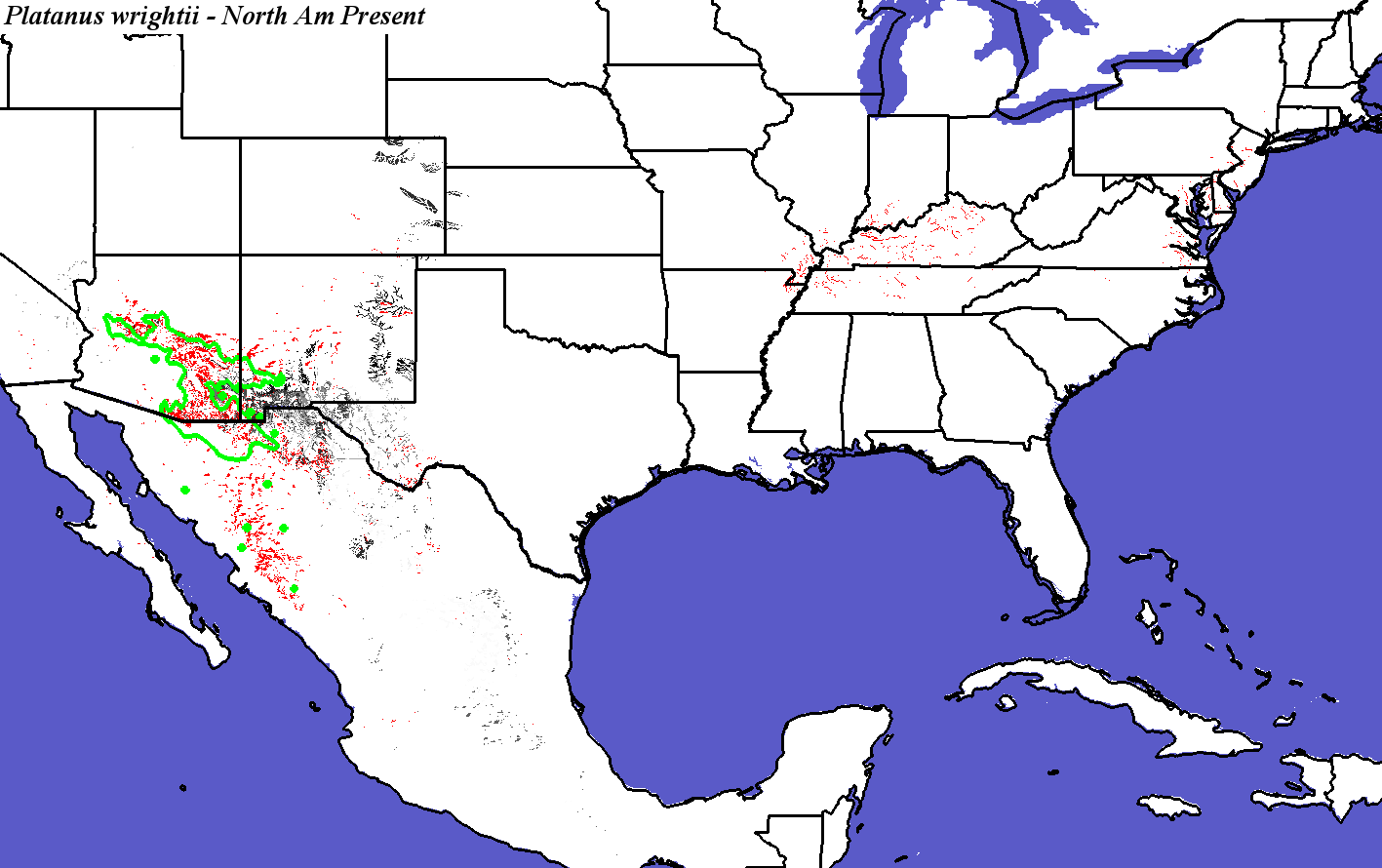

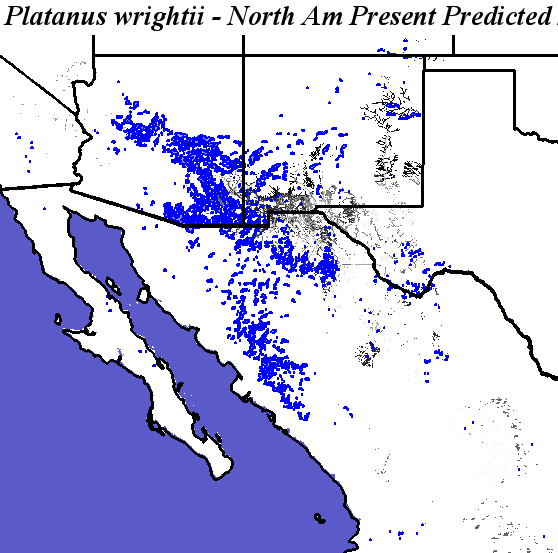

Platanus wrightii - CONUS
Compare with Current Range from the Silvics Manual for Platanus wrightii
Compare with Current Range from Biota of North America Program (BONAP) for Platanus wrightii

Platanus wrightii not modeled by Iverson and Prasad
Platanus wrightii not modeled by Crookston and Rehfeldt
Platanus wrightii not modeled by Coops and Waring

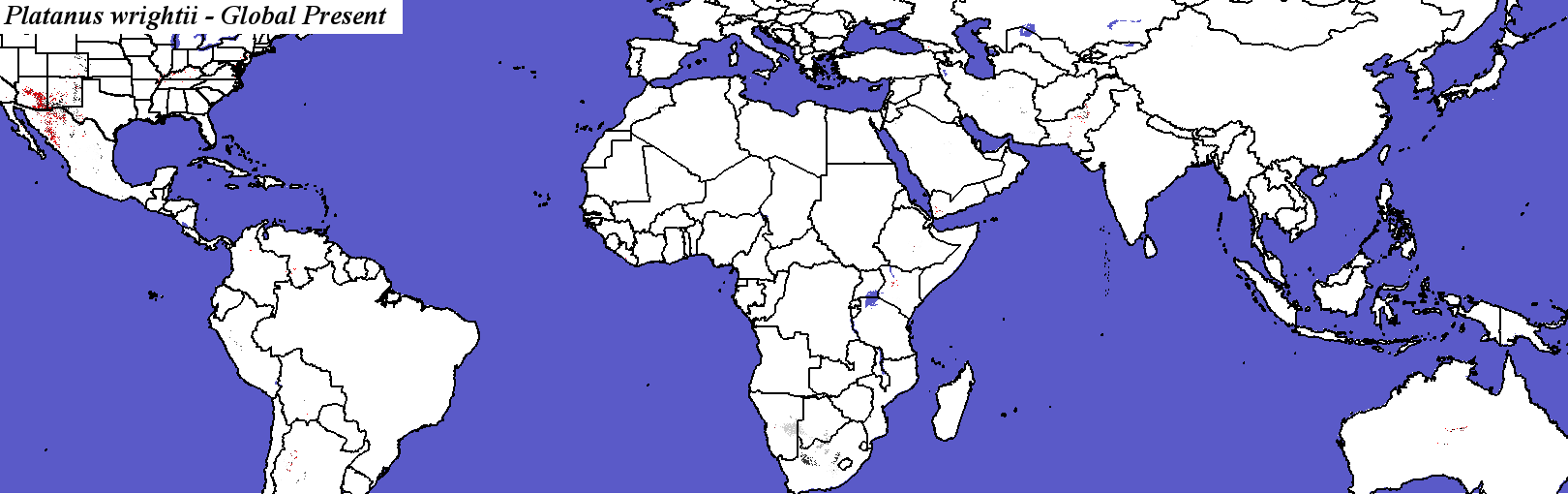

Platanus wrightii - Global

PCM - Parallel Climate Model
Platanus_wrightii_final.2.conus
Platanus_wrightii_final.2.global

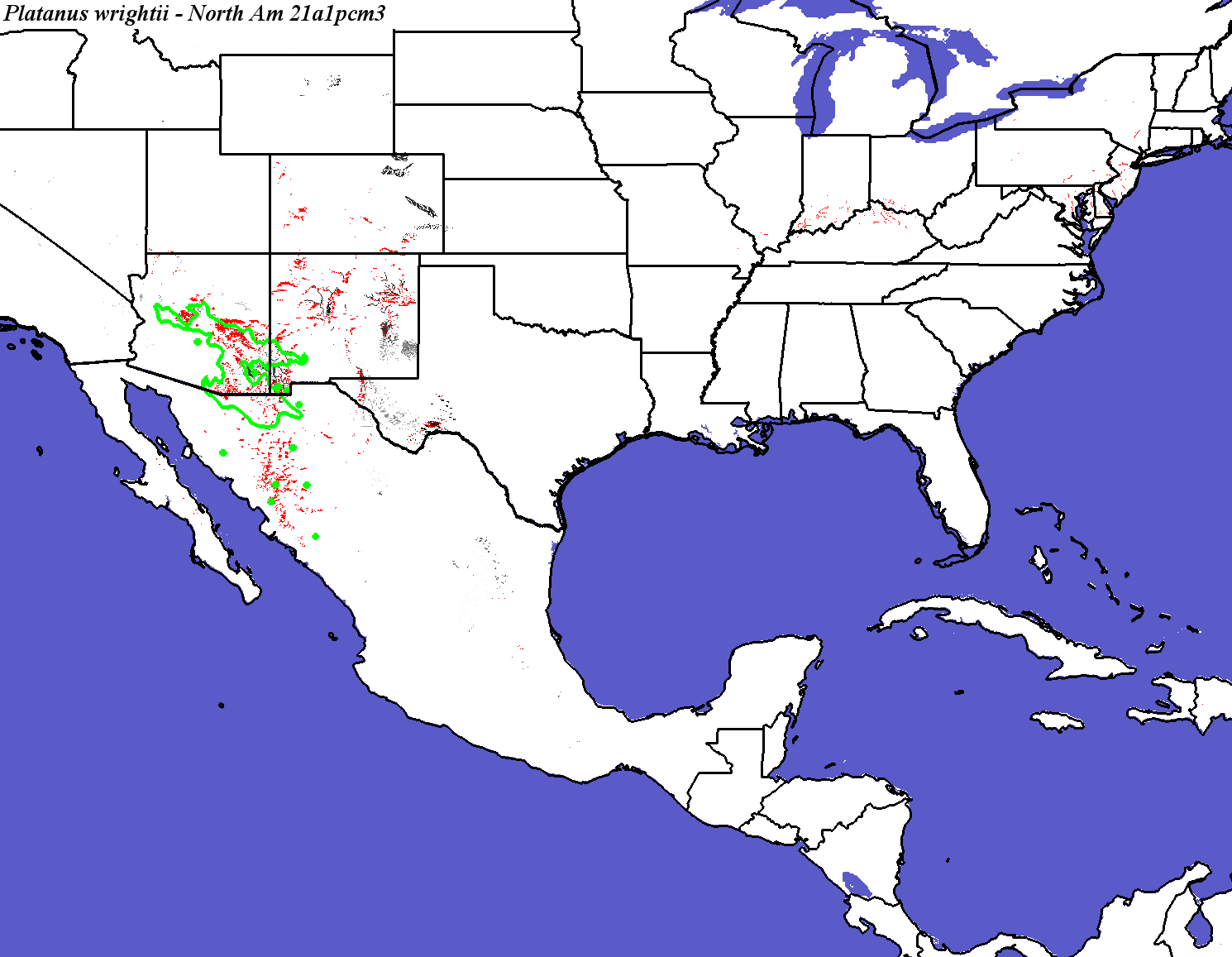

PCM, Scenario A1FI, 2050 - Platanus wrightii - CONUS

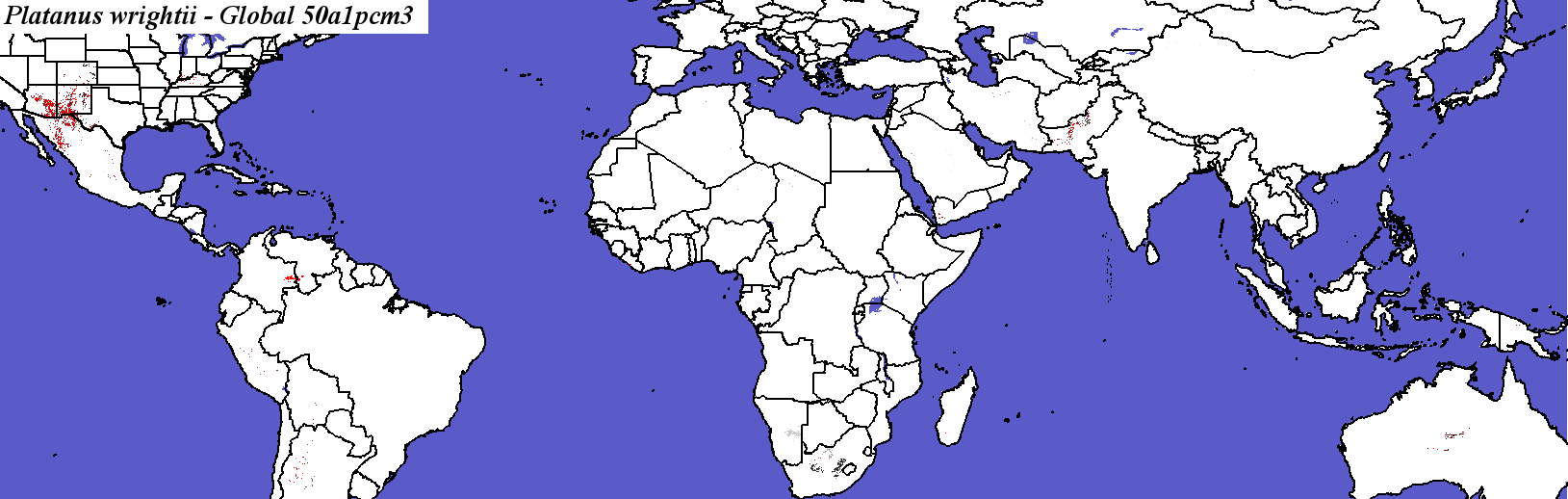

PCM, Scenario A1FI, 2050 - Platanus wrightii - Global
Platanus_wrightii_final.2.conus
Platanus_wrightii_final.2.global

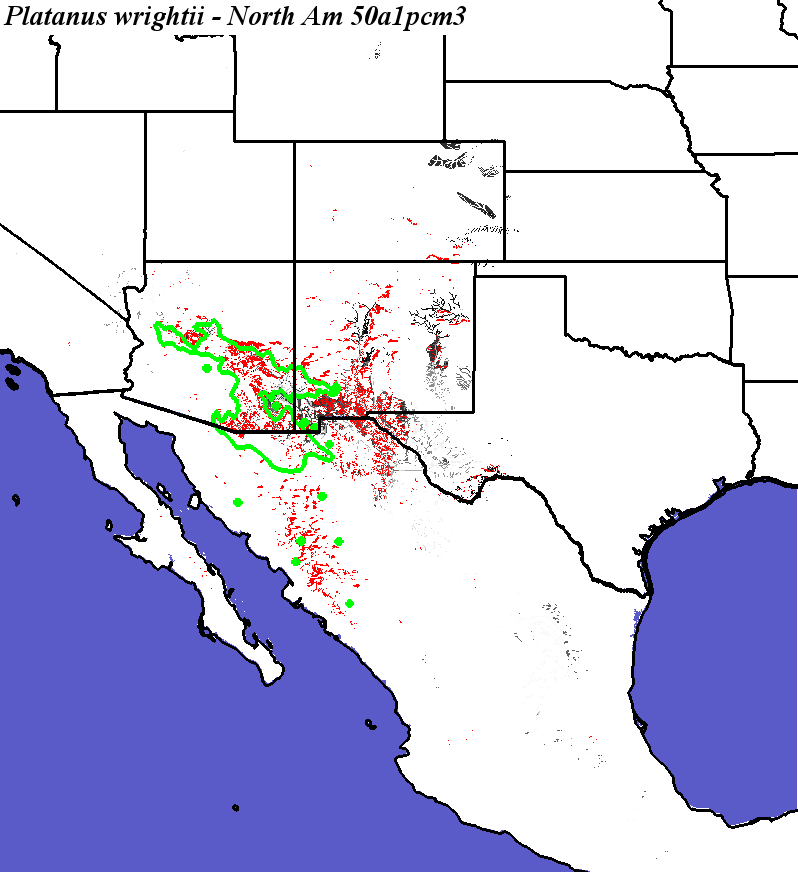

PCM, Scenario A1FI, 2100 - Platanus wrightii - CONUS
Platanus wrightii species not modeled by Iverson and Prasad

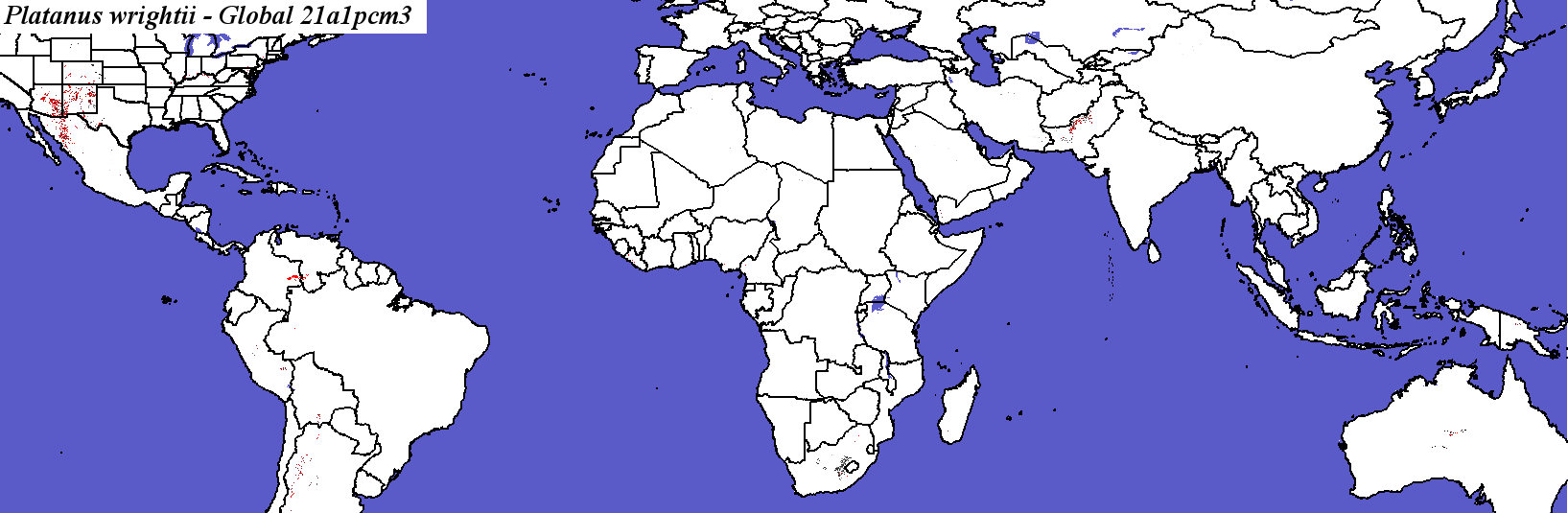

PCM, Scenario A1FI, 2100 - Platanus wrightii - Global

Platanus_wrightii_final.2.conus
Platanus_wrightii_final.2.global

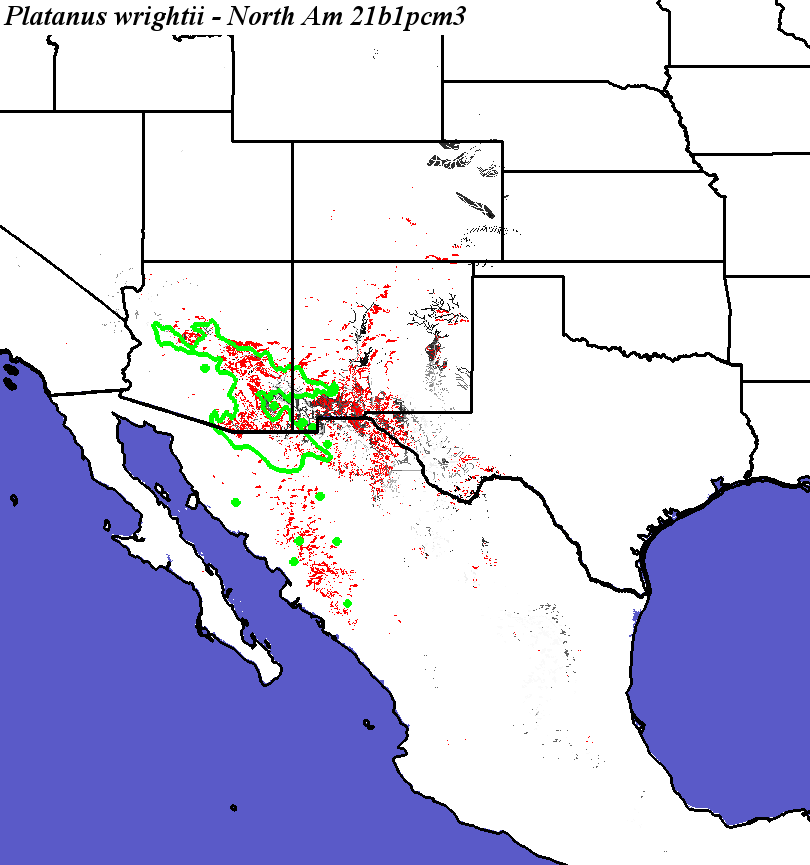

PCM, Scenario B1, 2050 - Platanus wrightii - CONUS
PCM, Scenario B1, 2050 - Platanus wrightii - Global
Platanus_wrightii_final.2.conus
Platanus_wrightii_final.2.global

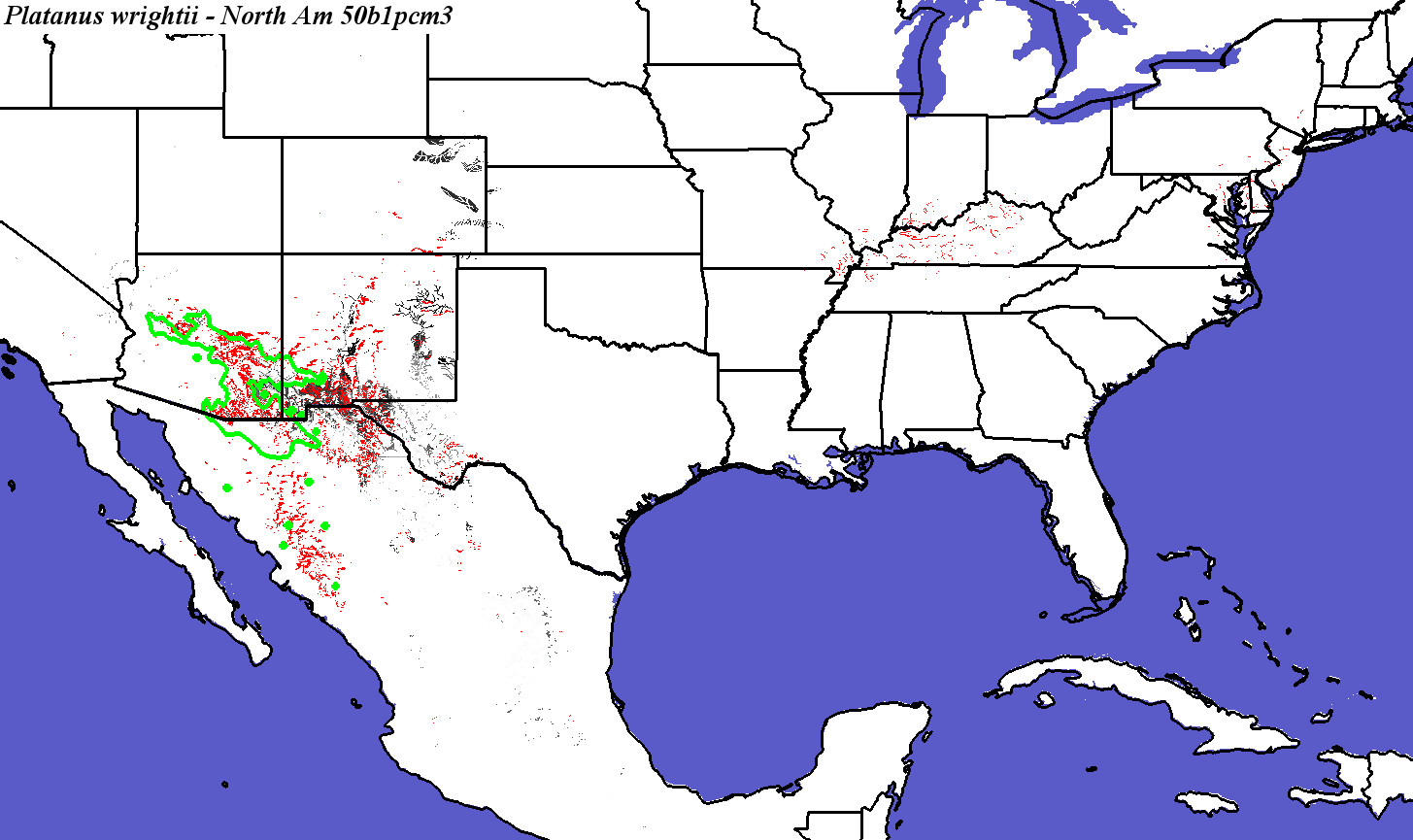

PCM, Scenario B1, 2100 - Platanus wrightii - CONUS
Platanus wrightii not modeled by Iverson and Prasad

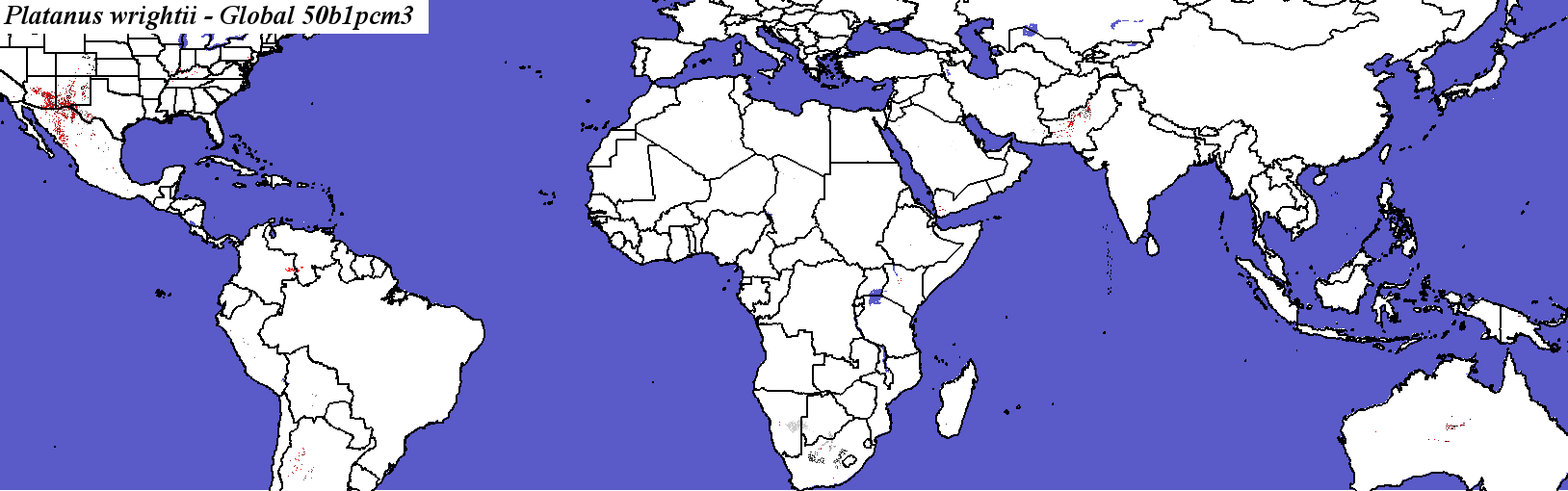

PCM, Scenario B1, 2100 - Platanus wrightii - Global

Hadley Climate Model
Platanus_wrightii_final.2.conus
Platanus_wrightii_final.2.global

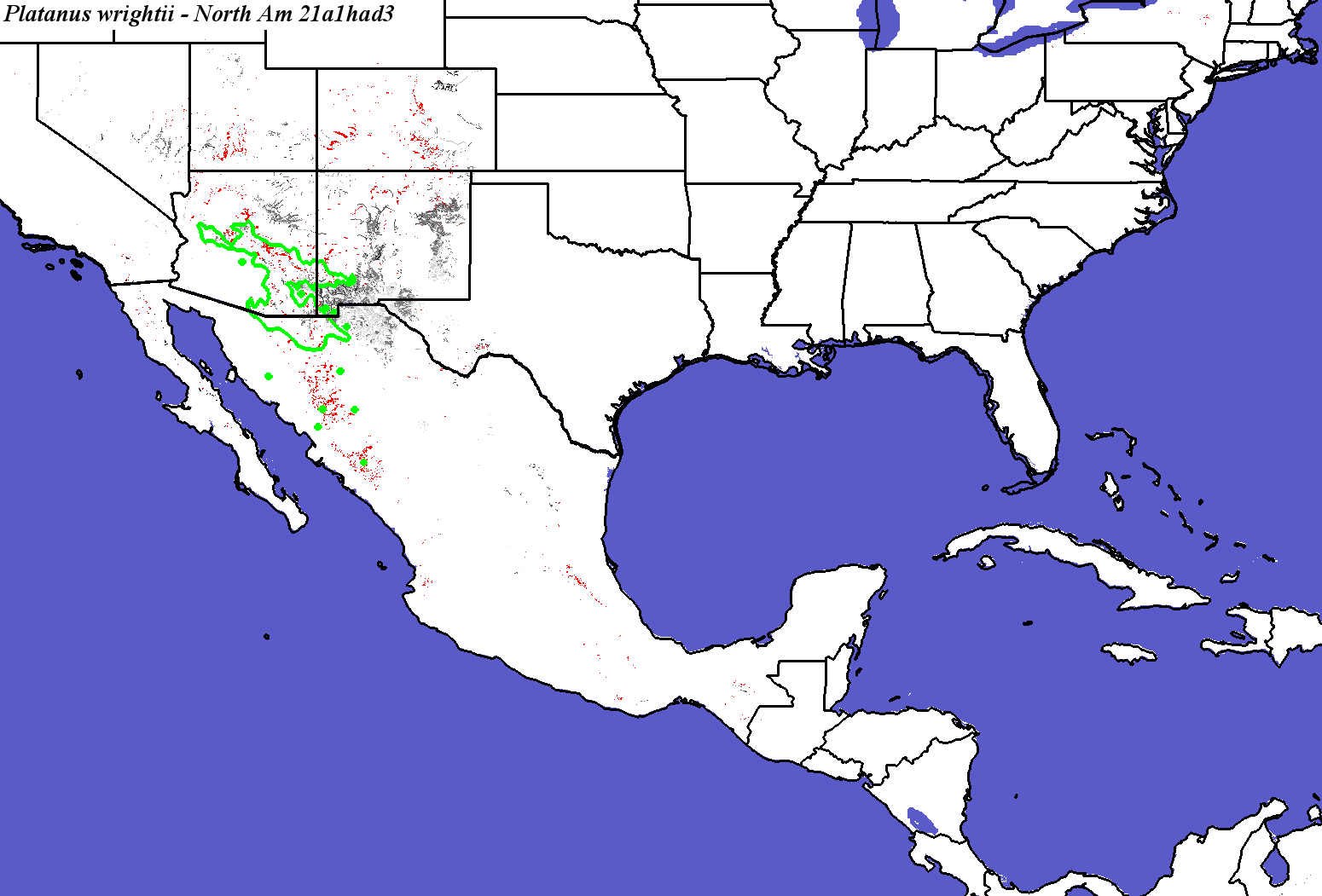

Hadley, Scenario A1FI, 2050 - Platanus wrightii - CONUS
Platanus wrightii not modeled by Crookston and Rehfeldt

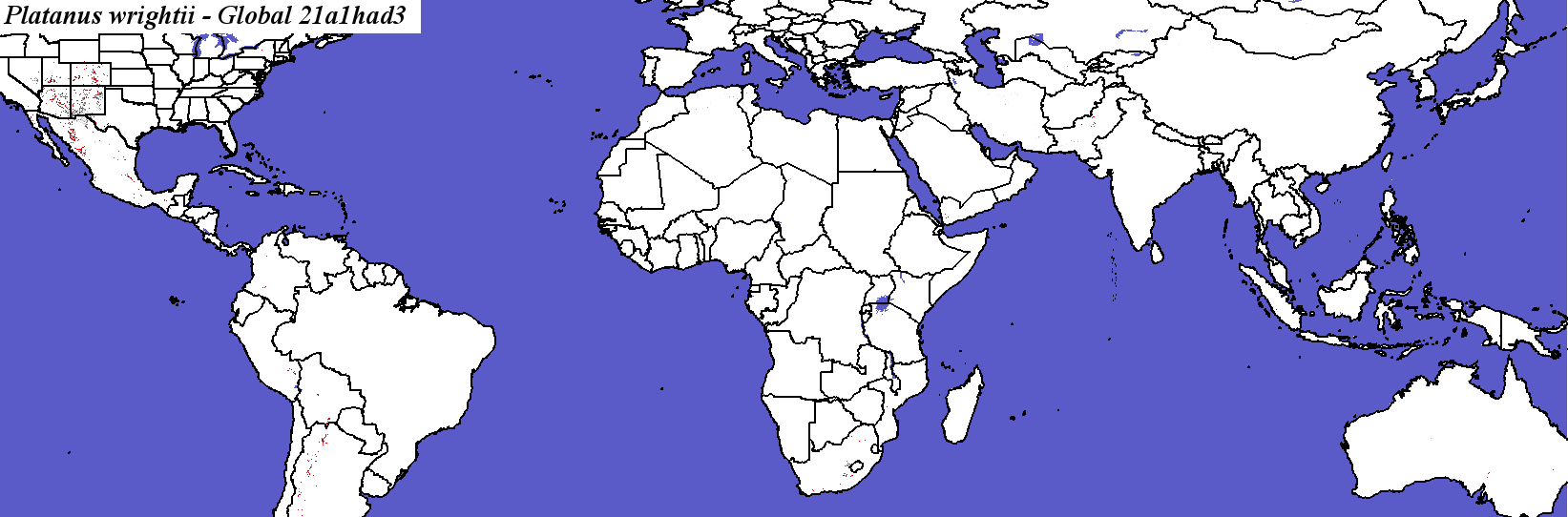

Hadley, Scenario A1FI, 2050 - Platanus wrightii - Global
Platanus_wrightii_final.2.conus
Platanus_wrightii_final.2.global.

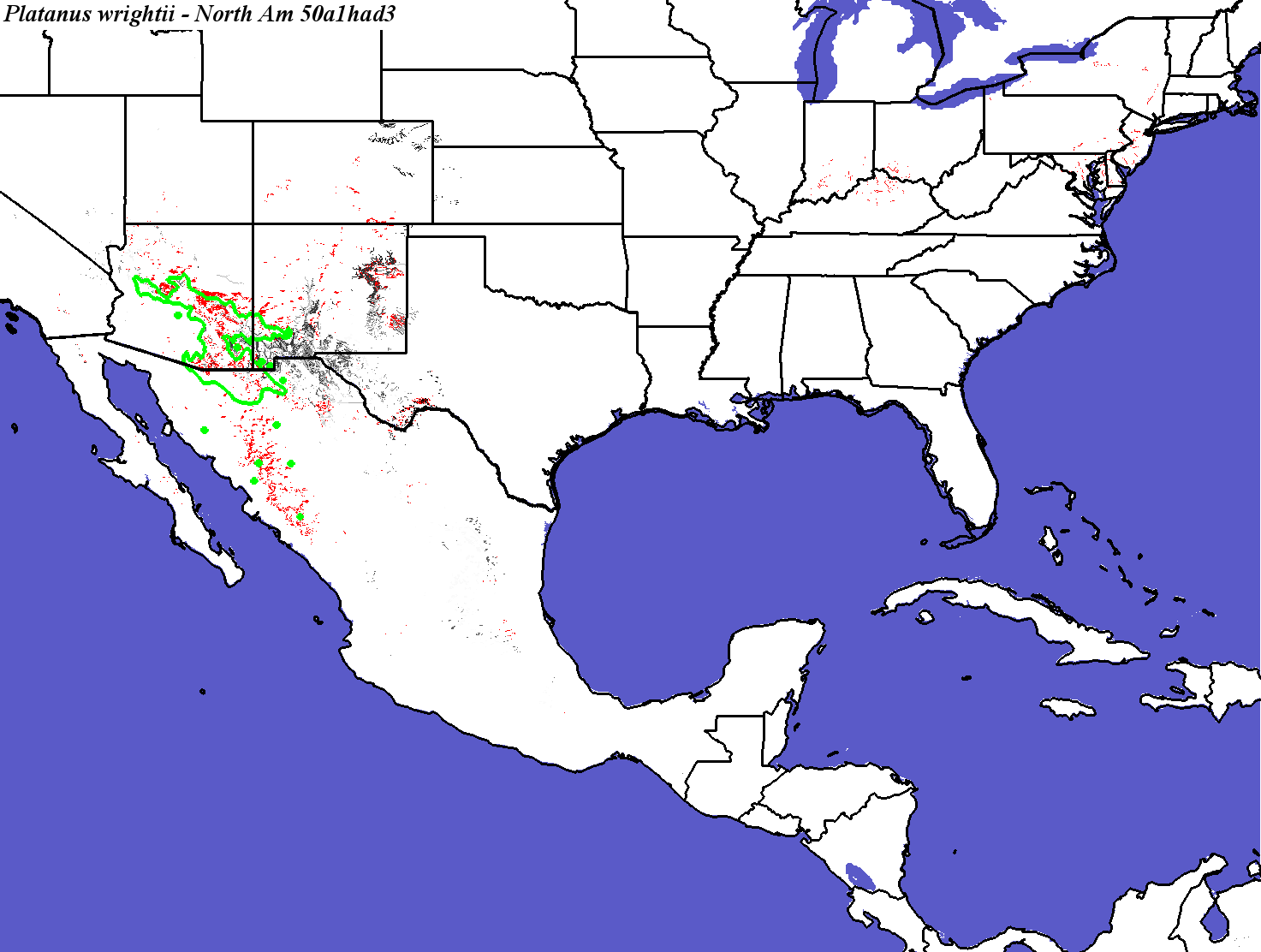

Hadley, Scenario A1FI, 2100 - Platanus wrightii - CONUS
Platanus wrightii not modeled by Iverson and Prasad
Platanus wrightii not modeled by Crookston and Rehfeldt
Platanus wrightii not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Platanus wrightii - Global

Platanus_wrightii_final.2.conus
Platanus_wrightii_final.2.global.
Hadley, Scenario B1, 2050 - Platanus wrightii - CONUS
Platanus wrightii not modeled by Crookston and Rehfeldt
Platanus wrightii not modeled by Coops and Waring

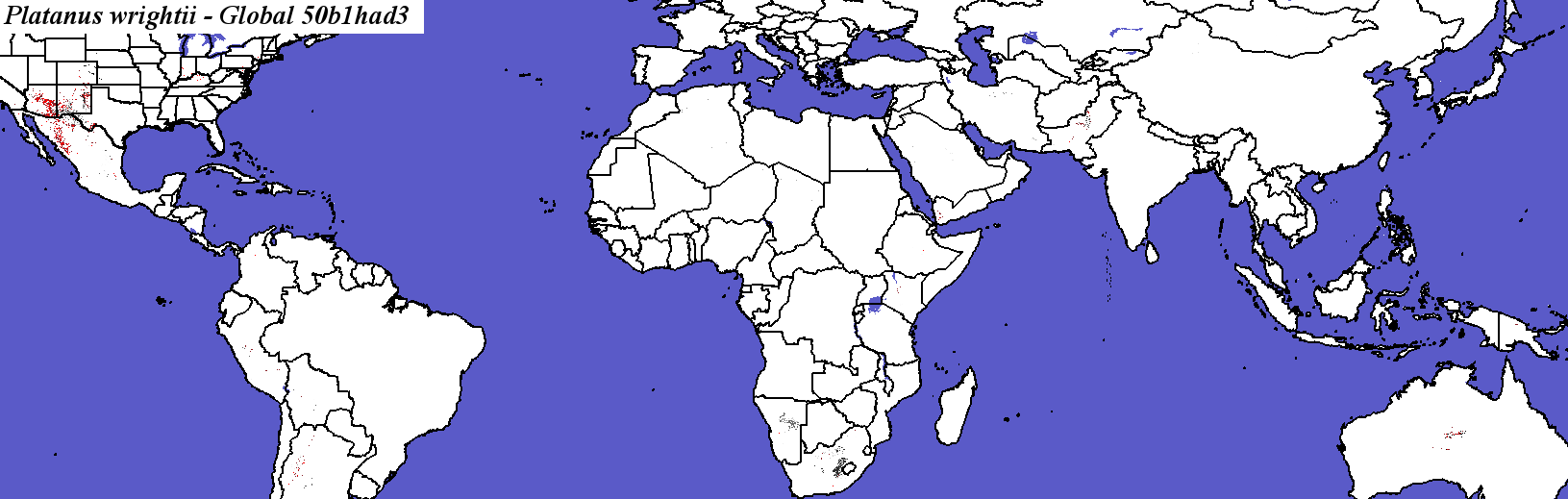

Hadley, Scenario B1, 2050 - Platanus wrightii - Global
Platanus_wrightii_final.2.conus
Platanus_wrightii_final.2.global

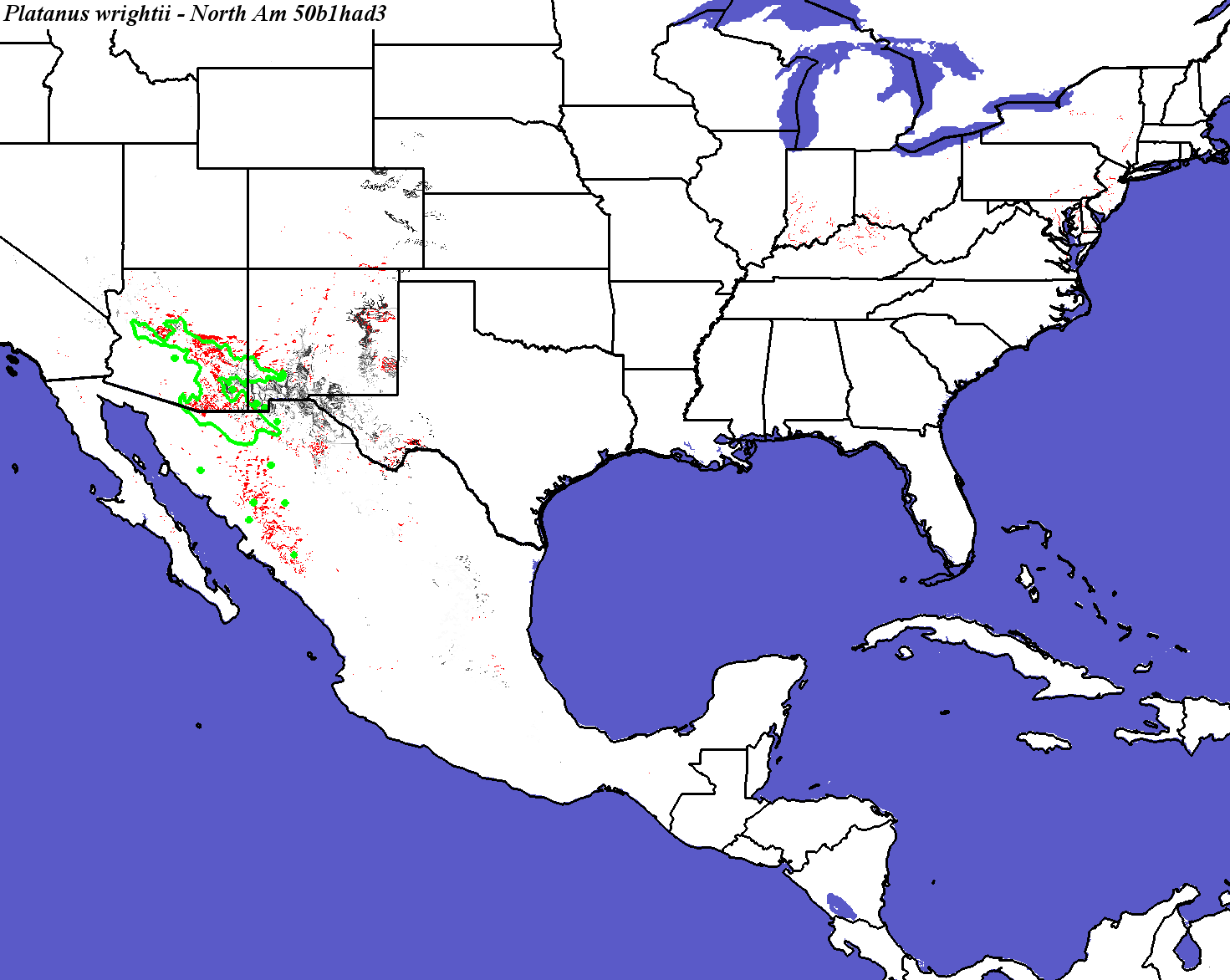

Hadley, Scenario B1, 2100 - Platanus wrightii - CONUS
Platanus wrightii not modeled by Iverson and Prasad
Platanus wrightii not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Platanus wrightii - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Platanus_wrightii_final.elev

Number of Suitable Ecoregions (Niche Breadth)

19

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

64.1096

Area in Present Suitable Range (in km2)

65459

Area in Future Suitable Range (Had B1 2050, in km2)

63186

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

41051

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

62.7100

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

19.726

Percent Change in Area of Suitable Range (Had B1 2050)

-3.4700

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

8.08219

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

7639.35 +/- 14018.5

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

78.4932

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

4.35392 +/- 8.36282

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

71.3699

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

31.8899 +/- 212.148

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

70.9589

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

293

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

.4400

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

58.7671

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

29734

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

45.4200

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

12.4658

Present and Future Ranges - Hadley, Scenario B1, 2050 - Platanus wrightii Platanus wrightii - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Platanus_wrightii_final.elev Fine MRM Distance
Platanus_wrightii_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Platanus wrightii Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Platanus wrightii
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Platanus_wrightii_final.elev Coarse MRM Distance
Platanus_wrightii_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Platanus wrightii Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Platanus wrightii
