Version 5 Tree Atlas


Quercus arkansana

Arkansas oak

elev

Quercus arkansana Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus arkansana

USDA Plants Database entry for Quercus arkansana
Silvics Manual entry for Quercus arkansana


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
01818TBD

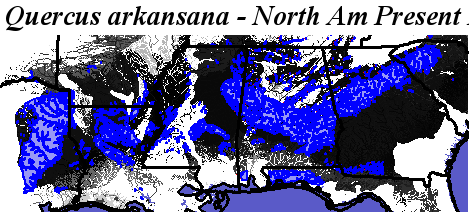

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_arkansana_final Occurrences
Hargroves Present Suitable Range Outline for Quercus_arkansana_final
Quercus arkansana - Occurrence Locations Quercus arkansana - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_arkansana_final.1.conus
Quercus_arkansana_final.1.global

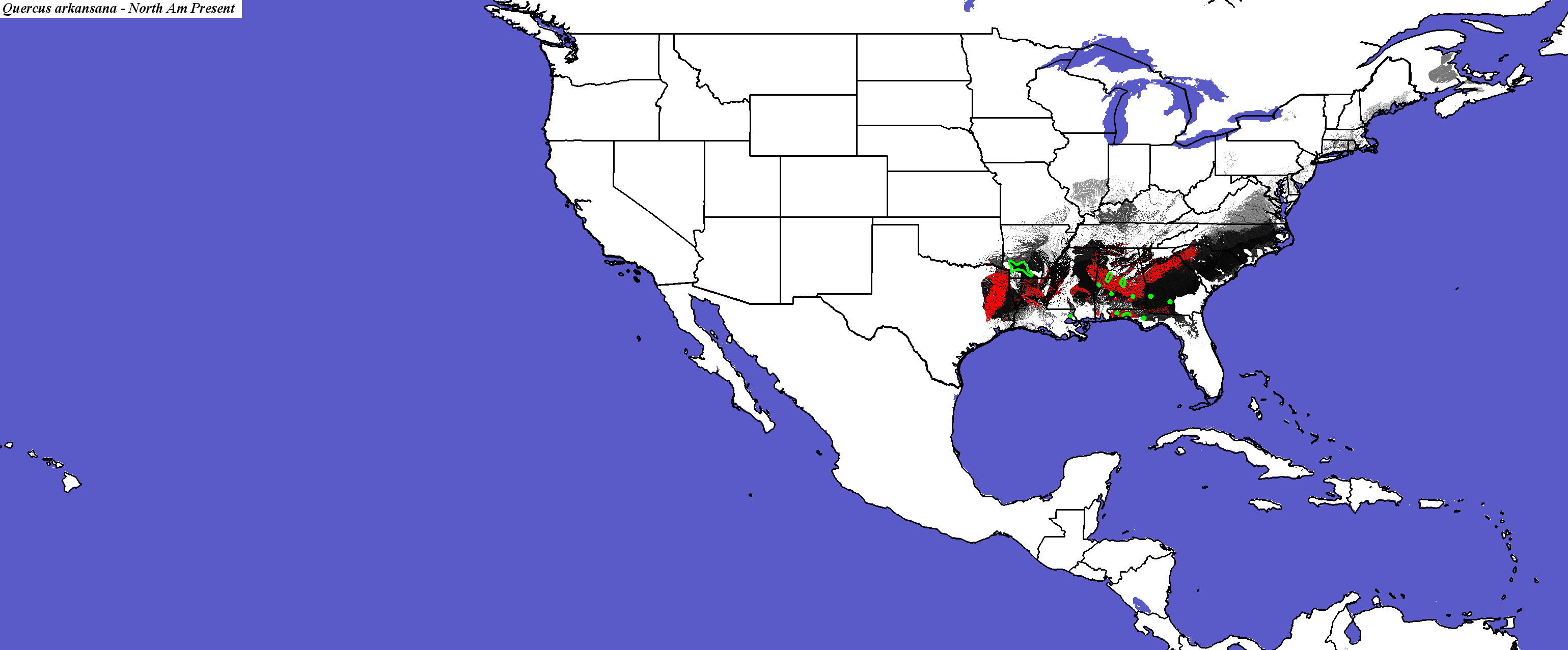

Quercus arkansana - CONUS
Compare with Current Range from the Silvics Manual for Quercus arkansana
Compare with Current Range from Biota of North America Program (BONAP) for Quercus arkansana

Quercus arkansana not modeled by Iverson and Prasad
Quercus arkansana not modeled by Crookston and Rehfeldt
Quercus arkansana not modeled by Coops and Waring
Quercus arkansana - Global

PCM - Parallel Climate Model
Quercus_arkansana_final.1.conus
Quercus_arkansana_final.1.global

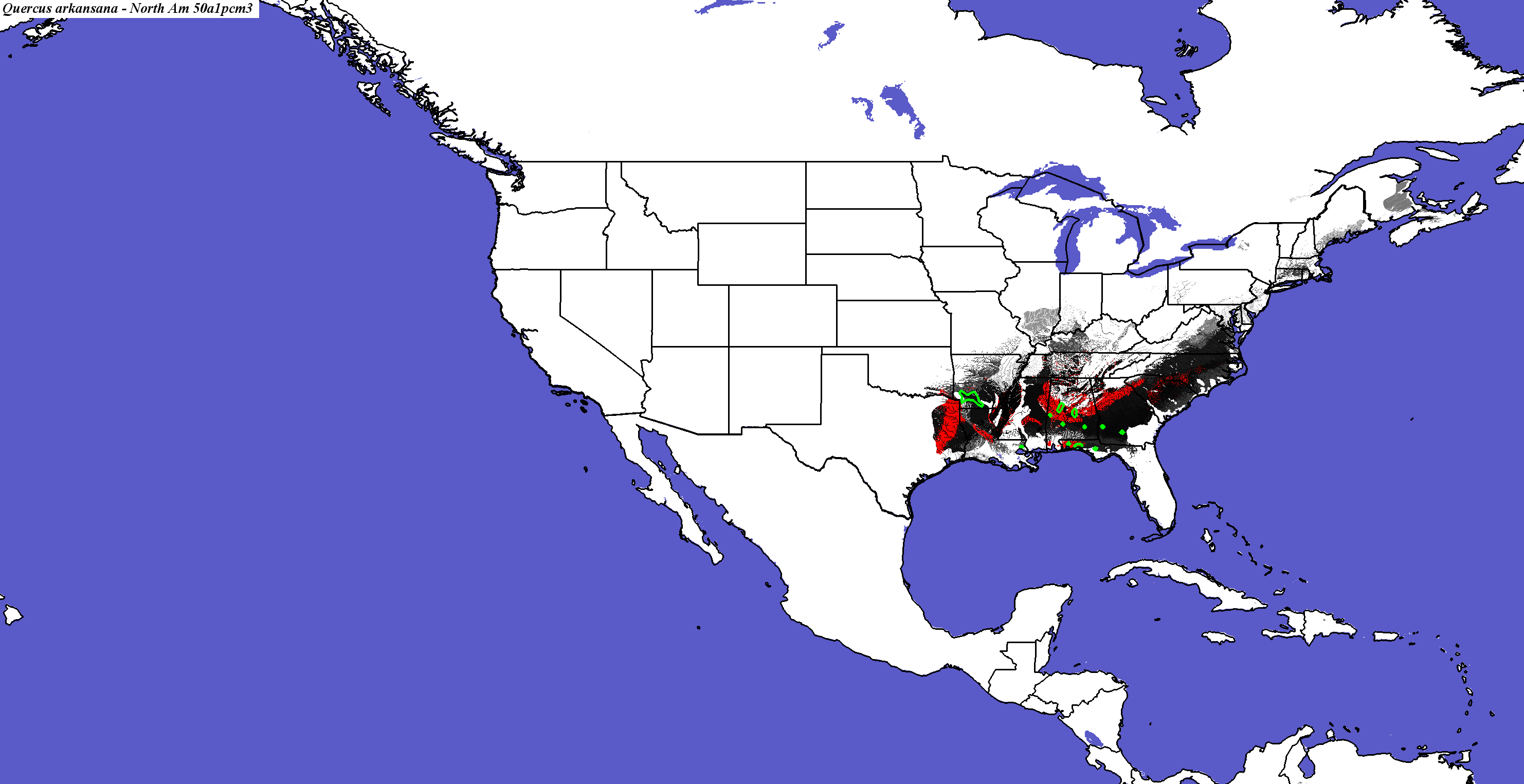

PCM, Scenario A1FI, 2050 - Quercus arkansana - CONUS
PCM, Scenario A1FI, 2050 - Quercus arkansana - Global
Quercus_arkansana_final.1.conus
Quercus_arkansana_final.1.global

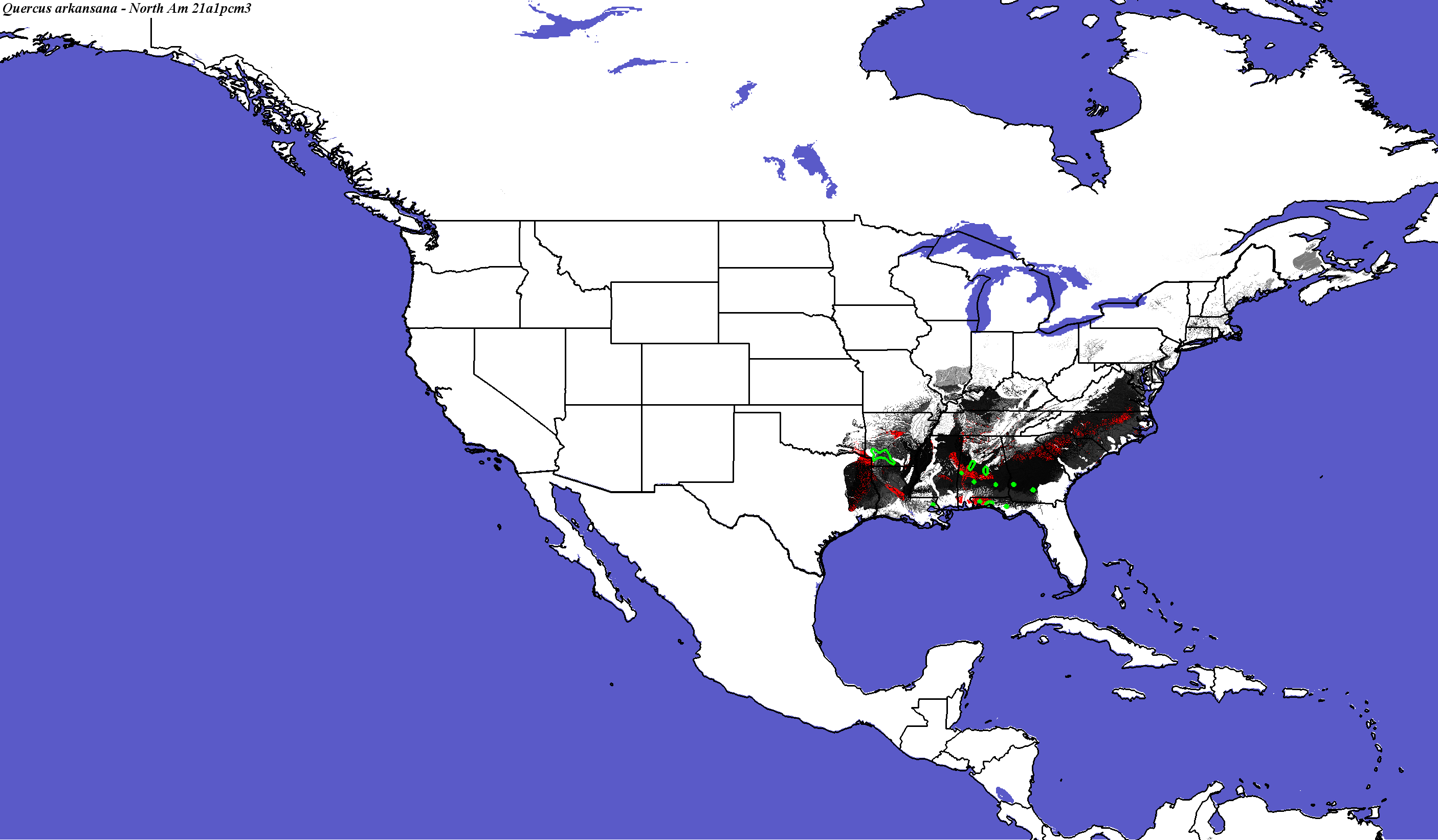

PCM, Scenario A1FI, 2100 - Quercus arkansana - CONUS
Quercus arkansana species not modeled by Iverson and Prasad

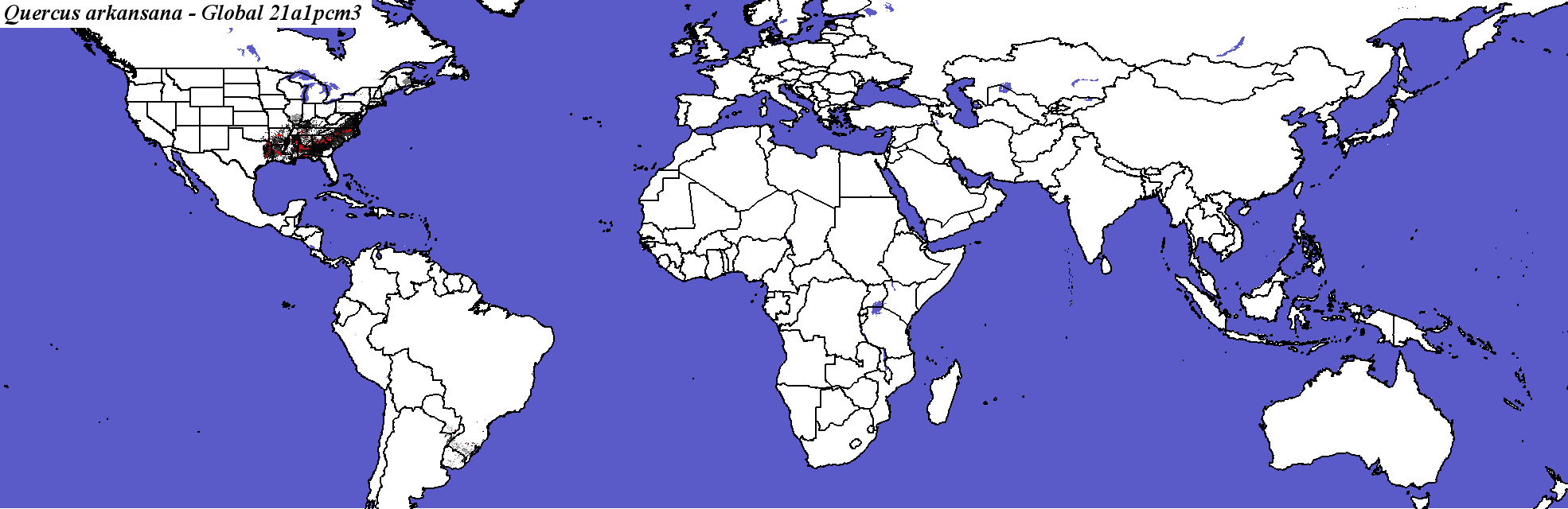

PCM, Scenario A1FI, 2100 - Quercus arkansana - Global

Quercus_arkansana_final.1.conus
Quercus_arkansana_final.1.global
PCM, Scenario B1, 2050 - Quercus arkansana - CONUS
PCM, Scenario B1, 2050 - Quercus arkansana - Global
Quercus_arkansana_final.1.conus
Quercus_arkansana_final.1.global
PCM, Scenario B1, 2100 - Quercus arkansana - CONUS
Quercus arkansana not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus arkansana - Global

Hadley Climate Model
Quercus_arkansana_final.1.conus
Quercus_arkansana_final.1.global

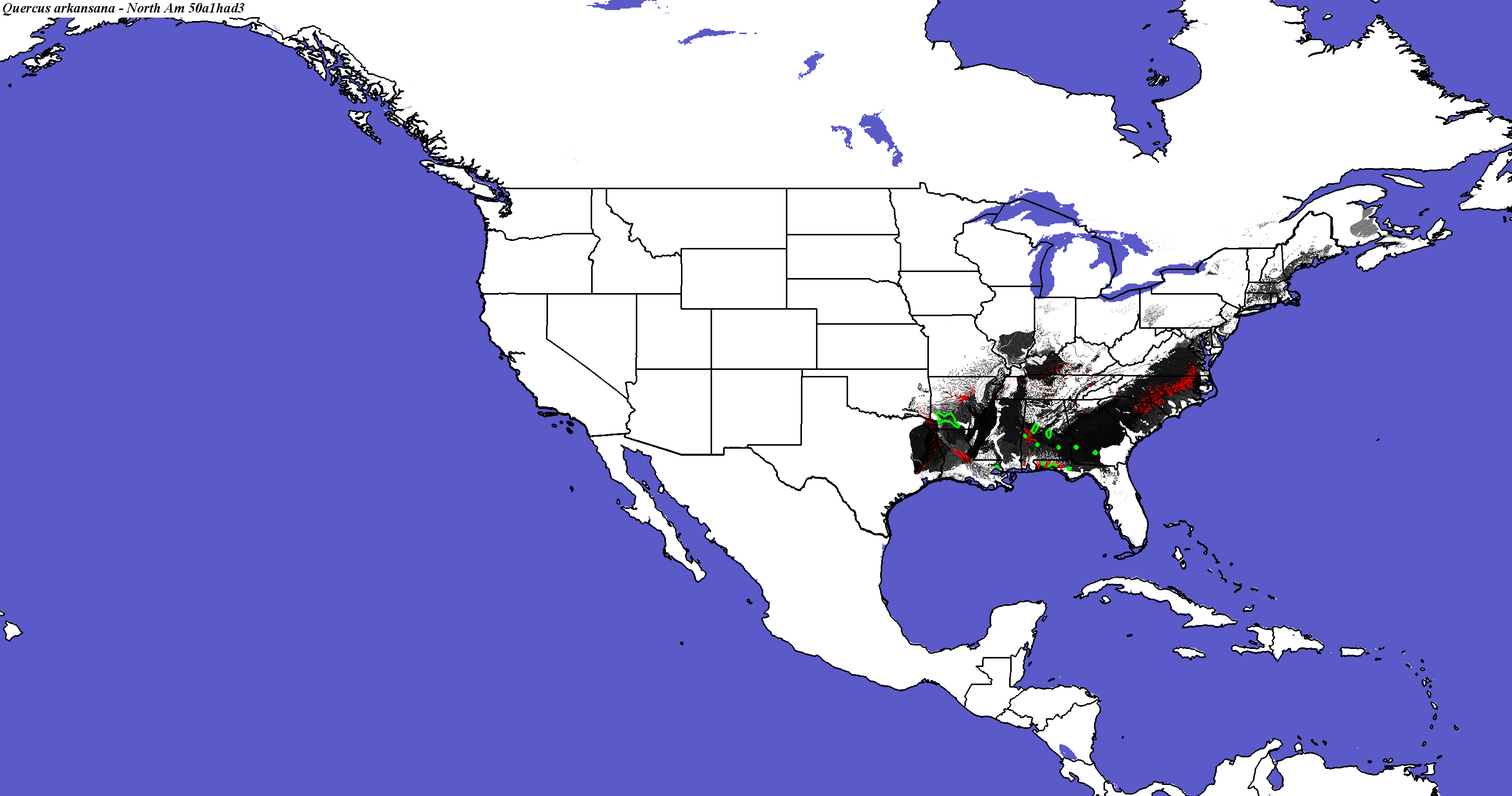

Hadley, Scenario A1FI, 2050 - Quercus arkansana - CONUS
Quercus arkansana not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Quercus arkansana - Global
Quercus_arkansana_final.1.conus
Quercus_arkansana_final.1.global.
Hadley, Scenario A1FI, 2100 - Quercus arkansana - CONUS
Quercus arkansana not modeled by Iverson and Prasad
Quercus arkansana not modeled by Crookston and Rehfeldt
Quercus arkansana not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Quercus arkansana - Global

Quercus_arkansana_final.1.conus
Quercus_arkansana_final.1.global.
Hadley, Scenario B1, 2050 - Quercus arkansana - CONUS
Quercus arkansana not modeled by Crookston and Rehfeldt
Quercus arkansana not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Quercus arkansana - Global
Quercus_arkansana_final.1.conus
Quercus_arkansana_final.1.global
Hadley, Scenario B1, 2100 - Quercus arkansana - CONUS
Quercus arkansana not modeled by Iverson and Prasad
Quercus arkansana not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Quercus arkansana - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_arkansana_final.elev

Number of Suitable Ecoregions (Niche Breadth)

8

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

89.589

Area in Present Suitable Range (in km2)

105390

Area in Future Suitable Range (Had B1 2050, in km2)

41648

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

17827

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

16.9100

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

95.2055

Percent Change in Area of Suitable Range (Had B1 2050)

-60.4800

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

92.0548

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

61335.1 +/- 64407.8

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

5.75342

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

26.7472 +/- 23.985

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

4.79452

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

56.5287 +/- 43.8338

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

54.1096

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

78.3562

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

13142

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

12.4600

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

88.0822

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus arkansana Quercus arkansana - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Quercus_arkansana_final.elev Fine MRM Distance
Quercus_arkansana_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus arkansana Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus arkansana
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Quercus_arkansana_final.elev Coarse MRM Distance
Quercus_arkansana_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus arkansana Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus arkansana
