Version 5 Tree Atlas


Quercus bicolor

swamp white oak

elev

Quercus bicolor Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus bicolor

USDA Plants Database entry for Quercus bicolor
Silvics Manual entry for Quercus bicolor


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Quercus platanoides392100492range mostly well-represented; some disjuncts missing

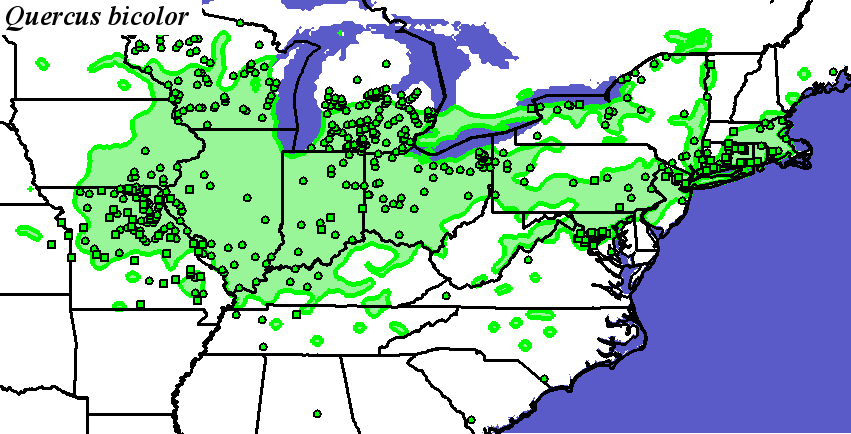

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_bicolor_final Occurrences
Hargroves Present Suitable Range Outline for Quercus_bicolor_final
Quercus bicolor - Occurrence Locations Quercus bicolor - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_bicolor_final.3.conus
Quercus_bicolor_final.3.global

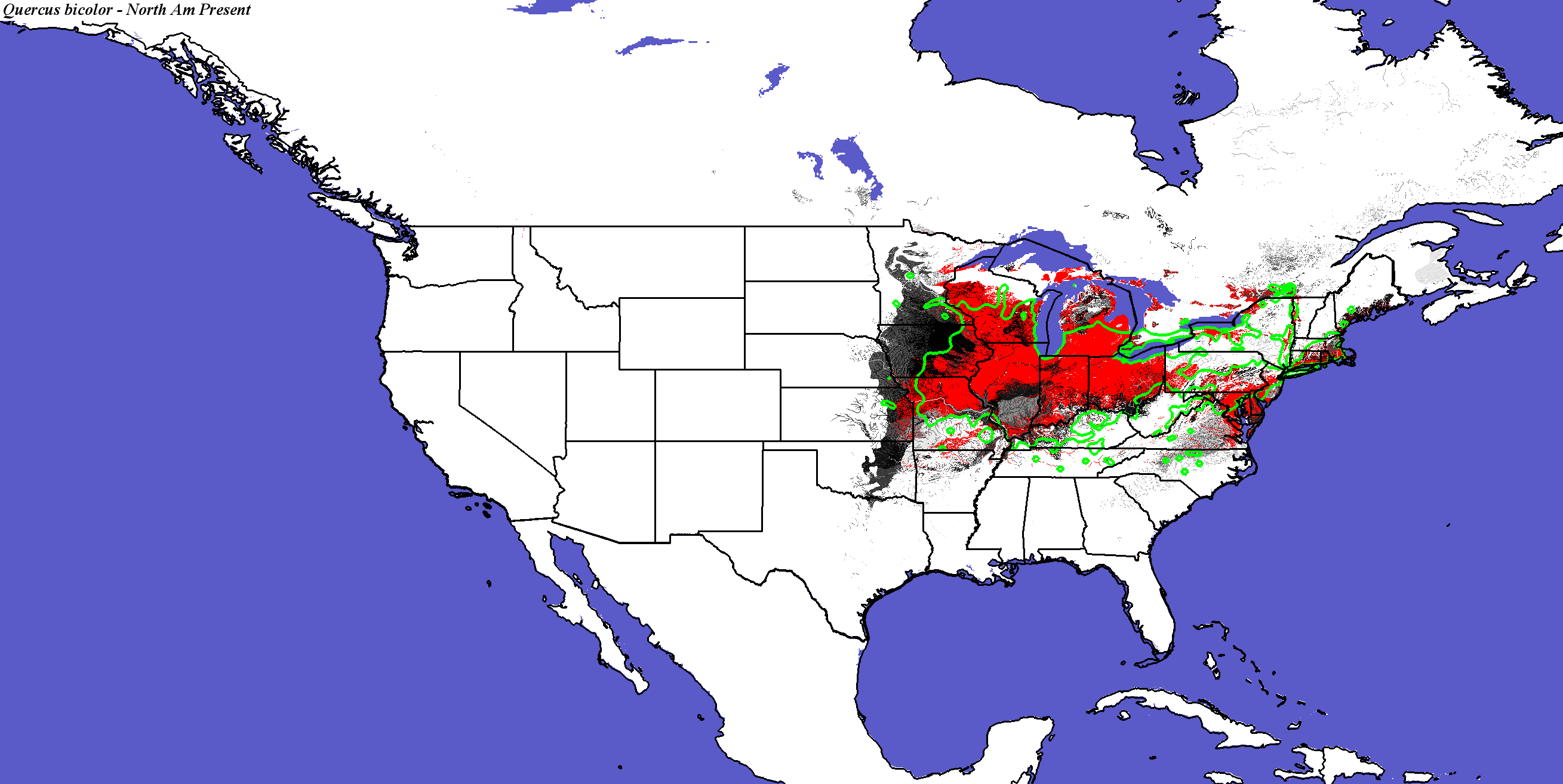

Quercus bicolor - CONUS
Compare with Current Range from the Silvics Manual for Quercus bicolor
Compare with Current Range from Biota of North America Program (BONAP) for Quercus bicolor

Compare with Quercus bicolor modeled for Current conditions by Iverson and Prasad
Quercus bicolor not modeled by Crookston and Rehfeldt
Quercus bicolor not modeled by Coops and Waring

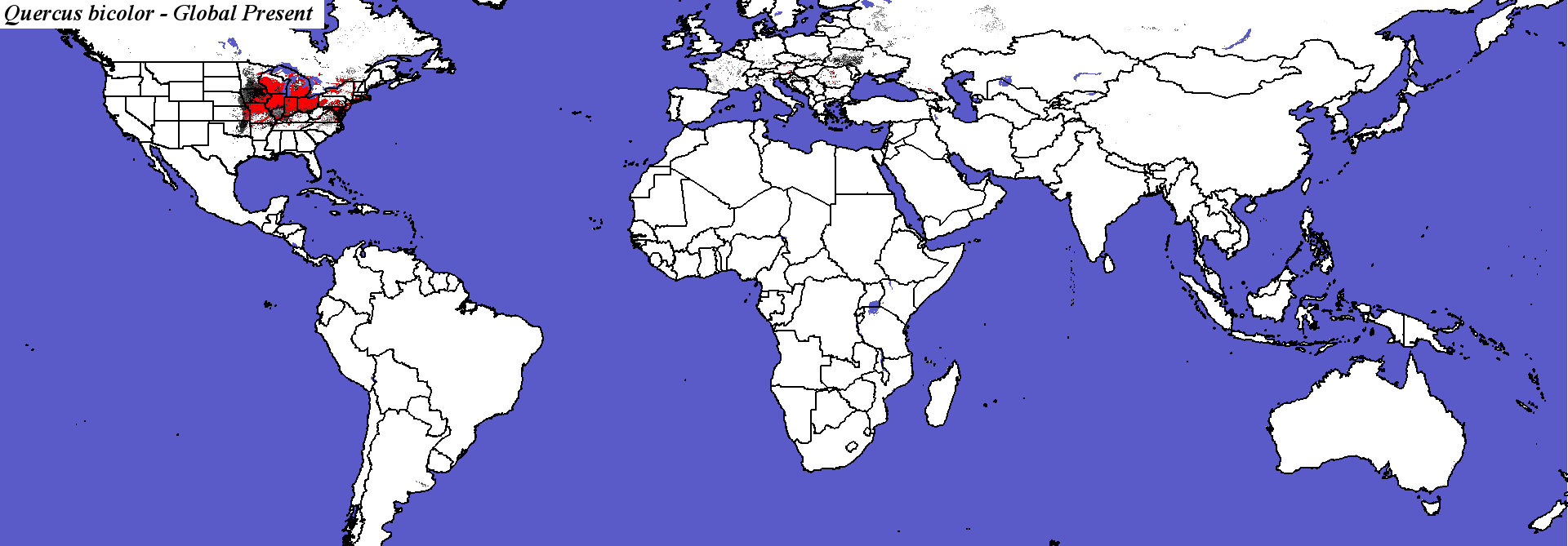

Quercus bicolor - Global

PCM - Parallel Climate Model
Quercus_bicolor_final.3.conus
Quercus_bicolor_final.3.global

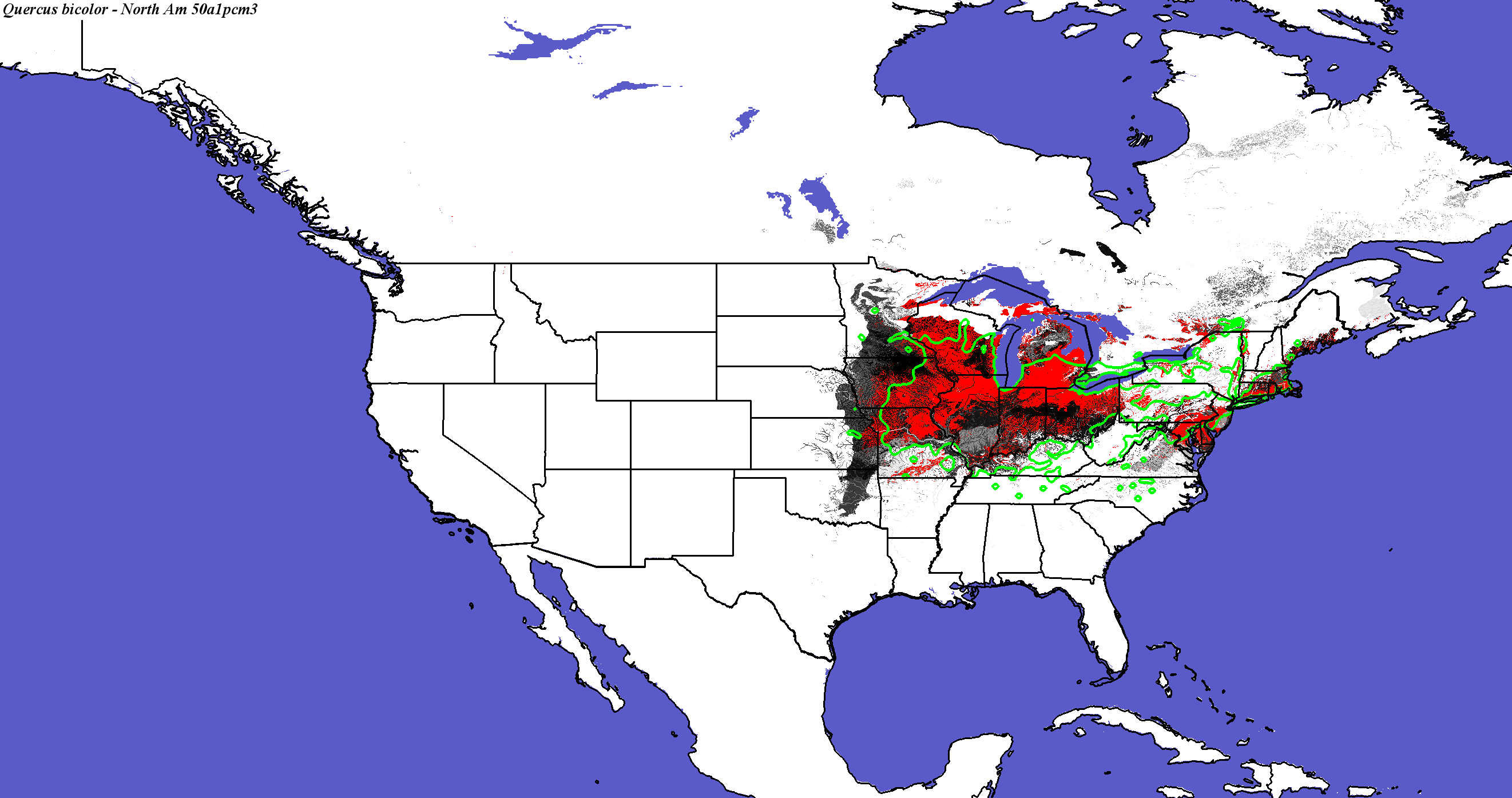

PCM, Scenario A1FI, 2050 - Quercus bicolor - CONUS

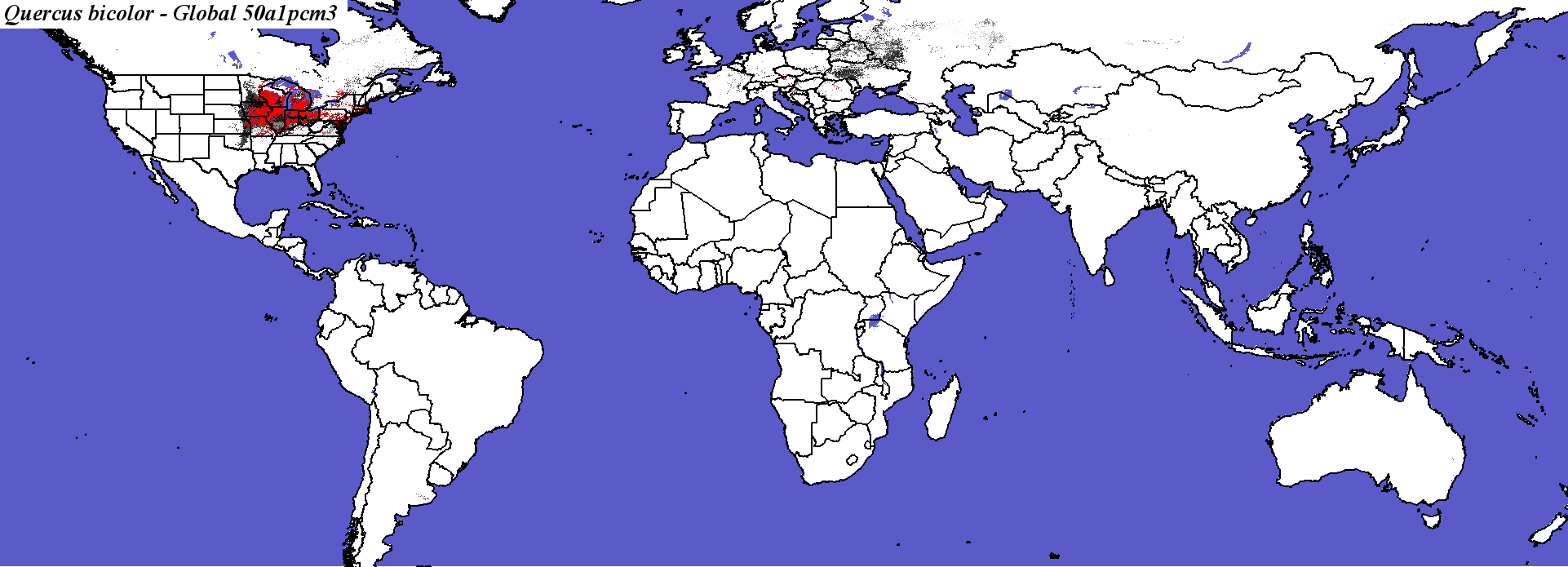

PCM, Scenario A1FI, 2050 - Quercus bicolor - Global
Quercus_bicolor_final.3.conus
Quercus_bicolor_final.3.global

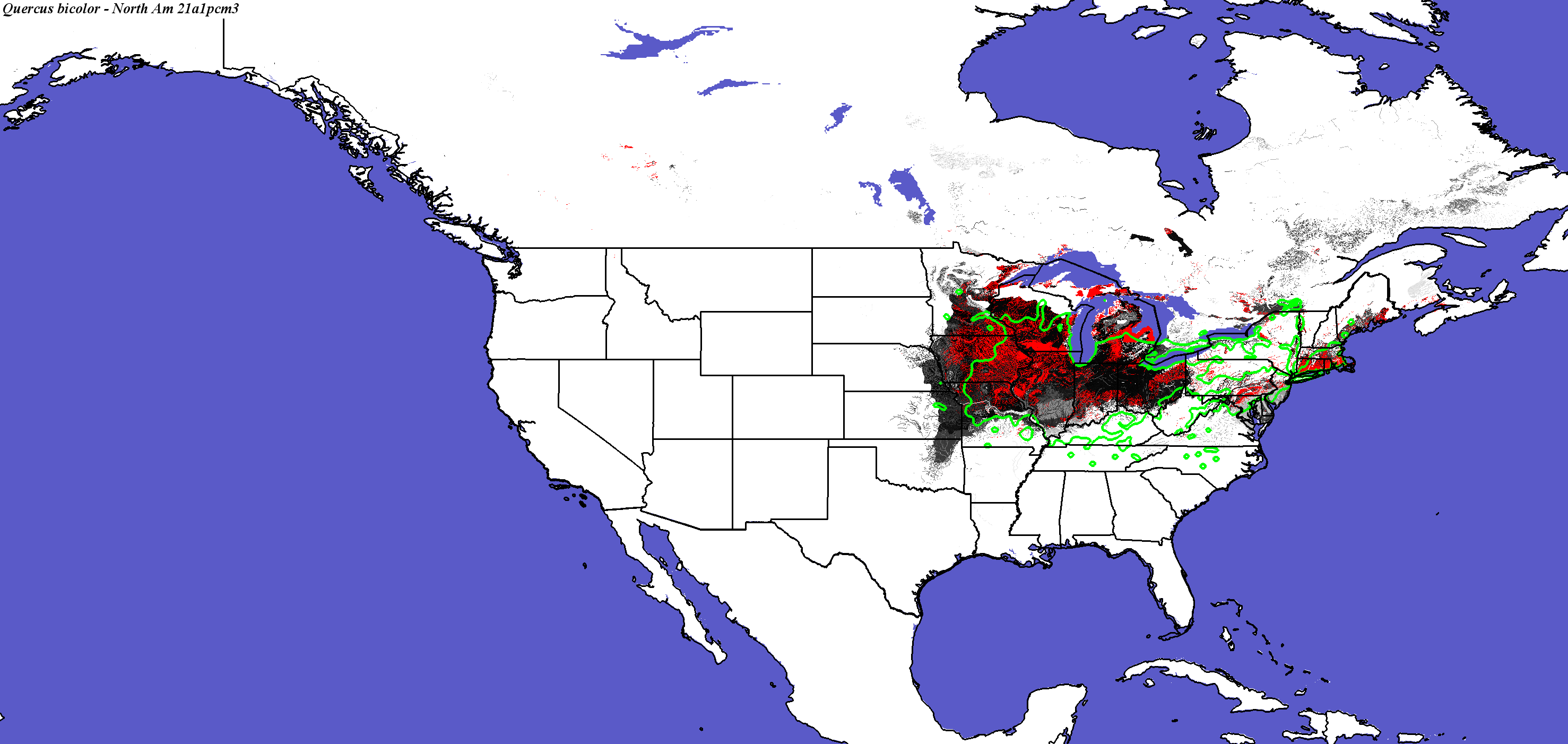

PCM, Scenario A1FI, 2100 - Quercus bicolor - CONUS
Compare with Quercus bicolor modeled for PCM A1FI in 2100 by Iverson and Prasad

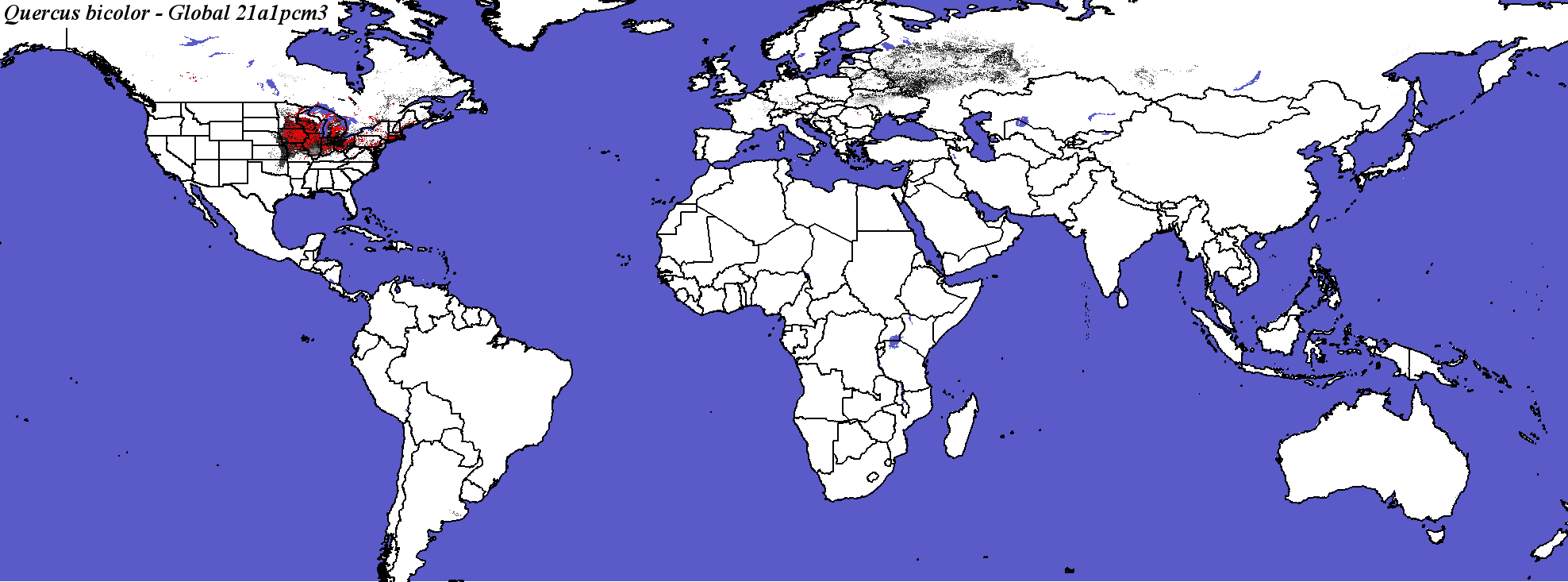

PCM, Scenario A1FI, 2100 - Quercus bicolor - Global

Quercus_bicolor_final.3.conus
Quercus_bicolor_final.3.global
PCM, Scenario B1, 2050 - Quercus bicolor - CONUS

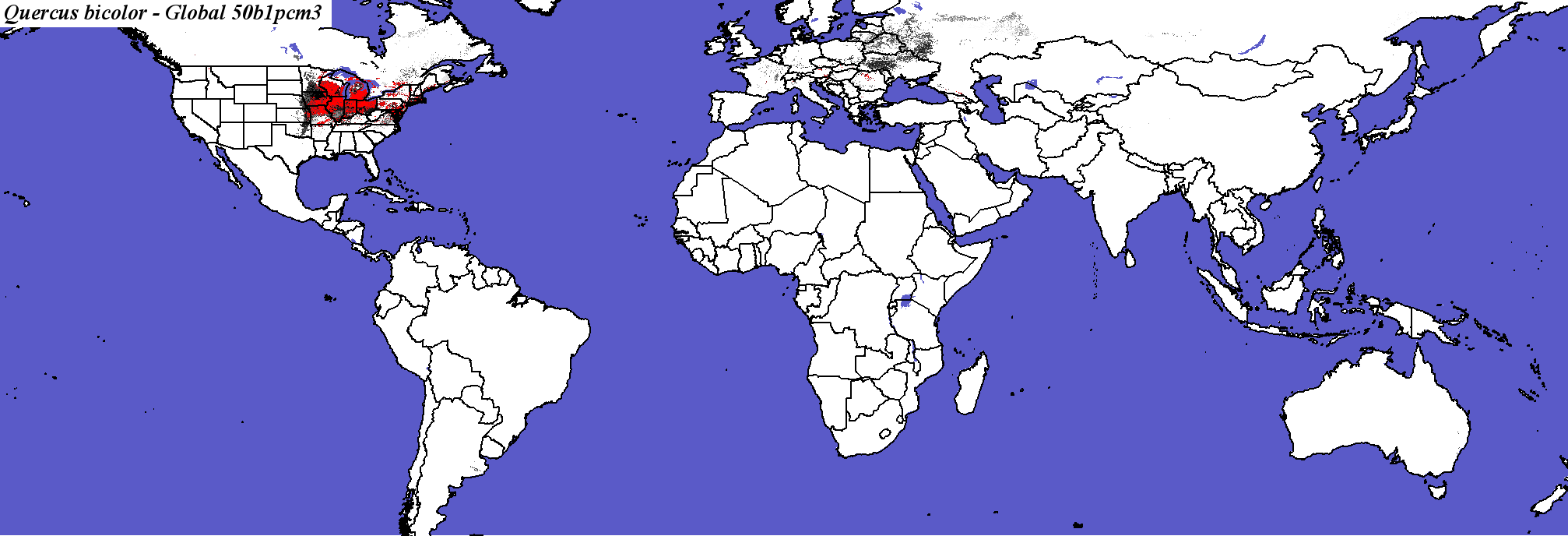

PCM, Scenario B1, 2050 - Quercus bicolor - Global
Quercus_bicolor_final.3.conus
Quercus_bicolor_final.3.global

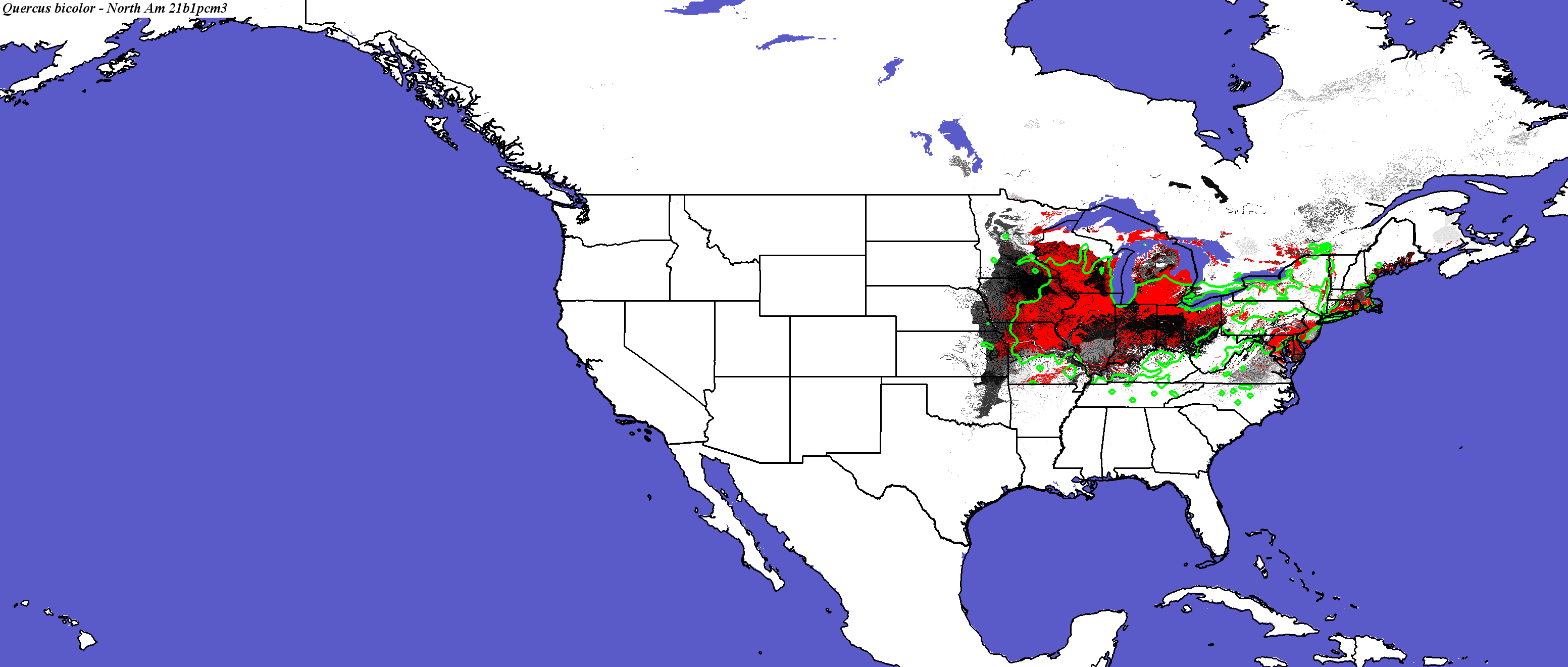

PCM, Scenario B1, 2100 - Quercus bicolor - CONUS
Compare with Quercus bicolor modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus bicolor - Global

Hadley Climate Model
Quercus_bicolor_final.3.conus
Quercus_bicolor_final.3.global

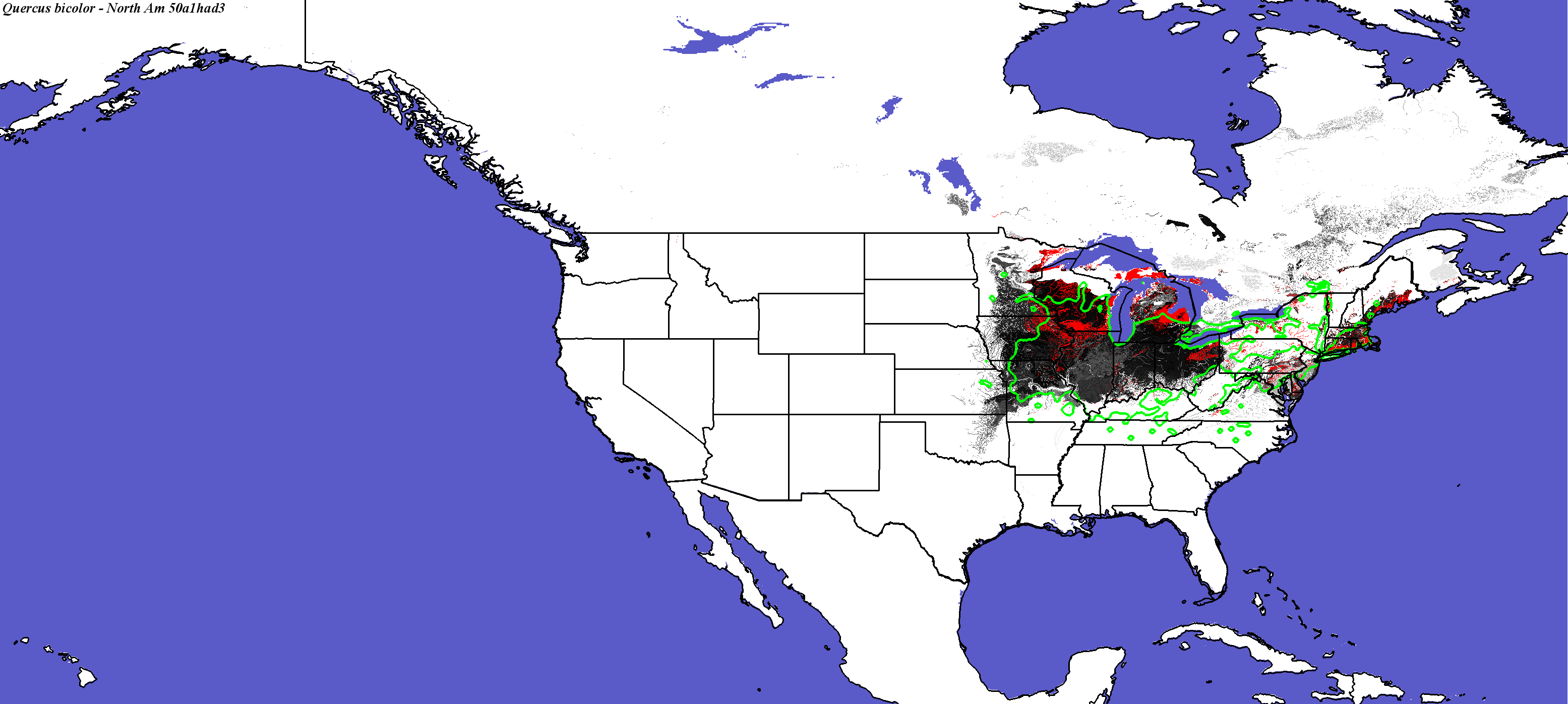

Hadley, Scenario A1FI, 2050 - Quercus bicolor - CONUS
Quercus bicolor not modeled by Crookston and Rehfeldt

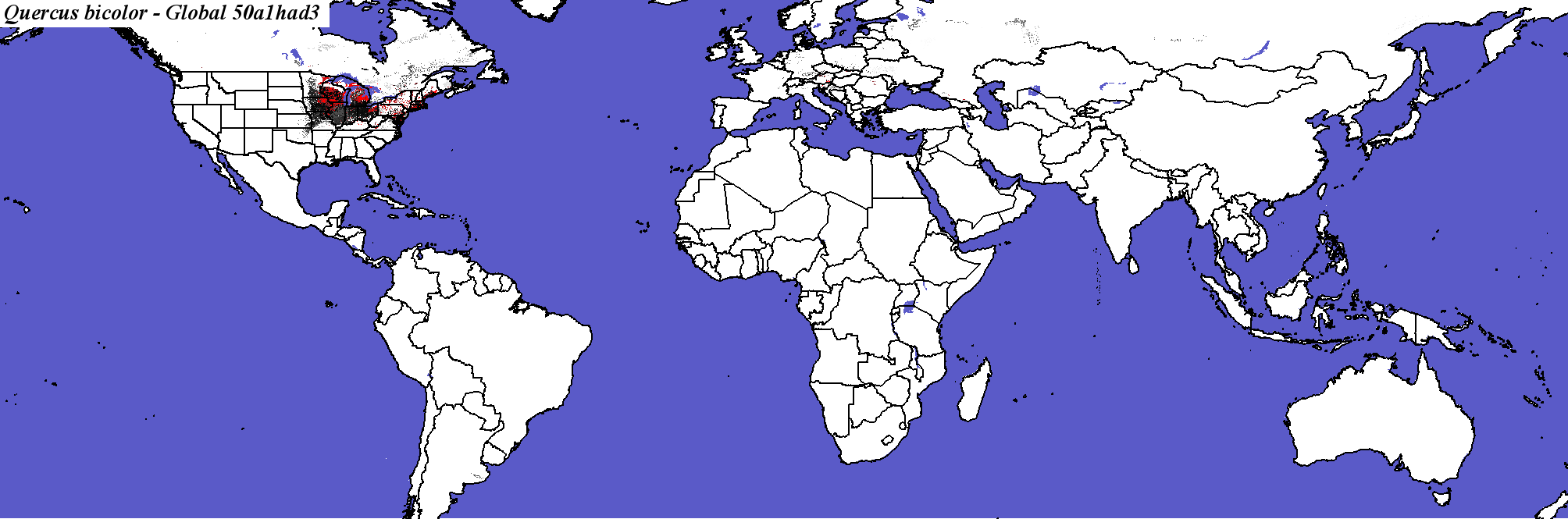

Hadley, Scenario A1FI, 2050 - Quercus bicolor - Global
Quercus_bicolor_final.3.conus
Quercus_bicolor_final.3.global.

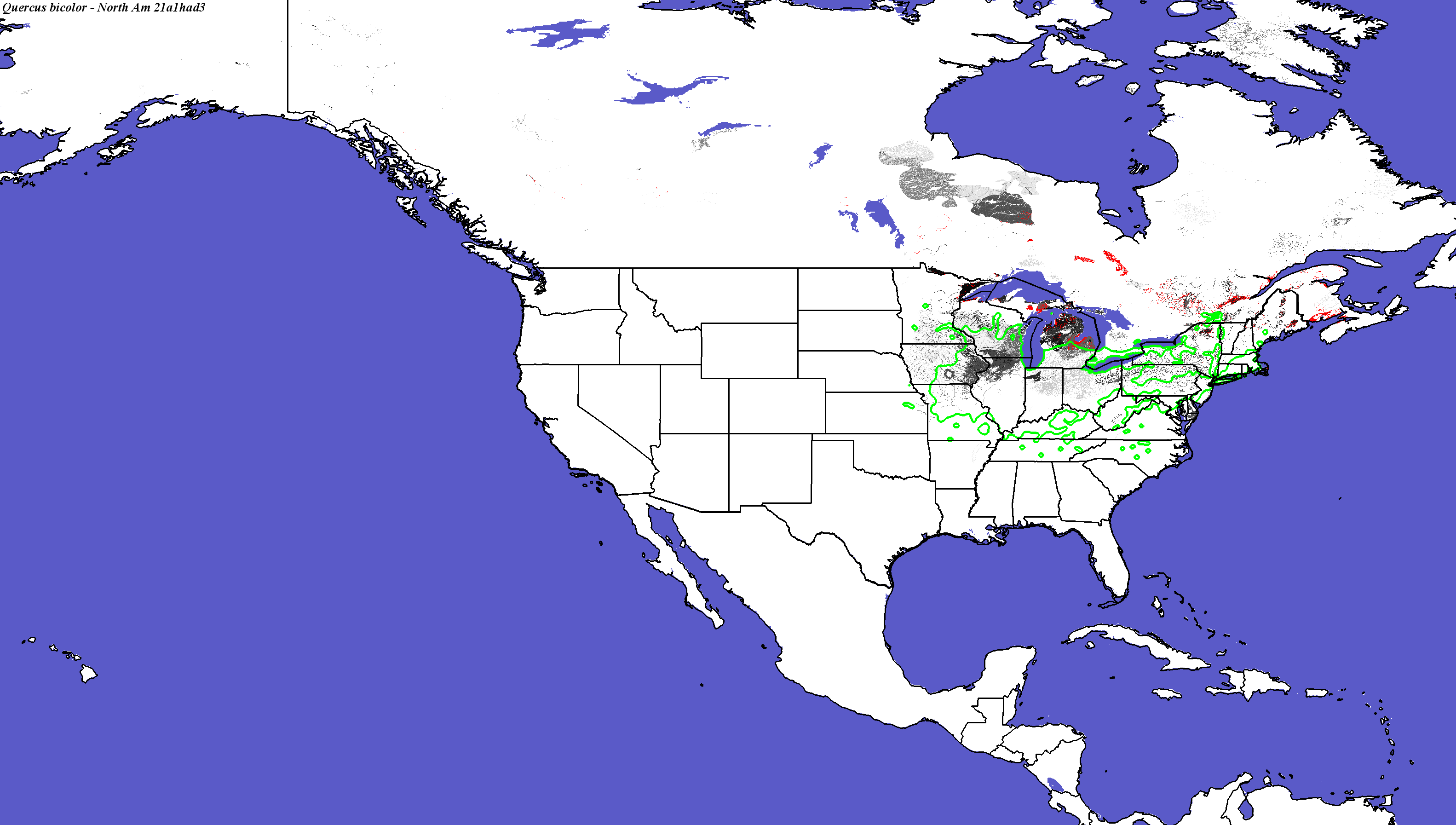

Hadley, Scenario A1FI, 2100 - Quercus bicolor - CONUS
Compare with Quercus bicolor modeled for Hadley A1FI in 2100 by Iverson and Prasad
Quercus bicolor not modeled by Crookston and Rehfeldt
Quercus bicolor not modeled by Coops and Waring

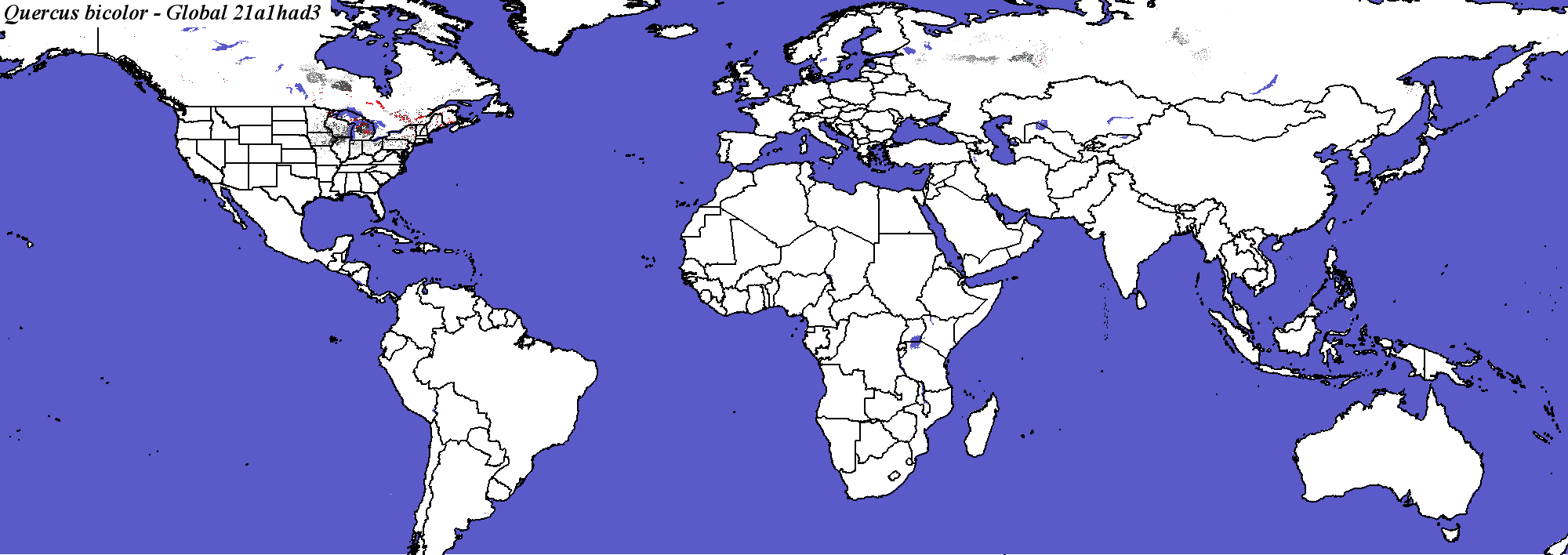

Hadley, Scenario A1FI, 2100 - Quercus bicolor - Global

Quercus_bicolor_final.3.conus
Quercus_bicolor_final.3.global.

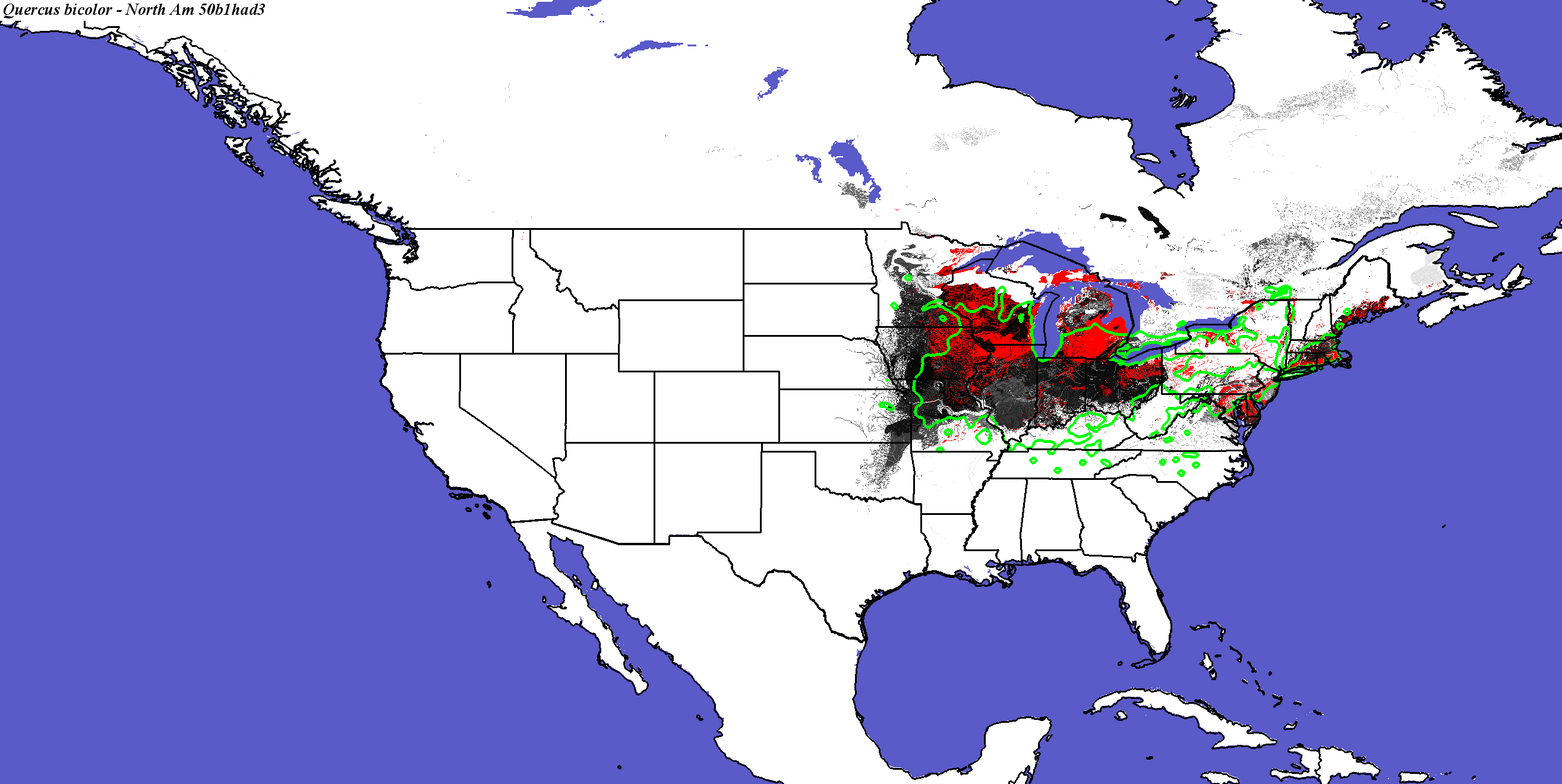

Hadley, Scenario B1, 2050 - Quercus bicolor - CONUS
Quercus bicolor not modeled by Crookston and Rehfeldt
Quercus bicolor not modeled by Coops and Waring

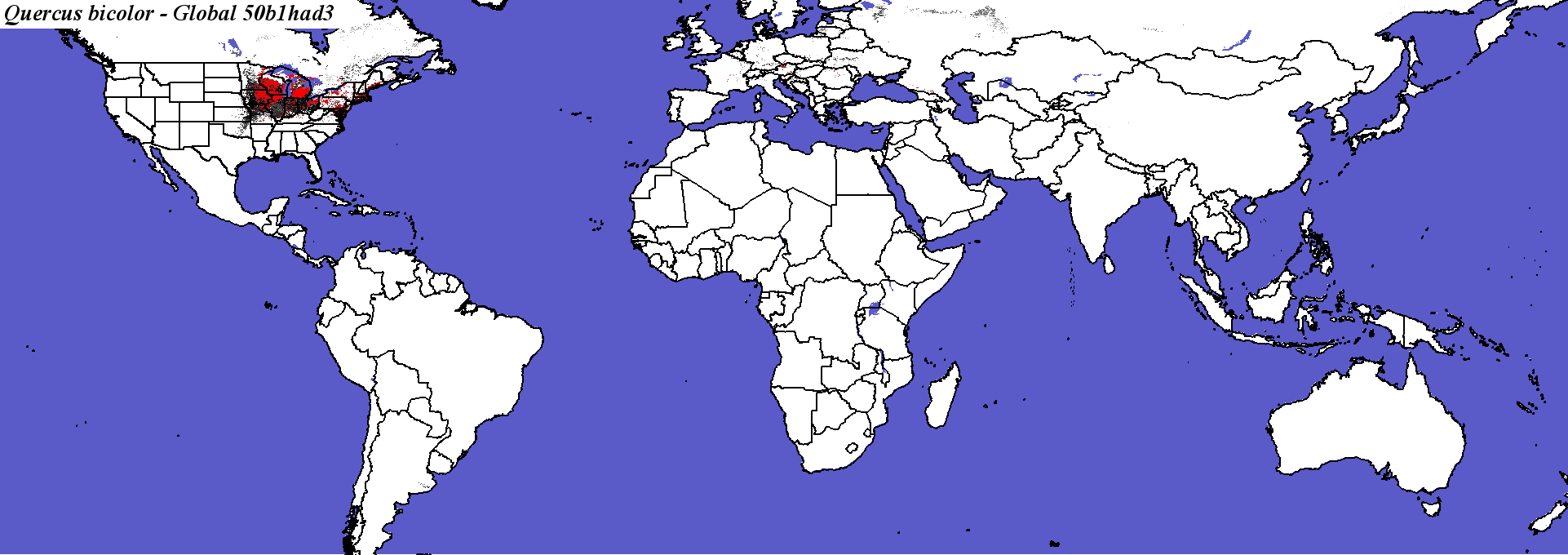

Hadley, Scenario B1, 2050 - Quercus bicolor - Global
Quercus_bicolor_final.3.conus
Quercus_bicolor_final.3.global

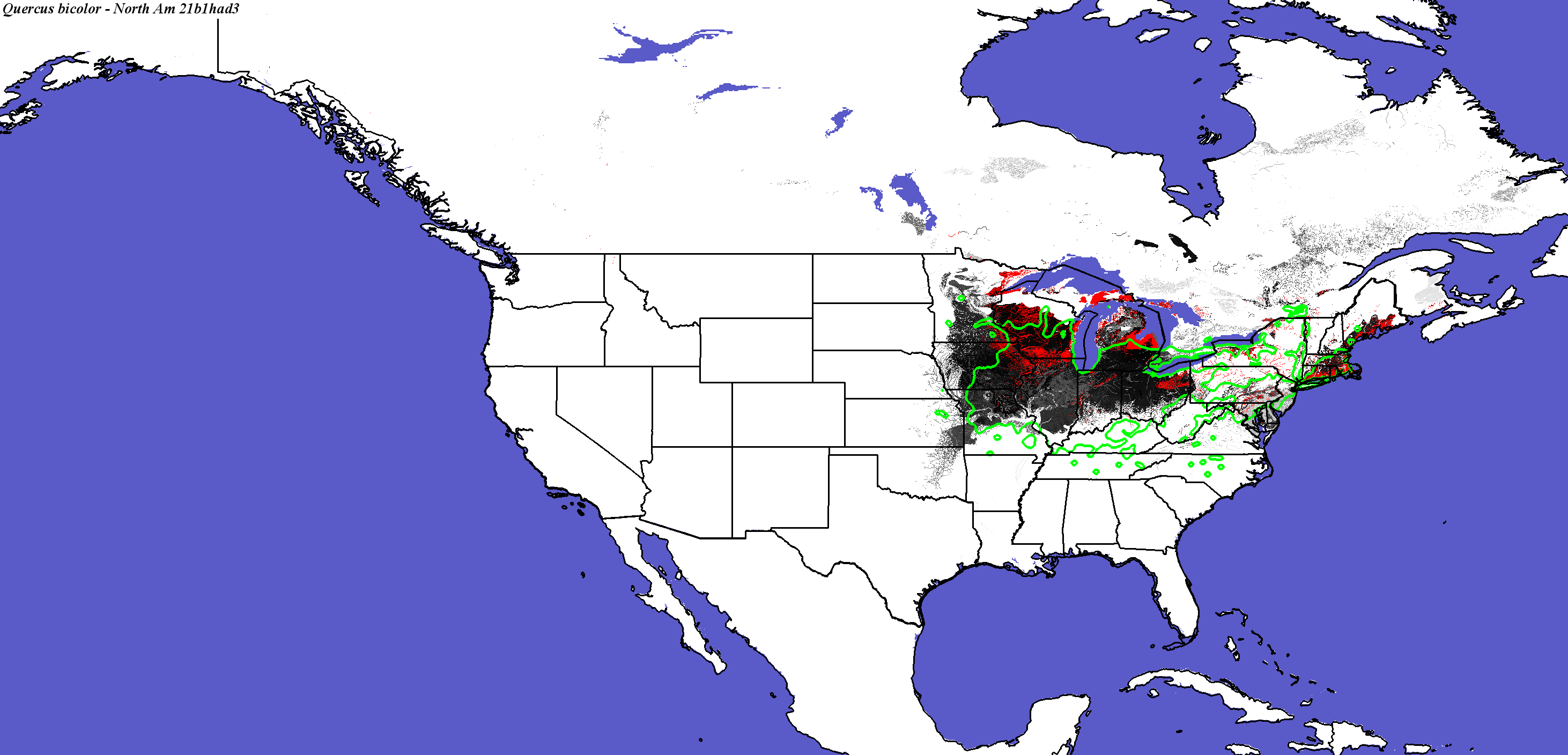

Hadley, Scenario B1, 2100 - Quercus bicolor - CONUS
Compare with Quercus bicolor modeled for Hadley B1 in 2100 by Iverson and Prasad
Quercus bicolor not modeled by Crookston and Rehfeldt

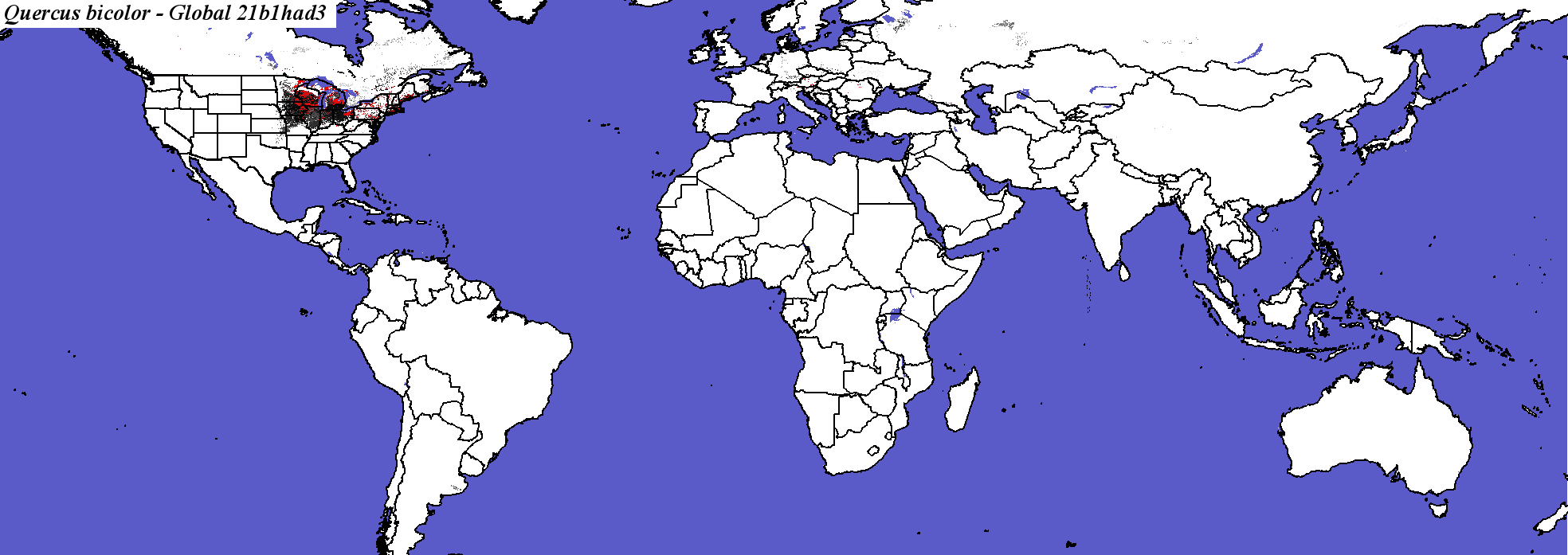

Hadley, Scenario B1, 2100 - Quercus bicolor - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_bicolor_final.elev

Number of Suitable Ecoregions (Niche Breadth)

60

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

34.5205

Area in Present Suitable Range (in km2)

622913

Area in Future Suitable Range (Had B1 2050, in km2)

285529

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

213934

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

34.3400

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

78.7671

Percent Change in Area of Suitable Range (Had B1 2050)

-54.1600

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

85.2055

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

21577 +/- 31913.9

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

34.1096

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

9.64787 +/- 14.2961

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

32.6027

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

44.7329 +/- 52.3333

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

59.863

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

78.0822

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

124582

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

19.9900

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

70.6849

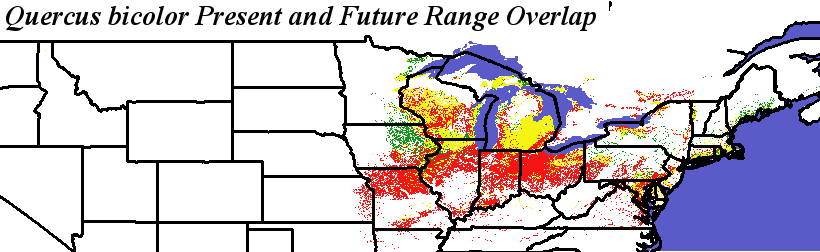

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus bicolor Quercus bicolor - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

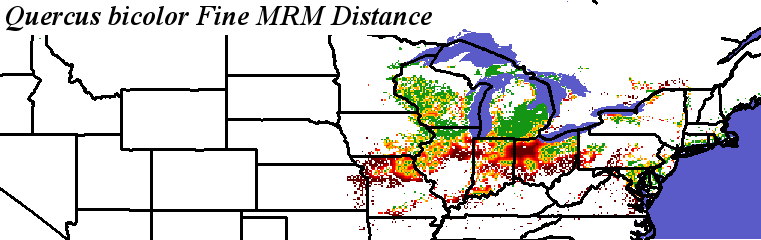

Quercus_bicolor_final.elev Fine MRM Distance

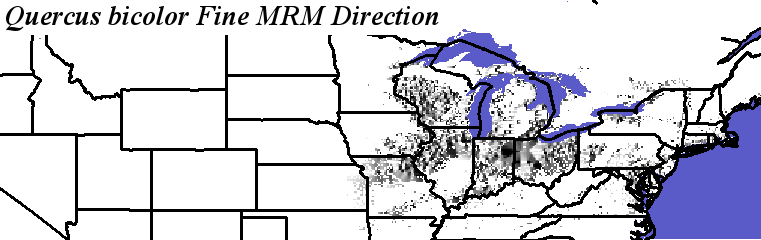

Quercus_bicolor_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus bicolor Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus bicolor
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

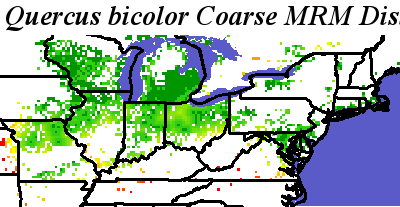

Quercus_bicolor_final.elev Coarse MRM Distance

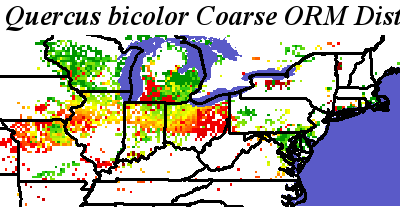

Quercus_bicolor_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus bicolor Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus bicolor
