Version 5 Tree Atlas


Quercus chrysolepis

canyon live oak

elev

Quercus chrysolepis Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus chrysolepis

USDA Plants Database entry for Quercus chrysolepis
Silvics Manual entry for Quercus chrysolepis


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Quercus chrysolepis var. nana6923151007TBD

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_chrysolepis_final Occurrences

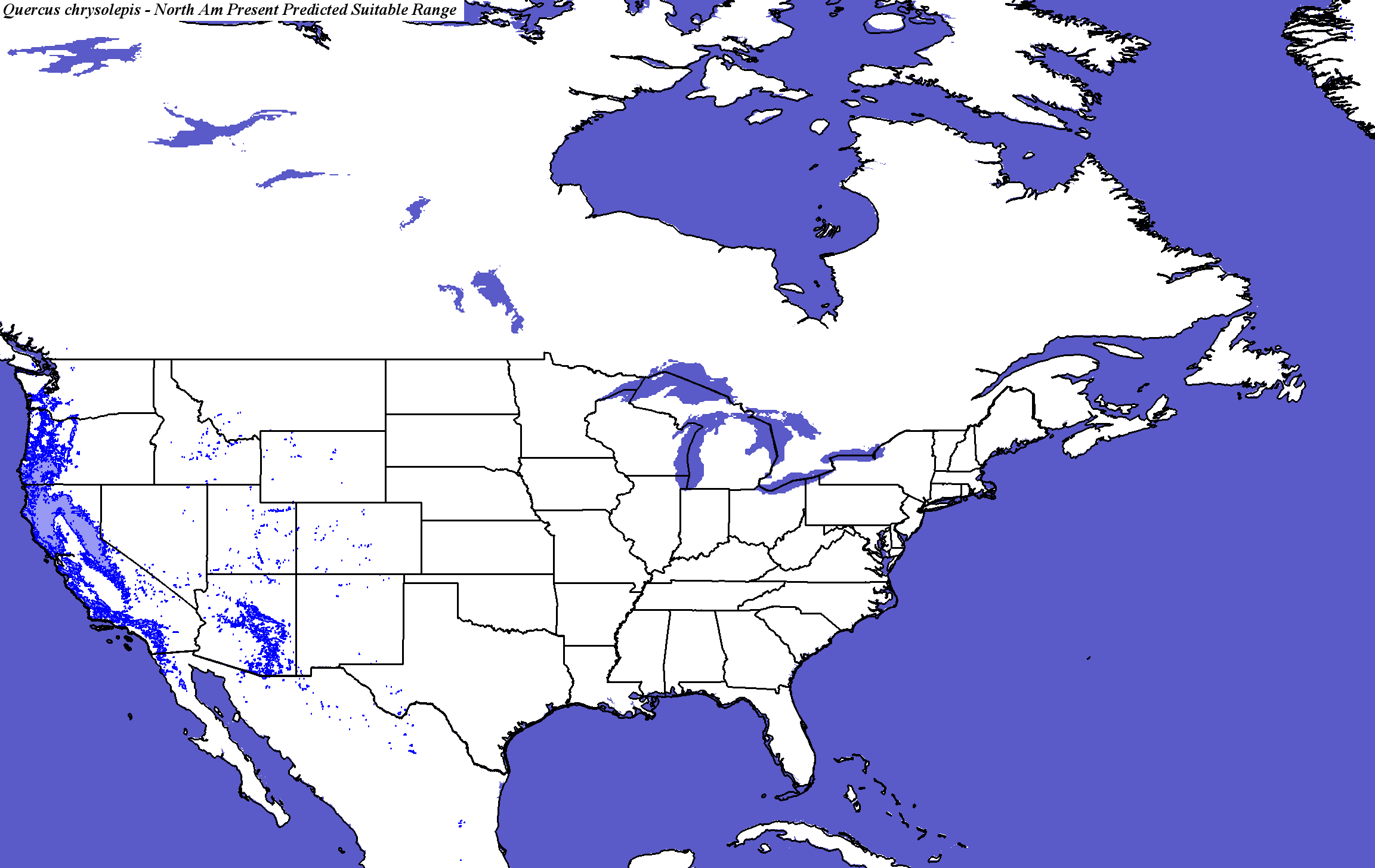

Hargroves Present Suitable Range Outline for Quercus_chrysolepis_final
Quercus chrysolepis - Occurrence Locations Quercus chrysolepis - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_chrysolepis_final.3.conus
Quercus_chrysolepis_final.3.global

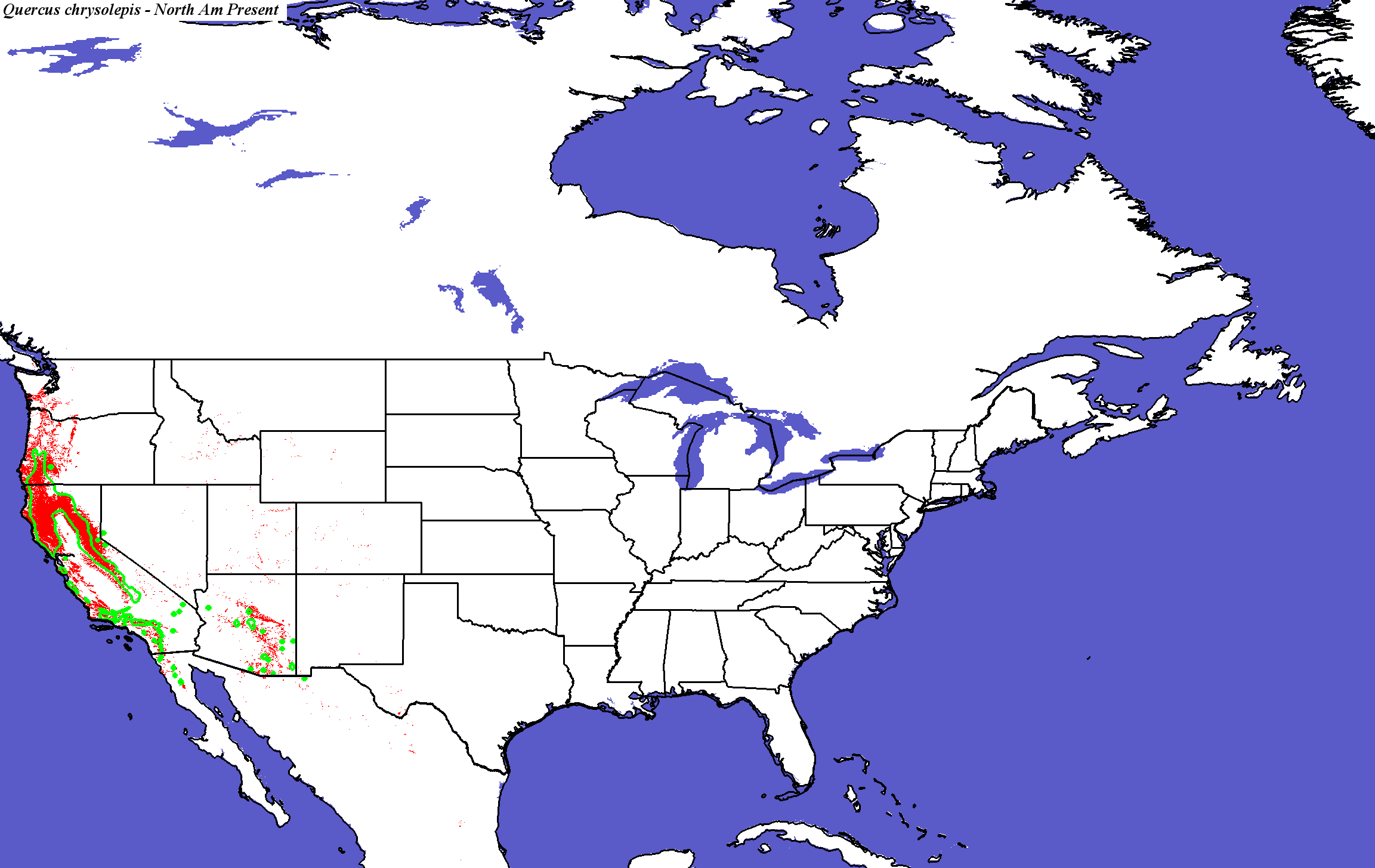

Quercus chrysolepis - CONUS
Compare with Current Range from the Silvics Manual for Quercus chrysolepis
Compare with Current Range from Biota of North America Program (BONAP) for Quercus chrysolepis

Quercus chrysolepis not modeled by Iverson and Prasad
Compare with Quercus chrysolepis modeled for Current conditions by Crookston and Rehfeldt
Quercus chrysolepis not modeled by Coops and Waring
Quercus chrysolepis - Global

PCM - Parallel Climate Model
Quercus_chrysolepis_final.3.conus
Quercus_chrysolepis_final.3.global

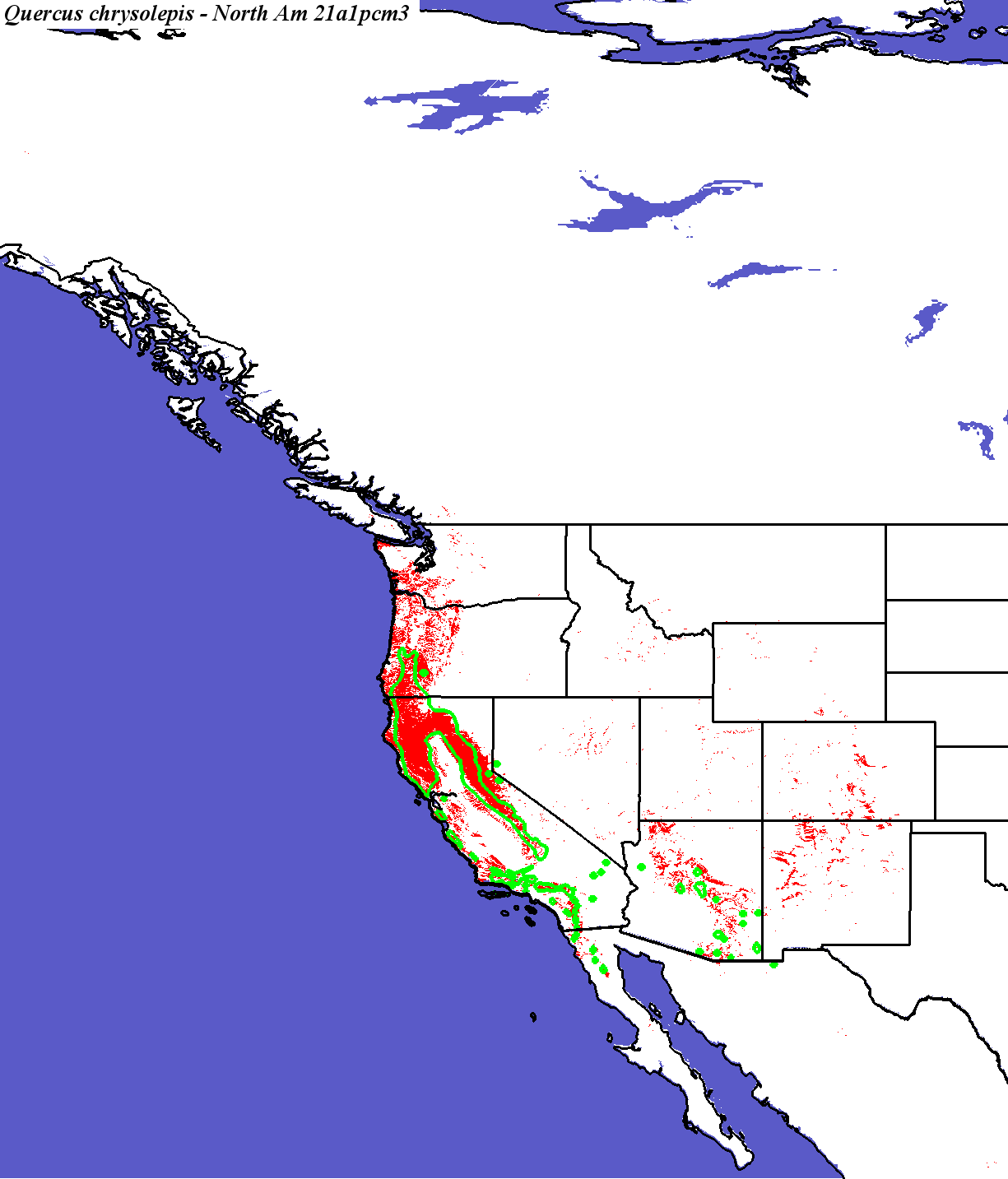

PCM, Scenario A1FI, 2050 - Quercus chrysolepis - CONUS

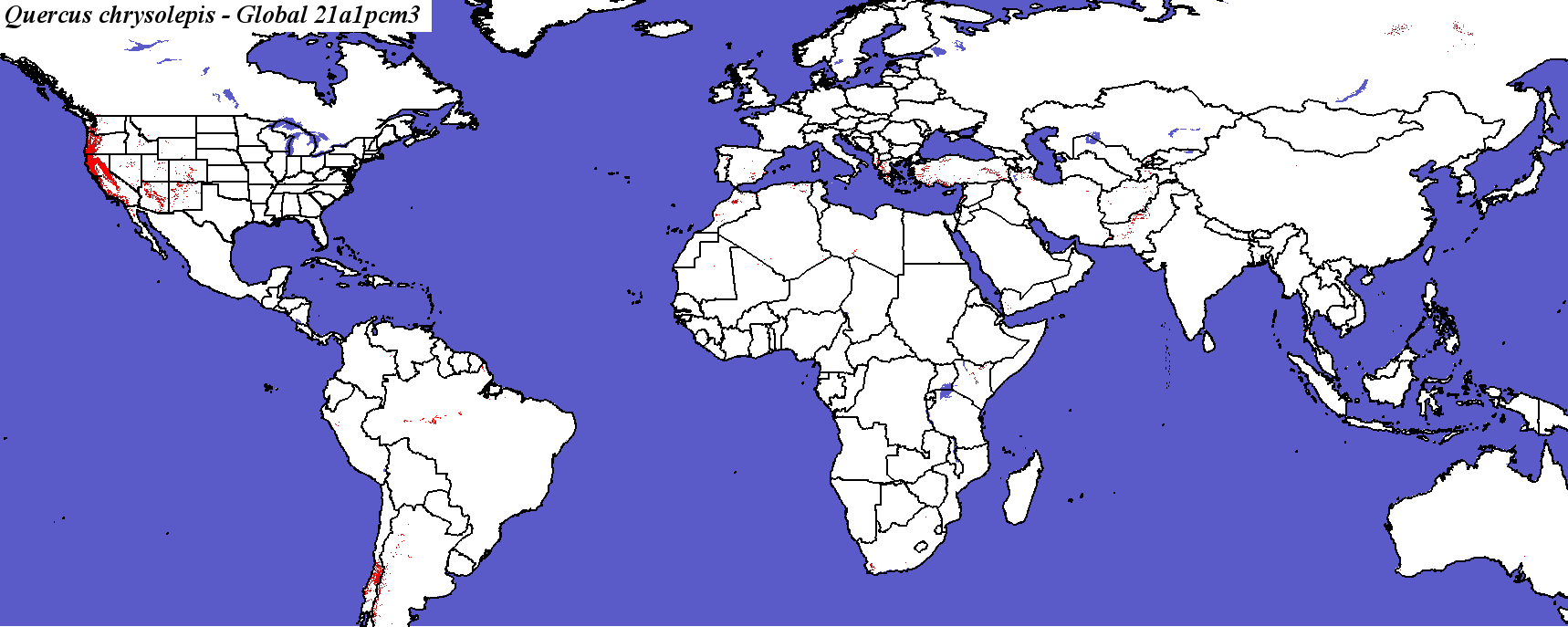

PCM, Scenario A1FI, 2050 - Quercus chrysolepis - Global
Quercus_chrysolepis_final.3.conus
Quercus_chrysolepis_final.3.global
PCM, Scenario A1FI, 2100 - Quercus chrysolepis - CONUS
Quercus chrysolepis species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Quercus chrysolepis - Global

Quercus_chrysolepis_final.3.conus
Quercus_chrysolepis_final.3.global

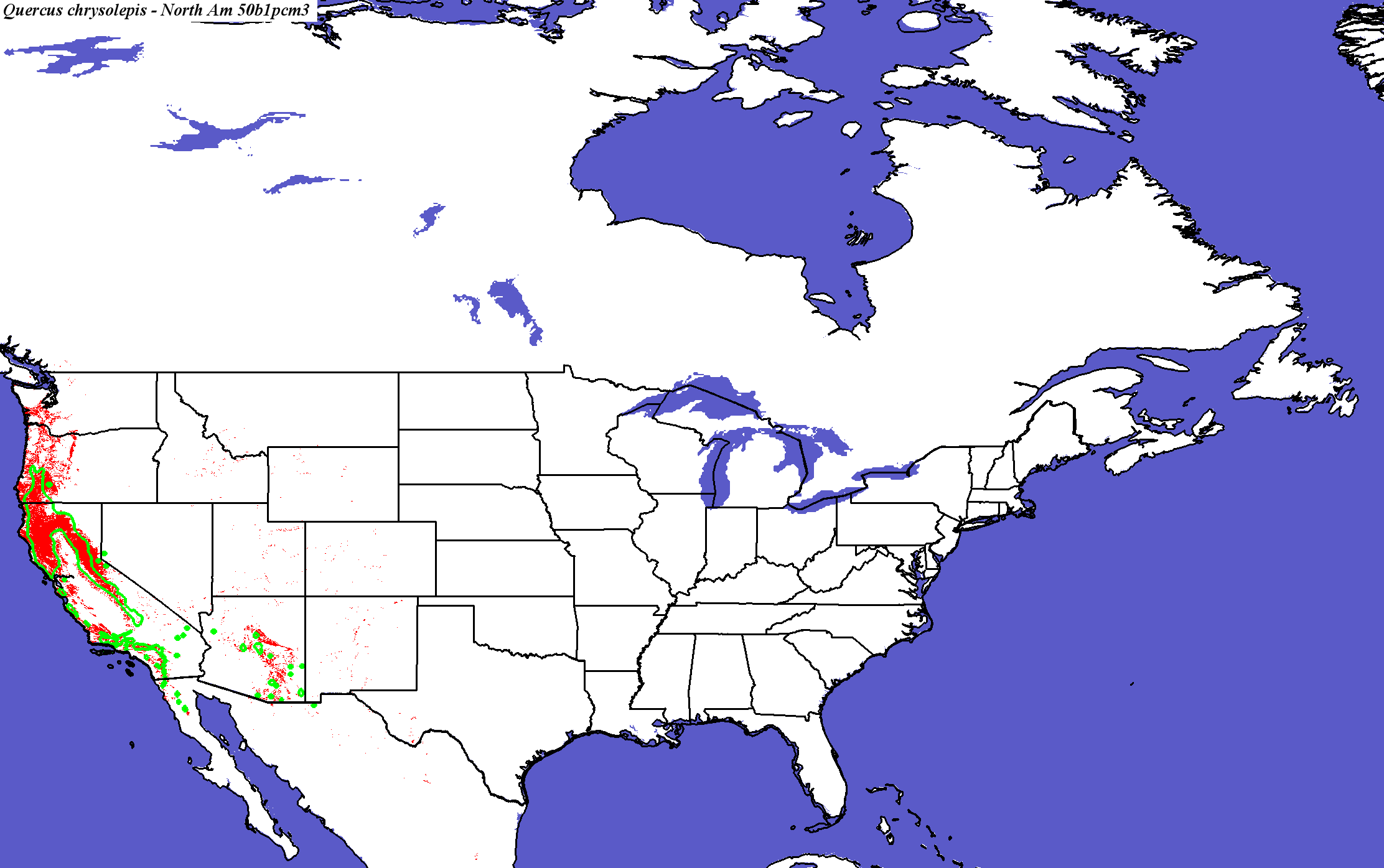

PCM, Scenario B1, 2050 - Quercus chrysolepis - CONUS
PCM, Scenario B1, 2050 - Quercus chrysolepis - Global
Quercus_chrysolepis_final.3.conus
Quercus_chrysolepis_final.3.global

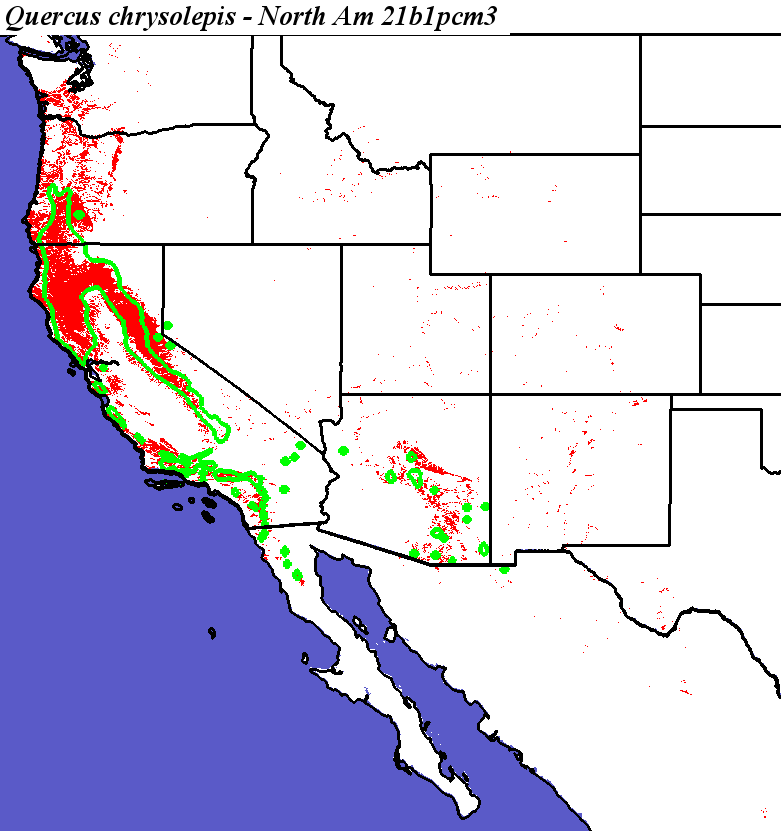

PCM, Scenario B1, 2100 - Quercus chrysolepis - CONUS
Quercus chrysolepis not modeled by Iverson and Prasad

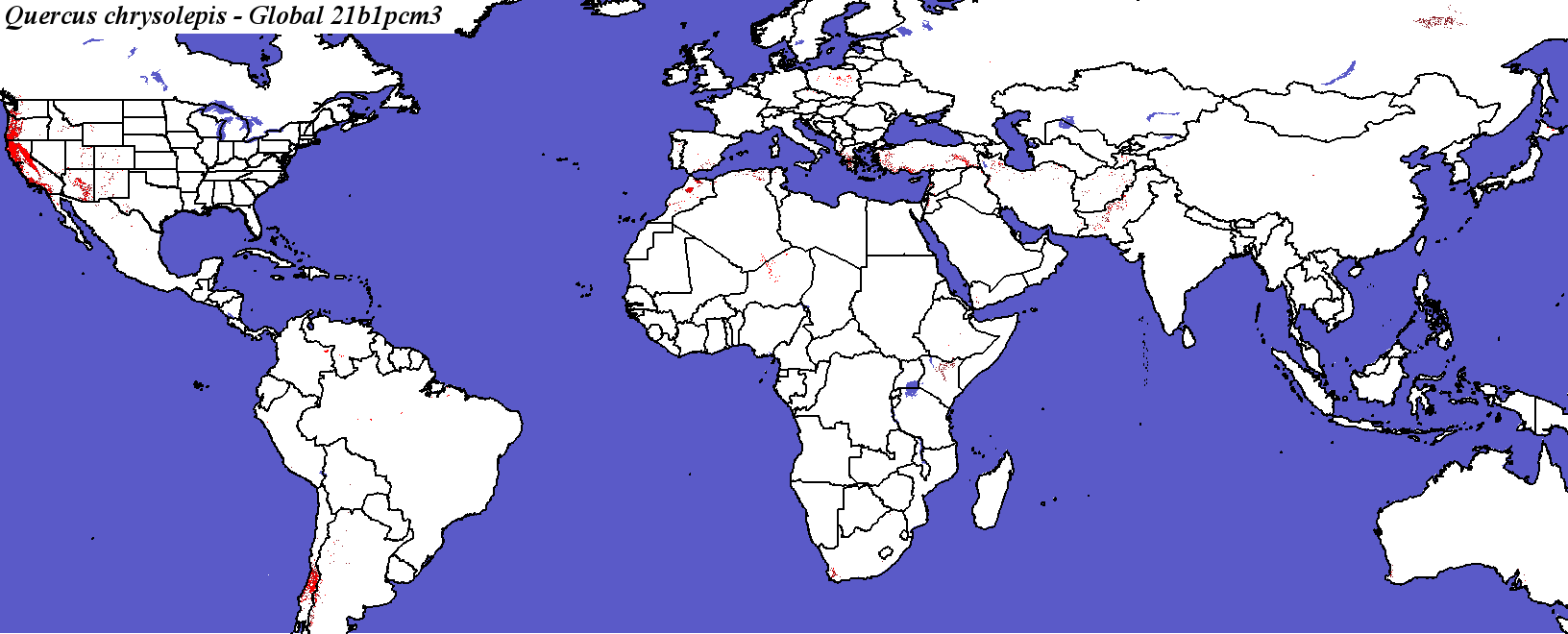

PCM, Scenario B1, 2100 - Quercus chrysolepis - Global

Hadley Climate Model
Quercus_chrysolepis_final.3.conus
Quercus_chrysolepis_final.3.global
Hadley, Scenario A1FI, 2050 - Quercus chrysolepis - CONUS
Compare with Quercus chrysolepis modeled for Hadley A2 in 2060 by Crookston and Rehfeldt

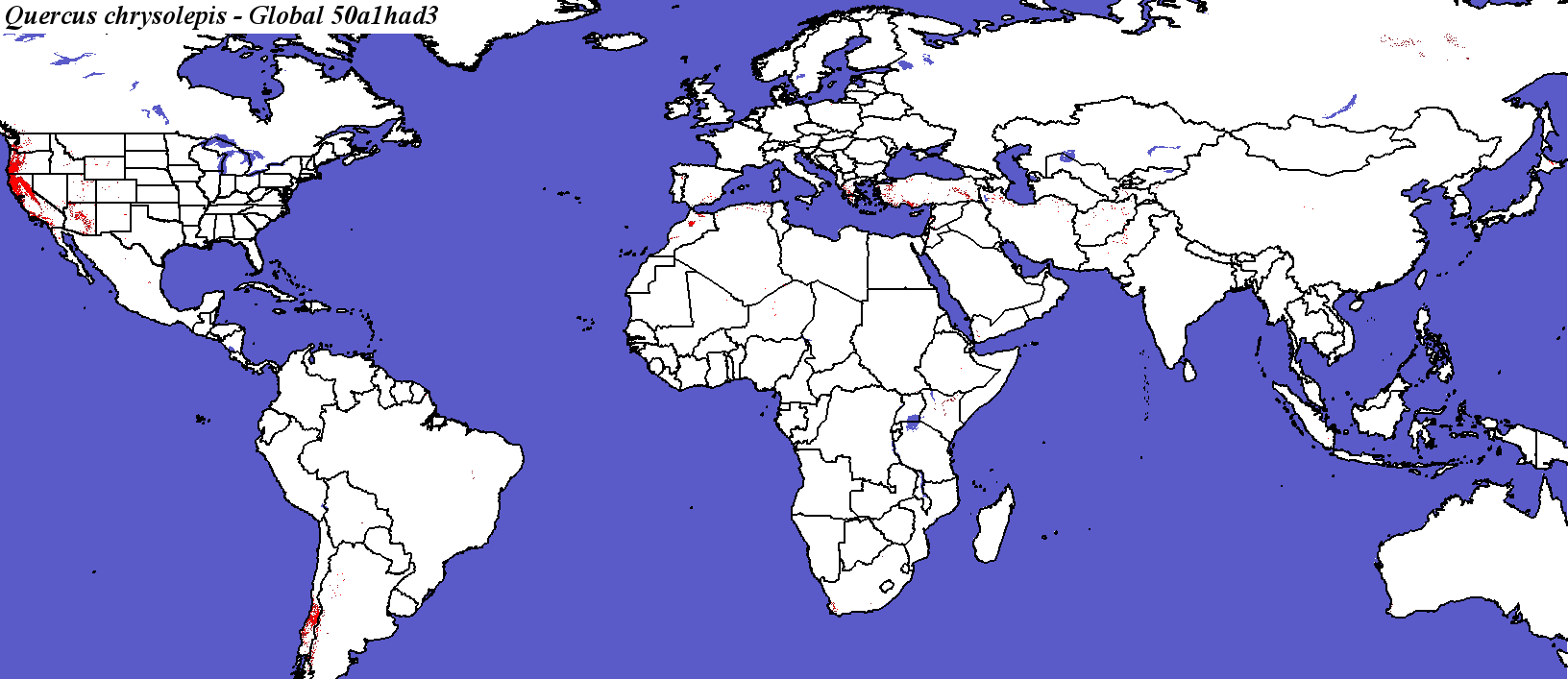

Hadley, Scenario A1FI, 2050 - Quercus chrysolepis - Global
Quercus_chrysolepis_final.3.conus
Quercus_chrysolepis_final.3.global.
Hadley, Scenario A1FI, 2100 - Quercus chrysolepis - CONUS
Quercus chrysolepis not modeled by Iverson and Prasad
Compare with Quercus chrysolepis modeled for Hadley A2 in 2090 by Crookston and Rehfeldt
Quercus chrysolepis not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Quercus chrysolepis - Global

Quercus_chrysolepis_final.3.conus
Quercus_chrysolepis_final.3.global.

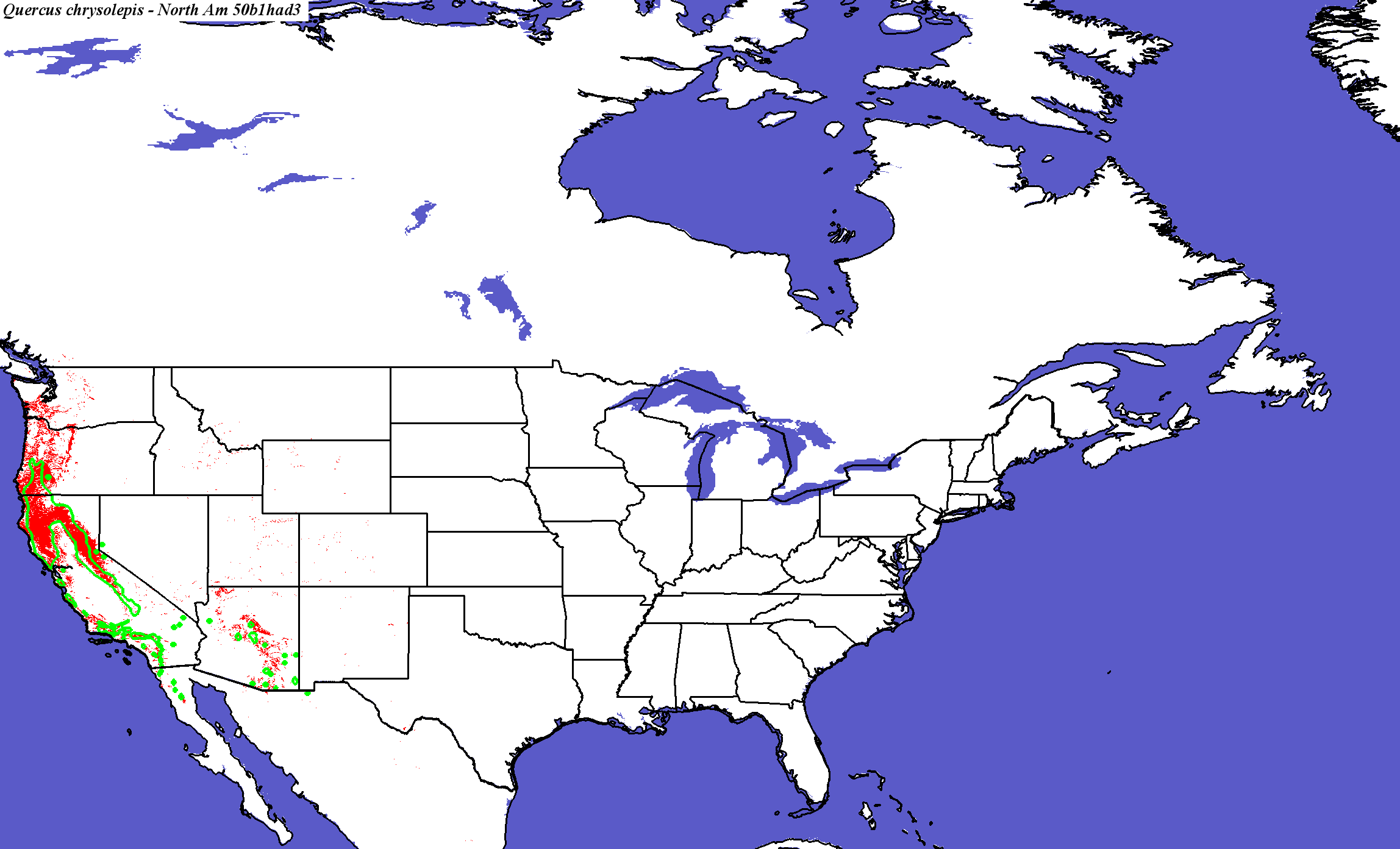

Hadley, Scenario B1, 2050 - Quercus chrysolepis - CONUS
Compare with Quercus chrysolepis modeled for Hadley B2 in 2060 by Crookston and Rehfeldt
Quercus chrysolepis not modeled by Coops and Waring

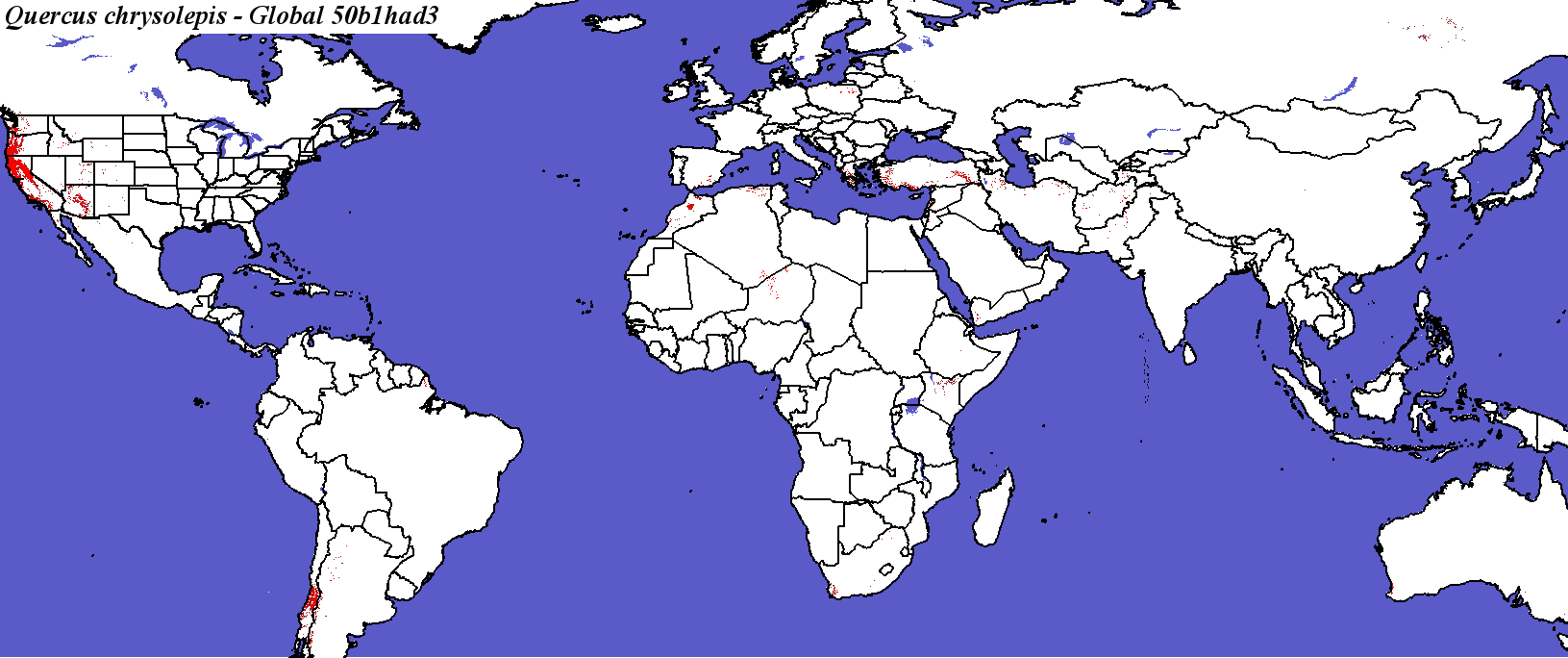

Hadley, Scenario B1, 2050 - Quercus chrysolepis - Global
Quercus_chrysolepis_final.3.conus
Quercus_chrysolepis_final.3.global

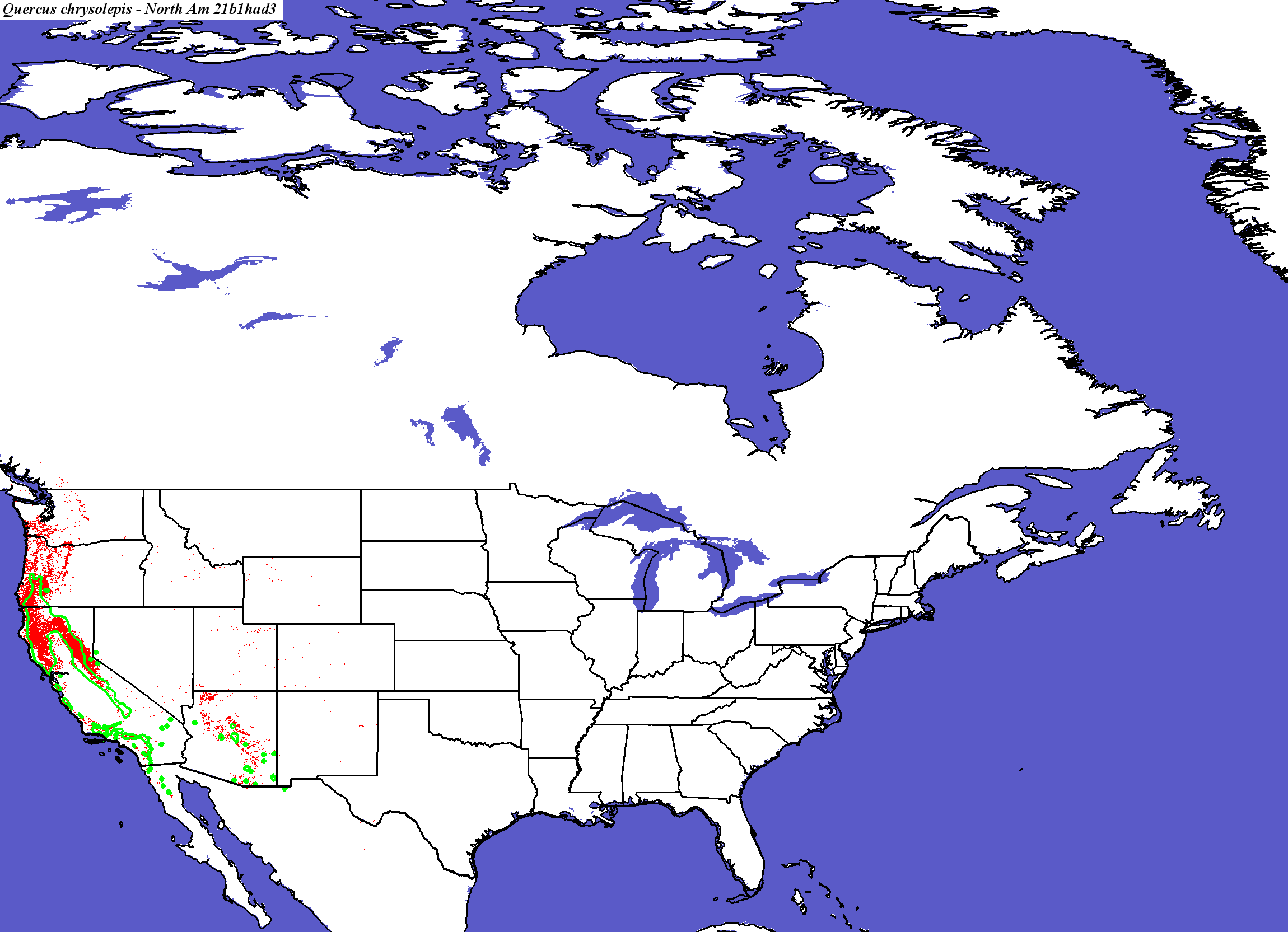

Hadley, Scenario B1, 2100 - Quercus chrysolepis - CONUS
Quercus chrysolepis not modeled by Iverson and Prasad
Compare with Quercus chrysolepis modeled for Hadley B2 in 2090 by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Quercus chrysolepis - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_chrysolepis_final.elev

Number of Suitable Ecoregions (Niche Breadth)

82

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

25.6164

Area in Present Suitable Range (in km2)

323011

Area in Future Suitable Range (Had B1 2050, in km2)

285116

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

218946

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

67.7800

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

11.7808

Percent Change in Area of Suitable Range (Had B1 2050)

-11.7300

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

18.2192

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

5123.18 +/- 21430.3

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

90.274

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

2.63491 +/- 10.4642

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

88.4932

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

57.2223 +/- 348.017

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

53.5616

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

2655

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

.8200

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

52.4658

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

81303

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

25.1700

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

55.6164

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus chrysolepis Quercus chrysolepis - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Quercus_chrysolepis_final.elev Fine MRM Distance
Quercus_chrysolepis_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus chrysolepis Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus chrysolepis
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

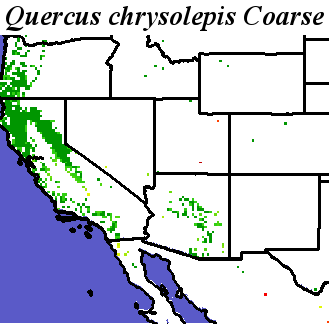

Quercus_chrysolepis_final.elev Coarse MRM Distance

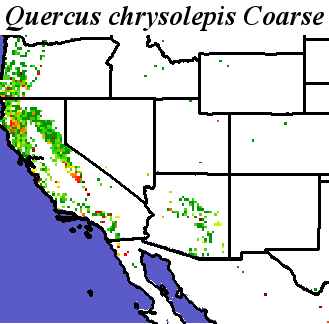

Quercus_chrysolepis_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus chrysolepis Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus chrysolepis
