Version 5 Tree Atlas


Quercus ellipsoidalis

northern pin oak

elev

Quercus ellipsoidalis Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus ellipsoidalis

USDA Plants Database entry for Quercus ellipsoidalis
Silvics Manual entry for Quercus ellipsoidalis


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
1146151161range mostly well-represented; some disjuncts missing

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_ellipsoidalis_final Occurrences

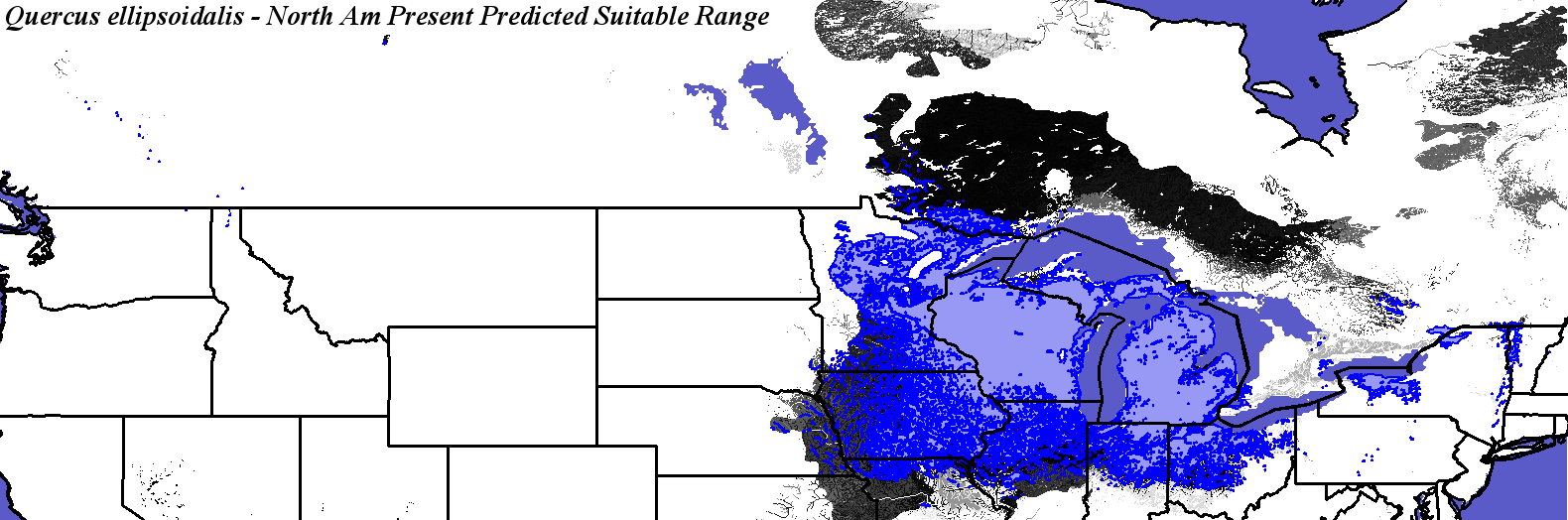

Hargroves Present Suitable Range Outline for Quercus_ellipsoidalis_final
Quercus ellipsoidalis - Occurrence Locations Quercus ellipsoidalis - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_ellipsoidalis_final.3.conus
Quercus_ellipsoidalis_final.3.global
Quercus ellipsoidalis - CONUS
Compare with Current Range from the Silvics Manual for Quercus ellipsoidalis
Compare with Current Range from Biota of North America Program (BONAP) for Quercus ellipsoidalis

Compare with Quercus ellipsoidalis modeled for Current conditions by Iverson and Prasad
Quercus ellipsoidalis not modeled by Crookston and Rehfeldt
Quercus ellipsoidalis not modeled by Coops and Waring
Quercus ellipsoidalis - Global

PCM - Parallel Climate Model
Quercus_ellipsoidalis_final.3.conus
Quercus_ellipsoidalis_final.3.global
PCM, Scenario A1FI, 2050 - Quercus ellipsoidalis - CONUS

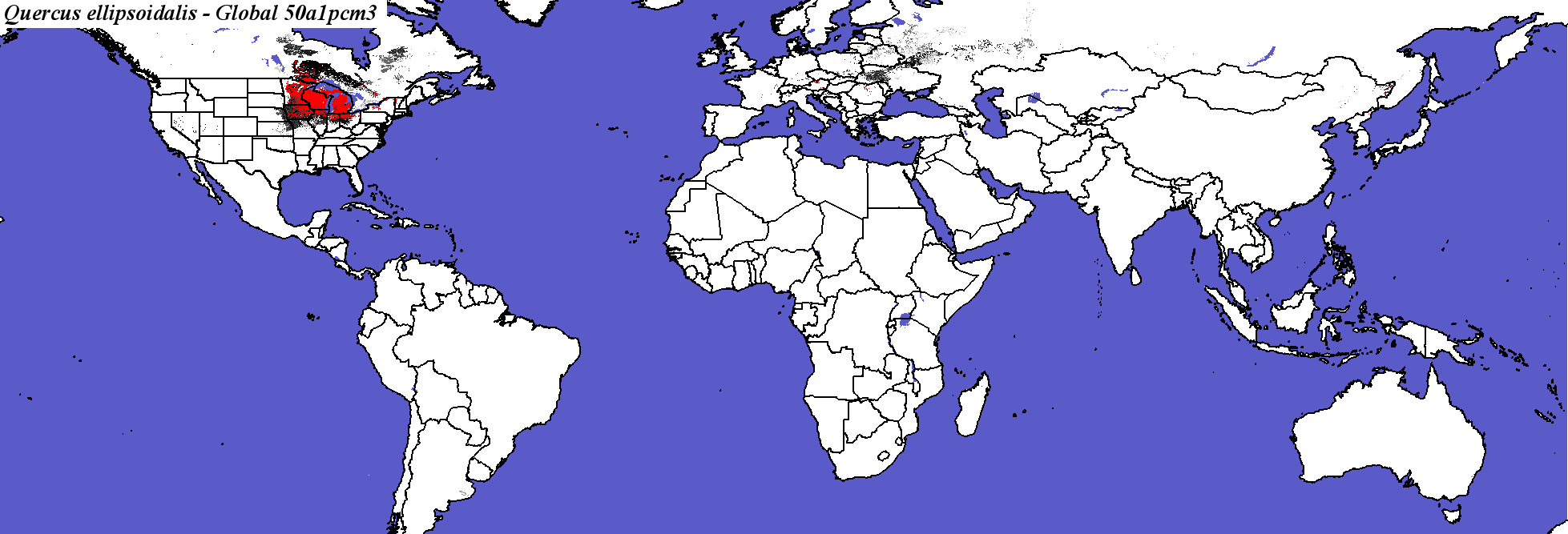

PCM, Scenario A1FI, 2050 - Quercus ellipsoidalis - Global
Quercus_ellipsoidalis_final.3.conus
Quercus_ellipsoidalis_final.3.global
PCM, Scenario A1FI, 2100 - Quercus ellipsoidalis - CONUS
Compare with Quercus ellipsoidalis modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Quercus ellipsoidalis - Global

Quercus_ellipsoidalis_final.3.conus
Quercus_ellipsoidalis_final.3.global

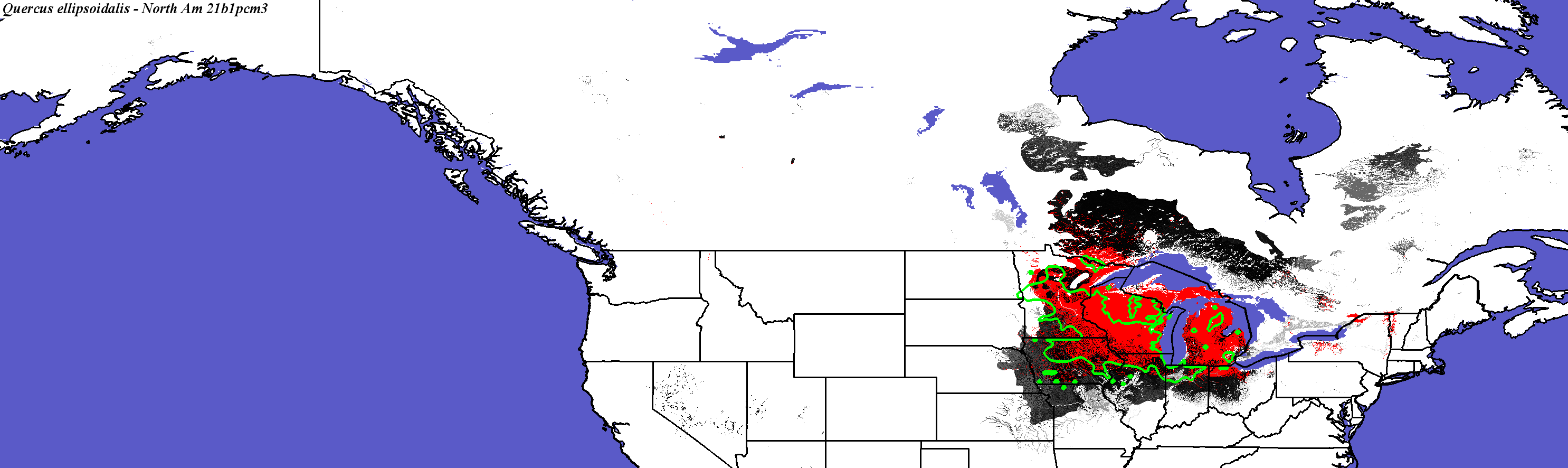

PCM, Scenario B1, 2050 - Quercus ellipsoidalis - CONUS

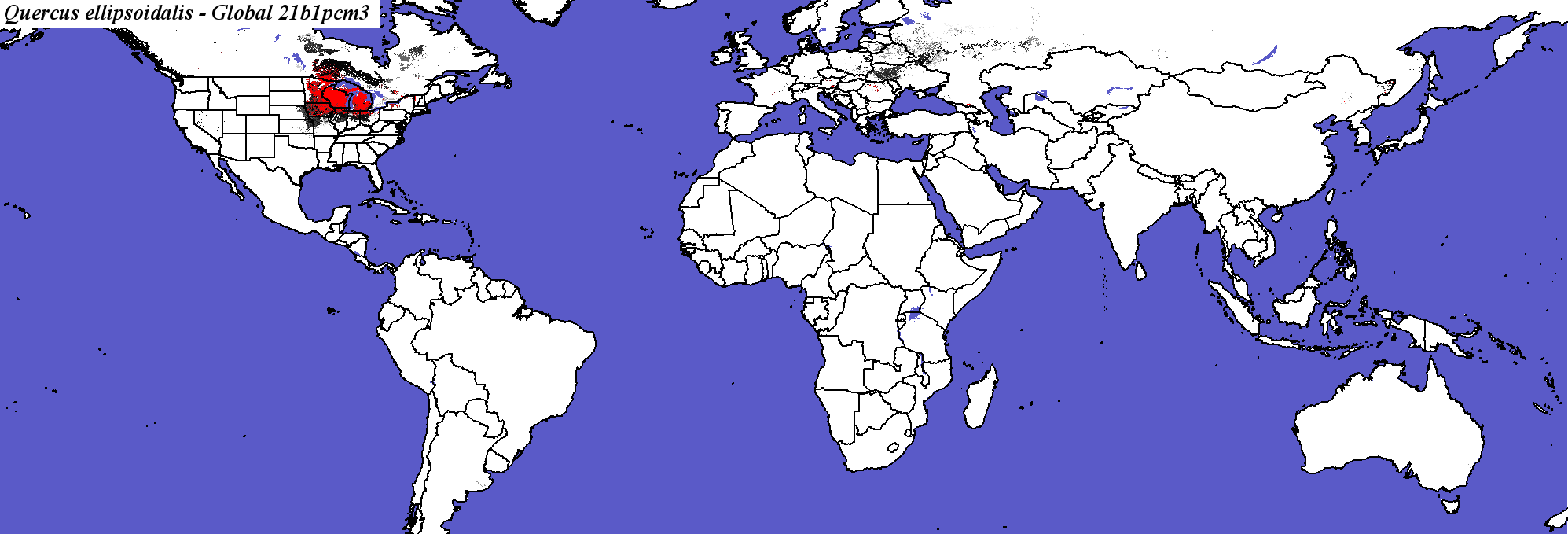

PCM, Scenario B1, 2050 - Quercus ellipsoidalis - Global
Quercus_ellipsoidalis_final.3.conus
Quercus_ellipsoidalis_final.3.global
PCM, Scenario B1, 2100 - Quercus ellipsoidalis - CONUS
Compare with Quercus ellipsoidalis modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus ellipsoidalis - Global

Hadley Climate Model
Quercus_ellipsoidalis_final.3.conus
Quercus_ellipsoidalis_final.3.global

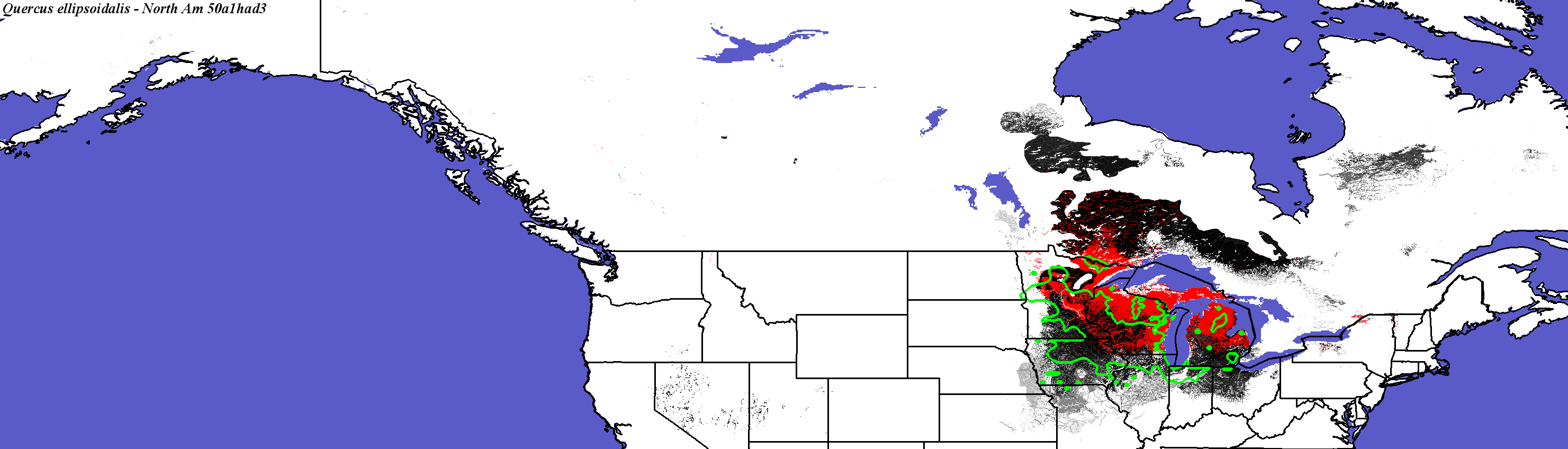

Hadley, Scenario A1FI, 2050 - Quercus ellipsoidalis - CONUS
Quercus ellipsoidalis not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Quercus ellipsoidalis - Global
Quercus_ellipsoidalis_final.3.conus
Quercus_ellipsoidalis_final.3.global.
Hadley, Scenario A1FI, 2100 - Quercus ellipsoidalis - CONUS
Compare with Quercus ellipsoidalis modeled for Hadley A1FI in 2100 by Iverson and Prasad
Quercus ellipsoidalis not modeled by Crookston and Rehfeldt
Quercus ellipsoidalis not modeled by Coops and Waring

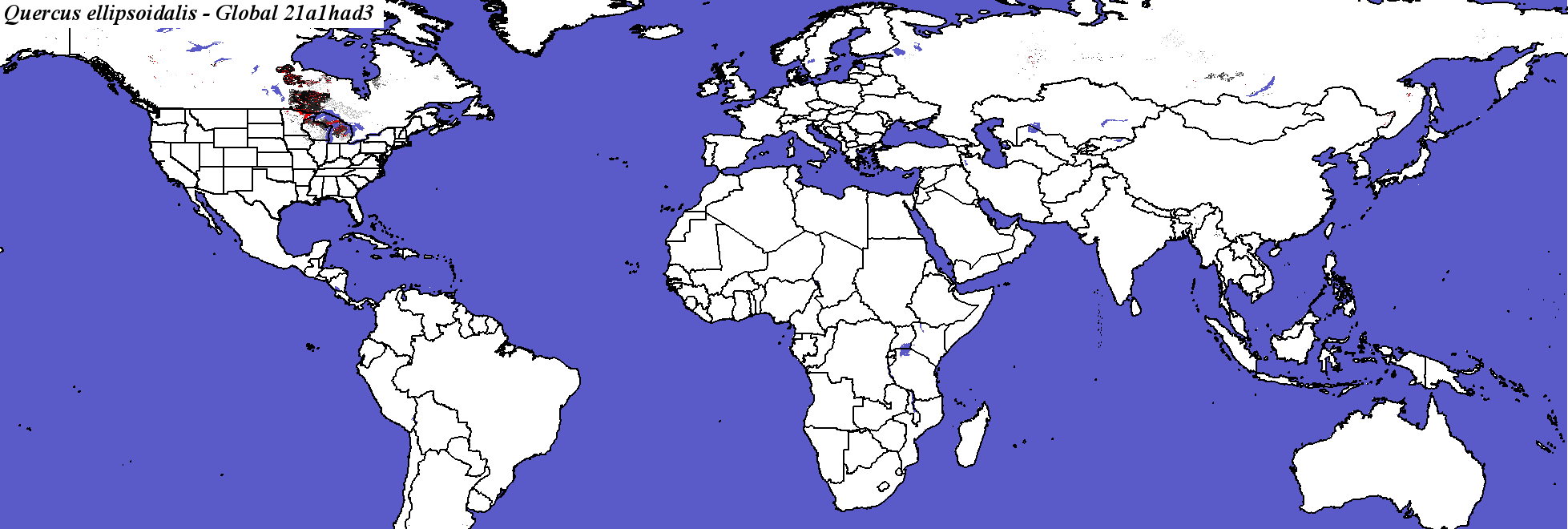

Hadley, Scenario A1FI, 2100 - Quercus ellipsoidalis - Global

Quercus_ellipsoidalis_final.3.conus
Quercus_ellipsoidalis_final.3.global.
Hadley, Scenario B1, 2050 - Quercus ellipsoidalis - CONUS
Quercus ellipsoidalis not modeled by Crookston and Rehfeldt
Quercus ellipsoidalis not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Quercus ellipsoidalis - Global
Quercus_ellipsoidalis_final.3.conus
Quercus_ellipsoidalis_final.3.global

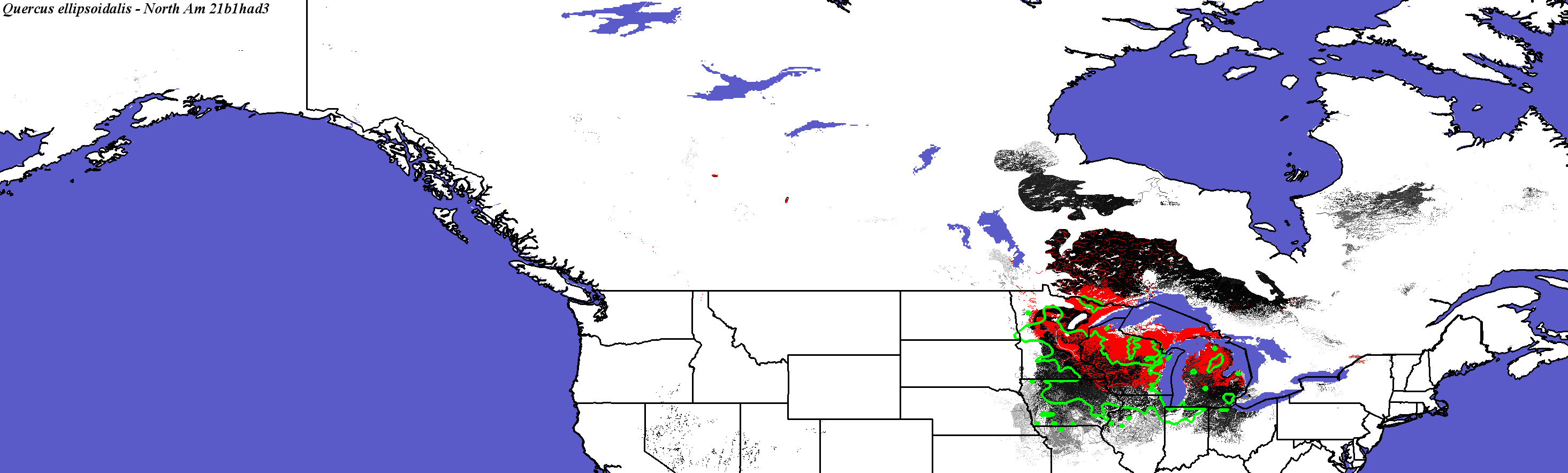

Hadley, Scenario B1, 2100 - Quercus ellipsoidalis - CONUS
Compare with Quercus ellipsoidalis modeled for Hadley B1 in 2100 by Iverson and Prasad
Quercus ellipsoidalis not modeled by Crookston and Rehfeldt

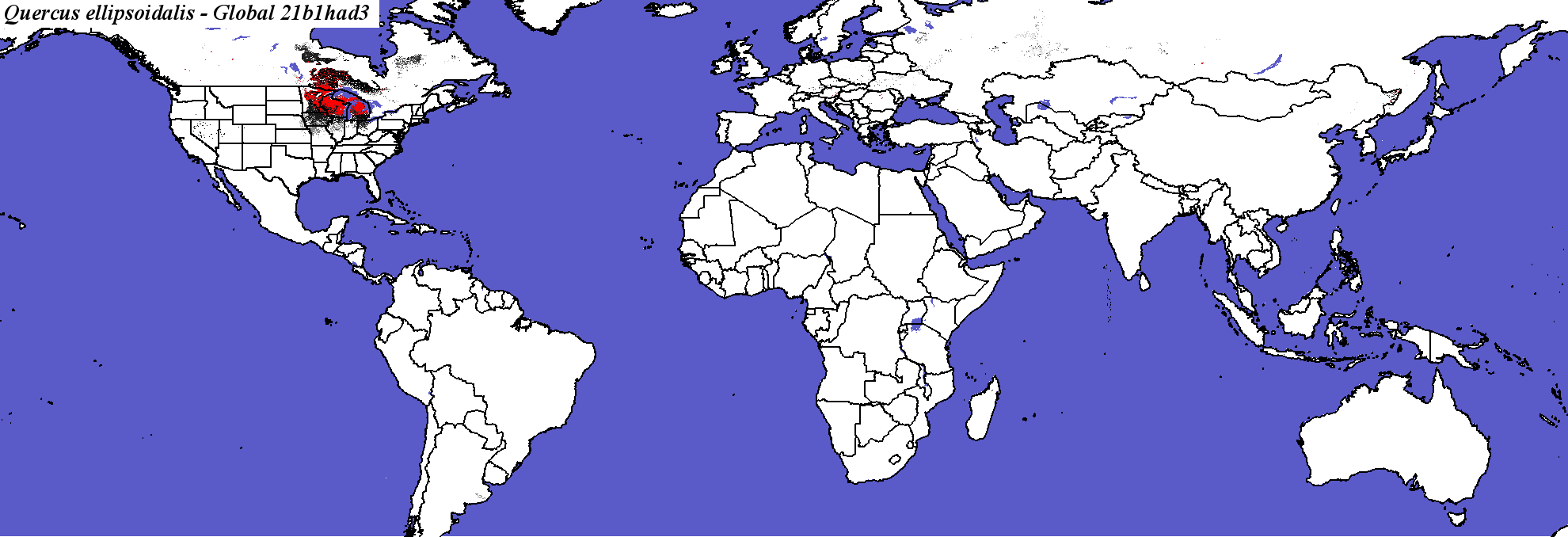

Hadley, Scenario B1, 2100 - Quercus ellipsoidalis - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_ellipsoidalis_final.elev

Number of Suitable Ecoregions (Niche Breadth)

78

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

26.4384

Area in Present Suitable Range (in km2)

566208

Area in Future Suitable Range (Had B1 2050, in km2)

320055

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

291284

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

51.4400

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

48.6301

Percent Change in Area of Suitable Range (Had B1 2050)

-43.4700

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

73.1507

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

31596.3 +/- 58532.4

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

19.863

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

10.6493 +/- 18.6334

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

29.726

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

35.2074 +/- 118.312

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

68.4932

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

734

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

.1200

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

67.3973

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

201348

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

35.5600

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

30.274

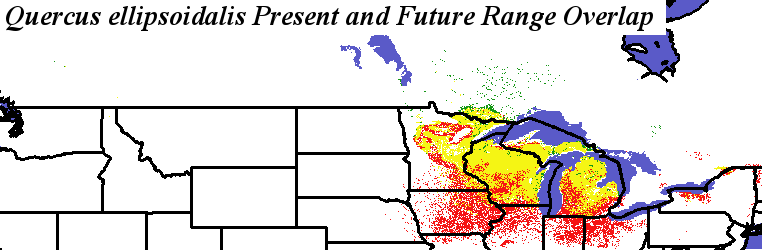

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus ellipsoidalis Quercus ellipsoidalis - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

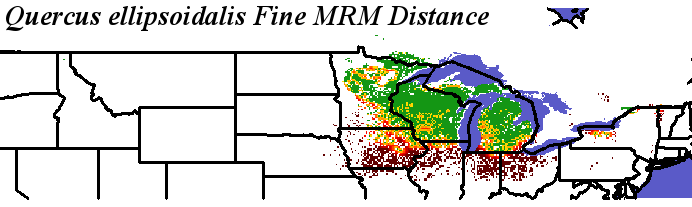

Quercus_ellipsoidalis_final.elev Fine MRM Distance

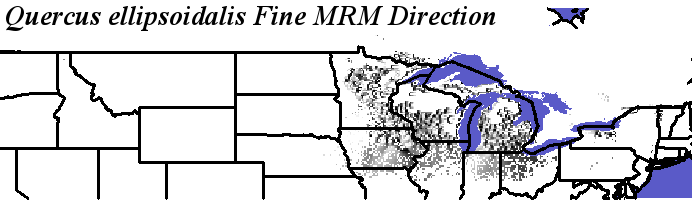

Quercus_ellipsoidalis_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus ellipsoidalis Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus ellipsoidalis
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

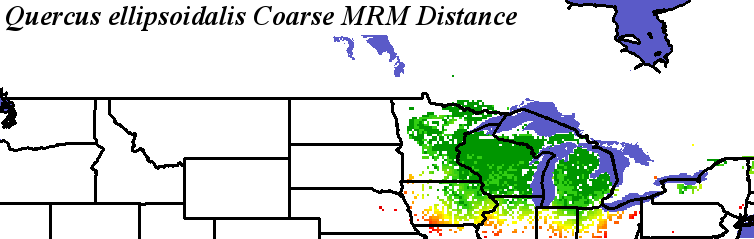

Quercus_ellipsoidalis_final.elev Coarse MRM Distance

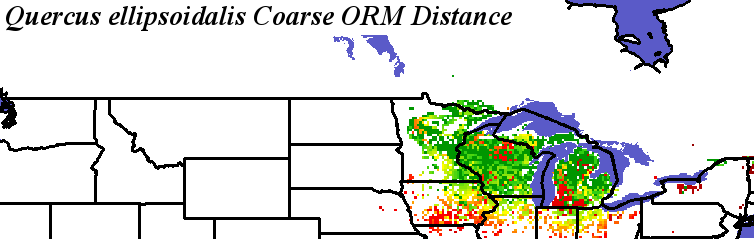

Quercus_ellipsoidalis_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus ellipsoidalis Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus ellipsoidalis
