Version 5 Tree Atlas


Quercus engelmannii

Engelmann oak

elev

Quercus engelmannii Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus engelmannii

USDA Plants Database entry for Quercus engelmannii
Silvics Manual entry for Quercus engelmannii


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
52530range fairly well represented

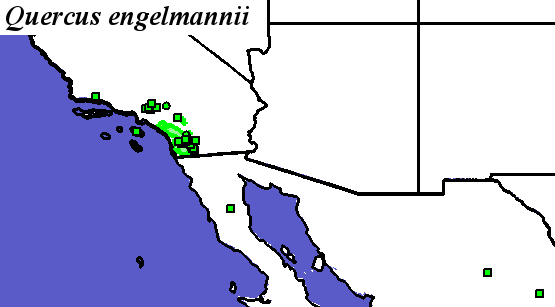

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_engelmannii_final Occurrences

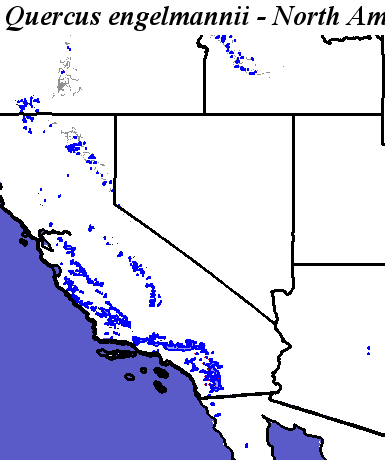

Hargroves Present Suitable Range Outline for Quercus_engelmannii_final
Quercus engelmannii - Occurrence Locations Quercus engelmannii - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_engelmannii_final.2.conus
Quercus_engelmannii_final.2.global

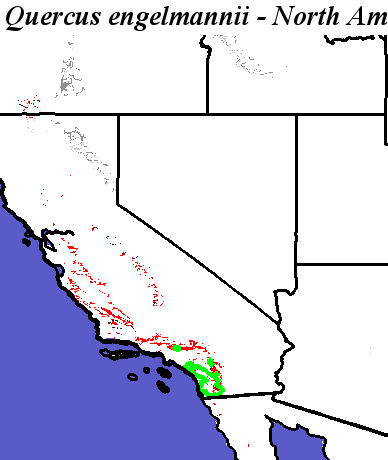

Quercus engelmannii - CONUS
Compare with Current Range from the Silvics Manual for Quercus engelmannii
Compare with Current Range from Biota of North America Program (BONAP) for Quercus engelmannii

Quercus engelmannii not modeled by Iverson and Prasad
Quercus engelmannii not modeled by Crookston and Rehfeldt
Quercus engelmannii not modeled by Coops and Waring

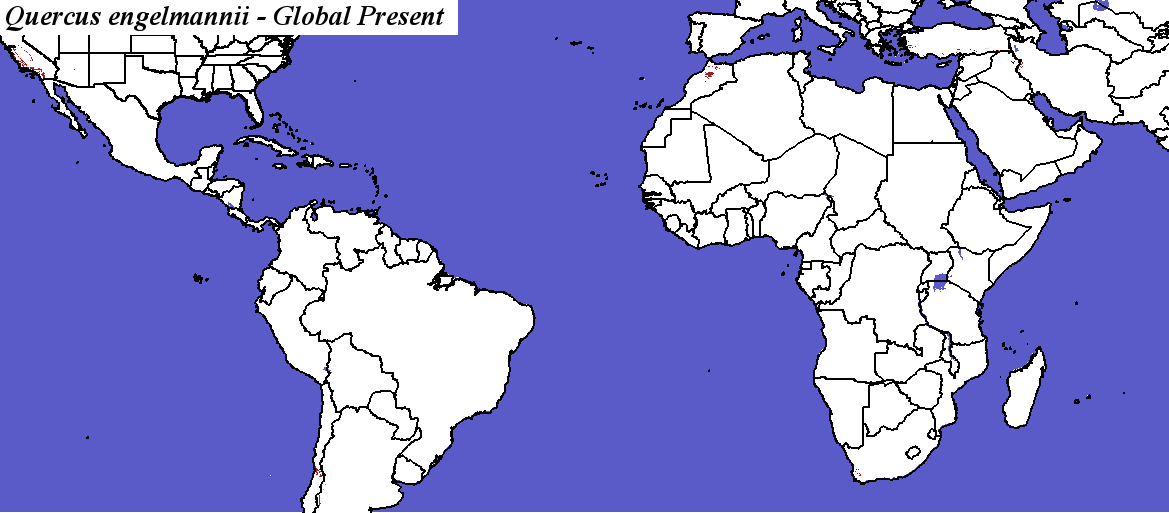

Quercus engelmannii - Global

PCM - Parallel Climate Model
Quercus_engelmannii_final.2.conus
Quercus_engelmannii_final.2.global

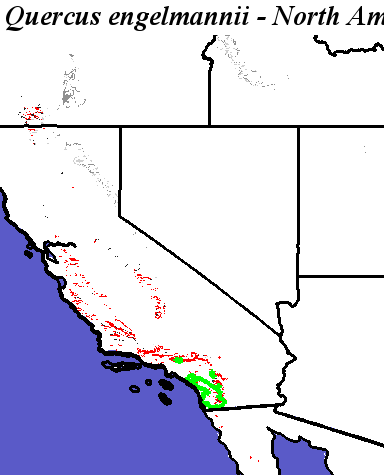

PCM, Scenario A1FI, 2050 - Quercus engelmannii - CONUS

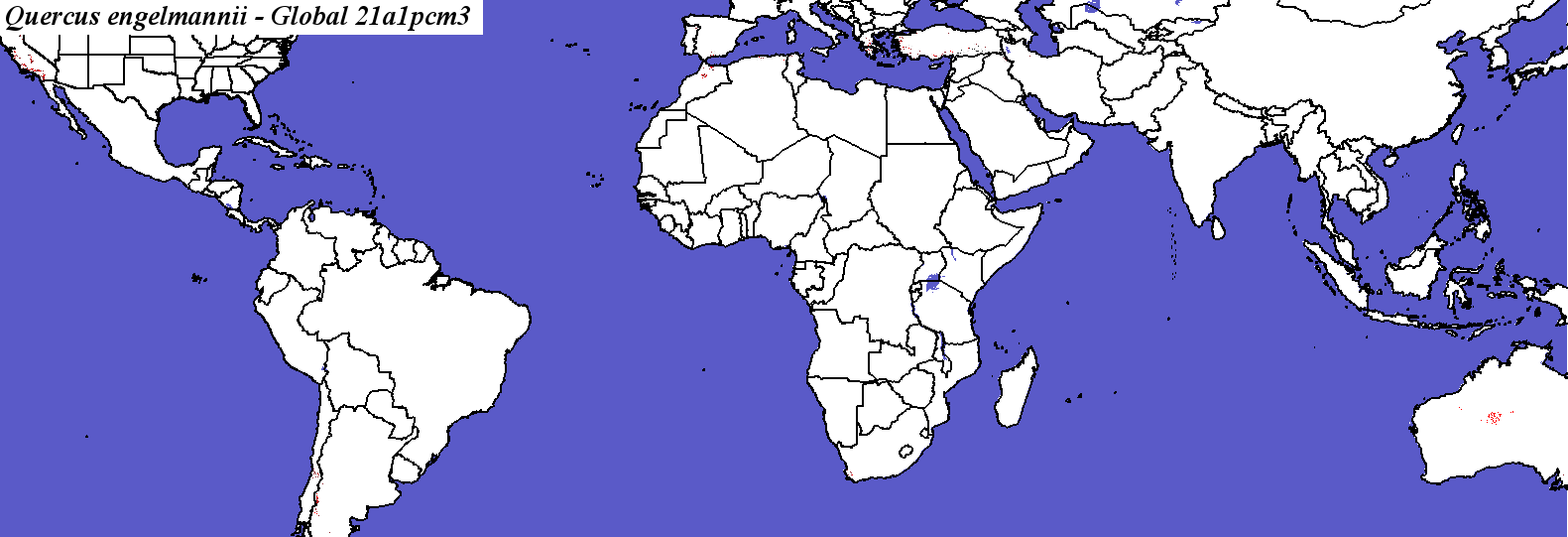

PCM, Scenario A1FI, 2050 - Quercus engelmannii - Global
Quercus_engelmannii_final.2.conus
Quercus_engelmannii_final.2.global
PCM, Scenario A1FI, 2100 - Quercus engelmannii - CONUS
Quercus engelmannii species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Quercus engelmannii - Global

Quercus_engelmannii_final.2.conus
Quercus_engelmannii_final.2.global

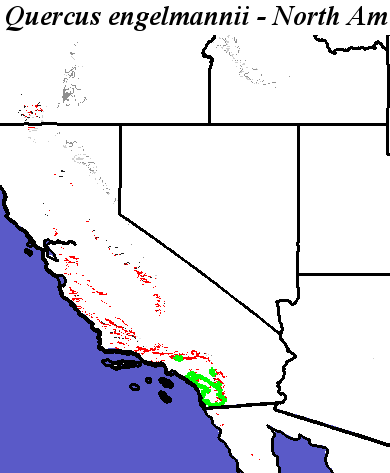

PCM, Scenario B1, 2050 - Quercus engelmannii - CONUS
PCM, Scenario B1, 2050 - Quercus engelmannii - Global
Quercus_engelmannii_final.2.conus
Quercus_engelmannii_final.2.global

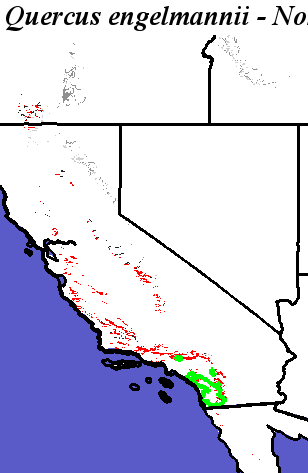

PCM, Scenario B1, 2100 - Quercus engelmannii - CONUS
Quercus engelmannii not modeled by Iverson and Prasad

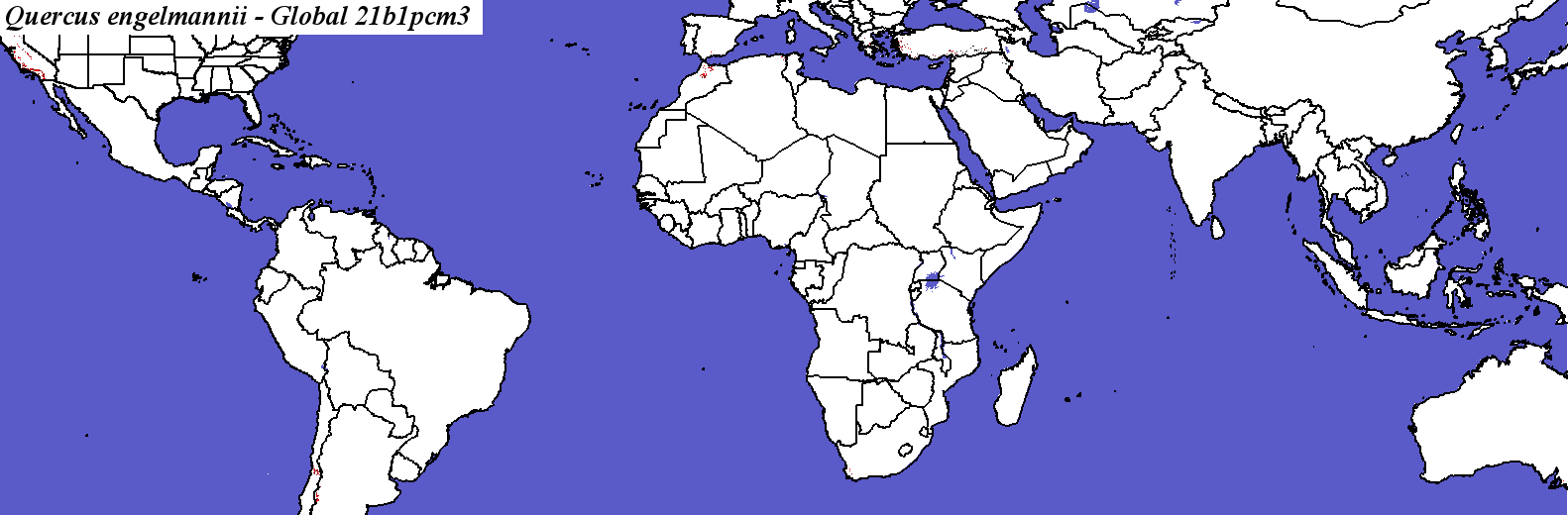

PCM, Scenario B1, 2100 - Quercus engelmannii - Global

Hadley Climate Model
Quercus_engelmannii_final.2.conus
Quercus_engelmannii_final.2.global

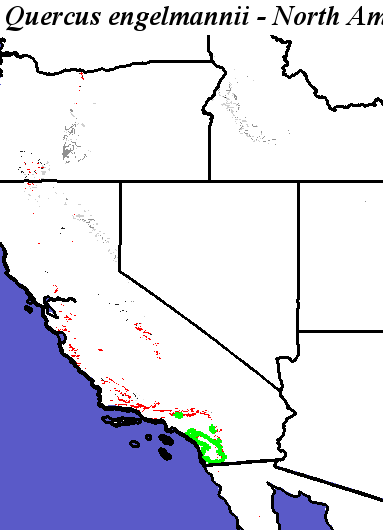

Hadley, Scenario A1FI, 2050 - Quercus engelmannii - CONUS
Quercus engelmannii not modeled by Crookston and Rehfeldt

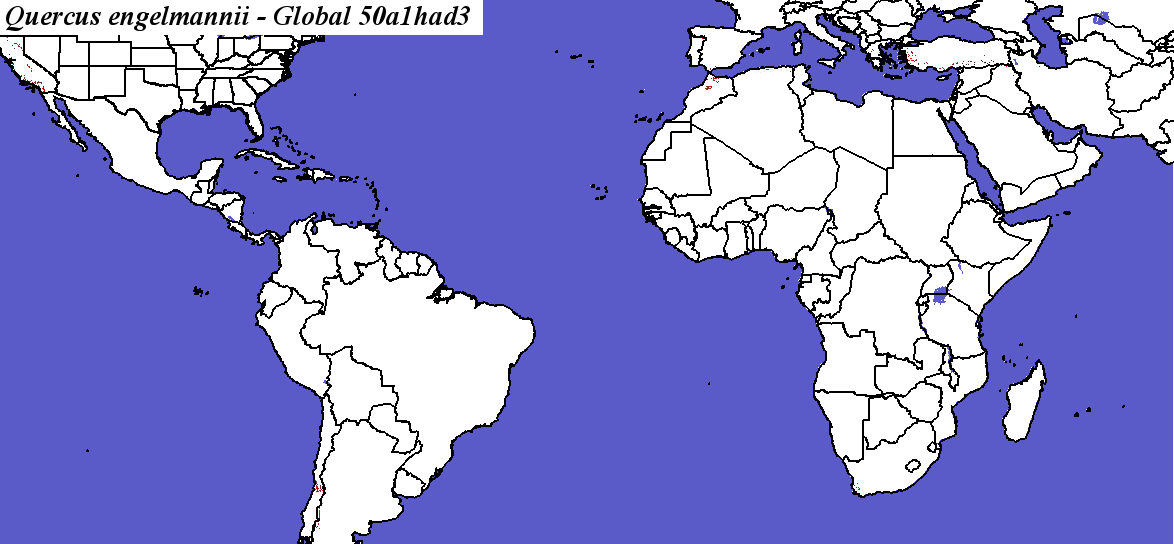

Hadley, Scenario A1FI, 2050 - Quercus engelmannii - Global
Quercus_engelmannii_final.2.conus
Quercus_engelmannii_final.2.global.

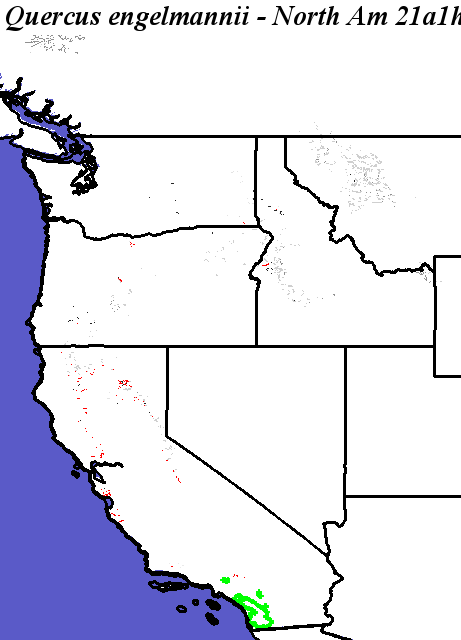

Hadley, Scenario A1FI, 2100 - Quercus engelmannii - CONUS
Quercus engelmannii not modeled by Iverson and Prasad
Quercus engelmannii not modeled by Crookston and Rehfeldt
Quercus engelmannii not modeled by Coops and Waring

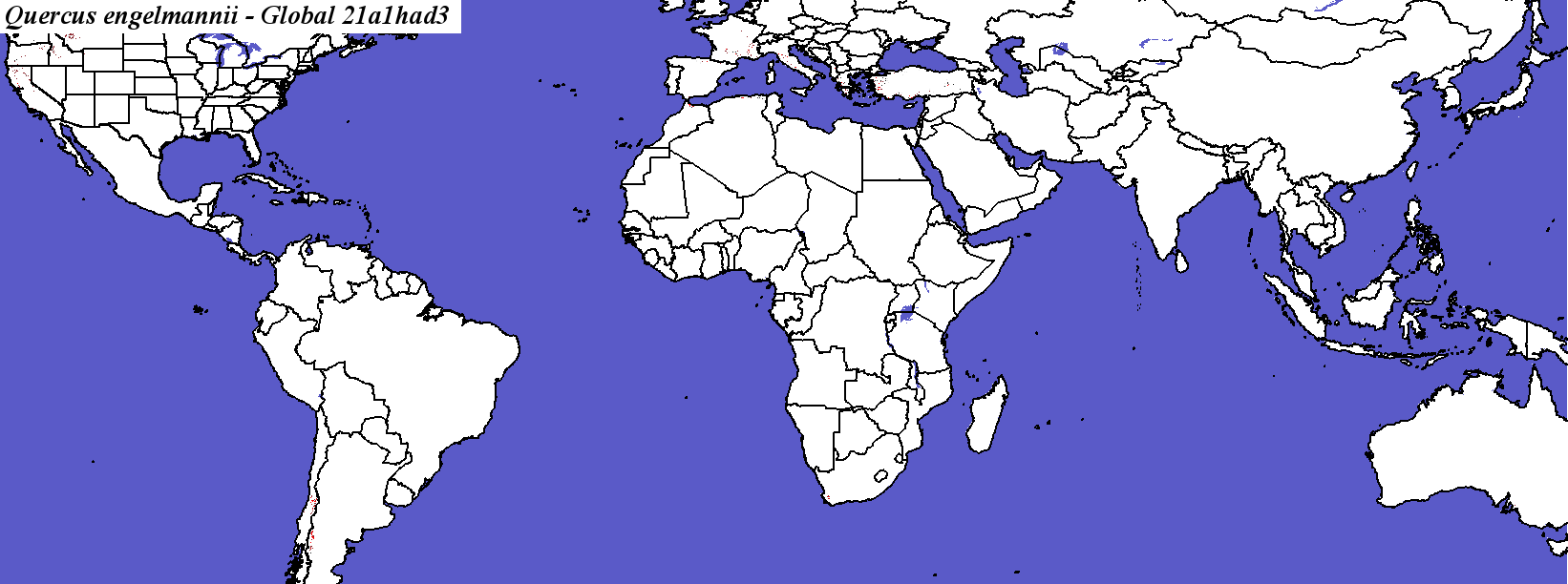

Hadley, Scenario A1FI, 2100 - Quercus engelmannii - Global

Quercus_engelmannii_final.2.conus
Quercus_engelmannii_final.2.global.

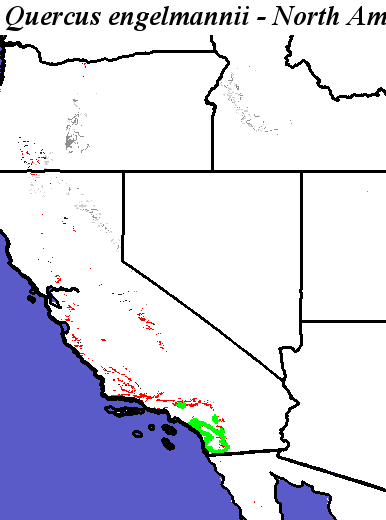

Hadley, Scenario B1, 2050 - Quercus engelmannii - CONUS
Quercus engelmannii not modeled by Crookston and Rehfeldt
Quercus engelmannii not modeled by Coops and Waring

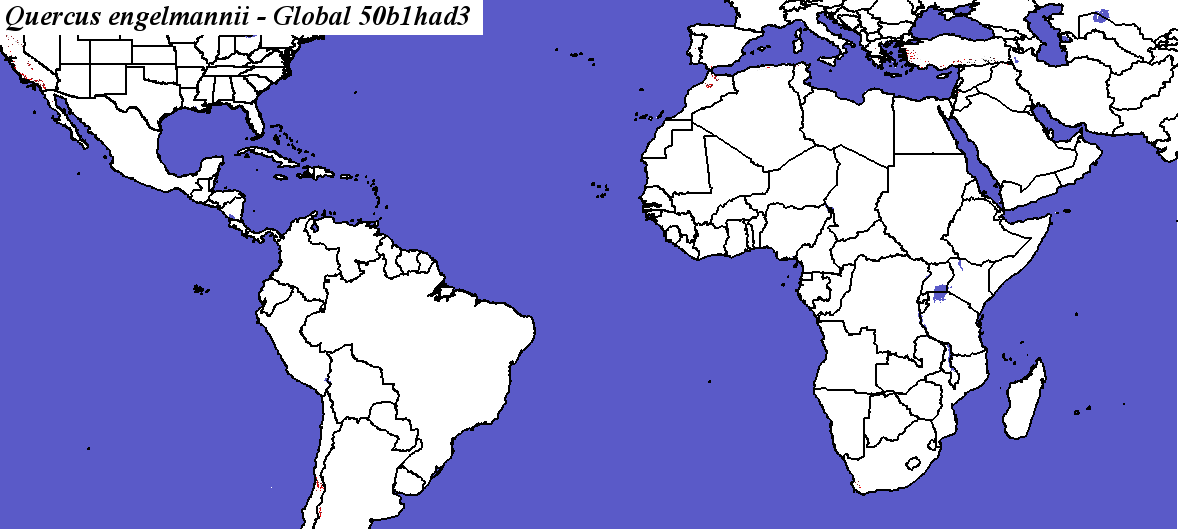

Hadley, Scenario B1, 2050 - Quercus engelmannii - Global
Quercus_engelmannii_final.2.conus
Quercus_engelmannii_final.2.global

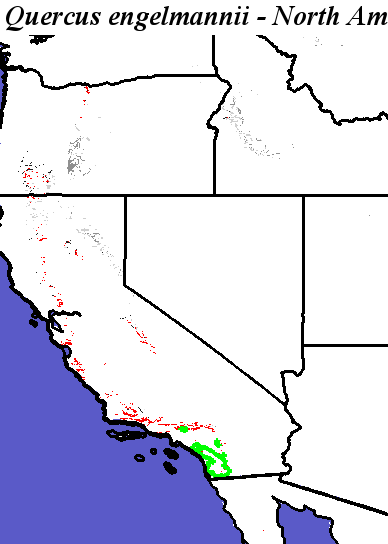

Hadley, Scenario B1, 2100 - Quercus engelmannii - CONUS
Quercus engelmannii not modeled by Iverson and Prasad
Quercus engelmannii not modeled by Crookston and Rehfeldt

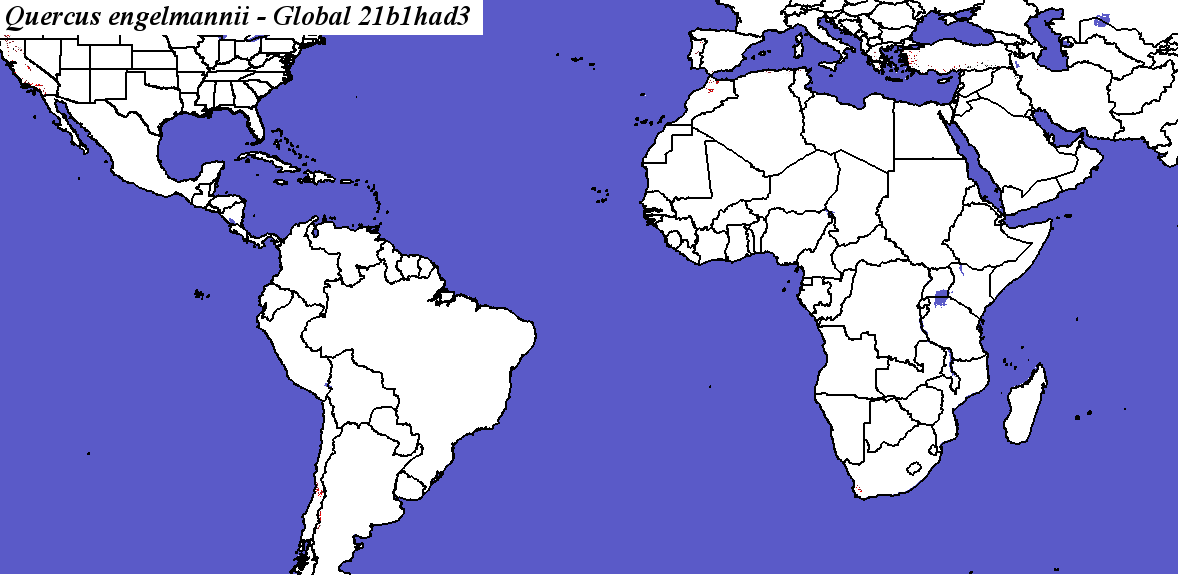

Hadley, Scenario B1, 2100 - Quercus engelmannii - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_engelmannii_final.elev

Number of Suitable Ecoregions (Niche Breadth)

7

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

91.5068

Area in Present Suitable Range (in km2)

23697

Area in Future Suitable Range (Had B1 2050, in km2)

24134

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

13222

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

55.7900

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

35.2055

Percent Change in Area of Suitable Range (Had B1 2050)

1.8400

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

5.20548

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

12375.1 +/- 17833

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

58.0822

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

4.34347 +/- 6.08995

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

71.5068

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

9.86276 +/- 14.6687

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

96.8493

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

0

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

0

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

77.6712

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

7878

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

33.2400

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

36.9863

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus engelmannii Quercus engelmannii - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Quercus_engelmannii_final.elev Fine MRM Distance
Quercus_engelmannii_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus engelmannii Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus engelmannii
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Quercus_engelmannii_final.elev Coarse MRM Distance
Quercus_engelmannii_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus engelmannii Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus engelmannii
