Version 5 Tree Atlas


Quercus falcata

southern red oak

elev

Quercus falcata Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus falcata

USDA Plants Database entry for Quercus falcata
Silvics Manual entry for Quercus falcata


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Quercus falcata var. triloba5516895605TBD

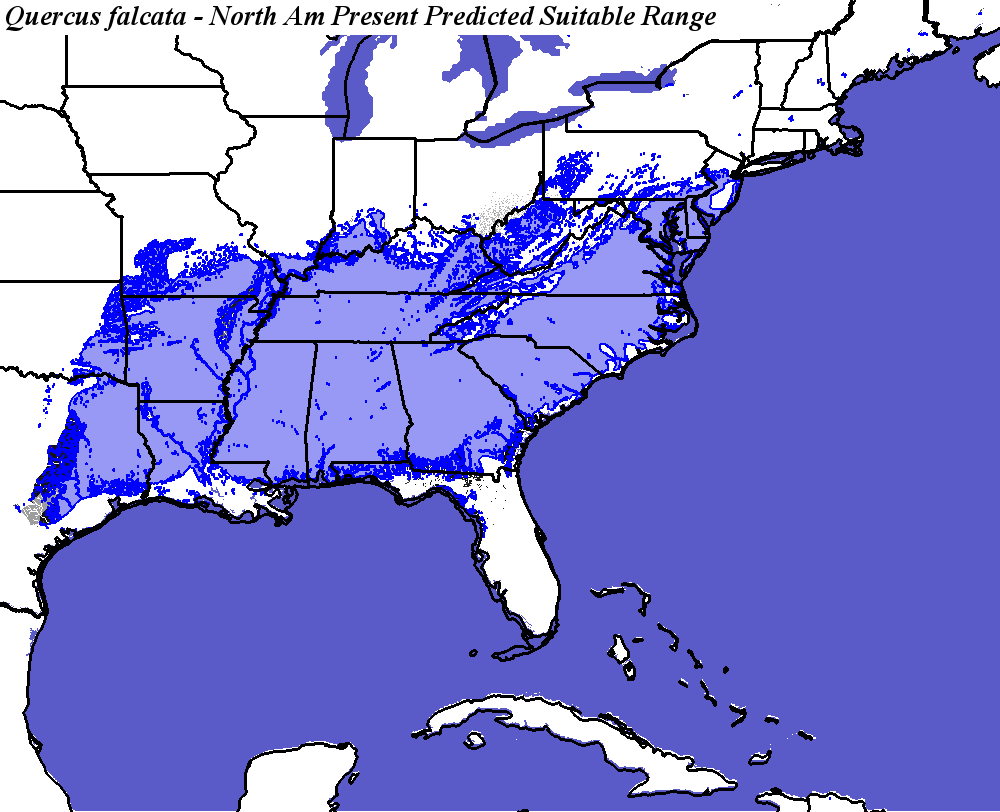

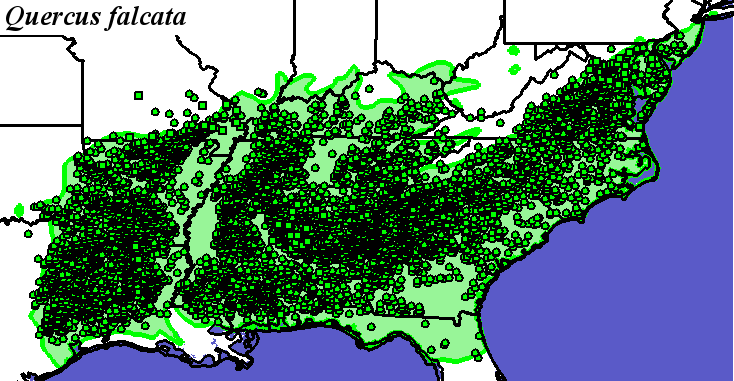

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_falcata_final Occurrences
Hargroves Present Suitable Range Outline for Quercus_falcata_final
Quercus falcata - Occurrence Locations Quercus falcata - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_falcata_final.4.conus
Quercus_falcata_final.4.global

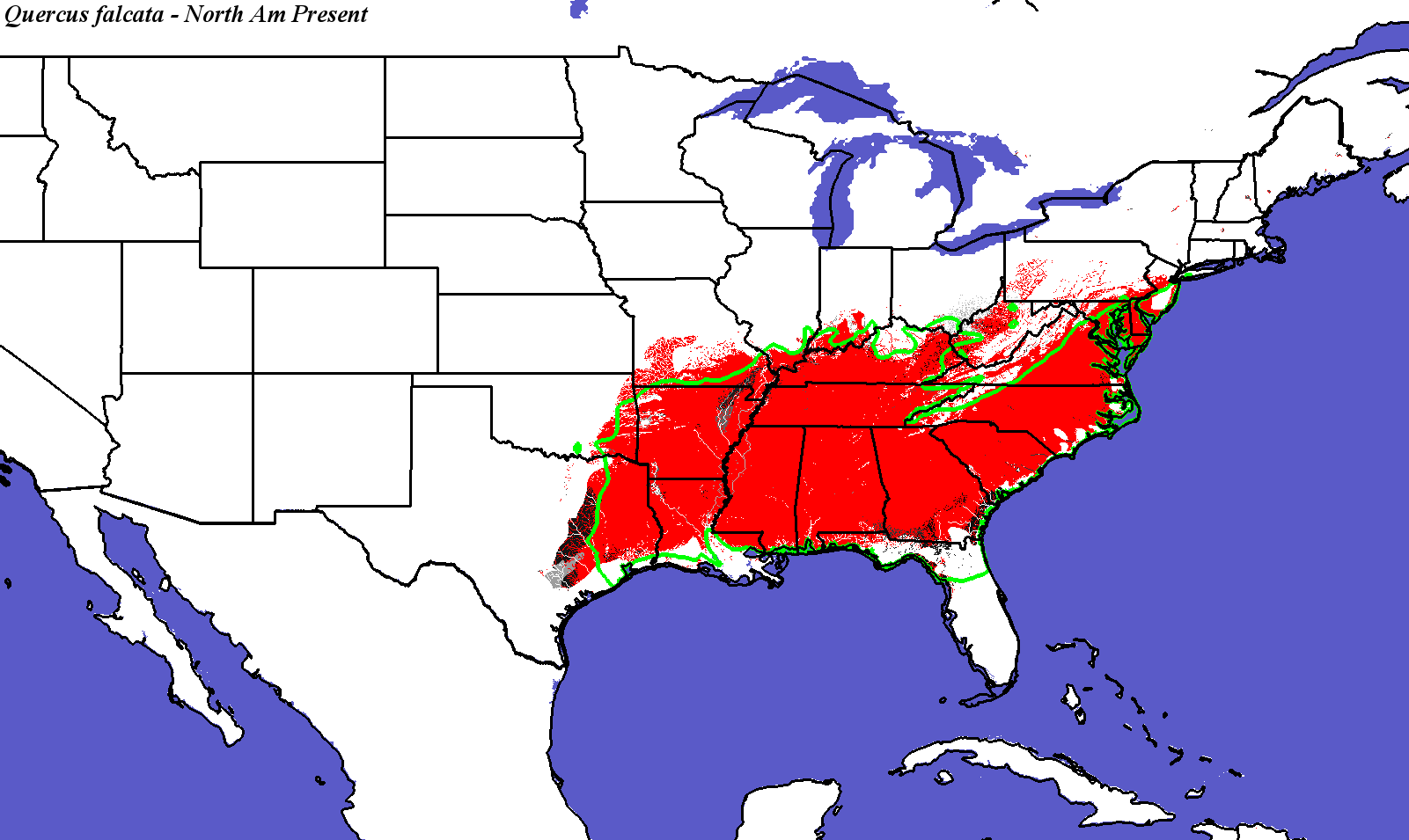

Quercus falcata - CONUS
Compare with Current Range from the Silvics Manual for Quercus falcata
Compare with Current Range from Biota of North America Program (BONAP) for Quercus falcata

Compare with Quercus falcata modeled for Current conditions by Iverson and Prasad
Quercus falcata not modeled by Crookston and Rehfeldt
Quercus falcata not modeled by Coops and Waring
Quercus falcata - Global

PCM - Parallel Climate Model
Quercus_falcata_final.4.conus
Quercus_falcata_final.4.global

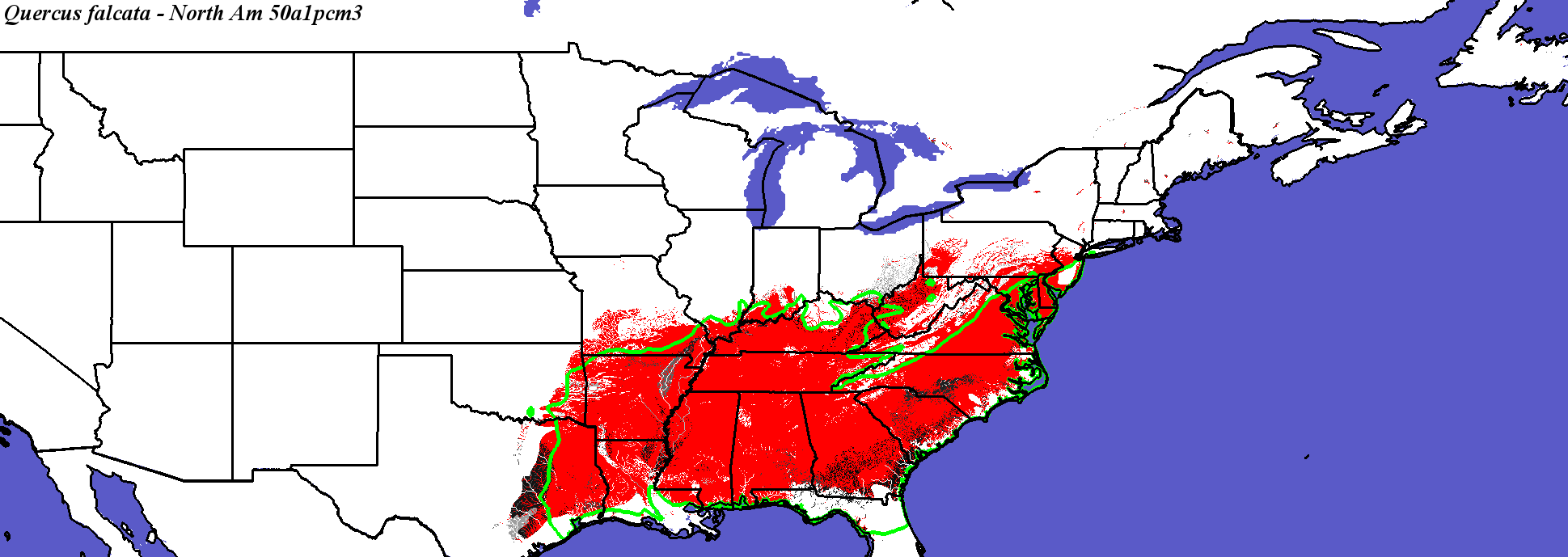

PCM, Scenario A1FI, 2050 - Quercus falcata - CONUS
PCM, Scenario A1FI, 2050 - Quercus falcata - Global
Quercus_falcata_final.4.conus
Quercus_falcata_final.4.global

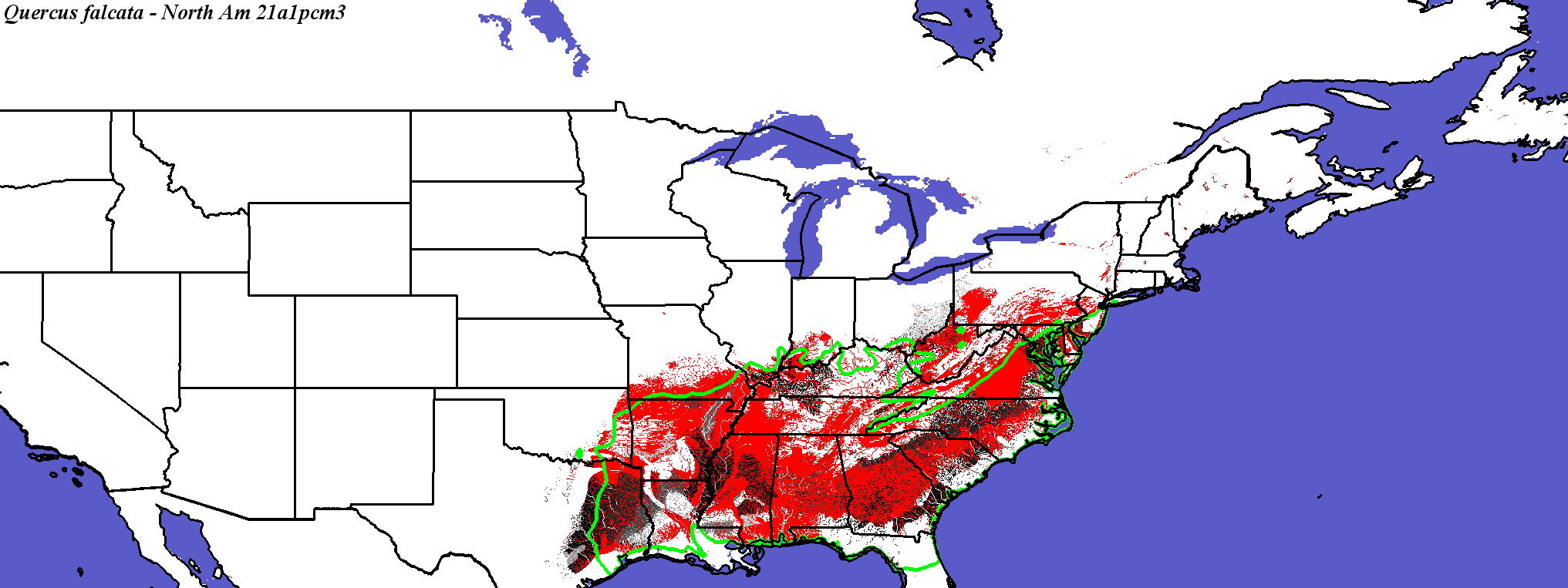

PCM, Scenario A1FI, 2100 - Quercus falcata - CONUS
Compare with Quercus falcata modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Quercus falcata - Global

Quercus_falcata_final.4.conus
Quercus_falcata_final.4.global

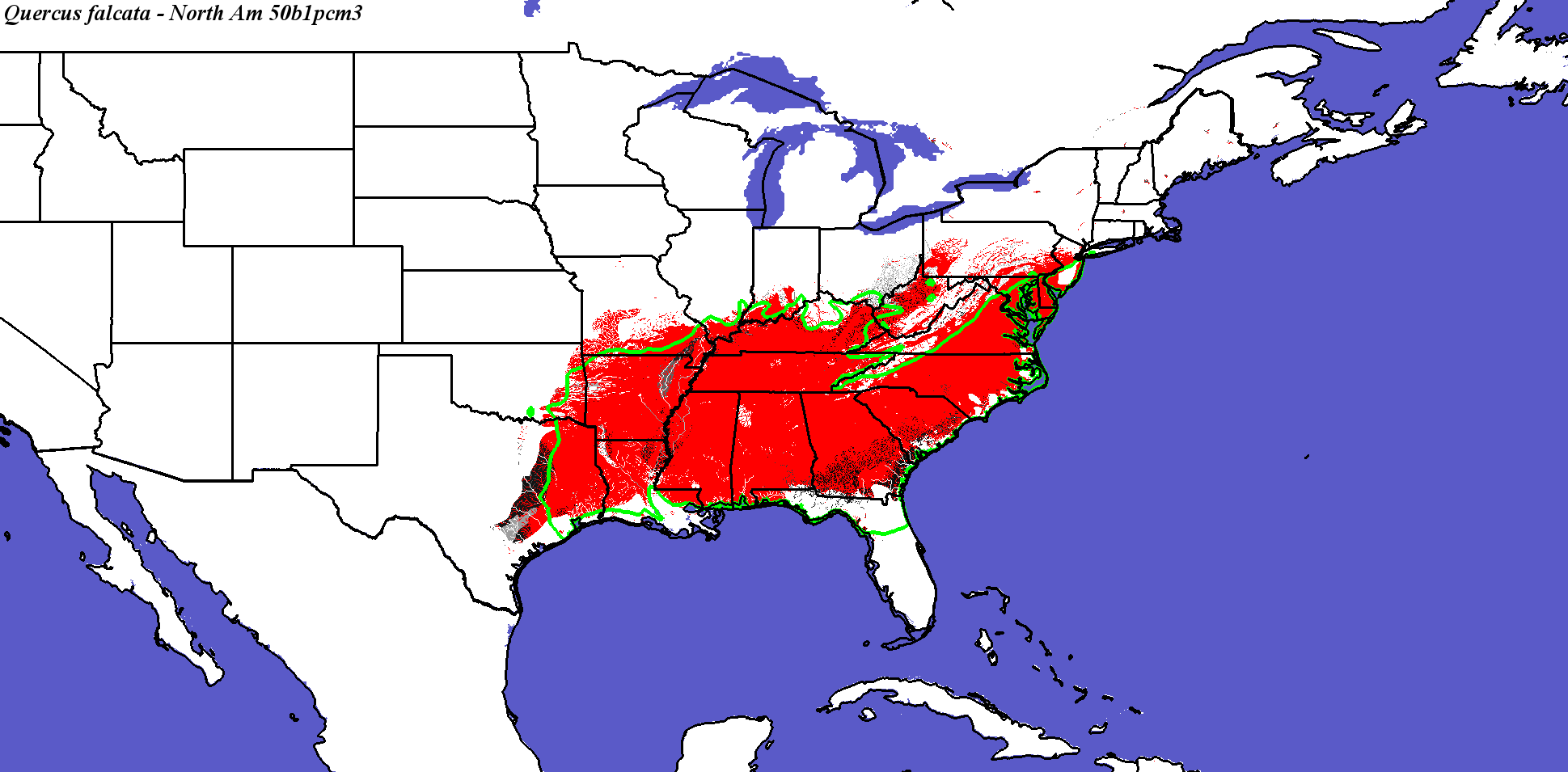

PCM, Scenario B1, 2050 - Quercus falcata - CONUS
PCM, Scenario B1, 2050 - Quercus falcata - Global
Quercus_falcata_final.4.conus
Quercus_falcata_final.4.global

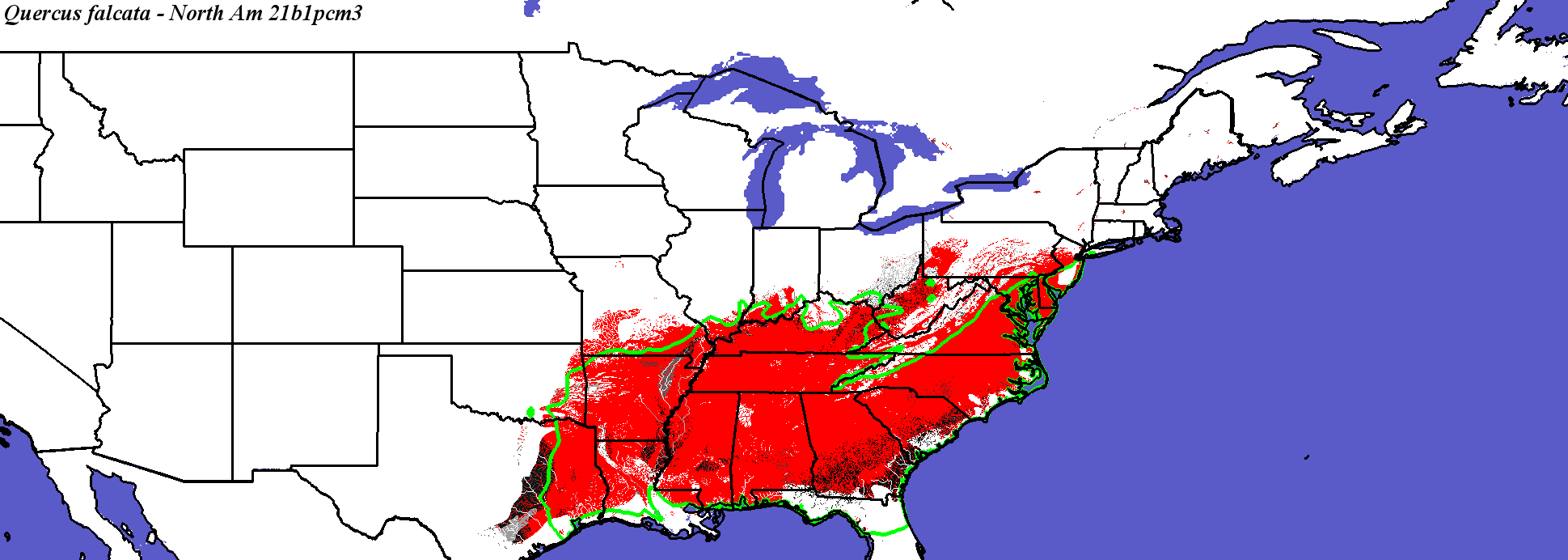

PCM, Scenario B1, 2100 - Quercus falcata - CONUS
Compare with Quercus falcata modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus falcata - Global

Hadley Climate Model
Quercus_falcata_final.4.conus
Quercus_falcata_final.4.global

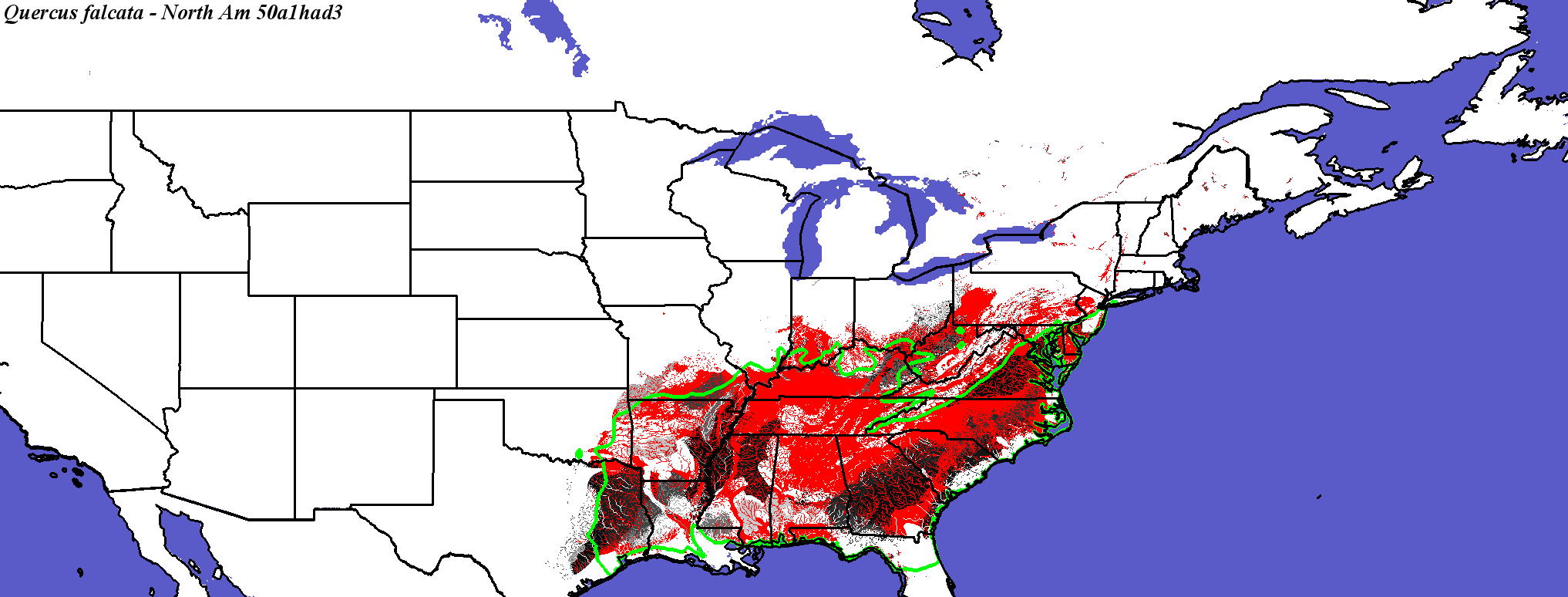

Hadley, Scenario A1FI, 2050 - Quercus falcata - CONUS
Quercus falcata not modeled by Crookston and Rehfeldt

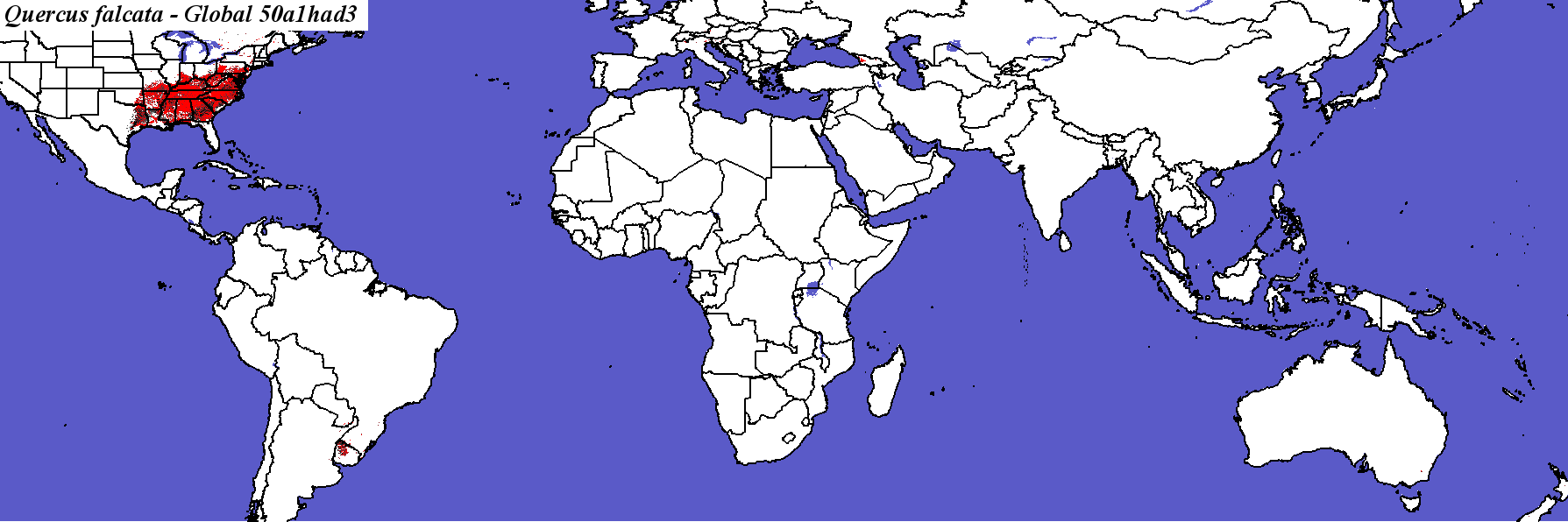

Hadley, Scenario A1FI, 2050 - Quercus falcata - Global
Quercus_falcata_final.4.conus
Quercus_falcata_final.4.global.

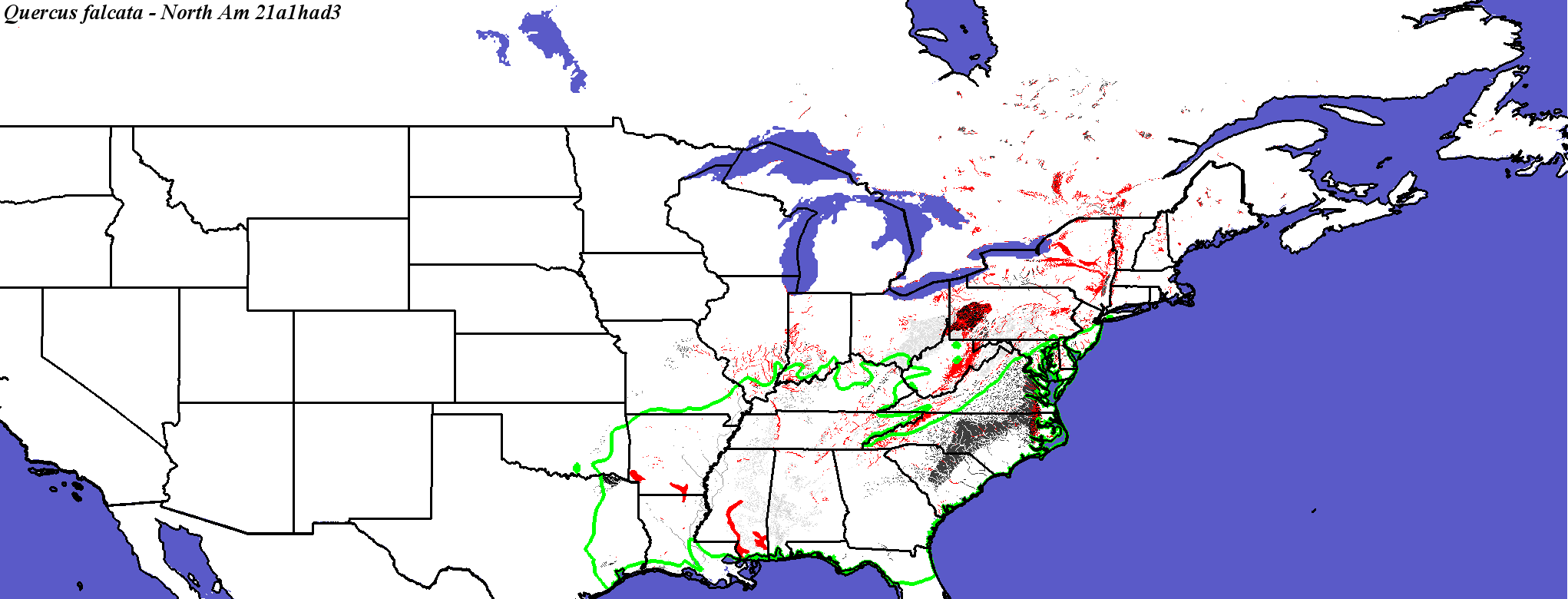

Hadley, Scenario A1FI, 2100 - Quercus falcata - CONUS
Compare with Quercus falcata modeled for Hadley A1FI in 2100 by Iverson and Prasad
Quercus falcata not modeled by Crookston and Rehfeldt
Quercus falcata not modeled by Coops and Waring

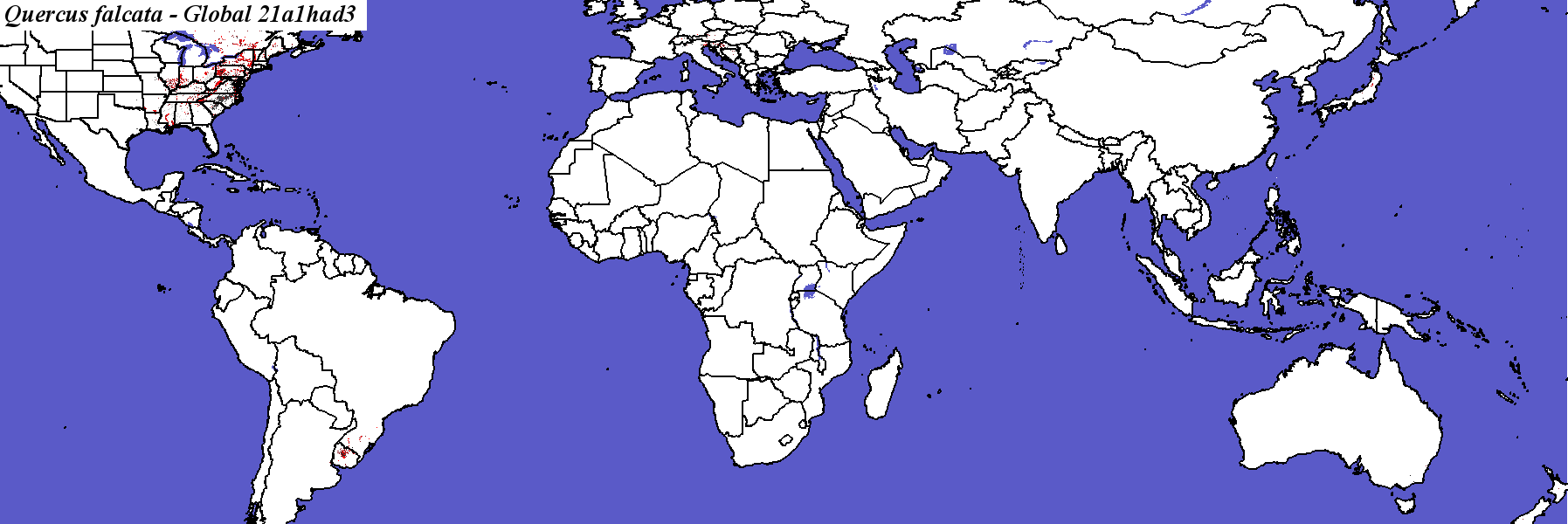

Hadley, Scenario A1FI, 2100 - Quercus falcata - Global

Quercus_falcata_final.4.conus
Quercus_falcata_final.4.global.

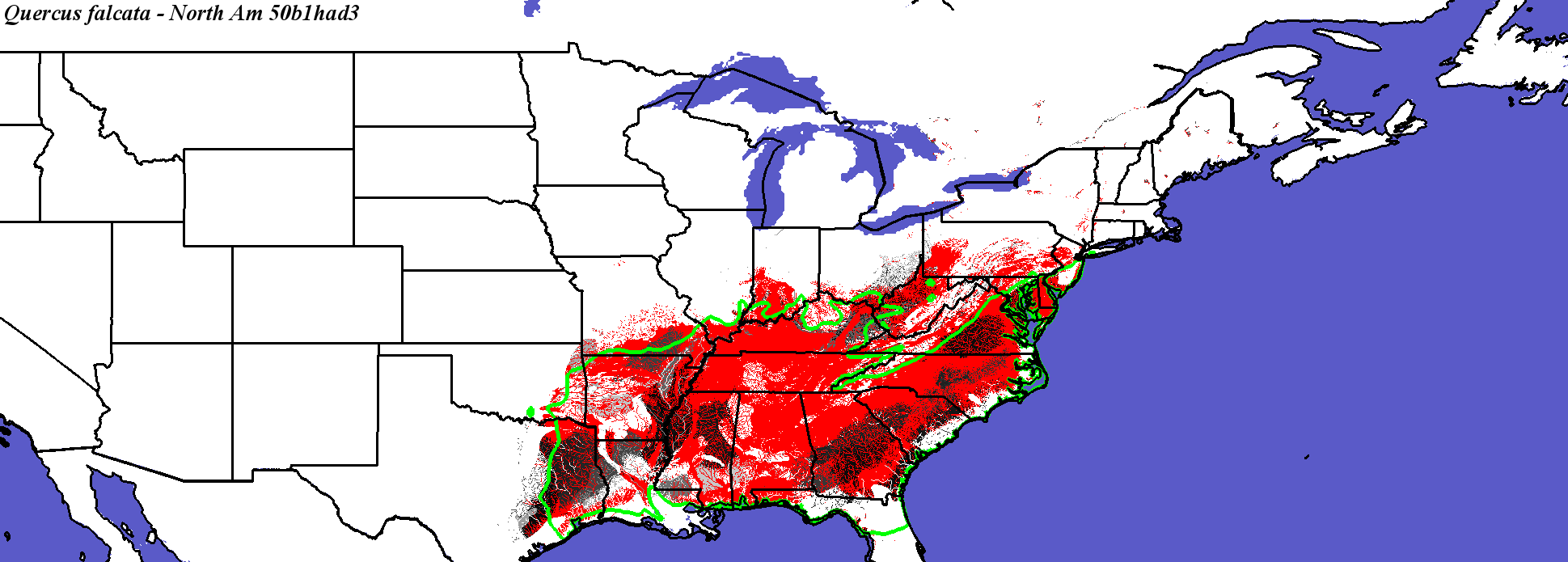

Hadley, Scenario B1, 2050 - Quercus falcata - CONUS
Quercus falcata not modeled by Crookston and Rehfeldt
Quercus falcata not modeled by Coops and Waring

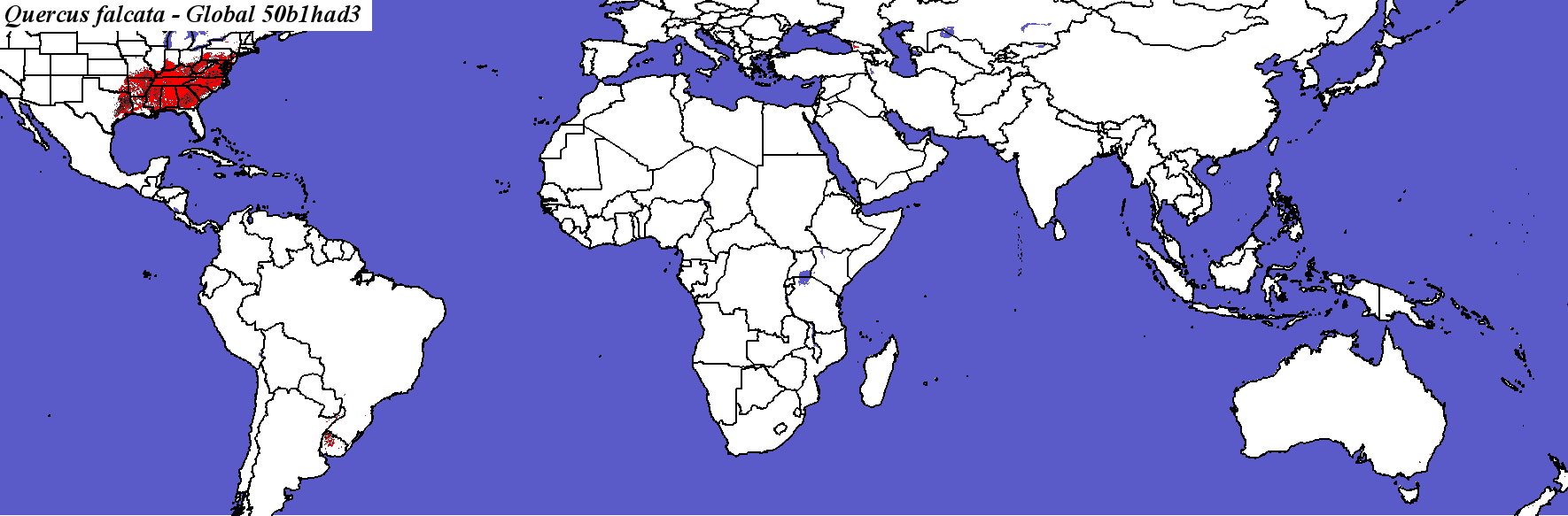

Hadley, Scenario B1, 2050 - Quercus falcata - Global
Quercus_falcata_final.4.conus
Quercus_falcata_final.4.global

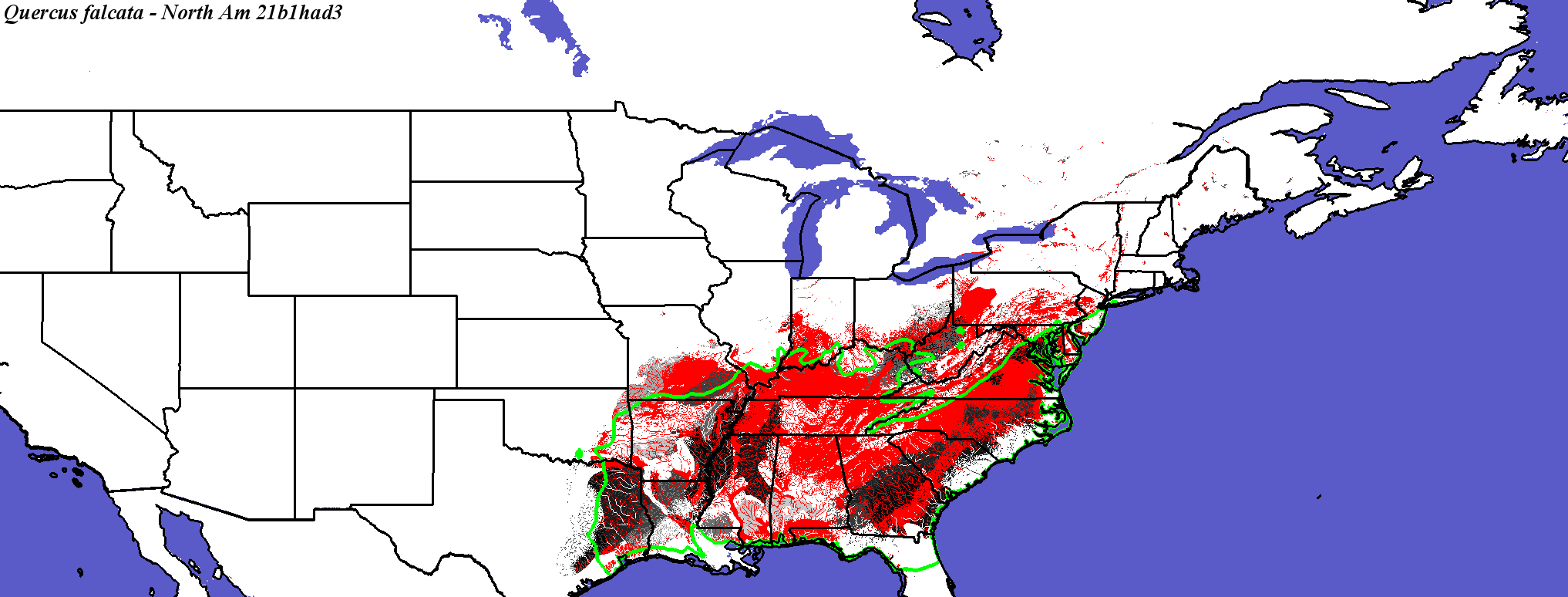

Hadley, Scenario B1, 2100 - Quercus falcata - CONUS
Compare with Quercus falcata modeled for Hadley B1 in 2100 by Iverson and Prasad
Quercus falcata not modeled by Crookston and Rehfeldt
Hadley, Scenario B1, 2100 - Quercus falcata - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_falcata_final.elev

Number of Suitable Ecoregions (Niche Breadth)

164

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

11.9178

Area in Present Suitable Range (in km2)

1292471

Area in Future Suitable Range (Had B1 2050, in km2)

933966

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

809168

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

62.6000

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

20

Percent Change in Area of Suitable Range (Had B1 2050)

-27.7300

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

47.6712

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

4785.88 +/- 7589.81

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

90.9589

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

2.34226 +/- 3.77247

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

91.9178

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

131.715 +/- 507.637

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

39.726

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

38898

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

3.0000

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

36.7123

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

283317

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

21.9200

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

63.9726

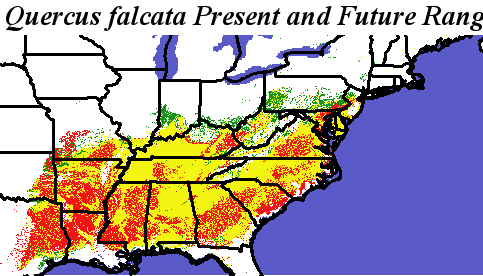

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus falcata Quercus falcata - Range Change Statistics

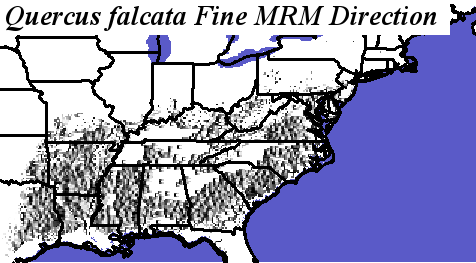

Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

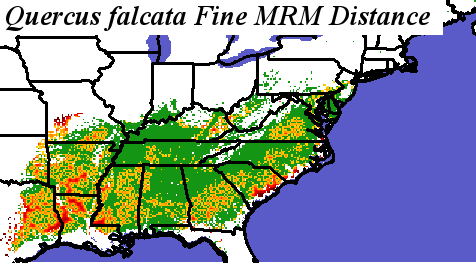

Quercus_falcata_final.elev Fine MRM Distance
Quercus_falcata_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus falcata Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus falcata
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

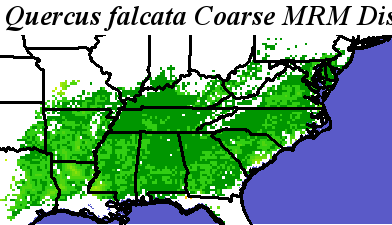

Quercus_falcata_final.elev Coarse MRM Distance

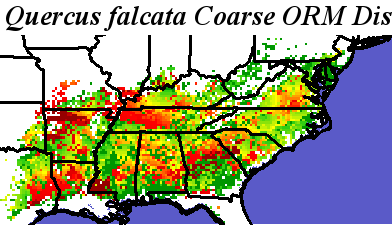

Quercus_falcata_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus falcata Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus falcata
