Version 5 Tree Atlas


Quercus gambelii

Gambel oak

elev

Quercus gambelii Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus gambelii

USDA Plants Database entry for Quercus gambelii
Silvics Manual entry for Quercus gambelii


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
17964582254range is well-represented

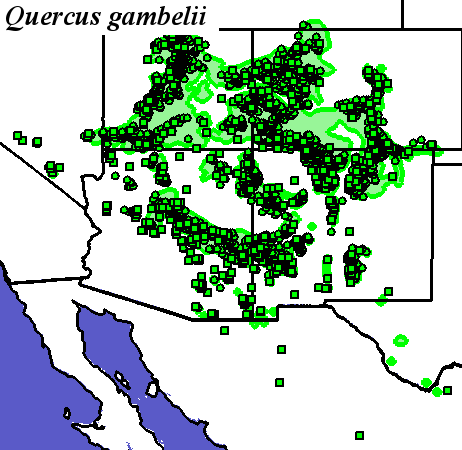

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_gambelii_final Occurrences

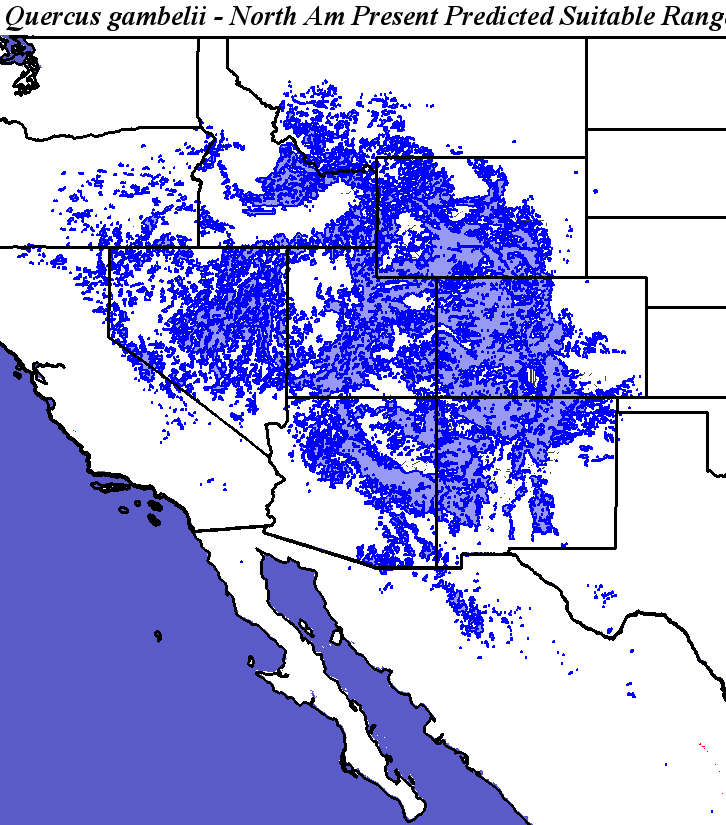

Hargroves Present Suitable Range Outline for Quercus_gambelii_final
Quercus gambelii - Occurrence Locations Quercus gambelii - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_gambelii_final.4.conus
Quercus_gambelii_final.4.global
Quercus gambelii - CONUS
Compare with Current Range from the Silvics Manual for Quercus gambelii
Compare with Current Range from Biota of North America Program (BONAP) for Quercus gambelii

Quercus gambelii not modeled by Iverson and Prasad
Compare with Quercus gambelii modeled for Current conditions by Crookston and Rehfeldt
Quercus gambelii not modeled by Coops and Waring

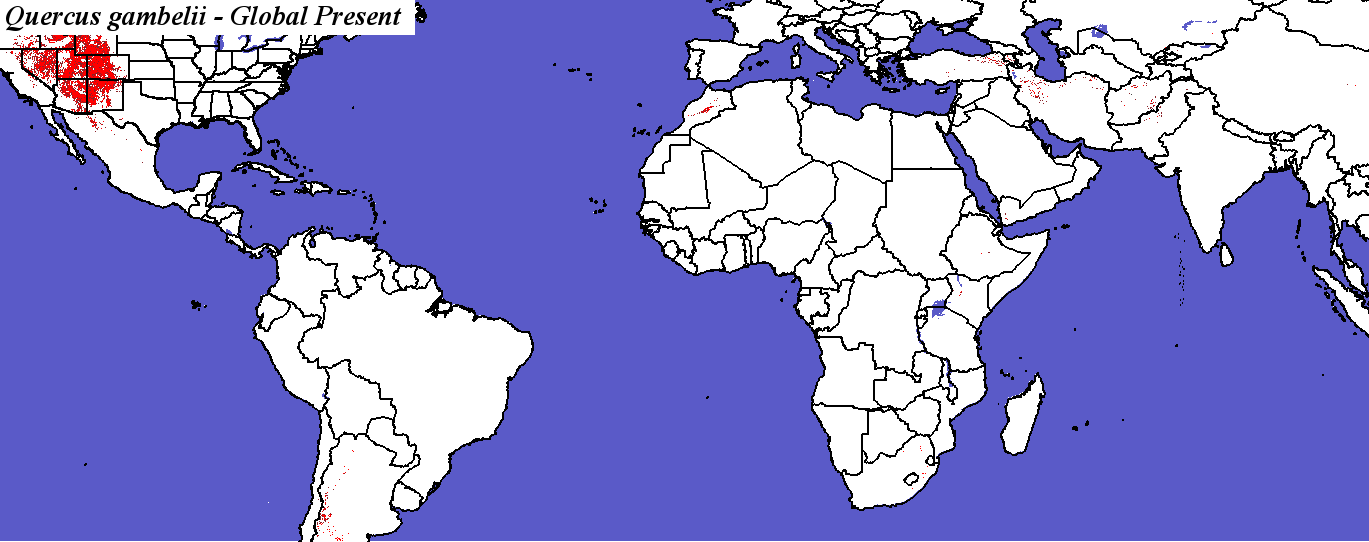

Quercus gambelii - Global

PCM - Parallel Climate Model
Quercus_gambelii_final.4.conus
Quercus_gambelii_final.4.global

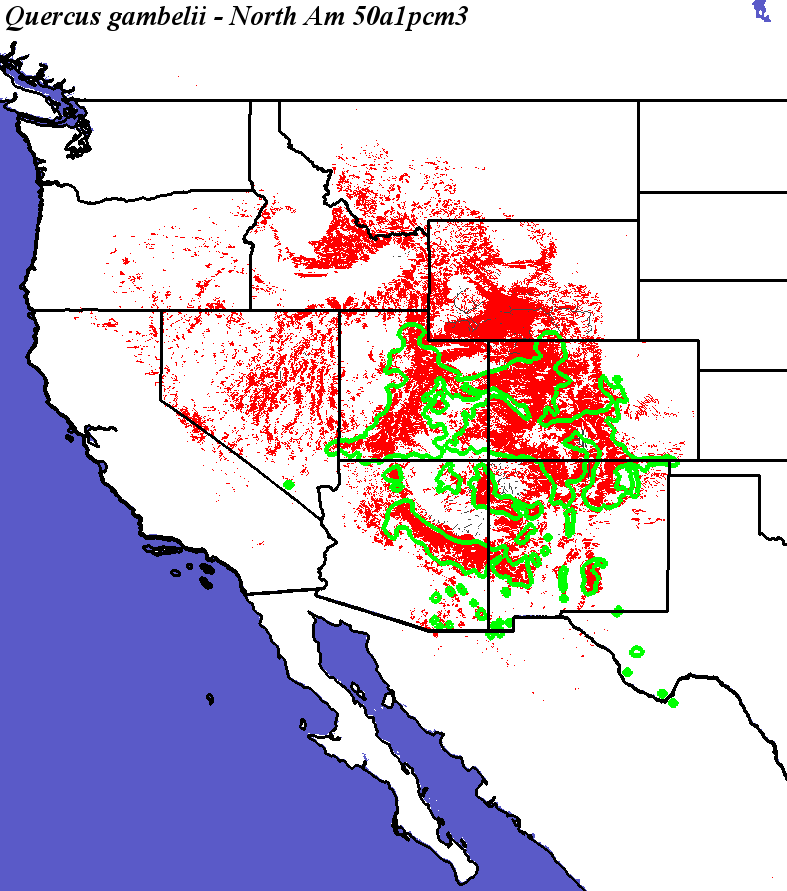

PCM, Scenario A1FI, 2050 - Quercus gambelii - CONUS

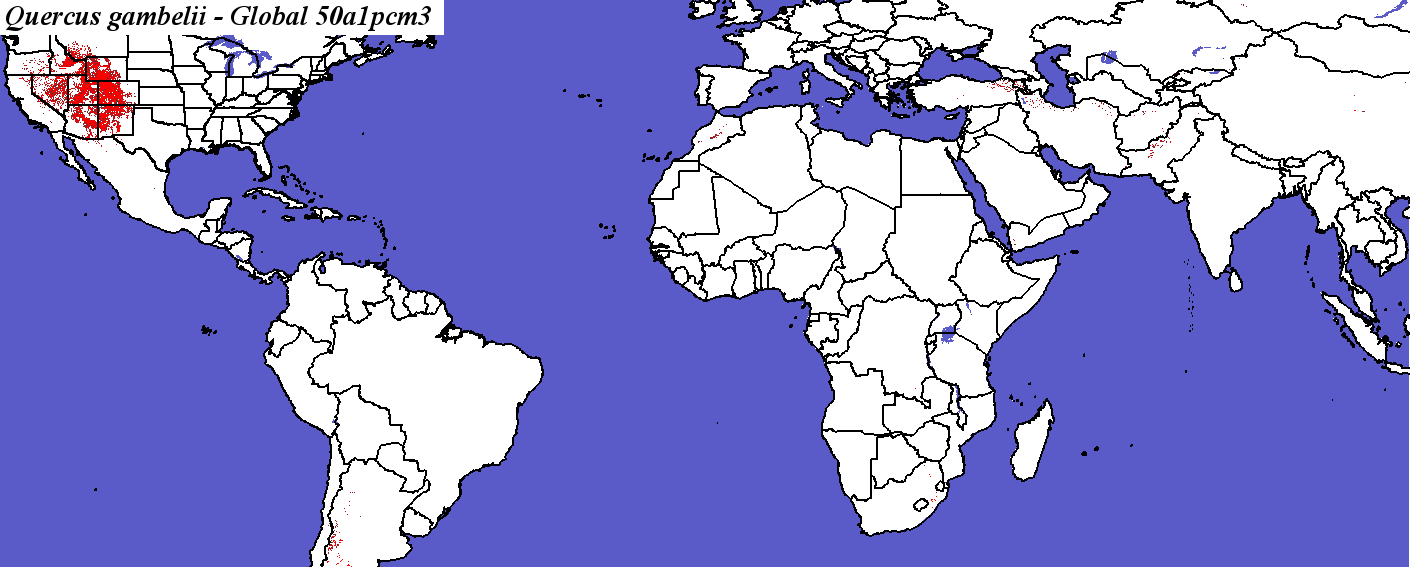

PCM, Scenario A1FI, 2050 - Quercus gambelii - Global
Quercus_gambelii_final.4.conus
Quercus_gambelii_final.4.global

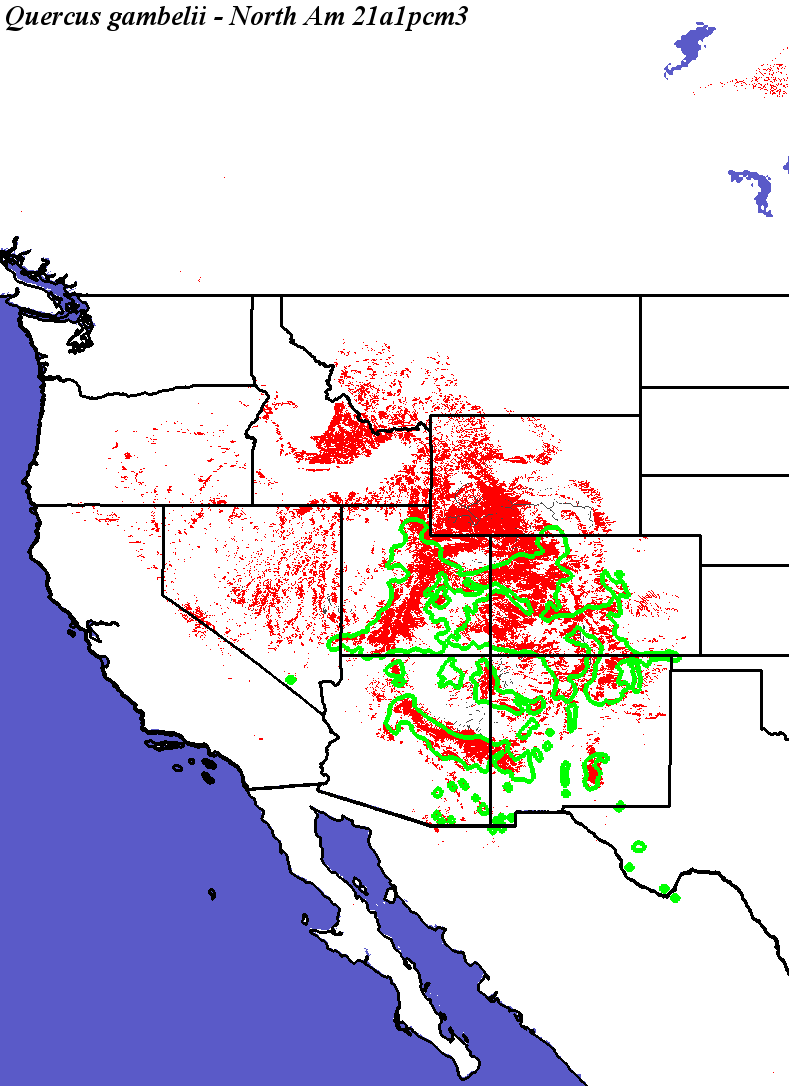

PCM, Scenario A1FI, 2100 - Quercus gambelii - CONUS
Quercus gambelii species not modeled by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Quercus gambelii - Global

Quercus_gambelii_final.4.conus
Quercus_gambelii_final.4.global

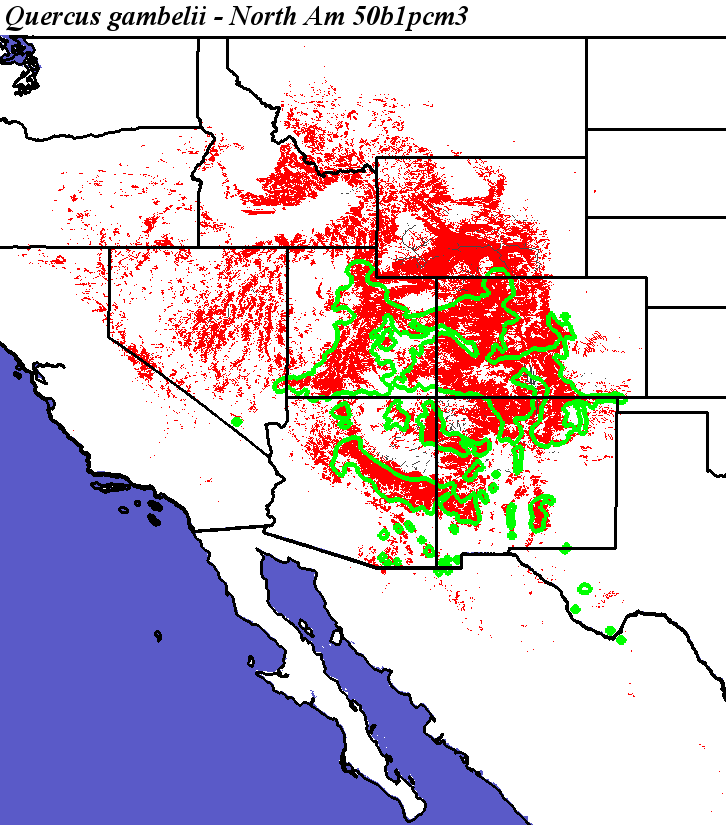

PCM, Scenario B1, 2050 - Quercus gambelii - CONUS
PCM, Scenario B1, 2050 - Quercus gambelii - Global
Quercus_gambelii_final.4.conus
Quercus_gambelii_final.4.global
PCM, Scenario B1, 2100 - Quercus gambelii - CONUS
Quercus gambelii not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus gambelii - Global

Hadley Climate Model
Quercus_gambelii_final.4.conus
Quercus_gambelii_final.4.global

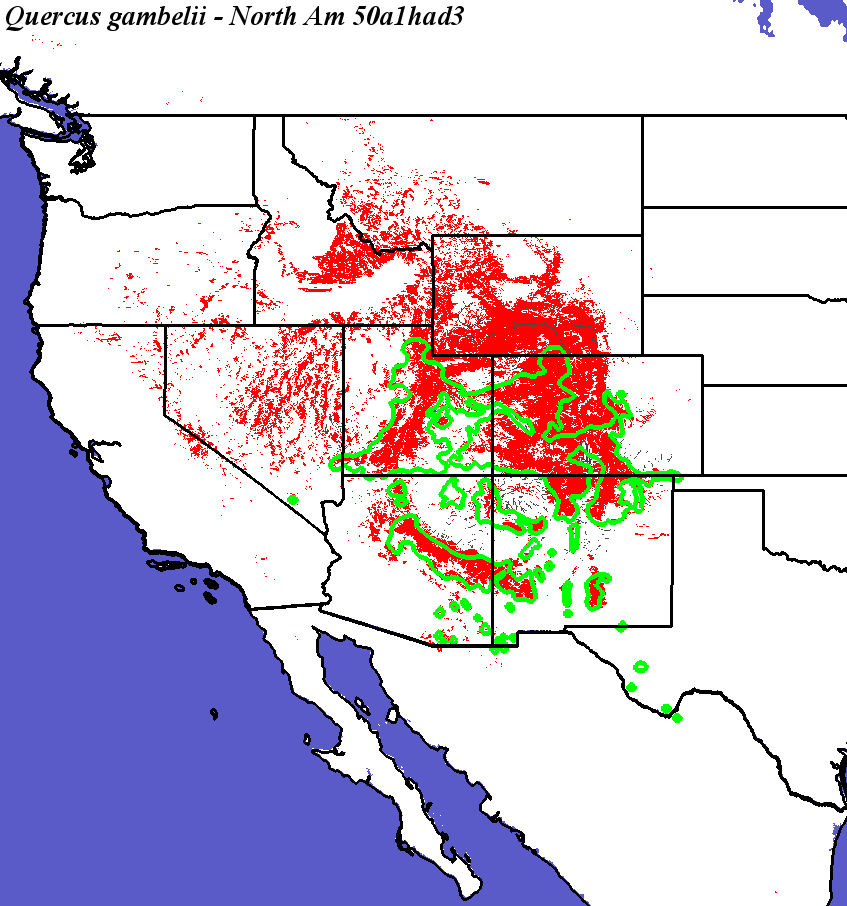

Hadley, Scenario A1FI, 2050 - Quercus gambelii - CONUS
Compare with Quercus gambelii modeled for Hadley A2 in 2060 by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Quercus gambelii - Global
Quercus_gambelii_final.4.conus
Quercus_gambelii_final.4.global.

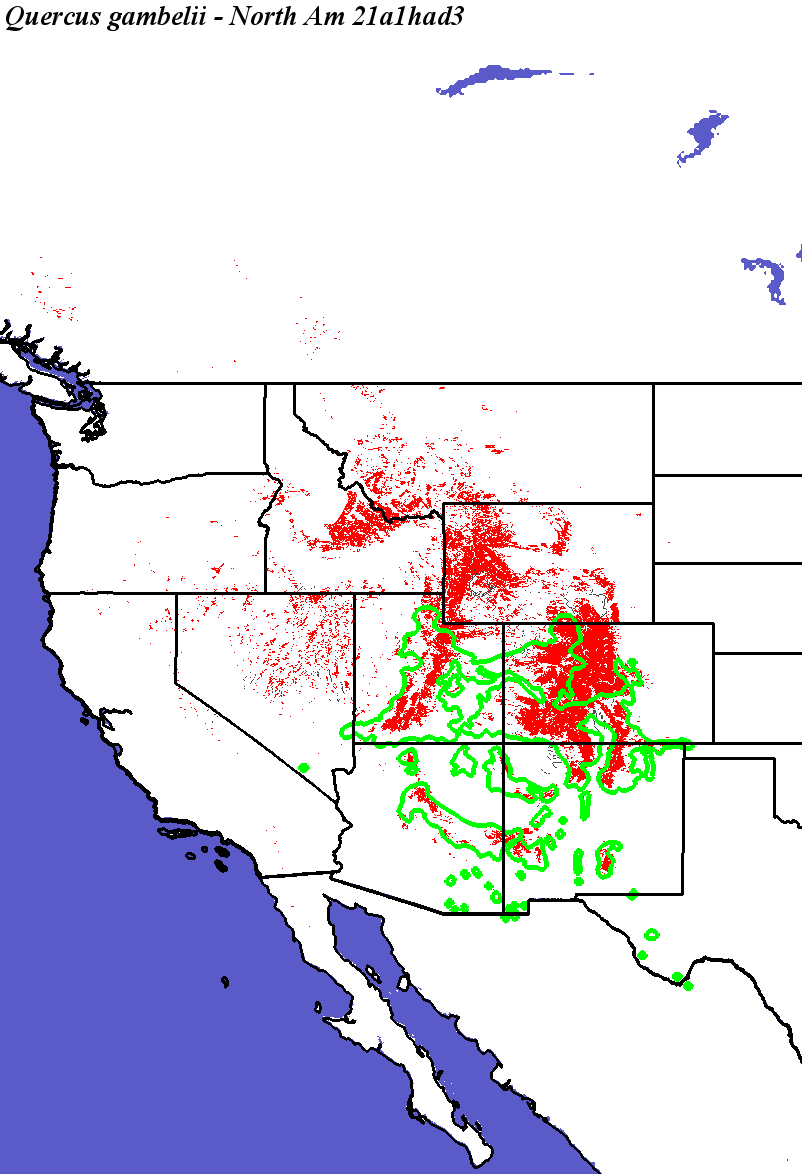

Hadley, Scenario A1FI, 2100 - Quercus gambelii - CONUS
Quercus gambelii not modeled by Iverson and Prasad
Compare with Quercus gambelii modeled for Hadley A2 in 2090 by Crookston and Rehfeldt
Quercus gambelii not modeled by Coops and Waring

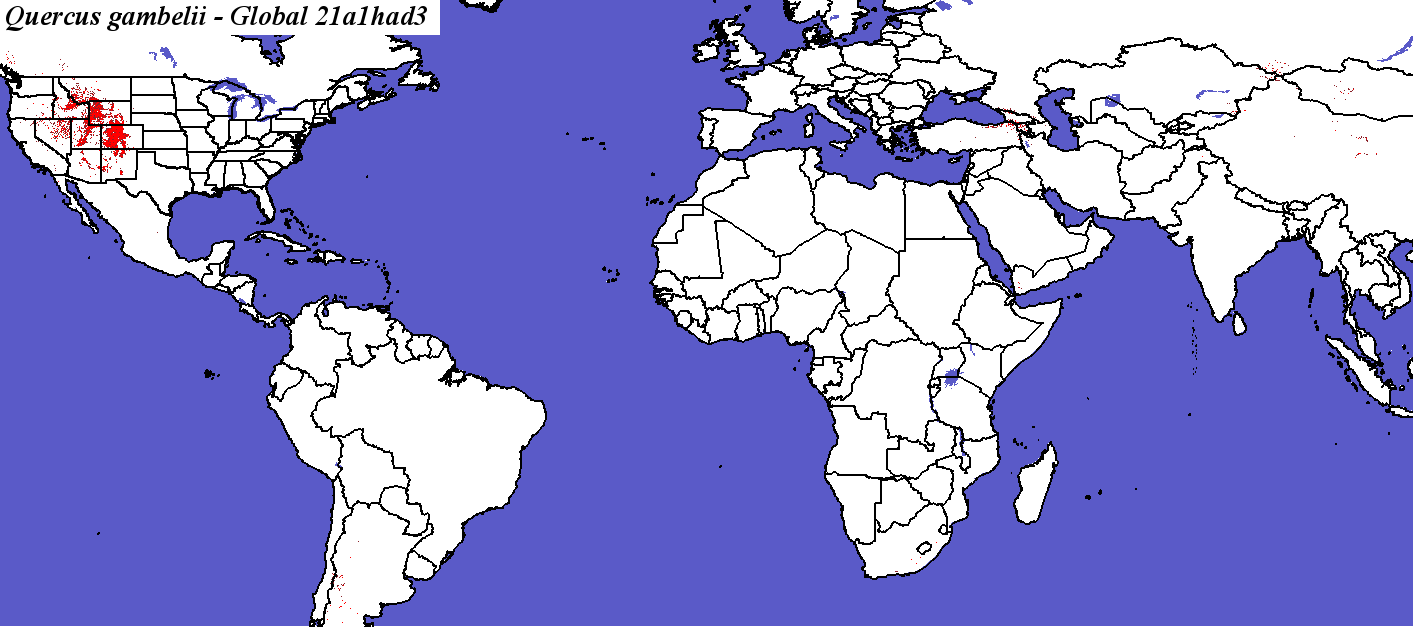

Hadley, Scenario A1FI, 2100 - Quercus gambelii - Global

Quercus_gambelii_final.4.conus
Quercus_gambelii_final.4.global.
Hadley, Scenario B1, 2050 - Quercus gambelii - CONUS
Compare with Quercus gambelii modeled for Hadley B2 in 2060 by Crookston and Rehfeldt
Quercus gambelii not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Quercus gambelii - Global
Quercus_gambelii_final.4.conus
Quercus_gambelii_final.4.global

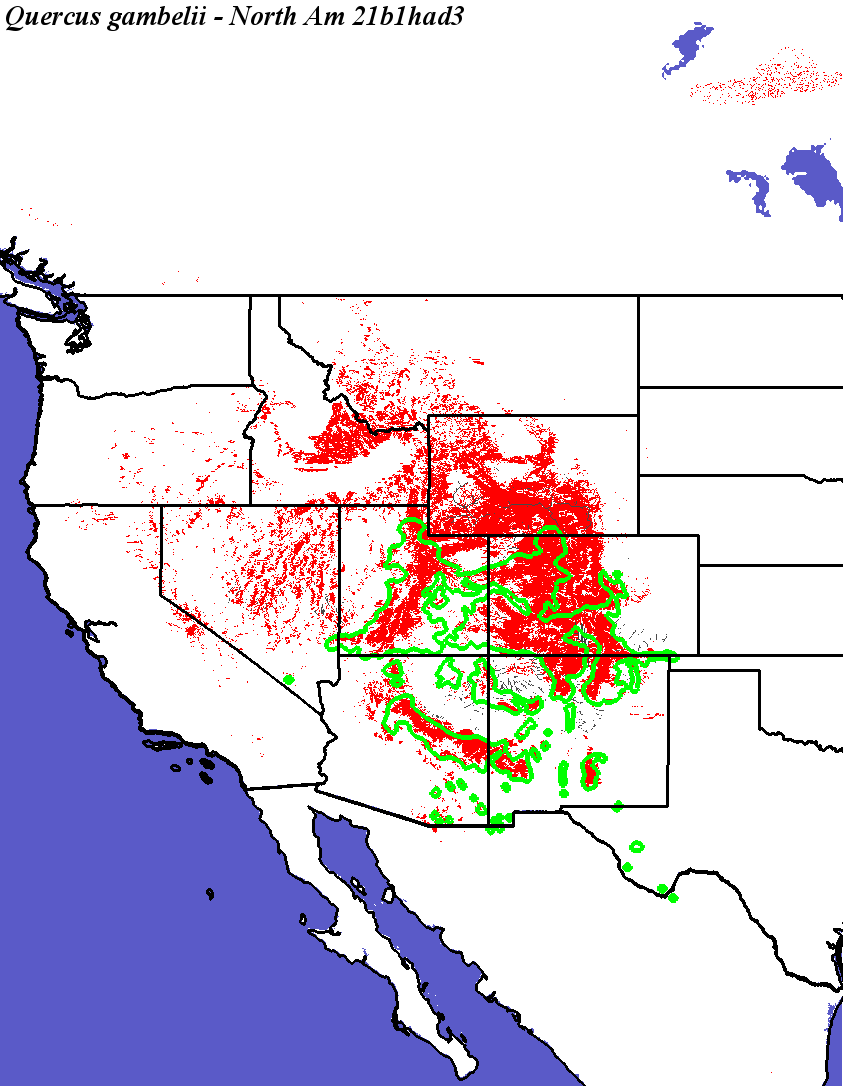

Hadley, Scenario B1, 2100 - Quercus gambelii - CONUS
Quercus gambelii not modeled by Iverson and Prasad
Compare with Quercus gambelii modeled for Hadley B2 in 2090 by Crookston and Rehfeldt

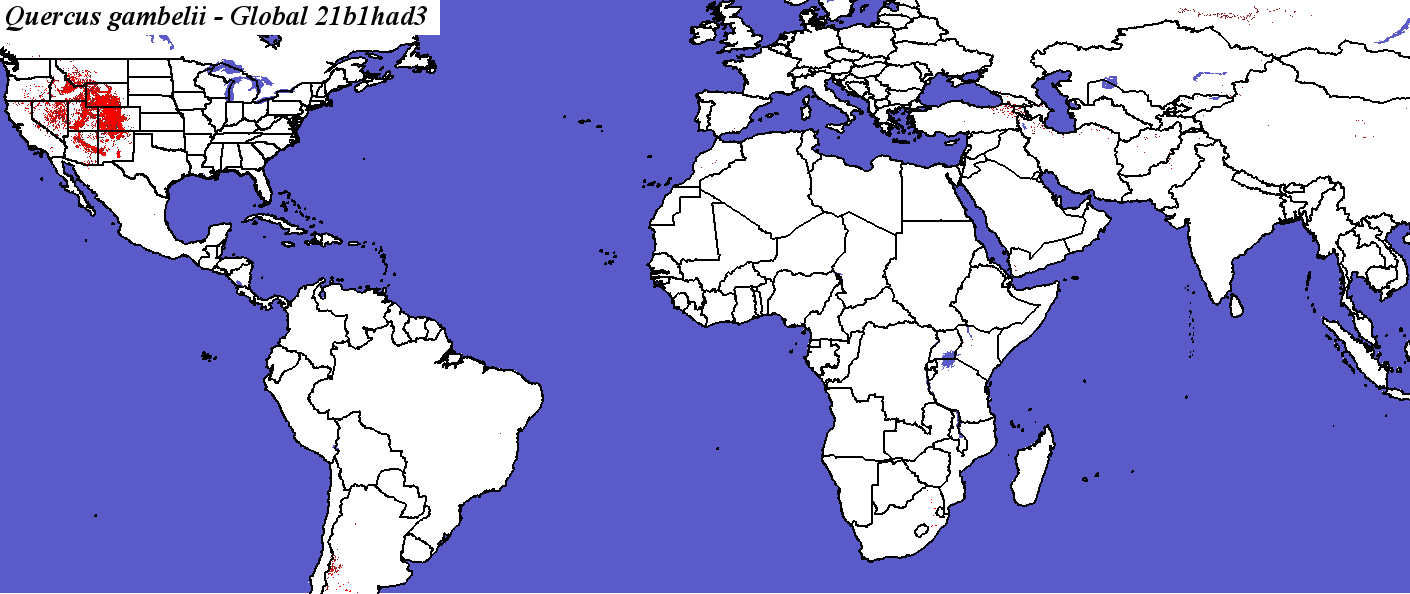

Hadley, Scenario B1, 2100 - Quercus gambelii - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_gambelii_final.elev

Number of Suitable Ecoregions (Niche Breadth)

128

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

15.6164

Area in Present Suitable Range (in km2)

746345

Area in Future Suitable Range (Had B1 2050, in km2)

594763

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

521357

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

69.8500

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

9.45205

Percent Change in Area of Suitable Range (Had B1 2050)

-20.3000

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

33.2877

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

5257.68 +/- 16422.8

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

89.4521

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

2.60471 +/- 8.45392

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

88.9041

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

20.5663 +/- 69.7285

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

83.0137

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

253

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

.0300

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

71.2329

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

374209

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

50.1300

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

7.53425

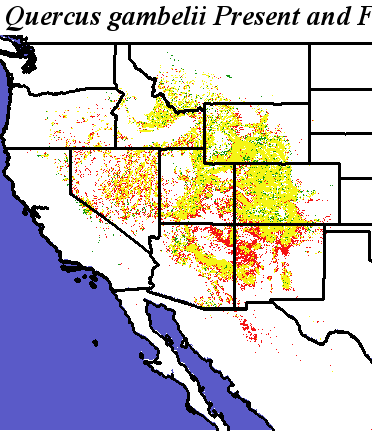

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus gambelii Quercus gambelii - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

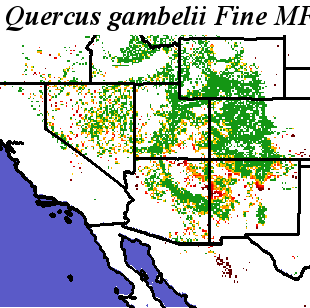

Quercus_gambelii_final.elev Fine MRM Distance

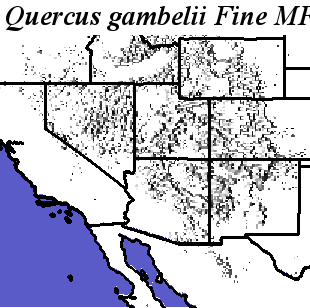

Quercus_gambelii_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus gambelii Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus gambelii

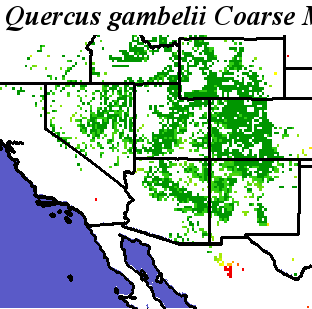

Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Quercus_gambelii_final.elev Coarse MRM Distance
Quercus_gambelii_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus gambelii Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus gambelii
