Version 5 Tree Atlas


Quercus garryana

Oregon white oak

elev

Quercus garryana Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus garryana

USDA Plants Database entry for Quercus garryana
Silvics Manual entry for Quercus garryana


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
Quercus garryana var. breweri313262575TBD

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_garryana_final Occurrences
Hargroves Present Suitable Range Outline for Quercus_garryana_final

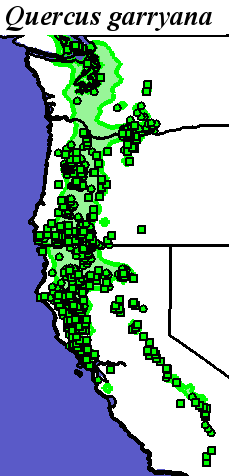

Quercus garryana - Occurrence Locations Quercus garryana - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_garryana_final.3.conus
Quercus_garryana_final.3.global

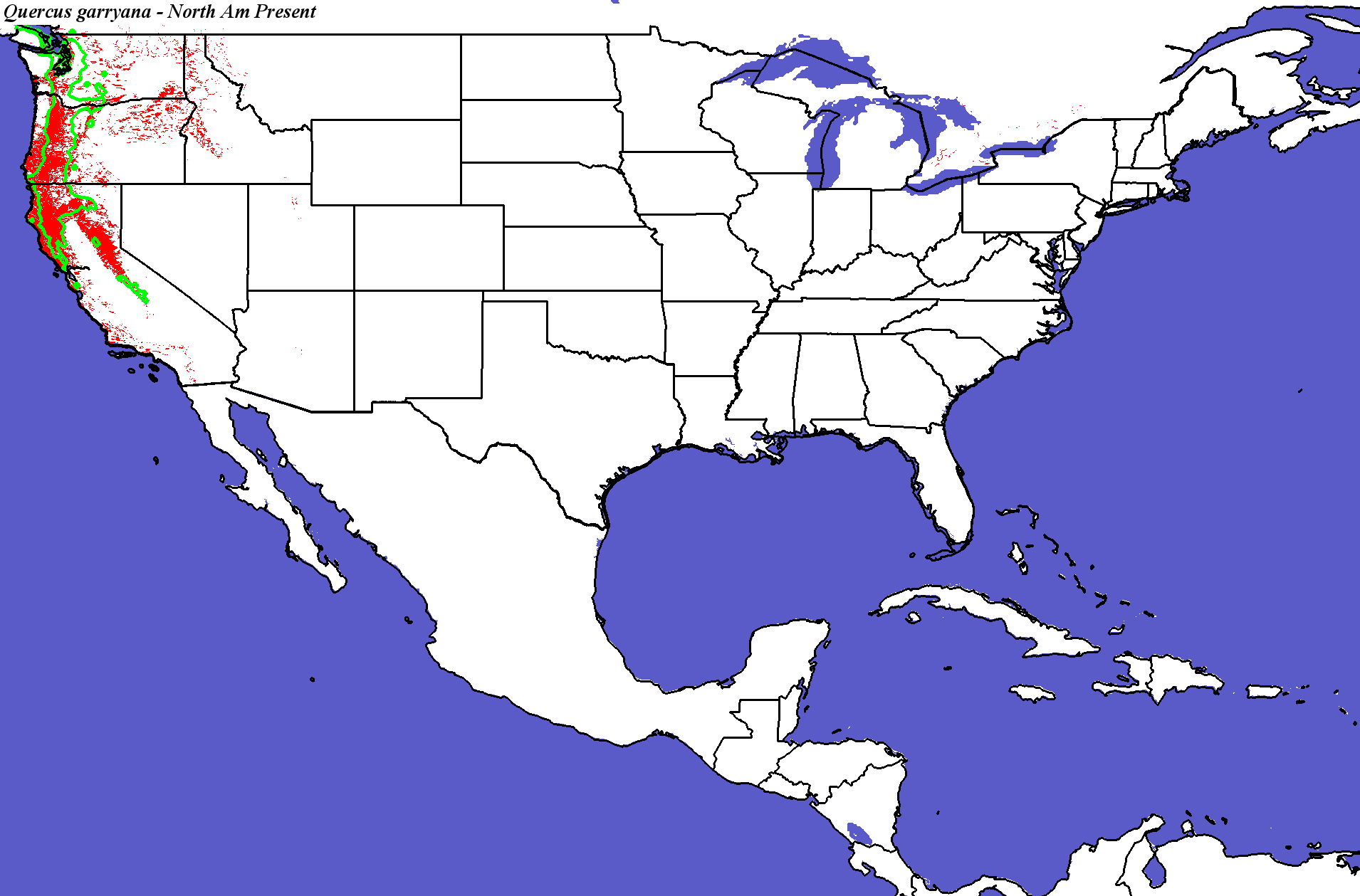

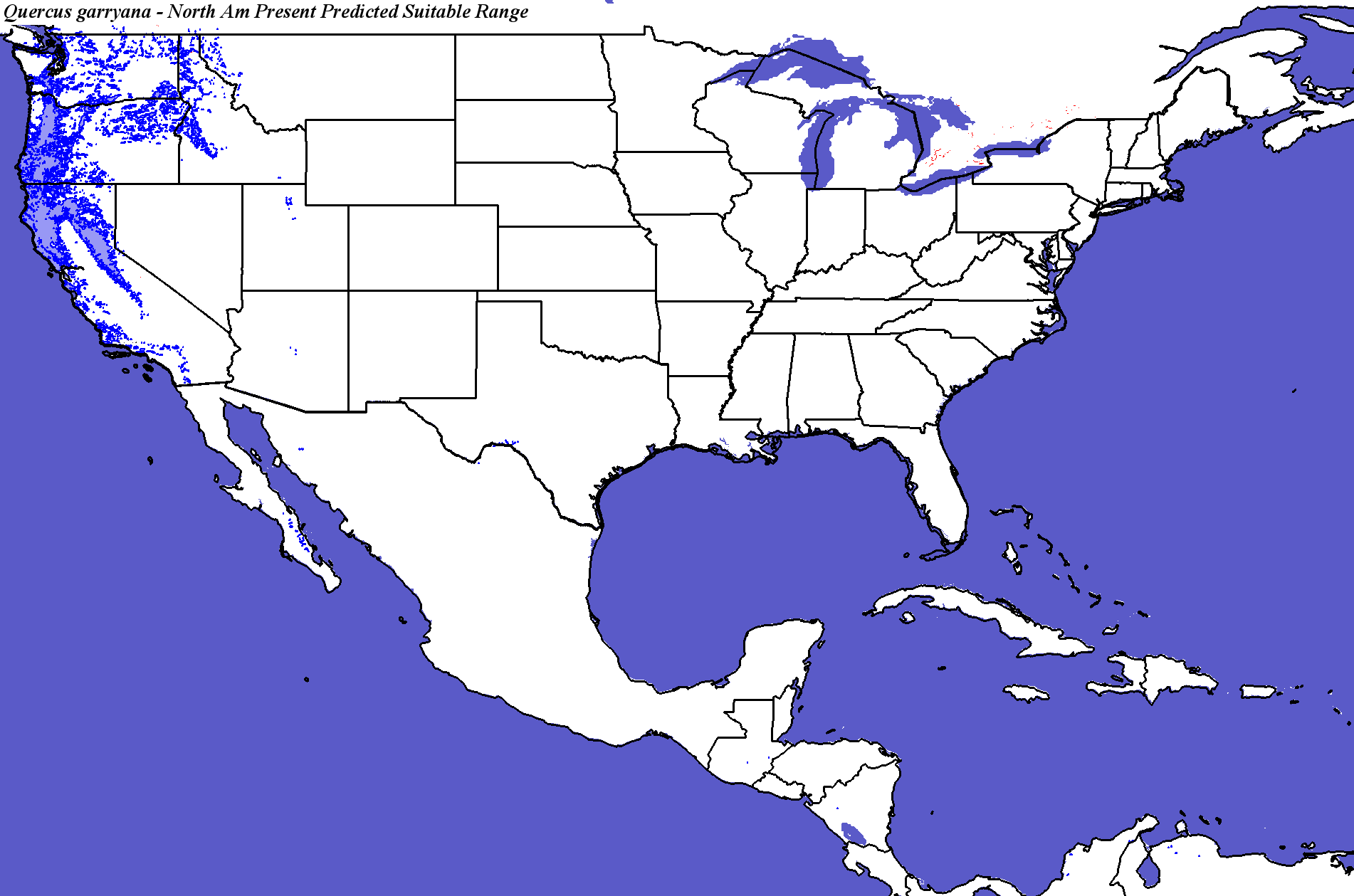

Quercus garryana - CONUS
Compare with Current Range from the Silvics Manual for Quercus garryana
Compare with Current Range from Biota of North America Program (BONAP) for Quercus garryana

Quercus garryana not modeled by Iverson and Prasad
Compare with Quercus garryana modeled for Current conditions by Crookston and Rehfeldt
Quercus garryana not modeled by Coops and Waring
Quercus garryana - Global

PCM - Parallel Climate Model
Quercus_garryana_final.3.conus
Quercus_garryana_final.3.global
PCM, Scenario A1FI, 2050 - Quercus garryana - CONUS

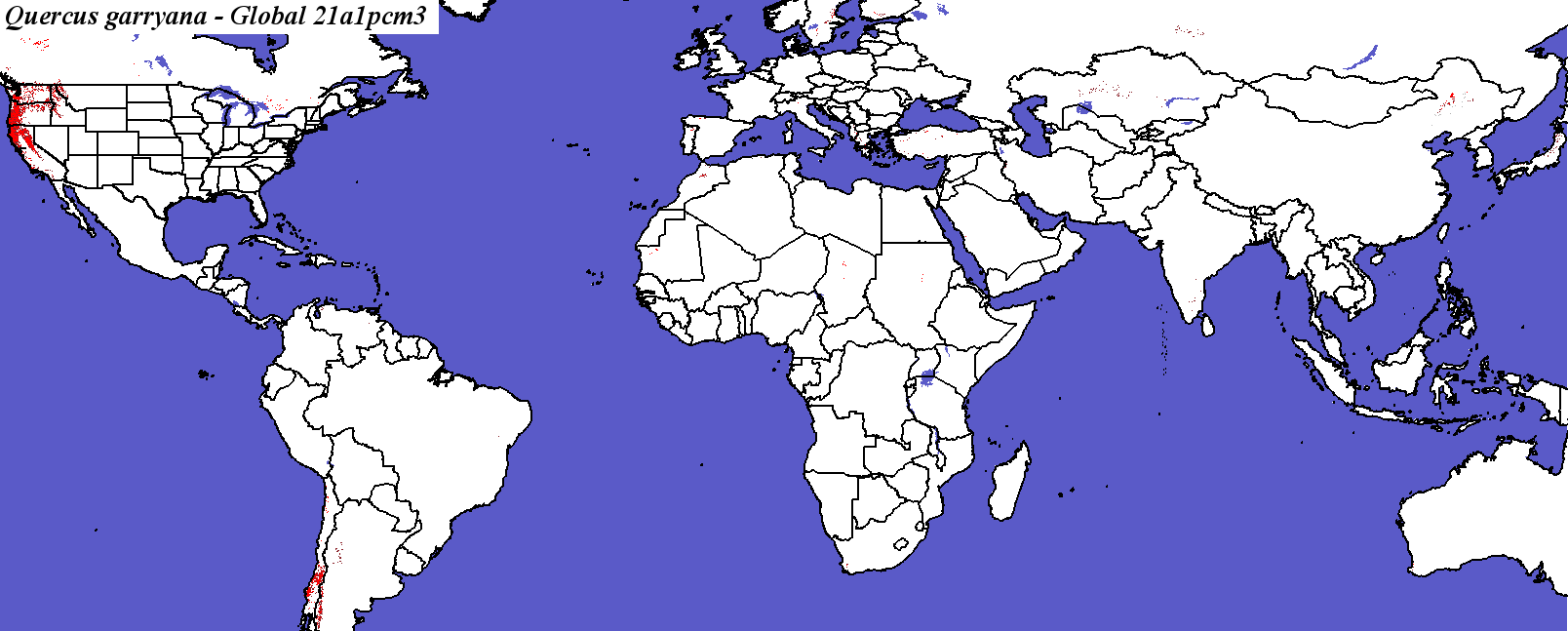

PCM, Scenario A1FI, 2050 - Quercus garryana - Global
Quercus_garryana_final.3.conus
Quercus_garryana_final.3.global
PCM, Scenario A1FI, 2100 - Quercus garryana - CONUS
Quercus garryana species not modeled by Iverson and Prasad

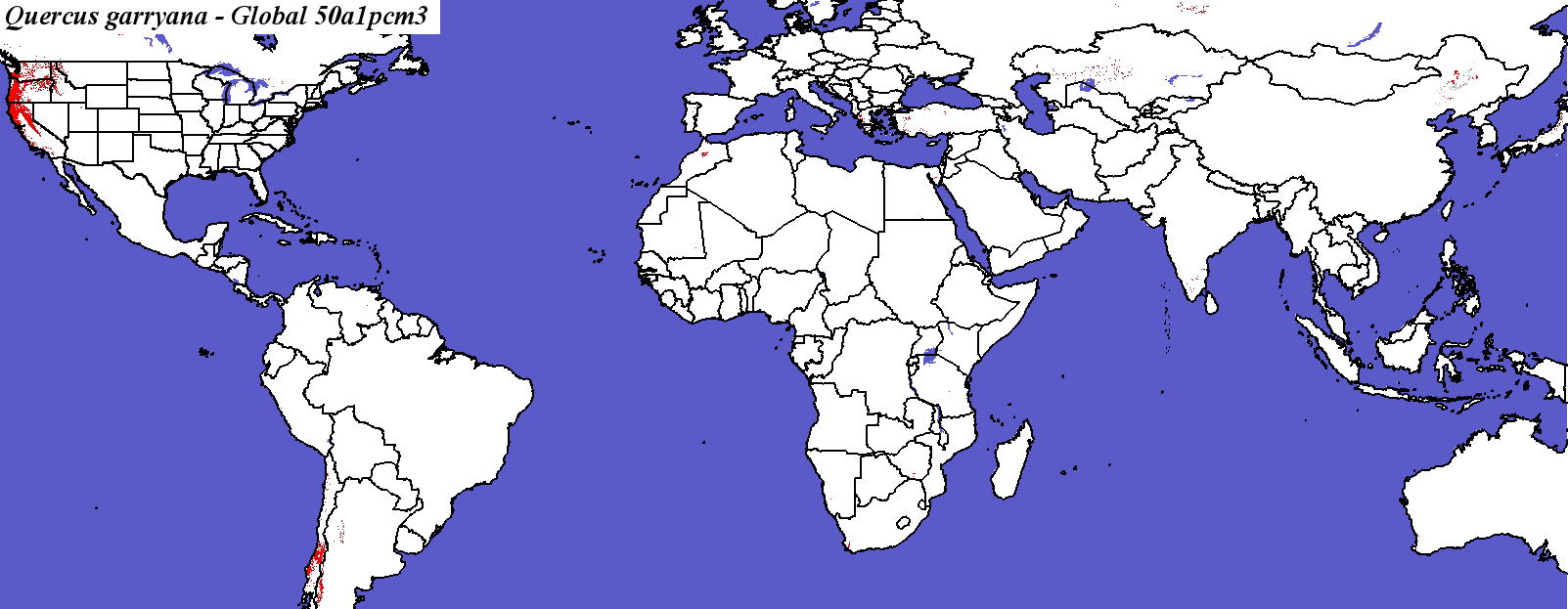

PCM, Scenario A1FI, 2100 - Quercus garryana - Global

Quercus_garryana_final.3.conus
Quercus_garryana_final.3.global

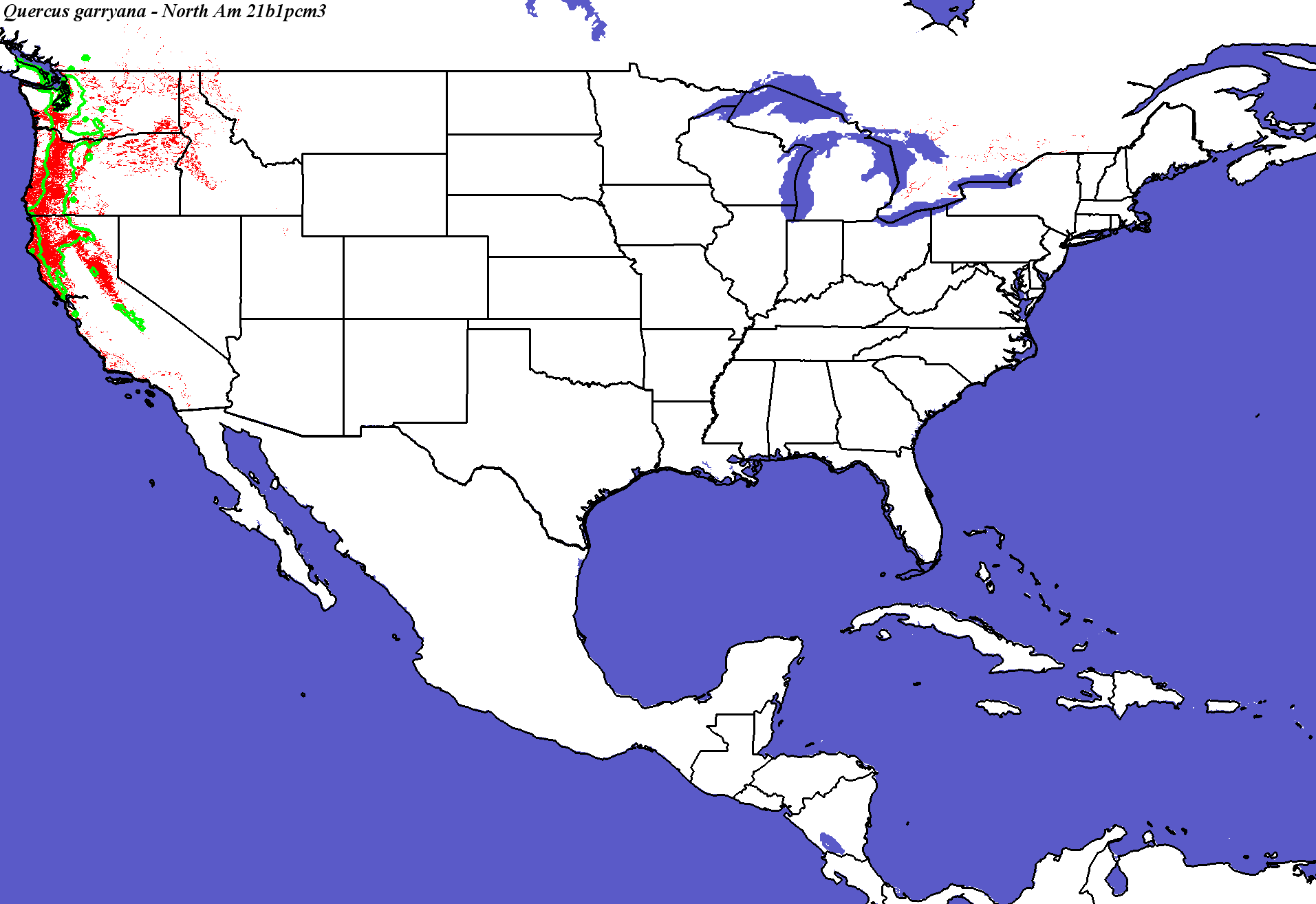

PCM, Scenario B1, 2050 - Quercus garryana - CONUS
PCM, Scenario B1, 2050 - Quercus garryana - Global
Quercus_garryana_final.3.conus
Quercus_garryana_final.3.global
PCM, Scenario B1, 2100 - Quercus garryana - CONUS
Quercus garryana not modeled by Iverson and Prasad

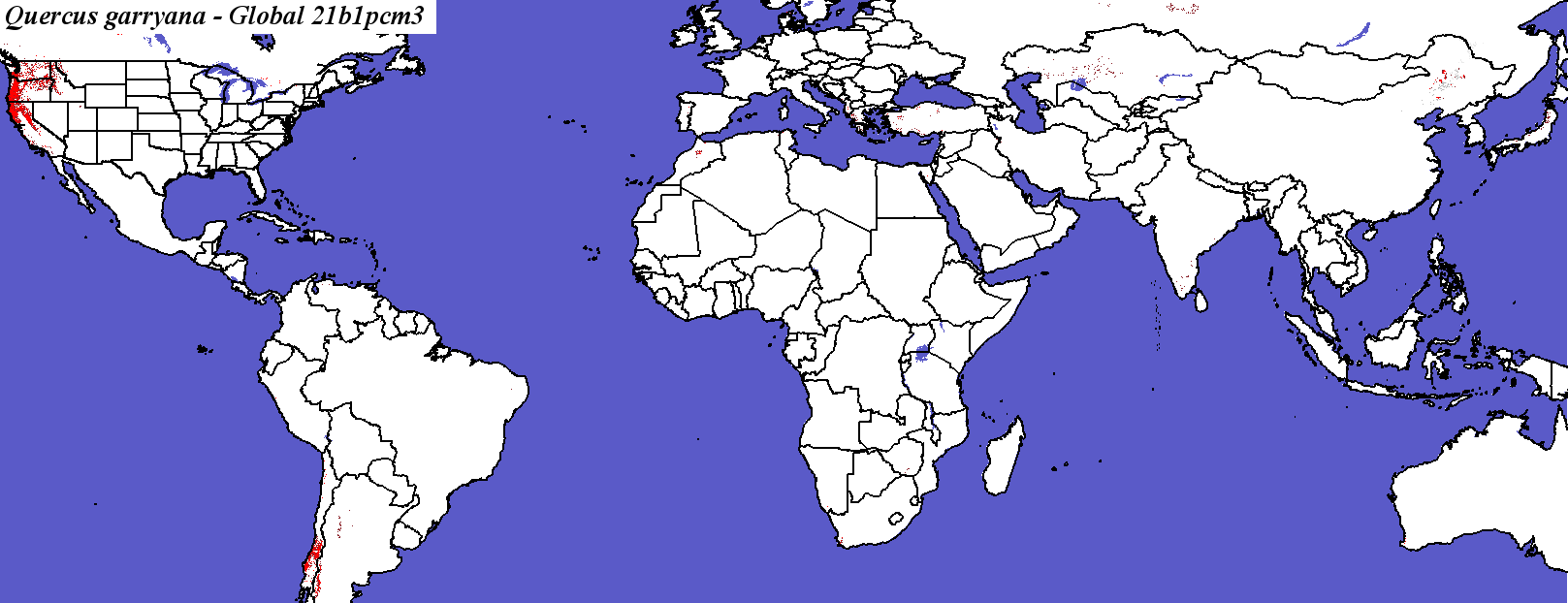

PCM, Scenario B1, 2100 - Quercus garryana - Global

Hadley Climate Model
Quercus_garryana_final.3.conus
Quercus_garryana_final.3.global

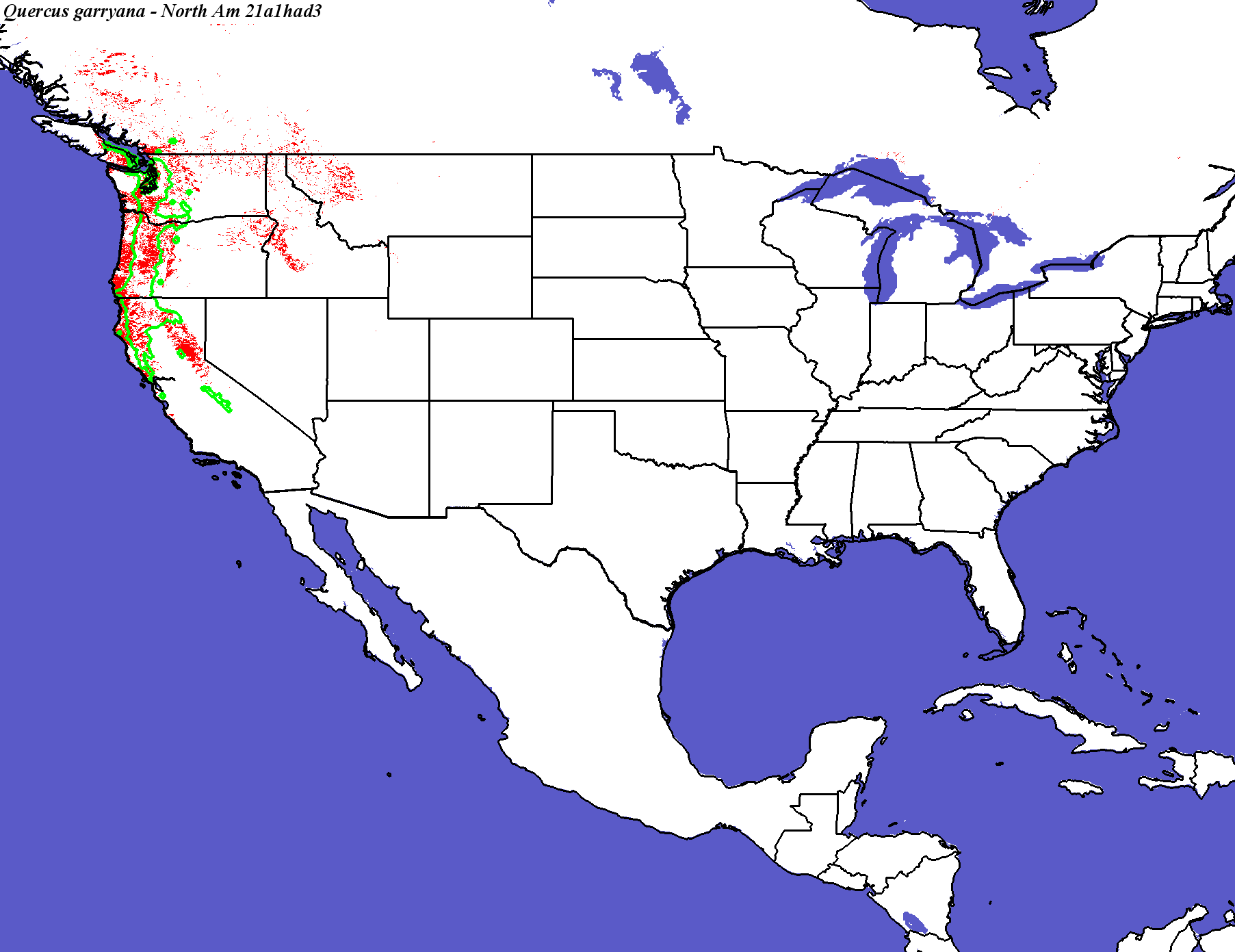

Hadley, Scenario A1FI, 2050 - Quercus garryana - CONUS
Compare with Quercus garryana modeled for Hadley A2 in 2060 by Crookston and Rehfeldt

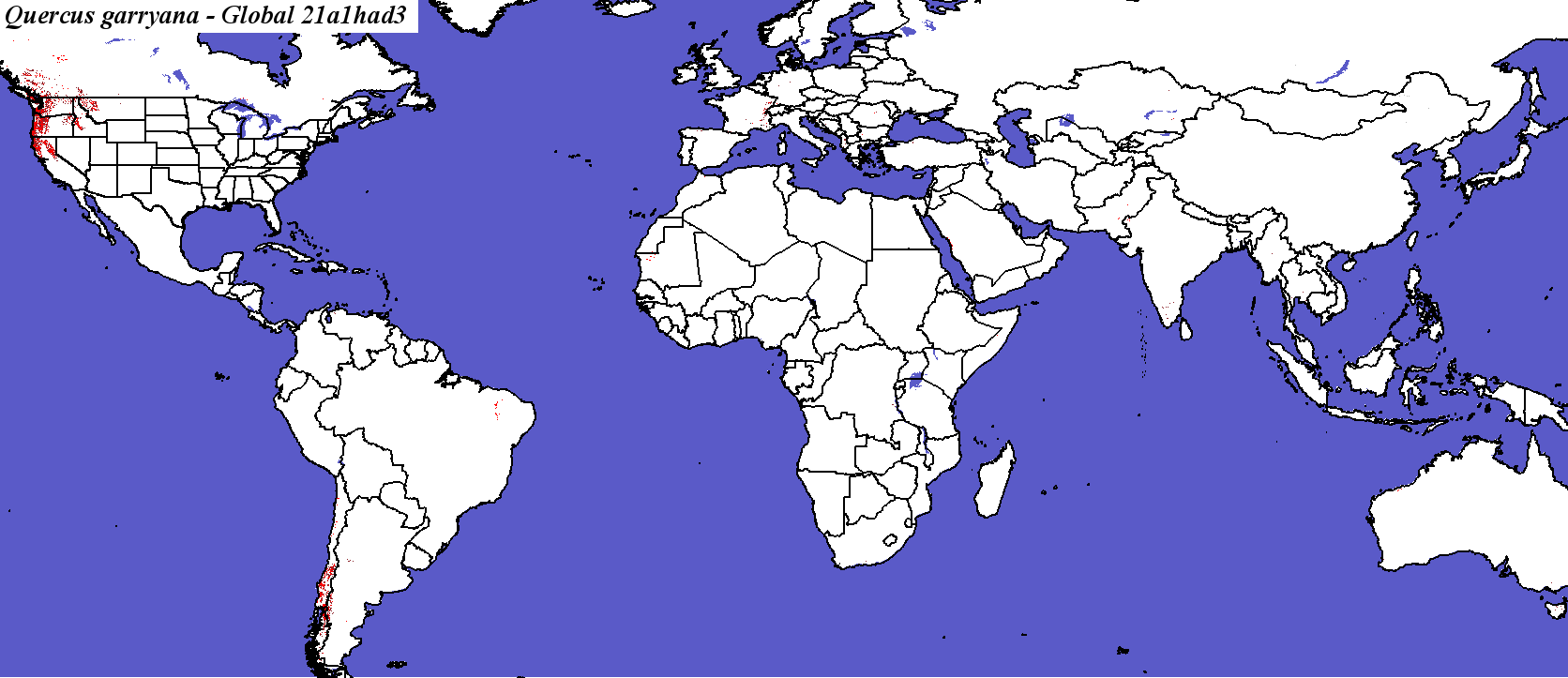

Hadley, Scenario A1FI, 2050 - Quercus garryana - Global
Quercus_garryana_final.3.conus
Quercus_garryana_final.3.global.
Hadley, Scenario A1FI, 2100 - Quercus garryana - CONUS
Quercus garryana not modeled by Iverson and Prasad
Compare with Quercus garryana modeled for Hadley A2 in 2090 by Crookston and Rehfeldt
Quercus garryana not modeled by Coops and Waring

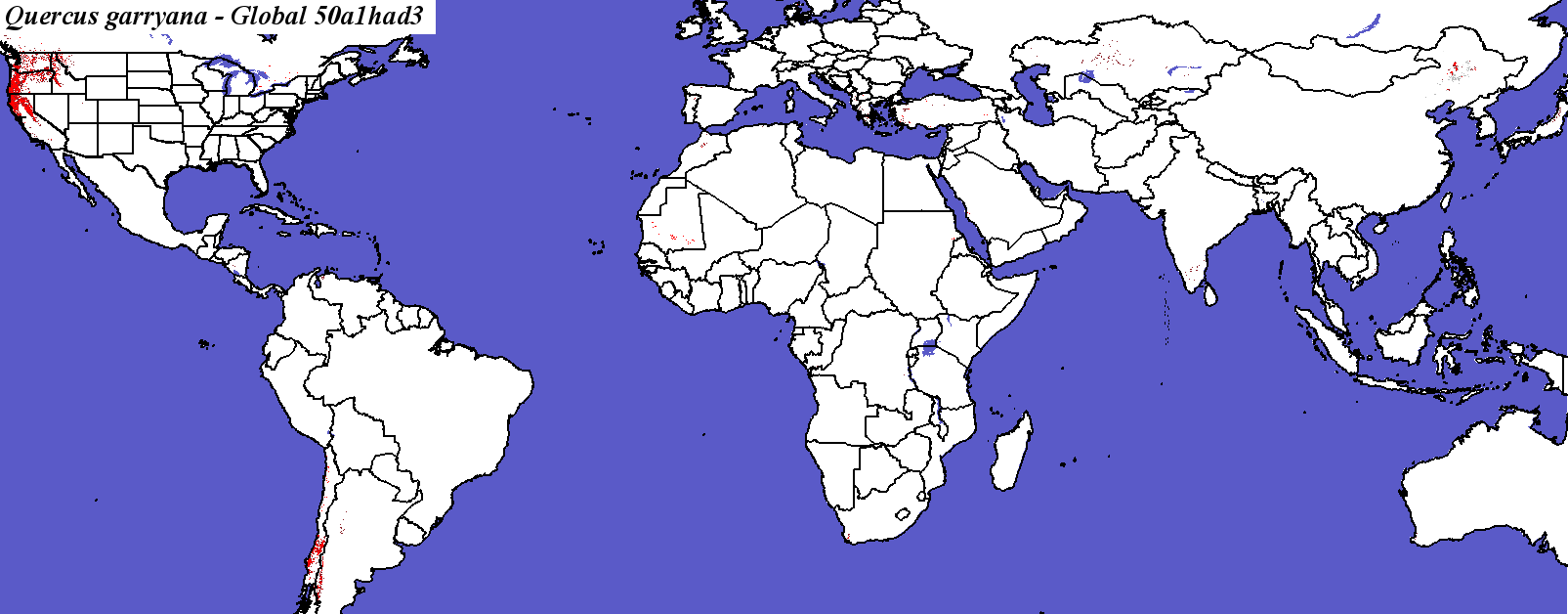

Hadley, Scenario A1FI, 2100 - Quercus garryana - Global

Quercus_garryana_final.3.conus
Quercus_garryana_final.3.global.

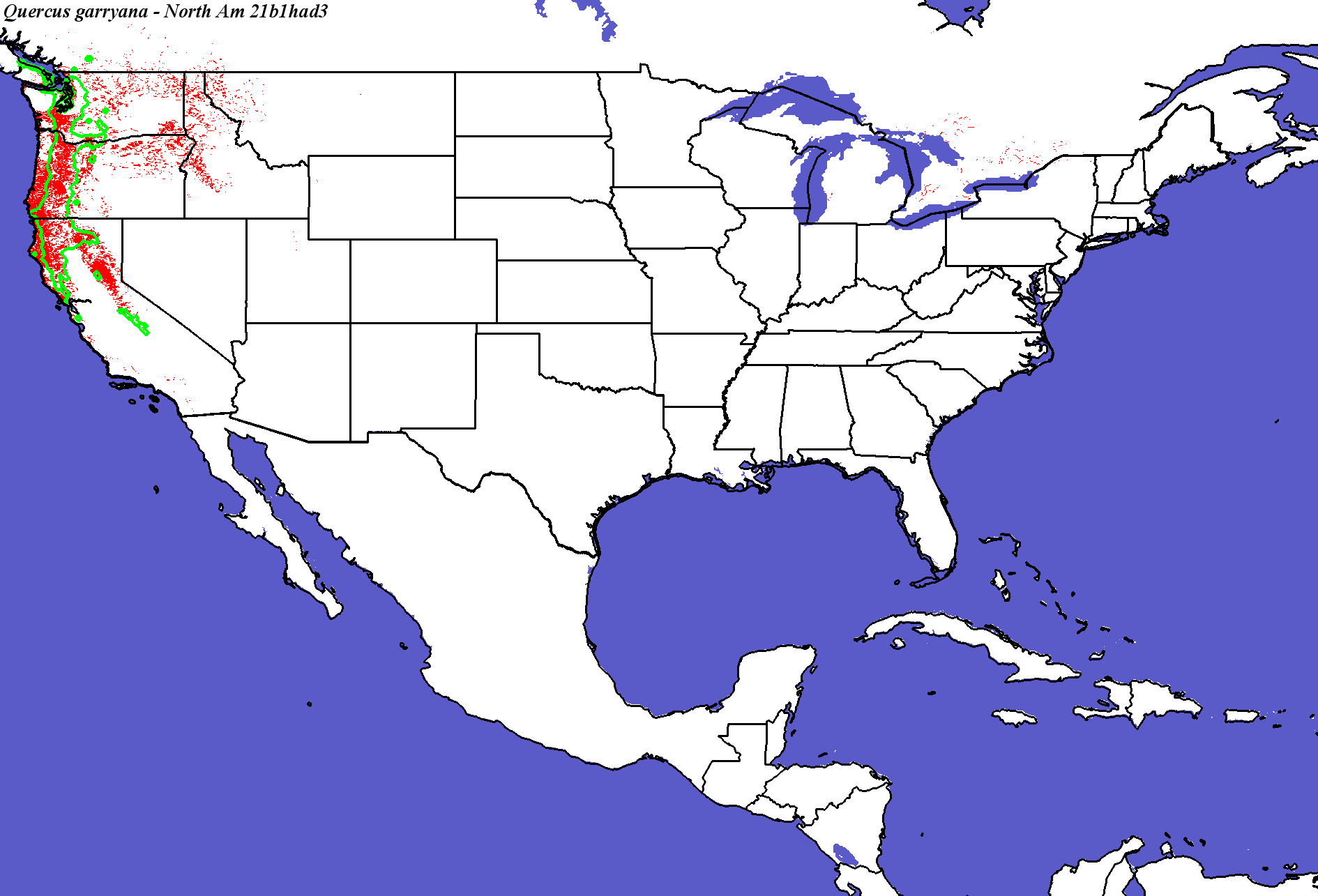

Hadley, Scenario B1, 2050 - Quercus garryana - CONUS
Compare with Quercus garryana modeled for Hadley B2 in 2060 by Crookston and Rehfeldt
Quercus garryana not modeled by Coops and Waring

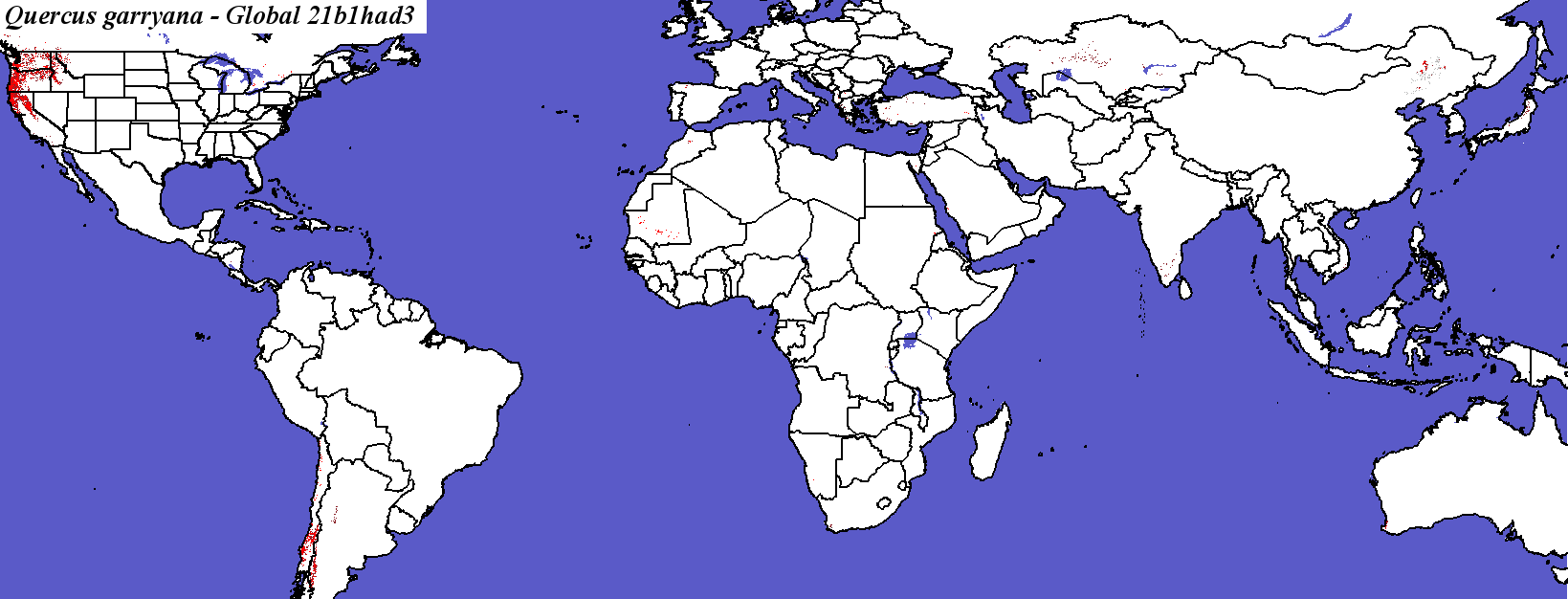

Hadley, Scenario B1, 2050 - Quercus garryana - Global
Quercus_garryana_final.3.conus
Quercus_garryana_final.3.global
Hadley, Scenario B1, 2100 - Quercus garryana - CONUS
Quercus garryana not modeled by Iverson and Prasad
Compare with Quercus garryana modeled for Hadley B2 in 2090 by Crookston and Rehfeldt

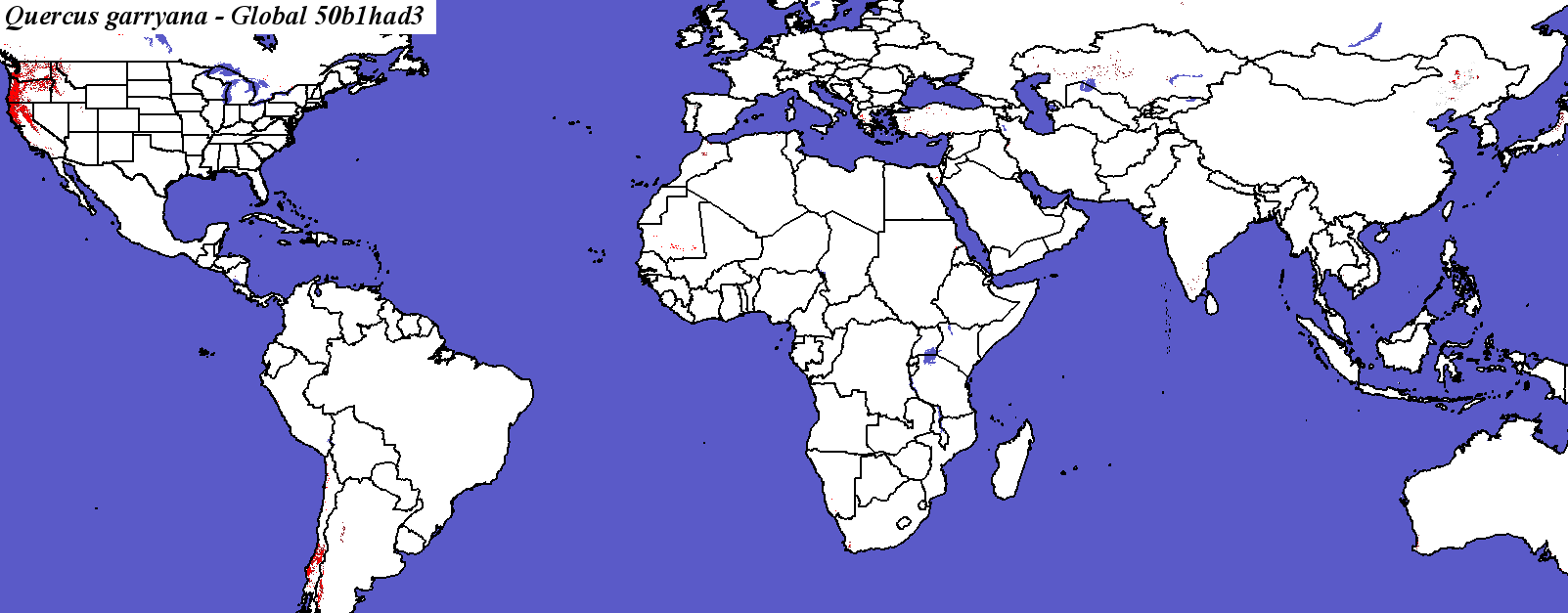

Hadley, Scenario B1, 2100 - Quercus garryana - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_garryana_final.elev

Number of Suitable Ecoregions (Niche Breadth)

67

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

31.7808

Area in Present Suitable Range (in km2)

249750

Area in Future Suitable Range (Had B1 2050, in km2)

233883

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

181935

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

72.8400

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

6.71233

Percent Change in Area of Suitable Range (Had B1 2050)

-6.3500

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

10.411

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

3345.37 +/- 9090.01

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

96.1644

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

1.78387 +/- 4.69268

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

94.9315

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

22.6698 +/- 163.813

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

80.6849

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

517

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

.2000

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

64.5205

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

84220

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

33.7200

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

35.2055

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus garryana Quercus garryana - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Quercus_garryana_final.elev Fine MRM Distance
Quercus_garryana_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus garryana Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus garryana
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Quercus_garryana_final.elev Coarse MRM Distance
Quercus_garryana_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus garryana Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus garryana
