Version 5 Tree Atlas


Quercus hypoleucoides

silverleaf oak

elev

Quercus hypoleucoides Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus hypoleucoides

USDA Plants Database entry for Quercus hypoleucoides
Silvics Manual entry for Quercus hypoleucoides


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
56186242range mostly well-represented; some disjuncts missing

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_hypoleucoides_final Occurrences

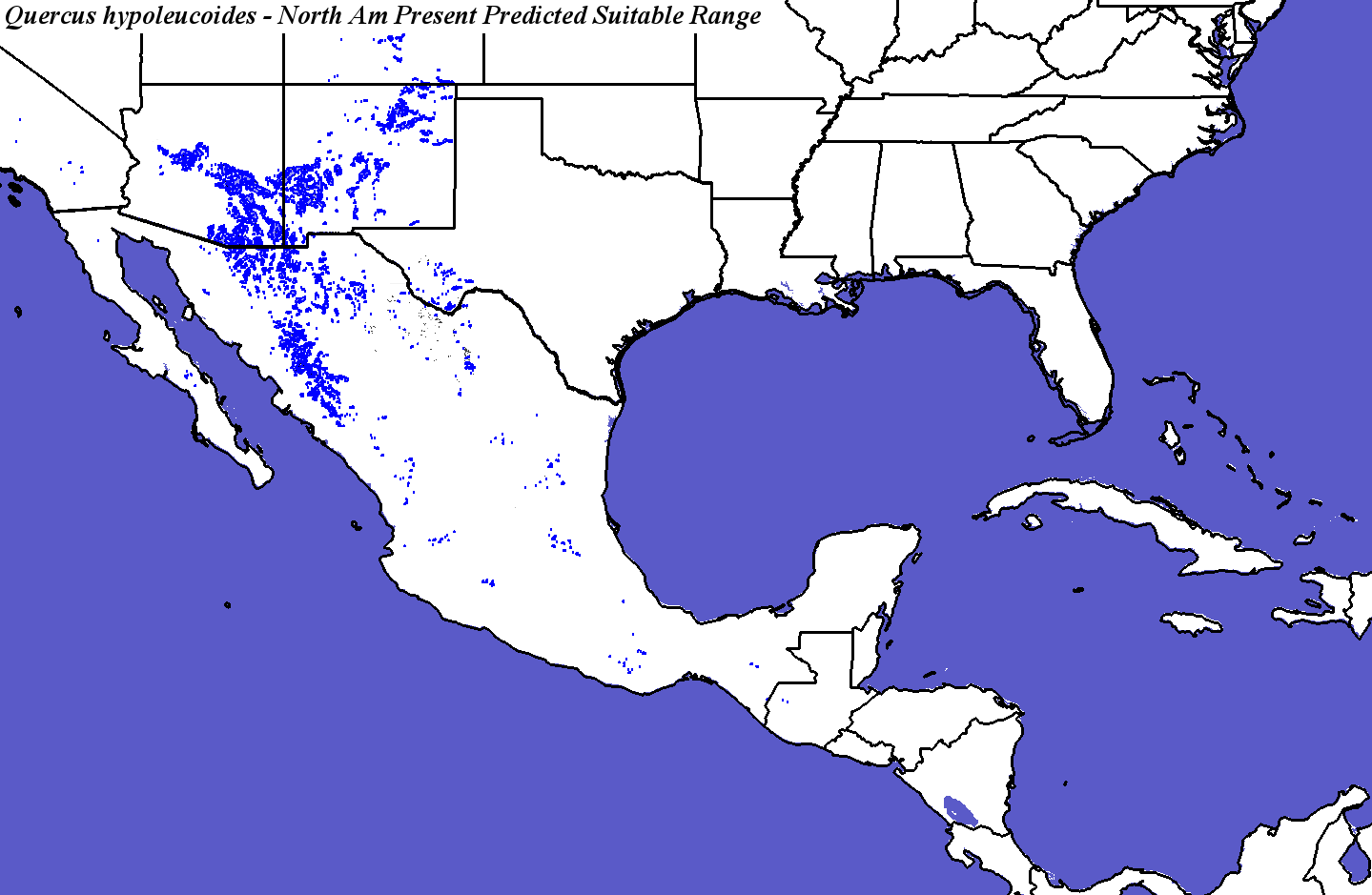

Hargroves Present Suitable Range Outline for Quercus_hypoleucoides_final
Quercus hypoleucoides - Occurrence Locations Quercus hypoleucoides - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_hypoleucoides_final.3.conus
Quercus_hypoleucoides_final.3.global

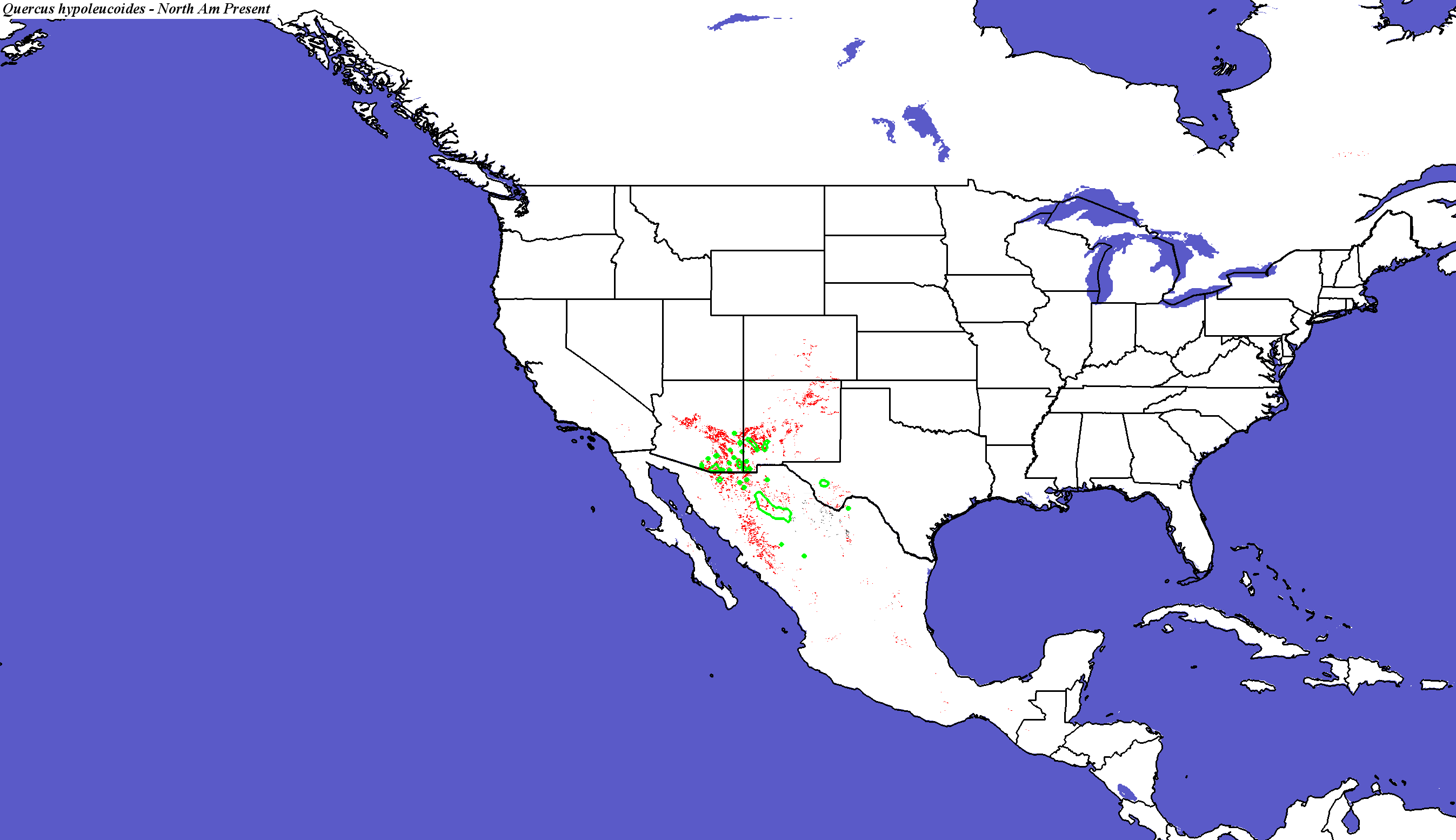

Quercus hypoleucoides - CONUS
Compare with Current Range from the Silvics Manual for Quercus hypoleucoides
Compare with Current Range from Biota of North America Program (BONAP) for Quercus hypoleucoides

Quercus hypoleucoides not modeled by Iverson and Prasad
Compare with Quercus hypoleucoides modeled for Current conditions by Crookston and Rehfeldt
Quercus hypoleucoides not modeled by Coops and Waring

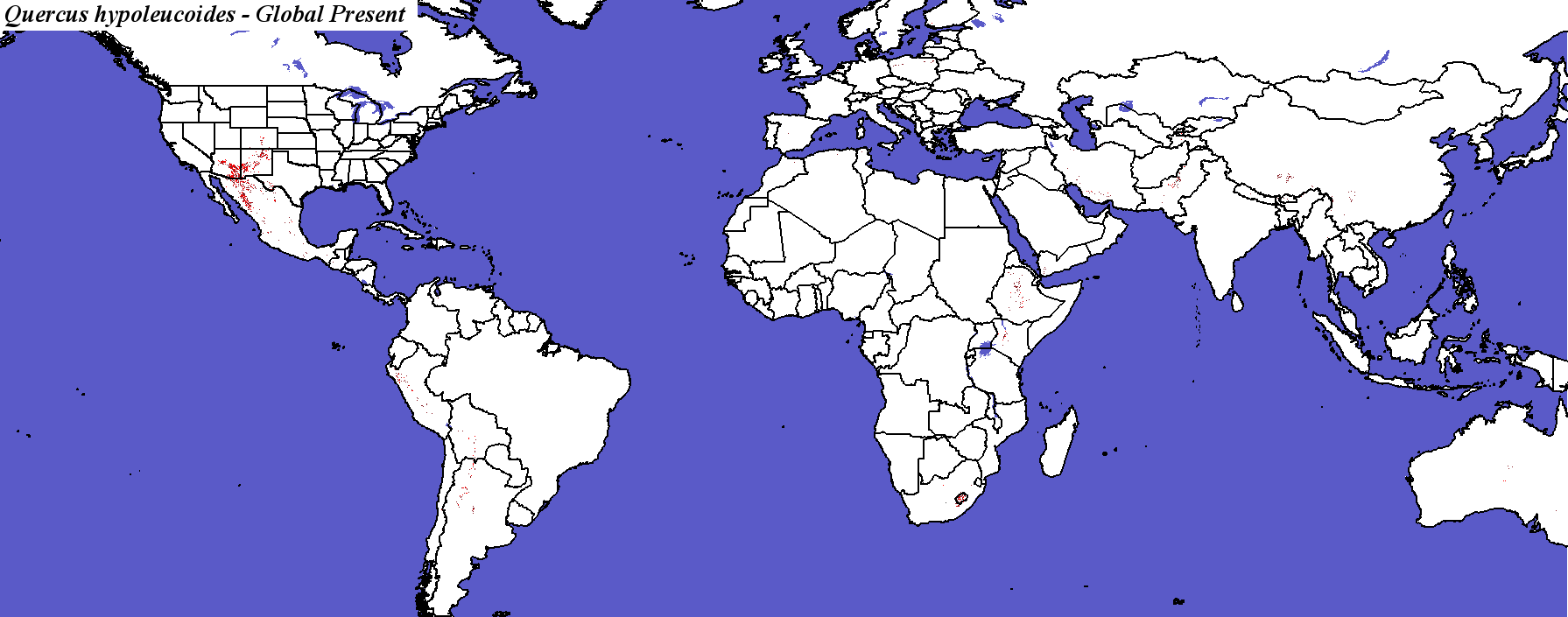

Quercus hypoleucoides - Global

PCM - Parallel Climate Model
Quercus_hypoleucoides_final.3.conus
Quercus_hypoleucoides_final.3.global

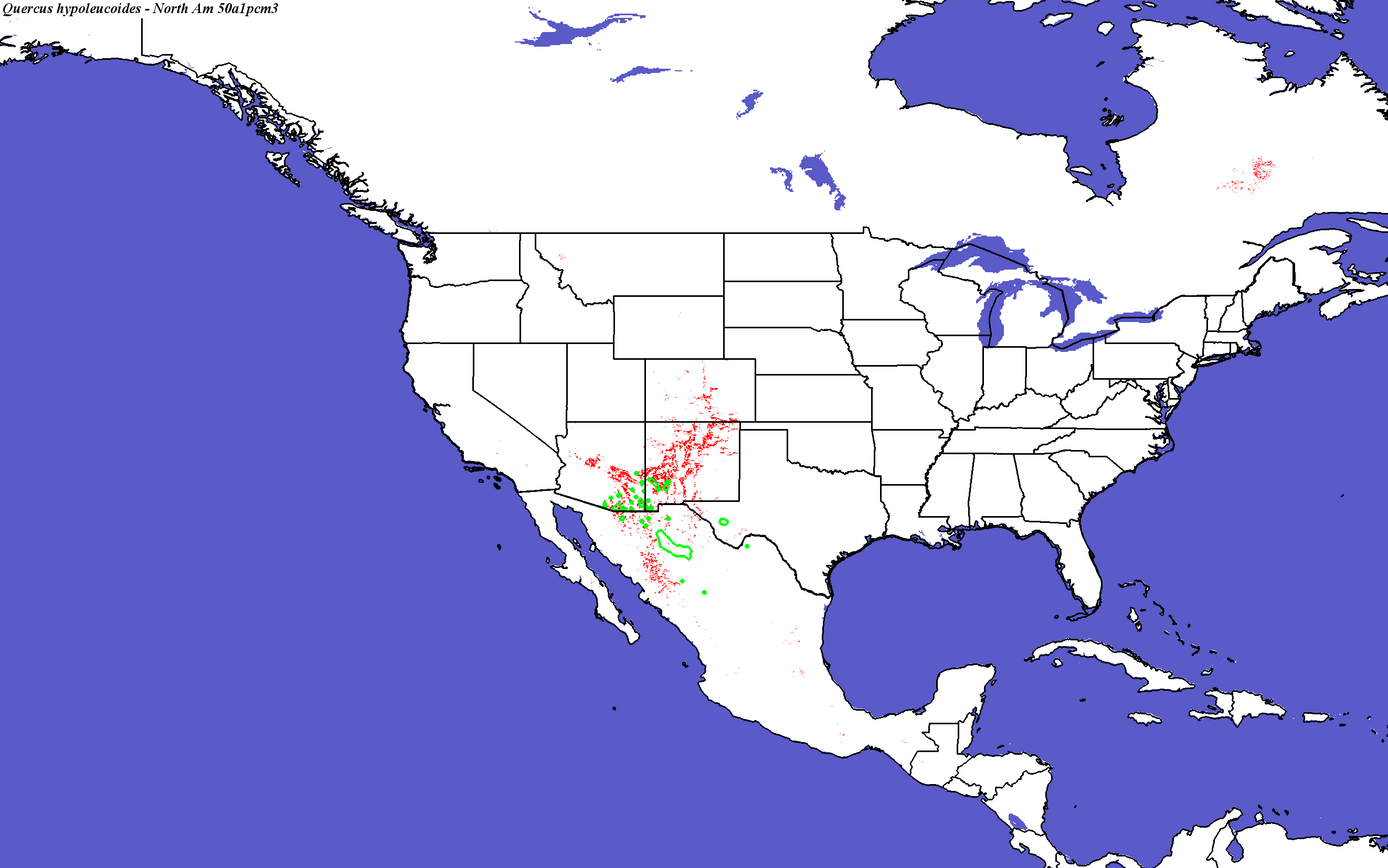

PCM, Scenario A1FI, 2050 - Quercus hypoleucoides - CONUS

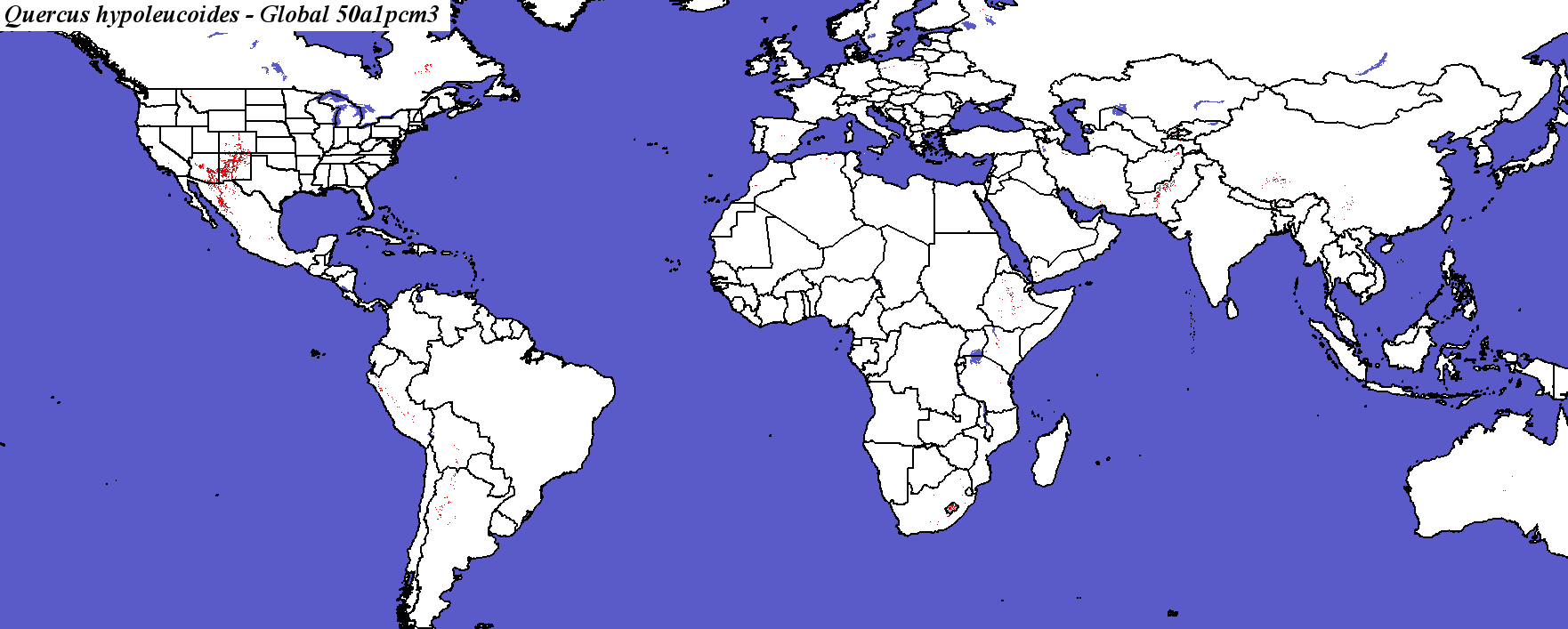

PCM, Scenario A1FI, 2050 - Quercus hypoleucoides - Global
Quercus_hypoleucoides_final.3.conus
Quercus_hypoleucoides_final.3.global

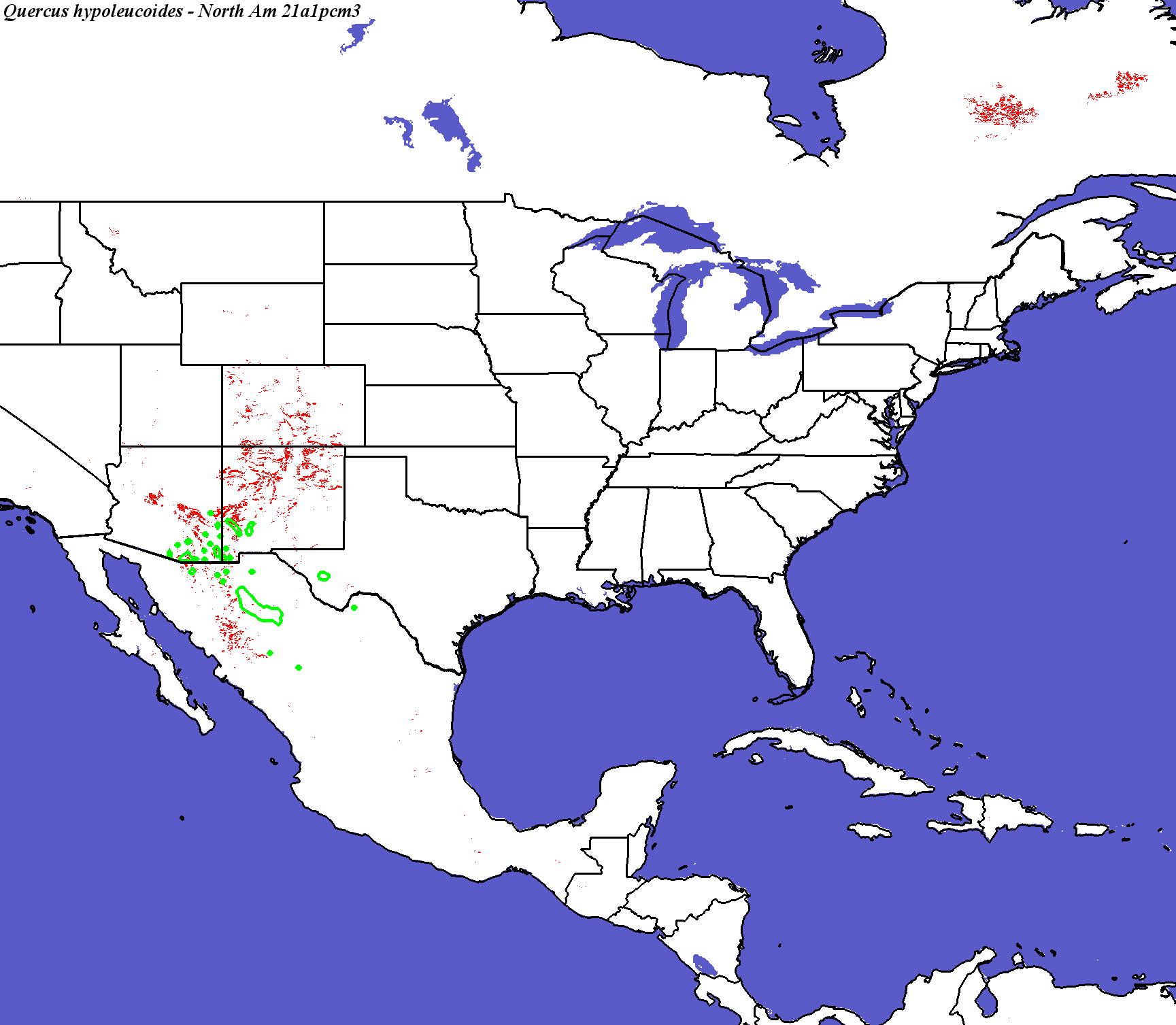

PCM, Scenario A1FI, 2100 - Quercus hypoleucoides - CONUS
Quercus hypoleucoides species not modeled by Iverson and Prasad

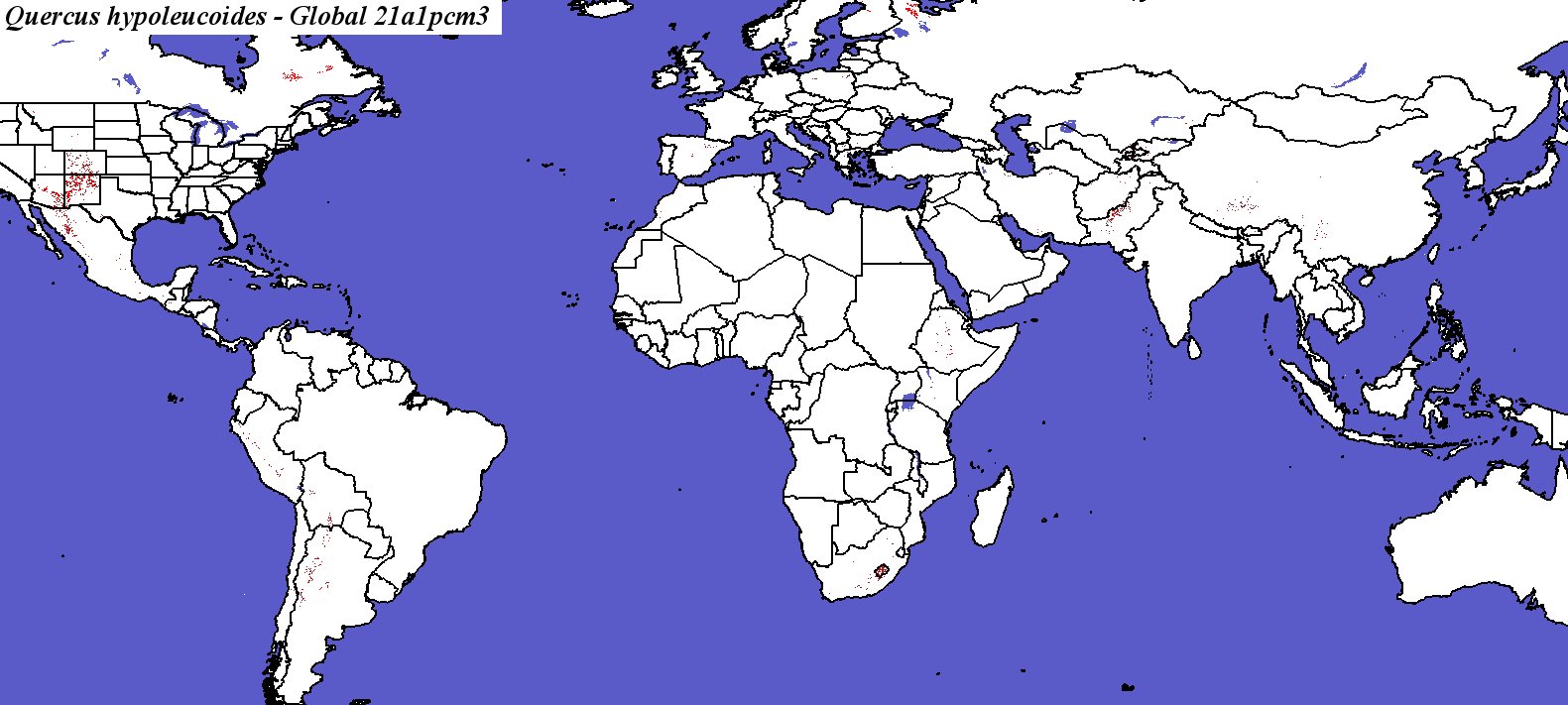

PCM, Scenario A1FI, 2100 - Quercus hypoleucoides - Global

Quercus_hypoleucoides_final.3.conus
Quercus_hypoleucoides_final.3.global

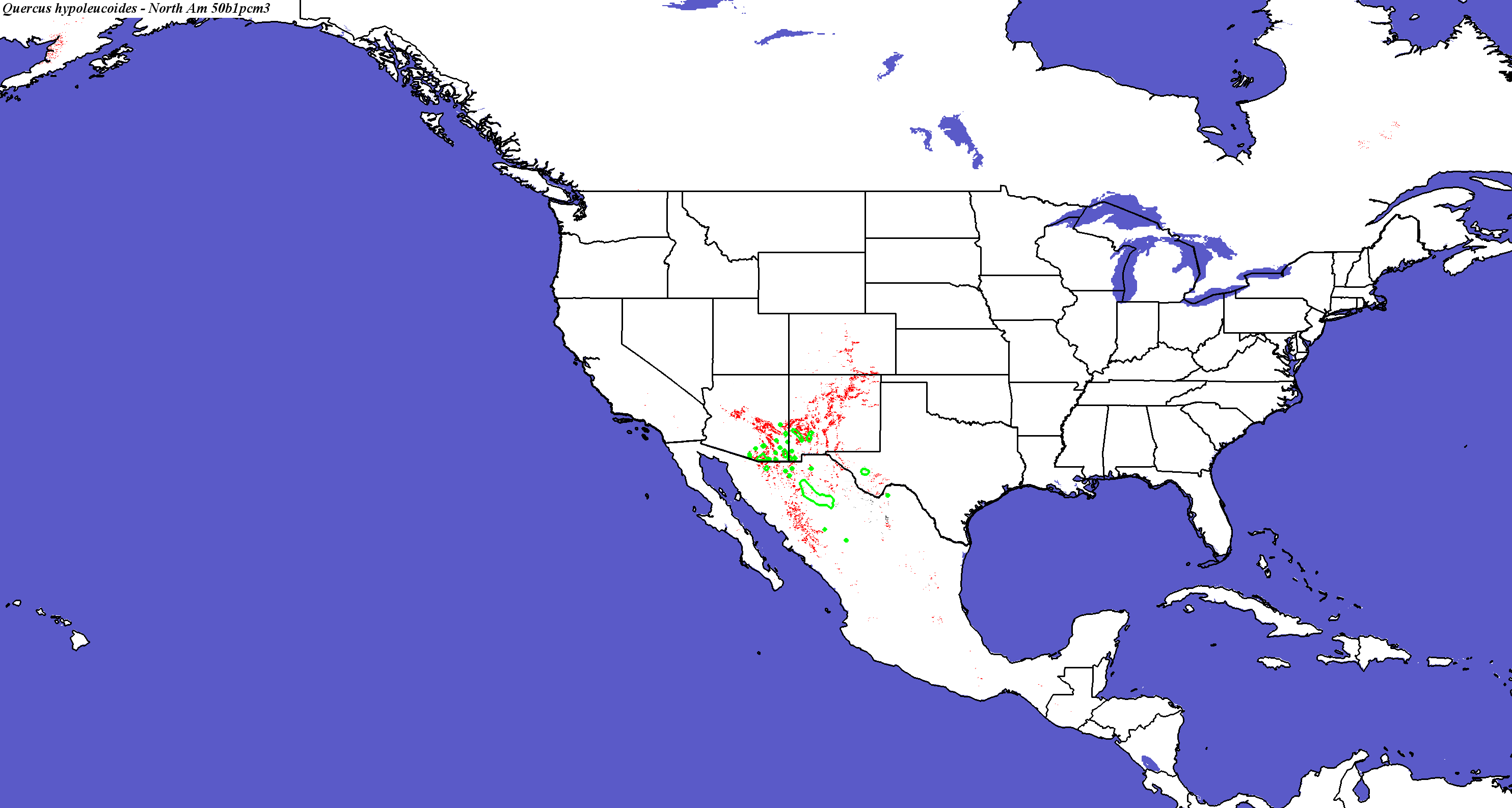

PCM, Scenario B1, 2050 - Quercus hypoleucoides - CONUS

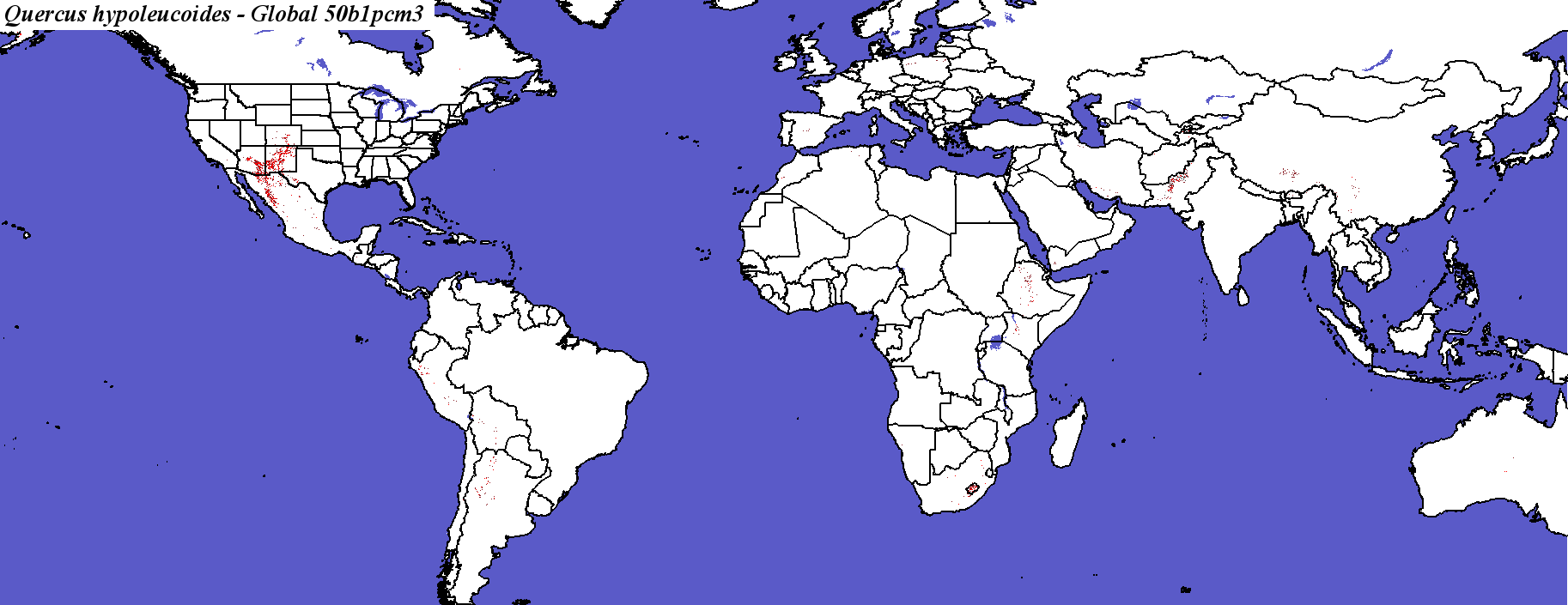

PCM, Scenario B1, 2050 - Quercus hypoleucoides - Global
Quercus_hypoleucoides_final.3.conus
Quercus_hypoleucoides_final.3.global
PCM, Scenario B1, 2100 - Quercus hypoleucoides - CONUS
Quercus hypoleucoides not modeled by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus hypoleucoides - Global

Hadley Climate Model
Quercus_hypoleucoides_final.3.conus
Quercus_hypoleucoides_final.3.global
Hadley, Scenario A1FI, 2050 - Quercus hypoleucoides - CONUS
Compare with Quercus hypoleucoides modeled for Hadley A2 in 2060 by Crookston and Rehfeldt

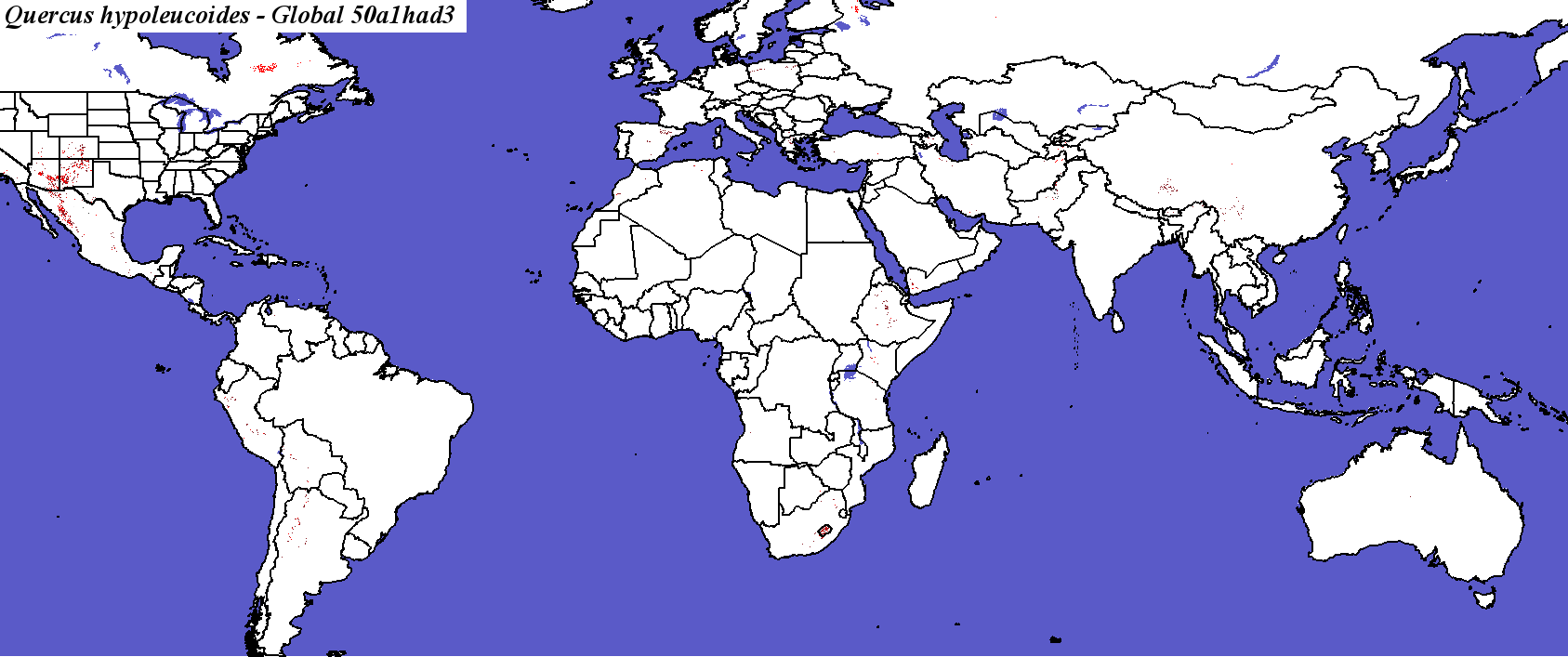

Hadley, Scenario A1FI, 2050 - Quercus hypoleucoides - Global
Quercus_hypoleucoides_final.3.conus
Quercus_hypoleucoides_final.3.global.

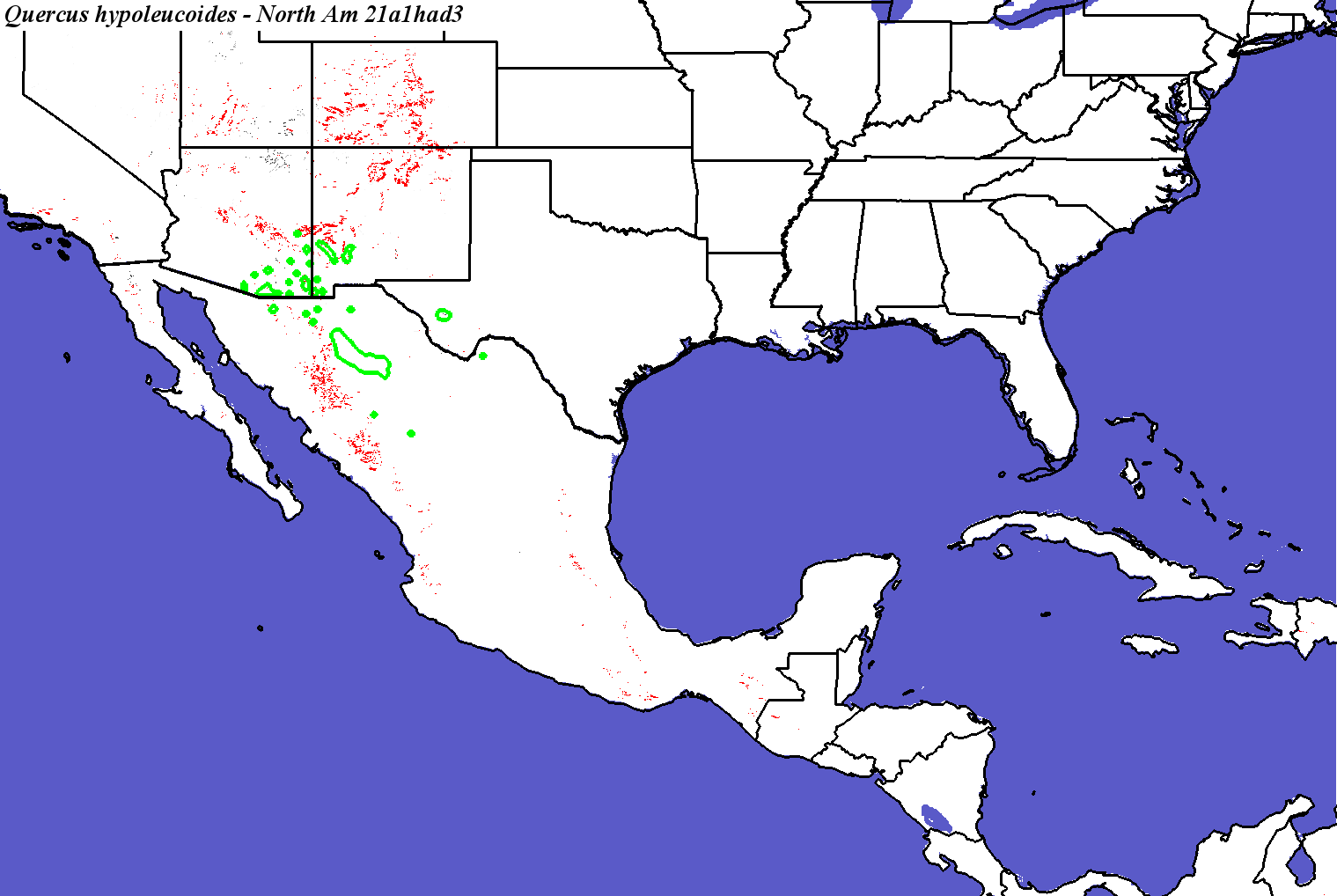

Hadley, Scenario A1FI, 2100 - Quercus hypoleucoides - CONUS
Quercus hypoleucoides not modeled by Iverson and Prasad
Compare with Quercus hypoleucoides modeled for Hadley A2 in 2090 by Crookston and Rehfeldt
Quercus hypoleucoides not modeled by Coops and Waring

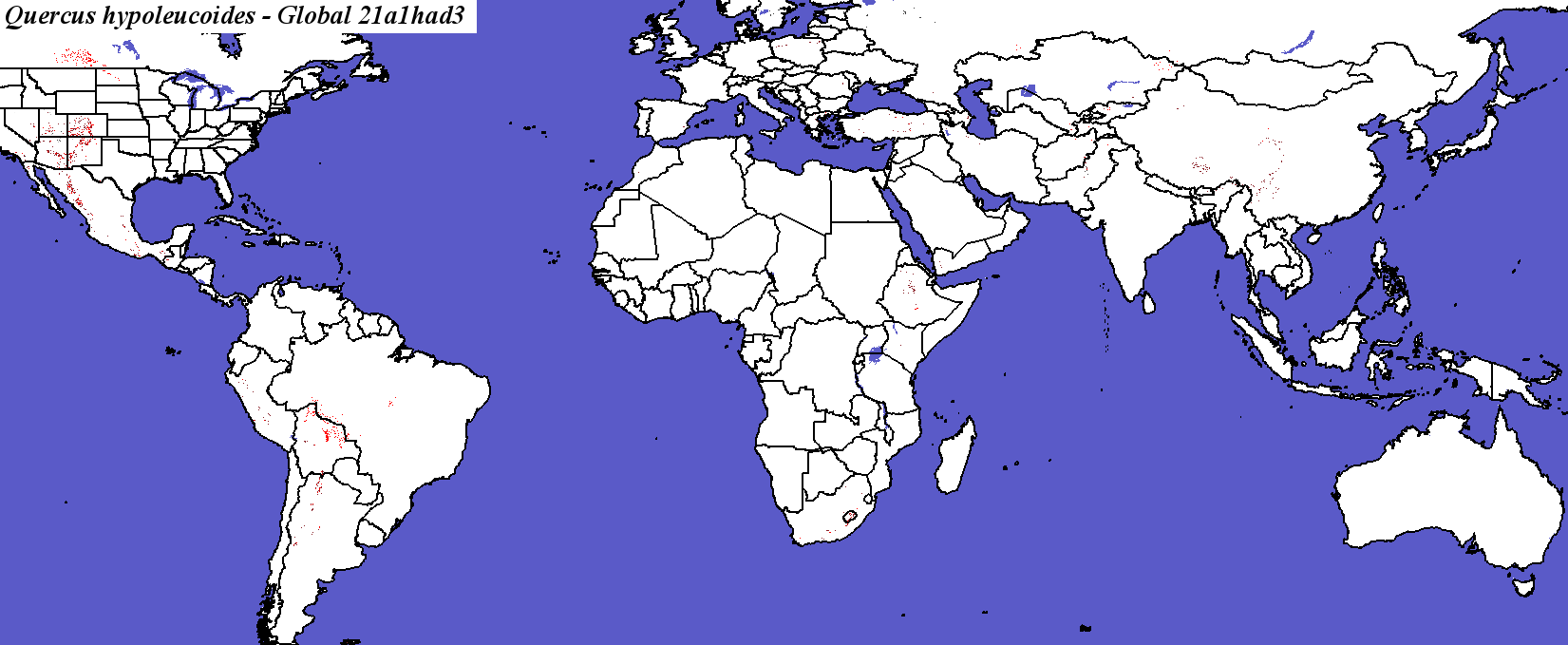

Hadley, Scenario A1FI, 2100 - Quercus hypoleucoides - Global

Quercus_hypoleucoides_final.3.conus
Quercus_hypoleucoides_final.3.global.
Hadley, Scenario B1, 2050 - Quercus hypoleucoides - CONUS
Compare with Quercus hypoleucoides modeled for Hadley B2 in 2060 by Crookston and Rehfeldt
Quercus hypoleucoides not modeled by Coops and Waring

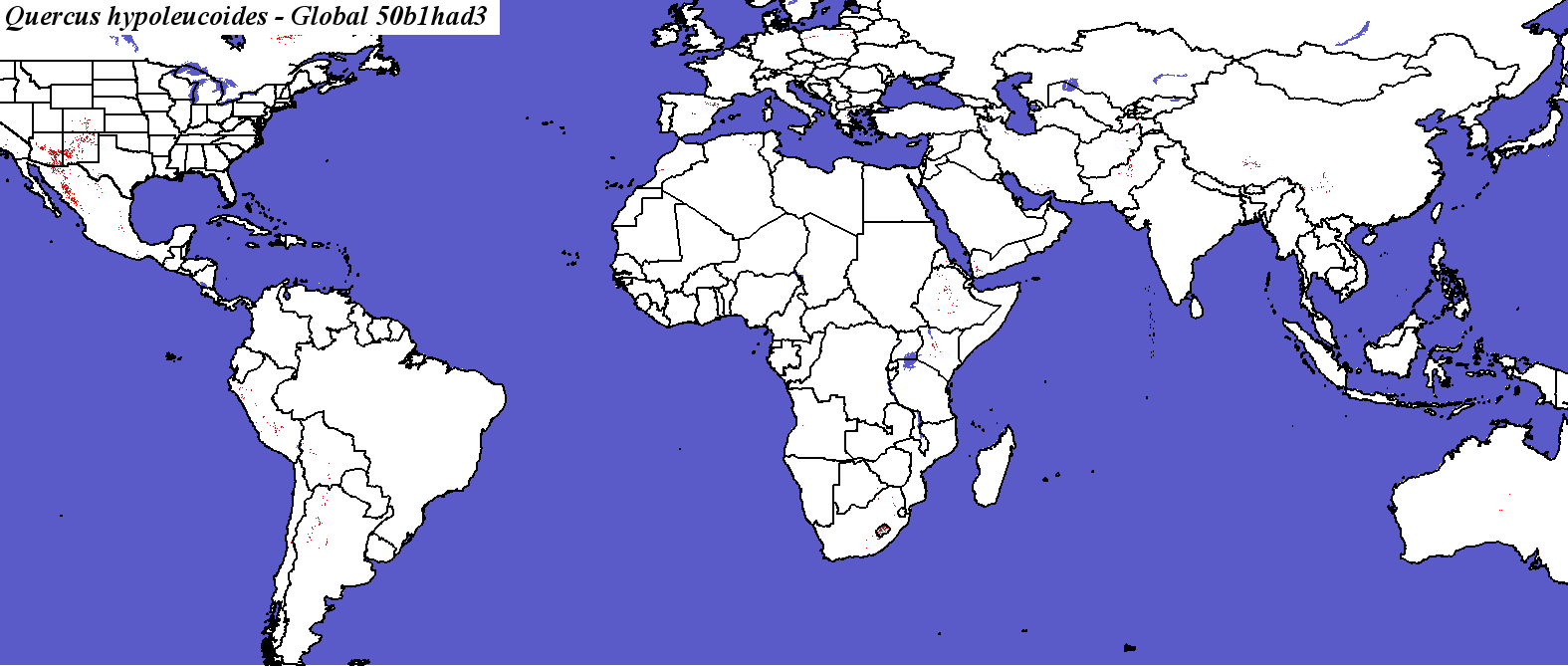

Hadley, Scenario B1, 2050 - Quercus hypoleucoides - Global
Quercus_hypoleucoides_final.3.conus
Quercus_hypoleucoides_final.3.global

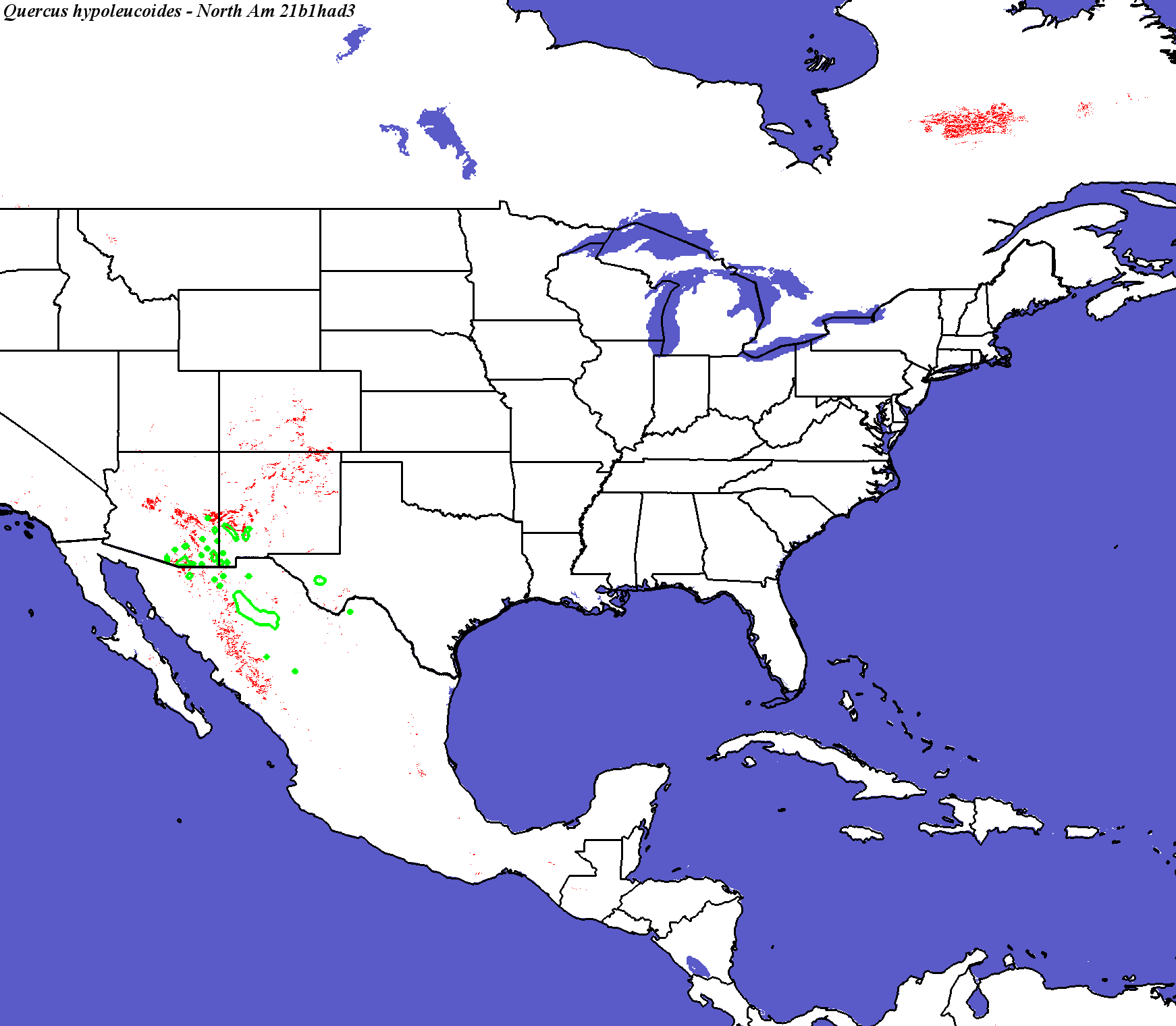

Hadley, Scenario B1, 2100 - Quercus hypoleucoides - CONUS
Quercus hypoleucoides not modeled by Iverson and Prasad
Compare with Quercus hypoleucoides modeled for Hadley B2 in 2090 by Crookston and Rehfeldt

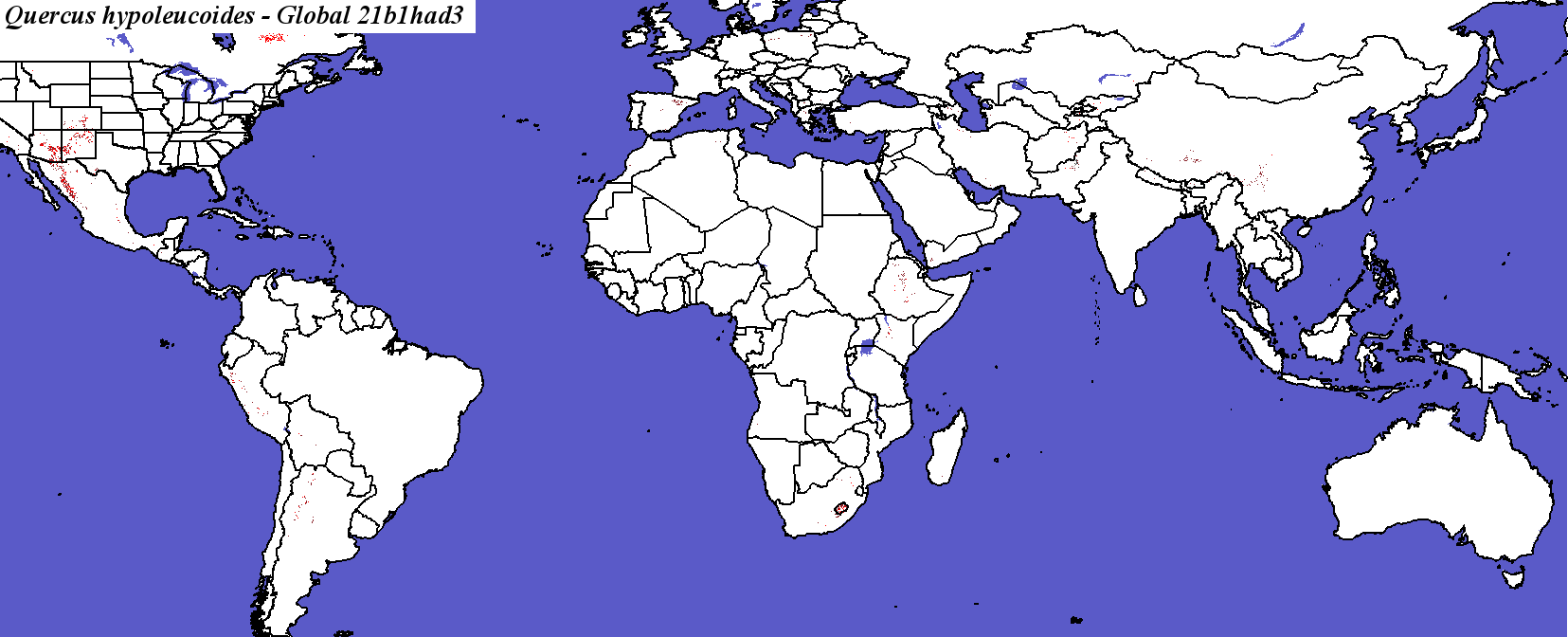

Hadley, Scenario B1, 2100 - Quercus hypoleucoides - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_hypoleucoides_final.elev

Number of Suitable Ecoregions (Niche Breadth)

27

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

51.7808

Area in Present Suitable Range (in km2)

99883

Area in Future Suitable Range (Had B1 2050, in km2)

81063

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

58394

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

58.4600

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

28.3562

Percent Change in Area of Suitable Range (Had B1 2050)

-18.8400

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

30.274

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

11715.8 +/- 26809.3

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

60.274

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

6.74333 +/- 24.7323

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

53.0137

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

88.1984 +/- 448.642

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

47.3973

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

1852

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

1.8500

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

45.4795

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

35669

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

35.7100

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

30

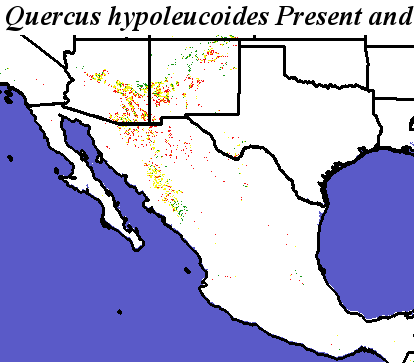

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus hypoleucoides Quercus hypoleucoides - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050
Quercus_hypoleucoides_final.elev Fine MRM Distance

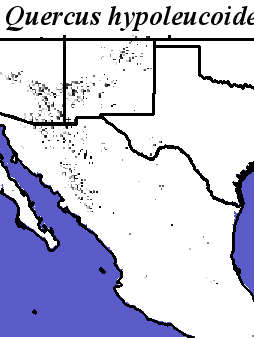

Quercus_hypoleucoides_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus hypoleucoides Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus hypoleucoides
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

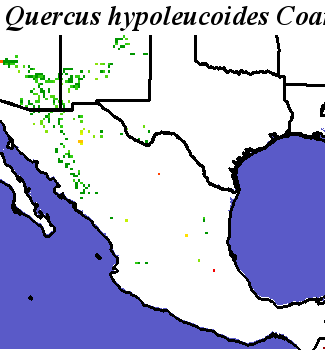

Quercus_hypoleucoides_final.elev Coarse MRM Distance
Quercus_hypoleucoides_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus hypoleucoides Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus hypoleucoides

Thu Jul 21 10:06:28 EDT 2016
