Version 5 Tree Atlas


Quercus incana

bluejack oak

elev

Quercus incana Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus incana

USDA Plants Database entry for Quercus incana
Silvics Manual entry for Quercus incana


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
19420214range mostly well-represented; some disjuncts missing

Occurrence Locations and Hargrove's Present Suitable Range Outline

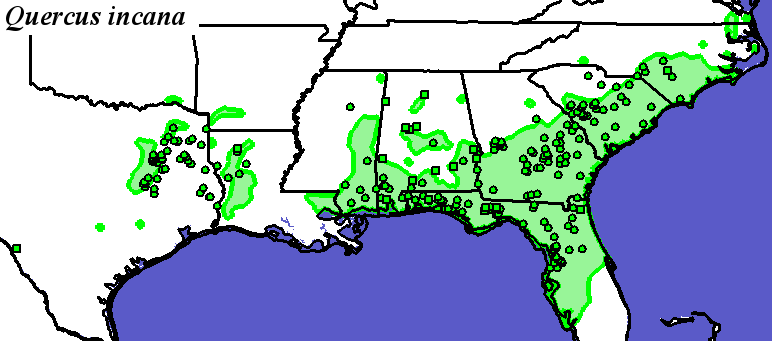

Quercus_incana_final Occurrences

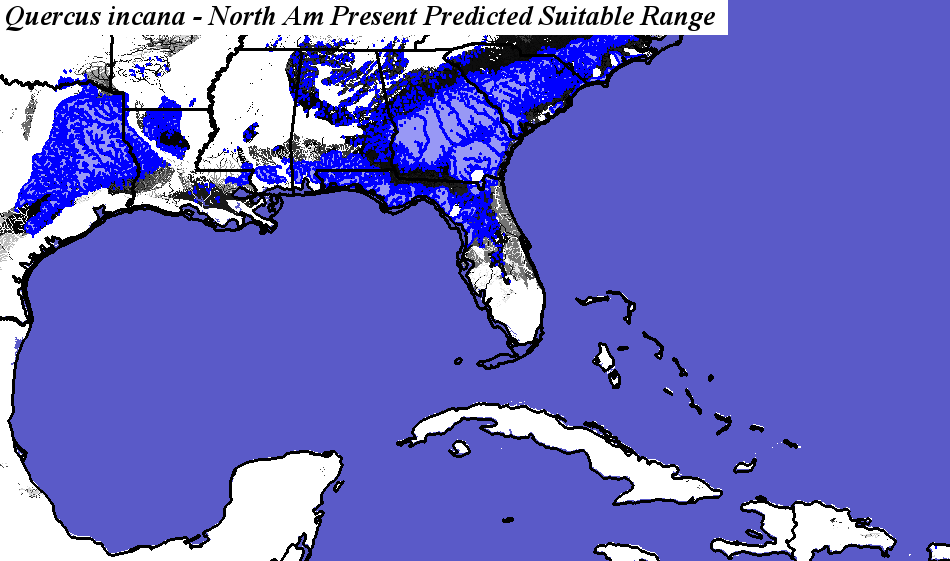

Hargroves Present Suitable Range Outline for Quercus_incana_final
Quercus incana - Occurrence Locations Quercus incana - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_incana_final.3.conus
Quercus_incana_final.3.global

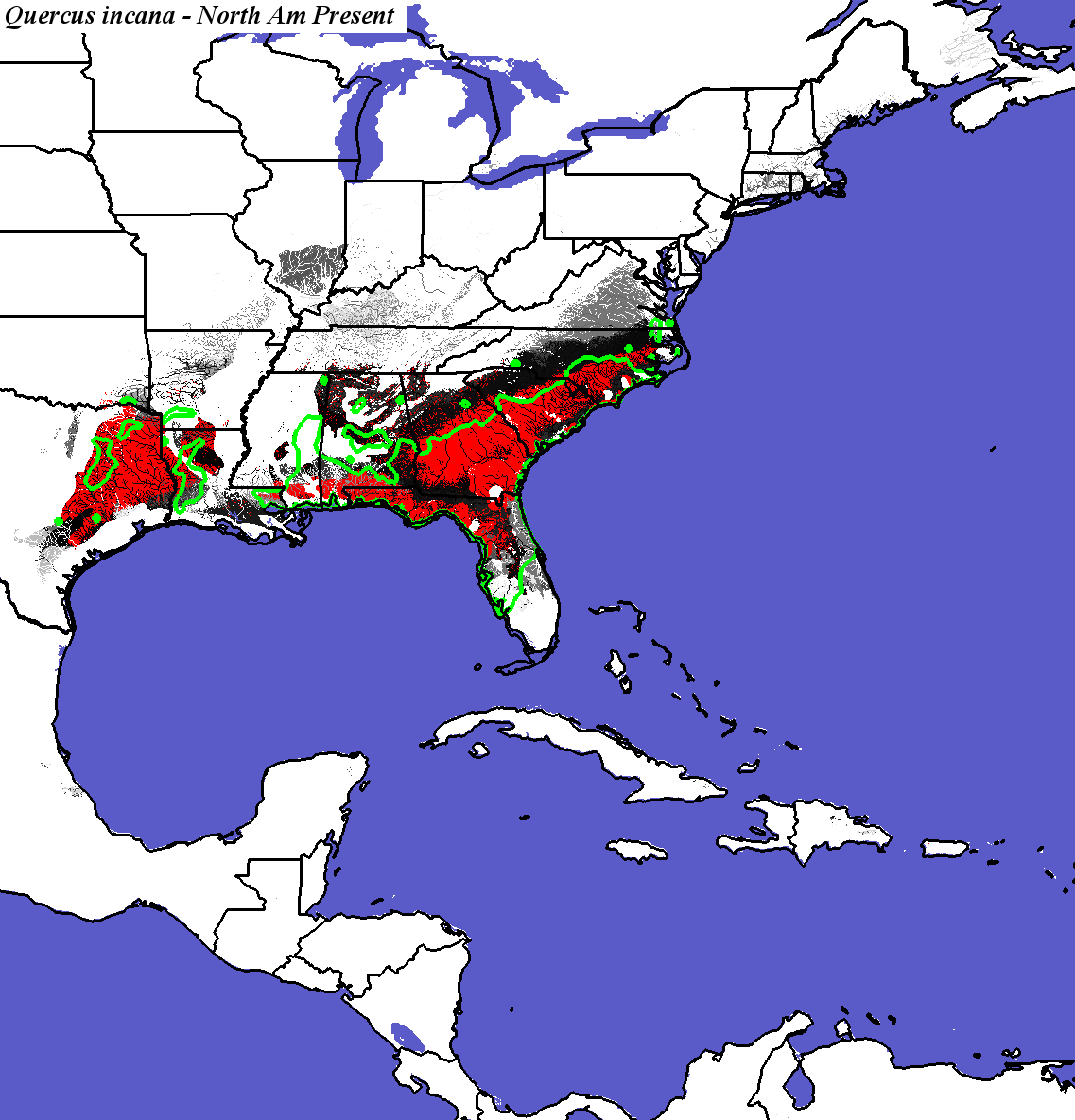

Quercus incana - CONUS
Compare with Current Range from the Silvics Manual for Quercus incana
Compare with Current Range from Biota of North America Program (BONAP) for Quercus incana

Compare with Quercus incana modeled for Current conditions by Iverson and Prasad
Quercus incana not modeled by Crookston and Rehfeldt
Quercus incana not modeled by Coops and Waring
Quercus incana - Global

PCM - Parallel Climate Model
Quercus_incana_final.3.conus
Quercus_incana_final.3.global
PCM, Scenario A1FI, 2050 - Quercus incana - CONUS
PCM, Scenario A1FI, 2050 - Quercus incana - Global
Quercus_incana_final.3.conus
Quercus_incana_final.3.global

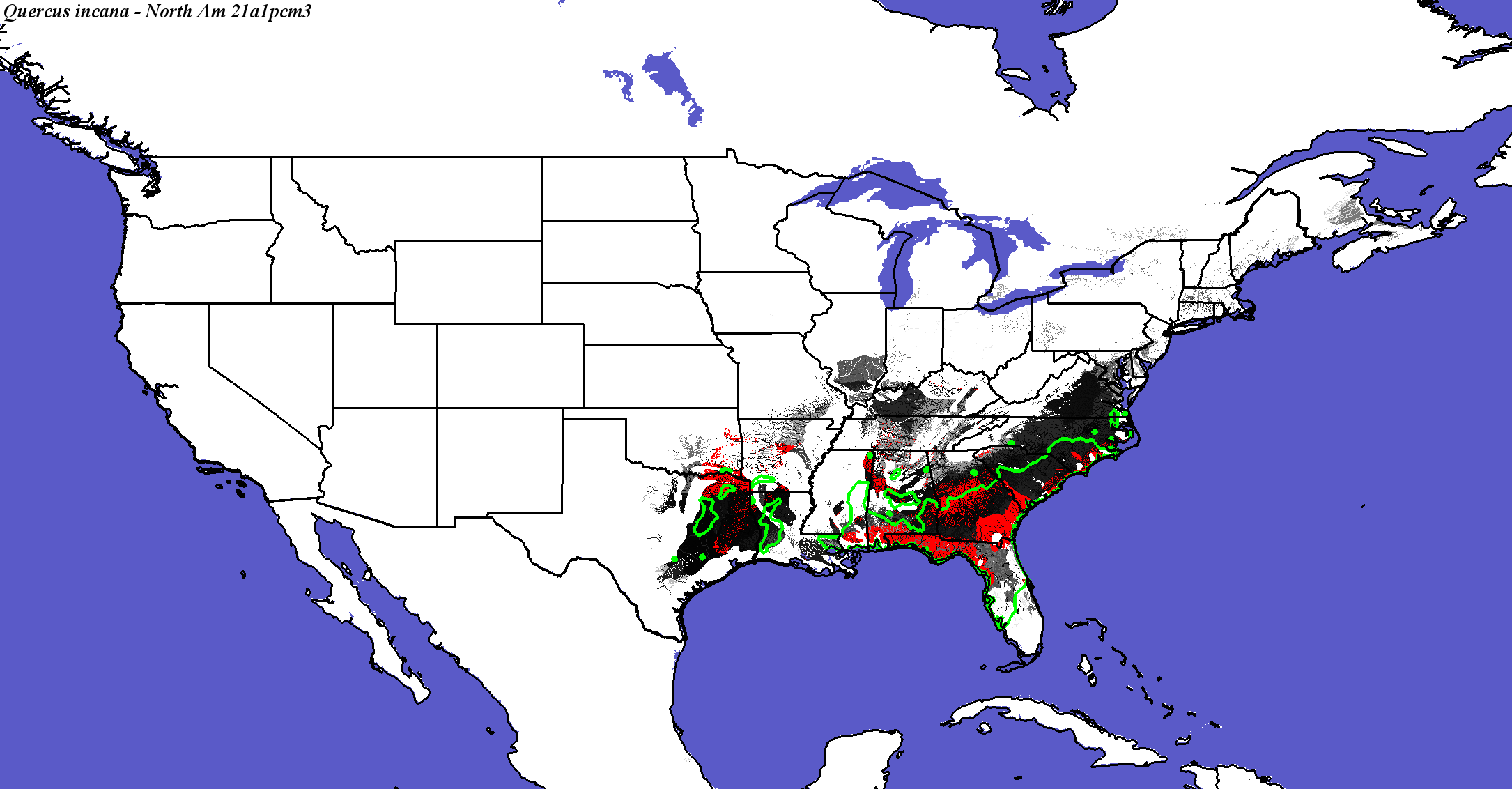

PCM, Scenario A1FI, 2100 - Quercus incana - CONUS
Compare with Quercus incana modeled for PCM A1FI in 2100 by Iverson and Prasad
PCM, Scenario A1FI, 2100 - Quercus incana - Global

Quercus_incana_final.3.conus
Quercus_incana_final.3.global

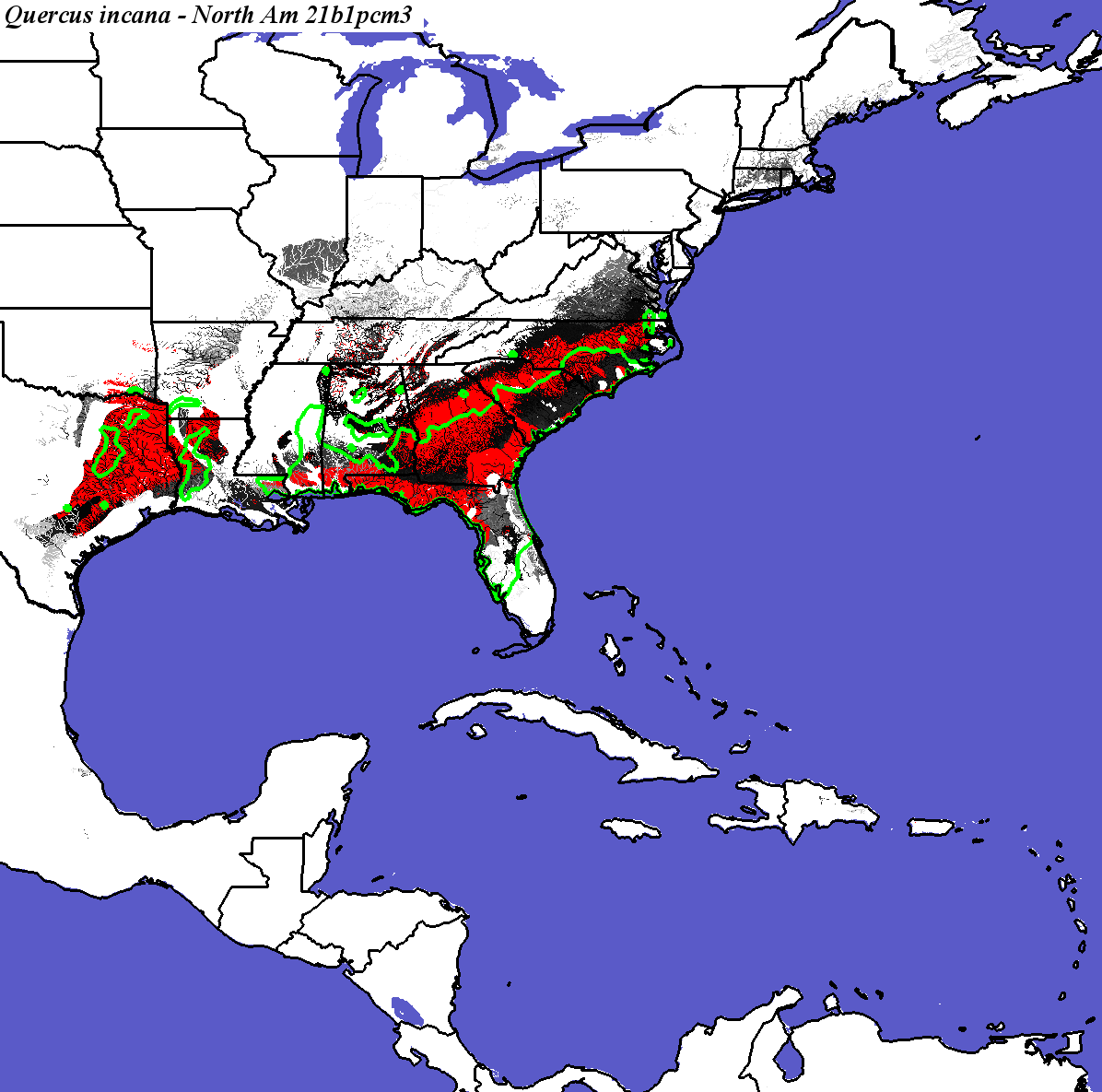

PCM, Scenario B1, 2050 - Quercus incana - CONUS
PCM, Scenario B1, 2050 - Quercus incana - Global
Quercus_incana_final.3.conus
Quercus_incana_final.3.global
PCM, Scenario B1, 2100 - Quercus incana - CONUS
Compare with Quercus incana modeled for PCM B1 in 2100 by Iverson and Prasad

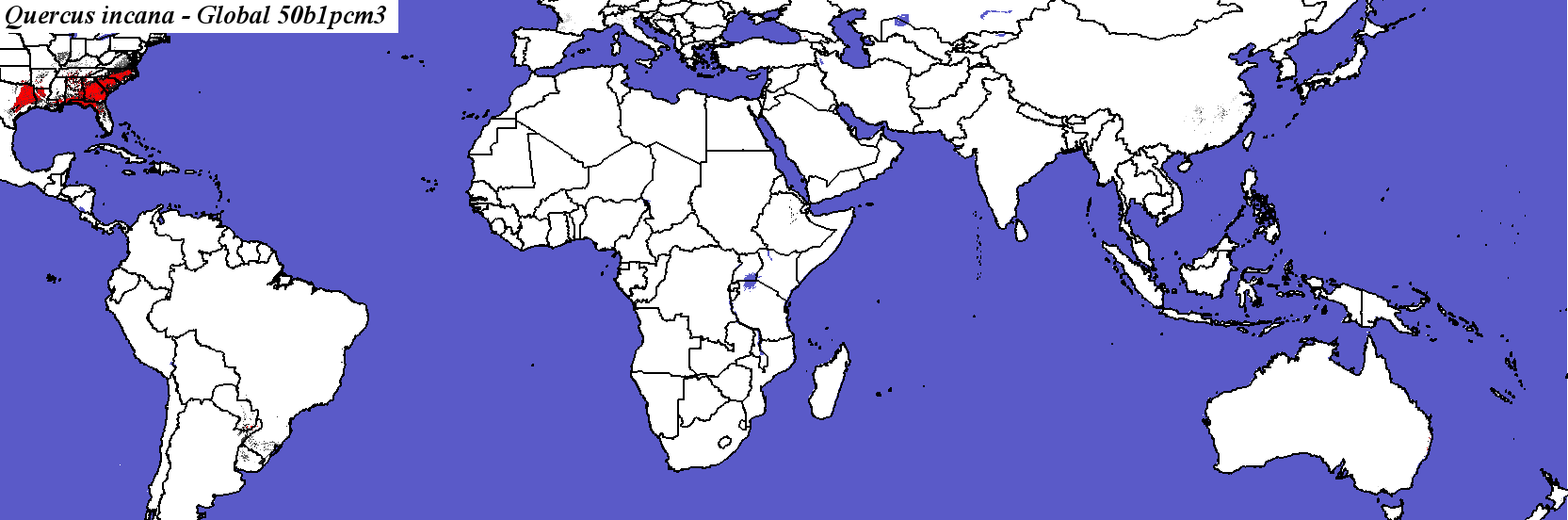

PCM, Scenario B1, 2100 - Quercus incana - Global

Hadley Climate Model
Quercus_incana_final.3.conus
Quercus_incana_final.3.global

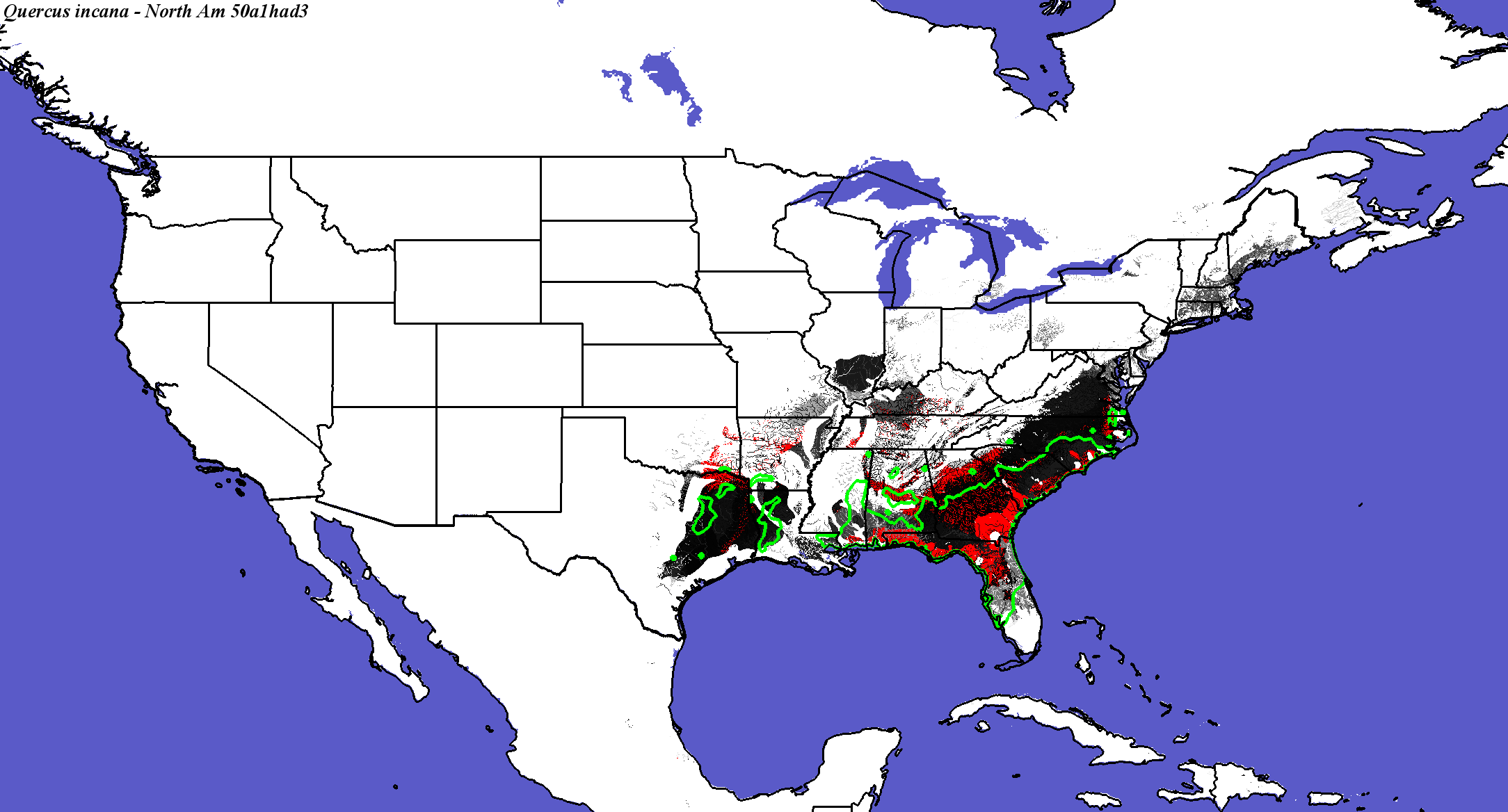

Hadley, Scenario A1FI, 2050 - Quercus incana - CONUS
Quercus incana not modeled by Crookston and Rehfeldt

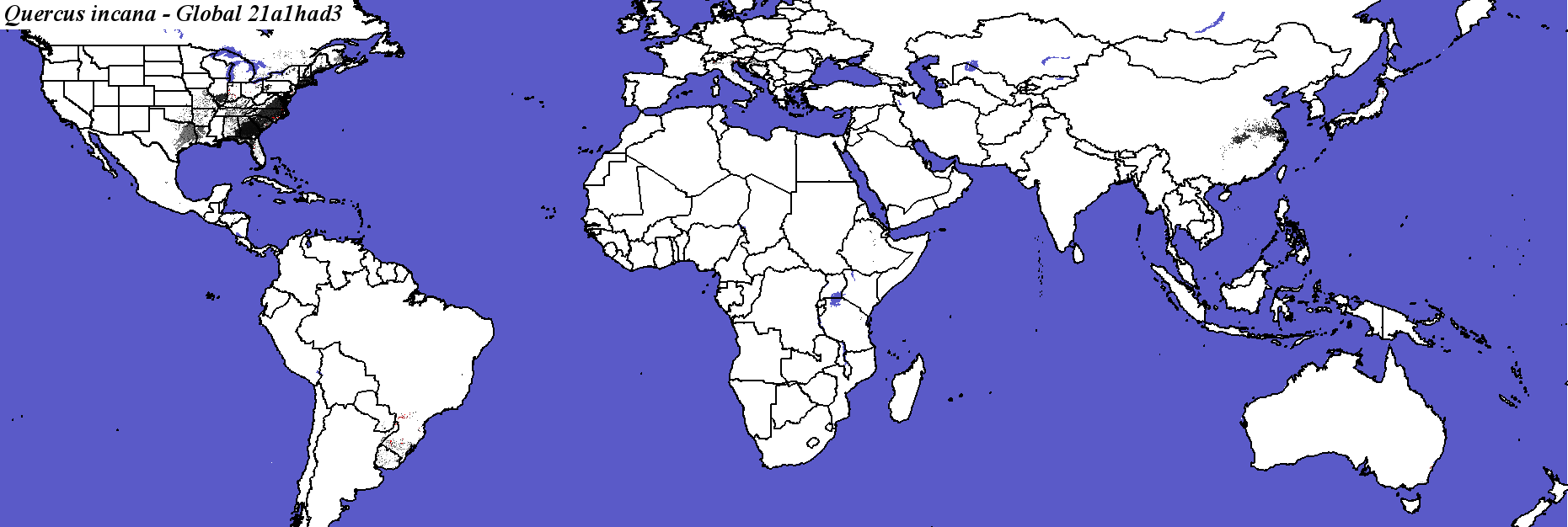

Hadley, Scenario A1FI, 2050 - Quercus incana - Global
Quercus_incana_final.3.conus
Quercus_incana_final.3.global.

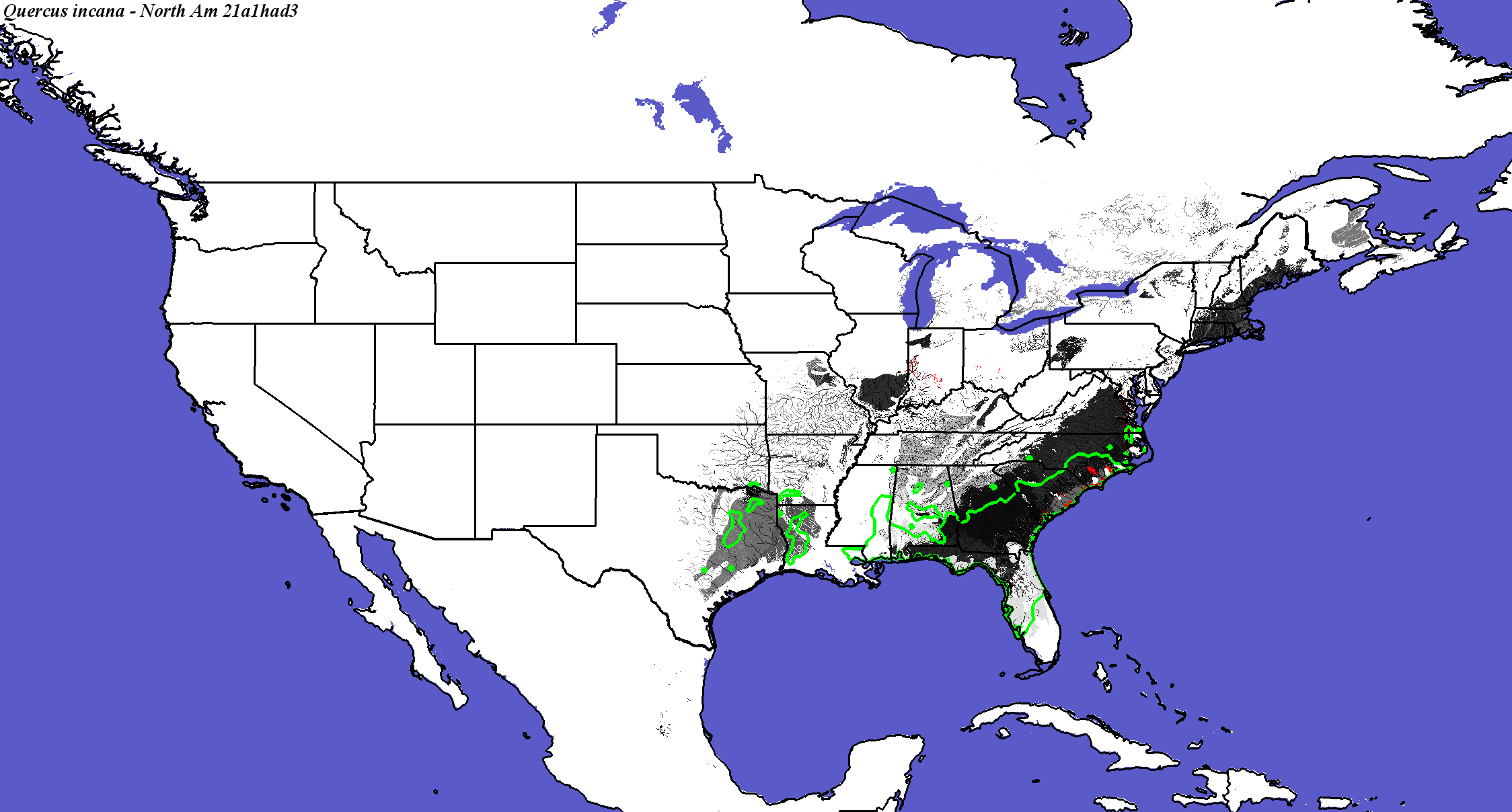

Hadley, Scenario A1FI, 2100 - Quercus incana - CONUS
Compare with Quercus incana modeled for Hadley A1FI in 2100 by Iverson and Prasad
Quercus incana not modeled by Crookston and Rehfeldt
Quercus incana not modeled by Coops and Waring
Hadley, Scenario A1FI, 2100 - Quercus incana - Global

Quercus_incana_final.3.conus
Quercus_incana_final.3.global.
Hadley, Scenario B1, 2050 - Quercus incana - CONUS
Quercus incana not modeled by Crookston and Rehfeldt
Quercus incana not modeled by Coops and Waring

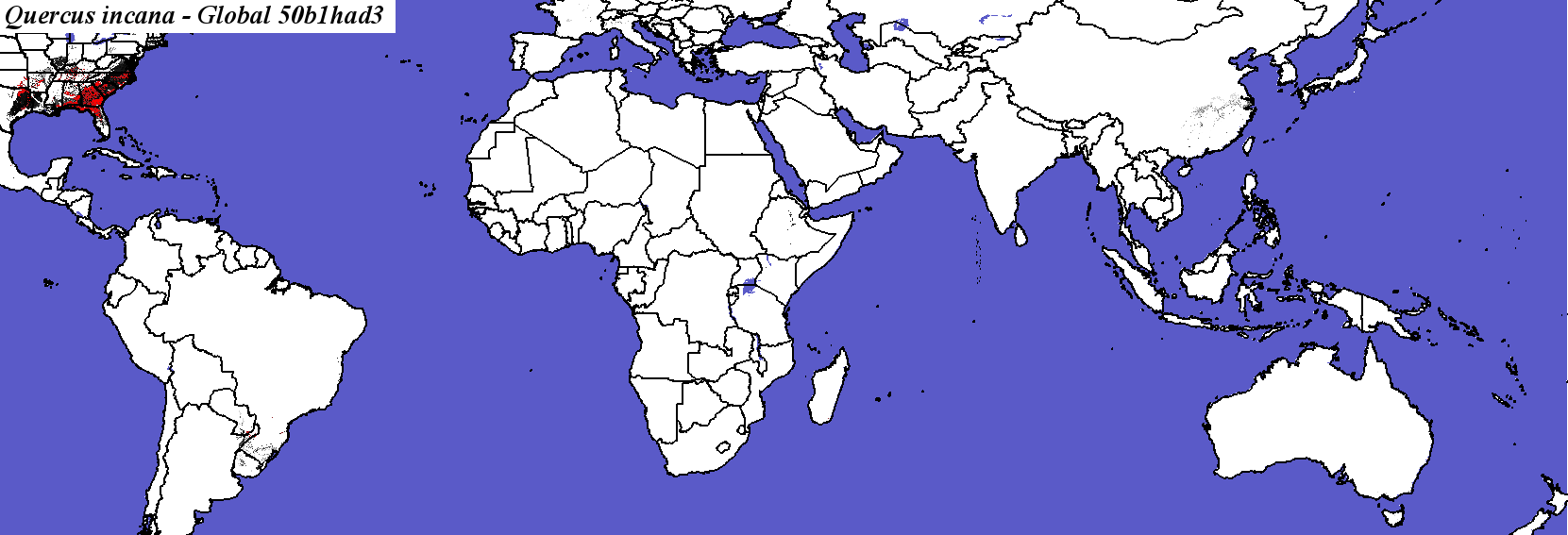

Hadley, Scenario B1, 2050 - Quercus incana - Global
Quercus_incana_final.3.conus
Quercus_incana_final.3.global

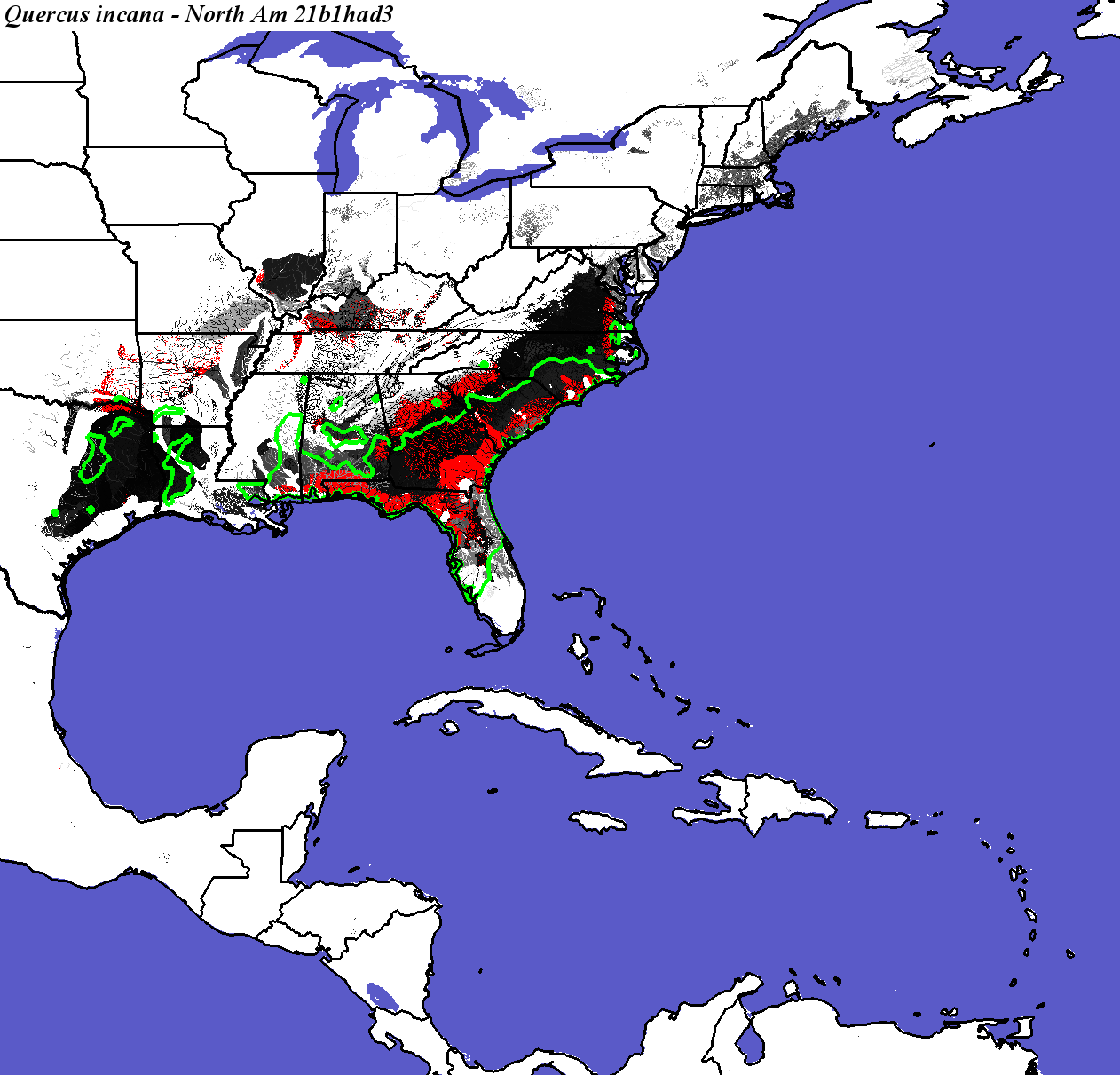

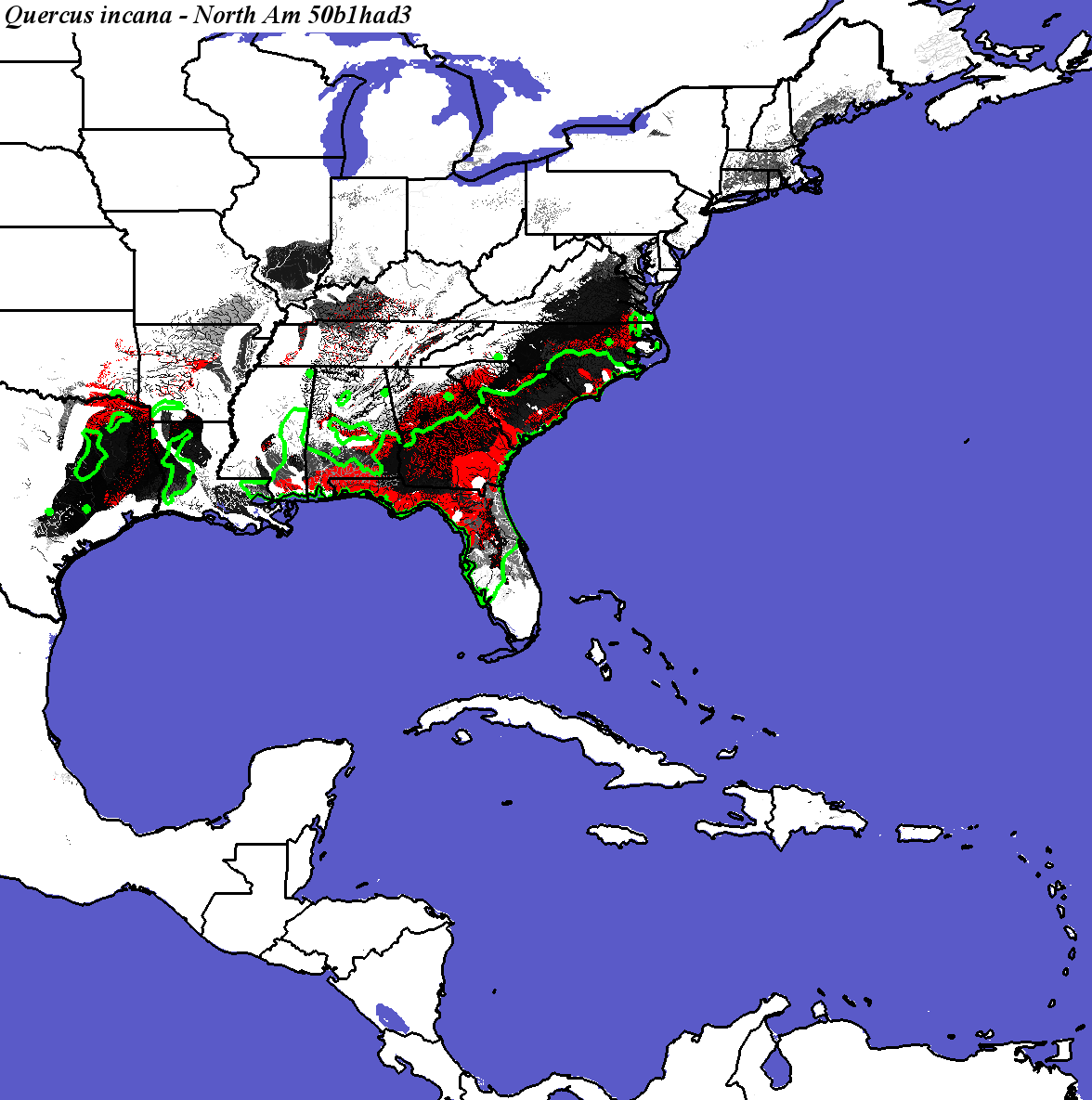

Hadley, Scenario B1, 2100 - Quercus incana - CONUS
Compare with Quercus incana modeled for Hadley B1 in 2100 by Iverson and Prasad
Quercus incana not modeled by Crookston and Rehfeldt

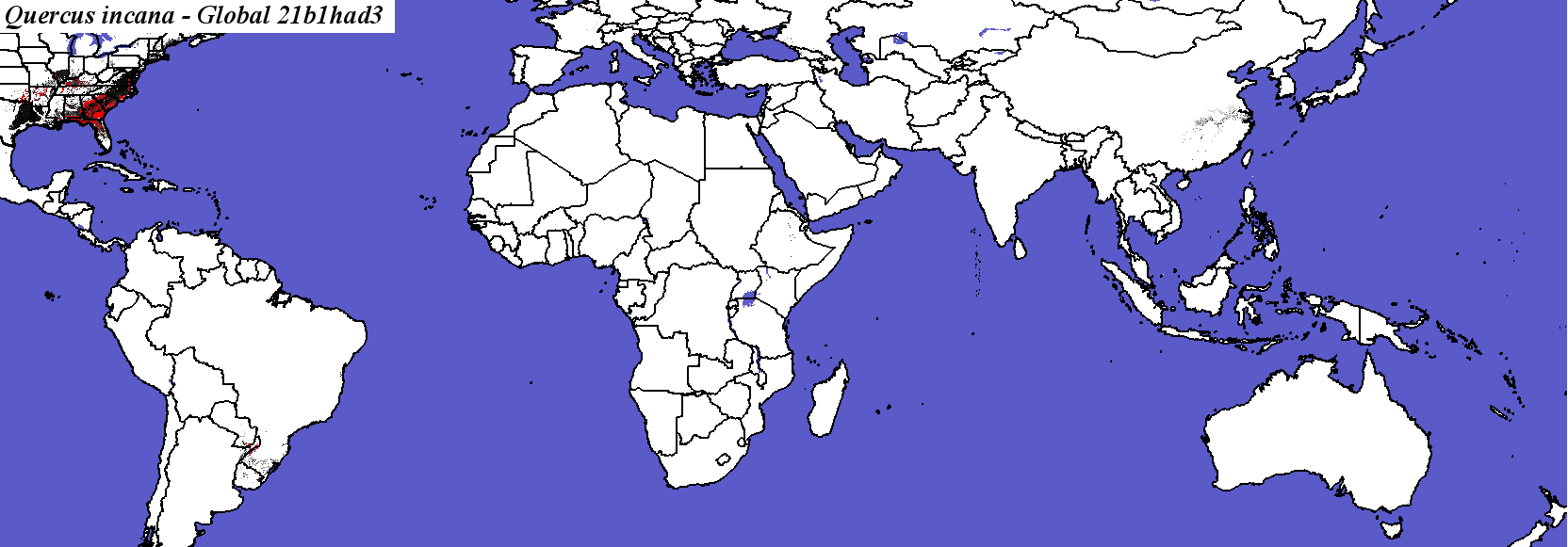

Hadley, Scenario B1, 2100 - Quercus incana - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_incana_final.elev

Number of Suitable Ecoregions (Niche Breadth)

24

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

54.7945

Area in Present Suitable Range (in km2)

286790

Area in Future Suitable Range (Had B1 2050, in km2)

156323

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

95652

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

33.3500

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

80.137

Percent Change in Area of Suitable Range (Had B1 2050)

-45.4900

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

76.1644

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

24660.7 +/- 33711

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

28.2192

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

10.6771 +/- 16.6211

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

29.589

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

253.624 +/- 790.544

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

19.726

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

21594

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

7.5200

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

14.1096

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

88802

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

30.9600

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

42.3288

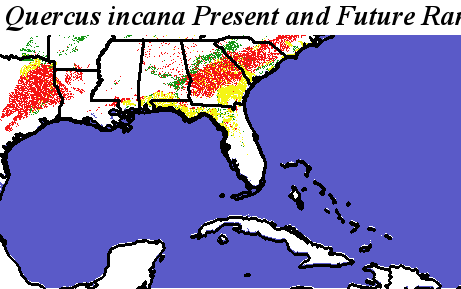

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus incana Quercus incana - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

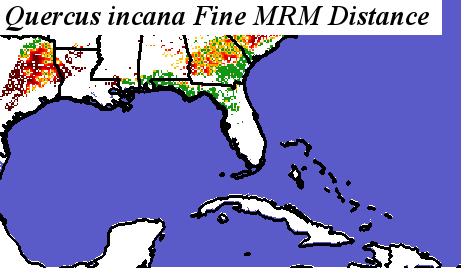

Quercus_incana_final.elev Fine MRM Distance

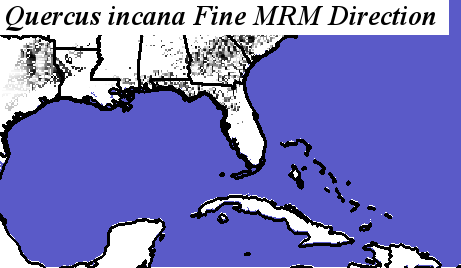

Quercus_incana_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus incana Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus incana
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050

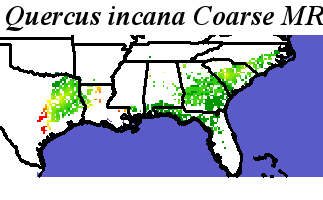

Quercus_incana_final.elev Coarse MRM Distance
Quercus_incana_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus incana Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus incana

Thu Jul 21 10:06:33 EDT 2016
