Version 5 Tree Atlas


Quercus laevis

turkey oak

elev

Quercus laevis Occurrence Sites

Environmental Variables Included
Order of Importance of Environmental Variables for Quercus laevis

USDA Plants Database entry for Quercus laevis
Silvics Manual entry for Quercus laevis


Click on any map to enlarge

SynonymsFIA PlotsGBIF SitesOther SitesOther TypesTotal SitesNotes
33628364better representation in some parts of range

Occurrence Locations and Hargrove's Present Suitable Range Outline
Quercus_laevis_final Occurrences

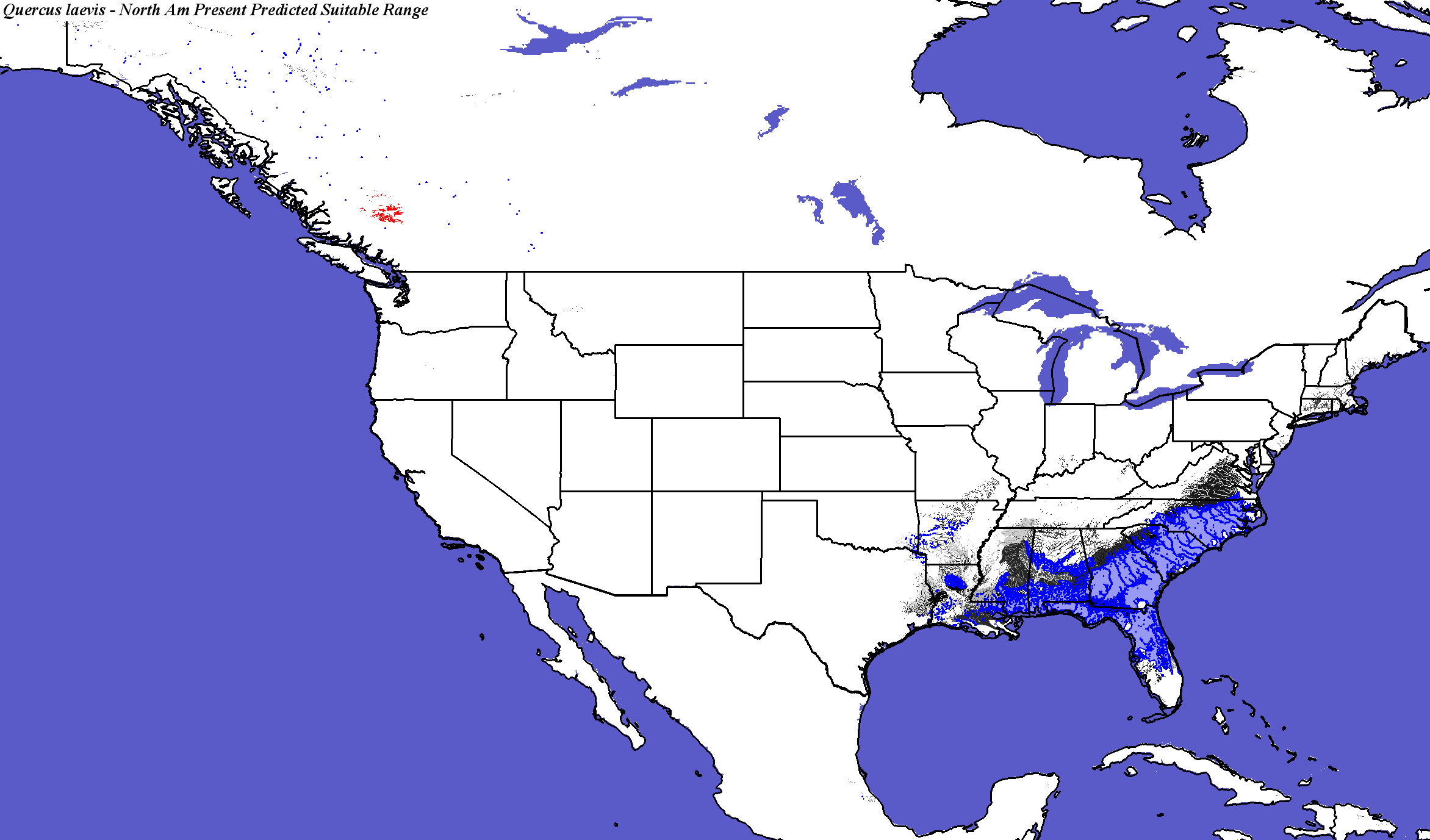

Hargroves Present Suitable Range Outline for Quercus_laevis_final

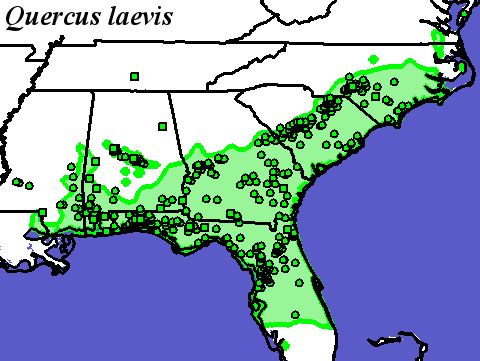

Quercus laevis - Occurrence Locations Quercus laevis - Hargrove's Present Suitable Range Outline
Present Conditions
Quercus_laevis_final.3.conus
Quercus_laevis_final.3.global

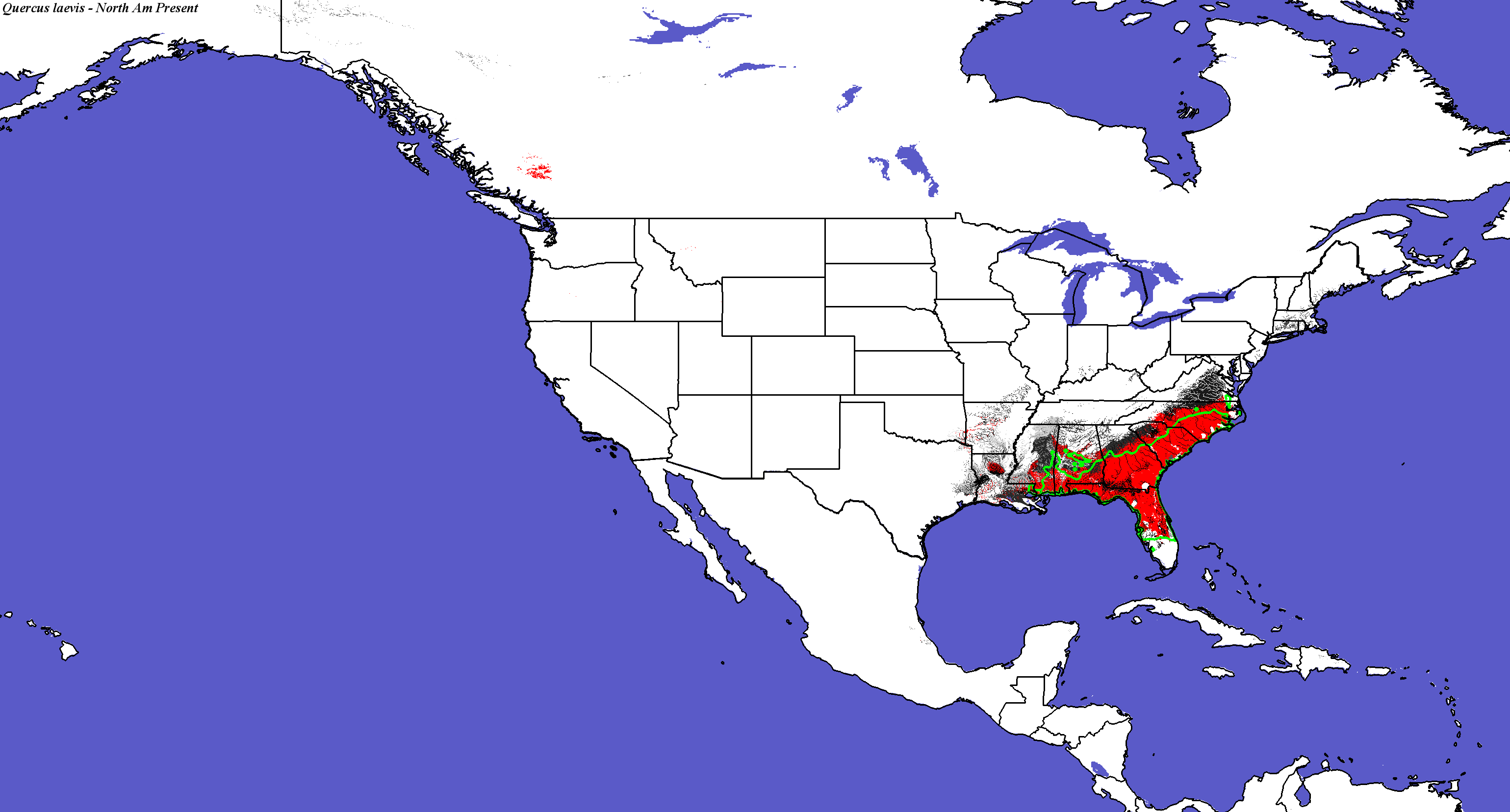

Quercus laevis - CONUS
Compare with Current Range from the Silvics Manual for Quercus laevis
Compare with Current Range from Biota of North America Program (BONAP) for Quercus laevis

Compare with Quercus laevis modeled for Current conditions by Iverson and Prasad
Quercus laevis not modeled by Crookston and Rehfeldt
Quercus laevis not modeled by Coops and Waring

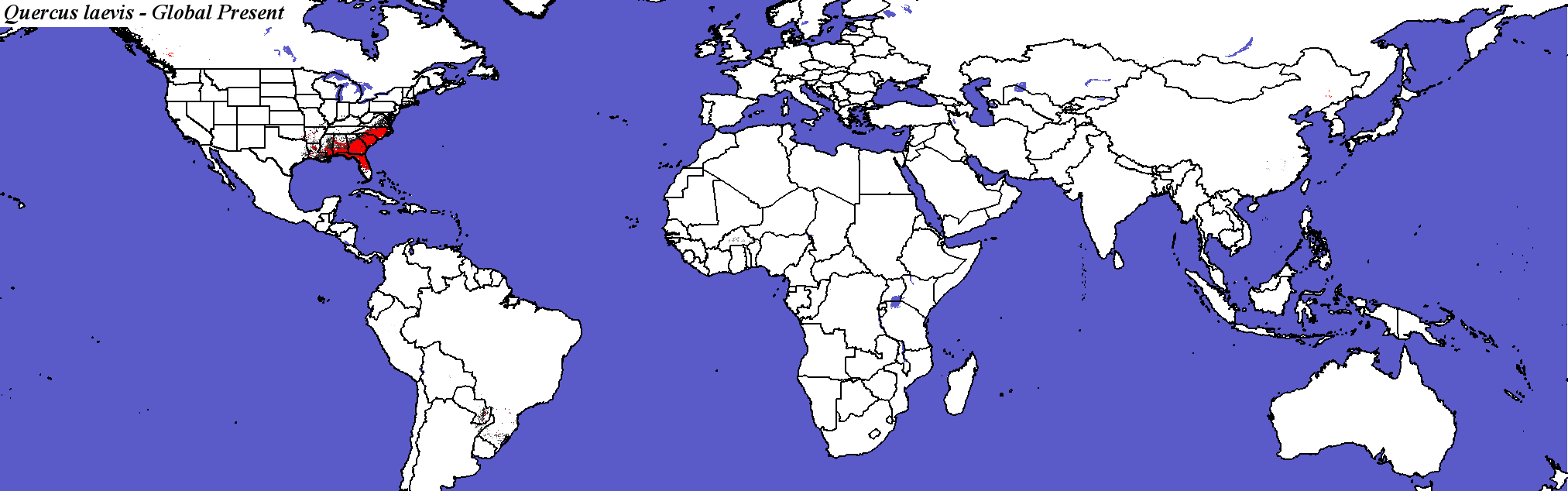

Quercus laevis - Global

PCM - Parallel Climate Model
Quercus_laevis_final.3.conus
Quercus_laevis_final.3.global

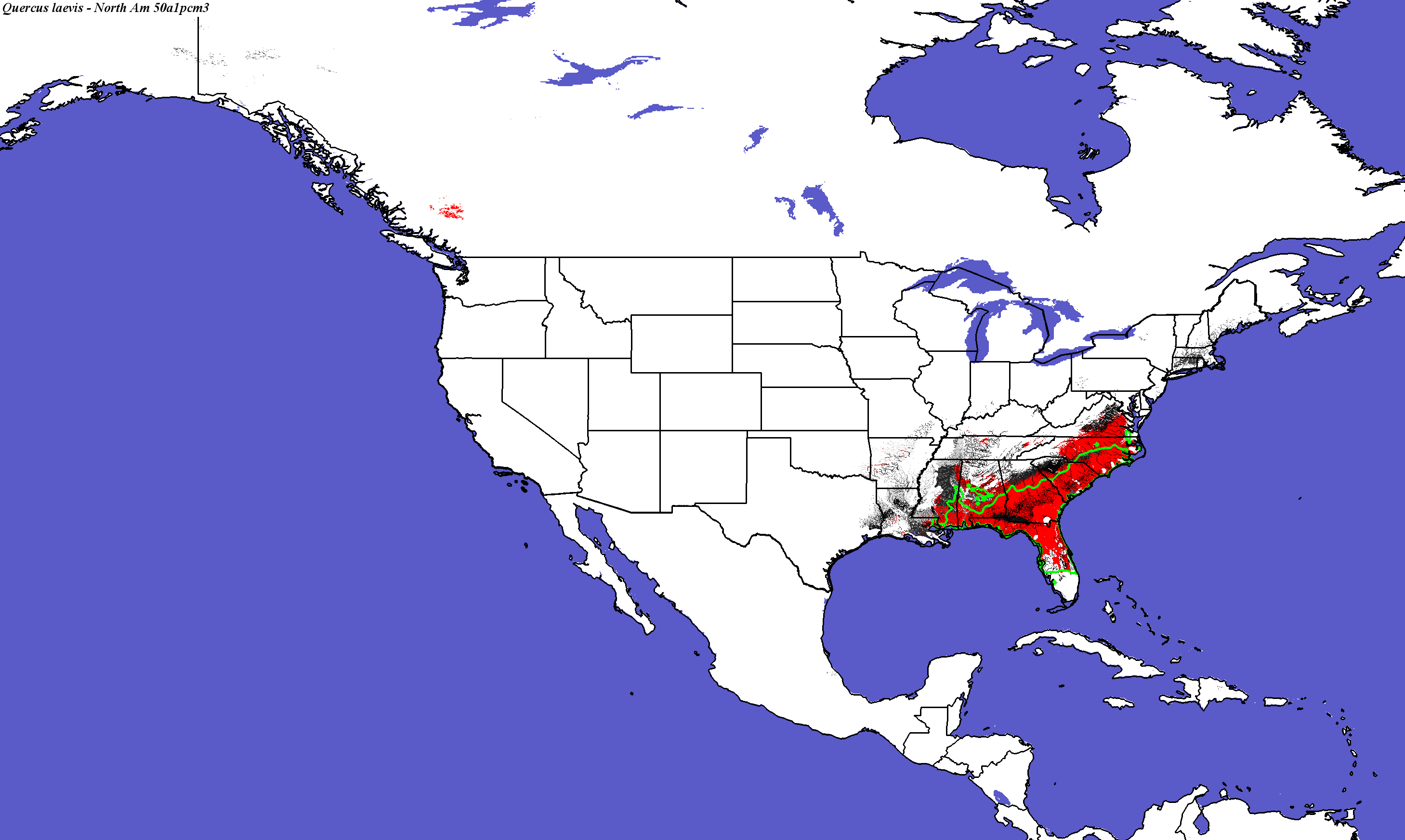

PCM, Scenario A1FI, 2050 - Quercus laevis - CONUS
PCM, Scenario A1FI, 2050 - Quercus laevis - Global
Quercus_laevis_final.3.conus
Quercus_laevis_final.3.global

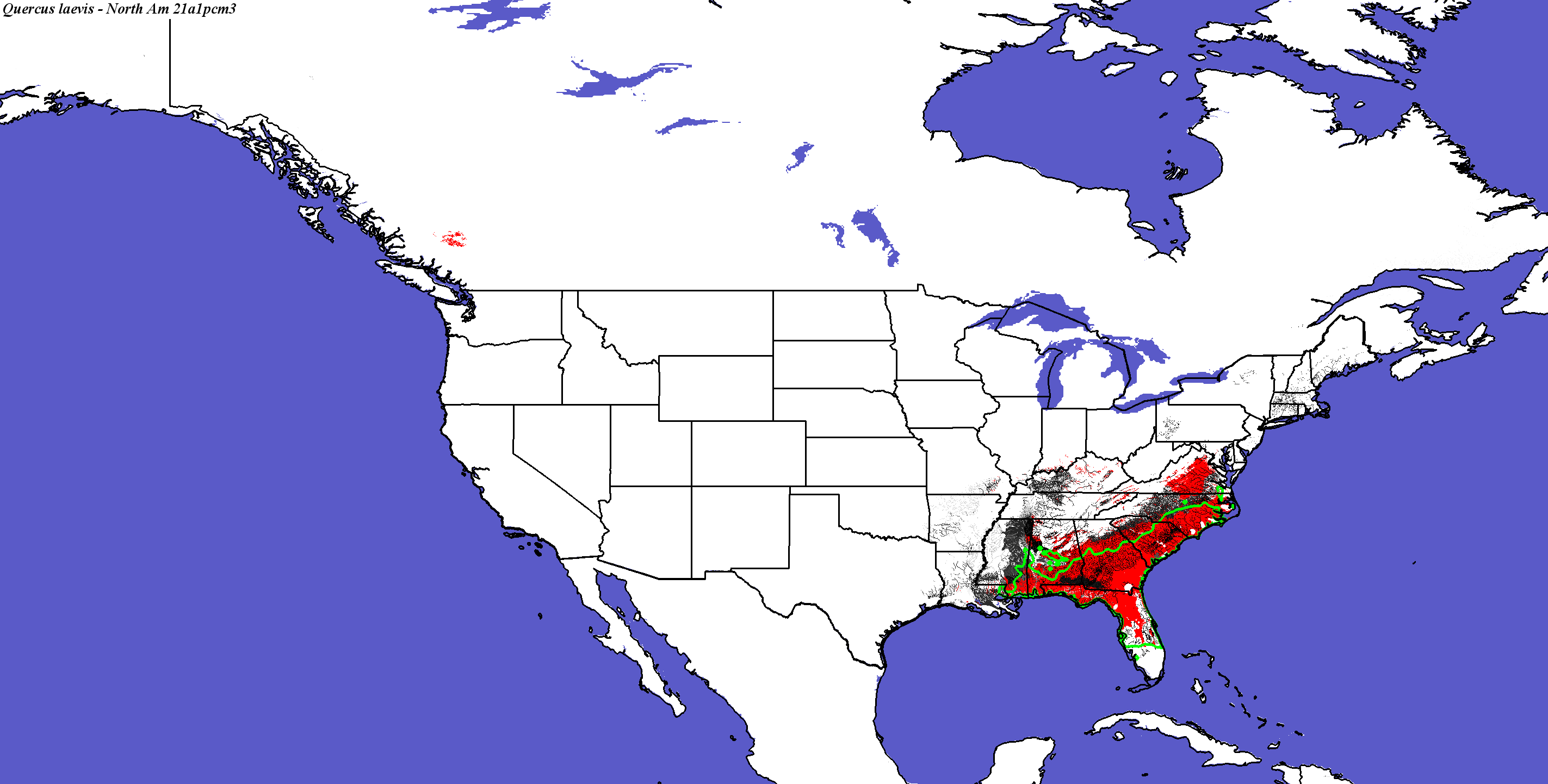

PCM, Scenario A1FI, 2100 - Quercus laevis - CONUS
Compare with Quercus laevis modeled for PCM A1FI in 2100 by Iverson and Prasad

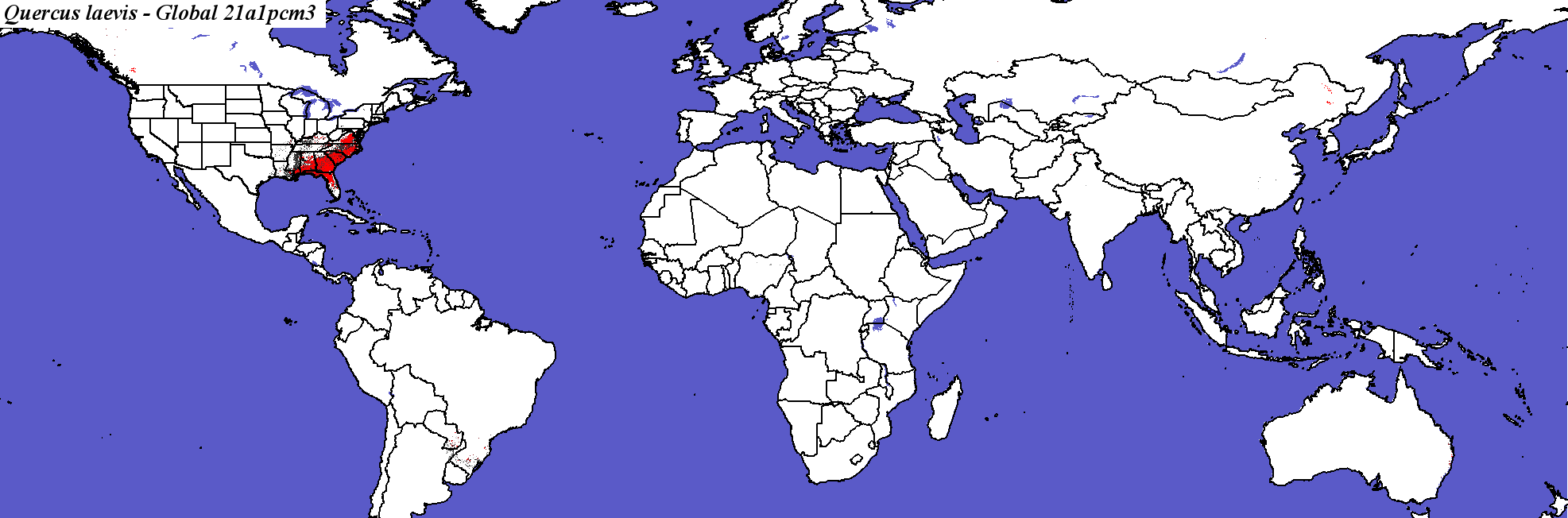

PCM, Scenario A1FI, 2100 - Quercus laevis - Global

Quercus_laevis_final.3.conus
Quercus_laevis_final.3.global
PCM, Scenario B1, 2050 - Quercus laevis - CONUS

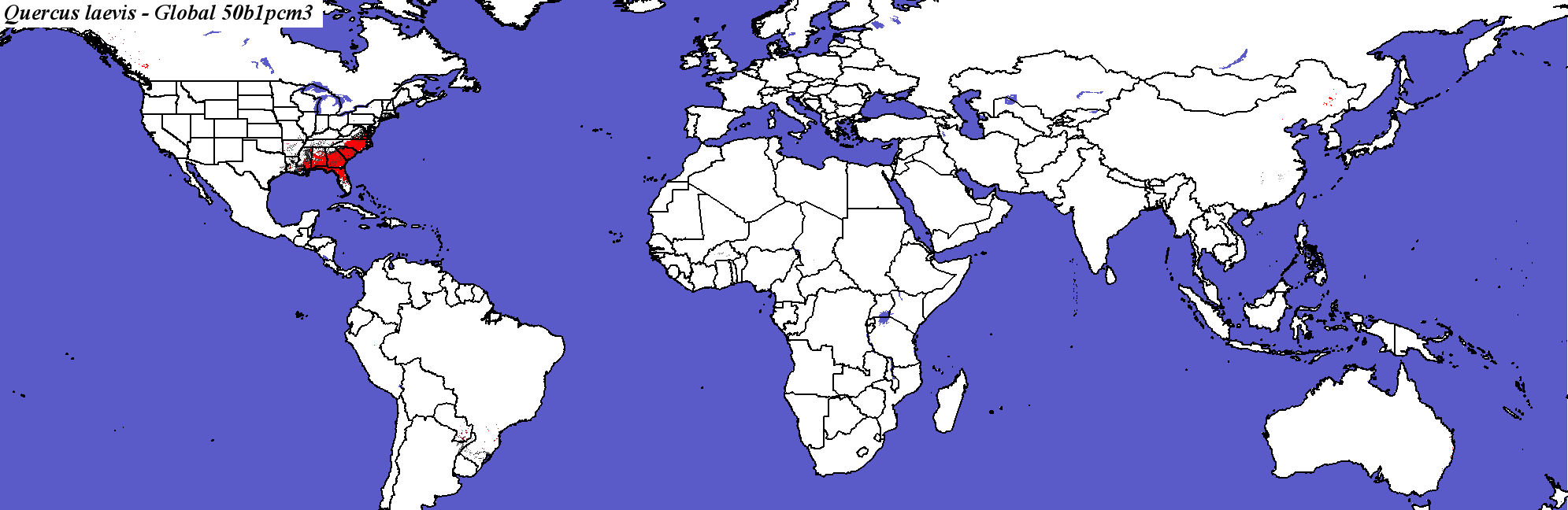

PCM, Scenario B1, 2050 - Quercus laevis - Global
Quercus_laevis_final.3.conus
Quercus_laevis_final.3.global
PCM, Scenario B1, 2100 - Quercus laevis - CONUS
Compare with Quercus laevis modeled for PCM B1 in 2100 by Iverson and Prasad
PCM, Scenario B1, 2100 - Quercus laevis - Global

Hadley Climate Model
Quercus_laevis_final.3.conus
Quercus_laevis_final.3.global

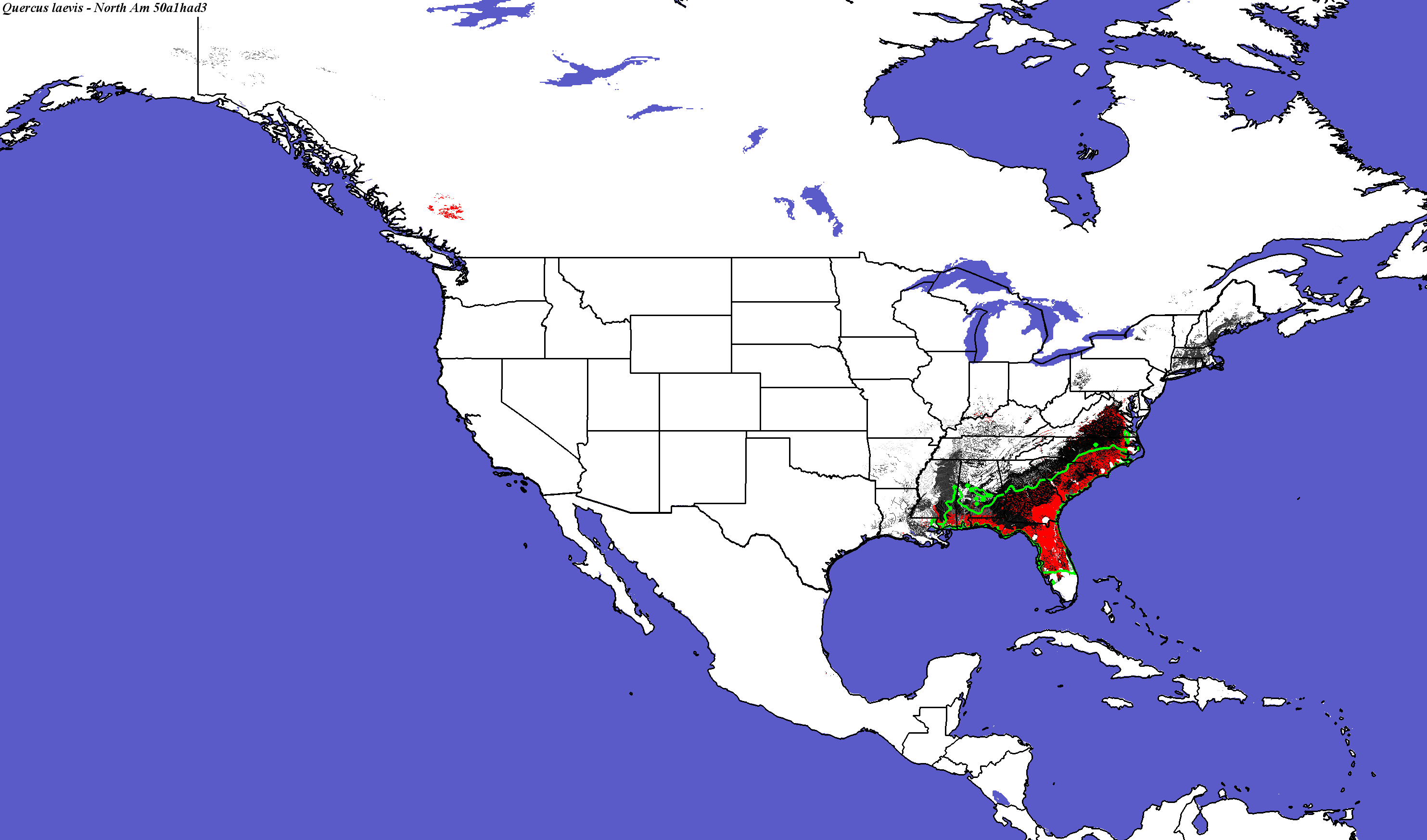

Hadley, Scenario A1FI, 2050 - Quercus laevis - CONUS
Quercus laevis not modeled by Crookston and Rehfeldt
Hadley, Scenario A1FI, 2050 - Quercus laevis - Global
Quercus_laevis_final.3.conus
Quercus_laevis_final.3.global.

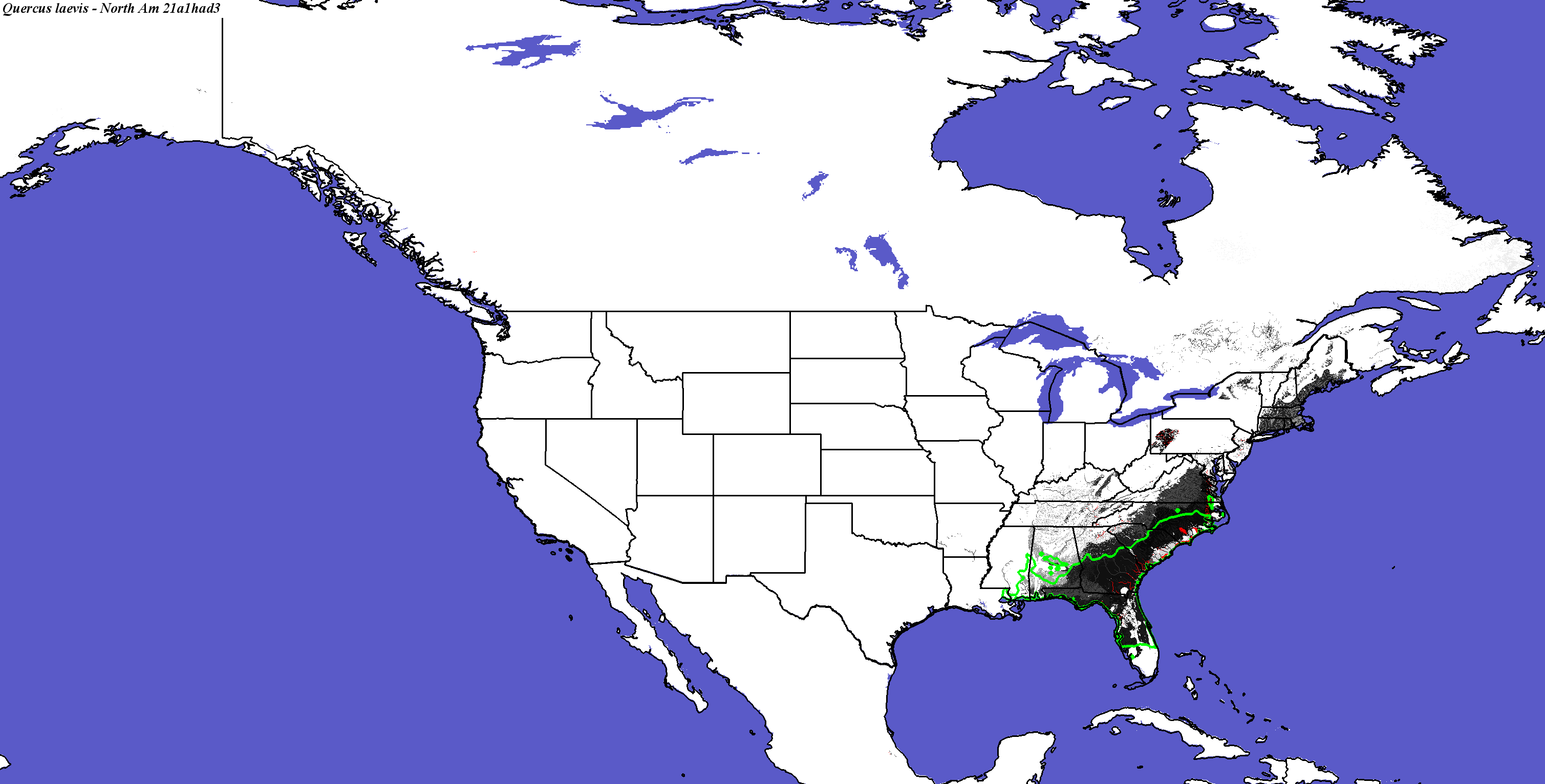

Hadley, Scenario A1FI, 2100 - Quercus laevis - CONUS
Compare with Quercus laevis modeled for Hadley A1FI in 2100 by Iverson and Prasad
Quercus laevis not modeled by Crookston and Rehfeldt
Quercus laevis not modeled by Coops and Waring

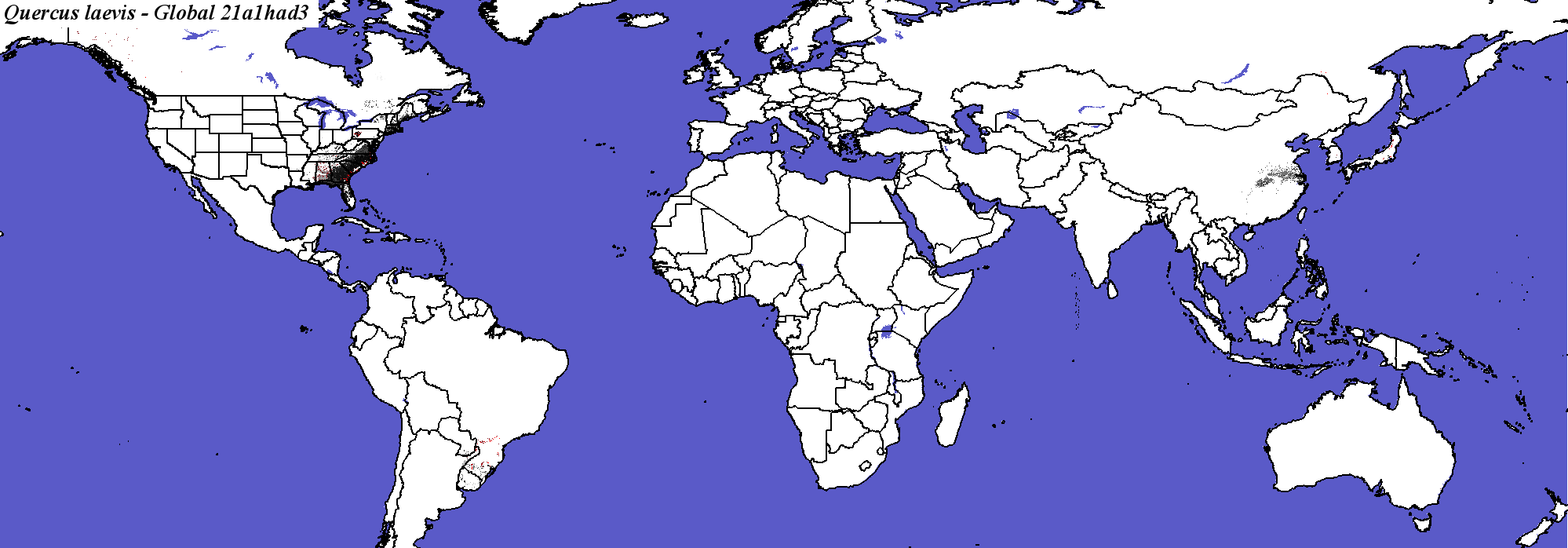

Hadley, Scenario A1FI, 2100 - Quercus laevis - Global

Quercus_laevis_final.3.conus
Quercus_laevis_final.3.global.

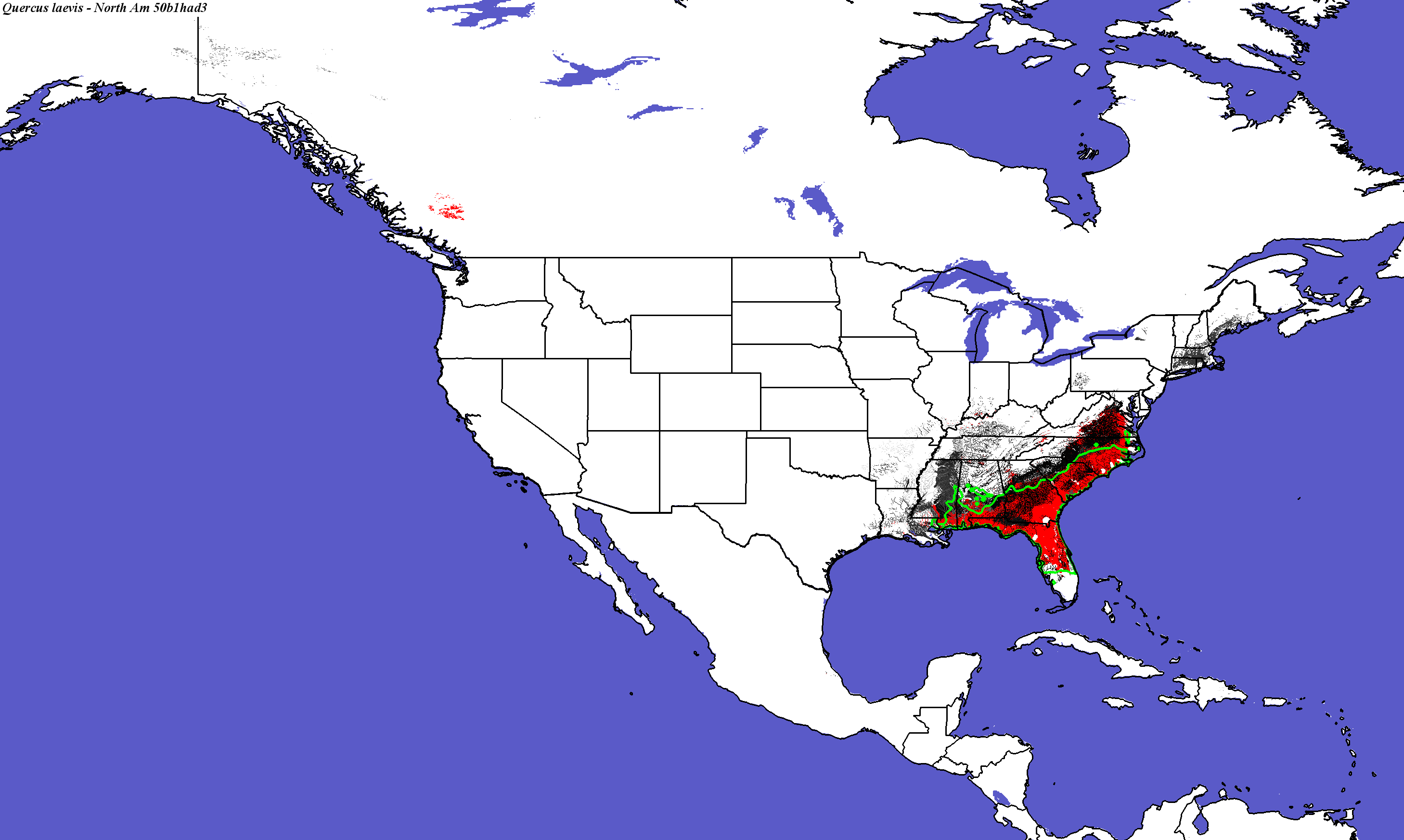

Hadley, Scenario B1, 2050 - Quercus laevis - CONUS
Quercus laevis not modeled by Crookston and Rehfeldt
Quercus laevis not modeled by Coops and Waring
Hadley, Scenario B1, 2050 - Quercus laevis - Global
Quercus_laevis_final.3.conus
Quercus_laevis_final.3.global
Hadley, Scenario B1, 2100 - Quercus laevis - CONUS
Compare with Quercus laevis modeled for Hadley B1 in 2100 by Iverson and Prasad
Quercus laevis not modeled by Crookston and Rehfeldt

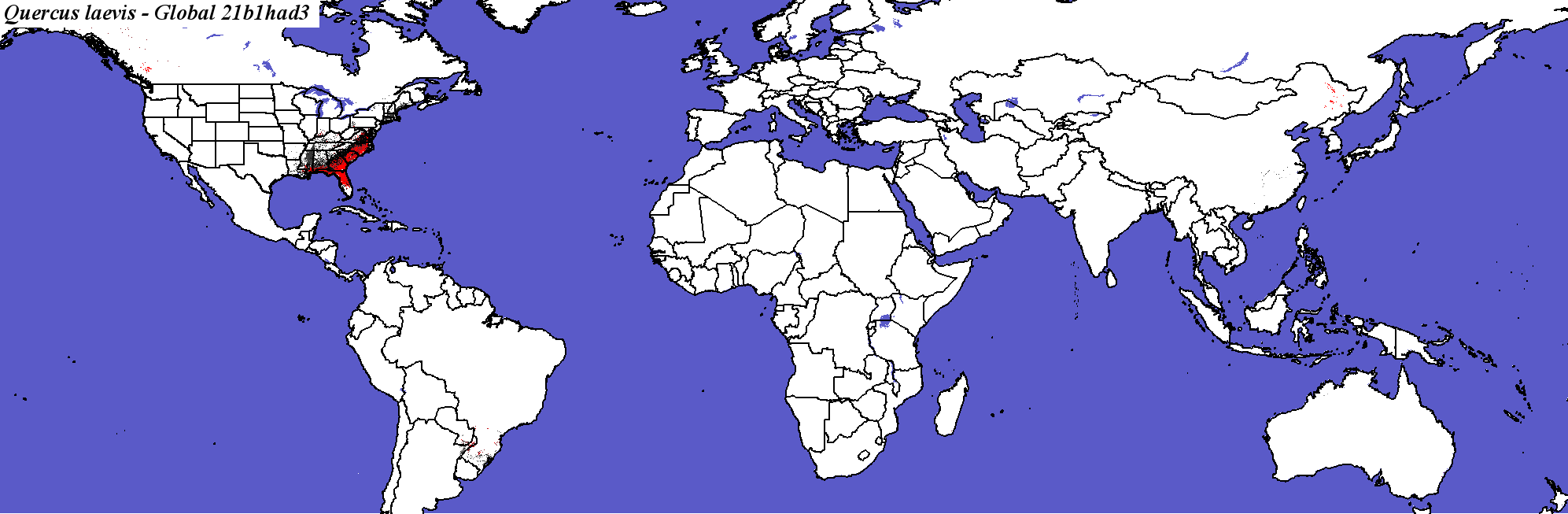

Hadley, Scenario B1, 2100 - Quercus laevis - Global
Range Shift and Summary Statistics for Hadley, Scenario B1, 2050
Quercus_laevis_final.elev

Number of Suitable Ecoregions (Niche Breadth)

40

Percent Rank of Generalist Niche Breadth of all ForeCASTS species

45.2055

Area in Present Suitable Range (in km2)

350729

Area in Future Suitable Range (Had B1 2050, in km2)

242951

Area of Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050, in km2)

205828

Percent Overlap of Future Suitable Range with
Present Suitable Range (Had B1 2050)

58.6800

Percent Rank of Largest Proportion of Overlap of all ForeCASTS species

28.2192

Percent Change in Area of Suitable Range (Had B1 2050)

-30.7200

Percent Rank of Largest Percent Change in Suitable Area of all ForeCASTS species

52.3288

Mean Non-Zero Fine Minimum Required Movement Distance
(Had B1 2050, in km)

15982.8 +/- 48287.9

Percent Rank of Longest Fine MRM Distance of all ForeCASTS species

45.3425

Mean Non-Zero Coarse Minimum Required Movement Distance
(Had B1 2050, in map cells)

5.92543 +/- 16.9094

Percent Rank of Longest Coarse MRM Distance of all ForeCASTS species

58.0822

Mean Non-Zero Coarse Optimum Required Movement Distance
(Had B1 2050, in map cells)

208.717 +/- 723.694

Percent Rank of Longest Coarse ORM Distance of all ForeCASTS species

26.0274

Area of Present Range that has No Home in the Future
(Had B1 2050, in map cells)

21594

Proportion of Present Range that has No Home in the Future
(Had B1 2050, percent)

6.1500

Percent Rank of Largest Proportion with No Home of all ForeCASTS species

19.589

Area of Present Range that is already Home in the Future
(Had B1 2050, in map cells)

139241

Proportion of Present Range that is already Home in the Future
(Had B1 2050, percent)

39.7000

Percent Rank of Largest Proportion Already Home of all ForeCASTS species

21.3699

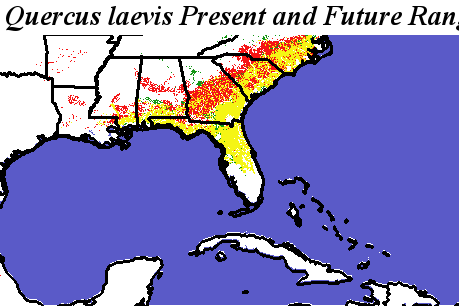

Present and Future Ranges - Hadley, Scenario B1, 2050 - Quercus laevis Quercus laevis - Range Change Statistics
Fine Minimum Required Movement (MRM) Distance and Direction for Hadley, Scenario B1, 2050

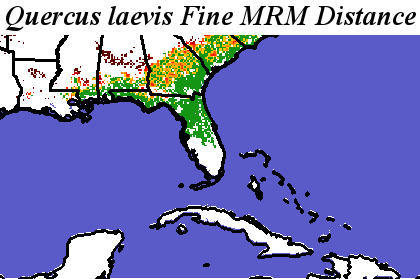

Quercus_laevis_final.elev Fine MRM Distance

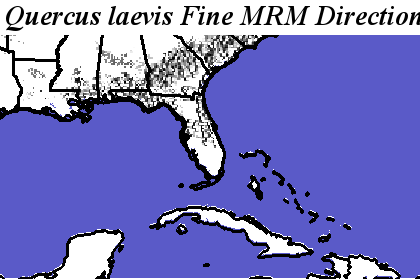

Quercus_laevis_final.elev Fine MRM Direction
Fine Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus laevis Fine Minimum Required Movement (MRM) Direction - Hadley, Scenario B1, 2100 - Quercus laevis
Coarse Minimum Required Movement (MRM) and Optimum Required Movement (ORM) Distance for Hadley, Scenario B1, 2050
Quercus_laevis_final.elev Coarse MRM Distance
Quercus_laevis_final.elev Coarse ORM Distance
Coarse Minimum Required Movement (MRM) Distance - Hadley, Scenario B1, 2100 - Quercus laevis Coarse Optimum Required Movement (ORM) Distance - Hadley, Scenario B1, 2100 - Quercus laevis
